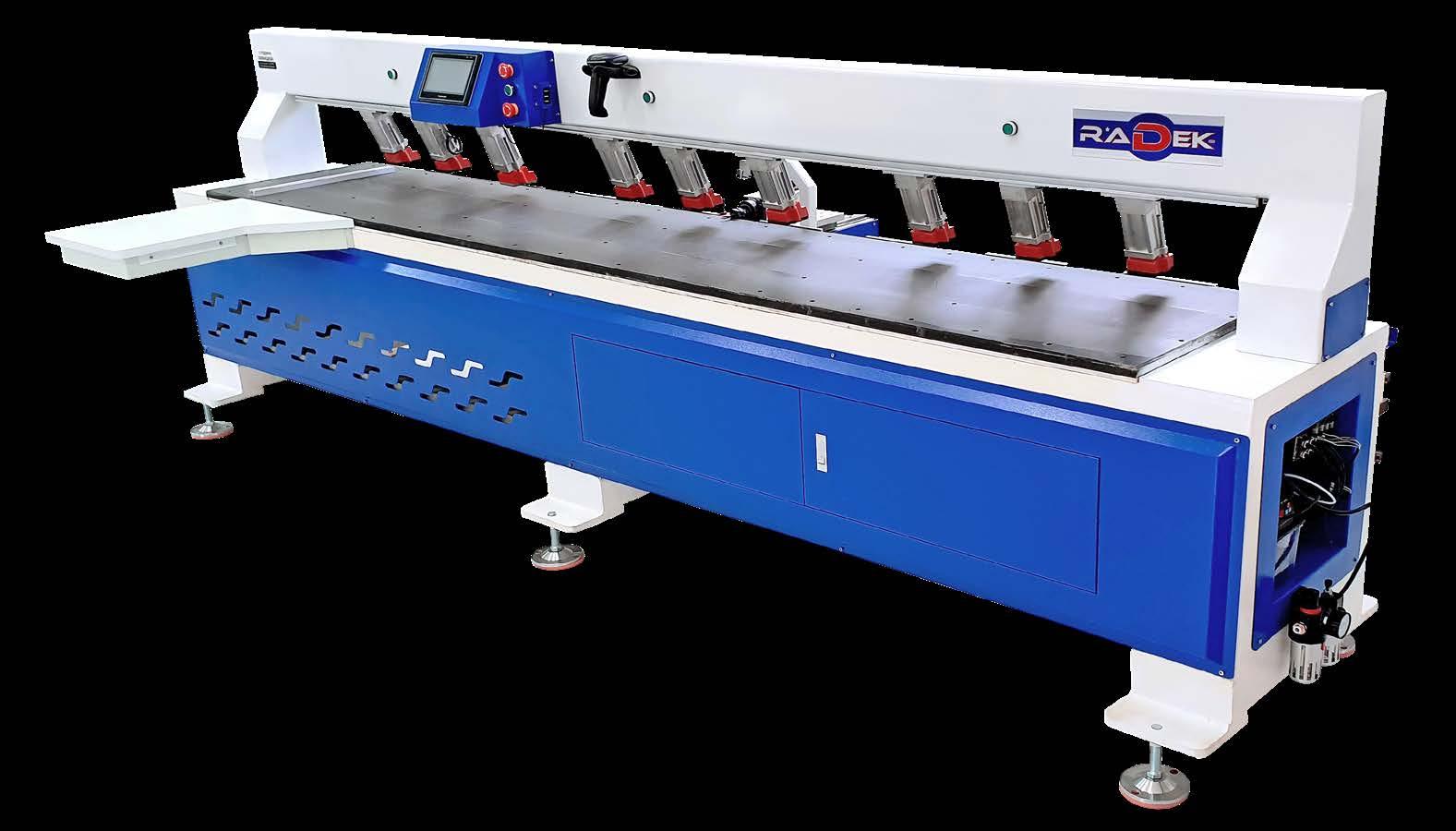

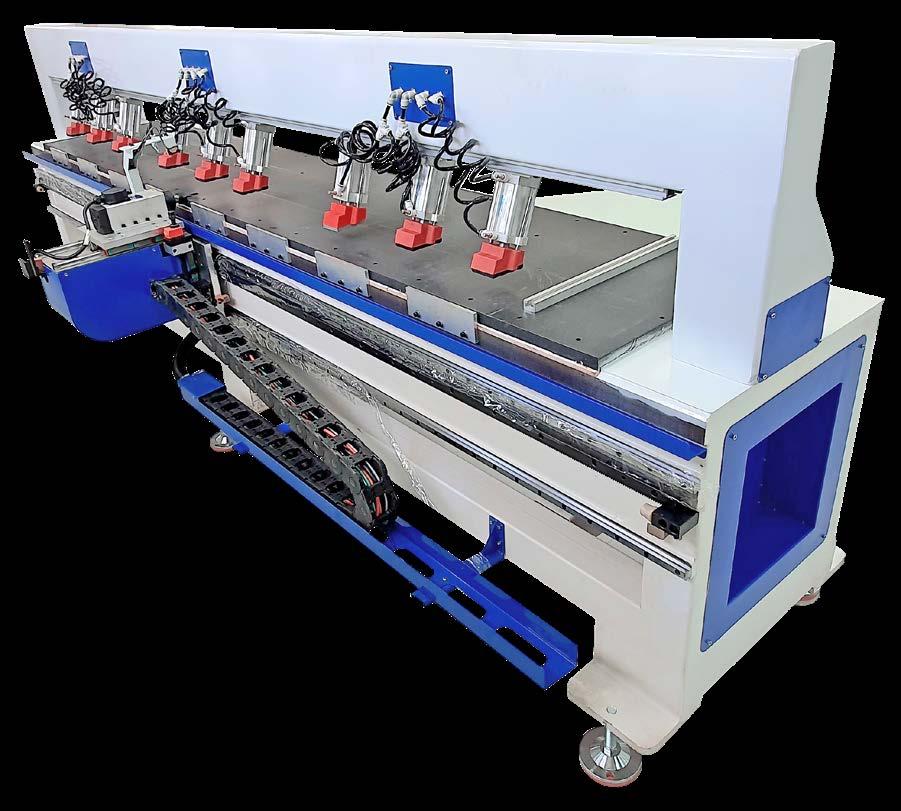

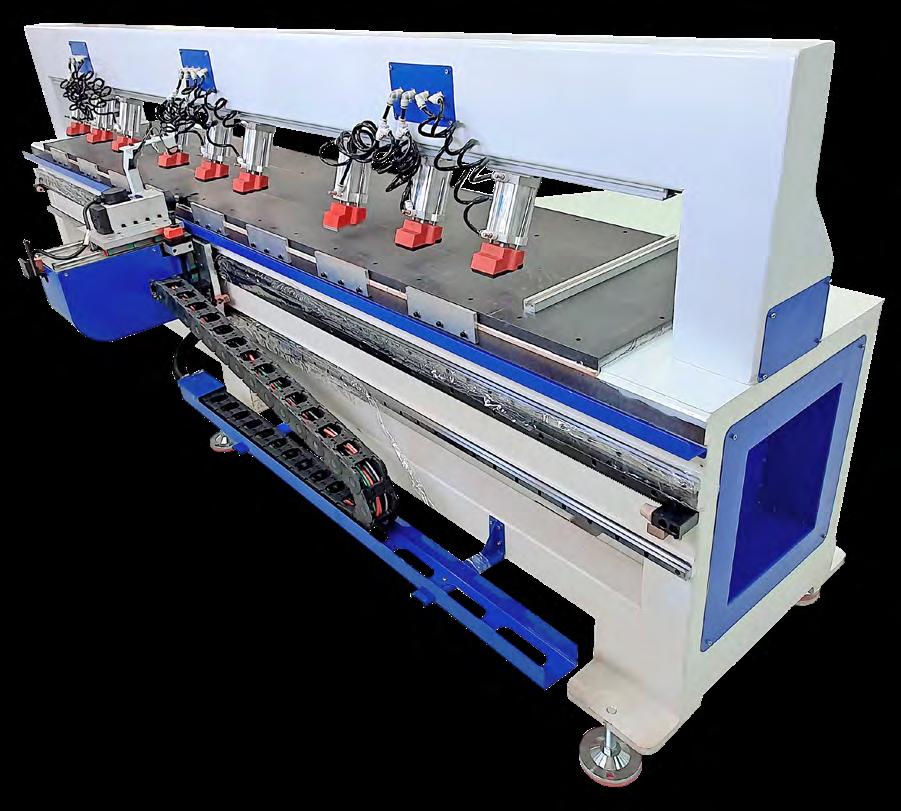

CNC DRILLING MACHINE
A high-precision CNC drilling machine designed for horizontal drilling, capable of automatically identifying workpiece codes via wireless barcode scanning. Workpieces can be placed in three zones and the machine will automatically scan and process them.
CONSTRUCTION
Robust construction ensures high rigidity and excellent resistance to static and dynamic loads. Manufactured using high-precision CNC machining centers for metal, guaranteeing precision, quality and machine longevity.
MOTORS AND DRIVERS
High-performance servo motors quickly and accurately execute control commands for precise, fast and high-quality drilling.

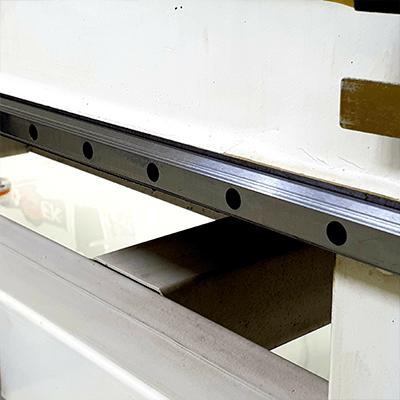

Axis movement occurs via linear guides and a rackand-pinion system, ensuring smooth operation, low noise and increased durability. MOVEMENT
Made of special wear-resistant plastic for durability.

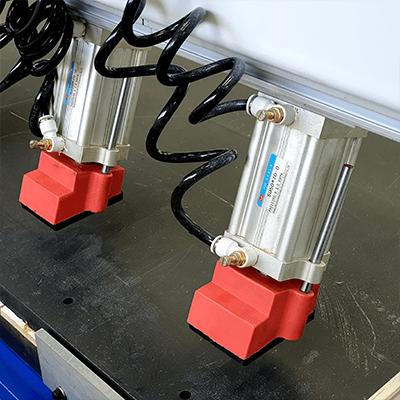

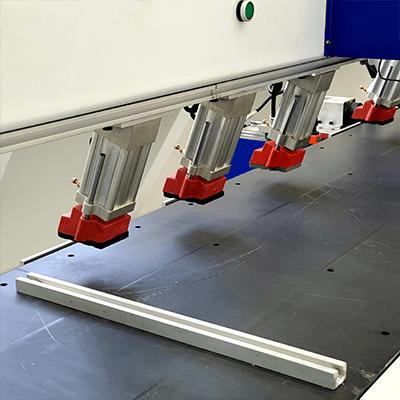

CLAMPS
Three clamping zones with three clamps each ensure efficient and stable workpiece fixation without slipping.
Working area
Movement range
Movement speed
Barcode reader
Main motor power
Main motor speed
Number of drilling motors
Number of pneumatic presses
Machine dimensions
Packing dimensions
Weight
1200x2440mm
2450x50mm
60m/min
Included 3.5kW
18.000rpm
х1 (optional х2)
х9 (3 positions х3)
3600x1500x1600mm
3500x1200x1500mm
800kg

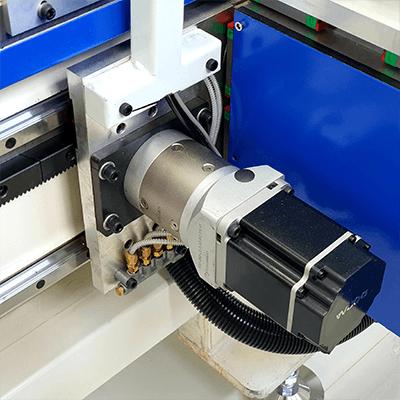

SERVO

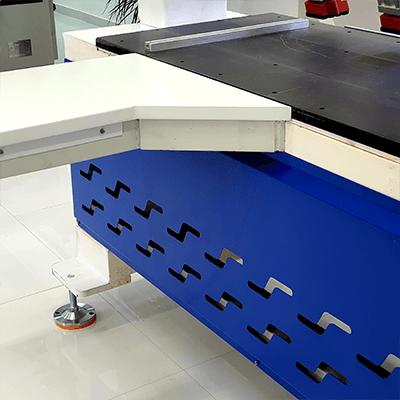

WORKING TABLE
