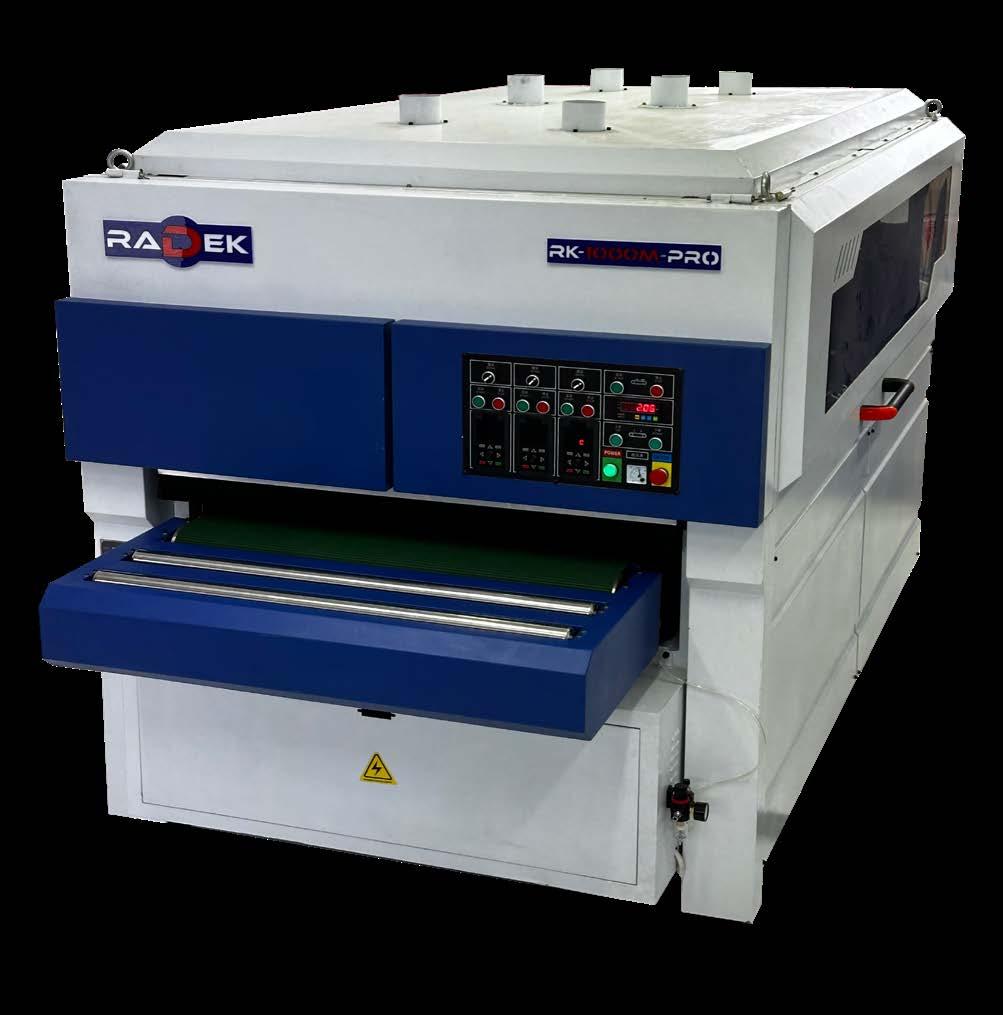

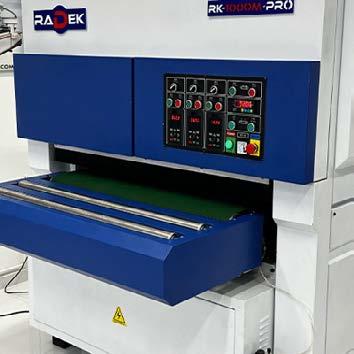

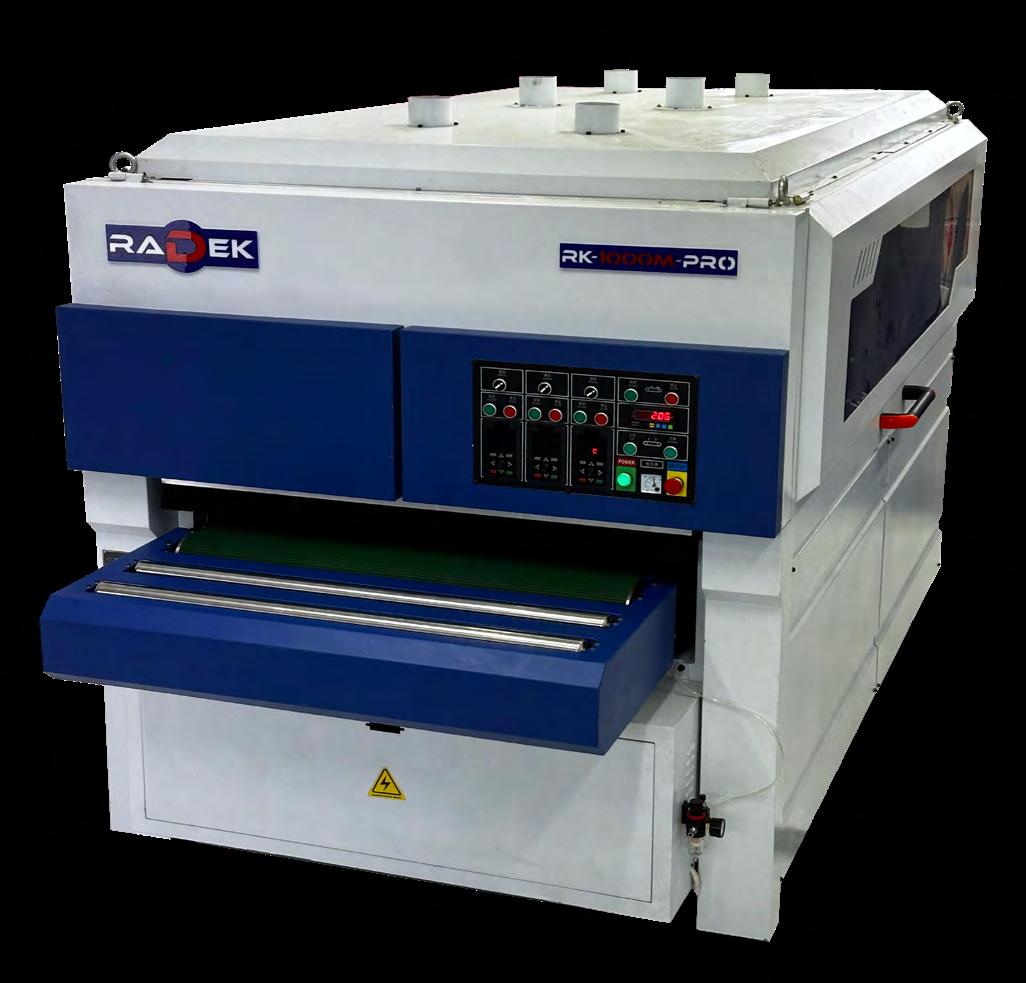

AUTOMATIC BRUSH SANDING MACHINE
CAPABILITIES

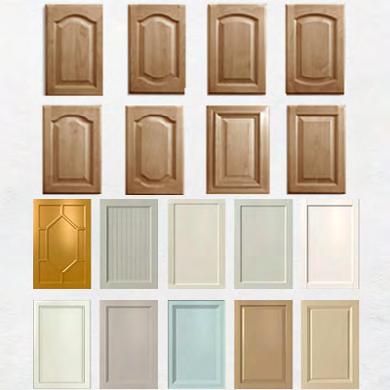

With the brush machine, you gain numerous processing options such as sanding raw MDF, sanding MDF with a base coat (primer), sanding panels of irregular shapes, 2D and 3D shapes and sanding solid wood products.
The automatic brushing machine is one of the most popular machines on the market due to its ease of use, lack of human error and ability to increase your sanding capacity by up to 10 times. It is essential for processing sheet materials and wood, enabling the sanding of irregularly shaped panels (rustic, channels, décor, 2D, 3D shapes, etc.).Whether you are making kitchens from painted MDF, room doors, decorative elements, or solid wood boards, the automatic brushing machine is the ideal choice for you.
Grinding is a painstaking process and a stage in the work that no worker wants, that’s why this machine is necessary in all industries that will allow you to increase the capacity and reduce the human factor in the processing process.

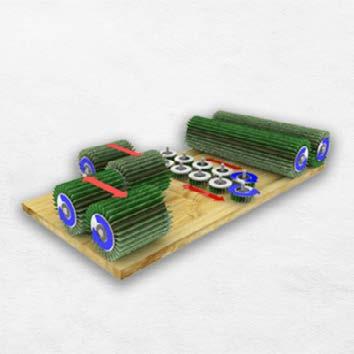

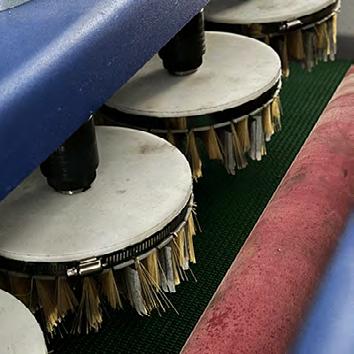

It consists of 3 zones with horizontal, circular and long brushes, each of which is independently adjusted according to the type of material being processed. Each zone has two rows of brushes with different rotations, left and right. All these advantages ensure top-notch processing and flawless finishing of every detail of the workpiece.
TRANSPORT
Material movement is enabled by a high-quality rubber belt and rubber rollers that stabilize the workpiece in two positions, ensuring smooth movement of the material without damage.

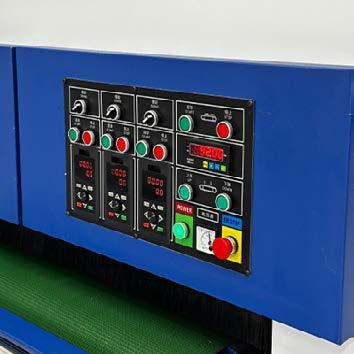

The control panel allows for the regulation of each zone separately, including turning on, adjusting speed and regulating oscillations. Additionally, it controls the activation of the conveyor belt and the processing height.

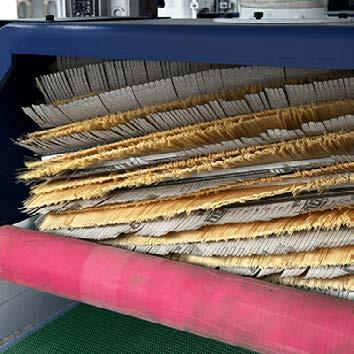

The sanding belts are divided into three zones: 7 horizontal brushes in the first zone, 9 circular brushes in the second zone and 2 long brushes in the third (final) zone. Depending on the type of material, the grit of the sanding belts is optional. The most compatible grit for various materials like MDF and wood is: in the first zone 240, in the second zone 320 and in the third zone 400.
Maximum working width
Maximum working lenght
Maximum working thickness
Motor power (horizontal brushes)
Motor power (circular brushes)
Motor power (long rollers)
Motor power (oscillation of horizontal brushes)
Motor power (oscillation of circular brushes)
Motor power (oscillation of long brushes)
Motor power (conveyor)
Reducer power
Total power
Number of horizontal rollers
Roller diameter for horizontal brushes
Number of circular rollers
Roller diameter for circular brushes
Number of long rollers
Roller diameter for long brushes
Processing speed
Number of sanding strips on horizontal roller
Number of sanding strips on circular rollers
Number of sanding strips on long rollers
Conveyor belt dimensions
Machine dimensions
Packing dimensions
Weight 260mm 9 180mm 2 300mm 6-30m/min 98 total 135 total 40 total 5970x1000mm
3950x1650x1900mm
4000x1750x2000mm 1650kg
ESSENTIAL MACHINE
PREMIUM PROCESSING
CONTROL PANEL
SANDING BELTS

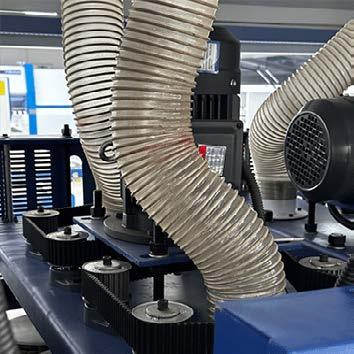

Six F100 dust extraction openings are placed at the top of the machine for efficient dust extraction. The machine also comes with internal flexible hose installations for dust extraction. DUST EXTRACTION
