FACADE FAMILY 1: LINEAR PANELS
GENERATIVE DIAGRAMS

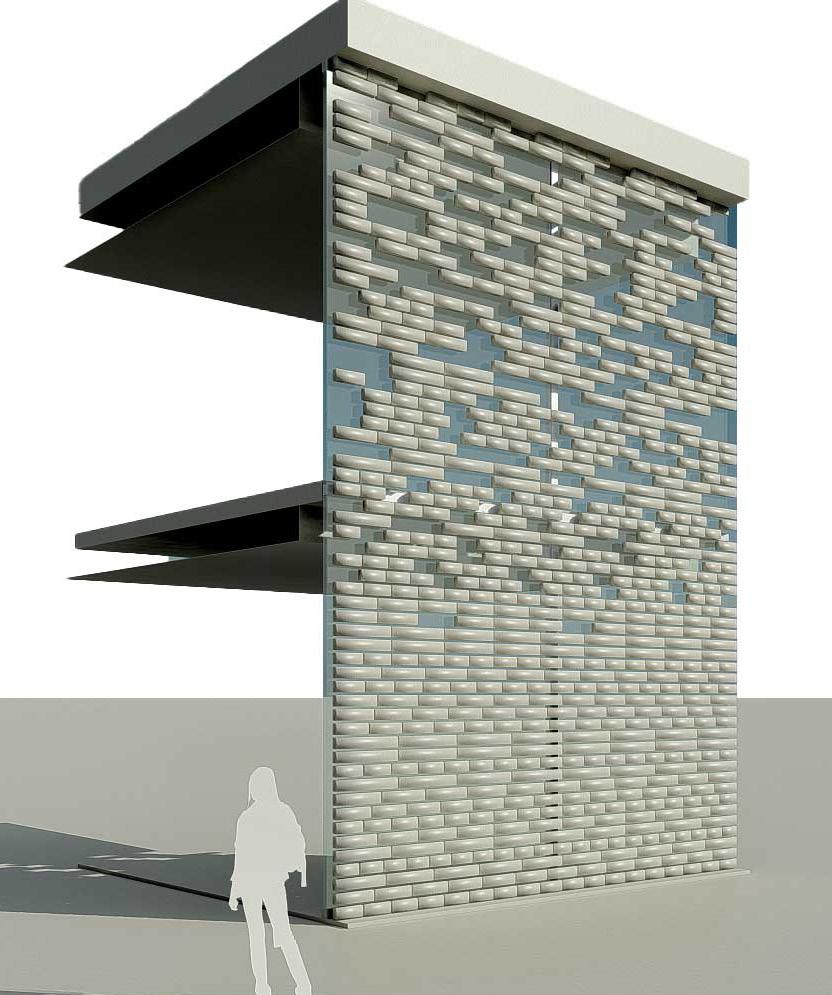

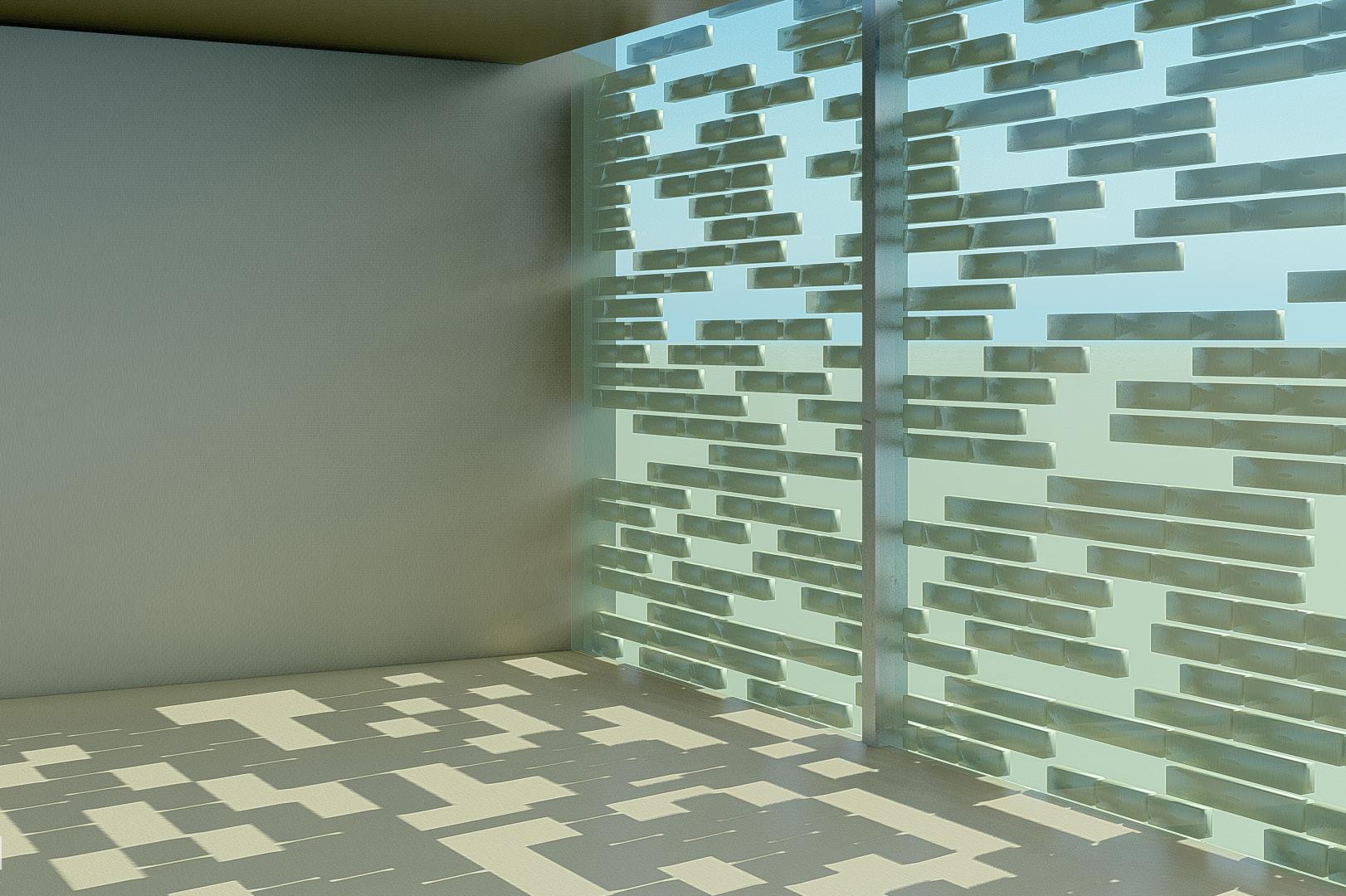

VERSION 1

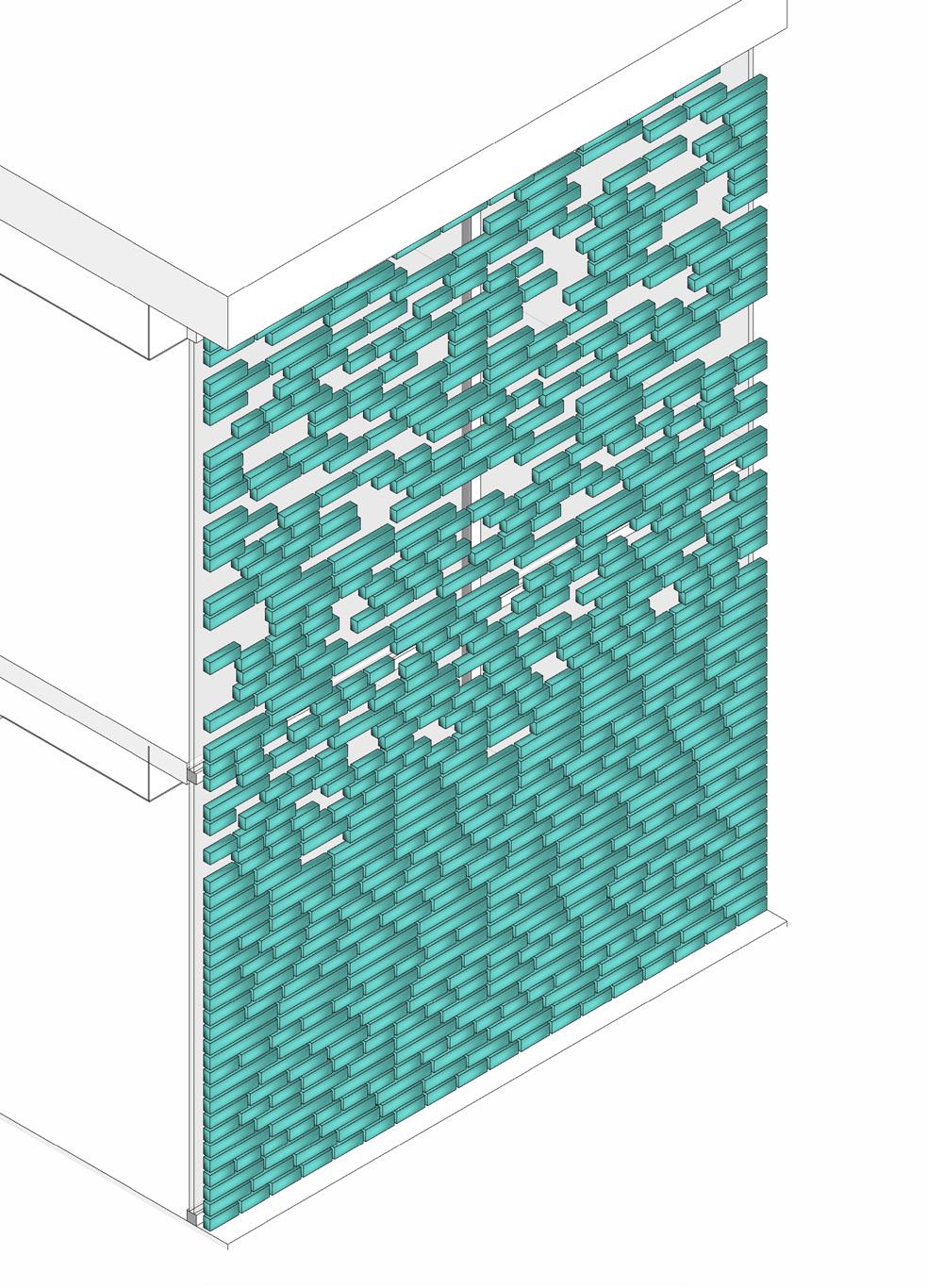

HORIZONTAL PANELS WITH OPENINGS THAT GRADIATE TOWARDS THE UPPER FLOOR
VERSION 2

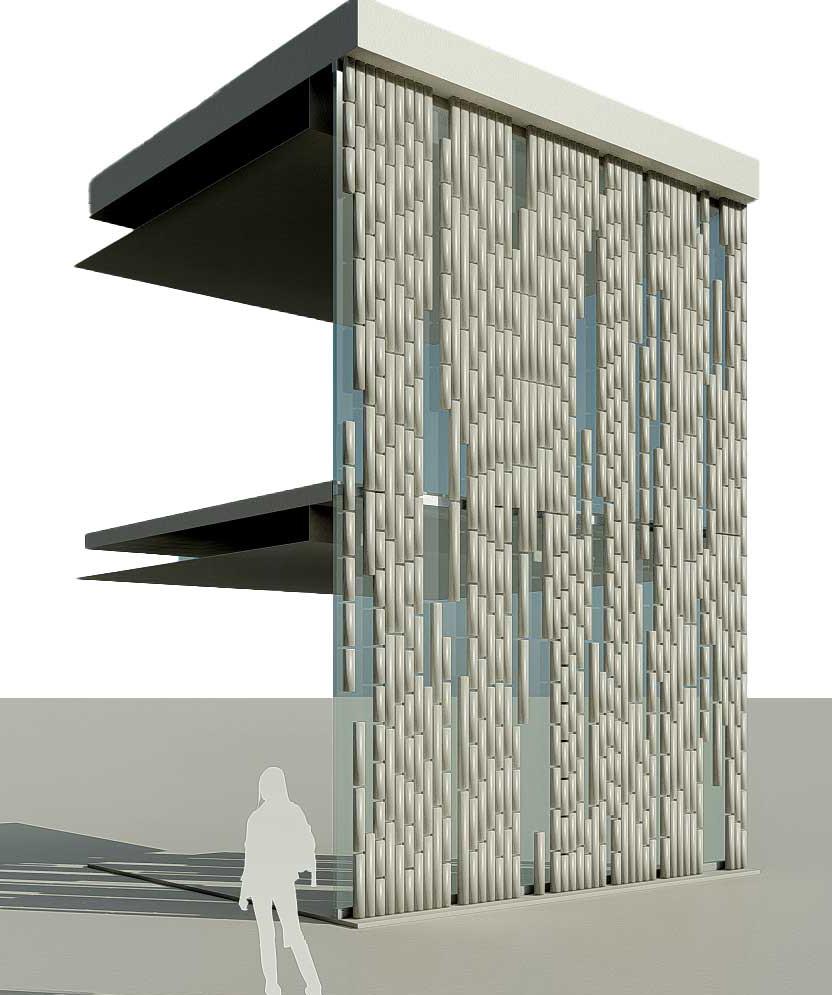

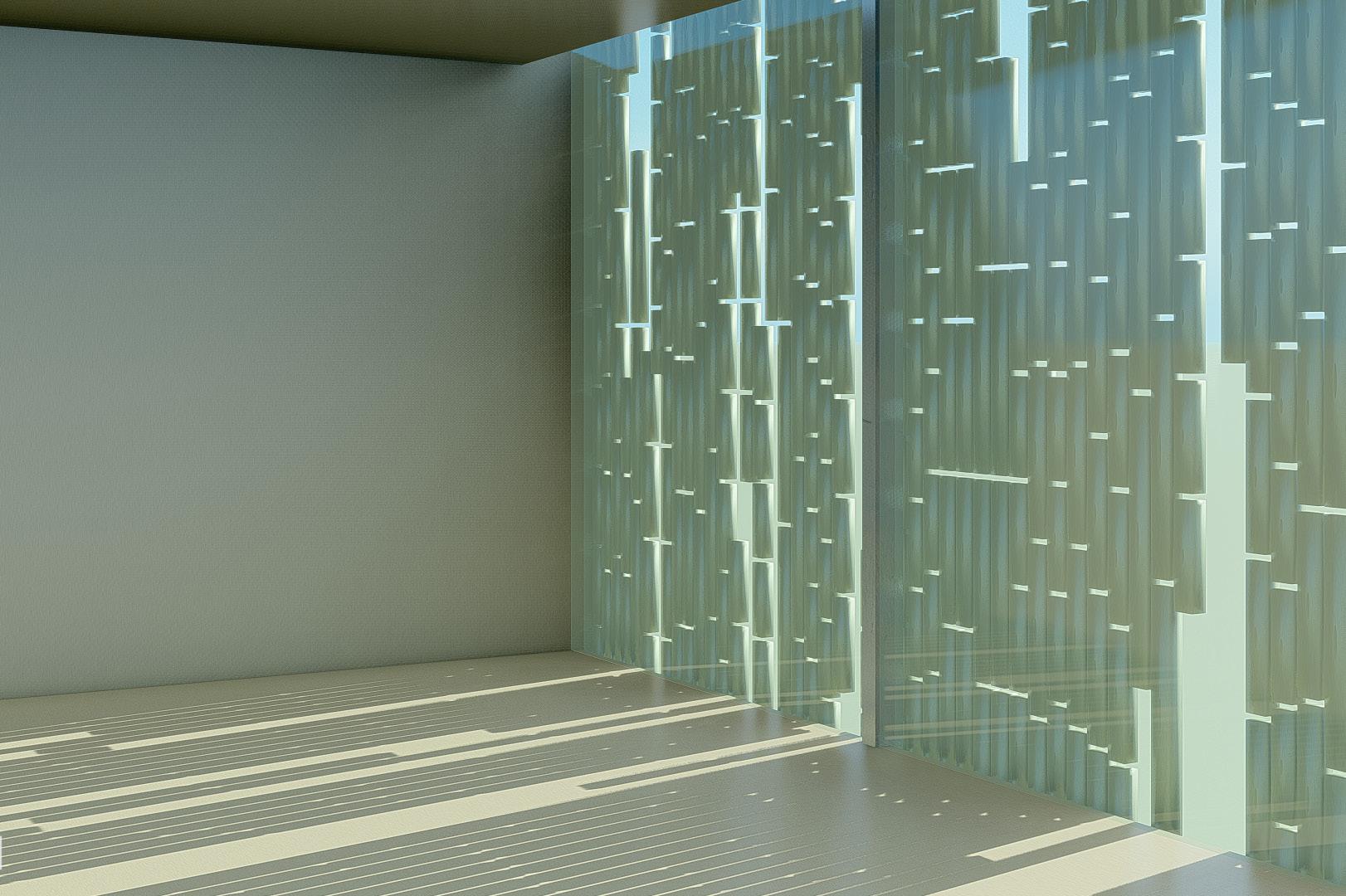

VERTICAL PANELS WITH OPENINGS THAT FOLLOW A GRID PATTERN
VERSION 3

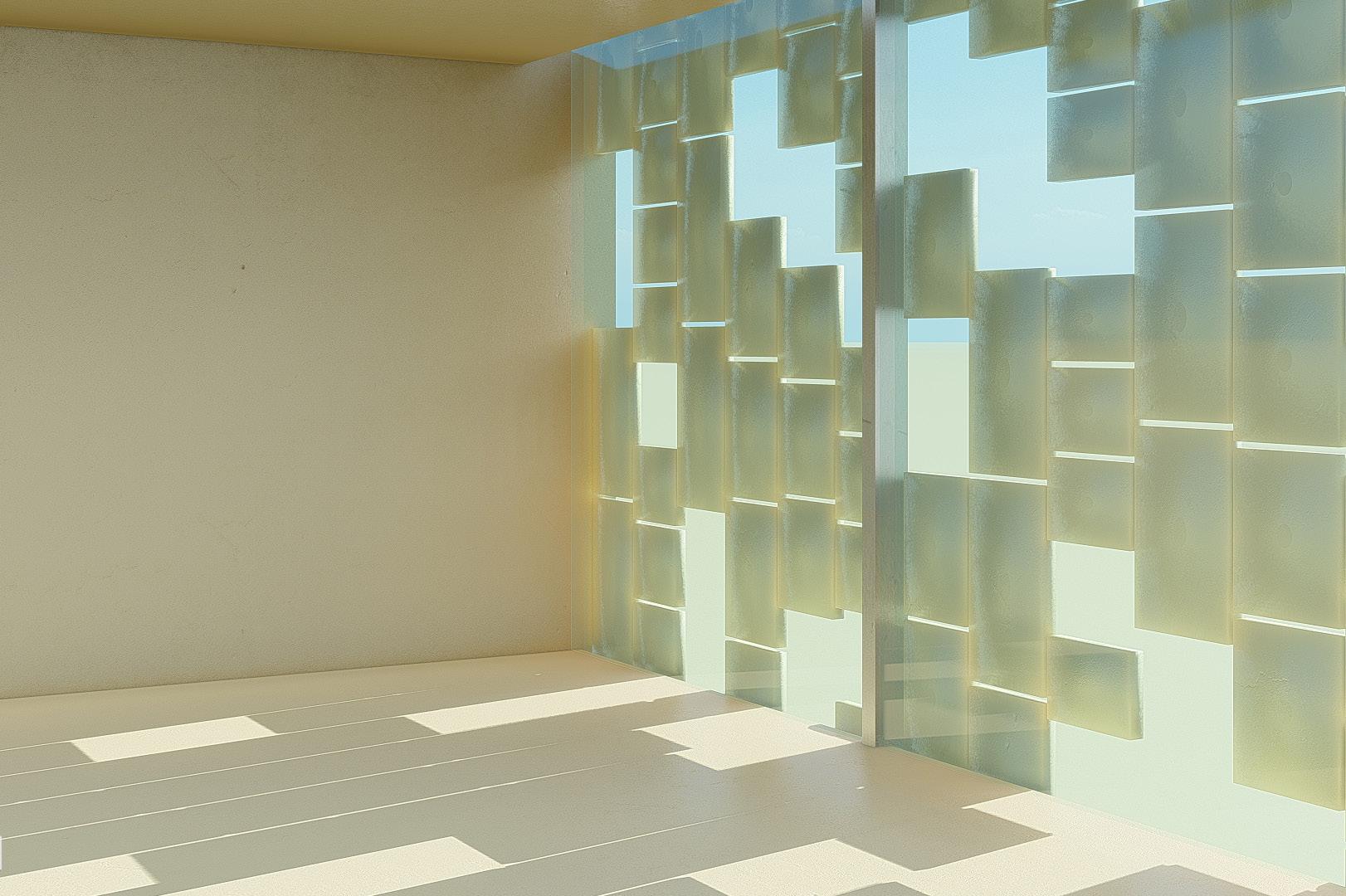

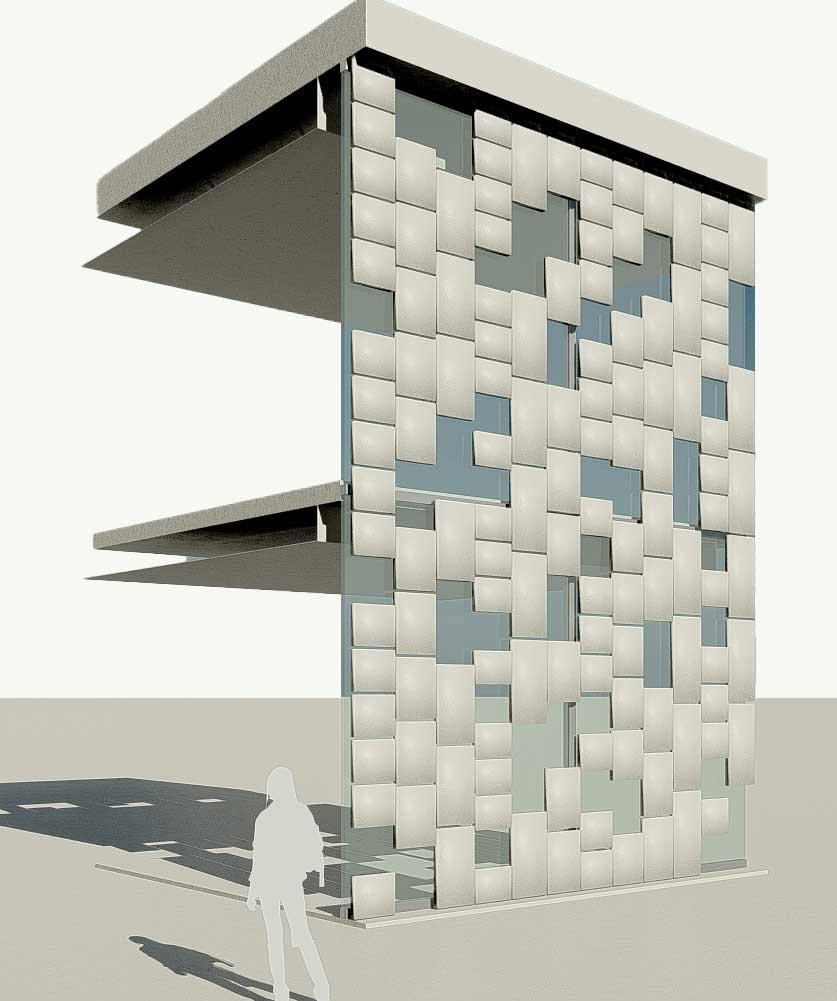

SQUARE PANELS WITH OPENINGS IN A RANDOM PATTERN

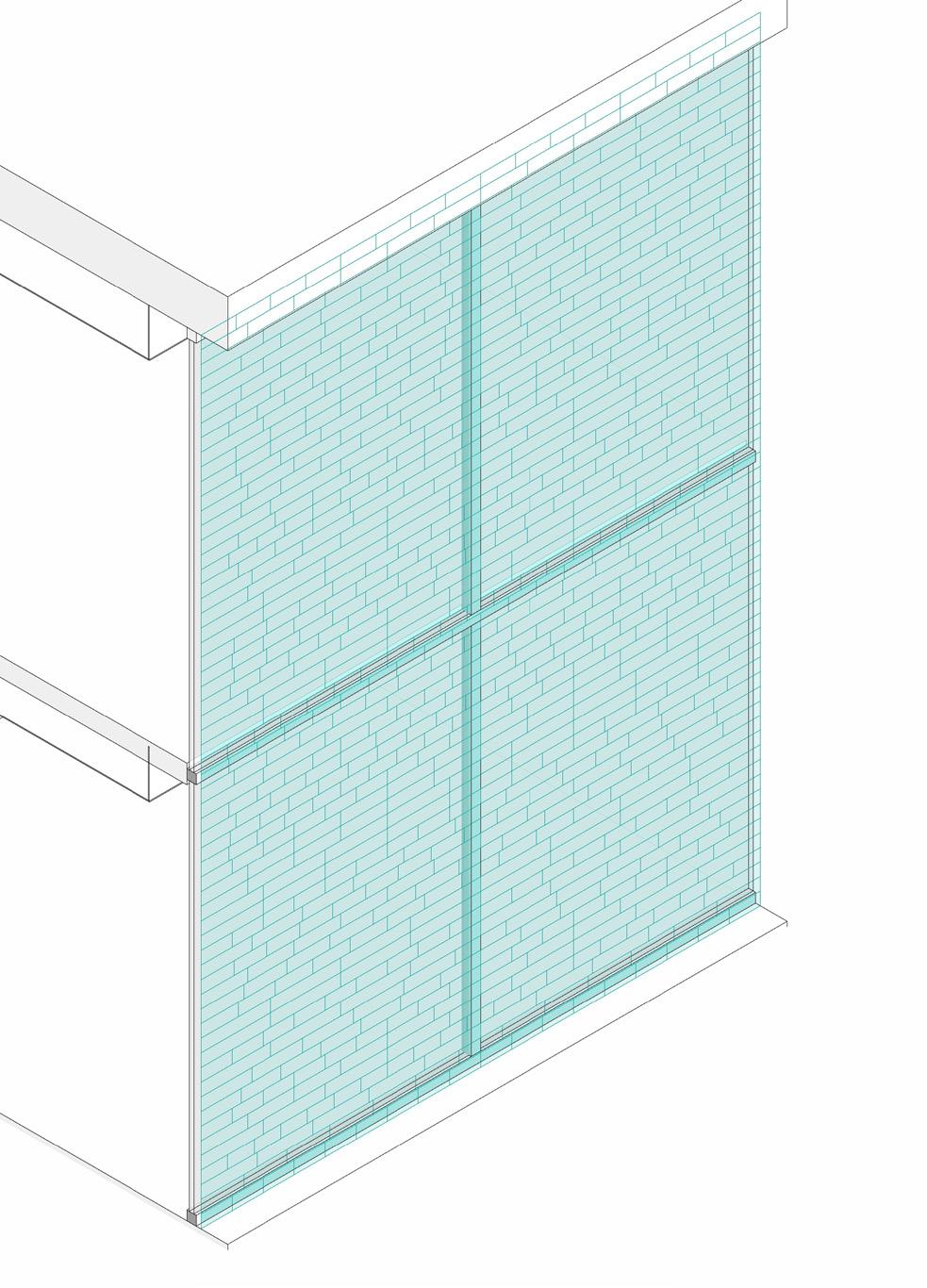

Isotrim for division in Primary orientation

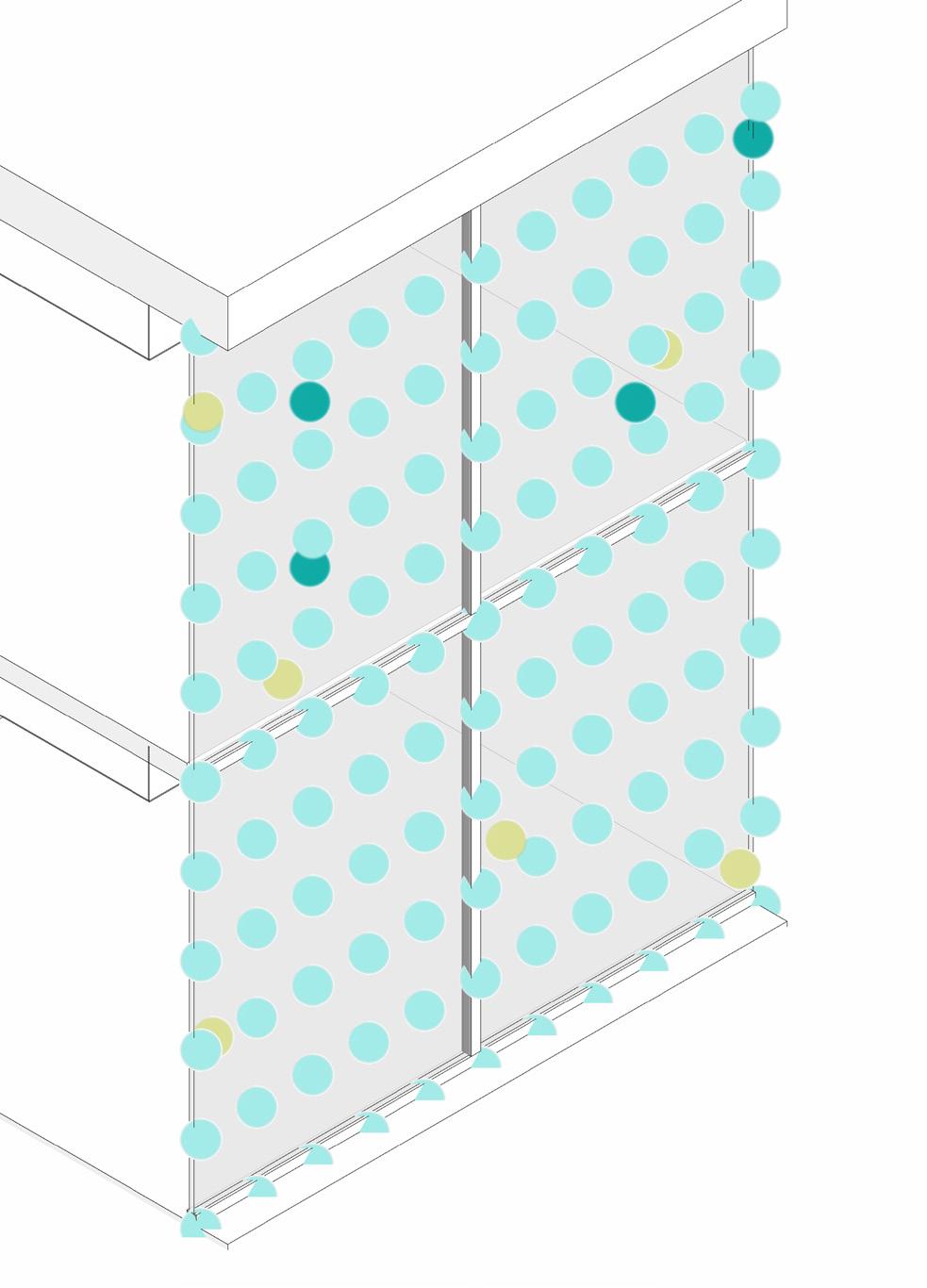

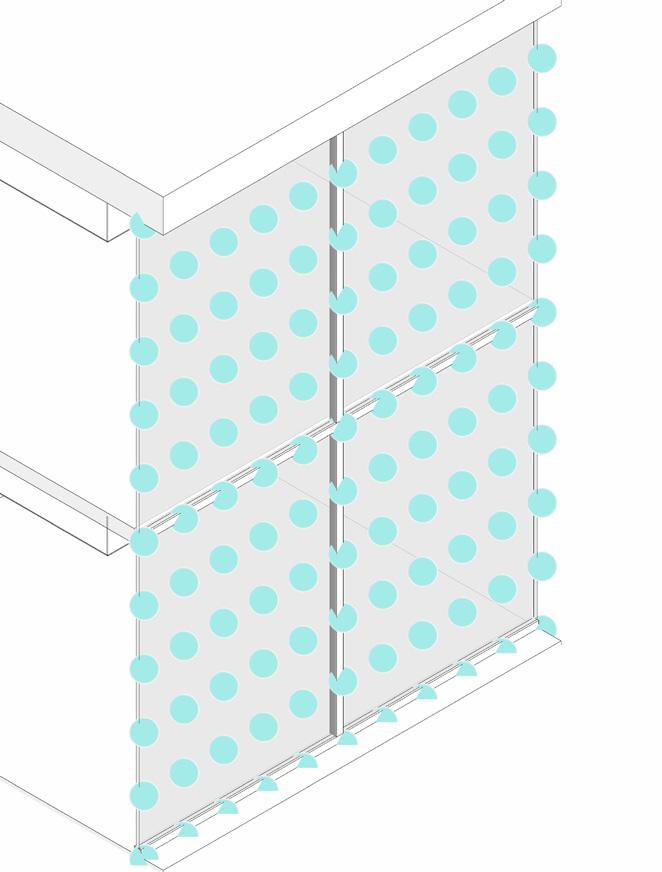

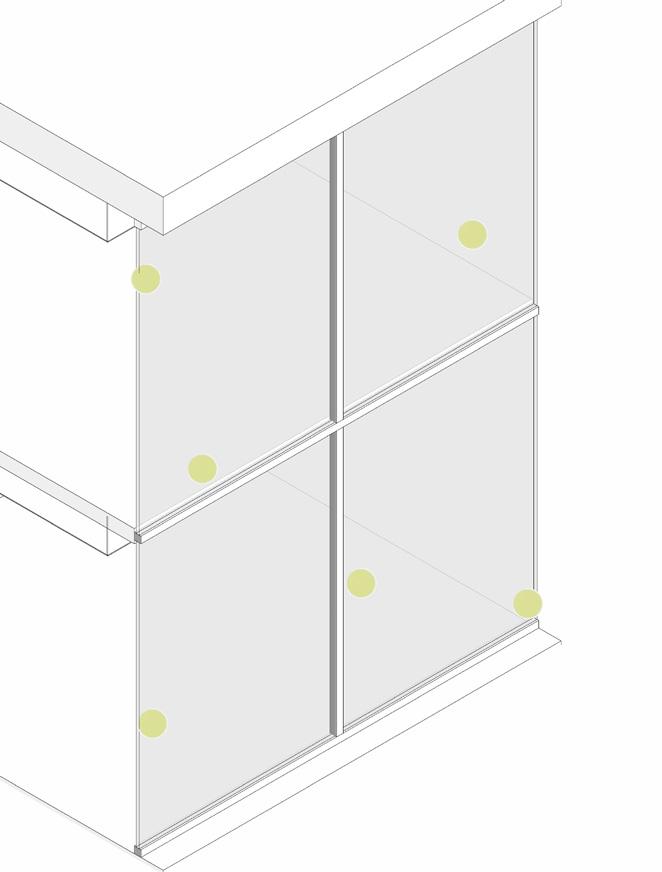

Control Points
Control Points
Control Points
Isotrim for random sub divisions in secondary orientation
cull
mesh thicken

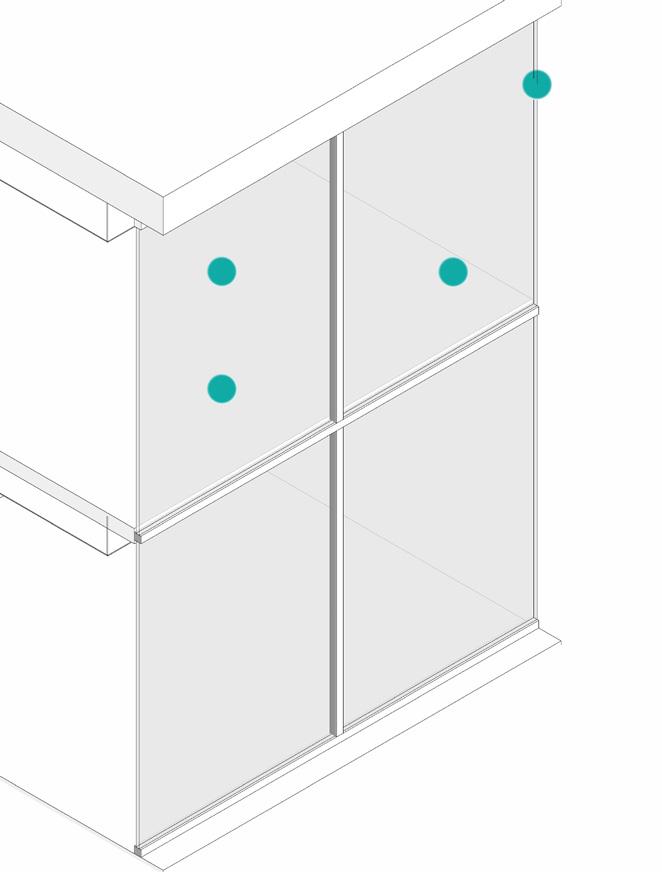

Control Points for
index to remove subdivisions around Weaverbird’s

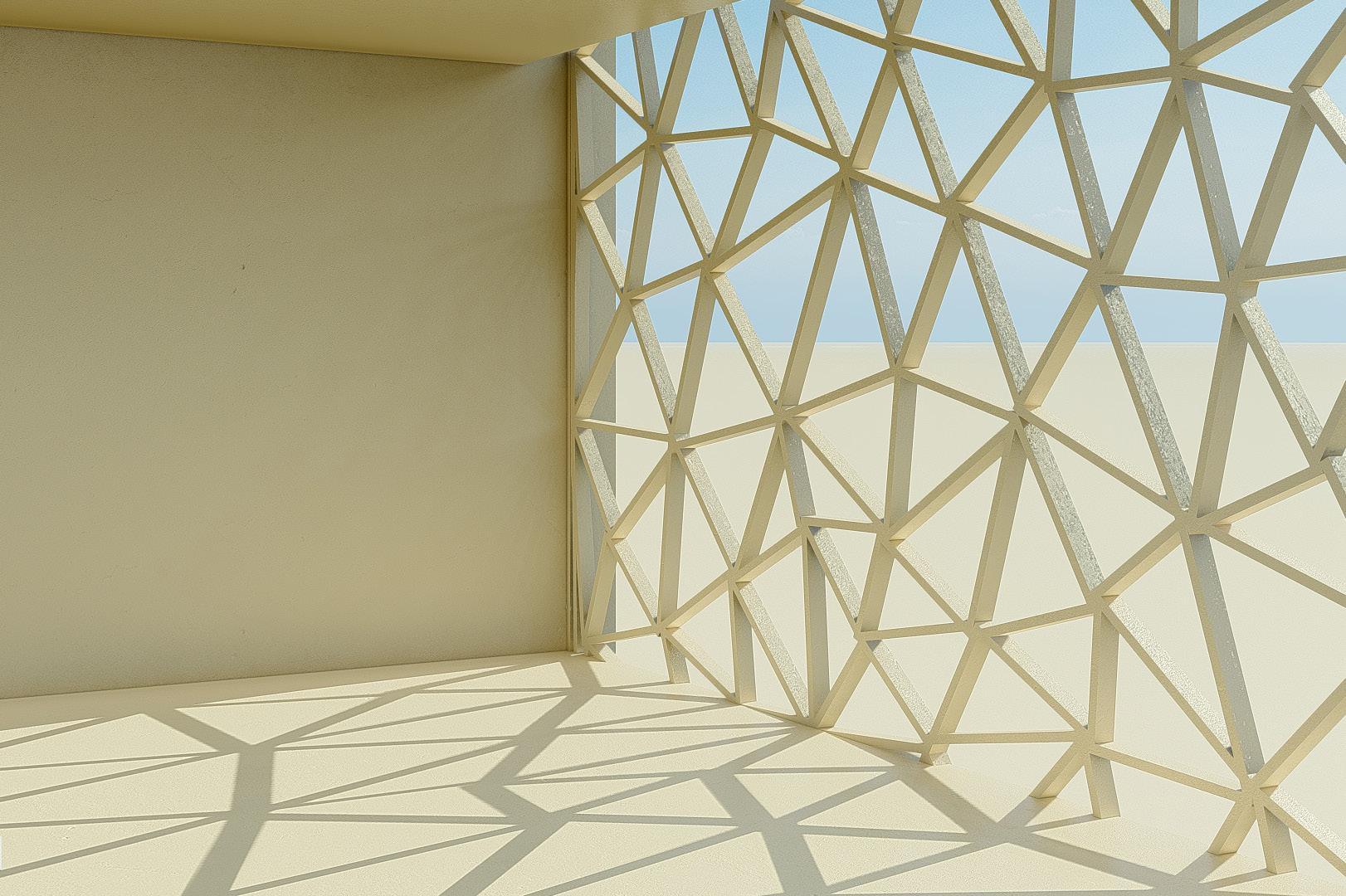

FACADE FAMILY 2: TRIANGULATION
GENERATIVE DIAGRAMS

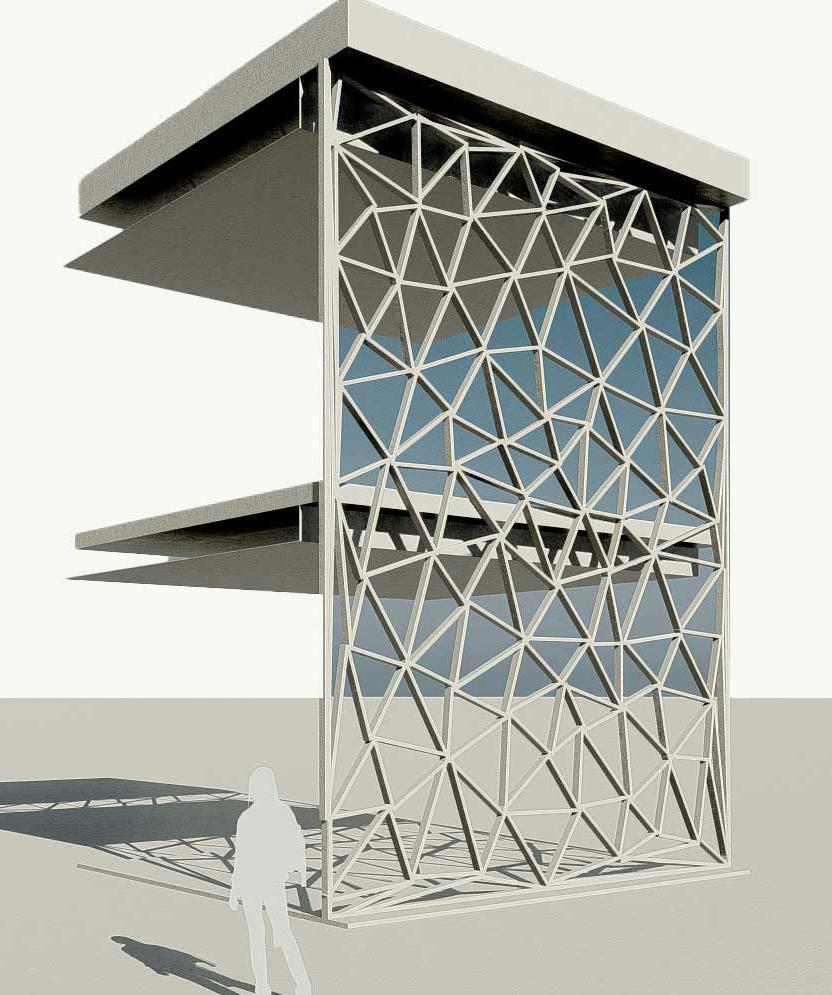

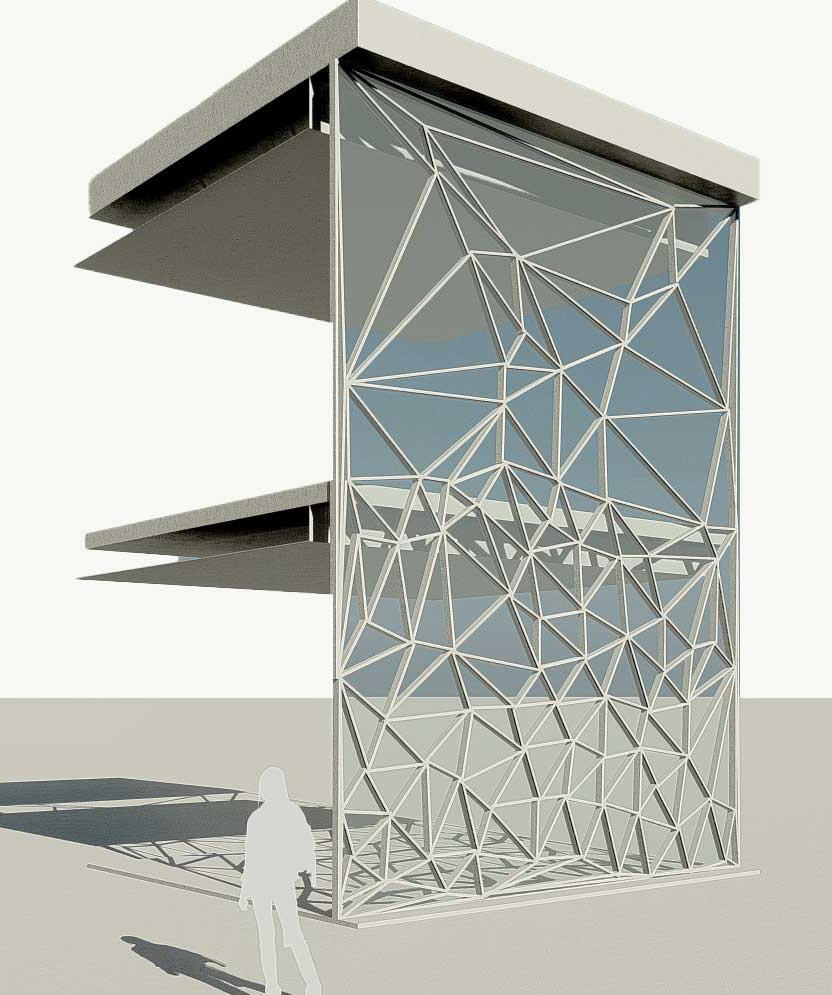

VERSION 1

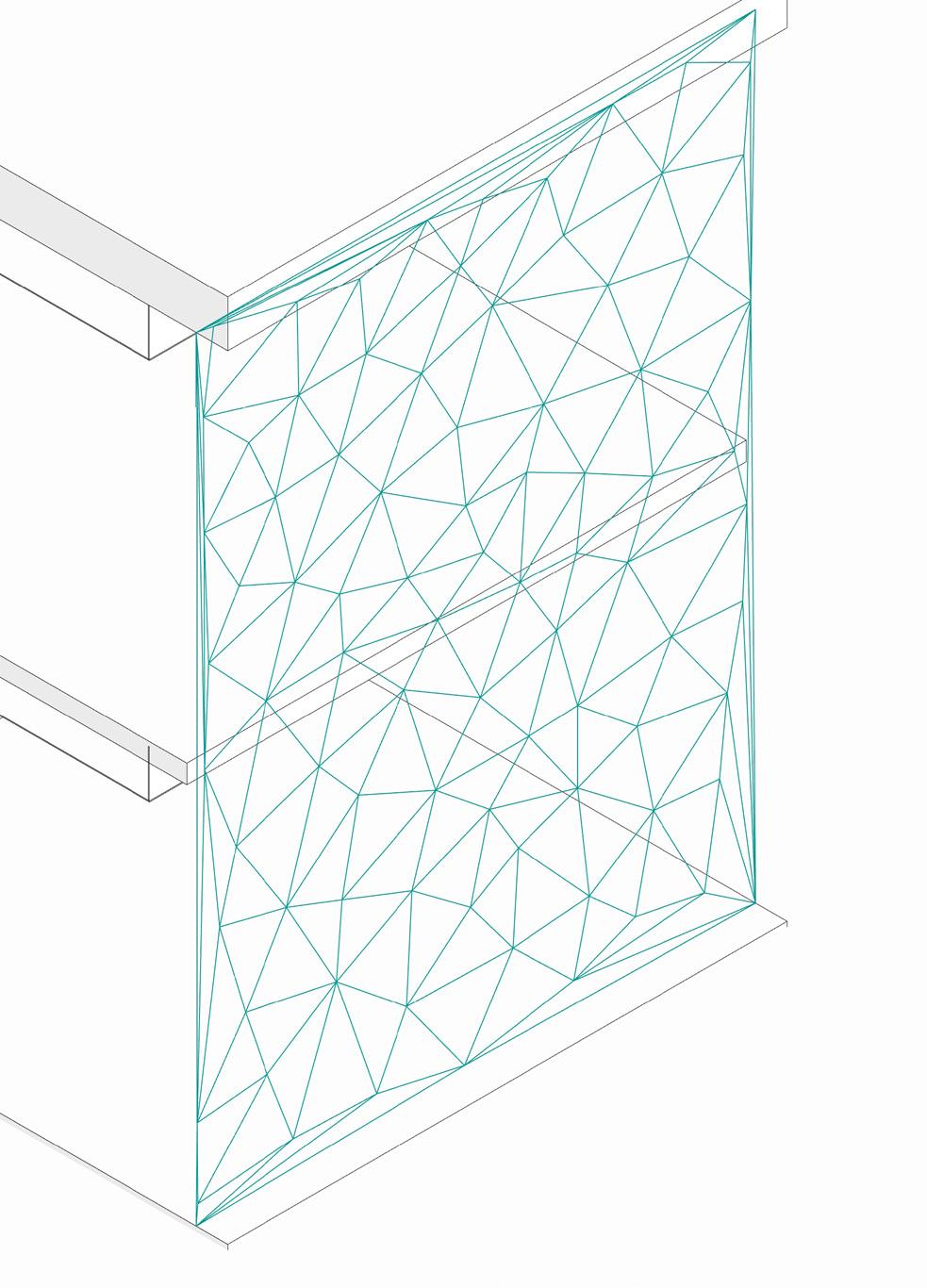

RANDOM TRIANGULATION

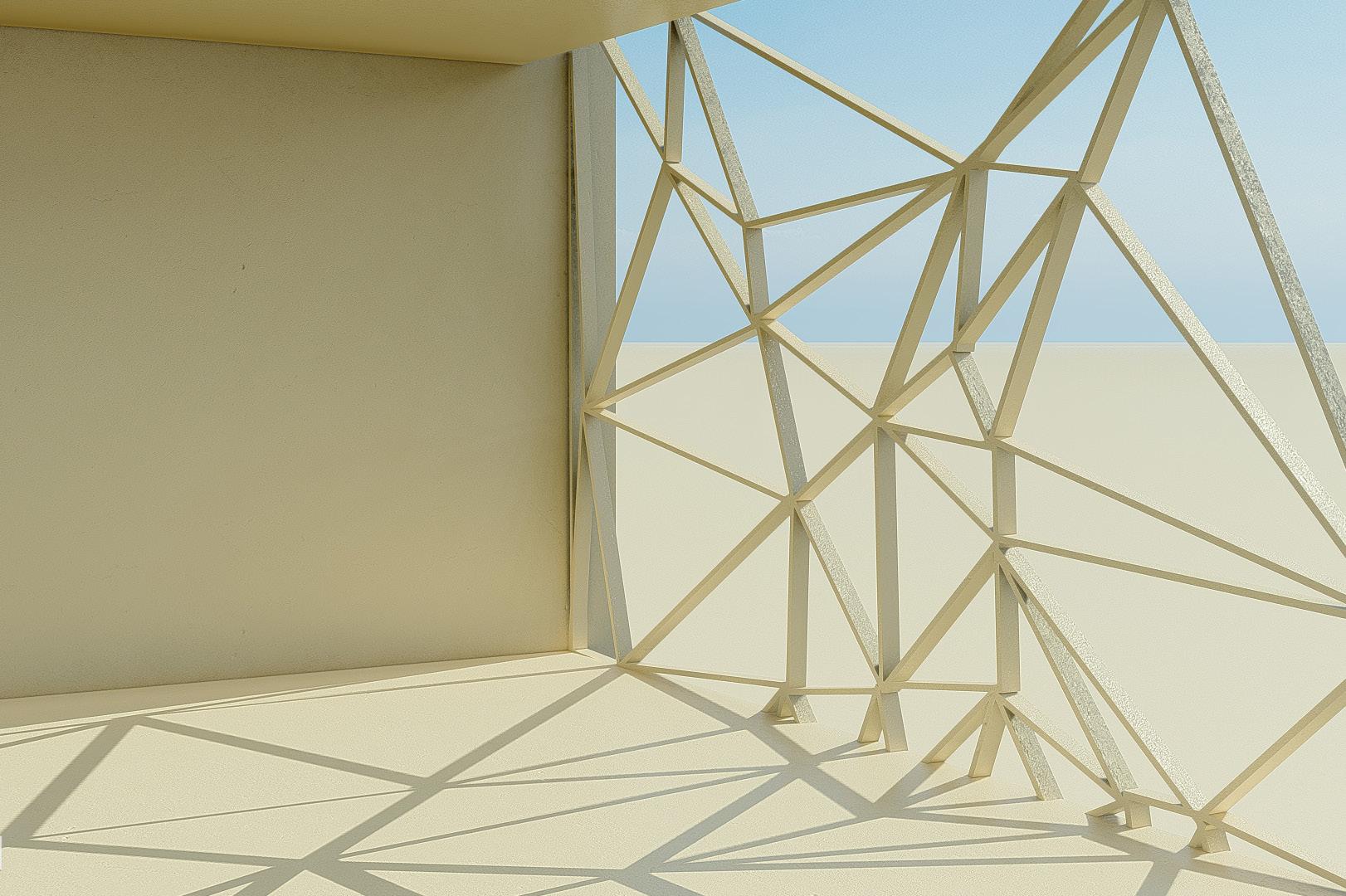

PATTERN FORMING MULLIONS
VERSION 2
RANDOM TRIANGULATION
PATTERN WITH SIZE GRADATION
TOWARDS THE UPPER FLOOR
VERSION 3

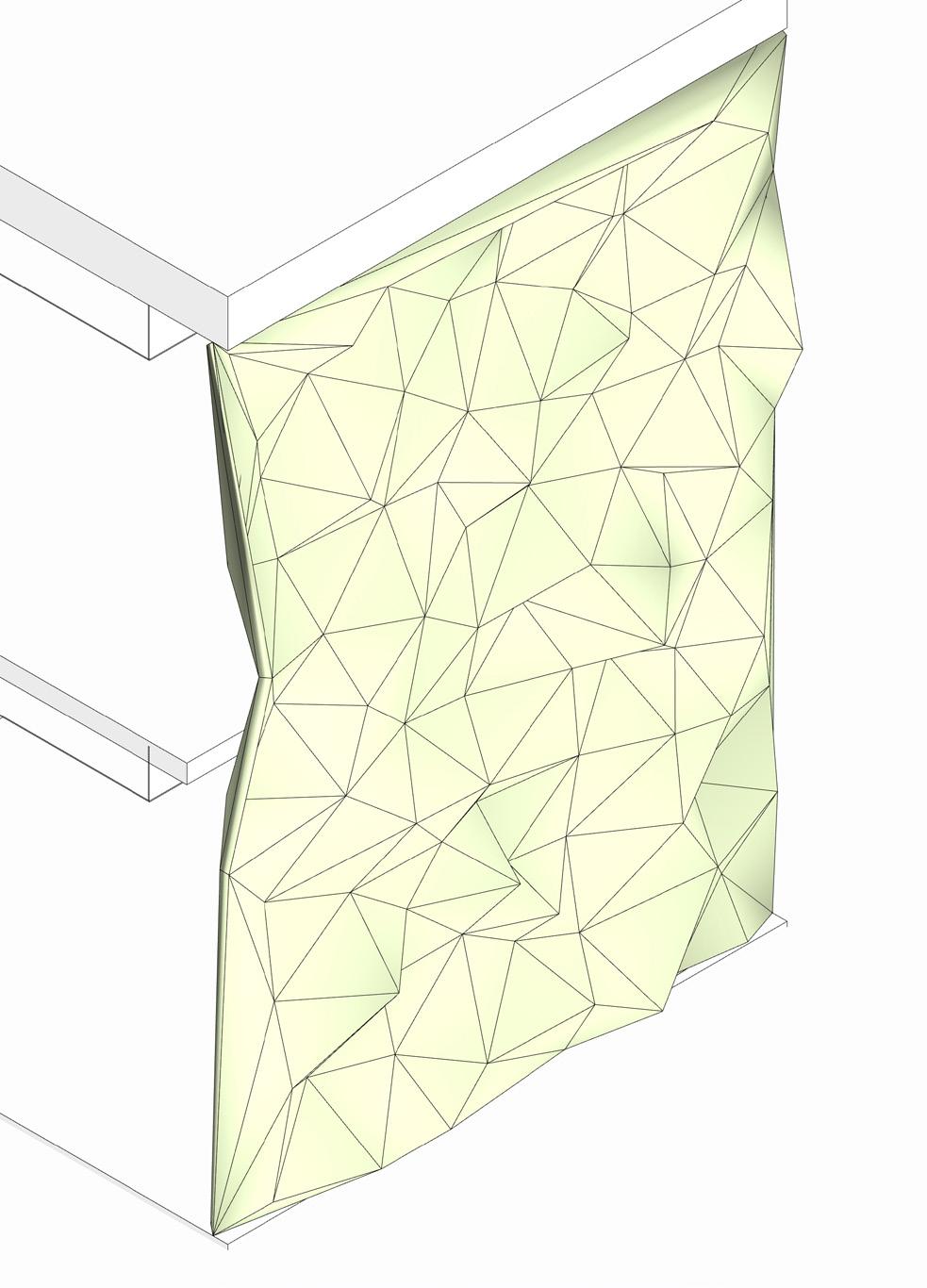

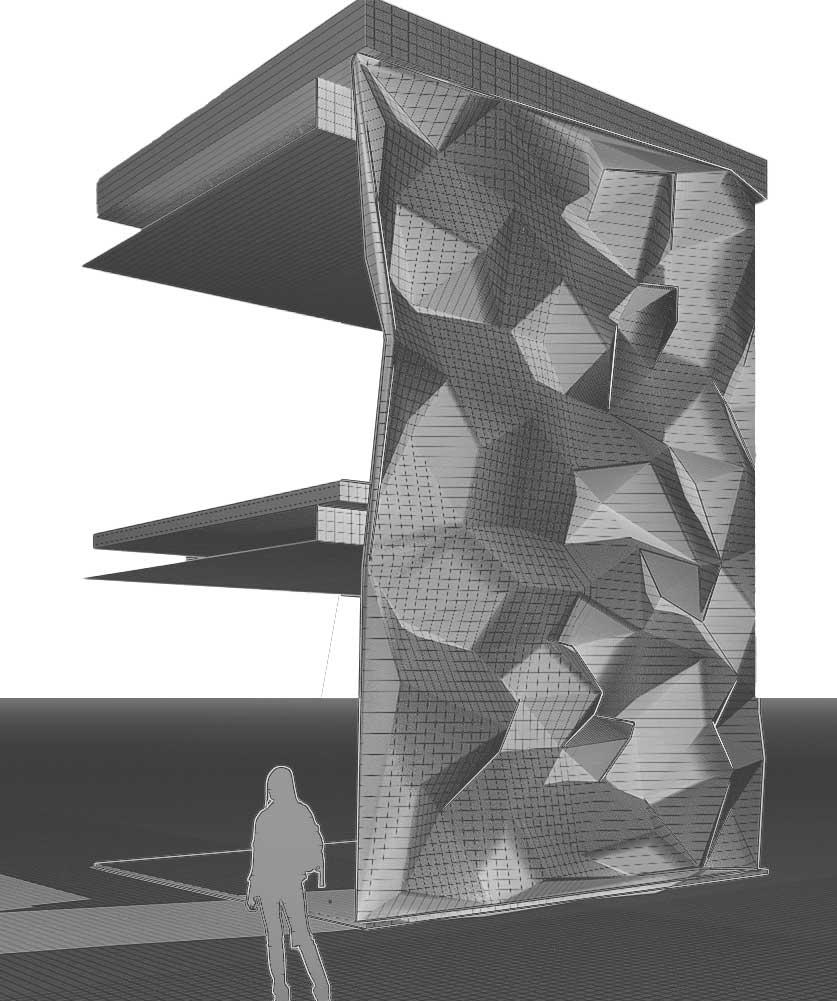

3D TRIANGULAR PANELS WITH POPULATE 3D CONTROL POINTS

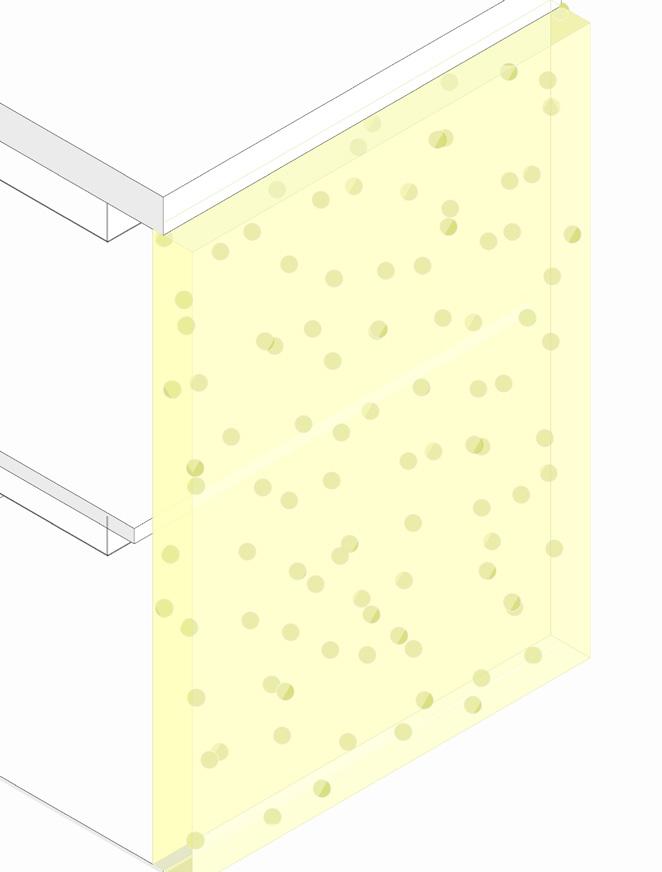

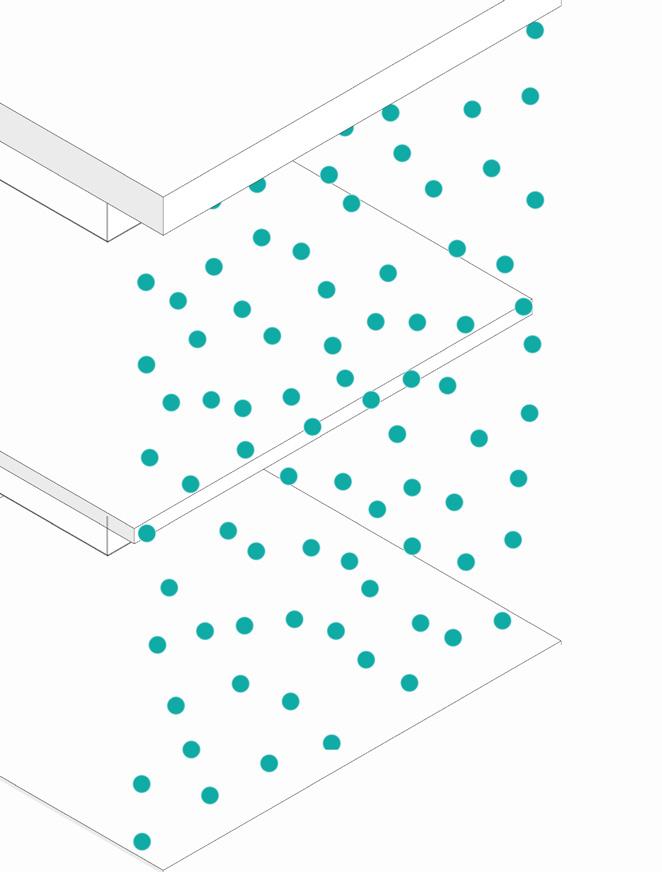

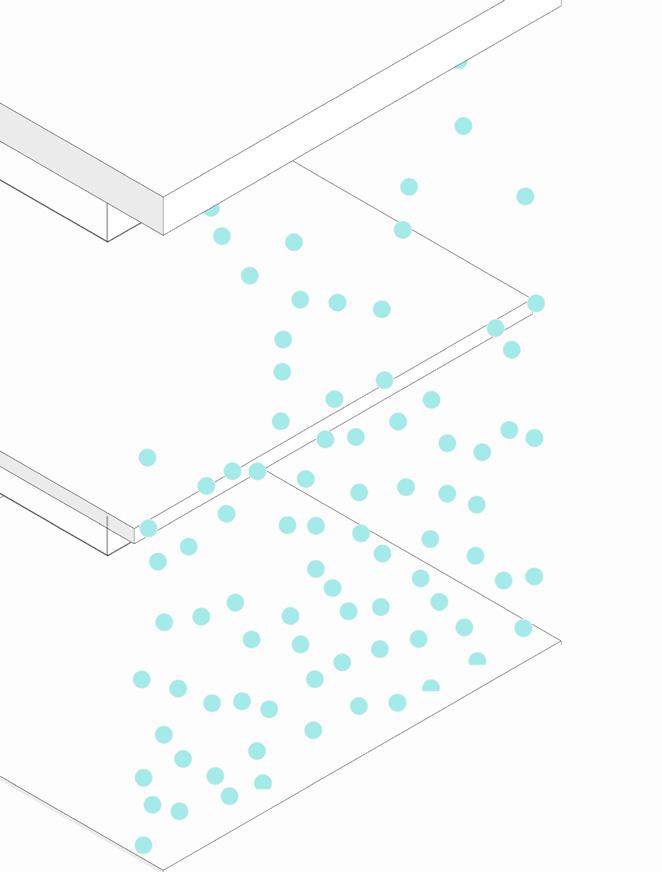

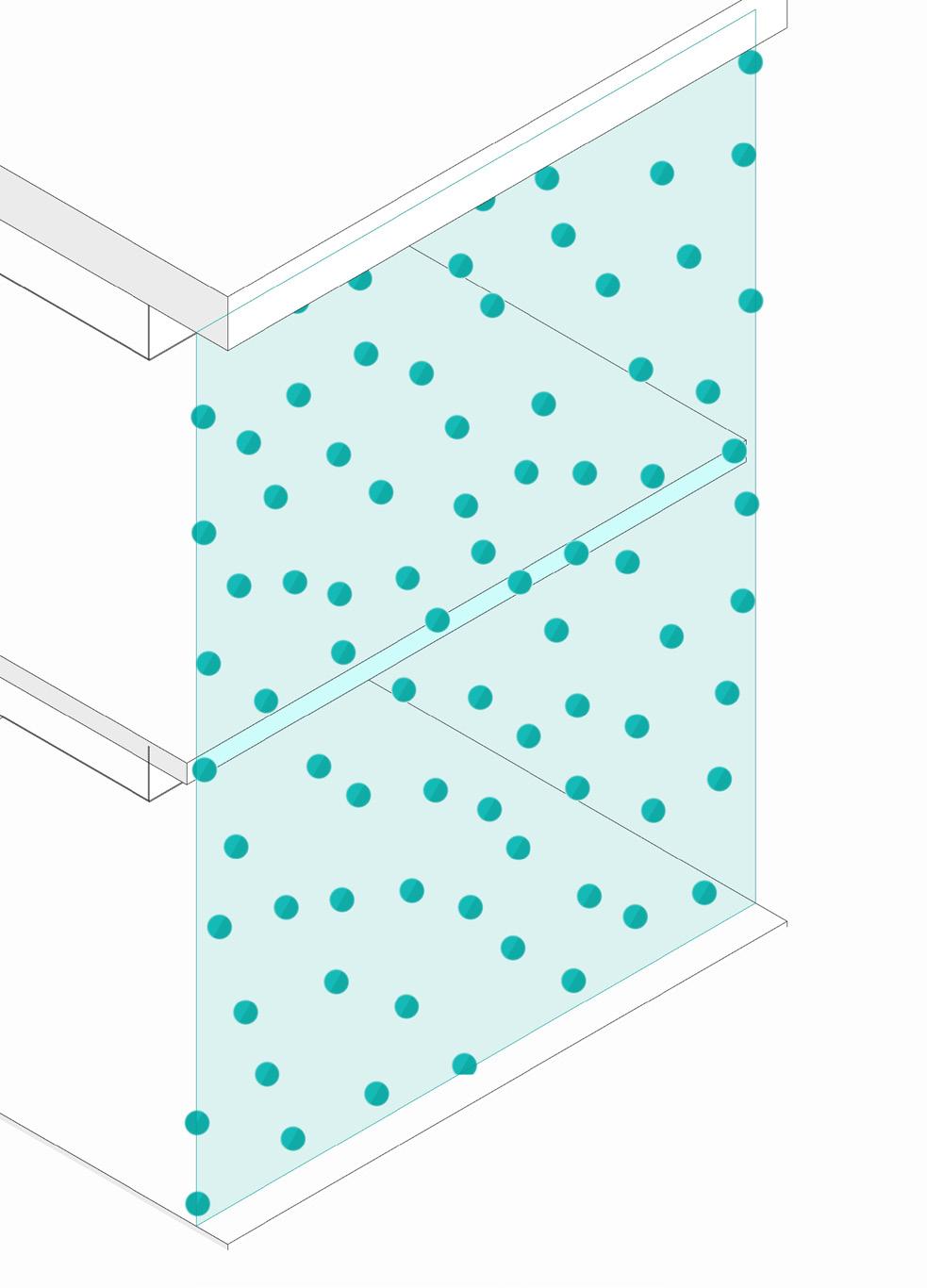

Populate 2d on surface
Control Points
Control Points
Control Points

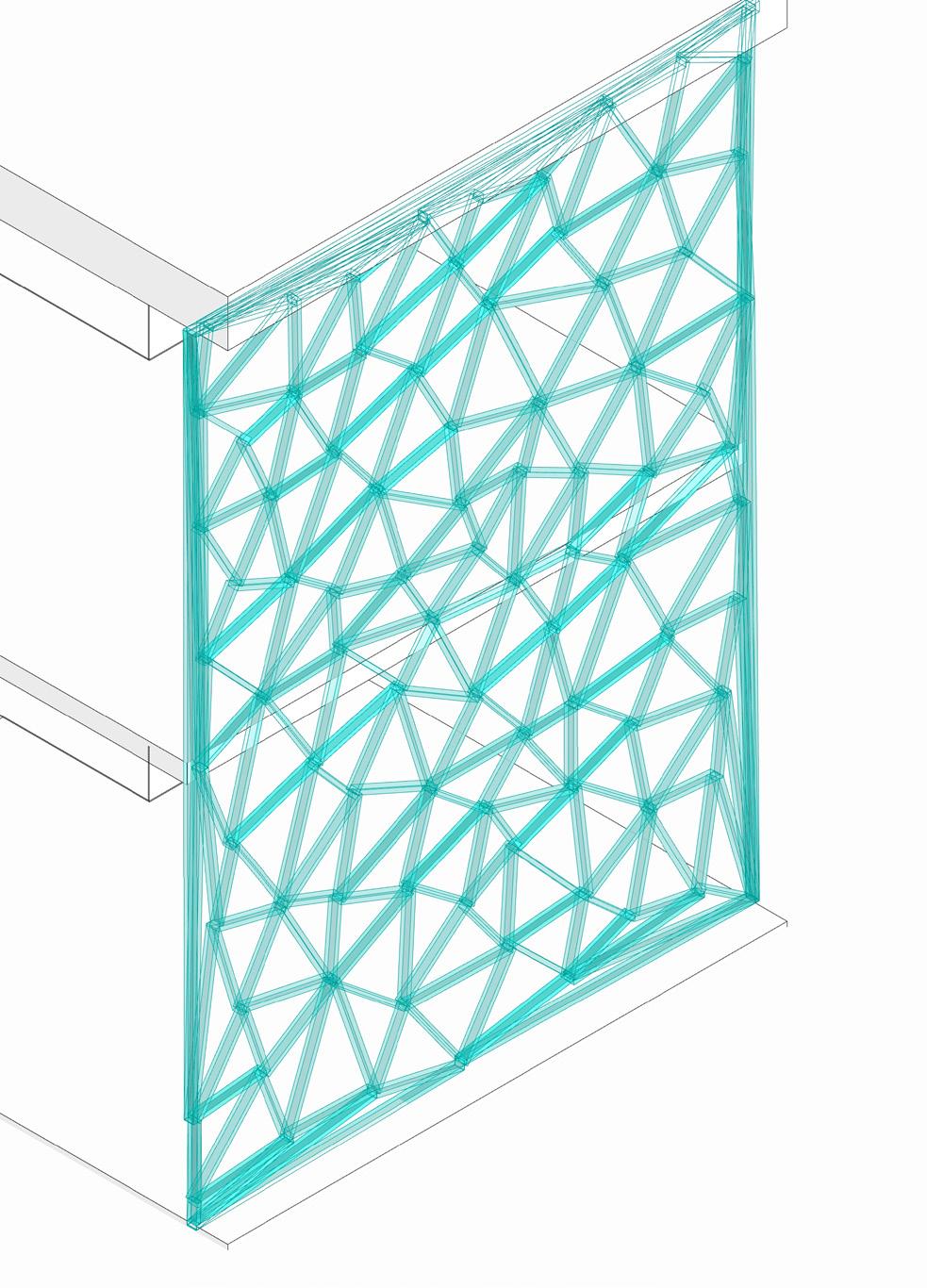

Delaunay Edges
Thicken to form mullion OR
Delaunay Mesh

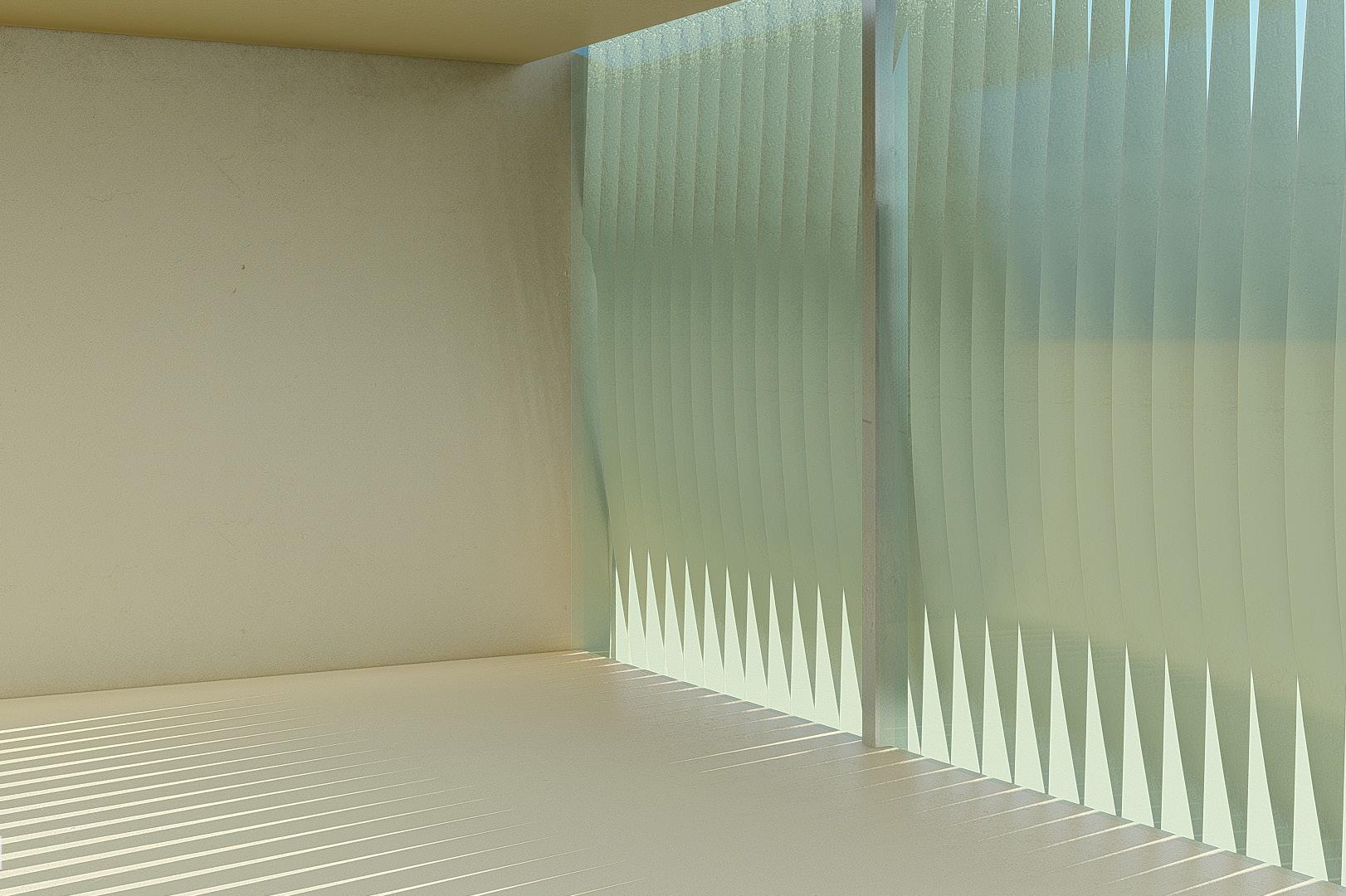

FACADE FAMILY 3: TWISTED LOUVERS
GENERATIVE DIAGRAMS

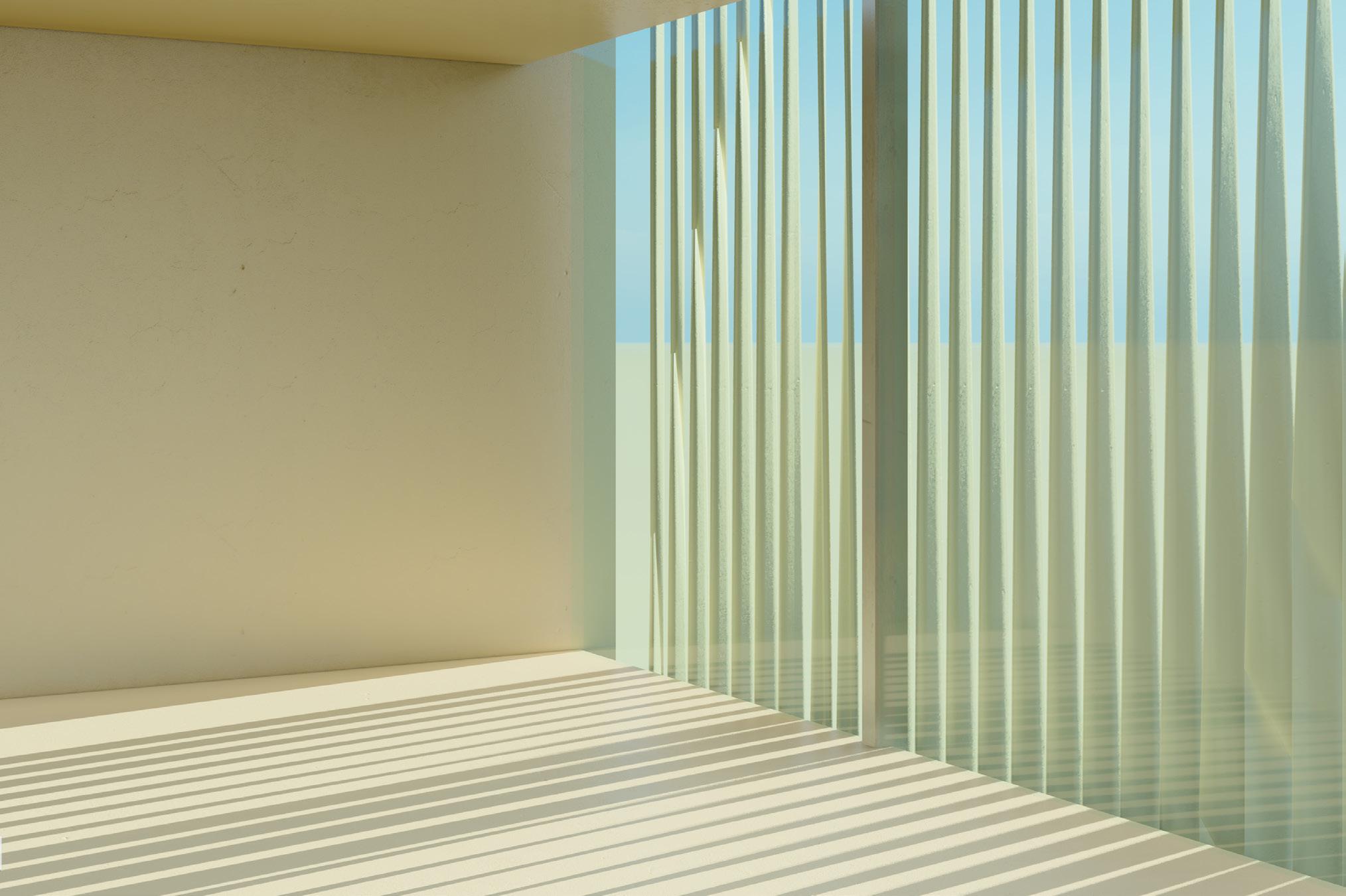

VERSION 1

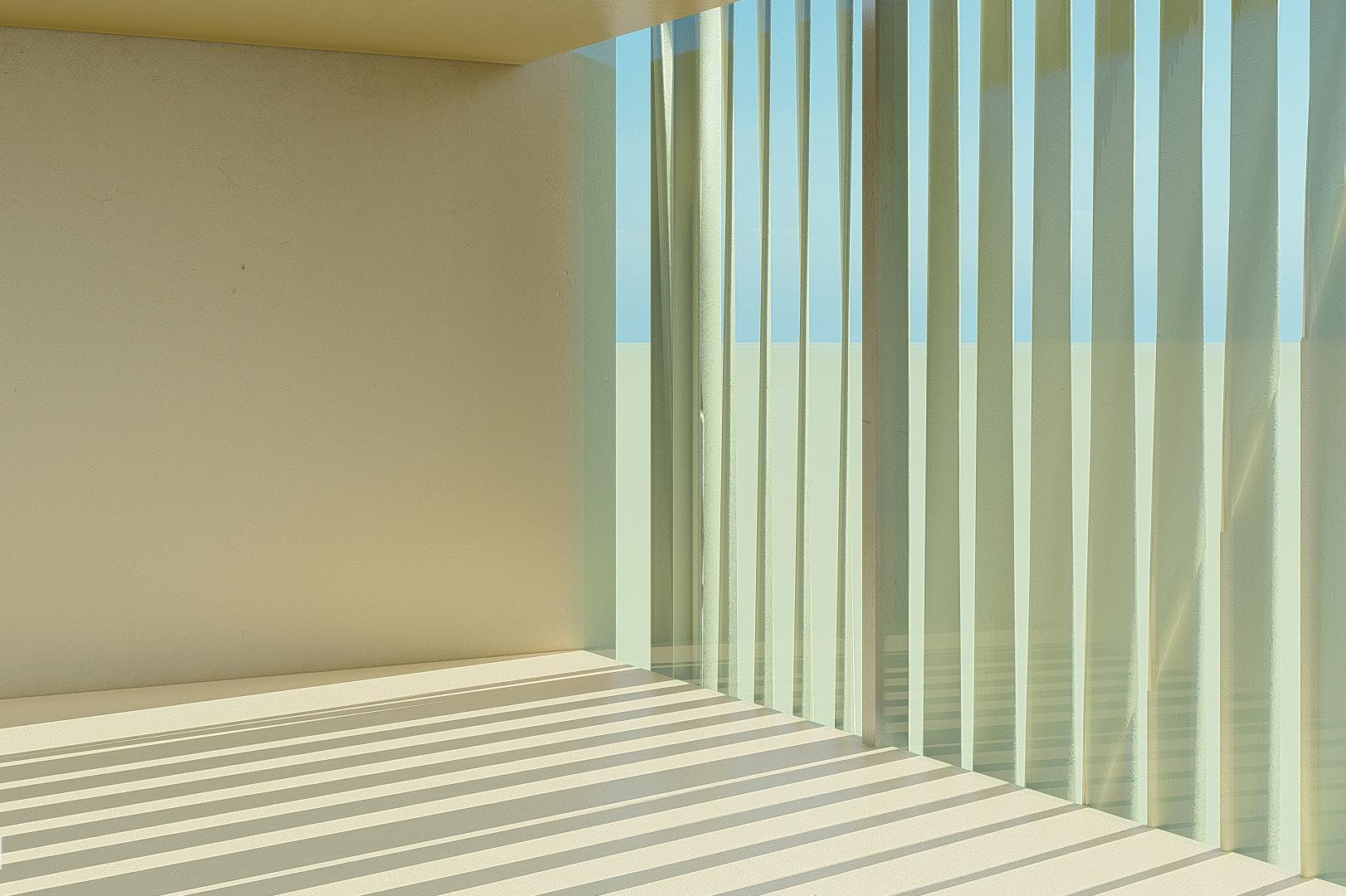

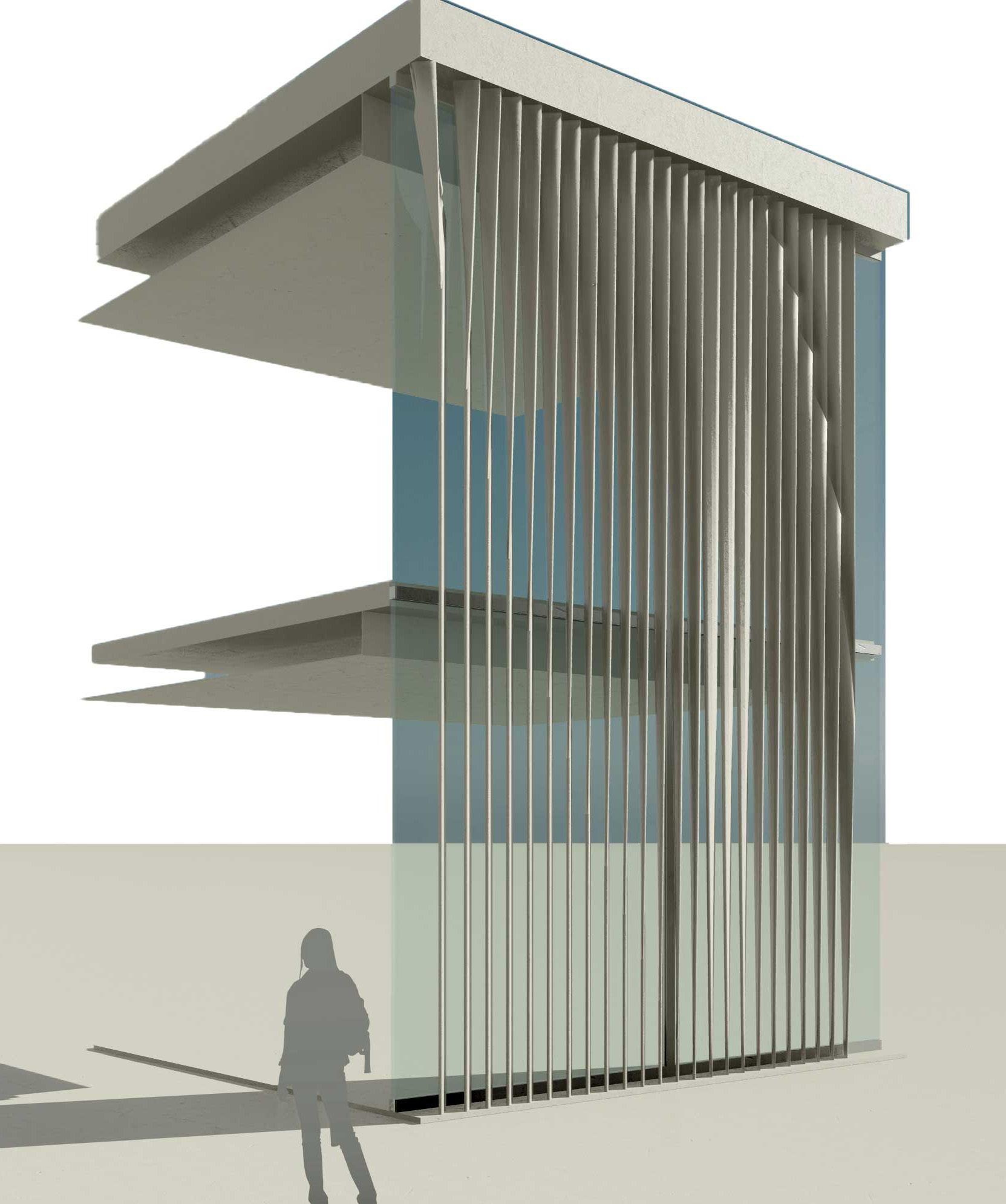

VERTICAL LOUVERS ROTATED IN ORIENTATION 1 WITH TWIST ALONG CURVE

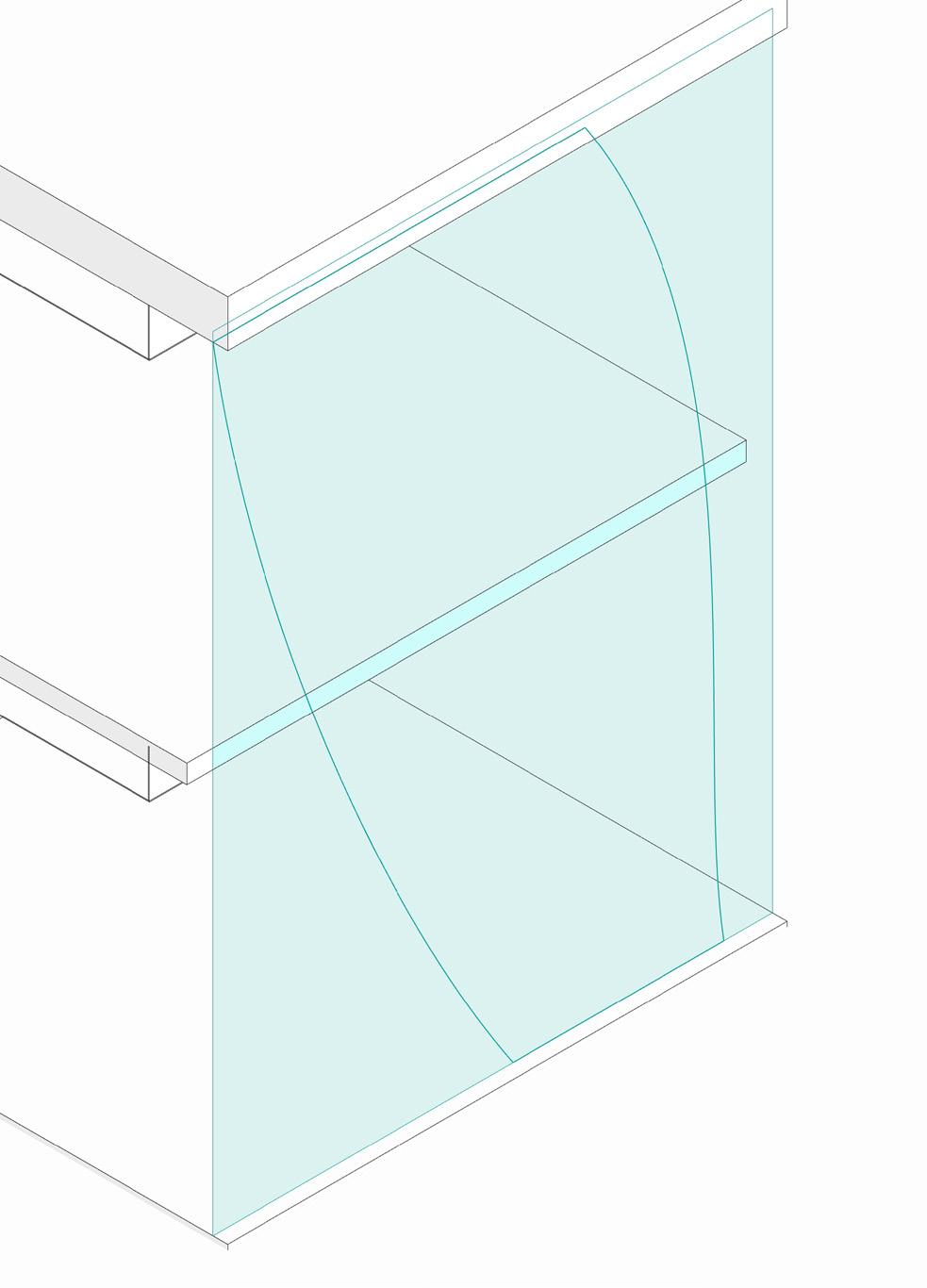

Reference Curves
VERSION 2
VERTICAL LOUVERS ROTATED IN ORIENTATION 2 WITH TWIST ALONG SAME CURVE
Reference Curves
VERSION 3

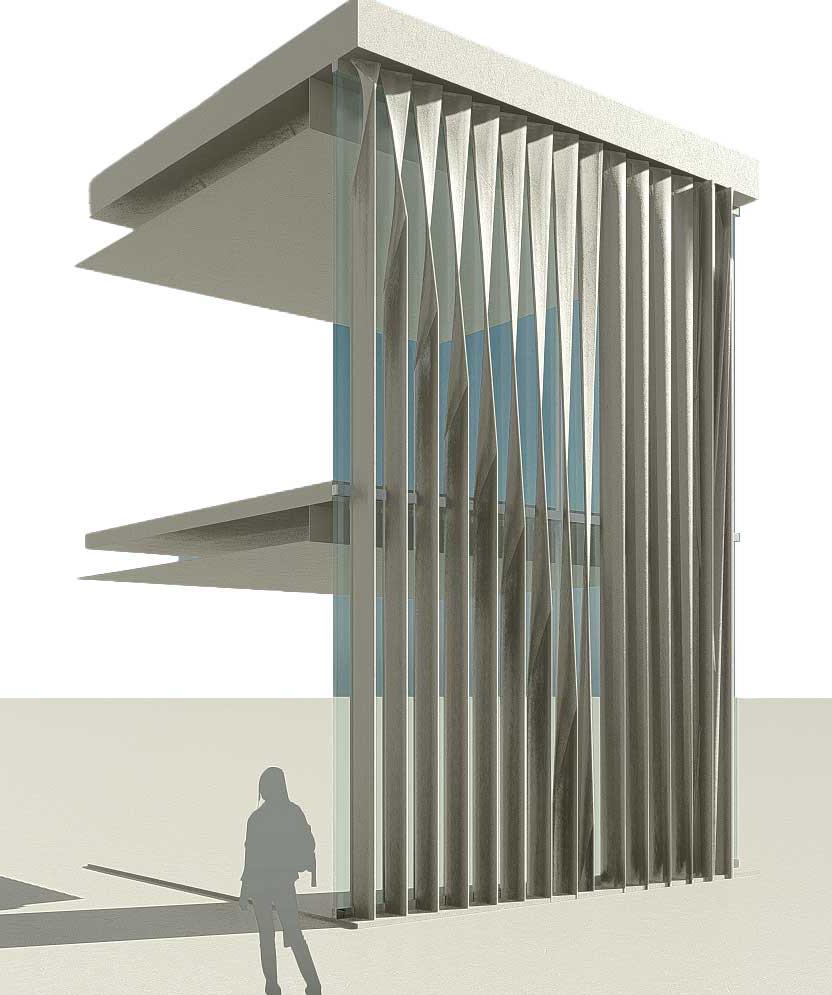

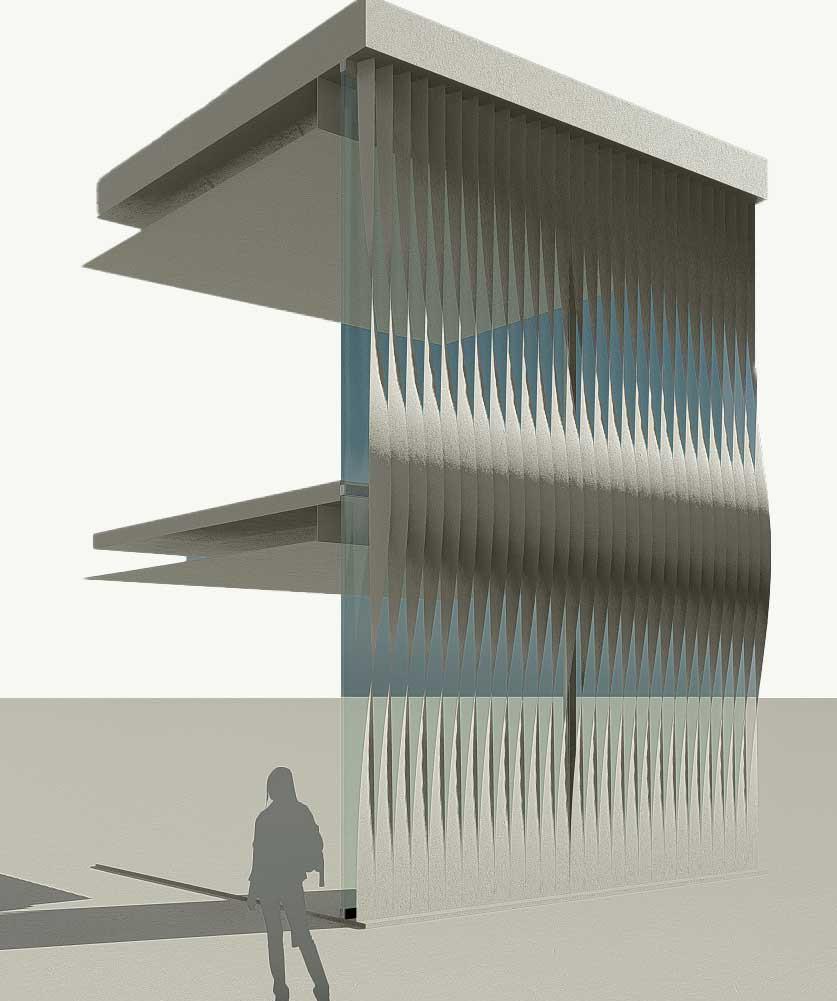

VERTICAL LOUVERS ROTATED AND TWISTED, ALONG REFERENCE CURVE TO COVER SLAB WITH A GRADIENT
Reference Curves

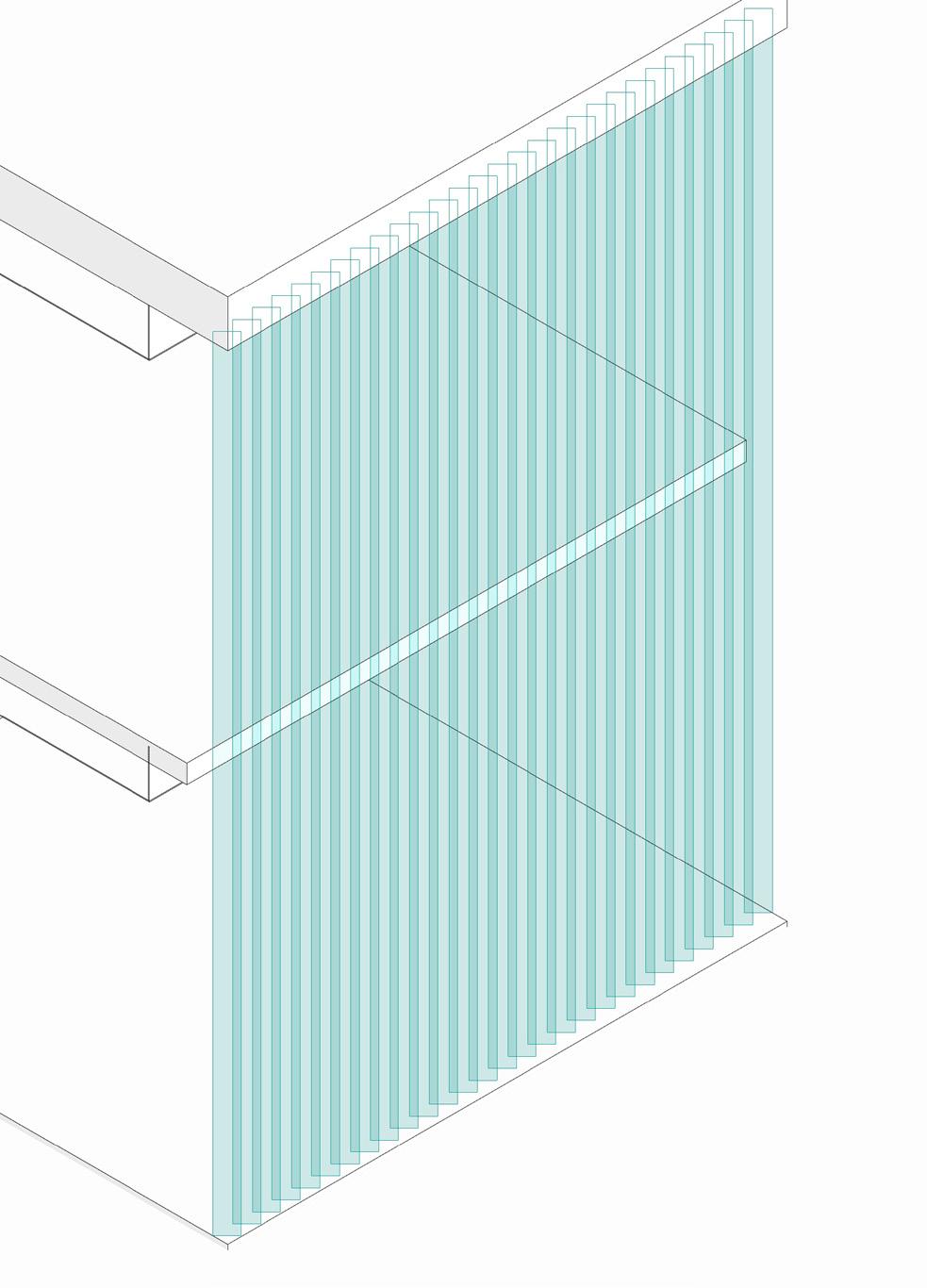

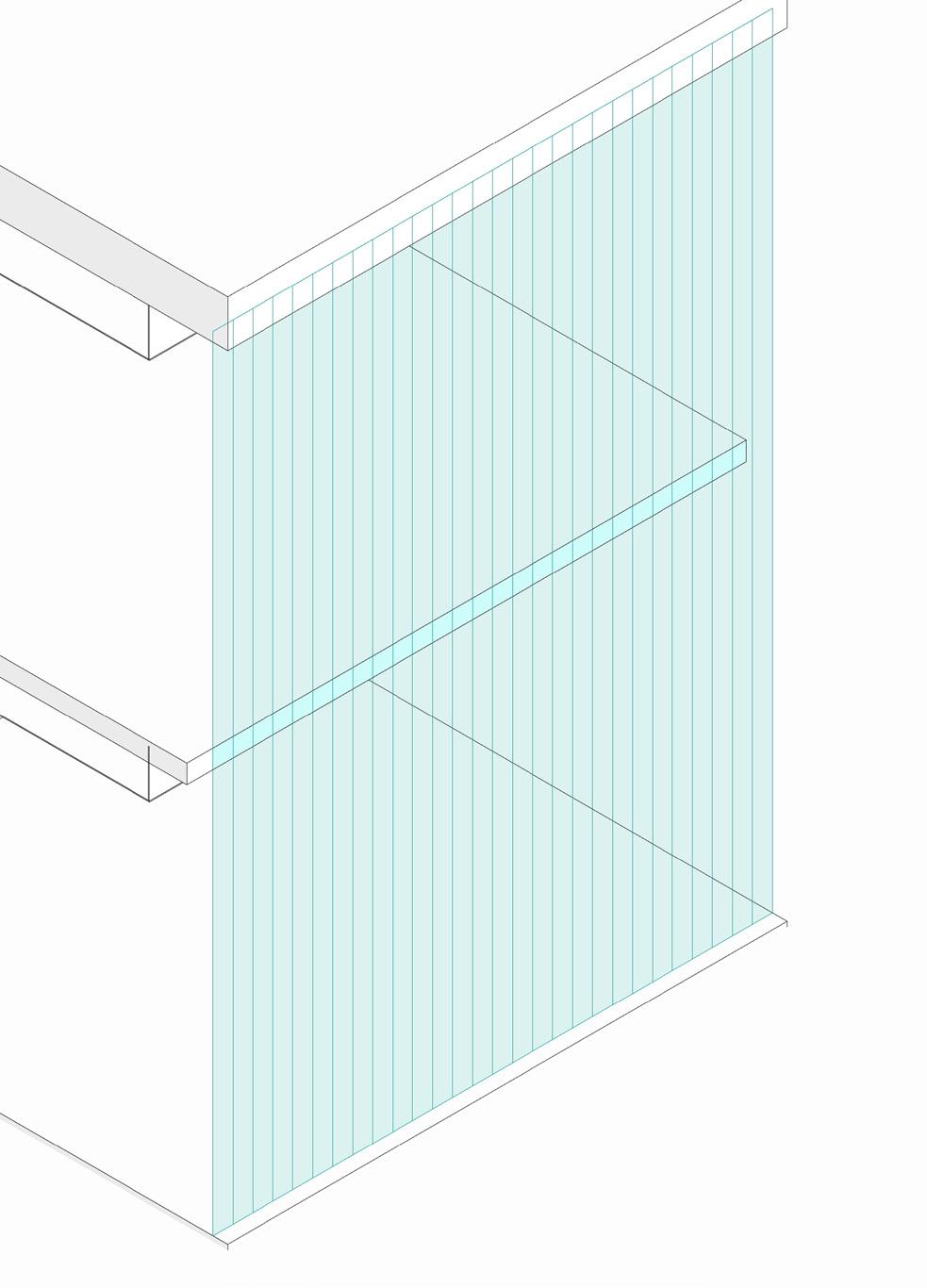

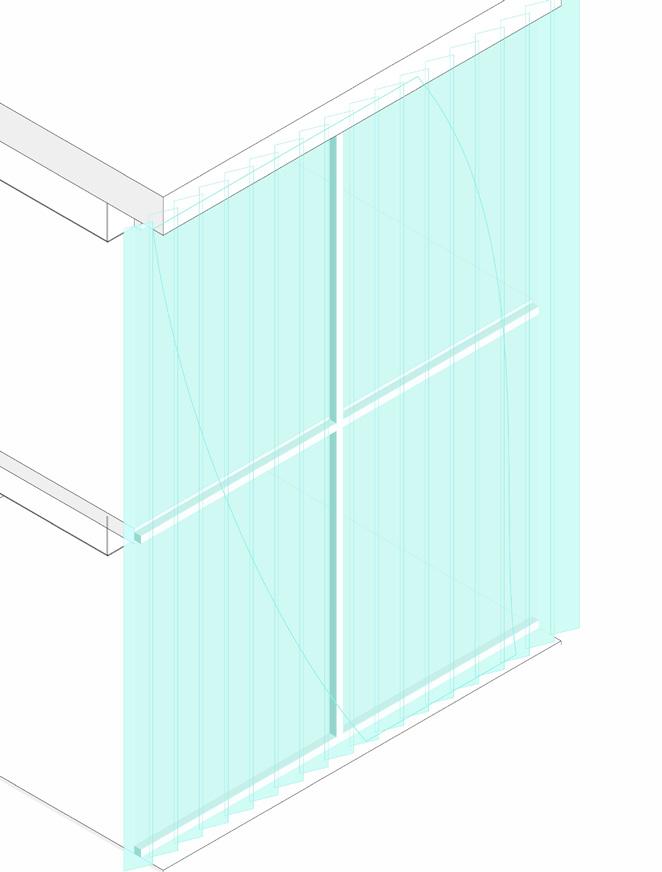

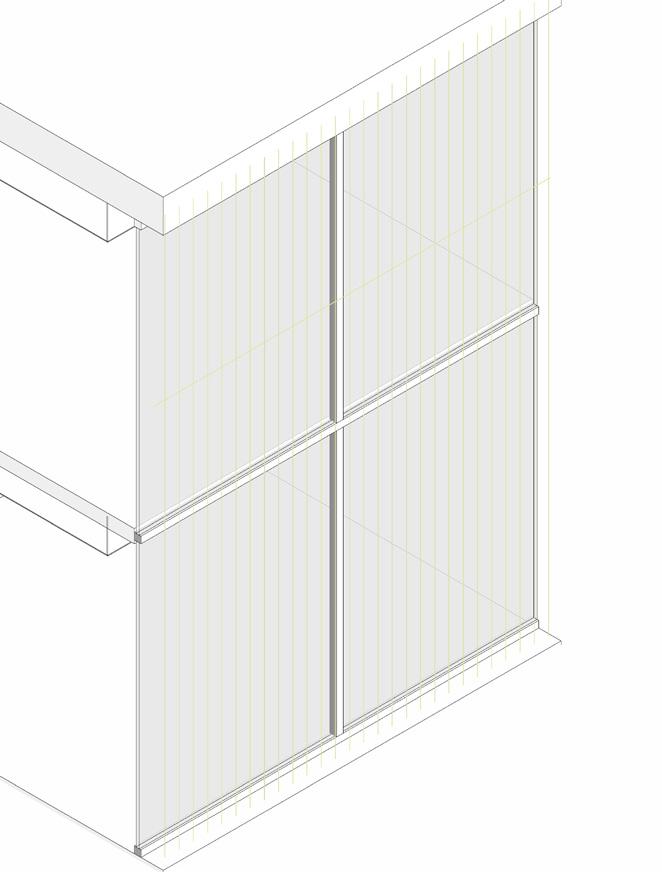

Isotrim for Vertical divisions

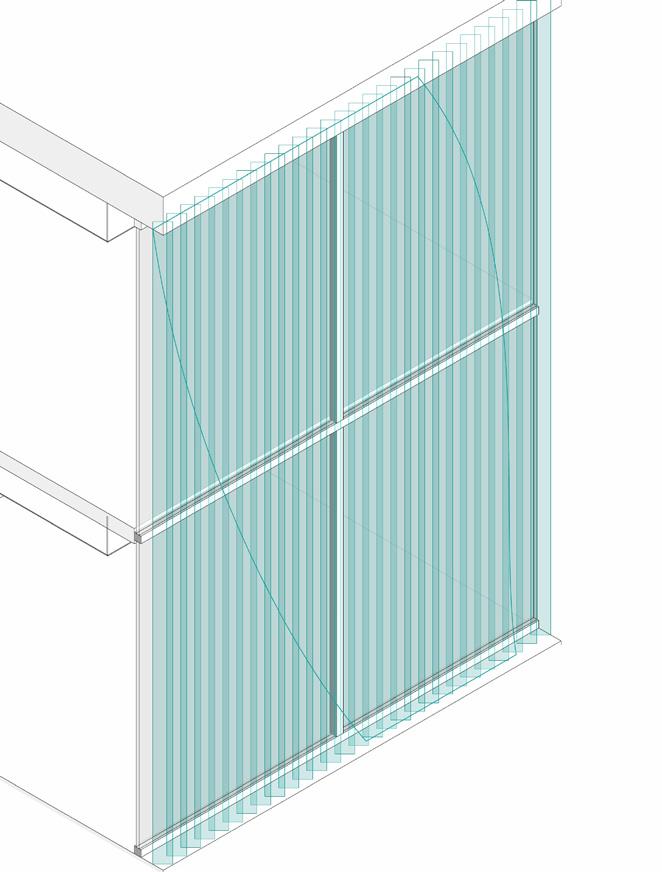

Rotate louvers
Curve to control twist gradation

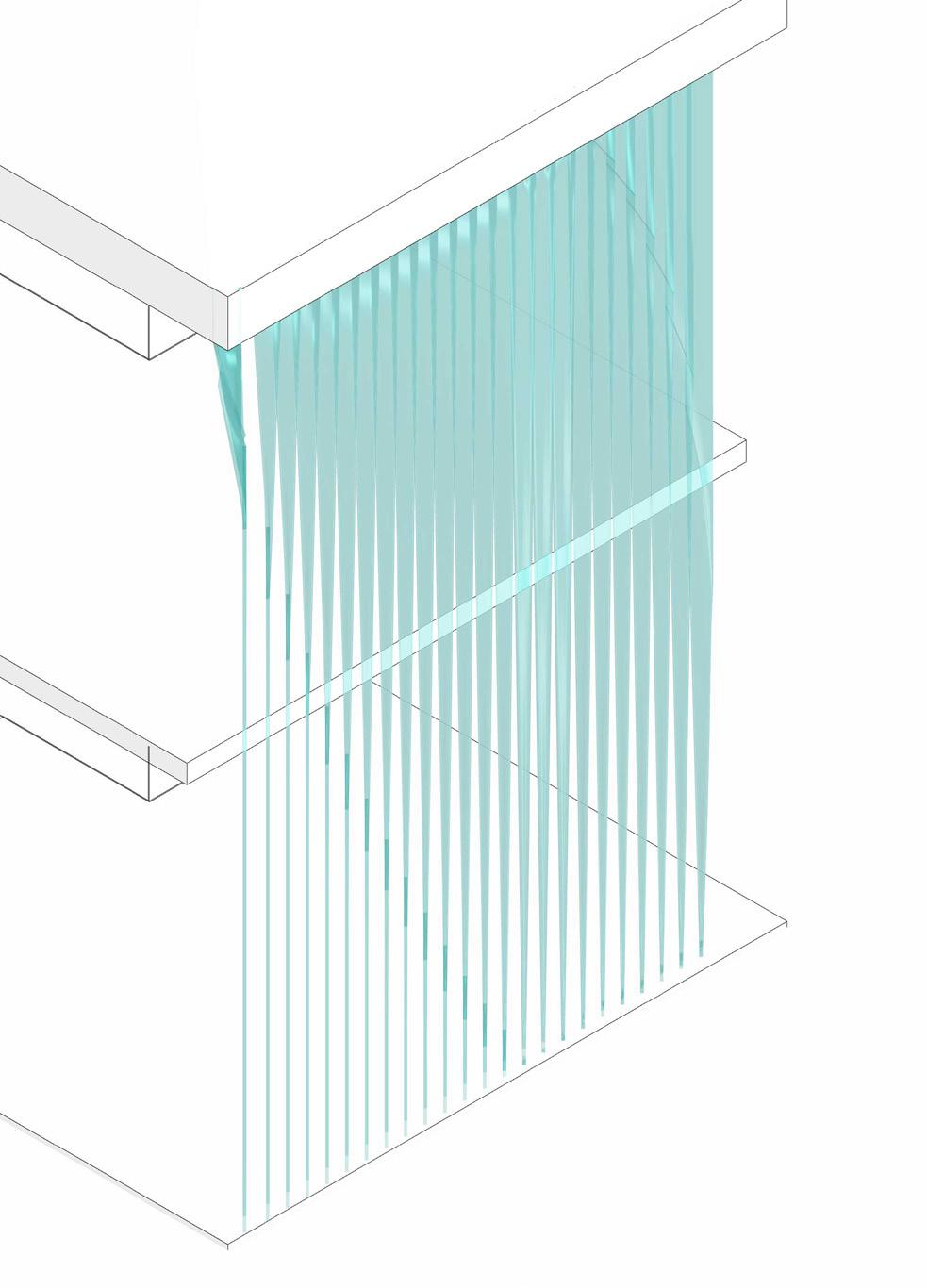

Twist louvers according to curve
