OVERVIEW

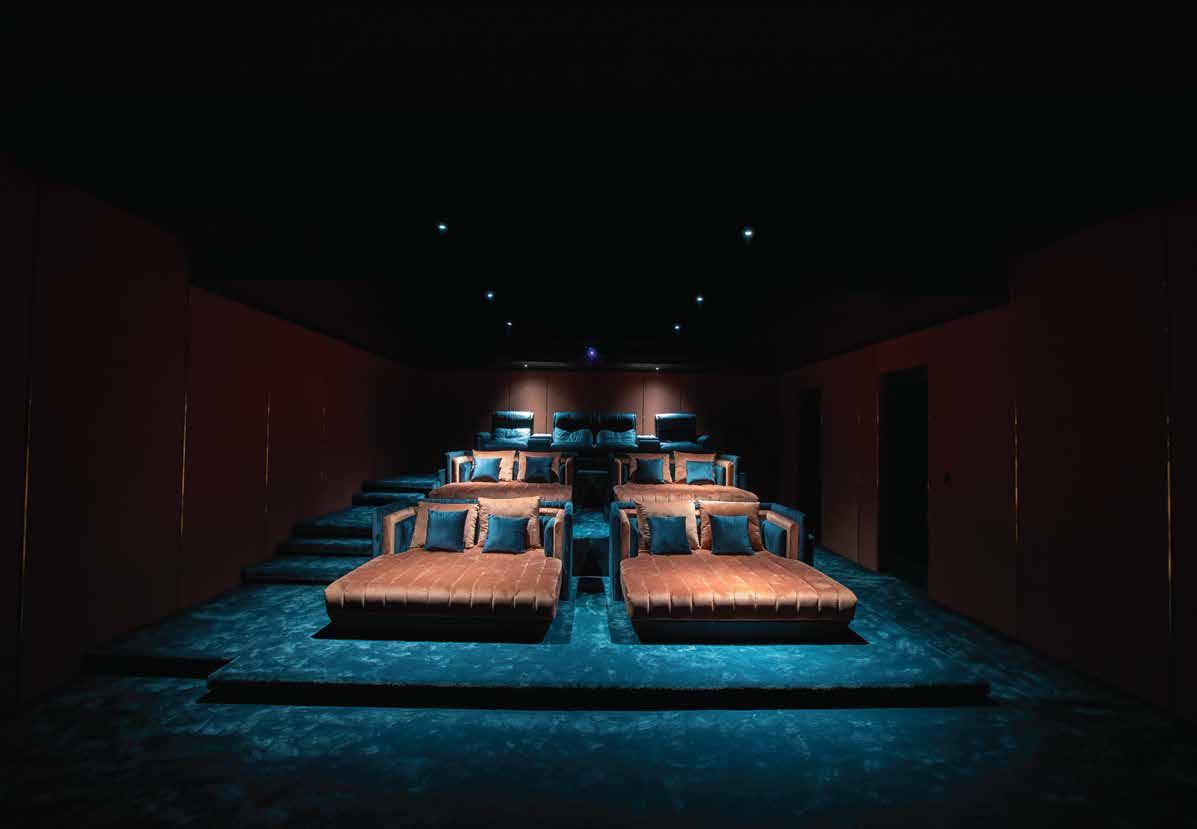

This cinema room boasts a spacious layout conducive to optimal acoustics and viewing angles. The dimensions allow for strategic placement of speakers, seating, and equipment, ensuring a premium cinematic experience.
Length: 14,030 mm x Width: 10,720 mm Height: 4,850 mm (46.03 ft L x 35.17 ft W x 15.91 ft H)
Volume: 729 m³ (25,744 ft³) Area: 150 m² (5,297 ft²)

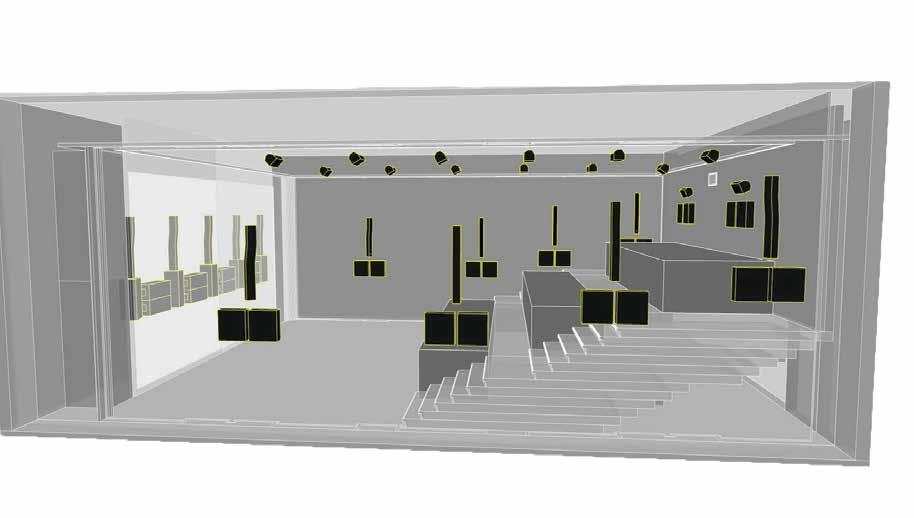

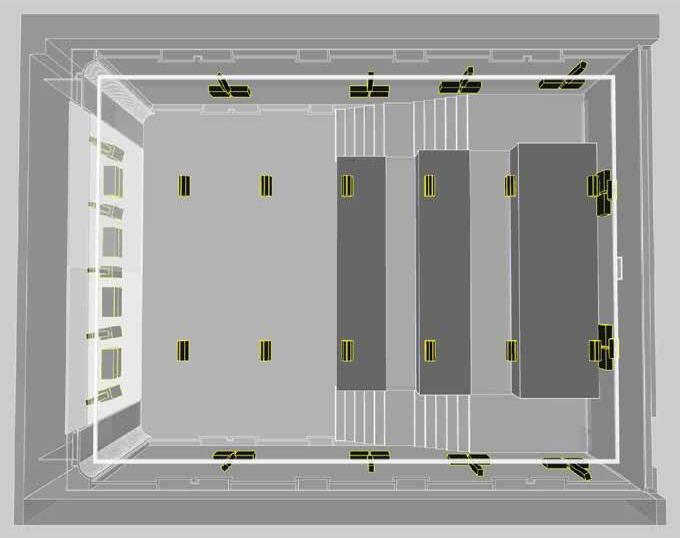

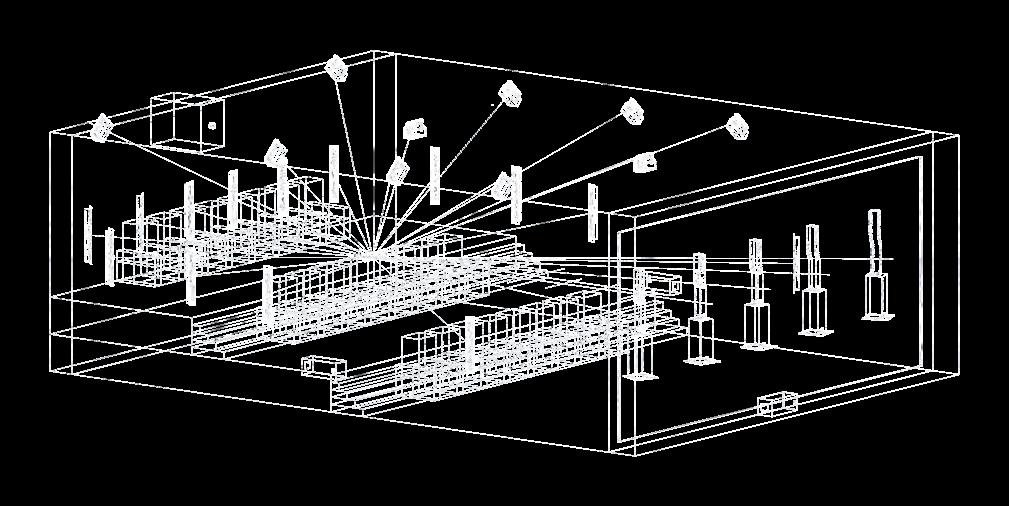

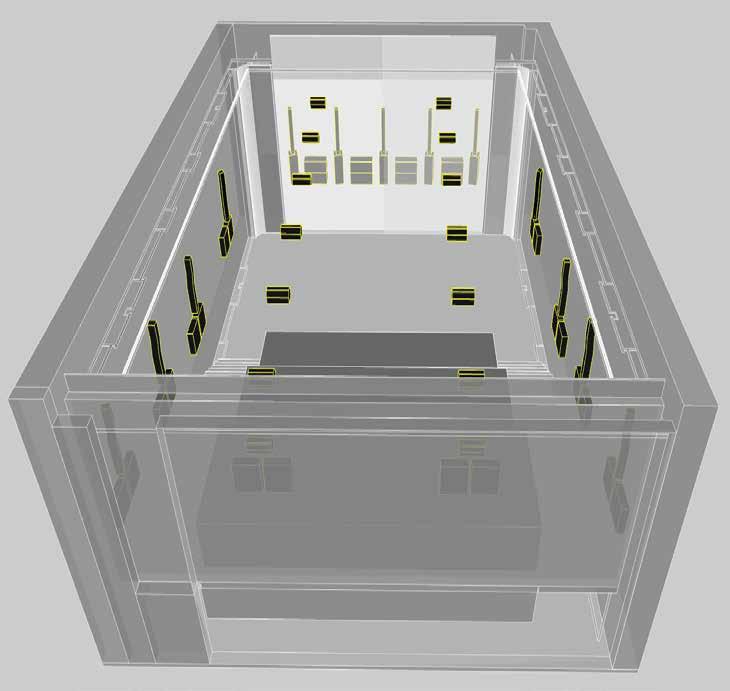

a. Design and Layouts - Plan, 3D Views, Wall Layouts, Products (Speakers & Woofer)
b. Operational Products - Amplifier, AV Processor, AVB Network Switch, Audio Converter
c. Performance Analysis - Heat Map Performance
a. Design and Layouts - Elevation, Cinematic Screen, Projector
a. Media Devices - Movie Player & Movie Server
a. Acoustic Treatments - Wall, Ceiling & Floor
Front Speakers
Screen
Projection Angle Atmos Speakers
Surround Speakers
Projector
Front Woofers
Listner Point
Front Syva + Syva Low
Tops
X8i
Rear Surround X8i + SB10i
LFE
Syva Sub
Surround Syva + SB10i
FRONT RIGHT
FRONT CENTRE
RIGHT
FRONT CENTRE
FRONT CENTRE
LEFT
FRONT LEFT
SBL
Front Wall Elevation

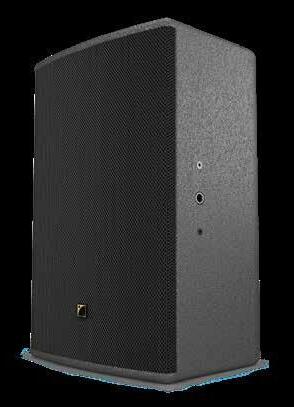

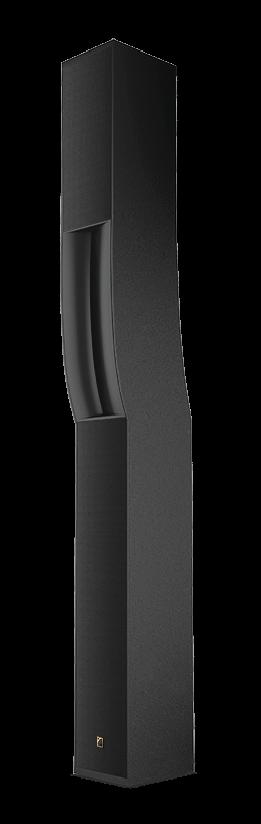

FRONT SPEAKERS
The front wall hosts the placement of five L Acoustics Syva speakers, strategically positioned to ensure optimal audio coverage and uniform sound distribution throughout the viewing area. Each speaker is meticulously placed to achieve balanced audio reproduction, delivering clear dialogue, dynamic sound effects, and immersive surround sound for an unparalleled cinematic experience.
BRAND – L-ACOUSTIC
MODEL - SVYA

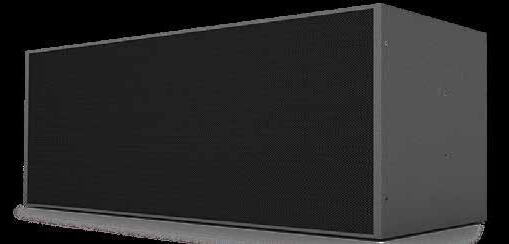

FRONT WOOFER
BRAND – L-ACOUSTIC MODEL - SVYASUB
Integrated within the front wall design are nine L Acoustics Syva Subwoofers, carefully positioned to complement the audio output of the front speakers and enhance low-frequency performance.
The subwoofers are discreetly integrated to maintain a sleek and seamless appearance while delivering powerful and impactful bass response, adding depth and realism to movie soundtracks and music.
Surround Speakers Surround Woofer
Atmos Speakers
Side Wall Elevation
ATMOS SPEAKERS
The Atmos experience is brought to life through the integration of L Acoustics X8i speakers. Positioned strategically, these speakers immerse viewers in multidimensional audio landscapes. With precision engineering, each X8i speaker delivers captivating overhead sound, elevating the cinematic journey with unparalleled realism.
BRAND – L-ACOUSTIC
MODEL - X8

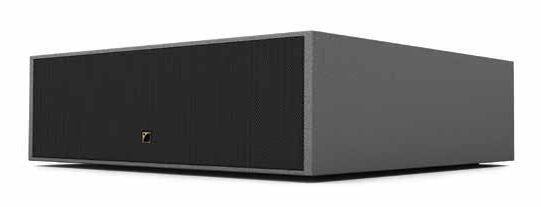

SURROUND WOOFER
BRAND – L-ACOUSTIC MODEL - SB10i
High-performance subwoofers are selected to seamlessly integrate with the existing speaker system. These subwoofers are chosen based on their frequency response, power handling capabilities, and compatibility with the main audio setup to deliver a cohesive soundstage.
The side wall subwoofers work in tandem with the surround sound setup, comprising Syva speakers and SB10i subwoofers, to create a multi-dimensional audio environment. This integration ensures that low-frequency effects are accurately reproduced, enhancing the realism of cinematic audio.
SURROUND SPEAKERS
The front wall hosts the placement of five L Acoustics Syva speakers, strategically positioned to ensure optimal audio coverage and uniform sound distribution throughout the viewing area. Each speaker is meticulously placed to achieve balanced audio reproduction, delivering clear dialogue, dynamic sound effects, and immersive surround sound for an unparalleled cinematic experience.
BRAND – L-ACOUSTIC MODEL - SVYA

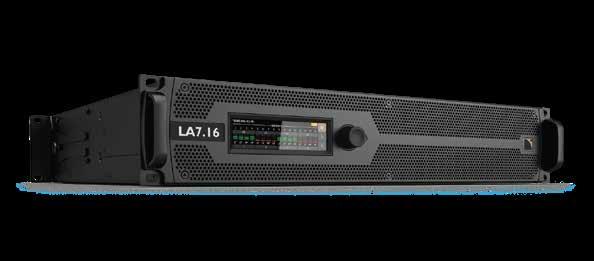

AMPLIFIER
BRAND – L-ACOUSTIC MODEL - LA7.16i
LA7.16i amplifier brings a professional-grade audio experience to home cinema enthusiasts, delivering an unparalleled level of sound precision and power. Designed for ultimate performance, the LA7.16i features 16 channels of amplification, providing superior sound quality and control across a wide range of speaker configurations.
Its advanced DSP capabilities ensure precise sound management, creating an immersive audio environment that brings movies, music, and games to life with breathtaking clarity and dynamic range. With the LA7.16i, every whisper, explosion, and musical note is reproduced with stunning accuracy, making it an ideal choice for discerning audiophiles and home theater aficionados.

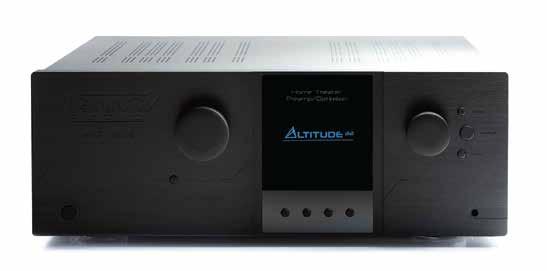

AV PROCESSOR
BRAND – TRINNOV
MODEL - ALTITUDE 32
The Trinnov Altitude 32 AV processor, the pinnacle of audio and video processing technology. Designed to deliver unparalleled sound quality, the Altitude 32 supports up to 32 channels of immersive audio, ensuring every nuance and detail of your favorite films and music is faithfully reproduced. Its advanced 3D audio decoding, including Dolby Atmos, DTS and Auro-3D, brings you a truly enveloping experience, making you feel as though you're right in the middle of the action. With its powerful room correction technology, the Altitude 32 optimizes audio performance to perfectly suit the unique acoustics of your space, ensuring an impeccable listening environment.

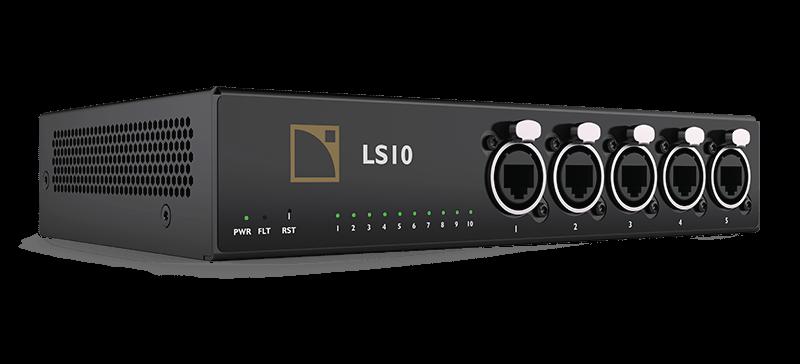

AVB NETWORK SWITCH
BRAND – L-ACOUSTIC MODEL - LS10
Integrating the AVB (Audio Video Bridging) network switch into a home cinema setup with L-Acoustics LS10 significantly elevates the audio-visual experience, ensuring seamless and high-quality performance. The AVB network switch facilitates precise synchronization of audio and video signals, minimizing latency and providing crystal-clear sound. The LS10, renowned for its exceptional sound quality and dynamic range, pairs perfectly with the AVB switch to create an immersive audio environment that brings movies, music, and gaming to life.

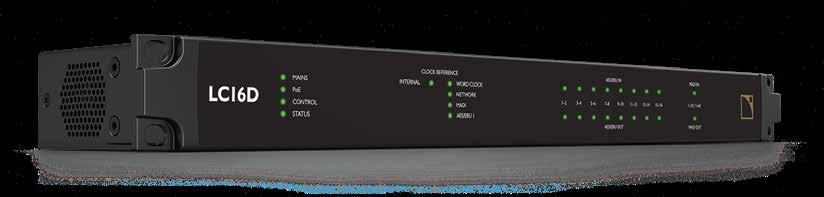

AUDIO CONVERTER
BRAND – L-ACOUSTIC MODEL - LC16D
L-Acoustic LC16D audio converter takes your movie nights to a whole new level. This high-end audio converter is designed to deliver pristine sound quality, enhancing every nuance of your favorite films and shows. The LC16D seamlessly integrates with your home cinema setup, ensuring that both dialogue and sound effects are rendered with remarkable clarity and depth. Whether you’re watching an action-packed blockbuster or an intimate drama, the LC16D provides a fully immersive audio experience that brings the cinema to your living room.

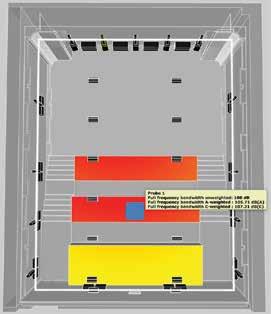

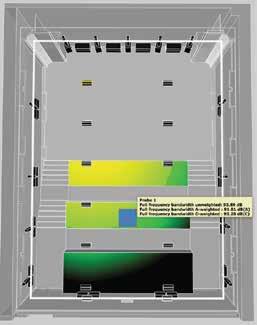

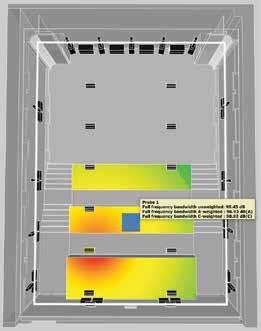

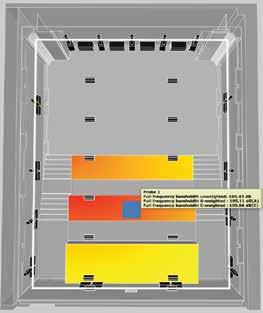

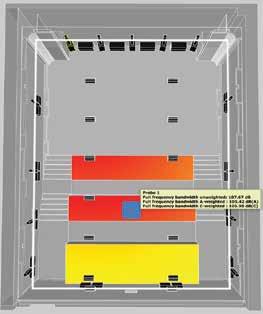

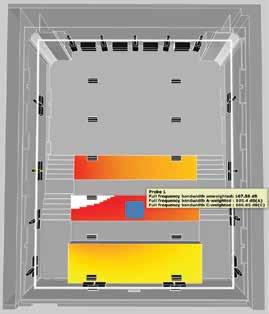

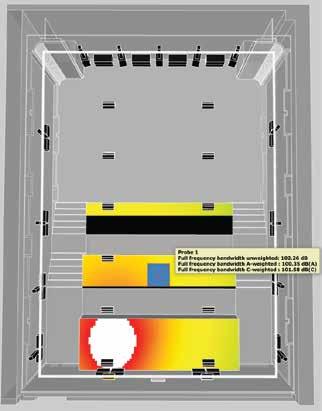

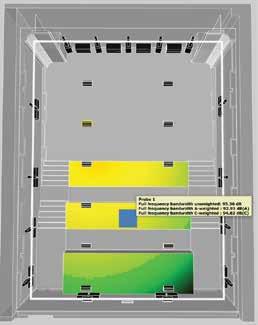

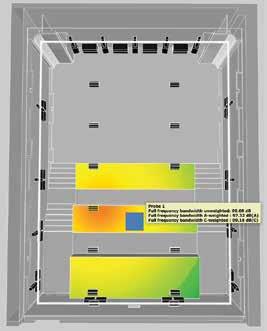

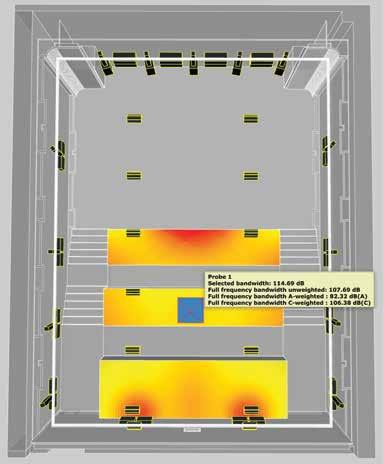

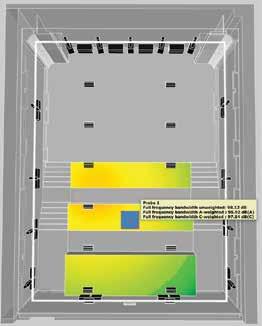

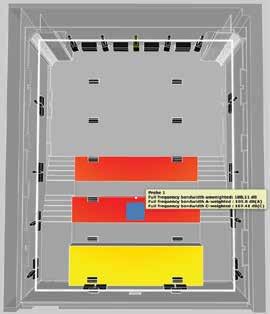

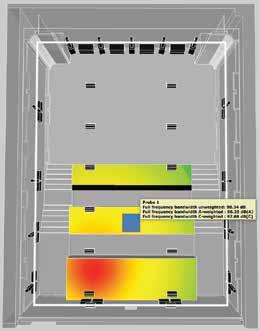

PERFORMANCE MAPPING
PERFORMANCE MAPPING
PERFORMANCE MAPPING
PERFORMANCE MAPPING
PERFORMANCE MAPPING
PERFORMANCE MAPPING
LFE
Front Wall Elevation
SCREEN DIMENSIONS - 427” Diagonal WITH FRAME - 190” X 418” X 7” (H x W x D) WITHOUT FRAME - 166” X 394” X 7” (H x W x D)

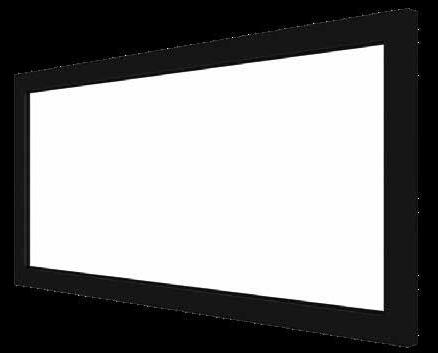

CINEMASCOPIC SCREEN
MODEL - DT-Dynamic 2S-XL

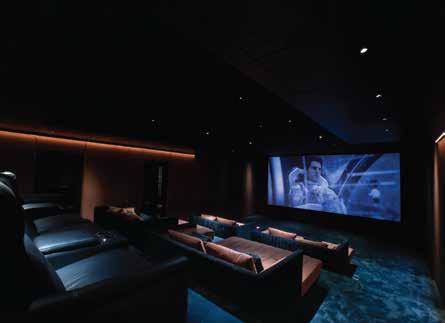

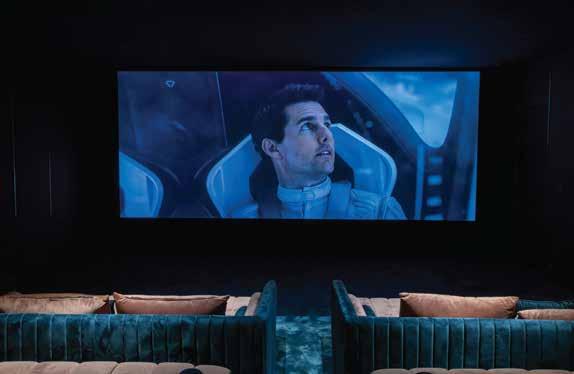

A massive 427-inch diagonal screen(2.35:1), meticulously installed to maximize viewing angles and ensure an immersive viewing experience for all viewers.
The screen size and positioning are optimized to provide a cinematic viewing experience, enveloping viewers in larger-than-life visuals that transport them into the heart of the action.
Projector
Projection Angle
Viewing Angle
Side Wall Elevation
Screen
CINEMASCOPIC PROJECTOR
BRAND – BARCO
MODEL – FREYA+
A projector is a key component for creating an immersive home cinema experience, offering a large, high-quality display that can transform a living room into a private theater. Modern projectors are equipped with advanced features like 4K resolution, high dynamic range (HDR) support, and powerful brightness and contrast ratios, ensuring vivid and lifelike picture quality. They are compatible with various content sources, including streaming devices, Blu-ray players, and gaming consoles, providing versatile entertainment

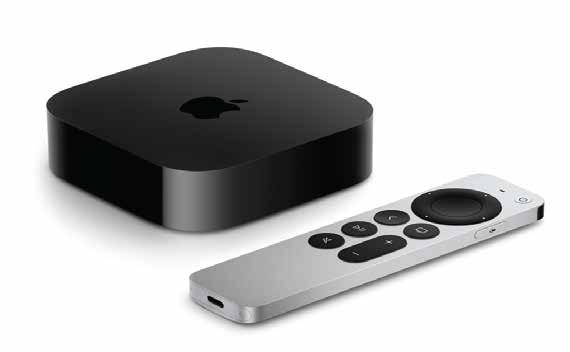

MOVIE PLAYER
APPLE, APPLE TV
Apple TV, the ultimate movie player for your home cinema. With its sleek design and powerful features, Apple TV turns your living room into a personal theater. Enjoy access to an extensive library of movies and TV shows from popular streaming services like Apple TV+, Netflix, and Disney+, all in stunning 4K HDR. The intuitive interface makes it easy to browse and select content, while Siri voice control lets you find your favorite films effortlessly. Plus, with Dolby Atmos sound, you’ll experience cinema-quality audio that surrounds you from every direction, bringing your favorite scenes to life.

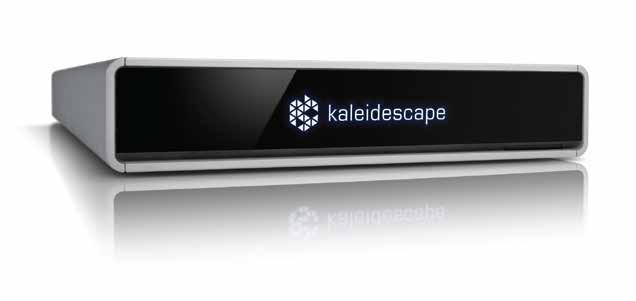

MOVIE SERVER
KALEIDESCAPE, TERRA MOVIE SERVER
The Terra Movie Server, known for its unparalleled quality and performance, brings the magic of cinema right into your living room. With its robust storage capabilities, it allows you to amass a vast collection of movies in pristine 4K Ultra HD, ensuring that each viewing is as breathtaking as the first. The server integrates seamlessly with the rest of your home theater system, delivering movies at lightning-fast speeds, and providing instant access to your entire library. With Kaleidescape's meticulous attention to detail and high fidelity sound, every movie night becomes a luxurious escape into the world of cinema.

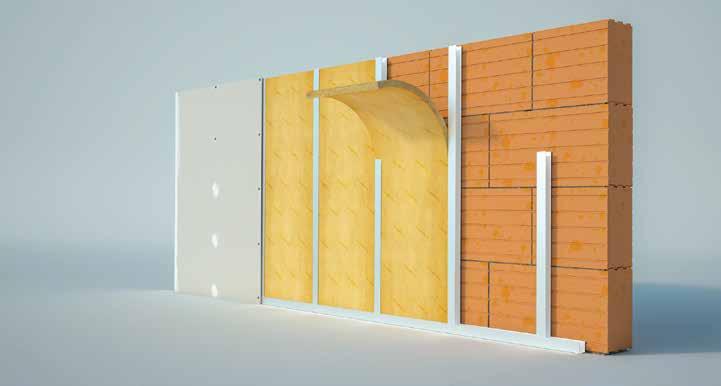

WALL
SIDE & REAR WALL TREATMENT DETAILS
1. 50 mm X 50mm Timber framing @ 600mmc/c.
2. 50 mm 64 Density Rockwool in the framing.
3. 50 mm Aerofil after the rockwool.
4. 25mm abfoam after the aerofil.
SPEAKERS WALL TREATMENT DETAILS
1. 75 x 50mm Timber as supports for the speakers. 50 mm 64 density rockwool in the speakers wall void
OUTER MEMBRANE -
1. 1 x 12 mm plywood ( Marine - formaldehyde free)
2. 1 x 12 mm gypsum board
FRONT WALL TREATMENT
1. 18mm plywood boxing for the speakers.
2. 25mm abfoam on all four sides & the back of the box for speakers.

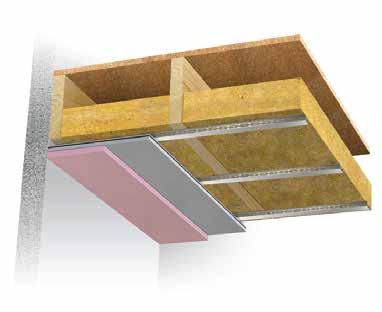

CEILING
CEILING TREATMENT DETAILS
1. 1 X 50mm Aerofil
2. 1 X 5mm Basotect
3. Fabricover the abfoam
SPEAKERS ISOLATION ON THE CEILING
1. Isomax clip detail
2. 1 x 12mm Plywood ( Marine Formadehyde free)
3. 18mm Plywood boxing for the speaker on the side.
CEILING WALL ISOLATION DETAIL
1. 13mm Insushield at all perimeters of the ceiling.
2. Isomax clips fixed to the ceiling @ 600 X 600mm c/c
3. Furning hot channel affixed to the isomax clips @600 mm c/c (25mm 96 density rockwool in the voids)
Layers attached to the clips
1. 1 x 12mm plywood (Marine formaldehyde free)
2. 1 x 5mm 10kg MLV
3. 2 x 12mm gypsum Board (IGL)
All joints to be staggered and sealed with mastic.
FLOOR

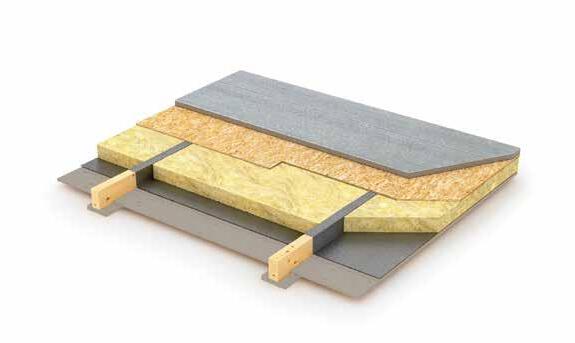

GENERAL FLOOR ISOLATION DETAIL
1. 1 X 13mm Insushield on the floor.
2. 1 x 18mm Exterior grade particle board over the insushield.
3. Carpet over the particle board all joints to be sealed with mastic.
SPEAKERS FLOOR ISOLATION DETAIL
1. 26 mm floor waffle pads in a grid of 300 x 300 mm c/c(25mm 96 density rockwool in the void)
2. 1 x 18mm Exterior grade particle board.
3. 1 x 5mm 10kg MLV
4. 1 x 18mm Exterior grade particle board. All joints to be staggered & sealed with mastic.
