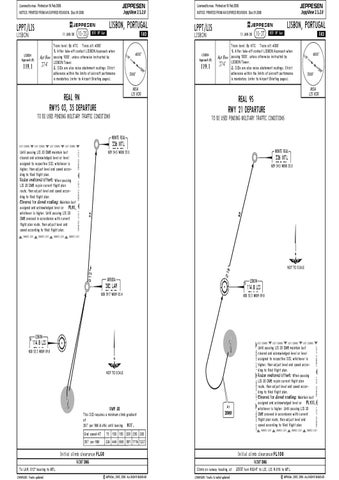

LPPT/LIS LISBON
LISBON Approach (R)
119.1
11 JAN 08
10-3S
.Eff.17.Jan.
LISBON, PORTUGAL
.SID.
Trans level: By ATC Trans alt: 4000' 1. After take-off contact LISBON Approach when Apt Elev passing 1000', unless otherwise instructed by LISBON Tower. 374' 2. SIDs are also noise abatement routings. Strict adherence within the limits of aircraft perfomance is mandatory (refer to Airport Briefing pages).
119 ^
4000'
3000'
299 ^
MSA LIS VOR
REAL 9N RWYS 03, 35 DEPARTURE TO BE USED PENDING MILITARY TRAFFIC CONDITIONS
