THE HANDS RESIDENCE
WORKING DRAWING SET
A1-SITEPLAN
A2-BASEMENTFLOORPLAN
A3-GROUNDFLOORPLAN
A4-SECONDFLOORPLAN
A5-GROUNDFLOORFRAMINGPLAN
A6-SECONDFLOORFRAMINGPLAN
A7-ROOFFRAMINGPLAN
A8-NORTHELEVATION
A9-SOUTHELEVATION
A10-WESTELEVATION
A11-EASTELEVATION
A12-BUILDINGSECTION
A121-WALLSECTION
A13-STAIRSECTION
A13.1-STAIRSECTIONDETAIL
A14-DOORANDWALLSCHEDULE
DRAWNBY:PHUOCTHINHLUU
ARCHITECTURALSTUDIO2-ARCH285445 PROFESSOR SEBASTIANLUBCZYNSKI 16thAPRIL,2024
DesignNotesonsustainabilityfeatures:
Thestructurewillbeconstructedusingenvironmentalfriendlymaterials:claytilesroofing,whichcan lastupto100yearsormoreiftheyarebeingwellinstalled.Thematerialsforwalls'sidingwillbefiber cement,whichisarecyclablematerials,requireslittlemaintenance,hasgooddurability-upto50 years.Theconstructionofthehousewillbewoodframing,woodisarenewableresourcewithlow carbonfootprint,theprocessofmanufacturingisalsoenergy-efficient.

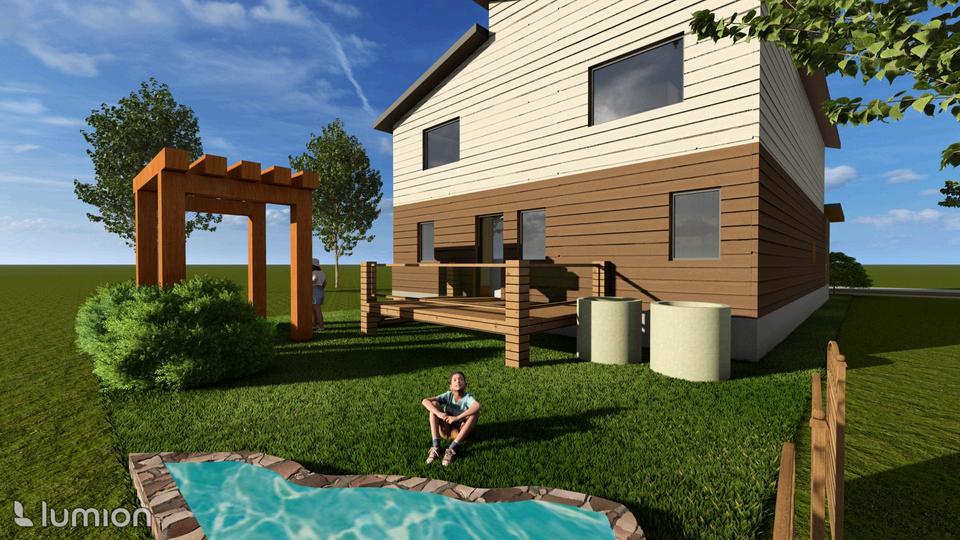

Theroofofthehousewillbealsodesignedsothattherainwatercanfalltothebackyardwithsome watercollectorforplantingpurposes.Theycanalsousethewatercollectedtofillthepondatthe backyard.

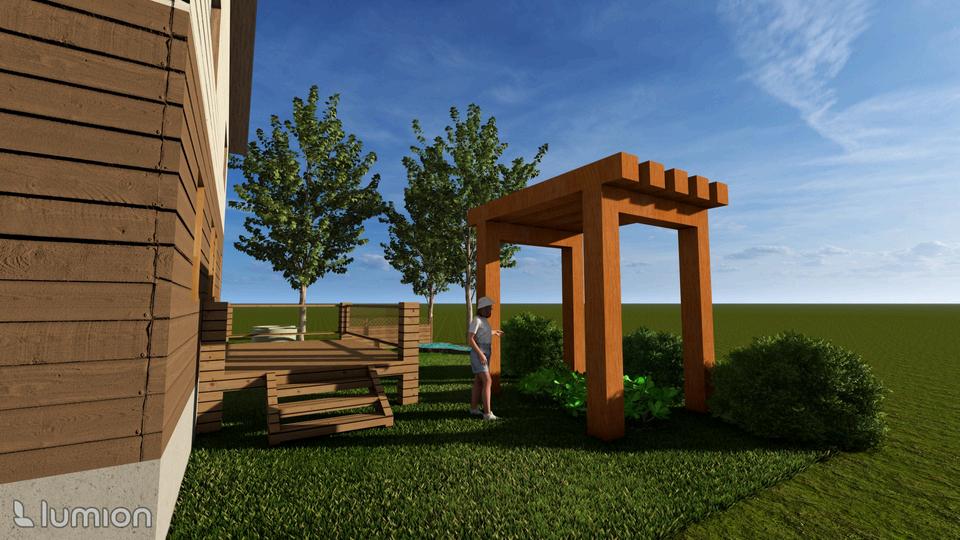

Thereisalsoonesmallgardenatthebackyardsothepeoplewholiveinthishousecansustaintheir veggiessourceoveraperiodof3monthsinayear.Thewatercollectedfromtherainwaterwillbe usedtowatertheseplantssotheycansavewatercostofthehouse.
38x286SPFNO. 1,2DECKJOISTS @400O.C
38x286SPFNO.1,2 WOODFLOORJOISTS@300O.C. W/STRAPPINGANDBRIDGING
38x286SPF NO.1,2WOOD HEADER
DOUBLED JOISTAT STAIR OPENING
38x286SPFNO.1,2 WOODFLOORJOISTS@300O.C. W/STRAPPINGANDBRIDGING
38x286SPF NO.1,2WOOD HEADER
CONCRETEPORCH
CONCRETESTEPS
38x286SPFNO.1,2WOOD ROOFJOISTS@600O.C
38x286SPF NO.1,2WOOD ROOFJOISTSFOR OVERHANG@600 O.C
38x286SPF NO.1,2 WOOD ROOFRIDGE BOARD
38x286SPFNO.1,2WOOD ROOFJOISTS@600O.C
38x286SPF NO.1,2WOOD ROOFJOISTSFOR OVERHANG@600 O.C
38x286SPFNO.1,2WOOD ROOFJOISTS@600O.C
38x286SPFNO.1,2WOOD ROOFJOISTS@600O.C
38x286SPF NO.1,2 WOOD ROOFRIDGE BOARD
38x286SPF NO.1,2WOOD ROOFJOISTSFOR OVERHANG@600 O.C
DROPSOFTWOODSIDING
TOPOFFINISHEDSECONDFLOOR
TOPOFFINISHEDGROUNDFLOOR
NorthElevationGlazedOpeningsCalculation: 1.Exposedbuildingface:66.2sqm 2.Actuallimitingdistance:4.5m 3.Glazedopeningpermitted:20.49sqm31.0% 4.Glazedopeningproposed:7.99sqm-12.1%
NorthElevationUnprotectedOpeningsCalculation: 1.Exposedbuildingface:66.2sqm
8.41m
TOPOFFINISHEDSECONDFLOOR
TOPOFFINISHEDGROUNDFLOOR
SouthElevationGlazedOpeningsCalculation:
NorthElevationUnprotectedOpeningsCalculation:
Exposedbuildingface:66.2sqm
WestElevationGlazedOpeningsCalculation:
1.Exposedbuildingface:89.2sqm
2.Actuallimitingdistance:0.61m
3.Glazedopeningpermitted:3.18sqm3.6% 4.Glazedopeningproposed:0.54sqm0.6%
WestElevationUnprotectedOpeningsCalculation:
1.Exposedbuildingface:89.2sqm 2.Actuallimitingdistance:0.6m 3.Glazedopeningpermitted:2.49sqm2.8% 4.Glazedopeningproposed:0.54sqm0.6%
EastElevationGlazedOpeningsCalculation:
EastElevationUnprotectedOpeningsCalculation:
STEELBEAM
CLAYTILESROOF 38x235mmROOFRAFTERS@600mmO.C. 13mmPLYWOODSHEATHING FELTPAPER ROOFUNDERLAYMENT 38x38mmWOODFURRING@600mmO.C. 76mmCLAYTILES
CEILING 13mmGYPSUMBOARD 38x235mmCEILINGJOISTS@300mm O.C
SPRAYFOAM INSULATION
EXTERIORWOODSIDINGWALL
19mmWOODSIDING 14mmAIRSPACE AIRBARRIER 50mmRIGIDINSULATION 13mmPLYWOODSHEATHING
38x89mmWOODSTUDS@400mmO.C. OFFSETSTOCREATE191PLATEW/ MINERALWOOLINSULATION. 6milPOLYVAPOURBARRIER 13mmGYPSUMBOARD
SPRAYFOAM INSULATION
FLOORING
20mmFINISHEDFLOOR 13mmPLYWOODSHEATHING 38x286mmFLOORJOISTS@300mmO.C. 13mmGYPSUMBOARD
SPRAYFOAM INSULATION
13mmPLYWOODSHEATHING 380mmMINERALWOOLINSULATION FINISHEDGRADE
EXTERIORFOUNDATIONWALL DAMP-PROOFINGANDDRAINAGEMAT 50mmRIGIDINSULATION 250mmCONCRETEFOUNDATIONWALL 13mmAIRSPACE
38x89mmWOODSTUDS@400mmO.C. W/MINERALWOODINSULATION
6milPOLYVAPOURBARRIER 13mmGYPSUMBOARD
FOUNDATIONFLOOR 13mmFINISHEDFLOOR 100mmCONCRETESLAB 6milPOLYVAPOURBARRIER 50mmRIGIDINSULATION 50mmRIGIDINSULATION 25mmSAND 250mmGRANULARFILL
Ø100mmWEEPERTILE
CONTINUOUSBEADOF SEALANT
EXPANDINGFOAMOF SEALANT
METALCAPFLASHING
WINDOWFRAME
EXPANDINGFOAMOF SEALANT
38x38mmWOOD BLOCKINGOFOPENING
TRIPLE-GLAZEDLOW-E WINDOWUNIT METALCAPFLASHING
13x51mmBACKDAM
CONTINUOUSBEADOF SEALANT
WINDOWSECTIONDETAIL
SCALE:1:20 1 A12.2
EXTERIORWOODSIDINGWALL 19mmWOODSIDING 14mmAIRSPACE
50mmRIGIDINSULATION AIRBARRIER
13mmPLYWOODSHEATHING
38x89mmWOODSTUDS@400mmO.C. OFFSETSTOCREATE191PLATEW/ MINERALWOOLINSULATION. 6milPOLYVAPOURBARRIER 13mmGYPSUMBOARD
EXTERIORSTUCCOWALLATBALCONY 13mmGYPSUMBOARD 38x140mmWOODSTUDS@300mmO.C. 13mmPLYWOODSHEATHING 15mmSTUCCOFINISH
INTERIORPARTITION&LOADBEARINGWALL 13mmGYPSUMBOARD 38x89mmWOODSTUDS@300mmO.C. 13mmGYPSUMBOARD
INTERIORPLUMBINGWALL 13mmGYPSUMBOARD 38x184mmWOODSTUDS@300mmO.C. 13mmGYPSUMBOARD
EXTERIORFOUNDATIONWALL DAMP-PROOFING 50mmRIGIDINSULATION 250mmCONCRETEFOUNDATIONWALL 13mmAIRSPACE 38x89mmWOODSTUDS@400mmO.C. W/MINERALWOODINSULATION. 6milPOLYVAPOURBARRIER 13mmGYPSUMBOARD
