SANTA ANA MULTI-USE RESIDENTIAL BUILDING
DESIGN STUDIO HOUSING
620 N SANTIAGO ST. SANTA ANA, CA 92701
A PROJECT FOR DESIGN STUDIO HOUSING
PROJECT SUMMARY BUILDING AREA (F.A.R.)
DIVIDING THE "GROSS FLOOR AREA" OF A BUILDING BY THE TOTAL AREA OF THE LOT PER LBMC 21.15.1090*
*FOR MULTI-FAMILY DWELLINGS, THE GFA OF ALL GARAGE AREAS AND PARKING STRUCTURES SHALL BE EXEMPTED
* FOR ALL RESIDENTIAL DWELLING UNITS, OUTDOOR
DECK OR BALCONY AREAS OPEN TO THE SKY OR COVERED BY A PATRIO COVER OR SIMILAR STRUCTURE WHEN ENCLOSED ON ALL SIDES BY A PARAPET, SOLID RAILING OR BUILDING WALL GREATER THAN 3'-6" IN HEIGHT, SHALL BY INCLUDED
GROSS BUILDING AREA
RESIDENTIAL UNIT BREAKDOWN
CCURTAIN WALL
CL.CLEARANCE
DR.DOOR
FFLUSH
F.F.FACTORY FINISH
F.O.F.FACE OF FINISH
GGARAGE
GL.GLASS
HT.HEIGHT
MATL.MATERIAL
MIN.MINIMUM
MTL.METAL
OPNG.OPENING
REQD.REQUIRED
REQMTS.REQUIREMENTS
S/SSTAINLESS STEEL
SDSLIDING DOOR
VN.VINYL
WD.WOOD
PARKING SUMMARY
THE MIXED USE RESIDENTIAL PROJECT IN SANTA ANA CONSISTS OF APPROXIMATELY 60,291 SF TENANT SPACE, RESIDENTIAL LOBBY, OFFICE SPACES, AND COMMERCIAL SPACES AT GROUND LEVEL. 4 LEVELS ABOVE INCLUDE 65 RESIDENTIAL UNITS, GYM AMMENITIES, COMMUNITY AND FLEX ROOMS, AND A ROOF DECK. 25 PARKING STALLS LOCATED ON THE GROUND LEVEL.
SHEET INDEX
TYPE IA/VA RATING REQUIREMENTS
EXIT ACCESS TRAVEL DISTANCE
SYMBOLS AND ABBREVIATIONS
A410Interior Visualizations04/26/23
A420Enlarged Stair Plan and Section 04/15/23
A501Wall and Floor Assemblies04/19/23
A503Details04/15/23
A601Window Schedule and Types04/15/23
A602Door Schedule and Types04/15/23

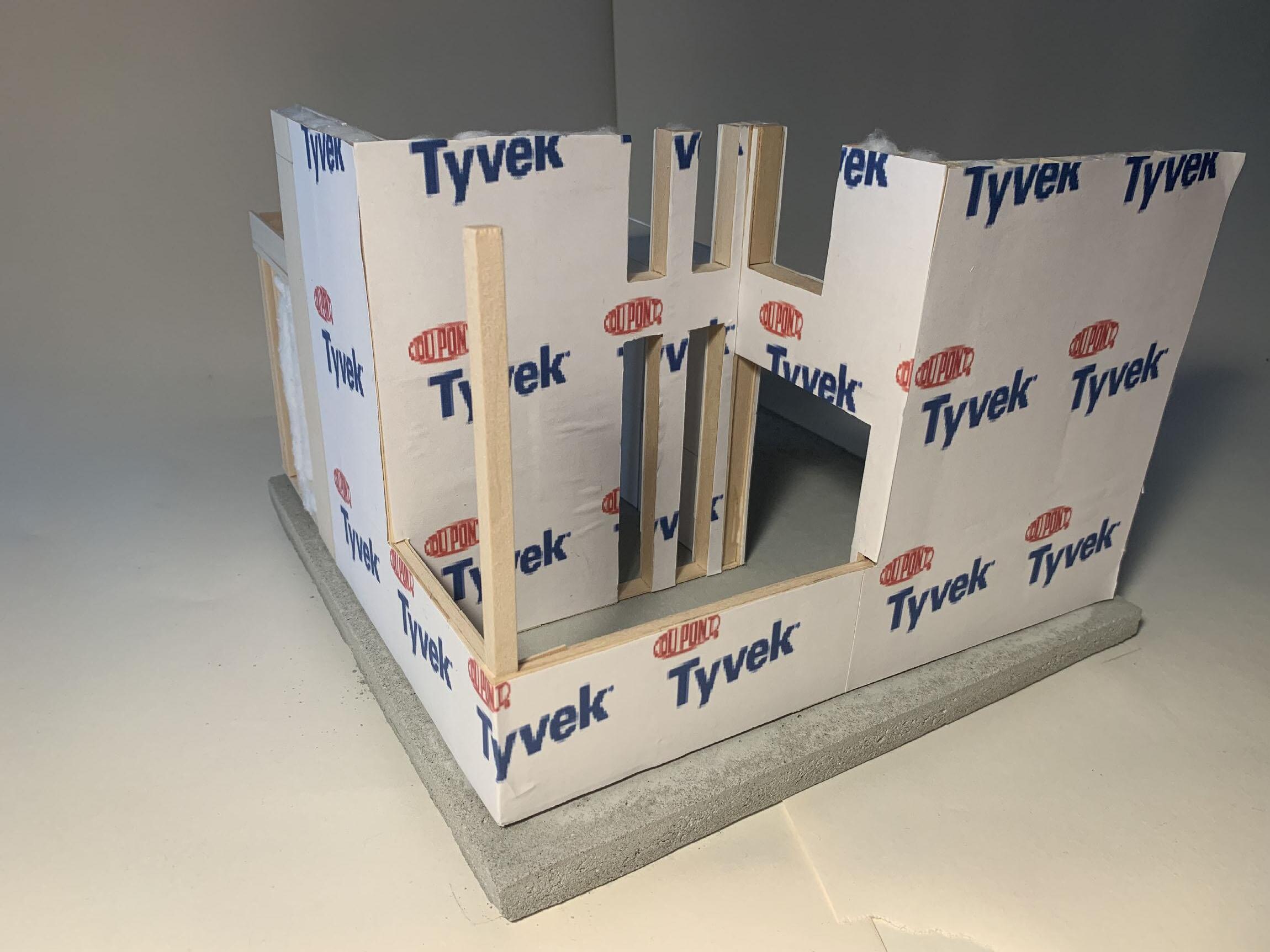

A901Model Documentation05/10/23
E101Electrical and Power RCP04/26/23
G101Cover Sheet04/14/23

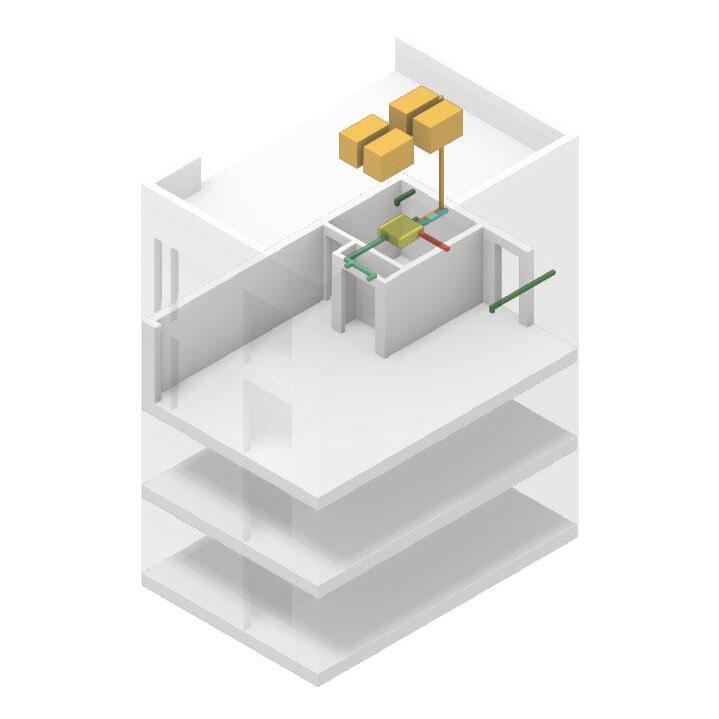

M101Mechanical RCP and 3D Diagram of Stack 04/15/23
P101Plumbing Plan and 3D Diagram of Stack 04/26/23
S100Framing Plans04/15/23

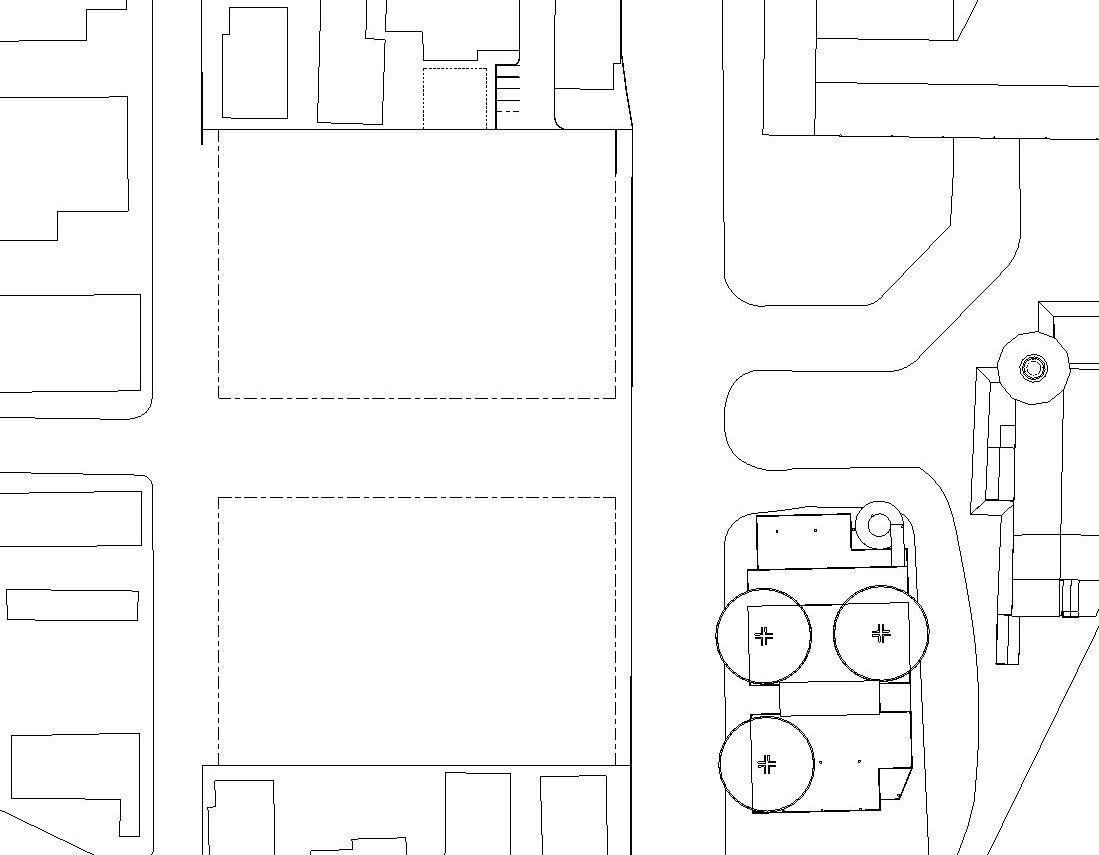

VICINITY PLAN
A101 1 SIM 101 -00 A101 1 Ref 1 Ref 1 Ref 1 Ref 1 A101 SIM CALLOUT DOOR TAG WALL TAG ELEVATION MARKER NORTH SECTION MARKER 1i TRANSFORMER T Phoebe Gwyndale Architects SANTA ANA MULTIUSE RESIDENTIAL BUILDING 620 N SANTIAGO ST. SANTA ANA, CA 92701 3801 W Temple Ave. Pomona, CA 91768 5/10/2023 10:02:28 PM G101 Cover Sheet IssueDate
RESIDENTIAL UNIT SUMMARY
COMMON PATH OF EGRESS
ANALYSIS PROJECT DESCRIPTION
OCCUPANCY
ABBREVIATIONS PROJECT SUMMARY GROSS SITE AREA (SURVEY) NET SITE AREA (F.A.R. + DENSITY) GROSS BUILDING AREA STORIES ABOVE GRADE STORIES BELOW GRADE ZONING SUMMARY MAXIMUM HEIGHT LIMIT FLOOR AREA RATIO BUILDING DESCRIPTION TYPE OF CONSTRUCTION FULLY SPRINKLERED BUILDING WITH NFPA 13 SPRINKLER SYSTEM (SECTION 903.2.11.3) FIRE ALARM AND DETECTION SYSTEM (SECTION 907.2.2) 68,993 SF 101,148 SF 20,422 SF 6 LEVELS 0 LEVELS 6 STORIES 1.5 VA OVER IA 6 STORIES ABOVE GRAVE/0 STORIES BELOW GRADE (FAR) OBTAINED BY
ROOF
(GFA) TOTAL AREA
BUILDING,
MEASURED
SURFACES OF
WALLS PER LBMC
NET SITE AREA (PER PROJECT DESCRIPTION) FLOOR AREA RATIO (FAR) GROUND LEVEL 01 101,148 SF/68,993 SF 1.47 68,993 SF LEVEL 01 GROSS AREA 20,215 SF LEVEL 02 LEVEL 02 GROSS AREA 6,424 SF LEVEL 03 RESIDENTIAL 19,628 SF LEVEL 06 RESIDENTIAL 17,593 SF GROSS FLOOR (GFA) 101,148 SF
OF ALL FLOORS OF A
AS
TO THE OUTSIDE
EXTERIOR
21.12.1070
DESCRIPTION PROVIDED GROSS AREA OCC GROUP OCC FACTOR OCC LOAD A-2 FOOD SERVICE 3,040 SF A-2 200 16 3,040 SF 16 A-3 COMMUNITY ROOM 1,075 SF A-3 15 72 WORKSPACE 2,418 SF A-3 15 162 FOOD COURT 3,013 SF A-3 15 201 GYM 1,370 SF A-3 50 28 FLEX ROOM 822 SF A-3 15 55 ROOF DECK 810 SF A-3 15 54 9,508 SF 572 B MAIL ROOM 298 SF B 50 6 FRONT OFFICE 254 SF B 100 3 LOBBY 370 SF B 15 25 LAUNDRY 492 SF B 100 5 RESTROOM 393 SF B 200 2 1,807 SF 41 R-2 BALCONY 1,669 SF R-2 200 9 CORRIDOR 19,321 SF R-2 200 97 UNIT A1 5,830 SF R-2 200 30 UNIT A2 5,182 SF R-2 200 26 UNIT B1 8,612 SF R-2 200 44 UNIT B2 8,006 SF R-2 200 41 UNIT C1 8,980 SF R-2 200 45 UNIT C2 9,930 SF R-2 200 50 UNIT D1 13,748 SF R-2 200 69 81,278 SF 411 S-2 TRASH ROOM 167 SF S-2 300 1 LOADING DOCK 360 SF S-2 300 2 BIKE STORAGE 212 SF S-2 300 1 ELECTRICAL ROOM 330 SF S-2 300 2 401 SF S-2 300 2 MECHANICAL ROOM ELEVATORS 120 SF S-2 300 1 STAIR 1 390 SF S-2 300 2 STAIR 2 616 SF S-2 300 3 STAIR 3 931 SF S-2 300 4 3,527 SF 18 LEVEL NAME AREA 25 SPACES REQUIRED NON-RESIDENTIAL PARKING XXX SF 4 SPACES PROVIDED NON-RESIDENTIAL PARKING REQUIRED ACCESSIBLE 25 SPACES 0 SPACES REQUIRED RESIDENTIAL PARKING (ASSIGNED) 65 UNITS X 0 SPACES = TOTAL PROVIDED VEHICULAR PARKING 25 SPACES PROVIDED PARKING GROUND LEVEL 01 STALL TYPE SPACES ACCESSIBLE VAN 4 STANDARD 21 TOTAL PARKING PROVIDED 25 CBC TABLE 601: FIRE RESISTANCE RATING REQUIREMENTS FOR BUILDING ELEMENTS (HOURS) BUILDING ELEMENT TYPE 1A TYPE V PRIMARY STRUCTURAL FRAME TYPE 1A TYPE V BEARING WALLS - EXTERIOR TYPE 1A TYPE V BEARING WALLS - INTERIOR TYPE 1A TYPE V NONBEARING WALLS + PARTITIONSEXTERIOR TYPE 1A TYPE V NONBEARING WALLS + PARTITIONSINTERIOR TYPE 1A TYPE V FLOOR CONSTRUCTION AND ASSOCIATED SECONDARY MEMBERS TYPE 1A TYPE V ROOF CONSTRUCTION AND ASSOCIATED SECONDARY MEMBERS TYPE 1A TYPE V CBC TABLE 601: FIRE RESISTANCE RATING REQUIREMENTS FOR EXTERIOR WALLS BASED ON FIRE SEPARATION DISTANCE FIRE SEPARATION DISTANCE = X (FT) CONSTRUCTION TYPE OCC GROUP A, B, R, S-2 X < 5 ALL 1 5 ≤ X ≤ 10 1A/OTHERS 1 10 ≤ X < 30 1A/OTHERS 1 X ≥ 30 ALL 0 UNIT A1 (STUDIO) 583 SF 5,830 SF UNIT A2 (STUDIO) UNIT B1 (1 BR) UNIT B2 (1 BR) UNIT C1 (2 BR) UNIT C2 (2 BR) UNIT NAME AMOUNT AREA (AVG) TOTAL AREA (AVG) 5,180 SF 8,610 SF 8,010 SF 8,981 SF 9,930 SF 518 SF 861 SF 801 SF 1,293 SF 1,241 SF UNIT D1 (LIVE/WORK) 13,750 SF 1,375 SF 10 10 10 10 7 8 10 65 60,291 SF 1,374.8 SF 13,748 SF UNIT TYPE AMOUNT AREA TOTAL AREA UNIT D1 (LIVE/WORK) 10 LEVEL 01 861 SF 3,444 SF UNIT B1 (1 BR) 4 LEVEL 03 800.6 SF 4,003 SF UNIT B2 (1 BR) 5 1,283 5,132 SF UNIT C1 (2 BR) 4 1,241 4,964 SF UNIT C2 (2 BR) 4 861 SF 3,444 SF UNIT B1 (1 BR) 4 LEVEL 04 800.6 SF 4,003 SF UNIT B2 (1 BR) 5 861.2 SF UNIT B1 (1 BR) 1 LEVEL 05 1,283 SF UNIT C1 (2 BR) 3 1,241 SF UNIT C2 (2 BR) 4 518 SF UNIT A2 (STUDIO) 5 583 SF UNIT A1 (STUDIO) 7 4,081 SF 2,590 SF 861.2 SF 3,849 SF 4,964 SF 861.2 SF UNIT B1 (1 BR) 1 LEVEL 06 518 SF UNIT A2 (STUDIO) 5 583 SF UNIT A1 (STUDIO) 4 2,332 SF 2,590 SF 861.2 SF M 1,988 SF A-2 60 34 1,988 SF 34 FOOD MARKET LEVEL 04 RESIDENTIAL 18,943 SF LEVEL 05 RESIDENTIAL 18,345 SF LOCATION OCCUPANCY TYPE MAX TRAVEL DISTANCE TRAVEL DISTANCE LEVEL 1 LIVE/WORK R-2 125'-0" 43'-6" WORKSPACE A-3 75'-0" 56'-0" FOOD MARKET M 75'-0" 56'-0" LEVEL 2 MECHANICAL ROOM S-2 250'-0" 51'-6" LEVEL 3 RESIDENTIAL R-2 250'-0" 129'-6" RESIDENTIAL R-2 250'-0" 109'-0" RESIDENTIAL R-2 250'-0" 230'-0" RESIDENTIAL R-2 250'-0" 180'-6" LEVEL 4 RESIDENTIAL R-2 250'-0" 118'-6" RESIDENTIAL R-2 250'-0" 208'-6" RESIDENTIAL R-2 250'-0" 206'-0" RESIDENTIAL R-2 250'-0" 186'-6" LEVEL 5 RESIDENTIAL R-2 250'-0" 129'-6" RESIDENTIAL R-2 250'-0" 109'-0" RESIDENTIAL R-2 250'-0" 219'-6" RESIDENTIAL R-2 250'-0" 165'-0" LEVEL 6 RESIDENTIAL R-2 250'-0" 121'-6" RESIDENTIAL R-2 250'-0" 195'-0" RESIDENTIAL R-2 250'-0" 217'-0" RESIDENTIAL R-2 250'-0" 148'-6" LEVEL 2 MECHANICAL ROOM S-2 100'-0" 30'-0" LEVEL 3 GYM A-3 75'-0" 63'-6" RESIDENTIAL R-2 125'-0" 38'-6" COMMUNITY ROOM A-3 75'-0" 45'-0" LEVEL 4 GYM A-3 75'-0" 57'-0" RESIDENTIAL R-2 125'-0" 35'-6" RESIDENTIAL R-2 125'-0" 44'-6" LEVEL 5 FLEX ROOM A-3 75'-0" 57'-0" RESIDENTIAL R-2 125'-0" 38'-6" COMMUNITY ROOM A-3 75'-0" 31'-6" LEVEL 6 ROOF DECK A-3 75'-0" 66'-6" RESIDENTIAL R-2 125'-0" 35'-6" RESIDENTIAL R-2 125'-0" 44'-6"
LOCATION OCCUPANCY TYPE MAX TRAVEL DISTANCE TRAVEL DISTANCE LEVEL 1 LOBBY 2 LOCATION OCCUPANCY TYPE OCCUPANCY NUMBER B UNIT D1 (LIVE/WORK) 6 R-2 COMMERCIAL 35 A-3 WORKSPACE 10 A-3 LEVEL 2 ELECTRICAL ROOM 2 S-2 MECHANICAL ROOM 2 S-2 LEVEL 3 GYM 17 A-3 UNIT C1 (2 BR) 7 R-2 UNIT C2 (2 BR) 7 R-2 UNIT B1 (1 BR) 5 R-2 UNIT B1 (1 BR) 5 R-2 COMMUNITY ROOM 40 A-3 LEVEL 4 GYM 11 A-3 UNIT B1 (1 BR) 5 R-2 UNIT B2 (1 BR) 5 R-2 LEVEL 5 FLEX ROOM 55 A-3 UNIT C1 (2 BR) 7 R-2 UNIT C2 (2 BR) 7 R-2 UNIT B1 (1 BR) 5 R-2 UNIT A1 (STUDIO) 3 R-2 UNIT A2 (STUDIO) 3 R-2 COMMUNITY ROOM 20 A-3 LEVEL 6 ROOF DECK 54 A-3 UNIT A1 (STUDIO) 3 R-2 UNIT A2 (STUDIO) 3 R-2 LAUNDRY ROOM 3 B Sheet NumberSheet NameSheet Issue Date A100Site Plan04/14/23 A101Site Sections04/19/23 A105Egress and Occupancy Plans04/15/23 A110Level 1 Floor Plan04/19/23 A111Level 2 Floor Plan04/19/23 A112Level 3 Floor Plan04/19/23 A113Level 4 Floor Plan04/19/23 A114Level 5 Floor Plan04/19/23 A115Level 6 Floor Plan04/24/23 A201South Elevation Promenade and North Elevation - Courtyard 04/14/23 A202East Elevation Santiago and West Elevation - Poinsetta 04/14/23 A210Exterior Visualizations04/26/23 A301Building Sections04/14/23 A310Wall Section of Stacks04/17/23 A401Enlarged Plans Studio Unit A1, A2 and Single Bedroom Unit B1, B2 04/14/23 A402Enlarged Plans Double Bedroom Unit C1, C2 04/14/23 A403Enlarged Plans Live/Work Unit D1 04/15/23 A405Enlarged Restroom Plans and Interior Elevations 04/15/23 A406Enlarged Kitchen Plans and Interior Elevations 04/15/23
77 4" 12 7". 12 7 86 - 0 209'3". 240" 604" 309' 11". PROPERTY LINE PRO PE RTY LINE PRO PE RTY LINE ADJACENT RESIDENTIAL - DOG PARK ADJACENT 6-STORY RES DENTIAL ADJACENT 6-STORY RES DENTIAL ADJACENT 6-STORY RES DENTIAL ADJACENT 6-STORY RES DENTIAL EGRESS STAIRS PEDESTRIAN PROMENADE TFRMR. T EMBEDDED AMPITHEATRE A201 1 A202 1 A202 2 2 A101 SANTA ANA REGIONAL TRANSPORTATION CENTER FUTURE MASTER PLAN: HOTEL PARKING LOT EXISTING BUILDING EXISTING BUILDING EXISTING BUILDING EXISTING BUILDING EXISTING BUILDING ADJACENT 6-STORY RES DENTIAL ADJACENT 6-STORY RES DENTIAL ADJACENT 6-STORY RES DENTIAL ADJACENT 6-STORY RES DENTIAL A101 1 Ref 1 Ref 1 Ref 1 Ref 1 A101 SIM ELEVATION MARKER NORTH SECTION MARKER TRANSFORMER T Phoebe Gwyndale Architects SANTA ANA MU LT IUSE RESIDENTIAL BUILDING 620 N SANTIA GO ST SA NTA AN A, CA 92701 3801 W Te m ple Ave. Po mo na CA 9176 8 5/7/ 2023 1: 39 :41 AM A100 Site Plan IssueDate KEY PLAN GRAPHICS LEGEND SHEET NOTES 1. REFER TO SHEET G101 FOR FOR GRAPHIC SYMBOLS, ABBREVIATIONS, AND GENERAL NOTES. 2. REFER TO SHEET A101 FOR SITE FURNISHINGS SITE FURNISHINGS SHALL NOT BE LOCATED N THE EXIT PATHWAYS AND SHALL NOT BLOCK EXIT DOORS. SITE FURNISHINGS SHALL NOT BLOCK FIRE DEPARTMENT ACCESS 3. THE MEANS OF EGRESS AND EXIT DISCHARGE SHALL BE ILUMINATED AT ANY TIME THE BUILDING IS OCCUPIES WITH A LIGHT INTENSITY OF NO LESS THAN 1 FOOT-CANDLE AT THE WALKING SURFACE LEVEL PER GOVERNING CODE REQUIREMENTS 4. ANY DISCREPANCIES NOTES SHALL BE BROUGHT TO THE ATTENTION OF THE ARCHITECT FOR CLARIFICATION PRIOR TO BEGINNING WORK 1/32" = 1'-0" 1 Site Plan 0' 16 32 64 128
A B C D E Leve Floo P n 0L v Floo P n 1 - 0 L v Flo P n 2 - 0 L v Flo P n 2 - 4 L v Flo P n 3 - 8 48’ - 0 Lev 5 - 4 Parap 6 - 10 J K Ground Floo 0 - 0 Podium Leve 2 9 - 0 Leve 3 18 - 0 Leve 4 30 - 0 Leve 5 42 - 0 Leve 6 54 - 0 Leve 7 66 - 2 B D E G I A Parape 69 - 8 F H C 01 01 02 03 04 Phoebe Gwyndale Architects SA N T A A N A M U LT IU S E RESIDENTI A L BUILDING 62 0 N S A N T I A G O S T S A N T A A N A C A 927 0 1 3 8 0 1 W T e m p l e A v e P o m on a C A 9 17 6 8 5 / 6 / 2 0 2 3 1 2 : 0 0 : 3 2 AM A101 Site Sections Issue Date SHEET NOTES 1 REFER TO SHEET G101 FOR FOR GRAPH C SYMBOLS ABBREV AT ONS AND GENERAL NOTES 2 REFER TO W ALL AND FLOOR ASSEMBLIES FOR W ALL AND FLOOR TYPE DETA LS 3 REFER TO SHEET W NDOW SCHEDULE FOR W NDOW STOREFRONT AND GLAZ NG DETA LS 4 ANY D SCREPANC ES NOTES SHALL BE BROUGHT TO THE ATTENT ON OF THE ARCHITECT FOR CLAR F CAT ON PR OR TO BEG NN NG W ORK 5 BU LD NG TO BE PROTECTED W TH SPR NKLER SYSTEM PER CURRENT NFPA STANDARDS PROV DE SPR NKLERS W TH N ROOF FLOOR AND CE L NG ASSEMBL ES 1 32 = 1 -0 1 S te Section - Le Crop 0 16 32 64 128
DN UP DN DN DN UP UP UP UP UP DN UP DN UP DN UP DN DN DN UP UP UP UP DN UP UP UP UP UP UP 2 2 COMMON PATH OF TRAVEL = 30' - 0" SHALL NOT EXCEED 100' PER TABLE 1006.2.1 EXIT ACCESS TRAVEL DISTANCE = 51' - 6" SHALL NOT EXCEED 250' PER TABLE 1017.2 COMMON PATH OF TRAVEL = 63' - 6" SHALL NOT EXCEED 75' PER TABLE 1006.2.1 COMMON PATH OF TRAVEL = 38' - 6" SHALL NOT EXCEED 125' PER TABLE 1006.2.1 EXIT ACCESSS TRAVEL DISTANCE = 109' - 0" SHALL NOT EXCEED 250' PER TABLE 1017.2 EXIT TRAVEL DISTANCE = 129' - 6" SHALL NOT EXCEED 250' PER TABLE 1017.2 7 5 5 7 7 7 5 5 EXIT ACCESS TRAVEL DISTANCE = 230' - 0" SHALL NOT EXCEED 250' PER TABLE 1017.2 COMMON PATH OF TRAVEL = 45' - 0" SHALL NOT EXCEED 75' PER TABLE 1006.2.1 40 EXIT TRAVEL DISTANCE = 180' - 6" SHALL NOT EXCEED 250' PER TABLE 1017.2 17 7 5 5 5 5 5 7 7 7 11 5 5 5 5 COMMON PATH OF TRAVEL = 57' - 0" SHALL NOT EXCEED 75' PER TABLE 1006.2.1 COMMON PATH OF TRAVEL = 35' - 6" SHALL NOT EXCEED 125' PER TABLE 1006.2.1 EXIT TRAVEL DISTANCE = 118' - 6" SHALL NOT EXCEED 250' PER TABLE 1017.2 EXIT ACCESSS TRAVEL DISTANCE = 208' - 6" SHALL NOT EXCEED 250' PER TABLE 1017.2 COMMON PATH OF TRAVEL = 44' - 6" SHALL NOT EXCEED 125' PER TABLE 1006.2.1 EXIT ACCESS TRAVEL DISTANCE = 186' - 6" SHALL NOT EXCEED 250' PER TABLE 1017.2 EXIT ACCESS TRAVEL DISTANCE = 206' - 0" SHALL NOT EXCEED 250' PER TABLE 1017.2 5 5 5 5 5 COMMON PATH OF TRAVEL = 57' - 0" SHALL NOT EXCEED 75' PER TABLE 1006.2.1 55 7 7 3 3 3 7 7 7 3 3 20 COMMON PATH OF TRAVEL = 38' - 6" SHALL NOT EXCEED 125' PER TABLE 1006.2.1 EXIT ACCESSS TRAVEL DISTANCE = 109' - 0" SHALL NOT EXCEED 250' PER TABLE 1017.2 EXIT TRAVEL DISTANCE = 129' - 6" SHALL NOT EXCEED 250' PER TABLE 1017.2 EXIT ACCESS TRAVEL DISTANCE = 219' - 6" SHALL NOT EXCEED 250' PER TABLE 1017.2 COMMON PATH OF TRAVEL = 31' - 6" SHALL NOT EXCEED 75' PER TABLE 1006.2.1 EXIT TRAVEL DISTANCE = 165' - 0" SHALL NOT EXCEED 250' PER TABLE 1017.2 3 3 3 3 3 3 3 3 7 7 7 3 54 3 3 COMMON PATH OF TRAVEL = 66' - 6" SHALL NOT EXCEED 75' PER TABLE 1006.2.1 COMMON PATH OF TRAVEL = 26' - 6" SHALL NOT EXCEED 125' PER TABLE 1006.2.1 EXIT TRAVEL DISTANCE = 121' - 6" SHALL NOT EXCEED 250' PER TABLE 1017.2 EXIT ACCESSS TRAVEL DISTANCE = 195' - 0" SHALL NOT EXCEED 250' PER TABLE 1017.2 EXIT ACCESS TRAVEL DISTANCE = 217' - 0" SHALL NOT EXCEED 250' PER TABLE 1017.2 COMMON PATH OF TRAVEL = 40' - 6" SHALL NOT EXCEED 125' PER TABLE 1006.2.1 EXIT TRAVEL DISTANCE = 148' - 6" SHALL NOT EXCEED 250' PER TABLE 1017.2 3 3 3 3 3 3 TFRMR. T 7 7 7 7 7 5 6 6 6 2 1 COMMON PATH OF TRAVEL = 59' - 0" SHALL NOT EXCEED 100' PER TABLE 1006.2.1 COMMON PATH OF TRAVEL = 56' - 0" SHALL NOT EXCEED 75' PER TABLE 1006.2.1 COMMON PATH OF TRAVEL = 56' - 0" SHALL NOT EXCEED 75' PER TABLE 1006.2.1 COMMON PATH OF TRAVEL = 43' - 6" SHALL NOT EXCEED 125' PER TABLE 1006.2.1 6 6 6 6 6 6 6 6 NORTH TRANSFORMER T # OCCUPANCY LOAD COMMON PATH OF TRAVEL EXIT ACCESS TRAVEL DISTANCE Phoebe Gwyndale Architects SANTA ANA MULTIUSE RESIDENTIAL BUILDING 620 N SANTIAGO ST. SANTA ANA, CA 92701 3801 W Temple Ave. Pomona, CA 91768 5/8/2023 7:20:55 PM A105 Egress and Occupancy Plans KEY PLAN GRAPHICS LEGEND SHEET NOTES 1. REFER TO SHEET G100 FOR GRAPHIC SYMBOLS, ABBREVIATIONS, AND GENERAL NOTES 2. PROVIDE FIRE SEPARATION SIGNAGE A ATTIC SPACE WITH 1/2" LETTERING INDICATING "FIRE AND/OR SMOKE BARRIER, PROTECT ALL OPENINGS" PER GOVERNING CODE REQUIREMENTS 3. TWO EXITS AND PANIC HARDWARE ARE REQUIRED FROM ANY SPACE SERVING 50 OCCUPANTS OR MORE AS PART OF AN "A' OCCUPANCY PER GOVERNING CODE REQUIREMENTS 4. THE MEANS OF EGRESS AND EXIT DISCHARGE SHALL BE ILLUMINATED AT ANY TIME HE BUILDING IS OCCUPIED WITH A LIGHT INTENSITY OF NO LESS THAN ONE FOOT-CANDLE AT THE WALKING SURFACE LEVEL PER GOVERNING CODE REQUIREMENTS 5. ANY DISCREPANCIES NOTED SHALL BY BROUGHT TO HE ATTENTION OF THE ARCHITECT FOR CLARIFICATION PRIOR TO BEGINNING WORK 6. PROVIDE DIREECTIONAL SIGNAGE PER GOVERNING CODE REQUIREMENTS 7. ALL EXIT DOORS SHALL BE OPERABLE FROM THE INSIDE WITHOUT THE USE OF A KEY, TOOL, OR ANY SPECIAL KNOWLEDGE OF EFFORT. ONLY THE MAIN ENTRY DOORS MAY HAVE KEY OPERATED HARDWARE AND SHALL HAVE A READILY VISIBLE, DURABLE SIGN ABOVE THE DOOR STATING "THIS DOOR MUST REMAIN UNLOCKED WHEN BUILDING IS OCCUPIED" IN BLOCK LETTERS A MINIMUM OF ONE INCH HIGH ON CONTRASTING BACKGROUND PER GOVERNING CODE REQUIREMENTS 8. EGRESS LIGHTING POWER TO BE CONNECTED TO BATTERY BACKUP SYSTEM 9. STAIRWAY IDENTIFICATION SIGNS ARE REQUIRED WHENEVER AN INTERIOR STAIRWAY ENCLOSURE CONNECTS MORE THAN THREE STORIES. SIGNAGE SHALL INDICATED THE DIRECTION TO AND LEVEL OF EXIT DISCHARGE. 1/32" = 1'-0" 2 Level 2 Egress and Occupancy 1/32" = 1'-0" 3 Level 3 Egress and Occupancy 1/32" = 1'-0" 4 Level 4 Egress and Occupancy 1/32" = 1'-0" 5 Level 5 Egress and Occupancy 1/32" = 1'-0" 6 Level 6 Egress and Occupancy IssueDate 1/32" = 1'-0" 1 Level 1 Egress and Occupancy Plan 0' 16' 32' 64' 128' 0' 16' 32' 64' 128' 0' 16' 32' 64' 128' 0' 16' 32' 64' 128' 0' 16' 32' 64' 128' 0' 16' 32' 64' 128'
UP UP UP UP UP UP 1 1 2 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 A A B C D E F G H I J K TFRMR T 1 A301 2 A301 1 A310 A201 1 A201 2 A202 1 A202 2 3 A301 3 A301 2 A101 1 A101 L01 - 03 L01 - 01 L01 - 02 L01 - 02 L01 - 02 L01 - 03 L01 - 01 L01 - 02 L01 - 02 L01 - 02 L01 - 03 L01 - 01 L01 - 02 L01 - 02 L01 - 02 L01 - 03 L01 - 01 L01 - 02 L01 - 02 L01 - 02 L01 - 00A L01 - 00A L01 - 00A L01 - 00A L01 - 00A L01 - 00A L01 - 00A L01 - 00B L01 - 00B L01 - 02 L01 - 00B L01 - 02 L01 - 02 L01 - 02 L01 - 02 L01 - 03 L01 - 03 L01 - 03 L01 - 04 L01 - 02 L01 - 02 W 8 W 8 W 4 W 4 W 1 W 1 W 4 W 1 W 4 W 4 W 4 W 8 W 8 W 4 W 4 W 1 W 1 W 4 W 1 W 4 W 4 W 4 W 8 W 8 W 4 W 4 W 1 W 1 W 4 W 1 W 4 W 4 W 4 W 8 W 8 W 4 W 4 W 1 W 1 W 4 W 1 W 4 W 4 W 4 199 - 0" 152 - 4" 46 - 8" 30' - 2" 30 - 8" 30 - 8" 30 - 8" 30 - 2" 173'3" 517" 121'8" 302" 308" 308" 302" 222 - 1 3 32" 44' - 1 3/32" 178 0" 23' - 8 31/32" 20' - 4 1/8" 29' - 8" 29' - 8" 29' - 8" 29' - 8 29' - 8" 29' - 8" 62' - 5 3/16" 32' - 9 3/16" 29' - 8" 5' - 5" 1256 29/32" 34'4 29/32" 60'4" 30'10 303 30'1" 3010" FOOD MARKET FOOD SERV CE W ALKN PREP ROOM FOOD SERV CE W ALKN PREP ROOM RESTROOMS UN T D1 UN T D1 UN T D1 UN T D1 LOAD NG DOCK W1 W1 W1 W1 L01 - 01 W4W4 L01 - 02 L01 - 02 L01 - 02 L01 - 03 W4W4 W8W8 W4W4 W4W4 W8W8 W4W4 L01 - 02 L01 - 03 W4W4 L01 - 02 L01 - 02 L01 - 02 L01 - 03 L01 - 02 L01 - 02 L01 - 02 L01 - 03 L01 - 02 L01 - 02 W1 W1 W1 W1 L01 - 01 W4W4 W1 L01 - 01 W4W4 W1 W1 W1 L01 - 01 W4W4 W8W8 W4W4 W4W4 W8W8 W4W4 W4W4 W8W8 W4W4 L01 - 02 L01 - 03 L01 - 02 L01 - 02 L01 - 00A L01 - 02 L01 - 00A L01 - 02 L0105 L01 - 02 L01 - 03 W4 W4 W1 W1 W4 W4 L01 - 02 L01 - 02 L01 - 01 W1 W1 W1 L01 - 01 W4W4 BIKE STORAGE UNIT D1 UNIT D1 UNIT D1 UNIT D1 UNIT D1 LOBBY OFFICE MAIL ROOM W8 W8 W4 W4 W1 W1 W1 L01 - 02 L01 - 03 W4 W4 W8 W8 W4 W4 L01 - 02 L01 - 02 L01 - 01 L01 - 00B UNIT D1 UNIT D1 CONFERENCE ROOM STORAGE W ORKSPACE 3 32 = 1 -0" 1 Level 1 Floor P an 0 8 32 64 16 A101 1 Re 1 R e 1 R e 1 Re 1 A101 S M ELEVAT ON MARKER NORTH SECT ON MARKER TRANSFORMER T 101 - 00 DOOR TAG 1 W NDOW TAG Phoebe Gwyndale Architects S A N T A A N A M U LT IUSE RESIDENTI A L BUILDING 620 N S A N T I A GO ST SA N T A A N A, C A 9 2 7 0 1 3801 W Te m ple A v e Po m o na C A 9176 8 5 / 8 / 2023 7 : 18 : 2 5 P M A110 Level 1 Floor Plan Issue Date KEY PLAN GRAPHICS LEGEND SHEET NOTES 1. REFER TO SHEET G101 FOR GRAPH C SYMBOLS, ABBREV AT ONS AND GENERAL NOTES 2. REFER TO SHEET W ALL AND FLOOR ASSEMBL ES FOR W ALL AND FLOOR TYPE DETA LS 3. REFER TO SHEET W NDOW SCHEDULE AND TYPES FOR W NDOW STOREFRONT AND GLAZ NG NFORMAT ON 4. REFER TO SHEET DOOR SCHEDULE AND TYPES" FOR DOOR S ZES AND TYPES 5. D MENS ONS ARE TO CENTERL NE OF COLUMN FACE OF STUD FACE OF CONCRETE OR FACE OF MASONRY UNLESS NOTED OTHERW SE 6. ANY D SCREPANC ES NOTES SHALL BE BROUGHT TO THE ATTENT ON OF THE ARCH TECT FOR CLAR F CAT ON PR OR TO BEG NN NG W ORK 7. ALL STRUCTURAL PLUMB NG MECHAN CAL AND ELECTR CAL NFORMAT ON SHW ON ON TH S SHEET S FOR REFERENCE ONLY 8. ALL LLUM NATED EX T S GNS SHOW N SHALL BE CLEARLY V S BLE AND NOT OBSTRUCTED BY P PES MECHAN CAL DUCTW ORK, EQU PMENT ETC CONTRACTOR TO PROV DE PENDANT EXTENS ONS AT ALL CE L NG HUNG EX T S GNS AS REQU RED PER GOVERN NG CODE REQU REMENTS 9. W ALK NG SURFACES OF THE MEANS OF EGRESS SHALL HAVE A SL P-RES STANT SURFACE AND BE SECURELY ATTACHED 10 PROV DE A READ LY V S BLE DURABLE S GN ABOVE THE MA N ENTRANCE DOOR STAT NG "TH S DOOR TO REMA N UNLOCKED W HEN BU LD NG S OCCUP ED. 11 W HERE DOORS ARE LOCATED NEXT TO A W ALL THERE SHALL BE A M N MUM OF 3-1 2 CLEARANCE BETW EEN W ALL F N SH SURFACE AND FACE OF DOOR N 90 DEGREE OPEN POS T ON UNLESS DETA LED OR D MENS ONED OTHERW SE
DN UP DN DN DN UP UP 1 1 2 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 A A B C D E F G H I J K 1 A301 2 A301 1 A310 2 A310 A201 1 A201 2 A202 1 A202 2 3 A301 3 A301 2 A101 1 A101 L02 - 03 L02 - 01 L02 - 03 L02 - 01 L02 - 03 L02 - 01 L02 - 03 L02 - 01 W 7 W 7 W 7 W 7 W 7 W 7 W 7 W 7 W 7 W 7 W 7 W 7 W 7 W 7 W 7 W 7 W 7 W 7 W 7 W 7 W 7 W 7 W 7 W 7 W 8 W 8 W 2 W 2 W 2 W 2 W 8 W 8 W 2 W 2 W 2 W 2 W 8 W 8 W 2 W 2 W 2 W 2 W 8 W 8 W 2 W 2 W 2 W 2 W2 W2 W2 W2 W7W7 W2 W2 W2 W2 W7W7 W2 W2 W2 W2 W7W7 W2 W2 W2 W2 W7W7 W2 W2 W2 W2 W7W7 W2 W2 W2 W2 W7 W7 W2 W2 W2 W2 W7 W7 W7 W7 W8 W8 W7 W7 W7 W7 W8 W8 W7 W7 W7W7 W8W8 W7W7 W7W7 W8W8 W7W7 W7W7 W8W8 W7W7 W7W7 W8W8 W7W7 W7W7 W8W8 W7W7 L02 - 03 L02 - 01 L02 - 01 L02 - 03 L02 - 01 L02 - 03 L02 - 01 L02 - 03 L02 - 01 L02 - 03 L02 - 02 L02 - 02 L0205 L02 - 01 L02 - 03 L02 - 01 L02 - 03 FOOD COURT FOOD COURT WORKSPACE UNIT D1 UNIT D1 MECHANICAL ROOM ELECTRICAL ROOM LOBBY UNIT D1 UNIT D1 UNIT D1 UNIT D1 UNIT D1 UN T D1 UN T D1 UN T D1 UN T D1 199 - 0" 152 - 4" 46 - 8" 30 - 2" 30 - 8" 30' - 8" 30' - 8" 30 - 2" 173'3" 517" 121'8" 302" 308" 308" 302" 222 - 1 3/32" 44' - 1 3/32" 178 - 0" 23' - 8 31/32" 20' - 4 1/8 29' - 8 29' - 8" 29' - 8" 29' - 8" 29' - 8 29' - 8" 62' - 5 3/16 32' - 9 3/16" 29' - 8" 1256 29/32" 34'4 29/32 604" 3010 303 301" 30'10" 3 32 = 1 -0 1 Level 2 Floor P an 0 8 32 64 16 A101 1 Re 1 R e 1 R e 1 Re 1 A101 S M ELEVAT ON MARKER NORTH SECT ON MARKER TRANSFORMER T 101 - 00 DOOR TAG 1 W NDOW TAG Phoebe Gwyndale Architects S A N T A A N A M U LT IUSE RESIDENTI A L BUILDING 620 N S A N T I A GO ST SA N T A A N A, C A 9 2 7 0 1 3801 W Te m ple A v e Po m o na C A 9176 8 5 / 8 / 2023 7 : 18 : 3 2 P M A111 Level 2 Floor Plan Issue Date KEY PLAN GRAPHICS LEGEND SHEET NOTES 1. XXX REFER TO SHEET G101 FOR GRAPH C SYMBOLS, ABBREV AT ONS AND GENERAL NOTES 2. REFER TO SHEET W ALL AND FLOOR ASSEMBL ES FOR W ALL AND FLOOR TYPE DETA LS 3. REFER TO SHEET W NDOW SCHEDULE AND TYPES FOR W NDOW STOREFRONT AND GLAZ NG NFORMAT ON 4. REFER TO SHEET DOOR SCHEDULE AND TYPES" FOR DOOR S ZES AND TYPES 5. D MENS ONS ARE TO CENTERL NE OF COLUMN FACE OF STUD FACE OF CONCRETE OR FACE OF MASONRY UNLESS NOTED OTHERW SE 6. ANY D SCREPANC ES NOTES SHALL BE BROUGHT TO THE ATTENT ON OF THE ARCH TECT FOR CLAR F CAT ON PR OR TO BEG NN NG W ORK 7. ALL STRUCTURAL PLUMB NG MECHAN CAL AND ELECTR CAL NFORMAT ON SHW ON ON TH S SHEET S FOR REFERENCE ONLY 8. ALL LLUM NATED EX T S GNS SHOW N SHALL BE CLEARLY V S BLE AND NOT OBSTRUCTED BY P PES MECHAN CAL DUCTW ORK, EQU PMENT ETC CONTRACTOR TO PROV DE PENDANT EXTENS ONS AT ALL CE L NG HUNG EX T S GNS AS REQU RED PER GOVERN NG CODE REQU REMENTS 9. W ALK NG SURFACES OF THE MEANS OF EGRESS SHALL HAVE A SL P-RES STANT SURFACE AND BE SECURELY ATTACHED 10 PROV DE A READ LY V S BLE DURABLE S GN ABOVE THE MA N ENTRANCE DOOR STAT NG "TH S DOOR TO REMA N UNLOCKED W HEN BU LD NG S OCCUP ED. 11 W HERE DOORS ARE LOCATED NEXT TO A W ALL THERE SHALL BE A M N MUM OF 3-1 2 CLEARANCE BETW EEN W ALL F N SH SURFACE AND FACE OF DOOR N 90 DEGREE OPEN POS T ON UNLESS DETA LED OR D MENS ONED OTHERW SE
UP UP UP DN UP DN UP DN UP 1 1 9 10 17 A A G K 1 A301 2 A301 1 A310 2 A310 A201 1 A201 2 A202 1 A202 2 A420 1 2 A420 3 A301 3 A301 2 A101 1 A101 U - 02 U - 04 U - 03 U - 05 U - 01 U - 03 U - 02 U - 05 U - 01 U - 02 U - 04 U - 03 U - 05 U - 01 U - 03 U - 02 U - 05 U - 01 U - 04 U - 01 U - 03 U - 02 U - 05 U - 03 U - 05 U - 04 U - 01 U - 02 U - 05 U - 02 U - 01 U - 03 U - 03 U - 05 U - 03 U - 05 U - 03 U - 05 U - 02 U - 04 U - 01 U - 02 U - 04 U - 01 U - 02 U - 01 L03 - 00C W 3 W 3 W 6 W 6 W 6 W 8 W 8 W 6 W 8 W 8 W 3 W 3 W 6 W 6 W 3 W 3 W 6 W 6 W 6 W 8 W 8 W 3 W 3 W 6 W 6 W 6 W 8 W 8 W 3 W 3 W 6 W 6 W 6 W 8 W 8 W 6 W 6 W 3 W 3 W 8 W 8 W 6 W 6 W 3 W 3 W 6 W 6 W 8 W 8 W 6 W 6 W 6 W 8 W 8 W 3 W 3 W 6 W 6 W 6 W 8 W 8 W 3 W 3 W 8 W 8 W 3 W 3 W 6 W 6 W 6 W 6 W 6 W 6 W 3 W 3 W 3 W 3 W 3 W 3 W6W6W6 W8W8 W6W6 W8W8 W8W8 W6W6W6 W8W8 W6W6W6 W8W8 W6W6W6 W3 W3 W3 W3 W6 W6 W3 W3 W6 W6 W6W6 W8 W8 W6 W8 W8 W6 W3 W3 W3 W3 W6W6 W3 W3 W6W6 W6W6 W3 W3 W6W6 W3 W3 U - 01 U - 03 U - 02 U - 05 U - 03 U - 05 U - 02 U - 05 U - 03 U - 02 U - 05 U - 03 U - 02 U - 05 U - 03 U - 02 U - 01 W6W6 U - 01 U - 01 U - 01 L03 - 00C L03 - 00A L0305 U - 01 U - 03 U - 02 U - 05 U - 01 U - 03 U - 05 U - 02 U - 04 199 - 0" 173'3" 222 - 1 3/32" 303 1259 11/16 34'0 11/16 188' - 10" 35' - 2 27' - 4 3/32" 92' - 2" 30 '10 " 14 '3" 30 '9" 101" 153' - 6" 30 - 8" 62' - 3 11/16 30' - 10" UN T C2 UN T C2 UN T B2 UNIT C1 UN T B1 UNIT B2 UNIT B1 UNIT B2 UNIT B1 UNIT B2 UNIT B1 UNIT B2 UNIT C1 UNIT C1 UNIT C2 UNIT C2 UNIT C1 GYM LOBBY COMMUN TY ROOM 3 32 = 1 -0 1 Level 3 Floor P an 0 8 32 64 16 A101 1 Re 1 R e 1 R e 1 Re 1 A101 S M ELEVAT ON MARKER NORTH SECT ON MARKER TRANSFORMER T 101 - 00 DOOR TAG 1 W NDOW TAG Phoebe Gwyndale Architects S A N T A A N A M U LT IUSE RESIDENTI A L BUILDING 620 N S A N T I A GO ST SA N T A A N A, C A 9 2 7 0 1 3801 W Te m ple A v e Po m o na C A 9176 8 5 / 8 / 2023 7 : 18 : 3 9 P M A112 Level 3 Floor Plan Issue Date KEY PLAN GRAPHICS LEGEND SHEET NOTES 1. XXX REFER TO SHEET G101 FOR GRAPH C SYMBOLS, ABBREV AT ONS AND GENERAL NOTES 2. REFER TO SHEET W ALL AND FLOOR ASSEMBL ES FOR W ALL AND FLOOR TYPE DETA LS 3. REFER TO SHEET W NDOW SCHEDULE AND TYPES FOR W NDOW STOREFRONT AND GLAZ NG NFORMAT ON 4. REFER TO SHEET DOOR SCHEDULE AND TYPES" FOR DOOR S ZES AND TYPES 5. D MENS ONS ARE TO CENTERL NE OF COLUMN FACE OF STUD FACE OF CONCRETE OR FACE OF MASONRY UNLESS NOTED OTHERW SE 6. ANY D SCREPANC ES NOTES SHALL BE BROUGHT TO THE ATTENT ON OF THE ARCH TECT FOR CLAR F CAT ON PR OR TO BEG NN NG W ORK 7. ALL STRUCTURAL PLUMB NG MECHAN CAL AND ELECTR CAL NFORMAT ON SHW ON ON TH S SHEET S FOR REFERENCE ONLY 8. ALL LLUM NATED EX T S GNS SHOW N SHALL BE CLEARLY V S BLE AND NOT OBSTRUCTED BY P PES MECHAN CAL DUCTW ORK, EQU PMENT ETC CONTRACTOR TO PROV DE PENDANT EXTENS ONS AT ALL CE L NG HUNG EX T S GNS AS REQU RED PER GOVERN NG CODE REQU REMENTS 9. W ALK NG SURFACES OF THE MEANS OF EGRESS SHALL HAVE A SL P-RES STANT SURFACE AND BE SECURELY ATTACHED 10 PROV DE A READ LY V S BLE DURABLE S GN ABOVE THE MA N ENTRANCE DOOR STAT NG "TH S DOOR TO REMA N UNLOCKED W HEN BU LD NG S OCCUP ED. 11 W HERE DOORS ARE LOCATED NEXT TO A W ALL THERE SHALL BE A M N MUM OF 3-1 2 CLEARANCE BETW EEN W ALL F N SH SURFACE AND FACE OF DOOR N 90 DEGREE OPEN POS T ON UNLESS DETA LED OR D MENS ONED OTHERW SE
DN DN DN UP 1 1 9 10 17 A A G K 1 A301 2 A301 1 A310 2 A310 A201 1 A201 2 A202 1 A202 2 3 A301 3 A301 2 A101 1 A101 U - 03 U - 02 U - 04 U - 05 U - 01 U - 01 U - 03 U - 02 U - 05 U - 03 U - 02 U - 05 U - 04 U - 01 U - 03 U - 01 U - 05 U - 02 U - 02 U - 05 U - 04 U - 01 U - 03 U - 03 U - 05 U - 04 U - 01 U - 02 U - 05 U - 02 U - 01 U - 03 U - 05 U - 06 U - 05 U - 06 U - 05 U - 06 U - 03 U - 03 U - 03 W 3 W 3 W 6 W 6 W 6 W 8 W 8 W 6 W 8 W 8 W 3 W 3 W 6 W 6 W 3 W 3 W 6 W 6 W 6 W 3 W 3 W 6 W 8 W 8 W 8 W 8 W 6 W 6 W 8 W 8 W 3 W 3 W 6 W 6 W 6 W 6 W 6 W 3 W 3 W 6 W 8 W 8 W 6 W 3 W 3 W 6 W 6 W 8 W 8 W 6W 6 W 8 W 8 W 6 W 2 W 6 W 6 W 2 W 2 W 2 W 6W 6 W 8 W 8 W 6 W 6W 6 W 8 W 8 W 6 W 2 W 6 W 6 W 2 W 2 W 2 W 2 W 2 W 2 W 6 W 6 W 6 W 6 W 2 W 2 W 2 W 2 W 2 W 2 W3 W6W6W6 W8W8 W6W6W6 W8W8 W8W8 W6W6W6 W8W8 W6W6W6 W8W8 W6W6W6 W3 W3 W2 W2 W2 W6 W6 W2 W2 W2 W2 W6 W6 W6W6 W8 W8 W6 W6 W6 W8 W8 W6 W6 W6 W3 W3 W2 W6W6 W3 W3 W3 W6W6 W3 W3 W3 W6W6 W6W6 W3 W3 W6W6 W3 W3 U - 01 U - 02 U - 03 U - 05 U - 02 U - 03 U - 05 U - 05 U - 06 U - 03 U - 05 U - 06 U - 03 U - 05 U - 06 U - 03 L04 - 00A L0405 L04 - 00C U - 05 U - 06 U - 03 U - 05 U - 06 U - 03 LOBBY GYM C2 T UN C2 T UN UNIT C1 UNIT C1 UNIT C1 UNIT C2 UNIT C2 UNIT C1 UNIT B2 UNIT B1 U - 01 UN T B2 UN T B1 UN T B2 UN T B1 UN T B2 LOUNGE UNIT B1 UN T B2 199 - 0" 173'3" 222 - 1 3/32" 303 125'9 11/16 340 11/16 188' - 10" 35' - 2" 27' - 4 3/32" 92' - 2" 30 '10 " 14 '3" 153 - 6" 30 - 8" 62' - 3 11/16 30' - 10" 3 32 = 1 -0" 1 Level 4 Floor P an 0 8 32 64 16 A101 1 Re 1 R e 1 R e 1 Re 1 A101 S M ELEVAT ON MARKER NORTH SECT ON MARKER TRANSFORMER T 101 - 00 DOOR TAG 1 W NDOW TAG Phoebe Gwyndale Architects S A N T A A N A M U LT IUSE RESIDENTI A L BUILDING 620 N S A N T I A GO ST SA N T A A N A, C A 9 2 7 0 1 3801 W Te m ple A v e Po m o na C A 9176 8 5 / 8 / 2023 7 : 18 : 4 5 P M A113 Level 4 Floor Plan Issue Date KEY PLAN GRAPHICS LEGEND SHEET NOTES 1. XXX REFER TO SHEET G101 FOR GRAPH C SYMBOLS, ABBREV AT ONS AND GENERAL NOTES 2. REFER TO SHEET W ALL AND FLOOR ASSEMBL ES FOR W ALL AND FLOOR TYPE DETA LS 3. REFER TO SHEET W NDOW SCHEDULE AND TYPES FOR W NDOW STOREFRONT AND GLAZ NG NFORMAT ON 4. REFER TO SHEET DOOR SCHEDULE AND TYPES" FOR DOOR S ZES AND TYPES 5. D MENS ONS ARE TO CENTERL NE OF COLUMN FACE OF STUD FACE OF CONCRETE OR FACE OF MASONRY UNLESS NOTED OTHERW SE 6. ANY D SCREPANC ES NOTES SHALL BE BROUGHT TO THE ATTENT ON OF THE ARCH TECT FOR CLAR F CAT ON PR OR TO BEG NN NG W ORK 7. ALL STRUCTURAL PLUMB NG MECHAN CAL AND ELECTR CAL NFORMAT ON SHW ON ON TH S SHEET S FOR REFERENCE ONLY 8. ALL LLUM NATED EX T S GNS SHOW N SHALL BE CLEARLY V S BLE AND NOT OBSTRUCTED BY P PES MECHAN CAL DUCTW ORK, EQU PMENT ETC CONTRACTOR TO PROV DE PENDANT EXTENS ONS AT ALL CE L NG HUNG EX T S GNS AS REQU RED PER GOVERN NG CODE REQU REMENTS 9. W ALK NG SURFACES OF THE MEANS OF EGRESS SHALL HAVE A SL P-RES STANT SURFACE AND BE SECURELY ATTACHED 10 PROV DE A READ LY V S BLE DURABLE S GN ABOVE THE MA N ENTRANCE DOOR STAT NG "TH S DOOR TO REMA N UNLOCKED W HEN BU LD NG S OCCUP ED. 11 W HERE DOORS ARE LOCATED NEXT TO A W ALL THERE SHALL BE A M N MUM OF 3-1 2 CLEARANCE BETW EEN W ALL F N SH SURFACE AND FACE OF DOOR N 90 DEGREE OPEN POS T ON UNLESS DETA LED OR D MENS ONED OTHERW SE
UP UP UP DN 1 1 9 10 17 A A G K 1 A301 2 A301 1 A310 2 A310 A201 1 A201 2 A202 1 A202 2 3 A301 3 A301 2 A101 1 A101 U - 01 U - 03 U - 04 U - 07 U - 01 U - 01 U - 03 U - 07 U - 03 U - 01 U - 01 U - 04 U - 07 U - 07 U - 03 U - 01 U - 07 U - 01 U - 03 U - 03 U - 01 U - 03 U - 04 U - 03 U - 03 U - 04 U - 01 U - 07 U - 07 U - 03 U - 05 U - 02 U - 04 U - 01 U - 03 U - 05 U - 02 U - 04 U - 01 U - 03 U - 05 U - 02 U - 01 U - 04 U - 07 U - 07 L05 - 02 L05 - 00C W 6 W 3 W 3 W 6 W 8 W 8 W 6 W 8 W 8 W 3 W 3 W 6 W 6 W 6 W 6 W 3 W 3 W 6 W 6 W 3 W 3 W 8 W 8 W 3 W 3 W 6 W 8 W 8 W 8 W 8 W 6 W 6 W 8 W 8 W 3 W 3 W 6 W 6 W 6 W 6 W 6 W 8 W 8 W 6 W 8 W 8 W 6 W 3 W 3 W 8 W 8 W 6 W 6 W 3 W 3 W 6W 6 W 6 W 6 W 6 W 3 W 3 W 6 W 6 W 6 W 3 W 3 W 8 W 8 W 3 W 3 W 6 W 6 W 6 W 8 W 8 W 8 W 8 W 6 W 6 W 6 W 2 W 2W 2 W 2 W 2 W 2 W 2 W 2 W 6 W 6 W 5 W 5 W 5 W 6 W 6 W 6 199 - 0" 173'3" 222 - 1 3/32" 303 125'9 11/16 340 11/16 188' - 10" 35' - 2" 27' - 4 3/32" 92' - 2" 30 '10 " 14 '3" 153 - 6" 30 - 8" 62' - 3 11/16 30' - 10" W5W5W5 W8W8 W6W6 W6W6W6 W8W8 W8W8 W6W6W6 W8W8 W6W6W6 W8W8 W6W6W6 W3 W3 W3 W3 W6 W6 W3 W3 W6 W6 W6W6 W8 W8 W6 W8 W8 W6 W3 W3 W6W6 W3 W3 W6W6 W3 W3 W6W6 W6W6 W6W6 W3 W3 W3 W3 W6W6 W2 W2 U - 03 U - 07 U - 07 U - 01 U - 03 U - 01 U - 03 U - 03 U - 01 U - 05 U - 05 U - 03 U - 02 U - 01 U - 05 U - 03 U - 02 U - 01 L05 - 00C L0605 L05 - 02 U - 01 U - 05 U - 03 U - 02 U - 01 U - 03 U - 02 U - 05 L05 - 02 UN T A2 UN T A1 UN T A2 UN T A1 UN T A1 UN T A2 UN T A1 UNIT A1 UNIT A2 LAUNDRY UNIT C1 UNIT C1 UNIT C2 LOBBY FLEX ROOM UN T C2 UN T C2 UNIT C1 UNIT C2 UNIT C1 UN T C2 UNIT C1 COMMUN TY ROOM A101 1 Re 1 R e 1 R e 1 Re 1 A101 S M ELEVAT ON MARKER NORTH SECT ON MARKER TRANSFORMER T 101 - 00 DOOR TAG 1 W NDOW TAG Phoebe Gwyndale Architects S A N T A A N A M U LT IUSE RESIDENTI A L BUILDING 620 N S A N T I A GO ST SA N T A A N A, C A 9 2 7 0 1 3801 W Te m ple A v e Po m o na C A 9176 8 5 / 8 / 2023 7 : 18 : 5 7 P M A114 Level 5 Floor Plan Issue Date KEY PLAN GRAPHICS LEGEND SHEET NOTES 1. XXX REFER TO SHEET G101 FOR GRAPH C SYMBOLS, ABBREV AT ONS AND GENERAL NOTES 2. REFER TO SHEET W ALL AND FLOOR ASSEMBL ES FOR W ALL AND FLOOR TYPE DETA LS 3. REFER TO SHEET W NDOW SCHEDULE AND TYPES FOR W NDOW STOREFRONT AND GLAZ NG NFORMAT ON 4. REFER TO SHEET DOOR SCHEDULE AND TYPES" FOR DOOR S ZES AND TYPES 5. D MENS ONS ARE TO CENTERL NE OF COLUMN FACE OF STUD FACE OF CONCRETE OR FACE OF MASONRY UNLESS NOTED OTHERW SE 6. ANY D SCREPANC ES NOTES SHALL BE BROUGHT TO THE ATTENT ON OF THE ARCH TECT FOR CLAR F CAT ON PR OR TO BEG NN NG W ORK 7. ALL STRUCTURAL PLUMB NG MECHAN CAL AND ELECTR CAL NFORMAT ON SHW ON ON TH S SHEET S FOR REFERENCE ONLY 8. ALL LLUM NATED EX T S GNS SHOW N SHALL BE CLEARLY V S BLE AND NOT OBSTRUCTED BY P PES MECHAN CAL DUCTW ORK, EQU PMENT ETC CONTRACTOR TO PROV DE PENDANT EXTENS ONS AT ALL CE L NG HUNG EX T S GNS AS REQU RED PER GOVERN NG CODE REQU REMENTS 9. W ALK NG SURFACES OF THE MEANS OF EGRESS SHALL HAVE A SL P-RES STANT SURFACE AND BE SECURELY ATTACHED 10 PROV DE A READ LY V S BLE DURABLE S GN ABOVE THE MA N ENTRANCE DOOR STAT NG "TH S DOOR TO REMA N UNLOCKED W HEN BU LD NG S OCCUP ED. 11 W HERE DOORS ARE LOCATED NEXT TO A W ALL THERE SHALL BE A M N MUM OF 3-1 2 CLEARANCE BETW EEN W ALL F N SH SURFACE AND FACE OF DOOR N 90 DEGREE OPEN POS T ON UNLESS DETA LED OR D MENS ONED OTHERW SE 3/32" = 1 -0" 1 Level 5 Floor P an 0 8 32 64 16
1 1 9 10 17 A A G K 1 A301 2 A301 1 A310 2 A310 A201 1 A201 2 A202 1 A202 2 3 A301 3 A301 2 A101 1 A101 U - 03 U - 01 U - 01 U - 03 U - 03 U - 01 U - 04 U - 04 U - 07 U - 07 U - 01 U - 03 U - 01 U - 07 U - 01 U - 03 U - 03 U - 03 U - 01 U - 04 U - 03 U - 01 U - 04 U - 07 U - 05 U - 06 U - 03 U - 05 U - 06 U - 03 U - 05 U - 06 U - 03 U - 07 U - 07 U - 07 U - 07 W 3 W 3 W 6 W 6W 6 W 6 W 8 W 8 W 6 W 8 W 8 W 3 W 3 W 6 W 6 W 6 W 3 W 3 W 6 W 6 W 3 W 3 W 6 W 8 W 8 W 3 W 3 W 6 W 8 W 8 W 8 W 8 W 6 W 6 W 8 W 8 W 3 W 3 W 6 W 6 W 6 W 6 W 8 W 8 W 6 W 6 W 6 W 3 W 3 W 6 W 8 W 8 W 6W 6 W 8 W 8 W 6 W 2 W 6 W 6 W 2 W 2 W 2 W 6W 6 W 8 W 8 W 6 W 2 W 6 W 6 W 2 W 2 W 2 W 6W 6 W 8 W 8 W 6 W 2 W 2 W 2 W 6 W 6 W 6 W 6 W 2 W 2 W6W6W6 W8W8 W8W8 W6W6W6 W8W8 W6W6W6 W8W8 W6W6W6 W3 W3 W2 W2 W6 W6 W2 W2 W2 W2 W6 W6 W6W6 W8 W8 W6 W6 W6 W8 W8 W6 W6 W6 W3 W3 W2 W6W6 W3 W3 W3 W6W6 W3 W3 W3 W6W6 W6W6 W3 W3 U - 07 U - 03 U - 05 U - 06 U - 03 U - 05 U - 06 U - 03 U - 05 U - 06 U - 03 U - 01 U - 05 U - 06 U - 03 U - 05 U - 06 U - 03 U - 03 L0605 L06 - 00C UN T C2 C2 T UN C2 T UN UNIT C1 UNIT C1 UNIT C1 UNIT C2 UNIT C2 UNIT C1 LOBBY ROOF DECK UN T C2 UN T C1 UN T C2 UN T C1 UN T C1 UN T C2 UN T C1 UNIT C2 199 - 0" 173'3" 222 - 1 3/32" 303 125'9 11/16 340 11/16 27' - 4 3/32" 92' - 2" 30 '5" 153 - 1" 30 - 3" 62' - 3 11/16 30' - 10" 3 32" = 1 -0 1 Level 6 Floor P an 0 8 32 64 16 A101 1 Re 1 R e 1 R e 1 Re 1 A101 S M ELEVAT ON MARKER NORTH SECT ON MARKER TRANSFORMER T 101 - 00 DOOR TAG 1 W NDOW TAG Phoebe Gwyndale Architects S A N T A A N A M U LT IUSE RESIDENTI A L BUILDING 620 N S A N T I A GO ST SA N T A A N A, C A 9 2 7 0 1 3801 W Te m ple A v e Po m o na C A 9176 8 5 / 8 / 2023 7 : 56 : 3 4 P M A115 Level 6 Floor Plan Issue Date KEY PLAN GRAPHICS LEGEND SHEET NOTES 1. XXX REFER TO SHEET G101 FOR GRAPH C SYMBOLS, ABBREV AT ONS AND GENERAL NOTES 2. REFER TO SHEET W ALL AND FLOOR ASSEMBL ES FOR W ALL AND FLOOR TYPE DETA LS 3. REFER TO SHEET W NDOW SCHEDULE AND TYPES FOR W NDOW STOREFRONT AND GLAZ NG NFORMAT ON 4. REFER TO SHEET DOOR SCHEDULE AND TYPES" FOR DOOR S ZES AND TYPES 5. D MENS ONS ARE TO CENTERL NE OF COLUMN FACE OF STUD FACE OF CONCRETE OR FACE OF MASONRY UNLESS NOTED OTHERW SE 6. ANY D SCREPANC ES NOTES SHALL BE BROUGHT TO THE ATTENT ON OF THE ARCH TECT FOR CLAR F CAT ON PR OR TO BEG NN NG W ORK 7. ALL STRUCTURAL PLUMB NG MECHAN CAL AND ELECTR CAL NFORMAT ON SHW ON ON TH S SHEET S FOR REFERENCE ONLY 8. ALL LLUM NATED EX T S GNS SHOW N SHALL BE CLEARLY V S BLE AND NOT OBSTRUCTED BY P PES MECHAN CAL DUCTW ORK, EQU PMENT ETC CONTRACTOR TO PROV DE PENDANT EXTENS ONS AT ALL CE L NG HUNG EX T S GNS AS REQU RED PER GOVERN NG CODE REQU REMENTS 9. W ALK NG SURFACES OF THE MEANS OF EGRESS SHALL HAVE A SL P-RES STANT SURFACE AND BE SECURELY ATTACHED 10 PROV DE A READ LY V S BLE DURABLE S GN ABOVE THE MA N ENTRANCE DOOR STAT NG "TH S DOOR TO REMA N UNLOCKED W HEN BU LD NG S OCCUP ED. 11 W HERE DOORS ARE LOCATED NEXT TO A W ALL THERE SHALL BE A M N MUM OF 3-1 2 CLEARANCE BETW EEN W ALL F N SH SURFACE AND FACE OF DOOR N 90 DEGREE OPEN POS T ON UNLESS DETA LED OR D MENS ONED OTHERW SE
Phoebe Gwyndale Architects S A N T A A N A M U LT IUSE RESIDENTI A L BUILDING 620 N S A N T I A GO ST SA N T A A N A, C A 9 2 7 0 1 3801 W Te m ple A v e Po m o na C A 9176 8 5 / 8 / 2023 8 : 31 : 4 8 P M A201 South ElevationPromenade and North ElevationCourtyard Issue Date KEY PLAN SHEET NOTES 1. REFER TO SHEET G101 FOR GRAPH C SYMBOLS, ABBREV AT ONS AND GENERAL NOTES 2. REFER TO SHEET W NDOW SCHEDULE AND TYPES FOR W NDOW AND GLAZ NG NFORMAT ON 3. ALL SURFACES NOT ELEVATED OR CALLED OUT SHALL MATCH ADJACENT SURFACES 4. CONTRACTOR SHALL VER FY ALL MATER ALS, COLORS, AND F N SHES W TH THE ARCH TECT ANY D SCRPANC ES NOTED SHALL BE BROUGHT TO TTHE ATTENT ON OF THE ARCH TECT FOR CLAR F CAT ON PR OR TO BEG NN NG W ORK OR ORDER NG MATER ALS 5. F N SHES SHOW N CAN BE ASSUMED TO W RAP AROUND PROJECT NG ELEMENTS UNLESS NOTED OTHERW SE 6. COLOR SHOW N ARE FOR REPRESENTAT ON ONLY CONTRACTOR SHALL PROV DE PA NT CH PS FOR APPROVAL AS ND CATED N SPEC F CAT ONS 3 32 = 1 -0" 2 Nor h Eleva ion - Cour yard 0 8 32 64 16 3/32" = 1 -0" 1 Sou h E evation - P omenad 64 ve 1 Floor P an 0' - 0" ve 2 Floo P an 11 - 0" ve 3 Floor P an 20 - 0 ve 4 Floor P an 29 - 4" ve 5 Floor P an 38 - 8" ve 6 Floor P an 48 - 0" Level 7 57 - 4" Parape 60 - 10" Leve 1 F oor P an 0' - 0" Leve 2 F oor P an 11 - 0 Leve 3 F oor P an 20 - 0 Leve 4 F oor P an 29 - 4 Leve 5 F oor P an 38 - 8 Leve 6 F oor P an 48 - 0 Leve 7 57 - 4 Parape 60 - 10 3 4 5 6 7 1 A301 2 A101
Leve 1 Floor Plan 0' - 0" Leve 2 Floor Plan 11 - 0" Leve 3 Floor P an 20 - 0" Leve 4 Floor P an 29 - 4" Leve 5 Floor P an 38 - 8" Leve 6 Floor P an 48 - 0 Level 7 57 - 4" Parape 60 - 10" Leve 1 F oor P an 0' - 0 Leve 2 F oor P an 11 - 0 Leve 3 F oor P an 20 - 0 Leve 4 F oor P an 29 - 4 Leve 5 F oor P an 38 - 8 Leve 6 F oor P an 48 - 0 Leve 7 57 - 4 Pa apet 60 - 10" Phoebe Gwyndale Architects S A N T A A N A M U LT IUSE RESIDENTI A L BUILDING 620 N S A N T I A GO ST SA N T A A N A, C A 9 2 7 0 1 3801 W Te m ple A v e Po m o na C A 9176 8 5 / 8 / 2023 8 : 32 : 0 1 P M A202 East ElevationSantiago and West ElevationPoinsetta Issue Date KEY PLAN SHEET NOTES 1. REFER TO SHEET G101 FOR GRAPH C SYMBOLS, ABBREV AT ONS AND GENERAL NOTES 2. REFER TO SHEET W NDOW SCHEDULE AND TYPES FOR W NDOW AND GLAZ NG NFORMAT ON 3. ALL SURFACES NOT ELEVATED OR CALLED OUT SHALL MATCH ADJACENT SURFACES 4. CONTRACTOR SHALL VER FY ALL MATER ALS, COLORS, AND F N SHES W TH THE ARCH TECT ANY D SCRPANC ES NOTED SHALL BE BROUGHT TO TTHE ATTENT ON OF THE ARCH TECT FOR CLAR F CAT ON PR OR TO BEG NN NG W ORK OR ORDER NG MATER ALS 5. F N SHES SHOW N CAN BE ASSUMED TO W RAP AROUND PROJECT NG ELEMENTS UNLESS NOTED OTHERW SE 6. COLOR SHOW N ARE FOR REPRESENTAT ON ONLY CONTRACTOR SHALL PROV DE PA NT CH PS FOR APPROVAL AS ND CATED N SPEC F CAT ONS 64 0 8 32 64 16
Phoebe Gwyndale Architects SANTA ANA MULTIUSE RESIDENTIAL BUILDING 620 N SANTIAGO ST. SANTA ANA, CA 92701 3801 W Temple Ave. Pomona, CA 91768 5/10/2023 11:30:28 PM A210 Exterior Visualizations IssueDate
1 2 3 4 5 6 7 8 A501 8 A501 7 1 A503 A501 1 A501 4 A501 3 Leve 1 Floor P an 0' - 0" Leve 2 Floor P an 11 - 0" Leve 3 Floor P an 20 - 0" Leve 4 Floor P an 29 - 4" Leve 5 Floor P an 38 - 8" Leve 6 Floor P an 48 - 0" Level 7 57 - 4" Pa apet 60 - 10" Leve 1 F oor P an 0' - 0" Leve 2 F oor P an 11 - 0" Leve 3 F oor P an 20 - 0" Leve 4 F oor P an 29 - 4" Leve 5 F oor P an 38 - 8" Leve 6 F oor P an 48 - 0" Leve 7 57 - 4" Parape 60 - 10 1 A310 3 A301 1 A301 Phoebe Gwyndale Architects S A N T A A N A M U LT IUSE RESIDENTI A L BUILDING 620 N S A N T I A GO ST SA N T A A N A, C A 9 2 7 0 1 3801 W Te m ple A v e Po m o na C A 9176 8 5 / 9 / 2023 5 : 50 : 4 0 P M A301
Issue Date KEY PLAN SHEET NOTES 1. REFER TO SHEET G101 FOR GRAPH C SYMBOLS, ABBREV AT ONS AND GENERAL NOTES 2. REFER TO SHEET W ALL AND FLOOR ASSEMBL ES AND SHEET DETA LS FOR MORE NFORMAT ON ON DETA L ASSEMBLIES 3. ALL W ATERPROOF NG ELEMENTS ARE TO BE UNDER THE CONTRACTOR'S SCOPE OFF W ORK TH S NCLUDES THE ROOF MEMBRANE W ALL SCUPPER, PARAPET CORNER PARAPET W ALL FLASH NG AND TYP CAL FLASH NG DETA LS PER MANUFACTURER STANDARDS. CONTRACTOR TO VER FY W TH ROOF NG MANUFACTURE F W ALK PADS ARE REQU RED 4. BU LD NG TO BE PROTECTED W TH SPR NKLER SYSTEM PER CURRENT NFPA STANDARDS. PROV DE SPR NKLERS W TH N ROOF FLOOR AND CE L NG ASSEMBL ES 5. ANY D SCREPANC ES NOTED SHALL BE BROUGHT TO THE ATTENT ON OF THE ARCH TECT FOR CLAR F CAT ON PR OR TO BEG NN NG W ORK 6. ALL STRUCTURAL PLUMB NG MECHAN CAL AND ELECTR CAL NFORMAT ON SHOW N ON TH S SHEET S FOR REFERENCE ONLY REFER TO SHEET ELECTR CAL AND POW ER RCP SHEET MECHAN CAL RCP AND 3D D AGRAM OF STACK," AND SHEET "PLYUMBING PLAN AND 3D D AGRAM OF STACK FOR MORE NFORMAT ON. CONTRACTOR TO VER FY ANY D SCREPANC ES W TH THE ARCH TECT PR OR TO BEG NN NG W ORK 7. APPROVED SET OF PLANS FOR BU LD NG F RE SPR NKLER, F RE ALARM ETC. SHALL BE ON THE JOB S TE DUR NG CONSTRUCT ON AND NO NSPECT ONS W LL BE MADE W THOUT COMPL ANCE W TH THE ABOVE PROV S ON 3/32" = 1 -0" 1 Sec ion 1 Righ Crop 3 32" = 1 -0 2 Sec ion 1 Le Crop 0 8 32 64 16 3 32 = 1 -0 3 Section 2 0 8 32 64 16
Building Sections
Leve 1 F o or P an 0 - 0 Leve 3 F o or P an 20 - 0" Leve 5 F o or P an 38 - 8" Leve 6 F o or P an 48 - 0" Roo 57 - 4 P ar apet 60 - 10" A5 0 3 A5 01 5 A5 01 6 V INYL W NDOW S L L F BE R CEME NT P ANE L FA CADE SY STEM P LA STER INT E R OR F N S H V INYL W NDOW S L L V INY L W NDOW HOR ZONTA L M UL LION CANT ST RI P F LA SH NG Leve 3 F o or P lan 20 - 0 Leve 4 F o or P lan 29 - 4 Leve 6 F o or P lan 48 - 0 A5 01 2 V INYL W NDOW S L L V INYL W NDOW HEA D V ITRO V ST ACOOL P AC F ICA + S OLA RBA N 60 3 2X8 BL OCK NG F BE R CEME NT P ANE L FA CADE SY ST EM P LA STER INTER O R F N SH 2X10 FLOOR JOIST S B ATT NS ULAT ION P LA STER NT ERIOR CE IL NG F N S H Phoebe Gwyndale Arc hi tect s S A N T A A N A M U L TIU S E R E S I D E N T I A L B U I L D I N G 6 2 0 N S A N T A GO S T S A N T A A N A C A 9 2 70 1 3 8 0 1 W T e m lp e A v e P o m o n a C A 9 1 7 6 8 5 / 10 / 202 3 5 : 0 1 5 8 A M A3 10 Wa ll Se cti on of Stac ks Iss ue Dat e KEY P LAN S HEET NOTE S 1 1 -0 1 W all S ec io n S tac k 1 1" = 1 -0" 2 W all S ect o n S ac k 2 1 RE F R TO SH EET G 101 FOR GRA PH C SYM BOLS ABBR EV AT ON S A ND G N ER AL NOTE S 2 ALL W ATE RPR OO N G ELE MEN S ARE TO BE UN DE R HE CON TR AC OR SC OPE OF WO RK TH S NCLUD E RO OF M EMB RA NE PAR APE T C OR NER P ARAPE W ALL FLASH N G A ND TYP CA L L ASH N G DE TA LS E R M ANU FAC TUR R STAN DA RD CON TRA CTOR O VER FY W TH ROOF N G MANU FAC TUR F W AL K PAD S AR E RE QU R D 3 ANY D SCR EPANC ES N O ED SHA L B E B ROU GH T TO THE ATTENT O N OF TH E AR CH TEC T FOR C LAR F C AT ON PR OR O BEG NN N G WOR K
Enlarged
A405 1A 1B 1C 1D A406 2 3 4 5 31'8" 21' - 4" 21' - 4" 5' 8" 5' - 4" 11' - 0" 2' 11" 6' - 0" 3' - 0" 1' 5" 13'2 1/2" 10'4" 2'6" 30'10" U -01 U -07 U -03 W6 W6 W6 W3 W3 W8 W8 21' 8" 5' - 8" 5' - 6" 11' - 2" 31'8" 13'2 1/2" 31'8" 10'4" 2'6" 7'4" 21' 8" 6' 6" 4' - 7" 6' - 0" 3' - 1" U -03 U -04 W6 U -07 U -01 W3 W3 W6 W8 W8 31' - 8" 10' 2" 11' - 6" 5' - 8" 5' - 10" 30'10" 12'9 1/2" 31' - 8" 6' - 5" 3' - 0" 1' - 5" 6' 0" 3' - 1" 31'8" 10'4" U -05 U -02 U -01 U -03 W6 W3 W3 W6 W6 W8 W8 31' 6" 9' 10" 11' - 2" 5' - 6" 5' - 8" 31'8" 13'2 1/2" 31' 6" 6' - 1" 3' - 0" 1' - 7" 6' - 0" 3' 1" 31'1" 9'8" U -03 U -05 W6 W6 U -04 U -01 U -02 W3 W3 W8 W8 W6 A101 1 Ref 1 Ref 1 Ref 1 Ref ELEVATION MARKER 101 -00 DOOR TAG 1t WINDOW TAG Phoebe Gwyndale Architects SANTA ANA MULTIUSE RESIDENTIAL BUILDING 620 N SANTIAGO ST. SANTA ANA, CA 92701 3801 W Temple Ave. Pomona, CA 91768 5/10/2023 7:38:56 AM A401
PlansStudio Unit A1, A2 and Single Bedroom Unit B1, B2 IssueDate 1/4" = 1'-0" 1 Studio Unit A1 1/4" = 1'-0" 2 Studio Unit A2 KEY PLAN GRAPHICS LEGEND SHEET NOTES 1/4" = 1'-0" 3 Single Bedroom Unit B1 1/4" = 1'-0" 4 Single Bedroom Unit B2 0' 2' 4' 8' 16' 0' 2' 4' 8' 16' 0' 2' 4' 8' 16' 1. REFER TO SHEET G101 FOR GRAPHIC SYMBOLS, ABBREVIATIONS, AND GENERAL NOTES. 2. CONTRACTOR SHALL VERIFY ALL MATERIALS, COLORS, AND FINISHED WITH THE ARCHITECT. ANY DISCREPANCIES NOTED SHALL BE BROUGHT TO THE ATTENTION OF THE ARCHITECT FOR CLARIFICATION PRIOR TO BEGINNING WORK OR ORDERING MATERIALS. 3. ANY DISCREPANCIES NOTED SHALL BE BROUGHT TO THE ATTENTION OF THE ARCHITECT FOR CLARIFICATION PRIOR TO BEGINNING WORK. 4. ALL STRUCTURAL, PLUMBING, MECHANICAL, AND ELECTRICAL INFORMATION SHOWN ON THIS SHEET IS FOR REFERENCE ONLY. 5. APPROVED SET OF PLANS FOR BUILDING, FIRE SPRINKLER, FIRE ALARM, ETC. SHALL BE ON THE JOB SITE DURING CONSTRUCTION AND NO INSPECTIONS WILL BE MADE WITHOUT COMPLIANCE WITH THE ABOVE PROVISION. 6. WHERE DOORS ARE LOCATED NEXT TO A WALL, THERE SHALL BE A MINIMUM OF 3-1/2" CLEARANCE BETWEEN WALL FINISH SURFACE AND FACE OF DOOR IN 90 DEGREE OPEN POSITION UNLESS DETAILED OR DIMENSIONED OTHERWISE. 0' 2' 4' 8' 16'
31' - 4" 10' - 0" 11' - 0" 5' - 4" 5' - 8" 31'8" 9'3 1/2" 13'2 1/2" 31' 6" 6' 3" 3' 0" 1' - 5" 6' 0" 3' - 1" 31'8" 10'4" U -03 U -05 U -02 U -01 W8 W8 W3 W3 W6 W6 W6 A405 2D 2A 2B 2C 31' 4" 10' 0" 11' 0" 4' - 10" 6' - 2" 31'8" 12'2" 10'4" 31' - 6" 6' - 3" 3' - 0" 3' - 0" 2' 6" 6' - 0" 3' 1" 31'8" 10'4" U -05 U -06 U -03 W6 W6 W8 W8 W6 W2 W2 W2 W6 W6 31' - 6" 10' - 0" 11' - 0" 5' - 4" 5' - 8" 31'8" 9'3 1/2" 13'2 1/2" 31' - 6" 6' - 3" 3' - 0" 1' - 5" 6' 0" 3' - 1" 31'8" 10'4" 7'4" U -03 U -05 U -02 W6 W6 W6 U -04 W8 W8 U -01 W3 W3 31' 6" 10' - 4" 10' - 8" 4' 10" 6' - 2" 31'8" 12'2" 10'4" 31' 6" 6' - 3" 3' 0" 1' - 5" 5' - 6" 6' - 0" 3' 1" 31'8" 7'4" 10'1" U -05 U -06 W6 W6 W8 W8 W6 W2 W6 W6 U -03 W2 W2 W2 A101 1 Ref 1 Ref 1 Ref 1 Ref ELEVATION MARKER 101 -00 DOOR TAG 1t WINDOW TAG Phoebe Gwyndale Architects SANTA ANA MULTIUSE RESIDENTIAL BUILDING 620 N SANTIAGO ST. SANTA ANA, CA 92701 3801 W Temple Ave. Pomona, CA 91768 5/10/2023 7:39:08 AM A402 Enlarged PlansDouble Bedroom Unit C1, C2 IssueDate 1/4" = 1'-0" 1 Double Bedroom Unit C1 Level 1 1/4" = 1'-0" 2 Double Bedroom Unit C1 Level 2 KEY PLAN GRAPHICS LEGEND SHEET NOTES 1/4" = 1'-0" 3 Double Bedroom Unit C2 Level 1 1/4" = 1'-0" 4 Double Bedroom Unit C2 Level 2 1. REFER TO SHEET G101 FOR GRAPHIC SYMBOLS, ABBREVIATIONS, AND GENERAL NOTES. 2. CONTRACTOR SHALL VERIFY ALL MATERIALS, COLORS, AND FINISHED WITH THE ARCHITECT. ANY DISCREPANCIES NOTED SHALL BE BROUGHT TO THE ATTENTION OF THE ARCHITECT FOR CLARIFICATION PRIOR TO BEGINNING WORK OR ORDERING MATERIALS. 3. ANY DISCREPANCIES NOTED SHALL BE BROUGHT TO THE ATTENTION OF THE ARCHITECT FOR CLARIFICATION PRIOR TO BEGINNING WORK. 4. ALL STRUCTURAL, PLUMBING, MECHANICAL, AND ELECTRICAL INFORMATION SHOWN ON THIS SHEET IS FOR REFERENCE ONLY. 5. APPROVED SET OF PLANS FOR BUILDING, FIRE SPRINKLER, FIRE ALARM, ETC. SHALL BE ON THE JOB SITE DURING CONSTRUCTION AND NO INSPECTIONS WILL BE MADE WITHOUT COMPLIANCE WITH THE ABOVE PROVISION. 6. WHERE DOORS ARE LOCATED NEXT TO A WALL, THERE SHALL BE A MINIMUM OF 3-1/2" CLEARANCE BETWEEN WALL FINISH SURFACE AND FACE OF DOOR IN 90 DEGREE OPEN POSITION UNLESS DETAILED OR DIMENSIONED OTHERWISE. 0' 2' 4' 8' 16' 0' 2' 4' 8' 16' 0' 2' 4' 8' 16' 0' 2' 4' 8' 16'
A405 3 A405 3A 3B 3C 4 31' 6" 11' - 0" 10' 6" 31'8" 14'6" 31' 6" 11' - 2" 2' - 1" 3' 0" 6' - 1" 9' 0" 5' 5" 31'8" 21'2" L01 -03 L01 -01 W8 W8 W4 W4 W1 W1 W4 L01 -02 L01 -02 L01 -02 W1 W4 W4 W4 31' 6" 11' - 0" 10' 6" 6' - 2" 4' - 10" 31'8" 10'1" 4'5" 31' 6" 2' - 2" 3' 0" 6' - 1" 9' 0" 5' 5" 31'8" 10'4" 6'0" W7 W7 W8 W8 L02 -03 W7 W7 W2 W2 W2 L02 -01 W7 W7 W2 A101 1 Ref 1 Ref 1 Ref 1 Ref ELEVATION MARKER 101 -00 DOOR TAG 1t WINDOW TAG Phoebe Gwyndale Architects SANTA ANA MULTIUSE RESIDENTIAL BUILDING 620 N SANTIAGO ST. SANTA ANA, CA 92701 3801 W Temple Ave. Pomona, CA 91768 5/10/2023 7:39:24 AM A403 Enlarged PlansLive/Work Unit D1 IssueDate 1/4" = 1'-0" 1 Live/Work Unit D1 Level 1 1/4" = 1'-0" 3 Unit D1 Level 2 KEY PLAN GRAPHICS LEGEND SHEET NOTES 1. REFER TO SHEET G101 FOR GRAPHIC SYMBOLS, ABBREVIATIONS, AND GENERAL NOTES. 2. CONTRACTOR SHALL VERIFY ALL MATERIALS, COLORS, AND FINISHED WITH THE ARCHITECT. ANY DISCREPANCIES NOTED SHALL BE BROUGHT TO THE ATTENTION OF THE ARCHITECT FOR CLARIFICATION PRIOR TO BEGINNING WORK OR ORDERING MATERIALS. 3. ANY DISCREPANCIES NOTED SHALL BE BROUGHT TO THE ATTENTION OF THE ARCHITECT FOR CLARIFICATION PRIOR TO BEGINNING WORK. 4. ALL STRUCTURAL, PLUMBING, MECHANICAL, AND ELECTRICAL INFORMATION SHOWN ON THIS SHEET IS FOR REFERENCE ONLY. 5. APPROVED SET OF PLANS FOR BUILDING, FIRE SPRINKLER, FIRE ALARM, ETC. SHALL BE ON THE JOB SITE DURING CONSTRUCTION AND NO INSPECTIONS WILL BE MADE WITHOUT COMPLIANCE WITH THE ABOVE PROVISION. 6. WHERE DOORS ARE LOCATED NEXT TO A WALL, THERE SHALL BE A MINIMUM OF 3-1/2" CLEARANCE BETWEEN WALL FINISH SURFACE AND FACE OF DOOR IN 90 DEGREE OPEN POSITION UNLESS DETAILED OR DIMENSIONED OTHERWISE. 0' 2' 4' 8' 16' 0' 2' 4' 8' 16'
2. CONTRACTOR SHALL VERIFY ALL MATERIALS, COLORS, AND FINISHES WITH THE ARCHITECT. ANY DISCREPANCIES NOTED SHALL BE BROUGHT TO THE ATTENTION OF THE ARCHITECT FOR CLARIFICATION PRIOR TO BEGINNING WORK OR ORDERING MATERIALS. 3. REFER TO ELECTRICAL DRAWINGS FOR ADDITIONAL NOTES ON FIXTURES AND MOUNTINGS. 4. PROVIDE ACCESS PANELS AS REQUIRED FOR PLUMBING, MECHANICAL, ELECTRICAL, FIRE SPRINKLERS, AND OTHER EQUIPMENT.
A405 3A 3B 3C 4 60" CLR TURNINGRADIUS 36" MIN. 24" MIN. 12" MIN. 34" MAX. 54" MIN. F.O.F. 12" MIN. 42" MIN. 36" MAX. A405 2D 2A 2B 2C A405 1A 1B 1C 1D 60" CLR. TURNINGRADIUS 36" MIN. 12" MIN. 24" MIN. 34" MAX. 40" MAX 36" MAX. 12" MAX. 42" MIN. 54" MIN. F.O.F. Phoebe Gwyndale Architects SANTA ANA MULTIUSE RESIDENTIAL BUILDING 620 N SANTIAGO ST. SANTA ANA, CA 92701 3801 W Temple Ave. Pomona, CA 91768 5/10/2023 8:25:21 AM A405 Enlarged Restroom Plans and Interior Elevations IssueDate SHEET NOTES 1/2" = 1'-0" 3 Unit D1 Level 1 ADA Restroom Plan 1/2" = 1'-0" 3A Unit D1 Restroom Elevation A 1/2" = 1'-0" 3B Unit D1 Restroom Elevation B 1/2" = 1'-0" 3C Unit D1 Restroom Elevation C 1/2" = 1'-0" 2 Units C1, C2 Level 2 Restroom Plan 1/2" = 1'-0" 2A Units C1, C2, Restroom Elevation A 1/2" = 1'-0" 2B Units C1, C2, Restroom Elevation B 1/2" = 1'-0" 2C Units C1, C2, Restroom Elevation C 1/2" = 1'-0" 2D Units C1, C2, Restroom Elevation D 1/2" = 1'-0" 1 Units A1, A2, B1, B2, C1, C2, D1 ADA Accessible Restroom Plan 1/2" = 1'-0" 1A Units A1, A2, B1, B2, C1, C2, D1 ADA Accessible Restroom Elevation A 1/2" = 1'-0" 1B Units A1, A2, B1, B2, C1, C2, D1 ADA Accessible Restroom Elevation B 1/2" = 1'-0" 1C Units A1, A2, B1, B2, C1, C2, D1 ADA Accessible Restroom Elevation C 1/2" = 1'-0" 1D Units A1, A2, B1, B2, C1, C2, D1 ADA Accessible Restroom Elevation D 1/2" = 1'-0" 4 Unit D1 Restroom Elevation D 1. REFER TO SHEET G101 FOR GRAPHIC
GENERAL NOTES.
SYMBOLS, ABBREVIATIONS, AND
REF. DW REF. DW A406 1A 1B 1C 30" X 40" CLR. TYP. 30" X 40" CLR. TYP. SOFFIT FOR EXHAUST SOFFIT FOR EXHAUST Phoebe Gwyndale Architects SANTA ANA MULTIUSE RESIDENTIAL BUILDING 620 N SANTIAGO ST. SANTA ANA, CA 92701 3801 W Temple Ave. Pomona, CA 91768 5/10/2023 12:27:58 PM A406 Enlarged Kitchen Plans and Interior Elevations IssueDate SHEET NOTES 1/2" = 1'-0" 1 Unit Kitchen Plan 1/2" = 1'-0" 1A Unit Kitchen Elevation A 1/2" = 1'-0" 1B Unit Kitchen Elevation B 1/2" = 1'-0" 1C Unit Kitchen Elevation C 1. REFER TO SHEET G101 FOR GRAPHIC SYMBOLS, ABBREVIATIONS, AND GENERAL NOTES. 2. REFER TO ELECTRICAL DRAWINGS FOR ADDITIONAL NOTES ON FIXTURES AND MOUNTINGS. 3. CONTRACTOR SHALL VERIFY ALL MATERIALS, COLORS, AND FINISHES WITH THE ARCHITECT. ANY DISCREPANCIES NOTED SHALL BE BROUGHT TO THE ATTENTION OF THE ARCHITECT FOR CLARIFICATION PRIOR TO BEGINNING WORK OR ORDERING MATERIALS. 4. FINISHES SHOWN CAN BE ASSUMED TO WRAP AROUND PROJECTING ELEMENTS, UNLESS NOTED OTHERWISE. 5. ANY DISCREPANCIES NOTED SHALL BE BROUGHT TO THE ATTENTION OF THE ARCHITECT FOR CLARIFICATION PRIOR TO BEGINNING WORK. 6. ALL STRUCTURAL, PLUMBING, MECHANICAL, AND ELECTRICAL INFORMATION SHOWN ON THIS SHEET IS FOR REFERENCE ONLY. 7. APPROVED SET OF PLANS FOR BUILDING, FIRE SPRINKLER, FIRE ALARM, ETC. SHALL BE ON THE JOB SITE DURING CONSTRUCTION AND NO INSPECTIONS WILL BE MADE WITHOUT COMPLIANCE WITH THE ABOVE PROVISION. 8. ELECTRICAL OUTLETS ON WALLS OVER CABINETS MUST BE A MINIMUM OF 36" FROM A CORNER PER FAIR HOUSING DESIGN GUIDELINES SECTION 5.8. CONFIRM AND SEE LOCATION PER ELECTRICAL DRAWINGS. 9. ELECTRICAL OUTLETS MUST BE 24" MAXIMUM WITHIN REACH PER 111B-308.2.2. SEE ELECTRICAL FOR LOCATIONS. SOFFIT FOR EXHAUST
Phoebe Gwyndale Architects SANTA ANA MULTIUSE RESIDENTIAL BUILDING 620 N SANTIAGO ST. SANTA ANA, CA 92701 3801 W Temple Ave. Pomona, CA 91768 5/10/2023 11:15:28 PM A410 Interior Visualizations IssueDate
2 A420 3 TREADS @ 11" 2'9" LANDING 3'0" 10 TREADS @ 11" 9' - 2" LANDING 3' - 11" Level 3 Floor Plan 20' - 0" Level 4 Floor Plan 29' - 4" Level 5 Floor Plan 38' - 8" Level 6 Floor Plan 48' - 0" 3 R @ 7" MAX. 2'4" 10 R @ 7" MAX. 7'0" 3 R @ 7" MAX. 2'4" 10 R @ 7" MAX. 7'0" 3 R @ 7" MAX. 2'4" 10 R @ 7" MAX. 7'0" FLOOR TO FLOOR HEIGHT 9'4" FLOOR TO FLOOR HEIGHT 9'4" FLOOR TO FLOOR HEIGHT 9'4" HANDRAIL HEIGHT 3'0" 3'0" 3'0" 3'0" Phoebe Gwyndale Architects SANTA ANA MULTIUSE RESIDENTIAL BUILDING 620 N SANTIAGO ST. SANTA ANA, CA 92701 3801 W Temple Ave. Pomona, CA 91768 5/10/2023 3:25:55 PM A420 Enlarged Stair Plan and Section IssueDate SHEET NOTES 1/2" = 1'-0" 1 Enlarged Stair Plan 1/2" = 1'-0" 2 Enlarged Stair Section 1. REFER TO SHEET G101 FOR GRAPHIC SYMBOLS, ABBREVIATIONS, AND GENERAL NOTES. 2. CONTRACTOR SHALL VERIFY ALL MATERIALS, COLORS, AND FINISHED WITH THE ARCHITECT. ANY DISCREPANCIES NOTED SHALL BE BROUGHT TO THE ATTENTION OF THE ARCHITECT FOR CLARIFICATION PRIOR TO BEGINNING WORK OR ORDERING MATERIALS. 3. STAIRWAY IDENTIFICATION SIGNS SHALL BE LOCATED AT EACH FLOOR LEVEL STATING THE STORY OF AND DIRECTION OF EXIT DISCHARGE AND THE AVAILIBITY OF ROOF ACCESS FROM THE STAIRWAY FOR THE FIRE DEPARTMENT. 4. ALL DIMENSIONS TO BE FIELD VERIFIED PRIOR TO FABRICATION AND INSTALLATION. 5. TREADS = 11" MINIMUMM AND RASERS = 4" MINIMUM TO 7" MAXIMUM, TYPICAL. 6. PROVIDE SINGLE STATION SMOKE ALARM AT TOP OF COMMON STAIRWELL PER GOVERNING CODE REQUIREMENTS.

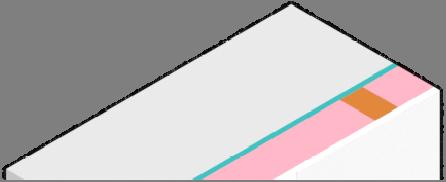

FLOOR ASSEMBLIES
VINYL FLOORING
CORK UNDERLAYMENT
1 1/2" LIGHTWEIGHT CONCRETE
3/8 PLYWOOD SHEATHING
5 5/8" AIR SPACE
5 5/8" BATT INSULATION
2X12 FLOOR JOISTS 16" O.C.
1/2" GYPSUM BOARD
SHEET NOTES
1. REFER
ACOUSTICAL APPLICATION.
3. ALL EXTERIOR JOINT AND OPENINGS IN THE BUILDING THAT ARE OBSERVABLE SOURCES OF AIR LEAKAGE SHALL BE CAUKLED, GASKETED, WEATHERSTRIPPED OR OTHERWISE SEALED.
MIN. R-VALUE = 21.4

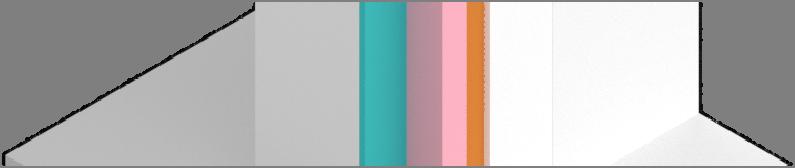

WALL ASSEMBLIES
MIN. 2 DEGREE SLOPE
EXTERIOR INTERIOR
FIBER CEMENT PANELS
STEEL RESILIENT CHANNELS
1/2" RIGID INSULATION
WEATHERPROOFING MEMBRANE
3/8" PLYWOOD SHEATHING
WHITE PLASTER INTERIOR FINISH
1/2" GYPSUM BOARD
7 1/4" AIR SPACE
2X12 FLOOR
1/2" GYPSUM BOARD
WHITE PLASTER EXTERIOR FINISH
MIN. R-VALUE: 55.75
MIN. 2 DEGREE SLOPE
WHITE PLASTER INTERIOR FINISH
4. VOID OR SPACES WITHIN THE WALL SHALL BE CAULKED OR FOAMED TO PROVIDE A SUBSTANTIALLY AIR-TIGHT ENVELOPE TO THE OUTDOORS, ATTIC, GARAGE, OR ENCLOSED SPACES.
5. ALL GAPS IN THE AIR BARRIER SHALL BE CAULKED, TAPED, OR SEALED WITH MINIMALLY EXPANSIVE FOAM.
6. BOTTOM PLATES OF FRAMED AND NON-FRAMED ASSEMBLIES SHALL BE SEALED TO THE GROUND SUBFLOOR OR SLAB AND BOAVE GROUND SUBFLOOR.
WEATHERPROOFING ROOF MEMBRANE
TAPERED RIGID INSULATION
3/8" PLYWOOD SHEATHING
11 1/4" BATT INSULATION
2X12 FLOOR JOISTS 16" O.C.
1/2" GYPSUM BOARD
WHITE PLASTER INTERIOR FINISH
7. BATT INSULATION SHALL FILL THE CAVITY BY FRICTION, INSET OR FACE STAPLING OF FLANGES OF FACED BATTS, OR BY OTHER SUPPORT METHODS AS NECESSARY.
8. BATT INSULATION SHALL BE INSTALLED TO FILL THE CAVITY AND BE IN CONTACT WITH THE SHEATHING ON THE BACK AND THE WALLBOARD ON THE FRONT, NO GAPS OR VOIDS.
9. BATT INSULATION SHALL BE CUT TO FIT SNUGLY AROUND WIING AND PLUMBING OR BE SPLIT (DELAMINATED) SO THAT ONE LAYER CAN FIT BEHIND THE WIRING OR PLUMBING AND ONE LAYER FIT IN FRONT.
10. ALL RIM-JOIST SHALL BE INSULATED TO THE SAME R-VALUE AS THE ADJACENT WALL ASSEMBLY.
EXTERIOR INTERIOR
WHITE PLASTER INTERIOR FINISH
1/2" GYPSUM BOARD
2X8 STUD 16" O.C.
7 1/4" BATT INSULATION
FIBER CEMENT PANELS
STEEL RESILIENT CHANNELS
1/2" RIGID INSULATION
WEATHERPROOFING MEMBRANE
3/8" PLYWOOD SHEATHING
INTERIOR INTERIOR
WHITE PLASTER INTERIOR FINISH
1/2" GYPSUM BOARD
2X4 STUD 16" O.C.
WHITE PLASTER INTERIOR FINISH
1/2" GYPSUM BOARD
2X4 STUD 16" O.C.
MIN R-VALUE = 27.55
JOIST 16" O.C. 3/8" PLYWOOD SHEATHING WEATHERPROOFING MEMBRANE TAPERED RIGID INSULATION DECKING MEMBRANE BISON PEDESTAL CEMENT TILES WHITE PLASTER INTERIOR FINISH 12" CONCRETE SLAB CORK UNDERLAYMENT VINYL FLOORING MIN. R-VALUE = 1.28 INTERIOR INTERIOR WHITE PLASTER INTERIOR FINISH 1/2" GYPSUM BOARD 2X4 STUD 16" O.C. 3 1/2" BATT INSULATION WHITE PLASTER INTERIOR FINISH 1/2" GYPSUM BOARD 2X4 STUD 16" O.C. 3 1/2" BATT INSULATION 1" AIR SPACE MIN. R-VALUE = 26.6 Phoebe Gwyndale Architects SANTA ANA MULTIUSE RESIDENTIAL BUILDING 620 N SANTIAGO ST. SANTA ANA, CA 92701 3801 W Temple Ave. Pomona, CA 91768 5/10/2023 12:06:31 AM A501 Wall and Floor Assemblies IssueDate 1 1/2" = 1'-0" 1 Interior Wall 1 1/2" = 1'-0" 2 Exterior Wall 1 1/2" = 1'-0" 4 Plumbing Wall 1 1/2" = 1'-0" 5 Roof 1 1/2" = 1'-0" 6 Floor Between Units 1 1/2" = 1'-0" 7 Balcony 1 1/2" = 1'-0" 8 Concrete Podium 1 1/2" = 1'-0" 3 Demising Wall
TO SHEET G101 FOR GRAPHIC SYMBOLS, ABBREVIATIONS, AND GENERAL NOTES. 2. THE OUTERMOST LAYER OF GYPSUM BOARD SHOULD BE HELD CLEAR OF THE FLOOR BY NO MORE THAN 1/4" AND THE GAP CAULKED WITH A RESILIENT NONHARDENING ACOUSTICAL SEALANT. SEALANT IS NOT REQUIRED FOR INNER LAYERS. INSTALL ACCORDING TO CURRENT ASTM STANDARDS, STANDARD PRACTICE OF USE OF SEALANT IN
VITRO VISTACOOL PACIFICA + SOLARBAN 60 (3)
VINYL WINDOW SILL
FIBER CEMENT PANELS
STEEL RESILIENT CHANNELS
1/2" RIGID INSULATION WEATHERPROOFING MEMBRANE
3/8" PLYWOOD SHEATHING
2X10 DOUBLE HEADER
FIBER CEMENT PANEL
STEEL RESILIENT CHANNEL
1/2" RIGID INSULATION
WEATHERPROOFING MEMBRANE
3/8" PLYWOOD SHEATHING
2X12 FLOOR JOISTS 16"
5/8" BATT INSULATION
FIBER CEMENT PANELS
STEEL RESILIENT CHANNEL
1/2" RIGID INSULATION
WEATHERPROOFING MEMBRANE FLASHING
7 1/4" BATT INSULATION
2X8 BASE PLATE
STRUCTURAL CONCRETE
1/2" RIGID INSULATION
2X4 DOUBLE TOP PLATE
3 1/2" BATT INSULATION
1/2" GYPSUM BOARD
WHITE PLASTER INTERIOR FINISH
FIBER CEMENT PANELS
VERTICAL STEEL BALUSTERS
CEMENT TILES
DECKING MEMBRANE
TAPERED RIGID INSULATION
LINEAR DRAIN
4X12 FLOOR JOISTS 16" O.C
3/8" PLYWOOD SHEATHING
WEATHERPROOFING MEMBRANE
1/2" RIGID INSULATION
STEEL CONNECTOR, BOLTED CONNTECTION
1/2" GYPSUM BOARD
WHITE PLASTER EXTERIOR FINISH
Level 5 Floor Plan 38' - 8"
Phoebe Gwyndale Architects SANTA ANA MULTIUSE RESIDENTIAL BUILDING 620 N SANTIAGO ST. SANTA ANA, CA 92701 3801 W Temple Ave. Pomona, CA 91768 5/10/2023 4:46:33 AM A503 Details IssueDate 3" = 1'-0" 1 Detail -Guardrail to Floor 3" = 1'-0" 2 Detail -Type to Type III 3" = 1'-0" 3 Detail -Window Sill 6 Detail - Balcony Not to Scale WHITE
FINISH
BOARD STEEL RESILIENT CHANNEL 3 5/8" BATT INSULATION 2X12 FLOOR JOISTS 16" O.C. 3 5/8" AIR SPACE 3/8" PLYWOOD SHEATHING WEATHERPROOFING MEMBRANE TAPERED RIGID INSULATION DECKING MEMBRANE BISON PEDESTAL CEMENT TILES 5 Detail - Balcony Not to Scale WHITE PLASTER EXTERIOR FINISH 1/2" GYPSUM BOARD STEEL RESILIENT CHANNEL 3
PLASTER EXTERIOR
1/2" GYPSUM
O.C.
3 5/8" AIR SPACE
CANT STRIP TAPERED RIGID INSULATION ROOFING MEMBRANE
Balcony Not to Scale
FOUNDATION
CONCRETE
MEMBRANE SLAB ON
CONCRETE WALL 1/2" RIGID INSULATION 2X4 BOTTOM PLATE
1/2" BATT INSULATION
STUD 16" O.C.
STUD 16" O.C.
GYPSUM BOARD WHITE
FINISH
FLOORING
4 Detail -
GROUND
PILLAR 4" COMPACTED GRAVEL
PAVING WEATHERPROOFING
GRADE
3
2X4
2X4
1/2"
PLASTER INTERIOR
PORCELAIN TILE

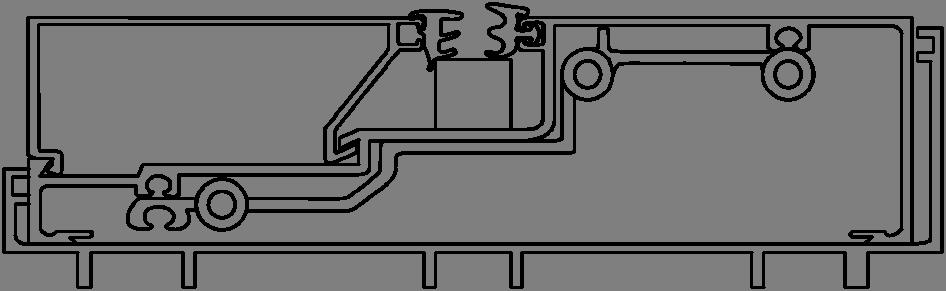

WINDOW SCHEDULE
TYPEMATL.FIN.COLORGLAZING
W1VINYLF.F.BLACKGL-02
W2VINYLF.F.BLACKGL-02
W3VINYLF.F.BLACKGL-02
W4VINYLF.F.BLACKGL-02
W5VINYLF.F.BLACKGL-02
W6VINYLF.F.BLACKGL-02
W7VINYLF.F.BLACKGL-02
W8VINYLF.F.BLACKGL-02
W9
WINDOW SCHEDULE
REMARKS HEADJAMBSILL
GLAZING SCHEDULE
GL-01VITRO SOLARBAN R67 (2) + CLEAR SOLAR CONTROL LOW-E GLASS540.300.29
GL-02VITRO VISTACOOL PACIFICA + SOLARBAN 60 (3)260.300.22
W1 W2 W3 W4 W5 W6 W7 W8 3' - 0" 9'8" 3' - 0" 9'4" 3' - 0" 8'0" 9'8" 1' 0" 9'4" 1' - 0" 8'0" 1' - 0" 7'8" 1' - 0" 2'0" 1' 0" Phoebe Gwyndale Architects SANTA ANA MULTIUSE RESIDENTIAL BUILDING 620 N SANTIAGO ST. SANTA ANA, CA 92701 3801 W Temple Ave. Pomona, CA 91768 5/10/2023 2:56:41 PM A601 Window Schedule and Types IssueDate SHEET NOTES 1. REFER TO SHEET G101 FOR FOR GRAPHIC SYMBOLS, ABBREVIATIONS, AND GENERAL NOTES. 2. REFER TO SHEETS "FLOOR PLANS" FOR WINDOW, STOREFRONT, AND CURTAIN WALL TYPE CALLOUTS. 3. REFER TO SHEET "DOOR SCHEDULE AND TYPES" FOR DOOR SIZES AND TYPES. 4. DIMENSIONS SHOWN ON THIS SHEET ARE NOMINAL, UNLESS NOTED OTHERWISE. CONTRACTOR TO VERIFY ALL ROUGH OPENINGS 5. ALL DIMENSIONS TO BE FIELD VERIFIED PRIOR TO FABRICATION AND INSTALLATION 6. OPERABLE WINDOWS SHALL BY EQUIPPED WITH LOCKING DEVICES AND SHALL BE CERTIFIED AND DOCUMENTS AS BEING SECURE AND TAMPER PROOF. 7. APPROVED SAFETY GLASS SHALL BE INSTALLED AT ALL HAZARDOUS LOCATIONS PER GOVERNING CODE REQUIREMENTS. 8. ALL RESIDENTIAL UNIT WINDOWS SHALL HAVE A MINIMUM STC RATING OF 30. LEGEND C = CURTAIN WALL CLR. = CLEAR (SEALER PER SPECS.) F = FLUSH G = GARAGE GL. = GLASS MTL. = METAL SD = SLIDING DOOR S/S = STAINLESS STEEL (SURFACE) VN. = VINYL WD. = WOOD F.F. = FACTORY FINISH
TypeDescriptionVLTU-FactorSHGC
DETAIL
Level 1 Floor Plan L0100ACOMMERCIALCGL.<varies><varies>S/SA, B, C, E, G, I, J
D1 LIVE/WORKFGL.3'
10 3/4"S/SA, D, G, J
0"0' - 2"S/SA, B, D, E, G
0"0' - 2"S/SA,
10 3/4"S/SA, D, G, J
L0305ELEVATORSDS/S4' - 6"7' 0"0' - 2"S/SA, B
U01ENTRYFWD.3' - 0"7' 0"0' - 2"WD.B, D, E, F, K
U02BEDROOMFWD.3' - 0"7' 0"0' - 2"WD.F
U03RESTROOMFWD.2' - 8"7' 0"0' - 2"WD.F
U04BALCONYSDGL.5' 8"7' 0"0' - 2"VN.B, D, G
U05CLOSETO0' - 0"0' 0"
Level 4 Floor Plan
L0400AGYMCS/S4' - 4 7/8"7' 10 3/4"S/SA, D, G, J
L0400CLOBBYCS/S4' 9 1/2"7' 10 3/4"S/SA, B, C, E, G, I, J
L0405ELEVATORSDS/S4' - 6"7' 0"0' - 2"S/SA, B
U01ENTRYFWD.3' - 0"7' 0"0' - 2"WD.B, D, E, F, K
U02BEDROOMFWD.3' - 0"7' 0"0' - 2"WD.F
U03RESTROOMFWD.2' - 8"7' 0"0' - 2"WD.F
U04BALCONYSDGL.5' 8"7' 0"0' - 2"VN.B, D, G
U05CLOSETO0' - 0"0' 0"
U06RESTROOMO0' - 0"0' 0"
Level 5 Floor Plan
L0500C<varies>CS/S<varies><varies>S/SA, B, C, E, G, I, J
L0502<varies>FS/S3' - 0"7' 0"0' - 2"S/SA, D
L0605ELEVATORSDS/S4' - 6"7' 0"0' - 2"S/SA, B
ILLUMINATION SHALL NORMALLY BE PROVIDED BY THE PREMISES WIRING SYSTEM OR BE SELF-LUMINOUS, HOWEVER IN THE EVEN OF SYSTEM FAILURE THE ILLUMINATION SHALL BE AUTOMATICALLY PROVIDED FROM AN EMERGENCY SYSTEM, STORAGE BATTERIES OR AN ONSITE GENERATOR. EXITS SHALL BE ILLUMINATED AT ANY TIME THE BUILDING IS OCCUPIED, WITH LIGHT HAVING AN INTENSITY OF NO LESS THAN ONE FOOT-CANGLE T THE FLOOR LEVEL PER GOVERNING CODE REQUIREMENTS.
7. PROVIDE EXIT SIGNS AND FLOORLEVEL EXIT SIGNS (IF ANY) PER GOVERNING CODE REQMTS.
8. ALL EXIT DOORS SHALL BE OPENABLE FROM THE INSIDE WITHOUT THE USE OF A KEY, TOOL, OR ANY SPECIAL KNOWLEDGE OR EFFORT. FLUSH OR SURFACE BOLTS ARE PROHIBITED PER GOVERNING CODE REQUIREMENTS.
9. EXIT DR. SWING IN THE DIRECTION OF EXIT TRAVEL WHEN SERVING ANY HAZARDOUS AREA OR WHEN SERVING AN OCCUPANT LOAD OF 50 OR MORE PER GOVERNING CODE RQMTS.
A. DOOR SHALL BE SELF CLOSING AND SELF LATCHING.
B. DOOR SHALL HAVE METAL THRESHOLD AND WEATHER STRIPPING.
C. DOOR SHALL HAVE INTERNATIONAL SYMBOL OF ACCESSIBILITY FROM THE OUTSIDE AN/OR FROM THE INSIDE BY A DEVICE IN COMPLIANCE WITH GOVERNING CODE REQUIREMENS. COORDINATE WITH OWNER.
D. DOOR SHALL HAVE KEY OPERATED LOCKING HARDWARE FROM THE OUTSIDE AND/OR FROM THE INSIDE BY A DECIDE IN COMPLIANCE WITH GOVERNING CODE REQUIREMENTS. COORDINATE WITH OWNER.
E. DOOR IS REQUIRED EXIT AND SHALL COMPLY WITH GOVERNING CODE REQUIREMENTS.
GLAZING SCHEDULE
TypeDescriptionVLTU-FactorSHGC
GL-01VITRO SOLARBAN R67 (2) + CLEAR SOLAR CONTROL LOW-E GLASS540.300.29 GL-02VITRO VISTACOOL PACIFICA + SOLARBAN 60 (3)260.300.22
F. ALL RESIDENTIAL UNIT DOORS TO HAVE OFFSET HINGES.
G. GLASS DOOR, DOORS SHALL COMPLY WITH GOVERNING CODE REQUIREMENTS.
H. FIRE DOORS SHALL HAVE
DOOR HEIGHT DOOR WIDTH 10" HIGH S/S POLISHED KICKPLATES (WHERE OCCURS) F S/S EDGE GUARD FULL HEIGHT FLUSH WITH LAMINATE (WHERE OCCURS) DOOR HEIGHT DOOR WIDTH O DOOR HEIGHT CS SD DOOR WIDTH DOOR HEIGHT DOOR WIDTH G DOOR HEIGHT DOOR WIDTH FLUSH OPEN CLOSET SLIDING DOOR SLIDING DOOR LOADING DOCK GARAGE DOOR Phoebe Gwyndale Architects SANTA ANA MULTIUSE RESIDENTIAL BUILDING 620 N SANTIAGO ST. SANTA ANA, CA 92701 3801 W Temple Ave. Pomona, CA 91768 5/10/2023 2:56:48 PM A602 Door Schedule and Types IssueDate LEGEND REMARKS SHEET NOTES 1. REFER TO SHEET G101 FOR FOR GRAPHIC SYMBOLS, ABBREVIATIONS, AND GENERAL NOTES. 2. REFER TO SHEETS "FLOOR PLANS" FOR DOOR NUMBER CALLOUTS. 3. WIDTH & HT. OF REQD. EXIT DOOR WAYS TO COMPLY W/ GOVERNING CODE RQMTS. ALL REQD. EXIT DOORWAYS SHALL HAVE A MIN. OF OF 32" CLR. OPNG. WHEN DOOR IS AT 90 DEGREE OPEN POSITION. 4. MAXIMUM EFFORT AND FORCE TO OPEN DOORS SHALL NOT EXCEED 15 POUNDS FOR FIRE RATED EXIT DOORS AND 5 POUNDS FOR ALL OTHER DOORS PER CBC 11B-404.2.9. 5. ALL ENTRANCES AND REQUIRED EXITS TO ALL SPACES SHALL BE ACCESSIBLE TO THE DISABLED PER GOVERNING CODE REQUIREMENTS. 6. "EXIT" SIGNS SHALL BE ELECTRONICALLY ILLUMINATED AND ENERGIZED FROM A SEPARATE CIRCUIT.
I.
OPENER
J.
HOLD PEWS/OPEN K. ALL RESIDENTIAL UNIT ENTRY DOORS SHALL
A MIN. STC RATING OF 26 AND ALL UNIT EXTERIOR DOOR FACING PRIVATE BALCONY SHALL HAVE STC RATING OF 30. C = CURTAIN WALL CLR. = CLEAR (SEALER PER SPECS.) F = FLUSH G = GARAGE GL. = GLASS MTL. = METAL SD = SLIDING DOOR S/S = STAINLESS STEEL (SURFACE) VN. = VINYL WD. = WOOD
TYPE MARK LOCATIONTypes DOOR FRAME MATL. REMARKS MATL. SIZE WIDTHHEIGHTTHICKNESS
AN APPROVED LABEL OR LISTING MARK, INDICATING THE FIRE PROTECTION RATING WHICH IS PERMANENTLY AFFIXED AT THE FACTORY. THE ANCHORAGE, FRAME, AND SILL HARDWARE SHALL COMPLY WITH GOVERNING CODE REQUIREMENTS.
PROVIDE AUTOMATIC DOOR
PER CDC 11B.404.3.
PROVIDE MAGNETIC
HAVE
MARK
L0100BCOMMERCIALCGL.<varies>7'
L0101UNIT
0"7'
L0102COMMERCIALFS/S3' 0"7'
D L0103RESTROOMFS/S2' 8"7' 0"0' - 2"S/SA, C, D L0104LOADING DOCKGS/S8' 0"7' 0"0' - 1 1/2"S/SB L0105ELEVATORSDS/S4' - 6"7' 0"0' - 2"S/SA, B Level 2 Floor Plan L0201BEDROOMFWD.2' 8"7' 0"0' - 2"WD.F L0202ELECTRICAL/MECHANICAL ROOMFS/S 3' - 0"7' 0"0' - 2"S/SA, D L0203RESTROOMFWD.2' 8"7' 0"0' - 2"WD.F L0205ELEVATORSDS/S4' - 6"7' 0"0' - 2"S/SA, B V01UNIT D1 LIVE/WORKFGL.3' - 0"7' 0"0' - 2"S/SA, B, D, E, G W01UNIT D1 LIVE/WORKFGL.3' - 0"7' 0"0' - 2"S/SA, B, D, E, G X01UNIT D1 LIVE/WORKFGL.3' - 0"7' 0"0' - 2"S/SA, B, D, E, G Electrical and Power RCP L0300AGYMCGL.4' - 4 1/4"7' 10 3/4"S/SA, D, G, J L0300C<varies>CGL.<varies>7'
U01ENTRYFWD.3'
U02BEDROOMFWD.3'
U03RESTROOMFWD.2'
U04BALCONYSDGL.5' 8"7'
U05CLOSETO0' - 0"0' 0" U07CLOSETSDWD.4' 0"7' 0"0' - 1 3/8"WD. Level 6 Floor Plan L0600CLOBBYCGL.4' 9 1/2"7' 10 3/4"S/SA, B, C, E, G, I, J L0605ELEVATORSDS/S4' - 6"7' 0"0' - 2"S/SA, B U01ENTRYFWD.3' - 0"7' 0"0'
K U03RESTROOMFWD.2'
8"7' 0"0'
2"WD.F U04BALCONYSDGL.5' 8"7' 0"0' - 2"VN.B, D, G U05CLOSETO0'
0"0' 0" U06RESTROOMO0'
0"0' 0" U07CLOSETSDWD.4' 0"7' 0"0'
3/8"WD.
- 0"7' 0"0' - 2"WD.<varies>
- 0"7' 0"0' - 2"WD.F
- 8"7' 0"0' - 2"WD.F
0"0' - 2"VN.B, D, G
- 2"WD.B, D, E, F,
-
-
-
-
- 1
DOOR SCHEDULE DOOR TYPES
Phoebe Gwyndale Architects SANTA ANA MULTIUSE RESIDENTIAL BUILDING 620 N SANTIAGO ST. SANTA ANA, CA 92701 3801 W Temple Ave. Pomona, CA 91768 5/10/2023 4:26:47 PM A901 Model Documentation IssueDate
AFCI AFCI AFCI T AFCI TV S/C REF DW OV CT MV WP S S AFCI ELECTRICAL OUTLET ELECTRICAL SUBPANEL THERMOSTAT DATA PORT TV LOCATION ENERGY STAR COMPLIANT EXHAUST FAN W/ HUMIDSTAT COMBINTION CO/SMOKE DETECTOR MICROWAVE OUTLET COOKTOP OUTLET DISHWASHER OUTLET ONE WAY SWITCH 3 WAY SWITCH 4 WAY SWITCH JAMB SWITCH RECESSED LED CAN LIGHT FIXTURE RECESSED LED CAN LIGHT FIXTURE WET LOCATION AFCI T TV S/C OVEN OUTLET REFRIGERATOR OUTLET MV CT DW OV REF S S S 3 4 S WP Phoebe Gwyndale Architects SANTA ANA MULTIUSE RESIDENTIAL BUILDING 620 N SANTIAGO ST. SANTA ANA, CA 92701 3801 W Temple Ave. Pomona, CA 91768 5/10/2023 2:46:30 PM E101 Electrical and Power RCP IssueDate 1/4" = 1'-0" 1 Electrical and Power RCP 1. REFER TO SHEET G101 FOR GRAPHIC SYMBOLS, ABBREVIATIONS, AND GENERAL NOTES. 2. ANY DISCREPANCIES NOTED SHALL BE BROUGHT TO THE ATTENTION OF THE ARCHITECT FOR CLARIFICATION PRIOR TO BEGINNING WORK. 3. SMOKE DETECTORS SHALL BE PROVIDED IN EACH SLEEPING ROOM, ON THE CEILING OR WALL IMMEDIATELY OUTSIDE OF EACH SLEEPING ROOM, AND ON EACH STORY AND BASEMENT FOR DWELLINGS WITH MORE THAN ONE STORY. SHEET
NOTES
GRAPHICS LEGEND
T HORIZONTAL FAN COIL UNIT RETURN AIR FRESH AIR SUPPLY T THERMOSTAT REFRIGERANT LOOP EXHAUST SOFFIT Phoebe Gwyndale Architects SANTA ANA MULTIUSE RESIDENTIAL BUILDING 620 N SANTIAGO ST. SANTA ANA, CA 92701 3801 W Temple Ave. Pomona, CA 91768 5/10/2023 1:18:00 PM M101 Mechanical RCP and 3D Diagram of Stack IssueDate
LEGEND SHEET NOTES 1/4" = 1'-0" 1 Mechanical RCP 1. REFER TO SHEET G101 FOR GRAPHIC SYMBOLS, ABBREVIATIONS, AND GENERAL NOTES. 2. ANY DISCREPANCIES NOTED SHALL BE BROUGHT TO THE ATTENTION OF THE ARCHITECT FOR CLARIFICATION PRIOR TO BEGINNING WORK.
GRAPHICS
BLACK WASTE GRAY WASTE HOT WATER COLD WATER TANKLESS WALL MOUNT WATER HEATER Phoebe Gwyndale Architects SANTA ANA MULTIUSE RESIDENTIAL BUILDING 620 N SANTIAGO ST. SANTA ANA, CA 92701 3801 W Temple Ave. Pomona, CA 91768 5/10/2023 11:30:01 AM P101 Plumbing Plan and 3D Diagram of Stack IssueDate 1/4" = 1'-0" 1 Plumbing Plan
SHEET NOTES 1. REFER TO SHEET G101 FOR GRAPHIC SYMBOLS, ABBREVIATIONS, AND GENERAL NOTES. 2. ANY DISCREPANCIES NOTED SHALL BE BROUGHT TO THE ATTENTION OF THE ARCHITECT FOR CLARIFICATION PRIOR TO BEGINNING WORK. BLACK WASTE: TO SEWERS GRAY WASTE: TO CISTERN
GRAPHICS LEGEND
Framing
Phoebe Gwyndale Architects SANTA ANA MULTIUSE RESIDENTIAL BUILDING 620 N SANTIAGO ST. SANTA ANA, CA 92701 3801 W Temple Ave. Pomona, CA 91768 5/10/2023 2:02:43 PM S100
Plans IssueDate SHEET NOTES 1/4" = 1'-0" 1 Framing Plan Unit C1 Level 1 1/4" = 1'-0" 2 Framing Plan Unit C1 Level 2 2" X 12" FLOOR FRAMING 16" O.C. 2" X 12" FLOOR FRAMING 16" O.C. 2" X 8" EXTERIOR WALL FRAMING, 16" O.C. 8" X 8" POST 2" X 4" INTERIOR WALL FRAMING, 16" O.C. 2" X 6" INTERIOR WALL FRAMING, 16" O.C. 8" X 8" BEAM DOUBLE 2" X 4" DEMISING WALL W/ 1" GAP, 16" O.C. 8" X 8" BEAM 2" X 12" FLOOR FRAMING 16" O.C. 2" X 8" EXTERIOR WALL FRAMING, 16" O.C. 8" X 8" POST 2" X 4" INTERIOR WALL FRAMING, 16" O.C. 2" X 6" INTERIOR WALL FRAMING, 16" O.C. DOUBLE 2" X 4" DEMISING WALL W/ 1" GAP, 16" O.C. 1. REFER TO SHEET G101 FOR GRAPHIC SYMBOLS, ABBREVIATIONS, AND GENERAL NOTES. 2. ANY DISCREPANCIES NOTED SHALL BE BROUGHT TO THE ATTENTION OF THE ARCHITECT FOR CLARIFICATION PRIOR TO BEGINNING WORK. 3. FRAMING SCHEDULE VARIES FROM UNIT TO UNIT. FRAMING SHOWN ON THIS SHEET IS A REFERENCE ON WHERE STRUCTURAL MEMBERS EXIST.
