Harvey James-Bull Part Two Architectural Student

TECTONICS 16 Weeks - MA (Hons)

EXHIBITION

---

CONCEPT

---

SITE ANALYSIS

---

EXPLORATION

---

MODELING

---

TECHNICAL

ARCHITECTURAL

RIBA PART II : ARCHITECTURE ASSISTANT

//5

PROJECT 01 - TECTONICS

Site.

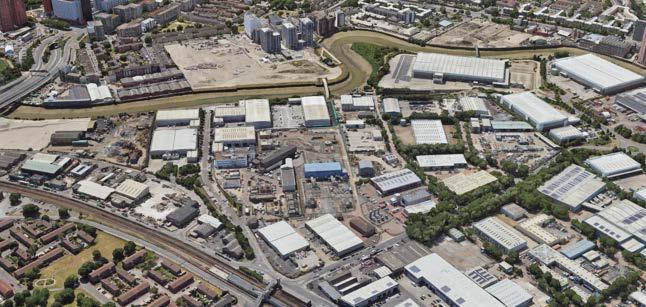

Site A is located from the two story car park at the rear of Cable Wynd House (accessed via Henderson Street) through the under-croft to the adjacent redbrick wall on Cable Wynd. Towering over the front of the site is Cable Wynd House, commonly known as the Banana Flats. Constructed in the early 1960s the banana flats embody brutalism, with a prefabricated concrete aggregate exterior with heavily extenuated horizontal and vertical lines. The 212 dwellings are currently partially occupied by low income housing.

Leith itself is known for its industrial maritime architectural themes reflected in the warehousing and docks along the waterfront. Additionally, its diverse architectural landscape includes Georgian and Victorian town houses, along with modern developments, contributing to its unique characteristics

//6

PROJECT 01 - TECTONICS

//7

2.

2.

3.

Initial Concept.

3.

1.

1.

Unit 4 Stance:

PROJECT

PROYECT NO:

DRAWING BY:

DRAWING TITLE:

ADD YOUR PROJECT NAME

2020-01

LAST NAME, YOUR NAME

PLAN

Project adress

SCALE: DATE:

REVISIONS: 1:100

PROJECT

PROYECT NO:

DRAWING BY:

DRAWING TITLE:

ADD YOUR PROJECT NAME

2020-01

LAST NAME, YOUR NAME

PLAN

Project adress

DATE:

0

1

2

3

5

10

Our designed buildings aspire to more than mere structures; they seek to become integral elements of the fabric of Leith life. By fostering patterns of use that uplift the community, they contribute to the well-being and vitality of the area. Furthermore, these buildings serve as beacons of local pride, enhancing the aesthetic and functional aspects of the street scape. In doing so, they weave themselves into the very essence of Leith, enriching its past, present, and future.

DRAWING NO:

REVISIONS: 1:100 10 /11/19

-

10 /11/19

SCALE:

- DRAWING NO: -

0

A.01

1

2

3

5

10

A.01

Personal Understanding:

1.

3.

3.

2.

PROJECT

PROYECT NO:

DRAWING BY:

DRAWING TITLE:

ADD YOUR PROJECT NAME

2020-01

LAST NAME, YOUR NAME

PLAN

Project adress

SCALE: DATE:

1.

-

10 /11/19

PROJECT

PROYECT NO:

DRAWING BY:

ADD YOUR PROJECT NAME

2020-01

LAST NAME, YOUR NAME

Project adress

0

1

2

DRAWING TITLE: PLAN

3

SCALE:

5

DATE:

REVISIONS: 1:100

A.01

10

-

10 /11/19

PROYECT NO:

DRAWING BY:

DRAWING TITLE:

LAST NAME, YOUR NAME

PLAN

Plastercast Massing

SCALE: DATE:

REVISIONS: 1:100 10 /11/19

-

DRAWING BY:

DRAWING TITLE:

LAST NAME, YOUR NAME

PLAN

Initial Massing

3

5

10

SCALE: DATE:

A.01

2.

1.

DRAWING NO:

REVISIONS: 1:100

-

10 /11/19

1.

0

3.

2.

PROJECT

PROYECT NO:

ADD YOUR PROJECT NAME

2020-01

Project adress

2

PROYECT NO:

1.

2020-01

1

2020-01

2.

ADD YOUR PROJECT NAME

DRAWING NO:

0

ADD YOUR PROJECT NAME

3.

Project adress

3.

PROJECT Project adress

PROJECT

This building aims to bring together local musical tallent from the surrounding area of leith. Due to the large number of tennement flats and apartments in Edinburgh often there is not a suitable location for people to grow and learn. The structure will house a number of acoustically isolated spaces alongside, a bar and storage space for educational equiptment. Additionally the building will house approximately 2-3 apartments of housing dedicated to local or traveling musicians.

DRAWING NO:

REVISIONS: 1:100

4.

2.

0

DRAWING BY:

DRAWING TITLE: PLAN

LAST NAME, YOUR NAME

1

2

3

5

SCALE: DATE:

DRAWING NO:

REVISIONS: DRAWING NO: 1:100 10 /11/19

10

-

A.01

0

Abstraction of Volumes

1

2

3

5

10

A.01

1

2

3

5

10

A.01

PROJECT 01 - TECTONICS

//8

Scheme.

The proposed initiative encompasses a community music center supplemented with apartments specifically designed for musicians. The ground floor is designed to accommodate a bar, a practice room, and provides access to the main recital room. Notably, both the practice and recital rooms are constructed using a unique configuration of suspended laminated timber “eggs.” These egg-shaped structures are acoustically isolated by being hung from a series of springs, effectively minimizing vibrations transmitted to the building’s structure.

External Visual 6.

4.

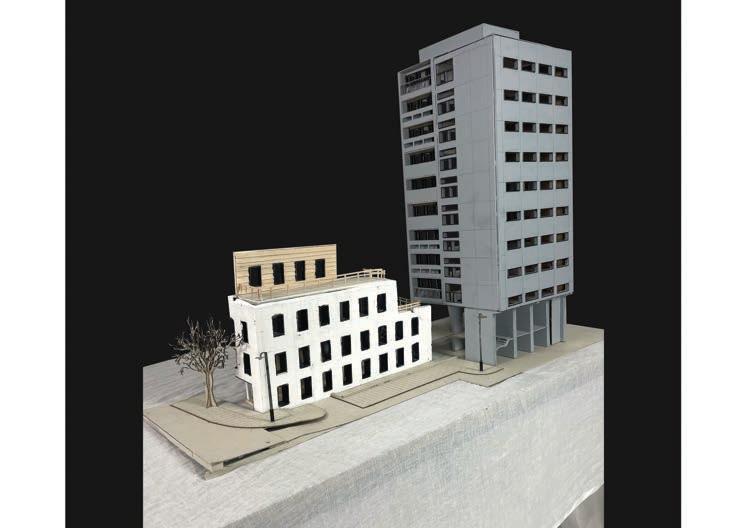

1:200 Massing Model 6.

External Balcony

1.

1.

1.

External Balcony

External Balcony 3.

4.

5.

3.

4.

4.

Basement Utility Spaces Circulation Music Rooms Public Bar / Cafe Residential

5.

3.

2.

5.

Ground Floor 1. Main Auditorium 2. Bar/ Cafe 3. Practice Room 4. Store 5. Recording Studio 6. Bathroom 7. Office

7.

First Floor

5.

3.

3.

Second Floor

Third Floor

The apartments situated on the upper floors are equipped with individual isolated practice rooms, ensuring an optimal environment for musicians to rehearse without disturbance.

Structurally, the public spaces are supported by concrete columns and a waffle slab system, while the upper floors feature a lightweight glulam lattice framework. The exterior façade combines concrete sandwich panelling with timberclad walls, blending durability with aesthetic appeal.

Given the environmental concerns associated with the embodied carbon in concrete, the design prioritises future adaptability through a strictly regulated interior layout and a sustainable solution to structural materials. The interior spaces are conceived with adaptability in mind, featuring a regular and repeated window pattern to facilitate future internal modifications. Additionally, the interior layouts adhere to a strict grid organizational structure, allowing for flexible use and efficient spatial planning.

PROJECT 01 - TECTONICS

//9

Public Programming The ground and first floor are primarily for public usage, hosting the main auditorium, rehearsal room, bar and specialist recording studios. This proposal has been designed with focus on acoustically isolated spaces reducing the impact on the surrounding residential accommodation. By placing the publicly louder locations like the bar further away from Cable Wynd House and the auditorium in the basement, it helps reduce any noise bleed. This unique building use aims to be community gathering point within Leith.

Bar/ Cafe Illustration Accessed from both the main entrance and a side access the Bar/ Cafe provides a gathering point prior to entering the auditorium. This hosts an opening at the rear displaying the hung timber egg.

DN

DN DN UP

DN

DN DN UP

Auditorium Illustration The auditorium itself is timber laminate smooth surface and boasts a large 3.5m room height creating a bright open and airy feel, while being totally enclosed.

Illustrative ground floor plan (not to scale)

Illustrative first floor plan (not to scale)

Auditorium External Illustration Surrounding the hung auditorium is a walkway providing access to Cable Wynd House and a clear view around the outside of the hung auditorium

PROJECT 01 - TECTONICS

Residential Programming

//10

This music center hosts three apartments aimed directly at musicians, each apartment contains a minimum of one bedroom, lifestyle room, bathroom, an acoustically isolated practice room and direct access to a large external terrace.

The acoustic isolation technique employed in this context relies on the principle of the lightweight “box in box” method. This involves the implementation of spring acoustic hangers and rubber wall pads strategically placed within the structure to absorb vibrations before they reach the outer shell and structural components. Additionally, the walls are filled with acoustic insulation blankets to further bolster sound isolation capabilities.

Diagram of acoustic isolation technique and bleeding

Apartment Balcony Illustration

17

Apartment Kitchen Illustration

Second Floor Apartment Layouts

21 2

Practice Studio Illustration

1

DN

3

DN

Technical section of isolated rooms 18

DN 4

DN

DN

DN

UP6

UP

8

7

8

5

11

22

Acoustic Sprung Ceiling Hangers Duel Wall Filled With Acoustic Blankets

9

16

Rubber wall isolation pads Double window providing light and acoustic isolation

1

300 x 150mm structural glulam timber secondry beams

2

300 x 150mm structural glulam timber primary beams

3

300 x 150mm structural glulam timber columns

4

DNHS heavy weight sprung acoustic isolation hangers

5

Standard timber stud wall:12.5mm clayboard, filled with 100mm acoustic blankets

6

DNSW-A rubberised wall isolation pads

7

Timber stud ceiling:12.5mm clayboard, filled with 100mm acoustic blankets

8

1200 x 2000mm,60mm window with black aluminum framing

9

CLT flooring: 25mm dry screeed, 20mm sound isolation isover acoustic EP3, 60mm cardboard and sand fernacll honeycomb, trickling protection with kraft paper, 250mm 5 layer CLT pannel

10

Standard 125mm timber stud wall (with regular wool insulation)

11

Sandwich panel concrete external walls: 75mm precast concrete with integrated 125mm rigid insulation and a 200mm precast concrete.

12

Floor plate: 65mm concrete, Vapour control layer, 80mm ridgid insulation, damp proof membrane, 150mm concrete, earth

13

Stepped back shale and stone blocks to provide aircavity.

Second Floor - Apartment One 14

Engineering joist supporting ground above cavity

15

2980 x 2100mm 6 panel bifold door with black aluminum frame

17

Roofing: flat zinc paneled roofing 1/60 fall, damp proof membrane 220mm rigid insulation, 225mm steel purlins, plasterboard

18

Roof Terrace: Concrete tiles 1/60 fall, damp proof membrane 50mm air cavity, 200mm rigid insulation 150mm concrete structure

19

1100 x 1500mm Concrete raft foundations (wall supporting)

20

500mm x 500mm Concrete raft foundations (supporting concrete column structure)

21

External Roofing: flat zinc paneled roofing,damp proof membrane, 225mm steel purlins, Timber casing

Second Floor - Apartment Two

//11

PROJECT 01 - TECTONICS

PROJECT 01 - TECTONICS

//12

//13

PROJECT 01 - TECTONICS

TECHNICAL SECTION BB AND ELEVATION 1:50 A1

Technical Section & Elevation

Top Roof

18 2

4

1

7

6

3

5

9

22

1

300 x 150mm structural glulam timber secondry beams

2

300 x 150mm structural glulam timber primary beams

3

300 x 150mm structural glulam timber columns

4

DNHS heavy weight sprung acoustic isolation hangers

5

Standard timber stud wall:12.5mm clayboard, filled with 100mm acoustic blankets

6

DNSW-A rubberised wall isolation pads

7

Timber stud ceiling:12.5mm clayboard, filled with 100mm acoustic blankets

8

1200 x 2000mm, 60mm window with black aluminum framing

9

CLT flooring: 25mm dry screeed, 20mm sound isolation isover acoustic EP3, 60mm cardboard and sand fernacll honeycomb, trickling protection with kraft paper, 250mm 5 layer CLT pannel

11

Sandwich panel concrete external walls: 75mm precast concrete with integrated 125mm rigid insulation and a 200mm precast concrete.

12

Floor plate: 65mm concrete, Vapour control layer, 80mm ridgid insulation, damp proof membrane, 150mm concrete, earth

13

Stepped back shale and stone blocks to provide aircavity.

14

Engineering joist supporting ground above cavity

18

Roof Terrace: Concrete tiles 1/60 fall, damp proof membrane 50mm air cavity, 200mm rigid insulation 150mm concrete structure

19

1100 x 1500mm Concrete raft foundations (wall supporting)

20

500mm x 500mm Concrete raft foundations (supporting concrete column structure)

22

450mm Deep concrete waffle slab

23

75mm laminate timber shell, 100mm rigid acoustic insulation, 50mm reinforced concrete structural form, 100mm cavity filled with rubber isolation pads, 50mm reinforced concrete structural form, 100mm rigid acoustic insulation, 75mm laminate timber shell

24

Custom manufactured heavy weight sprung acoustic isolation hangers

11 23 24

8

16

14

13

12

1

300 x 150mm structural glulam timber secondary beams

13

Stepped back shale and stone blocks to provide aircavity.

2

300 x 150mm structural glulam timber primary beams

14

Engineering joist supporting ground above cavity

3

300 x 150mm structural glulam timber columns

18

4

DNHS heavy weight sprung acoustic isolation hangers

Roof Terrace: Concrete tiles, damp proof membrane 50mm air cavity, 200mm rigid insulation 150mm concrete structure

5

Standard timber stud wall:12.5mm claybboard, filled with 100mm acoustic blankets

19

1100 x 1500mm Concrete raft foundations (wall supporting)

20

6

DNSW-A rubberised wall isolation pads

500mm x 500mm Concrete raft foundations (supporting concrete structure

7

Timber stud ceiling:12.5mm clayboard, filled with 100mm acoustic blankets

22

450mm Deep concrete waffle slab

23

8

1200 x 2000mm, 60mm window with black aluminium framing

9

CLT flooring: 25mm dry screed, 20mm sound isolation isover acoustic EP3, 60mm cardboard and sand fernacll honeycomb, trickling protection with kraft paper, 250mm 5 layer CLT pannel

Hanging egg: 75mm laminate timber shell, 100mm rigid acoustic insulation, 50mm reinforced concrete structural form, 100mm cavity filled with rubber isolation pads, 50mm reinforced concrete structural form, 100mm rigid acoustic insulation, 75mm laminate timber shell

24

Custom manufactured heavy weight sprung acoustic isolation hangers

20

11

Sandwich panel concrete external walls: 75mm precast concrete with integrated 125mm rigid insulation and a 200mm precast concrete.

12

Floor plate: 65mm concrete, Vapour control layer, 80mm ridgid insulation, damp proof membrane, 150mm concrete, earth

19

1

300 x 150mm structural glulam timber secondry beams

2

300 x 150mm structural glulam timber primary beams

3

300 x 150mm structural glulam timber columns

4

DNHS heavy weight sprung acoustic isolation hangers

5

Standard timber stud wall:12.5mm clayboard, filled with 100mm acoustic blankets

18

PROJECT 01 - TECTONICS

//14 4

2

Acoustic Control.

7

All sound rays from the point audio is made is channeled as parallel rays then reflected back in woulds. Two parabolic forms can be used to project sound between focus points with greater efficiency.

6

5

FOCUSING SURFACE FORM

Rigid Acoustic Insulation 75mm Laminate Timber Shell

9

An ellipse with has two focus points. Sound projected in all direction from one focus point will travel to the other in an erratic nature. Due to this nature ellipses are certainly to be avoided for most acoustical purposes.

Creating a loud environment with an uncomfortable level of reverberation.

DNSW Rubber Isolation Pads Industrial DHSL Isolation Hangers

22

23 24

8

ANTI-FOCUSING SURFACE FORM

Often it can be desirable to distribute sound wave in opposing directions lowering volume and reverb. If a designer decides that some curved surface is desirable, then the elliptical effect can be overcome by covering the curved surface with anti-focusing surfaces and opposing directional panels.

12

PROPOSED FORM

This proposed shell encapsulates the key characteristics of the parabolic form ensuring sound alway travels between the two central focus points.

Due to the requirement of an elongated shape, flattened sides in a cylindrical form help to ensure sound waves are projected and reflected in a parallel motion.

Detail 2

Sectional diagram of hung egg (not to scale). Full scale drawing at rear of document

Auditorium internal visual

Similarly to the practice spaces, the auditorium uses the ‘box in box’ method. Exterior surfaces to be made out of laminate timber and a rigid acoustic insulation casing, centred with a 100mm cavity and rubber isolation pads. To stop vibrations reaching the structure large industrial hangers carry the weight of the suspended egg.

1

PROJECT 01 - TECTONICS

//15

Construction Phases.

ASSEMBLY STAGE 1

ASSEMBLY STAGE 2

ASSEMBLY STAGE 3

Once excavation of the existing concrete slab has occurred and approximately 3m deep of earth from the datum, concrete strip foundations can be dug, moulds constructed and poured. Often this occurs during the latter winter months, as this is less labour intensive and is weather resistant. During this period prefabricated glulam timber and concrete sandwich panels is constructed off-site and stored prior to construction.

At this stage the concrete core and concrete structural columns are collected from an off-site storage facility and brought on-site to be constructed. Crane are used to lift columns and walls into place, these are guided using ropes and bolted in place. The core provides a steadfast anchor point for the later construction phases to build around. Temporary structures are often constructed by construction workers to aid this process. While this stage is largely not weather Dependant, this process can be undertaken during winter months, as long as strip foundations have been under the correct curing process.

Stage 3 puts in place the concrete waffle paneled flooring, holding the columns and core in place.

Additionally the lower CLT floor plates area added provided access for construction workers. Using the crane prefabricated concrete sandwich panels are lowered into place and bolted together using the sandwich panels internal locking system. This provides a fast and simple construction process.

PROJECT 01 - TECTONICS

//16

ASSEMBLY STAGE 4

ASSEMBLY STAGE 5

ASSEMBLY STAGE 6

Providing a framework for the upper floor plates, the glulam timber structure is bolted in place. First the steel brackets are bolted to the concrete waffled slab then the glulam structure is bolted to the bracket. This process should be undertaken during the summer months, to avoid any damage from bad weather to the timber structure.

The remaining CLT floor plates are now put in place and concrete sandwich panels are bolted in place.

The roof layer and windows are now applied, sealing the construction. Focus now moves to the internal walls and fit out. Preparations are now underway for handover and be taken into use as a community music center.

PROJECT 01 - TECTONICS

//17

ECONOMIST PLAZA (precedent study)

SITE

ITERATIVE WALL

STRUCTURE

PROPOSAL BAY

PROJECT

RIBA PART I ARCHITECTURE ASSISTANT

PROJECT LINES IN IN THE PROJECT 4 -4 -LINES THELANDSCAPE LANDSCAPE 12 Weeks - Year 3

12 Weeks - MA(Hons) *Group Project

EXHIBITION

EXHIBITION

---

---

CONCEPT

CONCEPT

---

---

SITE ANALYSIS

SITE ANALYSIS

---

EXPLORATION

---

EXPLORATION

---

MODELING

---

ARCHITECTURAL

RIBA PART II ARCHITECTURE ASSISTANT

---

MODELING

TECHNICAL

---

Pg. 21

TECHNICAL

//19

PROJECT 02 - LINES IN THE LANDSCAPE

30

Acetate Model Photos

Hedgerow Exhibition.

This exhibition into nature and a hedgerow became the basis

forthe thehedgrow, upcoming design.

This model gave a unique perspective of the spacesUsing inbe-the themes of Xray, Decay and concealed. I produced this 3 dimensional acetate model in to tween branches, the density of varyingfurther plants,investigate and how the hedgerow the how nature and the man-made interact. leaned and grew around the man-made barbwire fence

PROJECT 02 - LINES IN THE LANDSCAPE

//20

31

29

//21

Concept.

The building is characterized by a thin central space, the ‘constant’, emulating the earlier exploration of the constant of the barbed wire which characterizes the Eastern side of our hedgerow. Its framework is inspired by Zumthor’s Witches Memorial, also emulating the long thin branch structures of a hedgerow.

The central space is ‘hidden’ between the preservation spaces, with gaps formed before them, reflecting the Western side of the Hedgerow in which we explored hidden spaces and how a hedgerow could be occupied internally. It also represents the constrained path that winds between our explored hedgerow.

Our building has a contrasting heavy, stereotomic side, and a light tectonic side. This contrast was set up to represent the contrast between the two sides of our original observed hedgerow and split up the preservation spaces based on their required features. The heavy side is buried into the ground on a slope to accommodate the cold store, smoking room, pickling, and salting room, all of which require cool, less ventilated spaces. The light side is elevated on stilts to give the air and sun drying room access to prevailing winds and light.

A focus on what a hedge represents in folklore led us consider its function and location. We explored the concept of the ‘hedge-witch’, ‘witches’ that lived on the fringe of the village, who practiced traditional Pagan beliefs. The building will be located on the edge of a forest, the barrier between the town and the wild. It will provide a service to them by practicing local and traditional food preservation techniques, each space with its own ‘hedge-witch’, a specific expert on the preservation, that will perform the process and educate the public.

The idea of the ‘edge’, the barrier between the wild and town represents the light and dark, the buried and exposed, a concept inspired by our exploration of the occupation of the hedgerow itself.

The building will be a community food store, providing an opportunity for local business, and individuals to preserve and store food for periods of time. Customers will check-in food at the entrance, then directed by the receptionist to the required preservation space. The customers will then be greeted by an expert at the entrance to the preservation threshold, who will then undergo the preservation process.

Once inside, the customer has the opportunity to access the cafe, view the buried cold store or

//22

Elevations.

These elevations are created using the original CAD files on Rhino 7 then using the adobe suite to carefully layer textures and filters over the original drawing, ensuring that it remains directly to scale (originally at 1:100, scaled down to 1:250)

PROJECT 02 - LINES IN THE LANDSCAPE

Darkroom Photography of our model as a mode of exploration

//24

STRUCTURAL

RIBA PART II ARCHITECTURE ASSISTANT

//25

PROJECT 3 - STRUCTURAL BRIDGE DESIGN 8 Weeks - MA(hons)

EXHIBITION

---

CONCEPT

---

SITE ANALYSIS

---

EXPLORATION

---

MODELING

---

TECHNICAL

Brief.

PROJECT 03 - STRUCTURAL BRIDGE DESIGN

//26

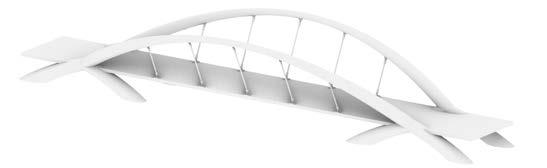

The project aims to design a structurally stable steel bridge that enhances urban connectivity. The bridge should seamlessly integrate with the urban landscape, ensuring both functional efficiency and aesthetic appeal. The primary goal is to create a durable and resilient structure capable of withstanding various loads, including pedestrian and vehicular traffic, while adhering to safety standards and considering potential environmental challenges.

Key considerations include the meticulous selection of high-quality steel materials, incorporating corrosionresistant coatings to extend the bridge’s lifespan. The design must prioritize ease of maintenance and sustainability, integrating energy-efficient lighting and exploring the use of recycled materials where applicable. Safety features such as guardrails and non-slip surfaces are essential elements, ensuring the well-being of users.

This project calls for innovative structural design that utilizes state-of-the-art engineering principles, considering load distribution, dynamic forces, and potential seismic activity. The aesthetic integration of the bridge should complement the surrounding environment, contributing positively to the urban fabric.

The proposal included comprehensive design drawings, structural analysis, material specifications, aesthetic renderings, sustainability considerations. The successful design will not only serve as a functional infrastructure element but also stand as an iconic symbol of urban connectivity.

Connectivity.

The high strength wire joins at an adjustable anchorage point, this provides a screw type tightening point, allowing for tension on the wire to manually adjusted throughout the construction.

Similarly, to the top anchorage the cylindrical steel unit then fixes via a snug-tight bolting system to a steel plate.

The steel plate attaches directly though the concrete deck to the steel lon-gitudinal stiffening girders, located directly under the concrete deck. This process spreads the load of the deck, reducing the likelihood of failure within the concrete. The deck itself is placed directly on top of the longitudinal stiffening girders.

PROJECT 03 STRUCTURAL BRIDGE DESIGN

//27

Modeling Construction.

THE SOLAR DINING EXPERIENCE 12 Weeks - PART II MArch

EXHIBITION

---

CONCEPT

---

SITE ANALYSIS

---

EXPLORATION

---

MODELING

---

TECHNICAL

PRODUCT DESIGN

RIBA PART II ARCHITECTURE ASSISTANT

Minor Substation

//29

Substations of Interest

POWERING TOWER HAMLETS IN AUDIO

Ontario Way Substation 51.507057, -0.026789

Castor Lane Substation 51.508122, -0.017641

Major Substation Bidders Street Substation 51.519768, 0.003257

This project focuses on three main substations: Ontario Way, Castor Lane and Bidders Street. Each varies significantly in size and therefore it can be assumed provides a different level of service I chose to produce an audio walk that focuses directly on the individual sounds identifiable from materiality, nature and machinery within each substation. Each QR Code links to singular part of the walk, that is identified via a What 3 Words location.

At each substation a number of architectural and audio similarities can be identified including a redbrick Victorian exterior and low emitting hums with mechanical banging sounds. This study aims to bring awareness to some of the hidden (to the consumer) effects of where

PROJECT 03 THE SOLAR DINING EXPERIENCE

//30

The video linked in the QR Code has been currated in response to the research completed on Canary Wharf & Tower Hamlets residential electrial usage and to display the energy divide disparty. It is intended to be viewed as one consecuative video but in a split perspective.

The video on the left depicts Tower Hamlets local housing and residential streets, power resourcing from localised smaller substations. Finally bursting into colour/ explosion and lights flicking off as Tower Hamlets future energy deficit

Perspec-

Split

Each video uses a series of clips and

The video on the right depicts Canary Wharf and its domineering architecture, power resourcing from localised expansive substations. Finally bursting into colour/ explosion and lights flicking off as Tower Hamlets future

//31

Introducing The Solar Dining Ecosystem

The Solar Dining Ecosystem, this dining system utilises reused home material to grow your vegetables at home through the power of hyroponics and a circular energy system. The light produced by the UV lighting provides energy for photosythesis and creates power via the photovoltic cells in tern powering the UV light, resulting in free circular energy.

CONCIOUS

INNOVATIVE

HEALTHY GLITCH NEW ECO-FRIENDLY EFFICIENT TASTEY

ACCESS

IN THE REAL WORLD

Scan to Comment

PRACTICAL

ALTERNATIVE

UNIQUE

A QR code links to a survey site called Mentimeter, this provides passers by a singular word feedback opportunity.

Mentimeter collates each word creating a word thought cloud, every time a word is used multiple times it becomes bigger in the cloud. This produces a fast initial thought response feedback diagram.

GREEN

In order to situate the project within the site and raising community awareness, I produced an advertising billboard. This depicts the table using a photogrametry model of the table in a modern family home with a logo describing the ecosystem.

CREATIVE

Collating Thoughts

//32

Meet Leila...

I was fortunate to meet Laila, an elderly resident of The Lansbury Estate while pinning up my manifesto and advertisement bill board on an estate wall. Laila came and asked questions about what I was showing, initially complaining thinking it was graffiti.

During the interaction Leila invited me back to her apartment and let me take a photogrametry study of her living space. Leila lives in a two bedroom contemporary apartments with access to a balcony. This photogrametry model in conjunction with a mixture of 3D scans and high accuracy photogrametry of the tables components allows for a 3D visualisation of the table functioning in its place.

­

­ ­ ­

­

­

­

­ ­ ­

­ ­

­

Energy Routing

­

­ ­ ­ ­

­ ­

Primary Construction Route

­ ­

The Pamphlet

­

­ ­

­ ­

­ ­

­ ­

­ ­

­

Secondry Construction Route

Construction Guide

The table uses a circular energy approach to powering the UV light, by ensuring light normally wasted is resutilised back into self-powering. The PV Panel then outputs a Direct Current through to the inverter, a inverters converts the power to Alternating Current which can be processed to power the UV light, and the process repeats. At the same time the UV light is providing energy through photosynthesis allowing the plants to grow.

TOTAL SYSTEM GLITCH Exclusively at The Landsbury Estate

£443,232 In food bills saved per annum

70%

Assumed uptake in The Solar Dining BARCHESTER STREET 126 Total Units 88 Unit Uptake

ALTON STREET 264 Total Units 185 Unit Uptake

43,776

In energy saved per annum

£54

LANDSBURY SQUARE 273 Total Units 191 Unit Uptake

at 24.8 January 2025 price cap,

64

Approximately saved per month at peak CORDELIA STREET 54 Total Units 38 Unit Uptake

£108,827

Saves per year in energy costings.

GOUGH GROVE 170 Total Units 119 Unit Uptake

LINFIELD 90 Total Units 63 Unit Uptake

THE WATCHED - A WALKED EXPERIENCE THROUGH CANARY WHARF 8 Weeks - PART II MArch

EXHIBITION

---

CONCEPT

---

SITE ANALYSIS

---

The

2025 Edition one

WATCHED EXPLORATION

---

MODELING

---

TECHNICAL

PUBLICATION

A Walked Experience Through Canary Wharf

RIBA PART II ARCHITECTURE ASSISTANT

//51

//52

An Architecture Students Walked Experience Through Canary Wharf I begin my walk at the edge of The Thames, inhaling the faint trace of briny air that once swirled around laden cargo ships, long replaced by the sleek financial fortress of metal, glass and concrete. The jagged skyline of Canary Wharf silhouettes in the early morning light, reflecting a pale glow onto the rippling surface of the Thames. As a current architecture student, I can’t help but feel a surge of awe at the precision that shapes these grand domineering structural forms. It is as if a colossal stage has been set, orchestrated by engineers and architects who’ve pushed the boundaries of design to craft this futuristic and imposing landscape. My initial awe gives way to subtle disquiet, a soft knot in my

stomach that tightens with every step. I notice the silent eyes perched on corners and rooftops, rows of surveillance cameras capturing real time footage of the unsuspecting passersby. As the pale morning light plays across the water’s surface, that quiet awareness of being watched creeps in: an almost tangible presence reminding me that this place for all its openness exists under careful controlled observation. And with every step down the embankment toward the heart of Canary Wharf, I carry both a lingering sense of reverence for the built environment and the growing unease about the powers (seen and unseen) that define it.

I pause and turn to look back across water, and I can’t help thinking about how so many of these immaculate plazas aren’t actually public at all.

My Architecture studies have made me acutely aware of how London has shifted towards Privately Owned Public Spaces, what guardian editor Chris Michael has called “pseudo-public spaces” (Micheal, 2017) and I realise every step I make from now on is permitted by corporate regulations rather than local authority bylaws.

Even here at the waters edge there’s a subtle tension in the air that’s hard to miss. The neatly manicured flowerbeds, spotless walkways and rows of designer benches exude a welcoming, luxurious ambiance, yet I am conscious private security can ask me to leave at any moment, no reason needed, just a breach of some obscure rule I don’t even know exists. I recall other parts of the city where similar undercurrents exist, Granary Square springs to mind: a place with fountains and open spaces, seemingly made for everyone but owned by Argent. I remember the headlines of gatherings or protests deemed

‘inappropriate’ were swiftly broken up or ‘required special permission’ rarely to be approved.

The veneer of openness crumbles the second it confronts any activity perceived as outside the developers script.

Heading down West India Avenue, I find myself remembering how this entire zone was once filled with the bustle of west india docks, ships loading and unloading an endless supply of cargo, workers calling out orders and a sense of raw commerce fueling London’s economy. Today, everything seems transformed, smoothed over by uniform paving and crisp lines. The history of industrial grit sanded, refined and replaced with pristine walkways lined by manicured trees. Though undeniably beautiful, it strikes me as somewhat antiseptic, a curated environment where spontaneity is reduced to a mere hush under the hum of daily business. Even here local vehicles are reduced tracked monitored through a one in one out gating system controlling access, it’s impossible not to notice the

//53

//54 public spaces pressing down on me. Despite the official-sounding ‘public’ the reality of these spaces hits me every time I catch sight of the ubiquitous “no photography allowed without permission” signage.

The text suggests that commercial filming is prohibited without prior permission, yet another reminder that ownership dictates usage. I can’t help but connect this to wider concerns about how marginalised communities must feel in such curated environments. If you don’t look the “right” way or act the “right” way, it seems you’ll be moved along, made invisible ore dissuaded from returning., These wide open plazas and pedestrian routes may appear welcoming by they operate under the hidden scrutiny of corporate policy’s and watchful eyes I see the cameras in subtle corners, tucked beneath the neatly angled eaves or perched on the slender lampposts. Their faceless gaze seems to track me raising questions about

quiet choreography of security guards pacing their designated sectors.

I think back to my readings on how “local councils, strapped for cash, often rely on developers’’ (Mortimer, 2024) investments to create these spaces. But that arrangement means the rules are set behind closed doors, with profit-driven aims dictating what is and isn’t permissible.

If I were to start distributing flyer’s about a local cause, would that be tolerated? Or would I be gently ushered off the premises to ensure the ’ambiance’ remains undisturbed?

Walking under the looming towers, I feel a pang of frustration at how easily these spaces masquerade as public land while quietly restricting the freedoms we associate with civic life. Back in what is considered genuine public spaces, like Trafalgar square or outside city libraries, one can expect rules guided by democratic oversight. But in

these pseudo-public spaces, the authority isn’t the local governments or community at large, it’s a sole private entity. Here, activism and a voice is discouraged, even a gathering of friends playing music might be quickly shut down to retain the owners projected views. I’ve read about protest being stifled in these kinds of spaces. In some cases, protesters were told they could not use placards or sound, or told to stand in designated ‘free speech zones’, ironic given the very nature of free speech. This sort of sanitation is precisely what troubles me. Yes these developments bring gleaming facility’s but at what cost?

The essence of public life, the spontaneity, the diversity, the small eccentricities that make a city feel alive, seems diluted, replaced by a homogenised environment that’s hostile to anything that doesn’t fit the glossy brochures.

As I continue along, I feel the weight of privately owned

who truly owns these public realms and what they expect from those who traverse them.

It has become impossible to ignore how prolific security has become in Canary Wharf, not just the polite guard at the entrance, but an entire army of over six hundred security personnel and more than two hundred CCTV cameras at the DLR station alone. The effect is palpable: a tightly regulated zone constructed under the guise of public safety but ultimately governed by corporate rules. My reflections drift back to research on Jon Coaffee and Pete Fussey, who discuss the concept of “security driven resilience” the logic that more cameras, more fences, and more uniformed patrols equals a safer city (Coaffee & Fussey, 2015).

Indeed, as I pass by a small security outpost (its tinted windows hiding who might be inside) I wonder if i’ve already been flagged on some private feed. It reminds me of stories I’ve heard from acquaintances who

were quietly approached by guards for simply snapping photos of shiny facades. I notice yet another sign reminding visitors that all ‘suspicious activity’ will be reported. It strikes me how this environment can feel not just over monitored but also vaguely hostile, particularly if you don’t conform to the expected image of affluence. This is precisely what urban commentator and local MP Emma Dent Coad points out when they warn that regenerations projects often marginalise those who don’t fit neatly into corporate landscape (Booth, 2017).

The cameras and patrols seem designed to filter out ‘undesirable’ behaviors or appearances, creating a fortress like mentality. Standing there, the discrepancy is glaring: behind the glass and polished brass, people in expensive suits hurry by with minimal concern while a cluster of security watch intently for anyone lingering.

And so, the tension forms a backdrop to everything, weaving an unspoken question through my mind at what point does protection become oppression? The UK Governments’ “Surveillance Camera Code of Practice” (UK Gov, 2015) discusses the potential benefits of CCTV: deterring crime, aiding in investigations, promoting a sense of safety but now here in Canary Wharf, I can’t help but sense that we’ve crossed an invisible threshold. These cameras aren’t just for combating theft or vandalism; they’re also a tool of social control. In a space that is privately owned yet ostensible open to the public accountability mechanisms become murky at best. If I felt

my privacy was violated or wanted to challenge how my data and image was used, who would I even turn to?

My studies push me to think about how this tightly controlled environment impacts inclusivity.

Under the lens of Cyberfeminism, as advocated by thinkers like Donna Haraway, it is clear that surveillance practices rarely take into account the nuanced experiences of women, non-binary individuals or marginalised groups. The “male-gaze” can lurk behind more than just a camera lens; it resides in the code of conduct that determines who is deemed “suspicious”. As I recall from oxford universities ‘Reconfigure: Feminist Action Research in Cyber Security’ these systems often fail to protect against subtler, more insidious threats (such as harassment or gender based violence) prioritising a broad impersonal notion of security over individual wellbeing (Slupska et al., 2021).

Walking through a construction corridor prior to the South Colonnade, my mind goes to the question of data. The ‘Global Network on Extremism and Technology’ has highlighted the rise of biometric systems that can capture

facial or behavioural information. In a place as heavily monitored as Canary Wharf, are such tools quietly in operation, scanning faces and aggregating profiles behind closed doors?

If so, who has oversight? This lack of transparency is precisely what GenderIT emphasises when they warn about power imbalance created by opaque daa processing. If I wanted to know how long my footage was stored, or who had access to my face on file, would I even be able to find out?

appeal of this carefully orchestrated uniformity, an almost modernist dedication to form and function that has shaped Canary Wharfs identity. Yet there’s a distinctly controlled quality as through every step is permitted only so long as it aligns with some unwritten code of corporate propriety, it feels like a real world enactment of these cyberfeminism critiques, underneath that glossy finish lies a deeply gendered and class based dynamic.

Crossing onto South Colonnade almost at the heart of Canary Wharf now, the atmosphere becomes even more refined. Towering columns, polished stone surfaces and glass walls create a sense of imposing grandeur. As an architecture student, I realise the

Here at the top of the steps to Eden Dock, I take a moment to consider how this model of “secured space” is no longer isolated; it’s a trend spreading across London with many privately owned public spaces adopting similar tactics. The thick chain of unregulated CCTV cameras and the imposing presence of security staff risk undermining the very essence of what it means to share a civic environment. Thinking about Donna Haraways’ Civilian centric approach, I’m reminded

Do

Am

W ho ’s l

Wh ere ia

ist en

llo we d

in g?

Wh o’s w

In eed

do

es

atch ing ?

to l e

my fa

ave ?

ce

he re

go?

?

//56

//57

//58 On the other hand, my skin prickles that I’m only tolerated here, so long as I abide by the unstated rules of the space. The notion that this is all private property masquerading as public realm is inescapable. I think of the tall towers overhead, One Canada Squares iconic pyramid roof, the HSBC building’s unwavering slab looming like silent sentinels over the labyrinth below. Standing now at last outside the Canary Wharf Tube entrance, the bright signage guiding commuters underground, I pause to reflect on how different this place must have felt decades ago. From a booming maritime hub to a global financial center, Canary Wharf has reinvented itself with architectural flair and ruthless efficiency. Yet a landscape that feels as if it belongs to corporations more than to those that operate within it. Even as a local resident, I sense my status here as conditional.

I close my eyes for a brief moment, letting the

that true security should be about elevating people, protecting them without curtailing their freedoms of right to exist unobserved. In the end, I stand here quietly aware of the eyes upon me, caught between the shimmering façade of finance and the drone of surveillance that underpins it all. Each passing security guard eyes me with a polite but knowing glance and I can’t help recalling the considerable parallels between walking through this space and what I’d image of a police interview suite; four thick concrete walls, a pristine mirrored panel on one through a series of suited officers’ study my every move, every decision. A small surveillance camera with a red dotted light flicker in the top corner just out of sight from the natural gaze, yet another indicator of the unknown infinite number of eyes witnessing my every breath.

Descending the steps that lead toward Eden Dock and Canary Wharf Tube

station, the sensation of being watch intensifies further. There’s something about the geometry of these tiered stairs, how they funnel pedestrians into predictable lines of movement, that makes it easier to monitor us. I notice CCTV domes discreetly placed at regular intervals, each one reflecting the sunlight as if winking back at me.

Its’ not just the cameras; there are also subtle forms of personal surveillance.

From the corners of my eye, I see employees in tailored suits casting quick glances, perhaps noticing anyone who might appear out of place.

Occasionally, a security guard with pause near an entrance, arms folded, scanning for singes of suspicious untoward behaviour.

This environment cultivates a strange duality in me: one hand I’m inspired by the engineering marvels that surround me, each skyscraper an emblem of meticulous planning and innovation.

“It’s no mistake that established media demean what is in many cases the one platform to which marginalised women have access. You’ve been told to watch us but not engage: the very definition of surveillance” Legacy Russel, Glitch Feminism: A Manifesto

breeze carry the quite hum of escalators and distant conversations. In the reflection of spotless glass, I see myself dwarfed by towers that proclaim a certain brand of opulence. The parallel to a police interview suite lingers in my mind: the mirrored glass, the intangible observer behind the sheen, the unwavering, ever watching camera lens. As I take a final glance at the crowd, realise we are all subjects in this meticulously organised realm, each step choreographed against a backdrop of corporate design. And through I admire the architecture for its technical brilliance, I can’t help but leave with that familiar tension between fascination and unease, acutely aware than every move I’ve made has been recorded, scrutinised, and approved by those unseen eyes that hold the real power.

East Elevation

PROFESSIONAL

RIBA PART II ARCHITECTURE ASSISTANT

North - West Elevation

Denotes outline of existing elevation A

23/05/23

revision date

General Design Updated description

drw

chk

The Old Telephone Exchange, 32-42 Albert Street, Rugby, Warwickshire, CV21 2SA info@hb-architects.co.uk www.hb-architects.co.uk 01788 576137 Project

- West Elevation

Residential Development 72 Lime Tree Avenue, Bilton, Rugby, Warwickshire, CV22 7QT

South - East Elevation

HB ARCHITECTS - SELECTION OF WORK Client

Talbot

Drawing Title

Proposed Elevations

9 Months - 2023 & 6 Months - 2024 Project Number

Date

05/18/23

082:22

Status

Planning Issue

Drawn

Checked

Scale

Sheet Size

HJB

1 : 100

DC A2

Drawing Number

Revision

08222-HBA-DR-A-107

A © Copyright

PLANNING

---

CONCEPT

---

SITE ANALYSIS

---

CLIENT RELATION

---

MODELING

---

TECHNICAL

n

Residential Property.

HB Architects were appointed by a private client to design, refurbish and extend there family home as well as a feasibility proposal including a number of additional properties on the site. Prior to joining the project the proposal had received a negative response to four additional properties from a planning pre-application.

Lifestyle Area

Green Roof

RL

Dining RL

RL

Since, the clients have expressed they would like to retry with two larger properties, however, have stated that they are searching for an external developer to help fund the project. Therefore would only need processional help up until stage 3 and a planning application has been completed, unless external finance has become available. The project us currently at design stage 2. The existing property will extend to approximately 350sqm. The new units are intended similar in size and spec, with a budget of £2,000,000.

RL Kitchen

Lounge

Principle Bedroom

Bedroom 3

RL W RL Utility

Cloaks

W/C

RL

Project Tasks.

Boiler

Wardrobe

RL

En-Suite

Family Bathroom UP

W

Hall Study Landing DN

Working alongside the project architect, I Used 3D Imagery taken at a recent site visit in adobe reCAPTCHA and topographic maps to create a series of existing plans, elevations and existing site maps.

Bedoom 4

A

revisio

Having previously had a negative response to a pre-application for the build of 4 small properties and a renovation on the site.

My focus was on 2 larger properties and a renovation of the existing property. Under guidance from the project architect my role is to produce a concept scheme for the main property and site plans including access routes for the proposed new builds.

En-Suite

Double Garage

W Bedroom 2

The Ol info@

Projec

After a meeting between the project architect and the client, I prepared a series of plans and elevations and a North - West Elevation BIM model within Revit and assisted in the alterations to materiality, internal and external design from the comments Materials Schedule from the client and assistance from the project architect.

Roof:

- Grey Zinc Panneled Roofing

Resi 72 Li

Client

Talbo

Ground Floor Ground Floor

First Floor First Floor

Wall - White Render - Vandersanden Boreas Red brick - Western red cedar horizontal cladding

05/18

Status

Plan

Drawin

082

Facias: - Grey Solid uPVC Window Frames - Grey Aluclad Frames Doors - Timber plank doors to match red cedar timber cladding

A

23/05/23

South East Elevation South - East Elevation

General Design Updated description

drw

chk

North West Elevation North - West Elevation The Old Telephone Exchange, 32-42 Albert Street, Rugby, Warwickshire, CV21 2SA info@hb-architects.co.uk www.hb-architects.co.uk 01788 576137 Project

Pro Date

Rainwater Goods: - Black uPVC pipe

revision date

Drawin

Residential Development 72 Lime Tree Avenue, Bilton, Rugby, Warwickshire, CV22 7QT

North East Elevation North - East Elevation Materials Schedule Roof: - Grey Zinc Panneled Roofing Wall - White Render

Previously Approved South Elevation

Small Apartment Development.

A small private developer appointed HB Architects to carry out a small development consisting of 12 apartments, approx.

9000sqm with a budget of £2,000,000. The client had two previously accepted applications however in order to keep within new national minimum space standards would like to adjust the design, reducing the development to 10 units and increasing the overall footprint to that of the previously existing property as well as adjusting some exterior materiality. HB Architects followed the Traditional Procurement Route from the initial scheme, the project is currently at design stage 3, as the client is a regular developer it is likely the client will complete stages 5-8 with a private builder apart from HB Architects.

Project Tasks.

Proposed South Elevation

I Assisted in the changes made to previously approved planning application to put forward a material amendment application.

Using Revit internal plans were revised to reduce the number of apartments from 12 to 10 units in line with client requirements.

With assistance from the project architect floor and roof height adjustments were made to improve how the building is located on site. As per client requirements exterior materiality changes were also needed. Using AutoCAD I created new site and roof plans that were in line with the updated scheme, these included a series of new bin stores and cycle parking. I then created visuals using adobe photoshop of the project elevations, and updating all revised drawings for the material amendment planning application.

I worked in conjunction with the project architect to complete this. It provided an insight to his particular skillset and taught me additional tips to improve my BIM and CAD skills. Following the clients agreement to the scheme, I then developed an initial planning statement to describe the narrative of the project,

Proposed Site Plan

EXPERIENCE - HB ARCHITECTS

1 Bedroom 2 Bedroom Two Bedroom Type F

One Bedroom Type A

One Bedroom Type A

Two Bedroom Type F

Two Bedroom Type E

One Bedroom Type A

One Bedroom Type A

Circulation

Two Bedroom Type E

Service Apartment Standards 1b

2b

00

5

4

01

5

4

9

02

5

4

9

03

5

4

Design Option A Plant / Office

Works

5

4

9

25

20

45

No. Spaces

ST RE E

T

33

1b

25

2b

40

Visitor

L

One Bedroom Type B

DAY'S LANE

One Bedroom Type A

1b

5

2b

2

Total 72* *4 of which must be blue badge spaces

One Bedroom Type A

Proposed Car Parking Layouts

RESIDENTIAL DEVELOPMENT OPTION A

Level

No. Spaces

-1

64

Regent Court Two Bedroom Type C

Works

Large Apartment Development.

Car Parking Requirements

One Bedroom Type B

UX HA L

9

04 Total

Allocated

VA

9

UP

UP

Entrance

UP

UP

25

Plant

Total

Level

Two Bedroom Type C

AMENITY AREA

One Bedroom Type A

0

8

Total

72

HB Architects has been appointed by Fosse Precision LTD to produce a scheme and evaluate a site for the feasibility of a block of apartment’s. The site must host 50 units (a mixture of one and two bed dwellings) and the required parking spaces by Coventry city planning. The site is located in an industrial area of Coventry, just outside the defined city centre. The client has an approximate budget of £4,000,000. The project is awaiting response from the client about the feasibility drawings produced.

Cycle Parking Requirements

One Bedroom Type A

1 per dwelling = Total 45

69

70

71

Works

72

PARKING SPACES: 8

BIKE / BIN STORE

revision date

Two Bedroom Type D

85.0m

EAST STREET

Typical Proposal Layout

Ground Floor Proposal Layout

68

67

66

65

UP

DOWN

82.3m

revision date

description

drw

drw

chk

The Old Telephone Exchange, 32-42 Albert Street, Rugby, Warwickshire, CV21 2SA | info@hb-architects.co.uk | www.hb-architects.co.uk | 01788 576137

The Old Telephone Exchange, 32-42 Albert Street, Rugby, Warwickshire, CV21 2SA | info@hb-architects.co.uk | www.hb-architects.co.uk | 01788 576137 Project

Project

89

Residential Development East Street, Coventry, CV1 5LE

Residential Development East St, Coventry, CV1 5LS

90

Client

Hoskins, Keith

PH

description

Two Bedroom Type D

chk

Drawing Title

Proposed Site Plan A

REET

Client Date

Project Number

Drawn

023:23

21.06.23

HJB

Status

Scale

1:200

Feasibility

SOUTH ST

Drawing Number

Southfields

Hoskins, Ketih

Checked

DC

Sheet Size

Drawing Title

A1

Proposed Apartment layout Option A

Revision

02323-HBA-DR-A-003 © Copyright

N

Primary School

0m

2m

4m

6m

8m

Date

1:200 10m

Project Number

Drawn

023:23

16.06.23

Checked

HJB

Status

Scale

1:100

Feasibility

Drawing Number

Sheet Size

A1

Revision

02323-HBA-DR-A-006 © Copyright

N 0m

Two Bedroom Layout Type M

One Bedroom Layout Type G

One Bedroom Layout Type G

Two Bedroom Layout Type K

Two Bedroom Layout Type M

One Bedroom Layout Type G

1m

2m

Project Tasks.

1:100 5m

4m

3m

Under direction of the project architect, I developed two feasibility schemes for the site. It quickly became clear that a significant number of car parking spaces would be required as the project is situated just outside the city centre. Using the Coventry City Councils guidance documentation, ‘connected car and cycle standards’ 84 car park spaces are required for the number of dwellings. In order to avoid the project becoming too high and restricting the skyline, 2/3rds of the carparking allowance needed to be located beneath the ground on the slopping site.

1 Bedroom One Bedroom Layout Type G

Two Bedroom Layout Type K

2 Bedroom Circulation Service Apartment Standards

Design Option B

1b

2b

00

5

3

01

6

4

10

02

6

4

10

25

4

10

04

6

4

10

29

20

48

UP

UP

One Bedroom Layout Type H

One Bedroom Layout Type H

Two Bedroom Layout Type M

6

03

HA

LL

One Bedroom Layout Type I

VA UX

Entrance

One Bedroom Layout Type I

Regent Court

Typical Proposal Layout

Works

One Bedroom Layout Type H

Works

73

72

74

75

DOWN

66

67

6

2b

2

Total

76*

Level

No. Spaces

-1

64

0

12

Total

76

Cycle Parking Requirements

76

1 per dwelling = Total 48

PARKING SPACES: 13

65

40

Proposed Car Parking Standards One Bedroom Layout Type H

71

28

2b

*4 of which must be blue badge spaces

RESIDENTIAL DEVELOPMENT OPTION B

70

1b

1b

AMENITY AREA

68

69 BIKE / BIN STORE

UP

85.0m

EAST STREET

No. Spaces

Visitor

DAY'S LANE

Ground Floor Proposal Layout

I produced a series of site plans, layout plans and standardised units plans for the two schemes. Each took into account meeting the minimum national space standards as well as sun paths to ensure each dwelling was comfortable.

These drawings have been submitted to the client, as a feasibility development opportunity for the site.

Car Parking Requirements

Plantroom/ Office

Allocated

ST

RE ET

33

Two Bedroom Layout Type M

8

Total

Plantroom

Works

Total

Level

revision date

description

drw

chk

revision date

82.3m

The Old Telephone Exchange, 32-42 Albert Street, Rugby, Warwickshire, CV21 2SA | info@hb-architects.co.uk | www.hb-architects.co.uk | 01788 576137 Project

Residential Developmen East Street, Coventry, CV1 5LE

Two Bedroom Layout Type L

description

drw

chk

Two Bedroom Layout Type L

89

90

Client

Hoskins, Keith

PH

Drawing Title

Proposed Site Plan Option B Date

Project Number

Drawn

023:23

21.06.23

HJB

Status

Scale

1:200

SOUTH ST

REET

Feasibility

Pg. 43

Drawing Number

Southfields Primary School

Checked

DC

Sheet Size

A1

Revision

02323-HBA-DR-A-004

The Old Telephone Exchange, 32-42 Albert Street, Rugby, Warwickshire, CV21 2SA | info@hb-architects.co.uk | www.hb-architects.co.uk | 01788 576137 Project

Residential Development East St, Coventry, CV1 5LS

© Copyright

N 0m

2m

4m

6m

8m

1:200 10m

Client

Hoskins, Keith

Drawing Title

Proposed Site Plan Option B Date

16.06.23

Project Number

023:23

Status

Feasibility

Drawing Number

02323-HBA-DR-A-007

Drawn

HJB

Scale

1:100

Checked

Sheet Size

A1

Revision

PROFESSIONAL

RIBA PART I ARCHITECTURE ASSISTANT

BBC MUSIC STUDIOS - EAST BANK 1 Month - 2019

PLANNING

---

CONCEPT

---

SITE ANALYSIS

---

CLIENT RELATION

---

MODELING

---

TECHNICAL

Project Details.

Project Details.

The BBC East Bank recording and rehearsal studio will host live and recorded music sessions for Radio 1, 6 Music, studio will rehearsal andconcerts RadioBank 2 and recording Radio 3. BBC and orchestras is now BBC East set to move to its new home in Stratford, London in 2025. t live and recorded music sessions for Radio 1, 6 Music,

is now orchestras and creative BBC concerts Radio dio 2 and The BBC’s3.purpose-built studio allows and musical teams in 2025.

London in Stratford, and its new to move totowork more home flexibly, collaboratively efficiently, bringing innovative, world-class music productions to audiences around

teams musical and creative studio BBC’s purpose-built the world. It will also allows enable the BBC to work with communities to flexibly, deliver trans formative music experiences.

Queen Elizabeth bringing efficiently, and collaboratively work more Olympic Park is transforming into a £1.1 cultural powerhouse. around audiences tobillion productions music ovative, world-class Inspired by the South Bank,tothe newwith Eastcommunities Bank district will work also enable the BBC world. It will be a treasure trove of cultural institutions and attractions. deliver transformative music experiences. Queen Elizabeth mpic Park is transforming into a £1.1 billion cultural powerhouse. pired by the South Bank, the new East Bank district will a treasure trove of cultural institutions and attractions.

Learning Points.

Learning Points.

My time at the BBC Property Development Department taught me how the communication lines between an architect and a client operates while managing a clients expectations.

While approaching from the clients point of view , I got the opportunity to view the discussions between varying differing stakeholders to ensure the building design meets their requirements while managing any additional challenges.

Department Development at the BBC Property

time an architect lines communication ght me how Thisthe project specifically showed me between the importance of acoustic expectations. clients while operates a client design and how thismanaging can impact a a users experience of a space, especially within the music industry.

ile approaching from the clients point of view , I got the ortunity to view the discussions between varying differing to ensure the building design meets their keholders uirements while managing any additional challenges.

project specifically showed me the importance of acoustic gn and how this can impact a users experience of a space, ecially within the music industry.

Stratford, London Waterfront - Cultural heroshot image by Allies & Morrison Image

Pg. 45

WORK PLACEMENT - BBC MUSIC STUDIOS

Challenges.

Challenges include managing the sound pressure levels of 16 acoustically isolated spaces with the presence of an estate road running directly underneath the site, taking the V10 HGV diesel engines just meters away from the BBC symphony orchestra is natural light in the larger studio spaces, to help improve well being and the ease of reading music which in itself posed another acoustic challenge on top of the standing acoustic difficulties

Challenges.

Challenges include managing the sound pressure levels of 16 acoustically isolated spaces with the presence of an estate road running directly underneath the site, taking the V10 HGV diesel engines just metres away from the BBC symphony orchestra is natural light in the larger studio spaces, to help improve well being and the ease of reading music which in itself posed another acoustic challenge on top of the standing acoustic difficulties

Solutions.

Sound creates sound pressure waves that flow through the air, upon impact with a solid surface these transform into vibrations.

The movement of sound between spaces can be minimised by voids, stiff construction materials. The experts and Flanagan Laurence and Buro Hapold used the box in box method to try isolate acoustically isolated spaces from building foundations with the only connection between internal and external spaces are through Sound creates sound pressure waves that flow through the air, upon impact a solid surface these into vibrations. springs (thesewith are compressive so do nottransform transfer vibrations easily).

Solutions.

The movement of sound between spaces can be minimised by voids, stiff construction materials. The experts and Flanagan Laurence and Buro Hapold used the box in box method to try isolate acoustically isolated spaces from building foundations with the only connection between internal and external spaces are through springs (these are compressive so do not transfer vibrations Burohappold Engineering - easily).

Acoustic engineering solutions

Burohappold Engineering - Acoustic engineering solutions

WORK PLACEMENT - BBC MUSIC STUDIOS

RIBA PART II ARCHITECTURE ASSISTANT

THANK YOU FOR READING
