winner profilift lifting points Features and Benefits

pewag innovation: safe as houses Lifting and lashing: the highest level of safety for operating staff and transported goods Premium Austrian chain manufacturer pewag is deservedly proud of its outstanding reputation for innovation, quality and safety.

The company’s expertise in setting new standards goes back centuries – and lifting points are no exception. In fact, pewag has long been exploring new dimensions when it comes to lifting and moving loads.

The pewag winner profilift range of lifting points stands out for its excellent compatibility with the pewag winner lifting chains that are used extensively on a global scale. pewag places great emphasis on the continuous improvement and innovation of its range of lifting points, focusing on the highest possible level of safety and user-friendliness. These two key elements have catapulted pewag to where it stands today, right at the top of its game.

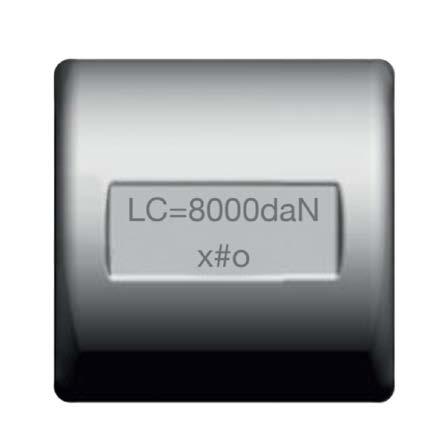

Stamp with serial number

pewag winner profilift lifting points comply with the Machine Directive 2006/42/EC and/or the Machine Safety Regulation 2010, EN 1677-1 as well as the technical specifications. Sophisticated design and individual serial numbers make this innovative range complete. The pewag winner profilift lifting points are produced in our ISO 9001 and 14001 certified plants and guarantee a 4- or 5-fold safety factor and a maximum dynamic load of min. 20,000 load cycles, tested at 1.5 times the load capacity.

Load capacities will vary according to the type of application, number of legs and angle of inclination and are listed in tables that form an integral part of the detailed user manual, corresponding to the Machine Safety Regulation 2010 and the Machine Directive. Each lifting point comes with its own manual.

The website www.pewagchain.com contains detailed information on load capacities, measures etc. as well as 3D models for designers, all ready for download.

4

Testing in the pewag lab

pewag winner profilift – Our products overcome any challenge.

5

winner profilift lifting points

PLGW Gamma PLGW Supreme

• Fully rotatable 360° • No tools or torque value required • Patented latch reduces both installation time and labor • Lifting point is rotatable by 360° when unlocked • Interchangeable grade 10.9 bolt

is corrosion protected and 100% crack-tested • An integrated sleeve protects the surface of the load • Traceable with serial number • Available in UNC thread up to 1-3/4˝ and Metric thread up to M48

Unlocked Lifting point is Rotatable - 360°

• Replacement latches available

Locked Lifting point is Not Rotatable

*Labeled WLL 1 Leg 0˚

Code

Thread (mm)

1 Leg 90˚

2 Legs 0˚

2 Legs 90˚

Fastening torque

2 Legs 30˚- 45˚

2 Legs 45˚- 90˚

3 & 4 Legs 3 & 4 Legs 30˚- 45˚ 45˚- 90˚

2 Legs asymm.

3 & 4 Legs asymm.

Working Load Limit (kg)

PLGW 0.3 t

M8

300

1,000

600

2,000

300

420

450

630

300

300

PLGW 0.5 t

M10

500

1,500

1,000

3,000

500

700

750

1,060

500

500

PLGW 0.7 t

M12

700

2,000

1,400

4,000

700

980

1,050

1,480

700

700

PLGW 1.5 t

M16

1,500

4,000

3,000

8,000

1,500

2,100

2,200

3,180

1,500

1,500

PLGW 2.3 t

M20

2,300

5,000

4,600

10,000

2,300

3,200

3,400

4,800

2,300

2,300

PLGW 2.3 t-M22

M22

2,300

5,000

4,600

10,000

2,300

3,200

3,400

4,800

2,300

2,300

PLGW 3.2 t

M24

3,200

6,500

6,400

13,000

3,200

4,500

4,800

6,700

3,200

3,200

PLGW 4.9 t

M30

4,900

12,000

9,800

24,000

4,900

6,900

7,300

10,300

4,900

4,900

PLGW 7 t

M36

7,000

15,000

14,000

30,000

7,000

9,800

10,500

14,800

7,000

7,000

PLGW 9 t

M42

9,000

22,000

18,000

44,000

9,000

12,600

13,500

19,000

9,000

9,000

PLGW 12 t

M48

12,000

30,000

24,000

60,000

12,000

16,900

18,000

25,400

12,000

12,000

Simply tighten by hand

1 kg = 2.2 lbs

Code

Thread

PLGW U 3/8

3/8˝- 16

1,100

2,400

2,200

4,800

1,100

1,500

1,500

2,200

1,100

1,100

PLGW U 1/2

1/2˝- 13

1,500

4,400

3,000

8,800

1,500

2,200

2,200

3,000

1,500

1,500

PLGW U 5/8

5/8˝- 11

3,300

8,800

6,600

17,600

3,300

4,600

4,800

6,600

3,300

3,300

PLGW U 3/4

3/4˝- 10

4,400

9,900

8,800

19,800

4,400

6,100

6,600

9,200

4,400

4,400

PLGW U 1

1˝- 8

6,600

11,000

13,200

22,000

6,600

9,200

9,900

13,600

6,600

6,600

PLGW U 1-1/4

1 1/4˝- 7

8,800

22,000

17,600

44,000

8,800

12,300

13,200

18,000

8,800

8,800

PLGW U 1-1/2

1 1/2˝- 6

15,400

33,000

30,800

66,000

15,400

21,500

23,100

32,300

15,400

15,400

PLGW U 1-3/4

1 3/4˝- 5

19,800

40,000

39,600

80,000

19,800

27,700

29,700

41,500

19,800

19,800

(inch)

Fastening torque

Simply tighten by hand

* WLL is horizontal in plane Design factor 4:1 - for reference purposes only Important: Subject to technical changes!

6

Working Load Limit (lbs)

H

n max.

S K X

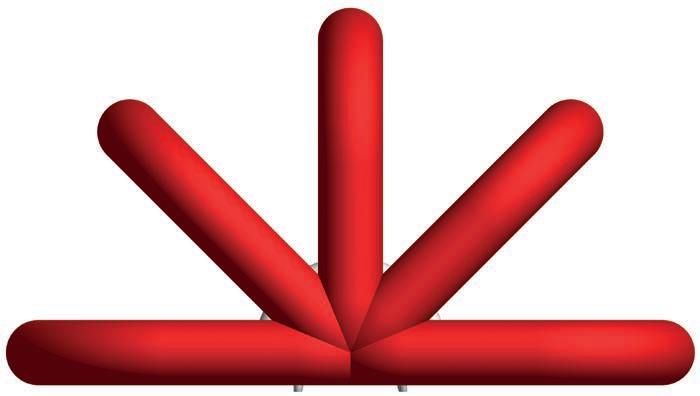

Permitted directions of pull

Calculating the required thread length (L) L=H+S+K+X H = Material height S = Thickness of the washer K = Height of the nut (depending on the thread size of the screw) X = Excess length of the screw (twofold pitch of the screw) L max = n max

Customized and maximum thread lengths are supplied with a washer and crack-tested, corrosion protected nut.

Not-permitted directions of pull

b a c

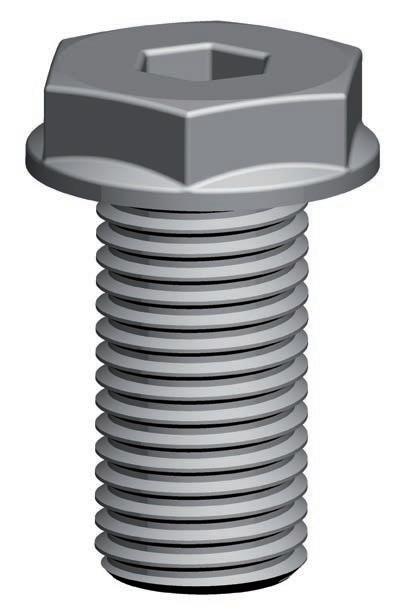

PLGW "Basic" version (Special Order Only)

No additional tools permitted

d e

Offering the same benefits as the pewag • PLGW supreme in terms of measurement,

load capacity and application, the pewag PLGW basic differs only when it comes to assembly.

point can be mounted hand tight using • aLifting standard Allen key then aligned in the

n

load direction

Allen key for sizes M8-M20 • isA special available upon request.

M

Code

Thread (mm)

Special Allen key

f

WLL (kg)

a

Marked on lift. point

b

c

d

e

f

(mm)

(mm)

(mm)

(mm)

(mm)

(mm)

(mm)

(mm)

(mm)

(kg/pc)

*n **n max

Weight

PLGW 0.3 t

M8

300

25

45

10

27

53

35

15

90

6

0.20

PLGW 0.5 t

M10

500

25

45

10

27

53

35

15

160

6

0.21

PLGW 0.7 t

M12

700

30

55

12

32

63

43

20

160

8

0.32

PLGW 1.5 t

M16

1,500

35

64

14

36

70

50

25

160

10

0.48

PLGW 2.3 t

M20

2,300

40

73

16

41

81

54

30

160

12

0.58

PLGW M22 - 2.3 t

M22

2,300

50

86

18

50

93

69

33

-

14

1.10

PLGW 3.2 t

M24

3,200

50

86

18

50

93

69

35

-

14

1.10

PLGW 4.9 t

M30

4,900

60

110

25

60

114

90

45

-

17

2.20

PLGW 7 t

M36

7,000

70

132

31

70

136

108

55

-

19

3.80

PLGW 9 t

M42

9,000

80

152

36

72

153

126

65

-

22

5.70

PLGW 12 t

M48

12,000

95

179

42

88

179

148

75

-

24

8.90

25.4 mm = 1 inch

Code

Thread (inch)

WLL (lbs)

a

Marked on lift. point

b

c

d

e

f

(inch)

(inch)

(inch)

(inch)

(inch)

(inch)

(inch)

(inch)

*n **n max

Weight (inch)

(lbs/pc)

PLGW U 3/8

3/8˝- 16

1,100

0.98

1.77

0.39

1.06

2.09

1.38

0.59

-

1/4˝

0.44

PLGW U 1/2

1/2˝- 13

1,500

1.18

2.17

0.47

1.26

2.48

1.69

0.79

-

5/16˝

0.71

PLGW U 5/8

5/8˝- 11

3,300

1.38

2.52

0.55

1.42

2.76

1.97

0.98

-

3/8˝

0.99

PLGW U 3/4

3/4˝- 10

4,400

1.57

2.87

0.63

1.61

3.19

2.13

1.18

-

1/2˝

1.28

PLGW U 1

1˝- 8

6,600

1.97

3.39

0.71

1.97

3.66

2.72

1.38

-

9/16˝

2.43

PLGW U 1-1/4

1 1/4˝- 7

8,800

2.36

4.33

0.98

2.36

4.49

3.54

1.77

-

5/8˝

4.63

PLGW U 1-1/2

1 1/2˝- 6

15,400

2.76

5.20

1.22

2.76

5.35

4.25

2.17

-

7/8˝

8.38

PLGW U 1-3/4

1 3/4˝- 5

19,800

3.15

5.98

1.42

2.83

6.02

4.96

2.56

-

1˝

12.57

* “n” is standard bolt length ** “n max” is maximum bolt length - available special order only Design factor 4:1 - for reference purposes only / Important: Subject to technical changes!

7

winner profilift lifting points

PLGW-SN PLGW-SN Eye nut

• Eye nut version • May be attached to a through-hole using a standard bolt,

requires crack-tested bolt, strength catagory 10.9 • Can be used with varying load thicknesses and bolt lengths (see table for min/max bolt projection) • Traceable with serial number • Available in Metric sizes only

Unlocked Eye nut is Rotatable - 360°

Locked Eye nut is Not Rotatable

*Labeled WLL 1 Leg 0˚

Code

Thread (mm)

1 Leg 90˚

2 Legs 0˚

2 Legs 90˚

Fastening torque

2 Legs 30˚- 45˚

2 Legs 45˚- 90˚

3 & 4 Legs 3 & 4 Legs 30˚- 45˚ 45˚- 90˚

2 Legs asymm.

3 & 4 Legs asymm.

Working Load Limit (kg)

PLGW-SN 0.3 t

M8

300

1,000

600

2,000

300

400

400

600

300

300

PLGW-SN 0.5 t

M10

500

1,500

1,000

3,000

500

700

700

1,000

500

500

PLGW-SN 0.7 t

M12

700

2,000

1,400

4,000

700

1,000

1,000

1,400

700

700

PLGW-SN 1.5 t

M16

1,500

4,000

3,000

8,000

1,500

2,100

2,200

3,000

1,500

1,500

PLGW-SN 2.3 t

M20

2,300

5,000

4,600

10,000

2,300

3,200

3,400

4,800

2,300

2,300

PLGW-SN 3.5 t

M24

3,500

6,500

7,000

13,000

3,500

4,900

5,200

7,400

3,500

3,500

PLGW-SN 4.9 t

M30

4,900

12,000

9,000

24,000

4,900

6,900

7,300

10,300

4,900

4,900

Simply tighten by hand

1 kg = 2.2 lbs

Code

Thread (mm)

PLGW-SN 0.3 t

M8

PLGW-SN 0.5 t

M10

PLGW-SN 0.7 t

M12

PLGW-SN 1.5 t

M16

PLGW-SN 2.3 t

M20

PLGW-SN 3.5 t

M24

PLGW-SN 4.9 t

M30

Fastening torque

Simply tighten by hand

Working Load Limit (lbs) 660

2,200

1,320

4,400

660

880

880

1,320

660

660

1,100

3,300

2,200

6,600

1,100

1,540

1,540

2,200

1,100

1,100

1,540

4,400

3,080

8,800

1,540

2,200

2,200

3,080

1,540

1,540

3,300

8,800

6,600

17,600

3,300

4,620

4,840

6,600

3,300

3,300

5,060

11,000

10,120

22,000

5,060

7,040

7,480

10,560

5,060

5,060

7,700

14,300

15,400

28,600

7,700

10,780

11,440

16,280

7,700

7,700

10,780

26,400

19,800

52,800

10,780

15,180

16,060

22,660

10,780

10,780

* WLL is horizontal in plane Load capacity applies to crack-tested bolts in strength catagory 10.9 Design factor 4:1 - for reference purposes only Important: Subject to technical changes!

8

Minimum/Maximum bolt penetration Thread

Code

(mm)

Bolt penetration min.

min.

max.

Permitted directions of pull

Not-permitted directions of pull

(mm)

max.

PLGW-SN 0.3 T

M8

10

21

PLGW-SN 0.5 T

M10

12

21

PLGW-SN 0.7 T

M12

15

25

PLGW-SN 1.5 T

M16

20

26

PLGW-SN 2.3 T

M20

24

27

PLGW-SN 3.5 T

M24

29

34

PLGW-SN 4.9 T

M30

36

40

b a c

d

e

f

Code

Thread (mm)

WLL (kg)

a

Marked on lift. point

b

c

d

e

f

(mm)

(mm)

(mm)

(mm)

(mm)

(mm)

(mm)

(kg/pc)

Weight

PLGW-SN 0.3 t

M8

300

25

45

10

21

55

35

12

0.17

PLGW-SN 0.5 t

M10

500

25

45

10

21

55

35

12

0.17

PLGW-SN 0.7 t

M12

700

30

55

12

25

65

43

14

0.28

PLGW-SN 1.5 t

M16

1,500

35

64

14

29

72

50

19

0.42

PLGW-SN 2.3 t

M20

2,300

40

73

16

34

82

54

22

0.50

PLGW-SN 3.5 t

M24

3,500

50

86

18

40

95

69

27

1.00

PLGW-SN 4.9 t

M30

4,900

60

110

25

47

115

90

36

1.90

25.4 mm = 1 inch

Code

Thread (mm)

WLL

a

b

c

d

e

f

(lbs)

(inch)

(inch)

(inch)

(inch)

(inch)

(inch)

(inch)

(lbs/pc)

Weight

PLGW-SN 0.3 t

M8

660

0.98

1.77

0.39

0.83

2.16

1.38

0.47

0.37

PLGW-SN 0.5 t

M10

1,100

0.98

1.77

0.39

0.83

2.16

1.38

0.47

0.37

PLGW-SN 0.7 t

M12

1,540

1.18

2.16

0.47

0.98

2.56

1.69

0.55

0.62

PLGW-SN 1.5 t

M16

3,300

1.38

2.52

0.55

1.14

2.83

1.97

0.75

0.92

PLGW-SN 2.3 t

M20

5,060

1.57

2.87

0.63

1.34

3.23

2.12

0.87

1.10

PLGW-SN 3.5 t

M24

7,700

1.97

3.38

0.71

1.57

3.74

2.72

1.06

2.20

PLGW-SN 4.9 t

M30

10,780

2.36

4.33

0.98

1.85

4.53

3.54

1.42

4.19

Design factor 4:1 - for reference purposes only Important: Subject to technical changes!

9

winner profilift lifting points

PLGWI Gamma Inox (Special Order Only) PLGWI

• Stainless, rust-resistant version of our PLGW - available special order,

size M12, M16, and M20 (M12 and M16 available as basic version only, M20 available in basic and tool-free supreme version) • Lifting point must be mounted hand tight using a standard Allen key, then aligned in the load direction • Lifting point is 360° rotatable • Temperature range: up to 536°F (280°C) • Special screw that is 100% crack-tested and marked with the load capacity and the thread size

• Markings for 45° and 60° tilt angle • Extremely corrosion-resistant Duplex Stainless Steel (1.4462)

*Labeled WLL 1 Leg 0˚

Code

Thread (mm)

PLGWI 0.5 t

M12

PLGWI 1 t

M16

PLGWI 2 t

M20

1 Leg 90˚

2 Legs 0˚

2 Legs 90˚

Fastening torque

2 Legs 30˚- 45˚

2 Legs 45˚- 90˚

3 & 4 Legs 3 & 4 Legs 30˚- 45˚ 45˚- 90˚

2 Legs asymm.

3 & 4 Legs asymm.

Working Load Limit (kg)

Simply tighten by hand Simply tighten by hand Simply tighten by hand

500

1,500

1,000

3,000

500

700

750

1,060

500

500

1,000

3,000

2,000

6,000

1,000

1,400

1,500

2,100

1,000

1,000

2,000

3,800

4,000

7,600

2,000

2,800

3,000

4,200

2,000

2,000

* WLL is horizontal in plane Design factor 4:1 - for reference purposes only Important: Subject to technical changes!

b a c d e

n

PLGWI gamma inox M12, M16, M20 available as a "basic" version (tool for assembly required) Code

Thread (mm)

PLGWI gamma inox M20 available in basic as well as the "tool free" supreme version

f

WLL (kg)

a

Marked on lift. point

b

c

d

e

f

(mm)

(mm)

(mm)

(mm)

(mm)

(mm)

(mm)

(mm)

*n **n max

Weight (mm)

(kg/pc)

PLGWI 0.5 t

M12

500

30

55

12

30

59

30

18

160

8

0.23

PLGWI 1 t

M16

1,000

35

64

14

35

67

35

24

160

10

0.36

PLGWI 2 t

M20

2,000

40

72

17

40

80

45

30

160

12

0.60

* “n” is standard bolt length ** “n max” is maximum bolt length - available special order only Design factor 4:1 - for reference purposes only Important: Subject to technical changes!

10

M

pewag winner prosecure Fall Protection (Special Order Only) PLGW-PSA Supreme

• Designed and certified as per the high safety

requirements for personal protective equipment according to the EG-Regulations 89/686/EWG; and meets the new EN795:2012 (1 person) and CEN/TS 16415 (2 persons) norms respectively.

• Also available in “Basic” version which is intended for permanent assembly to the anchorage system (e.g. tripod) and is mounted using a commercial Allen key.

b a

c d e

n M f Persons

a

Marked on lift. point

b

c

d

e

f

(mm)

(mm)

(mm)

(mm)

(mm)

(mm)

(mm)

(mm)

(mm)

(mm)

(kg/pc)

PLGW PSA M12 1)

M12

1

30

55

12

32

63

55

20

160

8

0.30 2) / 0.42 3)

PLGW PSA M16

M16

2

35

64

14

36

70

62

25

160

10

0.47 2) / 0.69 3)

PLGW PSA M20

M20

2

40

73

16

41

81

66

30

160

12

0.60 2) / 0.95 3)

Code

Thread

*n **n max

Weight

Also available US-certified (complies with ANSI/ASSE Z359 standard) Weight for “n” standard bolt length Weight for “n max” maximum bolt length * “n” is standard bolt length ** “n max” is maximum bolt length Important: Subject to technical changes!

1) 2) 3)

b

PLGWI-PSA

a

• PLGWI-PSA is the version made of stainless material (INOX) • Designed and certified as per the high safety requirements for personal protective equipment according to the EG-Regulations 89/686/EWG; and meets the new EN795:2012 (1 person) and CEN/TS 16415 (2 persons) norms respectively.

• PLGWI-PSA can either be mounted using a pewag PLGW special or a commercial Allen key Persons

a

b

c

d

e

f

(mm)

Marked on lift. point

(mm)

(mm)

(mm)

(mm)

(mm)

(mm)

PLGWI PSA M12

M12

1

30

55

12

30

59

40

18

PLGWI PSA M16

M16

2

35

64

14

35

67

45

23

Code

Thread

c d e

n M f

*n **n max (mm)

(mm)

Weight (mm)

(kg/pc)

160

8

0.23

160

10

0.37

* “n” is standard bolt length ** “n max” is maximum bolt length Important: Subject to technical changes!

11

winner profilift lifting points

PLDW Delta

PLDW Lifting Point

• Comes with bearings and is fully rotatable 360° even under maximum load • Wide lifting ring accommodates larger hooks and components • Compact design reduces mounting space • Corrosion protected grade 12.9 bolt is 100% crack-tested • Traceable with serial number • Available in UNC up to 2-1/2” and Metric up to M100 *Labeled WLL 1 Leg 0˚

1 Leg 90˚

2 Legs 0˚

2 Legs 90˚

2 Legs 30˚- 45˚

2 Legs 45˚- 90˚

3 & 4 Legs 3 & 4 Legs 30˚- 45˚ 45˚- 90˚

2 Legs asymm.

3 & 4 Legs asymm.

Code

Thread Fastening torque (mm)

(Nm)

(ft-lbs)

PLDW 0.3 t

M8

10

7.5

300

600

600

1,200

300

400

400

600

300

300

PLDW 0.5 t

M10

10

7.5

500

1,200

1,000

2,400

500

700

750

1,000

500

500

PLDW 0.7 t

M12

15

11

700

1,800

1,400

3,600

700

950

1,000

1,400

700

700

PLDW 1 t

M14

25

18.5

1,000

2,400

2,000

4,800

1,000

1,400

1,500

2,100

1,000

1,000

PLDW 1.5 t

M16

30

22

1,500

2,800

3,000

5,600

1,500

2,100

2,100

3,100

1,500

1,500

PLDW 1.8 t

M20

80

59

1,800

2,800

3,600

5,600

1,800

2,500

2,700

3,800

1,800

1,800

PLDW 2.5 t

M20

80

59

2,500

5,000

5,000

10,000

2,500

3,500

3,500

5,300

2,500

2,500

PLDW 3.5 t

M24

150

111

3,500

5,000

7,000

10,000

3,500

4,900

5,200

7,400

3,500

3,500

PLDW 4 t

M24

150

111

4,000

7,000

8,000

14,000

4,000

5,500

6,000

8,400

4,000

4,000

PLDW 5.3 t

M30

230

170

5,300

7,000

10,600

14,000

5,300

7,400

7,900

11,200

5,300

5,300

PLDW 6.7 t

M30

230

170

6,700

10,000

13,400

20,000

6,700

9,400

10,000

14,200

6,700

6,700

PLDW 8 t

M36

450

332

8,000

12,500

16,000

25,000

8,000

11,200

12,000

16,800

8,000

8,000

PLDW 10 t

M42

600

443

10,000

16,000

20,000

32,000

10,000

14,000

15,000

21,000

10,000

10,000

PLDW 12 t 1)

M45

600

443

12,000

16,000

24,000

32,000

12,000

16,900

18,000

25,400

12,000

12,000

PLDW 13 t-M48

M48

600

443

13,000

16,000

25,000

32,000

13,000

18,300

19,500

27,500

13,000

13,000

PLDW 13 t - M52 1)

M52

600

443

13,000

16,000

26,000

32,000

13,000

18,300

19,500

27,500

13,000

13,000

PLDW 24 t

M56

800

590

24,000

28,000

48,000

56,000

24,000

33,900

36,000

50,900

24,000

24,000

PLDW 25 t

M64

800

590

25,000

28,000

50,000

56,000

25,000

35,300

37,500

53,000

25,000

25,000

PLDW 40 t

M72

1,200 885

40,000

60,000

80,000

120,000

40,000

56,500

60,000

84,800

40,000

40,000

PLDW 45 t

M80

1,400 1,033

45,000

60,000

90,000

120,000

45,000

63,600

67,500

95,400

45,000

45,000

PLDW 55 t - M90

M90

1,500 1,106

55,000

60,000

110,000

120,000

55,000

77,700

82,500

116,600

55,000

55,000

PLDW 55 t - M100

M100

1,600 1,180

55,000

60,000

110,000

120,000

55,000

77,700

82,500

116,600

55,000

55,000

Working Load Limit (kg)

1 kg = 2.2 lbs

Code

Thread (inch)

(Nm)

Working Load Limit (lbs)

(ft-lbs)

PLDW U 3/8

3/8˝- 16

10

7.5

1,100

2,640

2,200

5,290

1,100

1,550

1,650

2,330

1,100

1,100

PLDW U 1/2

1/2˝- 13

15

11

1,500

3,900

3,000

7,900

1,500

2,100

2,300

3,200

1,500

1,500

PLDW U 5/8

5/8˝- 11

30

22

3,300

6,100

6,600

12,300

3,300

4,600

4,900

7,000

3,300

3,300

PLDW U 3/4

3/4˝- 10

82

60

4,400

8,800

8,800

17,600

4,400

6,200

6,600

9,300

4,400

4,400

PLDW U 1

1˝- 8

149

110

8,800

15,400

17,600

30,800

8,800

12,400

13,200

18,700

8,800

8,800

PLDW U 1-1/4

1-1/4˝- 7

231

170

14,700

22,000

29,500

44,000

14,700

20,800

22,100

31,300

14,700

14,700

PLDW U 1-1/2

1-1/2˝- 6

448

330

17,600

27,500

35,200

55,100

17,600

24,600

26,400

37,400

17,600

17,600

PLDW U 1- 3/4

1-3/4˝- 5

597

440

22,000

35,200

44,000

70,500

22,000

31,100

33,000

46,700

22,000

22,000

PLDW U 2

2˝- 4.5

597

440

27,500

35,200

55,100

70,500

27,500

38,900

41,300

58,400

27,500

27,500

PLDW U 2 -1/2

2-1/2˝- 4 814

600

39,600

61,700

79,300

123,400

39,600

56,100

59,500

84,100

39,600

39,600

* WLL is horizontal in plane 1) Special Order Only

12

Fastening torque

Design factor 4:1 - for reference purposes only / Important: Subject to technical changes!

180˚

H

n max.

Permitted direction of pull

S K X

Calculating the required thread length (L) L=H+S+K+X H = Material height S = Thickness of the washer K = Height of the nut (depending on the thread size of the screw) X = Excess length of the screw (twofold pitch of the screw) L max = n max

a

b

d

c

Customized and maximum thread lengths are supplied with a washer and crack-tested, corrosion protected nut. n M e

Not-permitted direction of pull Thread

Code

(mm)

WLL (kg)

a

b

c

d

e

*n

** n max

Marked on lift. point

(mm)

(mm)

(mm)

(mm)

(mm)

(mm)

(mm)

(mm)

(kg/pc)

Weight

PLDW 0.3 t

M8

300

30

38

54

13

38

20

100

34

0.45

PLDW 0.5 t

M10

500

30

38

54

13

38

20

180

34

0.45

PLDW 0.7 t

M12

700

35

48

54

13

38

22

200

34

0.48

PLDW 1 t

M14

1,000

35

48

54

13

38

22

200

34

0.49

PLDW 1.5 t

M16

1,500

35

48

54

13

38

33

250

34

0.51

PLDW 1.8 t

M20

1,800

35

48

54

13

38

30

-

34

0.50

PLDW 2.5 t

M20

2,500

35

55

75

16

55

33

250

46

1.10

PLDW 3.5 t

M24

3,500

35

55

75

16

55

30

-

46

1.10

PLDW 4 t

M24

4,000

40

66

82

17

63

40

300

50

1.50

PLDW 5.3 t

M30

5,300

40

66

82

17

63

35

300

50

1.50

PLDW 6.7 t

M30

6,700

50

70

92

23

72

40

300

60

2.60

PLDW 8 t

M36

8,000

50

91

124

23

92

55

300

75

4.30

PLDW 10 t

M42

10,000

65

91

124

27

92

60

300

75

5.10

PLDW 12 t

M45

12,000

65

91

124

27

92

68

-

75

5.20

PLDW 13 t - M48

M48

13,000

65

116

124

27

92

68

300

75

5.40

PLDW 13 t-M52 1)

M52

13,000

65

116

124

27

92

68

-

75

5.40

PLDW 24 t

M56

24,000

70

105

154

33

110

84

300

95

10.20

PLDW 25 t

M64

25,000

70

105

154

33

110

96

300

95

11.00

PLDW M40 t

M72

40,000

90

130

213

45

170

110

500

145

29.00

PLDW M45 t

M80

45,000

90

130

213

45

170

120

500

145

30.00

PLDW 55 t - M90

M90

55,000

90

130

213

45

170

135

500

145

32.00

PLDW 55 t - M100

M100

55,000

90

130

213

45

170

150

500

145

35.00

1)

25.4 mm = 1 inch

WLL (lbs)

a

b

c

d

e

*n

** n max

Marked on lift. point

(inch)

(inch)

(inch)

(inch)

(inch)

(inch)

(inch)

(inch)

(lbs/pc)

3/8˝-16

1,100

1.18

1.50

2.13

0.51

1.50

0.59

-

1.34

1.00

1/2˝ -13

1,500

1.38

1.89

2.13

0.51

1.50

0.79

-

1.34

1.06

PLDW U 5/8

5/8˝ -11

3,300

1.38

1.89

2.13

0.51

1.50

0.98

-

1.34

1.10

PLDW U 3/4

3/4˝ -10

4,400

1.38

2.17

2.95

0.63

2.17

1.18

-

1.81

2.43

PLDW U 1

1˝ - 8

8,800

1.57

2.60

3.23

0.67

2.48

1.57

-

1.97

3.30

PLDW U 1-1/4

1 1/4˝- 7

14,700

1.97

2.76

3.62

0.91

2.83

1.77

-

2.36

5.70

PLDW U 1-1/2

1 1/2˝- 6

17,600

1.97

3.58

4.72

0.91

3.62

2.17

-

2.95

9.50

PLDW U 1-3/4

1 3/4˝- 5

22,000

2.56

3.58

4.72

1.06

3.62

2.36

-

2.95

11.20

PLDW U 2

2˝ - 4.5

27,500

2.56

4.57

4.72

1.06

3.62

2.68

-

2.95

11.90

PLDW U 2-1/2

2 1/2˝- 4

39,600

2.76

4.13

6.06

1.30

4.33

3.78

-

3.74

22.40

Code

Thread

PLDW U 3/8 PLDW U 1/2

(inch)

* “n” is standard bolt length ** “n max” is maximum bolt length - available special order only

Weight

Design factor 4:1 - for reference purposes only / Important: Subject to technical changes!

13

winner profilift lifting points

PLAW Alpha PLAW Offset Lifting Point

• Patented spring positions load ring at any required angle • 360° rotatable / 130° offset • No side load reduction required - same pull strength in any direction • Wide lifting ring accommodates larger hooks and components • Interchangeable grade 10.9 bolt is corrosion protected and

100% crack-tested • Typically used on multi-leg assembly • Traceable with serial number

• Available in UNC up to 1-3/4” and Metric up to M48

*Labeled WLL 1 Leg 0˚

1 Leg 90˚

2 Legs 0˚

2 Legs 90˚

2 Legs 30˚- 45˚

2 Legs 45˚- 90˚

3 & 4 Legs 3 & 4 Legs 30˚- 45˚ 45˚- 90˚

2 Legs asymm.

3 & 4 Legs asymm.

Code

Thread Fastening torque (mm)

(Nm)

(ft-lbs)

PLAW 0.3 t

M8

35

26

300

300

600

600

300

400

400

600

300

PLAW 0.63 t

M10

70

52

630

630

1,260

1,260

630

850

900

1,300

630

630

PLAW 1 t

M12

120

89

1,000

1,000

2,000

2,000

1,000

1,400

1,500

2,100

1,000

1,000

M16

150

110

1,500

1,500

3,000

3,000

1,500

2,100

2,200

3,100

1,500

1,500

PLAW 1.5 t PLAW 2.5 t

Working Load Limit (kg) 300

M20

170

125

2,500

2,500

5,000

5,000

2,500

3,500

3,700

5,300

2,500

2,500

PLAW 4 t

M24

400

295

4,000

4,000

8,000

8,000

4,000

5,600

6,000

8,400

4,000

4,000

PLAW 6 t 1)

M30

500

369

6,000

6,000

12,000

12,000

6,000

8,500

9,000

12,700

6,000

6,000

PLAW 7 t 1)

M36

700

517

7,000

7,000

14,000

14,000

7,000

9,800

10,500

14,800

7,000

7,000

PLAW 8 t 1)

M36

800

590

8,000

8,000

16,000

16,000

8,000

11,300

12,000

16,900

8,000

8,000

PLAW 10 t 1)

M42

1,500 1106

10,000

10,000

20,000

20,000

10,000

14,000

15,000

21,000

10,000

10,000

PLAW 15 t 1)

M42

1,500 1106

15,000

15,000

30,000

30,000

15,000

21,000

22,500

31,500

15,000

15,000

PLAW 20 t 1)

M48

2,000 1475

20,000

20,000

40,000

40,000

20,000

28,000

30,000

42,000

20,000

20,000

1)

1 kg = 2.2 lbs

Thread

Code

Fastening torque (Nm)

(ft-lbs)

Working Load Limit (lbs)

PLAW U5/16

5/16˝- 18

35

25.8

660

660

1,300

1,300

660

920

950

1,350

660

660

PLAW U3/8

3/8˝- 16

71

52

1,400

1,400

2,800

2,800

1,400

1,960

2,100

2,940

1,400

1,400

PLAW U1/2

1/2˝- 13

121

89

2,200

2,200

4,400

4,400

2,200

3,000

3,300

4,600

2,200

2,200

PLAW U5/8

5/8˝- 11

149

110

3,300

3,300

6,600

6,600

3,300

4,600

4,800

6,800

3,300

3,300

PLAW U3/4 1)

3/4˝- 10

169

125

4,400

4,400

8,800

8,800

4,400

6,000

6,500

9,200

4,400

4,400

PLAW U1 1)

1˝- 8

400

295

8,800

8,800

17,600

17,600

8,800

12,300

13,200

18,400

8,800

8,800

1)

1 1/4˝- 7

500

369

13,200

13,200

26,400

26,400

13,200

18,700

19,800

27,800

13,200

13,200

PLAW U1-1/2 1)

1 1/2˝- 6

800

590

17,600

17,600

35,200

35,200

17,600

24,800

26,400

37,300

17,600

17,600

PLAW U1-3/4 1)

1 3/4˝- 5

1003

740

22,000

22,000

44,000

44,000

22,000

30,000

33,000

45,000

22,000

22,000

PLAW U1-1/4

1)

(inch)

Bolt head is protected due to the design * WLL is horizontal in plane Design factor 4:1 - for reference purposes only / Important: Subject to technical changes!

14

H

n max.

S K X

Calculating the required thread length (L) L=H+S+K+X H = Material height S = Thickness of the washer K = Height of the nut (depending on the thread size of the screw) X = Excess length of the screw (twofold pitch of the screw) L max = n max

Customized and maximum thread lengths are supplied with a washer and crack-tested, corrosion protected nut.

Permissible range of application

b a d

g

e

c M n

Not-permitted direction of pull Code

Thread (mm)

Not-permitted when resting against edge or loads

h k

*n ** n max

WLL (kg)

a

b

c

d

e

g

h

k

Marked on lift. point

(mm)

(mm)

(mm)

(mm)

(mm)

(mm)

(mm)

(mm)

(mm)

(mm)

(mm)

(mm)

Weight (kg/pc)

PLAW 0.3 t

M8

300

45

67

40

11

41

95

36

55

20

150

10

24

0.57

PLAW 0.63 t

M10

630

45

67

40

11

41

95

36

55

20

150

10

24

0.58

PLAW 1 t

M12

1,000

45

67

40

11

41

95

36

55

20

170

10

24

0.60

PLAW 1.5 t

M16

1,500

45

67

40

11

41

95

36

55

33

260

10

24

0.62

PLAW 2.5 t

M20

2,500

54

81

50

13

55

112

50

67

33

335

8

24

1.10

PLAW 4 t

M24

4,000

54

87

50

17

67

142

45

70

36

361

14

36

1.60

PLAW 6 t

M30

6,000

68

108

60

20

68

148

55

85

45

360

14

36

2.50

PLAW 7 t

M36

7,000

75

115

67

20

65

143

60

100

55

374

27

-

3.30

PLAW 8 t

M36

8,000

93

147

85

27

87

188

85

120

55

365

19

41

6.10

PLAW 10 t

M42

10,000

93

147

85

27

87

188

85

120

65

365

19

41

6.40

PLAW 15 t

M42

15,000

115

181

105

33

108

246

106

150

63

340

19

55

12.00

PLAW 20 t

M48

20,000

115

181

105

33

108

246

106

150

73

340

19

55

12.30

(inch)

25.4 mm = 1 inch

Code

Thread (inch)

PLAW U5/16

5/16˝- 18

PLAW U3/8

3/8˝- 16

WLL (lbs)

a

b

c

d

e

g

h

k

Marked on lift. point

(inch)

(inch)

(inch)

(inch)

(inch)

(inch)

(inch)

(inch)

*n ** n max (inch)

(inch)

(inch)

Weight (lbs/pc)

660

1.77

2.64

1.57

0.43

1.61

3.72

1.42

2.17

0.79

-

7/32˝

-

1.30

1,400

1.77

2.64

1.57

0.43

1.61

3.72

1.42

2.17

0.79

-

3/8˝

5/16˝

1.30

PLAW U1/2

1/2˝- 13

2,200

1.77

2.64

1.57

0.43

1.61

3.72

1.42

2.17

1.30

-

3/8˝

5/16˝

1.32

PLAW U5/8

5/8˝- 11

3,300

1.77

2.64

1.57

0.43

1.71

3.56

1.42

2.17

1.30

-

3/8˝

5/16˝

1.39

PLAW U3/4

3/4˝- 10

4,400

2.13

3.19

1.97

0.51

2.24

4.21

1.97

2.64

1.30

-

9/16˝

-

2.40

PLAW U1

1˝- 8

8,800

2.95

4.53

2.64

0.79

2.68

5.63

2.64

3.94

1.42

-

3/4˝

-

6.60

PLAW U1-1/4

1-1/4˝- 7

13,200

2.95

4.53

2.64

0.79

2.68

5.63

2.64

3.94

1.93

-

7/8˝

-

6.80

PLAW U1-1/2

1-1/2˝- 6

17,600

3.66

5.79

3.35

1.06

3.43

7.40

3.35

4.72

2.09

-

1˝

-

13.40

PLAW U1-3/4

1-3/4˝- 5

22,000

3.66

5.79

3.35

1.06

3.43

7.40

3.35

4.72

2.44

-

1-1/4˝

-

14.10

* “n” is standard bolt length ** “n max” is maximum bolt length - available special order only Design factor 4:1 - for reference purposes only / Important: Subject to technical changes!

15

winner profilift lifting points

PLBW Beta PLBW Lifting Point

• Patented spring positions load ring at any required angle, one hand rigging • Heavy duty forged lifting bale pivots 180° and is 360° rotatable • Lifting bale design accomodates larger hooks and components • Interchangeable grade 10.9 bolt is corrosion protected & 100% crack-tested • Traceable with serial number • Available in UNC up to 1-1/2” and Metric up to M33 *Labeled WLL 1 Leg 0˚

1 Leg 90˚

2 Legs 0˚

2 Legs 90˚

2 Legs 30˚- 45˚

2 Legs 45˚- 90˚

3 & 4 Legs 3 & 4 Legs 30˚- 45˚ 45˚- 90˚

2 Legs asymm.

3 & 4 Legs asymm.

Code

Thread Fastening torque (mm)

(Nm)

(ft-lbs)

PLBW 0.3 t

M8

6

4.50

300

500

600

1,000

300

400

450

600

300

PLBW 0.6 t

M10

10

7.50

600

1,000

1,200

2,000

600

800

900

1,300

600

600

PLBW 1 t

M12

15

11

1,000

1,300

2,000

2,600

1,000

1,400

1,500

2,100

1,000

1,000

PLBW 1.3 t

M14

30

22

1,300

2,000

2,600

4,000

1,300

1,800

1,900

2,700

1,300

1,300

PLBW 1.6 t

M16

50

37

1,600

2,500

3,200

5,000

1,600

2,200

2,400

3,400

1,600

1,600

PLBW 2 t

M18

70

52

2,000

3,000

4,000

6,000

2,000

2,800

3,000

4,200

2,000

2,000

PLBW 2.5 t

M20

100

74

2,500

3,500

5,000

7,000

2,500

3,500

3,700

5,300

2,500

2,500

PLBW 3 t

M22

120

89

3,000

4,500

6,000

9,000

3,000

4,200

4,500

6,300

3,000

3,000

PLBW 4 t

M24

160

118

4,000

5,500

8,000

11,000

4,000

5,600

6,000

8,400

4,000

4,000

PLBW 5 t

M27

200

148

5,000

6,500

10,000

13,000

5,000

7,000

7,500

10,500

5,000

5,000

PLBW 6.3 t

M30

250

184

6,300

7,000

12,600

14,000

6,300

8,800

9,400

13,200

6,300

6,300

PLBW 8 t

M33

270

199

8,000

9,000

16,000

18,000

8,000

11,000

12,000

16,500

8,000

8,000

Working Load Limit (kg) 300

1 kg = 2.2 lbs

Code

Thread (inch)

Fastening torque (Nm)

(ft-lbs)

Working Load Limit (lbs)

PLBW U5/16

5/16˝-18

6

4.50

660

1,100

1,320

2,200

660

900

900

1,400

660

660

PLBW U3/8

3/8˝- 16

10

7.50

1,300

2,200

2,600

4,400

1,300

1,800

1,900

2,700

1,300

1,300

PLBW U7/16

7/16˝- 14

15

11

2,200

2,800

4,400

5,600

2,200

3,000

3,300

4,600

2,200

2,200

PLBW U1/2

1/2˝- 13

15

11

2,200

2,800

4,400

5,600

2,200

3,000

3,300

4,600

2,200

2,200

PLBW U9/16

9/16˝- 12

30

22

3,000

4,400

6,000

8,800

3,000

4,200

4,500

6,300

3,000

3,000

PLBW U5/8

5/8˝- 11

50

37

3,500

5,500

7,000

11,000

3,500

4,900

5,200

7,300

3,500

3,500

PLBW U3/4

3/4˝- 10

100

74

5,500

6,600

11,000

13,200

5,500

7,700

8,200

11,500

5,500

5,500

PLBW U7/8 1)

7/8˝- 9

160

118

8,800

12,000

17,600

24,000

8,800

12,300

13,200

18,500

8,800

8,800

PLBW U1 1)

1˝- 8

201

148

11,000

13,000

22,000

26,000

11,000

15,400

16,500

23,000

11,000

11,000

PLBW U1-1/8 1)

1-1/8˝- 7

251

185

13,500

14,300

27,000

28,600

13,500

18,900

20,200

28,300

13,500

13,500

PLBW U1-1/4 1)

1-1/4˝- 7

271

200

17,500

19,800

35,000

39,600

17,500

24,500

26,200

36,700

17,500

17,500

PLBW U1-3/8 1)

1-3/8˝- 6

320

236

22,000

24,000

44,000

48,000

22,000

30,800

33,000

46,200

22,000

22,000

PLBW U1-1/2 1)

1-1/2˝- 6

400

295

24,000

25,000

48,000

50,000

24,000

33,600

36,000

50,400

24,000

24,000

* WLL is horizontal in plane 1) Design factor 4:1 - for reference purposes only Design factor 5:1 - for reference purposes only / Important: Subject to technical changes!

16

180°

Customized and maximum thread lengths are supplied with a washer and crack-tested, corrosion protected nut. g

f H

n max.

Permitted directions of pull

Not-permitted direction of pull

Code

Thread (mm)

S K X

e

Calculating the required thread length (L) L=H+S+K+X H = Material height S = Thickness of the washer K = Height of the nut (depending on the thread size of the screw) X = Excess length of the screw (twofold pitch of the screw) L max = n max

Not-permitted because of resting against edge or loads

h a

M

n

c b

*n ** n max

WLL (kg)

a

b

c

e

g

h

k

Marked on lift. point

(mm)

(mm)

(mm)

(mm)

(mm)

(mm)

(mm)

(mm)

Weight

(mm)

(mm)

(mm)

(kg/pc)

PLBW 0.3 t

M8

300

29

56

30

38

18

27

94

13

80

8

15

0.31

PLBW 0.6 t

M10

600

29

56

30

38

18

27

94

15

100

8

15

0.35

PLBW 1 t

M12

1,000

29

56

30

38

18

27

94

17

180

8

15

0.37

PLBW 1.3 t

M14

1,300

43

79

45

55

25

38

138

22

220

10

24

1.03

PLBW 1.6 t

M16

1,600

43

79

45

55

25

38

138

24

260

10

24

1.04

PLBW 2 t

M18

2,000

43

79

45

55

25

38

138

27

295

10

24

1.07

PLBW 2.5 t

M20

2,500

43

79

45

55

25

38

138

30

335

10

24

1.08

PLBW 3 t

M22

3,000

64

118

68

85

38

58

209

33

335

14

36

3.50

PLBW 4 t

M24

4,000

64

118

68

85

38

58

209

36

335

14

36

3.60

PLBW 5 t

M27

5,000

64

118

68

85

38

58

209

40

335

14

36

3.60

PLBW 6.3 t

M30

6,300

64

118

68

85

38

58

209

45

335

14

36

3.70

PLBW 8 t

M33

8,000

106

188

108

132

60

91

331

54

328

19

55

14.30

(inch)

(inch)

(lbs/pc)

0.71

25.4 mm = 1 inch

Code

Thread (inch)

*n ** n max

WLL (lbs)

a

b

c

e

g

h

k

Marked on lift. point

(inch)

(inch)

(inch)

(inch)

(inch)

(inch)

(inch)

(inch)

(inch)

Weight

PLBW U5/16

5/16˝-18

660

1.14

2.20

1.18

1.50

0.71

1.06

3.70

0.51

-

5/16˝

5/8˝

PLBW U3/8

3/8˝- 16

1,300

1.14

2.20

1.18

1.50

0.71

1.06

3.70

0.59

-

5/16˝

5/8˝

0.73

PLBW U7/16

7/16˝- 14

2,200

1.14

2.20

1.18

1.50

0.71

1.06

3.70

0.67

-

5/16˝

5/8˝

0.75

PLBW U1/2

1/2˝- 13

2,200

1.14

2.20

1.18

1.50

0.71

1.06

3.70

0.67

-

5/16˝

5/8˝

0.77

PLBW U9/16

9/16˝- 12

3,000

1.69

3.11

1.77

2.17

0.98

1.50

5.43

0.87

-

5/16˝

1˝

2.27 2.29

PLBW U5/8

5/8˝- 11

3,500

1.69

3.11

1.77

2.17

0.98

1.50

5.43

0.94

-

5/16˝

1˝

PLBW U3/4

3/4˝- 10

5,500

1.69

3.11

1.77

2.17

0.98

1.50

5.43

1.18

-

5/16˝

1˝

2.38

PLBW U7/8

7/8˝- 9

8,800

2.52

4.65

2.68

3.35

1.50

2.28

8.23

1.42

-

9/16˝

1 3/8˝

7.78

PLBW U1

1˝- 8

11,000

2.52

4.65

2.68

3.35

1.50

2.28

8.23

1.57

-

9/16˝

1 3/8˝

7.89

PLBW U1-1/8

1-1/8˝- 7

13,500

2.52

4.65

2.68

3.35

1.50

2.28

8.23

1.77

-

9/16˝

1 3/8˝

8.07

PLBW U1-1/4

1-1/4˝- 7

17,500

4.17

7.40

4.25

5.20

2.36

3.58

13.03

2.13

-

3/4˝

2 3/16˝

32.00

PLBW U1-3/8

1-3/8˝- 6

22,000

4.17

7.40

4.25

5.20

2.36

3.58

13.03

2.32

-

3/4˝

2 3/16˝

32.20

PLBW U1-1/2

1-1/2˝- 6

24,000

4.17

7.40

4.25

5.20

2.36

3.58

13.03

2.72

-

3/4˝

2 3/16˝

32.80

* “n” is standard bolt length ** “n max” is maximum bolt length - available special order only Design factor 5:1 - for reference purposes only / Important: Subject to technical changes!

17

winner profilift lifting points

PLZW Zeta PLZW Lifting Point

• Enables the simple attachment of closed lifting equipment without

the use of additional shackles or connecting links • Assembled or disassembled in one easy step - without tools! (applies up to thread size M24) • Can be rotated 360° and can be loaded in all directions • Sleeve protects the surface of the load from damage • Safety factor of 5:1 • Replaceable bolt is corrosion protected & 100% crack-tested, as well as a marking from the manufacturer, load capacity, thread size, and tightening torque • Traceable with serial number *Labeled WLL 1 Leg 0˚

Thread

Code PLZW 0.4 t 1)

(mm)

Fastening torque (Nm)

1 Leg 90˚

2 Legs 0˚

2 Legs 90˚

2 Legs 30˚- 45˚

3 & 4 Legs 3 & 4 Legs 30˚- 45˚ 45˚- 90˚

2 Legs asymm.

3 & 4 Legs asymm.

Working Load Limit (kg)

M8

10

400

800

800

1,600

400

1)

M10

10

630

1,100

1,260

2,200

630

PLZW 0.95 t 1)

M12

15

950

1,100

1,900

2,200

950

PLZW 1.8 t 1)

M16

50

1,800

2,900

3,600

5,800

1,800

PLZW 2.5 t 1)

M20

100

2,500

2,900

5,000

5,800

PLZW 4 t 1)

M24

160

4,000

6,500

8,000

13,000

PLZW 6.3 t

M30

250

6,300

6,500

12,600

PLZW 10 t

M36

320

10,000

15,000

PLZW 13 t

M42

400

13,000

PLZW 15 t

M48

600

15,000

PLZW 0.63 t

2 Legs 45˚- 90˚

560

600

840

400

400

890

940

1,330

630

630

1,340

1,420

2,010

950

950

2,540

2,700

3,810

1,800

1,800

2,500

3,530

3,750

5,300

2,500

2,500

4,000

5,650

6,000

8,480

4,000

4,000

13,000

6,300

8,900

9,450

13,360

6,300

6,300

20,000

30,000

10,000

14,100

15,000

21,200

10,000

10,000

15,000

26,000

30,000

13,000

18,300

19,500

27,500

13,000

13,000

15,000

30,000

30,000

15,000

21,200

22,500

31,800

15,000

15,000

1 kg = 2.2 lbs

Thread (inch)

Fastening torque (ft-lbs)

PLZW 0.4 t 1)

M8

7.5

880

1,760

1,760

3,520

880

1,230

1,320

1,850

880

880

PLZW 0.63 t 1)

M10

7.5

1,380

2,420

2,770

4,840

1,380

1,960

2,070

2,930

1,380

1,380

PLZW 0.95 t 1)

M12

11

2,090

2,420

4,180

4,840

2,090

2,950

3,130

4,430

2,090

2,090

PLZW 1.8 t 1)

M16

37

3,960

6,380

7,920

12,760

3,960

5,600

5,950

8,400

3,960

3,960

PLZW 2.5 t 1)

M20

74

5,500

6,380

11,000

12,760

5,500

7,780

8,260

11,680

5,500

5,500

PLZW 4 t

Code

Working Load Limit (lbs)

M24

118

8,800

14,300

17,600

28,600

8,800

12,450

13,220

18,690

8,800

8,800

PLZW 6.3 t

M30

184.5

13,860

14,300

27,720

28,600

13,860

19,620

20,830

29,450

13,860

13,860

PLZW 10 t

M36

236

22,000

33,000

44,000

66,000

22,000

31,080

33,000

46,730

22,000

22,000

PLZW 13 t

M42

295

28,600

33,000

57,200

66,000

28,600

40,340

42,980

60,620

28,600

28,600

PLZW 15 t

M48

442.5

33,000

33,000

66,000

66,000

33,000

46,730

49,600

70,100

33,000

33,000

1)

* WLL is horizontal in plane 1) Can be disassembled without tools Design factor 5:1 - for reference purposes only / Important: Subject to technical changes!

18

H S K X

Permitted directions of pull

n max.

Calculating the required thread length (L) L=H+S+K+X H = Material height S = Thickness of the washer K = Height of the nut (depending on the thread size of the screw) X = Excess length of the screw (twofold pitch of the screw) L max = n max

Customized and maximum thread lengths are supplied with a washer and crack-tested, corrosion protected nut.

Thread size Manufacturer’s code

Load Capacity (WLL)

Not-permitted direction of pull Torque Batch code

Markings on the screw Not-permitted because of resting against edge or loads Code

Thread (mm)

*n ** n max

WLL (kg)

a

b

c

e

g

h

k

Marked on lift. point

(mm)

(mm)

(mm)

(mm)

(mm)

(mm)

(mm)

(mm)

(mm)

(mm)

(mm)

Weight (kg/pc)

PLZW 0.4 t

M8

400

40

64

29

14

34

30

77

12

80

8

15

0.30

PLZW 0.63 t

M10

630

40

64

29

14

34

30

77

15

100

8

15

0.30

PLZW 0.95 t

M12

950

40

64

29

14

34

30

77

18

180

8

15

0.30

PLZW 1.8 t

M16

1,800

50

83

43

19

50

45

112

24

260

10

24

0.90

PLZW 2.5 t

M20

2,500

50

83

43

19

50

45

112

30

330

10

24

0.95

PLZW 4 t

M24

4,000

70

121

64

28

69

68

161

36

355

14

36

2.80

PLZW 6.3 t

M30

6,300

70

121

64

28

69

68

161

45

355

14

36

3.00

PLZW 10 t

M36

10,000

110

183

106

38

114

108

259

59

328

19

55

10.80

PLZW 13 t

M42

13,000

110

183

106

38

114

108

259

69

328

19

55

11.10

PLZW 15 t

M48

15,000

110

183

106

38

114

108

259

74

328

19

55

11.20

25.4 mm = 1 inch

Code

Thread (inch)

*n ** n max

WLL

a

b

c

e

g

h

k

(lbs)

(inch)

(inch)

(inch)

(inch)

(inch)

(inch)

(inch)

(inch)

(inch)

(inch)

(inch)

Weight (lbs/pc)

PLZW 0.4 t

M8

880

1.57

2.52

1.14

0.55

1.34

1.18

3.03

0.47

3.15

5/16˝

5/8˝

0.66

PLZW 0.63 t

M10

1,380

1.57

2.52

1.14

0.55

1.34

1.18

3.03

0.59

3.94

5/16˝

5/8˝

0.66

PLZW 0.95 t

M12

2,090

1.57

2.52

1.14

0.55

1.34

1.18

3.03

0.71

7.09

5/16˝

5/8˝

0.66

PLZW 1.8 t

M16

3,960

1.97

3.27

1.69

0.75

1.97

1.77

4.41

0.94

10.24

3/8˝

15/16˝

1.98

PLZW 2.5 t

M20

5,500

1.97

3.27

1.69

0.75

1.97

1.77

4.41

1.18

12.99

3/8˝

15/16˝

2.09

PLZW 4 t

M24

8,800

2.76

4.76

2.52

1.10

2.72

2.68

6.34

1.42

13.98

9/16˝

1- 3/8˝

6.16

PLZW 6.3 t

M30

13,860

2.76

4.76

2.52

1.10

2.72

2.68

6.34

1.77

13.98

9/16˝

1- 3/8˝

6.61

PLZW 10 t

M36

22,000

4.33

7.20

4.17

1.50

4.49

4.25

10.20

2.32

12.91

3/4˝

2 - 1/8˝

23.81

PLZW 13 t

M42

28,600

4.33

7.20

4.17

1.50

4.49

4.25

10.20

2.72

12.91

3/4˝

2 - 1/8˝

24.47

PLZW 15 t

M48

33,000

4.33

7.20

4.17

1.50

4.49

4.25

10.20

2.91

12.91

3/4˝

2 - 1/8˝

24.69

* “n” is standard bolt length ** “n max” is maximum bolt length - available special order only Design factor 5:1 - for reference purposes only / Important: Subject to technical changes!

19

winner profilift lifting points

PLEW Eta PLEW Weld-on Lifting Point

• Grade 100 lifting point approved for both OVERHEAD lifting and lashing • Can be loaded in any direction • Unique saddle design, with sling angle indicator grooves at 45° and 60°,

insures proper alignment, reduces installation time & labor • Patented integrated spring ensures the ring will remain at any required angle for one hand rigging • Traceable with serial number *Labeled WLL 1 Leg 0˚

1 Leg 90˚

2 Legs 0˚

2 Legs 90˚

2 Legs 30˚- 45˚

2 Legs 45˚- 90˚

3 & 4 Legs 3 & 4 Legs 30˚- 45˚ 45˚- 90˚

2 Legs asymm.

3 & 4 Legs asymm.

Code

(kg)

Working Load Limit (lbs)

PLEW 1.5 t

1,500

3,300

5,500

6,600

11,000

3,300

4,620

4,840

6,820

3,300

3,300

PLEW 2.5 t

2,500

5,500

8,800

11,000

17,600

5,500

7,700

8,140

11,660

5,500

5,500

PLEW 4 t

4,000

8,800

13,200

17,600

26,400

8,800

12,320

13,200

18,480

8,800

8,800

PLEW 6.7 t

6,700

14,740

22,000

29,480

44,000

14,740

20,680

22,000

31,240

14,740

14,740

PLEW 10 t

10,000

22,000

33,000

44,000

66,000

22,000

31,020

33.000

46,640

22,000

22,000

PLEW 19 t 1)

19,000

41,800

55,000

83,600

110,000

41,800

58,960

62,700

88,660

41,800

41,800

The spring only assists the weld-on process. It does not hold the ring in each position. * WLL is horizontal in plane Design factor 4:1 - for reference purposes only / Important: Subject to technical changes!

1)

c 180°

d f

b

e h

a Permitted directions of pull

Code

20

WLL (lbs)

l

a

b

c

d

e

f

h

l

Weight

(inch)

(inch)

(inch)

(inch)

(inch)

(inch)

(inch)

(inch)

(lbs/pc)

PLEW 1.5 t

3,300

1.26

1.49

2.56

0.55

2.56

1.57

0.98

1.38

0.71

PLEW 2.5 t

5,500

1.46

1.73

2.95

0.63

2.99

1.85

1.10

1.61

1.10

PLEW 4 t

1)

Permitted directions of pull

8,800

1.69

1.88

3.31

0.71

3.27

2.01

1.26

1.77

1.65

PLEW 6.7 t

14,740

2.28

2.36

4.21

0.94

4.25

2.52

1.73

2.20

3.75

PLEW 10 t

22,000

2.72

2.59

4.96

1.06

4.84

2.72

2.12

2.40

6.17

PLEW 19 t 1)

41,800

3.62

3.74

6.73

1.50

6.61

3.94

2.68

3.50

14.33

The spring only assists the weld-on process. It does not hold the ring in each position.

Design factor 4:1 - for reference purposes only Important: Subject to technical changes!

PLE/N Eta PLE/N Weld-on Lifting Point

• Grade 80 lifting point approved for both OVERHEAD lifting and lashing • Can be loaded in any direction • Patented spring positions load ring at any required angle for one hand rigging • Unique saddle design insures proper alignment, reduces installation

time & labor

*Labeled WLL 1 Leg 0˚

1 Leg 90˚

2 Legs 0˚

2 Legs 90˚

2 Legs 30˚- 45˚

2 Legs 45˚- 90˚

3 & 4 Legs 3 & 4 Legs 30˚- 45˚ 45˚- 90˚

2 Legs asymm.

3 & 4 Legs asymm.

Code

(kg)

Working Load Limit (lbs)

PLE/N 6

1,120

2,464

2,464

4,928

4,928

2,464

3,300

3,520

5,060

2,464

2,464

PLE/N 8

2,000

4,400

4,400

8,800

8,800

4,400

6,160

6,600

9,240

4,400

4,400

PLE/N 10

3,150

6,930

6,930

13,860

13,860

6,930

9,680

10,340

14,520

6,930

6,930

PLE/N 13

5,300

11,660

11,660

23,320

23,320

11,660

16,280

17,380

24,640

11,660

11,660

PLE/N 16

8,000

17,600

17,600

35,200

35,200

17,600

24,860

26,400

37,180

17,600

17,600

PLE/N 22

15,000

33,000

33,000

66,000

66,000

33,000

46,200

49,500

69,960

33,000

33,000

* WLL is horizontal in plane Design factor 4:1 - for reference purposes only / Important: Subject to technical changes!

c 180°

d f

b

e h

a Permitted directions of pull

Permitted directions of pull

l

WLL

a

b

c

d

e

f

h

l

Weight

(lbs)

(inch)

(inch)

(inch)

(inch)

(inch)

(inch)

(inch)

(inch)

(lbs/pc)

PLE/N 6

2,464

1.42

1.57

2.44

0.43

2.64

1.65

1.02

1.38

0.68

PLE/N 8

4,400

1.46

1.65

2.72

0.51

2.87

1.77

1.10

1.46

0.88

PLE/N 10

6,930

1.61

1.77

3.07

0.65

3.15

1.85

1.34

1.57

1.39

PLE/N 13

11,660

2.40

2.16

3.90

0.86

3.82

2.09

1.73

1.97

3.22

PLE/N 16

17,600

2.48

2.75

4.72

0.98

4.72

2.87

1.89

2.52

5.07

PLE/N 22

33,000

3.50

3.81

6.42

1.30

6.42

3.62

2.75

3.54

11.90

Code

Design factor 4:1 - for reference purposes only Important: Subject to technical changes!

21

winner profilift lifting points

PLEW-CR PLEW-CR CRYO

• Lashing point for welding in size 8,800 lbs.

• A spring holds the ring in place and simplifies hanging the lashing chain • Maximum lashing capacity WLL stamped on the product • Bracket can be fully loaded in every direction • Powder coated ring surface • Marked with serial number • Operating temperature down to -40 °F • Safety factor 4:1 Identification on weld-on block Load capacity (WLL)

Marking DGUV/BGR

Batch number

b 180°

c a

d e

h

g Permitted directions of pull

Code PLEW-CR 4t

Labeled WLL (kg)

WLL

a

b

c

d

e

g

h

l

Weight

(lbs)

(inch)

(inch)

(inch)

(inch)

(inch)

(inch)

(inch)

(inch)

(lbs/pc)

4,000

8,800

1.89

3.31

0.71

2.01

3.98

1.69

1.26

1.77

1.65

Design factor 4:1 - for reference purposes only Important: Subject to technical changes!

22

l

Permitted directions of pull

PLEW-LC PLEW-LC

• Lashing point for welding in sizes from 6,700 lbf (3,000 daN) to 44,900 lbf (20,000 daN) • A spring holds the ring in place and simplifies hanging the lashing chain • Maximum lashing capacity LC stamped on the product • Bracket can be fully loaded in every direction • Phosphated surface (instead of powder coating) • Marked with serial number • Operating temperature down to -4 °F • Safety factor 2:1

Identification on weld-on block Lashing capacity (LC)

Batch number

b 180°

c a

d e

h g Permitted directions of pull

l

Permitted directions of pull

Labeled Max. lashing capacity LC (daN)

Lashing Capacity (lbf)

a

b

c

d

e

g

h

l

Weight

(inch)

(inch)

(inch)

(inch)

(inch)

(inch)

(inch)

(inch)

(lbs/pc)

PLEW-LC 3000

3,000

6,700

1.50

2.56

0.55

1.57

3.11

1.26

0.98

1.38

0.71

PLEW-LC 5000

5,000

11,200

1.73

2.95

0.63

1.85

3.62

1.46

1.10

1.61

1.10

PLEW-LC 8000

8,000

17,900

1.89

3.31

0.71

2.01

3.98

1.69

1.26

1.77

1.65

PLEW-LC 13400

13,400

30,100

2.36

4.21

0.94

2.52

5.20

2.28

1.73

2.20

3.75

PLEW-LC 20000

20,000

44,900

2.60

4.96

1.06

2.72

5.91

2.72

2.13

2.40

6.17

Code

Design factor 2:1 - for reference purposes only Important: Subject to technical changes!

23

winner profilift lifting points

winner profilift lifting points Spare Parts PLMS screw nut • Often used for pewag winner lifting points with

customized lengths.

• Sizes M8 to M48, set includes a nut and washer.

The nut is crack-tested and manufactured according to DIN 980V in strength category 10.

M8 to M48

M56 to M100

Thread

Thread pitch P

SW

K

S

VPE

(mm)

(mm)

(mm)

(mm)

(mm)

(unit)

PLMS 8

M8

1.25

13

8

1.60

10

PLMS 10

M10

1.50

17

10

2

10

PLMS 12

M12

1.75

19

12

2.50

10

PLMS 14

M14

2

22

14

3

10

PLMS 16

M16

2

24

16

3

10

PLMS 18

M18

2.50

27

18

4

10

PLMS 20

M20

2.50

30

20

4

10

PLMS 24

M24

3

36

24

4

10

PLMS 30

M30

3.50

46

30

5

4

PLMS 36

M36

4

55

36

6

1

PLMS 42

M42

4.50

65

42

7

1

PLMS 48

M48

5

75

48

8

1

PLMS 56

M56

5.50

85

84

-

1

PLMS 64

M64

6

95

96

-

1

PLMS 72

M72

6

105

108

-

1

PLMS 80

M80

6

115

120

-

1

PLMS 90

M90

6

130

135

-

1

PLMS 100

M100

6

145

150

-

1

Code

SW

K

S

24

• Size M56 to M100, the nut is 1.5 times as long and is manufactured according to DIN 6331.

PLGS screw for PLGW Thread

VPE

(mm)

(unit)

PLGS 0.3t

M8

10

PLGS 0.5t

M10

10

PLGS 0.7t

M12

10

PLGS 1.5 t

M16

10

PLGS 2.3 t

M20

10

PLGS 3.2 t

M24

10

PLGS 4.9 t

M30

4

PLGS 7t

M36

1

PLGS 9 t

M42

1

PLGS 12 t

M48

1

Code

PLGES spare latches set Code

Accessory part for

VPE (pair)

PLGES 0.5t

PLGW 0.3t, PLGW 0.5 t, PLGW U 3/8

1

PLGES 0.7t

PLGW 0.7 t, PLGW U 1/2

1

PLGES 1.5 t

PLGW 0.5 t, PLGW U 5/8

1

PLGES 2.3 t

PLGW 2.3 t, PLGW U 3/4

1

PLGES 3.2 t

PLGW 3.2 t, PLGW U 1

1

PLGES 4.9 t

PLGW 4 t, PLGW 4.9 t, PLGW U 1-1/4

1

PLGES 7t

PLGW 7 t, PLGW U 1-1/2

1

PLGES 9 t

PLGW 9 t, PLGW U 1-3/4

1

PLGW 12 t

1

PLGES 12 t

25

winner profilift lifting points

PLAS screw for PLAW Thread

VPE

(mm)

(unit)

PLAS 0.3t

M8

10

PLAS 0.63 t

M10

10

PLAS 1 t

M12

10

PLAS 1.5 t

M16

10

PLAS 2.5 t

M20

10

PLAS 4 t 1)

M24

10

PLAS 6 t

M30

4

PLAS 8 t

M36

1

PLAS 10 t

M42

1

PLAS 15 t

M42

1

PLAS 20 t

M48

1

Thread

VPE

(mm)

(unit)

PLBS 0.3 t

M8

10

PLBS 0.6 t

M10

10

PLBS 1t

M12

10

PLBS 1.3 t

M14

10

PLBS 1.6t

M16

10

PLBS 2 t

M18

10

PLBS 2.5 t

M20

10

PLBS 3 t

M22

10

PLBS 4 t

M24

10

PLBS 5 t

M27

4

PLBS 6.3 t

M30

4

PLBS 8 t

M33

2

PLBS 10 t

M36

1

PLBS 12.5 t

M42

1

PLBS 15 t

M48

1

Code

1)

Only available for new model version

PLBS screw for PLBW Code

26

PLGIS Allen key set • Special Allen keys made to ease in the assembly of our

PLGW “Basic” version - M8 up to and including M20.

• The keys are marked with the size and the torque and are available as a complete set.

• Not required for the PLGW Supreme, which has Tool Free assembly

ALP thread adapter • The pewag thread adapter allows high-strength pewag lifting points (PLAW, PLBW, PLGW, PLDW) to be used on loads which often come with tapped holes for DIN-580 standard eyebolts.

• The thread adapter can be mounted using a commercial

open-jawed spanner; the pewag lifting point is then mounted according to the instruction manual. The permitted working load limit corresponds to the pewag lifting point fitted in the internal thread.

27

winner profilift lifting points

PIP Identification Plug PIP Identification Plug pewag lifting points come with pre-drilled holes for bright and colorful PIP Identification plugs. These plugs allow the added benefit of a quick visual identifier, making it easy determine when a lifting point was put in service or most recently inspected.

2020 2021 2022 2023

Customized Solutions Customized Solutions pewag develops safe and user-friendly solutions for your specific lifting challenges.

• Modifications to the thread - pipe thread, internal thread, or locking pin • Special versions - customized colors, reduced contact area, etc.

• Welded adaptations - welding hook, weldable lifting points on a screw-on plate, etc.

• 3D/CAD drawings available for equipment designers • pewag Academy training courses available

28

Lifting Point User Information General information and safety- specific information on usage, storage, inspection and maintenance of pewag winner lifting points.

General information pewag winner profilift lifting points are quality products that are suitable for a wide range of general lifting purposes, including different designs, types of load and application modes. For detailed information on designs and classification of load capacities, please refer to the tables in this catalog.

Responsibility is key If the pewag winner profilift lifting points are used correctly and by competent persons, they have a long lifespan and provide the highest possible safety standards. Material and personal damage can be avoided by reading this user information carefully and handling all lifting processes in a responsible, provident manner.

Please note that all operating manuals that come with the product must be complied with at all times!

Changes to the condition as delivered Only the original parts provided in the delivery may be used to complete the installation. Modifying the original condition by grinding, welding (with the exception of the weldable lifting points), drilling, stamping etc. is not permitted and means exposing yourself and others to unnecessary danger. In such a case, safety can no longer be guaranteed and usage becomes dangerous. pewag does not accept any liability in such cases.

Do not apply any surface coatings, i.e. do not subject parts to hot galvanizing or electrogalvanizing.

Cleaning processes that rely on dipping or removing a coating with chemicals are potentially dangerous processes that may give rise to hazards. We recommend consulting pewag prior to performing these processes. The welding seam of the weldable lifting points are best protected against corrosion by applying a varnish.

Detailed original operating manuals for individual products are available for download at pewagchain.com.

Our manuals are subject to a continuous improvement process to ensure that they are always up to date.

For this reason, always refer to the latest version of a manual.

Correct usage of the lifting points If used correctly, pewag winner profilift lifting points are safe and powerful. Please note that they may only be used by authorized personnel who have received sufficient training. Correct usage is subject to the following principles: The location point of the load must be chosen in such a way that the transmitted forces of the base material can be absorbed without any deformations. Prior to loading, the load bracket needs to be adjusted in the direction of pull. Non-permissible strains such as twisting or rotating the load must be avoided.

Please ensure that the lifting gear can be mounted and demounted without any risk of injury!

Damages to the load, lifting gear or lifting can be avoided by proper positioning. In cases where a single lifting point is used, this has to be mounted flat over the centre of gravity of the load.

When using two lifting points (2-leg chain sling), these have to be mounted symmetrically on both sides of the centre of gravity of the load. When using 3 or 4 lifting points (triple or quad leg chain sling), they must be mounted evenly on one level surrounding the centre of gravity of the load. Care must be taken to ensure that the load is evenly spread among the individual chain legs.

In case of asymmetrical load distribution, the load capacity must be reduced in accordance with the load capacity table supplied. This may result in having to use a lifting point of the next highest load capacity. Use of acids and caustic solutions or exposure to their vapours is not permitted. Please be aware of this requirement at all times as certain production processes release acids and/or vapours! The load capacity will also be reduced if the lifting points are exposed to higher temperatures.

Please comply with the supplied operating instructions at all times. For further information, please contact the pewag technical service team.

Screwable lifting points We recommend the following minimum screw thread depth: • 1 x M for steel (M = thread size, for instance M16) • 1.25 x M for cast steel • 2 x M for aluminium To ensure safe usage, the thread size and thread length for materials of lower strength, like light metals, non-ferrous metals or cast iron, must be chosen in such a way that the occurring loads may be absorbed by the lifting point. Impact loading or vibration may cause the screw to become loose. To avoid this, apply a liquid threadlock such as Loctite.

29

winner profilift lifting points

If using additional tools of this sort, please follow the manufacturer’s instructions. pewag accepts no liability if components are used that are not part of the pewag range (e.g. screws).

Please check the following points prior to each usage: • All screws are sufficiently tightened and the fastening torque corresponds to that specified in the operating manual • The lifting point is complete, i.e. no components are missing • The stamp of the lifting point is clearly legible • The lifting point shows no signs of damage such as notches, cracks, deformations, wear, strong corrosion, surface cracks on load-bearing parts, noticeable signs of excessive heat exposure (such as burnt varnish, discolouration of the base material) • The rotatable lifting points may be rotated freely and smoothly In addition, check before each assembly: • Screws and threads are not damaged • Screw size, screw grade and screw depth are correct The supplied operating manual must be complied with at all times!

If in doubt or in case of visible damage, the lifting point must be decommissioned and inspected by a competent person.

This also applies to unusual events, for instance uncontrolled exposure to heat.

Weldable lifting points For welding, the following instructions apply: • All welding processes must be performed by a qualified welder according to EN ISO 9606-1 • The material of the weldable lifting points can be obtained from the enclosed operating manual • The surface of the welding area must be thoroughly cleaned before welding. Rust and scale, paint, oil or similar must be removed • Contact between the coated bracket and the welded material must be avoided Please check the following points prior to each usage: • The stamp of the lifting point is clearly legible • The lifting point shows no signs of damage such as notches, cracks, deformations, wear, strong corrosion, surface cracks on load-bearing parts, noticeable signs of excessive heat exposure on the coated bracket (such as burnt varnish, discolouration of the base material) • No surface cracks or damage along the welding seam 30

The supplied operating manual must be complied with at all times!

If in doubt or in case of visible damage, the lifting points must be decommissioned and inspected by a competent person.

This also applies to unusual events, for instance uncontrolled exposure to heat.

Correct maintenance The maintenance of pewag winner profilift lifting points must be performed by competent persons. Improper use or use by unauthorised persons must be avoided at all times.

Prevention is better than the cure!

Prior to using a lifting point, it must verified whether the lifting point was inspected every 12 months by a competent person and in accordance with applicable national standards. If the chain sling is frequently used at its full load capacity, more frequent inspections are required! Al inspections must be documented, in particular with regard to results and servicing activities. These records must be kept throughout the service life of the lifting points. A sample for the documentation can be dowloaded from www.pewagchain.com.

Clean storage pewag winner profilift lifting points must always be stored in a clean and dried condition and protected against corrosion, i.e. slightly lubricated. The thread shafts must be protected from damage using appropriate means.

Important With the exception of the RGS eyebolt, all pewag winner profilift lifting points may also be used as lashing points. The admissible lashing capacity is double the nominal load capacity, as a 2-fold safety factor applies to the securing of loads. For the PLBW lifting points, a 2.5-fold safety factor applies as lifting operations require a safety factor of 5. We recommend consulting the pewag technical service prior to using the lifting points as lashing points.

Example: PLE/N 8 = 2,000 kg load capacity for lifting operations.

As lashing point LC = 4,000 daN admissible lashing capacity.

Please refer to our website www.pewag.com for detailed information on load capacities, measures and 3D models (section Lifting/Lifting Points). Each lifting point comes with a detailed operating manual in two languages.

pewag Industrial Products Terms and Conditions • TERMS:

Net 30 days - Credit must be established with pewag Inc. All other - cash in advance.

• FREIGHT POLICY - USA & Canada

pewag Inc. shipments, including Terrier Lifting Clamps, over 1,500 lbs. or $4,000.00 within the continental United States or Provincial Canada are prepaid. Carrier at the discretion of pewag.

Shipments under 1,500 lbs. or $4,000.00 will be prepaid and added to the invoice.

Minimum order of $25.00 For all shipments to Canada, customer will be responsible for duties and taxes.

• PRICES:

All prices are shown in US Dollars, order will be accepted subject to prevailing prices at time of order. Prices are subject to change without notice.

• RETURN GOODS:

pewag Inc./Terrier Lifting Clamps: Please note that we will accept returns only after a return merchandise authorization has been obtained. Items must be in new condition, unused in original packaging, with manuals and certifications. NO merchandise will be accepted without prior written authorization. Items must be returned to pewag within 120 days from the day shipped NO returns accepted after 120 days. All returns are subject to a 25% (35% if manuals and certifications are not returned) restocking/handling charge, which will be deducted from the amount of the credit memo.

Returned shipments must be prepaid. Collect or unauthorized shipments will be refused.

• CHAIN SLINGS AND SPECIALTY/CUSTOM ITEMS:

Specialty items, cut chain, and chain slings are custom items and are NONRETURNABLE, NONCANCELLABLE, and NONREFUNDABLE.

• FOR ALL OTHER PEWAG TERMS AND CONDITIONS OF SALE: https://www.pewagchain.com/footer/service/terms-and-conditions/

Disclaimer for Printed Literature: The information contained in our catalog is to be used only as a guide to assist with product selection. pewag Inc. makes no representation or warranty as to the completeness or accuracy of the information contained in our catalog. The products and specifications set forth in our catalog are subject to change without notice and pewag Inc. disclaims any and all liability for such changes. The information contained in our catalog is provided without warranties of any kind, either express or implied, and pewag Inc. disclaims any and all liability for typographical, printing, or production errors or changes affecting the products and/or the specifications contained in our catalog. It is the responsibility of the customer to thoroughly analyze all aspects of the customers’ proposed application for the products. Due to the diversity of possible applications of pewag Inc. products, the customer is solely responsible for making the final selection of the product(s) to be used and to assure that all performance, safety and warning requirements of the application are satisfied.

31

pewag, Inc

630-566-1394

sales@pewagchain.com pewagchain.com

LPCAT/09/2022
