levo Contents levo hook LH ................................................................................................................................ 4- 5 levo clamp LC ............................................................................................................................. 6 -7 levo Options, Parts & Accessories ................................................................................... 8- 9 User Information Compliance Standards .......................................................................................................... 10 Terms and Conditions ............................................................................................................ 11

3

pewag levo

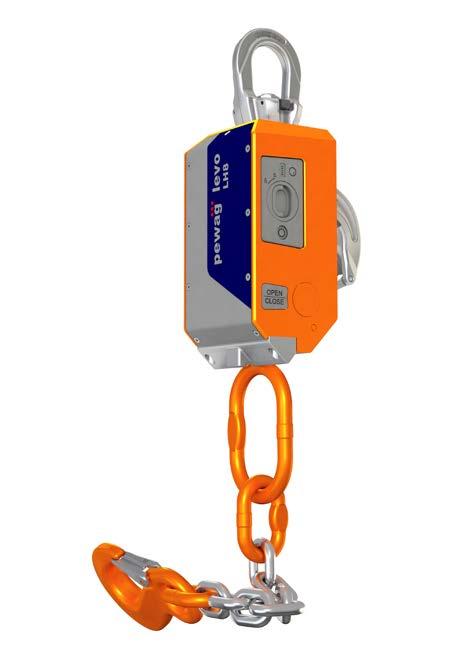

levo hook LH

A new generation of lifting devices The manual process of attaching and releasing hooks requires a great deal of time and resources. Automation is the key, that’s where pewag provides an answer!

The pewag levo hook is available in sizes LH5, LH8, LH16, and LH32. pewag’s levo hook is the all-in-one solution for efficient work processes, worker safety, and satisfied employees. The use of our TÜV-certified levo hook improves your work cycle time while reducing risks to the user and the load.

Thanks to its powerful features, the pewag levo hook LH allows for automated attaching and releasing of loads.

It supports operators in difficult working conditions, for instance when working at height or in hazardous conditions.

In the workplace, operator safety should be the top priority at all times. The pewag levo hook LH makes this a reality.

Operated by secure radio-control, the levo hook swivels to allow for quick and efficient hook up and release of the load without manual assistance, when equipped with the optional magnet. pewag offers on-the-job training online/offline through pewag academy as well as pewag levo manager for efficient after sales service. A Yearly inspection by pewag or from a pewag authorized service partner is recommended.

4

Innovative. Reliable.

Radio-controlled.

• Reduces manpower, loads no longer need to be attached and removed manually • Accidental opening of the pewag levo hook is not possible • Provides operator support when working at elevated heights or underground • Withstands temperatures that put a strain on the user (-4°F to 140°F / -20°C to 60°C) • Minimizes hazards and exposure risks from odorless gases, radiation, and other unknown conditions

Basic configuration.

Optional equipment.

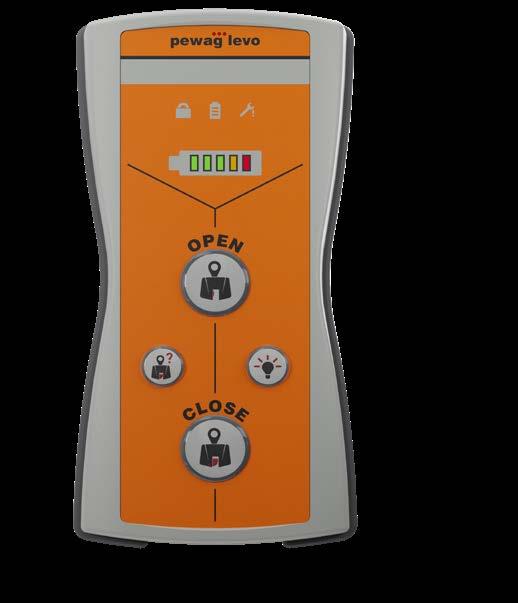

Practical remote

Magnetic module with sensor for automatic load pickup

Lighting module fully illuminates work area

pewag levo manager comprehensive software Optional weighing module available

Multiloading Adapter to operate up to 10 charging stations in one line

pewag levo hook LH5, 8,16, or 32 equipped with battery, temperature sensor and data logger, peTAG (for clear product identification) and operating manual

Charging station

Safe & Secure (ISO 13849)

Accidental opening of the levo hook under load is not possible, there is a secured communication between the hook and the remote control.

Design Factor 4:1- for reference purposes only

pewag quality

Patented tool-free locking of the rotation lock, tool-free initial mounting, TÜV-certified, pewag know-how

Complete range of services

On-the-job and e-learning training, pewag expert support and repair, USA based

Cost and time savings thanks to expedited work processes

$

Up to 8,000 operating cycles without a break, hook opens and closes within 2.5 seconds WLL

e

a

b1

b2

d

d1

d2

g

h

h1

w

Weight

(lb)

(inch)

(inch)

(inch)

(inch)

(inch)

(inch)

(inch)

(inch)

(inch)

(inch)

(inch)

(lbs/pc)

LH 5

11,000

18.11

1.26

6.14

8.66

1.18

2.13

2.40

0.86

20.79

1.81

5.59

44

LH 8

17,600

18.11

1.26

6.14

8.66

1.18

2.13

2.40

0.86

20.79

1.81

5.59

44

LH 16

35,000

23.98

1.93

8.94

14.02

1.97

3.39

4.06

2.32

27.91

2.52

8.43

130

LH 32

70,000

26.22

2.44

10.20

16.18

1.97

4.65

6.22

2.40

31.97

3.58

4.43

174

Code

5

pewag levo

levo clamp LC

Automation and Increased Safety Automation and user safety play an increasingly important role in today‘s work market. Processes such as the lifting of steel plates and fabrications are a potential hazard for persons and material, that’s where pewag provides an answer!

The pewag levo clamp LC - the first vertical lifting clamp in a new generation of remotely operated lifting devices.

The pewag levo clamp LC is designed to increase efficiency, improve performance, and maximize production while reducing risk. The pewag levo clamp LC allows the lifting and lowering of steel plates and fabrications from a safe distance using a remote control.

Thanks to our special user software (pewag levo manager), it is now also possible to configure the pewag levo clamp LC and to evaluate statistical data relating to lifting operations.

The levo clamp LC

Spotlight on Safety.

• Provides support when working at heights or in areas that are difficult to access • Enables the targeted use of personnel resources operator of lifting equipment may lift and release load independently.

• Levo Clamp LC is sealed and protected against water and dust according to IP65 • Withstands temperatures that put a strain on the user (-4°F to 140°F / -20°C to 60°C) • Suitable for lifting and transporting steel plates with a maximum hardness of 37 HRC (345 HB) • Minimum WLL is 10% of the Maximum WLL

Operator and material safety is our top priority at all times.

To ensure safety during lifting operations, a premium tool is required that is easy to use and safe to operate. The pewag levo clamp LC was developed specifically for this challenge and makes it possible to lift loads remotely.

Safe and secure

Protection against unintentional opening, secure communication between the clamp and the remote (ISO 13849) safety factor 4:1- for reference purposes only

Outstanding pewag quality

TÜV-certified, tried and tested pewag expertise

Full range of services (on-the-job training)

Ongoing E-learning, sales, repair, training, and technical support

$ 6

Cost and time savings thanks to speedy work processes

Up to 2,000 operating cycles without interruption, opening/closing within 2 seconds

Basic configuration.

Optional equipment.

pewag levo manager • servicing • data evaluation for all lifting processes

Workspace lighting improved visibility of the work area

pewag levo clamp LC 3 tons standard version includes battery, temperature sensor and data recorder, peTAG (for clear product identification), and operating manual

Multiloading Adapter charges up to 10 batteries at one time

Charging station

Easy-to-use remote control unit

y

t

u

s w

x

R v

Code

WLL

Jaw width R

t

s

w

v

u

y

x

Weight (approx.)

(lb)

(inch)

(inch)

(inch)

(inch)

(inch)

(inch)

(inch)

(inch)

(lbs/pc)

LC 3

6,600

0 - 1.37

2.75

3.77

4.52

10.74

14.01

0.62

5.71

42

7

pewag levo

levo Options, Parts & Accessories levo hook LH Options Code

Code

levo hook 5t Basic

levo hook 16 t Basic

levo hook 5t + Weight Module

levo hook 16 t + Weight Module

levo hook 5t + Weight & Magnet Module

levo hook 16 t + Weight & Magnet Module

levo hook 5t + Weight, Magnet & Light Module

levo hook 16 t + Weight, Magnet & Light Module

levo hook 5t + Light Module

levo hook 16 t + Light Module

levo hook 5t + Weight & Light Module

levo hook 16 t + Weight & Light Module

levo hook 5t + Magnet Module

levo hook 16 t + Magnet Module

levo hook 5t + Magnet & Light Module

levo hook 16 t + Magnet & Light Module

levo hook 8t Basic

levo hook 32 t Basic

levo hook 8t + Weight Module

levo hook 32 t + Weight Module

levo hook 8t + Weight & Magnet Module

levo hook 32 t + Weight & Magnet Module

levo hook 8t + Weight, Magnet & Light Module

levo hook 32 t + Weight, Magnet & Light Module

levo hook 8t + Light Module

levo hook 32 t + Light Module

levo hook 8t + Weight & Light Module

levo hook 32 t + Weight & Light Module

levo hook 8t + Magnet Module

levo hook 32 t + Magnet Module

levo hook 8t + Magnet & Light Module

levo hook 32 t + Magnet & Light Module

levo clamp LC Options Code levo LC3 Lifting Clamp 915.5 levo LC3 Lifting Clamp + Light 915.5

8

levo hook LH Parts & Accessories

levo clamp LC Parts & Accessories

Code

Code

levo Manager Dongle

levo Manager Dongle 915.5 Mhz

levo Multiloading Adapter

levo Multiloading Adapter

levo Hook Weight Adapter

levo Light Module

levo Hook Magnet Module

levo Charging Station

levo Hook Light Module

levo Standard Remote Control 915,5

levo Charging Station

levo Rechargeable Battery

levo Hook Standard Remote Control

levo Power Cable GB

levo Power Cable U.S.

levo Power Cable US

levo Hook Lanyard

levo LH Lanyard

levo Rechargeable Battery

levo Pivot set 1.5 - 3 T

levo Hook Replacement Hook

levo Cam assy (E) 2 - 3 T

levo Set Battery & Screws

levo Cam pin 3 T

levo Hook Set Front Cover & Screws

levo Shackle pin 1.5 - 3 T

levo Hook Rear Cover & Screws

levo Lock spring 1.5 - 3 T

levo Hook Main Electronics

levo Locking set LC 3

levo Hook Motor Unit levo Hook Gear & Coupling levo Hook Axle & Screws levo Hook Safety Latch Kit levo PLGW Lifting Eye levo Limit Switch Set levo Temperature Sensor Set levo Open/Close Button

9

pewag levo

levo User Information

10

The pewag levo hook LH complies to the following standards:

The pewag levo clamp LC complies to the following standards:

Mechanical components: • ISO 9001 • EN 1677 • EN10204 3.1.B • Machinery Directive 2006/42/EG • ASME B30.10 • CSA - C22.2 No. 14 • UL 508

Standards applied: • ASME B30.20 • CSA C22.2 No. 14 • ISO 9001 • UL 508 • EN 13155 • EN10204 3.1 B • Machinery Directive 2006/42/EG

Electronic components: • ISO 12100 • ISO 13849-1 • ISO 13849-2 • EN 55011/22 • EN 61000-4-2 • EN 61000-4-3 • EN 61000-4-8 • EN 61000-6-4 • EN 61000-6-2 • FCC, 47 CFR Part 15 • EN 300220-2 • IC RSS-247

Electronic components: • ISO 12100 • ISO 13849-1 • ISO 13849-2 • EN 55011/22 • EN 61000-4-2 • EN 61000-4-3 • EN 61000-4-8 • EN 61000-6-4 • EN 61000-6-2 • FCC, 47 CFR Part 15 • EN 300220-2 • IC RSS-247

Standards for charger: • IEC 60335 • EN 55014-1 • EN 55014-2 • EN 61000-3-2 • EN 61000-3-3

Standards for charger: • IEC 60335:1 • IEC 60335:2 • EN 55014-1 • EN 55014-2 • EN 61000-3-2 • EN 61000-3-3

pewag Industrial Products Terms and Conditions • TERMS:

Net 30 days - Credit must be established with pewag Inc. All other - cash in advance.

• FREIGHT POLICY - USA & Canada

pewag Inc. shipments, including Terrier Lifting Clamps, over 1,500 lbs. or $4,000.00 within the continental United States or Provincial Canada are prepaid. Carrier at the discretion of pewag.

Shipments under 1,500 lbs. or $4,000.00 will be prepaid and added to the invoice.

Minimum order of $25.00 For all shipments to Canada, customer will be responsible for duties and taxes.

• PRICES:

All prices are shown in US Dollars, order will be accepted subject to prevailing prices at time of order. Prices are subject to change without notice.

• RETURN GOODS:

pewag Inc./Terrier Lifting Clamps: Please note that we will accept returns only after a return merchandise authorization has been obtained. Items must be in new condition, unused in original packaging, with manuals and certifications. NO merchandise will be accepted without prior written authorization. Items must be returned to pewag within 120 days from the day shipped NO returns accepted after 120 days. All returns are subject to a 25% (35% if manuals and certifications are not returned) restocking/handling charge, which will be deducted from the amount of the credit memo.

Returned shipments must be prepaid. Collect or unauthorized shipments will be refused.

• CHAIN SLINGS AND SPECIALTY/CUSTOM ITEMS:

Specialty items, cut chain, and chain slings are custom items and are NONRETURNABLE, NONCANCELLABLE, and NONREFUNDABLE.

• FOR ALL OTHER PEWAG TERMS AND CONDITIONS OF SALE: https://www.pewagchain.com/footer/service/terms-and-conditions/

Disclaimer for Printed Literature: The information contained in our catalog is to be used only as a guide to assist with product selection. pewag Inc. makes no representation or warranty as to the completeness or accuracy of the information contained in our catalog. The products and specifications set forth in our catalog are subject to change without notice and pewag Inc. disclaims any and all liability for such changes. The information contained in our catalog is provided without warranties of any kind, either express or implied, and pewag Inc. disclaims any and all liability for typographical, printing, or production errors or changes affecting the products and/or the specifications contained in our catalog. It is the responsibility of the customer to thoroughly analyze all aspects of the customers’ proposed application for the products. Due to the diversity of possible applications of pewag Inc. products, the customer is solely responsible for making the final selection of the product(s) to be used and to assure that all performance, safety and warning requirements of the application are satisfied.
