pewag winner pro G12/Grade 120 Catalog

pewag winner pro G12/Grade 120 Chains and Components

G12/Grade 120 winner pro

History

At the core of chain innovation since 1479 pewag is one of the oldest chain manufacturers in the world and the company’s history goes back over 535 years when the first production facility was established in the town of Brückl, Austria in 1479. With over 535 years of engineering and manufacturing know-how, pewag has continued its research and development to provide the highest-quality innovative chain products to the market.

The pewag brand is well known for premium-quality chain products around the world and is well established as a global market leader. Today, pewag is the technological innovator in the high quality chain business. Stringent demands are placed on all employees to ensure high standards of quality.

Timetable of important events 1479

First documented references of a forging plant in Brückl

1787

Founding of a chain forge in Kapfenberg

1803

Founding of a chain forge in Graz

1836

pewag products

Establishment of an iron casting plant in Brückl

The pewag group has a substantial and diverse spectrum of products and services.

• Industrial Lifting Chains & Components • Traction Chains

(cars, trucks, special purpose vehicles)

• Tire Protection Chains (mining vehicles) • Conveyor and Hoist Chains & Components • Security Chains

1912 1923

Merger of plants in Graz and Kapfenberg Creation of the name“pewag”

Production of the first Snow Chain worldwide

1947

Production of the first Tire Protection Chain

1975

Contact pewag, Inc 600 W. Crossroads Parkway Bolingbrook, IL 60440 P: 630.566.1394 F: 630.759.0788 sales@pewagchain.com pewagchain.com 2

Established pewag Inc. the North American Distribution Company

2013 2014

pewag opens first chain production plant outside Europe in Pueblo, CO pewag acquires Terrier Lifting Clamps

Creation of pewag Mexico

2015

pewag is the first producer of Friction Welded Chains

G12/Grade 120 winner pro Contents Features and Benefits ................................................................................................................. 4 Lifting Chain winner pro 300 / G12/Grade 120 Lifting Chain ........................................................................ 5 winner pro 200 / G12/Grade 120 Lifting Chain ........................................................................ 5

Master Links & Sub Assemblies AWP / Master Link.......................................................................................................................6 MWP / Enlarged Master Link .................................................................................................... 6 VMWP / Enlarged Master Link Assembly ................................................................................. 7 VLWP 1 / Oversize Master Link Assembly..................................................................................7 VLWP 2/4 /Oversize Master Link Assembly................................................................................8 ISWP / Shortening Element.........................................................................................................8

Lifting Accessories CWP / Connex Connecting Link .............................................................................................. 9 HSWP / Eye Sling Hook ........................................................................................................... 9 LHWP / Eye Safety Hook ........................................................................................................ 10 PWP / Eye Grab Hook ............................................................................................................. 10 PSWP / Eye Grab Hook w/Safety Pin .................................................................................... 11 KHSWP / Clevis Sling Hook ................................................................................................... 11 KLHWP / Clevis Safety Hook.................................................................................................... 12 KPWP / Clevis Grab Hook ...................................................................................................... 12 KLHGWP / Oversized Clevis Safety Hook .............................................................................. 13 CHWP / Container Hook Set ................................................................................................... 13 AGWP / Load Distributor.......................................................................................................... 14

Lashing winner pro G12/Grade 120 Lashing ........................................................................................

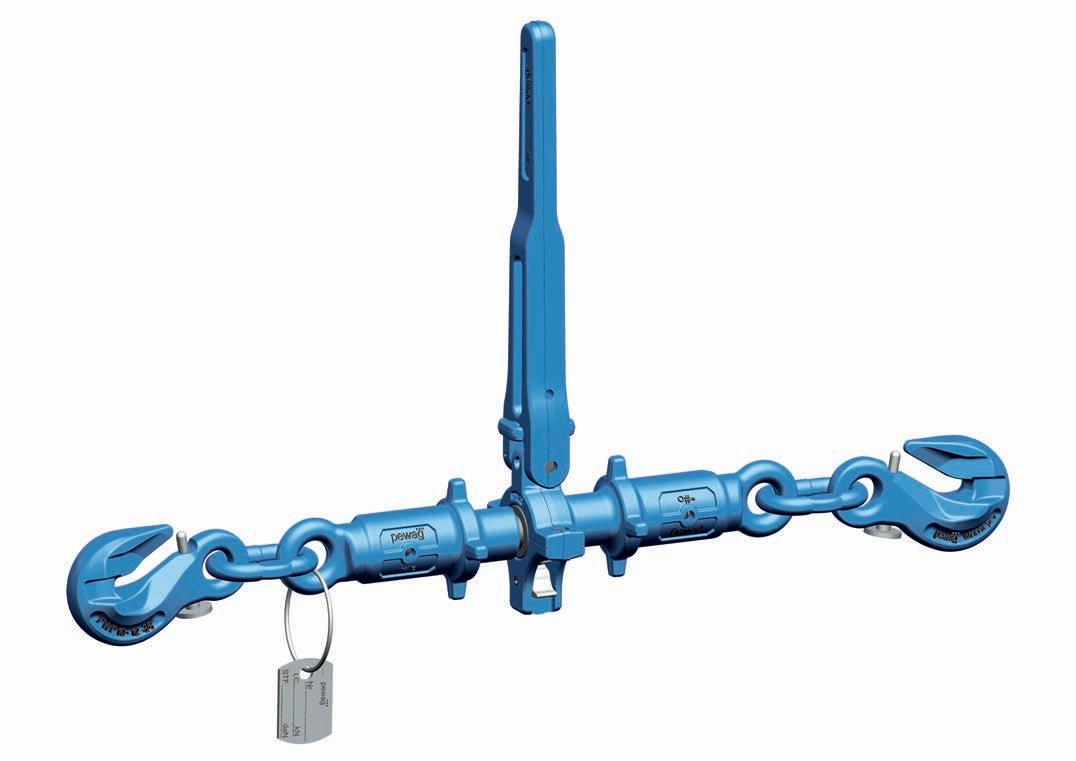

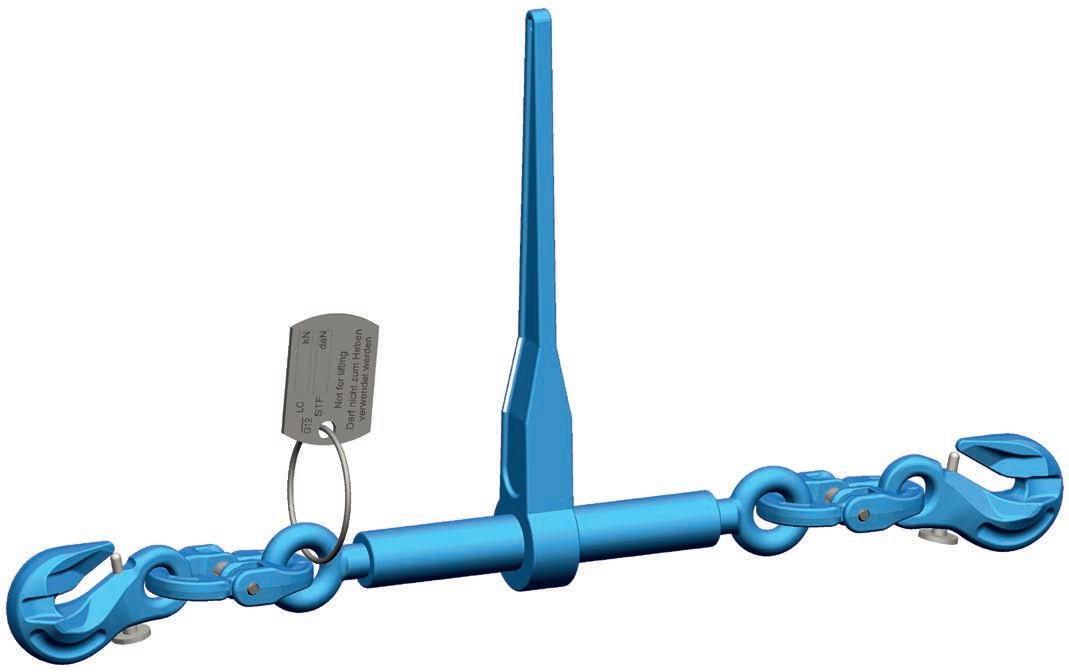

RSWP/ Load Binder ................................................................................................................

RPSWP/ Load Binder ..............................................................................................................

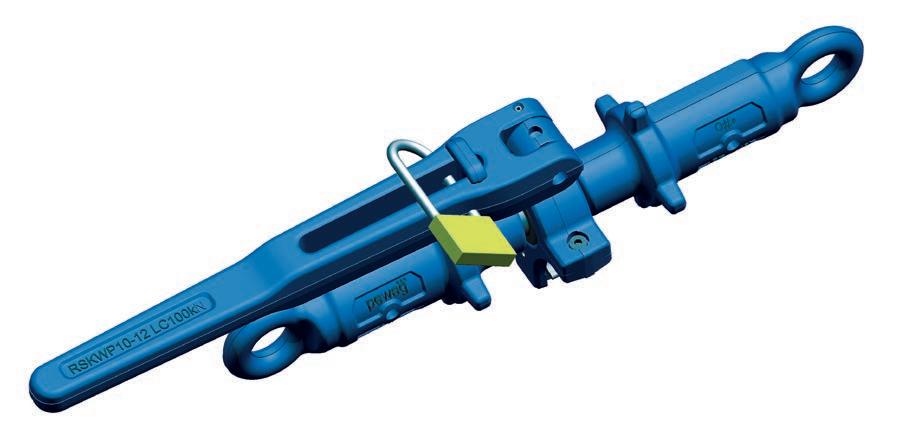

RSKWP/ Load Binder ..............................................................................................................

RSPSWP/ Load Binder ............................................................................................................

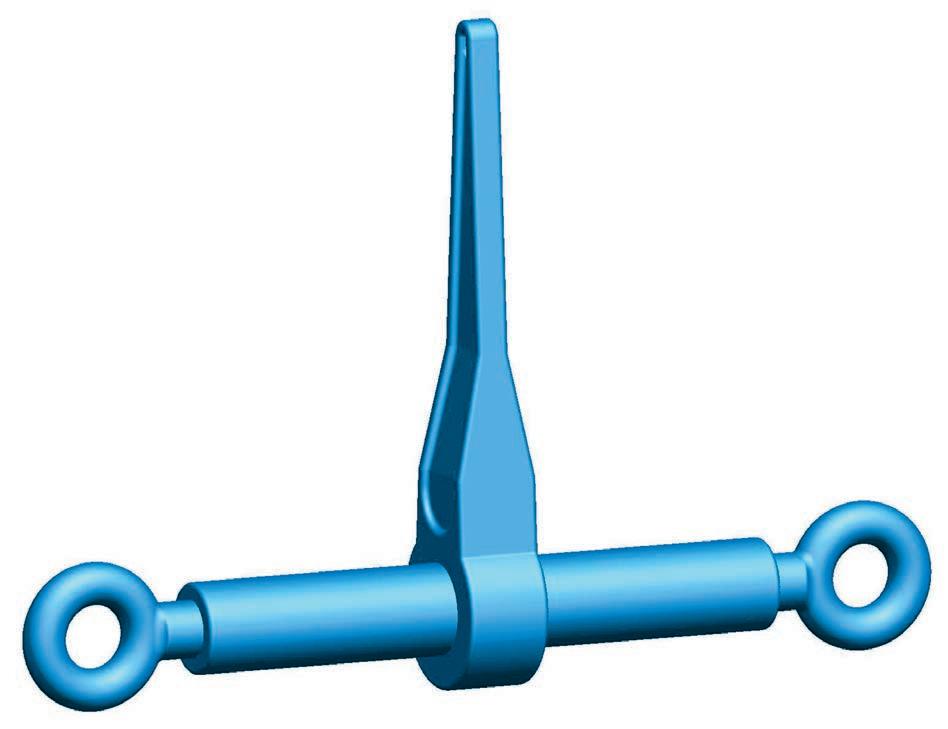

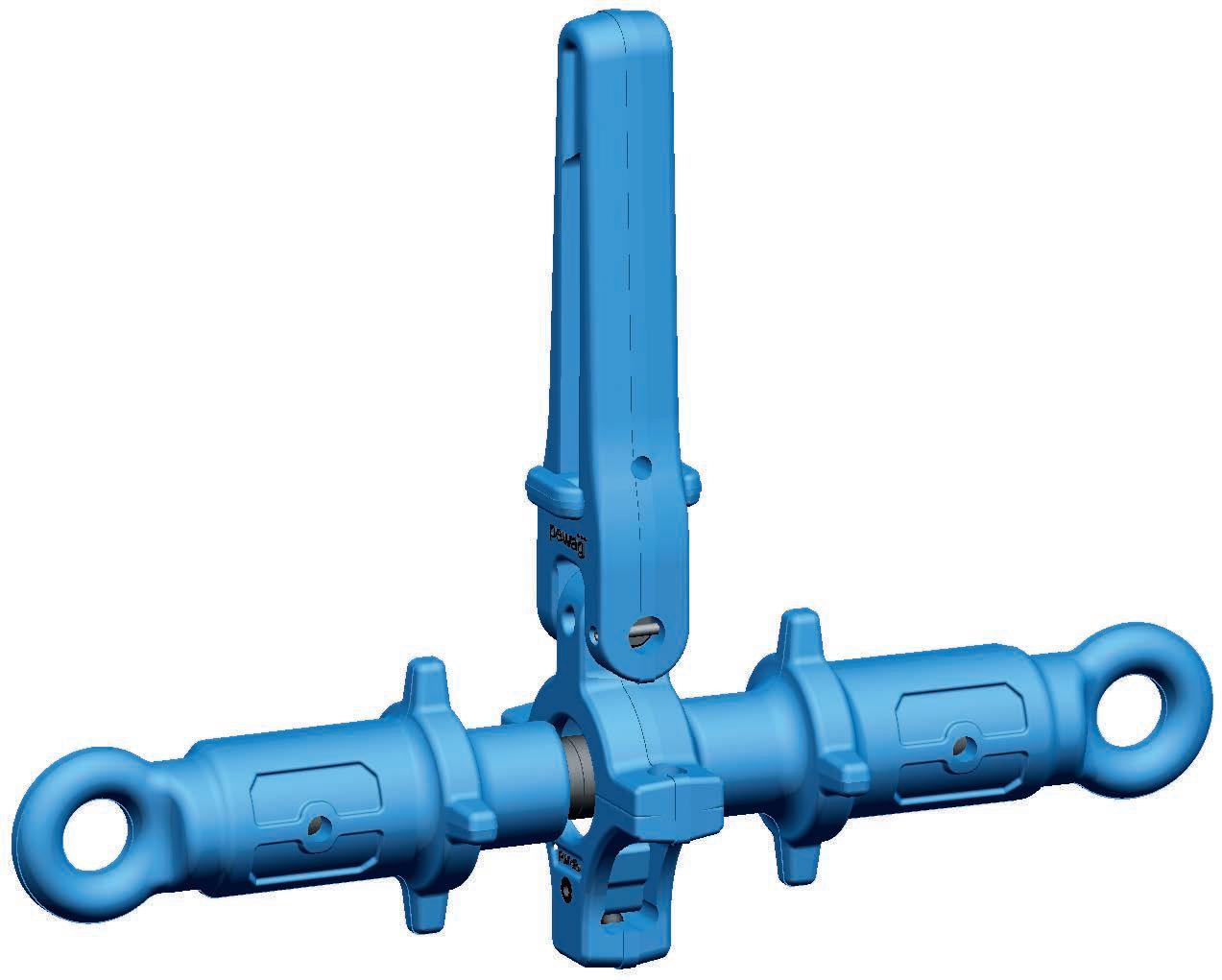

KSPSWP/ Ratchet Binder ........................................................................................................

15 16 16 17 18 18

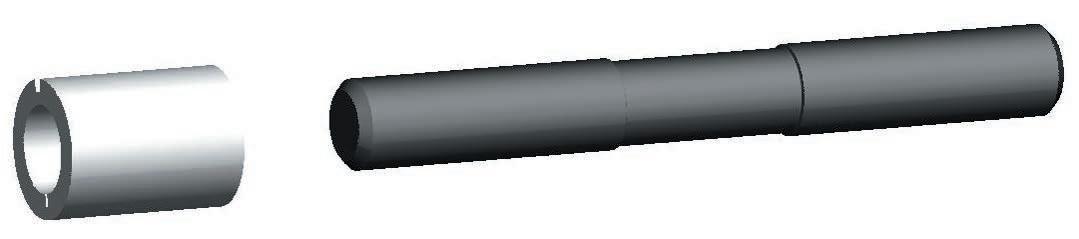

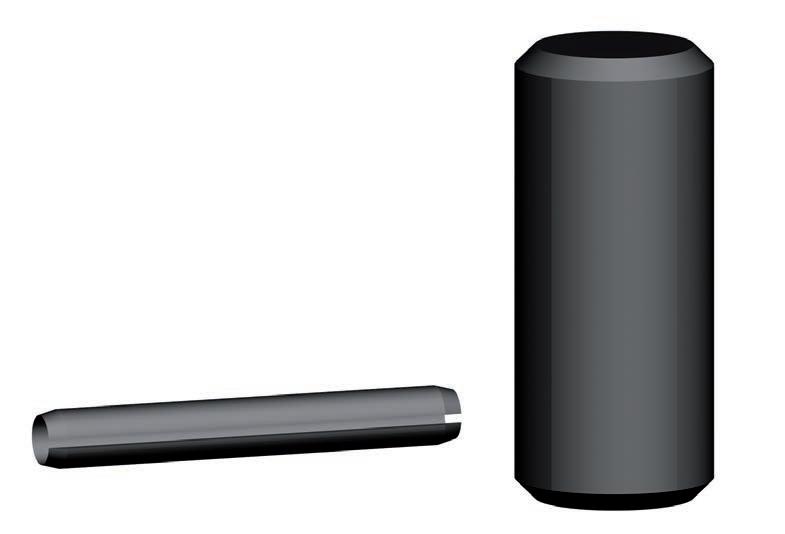

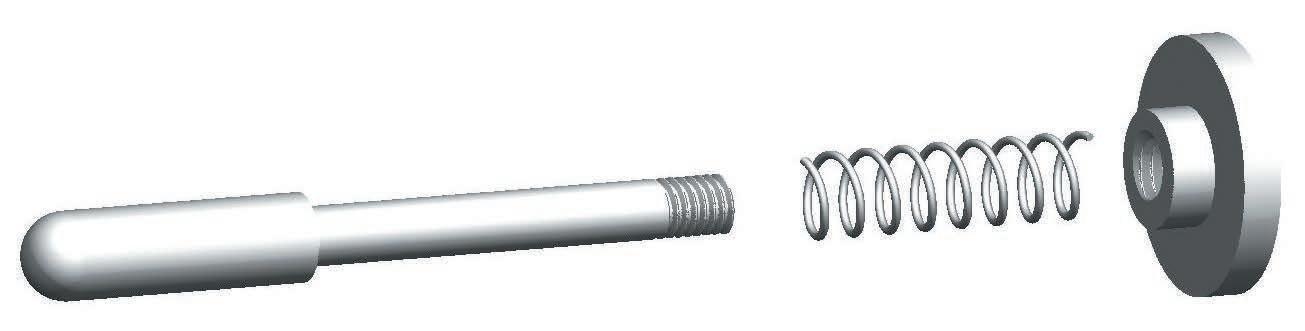

Spare Parts CBHWP / Connex Pin and Bushing Set ................................................................................

KBSWP / Clevis Load Pin........................................................................................................

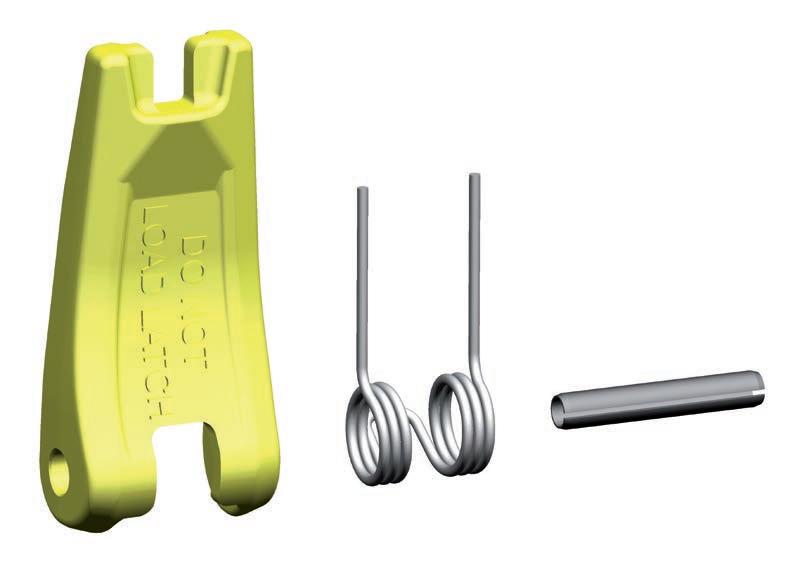

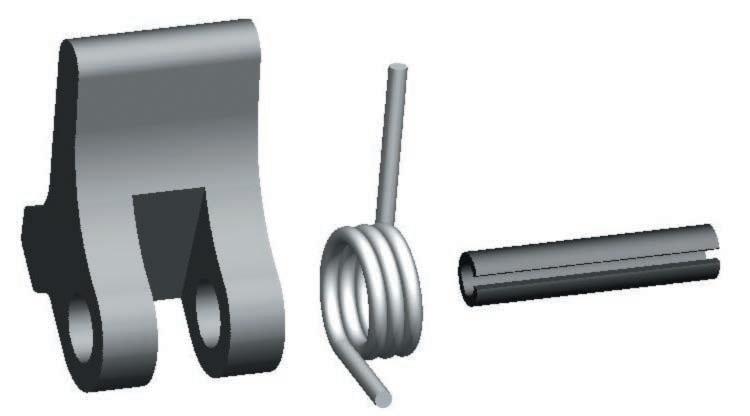

SFGWP / Safety Latch Set .....................................................................................................

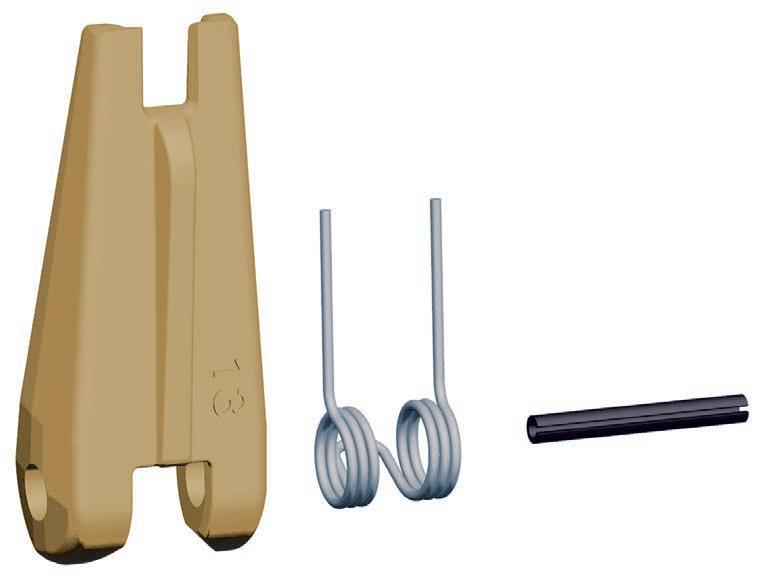

SFGWP-K / Safety Latch Set .................................................................................................

VLHWP / Trigger Set ..............................................................................................................

PSGWP / Safety Catch ...........................................................................................................

19 19 20 20 21 21

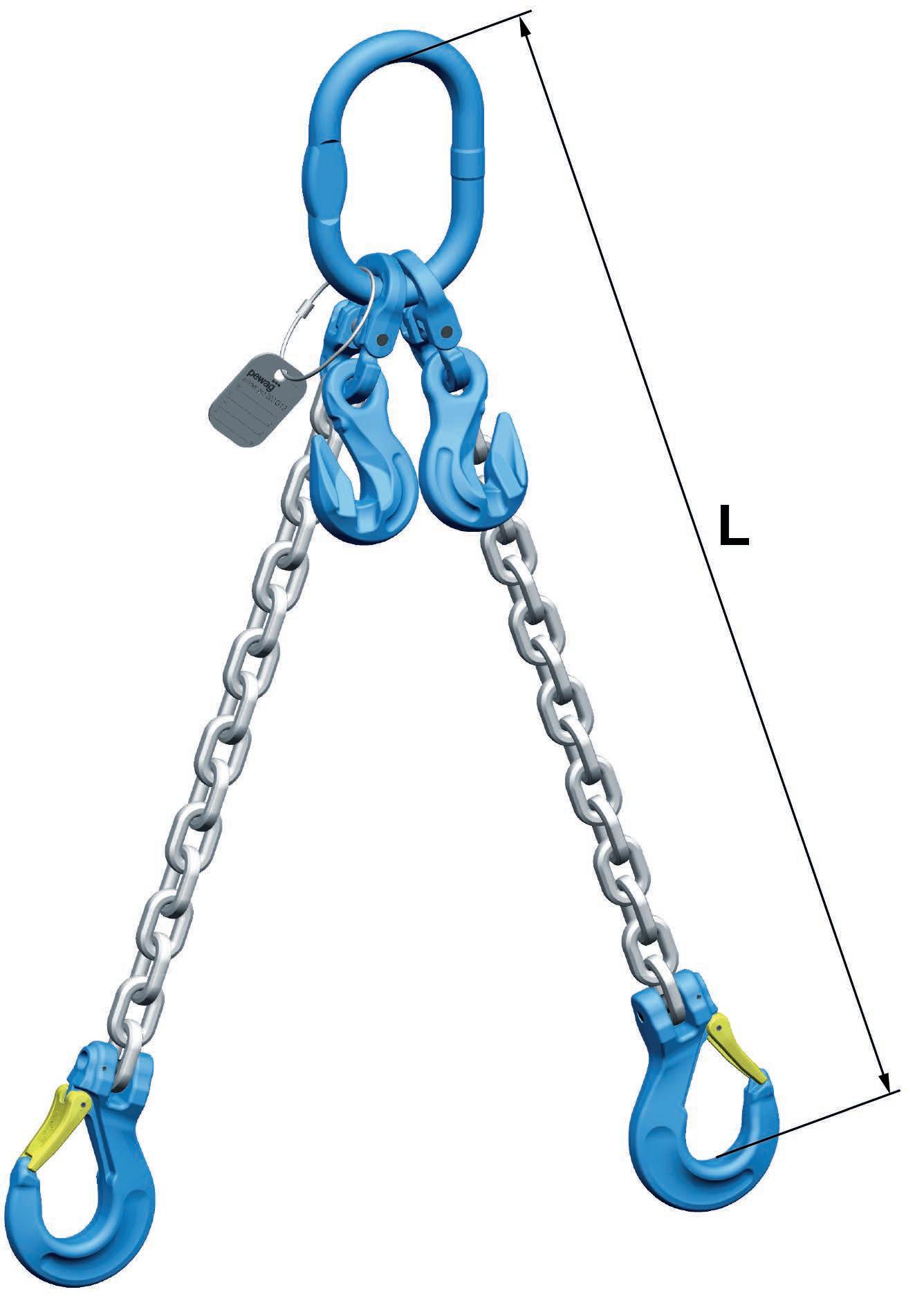

G120 Slings Choosing a Sling...................................................................................................................... 22 Sling Types .............................................................................................................................. 23 Chain Slings Working Load Limit....................................................................................... 24-25

User Information ..................................................................................................................... 26-29 Terms and Conditions ............................................................................................................ 30 3

G12/Grade 120 winner pro

G12/Grade 120 winner pro Features and Benefits

Uniqueness. Safety. Sustainability. pewag is the first chain manufacturer worldwide to offer an innovative G12/Grade 120 chain system. pewag is proud of its pioneering role when it comes to the production of lifting chains. The pewag name rests on outstanding quality features that are also the core element of our G12/Grade 120: Given the 50% increase in load capacity compared to standard Grade 80, the G12/Grade 120 range is significantly lighter, resulting in numerous advantages for routine lifting operations.

The specially developed chain profile leads to an improved bending resistance, which is particularly helpful when loading the chain over a corner.

• Your benefits at a glance:

• 50% higher load capacity compared to Grade 80 • 20% higher load capacity compared to Grade 100

• Intelligent profile:

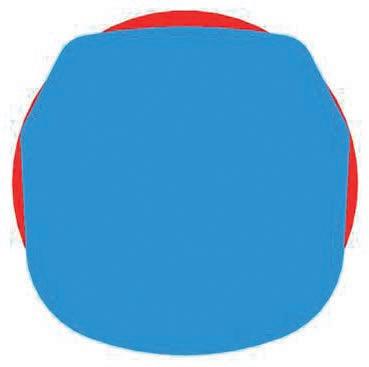

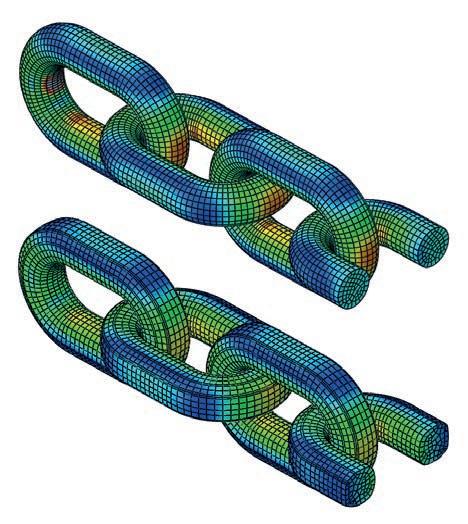

Thanks to the intelligent use of material, the same cross-section achieves a significant improvement of the key characteristics of the chain, for instance fatigue resistance and bending resistance, compared to conventional round-steel chains.

The use of material was optimized in key areas (blue sections) and reduced in less relevant areas (red sections) to achieve the best possible technical effects.

• Optimized bending resistance: This crucial resistance factor that protects the chain from undesirable bending is up to 6% higher with the profile chain than with a round-link chain that has the same cross-section.

This reduces the Round-link maximum tension chain in the chain (no red sections).

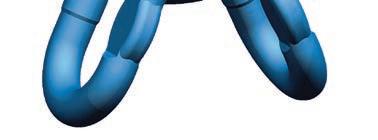

Profile chain

4

Grade 80

Grade 100

Grade 120

(lb)

Req. Chain Size

Chain Weight (lb/ft)

Req. Chain Size

Chain Weight (lb/ft)

Req. Chain Size

Chain Weight (lb/ft)

Max. % of Chain Weight Reduction

5,000

3/8˝

1.48

5/16˝

1.06

9/32˝

0.91

39%

10,000

1/2˝

2.55

1/2˝

2.80

3/8˝

1.81

35%

16,000

5/8˝

3.83

5/8˝

4.22

1/2˝

3.23

24%

25,000

3/4˝

5.78

3/4˝

6.00

5/8˝

4.82

20%

Load Capacity

pewag alloy chains are tested to a 25% higher standard! pewag G12/Grade 120 meets the EN-818 Standard that pull tests to 2.5 times the WLL, whereas the US standards only require pull testing to 2 times the WLL.

• Highly efficient for many load ranges, as the size of the chain slings is reduced by one dimension compared to Grade 80 and Grade 100 chain slings.

• Optimized strength and toughness characteristics at high and low temperatures thanks to patented material • pewag G12/Grade 120 defines the “Formula 1” of technical chains thanks to its weight-based performance.

• High stability and a low level of wear guarantee a longer life span.

• Innovative chain system that may be used for lifting or lashing; also suitable for many other applications thanks to its robust design.

• Complete traceability thanks to identification stamp on each chain link and component, enabling users to track the entire manufacturing process.

• Light blue powder coating on Series 300 chains and components, Series 200 chains are painted in light gray.

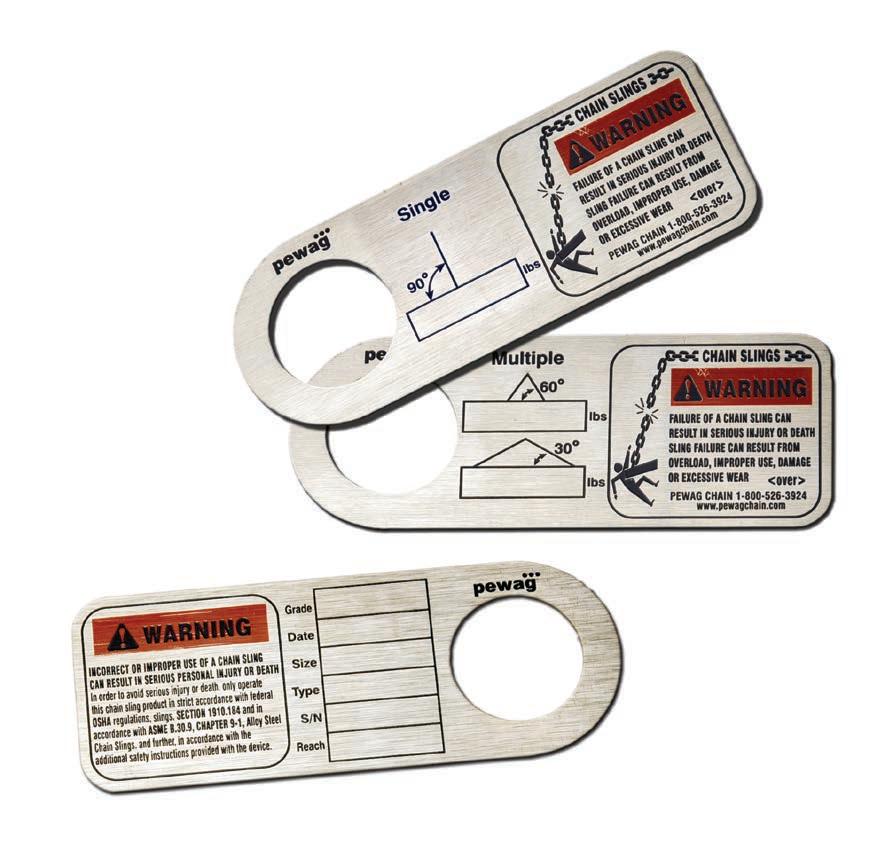

• Maximum safety thanks to innovative load capacity tag made from rust-resistant material and including safety warnings.

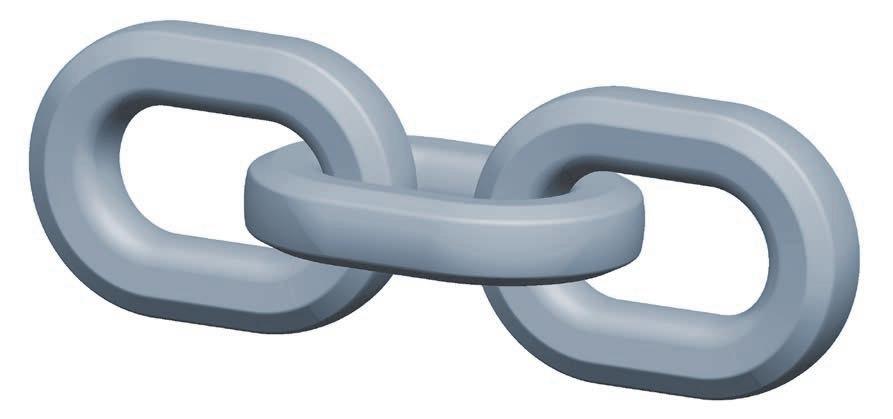

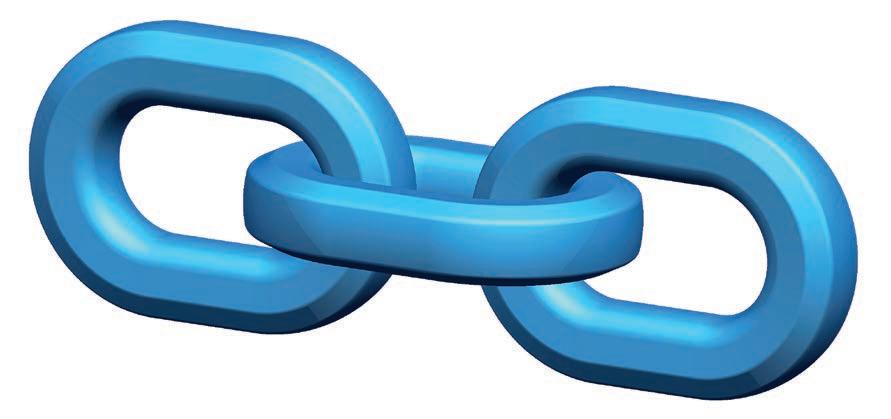

winner pro 300 / G12/Grade 120 Lifting Chain Highest quality G12/Grade 120 chain.

Retains 100% of WLL at -76°F to 400°F / 60% of WLL at 400°F to 570°F. NOT for temperatures under -76°F or over 570°F Powder-coated light blue (PC/B) Stamped pewag 12, 300, & Batch Code.

D

W1

W2

P

Code

Chain Size

WLL

(lb)

Outside Width max.

W2

Drum Length

Weight

(inch)

Inside Width min.

W1

(lb)

Nominal Thickness D

Pitch P

Breaking Load

(inch)

(inch)

(feet)

(lbs/ft)

WINPRO 7 FLEX 300

9/32˝

5,200

20,800

0.276˝ (7 mm)

0.87

0.39

1.02

800

0.91

WINPRO 8 FLEX 300

5/16˝

6,600

26,550

0.315˝ (8 mm)

0.98

0.43

1.14

500

1.10

WINPRO 10 FLEX 300

3/8˝

10,600

42,400

0.394˝ (10 mm)

1.30

0.55

1.46

400

1.81

WINPRO 13 FLEX 300

1/2˝

17,900

71,600

0.512˝ (13 mm)

1.61

0.75

1.97

200

3.23

WINPRO 16 FLEX 300

5/8˝

27,500

110,000

0.630˝ (16 mm)

2.00

0.75

1.97

100

4.82

(Formerly NI720)

(Formerly NI820)

(Formerly NI1020)

(Formerly NI1320)

(Formerly NI1620)

winner pro 200 / G12/Grade 120 Lifting Chain Highest quality grade 120 chain.

Retains 100% of WLL at -40°F to 400°F. NOT for temperatures under -40°F or over 400°F Painted gray Stamped pewag 12, 200, & Batch Code.

D

W1

W2

P

Code

Chain Size

WLL

(lb)

Outside Width max.

W2

Drum Length

Weight

(inch)

Inside Width min.

W1

(lb)

Nominal Thickness D

Pitch P

Breaking Load

(inch)

(inch)

(feet)

(lbs/ft)

WINPRO 7 FLEX 200

9/32˝

5,200

20,800

0.276˝ (7 mm)

0.87

0.39

1.02

800

0.91

WINPRO 8 FLEX 200

5/16˝

6,600

26,550

0.315˝ (8 mm)

0.98

0.43

1.14

500

1.10

WINPRO 10 FLEX 200

3/8˝

10,600

42,400

0.394˝ (10 mm)

1.30

0.55

1.46

400

1.81

WINPRO 13 FLEX 200

1/2˝

17,900

71,600

0.512˝ (13 mm)

1.61

0.75

1.97

200

3.23

WINPRO 16 FLEX 200

5/8˝

27,500

110,000

0.630˝ (16 mm)

2.00

0.75

1.97

100

4.82

(Formerly NI720)

(Formerly NI820)

(Formerly NI1020)

(Formerly NI1320)

(Formerly NI1620)

5

G12/Grade 120 winner pro

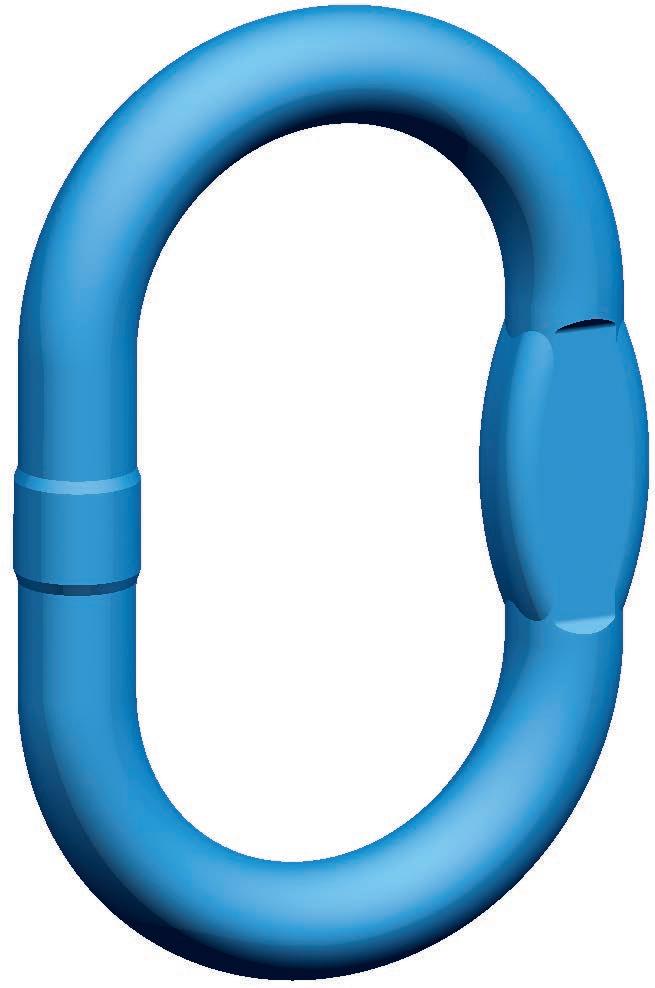

AWP / Master Link This is a standard master link for creating Single and Double leg chain slings using the CWP Connex connecting links. s

d Single leg sling

Double leg sling

WLL 90° - 45° (lb)

d

t

w

s

Weight

(inch)

(inch)

(inch)

(inch)

(lbs/pc)

AWP 13

9/32˝

-

5,200

0.51

4.38

2.36

0.39

0.82

AWP 16

5/16˝

9/32˝

7,400

0.67

4.38

2.36

0.55

1.21

AWP 18

3/8˝

5/16˝

9,300

0.75

5.31

2.95

0.55

1.90

AWP 22

1/2˝

3/8˝

15,000

0.90

6.30

3.54

0.67

3.52

AWP 27

5/8˝

1/2˝

25,300

1.10

7.87

4.33

0.83

6.43

AWP 33

-

5/8˝

38,500

1.30

7.87

4.33

0.83

9.12

Code

t

w

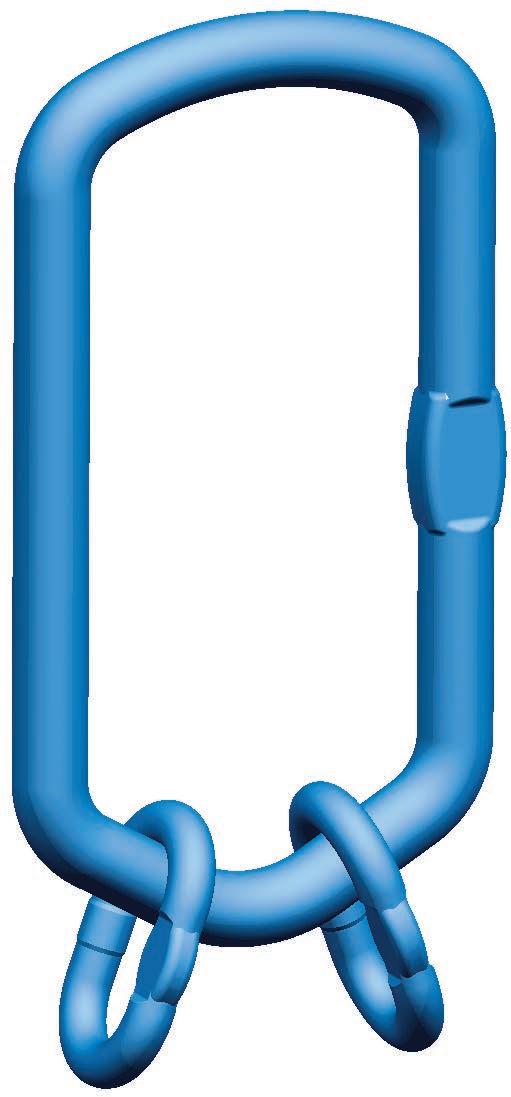

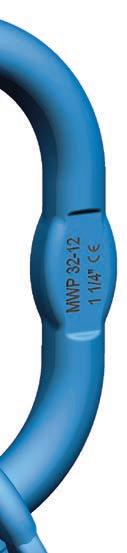

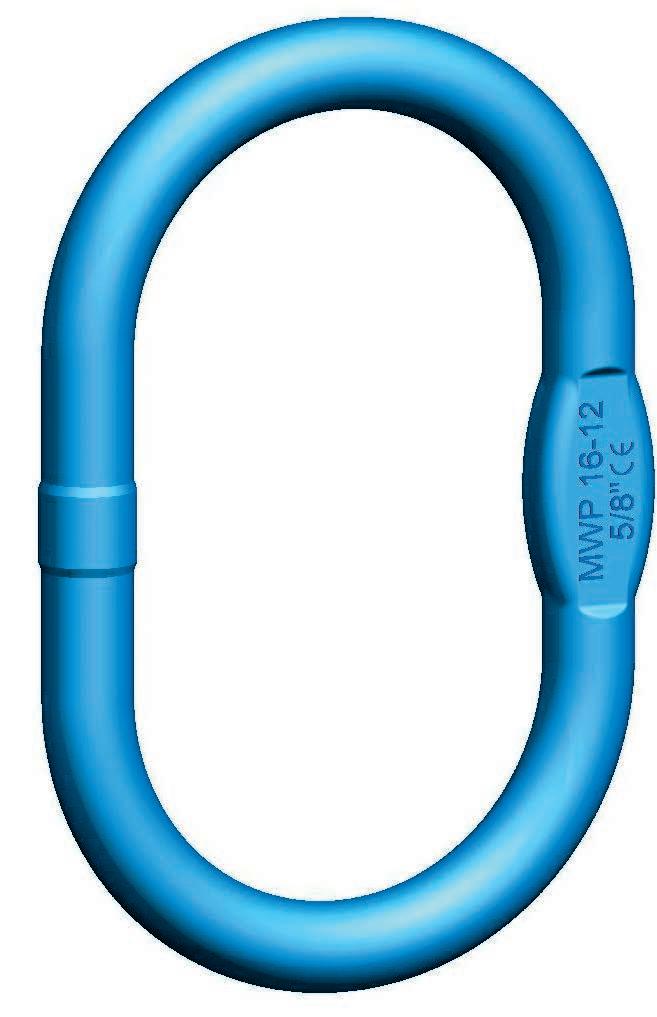

MWP / Enlarged Master Link This is a standard master link for creating Single and Double leg chain slings using the CWP Connex connecting links. With its extra-large inner width compared to the AWP Master Link, it is suitable for double hooks and larger single hooks. s

d Single leg sling

Double leg sling

WLL 90° - 45° (lb)

d

t

w

s

Weight

(inch)

(inch)

(inch)

(inch)

(lbs/pc)

MWP 13

9/32˝

-

6,100

0.55

4.72

2.76

0.39

1.00

MWP 16

5/16˝

-

8,400

0.67

5.51

3.15

0.51

1.63

MWP 18

3/8˝

-

12,800

0.75

6.30

3.74

0.55

2.31

MWP 26

1/2˝

-

30,000

1.06

7.48

4.33

0.79

5.45

MWP 30

5/8˝

-

27,500

1.18

7.48

4.33

-

7.28

5/8˝

38,500

1.50

10.80

5.91

1.14

16.50

Code (Formerly M1320) (Formerly M1320)

(Formerly M1820)

(Formerly M2620)

(Formerly M3020)

MWP 36

(Formerly M3620)

6

w

t

w

d

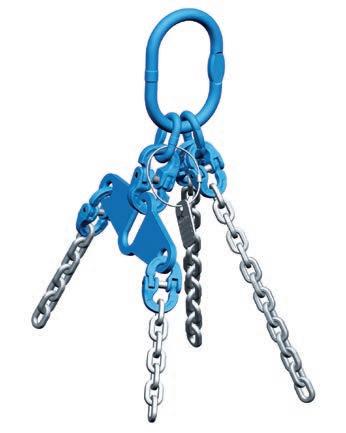

VMWP / Enlarged Master Link Assembly Enlarged master link assembly for Double, Triple, and Quad Leg sling chains.

Match to chain size according to table.

t

s

e

( t +t1)

t1

w1

d1 Double Triple/Quad leg sling leg sling

Code VMWP 2-7/8

WLL 90° - 45° (lb)

e

d

t

s

w

d1

t1

w1

Weight

(inch)

(inch)

(inch)

(inch)

(inch)

(inch)

(inch)

(inch)

(lbs/pc)

9/32˝

-

12,800

8.43

0.75

6.30

0.55

3.74

0.51

2.13

0.98

3.24

VMWP 2-10/4-7/8

3/8˝

9/32˝

22,000

10.24

1.06

7.48

0.70

4.33

0.67

2.76

1.34

7.60

VMWP 2-13/4 -10

1/2˝

3/8˝

33,200

12.40

1.30

9.06

1.03

5.12

0.79

3.35

1.57

13.84

VMWP 4 -13

-

1/2˝

61,100

16.34

1.50

10.83

1.14

5.91

1.06

5.51

2.56

25.40

VMWP 4 -16

-

5/8˝

71,500

16.70

1.50

10.80

1.14

5.91

1.30

5.91

2.76

30.42

(Formerly VM720)

(Formerly VM10720)

(Formerly VM131020)

(Formerly VM1320)

(Formerly VM1620)

w

d

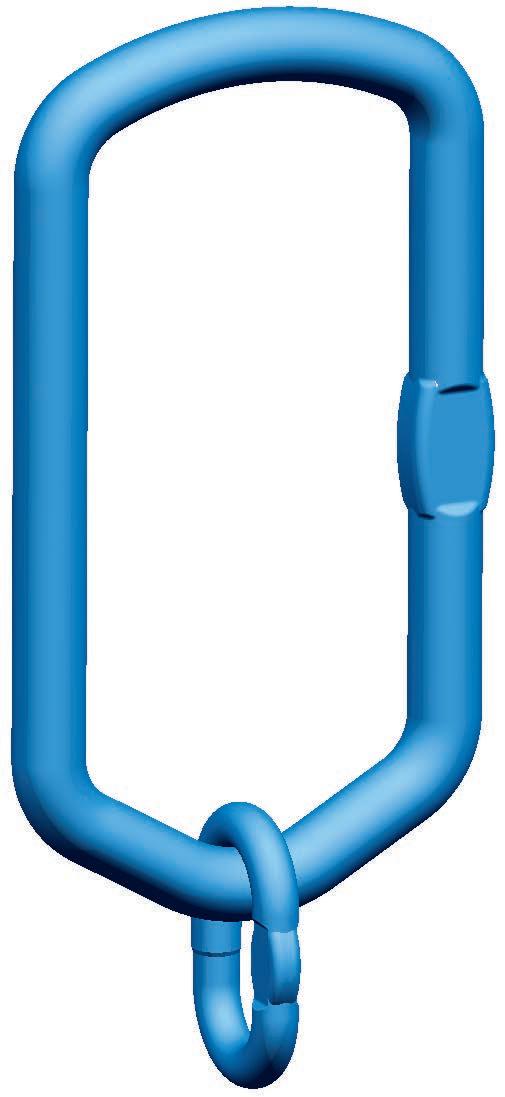

VLWP 1 / Oversized Master Link Assembly This asymmetrical master link assembly is equipped with extra large links that are perfect for crane hooks.

t

s

e

t1 w1 d1 Single leg sling

WLL

e

d

t

s

w

d1

t1

w1

Weight

(lb)

(inch)

(inch)

(inch)

(inch)

(inch)

(inch)

(inch)

(inch)

(lbs/pc)

9/32˝ - 5/16˝

6,600

15.51

0.90

13.39

0.65

6.10

0.51

2.13

0.98

7.43

VLWP 1-10

3/8˝

10,600

16.14

1.06

13.39

0. 83

6.10

0.67

2.76

1.34

7.85

VLWP 1-13

1/2˝

17,900

13.39

1.06

13.39

0. 83

6.10

-

-

-

9.70

VLWP 1-16

5/8˝

27,500

13.39

1.30

13.39

1.02

6.10

-

-

-

14.55

Code VLWP 1-7/8

7

G12/Grade 120 winner pro w

d

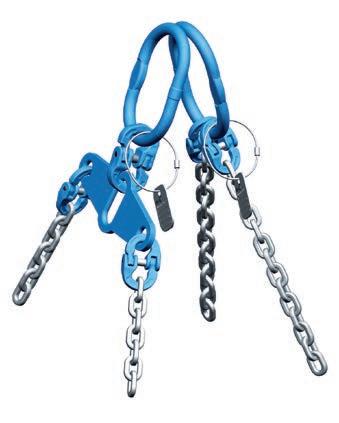

VLWP 2/4 / Oversized Master Link Assembly This asymmetrical master link assembly is equipped with extra large links that are perfect for crane hooks and suitable for the assembly of double and Quad Leg chain slings.

t s

e

t1

w1 d1 Double leg sling

Triple/Quad leg sling

WLL 90° - 45°(lb)

e

d

t

s

w

d1

t1

w1

Weight

(inch)

(inch)

(inch)

(inch)

(inch)

(inch)

(inch)

(inch)

(lbs/pc)

9/32˝- 5/16˝

-

9,300

15.51

0.90

13.39

0.65

6.10

0.51

2.13

0.98

7.94

VLWP 2-10/4-7/8

3/8˝

9/32˝- 5/16˝

15,000

16.14

1.06

13.39

0.83

6.10

0.67

2.76

1.34

11.46

VLWP 2-13/4-10

1/2˝

3/8˝

25,300

16.73

1.30

13.39

1.02

6.10

0.81

3.35

1.57

17.63

VLWP 4-13

-

1/2˝

38,000

18.90

1.50

13.39

1.14

6.10

1.06

5.51

2.56

28.22

VLWP 2-16

5/8˝

-

38,500

13.39

1.50

13.39

1.14

6.10

-

-

-

19.62

VLWP 4 -16

-

5/8˝

58,000

19.29

1.57

13.39

1.14

6.10

1.30

5.90

2.76

35.93

Code VLWP 2-7/8

b g

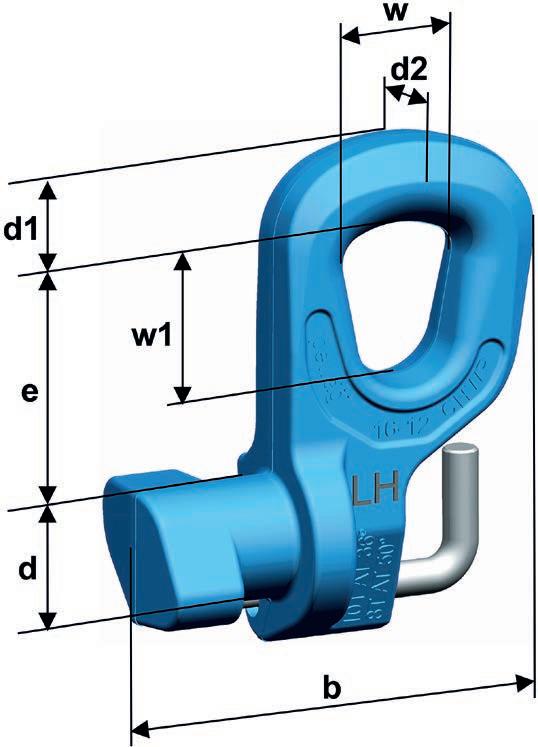

ISWP / Shortening Element

a

A shortening element that allows Tool-Free positioning anywhere along the entire length of the chain. It’s possible to operate the shortening element with just one hand, making it extemely user-friendly. No work load reduction when using this shortening element.

e

d Code ISWP 10

8

WLL

e

a

b

d

g

Weight

(lb)

(inch)

(inch)

(inch)

(inch)

(inch)

(lbs/pc)

10,600

3.94

3.90

3.07

0.55

0.47

4.85

g

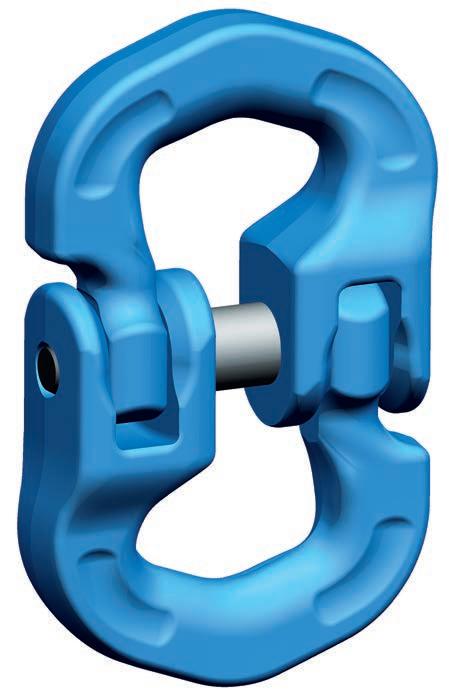

CWP / Connex Connecting Link

c

Connex connecting link for easy assembly of chains, master links, master link assemblies and components.

e s t d

b Code

Size

WLL

e

c

s

t

d

b

g

Weight

(lb)

(inch)

(inch)

(inch)

(inch

(inch)

(inch)

(inch)

(lbs/pc)

CWP 7

9/32˝

5,200

2.48

0.43

0.51

0.61

0.35

1.85

0.67

0.53

CWP 8

5/16˝

6,600

2.44

0.55

0.59

0.79

0.39

2.28

0.79

0.60

CWP 10

3/8˝

10,600

3.07

0.63

0.79

0.98

0.51

2.60

0.87

1.26

CWP 13

1/2˝

17,900

4.21

0.83

0.94

1.34

0.67

3.31

0.98

3.15

CWP 16

5/8˝

27,500

5.04

1.06

1.22

1.61

0.83

4.72

1.89

4.98

(Formerly C720) (Formerly C820)

(Formerly C1020)

(Formerly C1320)

(Formerly C1620)

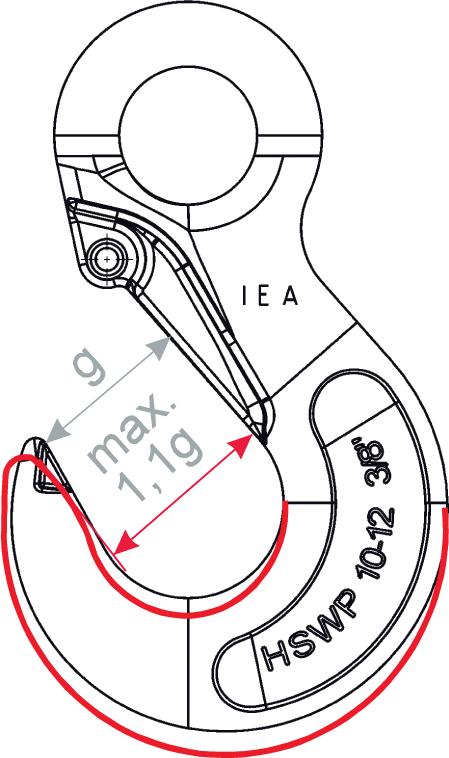

HSWP / Eye Sling Hook

d2 d1

For general lifting applications. All hooks have a forged and galvanized safety latch that provides excellent protection against lateral shifts.

g1

e

a h b Size

WLL

e

h

a

d1

d2

g1

b

Weight

(lb)

(inch)

(inch)

(inch)

(inch)

(inch)

(inch)

(inch)

(lbs/pc)

9/32˝ - 5/16˝

6,600

4.17

1.06

0.75

0.98

0.43

1.02

3.46

1.43

HSWP 10

3/8˝

10,600

5.16

1.30

1.02

1.34

0.63

1.22

4.25

2.84

HSWP 13

1/2˝

17,900

6.46

1.69

1.30

1.69

0.75

1.54

5.20

5.36

Code HSWP 7/8

(Formerly HS720/820) (Formerly HS1020)

(Formerly HS1320)

9

G12/Grade 120 winner pro

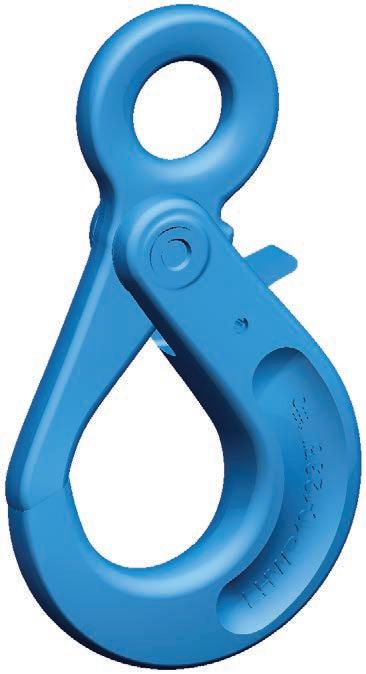

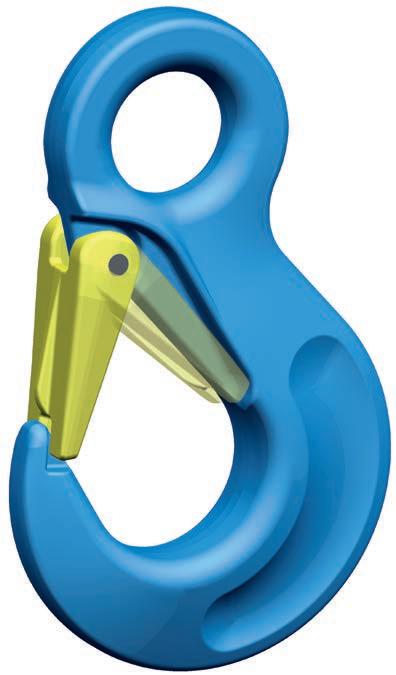

LHWP / Eye Safety Hook

d2 d1

This safety hook has a larger opening than HSWP Eye Sling Hook.

The LHWP Eye Safety Hook may only be opened when it is not under load, ensuring a high level of safety.

g1 e

a

s max

h b Size

WLL

e

h

a

b

d1

d2

g1

s max.

Weight

(lb)

(inch)

(inch)

(inch)

(inch)

(inch)

(inch)

(inch)

(inch)

(lbs/pc)

9/32˝- 5/16˝

6,600

4.96

0.98

0.94

3.50

0.98

0.55

1.34

0.04

2.00

LHWP 10

3/8˝

10,600

6.22

1.22

1.10

4.41

1.22

0.67

1.77

0.08

3.44

LHWP 13

1/2˝

17,900

8.07

1.61

1.34

5.71

1.57

0.87

2.13

0.08

7.71

Code LHWP 7/8

(Formerly LH720/820) (Formerly LH1020)

(Formerly LH1320)

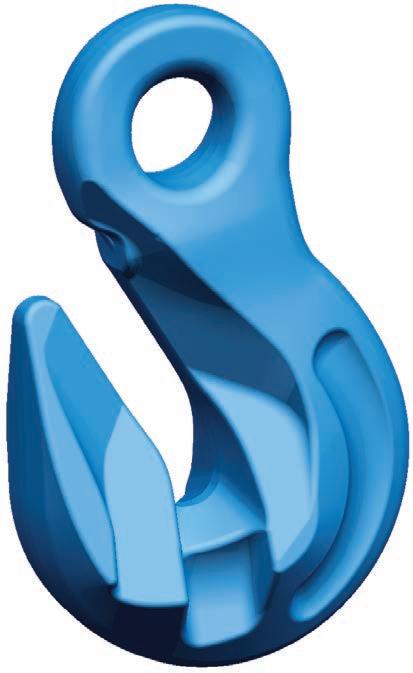

PWP / Eye Grab Hook

d2

This grab hook is suitable for the shortening of chains and the forming of slings that must not tighten. No work load reduction when shortening with this hook.

d1

g1

e

b Size

WLL

e

b

d1

d2

g1

Weight

(lb)

(inch)

(inch)

(inch)

(inch)

(inch)

(lbs/pc)

9/32˝- 5/16˝

6,600

2.68

2.48

0.71

0.43

0.39

1.12

PWP 10

3/8˝

10,600

3.46

3.19

0.87

0.55

0.51

2.29

PWP 13

1/2˝

17,900

4.33

4.06

1.02

0.71

0.67

4.83

Code PWP 7/8

(Formerly P720/820) (Formerly P1020)

(Formerly P1320)

10

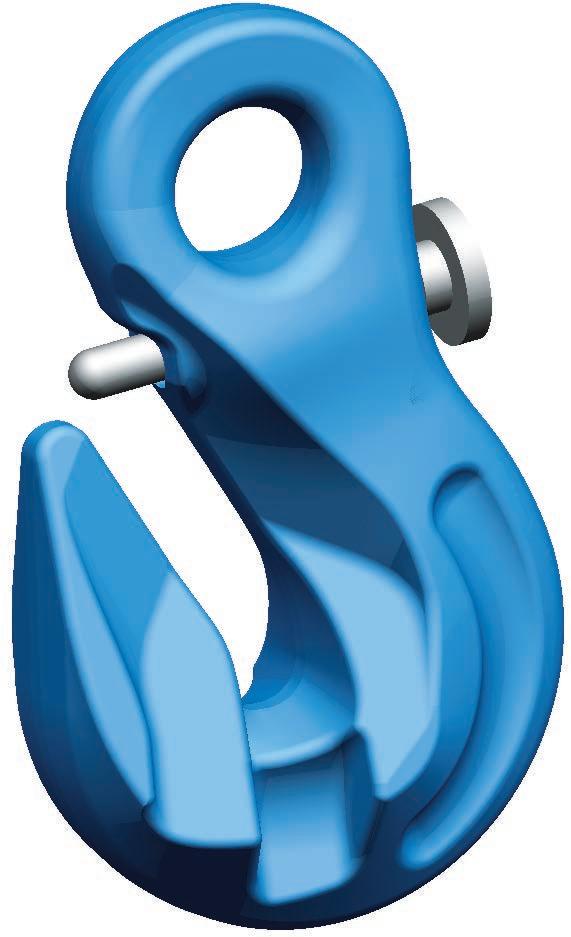

PSWP / Eye Grab Hook w/Safety Catch

d2

This grab hook is suitable for the shortening of chains and the forming of slings that must not tighten. No work load reduction when shortened with this hook.

The PS Eye Grab Hook is equiped with a safety catch to prevent the accidental unhooking of the chain.

d1

g1

e

b Size

WLL

e

b

d1

d2

g1

Weight

(lb)

(inch)

(inch)

(inch)

(inch)

(inch)

(lbs/pc)

9/32˝- 5/16˝

6,600

2.68

2.48

0.71

0.43

0.39

1.06

PSWP 10

3/8˝

10,600

3.46

3.19

0.87

0.55

0.51

2.27

PSWP 13

1/2˝

17,900

4.33

4.06

1.02

0.71

0.67

4.63

Code PSWP 7/8

(Formerly PS720/820) (Formerly PS1020)

(Formerly PS1320)

d

KHSWP / Clevis Sling Hook A considerably larger jaw size than the HS Eye Sling Hook. It may be mounted directly into the chain without the need for a connecting link.

KHSWP Clevis Sling Hooks have a forged safety latch that locks into the tip of the hook, thereby providing excellent protection against lateral shifts.

g1 e a h b

Size

WLL

e

h

a

d

g1

b

Weight

(lb)

(inch)

(inch)

(inch)

(inch)

(inch)

(inch)

(lbs/pc)

KHSWP 7

9/32˝

5,200

4.13

1.02

0.75

0.37

1.42

3.98

1.87

KHSWP 8

5/16˝

6,600

4.13

1.02

0.75

0.42

1.42

3.98

1.87

KHSWP 10

3/8˝

10,600

4.76

1.30

1.02

0.55

1.61

4.65

3.70

KHSWP 13

1/2˝

17,900

5.83

1.69

1.18

0.69

1.93

5.79

6.59

KHSWP 16

5/8˝

27,500

6.81

2.01

1.38

0.83

2.32

6.93

11.24

Code (Formerly KHS720) (Formerly KHS820)

(Formerly KHS1020)

(Formerly KHS1320)

(Formerly KHS1620)

11

G12/Grade 120 winner pro

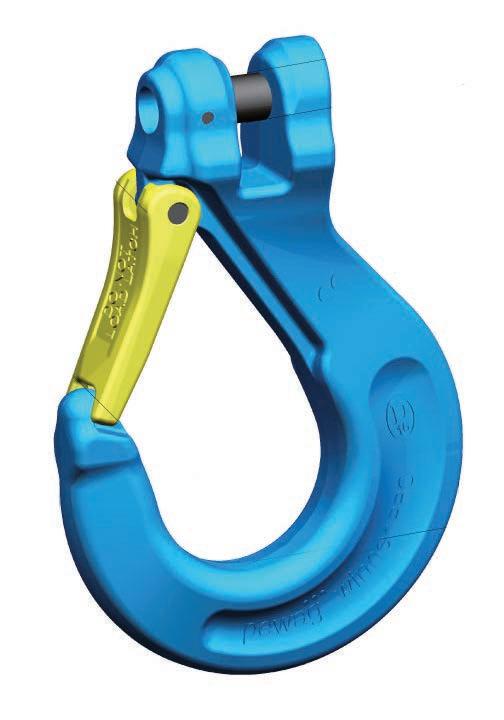

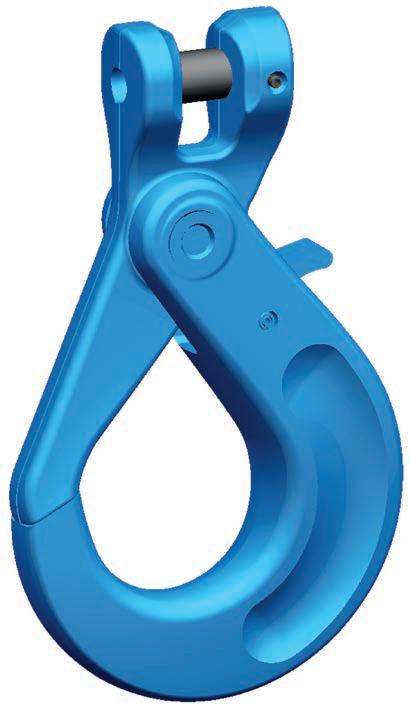

KLHWP / Clevis Safety Hook

d

The great advantage of the KLHWP Clevis Safety Hook is that it closes and locks automatically under load, thereby preventing unintentional opening and providing additional safety.

g1 e

a

s max

h b Size

WLL

e

h

a

b

d

g1

s max.

Weight

(lb)

(inch)

(inch)

(inch)

(inch)

(inch)

(inch)

(inch)

(lbs/pc)

KLHWP 7

9/32˝

5,200

4.57

0.96

0.93

3.54

0.37

1.26

0.04

1.96

KLHWP 8

5/16˝

6,600

4.53

0.96

0.93

3.54

0.42

1.26

0.04

1.98

KLHWP 10

3/8˝

10,600

5.35

1.24

1.09

4.45

0.55

1.77

0.04

3.53

KLHWP 13

1/2˝

17,900

7.05

1.57

1.33

5.75

0.69

2.13

0.06

7.54

Code

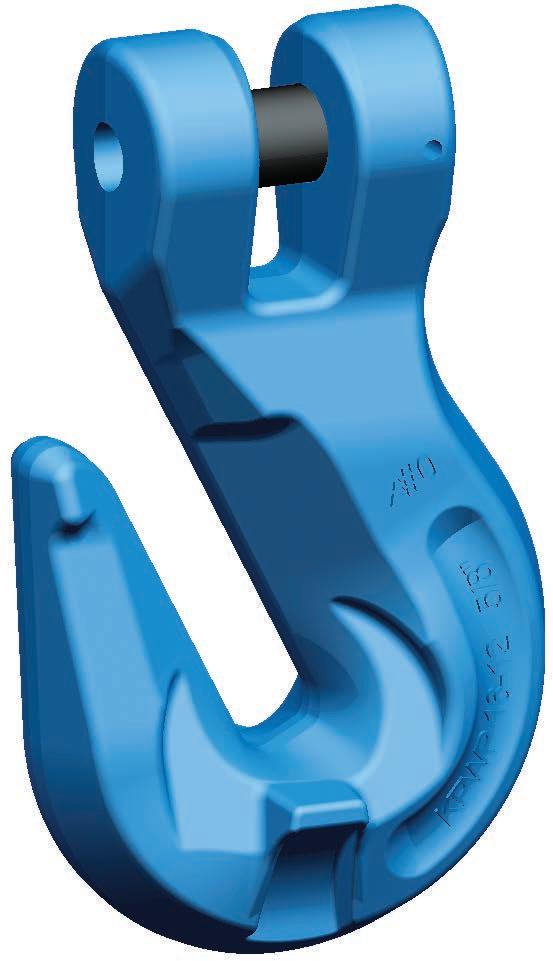

KPWP / Clevis Grab Hook

d g1

This grab hook is suitable for the shortening of chains and the forming of slings that must not tighten. No work load reduction when shortening with this hook.

e

b Size

WLL

e

b

d

g1

Weight

(lb)

(inch)

(inch)

(inch)

(inch)

(lbs/pc)

KPWP 7

9/32˝

5,200

2.48

2.76

0.39

0.39

1.28

KPWP 8

5/16˝

6,600

2.44

2.76

0.43

0.39

1.28

KPWP 10

3/8˝

10,600

2.87

3.27

0.55

0.47

2.20

KPWP 13

1/2˝

17,900

3.86

4.09

0.71

0.63

5.05

KPWP 16

5/8˝

27,500

4.88

4.84

0.87

0.75

9.52

Code

(Formerly KP1620)

12

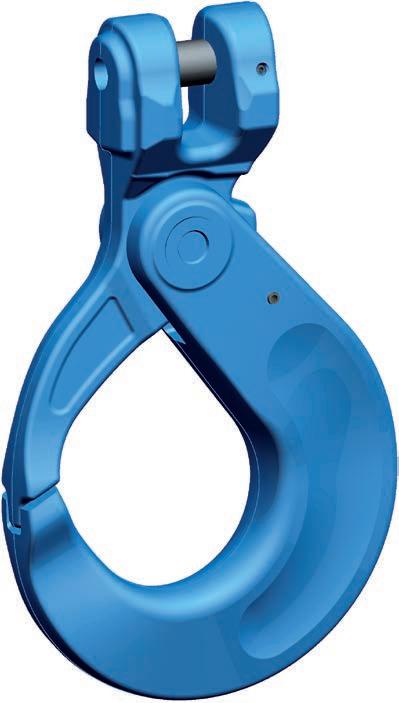

KLHGWP / Oversized Clevis Safety Hook

d

Same great advantages as the KLHWP Clevis Safety Hook with an oversized mouth and a recessed trigger.

g1 e

a

s max

h b Size

WLL

e

h

a

b

d

g1

s max.

Weight

(lbs)

(inch)

(inch)

(inch)

(inch)

(inch)

(inch)

(inch)

(lbs/pc)

KLHGWP 7

9/32˝

5,200

5.12

1.06

0.83

4.21

0.37

1.89

0.04

2.43

KLHGWP 8

5/16˝

6,600

5.12

1.06

0.83

4.21

0.42

1.89

0.04

2.43

KLHGWP 10

3/8˝

10,600

6.54

1.38

1.02

5.39

0.55

2.40

0.04

4.76

KLHGWP 13

1/2˝

17,900

8.19

1.73

1.26

6.89

0.69

3.07

0.06

9.55

KLHGWP 16

5/8˝

27,500

9.33

2.13

1.46

7.68

0.83

3.39

0.08

1­­­­­6.98

Code

˘˘¯¯¯¯˘˘­

CHWP / Container Hook Set For the lifting of containers with a maximum weight of 50 tons - for container corners according to ISO 1161. Sold in Sets of 4 hooks, two right hand hooks (RH) - safety bolt powder-coated red and two left hand hooks (LH) - safety bolt galvanized blue.

Suitable for use with accessories such as connex connecting link C1620, sling hook KHS1620, and safety hook KLH1620.

WLL

Code

Set (4 pcs.) w/vertical load (lbs)

CHWP 16

Code

110,000 WLL

Individual

(lbs)

CHWP 16 RH CHWP 16 LH

27,500

WLL

WLL

WLL

Set (4 pcs.) at a max. 54°

Set (4 pcs.) at a max. 40°

Set (4 pcs.) at a max. 30°

(lbs)

(lbs)

(lbs)

88,000

70,400

55,000

Weight Set (4 pcs) (lbs)

41.45 Weight

e

b

d

d1

d2

w

w1

(inch)

(inch)

(inch)

(inch)

(inch)

(inch)

(inch)

Individual (lbs)

3.74

6.53

1.93

1.38

1.38

1.89

2.40

10.36 13

G12/Grade 120 winner pro

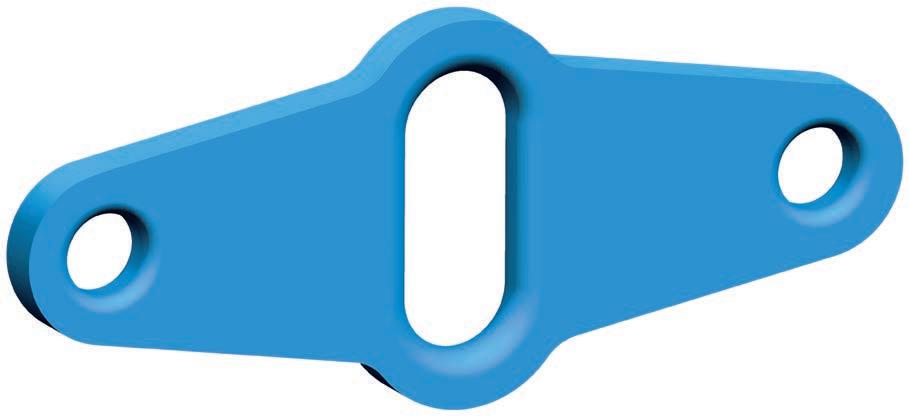

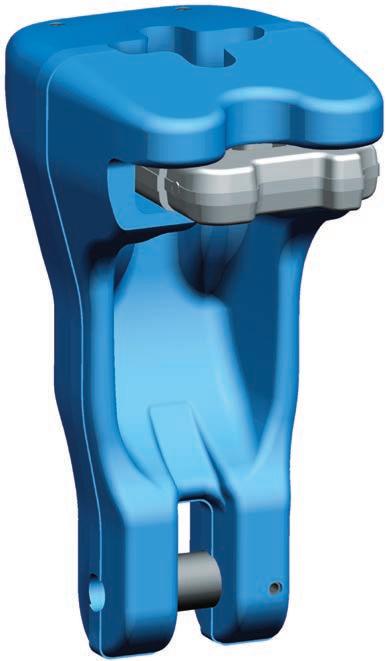

AGWP / Load Distributor

d1 h1

s h

The AGWP Load Distributor is used for assembling Quad Leg chain slings with Connex connecting links. Load distributors are designed to equalize length tolerances of the chain legs in Quad Leg chain slings, as well as with non-optimal lifting point positions.

e

If two double leg slings are used at the same time and one of them is provided with a load distributor, this system will be treated as a Quad Leg sling with four load-carrying legs providing increased safe load distribution as rated by ASME B30.9 and as part of a Special Master Coupling Link (MCL).

d2

a

The load distributor may be turned by 180° once the elimination criteria have been reached, thereby doubling its lifespan!

Contact pewag for technical information.

Code AGWP 7/8 AGWP 10

e

a

d1

d2

h

h1

s

Weight

(inch)

(inch)

(inch)

(inch)

(inch)

(inch)

(inch)

(lbs/pc)

9/32˝- 5/16˝

2.01

8.27

0.87

0.98

0.61

0.55

0.59

3.86

3/8˝

1.26

7.09

0.98

1.26

0.91

0.61

0.59

3.44

Chain Size

WLL - 2 Legs

Code AGWP 7/8 AGWP 10

14

L1

L2

L1

L2

WLL - 2 Legs Master Link Assemblies to use

Connecting Link

Difference L1 / L2

5,200 / 6,600

VW 7/8, VMW 10, VAW 10

C1020

6/5

10,600

VW 13, VMW 13, VAW 13

C1320

4

(in Quad Leg Sling)

(in Quad Leg Sling)

(lb)

(lb)

7,400 / 9,300 15,000

(90° - 45°)

(45° - 30°)

(chain links)

G12/Grade 120 winner pro Lashing pewag winner pro key data - facts speak for themselves •

Chain qualities: pewag WINPRO FLEX 200 – based on ASTM A973 with modifications (profile, higher load capacity, reduced operating temperature).

This lashing chain surpasses the requirements of EN 12195-3 and has a 50% higher lashing capacity than standard G8 lashing chains.

Test stress: 750 N/mm².

Breaking stress: 1,200 N/mm².

Breaking elongation: min. 20%.

Admissible operating temperature: pewag WINPRO FLEX 200: -40 °F to 400°F. Compatibility: Please note that the compatibility of pewag winner pro chains and components with those of other grades and from other manufacturers is limited and must be approved by pewag in advance.

•

• • • • • •

This product must not be used for lifting or attaching loads. A full operating manual tells you all you need to know about how to use the chain to its best advantage.

Build your own.

Below you will find a detailed example of an order for a finished and commercially available pewag lashing chain.

The lashing chain comes in a modular design with a standard length of 3,500 mm and is also suitable for frictional lashing, provided that the STF value is taken into account. Other end fittings and/or combinations and delivery lengths are available upon request and with short delivery times.

Z (Denotes lashing) Load Binder / Chain size/specification / Component(s) / “L” Length / Connex Sample order: Z RSWP / 7 FLEX 200 / HSWP-HSWP-PSWP / 8’ / Connex RSWP Load Binder

HSWP Eye Sling Hook

PSWP Eye Grab Hook w/Safety Catch

Connex Connecting Link HSWP Eye Sling Hook

WINPRO FLEX 200 chain

Lashing Tag

1m

L

15

G12/Grade 120 winner pro

RSWP / Load Binder Universal load binder with an optimized lever length for one and two-part lashing chain systems is suitable for direct lashing as well as for lashing down in the pewag G120 Connex system.

I D d

L

Code

Stamping

LC Lashing Capacity

STF Standard Tension Force

Length Closed L

Length Open L

(kN)

(daN)

(inch)

(inch)

Tension Range (inch)

Lever length I

D

d

Weight

(inch)

(inch)

(lbs/pc)

(inch)

RSWP 7/8

Type A

60

1,900

13.98

19.69

5.71

9.33

0.79

0.63

7.04

RSWP 10

Type B

100

3,000

14.37

20.08

5.71

13.98

1.02

0.71

8.36

RSWP 13

Type C

160

2,500

22.68

34.09

11.42

14.13

1.22

0.87

21.78

RPSWP / Load Binder The RPSWP Load Binder was developed for two-part lashing systems.

The benefits offered by the RSKWP thus also apply to these universal systems and include a long tension distance, a safety mechanism to prevent accidental loosening, the turndown lever that minimizes risk potential, and the option to secure the load binder and thus the entire load against theft using a padlock. These load binders offer at least a 50% higher lashing capacity than grade 8 load binders, and thus the option of downsizing to the next lower chain dimension.

l g

Note: The RPSWP load binder is not a standard stock item and available upon request only.

LC Lashing Capacity

STF Standard Tension Force

Length Closed L

Length Open L

(kN)

(daN)

(inch)

(inch)

RPSWP 7

47

2,200

23.78

30.70

6.93

9.33

0.39

14.60

RPSWP 8

60

2,200

23.78

30.70

6.93

9.33

0.39

14.60

RPSWP 10

100

2,500

26.61

33.54

6.93

14.17

0.51

18.34

RPSWP 13

160

3,000

37.76

50.55

12.80

16.18

0.67

29.90

Code

16

L

Clamping Range (inch)

Lever Length I (inch)

Jaw Size g (inch)

Weight (lbs/pc)

RSKWP / Load Binder This load binder, newly developed by pewag, stands for safety at the highest level. It is suitable for direct lashing as well as for lashing down in the pewag winner pro Connex system (always take note of the STF value).

I D

The slot on the lever snaps securely into place either between two nubs or over one nub, and the added safety catch ensures that the load binder remains in the correct position, offering double safety for the user by preventing the unintended loosening of the lashing assembly. The flat design, obtained by folding down the lever, reduces the risk of injuries for users and prevents them from getting caught in the assembly. The load binder also comes with several additional advantages: it is easy to store and to transport and also offers theft protection as it may be locked using a separate shackle lock.

d

L

The long tension distance makes the load binder particularly easy to use as the chain may be shortened and tensioned with a minimum amount of force. Thanks to the open system, the safety catch and the thread condition are easy to check and maintain as needed. The RSKWP load binder is manufactured according to EN 12195‑3 with the mechanical values for G12 and comes with a full operating manual.

Note: The RSKWP load binder may also be used for lifting operations. Please contact pewag for more information.

LC Lashing Capacity

STF Standard Tension Force

Length Closed L

Length Open L

(kN)

(daN)

(inch)

(inch)

RSKWP 7/8

60

2,200

14.17

21.10

6.93

RSKWP 10

100

2,500

14.17

21.10

RSKWP 13

160

3,000

22.40

RSKWP 16

250

-

22.40

Code

Folding position

Tension Range

Lever length I

D

d

Weight

(inch)

(inch)

(lbs/pc)

9.33

0.91

0.63

11.44

6.93

14.17

0.91

0.63

12.10

35.20

12.80

16.18

1.38

0.91

18.52

35.20

12.80

16.18

1.38

0.91

18.52

(inch)

(inch)

Anti-theft position

17

G12/Grade 120 winner pro

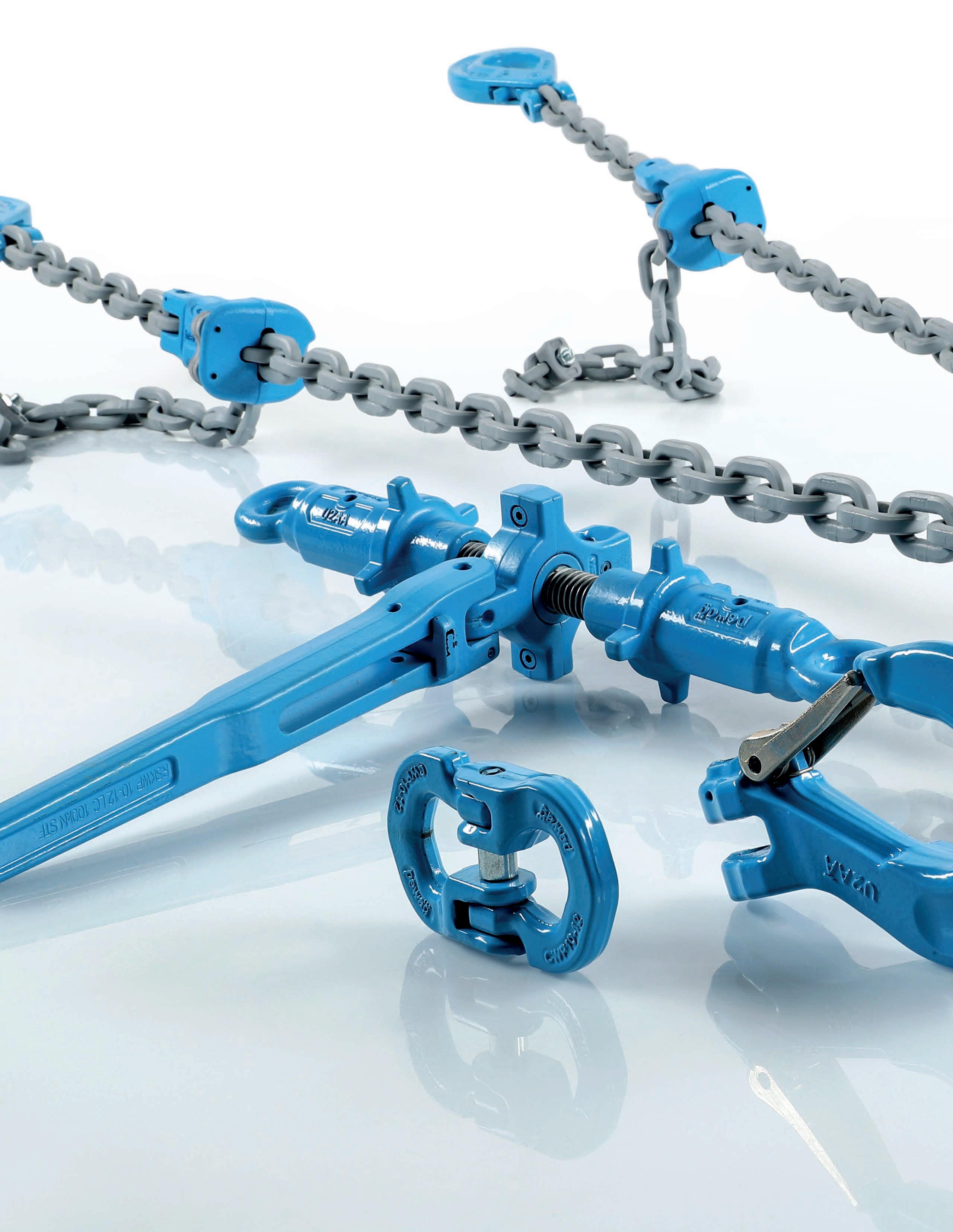

RSPSWP / Load Binder This load binder for two-part lashing chain systems.

It includes a pre-mounted shortening hook including safety catch and, depending on the selected lever length, all sizes are also suitable for frictional lashing (always take the STF value into account!). This load binder is not suitable for lifting or attaching loads.

l g

L

LC Lashing Capacity

STF Standard Tension Force

Length Closed L

Length Open L

(kN)

(daN)

(inch)

(inch)

RSPSWP 7

47

1,900

23.07

29.17

6.10

9.33

0.39

10.14

RSPSWP 8

60

1,900

23.62

29.72

6.10

9.33

0.39

10.80

RSPSWP 10

100

3,000

26.54

32.64

6.10

13.98

0.51

14.77

RSPSWP 13

160

2,500

38.62

50.31

11.69

14.13

0.67

34.61

Code

Tension Range (inch)

Lever Length I

Jaw Size g (inch)

(inch)

Weight (lbs/pc)

KSPSWP / Ratchet Binder The KSPSWP ratchet binder was developed for direct lashing applications in single-part lashing systems. The grab hook is attached directly to the binder, making very short lengths possible.

The latch is easier to operate than in previous safety systems and the binder comes with a long tension range, ensuring sufficient tension at all times.

d g

A safety chain and safety catch mechanism are available as spare parts. For more information, please contact pewag customer service.

Code

KSPSWP 7

18

L

LC Lashing Capacity

STF Standard Tension Force

Length Closed L

Length Open L

(kN)

(daN)

(inch)

(inch)

100

-

17.32

24.45

Tension Range

d

(inch)

(inch)

(inch)

7.13

0.55

0.49

Jaw Size g

Weight (lbs/pc)

9.04

G12/Grade 120 Spare Parts CBHWP / Connex Bolt and Bushing Set Spare parts for CWP Connex Connecting Link.

Code

For Connex Type

CBHWP 7

CWP 7

CBHWP 8

CWP 8

CBHWP 10

CWP 10

CBHWP 13

CWP 13

CBHWP 16

CWP 16

(Formerly CBH7) (Formerly CBH8)

(Formerly CBH10)

(Formerly CBH13)

(Formerly CBH16)

KBSWP / Clevis Load Pin Load pin for KPWP Clevis.

Code

For Hook Type

KBSWP 7

KHSWP 7, KPWP 7

KBSWP 8

KHSWP 8, KPWP 8

KBSWP 10

KHSWP 10, KPWP 10

KBSWP 13

KHSWP 13, KPWP 13

KBSWP 16

KHSWP 16, KPWP 16

19

G12/Grade 120 winner pro

SFGWP / Forged Safety Latch Set Safety latch set for HS Eye Sling Hook.

Code

For Hook Type

SFGWP 7/8

HSWP 7/8

SFGWP 10

HSWP 10

SFGWP 13

HSWP 13

(Formerly SFG7/8) (Formerly SFG10)

(Formerly SFG13)

SFGWP-K / Forged Safety Latch Set Safety latch set for KHSWP / Clevis Sling Hook.

Code

For Hook Type

SFGWP-K 7/8

KHSWP 7, KHSWP 8

SFGWP-K 10

KHSWP 10

SFGWP-K 13

KHSWP 13

SFGWP-K 16

KHSWP 16

(Formerly SFG7/8) (Formerly SFG10)

(Formerly SFG13)

(Formerly SFG16)

20

VLHWP / Trigger Set Trigger set for LH Eye Safety Hook

Code

For Hook Type

VLHWP 7/8

LHWP 7/8

VLHWP 10

LHWP 10

VLHWP 13

LHWP 13

(Formerly VLH720) (Formerly VLH1020)

(Formerly VLH1320)

PSGWP / Safety Catch Spare parts for PS Grab Hook with Safety Catch.

Code

For Hook Type

PSGWP 7/8

PSWP 7/8

PSGWP 10

PSWP 10

PSGWP 13

PSWP 13

(Formerly PSG70) (Formerly PSG10)

(Formerly PSG13)

21

G12/Grade 120 winner pro

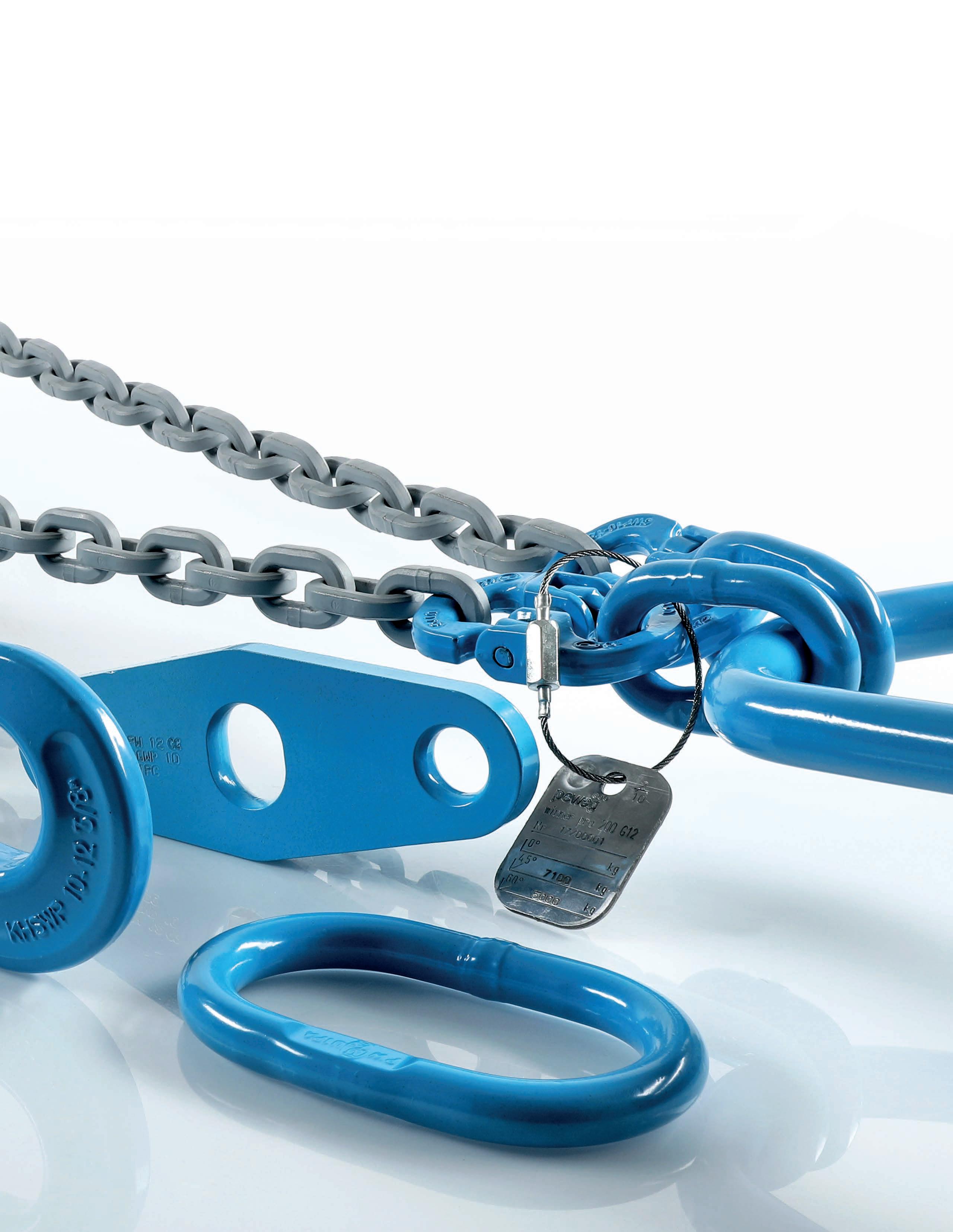

G12/Grade 120 winner pro Slings How to choose a chain sling • Determine the maximum load to be lifted.

• Determine the type of sling needed (single, double, etc.)

• Estimate the proper angle between the leg of the sling and the load during operation • Select the proper fittings (master links, hooks, etc.)

• Determine the overall reach (measured from bearing point to bearing point) • Choose the chain size which meets your required work load, angle, and reduction factor • Choose a grade that meets your requirements Master link

Sling type explanation The type of chain sling is indicated by 3 letters (4th letter for adjustable)

• First Letter indicates number of legs on the sling S = Single Leg D = Double Leg T = Triple Leg Q = Quad Leg

Connex connecting link

Load capacity tag

Shortening hook

• Second Letter indicates component on top of sling O = Oblong Link (AWP, MWP, VMWP, VLWP 1, VLWP 2/4) S = Sling Hook (KHSWP, HSWP) G = Grab Hook (PWP, PSWP, KPWP) P = Pear Link D = D-Link R = Ring • Third Letter indicates component on bottom of sling S = Sling Hook (KHSWP, HSWP) G = Grab Hook (PWP, PSWP, KPWP) SL = Self Locking Hook (KLHWP, LHWP) O = Oblong Link (AWP, MWP) • Fourth Letter (if needed, indicates adjustable) A = Grab Hook with Connecting Link B = 3 Links of Chain and Grab Hook

22

Chain

End hook

DOSA D (Double Leg) O (Oblong) S (Sling hook) A (Adjustable) Sample order: 8/G120/DOSA/4

Chain Size(mm) / Grade / Sling Type / Length

Standard G120 Sling Types

SOS

SOSL

SOG*

SOO

DOG*

DOO

TOSL

TOG*

QOO

SSS

DOS

DOSA

TOS

TOO

SB

DOSL

QOS

DB

* Must specify with or without safety pin 23

G12/Grade 120 winner pro

G12/Grade 120 Chain Sling Working Load Limits Working Load Limits of winner pro 300 & 200 G120 chain slings Single Leg

Double Leg

Quad Leg w/Load Distributor

Triple & Quad Leg

α Angle:

90°

60°

45°

30°

60°

45°

30°

90° - 45°

45° - 30°

Load Factor:

1

1.7

1.4

1

2.6

2.1

1.5

2.1

1.5

Diameter

WLL

WLL

WLL

WLL

WLL

WLL

WLL

WLL

WLL

(lb)

(lb)

(lb)

(lb)

(lb)

(lb)

(lb)

(lb)

(lb)

Chain WINPRO 7

9/32˝

5,200

9,000

7,400

5,200

13,500

11,000

7,800

11,000

7,800

WINPRO 8

5/16˝

6,600

11,400

9,300

6,600

17,100

14,000

9,900

14,000

9,900

WINPRO 10

3/8˝

10,600

18,400

15,000

10,600

27,500

22,500

15,900

22,500

15,900

WINPRO 13

1/2˝

17,900

31,000

25,300

17,900

46,500

38,000

26,900

-

-

WINPRO 16

5/8˝

27,500

47,000

38,500

27,500

71,500

58,000

41,500

-

-

Edge load - protection of load and chain The maximum load capacity of pewag chain slings was defined under the assumption that the individual chain legs are pulled straight under load, i.e. that they do not run over edges. In the case of edge loading, load protection (packing) should be used to avoid damage. For correct and incorrect use see below illustrations.

24

Endless Chain Sling

Single Lifting Sling

Double Lifting Sling

Single Leg

Double Leg

Asymmetrical Distribution of Load

-

90° - 45°

45° - 30°

90° - 45°

45° - 30°

90°

90° - 45°

45° - 30°

1.6

1.4

1

2.1

1.5

0.8

1.12

0.8

WLL

WLL

WLL

WLL

WLL

WLL

WLL

WLL

(lb)

(lb)

(lb)

(lb)

(lb)

(lb)

(lb)

(lb)

8,200

7,400

5,200

11,000

7,800

4,200

5,800

4,200

10,400

9,300

6,600

14,000

9,900

5,300

7,400

5,300

17,600

15,000

10,600

22,500

15,900

8,500

11,900

8,500

27,500

24,700

17,900

38,000

26,900

14,300

20,000

14,300

44,000

25,300

27,500

58,000

41,500

22,000

30,800

22,000

Load factor: Reduce WLL by one (rated) leg.

If in doubt, consider only one leg is carrying the load

Even premium quality products will lose some of their load capacity when exposed to high temperatures, asymmetrical loading, edge loading, shocks or other severe operating conditions. Please refer to the operating manuals if you think that any of these conditions apply. pewag classifies the following factors as severe conditions:

Edge loading

R > 2x chain dia.

R > chain dia.

R < chain dia.

1.0

0.7

0.5

Light shocks

Moderate shocks

Strong shocks

1.0

0.7

Not permitted

If chains are guided over edges without proper protection, their load capacity is reduced.

Load factor

Shock loading Load factor

Temperature range

Below - 76° F

- 76° F to - 40° F - 40° F to 400° F 400° F to 570° F

Load factor for winner pro 300 G120 lifting chain

Not permitted

100% of WLL

100% of WLL

60% of WLL

Not permitted

Load factor for winner pro 200 G120 lifting chain

Not permitted

Not permitted

100% of WLL

Not permitted

Not permitted

Above 570° F

25

G12/Grade 120 winner pro

G12/Grade 120 User Information General information and safety- specific information on usage, storage, inspection and maintenance of pewag lifting equipment.

General information Like many other pewag quality products, the pewag winner pro chain system stands out for its versatility and flexible application when it comes to lifting loads. Prior to use, a competent person must determine whether the equipment is suitable for the intended application. If in doubt, please consult pewag directly.

All information on the area of application is based on EN 818-6.

All information on the assembly of chain slings and their load capacity refers without exception to the standard method of rating (Uniform Load) with the angle ranges 90°-45° and 45-30°.

There is also an alternative method in existence for rating the product load capacity, for which the specific application scenario of the chain and all operating conditions must be known. In such a case, please contact the pewag Technical Service team, as the information contained in the catalogues does not apply to such processes. pewag winner pro lifting chains may only be adjusted, inspected and serviced by competent personnel.

Responsibility is key If pewag lifting accessories are used correctly and by competent persons, it has a long lifespan and provides the highest possible safety standards. Material and personal damage can be avoided by reading this user information carefully and handling all lifting processes in a responsible, provident manner.

Changes to the condition as delivered Modifying the original condition of the lifting accessories by bending, grinding, removal of parts, welding, drilling, stamping etc. means exposing yourself and others to unnecessary danger.

In such a case, safety can no longer be guaranteed and usage becomes dangerous. Such potentially hazardous modifications include heating the Grade 120 lifting chain 300 series to a temperature of more than 572°F and the Grade 120 lifting chain 200 series to a temperature of more than 400°F and removing safety parts such as safety pins, sleeves, catches etc. Do not apply any surface coatings to the pewag winner pro chain system, i.e. do not subject products to hot galvanizing or electrogalvanizing. Dipping or removing a coating with chemicals are potentially dangerous processes that may give rise to hazards.

We urgently recommend customers to check with the pewag technical team first.

26

Assembly of chain slings pewag winner pro chains and accessories may only be assembled by competent persons using exclusively original parts contained in the scope of delivery, i.e. bolts, safety pins etc. As pewag winner pro chains and components have only limited compatibility with chains and components of other suppliers, each individual case where pewag winner pro chain system parts are combined with components from other suppliers and/or parts made from other grades must be assessed by a competent person. Please note that pewag accepts not liability for damage resulting from such combinations. Please ensure that the load capacity is based on the weakest link in the assembly during every application.

Labelling and/or color-coding help prevent situations where the load capacity is misjudged – for pewag, this is a key safety factor!

To ensure safe identification, pewag winner pro lashing chains must be labelled with a purpose-built load capacity tag.

This tag may only be used if the load capacity of the chain corresponds to the tables on pages 24-25. In situations where the load capacities are different due to combinations with products of other suppliers,this must be highlighted with a different tag (for instance round-shaped).

Restrictions of use For hazardous or dangerous conditions, please refer to pages 24 -25.

Temperature effects The table on page 25 lists the load reduction values in case of extreme temperatures. These values apply until the chain and/or the components have returned to room temperature. pewag winner pro lifting equipment must not be used outside the indicated temperature range! If this has been the case, the chains must be removed from service.

Exposure to acids, caustic solutions or chemicals pewag winner pro lifting accessories must not be used in acids or caustic solutions or be exposed to their vapours. Please be aware of this requirement at all times as certain production processes release acids and/or vapours! If the use of pewag winner pro lifting accessories with highly concentrated chemicals in combination with high temperatures cannot be avoided, please make sure to obtain written approval of such use by a pewag expert.

Hazardous conditions The working load limits in this catalogue have been determined on the basis that the product is not being used in hazardous conditions. Hazardous conditions are present when lifting accessories are used offshore or for the lifting of persons or potentially dangerous goods such as liquid metal, corrosive or caustic substances or nuclear material. If lifting accessories are to be used for such purposes, the extent of the risk is to be assessed by an expert, the load capacity must be adjusted accordingly and incorrect usage in hazardous conditions must be avoided at all cost. As a rule, usage in hazardous conditions should be avoided.

• Wear as determined by the mean value of two

measurements of diameters d1 and d2 carried out at a right angle as shown The chain must be replaced when any of the following conditions apply: dm = d1 + d2 < 0.9 dn

2

Prevention is better than the cure!

Before using any lifting accessory, several inspections must be performed:

• Does the lifting chain correspond to the order?

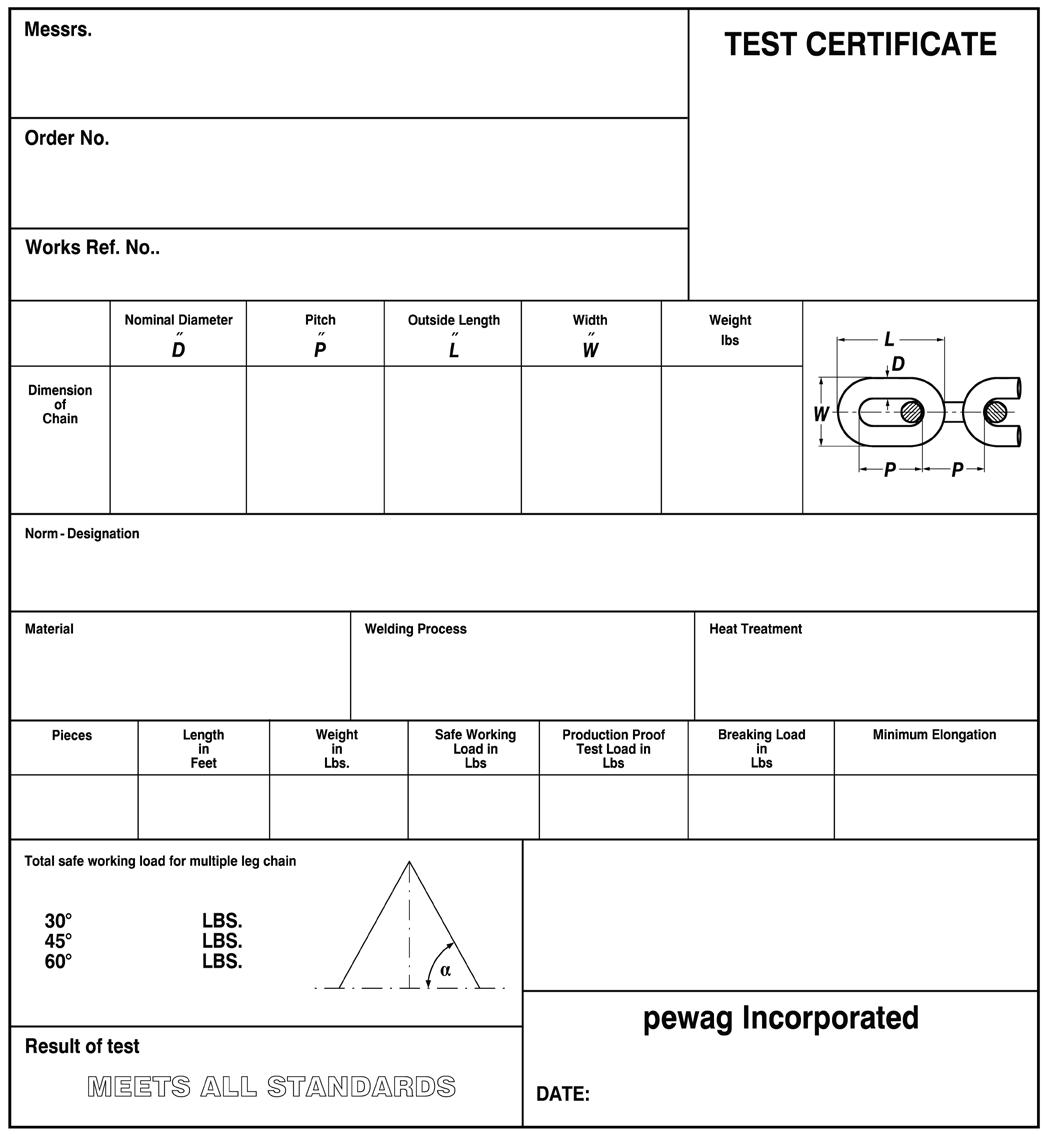

• Has the inspection certificate or certificate of conformity

been supplied?

• Do the markings and load capacities stated on the chain sling correspond to the information given on the inspection certificate or certificate of conformity?

• Have all the particularities of the chain sling been entered

into a register of lifting equipment, if required?

• Has the operating manual outlining the correct use of the chain sling been supplied and read and understood by all personnel?

Please check the lifting accessories for visible signs of damage or wear prior to each use. In case of any doubt or damage, do not use the chain slings and have them inspected by a competent person.

Inspections by a competent person must be performed in accordance with national legislation, but at least once every 12 months. If the chain sling is frequently used at its full load capacity, more frequent inspections are required! Please note that the chain sling must also be inspected after unusual events, for instance uncontrolled exposure to heat, overloading or collision.

We recommend subjecting the chain sling to a load capacity test with 2 times the load capacity every two years, followed by a visual inspection, or another type of crack test.

Visual inspection criteria If one of the criteria listed below manifests itself during the visual inspection, all parts must be removed from service.

• Breakage of a component • Illegible or missing marking of the chain sling

• Wear of edges if d < dn • Visible damage such as cuts, notches, grooves, surface

cracks, discolouration due to excessive heat exposure, signs of subsequent welding, bent or twisted links or other flaws

• Cracks and cross-cracks that are visible to the naked eye • Missing or non-functional safety device as well as signs

of widening or twisting of hooks, i.e. noticeable enlargement of the opening or other forms of deformation. The critical point is reached when the enlargement of the opening exceeds 10% of the nominal value. If the safety catch is open, as this indicates that the hook is overloaded

Maximum approved dimensional change (based on the nominal dimension): Designation Chain

Rings Hook

Connecting links

(i.e. information on identification data and/or load capacity)

• Deformation of sling parts or the chain itself • Elongation of the chain resulting in t > 1.05 tn

Clevis and Connex bolts

Dimension

Admissible deviation

dn

-10%

tn

+5%

wear at edges

d = dn

d

-10%

t

+10%

e

+5%

d2 and h

-10%

g

+10%

halves must be moveable

must be given

e

+5%

c

-10%

d

-10%

d

-10%

27

G12/Grade 120 winner pro

Correct maintenance Please note that all maintenance activities of pewag lifting accessories must be performed by a qualified person! Only pewag winner pro spare parts may be used to minimize the risk of improper use.

Impact-/shock-loading For the load capacities of pewag winner pro lifting chains to apply, it is assumed that the individual chain strands are not subjected to impact- or shock-loading. In cases of possible impact/shock, the load factors on page 25 apply.

Precise documentation All inspections and their results must be recorded and these records be kept throughout the service life of the chain slings.

Precise records of this sort constitute the best basis for effective maintenance.

Classification of impacts

Clean storage pewag lifting chains must always be stored in a clean and dry condition and protected against corrosion, i.e. slightly lubricated

• Strong impact results for instance from the load falling into the unloaded chain

Correct use of chain slings To ensure safe handling, the slinging points and chain sling types must be selected in such a way that the angles of inclination of all chain strands (legs) lie within the data given on the load capacity tag. Preferably, all angles of inclination should be the same. Avoid angles of inclination greater than 75° because of the high risk of load instability. Never use chain slings with the angle of inclination less than 30°!

Edge-loading – know your limits The maximum load capacity of pewag winner pro chain slings assumes that the individual chain legs are pulled straight under load, i.e. that they do not run over edges. However, if edgeloading is unavoidable, load protection (packing) should be used to avoid damage (see illustration):

• Slight impact may result from accelerated lifting or lowering operations • Medium impact may result from the chain slipping while adjusting itself to the shape of the load

Vibrations If they are used correctly, pewag winner pro lifting chains and accessories withstand high load cycles. pewag products come with a standard rating of 20,000 load cycles. However, in case of high dynamic loads there is a risk of damage to the chain or chain components.

The Trade Association Metall Nord Süd recommends reducing stress at WLL by using a larger nominal thickness/ size in such a case.

Symmetrical loading For the load capacities of pewag winner pro lifting chains to apply, it is assumed that the individual chain strands are placed under load symmetrically.

When the load is lifted, this results in equal angles of inclination and the individual strands are symmetrical to each other.

The load may be considered symmetrical when all of the following conditions apply:

• The load is less than 80% of the indicated load capacity • The angles of inclination of all chain strands are not

greater than 75° and are very similar (i.e. only differ by a maximum of 15°)

• For three - and four- stranded lifting chains, it must be ensured that the corresponding plan angles are within 15° of each other If chains are guided over edges without proper protection, their load capacity is significantly reduced and safe usage can no longer be guaranteed. See the table on pages 24-25 for the corresponding load factors. Where chain has to be wrapped around beams or other round-shaped loads, the diameter should be at least twice or 3 times the chain pitch.

For smaller diameters, the load capacity of the chains must be reduced by 50%.

The main part of the load is carried by just one leg

28

The main part of the load is carried by two legs

Be Careful!

If not all of these parameters are complied with, the load cannot be considered symmetrical and the classification of the lifting operation must be left to an expert. In case of doubt, only one chain strand (leg) should be considered as load-bearing. For the corresponding load capacity values, please refer to the load capacity table on pages 24 -25.

Wrongful use defeats the purpose pewag winner pro lifting chains offer perfect quality standards if they are used according to their intended purpose. In cases where not all individual legs are used simultaneously or where several lifting chains are used at the same time, different load capacities apply as outlined in the tables on pages 24 -25. In case of doubt regarding the intended purpose, the load capacity as indicated on the tag must be amended in accordance with the following table: Type of sling chain

Number of individual strands used

Use factor in relation to the load capacity given on the tag

Double leg

1

1/2

Triple and Quad leg

2

2/3

Triple and Quad leg

1

1/3

2 x Single leg

2

1.4

3 or 4

1.5

2 x Double leg

Identification and Testing pewag lifting chains and fittings are marked with a batch identification number and the manufacturer’s identification marking:

• “120” or “12” to indicate pewag Grade 120 Alloy • “100” or “10” to indicate pewag Grade 100 Alloy • “8” to indicate pewag Grade 80 Alloy • “6” to indicate pewag Grade 63 Stainless All Alloy chains are 100% tested to 2.5 times the working load values and are furnished with a test certificate to this effect, this exceeds US requirements.

Every chain sling manufactured by pewag is supplied with a test certificate and steel sling warning tag, as shown below.

Precautions

• Hang any individual strands (leg) that you are not using back into the master link to prevent hazards caused by freely swinging chains or unintended hooking • Before using several chain slings at the same time, make sure that the crane hook is big enough for all the master rings. Make sure that the master rings cannot fall out of the hook during lifting • Angles of inclination of more than 45° must be avoided • Use only chain slings of the same nominal thickness

and grade at the same time

Sling WARNING tag

Detailed original operating manuals for individual products are available for download at pewagchain.com.

Our manuals are subject to a continuous improvement process to ensure that they are always up to date.

For this reason, always refer to the latest version of a manual.

Front(s)

Back

29

G12/Grade 120 winner pro

pewag Industrial Products Terms and Conditions • TERMS:

Net 30 days - Credit must be established with pewag Inc. All other - cash in advance.

• FREIGHT POLICY - USA & Canada

pewag Inc. shipments, including Terrier Lifting Clamps, over 1,500 lbs. or $4,000.00 within the continental United States or Provincial Canada are prepaid. Carrier at the discretion of pewag.

Shipments under 1,500 lbs. or $4,000.00 will be prepaid and added to the invoice.

Minimum order of $25.00 For all shipments to Canada, customer will be responsible for duties and taxes.

• PRICES:

All prices are shown in US Dollars, order will be accepted subject to prevailing prices at time of order. Prices are subject to change without notice.

• RETURN GOODS:

pewag Inc./Terrier Lifting Clamps: Please note that we will accept returns only after a return merchandise authorization has been obtained. Items must be in new condition, unused in original packaging, with manuals and certifications. NO merchandise will be accepted without prior written authorization. Items must be returned to pewag within 120 days from the day shipped NO returns accepted after 120 days. All returns are subject to a 25% (35% if manuals and certifications are not returned) restocking/handling charge, which will be deducted from the amount of the credit memo.

Returned shipments must be prepaid. Collect or unauthorized shipments will be refused.

• CHAIN SLINGS AND SPECIALTY/CUSTOM ITEMS:

Specialty items, cut chain, and chain slings are custom items and are NONRETURNABLE, NONCANCELLABLE, and NONREFUNDABLE.

• FOR ALL OTHER PEWAG TERMS AND CONDITIONS OF SALE: https://www.pewagchain.com/footer/service/terms-and-conditions/

Disclaimer for Printed Literature: The information contained in our catalog is to be used only as a guide to assist with product selection. pewag Inc. makes no representation or warranty as to the completeness or accuracy of the information contained in our catalog. The products and specifications set forth in our catalog are subject to change without notice and pewag Inc. disclaims any and all liability for such changes. The information contained in our catalog is provided without warranties of any kind, either express or implied, and pewag Inc. disclaims any and all liability for typographical, printing, or production errors or changes affecting the products and/or the specifications contained in our catalog. It is the responsibility of the customer to thoroughly analyze all aspects of the customers’ proposed application for the products. Due to the diversity of possible applications of pewag Inc. products, the customer is solely responsible for making the final selection of the product(s) to be used and to assure that all performance, safety and warning requirements of the application are satisfied.
