Fully Adjustable.
Our patented modules are fully adjustable to accommodate any brand—the choice is yours.
Strong Like Bull. 18 gauge G-90 galvanized material makes Uniframe among the strongest in the industry. Our optional bolt-on serving bar supports are upgraded to 14 gauge for even more strength and support.
Unparalleled Versatility.
Interchangeable, adjustable modules allow for virtually any layout and configuration of grills, appliances, bins, doors and accessories.
No Cutting. No Drilling!
Whether you choose a predesigned kit or a custom module, assembly is simple and straightforward—empowering DIY’ers to create their dream outdoor kitchen.
Cold-Weather Installation.

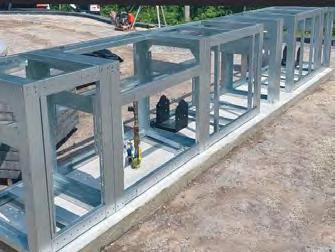

Our kits and modules can be assembled off-site in large sections and delivered ready for installation. Perfect for when weather is a factor.
Straight Forward.
Our units are strong, flat and straight, making countertop installation a breeze. Facades are just as easy to install.
Built to Last.
We offer a limited lifetime warranty. All of our systems are made from 18 gauge G-90 galvanized material, providing durability, quality, and strength, reinforcing our core values of integrity and innovation.

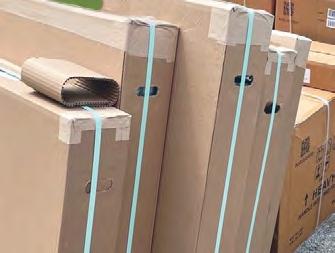

Ships Flat. Units ship flat for maximum efficiency.
Choose one of our predesigned kits, customize it with add-ons, or build a completely custom kitchen using our individual modules.
Dimensions: H: 35⅛", W: 120½", D: 69½"
The Avon is much like a classic indoor kitchen, with a layout that’s friendly and familiar. Add an outdoor fridge, sink or a backslash—it’s easy to make it your own.
Standard Grill Module 28"- 48" | QTY: 1
36" Module | QTY: 1
90 Deg Corner Kit | QTY: 1
Refrigerator Slides | QTY: 1
End Panel or Spacer | QTY: 4

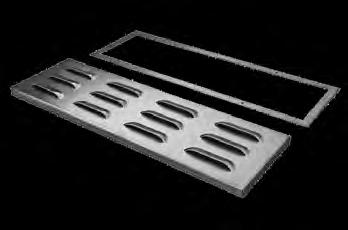

Vent Kit, 24 Louver | QTY: 1
Construction | 18 Gauge (.048) G-90
Galvanized Steel | Non-Combustible
Weight | 208 LB 35 ⅛"
Choose any brand for your appliances.
For reference only, appliances not included.
Dimensions: H: 35⅛", W: 124", D: 29½"
The Bridgewater accommodates your grill and outdoor refrigerator in a smart, compact way.
Standard Grill Module 28"- 48" | QTY: 1
36" Module | QTY: 1
Refrigerator Slides | QTY: 1
End Panel or Spacer | QTY: 2
Vent Kit, 24 Louver | QTY: 1
Construction | 18 Gauge (.048) G-90
Galvanized Steel | Non-Combustible
Choose any brand for your appliances.
For reference only, appliances not included.
Dimensions: H: 35⅛", W: 103", D: 29½"
The Brookline is designed to fit into small spaces and still make a statement. It’s a compact, straightforward arrangement that’s easy to make your own.
Standard Grill Module 28"- 48" | QTY: 1
24" Module | QTY: 2
Vent Kit, 24 Louver | QTY: 1
Construction | 18 Gauge (.048) G-90
Weight | 147 LB
Galvanized Steel | Non-Combustible
Choose any brand for your appliances.
Dimensions: H: 35⅛", W: 128"

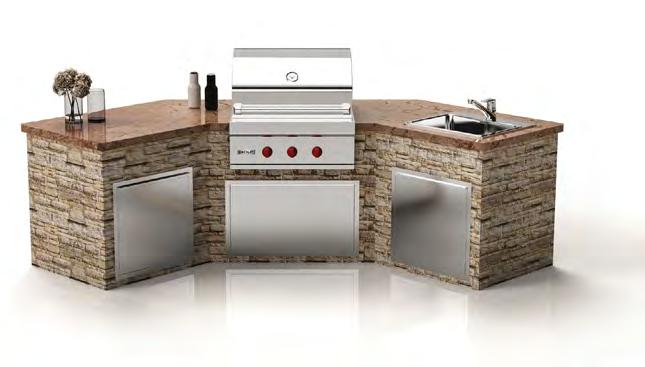

The Cambridge is an outdoor setup fit for royalty. Take on grill duty in style, behind your centered layout, with counter space on either side and plenty of room for customization.
Standard Grill Module 28"- 48" | QTY: 1
30" Module | QTY: 2
End Panel or Spacer | QTY: 2
45 Deg Corner Kit | QTY: 1
Vent Kit, 24 Louver | QTY: 1
Construction | 18 Gauge (.048) G-90
Galvanized Steel | Non-Combustible Weight | 216 LB
Adjustable 59 ½" to 79 ½"
Choose any brand for your appliances.
For reference only, appliances not included.
Dimensions: H: 35⅛", W: 88½", D: 29½"
The Hyannis offers a compact design that effortlessly fits into a smaller space yet offers ample room for storage and grilling essentials. Upgrade your outdoor cooking experience with ease and style.
Standard Grill Module 28"- 48" | QTY: 1
30" Module | QTY: 1
End Panel or Spacer | QTY: 1
Vent Kit, 24 Louver | QTY: 1
Construction | 18 Gauge (.048) G-90
Steel | Non-Combustible
Choose any brand for your appliances.
For reference only, appliances not included.
The Lexington (UF-KIT-LEXINGTON)
Dimensions: H: 35⅛", W: 168½", D: 90"
The Lexington is an outdoor setup for the true outdoor kitchen enthusiast. With multiple cooking and prep areas that offer plenty of space to cook and entertain.
Standard Grill Module 28"- 48" | QTY: 1
Power Burner Module | QTY: 1
30" Module | QTY: 1
24" Module | QTY: 2
45 Deg Corner Kit | QTY: 1
Refrigerator Slides | QTY: 1
End Panel or Spacer | QTY: 3
Vent Kit, 24 Louver | QTY: 1
Construction | 18 Gauge (.048)
G-90 Galvanized Steel
Non-Combustible
Weight | 325 LB
Choose any brand for your appliances.
Dimensions: H: 35⅛", W: 157", D: 125½"
The Mashpee provides the perfect structure for entertaining guests. You can cook up your favorite foods without having to leave the party.
Standard Grill Module 28"- 48" | QTY: 1
36" Module | QTY: 1
Refrigerator Slides | QTY: 1
End Panel or Spacer | QTY: 3
90 Deg Corner Kit | QTY: 1
48" Module | QTY: 2
Bar Support | QTY: 7
Vent Kit, 24 Louver | QTY: 1
Construction | 18 Gauge (.048)
G-90 Galvanized Steel
Non-Combustible Weight | 380 LB
Choose any brand for your appliances.
For reference only, appliances not included.
Dimensions: H: 35⅛", W: 91½", D: 29½"
The Nantucket is your solution for creating a stellar, compact outdoor cooking space. Built with quality and convenience in mind, this compact powerhouse is perfect for serious at-home chefs who want to maximize their outdoor kitchen space.
Standard Grill Module 28"- 48" | QTY: 1
Refrigerator Slides | QTY: 1
End Panel or Spacer | QTY: 3
Vent Kit, 24 Louver | QTY: 1
Construction | 18 Gauge (.048)
G-90 Galvanized Steel
Non-Combustible
Weight | 141 LB
Choose any brand for your appliances.
For reference only, appliances not included.
Dimensions: H: 35⅛", W: 103", D: 29½"
The Rockport is the perfect solution for homeowners who want to take their outdoor grill to the next level. This system allows you use your favorite roll-in grill seamlessly with our outdoor kitchen frame.
24" Module | QTY: 2
Adjustable Channels 34"- 55" | QTY: 3
Vent Kit, 24 Louver | QTY: 1
Construction | 18 Gauge (.048) G-90
Galvanized Steel | Non-Combustible
Weight | 125 LB
Adjustable Opening 34"to55"
Choose any brand for your appliances.

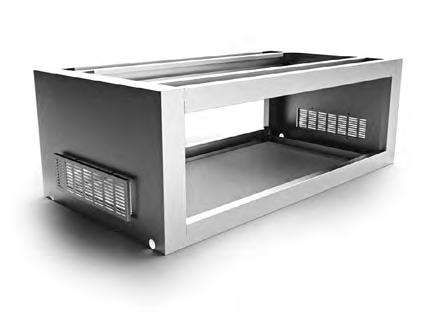

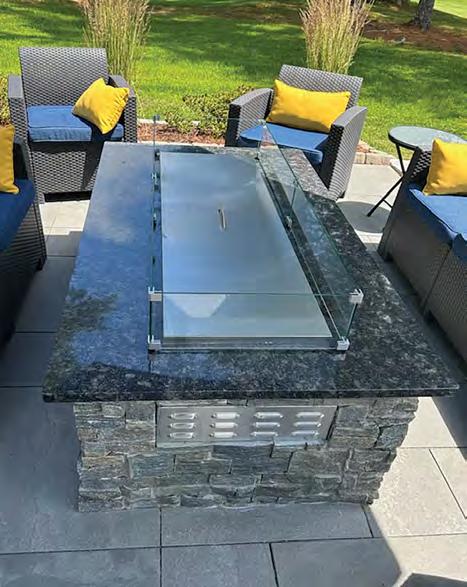

Fire Pit Outdoor Framing System, Gas Feed Type A (UF-MFPA)
Fully adjustable–Designed for remote gas feed, comes with 2 stainless end vents.
Burner Opening | 24⅛" Max Width x 50" Max Length
Vent Size | 5½" x 18"
Overall Width | 30⅛"
Overall Height | 20"
Overall Length | 57"
Construction | 18 Gauge (.048) G-90 Galvanized Steel | Non-Combustible
Weight | 65 LB
Fire Pit Outdoor Framing System, Propane Type B (UF-MFPB)
Fully adjustable–Designed for internal 20 lb horizontal propane tank.
Burner Opening | 24⅛" Max Width x 50" Max Length
Vent Size | 5½" x 18"
Overall Width | 30⅛"
Overall Height | 20"
Overall Length | 57"
Construction | 18 Gauge (.048) G-90 Galvanized Steel | Non-Combustible
Weight | 65 LB

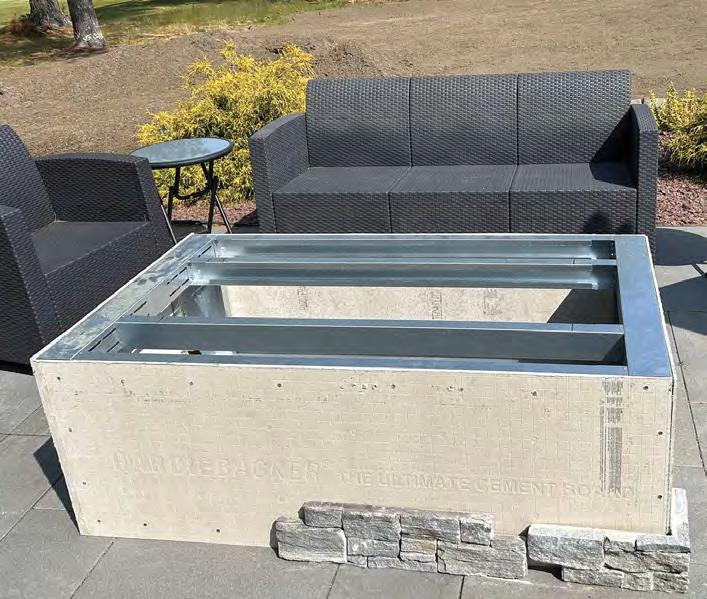

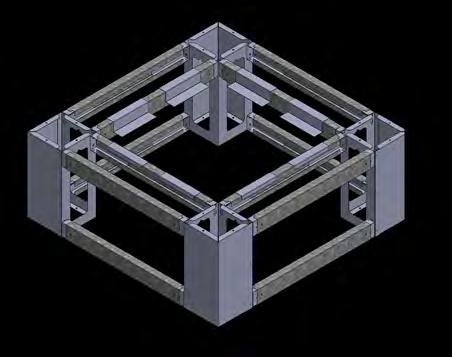

Square Adjustable Fire Pit (UF-MFPC)
Fully adjustable both ways. Can be stacked to make table height (34"). Comes with 2 UF-L12 Vents.
Burner Opening | Adjustable 24" to 42¼" Max Length
Vent Size | 5½" x 18"
Overall Width | 58¼"
Overall Height | 17"
Overall Length | 58¼"
Posts | 8"x 8"
Construction | 18 Gauge (.048) G-90 Galvanized Steel | Non-Combustible
Weight | 65 LB
When a predesigned kit doesn’t quite fit your vision or space, just create your very own design using our interchangeable, adjustable modules. Here's how:

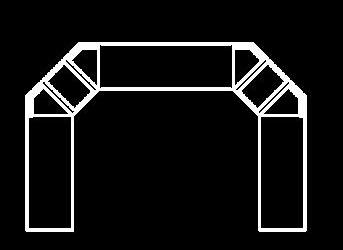

Step 1 — Design your perfect shape and configuration.

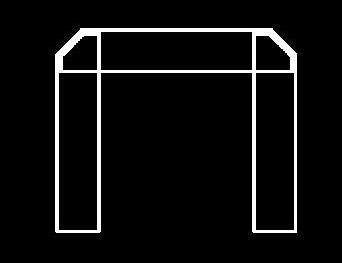

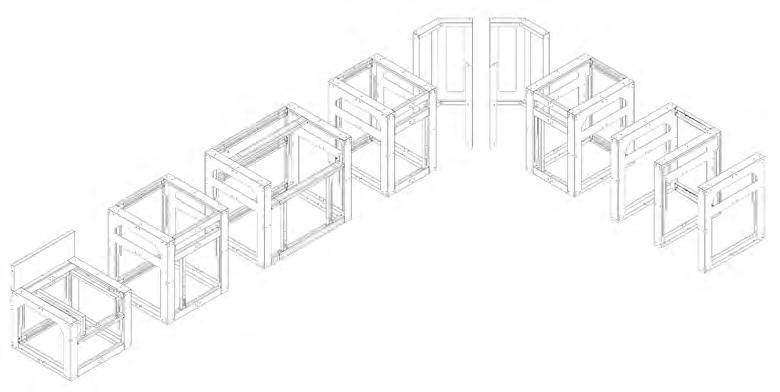

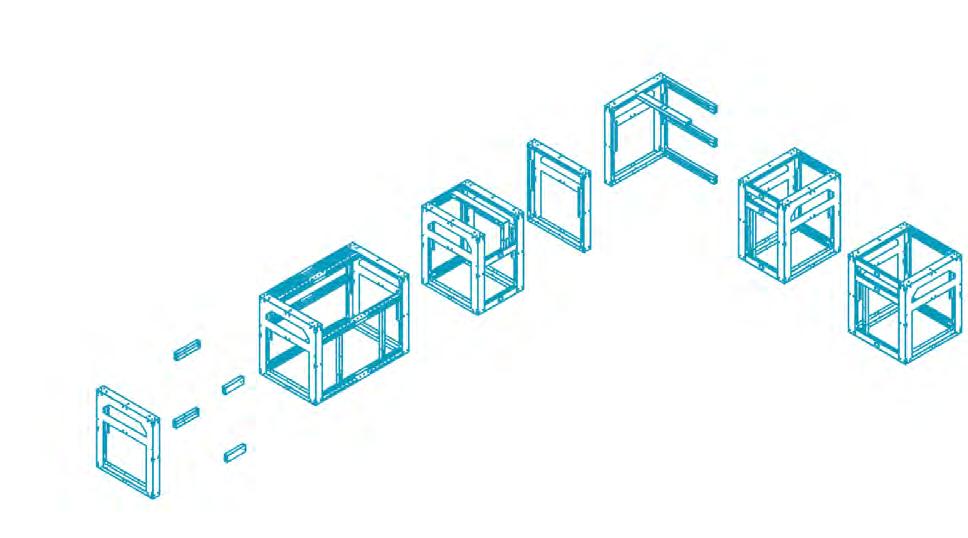

Use the base shapes shown here to create virtually any layout you can dream of. Choose a straight design for a sleek space, an “L" for maximizing space, or a “U" shape for a spacious and versatile layout. Or, let your imagination guide you to a completely custom shape. Remember to consider add-ons, such as bar or a backsplash.
Step 2 — Choose your appliances and accessories.
Our adjustable modules give you the freedom to choose any brand of outdoor appliances and accessories that suits your design and lifestyle. Refrigerators, grills, sinks, ice-bins, trash bins, drawers, cabinets, and more; the possibilities are endless.
Once you choose your brands, note the manufacturer’s specifications for the minimum opening size required for installation.
Step 3 — Select the appropriate modules and parts.
Choose the modules (pages 22–27) that meet the minimum size opening specified by the manufacturer for each appliance and accessory. Our modules are designed to meet any specification! For example:
• Extra-wide 55" grill? No problem! Choose our fully adjustable “Wide Grill" Module (UF-GRW).
• Kamado-style Grill (think “Big Green Egg")? Go with our adjustable-height shelf (UF-EG1 pg. 29).
• Side burner? We got you covered (UF-SB1 pg. 30).
Once you've selected the appropriate modules, add any parts needed to complete your outdoor kitchen, such as bar support kit, backsplash kit, or side burner support arm (pages 28-32).
OUR MODULES ARE:
Made of commercial-grade materials and crafted to last they withstand any weather
Straightforward to build, you don’t need a contractor’s training to get the job done
Fully customizable so you can adjust the layout to fit your plans for your space

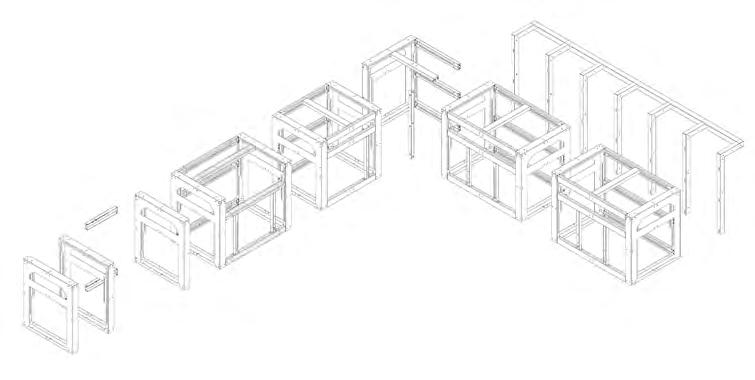

To help guide you in the process, here are step-by-step instructions on how

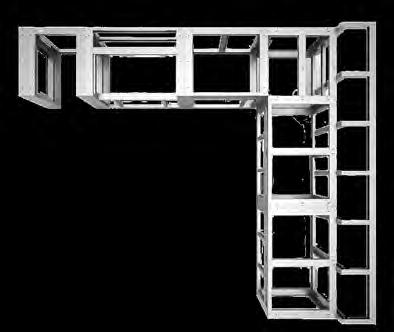

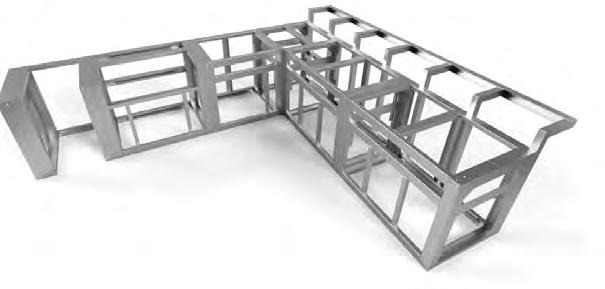

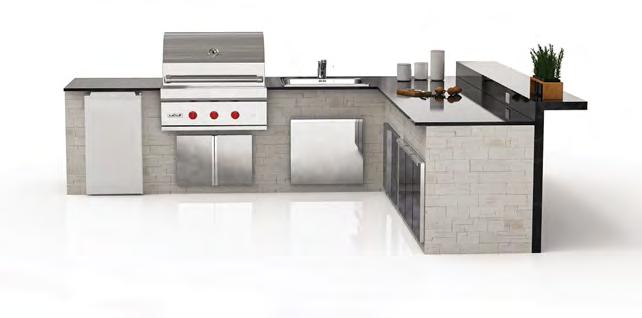

We chose an “L" shape with a 90º corner and serving bar for this example.
Step 1:
Design your perfect shape and configuration.

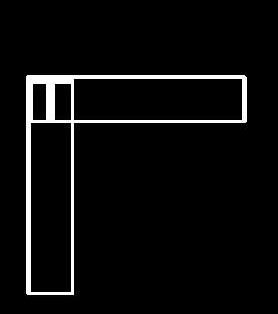

For our example, we chose an "L" shape, 90º corner with a serving bar. We then configured the layout to maximize the space and functionality.
Choose your appliances and accessories.
Our adjustable modules can accommodate virtually any outdoor appliance brand, accessory and size! Shown to the right are the one we chose—making note of the manufacturers required opening dimensions*.
*Note: Specifications shown are for DEMONSTRATION PURPOSES ONLY. Refer to your manufacturer's installation instructions for the actual dimensions.
Select the appropriate modules and parts.
We select our modules (pp. 23-27) based on each manufacturer's specifications for the required opening. We then add necessary parts such as spacers and bar support kit (pp. 29-33).
end panel/ spacer. We use a total of four as shown below
While the level of detail shown here is not necessary, creating a sketch of all components and parts, along with their measurements, can ensure you have the correct modules, parts, sizing and layout you require.
to design a custom outdoor kitchen and choose appropriate modules.

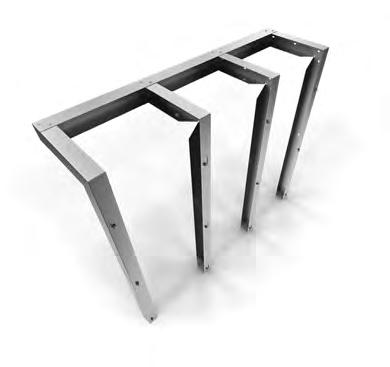

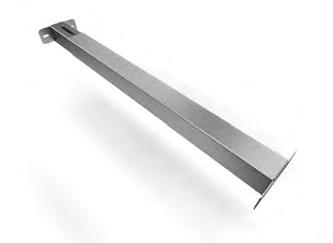

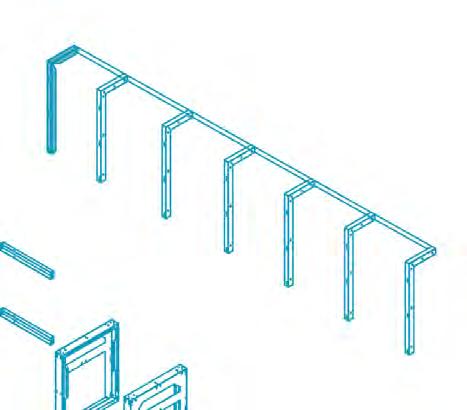

UF-BTS pg. 29 – 4' Bar Support Kit we use 2 to create an 8' bar

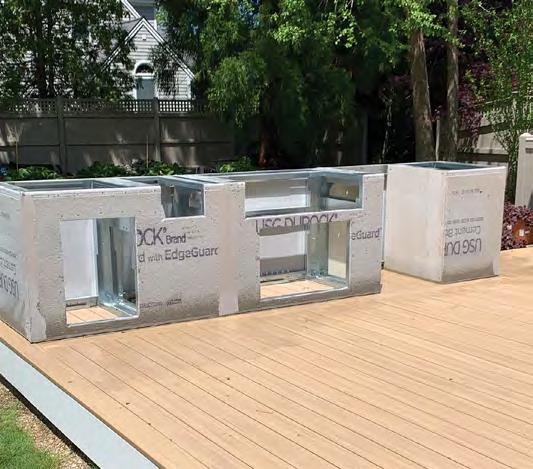

After setting up your frame, the next steps are to mount cement board and apply finishing materials, countertop, optional sink (not included). You have complete control over the surfaces. We’re here to support you every step of the way with any questions you have. Find our contact information on the back.
Our patented systems make adjusting our modules to fit most—if not all—outdoor appliances easy. Simply note the minimum opening size required by the manufacturer for your appliance and/or accessory, then select the appropriate module that meets that requirement.
Example:
42" wide “drop-in" grill and cabinet doors beneath:
• Grill manufacturer specifies a 40¾" wide x 24" deep opening
• Cabinet doors require a 40¾" wide x 20" high opening
Choose Grill Module UF-GRL
Module Opening/Cutout Size
#UF-GRL
Module for grill or beverage center
• Adjustable from 28"- 48"
• Opening/cutout underneath grill will accommodate accessory the same width as grill or adjust smaller
Module Categories
Grill Module (2 Sizes)
Base Module (6 Sizes)
Refrigerator Slides

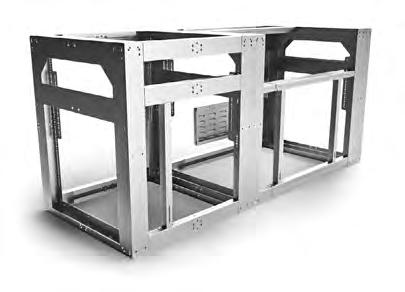

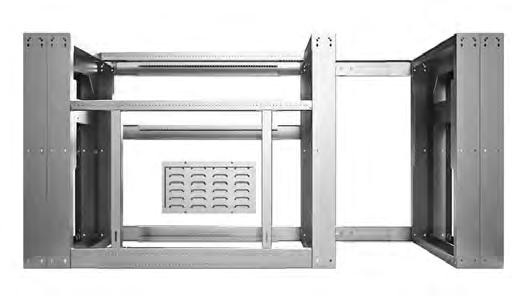

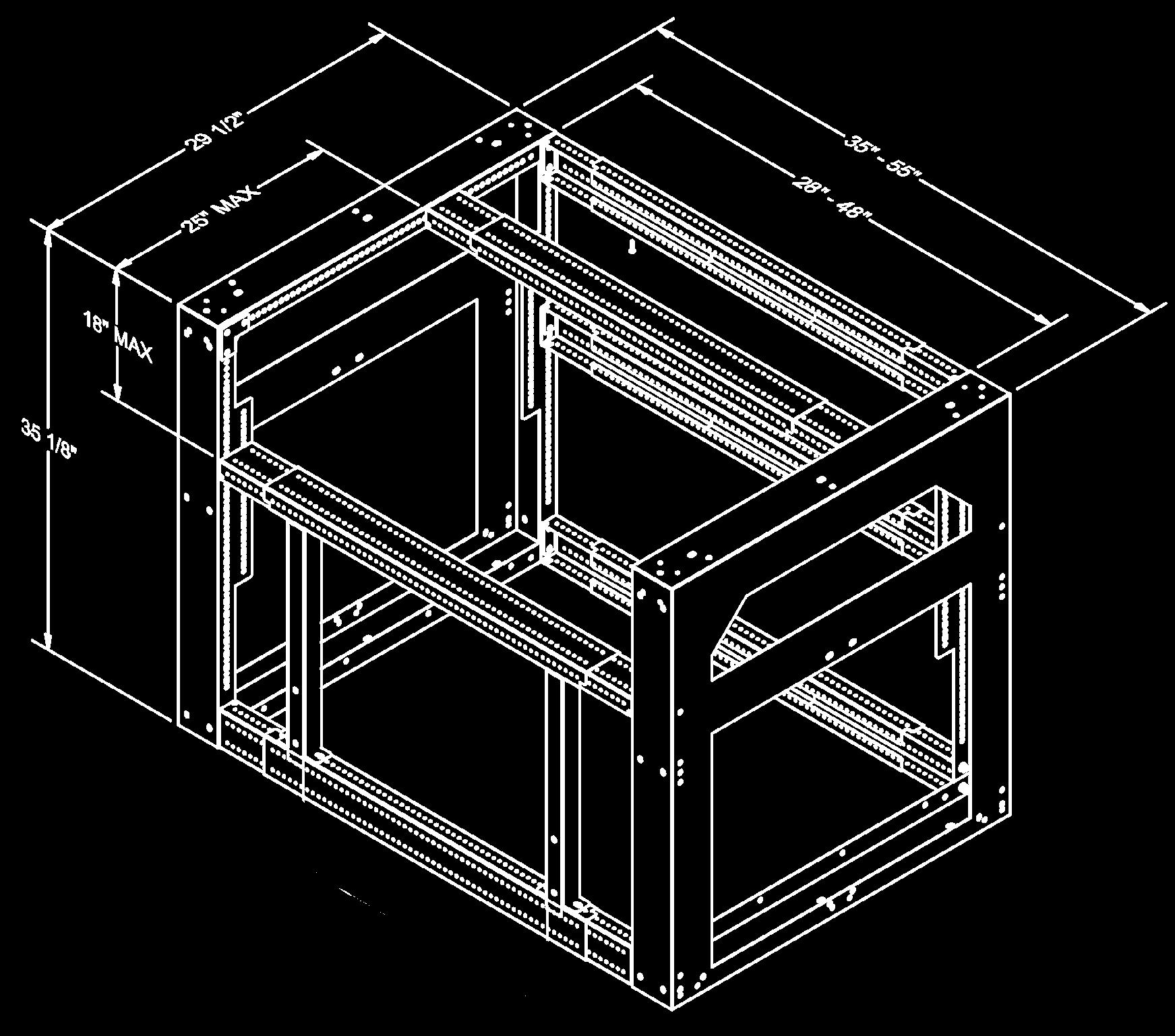

Standard Grill Module 28"- 48" (UF-GRL)
Wide Grill Module 34"- 55" (UF-GRW)
Fits grills: 28" to 48" wide or beverage centers
Accessory max opening: 48" wide
Adjustable front opening below the grill accommodates your choice of accessories such as doors, drawers and more.
Grill Opening | 28"- 48" Width | 25" Max Front to Back Depth
Accessory Opening | 48" Max Width
Overall Width | 35"- 55"
Overall Height | 35⅛"
Overall Depth | 29½"
Includes | Vent UF-L24
Construction | 18 Gauge (.048) G-90 Galvanized Steel | Non-Combustible | 65 LB
Fits grills: 34" to 55" wide

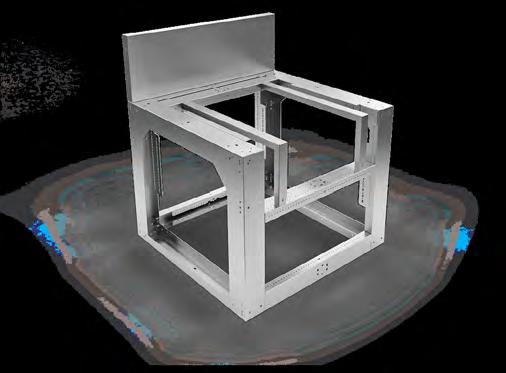

Power Burner Module (UF-PWB)
Accessory max opening: 55" wide
Adjustable front opening below the grill accommodates your choice of accessories such as doors, drawers and more.
Grill Opening | 34"- 55" Width | 25" Max Front to Back Depth
Accessory Opening | 55" Max Width
Overall Width | 41"- 62"
Overall Height | 35⅛"
Overall Depth | 29½"
Includes | Vent UF-L24
Construction | 18 Gauge (.048) G-90 Galvanized Steel | Non-Combustible
Weight | 70 LB
Fits power burners up to 23" wide
Adjusts to fit any power burner you desire up to 23" wide.
Burner Opening | 12"- 23" Width | 23" Max Front to Back Depth
Overall Width | 30"
Overall Height | 35⅛" Top Backsplash
Power Burner Height | 24⅜"
Overall Depth | 29½"
Construction | 18 Gauge (.048) G-90 Galvanized Steel | Non-Combustible
Weight | 47 LB
(UF-M24)
30" Module (UF-M30)
Max opening: 17" wide x 29⅛" high
Supports custom accessories (doors, drawers, etc.).
Max Opening | 17" Width | 29⅛" Height (inside dimensions)
Accessory Opening | 17" Max Width | 29⅛" Height
Overall Width | 24"
Overall Height | 35⅛"
Overall Depth | 29½"
Construction | 18 Gauge (.048) G-90 Galvanized Steel | Non-Combustible
Weight | 40 LB
36" Module (UF-M36)
Max Opening: 23" wide x 29⅛" high
Supports custom accessories (doors, drawers, etc.).
Max Opening | 23" Width | 29⅛" Height (inside dimensions)
Accessory Opening | 23" Max Width | 29⅛" Height
Overall Width | 30"
Overall Height | 35⅛"
Overall Depth | 29½"
Construction | 18 Gauge (.048) G-90 Galvanized Steel | Non-Combustible
Weight | 42 LB
Max Opening: 29" wide x 29⅛" high
Supports custom accessories (doors, drawers, etc.).
Max Opening | 29" Width | 29⅛" Height (inside dimensions)
Accessory Opening | 29" Max Width | 29⅛" Height
Overall Width | 36"
Overall Height | 35⅛"
Overall Depth | 29½"
Construction | 18 Gauge (.048) G-90 Galvanized Steel | Non-Combustible
Weight | 50 LB
48" Module (UF-M48)
45 Degree Corner (UF-C45)
Max opening: 38" wide x 29⅛" high Supports custom accessories (doors, drawers, etc.).
Max Opening | 38" Max Width | 18" - 29⅛" Height
Accessory Opening | 38" Width | 29⅛" Height
Overall Width | 48"
Overall Height | 35⅛"
Overall Depth | 29½"
Construction | 18 Gauge (.048) G-90 Galvanized Steel | Non-Combustible
Weight | 58 LB
This module creates a perfect 45° corner between adjacent modules.
Corner Angle | 45 Degrees
Overall Height | 35⅛"
Construction | 18 Gauge (.048) G-90 Galvanized Steel | Non-Combustible
Weight | 15 LB
REF | Lexington Kit Shows Full 45° Corner Kit (pg. 5)
REF | Cambridge Kit Shows Full 45° Kit Split (pg. 5)

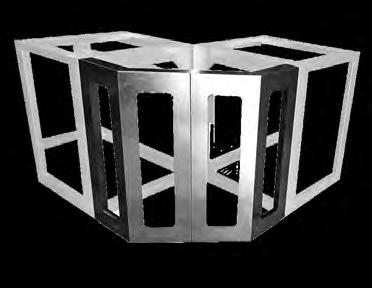

This module creates a perfect 90° corner between adjacent modules.
Overall Width | 29½"
Overall Height | 35⅛"
Overall Depth | 29½"
Construction | 18 Gauge (.048) G-90 Galvanized Steel | Non-Combustible
Weight | 25 LB

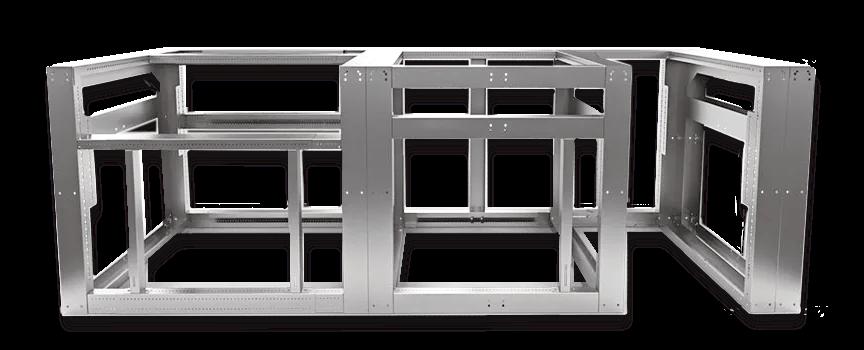

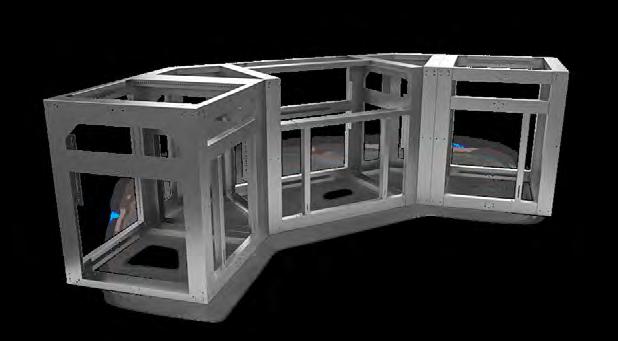

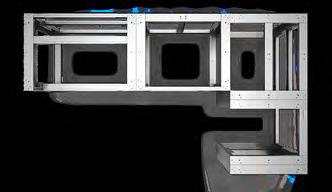

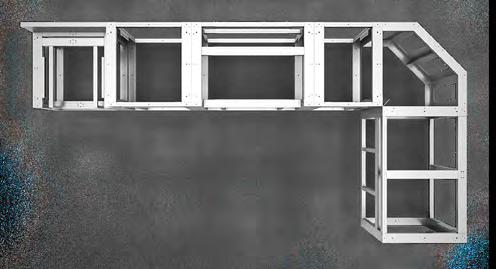

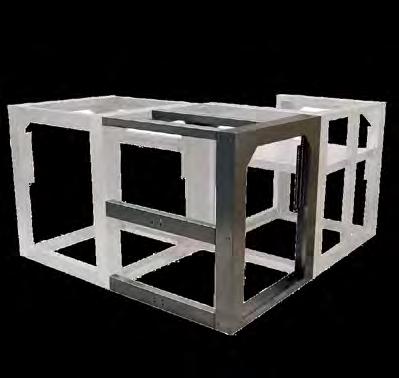

REF | Avon/Mashpee Kit Shows Full 90° Corner Kit (pg. 5)

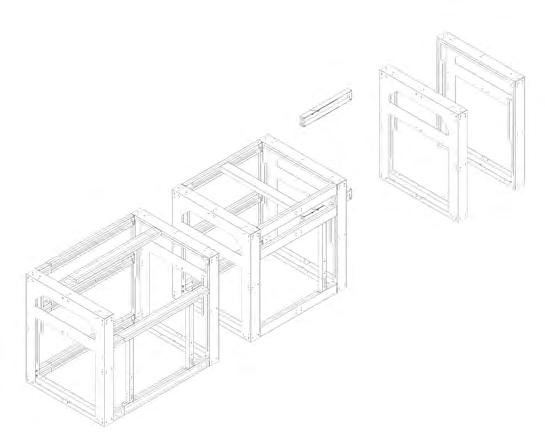

Use UF-MD1 end panels/spacer on inside corners to give doors and drawers 3½" more clear space. Double them up to create 7" width to hold veneer at the ends. Need more than 7"? Use our UF-AD7 adjustable channels to add 7-12" of space wherever you need it.
(UF-REF)

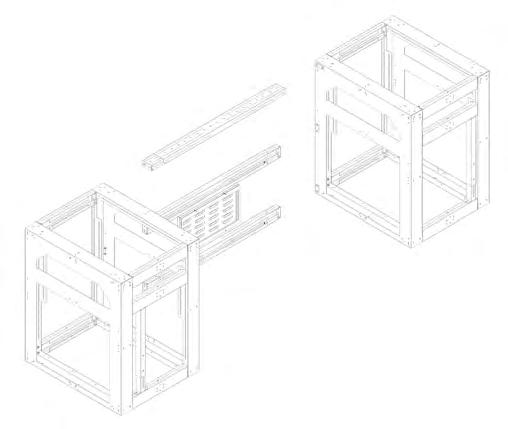

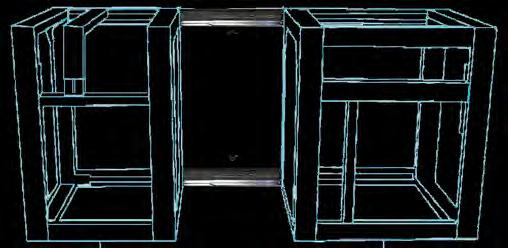

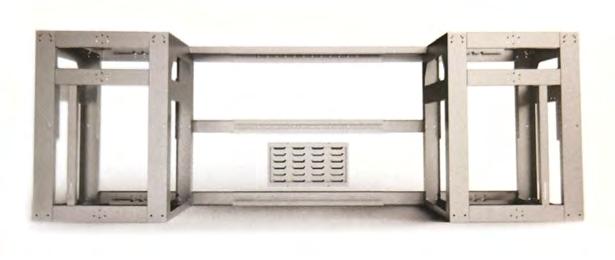

Adjustable Refrigerator Slides (set of 2) are used to create openings between adjacent modules, from 14½" to 26" wide, for accessories, such as a refrigerator or ice maker.
Overall Width | 14½" - 26"
Construction | 18 Gauge (.048) G-90 Galvanized Steel | Non-Combustible
Weight | 5 LB

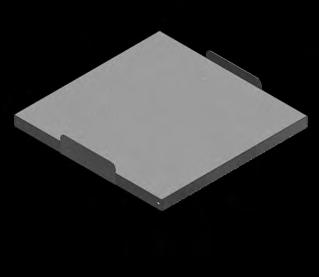

(UF-EG1)
This shelf fits within a standard 36" Module, with heavy duty construction to safely support most “Kamado/Egg" style cookers.
Shelf Size | 29" Width | 28" Max Front to Back Depth | 17-3/4" (Installs into 36" Module UF-M36, module Not Included)
Overall Width | 29"
Construction | 14 Gauge (.078) G-90 Galvanized Steel | Non-Combustible
Weight | 23 LB

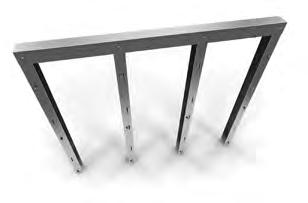

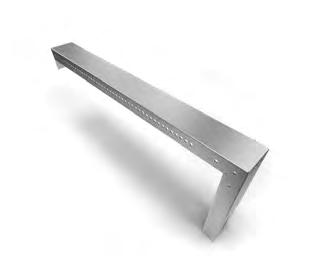

Bar Top Support Kit (UF-BTS-KIT)

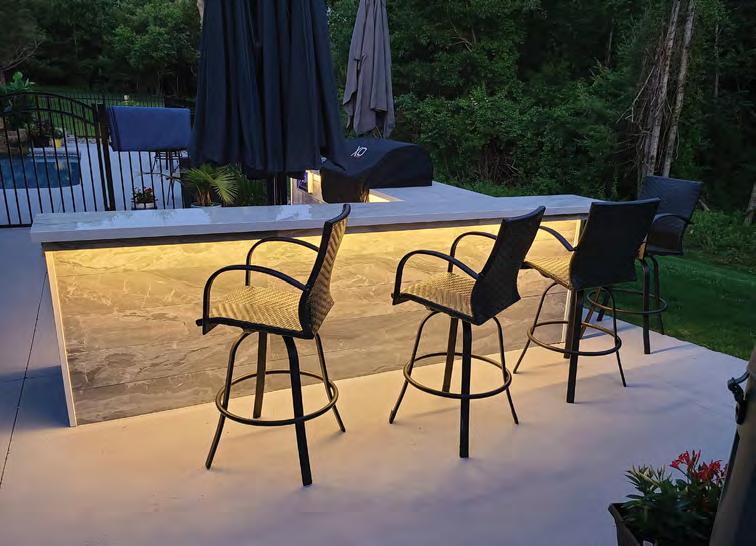

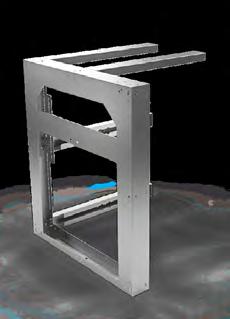

Turn your outdoor kitchen into to the ultimate socializing spot with this 4' Bar Top Support Kit. This module allows you to build your perfect bar anywhere in your outdoor kitchen. Simply attach the kit(s) with existing holes to your frame/modules to create a bar top, and enjoy.
Set includes 4 Bartop Supports and 1 Cap Channel to create 4 ft section
Overall Width | 4 ft
Support Height | 41½"
Overall Depth | 29½"
Construction | 14 Gauge (.078) G-90 Galvanized Steel | Non-Combustible
Weight (per set) | 34 LB
(UF-MD1)
Louver Vent Kit 10"x18" (UF-L24)
Louver Vent Kit 5½"x18" (UF-L12)
Side Burner L-Support (UF-SB1)

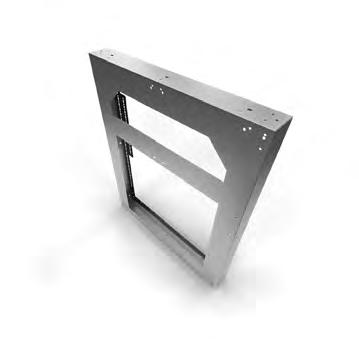

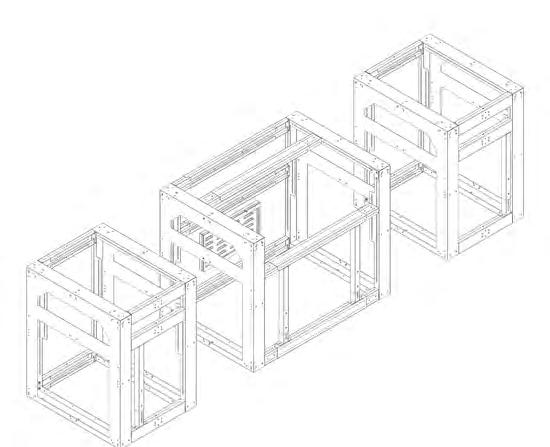

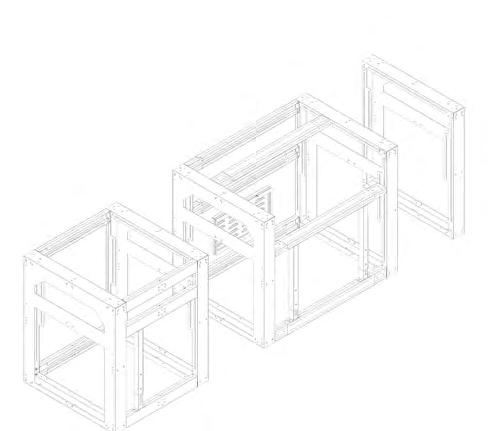

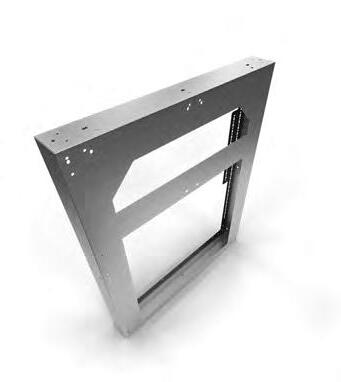

End Panels are the main building blocks of Uniframe Systems. Add extra End Panels as needed to create space for surface materials or to provide extra support for countertops.
Overall Width | 3½"
Overall Height | 35⅛"
Overall Depth | 29½"
Construction | 18 Gauge (.048) G-90 Galvanized Steel | Non-Combustible
Weight | 14 LB
Used for venting of outdoor kitchen islands. 24 louver slots for superior ventilation.
Overall Height | 10"
Max Width | 18"
Overall Depth | ¾"
Construction | 20 Gauge Stainless Steel | Non-Combustible
Note | All grill modules come with one vent
Used for venting of outdoor kitchen islands. 12 louver slots for superior ventilation.
Overall Height | 5.5"
Max Width | 18"
Overall Depth | ¾"
Construction | 20 Gauge Stainless Steel | Non-Combustible
Installs into 24" & 30" module to support the side burner of your choice.
24" Module Burner Opening | 14" Max Adjustable Side Burner Width
30" Module Burner Opening | 20" Max Adjustable Side Burner Width
Support Width | 3"
Construction | 18 Gauge (.048) G-90 Galvanized Steel | Non-Combustible
Weight | 8 LB
(UF-BSP-KIT)
Add a backsplash to your outdoor kitchen using these Backsplash Supports. Each set contains (4) Backsplash Supports and a Cap Channel to create a 4 foot long backsplash.
Set includes 4 Backsplash Supports and 1 Cap Channel to create 4 ft section
Overall Height | 41½"
Support Width | 2½"
Construction | 18 Gauge (.048) G-90 Galvanized Steel | Non-Combustible
Weight | 20 LB
3" Extension (UF-3EX)
Floor/Top Support (UF-FS3)
Add 3" Extension to 17" horizontal for a wider 20" opening, makes 27" module. Only for a 24" module.
Horizontal bolt on extensions 5 per pack, comes with 5 stud plates & 10 nuts to fasten to existing Horizontal channels
Overall Length | 3"
Overall Width | 3"
Overall Height | 1½"
Construction | 18 Gauge (.048) G-90 Galvanized Steel | Non-Combustible

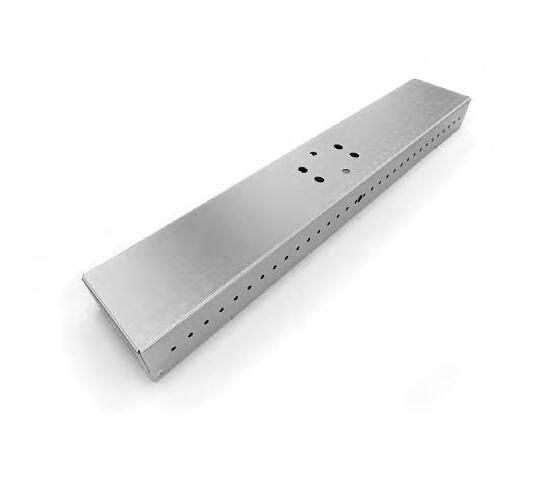

Install Floor/Top Supports into modules for additional support of countertops, shelving, or drawer units.
Overall Length | 26½"
Overall Width | 3"
Overall Height | 1½"
Construction | 18 Gauge (.048) G-90 Galvanized Steel | Non-Combustible
Weight | 2 LB
Narrow Vertical Slide (UF-SLN)
Install Narrow Vertical Slides into modules to frame out an opening for an access door, drawer, or similar accessory.
Overall Length | ADJUSTABLE 18" - 29⅜"
Overall Width | 3½" Ends
Overall Height | 1½"x 1½"
Construction | 18 Gauge (.048) G-90 Galvanized Steel | Non-Combustible
Weight | 2 LB
Appliance Extension Kit (UF-APP EXT)
Extend your appliance door flange.
4 Pieces Per Pack (1 pack is for 1 door unit)
Construction | 18 Gauge (.048) G-90 Galvanized Steel | Non-Combustible
Designed for attaching cement board to 20-12 gauge metal.
100 PK
8 x 1-1/4-in Phillips, Wafer Head, Fine Thread #3 Drill Point, NanoGard™ Screws

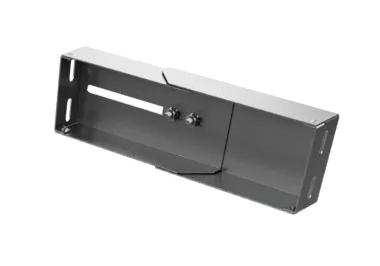

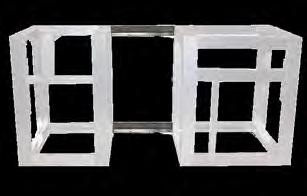

Adjustable Channel Set 7" to 12" (Set of 4) (UF-AD7)
Use this Adjustable Channel Set to make your outdoor kitchen frame just the right length for your install. Place between existing modules to add 7"-12" length.
Adjustable Length | 7"- 12"
Overall Width | 3"
Overall Height | 1½"
Construction | 18 Gauge (.048) G-90 Galvanized Steel | Non-Combustible
Weight | 2 LB

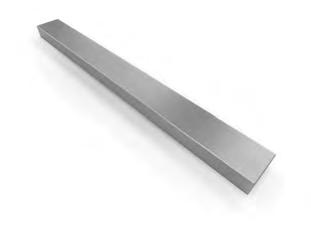

Channel 17" (UF-MD4)
Add or replace support channels in
Channel 23" (UF-MD5)
Add or replace support channels in
Channel 29" (UF-MD6)
Add or replace support channels in 36" Modules
Channel 41" (UF-MD7)
Add or replace support
in 48" Modules

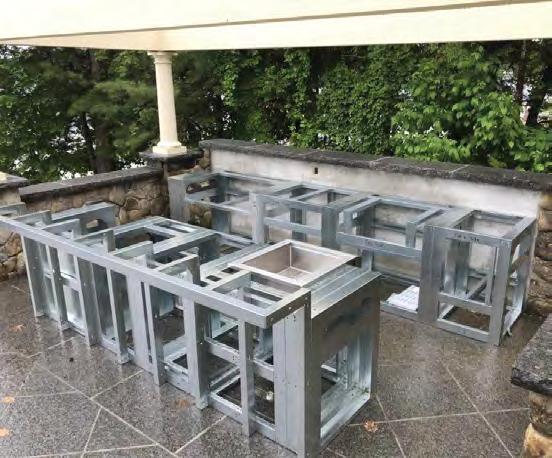

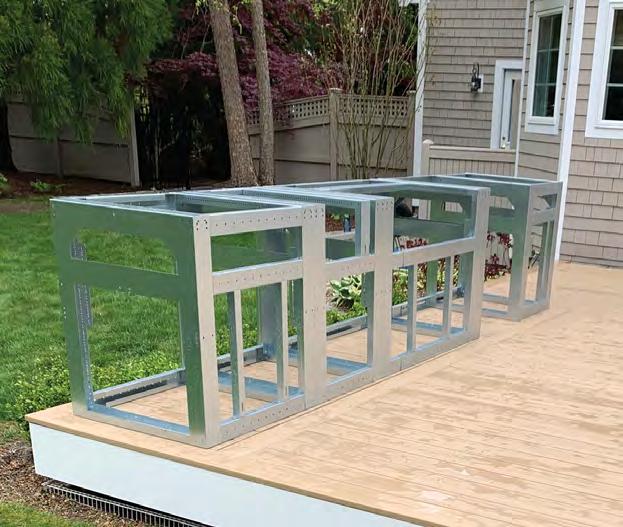

One day many years back a landscape contractor approached the owners of our parent company, New England Welding, with a challenge: could they come up with a fully-adjustable, outdoor kitchen framing system that could be easily customized and assembled? Oh, and one more thing; it should accommodate any brand and size of outdoor appliance.
Well, needless to say, our founders were up to the challenge. With a combined 100 years experience in metal fabrication, they brainstormed a system that met all of that criteria and more: it also aligned with their core values of quality, integrity, and innovation. The result is the versatile product you'll find in this catalog and in hundreds of outdoor spaces.
Today, our patented framing systems is the cornerstone of our business, and we’re proud to offer it to contractors and homeowners alike.
