PORTFOLIO Onoseta Felix Ilemhenbhio Role applying for Part 1 Architectural assistant Selected works 2020-2022
CV Contents 32 WORKEDUCATIONEXPERIENCE SKILLS & AWARDS Architecture (Bsc) (Hons) 09/2019-06/2022 University of Central Lancashire Awarded First Class Btec Extended Diploma (Art&Design) 09/2016-06/2019 Bolton D*D*D*CollegeSupportWorker 09/2018-till date Creative Support Ltd Providing physical and emotional support for individ uals with autism and learning disabilities, and their families • Working alongside a multidisciplinary team ensures effective communication and safeguarding are upheld at all times • Built strong patient relationships through compassion ate care and friendly rapport building. Voluntary treasurer P.H.I.M Mass Choir 07/2016-08/2016 • Handled receipts, banking and protection of company funds, securities and financial products • Worked to develop a network by identifying and pursuing new leads,attending industry events and building rapport with clients. Managed projects through effective budgeting, sched uling and complex problem-solving. Commendation for best final Portfolio 07/2022 Problem CreativeCommunicationsolvingthinking and attention to detail Design suite 3D Modelling 3D MODELING SKILLS Revit 2 years Autocad 3 years Photoshop 6 years Indesign 2 years Illustrator 4 years Lightroom 6 years ONOSETA FELIX-ILEMHENBHIO Meticulous B(Sc) Architecture graduate capable of approaching design briefs with accuracy and Superior technical skill. Quick learner and proficient Revit Bolton,user.Greater Manchester (BL1) Tel +44 7459230692 Email onosetafelix@gmail.com PART 1 ARCHITECTURAL ASSISTANT PROJECT 2 Strausse 84 PROJECT 3 Temple of Antithesis PROJECT 1 Collective housing
COLLECTIVE HOUSING
ProjectCrescenttypology: Co-housing scheme

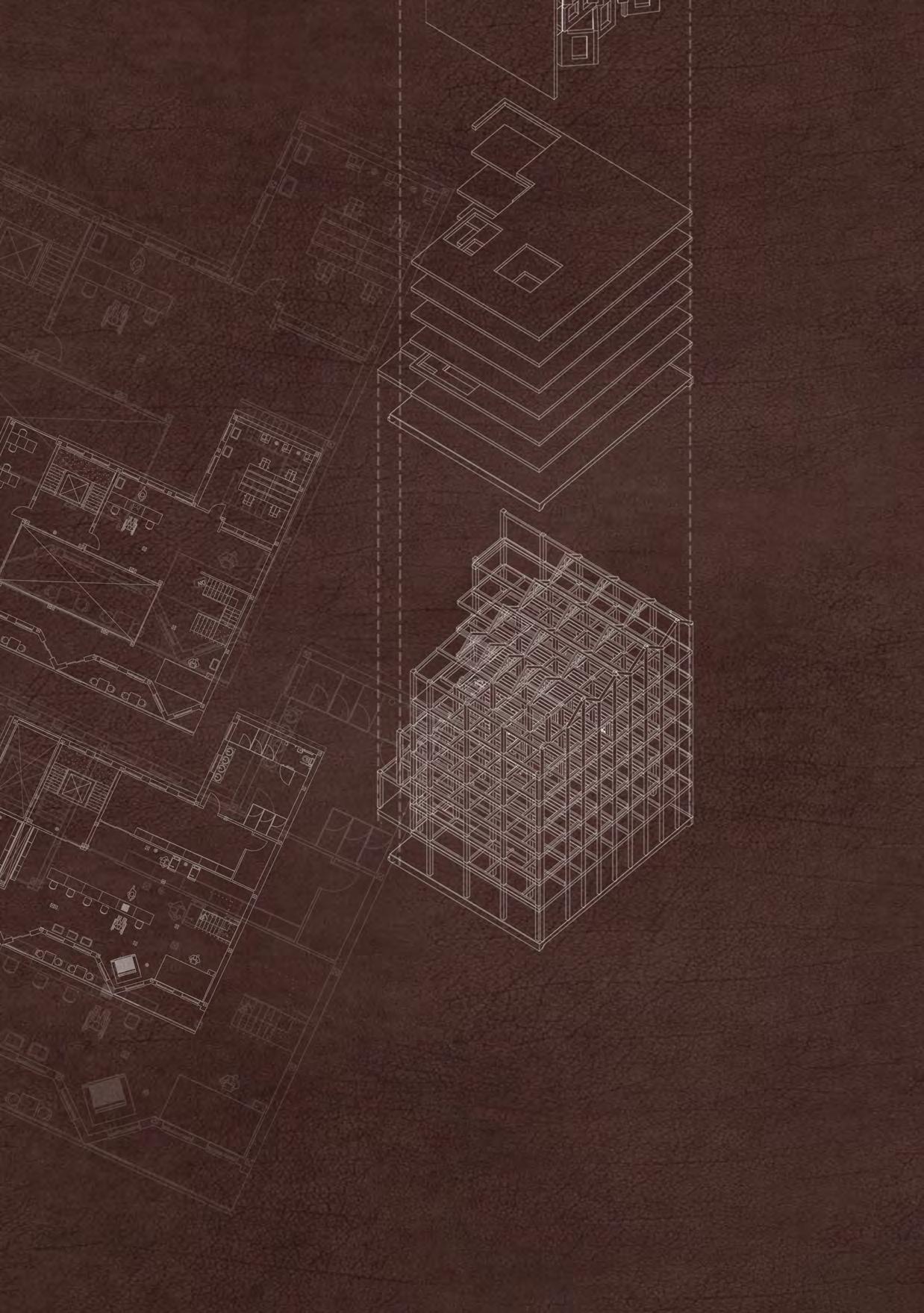

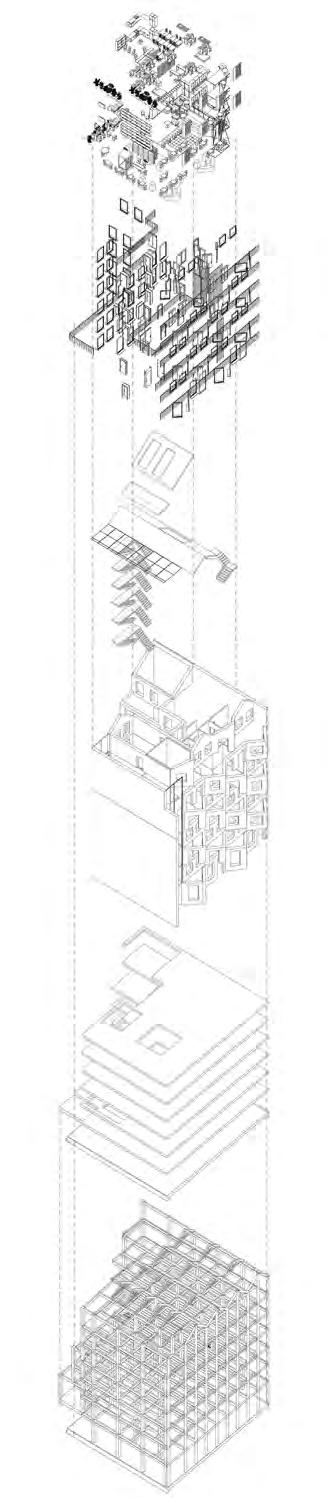

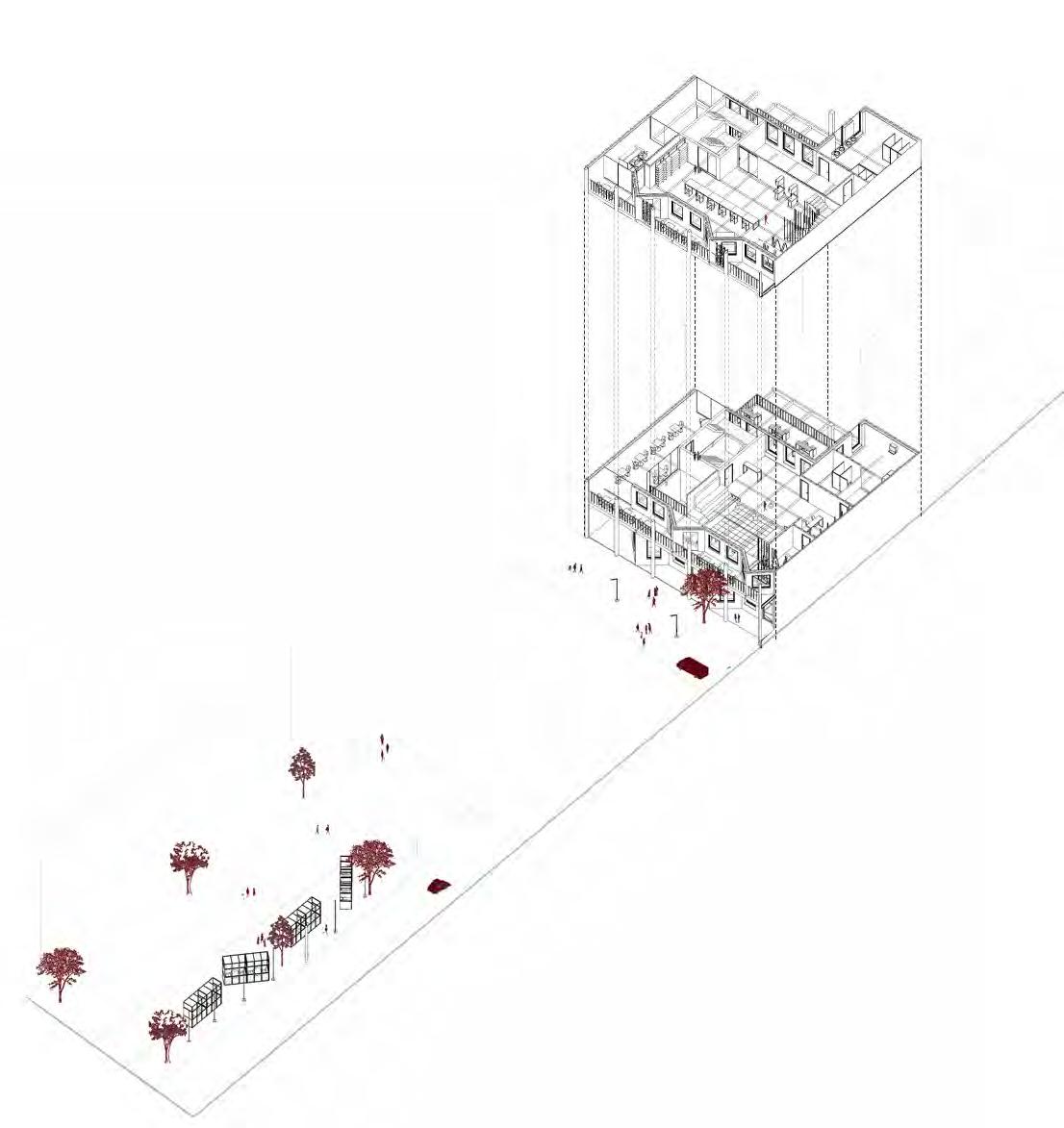

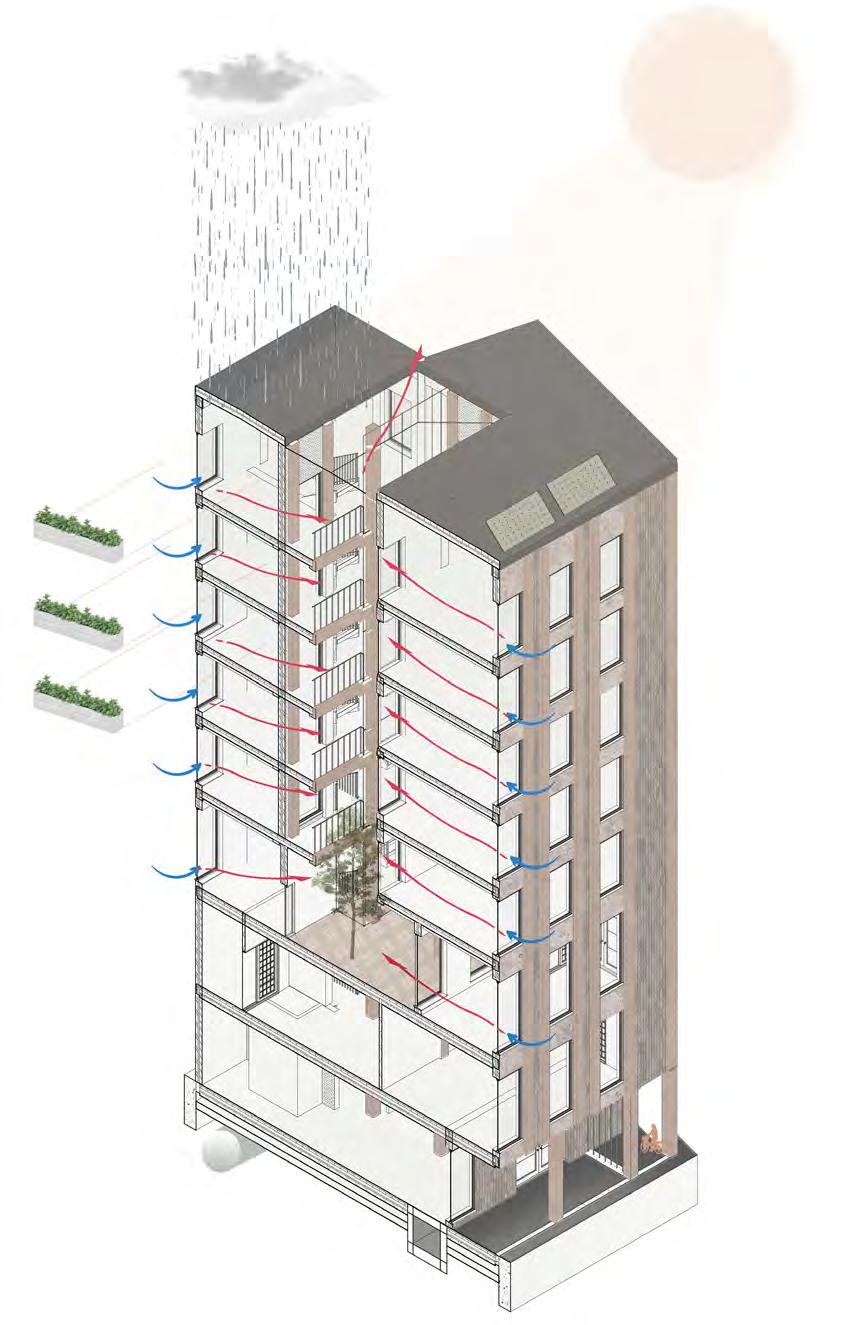

Single mothers artist and their Thechildrenproposal is a Co-housing scheme for single mothers and their chil dren. The building is ordered around a central void, shown very clearly in the axo diagram. The void opens up the building and responds to the requirement for child surveillance. In terms of finance, the. Porpoise is to ‘cut the middleman’; both regarding financial proceedings pertaining the display and sale of Artworks and the reduction in childcare expenses and transportation by instating an inhouse childcare service. The aim is an auto-sufficient low energy co-housing living .
5
Project location: Glasgow, Caledonian
Software used: Revit,Autocad,Photoshop.
Software used: Revit,Photoshop, Auto Users:cad.

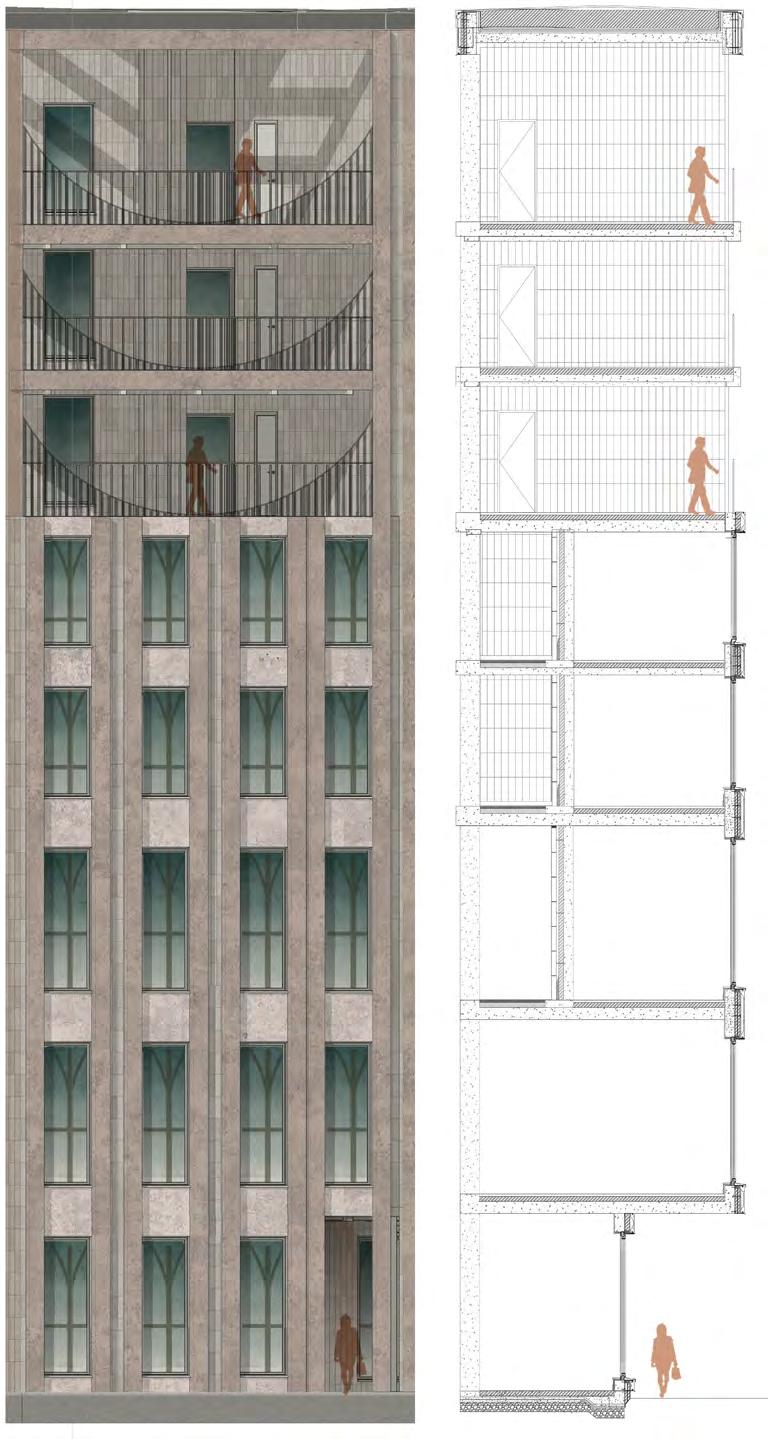

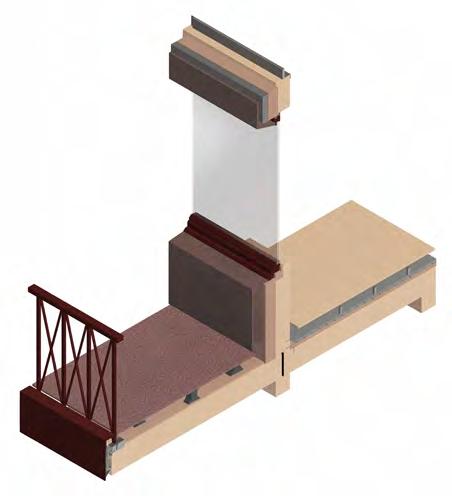

A place to thrive 6 High performance triple glazed windows with insulated frames Raft foundation with reinforcement running in both directions sitting on wall compacted hardcore Precast structural columns (400mm) XPS PinkExternalinsulationwallgranitein vertical stack 100x500 mm (with 9mm mortar) Wall cavity 50mm XPS insulation 100mm Infill blockwork 200mm Concrete cladding panel 75 Structural reinforced concrete edge beam Cast in site reinforced concrete slab Steel balustrade Co-housing scheme 7

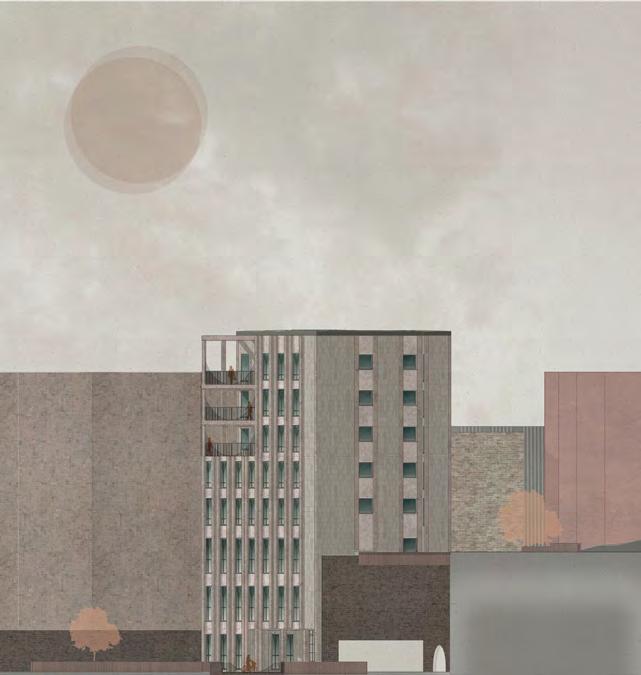

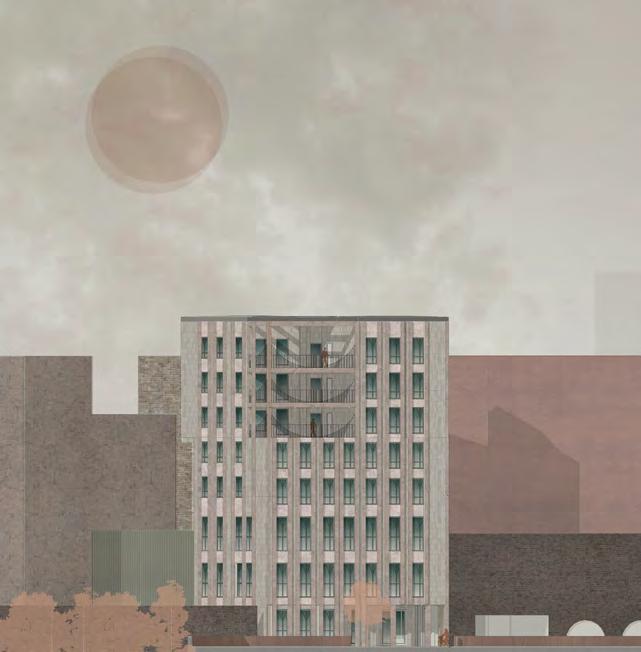

Collective Housing 9
Made in: Strausse 82
Software used: Revit,Autocad,Photoshop.
STRAUSSE

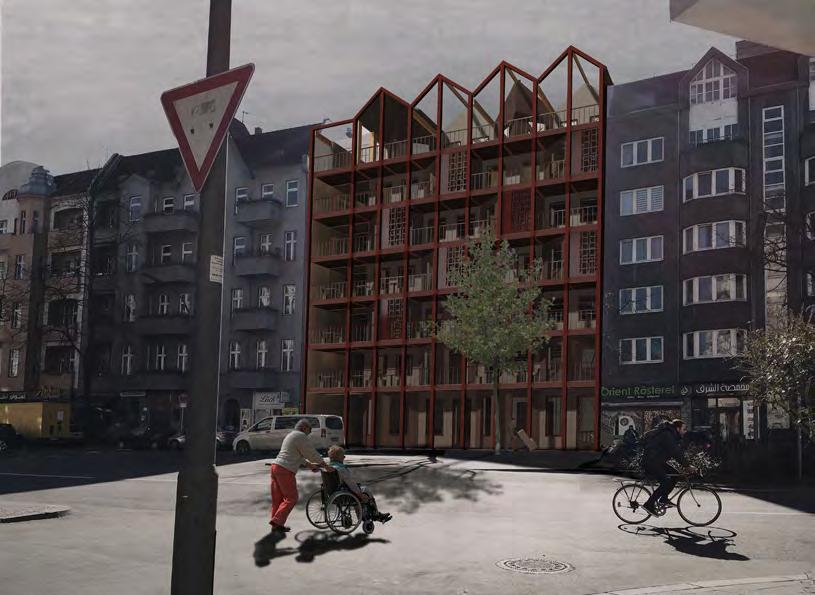

Render : Location within the scheme: Roof top STRAUSSETerrace82, or street 82 is a scheme de signed as the culmination of narratives. Located in the heart of Sonnenallee, a multi-ethnic street in Berlin, it is set to cre ate a space of production amidst spatial, social, cultural and economic tensions and opportunities. The scheme is a civic infra structure for makers, learners and teachers, where each stage of making is represented and carefully distributed within the archi tecture. The targeted users are equally di verse and are encouraged to book sessions in groups of 8. The act of making, equivo cate the act of recollecting, and therefore the individual designs are narratives of ideas, thoughts and impressions of places, experiences, and cultures. The architectural language itself is an amalgamation and re interpretation of the language of surround ing buildings. The new amplifies what already is, impacting the economic, envi ronmental and cultural fabric of the old. The scheme has been designed with an ad equate sustainable strategy, where each stage of the lifespan of the building has been considered. Local production and circular economy were also analysed and synthesised within the composition of the scheme.
N82
1011 Project location: Sonneralle, Berlin. Project typology: Civic scheme, Chess club Software used: Revit,Autocad,Photoshop.

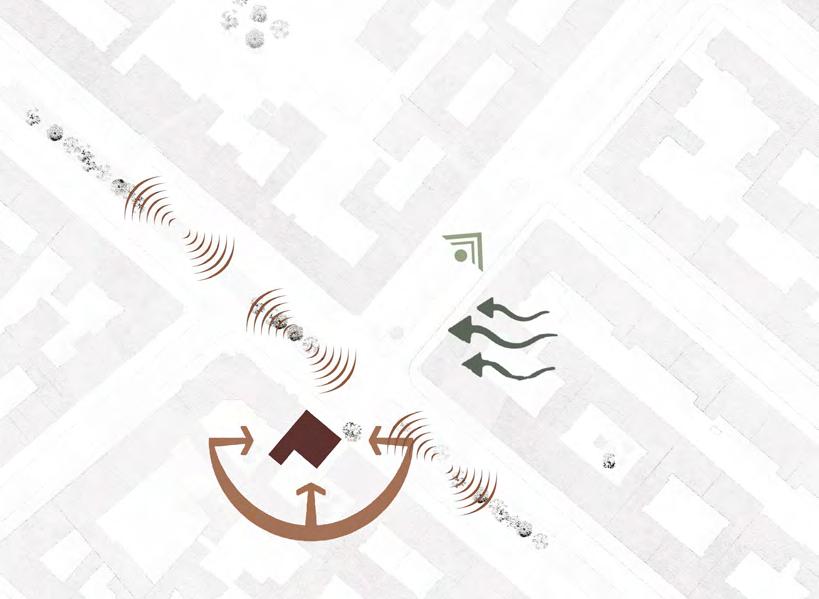

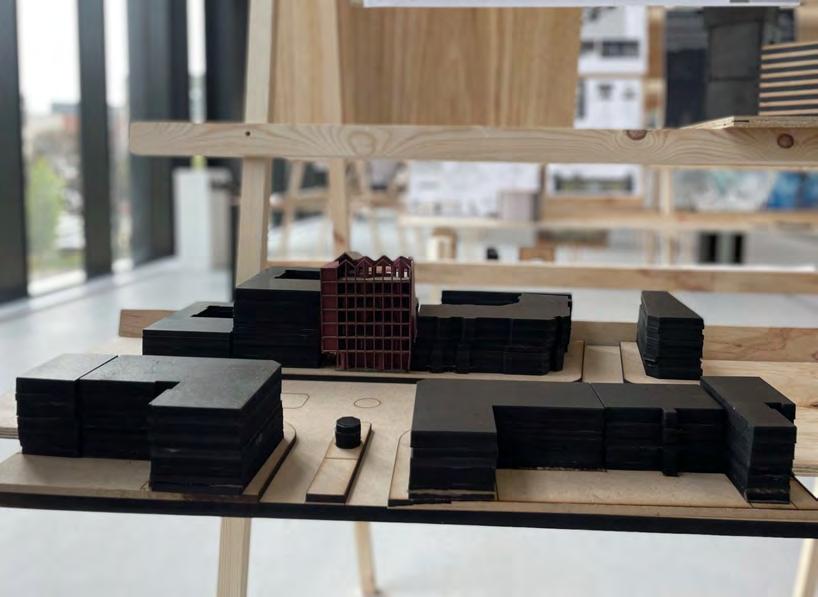

12 Softwares: Autocad, Photoshop, Revit. Made in: Strausse 82 13 From the pictures and orientation of the site, light and the way light was going to be introduced throughout the scheme became a focal issue to tack le. Additionally, the street is high in vehicular and pedestrian traffic. Thus making the need for private spaces of paramount importance. THE SITE LOCATION PLAN AND SITE ANALYSIS SCALE 1:1250

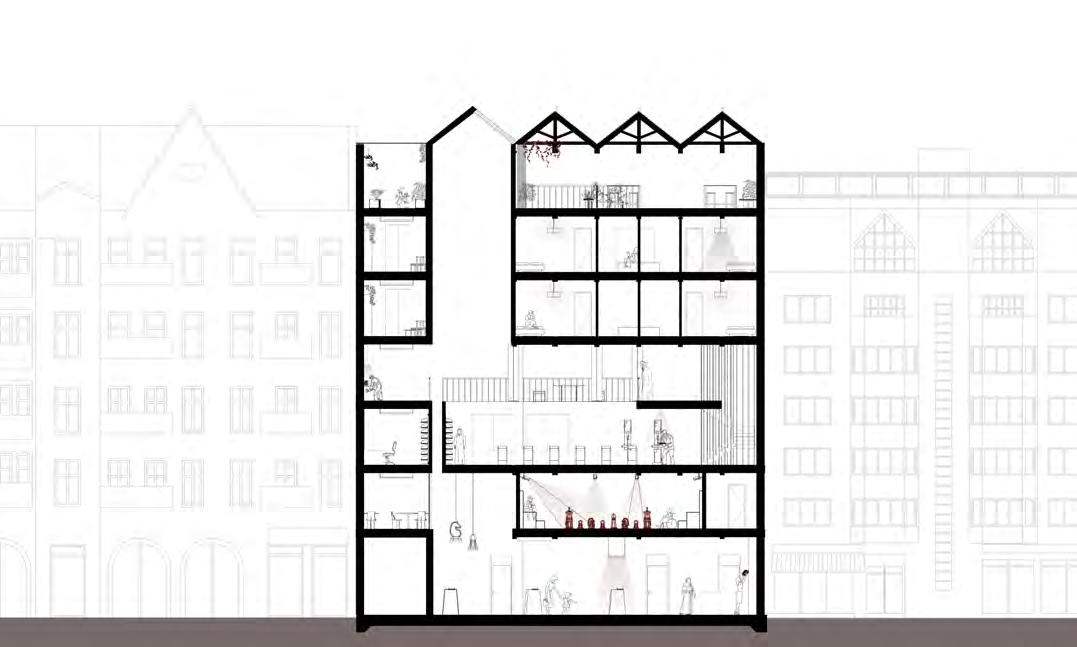

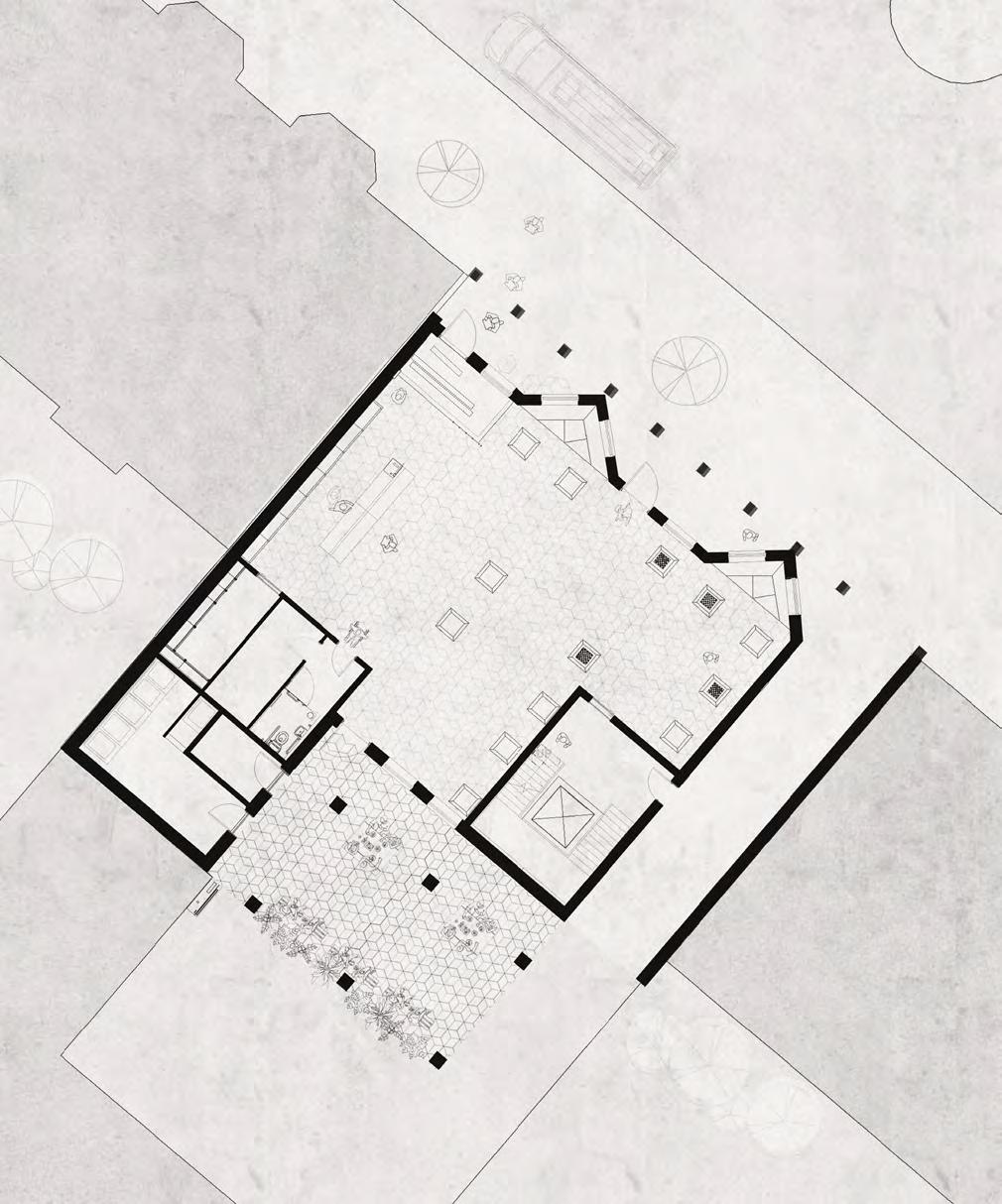

Made in: Strausse 82 1514 SCALE 1:100 (scaled to fit) 1. Main 2.Serviceentranceentrance and access to the crane 3. Chess 5.Private4.Displayshopareasplaying areas 6.Vehicular access Section A-A SCALE 1:200 STRAUSSE N82 132 4 5 6 A-A GROUND FLOOR Softwares: Autocad, Photoshop, Revit.
Made in: Strausse 82 1716 AWorkshop.placewhere the migrating box is to be produced. Learning space A place to share and play chess. Public Chess pods Expanding the boundary Softwares: Autocad, Illustrator,Photoshop, Revit.
By purchasing a souvenir, the buyer attributes a post-production value to the object. Whilst making the souve nir, the intentionality of designing and executing the object is transposed into a discovery of oneself and the city. The design is sparked by the engagement with the site, and the experience, memories and sentiments that resulted from the visit.
Promoting circular sustainable economy through the Art of making Made in: Strausse 82 1918

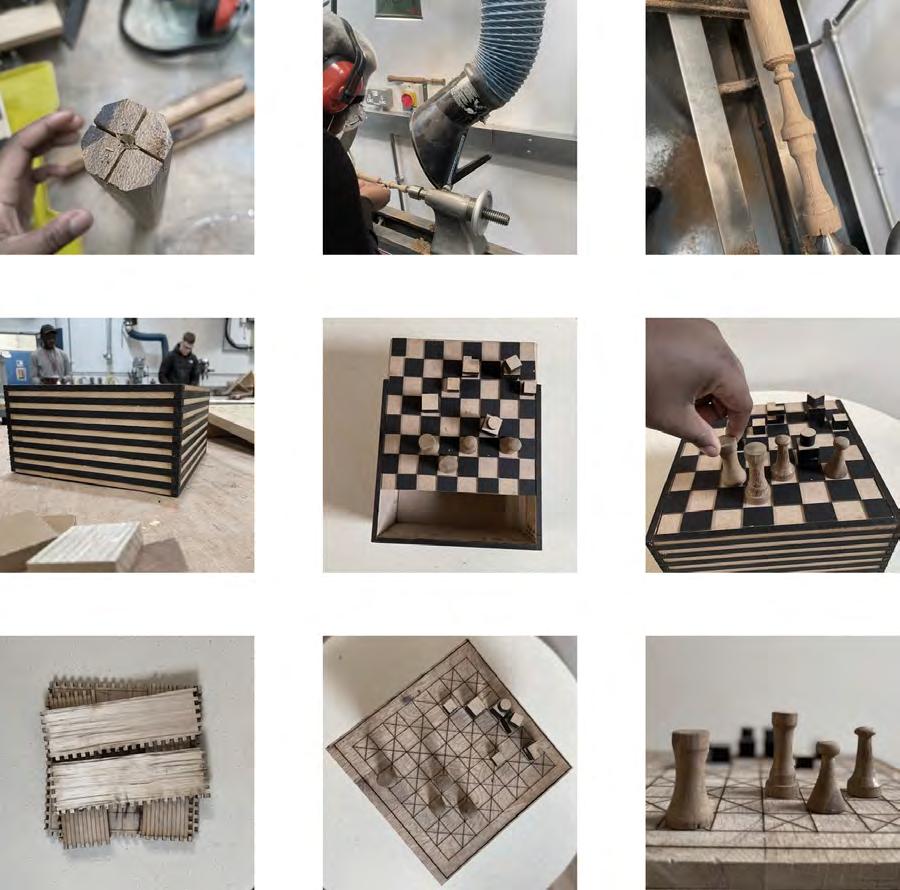

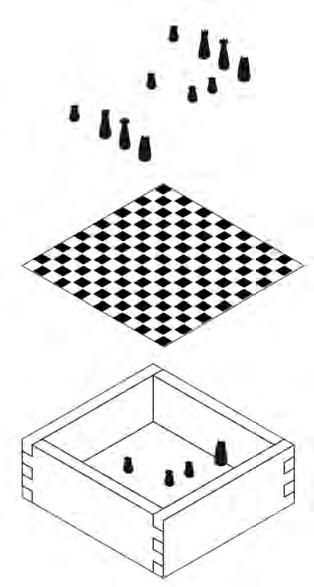

THE MIGRATING BOX Chess pieces Chess board Migrating box

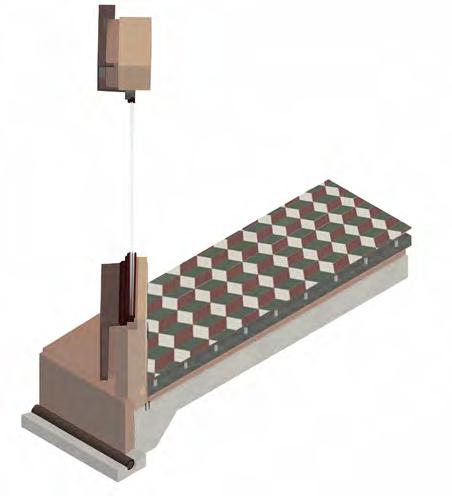

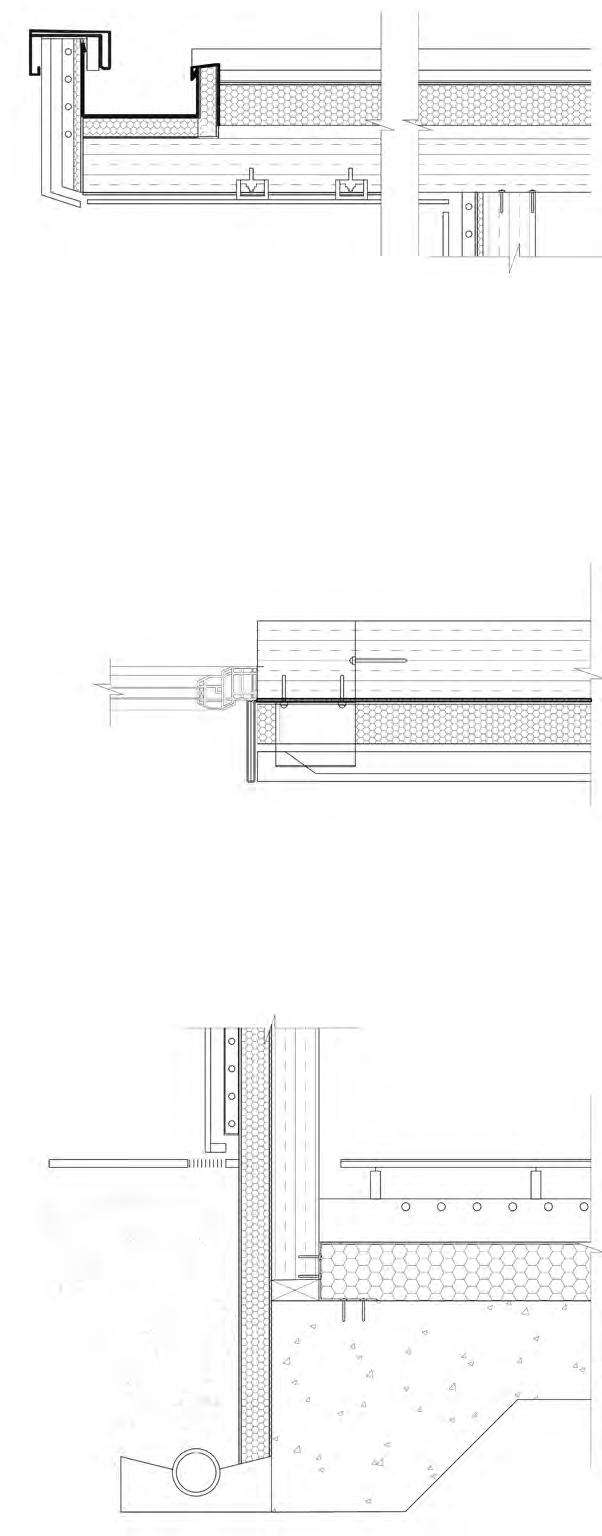

Made in: Strausse 82 2120 Due to the opening and oriels, there was addition al measures explored for weathering and water proofing. A damp proof membrane is applied at a 2% incline on the balcony paving. The flashing within between the metal finish, provides a water drainage solution. TECHNICAL DETAILS 1. ROOF DETAIL Stainless steel standing seam Flashingroofing, lining insulated gutter Standing seam fixing clip secure to insulation(100ml) and Vapour control SecuredLayertoCLT structure.and glu lam beam (135mm) 2. WINDOW JAB CLT wall (200 ml) Insulated cavity closer Moisture barrier Cork StainlessInsulationinsulation(175mm)steelpanel support InsulatedInbracketstud flashing strip. 3. FOUNDATION DETAIL Prefabricated tiled flooring on polished concrete floor raised on steel brackets. On 150mm rigid insulation on damp proof membrane, On in-situ, concrete raft founda tion. Softwares: Autocad, Photoshop, Revit.
THE GATHERING SPACE
22 Temple of Antithesis 23
Software used: Revit,Autocad,Photoshop.
Project location: Blackpool Boating Pool Project typology: Civic scheme

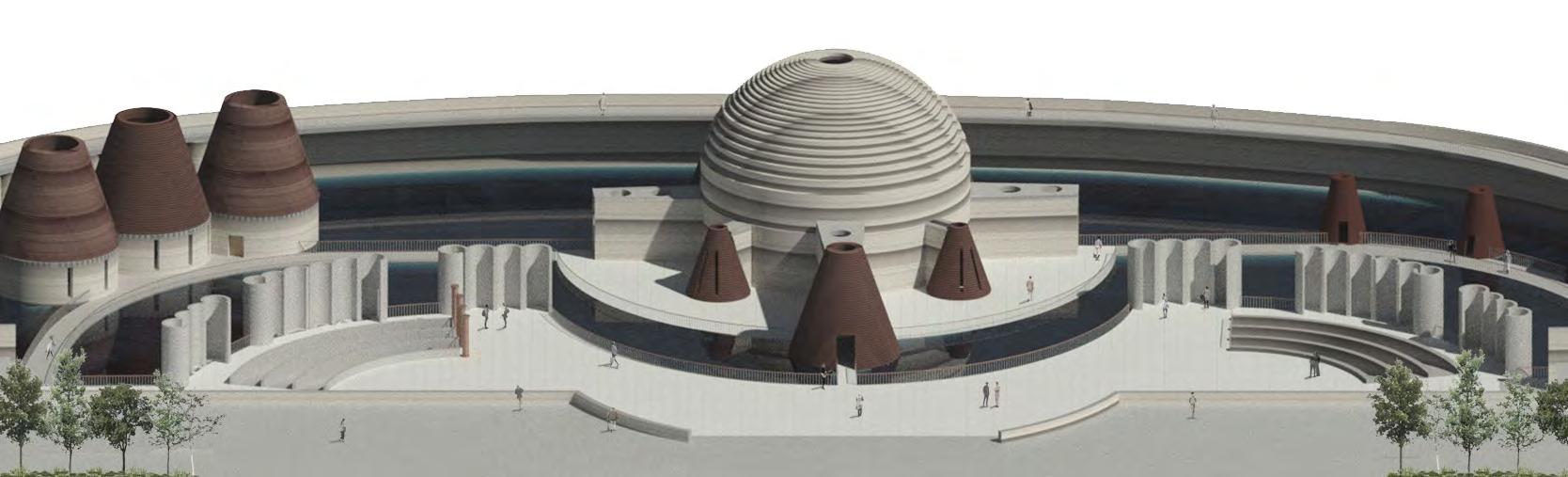

Software used: Revit,Photoshop. The concept of death, life, and memory were explored in the creation of an anti thetical atmospheric civic scheme. Birth and death alike are unavoidable and essential. Regardless of faith or philosophical beliefs, every human is set to experience both events. The antonyms share a common ground: the individual does not consciously witness the act of being brought to life or ceasing to exist. As opposed to the com munity that surrounds them, who is privy to such details and is the keeper of those memories. The scheme aims to provide a place for those individuals and their com munity. A place made for the witnesses, survivors, and ultimately, for the commem oration of the celebrants.

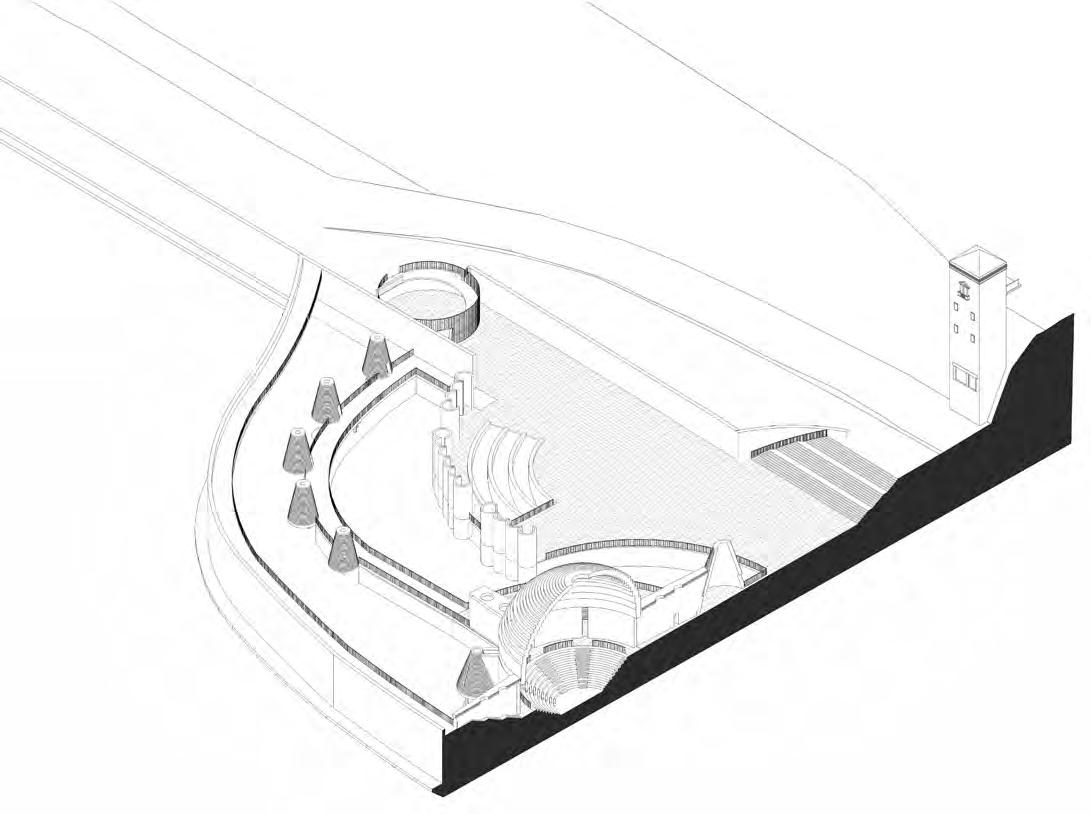

24 Temple of Antithesis 25 Sectional axonometric drawing SCALE 1:200 1.Main entrance 2.Ramp access 3.Threshold into the scheme 4.Memorial walls 5.Ramp into green spaces 6.Gathering space 7.Shared space 8.Solitude space 9.Internal 10.CommunalpromenadespaceKitchen,offices,toilets. GF FLOOR PLAN 1 2 2 3 4 5 6 7 8 9 10 Softwares: Autocad, Illustrator,Photoshop, Revit.
A celebration of life Temple of Antithesis THE GATHERING SPACE A Place for the celebration of life through the use of music COMMUNAL Kitchen,officesAREAS THE PROMENADE A PLACE FOR TWO MEMORIAL WALLS SOLITUDERAMPSPLACESINTO THE GREEN SPACE Softwares: Autocad, Illustrator,Photoshop, Revit.

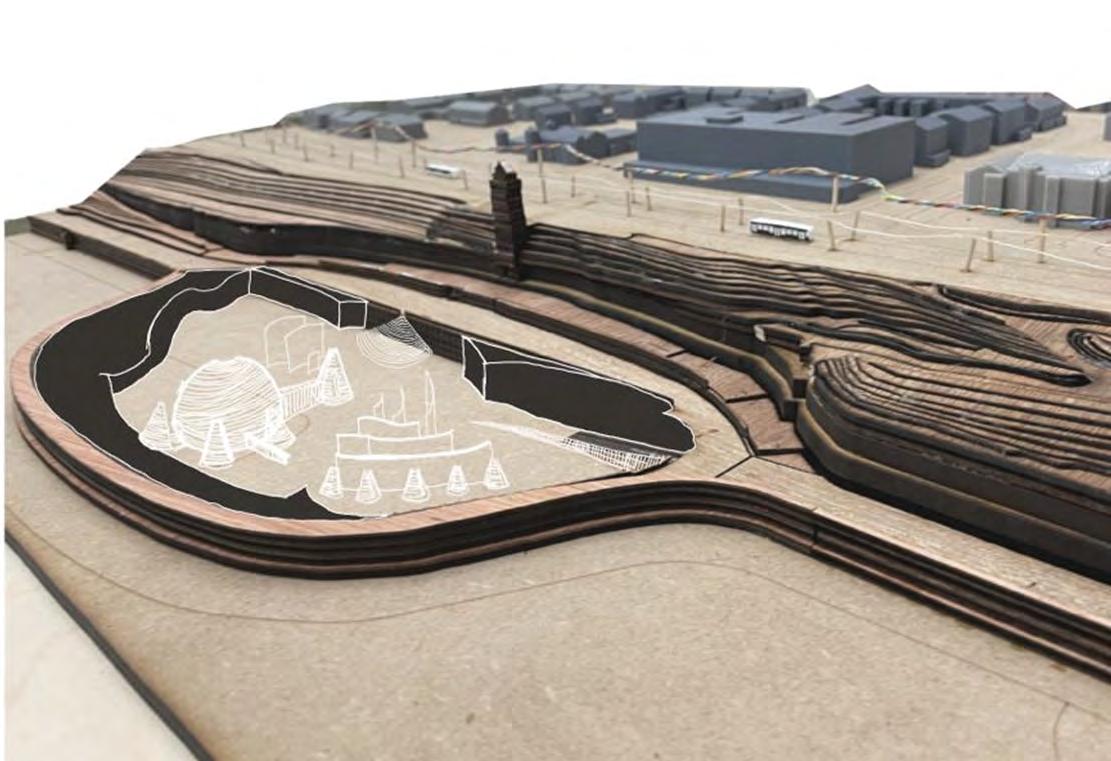

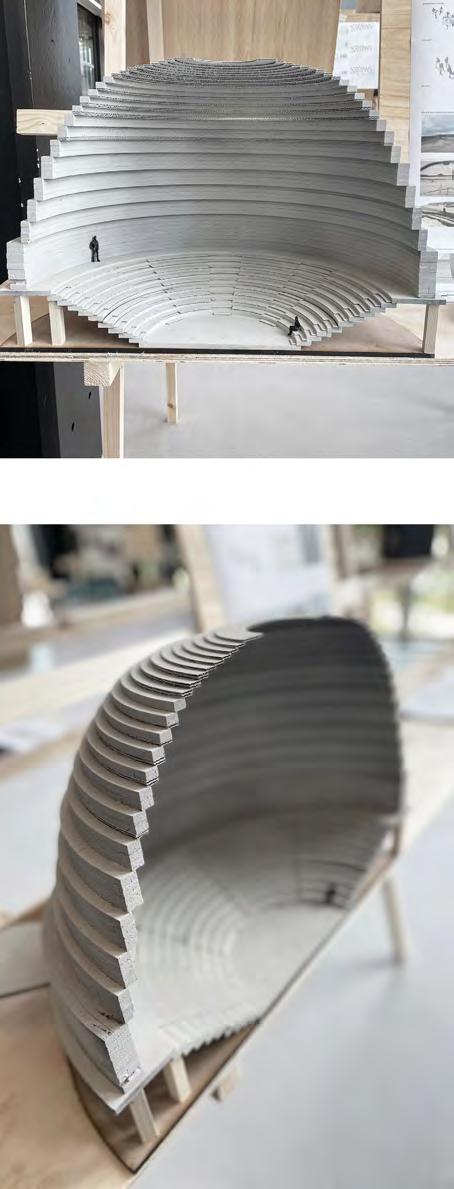

A celebration of life Temple of Antithesis 2928 Upon standing or seating in the gath ering space the users is made small. When confronted with a death or a birth, we feel small, in awe. And based on the circumstance surrounding life or death, we can either feel powerful or powerless. Both feelings convey magnitude and grandeur, which are ex pressed in the volume of the gathering space. DEVELOPING THROUGH MODEL MAKING 1:50 Sectional model
THANK YOU! Phone +44 7459230692 Email onosetafelix@gmail.com Instagram feli_xdesign Address Bolton BL1 Greater Manchester
