Introduction
Dubai, a metropolis city situated in the heart of the middle east, faces challenges of water scarcity, an acute issue in regions undergoing rapid urbanization. The arid climate and rapid urbanization in the industries, increase in the tourism sector faces significant challenges in securing an adequate water supply to sustain its overgrowing population and its economic growth. Significant water security challenges due to its limited natural water resource and the city’s demands for water.
Situated in the United Arab Emirates, Dubai's development has resulted in an urgent requirement for a sustainable water source to support its increasing population and booming economy. With limited resources available, the city has turned to desalination as a critical technologyto address its increasing water needs by tapping into the waters of the Arabian Gulf. However, why is desalination considered the only reliable source of water in Dubai? As desalination becomes more prevalent concerns about its impact on the environment and long-term sustainability have heightened. That includes green gas emissions, including high energy consumption and the major discharge of brine waste.
The paper analyzes the intricate connection between desalination and urban expansion in Dubai, with a focus on balancing water security and environmental preservation. It further examines the various desalination systems utilized in Dubai, analyzing their water output, energy consumption, and environmental impact. Can coupling desalination with renewable energy like solar reduce its carbon footprint? What innovative ways can we incorporate to manage those concentrated brine streams? The paper will also look at how Dubai is recycling and reusing water across its cities and industries to decrease demand for desalinated supplies. And it will examine the city's integrated water policies, urban planning rules, and public outreach pushing conservation.
By uncovering the best practices from Dubai and other desert cities, this initiative can pave the way for smart, sustainable desalination strategies. Strategies that provide a stable water supply to quench the thirst of growing urban populations without parching the planet in the process. Desalination plants have become essential for extracting fresh water from salty water bodies. However, operating these facilities requires a significant amount of energy and generates salty waste collection that can harm
marine life.As a result, Dubai must strike a distinct balance to provide enough drinking water to serve its growing population while still being environmentally friendly.
To assure a sustainable water future for the desert city, expanding urban landscape, innovative, energy efficient desalination technology based on reverse osmosis must be considered. While reverse osmosis requires less energy than traditional thermal desalination, these kinds of systems have significant power demands. Adopting renewable energy sources like solar and wind energy is a key approach towards minimizing the carbon footprint of desalination facilities. Massive solar power plants and turbines for windmills can be integrated with these advanced facilities to fulfill their energy needs while focusing on fossil fuels to a minimum. Dubai needs to ramp up efforts to recycle the city's wastewater effluent through dual piping networks free up precious desalinated water for drinking, while redirecting treated sewage for landscaping, industries, and other non-drinking purposes. Regarding urban design, implementing sustainable building rules that emphasize intelligent irrigation systems, green architecture, and conservation measures for new as well as current structures is essential.
Dubai can keep those streams accessible by balancing initiatives that address desalination, groundwater, recycled wastewater, and conservation with the same intensity. This desert community can ensure its water's future without experiencing severe impacts on the environment whenever it applies innovative ideas and persistent efforts. By addressing these key aspects of Dubai's water management strategy, this research paper aims to provide a comprehensive understanding of how the city is strategically deploying desalination technologies within its urban development plans to ensure reliable water access, mitigate ecological consequences, and foster sustainable growth. Despite relying on desalination processes for its drinking water supply, Dubai boasts impressive water technologies such as deep dives. This prompts the question of how the city manages to afford such advanced technologies while addressing its water scarcity issues responsibly. What are the diverse range of technologies and water preservation strategies Dubai is implementing to ensure sustainable water management without compromising the delicate ecosystem of the region.
Source of Water
What is the origin of Dubai's water supply?
Due to UAE’s location in the dry belt region and less rainfall, Dubai faces significant challenges due to its limited natural groundwater and freshwater resources. They are constructing dams to collect the rainwater and store surface water behind them, it is vital to replenishing aquifers despite significant losses due to high evaporation rates. UAE is relying on three main sources for its water supply and water management: groundwater, which accounts for 70%; desalinated water, comprising 24%; and treated wastewater, making up 6% of the total supply (GeeksforGeeks, 2024). The city lacks major significant water resources apart from Dubai Creek.
Apart from agricultural demands, two primary factors contribute to the increasing water consumption: the extravagant water usage by Dubai residents and the absence of conservation measures. Groundwater serves as the primary conventional water source, primarily used to fulfill the irrigation needs of the agriculture sector.Agriculture, the dominant land use, significantly impacts groundwater quality, as it consumes over 70% of the available groundwater. Given most of the groundwater is brackish. Treated wastewater is a critical alternative to address water requirements and balance supplydemand dynamics, promoting sustainable water management practices.

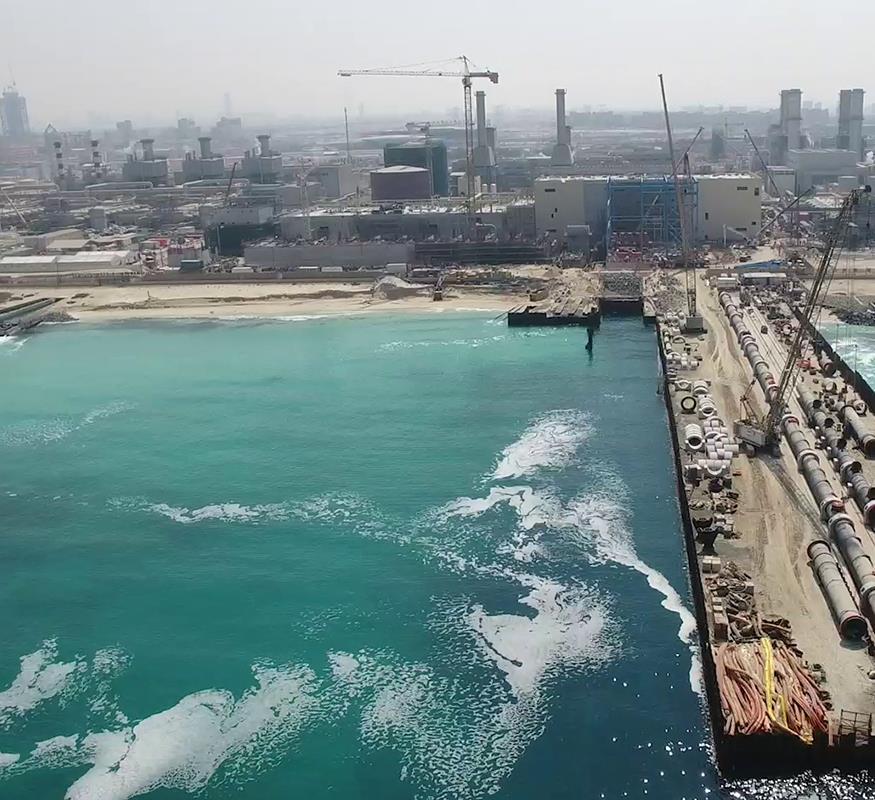

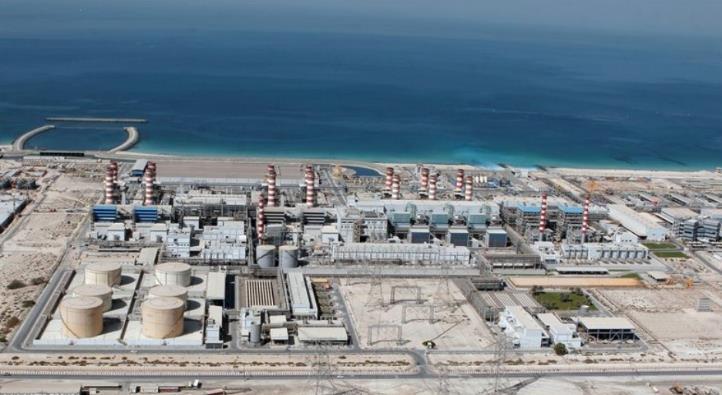

Figure 01: Water Desalination Plants
Water Management Strategies
What strategies is Dubai employing to manage its water resources?
To be able to accurately monitor water consumption, Dubai is examining a variety of water management strategies, including installing monitoring equipment in every groundwater well around the emirate. Since groundwater provides over 90% of the water used for agriculture, increasing groundwater utilization efficiency is a priority. Moreover, in a city characterized by towering residential complexes, Dubai is prioritizing the improvement of efficiency in residential landscape irrigation (Admin, 2024) This effort is bolstered by a comprehensive initiative encompassing educational outreach, regulatory interventions, and incentive-based approaches. The primary objective is to reduce water consumption in residential gardens, aligning with Dubai's broader sustainability goals (GeeksforGeeks, 2024).
Unconventional ways of water source
What are some unconventional methods used by Dubai to obtain water?
In addition to conventional sources, the region is tapping into unconventional water resources produced as byproducts of specialized processes such as desalination. Cloud seeding is also employed to increase water levels in aquifers and reservoirs, serving to supplement the limited water resources and enhance rainfall. This weather modification technique plays a crucial role in meeting the growing water demands of urban areas. Meeting the stringent standards for drinking water quality primarily relies on desalinated water for domestic water provisions, accounting for about 99% of the

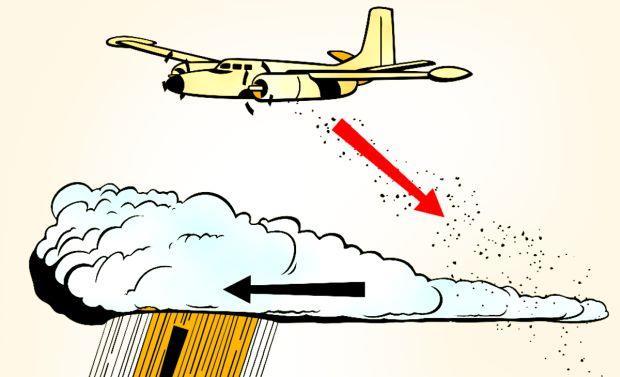

Figure 02: Process of Cloud seeding
supply. This desalinated water is either used directly or blended with groundwater to ensure purity and compliance with regulatory requirements. Intext - (Yoo, 2023)
However, agricultural activities pose challenges to water resources, notably impacting groundwater quality. The absence of transmission and distribution networks further complicates water distribution, particularly to areas like forests and private enterprises. Despite reduced demand during economic downturns and cultural barriers hindering the adoption of recycled water among farmers, addressing these challenges remains a priority in the UAE's water management strategies.
Transitioning to Sustainable Desalination
How is Dubai transitioning towards sustainable desalination practices for water procurement?
Process of Desalination
Desalination, the process of converting seawater or brackish water into fresh water suitable for human consumption and various other uses, has become increasingly important in addressing global water scarcity. Commonly, this procedure gets rid of salt and other impurities by thermal distillation or membrane processes which involve reverse osmosis. Multi-effect distillation and multi-stage flash distillation are examples of thermal distillation methods. In such techniques, sea water is heated to form steam that is then condensed into freshwater while leaving behind concentrated brine.

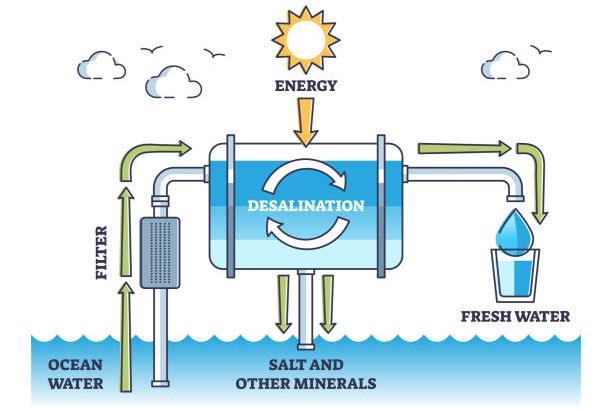

Figure 03: Process of Water Desalination
Negative impacts on the environment
Certainly, there are challenges and potential negative impacts on the environment and society that come with desalination despite being a promising way to solve water shortages. Environmentalists argue that the impact of carbon emissions from desalination plants on climate change outweighs the benefits of such processes. However, there are those who maintain that this technology can help address water scarcity issues in many parts of the world where clean drinking water is unavailable or too expensive to obtain through traditional means.In addition, desalination plants can be harmful to marine life due to their intake and discharge systems. Seawater intake may trap fish and other organisms, resulting in high mortality rates. When concentrated brine is released back into the sea, it can create localized areas of increased salinity which disrupt marine ecosystems. The establishment and operation of large-scale desalination plants require substantial financial investments.As a result, water produced through these processes tends to be more expensive than conventionally sourced freshwater. This cost factor could make it difficult for poorer communities or countries with limited resources to access desalinated water.
Eco-friendly desalination technology
Combination of different water management strategies such as conservation measures, wastewater treatment/reuse and rainwater harvesting would be more sustainable in the long run. To overcome these obstacles while ensuring sustainable practices in this area, way to various environmentally friendly technological advancements:
One option is integrating renewable energy sources like solar/wind power or tidal energy into conventional thermal-based desalting units so as to lower carbon emissions associated with such processes hence promoting ecological balance within our planet Earth through reduction of pollution levels caused by human activities including industrialization. Moreover, another way could be through utilization of pressure exchangers & turbines among other forms of energy recovery systems within advanced desalination plants that help save energy since they enable reutilization of discharged brine’s kinetic potentiality for running the whole facility. This translates to higher efficiency levels pertaining to use of power during the water purification process while lowering overall consumption rates.
New membrane methods like frontward osmosis and membrane distillation are energy-saving procedures in comparison to the traditional reverse osmosis systems. To be exact accurate, forward osmosis uses a semi-permeable membrane through which water is drawn by the force of osmotic pressure, while in membrane distillation water is separated from salt by exploiting differences in vapor pressure. Moreover, creative designs for intake and discharge can make desalination plants less damaging to the environment. It means that screened intakes will keep marine organisms from being sucked in; diffusers, on the other hand, help to dilute and disperse brine discharge thus minimizing its impact on marine ecosystems. However, careful selection of sites where desalination plants are built should be done so as not to cause too much harm to nature around such places. Particularly sensitive marine habitats ought to be avoided altogether whereas enough brine should always be discharged into any given area with large amounts of water so that it gets diluted leading to less adverse effects on marine life.
Optimizing Water Reclamation and Reuse
How is Dubai optimizing water reclamation and reuse practices?
Dubai has made great efforts in terms of increasing water recycling rates Reclaimed water is mainly used for irrigation: Dubai Municipality (DM) treats municipal wastewater and has implemented reclaimed water (RW) distribution systems for the irrigation of greeneries in the city (Kianmehr & Jishi, 2022)
To provide reclaimed waters for landscaping and green spaces, the city set up a wideranging network of treated sewage effluent (TSE) distribution systems: According to the Dubai Electricity and Water Authority (DEWA), the TSE network spans over 300 kilometers and supplies reclaimed water to irrigate over 300 million square meters of green spaces, including parks, gardens, and landscaped areas.(ACWUA-Wastewater Reuse 2010) Dubai has implemented the use of reclaimed water for cooling purposes in district cooling systems. These systems utilize reclaimed water for cooling towers, reducing the demand for potable water, and minimizing the environmental impact associated with traditional cooling methods. Also, the emirate has looked at recycled water for construction work and industrial use.
Benefits of Environment from Recovering Water
Pollution is limited by treating and reusing wastewater since it stops harmful substances from getting into rivers and oceans. This in turn saves aqua life forms and their habitats. On the other hand, it reduces the need for new supplies by reclaiming used water. This is important because many places have droughts every year that affect plants and animals which depend on the constant supply of fresh water. It also contributes to saving renewable resources in situations where such resources may not be readily available like areas prone to droughts or lack of rainfall. Additionally, this also acts as a shield over those ecosystems which rely on continuous flow of water.
Figure 04: Dubai’s water conservation journey (Digital, n.d.-c)
How does the integration of water elements in Dubai's urban design impact the city's water consumption and sustainability efforts?
Perplexities of Water Usage in Urban Design
Dubai's urban landscape is dotted with numerous water features, from the iconic fountains of the Dubai Mall to the artificial lakes in residential communities. Dubai government has put in place a plan that is meant to address the challenge of increased water consumption. The city hopes to achieve maximum utilization of water through recycling and minimizing the dependence on desalinated water as well. By 2030, the state intends to reprocess all its used water which is currently at 90% (Staff, 2015b)
This goal is part of a larger scheme towards sustainability by reducing desalinization by 30% along with power related to it.
However, too much use of water in urban design can also create other problems especially in places where there is not sufficient water like Dubai. Abusing the availability of water intensive structures, for example massive fountains and ornamental waters increases their demand hence depleting underground supplies and requiring more power through desalination. Additionally, when cleaning agents are released after being used, they may pollute nearby areas thereby making them unsuitable even for living organisms which inhabit those waters sometimes. If not correctly dealt with, management failures related to leaking pipes or inefficient irrigation techniques could lead to wastage of this resource and higher environmental costs associated with its consumption within cities.
To counteract these difficulties, planners and designers should have a wider view about how best we can manage our waters while designing towns. An important tactic is giving priority to non-portable uses that are served by recycled/reclaimed waters like street washing systems as well cooling systems among others. The reason behind doing so lies not only in diminishing fresh demands but also helping reduce effects caused by discharging waste waters into the environment. In addition, sustainability of urban water use can also be greatly improved by blending in water-efficient technologies and design principles. This would mean putting into place droughtresistant horticulture, having smart irrigation systems as well as using appliances and fittings that conserve water. By lowering the amount of water used in general urban planning cities will ease pressure on their water resources which leads to having a
sustainable long-term supply Incorporate water management elements like green spaces, permeable surfaces, and stormwater retention systems into the urban landscape. This allows water to be seen as an asset that can enhance the aesthetics and functionality of cities, rather than just a resource to be managed.
Conclusion
The research paper critically examines the interplay between urban development and water security in Dubai, a city grappling with the challenges posed by a harsh arid climate and rapid population growth. The primary focus has been on desalination as a vital strategy to augment water supplies, while addressing the environmental sustainability concerns inherent in such technologies. The paper reveals various innovations surrounding desalination processes employed within Dubai as well astheir difficulties thereby promoting an understanding towards sustainable management of urban water.
Dubai’s dependence on desalination represents wider needs-driven approaches adopted within dry areas. With advancements in desalinating technology, alternative methods like reverse osmosis have been investigated by the municipality alongside utilizing renewable sources of energy. These undertakings are important since they help lower the carbon footprint produced from making clean drinking water which is also consistent with worldwide goals concerning sustainability. Nevertheless, there are still ongoing environmental problems that arise due to this approach such as high levels of energy consumption and discharging salty brine into sea ecosystems among others
Multifaceted approach taken by Dubai to manage its water resources. This includes substantial investments in water recycling and reuse, particularly for agricultural and landscaping purposes, which not only conserve freshwater but also contribute to the ecological health of the urban environment. The city's strategic use of treated wastewater to supplement its water supply is a testament to its commitment to innovative water management solutions. Moreover, the integration of water management strategies into urban planning and design is particularly noteworthy. By prioritizing water-efficient technologies and practices, Dubai is not only addressing its immediate water needs but also setting a precedent for sustainable urban development. The city's efforts to minimize reliance on desalinated water through
enhanced water recycling and reuse practices underscore its proactive approach to environmental stewardship and resource conservation.
In conclusion, Dubai's experience offers valuable lessons for other arid regions facing similar water scarcity challenges. The city's holistic approach to water management, which balances technological advancements with sustainability principles, provides a roadmap for integrating water security into urban development plans. As global water demand continues to rise, the insights garnered from Dubai's strategies can inform future policies and technologies aimed at achieving water sustainability in arid urban environments. This research underscores the importance of innovative solutions in the quest for a sustainable water future, highlighting the need for continuous improvement and adaptation in water management practices to meet the evolving demands of urban populations while preserving the environment.
References
• DEWA’s Jebel Ali Power Plant and Water Desalination Complex enters Guinness World Records for the second time. (n.d.). Www.mediaoffice.ae. Retrieved April 20, 2024, from https://www.mediaoffice.ae/en/news/2022/October/16-10/DEWAs-JebelAli-Power-Plant
• Admin. (2024, January 16). Dubai’s water conservation in arid climate explained. Blackfeet Country and Climate Change. https://blackfeetclimatechange.com/waterconservation/
• Khan, S. (2021, September 21). UAE to develop three desalination projects to address water security needs. The National. https://www.thenationalnews.com/business/economy/2021/09/21/uae-to-developthree-new-water-desalination-projects-to-address-water-security-needs/
o (Khan, 2021)
• Digital, T. (n.d.-b). Dubai’s successful water reclamation programme accelerates its green economy vision. https://mediaoffice.ae/en/news/2023/August/21-08/Dubaissuccessful-water-reclamation-programme
• Kianmehr, P., & Jishi, A. (2022). Sustainable Coastal Landscaping Using Reclaimed Irrigation Water in Dubai. Journal of Geoscience and Environment Protection, 10(11), 151–174. https://doi.org/10.4236/gep.2022.1011010
• Digital, T. (n.d.-c). Dubai’s successful water reclamation programme accelerates its green economy vision. https://mediaoffice.ae/en/news/2023/August/21-08/Dubaissuccessful-water-reclamation-programme
• GeeksforGeeks. (2024, March 13). Water resources and water management in UAE. GeeksforGeeks. https://www.geeksforgeeks.org/water-resources-and-watermanagement-in-uae/
• An Overview of Conventional and Non-Conventional Water Resources in Arid Region: Assessment and Constrains of the United Arab Emirates (UAE) (scirp.org)
• Yoo. (2023, December 12). With little natural resources, Dubai turns to science and technology for its water. CNA. https://www.channelnewsasia.com/sustainability/dubaicop28-water-scarcity-science-technology-climate-desalination-sustainability-3982346
• ACWUA -Wastewater Reuse in Arab Countries Wastewater Reuse in Arab Countries Comparative Compilation of Information and Reference List ACWUA Working Group on Wastewater Reuse. (2010). https://www.ais.unwater.org/ais/pluginfile.php/356/mod_page/content/119/Jordan_Su mmary-Report-CountryCasestudies_final.pdf
• Staff, T. (2015b, February 11). This plant in Dubai makes half a billion gallons of fresh water a day. TIME. https://time.com/3625511/this-plant-in-dubai-makes-half-a-billiongallons-of-fresh-water-a-day/
