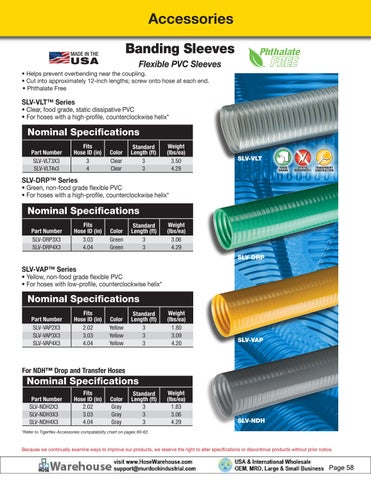

Accessories Banding Sleeves Flexible PVC Sleeves • Helps prevent overbending near the coupling. • Cut into approximately 12-inch lengths; screw onto hose at each end. • Phthalate Free
SLV-VLT™ Series
• Clear, food grade, static dissipative PVC • For hoses with a high-profile, counterclockwise helix*
Nominal Specifications Part Number SLV-VLT3X3 SLV-VLT4x3
Fits Hose ID (in) 3 4
Color Clear Clear
Standard Length (ft) 3 3
Weight (lbs/ea) 3.50 4.29
SLV-VLT
SLV-DRP™ Series
• Green, non-food grade flexible PVC • For hoses with a high-profile, counterclockwise helix*
Nominal Specifications Part Number SLV-DRP3X3 SLV-DRP4X3
Fits Hose ID (in) 3.03 4.04
Color Green Green
Standard Length (ft) 3 3
Weight (lbs/ea) 3.06 4.29 SLV-DRP
SLV-VAP™ Series
• Yellow, non-food grade flexible PVC • For hoses with low-profile, counterclockwise helix*
Nominal Specifications Part Number SLV-VAP2X3 SLV-VAP3X3 SLV-VAP4X3
Fits Hose ID (in) 2.02 3.03 4.04
Color Yellow Yellow Yellow
Standard Length (ft) 3 3 3
Weight (lbs/ea) 1.80 3.09 4.20
SLV-VAP
For NDH™ Drop and Transfer Hoses
Nominal Specifications Part Number SLV-NDH2X3 SLV-NDH3X3 SLV-NDH4X3
Fits Hose ID (in) 2.02 3.03 4.04
Color Gray Gray Gray
Standard Length (ft) 3 3 3
Weight (lbs/ea) 1.83 3.06 4.29
SLV-NDH
*Refer to Tigerflex Accessories compatability chart on pages 60-62.
Because we continually examine ways to improve our products, we reserve the right to alter specifications or discontinue products without prior notice. 58
