Banding Sleeves

Flexible PVC Sleeves

• Helps prevent overbending near the coupling. • Cut into approximately 12-inch lengths; screw onto hose at each end. • Phthalate Free

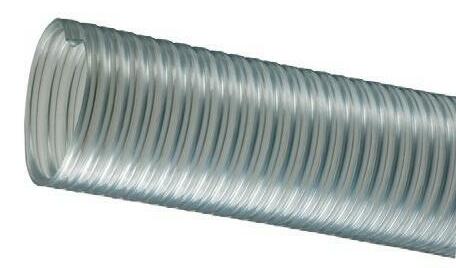

SLV-VLT™ Series

• Clear, food grade, static dissipative PVC • For hoses with a high-profile, counterclockwise helix*

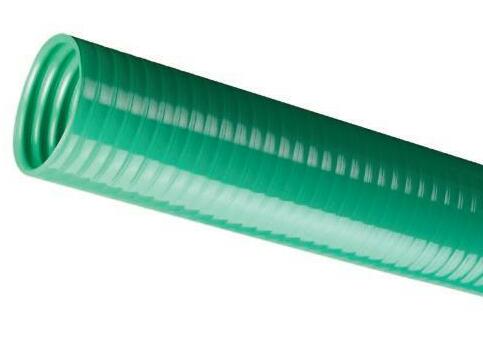

SLV-DRP™ Series

• Green, non-food grade flexible PVC • For hoses with a high-profile, counterclockwise helix*

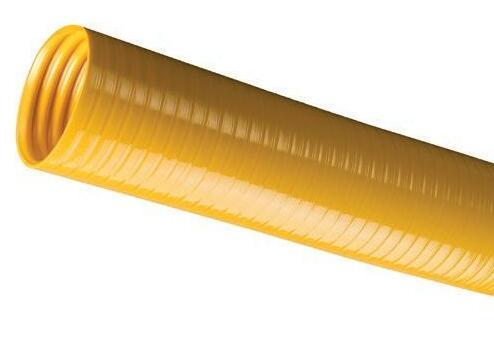

SLV-VAP™ Series

• Yellow, non-food grade flexible PVC • For hoses with low-profile, counterclockwise helix*

Nominal Specifications

Part Number

Fits Hose ID (in) Color Standard Length (ft)

Weight (lbs/ea)

SLV-VLT3X3 3 Clear 3 3.50 SLV-VLT4x3 4 Clear 3 4.29

Nominal Specifications

Part Number

Fits Hose ID (in) Color Standard Length (ft)

Weight (lbs/ea)

SLV-DRP3X3 3.03 Green 3 3.06 SLV-DRP4X3 4.04 Green 3 4.29

Nominal Specifications

Part Number

Fits Hose ID (in) Color Standard Length (ft)

Weight (lbs/ea)

SLV-VAP2X3 2.02 Yellow 3 1.80 SLV-VAP3X3 3.03 Yellow 3 3.09 SLV-VAP4X3 4.04 Yellow 3 4.20

SLV-VLT

SLV-DRP

SLV-VAP

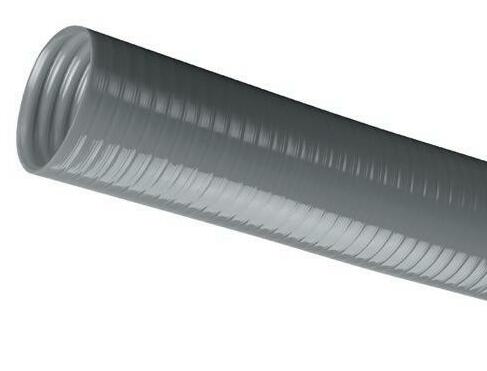

For NDH™ Drop and Transfer Hoses

Nominal Specifications

Part Number

Fits Hose ID (in) Color Standard Length (ft)

Weight (lbs/ea)

SLV-NDH2X3 2.02 Gray 3 1.83 SLV-NDH3X3 3.03 Gray 3 3.06 SLV-NDH4X3 4.04 Gray 3 4.29

*Refer to Tigerflex Accessories compatability chart on pages 60-62.

SLV-NDH
