Level 05: Erasmus Exchange - Valby Masking Proposal.

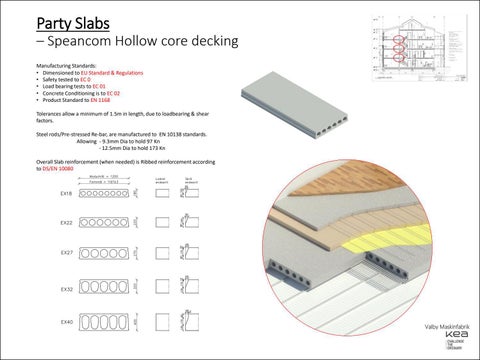

Party Slabs – Speancom Hollow core decking Manufacturing Standards: • Dimensioned to EU Standard & Regulations • Safety tested to EC 0 • Load bearing tests to EC 01 • Concrete Conditioning is to EC 02 • Product Standard to EN 1168 Tolerances allow a minimum of 1.5m in length, due to loadbearing & shear factors. Steel rods/Pre-stressed Re-bar, are manufactured to EN 10138 standards. Allowing - 9.3mm Dia to hold 97 Kn - 12.5mm Dia to hold 173 Kn Overall Slab reinforcement (when needed) is Ribbed reinforcement according to DS/EN 10080

Turn static files into dynamic content formats.

Create a flipbook

Level 05: Erasmus Exchange - Valby Masking Proposal.

Published on Dec 3, 2018

CJ Gregory.

This group project, with mixed nationalities at KEA university in Copenhagen, Denmark. Was based on a newly refurbished warehousing unit, in the recently converted "Valby Maskin Industrial District" of the suburbs of Copenhagen. An existing structure had been converted into stylish, modern and greatly needed residential units to a depilated area of the Industrial sector of Copenhagen. In this group work, I was tasked with the selection and build-up of the floor makeup systems. That included the internal heating systems, acoustic protection methods and installation of prefabricated elements. Alongside a minor Construction Managerial role, that determined the layout of the proposed site during its construction phase.

Articles inside

Level 05: Erasmus Exchange - Valby Masking Proposal.

Articles inside

Construction Drawings 06

Erection Plan Layout

Part Slab Build-ups

Key Junctions 08
