MOHAMMED IBRAHIM
Course name: Design. Location:
Project Involvement: analysis studying Tollerance and Movement, Building physics,Assembly sequencing,Fire safety,EIA and Structual performance of the facade.
Year/semester: semester of MSc.
School: Email adderss of studio head: betel.biruk@eiabc.edu.et
Project type: The Muse.

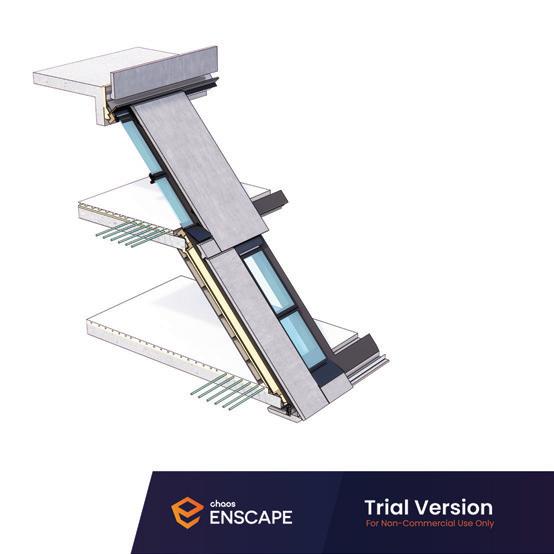

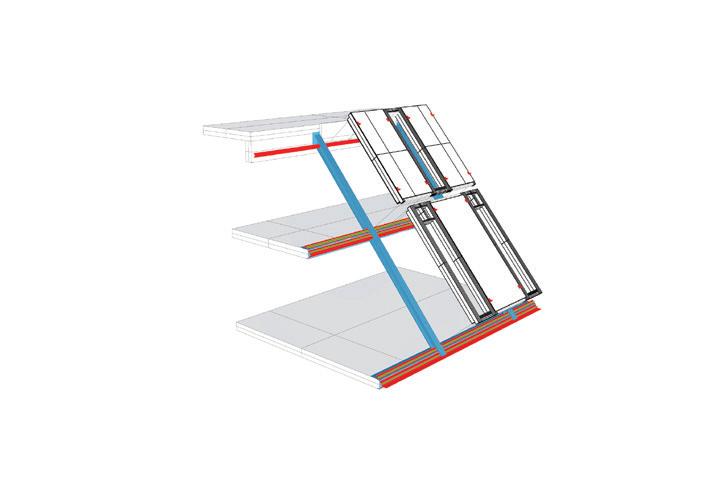

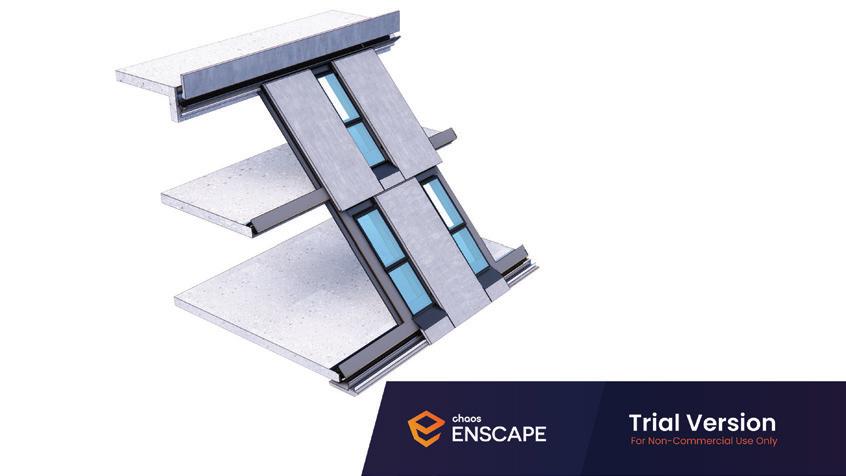

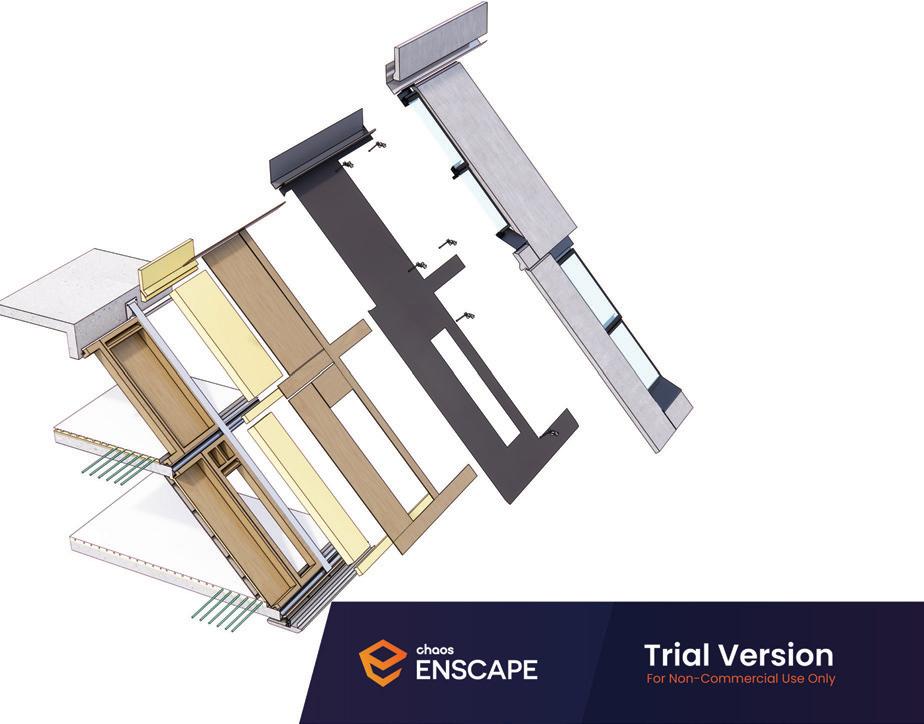

3D impression Sectional view
Interior wall finish
-Insulation attached with spowanchors
-Gypsum board

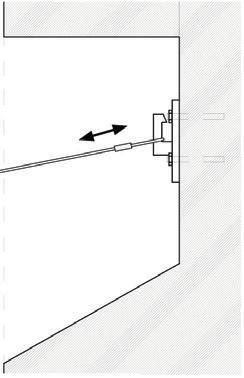

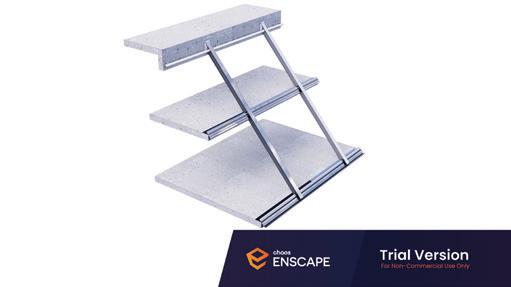

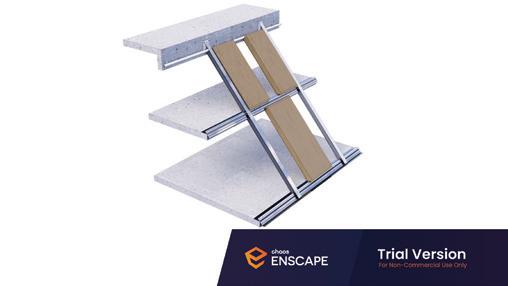

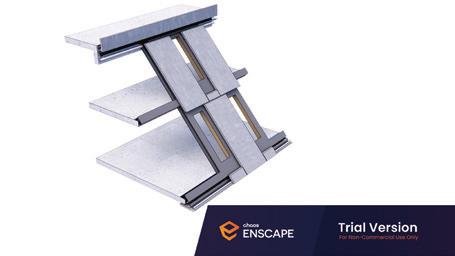

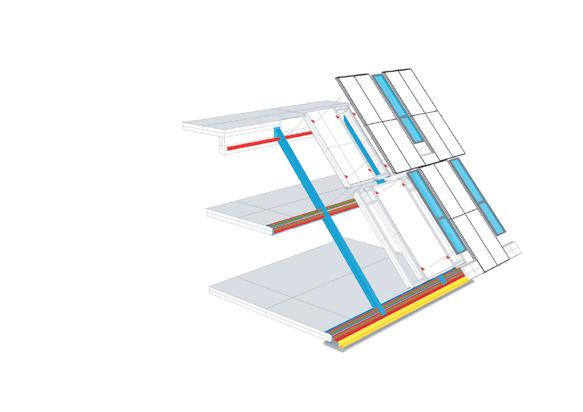

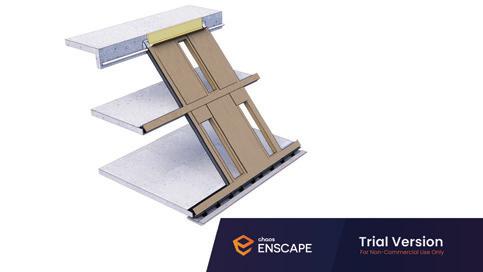

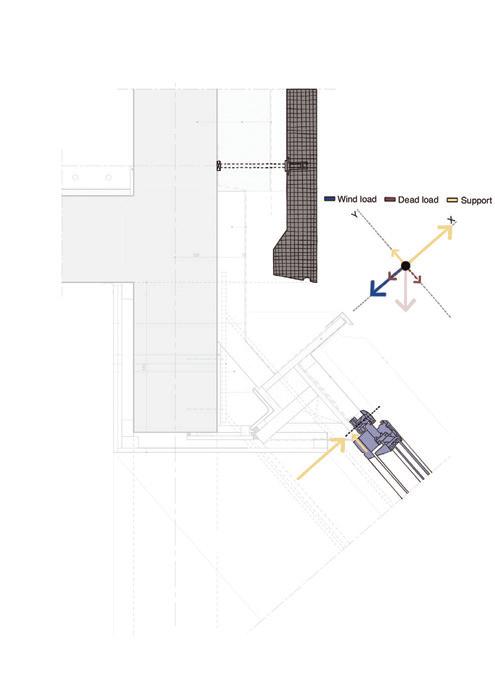

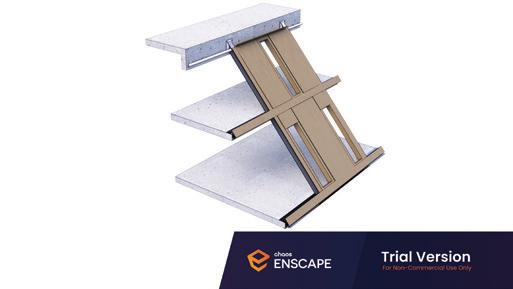

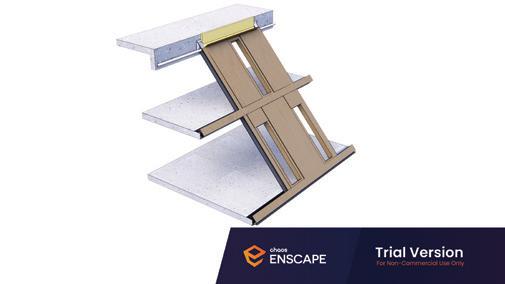

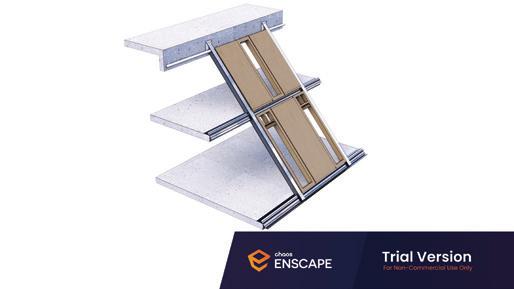

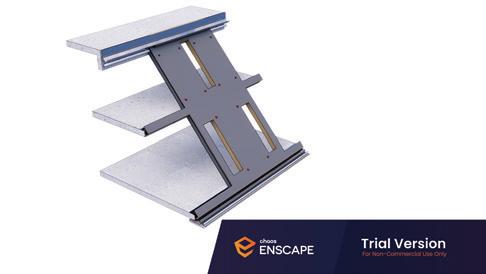

Diagonal HEA 220 column hangs the floor at the bottom(an in-situ connection) and is anchored to the top floor using a J bolt.

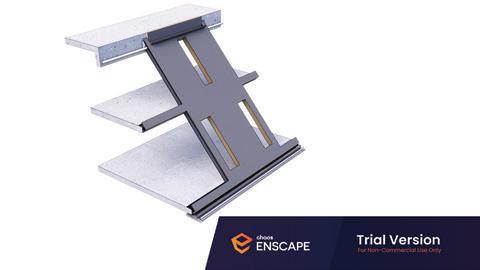

An assembly of L profiles are welded to the HEA at Point A (see figure above). At point B(see fig. above) the L-profiles are welded to a base plate and attached to the floor and welded to the HEA side.

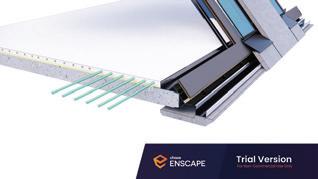

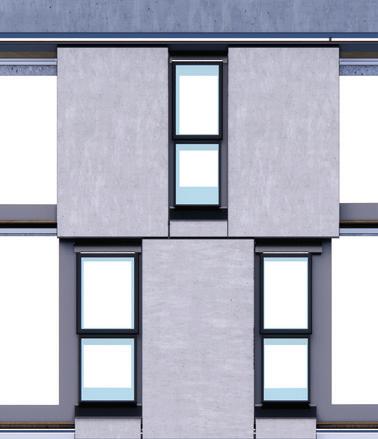

Steel bolts for the connection of the concrete cladding
Course name: Structural Design+ Computational Intellegence
Project type:Academic
Location:Egypt,Giza
Project Involvement:8 weeks of design exercise with a group of 4,involved in conceptual design, structural design and computational approach to rationalizing the floor structure.
Year/semester:2023,1st year 2nd semester MSc.
School: Delft University of Technology.
Email adderss of studio head: J.D.OCallaghan@tudelft.nl
PTEMPLE OF THE RISING SUN
Temple of the Rising Sun.

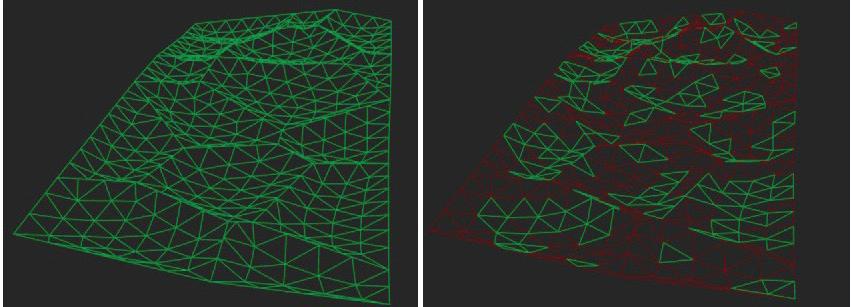

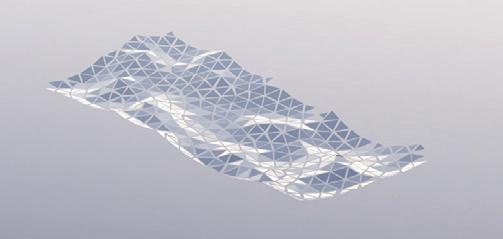

Glass floor design itteration: Aestetics, structure, and standardized panels were considered

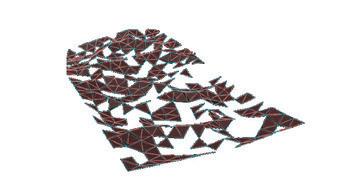

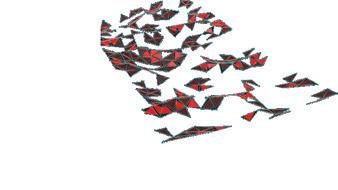

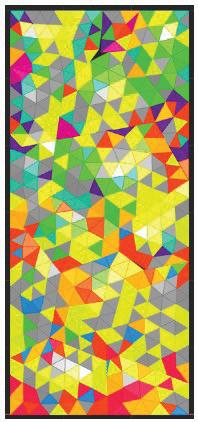

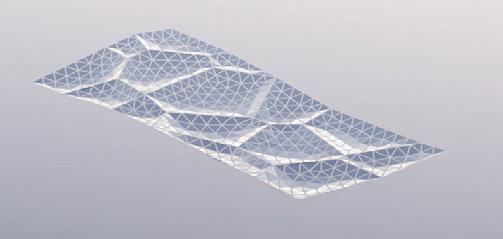

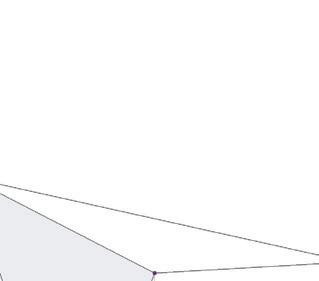

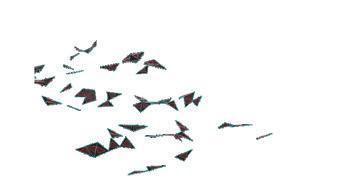

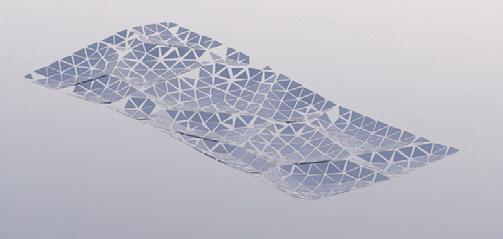

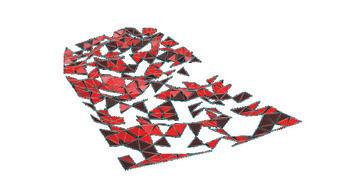

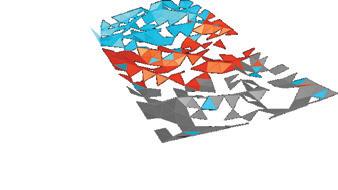

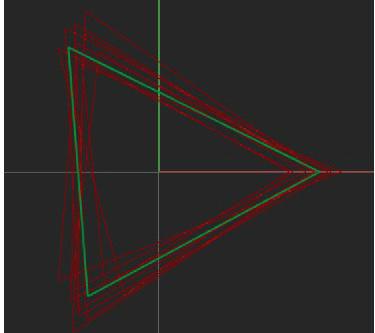

Glass Floor Panelization: clustering and offsetting the average

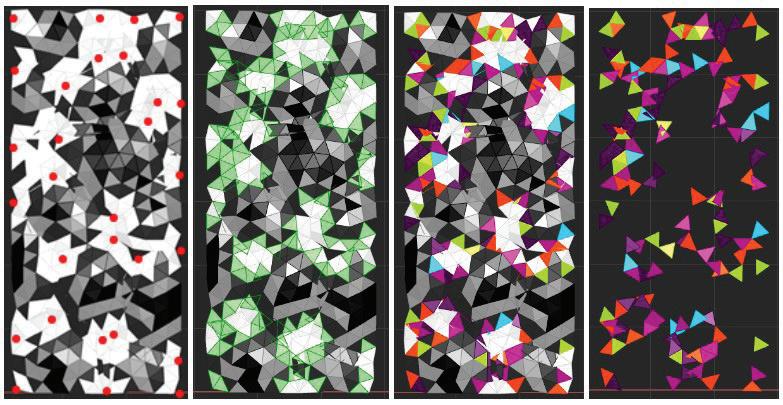

Clustering
Steps:
1.Gaussian Mixture 1
3.Filtering intersecting panels 1
2.Offsetting avarage polygon 1
5.Offsetting average polygon 2
7.Gaussian Mixture 3
4.Gaussian Mixture 2
6.Filtering intersecting panels 2
9.Filtering intersecting panels 3
8.Offsetting avarage polygon 3
10.Offsetting avarage polygon 4

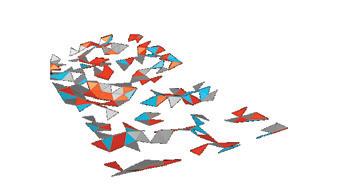

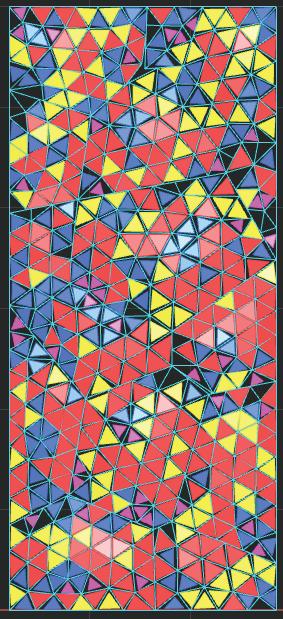

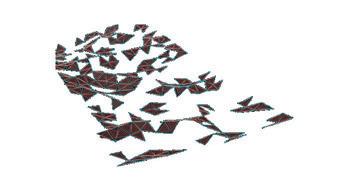

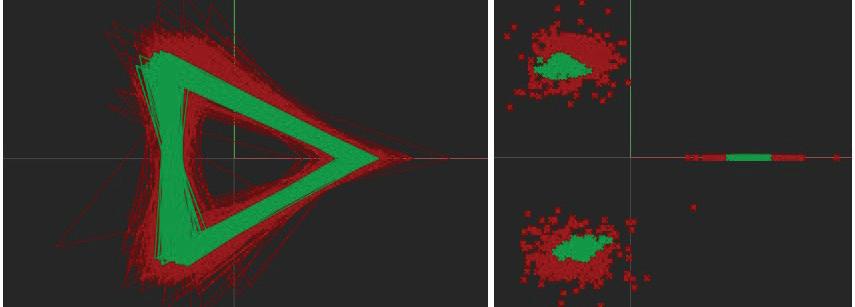

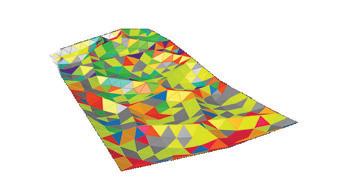

Final result of 4 different gaussian Mixtures represented in 4 different colors.
Course name: MSc. Thesis - Facade and structural engineering
Project type:Academic
Location:Delft, Netherlands
Project Involvement:8 months of Reseach , conference presention and journal publication.
Year/semester:2024,2nd year MSc.
School: Delft University of Technology.
Email adderss of advisor:
A.LunaNavarro@tudelft.nl
Industry partner: AGC
PEmpiricalAssesment of Glazing SLS
Research project description.

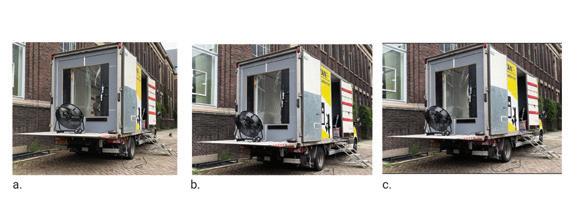

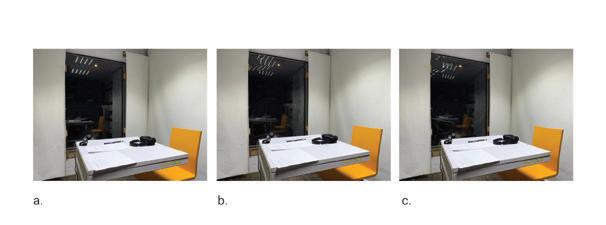

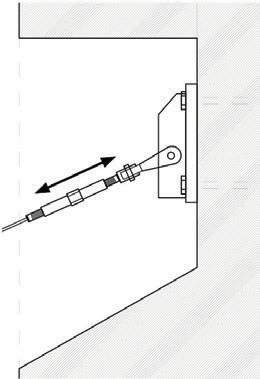

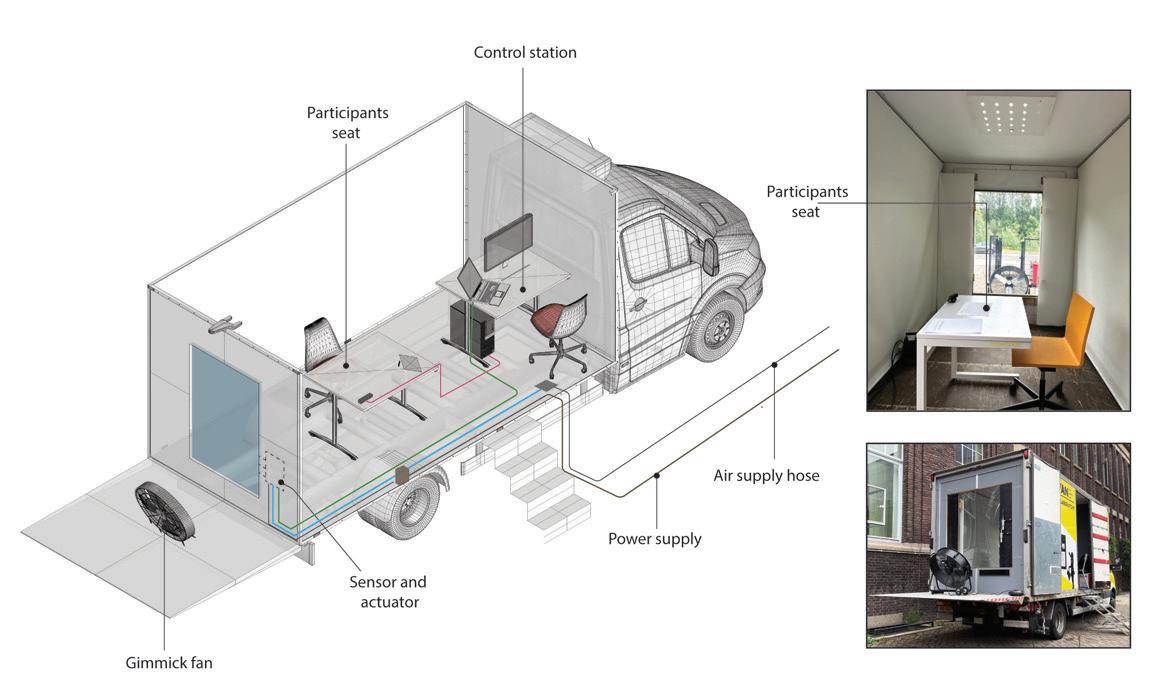

Setting up the experiment

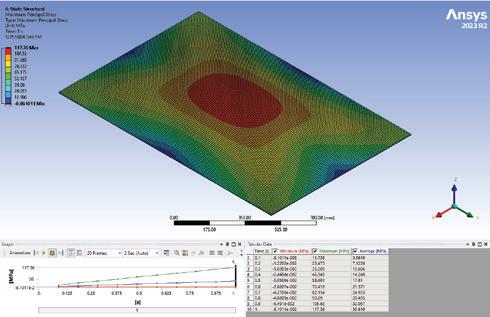

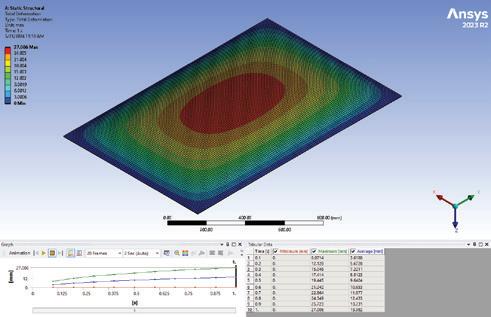

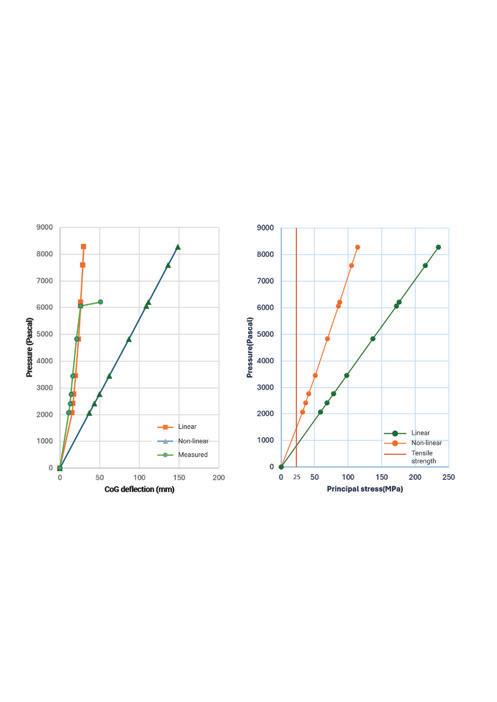

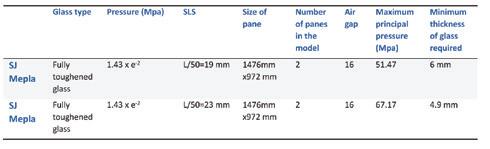

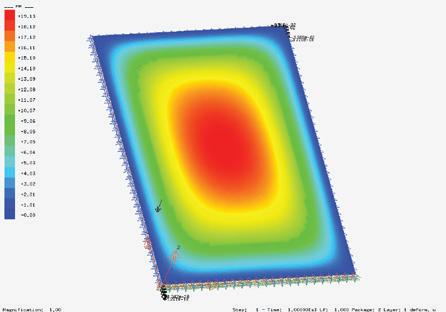

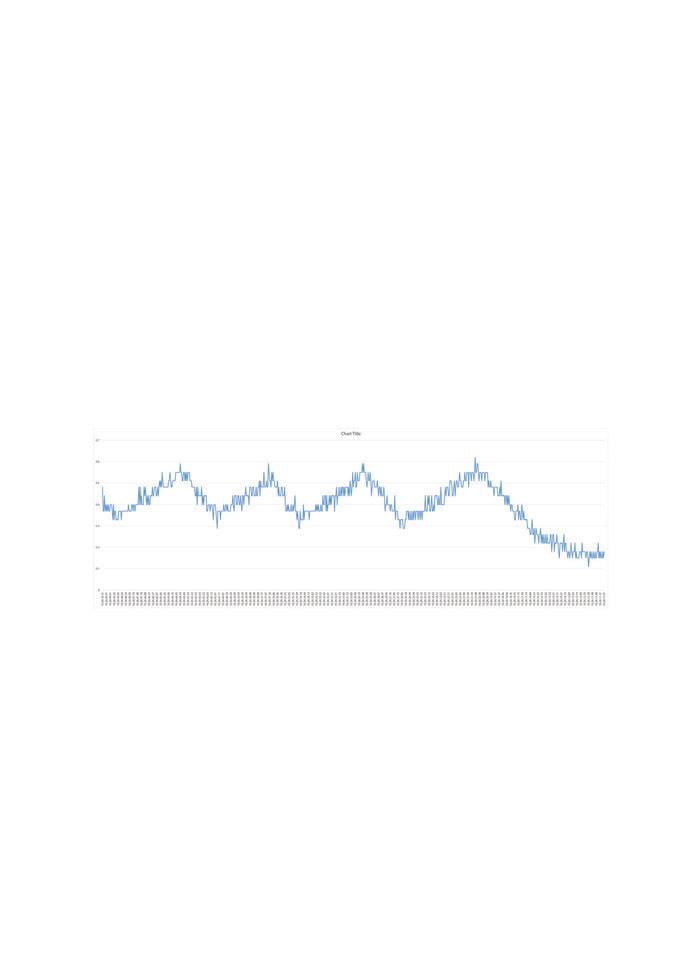

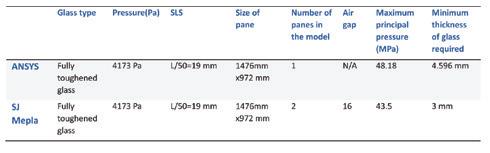

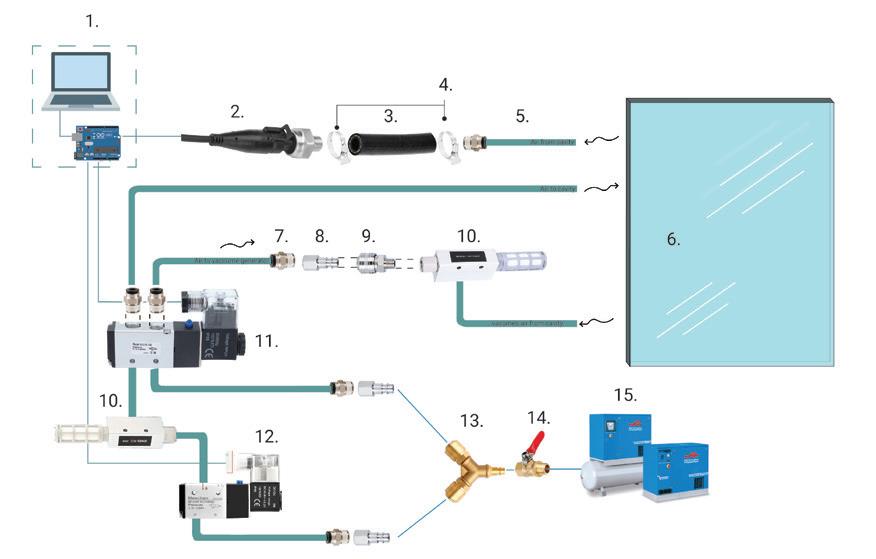

The study involves a novel experimental campaign to assess volunteers’ levels of perception and acceptance of various glass deformations.The glass was deformed using a bespok electro-pneumatic system at levels corresponding to below, above, and at the current serviceability limit. To insure safety of experiment , a break test was performed using similar IGU (1470x950) and the data collected was compared with FEA in Ansys to set a safety threshold for the experiment. The Electro-pneumatic system was able to to deflect the IGU in a cyclic motion mimicing movement during a wind load.

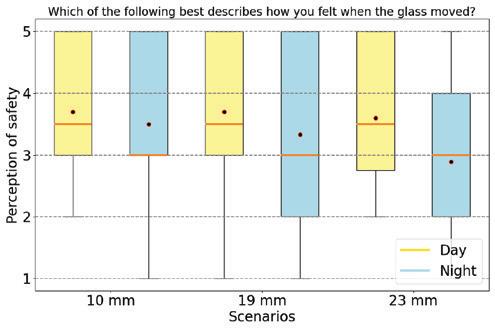

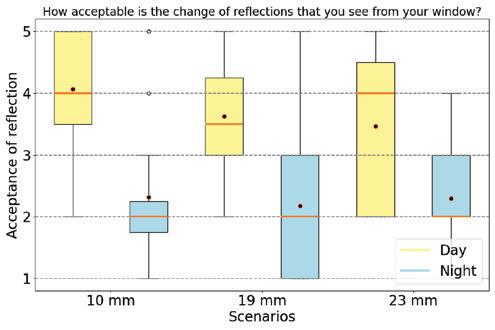

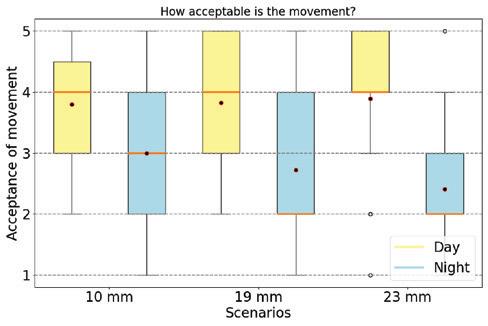

Statistical
analysis of survey conducted during experiment and design implications.
During the experiment participants response was recorded using questionairs.The results demonstrate the feasibility of measuring human responses to deformations in the glazing and provide essential data for setting serviceability limits. The experiments and corresponding user satisfaction feedback indicate that the current serviceability limit of L/50, may be relaxed, thereby presenting opportunities for material efficiency, such as the adoption of thinner glass in facades. The methodology effectively captures human responses, revealing that changes in reflection were the primary reason for the perception of movement, leading to a higher perception of glazing movement and a lower acceptance at night. Overall, participants felt safe regardless of their prior knowledge on glass properties, and providing this information to participants did not improve acceptance, which was already sufficiently high.The findings from this research fill an important knowledge gap in understanding user acceptance of glass deformations, crucial for comprehensive user satisfaction assessments and evidence-based reductions in glazing thickness.

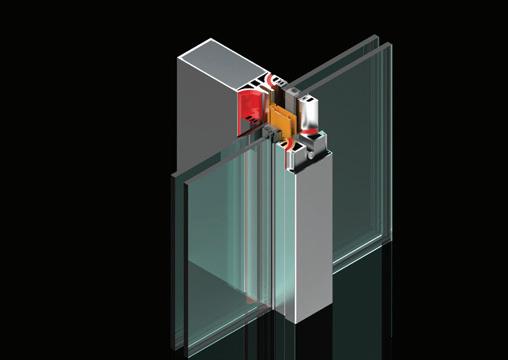

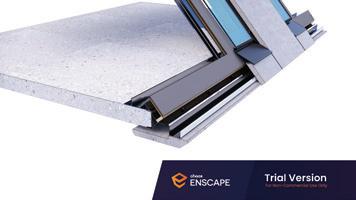

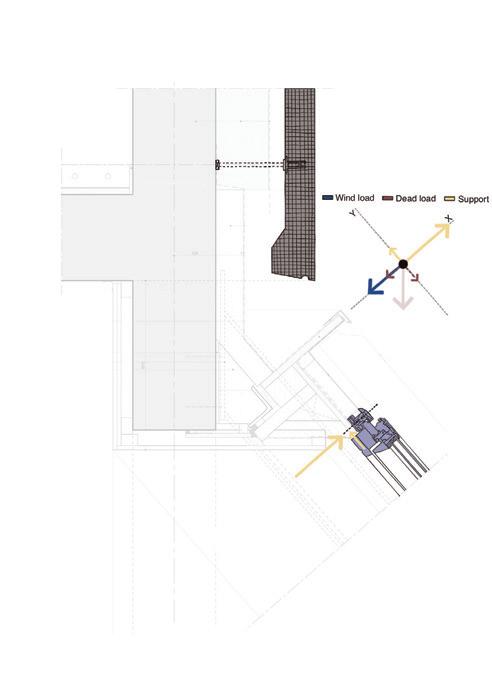

Insulated glass unit
Aluminium extrusion
EPDM Gasket
Polyutherene
Cover
Main Facade frame
Course name: Introduction to Computational Design
Project type:Academic
Location: The Netherlands , Delft
Project Involvement:8 weeks of Design with a team of 3.Taskes involved include design formulation , strategizing computational approach and scripting in grashopper.
Year/semester: 2022, 1st year ,1st semester.
School: Delft University of Technology.
Email adderss of studio head: S.Asut@tudelft.nl
PWAVE AND SHADE.

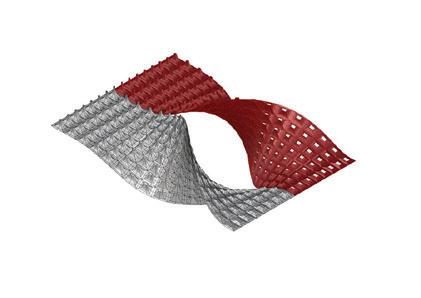

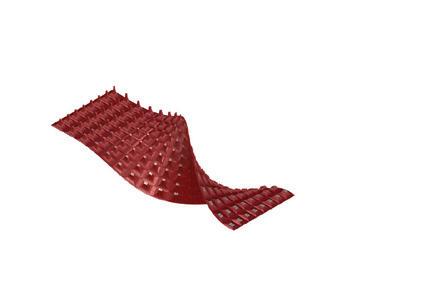

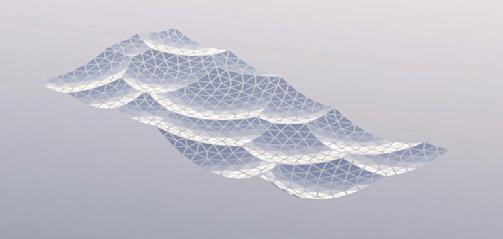

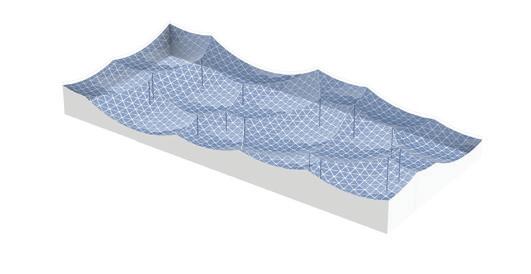

Wave and Shade.
Group 12 -Bryan Zwakkenberg 4848799, Mohammed Ibrahim Hassen 5741165, Sareh Yousefi 5759056
The Flowchart-Visual programing implemented in grashopper.

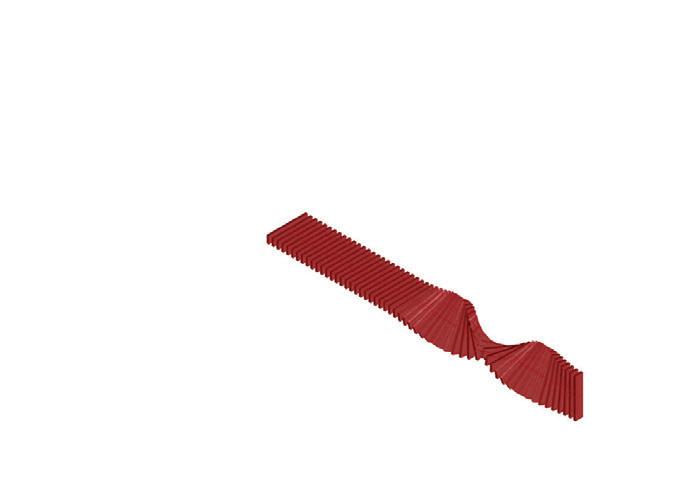

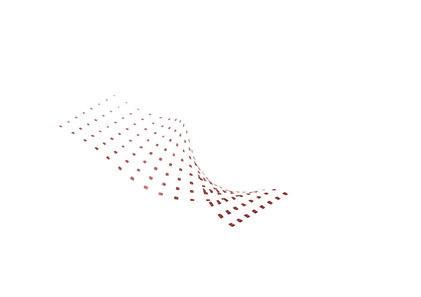

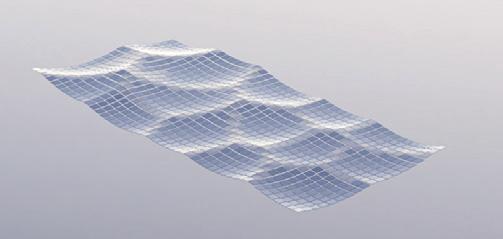

The Flowchart - Creating twisted curve

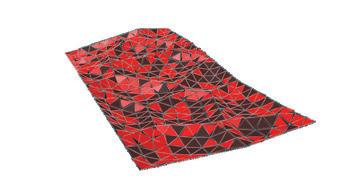

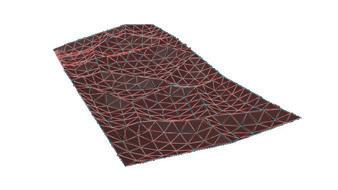

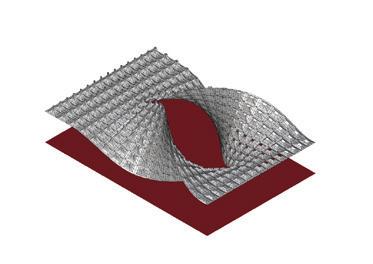

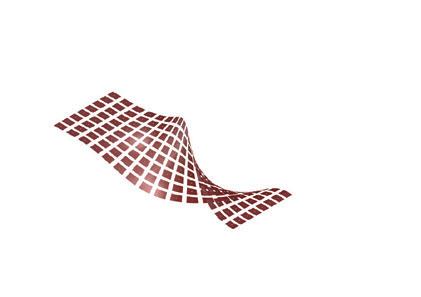

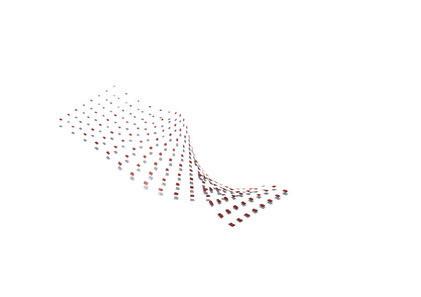

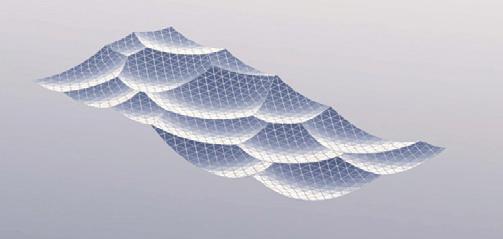

The Flowchart - Panneling the surface The Flowchart - Lofting, extruding, and mirroring

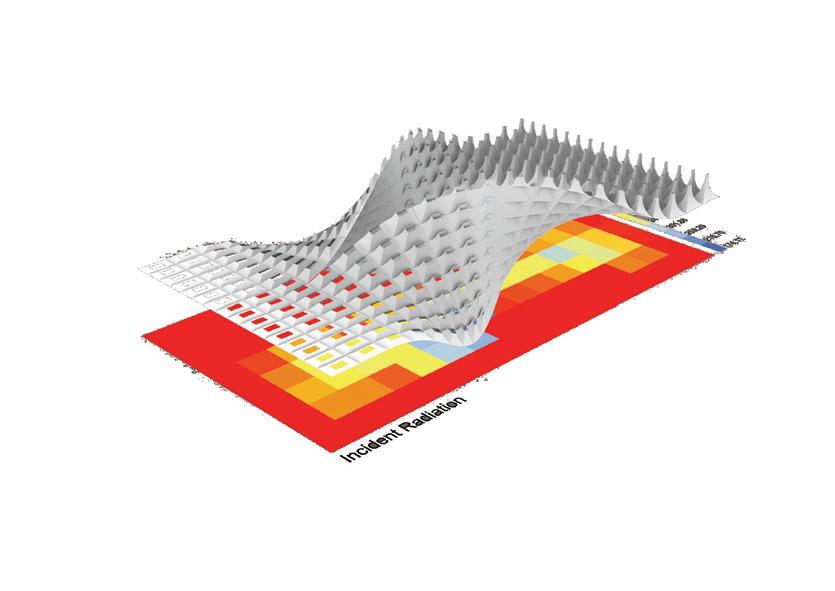

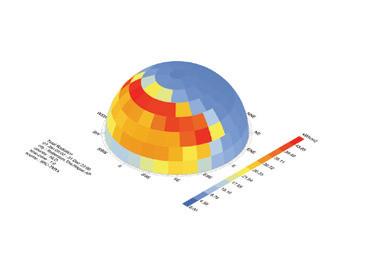

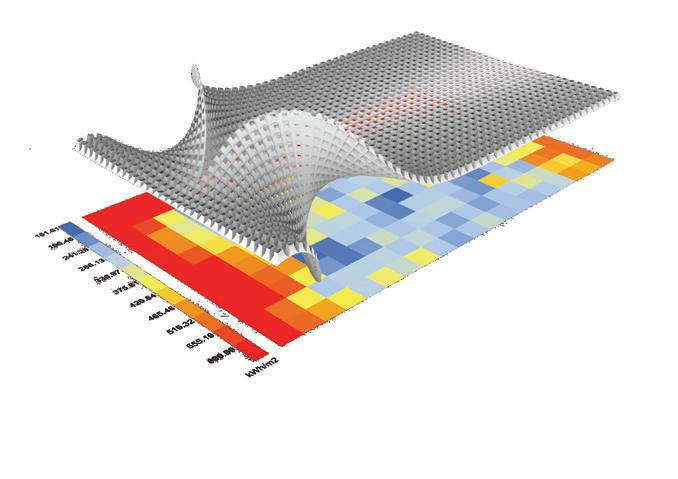

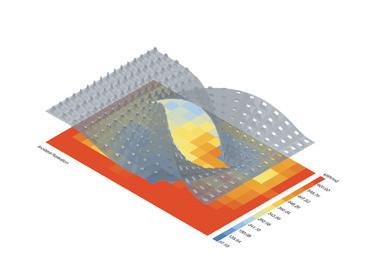

The Flowchart - Ladybug & Galapagos

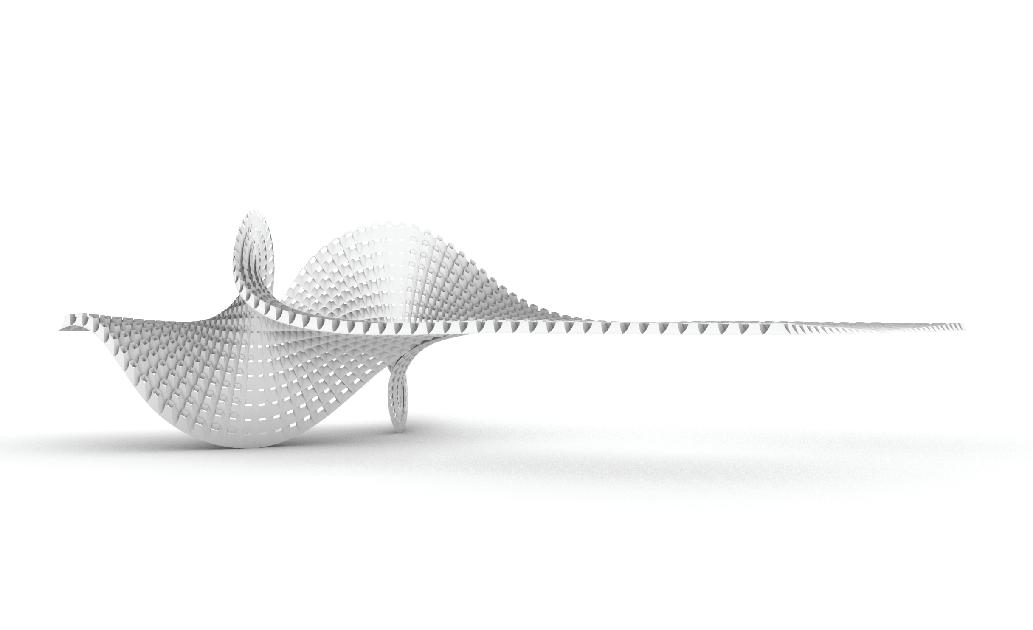

The Flowchart - Bench
Course name: Bucky Lab
Project type:Academic
Location:Spain,Granada
Project Involvement:16 weeks of design. Working in a team of 4. The project involved design , proof of concept experiment, 1:1 detailing and a 2 weeks long prototyping in a woodworkshop,building a 1:1 prototype of the critical section of the design.
School: Delft University of Technology.
Year/semester:2022 1st year 1st semester MSc.
Email adderss of studio head: m.bilow@tudelft.nl
PClima-shade.

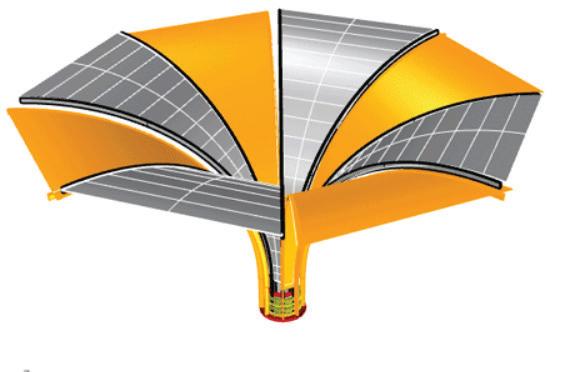

CLIMASHADE.

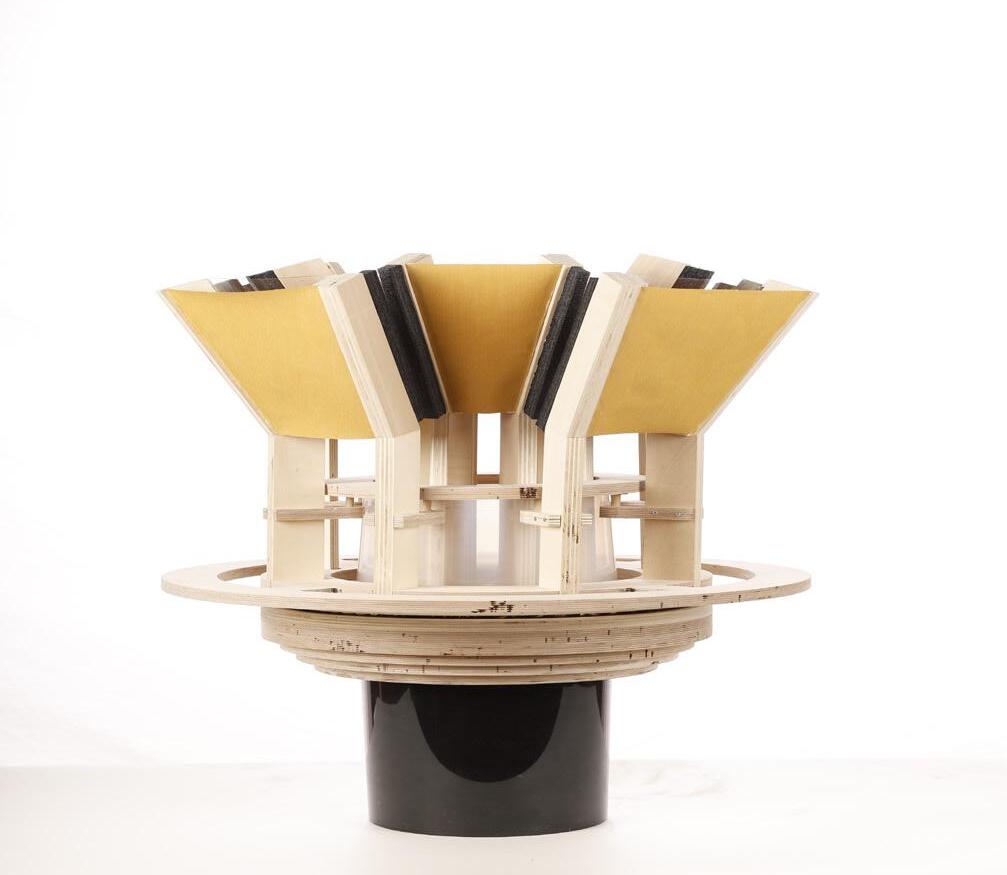

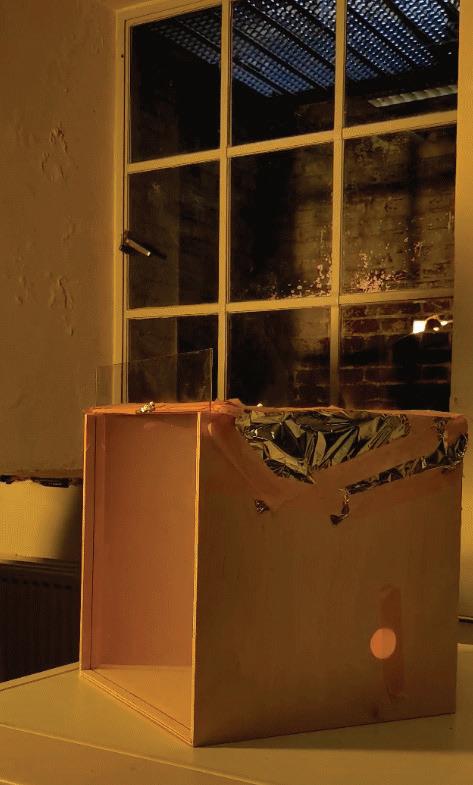

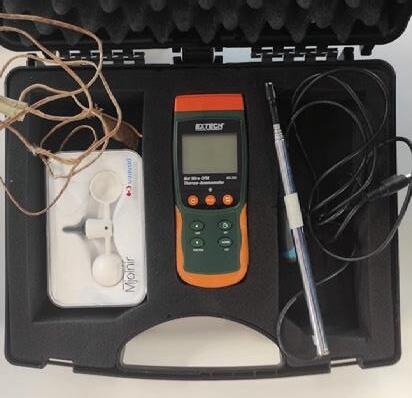

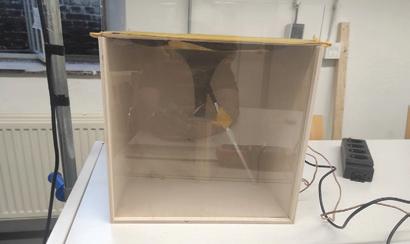

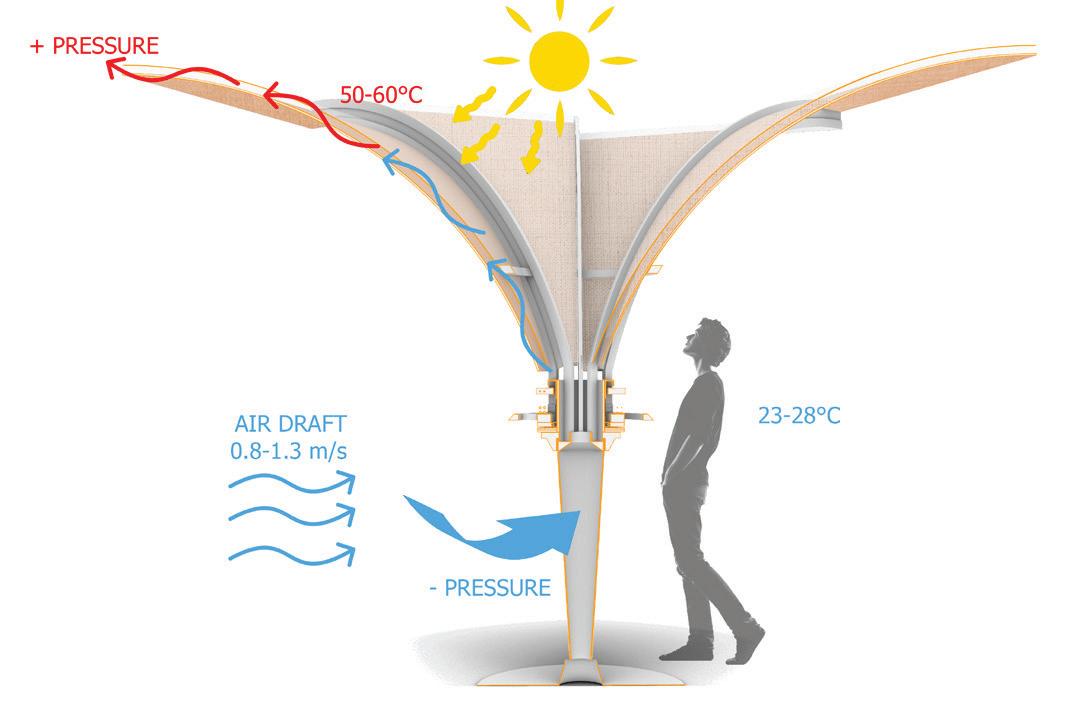

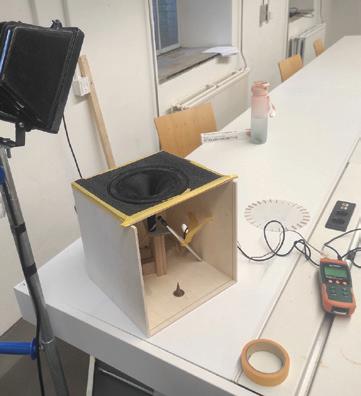

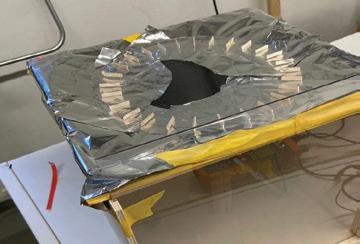

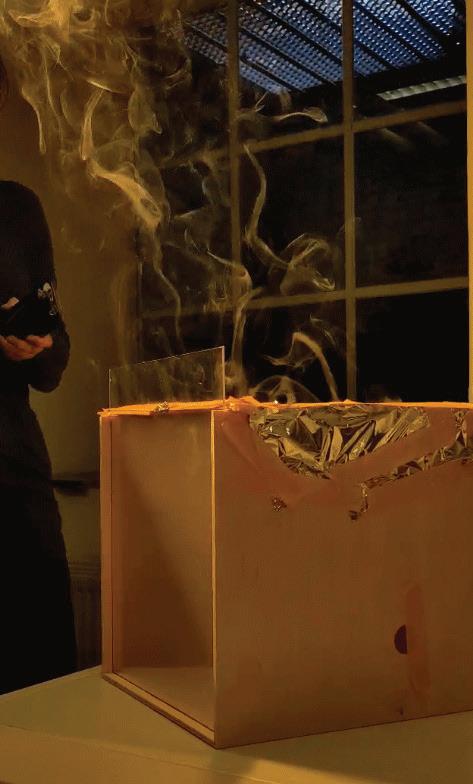

Clima-shade Proof of Concept.
Prototyping
INTERNAL BRACING
MOVABLE PANEL (ROTATION)
FIXED PANEL
ROTATION MECHANISM (SEE SECTION)
CYLINDRICAL
STEEL TUBE
FIXED TO THE GROUND
EXPLODED AXONOMETRIC NOT TO SCALE
FIXED PANEL ASSEMBLY BOLTED ONTO STEEL BRACKET
MOVEABLE PANEL ASSEMBLY FIXED ON CIRCULAR STEEL BASE

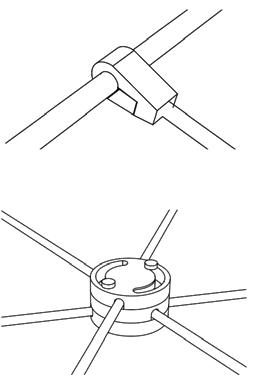

WHEEL MOUNTED ON STEEL BRACKET ATTACHED TO THE MOVABLE PANEL ASSEMBLY
4-BOLTED STEEL BRACKET ON MOVABLE PANEL ASSEMBLY
STEEL “U” PROFILE HOUSING WHEEL FOR MECHANIZED PANEL MOTION
CIRCULAR TUBE
FIXED PANEL LATERAL SUPPORT
BEARING MOUNTED ON U PROFILE UNDERNEATH
STEEL PROFILE MOUNTED ON CIRCULAR STEEL TUBE
BOTTOM HEAVY BASE CONCRETE
EXPLODED 1:1 PROTOTYPE NOT TO SCALE

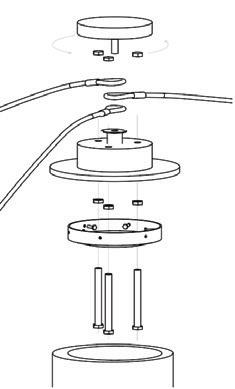

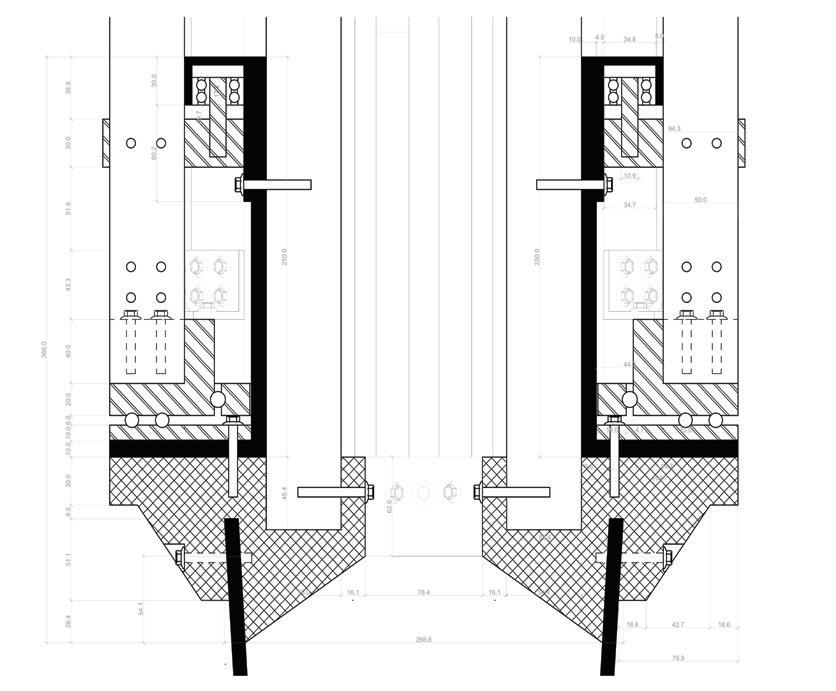

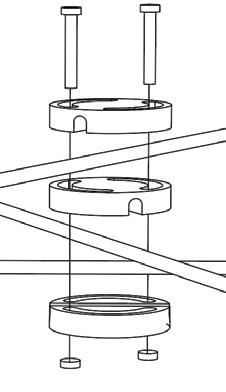

ROTATING MECHANISM DETAIL NOT TO SCALE
Prototyping

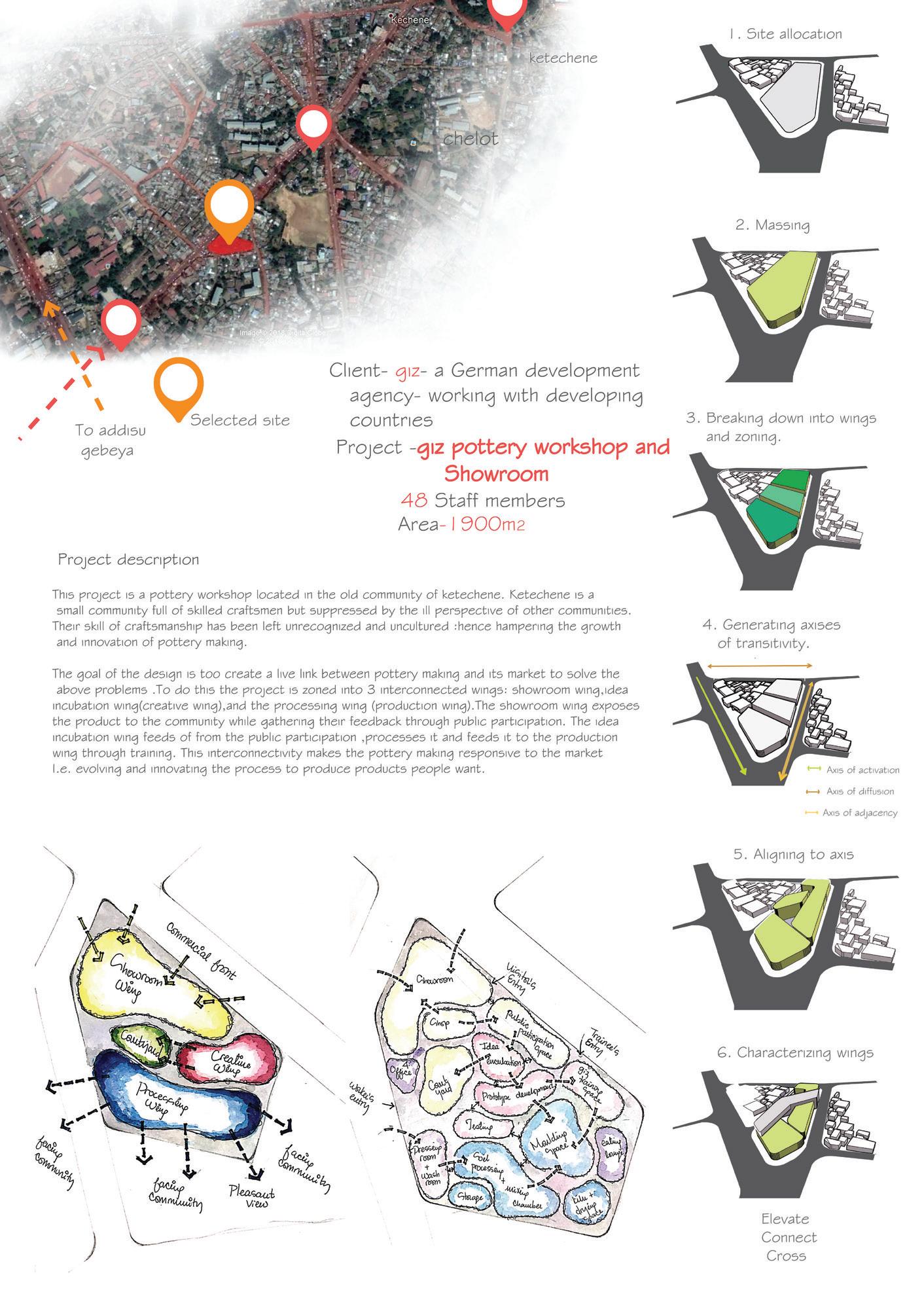

POTTERY WORKSHOP.

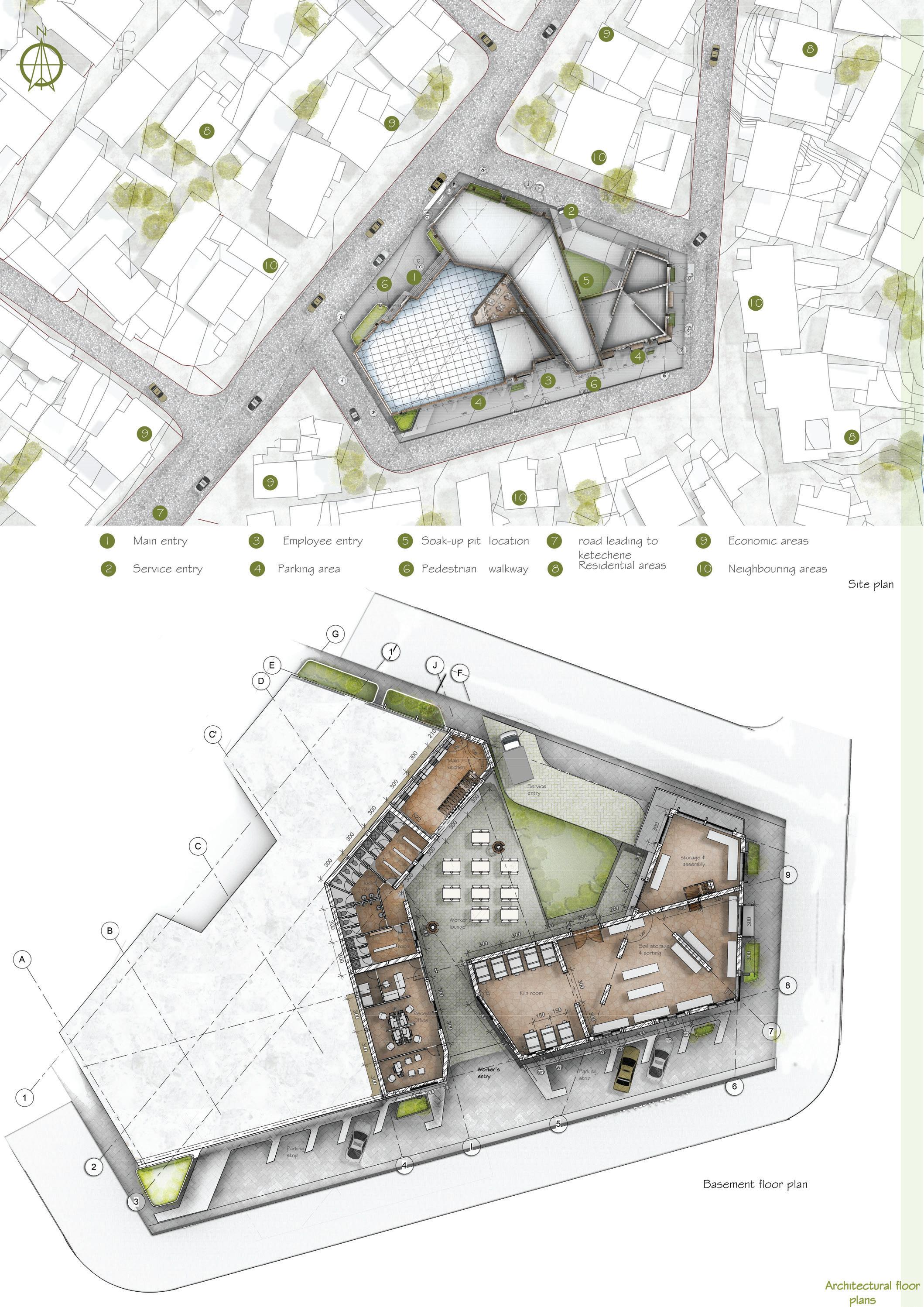

Course name: Integrated design Project III.
Location:Ketchene /Addis Ababa.
Project Involvement:14 weeks of design studio.I worked in a group of 2 with my partner Tinsae Tsegahun.I was involved in all steps of the project design and documentation.
Year/semester:2017/2018,3rd year 2nd semester.
Email address of Studio Head: Samuelafewerk@eiabc.et
Compressed

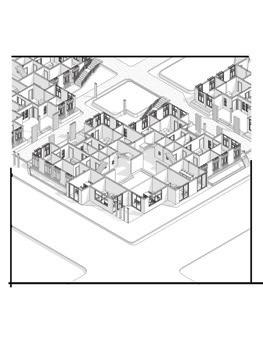

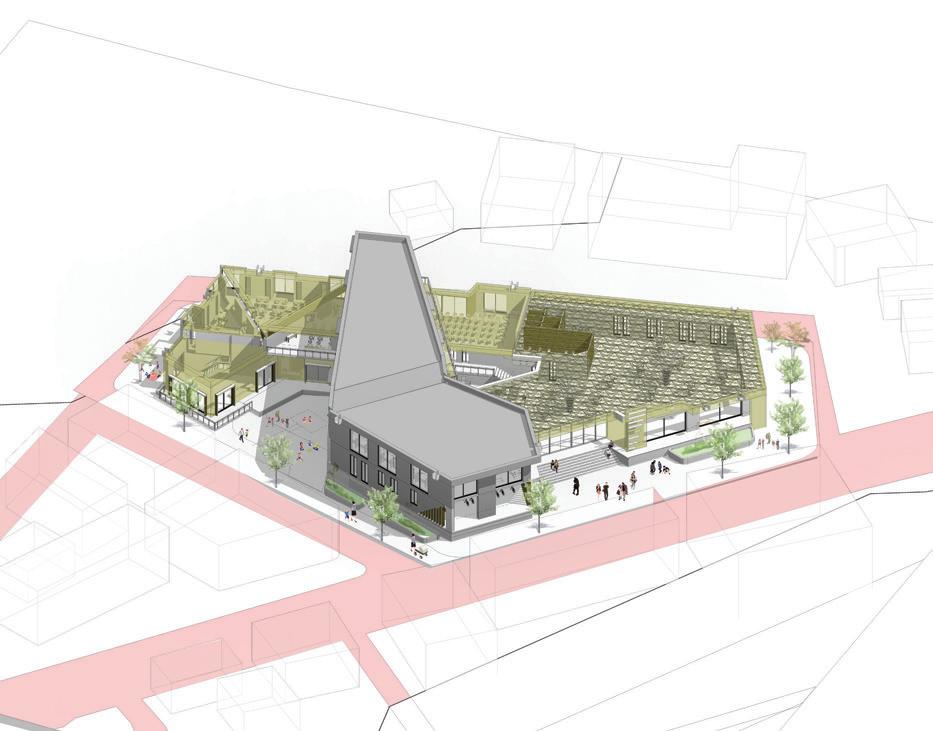

3D impression (Birds eye view)
Section A-A
Structural exploded

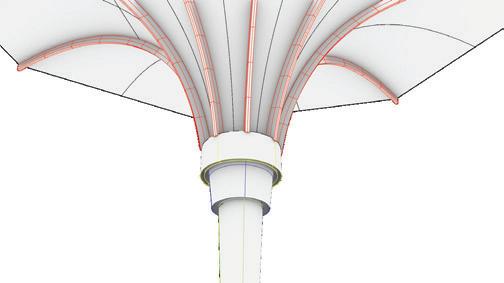

Glulam Column Detail
D1
D2
D3 D4
Course name:Architecture for social change (Building science and building construction)
Location:Autobistera /Addis Ababa.
Project Involvement:14 weeks of design studio.I worked in a group of 4 for the first 4 weeks of design and the rest 10 weeks I worked on an architectural scale with my design partner Abenezer degu.I was involved in all steps of design and document preparation.
Year/semester:2018/2019,4th year 2nd semester.
Project type:Academic Email address of studio head:habtamu.nekatibeb @eiabc.edu.et
OPEN MARKET CORRIDOR.
Plaza

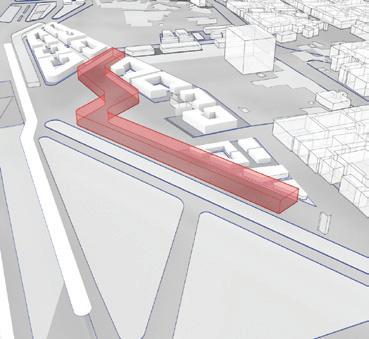

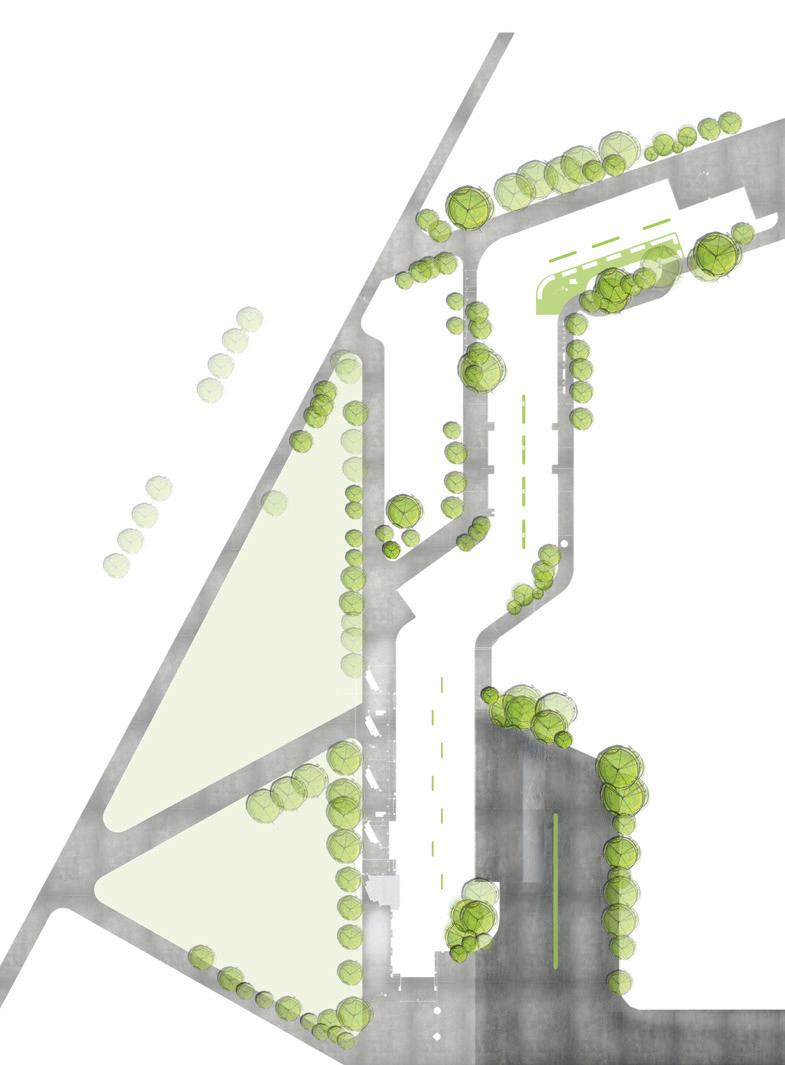

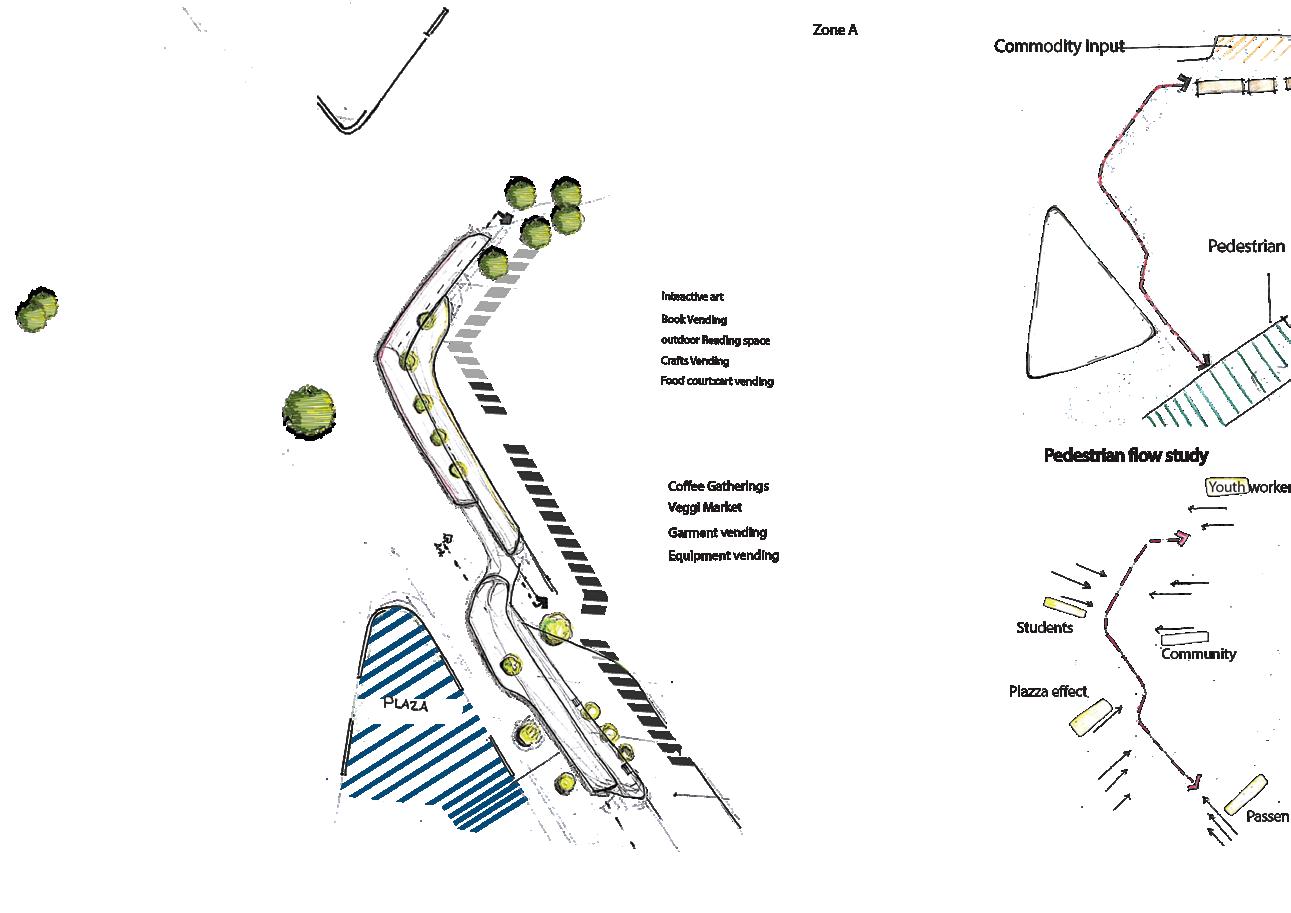

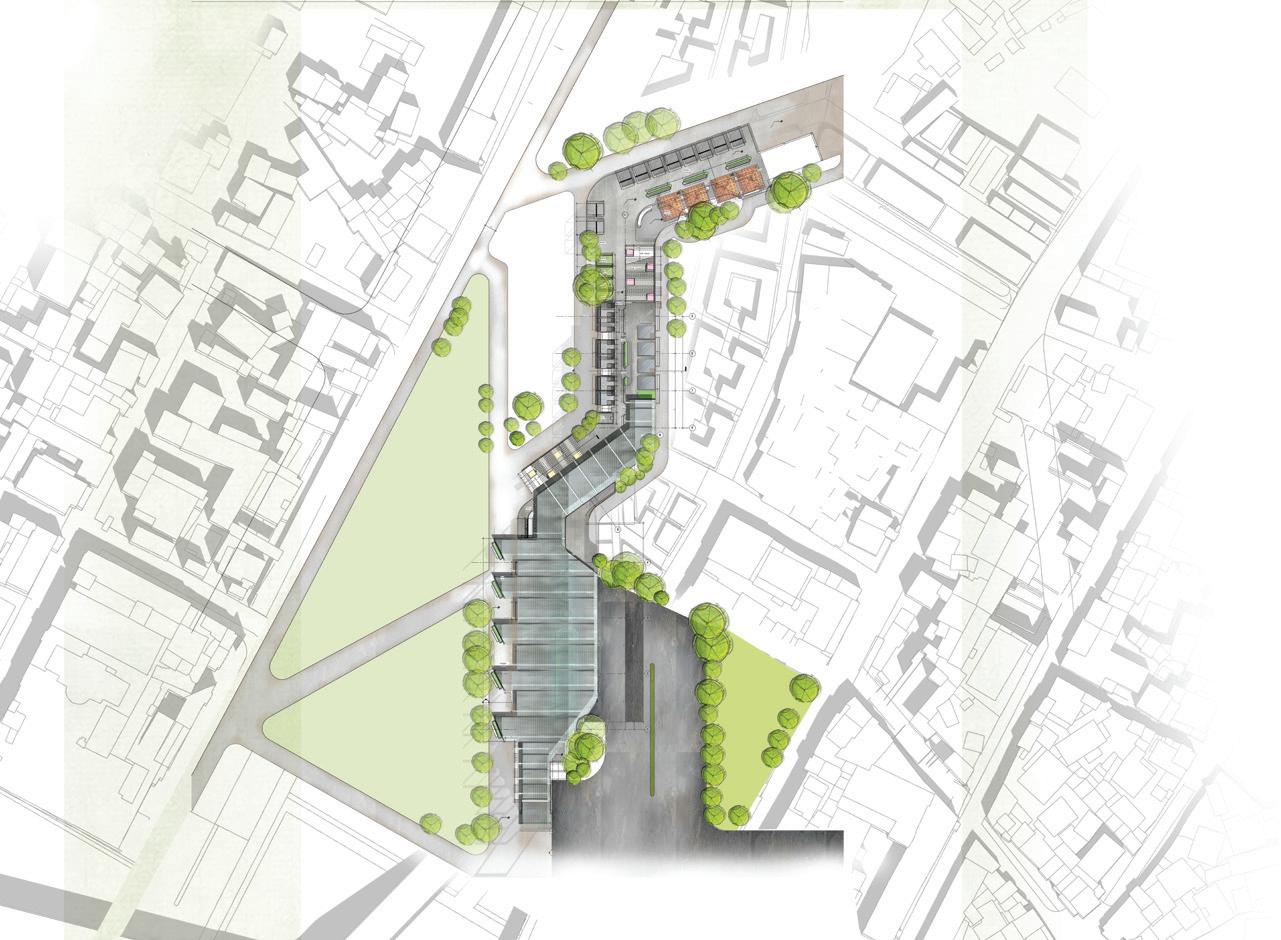

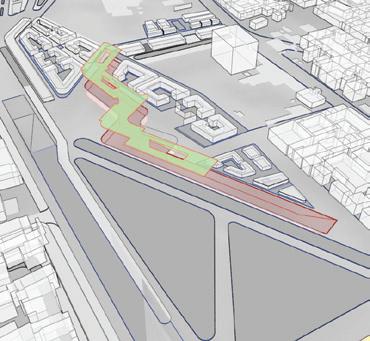

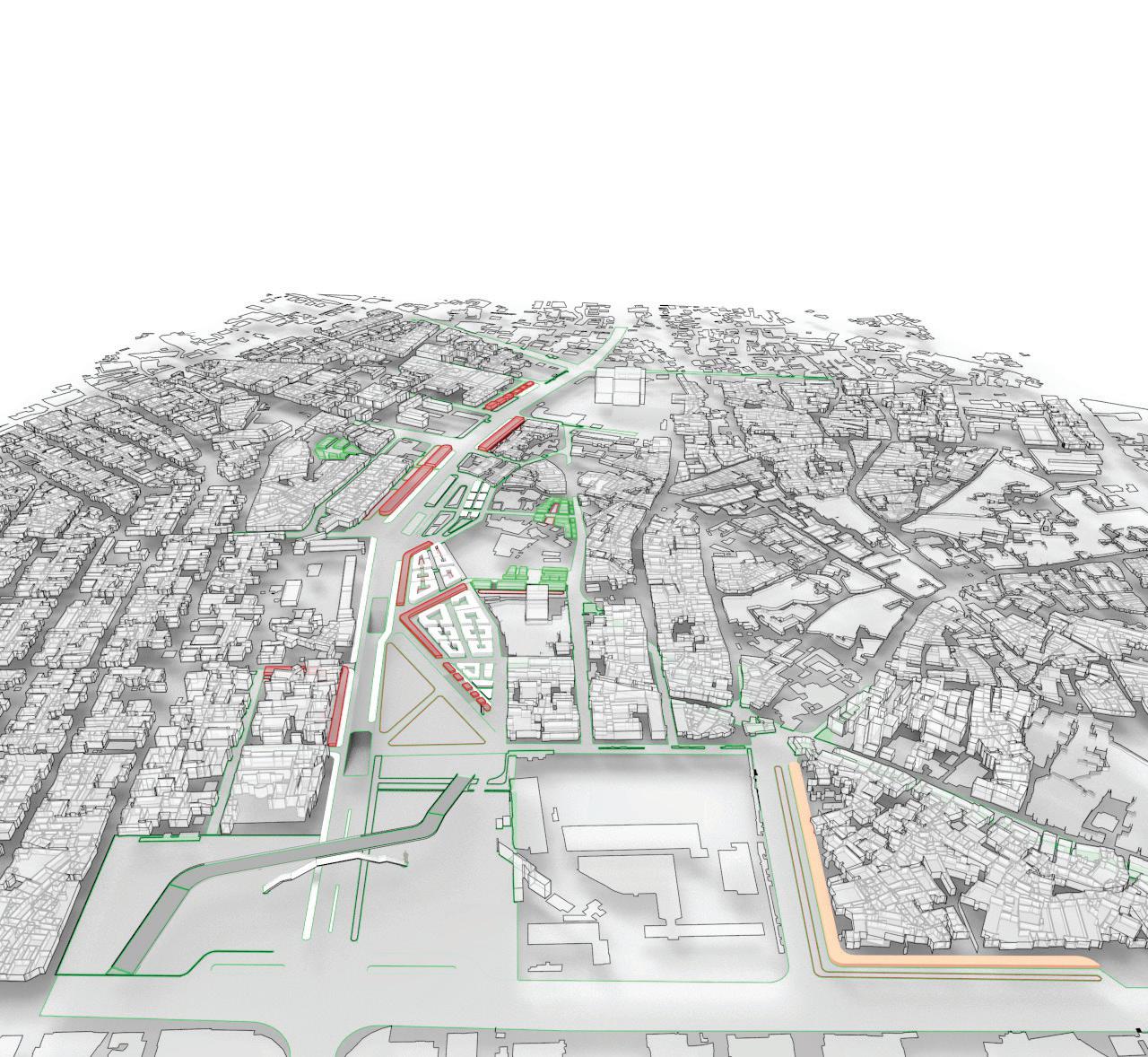

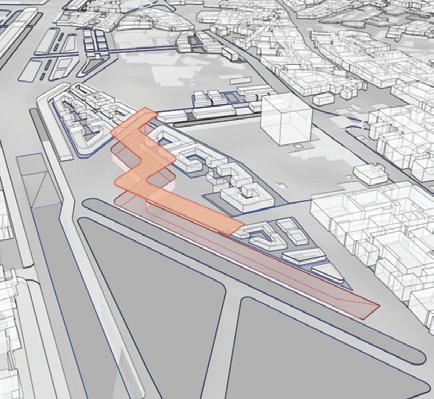

Urban scale intervention

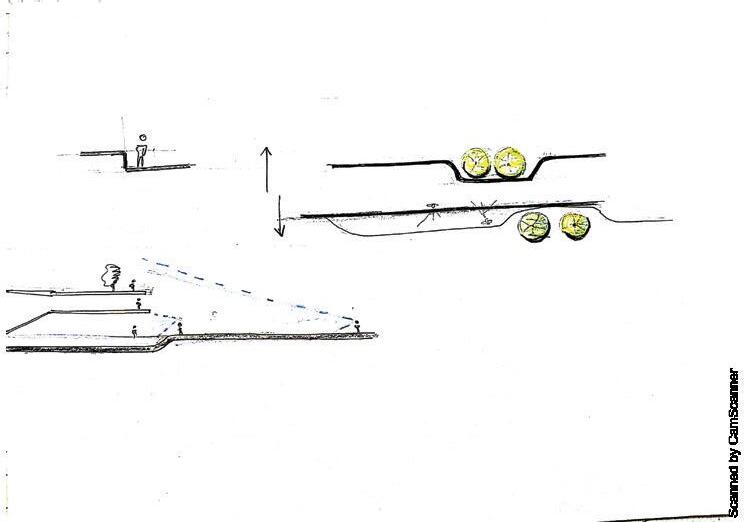

WHERE TO START AND END

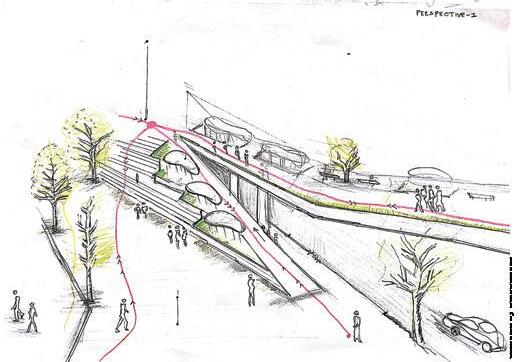

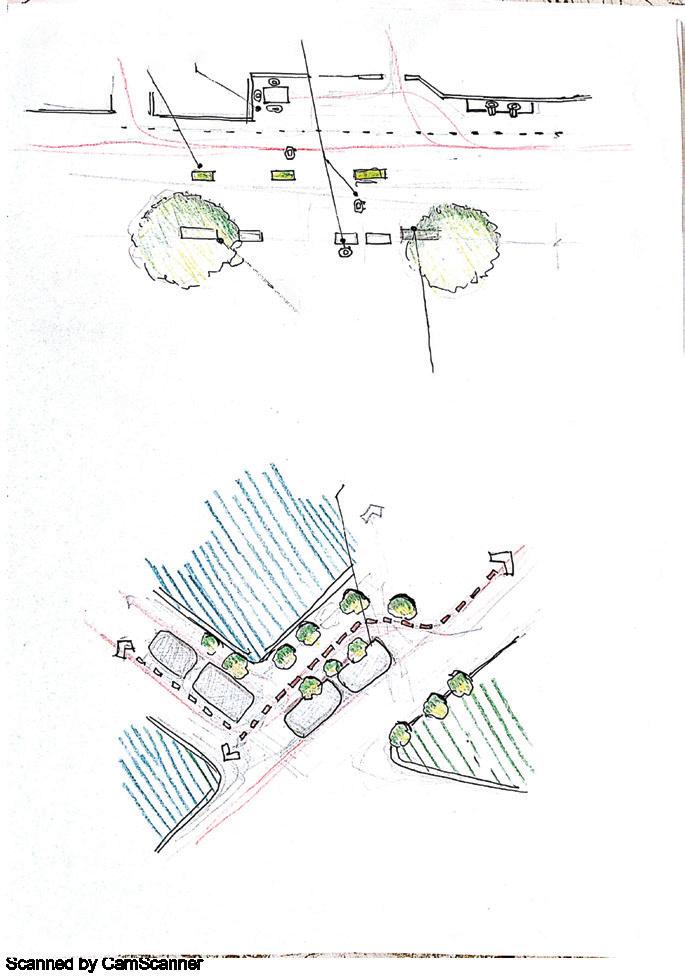

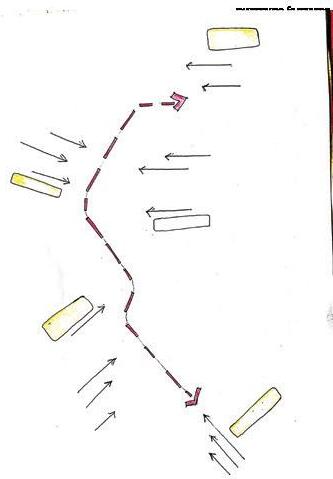

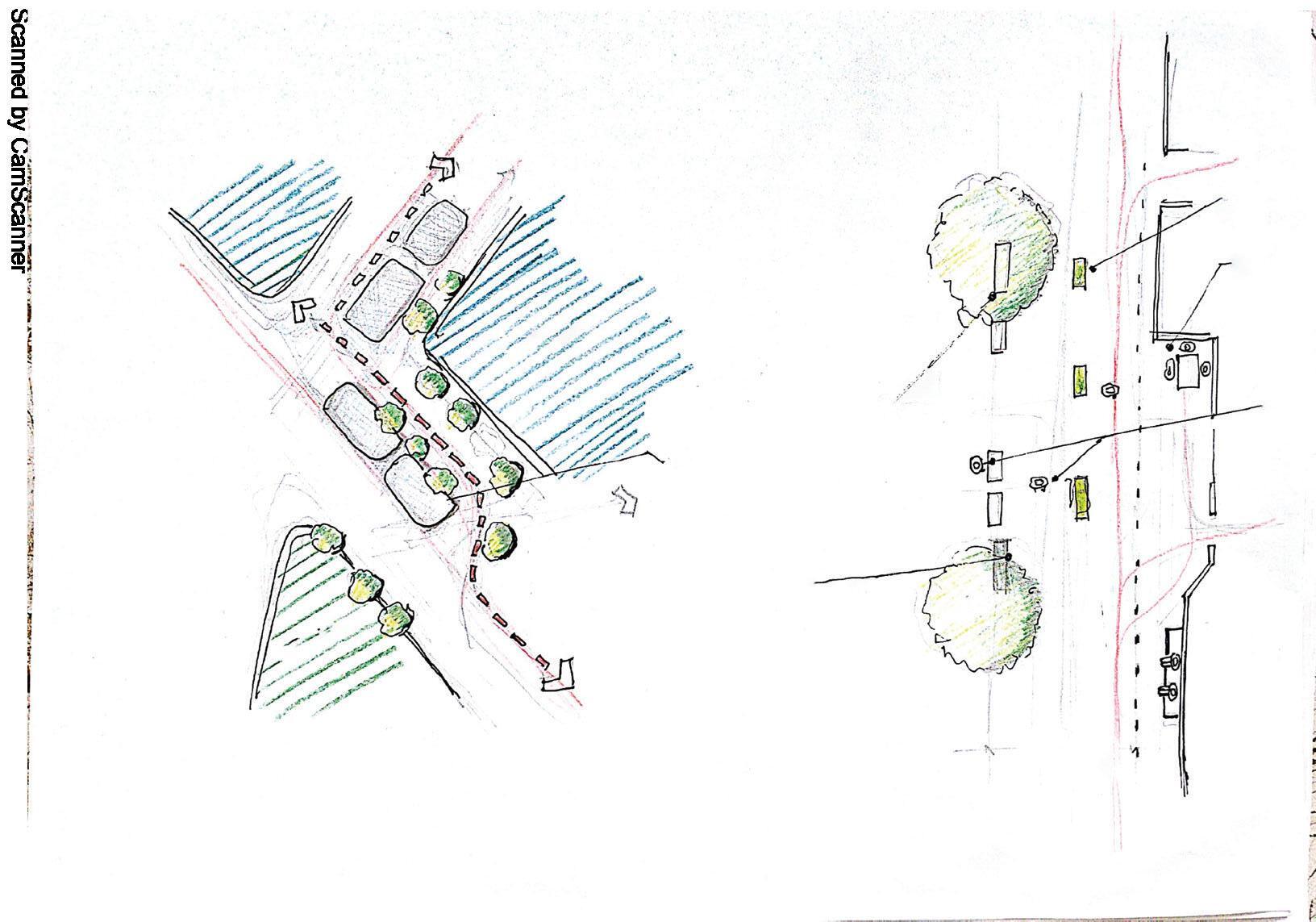

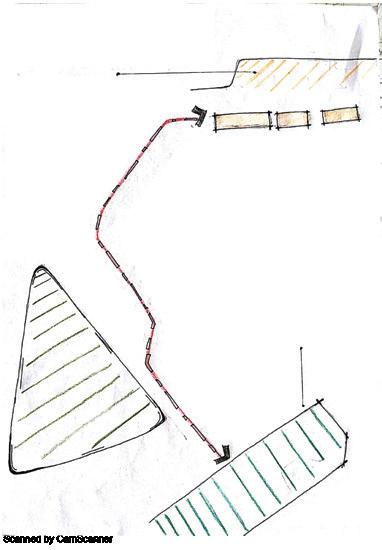

Pedestrian flow study
INFRASTRUCTURE
3D Impressions.

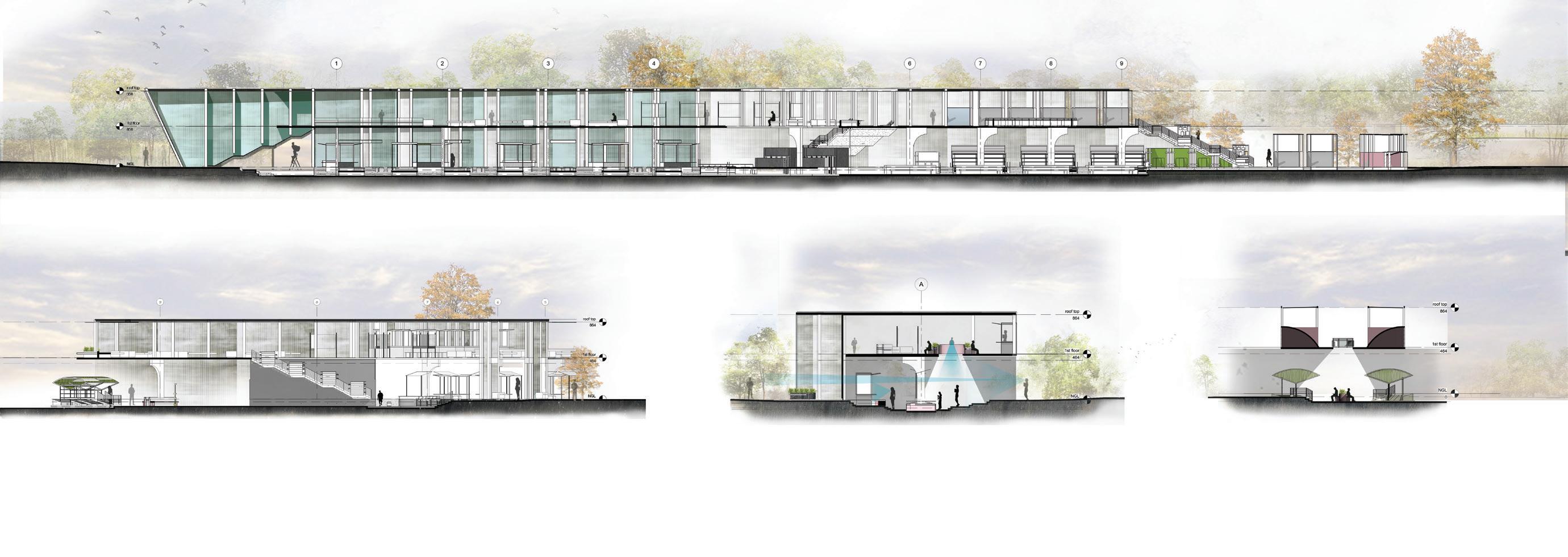

Section-cc

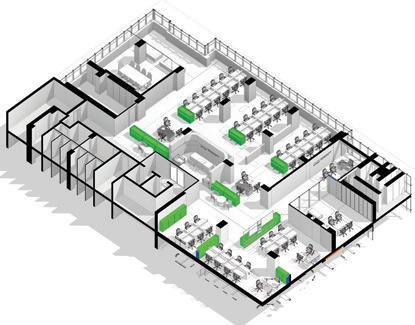

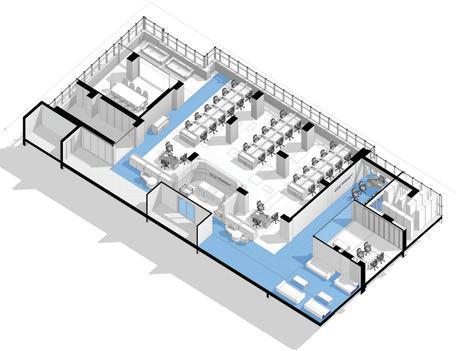

Project: Cooperative Bank of Oromia Transitional HQ:
Design Studio:Makers Lab(Design Studio). Location:Addis Ababa.

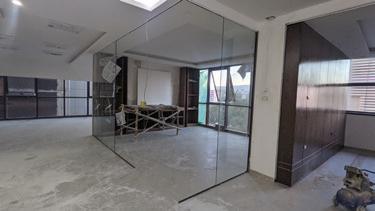

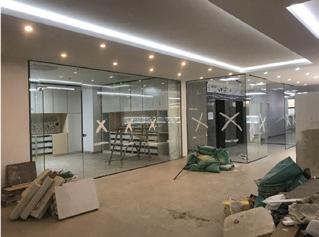

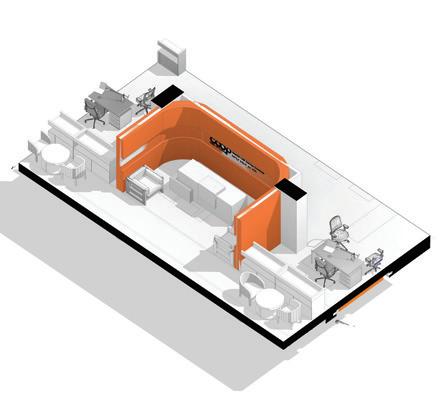

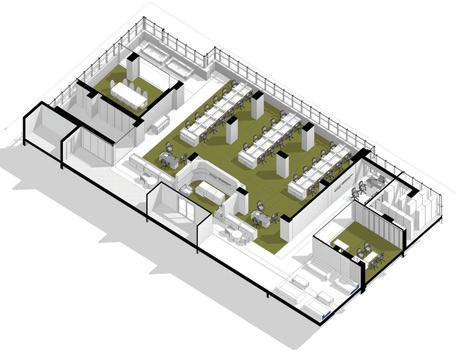

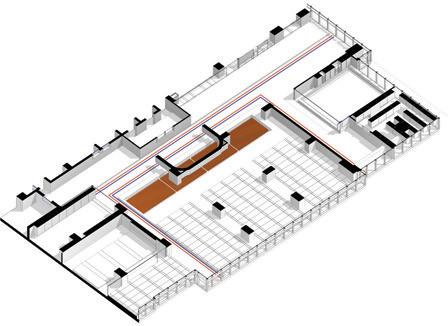

Project Involvement: Interior design develoment and construction supervisoion for a 2100 m2 office space.I have been involved in conceptualization stage,design development aswell as construction drawing preparation of the project.
PROFESSIONAL EXPERIENCE
Project: Intergovernmental Authority for Development HQ
Design Studio:Makers Lab(Design Studio).
Project Location:Djibouti.
Project Involvement:
The schematic design was done by MEZZ DESIGN BUREAU(Italy).I was involved in the preliminary and final design development which included floor plan modification, interior design,modeling,rendering and a preliminary proposal to a sustainable approach to the facade already done in preliminary stage.
Facade sections
A development of the interior of the IGAD HQ to reflect the cultural elements of the East African region and a modest approach to making a comfortable space with a functional layout and orientation.Involved in designing ,rendering and drawing preparation.
As the daily heat and humidity of Djibouti makes it difficult for opening a window for ventilation,MEZZ DESIGN BUREAU have proposed an exterior shade and an active artificial ventilation. This approach plummeted the energy consumption as the full glazing of the building increases the temperature load on the AC system.
During the preliminary phase ,we have proposed for a double facade system which optimizes the underground aquifer to cool air and circulate around the building. An approach to decrease the energy consumption of the building and a provide a sustainable ventilation system.
---
FACADE MODEL DEVELOPMENT
Optionering
