Mister Hitches STANDARD BALL MOUNT HITCHES

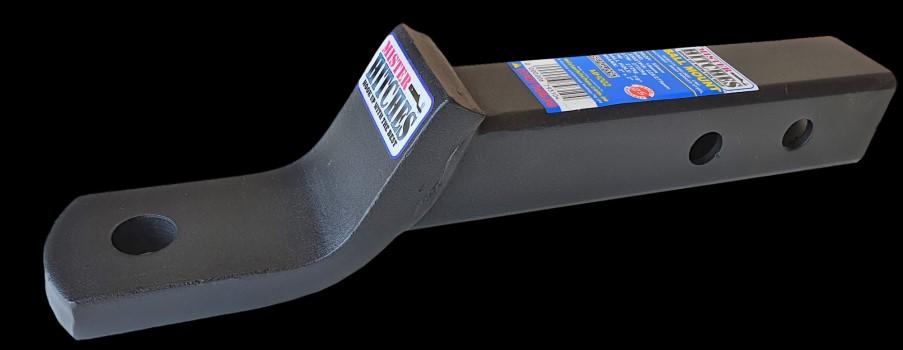

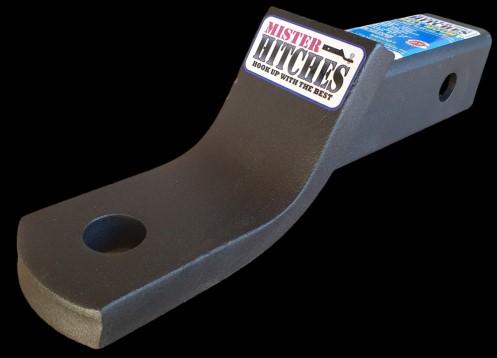

MISTER HITCHES Tow Ball Mounts are designed by Mister Hitches Australia and manufactured using drop forged Q235 steel, CNC milled and robotically welded for precision and consistency. Available in multiple drop/rise and length configurations. Fully reversible. All MISTER HITCHES Tow Ball Mounts are ADR compliant and powder-coated for a premium, durable finish.
NOTE: A DROP or RISE is measured from the top of the Ball Mount shank to where the tow ball sits. The LENGTH is measured from the centre of the Pin hole to the centre of the Ball hole.
STANDARD DUTY BALL MOUNTS
MH001
GTW: 2722kg TW: 272kg
Length: 190mm
Drop: 50mm
MH002
GTW: 2722kg TW: 272kg
Length: 225/275mm Drop: 50mm Rise: 19mm
MH314
GTW: 2268kg TW: 227kg
Length: 244/294mm
Drop: 83mm Rise: 50mm
MH006
GTW: 2268kg TW: 227kg
Length: 292mm Drop: 152mm Rise: 121mm
MH002LS
GTW: 2722kg TW: 272kg
Length: 322mm
Drop: 50mm
Rise: 19mm
