MISTER HITCHES AUSTRALIA - MHRVBH4 BUMPER HITCH

Page 1


AUSTRALIA

Mister Hitches

RV BUMPER MULTI-USE RECEIVER HITCH

Designed and developed by MISTER HITCHES AUSTRALIA

Barcode: 0000006793937

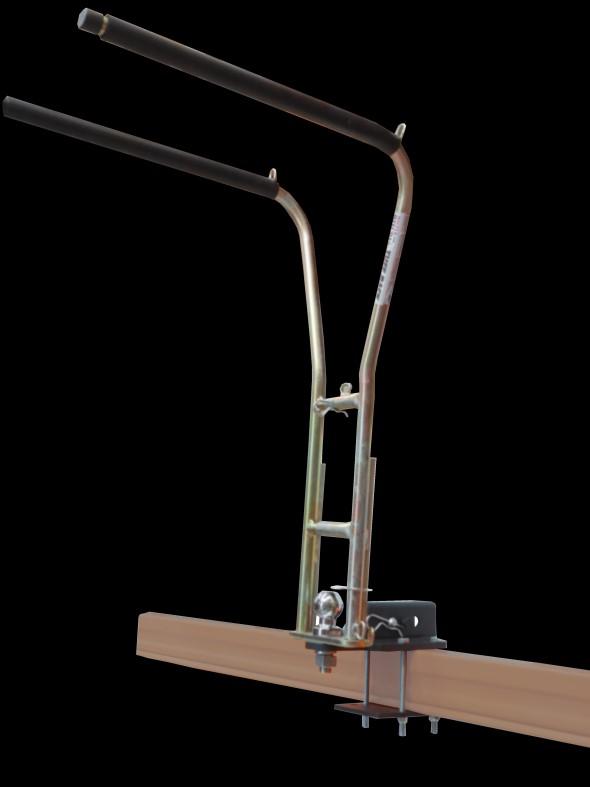

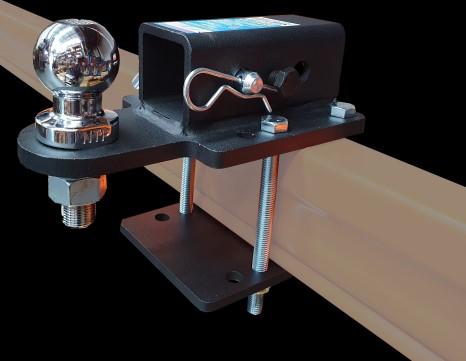

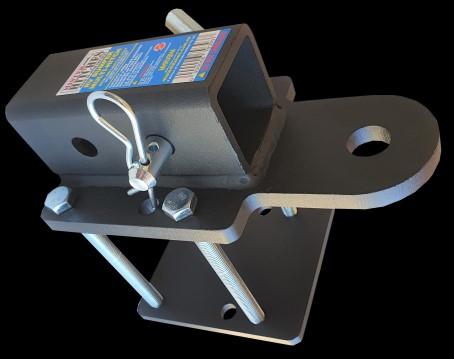

This handy bolt on receiver hitch has been developed for the RV market and is suitable for fixing to a rear bumper, A-frame or drawbar of a caravan, camper or motorhome. Ideal to use with many styles of Bike Carriers or any other hitch mounted accessory. Can also be used on the drawbar in the vertical position for storing your vehicles ball mount tongue when not in use. Can also be mounted under the bumper or on top or in a vertical position depending on the application.

Features:

• SOLID STEEL CONSTRUCTION, ROBOTIC WELDED FOR STRENGTH.

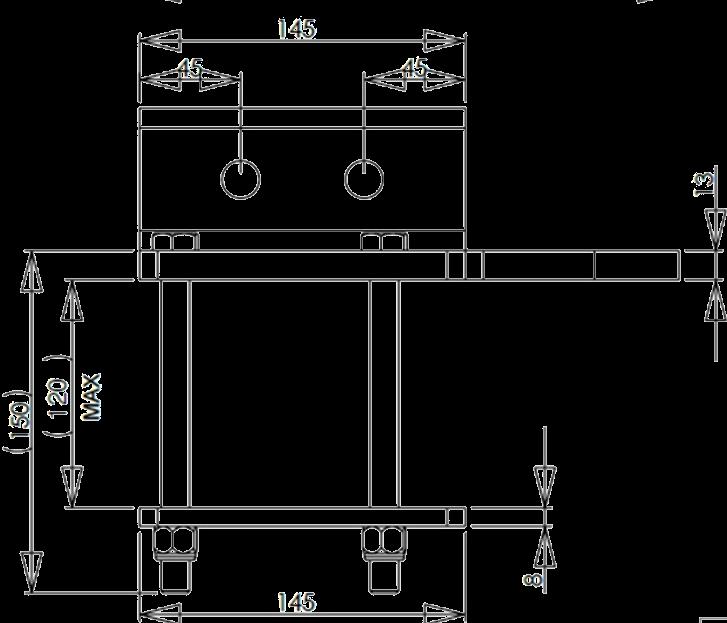

• SUITS UP TO 75mm (W) X 120mm (D) MOUNTINGS.

• INCLUDES AN ANTI-RATTLE SIDE BOLT.

• INCLUDES 10,000kg DOUBLE SHEAR RATED HITCH PIN & CLIP

• 8.8 grade H.T. MOUNTING BOLTS & NYLOC NUTS HARDWARE INCLUDED.

• MATTE BLACK POWDER COAT FINISH GIVES SUPERIOR CORROSION PROTECTION.

• ADDITIONAL MOUNTING HOLES FOR GREATER FITMENT .

• BALL HOLE = 7/8” DIA.

• 200kg LOAD RATING.

• WARNING: ENSURE YOUR BUMPER IS RATED FOR THE LOAD YOU WILL BE CARRYING.

• NOT TO BE USED FOR TOWING.

DO NOT OVERLOAD
