Mert Manas Erten// Architectural Portfolio (2017-2023)
Name: Project Year: 1 MERT MANAS ERTEN Middle East Technical University BArch | 2017-2021 University of East London MArch (RIBA Part 2) | 2021-2023
Project
Project Name: Project Year:
Mert Manas Erten// Architectural Portfolio (2017-2023)
2
REVIT + PHOTOSHOP
LAYERS 2020
EXPLODED AXONOMETRIC DRAWING OF THE REHEARSAL HALL TOWER// ITU MACKA CAMPUS
Mert Manas Erten// Architectural Portfolio (2017-2023)
Project Year: 3
Project Name:
LAYERS 2020

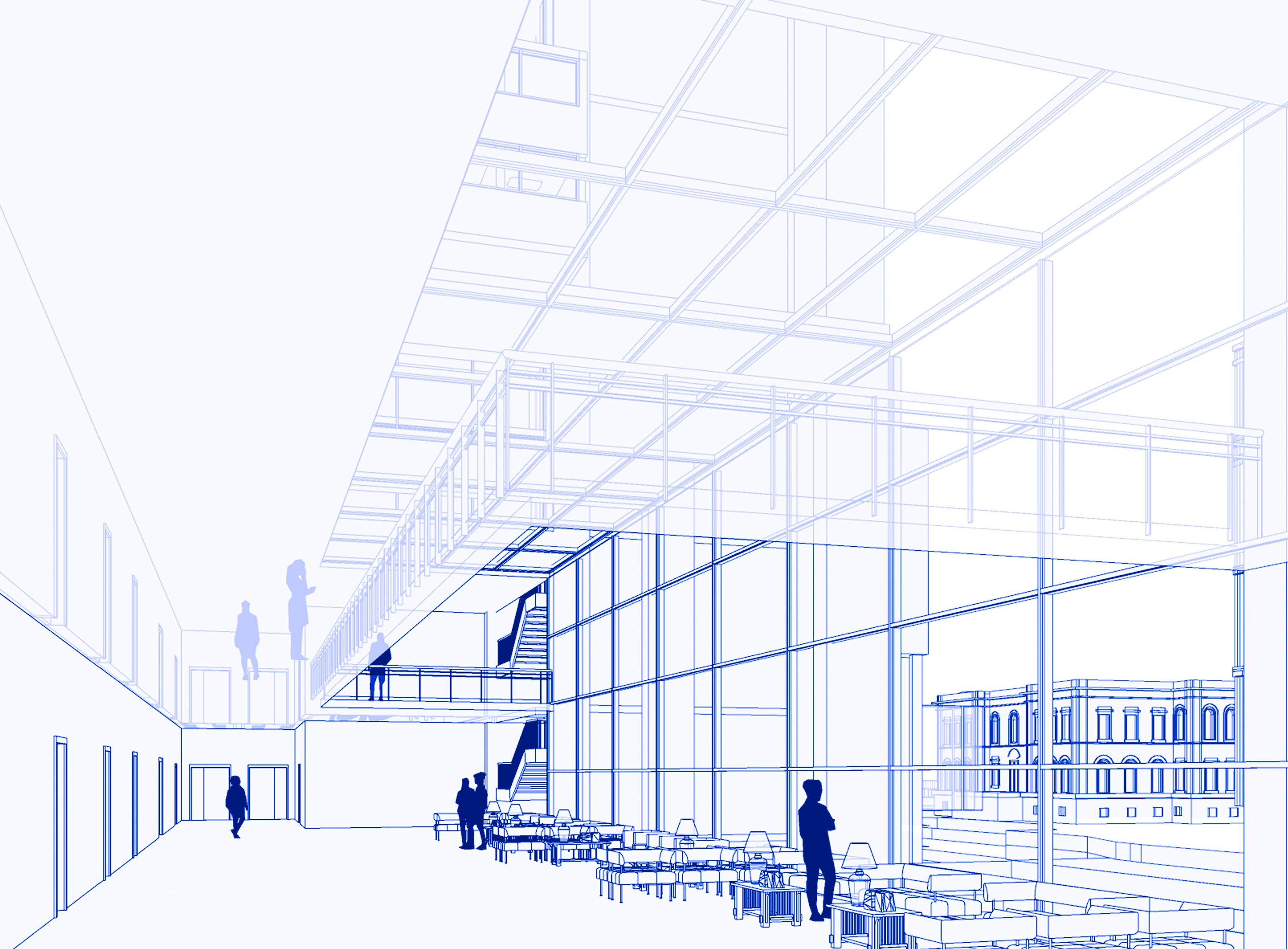

PERSPECTIVE FROM THE GALLERY// ITU MACKA CAMPUS REVIT + PHOTOSHOP
Mert Manas Erten// Architectural Portfolio (2017-2023)
Name: Project Year: 4 LAYERS 2020
Project
REVIT + PHOTOSHOP

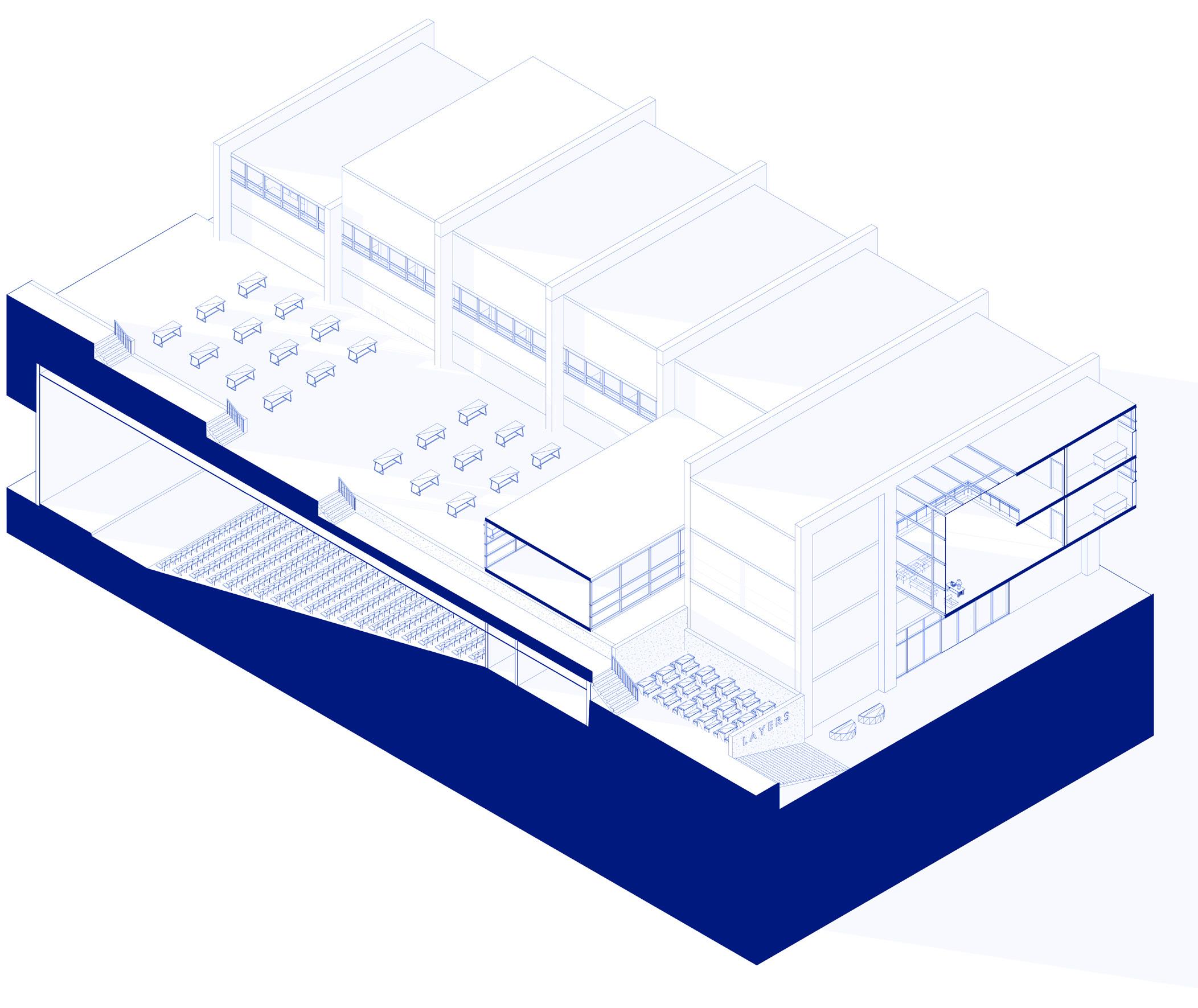

AXONOMETRIC DRAWING OF RECITAL HALL// ITU MACKA CAMPUS
Mert Manas Erten// Architectural Portfolio (2017-2023)

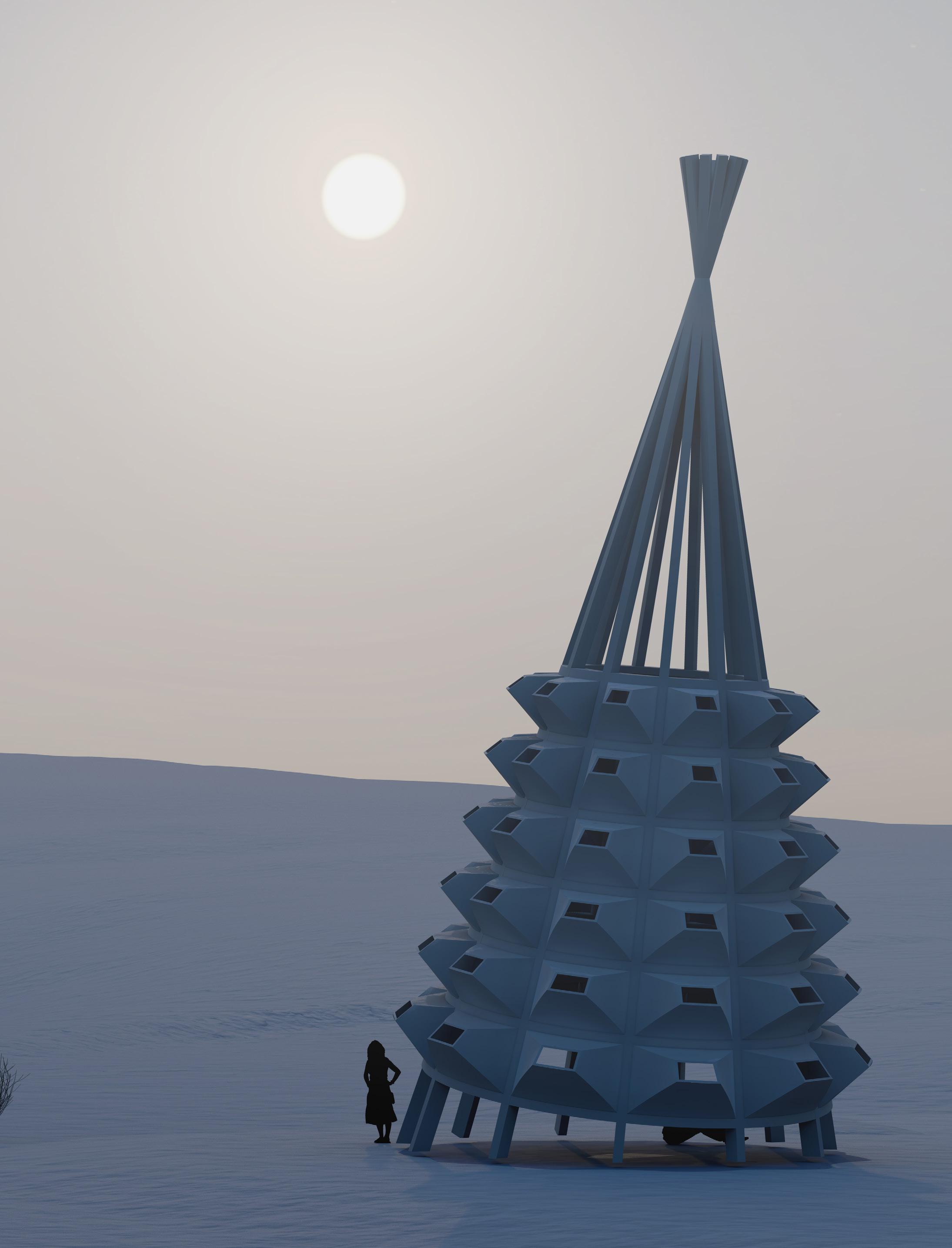

Project Year: 5 MOONGAZER 2022
Project Name:
RHINO + LUMION

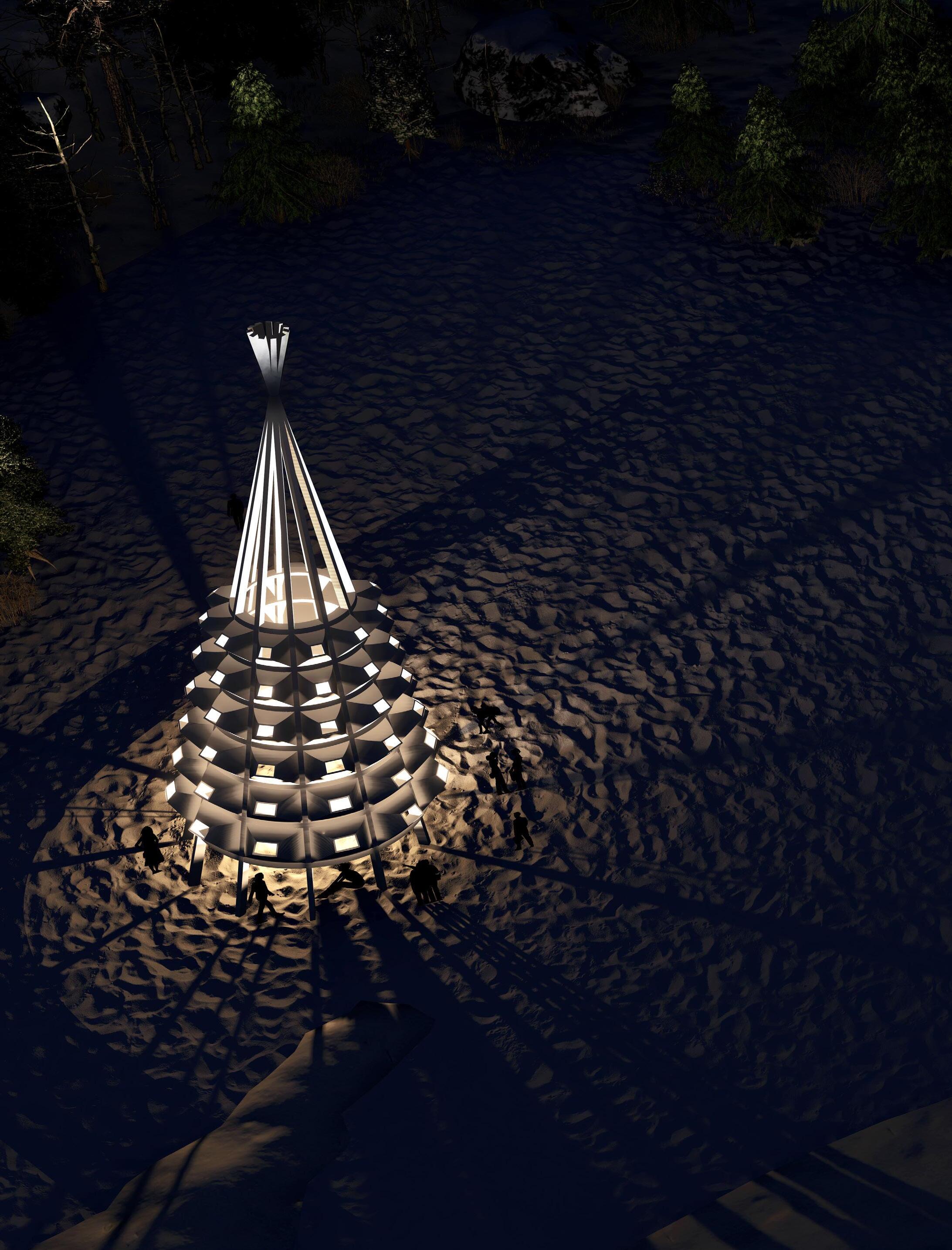

WARMING HUTS COMPETITION// WINNIPEG

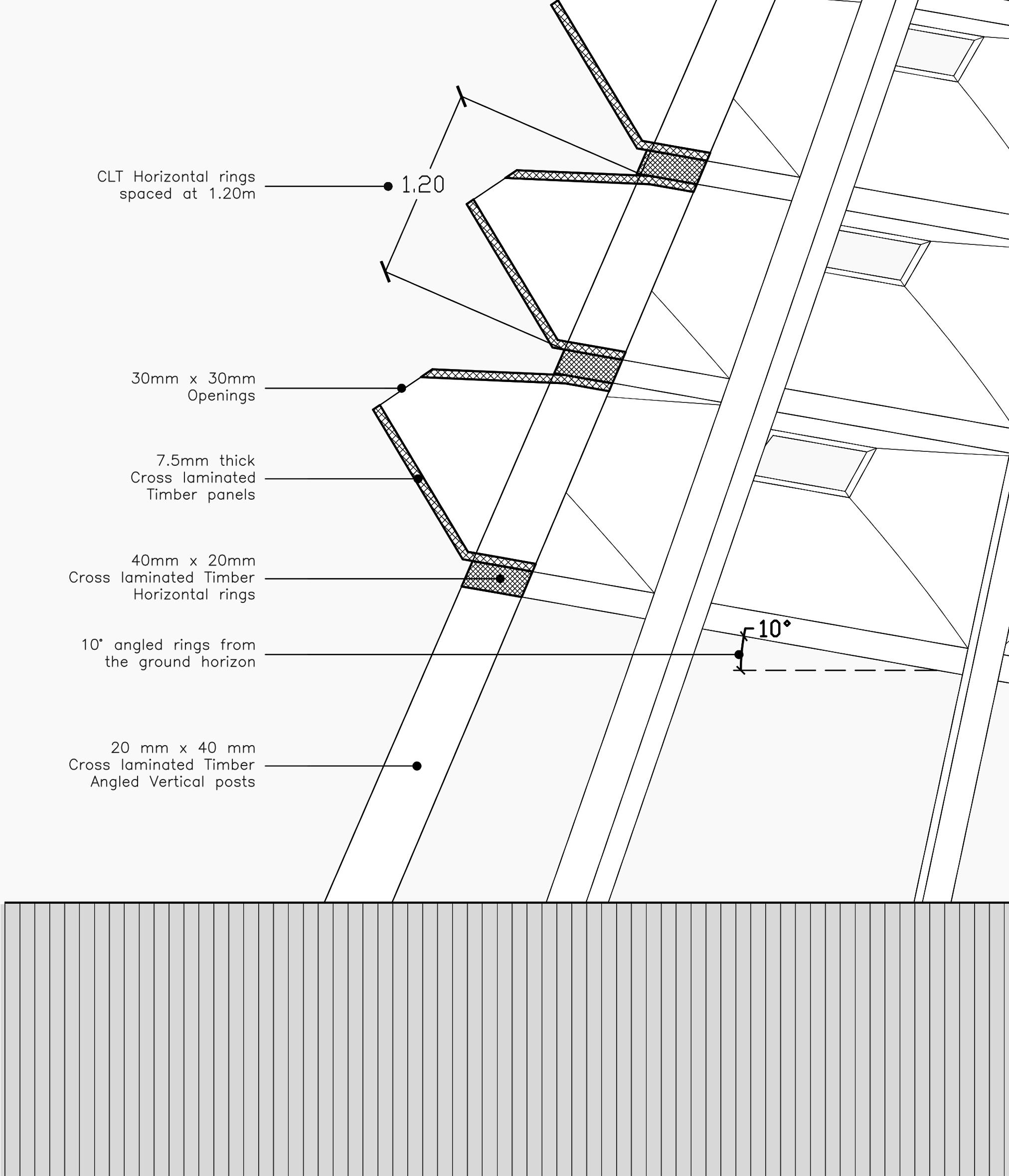

Mert Manas Erten// Architectural Portfolio (2017-2023) Project Name: Project Year: 6 MOONGAZER 2022 RHINO + AUTOCAD WARMING HUTS COMPETITION// WINNIPEG
WARMING
RHINO
Mert Manas Erten// Architectural Portfolio (2017-2023)
Name: Project Year: 7 MOONGAZER 2022
Project
+ LUMION
HUTS COMPETITION// WINNIPEG
Mert Manas Erten// Architectural Portfolio (2017-2023)
Name: Project Year: 8 YARDENING 2021
Project
YARD COLLAGE// HACKNEY WICK
LUMION
REVIT +
REVIT + LUMION

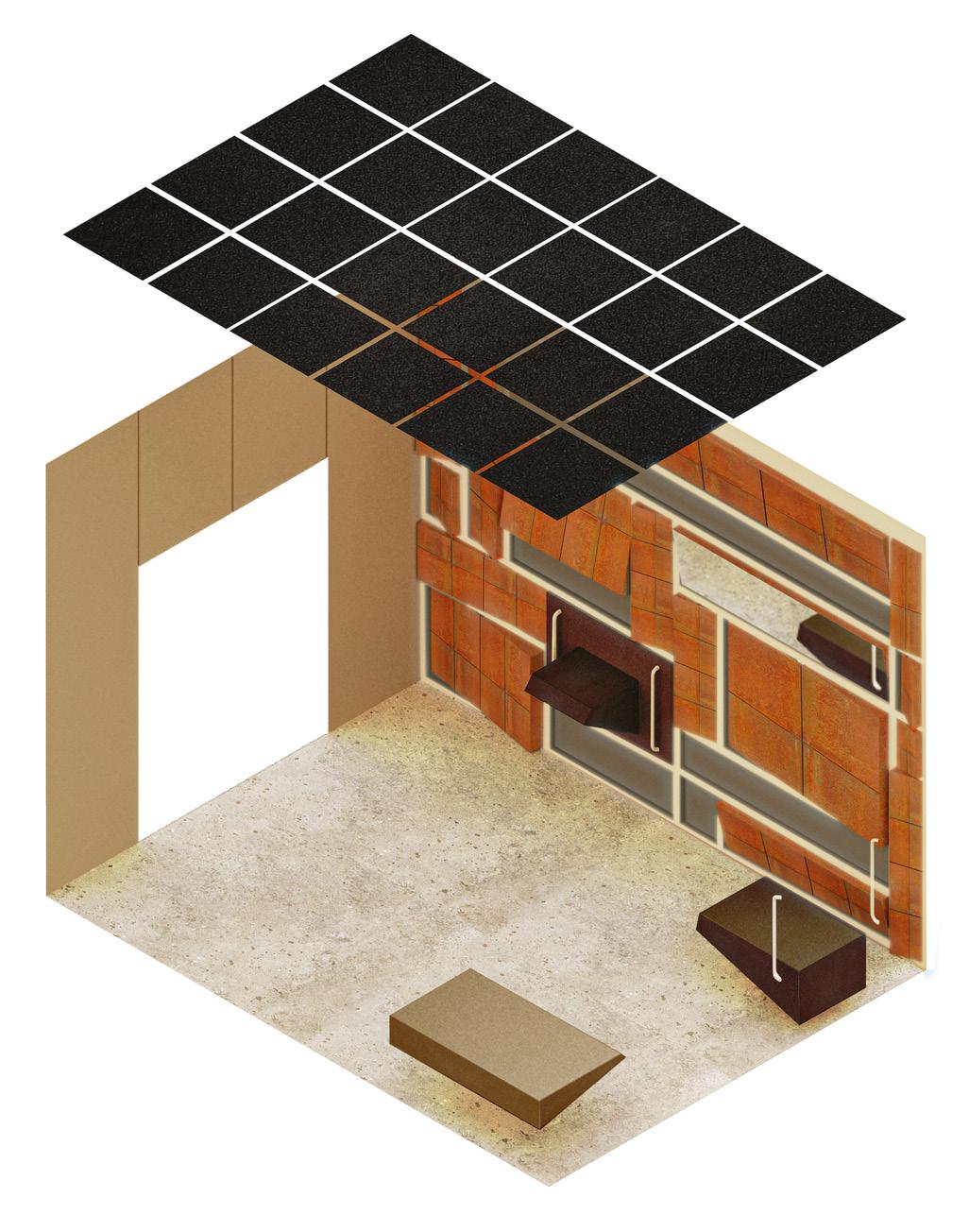

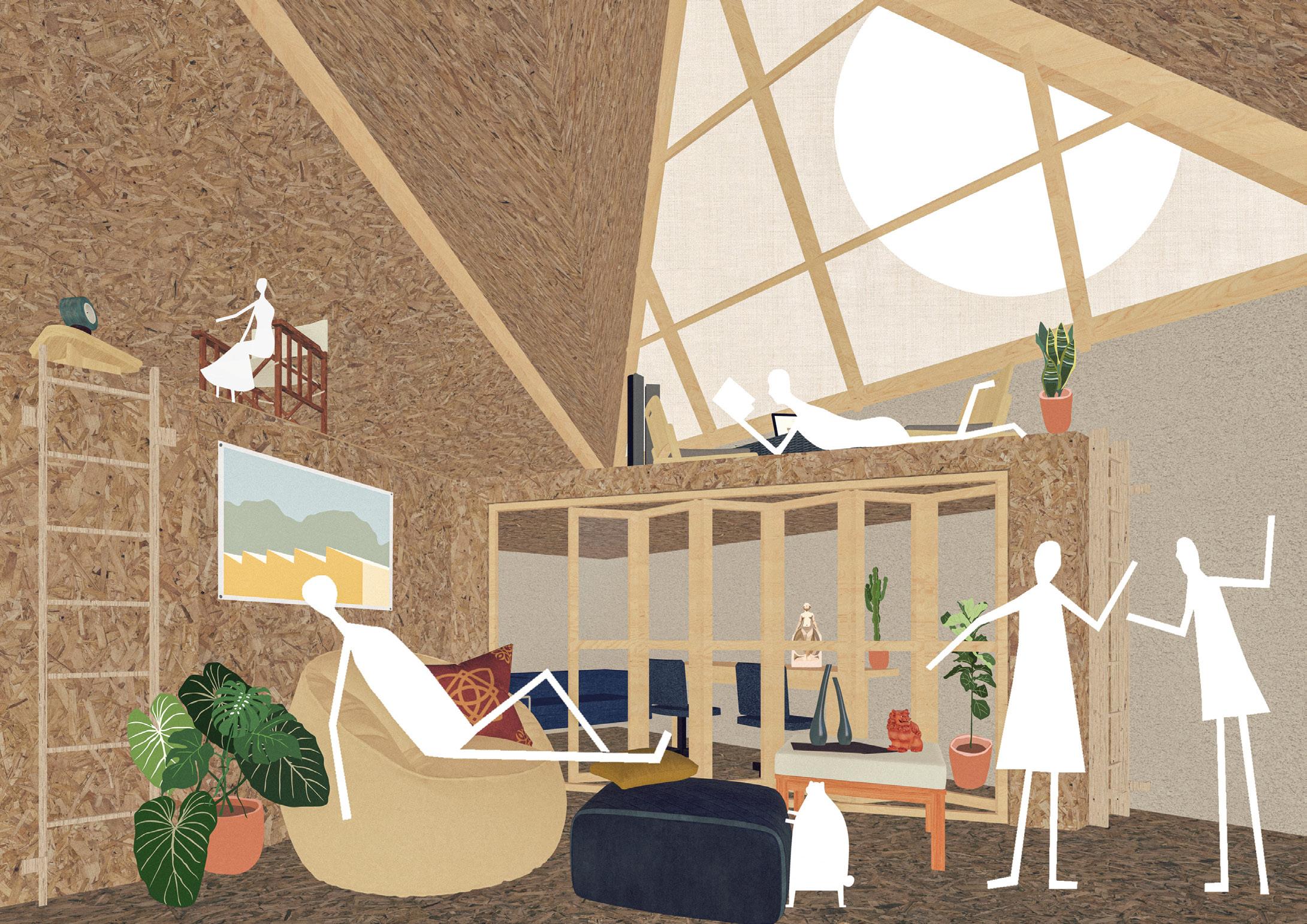

INTERIOR COLLAGE// HACKNEY WICK
Mert Manas Erten// Architectural Portfolio (2017-2023) Project Name: Project Year: 9 YARDENING 2021
ENVIRONMENTAL
YARD PLAN// HACKNEY WICK
SECTION// HACKNEY WICK
REVIT + AUTOCAD
REVIT + AUTOCAD
Mert Manas Erten// Architectural Portfolio (2017-2023)
Name: Project Year: 10 YARDENING 2021
Project

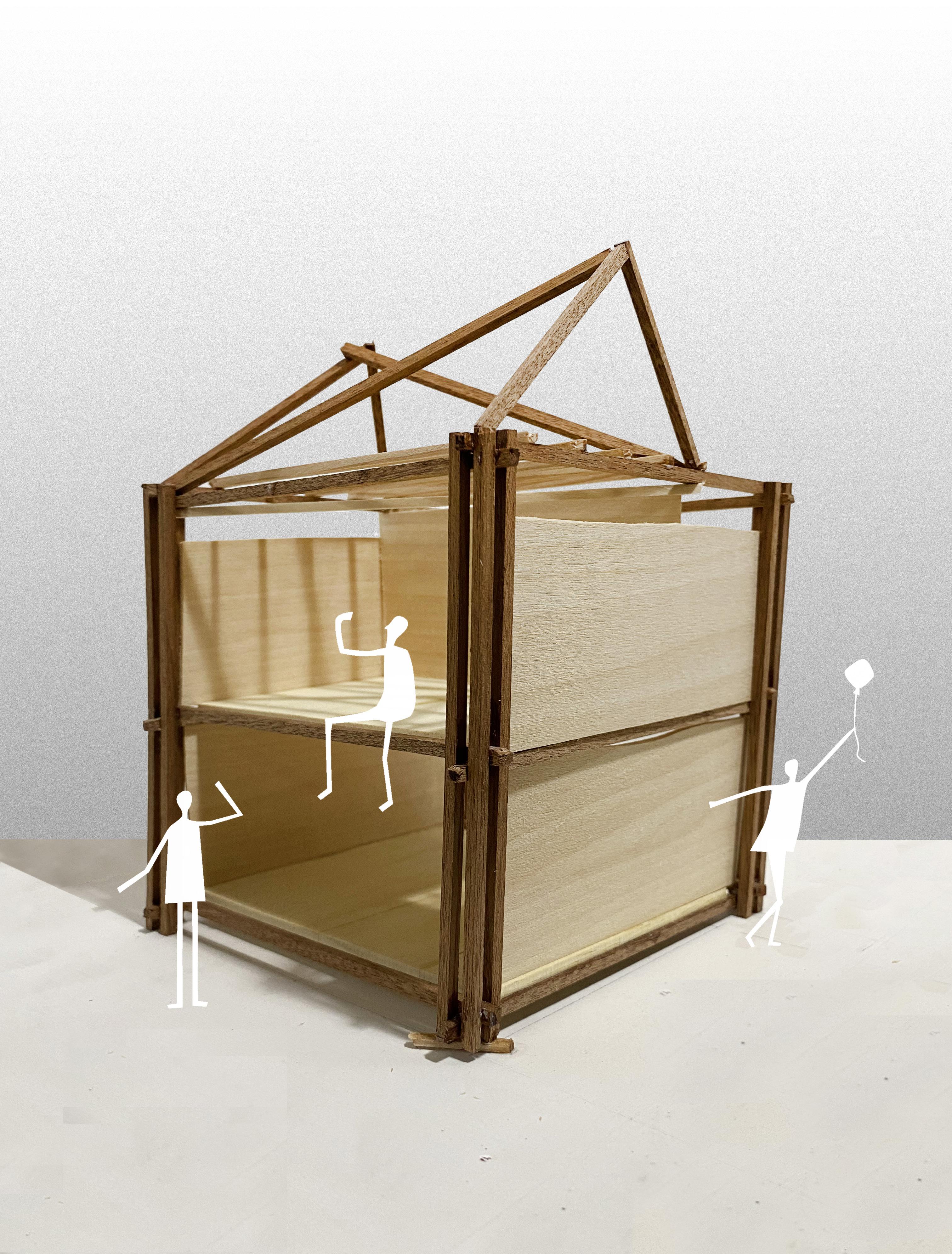

PHOTOSHOP PHYSICAL MODEL// HACKNEY WICK
Mert Manas Erten// Project Name: Project Year: 11 1 2 3 4 6 5 3D Axonometric Proposal Sketch ES FROM SALT TO SOCIETY 2023 Commercial Main Grid 80 L/day per person 4 people per household 117 m3/yr per household 19 houses 2.223 m3/yr total Greywater Transported for Cleaning Water Cleaned Using Reed Beds Clean Water Stored in Flat CleanWater BackintotheGrid Clean Water Used in Farmland Possible Future Development Historical Industry Housing Future Development Possible Future Development Possible MASSING SKETCH// LANZAROTE AUTOCAD + PHOTOSHOP PROCREATE + PHOTOSHOP WATER STRATEGY// LANZAROTE RIBA SKIN-THINKING NOMINATION
Mert Manas Erten// Architectural Portfolio (2017-2023)
Name: Project Year: 12 FROM SALT TO SOCIETY 2023
Project
RHINO + PHOTOSHOP
SKIN-THINKING NOMINATION

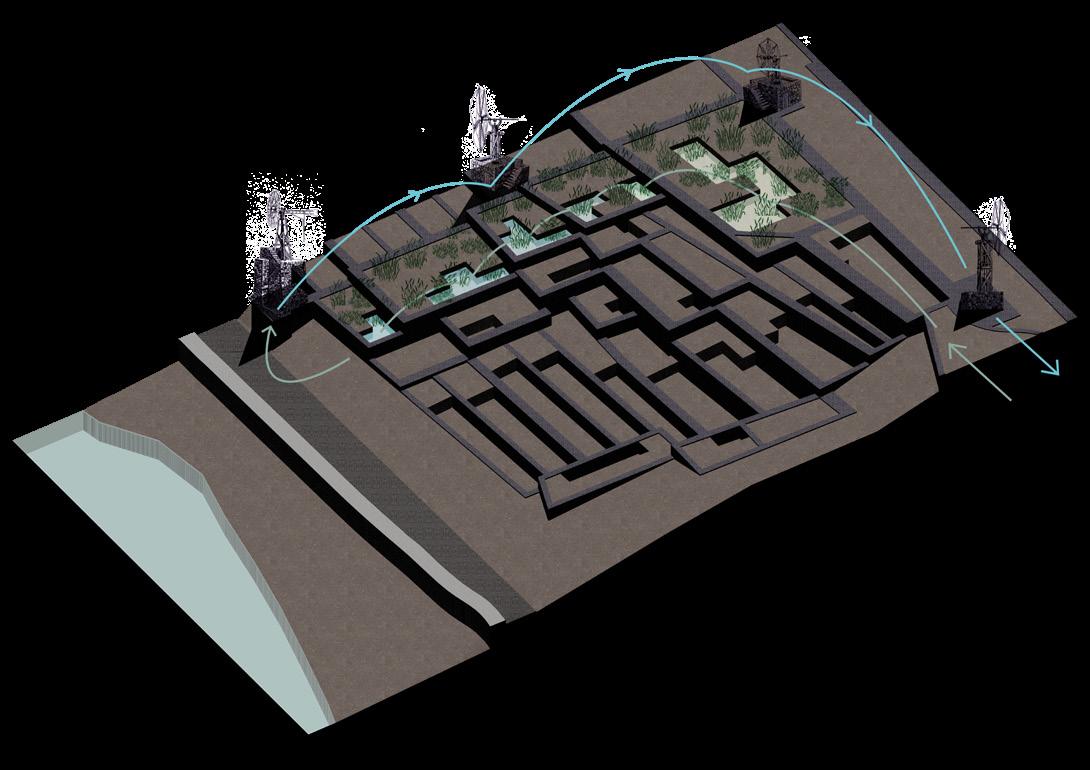

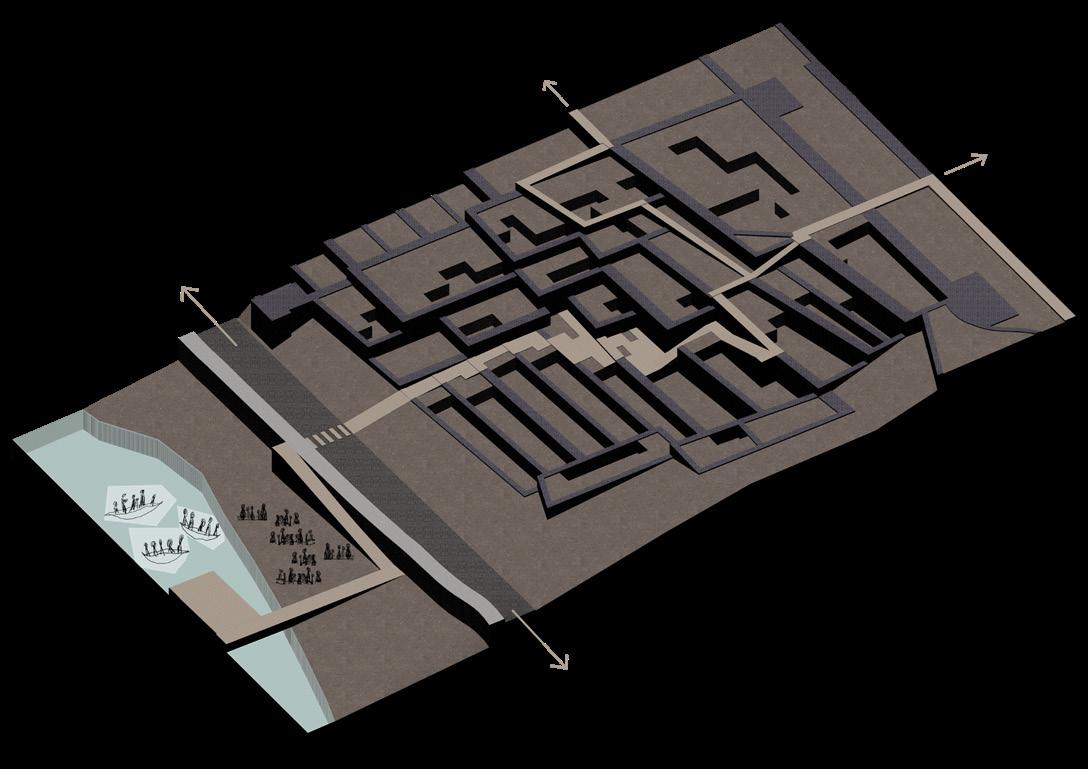

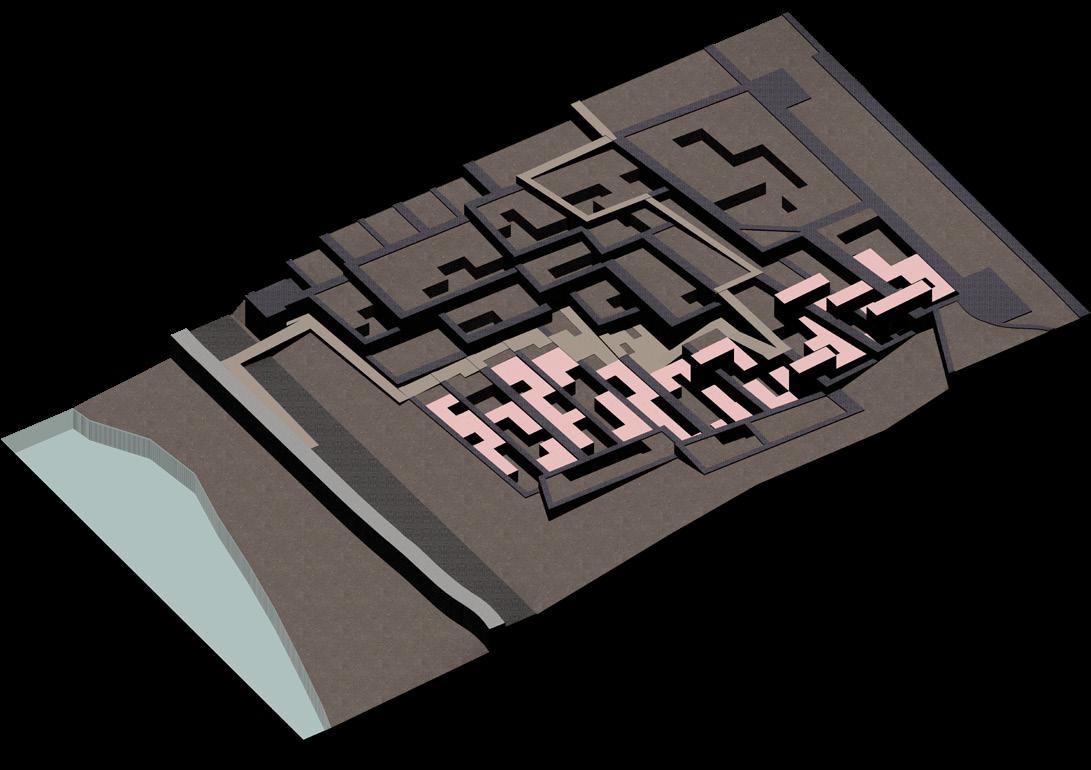

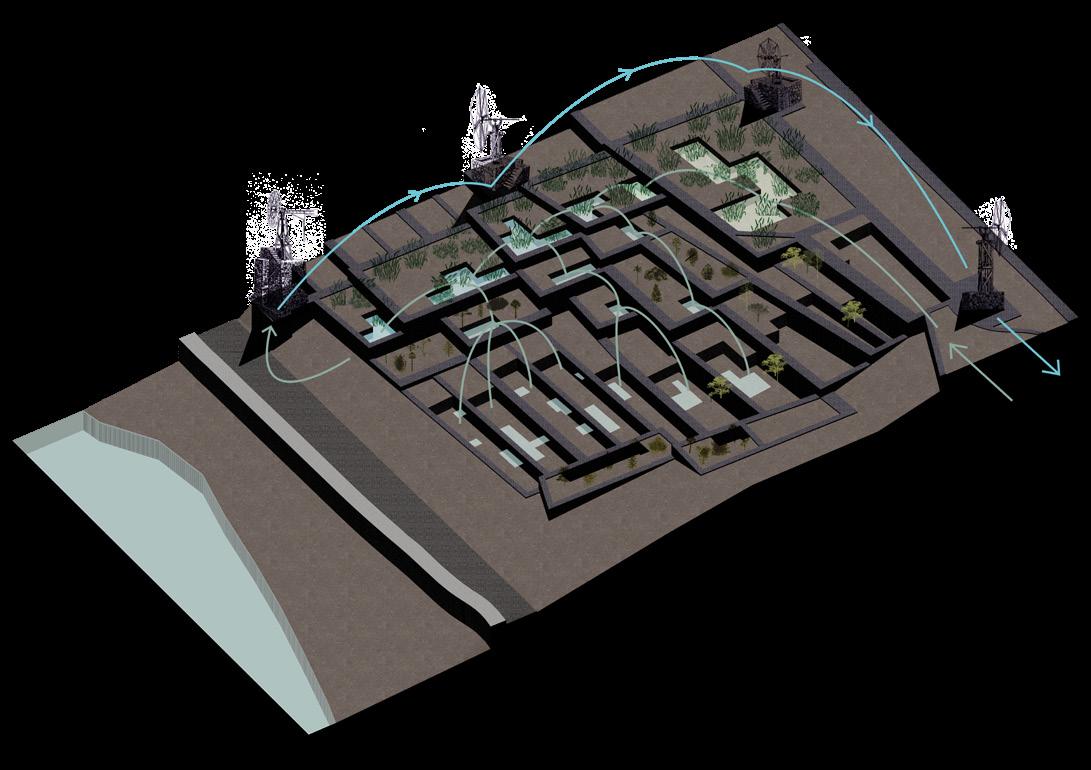

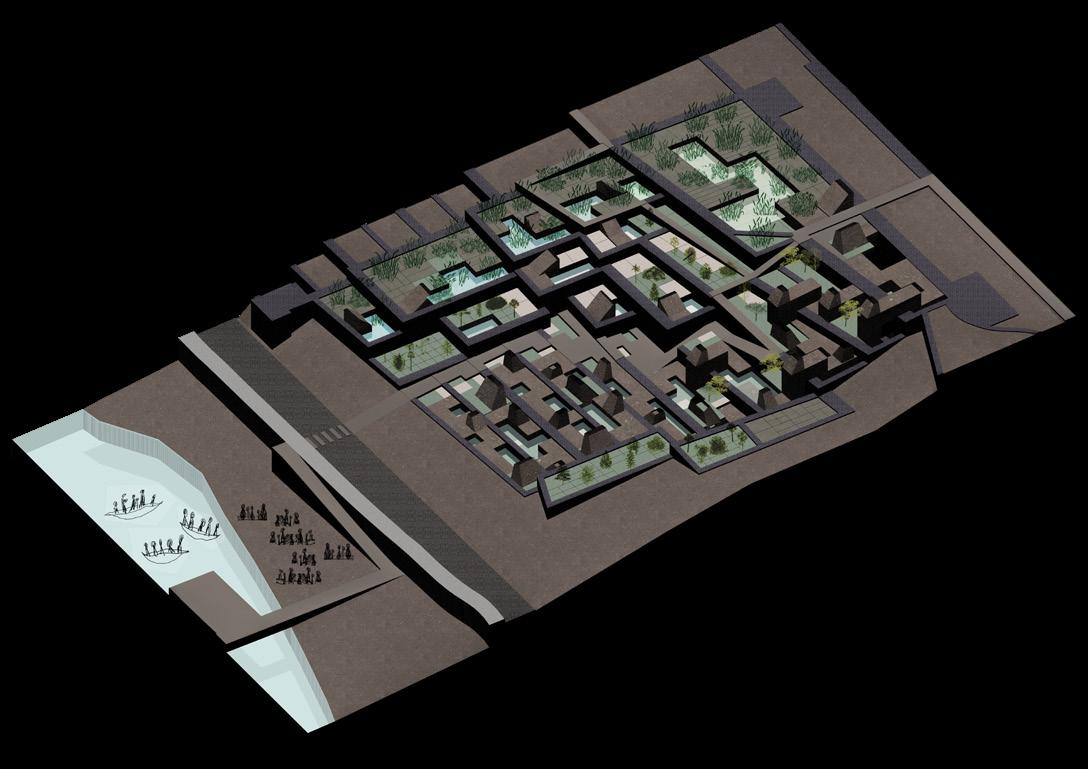

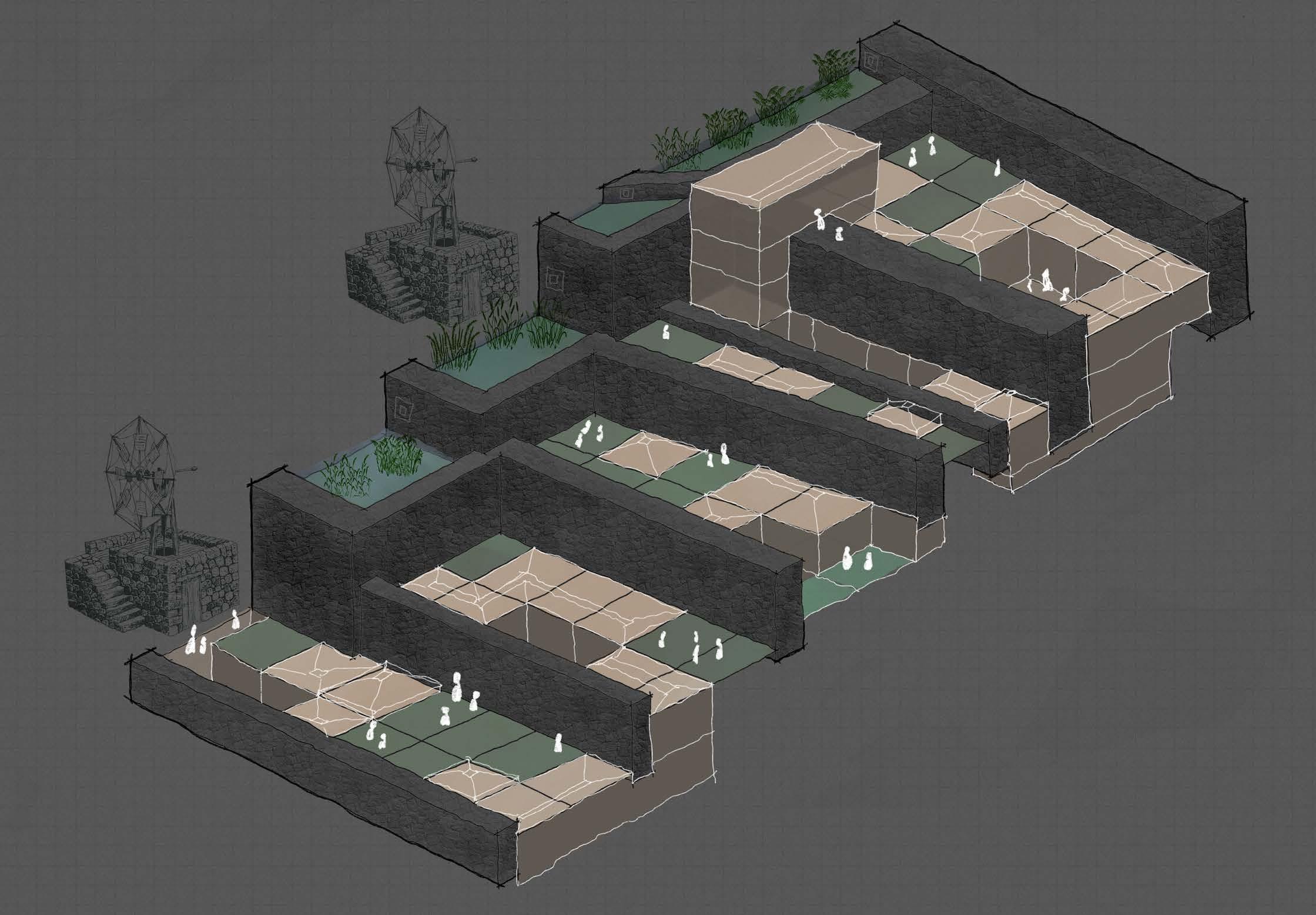

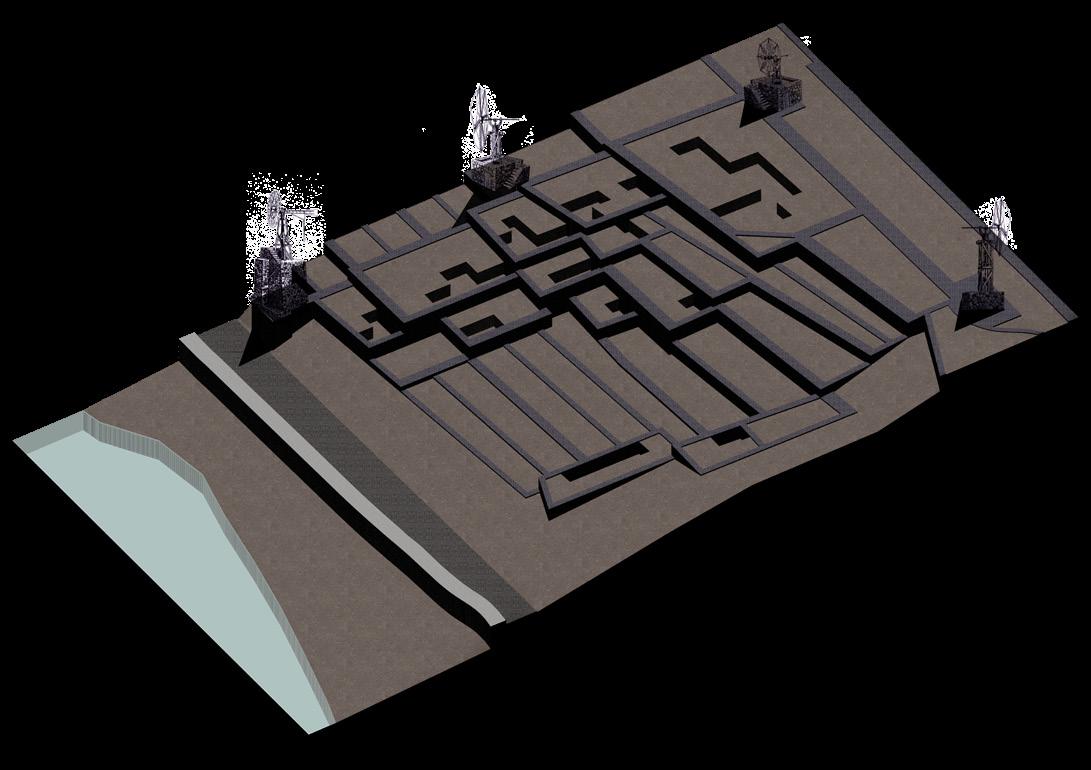

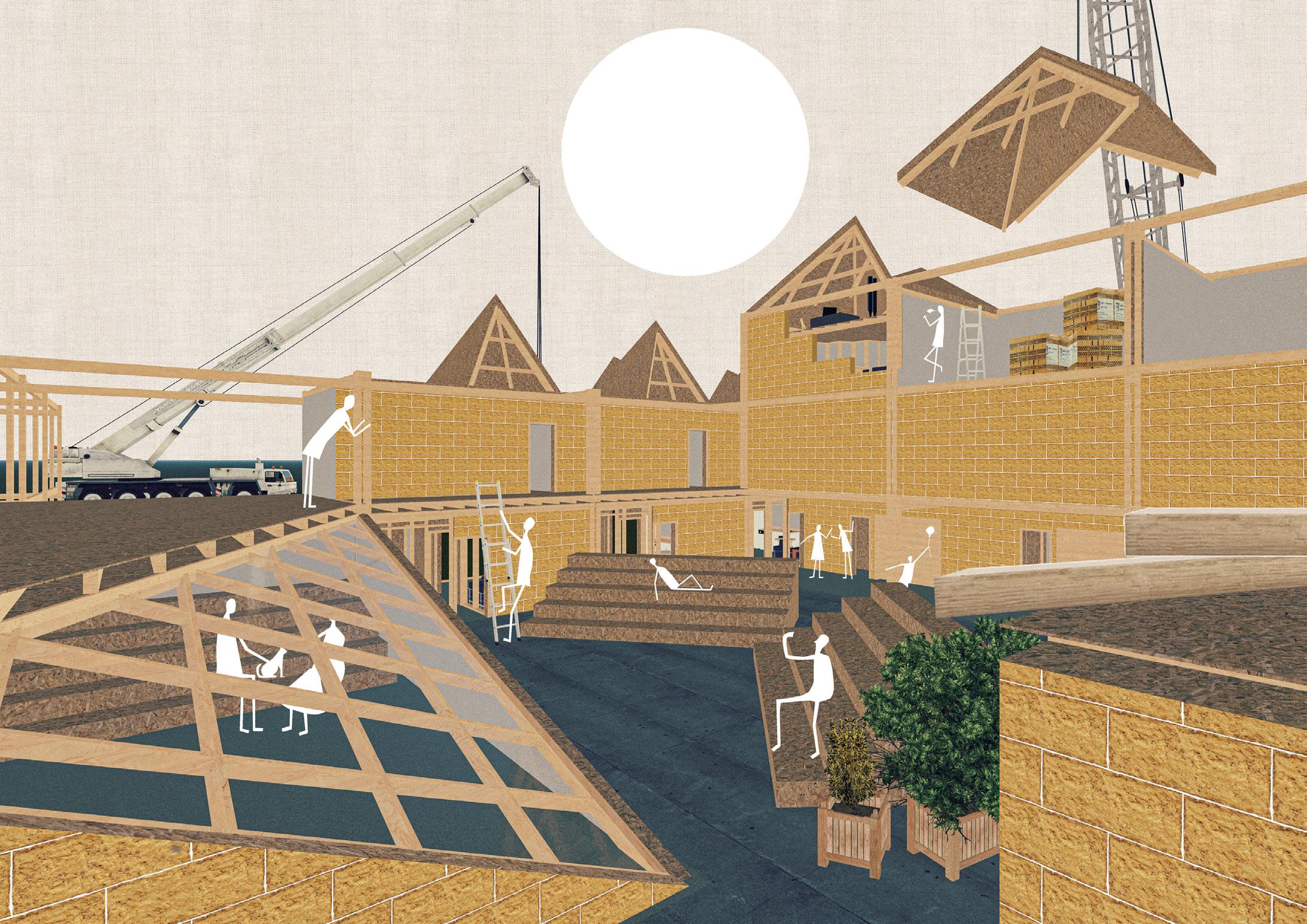

PHASING DIAGRAMS// LANZAROTE
RIBA

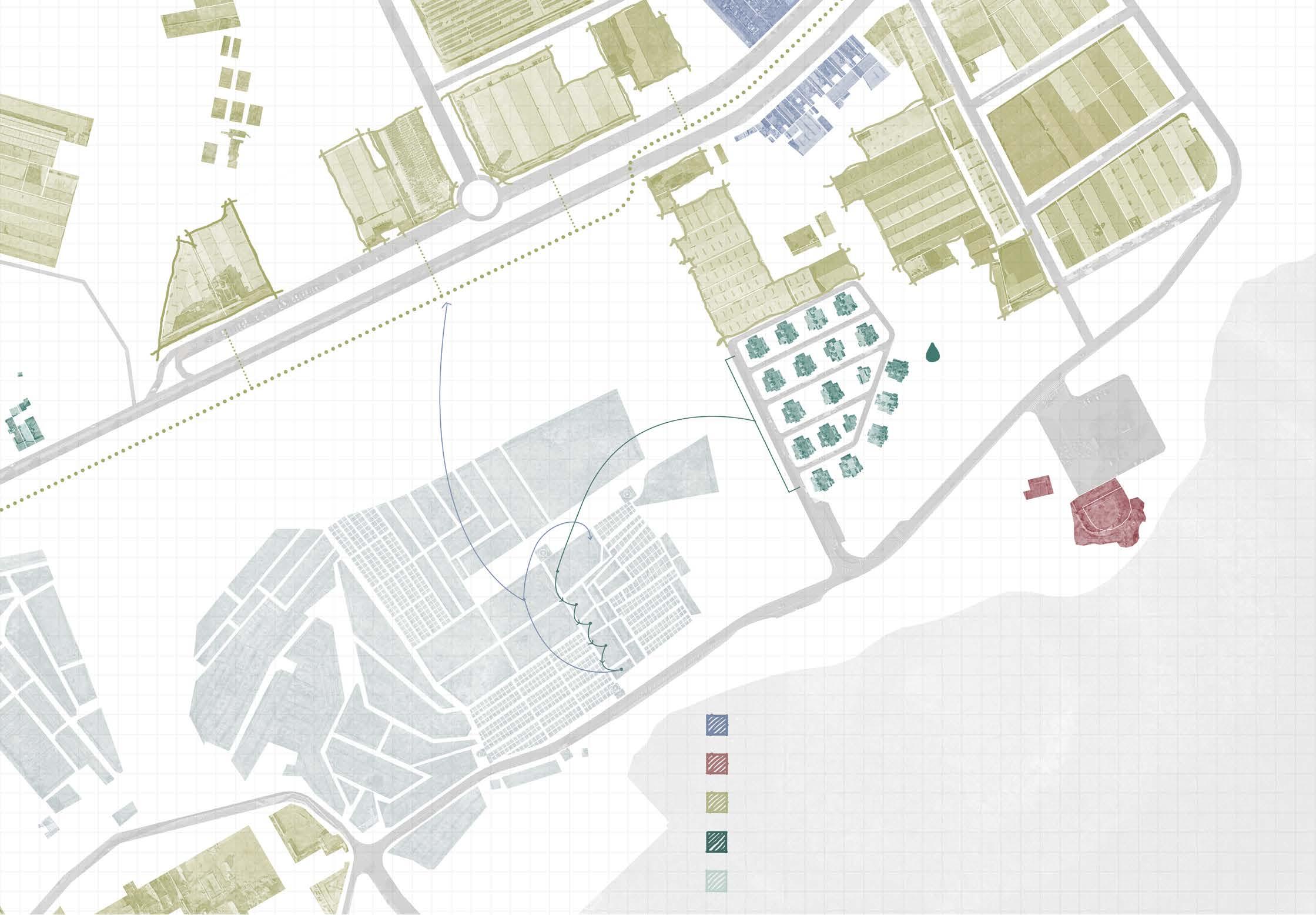

Mert Manas Erten// Architectural Portfolio (2017-2023) Project Name: Project Year: 13 Scale: 1/500 Orientation: S-N FROM SALT TO SOCIETY 2023 Ctra.losCastillos +/- 0.00 1 2 3 4 6 5 7 - 7.00 + 3.00 + 5.00 + 7.00 + 9.00 + 11.00 + 13.00 + 15.00 + 19.00 + 21.00 + 23.00 Site Plan Scale: 1/500 1- Dock 2- 20 minutes to City Centre on foot 3- 10 minutes to Bus Stop on foot 4- 15 minutes to IKEA on foot 5- Elevated Public Walkway 6&7- High&Low Tide TS SITE PLAN// LANZAROTE PERSPECTIVE SITE SECTION// LANZAROTE AUTOCAD + PHOTOSHOP REVIT + PHOTOSHOP RIBA SKIN-THINKING NOMINATION
Mert Manas Erten// Architectural Portfolio (2017-2023) Project Name: Project Year: 14 FROM SALT TO SOCIETY RIBA SKIN-THINKING NOMINATION 2023
REVIT + PHOTOSHOP
PROGRAM COLLAGES// LANZAROTE

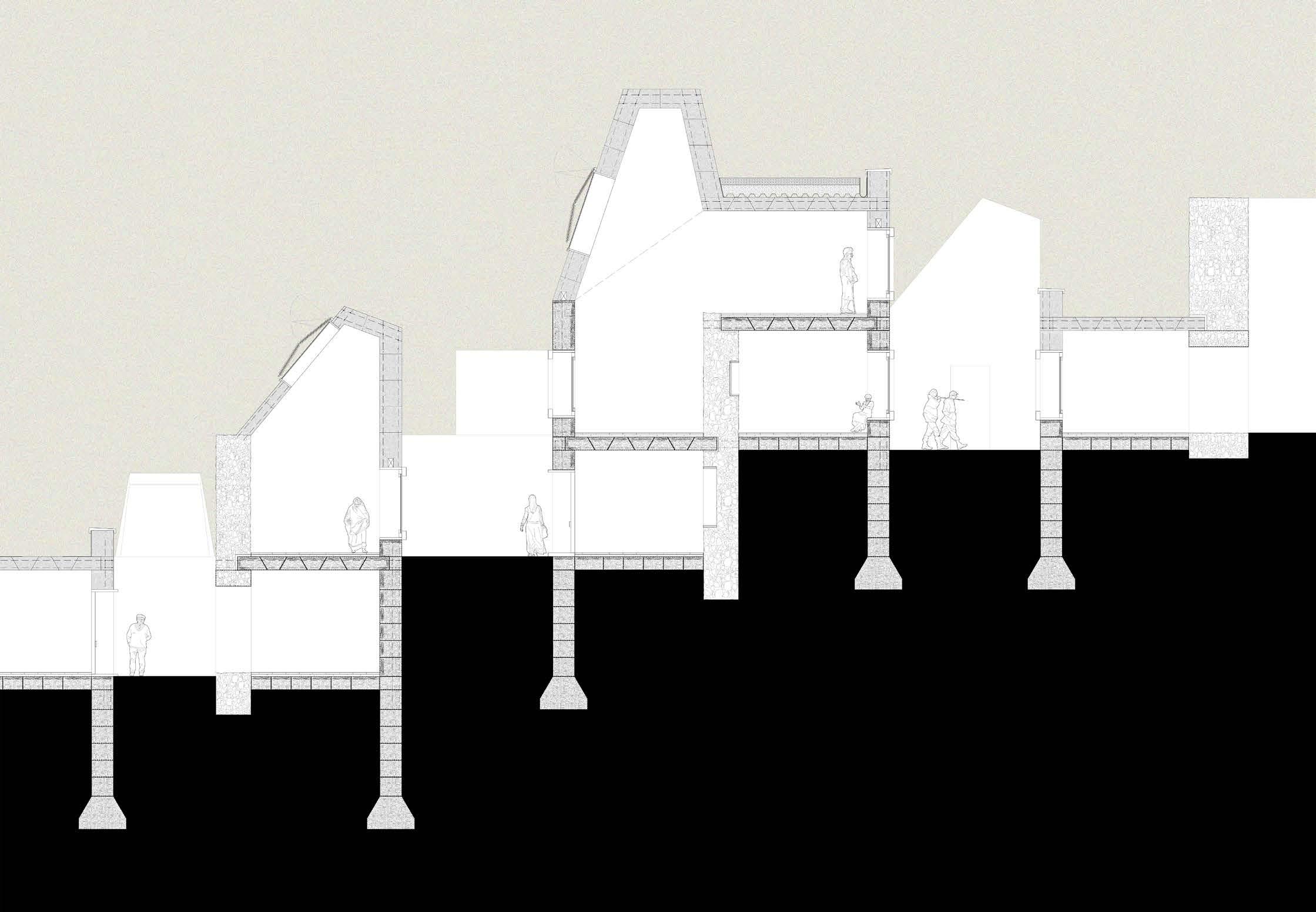

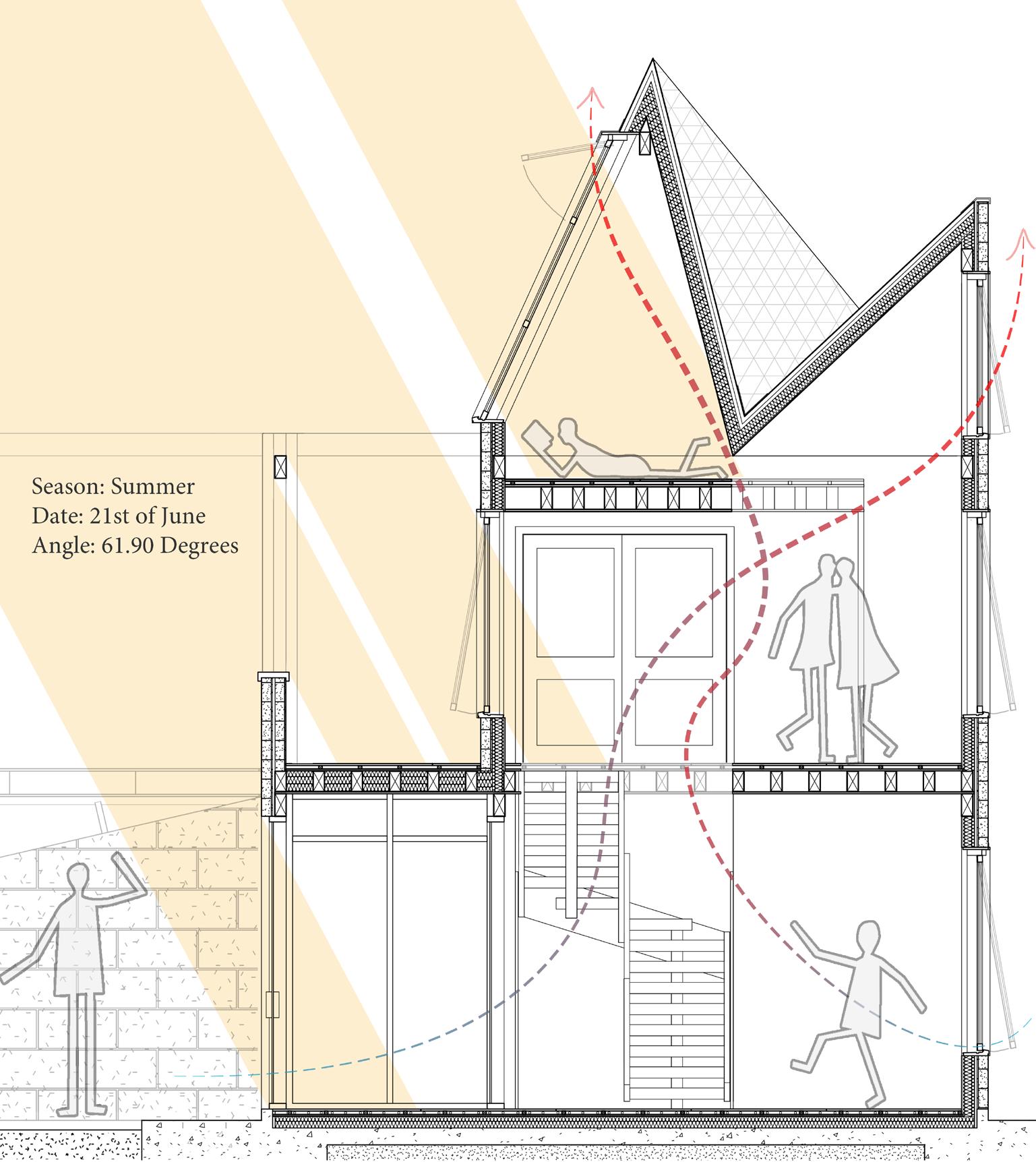

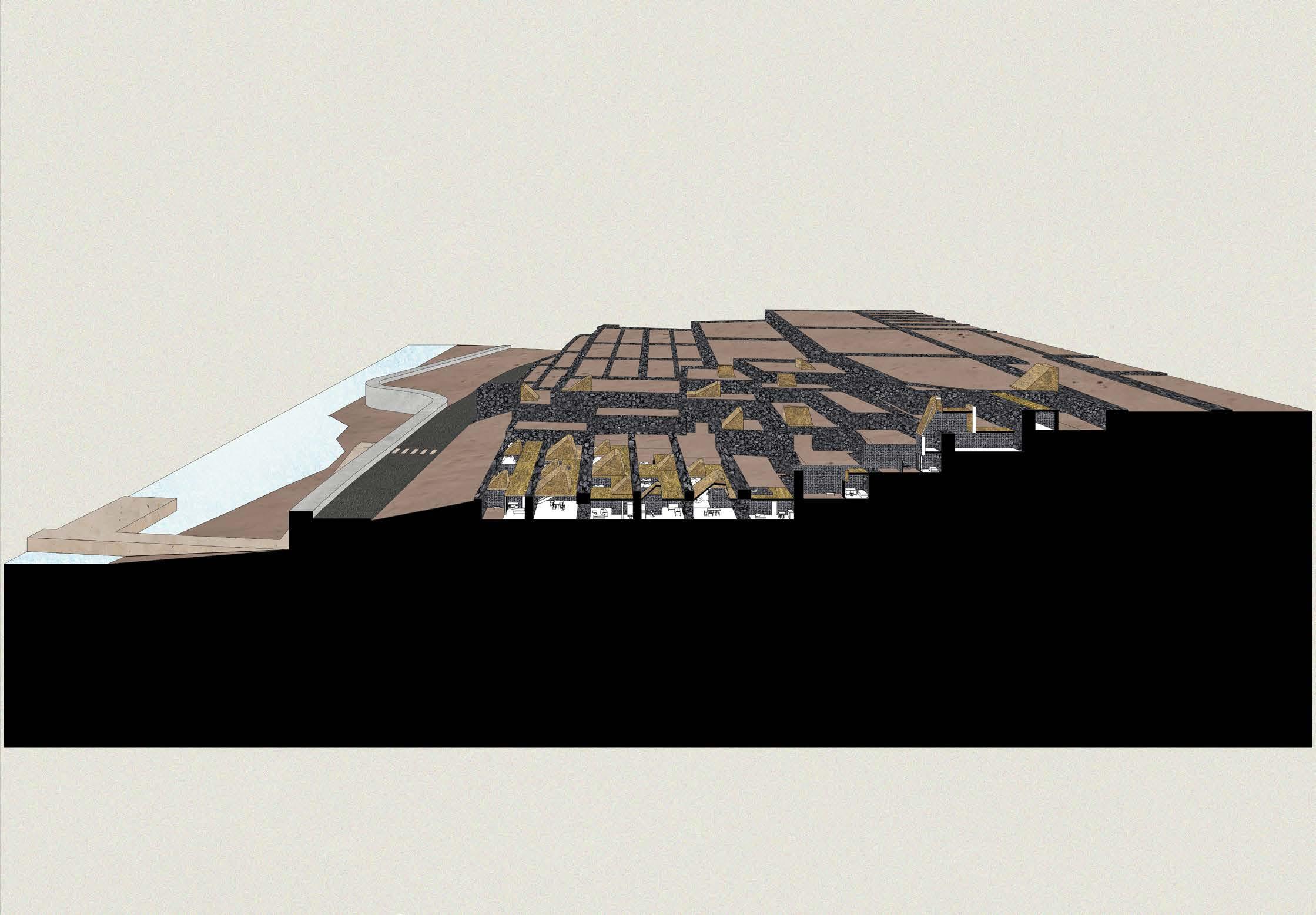

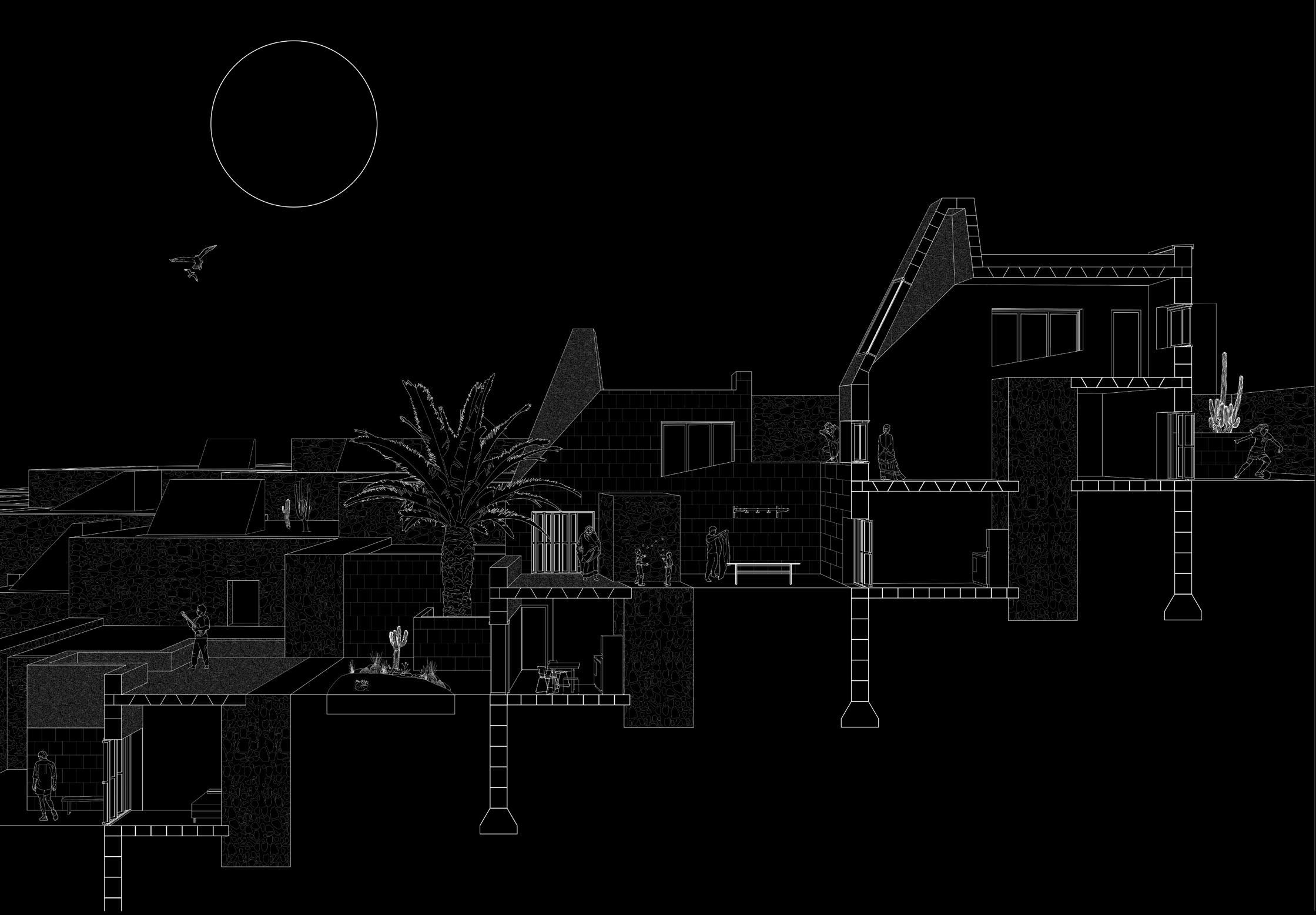

Mert Manas Erten// Architectural Portfolio (2017-2023) Project Name: Project Year: 15 Perspective Section TS, ES Technical Section Scale: 1/50 + 3.00 + 6.00 + 12.00 1- Sugarcrete Roof Structure 2- Existing Volcanic Stone Walls 3- Gabion Stone Slab 4- Gabion Stone Wall 5- Wall Openings 6- Roof Garden 1 2 3 5 4 6 TS FROM SALT TO SOCIETY 2023 REVIT + AUTOCAD FRAGMENT SECTION// LANZAROTE RIBA SKIN-THINKING NOMINATION

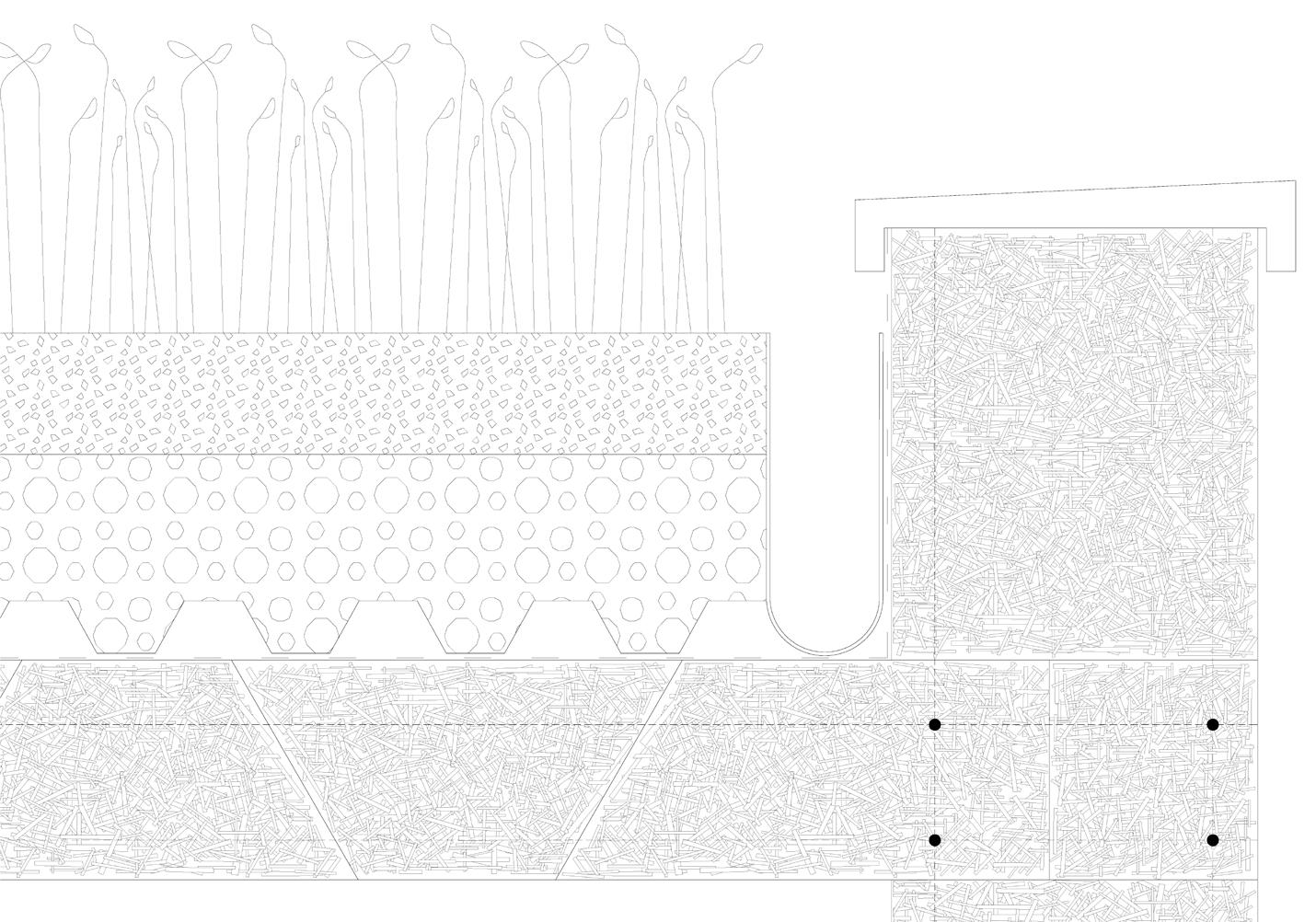

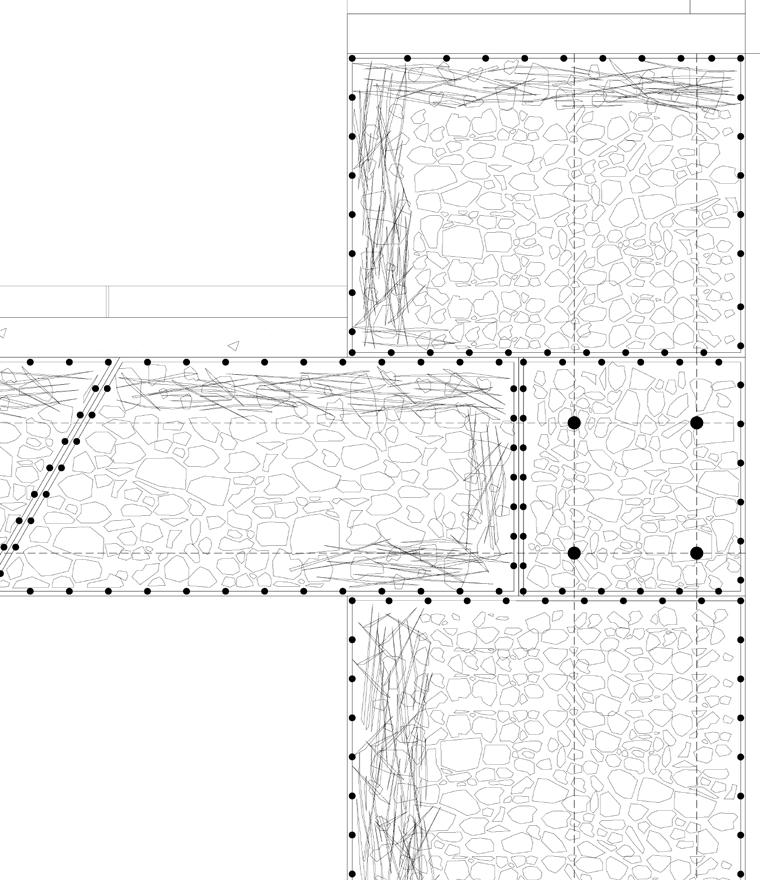

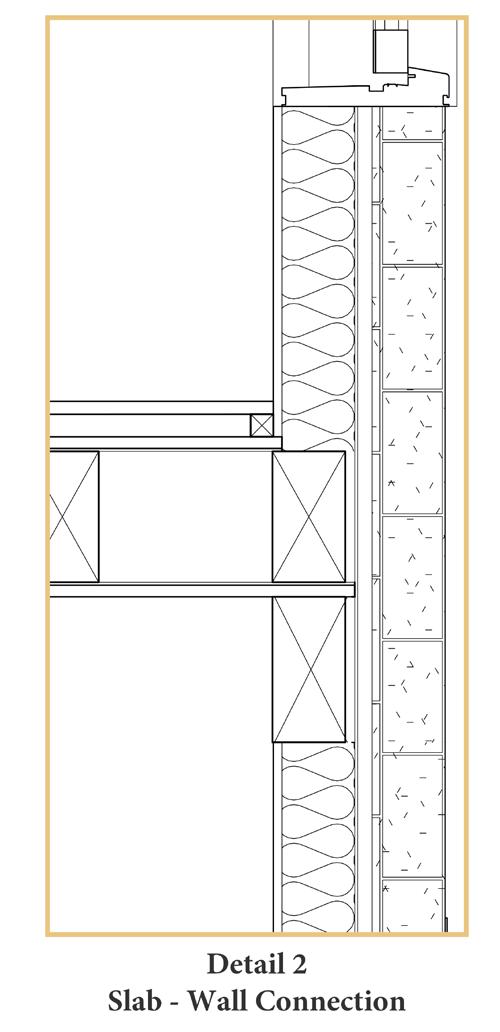

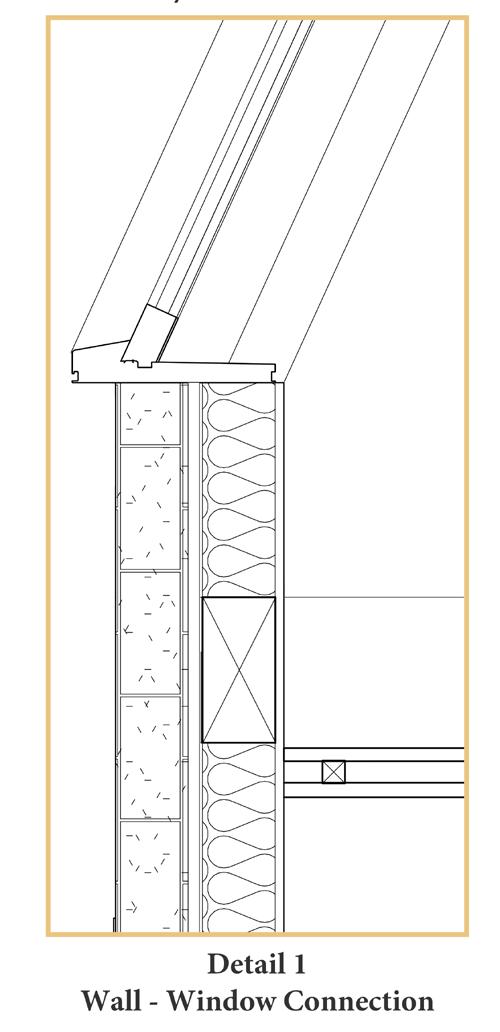

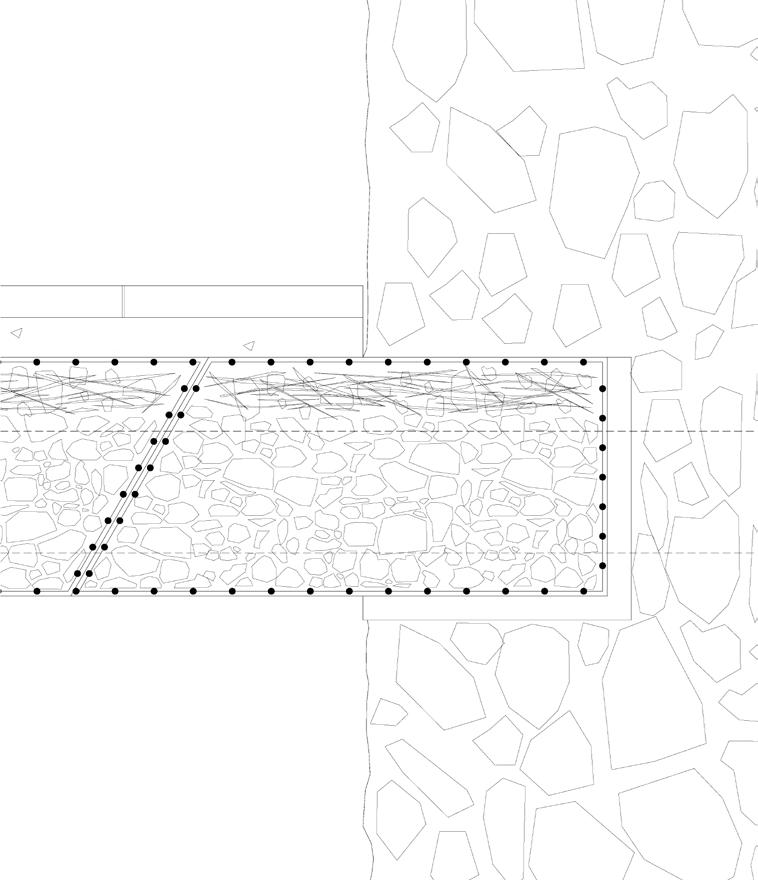

Mert Manas Erten// Architectural Portfolio (2017-2023) Project Name: Project Year: 16 Technical Details Scale: 1/5 Slab-Wall Connection Slab-Existing Wall Connection 40 mm stone slab 40 mm stone slab 50 mm screed 50 mm screed Gabion stone block Gabion stone block Metal profile 1.25 mm post tension steel bars 1.25 mm post tension steel bars TS Technical Details Scale: 1/5 Metal coping on plywood plate Roof Garden Planting Gutter 200 mm garden soil 200 mm aggregates and silica sand Egg crate drainage Waterproofing Membrane 12 mm lime render 500 x 500 x 800 mm Sugarcrete Block 1.25 mm post tension steel bars TS FROM SALT TO SOCIETY 2023 REVIT + AUTOCAD DETAIL DRAWINGS// LANZAROTE RIBA SKIN-THINKING NOMINATION

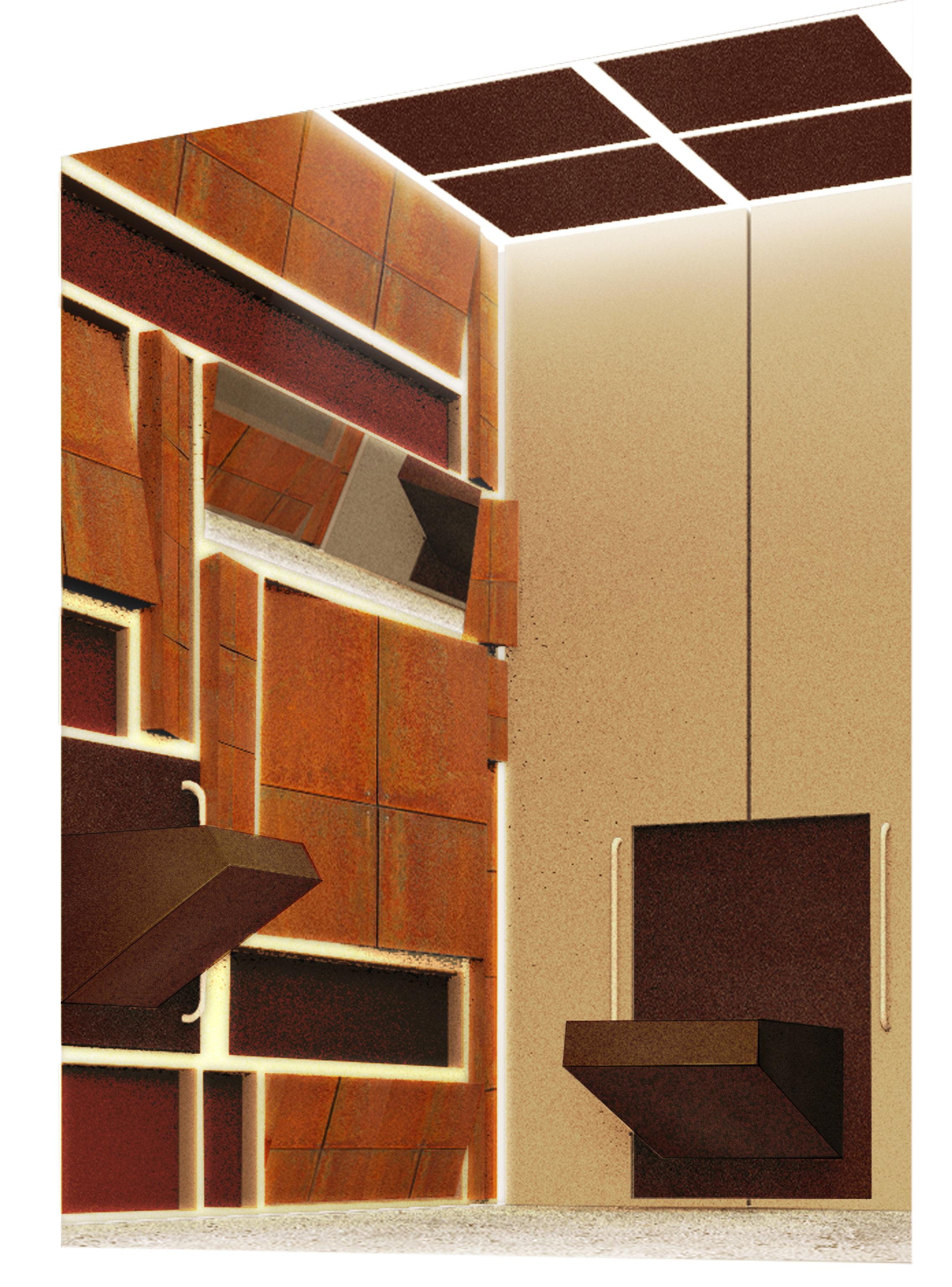

PROPOSED ACCESSIBLE BATHROOM DESIGN// BROADGATE
RHINO + PHOTOSHOP
Mert Manas Erten// Architectural Portfolio (2017-2023)
Project Year: 17 BROADGATE ACCESSIBLE BATHROOM COMPETITION 2022
Project Name:
PROPOSED ACCESSIBLE BATHROOM DESIGN// BROADGATE
RHINO + PHOTOSHOP
Mert Manas Erten// Architectural Portfolio (2017-2023)
Project Year: 18 BROADGATE ACCESSIBLE BATHROOM COMPETITION 2022
Project Name:
CREDIT:
https://www.archdaily.com/1001501/from-agro-waste-to-sustainable-structures-concrete-made-from-sugarcane https://www.dezeen.com/2023/05/04/sugarcrete-slab-university-of-east-london-grimshaw-sugarcane-biowaste/ https://uel.ac.uk/sugarcrete-slab
Project Name:
Mert Manas Erten// Architectural Portfolio (2017-2023)
19
Project Year:

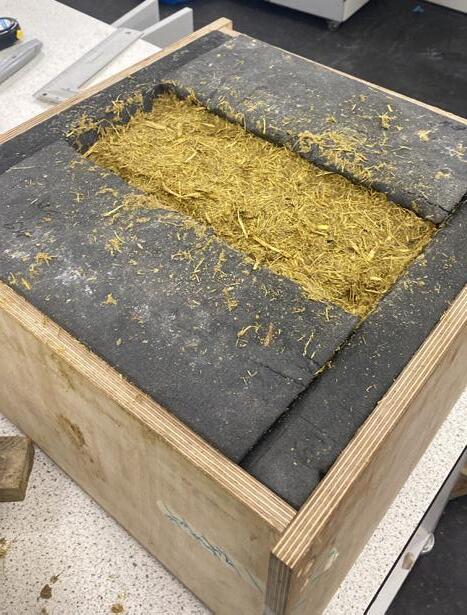

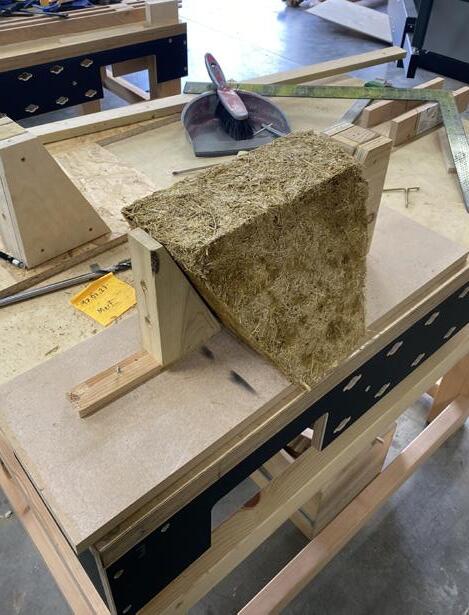

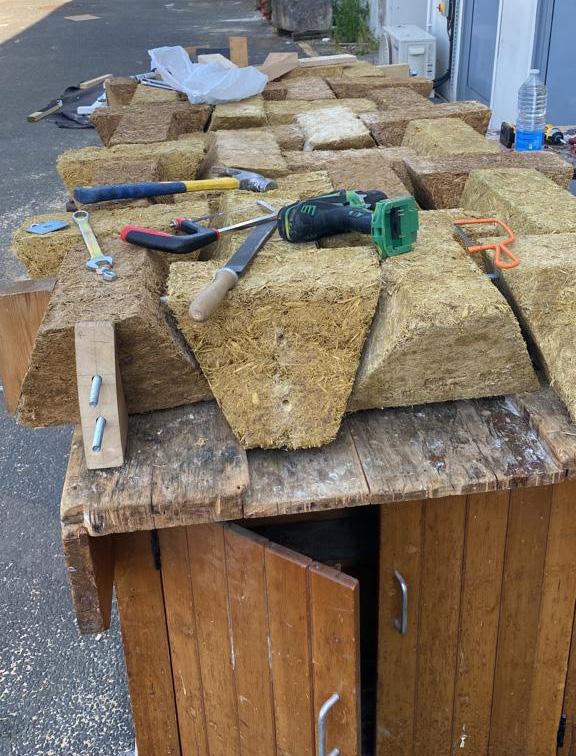

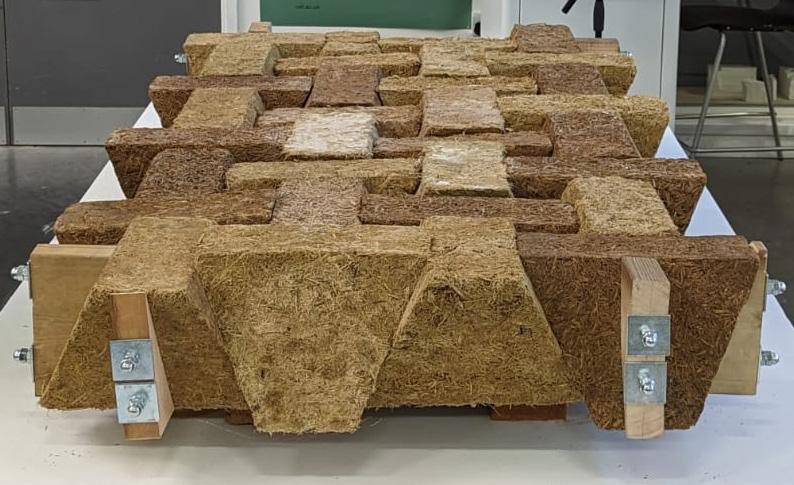

SUGARSLAB 2023

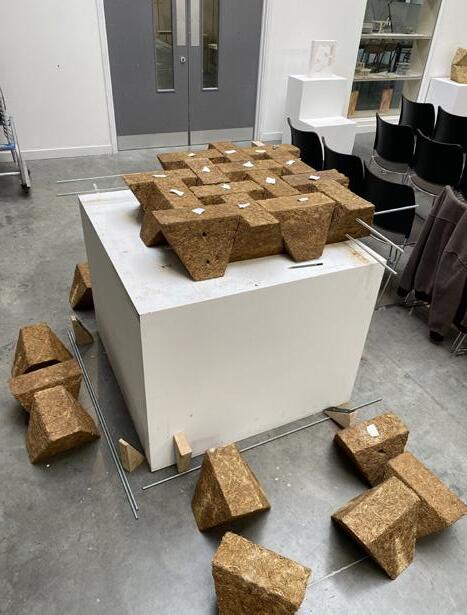

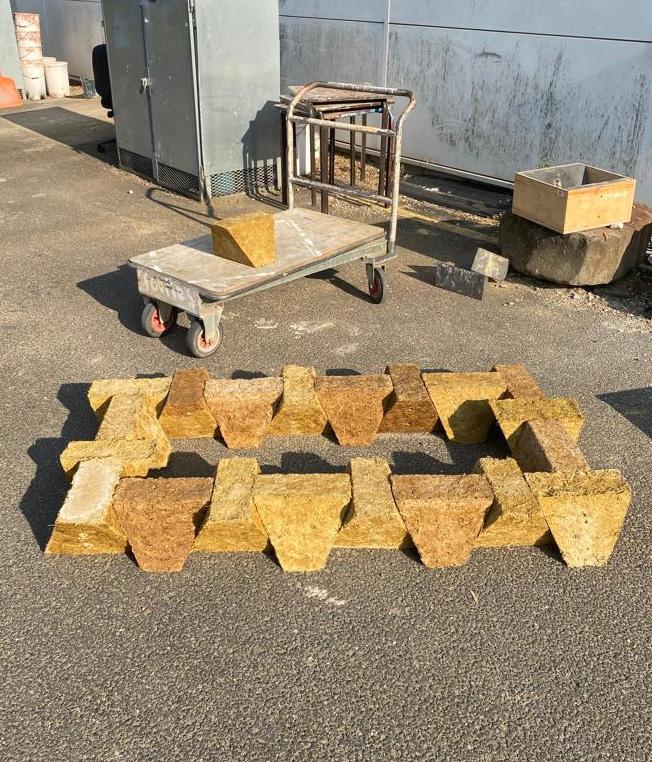

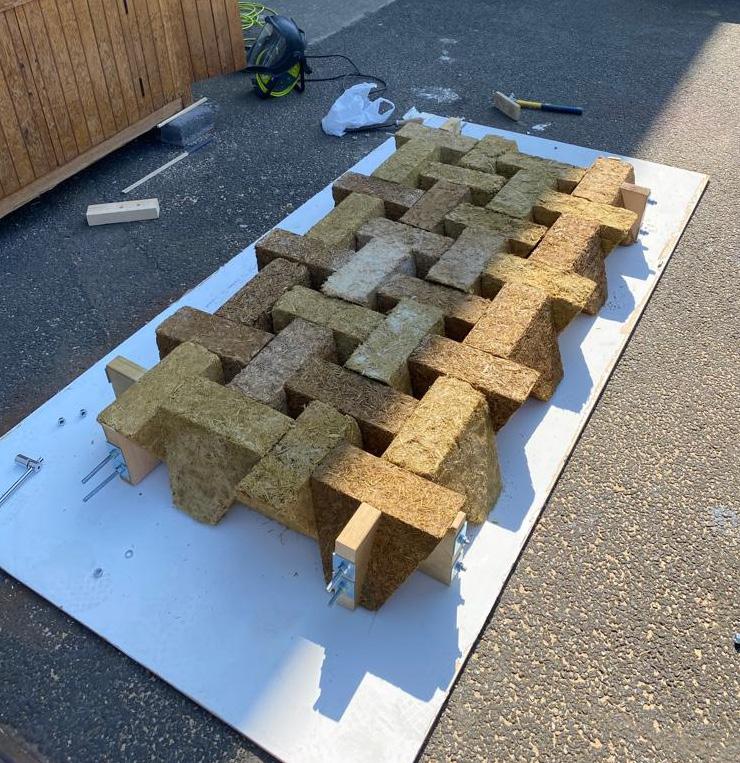

4X4 ROYAL ACADEMY SUBMISSION
Mert Manas Erten// Architectural Portfolio (2017-2023)
Project Year: 20 SUGARSLAB 2023
Project Name:

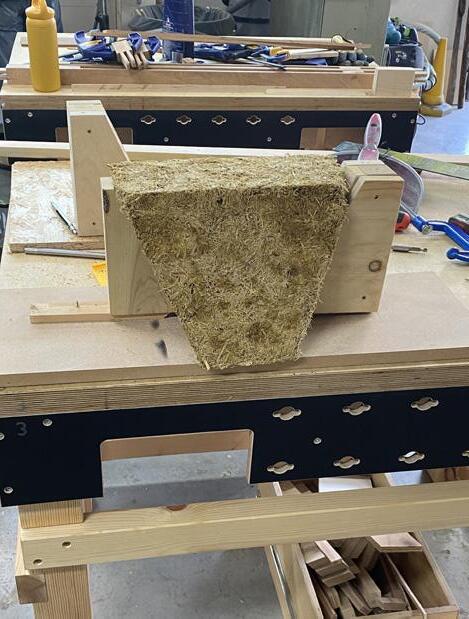

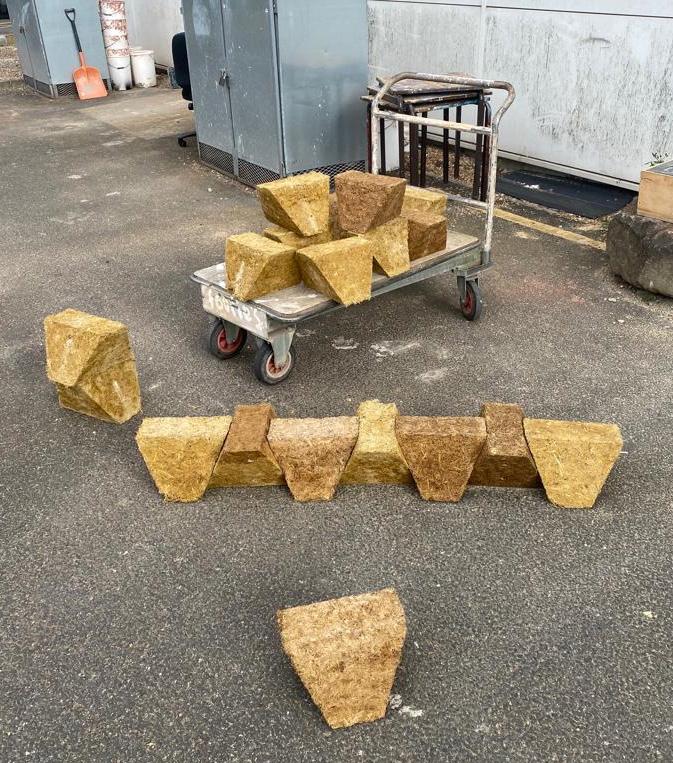

8X4 UEL OPEN STUDIO DAY SUBMISSION
