Mehi-Boring tool system

Mehi – Boring tool system 4

Roughing Tools

TF – Rough boring head for range D19.5 – D65mm 6

1TP - Boring head and semi-finishing 7

2TP- Rough boring head for range D35 – D620 8

2RF-roughing and finishing boring heads for range D200 – D1310 10

Tool holders for rough boring heads

1LC-Toolholders 12

LF-Toolholders 13

1LT-Toolholders 13 2LC-Toolholders 14

2LT-Toolholders 15

Face groove tool holders 16

Milling tools

TURBO-bore with coolant 30 Back face boring tool with Weldon arm 31

Tool tapers

ISO 50 MODEL B/AD FOUR SCREW 32

ISO 50 MODEL B/AD 33

BT 50 MODEL B/AD FOUR SCREW 34 BT 50 MODEL B/AD 35

Weldon/Whistle small 36 Weldon/Whistle big 37

BT 50 B/AD L1=200 38 DIN 50 B/AD L1=200 39 HTS-basic arm 40 Tool tapers for HTS-drills 41 Adjustable chuck 42 Measuring Tool for Spindle 43

Finishing Tools

1 TAF –Finishing tool for range D70 - D1020 18

Tool holder for 1 TAF-finishing boring head 19

A1FL Finishing boring head for range D50 – D150 20

A2AL Finishing boring head for range D150 –D1800 22

TVA Finishing boring head for range D20-D40 24

1 THF –Finishing boring head 25

Adjustment elements

AF50 – Adjustment element for finishing boring heads 26

AF20 and AF25 adjustment elements for finishing boring 27

Fine tuning elements for TVA-boring heads 28

VNE-fine tuning elements for finishing boring 29

Mehi

MEHI-boring

Extending tool is easy by using reducers or extension between boring tool and chuck.

MEHI-module

•

•

•

•

•

•

TF – Rough boring head for range D19.5 – D65mm

• Single cutting boring tool

• Adjustable

Type

TF 195-20 19.5–24 20 70 120 LF 19 0.200

TF 240-20 24.0-34 20 80 130 LF 24 0.250

TF 240-25 24.0-34 25 80 136 LF 24 0.400

TF 330-25 33.0-46 25 100 156 LF 33 0.470

TF 330-32 33.0-46 32 100 160 LF 33 0.700

TF 450-32 45.0-65 32 120 180 LF 45 0.950

TF 450-40 45.0-65 40 120 190 LF 45 1.500

2RF-roughing and finishing boring heads for range D200 – D1310

• Aluminimum Frame

Model Range d mm d1 mm L mm Screw 1 Screw 2

Roughing tool holder

Finishing tool holder / element

2RF200-260 200-260 88 40 83/115 M12*60 M10*25 2RF2525 15M F2550 / AF50.90.TC11L

2RF250-310 250-310 88 40 77/115 M12*60 M10*25 2RF2525 15M F2550 / AF50.90.TC11L

2RF300-360 300-360 88 40 76/114,5 M12*60 M10*25 2RF2525 15M F2550 / AF50.90.TC11L

2RF350-410 350-410 88 40 76/114,5 M12*60 M12*25 2RF2525 15M F2550 / AF50.90.TC11L

2RF400-460 400-460 88 40 76/114,5 M12*60 M12*25 2RF2525 15M F2550 / AF50.90.TC11L

2RF450-510 450-510 88 40 94,5/109,5 M12*60 M12*25 PSBNL3232P19 F3250 / AF50.90.TC11L

2RF500-560 500-560 88 40 94,5/109,6 M12*60 M12*25 PSBNL3232P19 F3250 / AF50.90.TC11L

2RF550-610 550-610 88 40 94,5/109,7 M12*60 M12*25 PSBNL3232P19 F3250 / AF50.90.TC11L

2RF600-660 600-660 88 40 94,5/109,8 M12*60 M12*25 PSBNL3232P19 F3250 / AF50.90.TC11L

2RF650-710 650-710 88 40 94,5/109,9 M12*60 M12*25 PSBNL3232P19 F3250 / AF50.90.TC11L

2RF700-760 700-760 88 40 94,5/108,5 M12*60 M12*25 PSBNL3232P19 F3250 / AF50.90.TC11L

2RF750-810 750-810 128 60 134,5/149,5 M16*80 M12*25 PSBNL3232P19 F3250 / AF50.90.TC11L

2RF800-860 800-860 128 60 134,5/149,6 M16*80 M12*25 PSBNL3232P19 F3250 / AF50.90.TC11L

2RF850-910 850-910 128 60 134,5/149,7 M16*80 M12*25 PSBNL3232P19 F3250 / AF50.90.TC11L

2RF900-960 900-960 128 60 134,5/149,8 M16*80 M12*25 PSBNL3232P19 F3250 / AF50.90.TC11L

2RF950-1010 950-1010 128 60 134,5/149,9 M16*80 M12*25 PSBNL3232P19 F3250 / AF50.90.TC11L

2RF1000-1060 1000-1060 128 60 134,5/149,10 M16*80 M12*25 PSBNL3232P19 F3250 / AF50.90.TC11L

2RF1050-1110 1050-1110 128 60 134,5/149,11 M16*80 M12*25 PSBNL3232P19 F3250 / AF50.90.TC11L

2RF1100-1160 1100-1160 221 60 134,5/149,12 M16*80 M12*25 PSBNL3232P19 F3250 / AF50.90.TC11L

2RF1150-1210 1150-1210 221 60 134,5/149,13 M16*80 M12*25 PSBNL3232P19 F3250 / AF50.90.TC11L

60

M16*80 M12*25

F3250 / AF50.90.TC11L

F2550 105 59 25 AF50.90.TC11L / TC11L.. F3250 170 42 32 AF50.90.TC11L / TC11L.. PSBNL3232P19 168 32 / SN..190612

1LC-Toolholders

Model 1LC, 75°, CCMT- indexable inserts

Code b mm x mm F mm L mm Insert Insert screw Key Weight

1LC05075 16 41396 20 32 CCMT09T3.. 191.848 170.025 0.1

1LC06575 16 41396 20 44 CCMT09T3.. 191.848 170.025 0.1

1LC09075 16 41396 20 64 CCMT09T3.. 191.848 170.025 0.2

1LC13075 25 41367 32 98 CCMT1204.. 192.446 170.056 0.4 1LC20075 25 41367 32 132 CCMT1204.. 192.446 170.056 0.6 1LC30075 25 41367 32 132 CCMT1204.. 192.446 170.056 0.7

Model 1LC, 90°, CCMT- indexable inserts

Code b mm F mm L mm Insert Insert screw Key Weight

1LC05090 16 20 32

CCMT09T3.. 191.848 170.025 0.1

1LC06590 16 20 44 CCMT09T3.. 191.848 170.025 0.1

1LC09090 16 20 64 CCMT09T3.. 191.848 170.025 0.2

1LC13090 25 32 98 CCMT1204.. 192.446 171.056 0.4

1LC20090 25 32 132 CCMT1204.. 192.446 171.056 0.6

1LC30090 25 32 132 CCMT1204.. 192.446 170.056 0.7

LF-Toolholders

Code

LF 19 M5.4 M5.5 SE-19 191.131 CCMT0602…

LF 24 M5.6 M5.6 SE-24 191.131 CCMT0602…

LF 33 M6.6 M6.6 SE-33 191.131 CCMT0602…

LF 45 M6.8 M6.10 SE-45 191.372 CCMT09T3…

1LT-Toolholders

Model 1LT, 75°, tangential indexable inserts

Code

1LT06575 16 41457 20 44 1.21103.L.. 121.606 112.250 0.085

1LT09075 16 41457 20 64 1.21103.L.. 121.606 112.250 0.120

1LT13075 25 41489 32 98 1.21503.L.. 121.616 118.214 0.400 1LT20075 25 41489 32 132 1.21503.L.. 121.616 118.214 0.600 1LT30075 25 41489 32 132 1.21503L.. 121.616 118.214 0.700

1LT06590 16 20 44 1.21103L.. 121.606 112.250 0.085

1LT09090 16 20 64 1.21103L.. 121.606 112.250 0.120 1LT13090 25 32 98 1.21503L.. 121.612 118.214 0.400 1LT20090 25 32 132 1.21503L.. 121.612 118.214 0.600 1LT30090 25 32 132 1.21503L.. 121.612 118.214 0.700

Tool holders for rough boring heads

2LC-Toolholders

2 LC Tool holder 75° CCMT-indexable inserts

Code b mm F mm L mm Insert Screw Key

2LC03575 12 16 20.5

CCMT0602.. 192.432 170.052

2LC04575 12 16 26 CCMT09T3.. 191.698 170.025

2LC05875 12 16 32

CCMT09T3.. 191.698 170.025

2LC07075 16 20 39.5 CCMT09T3.. 191.698 170.025

2LC09075 16 20 52 CCMT09T3.. 191.698 170.025

2LC12075 20 25 74.5

CCMT1204.. 192.446 170.056

2LC17575 20 25 104 CCMT1204.. 192.446 170.056

2LC26075 25 32 153 CCMT1204.. 192.446 170.056

2 LC Tool holder 90° CCMT-indexable inserts

Code b mm F mm L mm Insert Screw Key

2LC03590 12 16 20.5

2LC04590 12 16 26

CCMT0602.. 192.432 170.052

CCMT09T3.. 191.698 170.025

2LC05890 12 16 32 CCMT09T3.. 191.698 170.025

2LC07090 16 20 39.5 CCMT09T3.. 191.698 170.025

2LC09090 16 20 52

CCMT09T3.. 191.698 170.025 2LC12090 20 25 74.5 CCMT1204.. 192.446 170.056

2LC17590 20 25 104 CCMT1204.. 192.446 170.056

2LC26090 25 32 153 CCMT1204.. 192.446 170.056

2LT-Toolholders

2 LT Tool holder LT.. 75°

Code b mm F mm L mm Insert Screw Pin

2LT07075 16 20 39.5 1.21103L.. 121.606 112.250

2LT09075 16 20 52 1.21103L.. 121.606 112.250

2LT12075 20 25 74.5 1.21103L.. 121.606 112.250

2LT17575 20 25 104 1.21103L 121.606 112.250

2LT26075 25 32 153 1.21503l.. 121.616 118.214

2 LT Tool holder 90°

Code b mm F mm L mm Insert Screw Pin

2LT07090 16 20 39.5 1.21103L.. 121.606 112.250

2LT09090 16 20 52 1.21103L.. 121.606 112.250

2LT12090 20 25 74.5 1.21103L.. 121.606 112.250

2LT17590 20 25 104 1.21103L.. 121.606 112.250

2LT26090 25 32 153 1.21503L.. 121.612 118.214

Tool holders for rough boring heads

Face groove tool holders

• Inserts with fast deliveries

• Additional clearance angle will be grinded to NG3..RK inserts (Kennametal)

Code Boring head Range of groove Dmin. – Dmax. Insert

1LNG-3-25 1TP065 40-58 NG3..RK

1TP090 25-69 NG3..RK

2TP090 40-80 NG3..RK

1LNG-3-65 1TP090 69-110 NG3..RK

2TP090 80-100 NG3..RK

2LNG-3-25 2TP120 90-130 NG3..RK

2TP175 130-170 NG3..RK

2LNG-4-75 2TP120 120-180 NG4..RK

2TP175 150-215 NG4..RK

Additional clearance angle will be grinded to NG3..RK inserts (Kennametal)

1 TAF –Finishing tool for range D70 - D1020

• 1-cut finishing boring head with aluminium body

• Mounting to standard face milling arbor

• Adjustment elements scale 0,02mm/diameter

• Large adjustment range, separate tool holder with adjustment element

• Axial tuning for tool holders

• Possibility to outside boring with standard tool holders

Model Range      min-max L     mm d   mm D    mm Weight kg Holder no.

1TAF 070 70-100 100 27 48 0,5 1 LVA.070/F7.50

1TAF 100 100-150 100 32 58 0,8 1 LVA.100/F9.50

1TAF 150 150-240 100 40 70 1 1 LVA.230/F13.50

1TAF 230 230-330 100 40 88 2,2 1 LVA.230/2318/F13.50

1TAF 310 310-420 100 40 88 3,2 1 LVA.230/2318/F13.50

1TAF 410 410-520 100 40 88 3,7 1 LVA.230/2318/F13.50

1TAF 510 510-620 90 40 88 4,1 1 LVA.230/2318/F13.50

1TAF 610 610-720 90 40 88 1 LVA.230/2318/F13.50

1TAF 710 710-820 90 60 128 1 LVA.230/2318/F13.50

1TAF 810 810-920 90 60 128 1 LVA.230/2318/F13.50

1TAF 910 910-1020 90 60 128 1 LVA.230/2318/F13.50

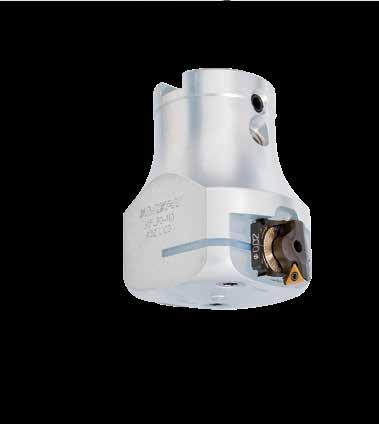

A1FL Finishing boring head for range D50 – D150

• 1-cut finishing boring tool.

• Mounting to standard arbor.

• Equipped with cooling channel.

• Adjustment scale for diameter 0.02mm. (Aluminium body equipped with counterweight.)

• Fine boring unit equipped with two spots on both sides.

• Open socket screw enables to shift the unit between basic settings (by pulling or pressing). Counterweight shift likewise.

• Torque of socket screw 20Nm.

• Element adjustment range for diameter 5mm.

• Fine boring unit adjustment range for diameter 5 mm.

• Fine boring unit shift from side to another – adjustment range diameter 5 mm.

Code Adjustment range min - max d mm D mm L mm Fine boring unit

A1FL50 (Steel) 50-70 22 40 100

AF5090TC11L/AF5095CC06L M10*12

A1FL70 70-90 27 48 100 AF5090TC11L/AF5095CC06L M10*16

A1FL90 90-110 32 58 100 AF5090TC11L/AF5095CC06L M12*16

A1FL110 110-130 32 58 100 AF5090TC11L/AF5095CC06L M12*16

A1FL130 130-150 32 58 100 AF5090TC11L/AF5095CC06L M12*16

A2AL Finishing boring head for range D150 – D1800

• 2-cut finishing boring tool with aluminium body.

• Mounting to standard arbor.

• Boring unit adjustment scale for diameter 0.02mm.

• Large adjustment range, separate tool holder for boring unit.

• Axial adjustment for tool holders.

• Additional possibility for standard tool holder for

• external machining.

A2AL150

1LVA1518 150-200 40    70 125 VNL1839... 1 KPL 34-84

F0750 130 AF5090TC11L M20*40 AF5095CC..L

A2AL200

1LVA2018 200-300 40    88 125 VNL1839... 4 KPL M12*80 84-184 F0950 130 AF5090TC11L AF5095CC..L

A2AL300

1LVA2318 300-400 40    88 125 VNL1839... 4 KPL 184-284 F1350 130 AF0590TC11L M12*80 AF5095CC..L

A2AL400

1LVA2318 400-500 40    88 125 VNL1839... 4 KPL 284-384 F1350 130 AF5090TC11L M12*80 AF5095CC..L

A2AL500

1LVA2318 500-600 60   128 125 VNL1839... 4 KPL 384-484 F1350 130 AF5090TC11L M16*80 AF5095CC..L

A2AL600

1LVA2318 600-700 60   128 125 VNL1839... 4 KPL 484-584 F1350 130 AF5090TC11L M16*80 AF5095CC..L

A2AL700

1LVA2318 700-800 60   128 125 VNL1839... 4 kpl 584-684 F1350 130 AF5090TC11L M16*80 AF5095CC..L

A2AL700

1LVA2318 700-1000 60   128 165 VNL1839... 4 kpl 584-884 F1350 AF5090TC11L M16*80 170 AF5095CC..L

A2AL1000

1LVA2318 1000-1100 60   128 155 VNL1839... 4 kpl 884-984 F1350 AF5090TC11L M16*100 160 AF5095CC..L

A2AL1000

TVA Finishing boring head for range D20-D40

• 1-cut finishing bore • Mounting to Weldon-chuck or clamping

Code

TVA 20-20    20-24    20  70 120 VALX83.90

TVA 20-25    20-24    25 100 156 VALX83.90

TVA 24-25    24-28    25 100 156 VALO83.90

TVA 28-25    28-32    25 100 156 VALO83.90

TVA 32-32    32-36    32 100 160 VALO83.90

TVA 36-32    36-40    32 100 160 VALO83.90

1 THF –Finishing boring head

• 1-cut finishing tool.

• Mounting to standard arbor.

• Adjustment range for diameter 0.02mm.

Model Range min-max L     mm d   mm D   mm

Adjustment element Screw

1THF 036 35-39 80 16 32 VNL.103.. M8X10

1THF 040 39-43 80 16 32 VNL.103.. M8X10

1THF 043 43-50 100 22 40 VNL.123.. M10X12

1THF 050 50-57 100 22 40 VNL.123.. M10X12

1THF 057 57-64 100 22 40 VNL.123.. M10X12

1THF 064 64-71 100 22 40 VNL.123.. M10X12

Aluminimum Frame

1THF 056 56-70 100 22 40 VNL.183.. M12X12

1THF 070 70-84 100 27 48 VNL.183.. M12X16

1THF 084 84-98 100 27 48 VNL.183.. M12X16

1THF 098 98-128 100 32 58 VNL.183.. M12X20

1THF 128 128-158 100 32 58 VNL.183.. M12X20

AF50 – Adjustment element for finishing boring heads

Code D min. Dr AS Insert Insert wedge/screw Kiinnitysruuvi

AF5090TC11L 50 3.00 90

TCMT1102.. 192.432 M3*10 3kpl ISO7380 10.9

AF5090TC11R 50 3.00 90 TCMT1102.. 192.432 M3*10 3kpl ISO7380 10.9

AF5095CC06L 50 3.00 95 CCMT0602.. 192.432 M3*10 3kpl ISO7380 10.9

AF5095CC06R 50 3.00 95 CCMT0602.. 192.432 M3*10 3kpl ISO7380 10.9

AF5095CC09L 58 3.00 95 CCMT09T3.. 193.342 M3*10 3kpl ISO7380 10.9

AF5095CC09R 58 3.00 95

CCMT09T3.. 193.342 M3*10 3kpl ISO7380 10.9

AF50RC0803L 50 3.00 90 RC..0803.. 191.924 M3*10 3kpl ISO7380 10.9

AF50RC10T3L 50 3.00 90 RC..10T3MO.. 191.924 lyh. M3*10 3kpl ISO7380 10.9

AF50TP1103L 50 3.00 90 TPGN110308 551113 lyh. M3*10 3kpl ISO7380 10.9

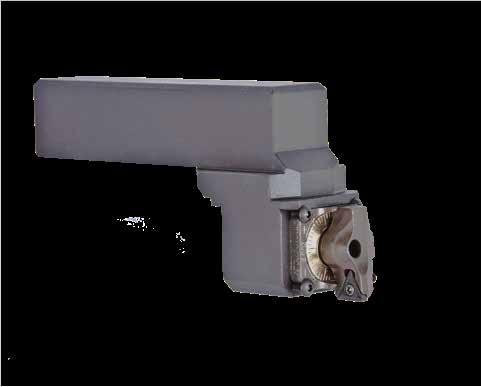

AF20 and AF25 adjustment elements for finishing boring

Screw 4

DIN 912 M5*12 DIN 914 M4*5

DIN 912 M5*12 DIN 914 M4*5

DIN 912 M5*16 DIN 914 M4*5

DIN 912 M5*16 DIN 914 M4*5

Fine tuning elements for TVA-boring heads

Code

VAL X83.90TC06 20 2.25 90

VAL 083.90TC06 23.5 2.25 90

M5X12J TCGT 06T1..  191.164

M5X12J TCGT 06T1..  191.164

VNE-fine tuning elements for finishing boring

Code Dr min AS Screw Insert Insert wedge/screw

VNL 103.90TC11 3,5 90 M10X20J TCMT1102.. 192.432

VNL 123.90TC11 3,5 90 M10X20J TCMT1102.. 192.432

VNL 183.90TC16 7,2 90 M12X20J TCMT16T3.. 191.848

VNL 183.95CC09 7,2 95 M12X20J CCMT09T3.. 192.446

TOOL

MILLING TOOLS

ADJUSTMENT ELEMENTS 29

FINISHING TOOLS

TOOL HOLDERS FOR ROUGH BORING

ROUGHING TOOLS

TURBO-bore with coolant

• Tempered steel body

• Insert APKT 1604..

• Insert screw 191.916 M4*10

• Steady mounting to face arbor

Code D d1 d L a/Z

400404R16TV 40 16 32 40 41380

400505R16TV 50 22 40 40 41410 400635R16TV 63 27 48 45 41410

400807R16TV 80 32 58 55 41471 401007R16TV 100 40 70 60 41471 401259R16TV 125 40 70 60 41533 401610R16TV 160 40 70 60 41563 402010R16TV 200 40 88 60 41563

Back

boring tool

Code D +0.05 D1 min. L1 d h6 L S Insert screw Insert

ATW0915 15 9 30 20 97 12 192.432 SPHX060204R

ATW1018 18 10 35 25 112 12 192.432 SPHX060204R

ATW1220 20 12 40 25 117 12 192.432 SPHX060204R

ATW1420 20 14 85 25 161 15 192.432 SPHX060204R

ATW1422 22 14 50 25 127 12 192.432 SPHX060204R

ATW1424 24 14 50 25 127 12 192.432 SPHX060204R

ATW1626 26 16 50 25 130 15 191.924 SPHX090304R

ATW1830 30 18 60 25 140 15 191.924 SPHX090304R

ATW1832 32 18 55 32 136 16 191.924 SPHX090304R-20 ATW2032 32 20 65 32 145 15 191.924 SPHX090304R-20

ATW2033 33 20 65 32 145 15 191.924 SPHX090304R

ATW2236 36 22 70 32 150 15 191.924 SPHX090304R

ATW2239 39 22 70 32 150 15 191.924 SPHX090304R-20 ATW2240 40 22 70 32 150 15 191.924 SPHX090304R-20

ATW2337 37 23 50 32 130 15 191.924 SPHX090304R-20

ATW2438 38 24 80 32 160 15 191.924 SPHX090304R-20 ATW2440 40 24 80 32 160 15 191.924 SPHX090304R

ATW2645 45 26 60 40 155 20 191.916 SPHX120404R-20

ATW2646 46 26 60 40 155 20 191.916 SPHX120404R-20 ATW2648 48 26 60 40 155 20 191.916 SPHX120404R-20

ATW2743 43 27 85 32 165 15 191.924 SPHX090304R ATW2848 48 28 100 40 195 20 191.916 SPHX120404R-20 ATW3048 48 30 100 40 195 20 191.916 SPHX120404R

ATW3055 55 30 105 40 200 20 191.916 SPHX120404R-20

ATW3254 54 32 70 40 170 20 191.916 SPHX120404R-20 ATW3353 53 33 105 40 200 20 191.916 SPHX120404R

ATW3657 57 36 115 40 210 20 191.916 SPHX120404R ATW4165 65 41 150 40 250 25 191.754 SPHX150504R

ISO 50 MODEL B/AD FOUR SCREW

LONG MILLING AND BORING TOOL TAPERS

(chucks)

- DIN 69871 ISO 50 model B/AD with four screw clamping

• Equipped with four driving wedges.

• Driving wedges in 90° from chuck wedges.

• Balluf size D 12 depth 6.0 + 0.1

• Coolant model B/AD

• For big milling and boring heads.

Code d1 D1 D A F/M

DI50B/AD4012566 40 88 80 125  66.7/M12

DI50B/AD4016066 40 88 80 160  66.7/M12

DI50B/AD6012510 60 128 80 125 101.6/M16

DI50B/AD6016010 60 128 80 160 101.6/M16

ISO 50 MODEL B/AD

Long milling and boring tool tapers (chucks) - DIN 69871 ISO 50 MODEL B/AD

• Equipped with four driving wedges.

• Driving wedges in 90° from chuck wedges.

• Balluf size D 12 depth 6.0 + 0.1

• Coolant model B/AD

• With vertical wedges

Code d1 D1 D A A1

DI50B/AD16125 16 32 40 125 105

DI50B/AD2216 22 40 60 160 120

DI50B/AD2716 27 48 80 160 120 DI50B/AD3216 32 58 80 160 120

DI50B/AD4016 40 70 80 160 120

BT 50 MODEL B/AD FOUR SCREW

LONG MILLING AND BORING TOOL TAPERS (CHUCKS) - BT 50 MODEL B/AD WITH FOUR SCREW CLAMPING

• Equipped with four driving wedges.

• Driving wedges in 90° from chuck wedges.

• Balluf size D 12 depth 6.0 + 0.1

• Coolant model B/AD

• For big milling and boring heads.

Code d1 D1 D A F/M

BT50B/AD4012566 40 88 80 125  66.7/M12

BT50B/AD4016066 40 88 80 160  66.7/M12

BT50B/AD6012510 60 128 80 125 101.6/M16

BT50B/AD6016010 60 128 80 160 101.6/M16

BT 50 MODEL B/AD

LONG MILLING AND BORING TOOL TAPERS (CHUCKS)

- BT MALLI B/AD

• Equipped with four driving keys.

• Driving wedges in 90° from chuck wedges.

• Balluf size D 12 depth 6.0 + 0.1

• Coolant model B/AD

• With vertical wedges.

Code d1 D1 D A  A1

BT50B/AD16125 16 32 40 125 87

BT50B/AD2216 22 40 60 160 120

BT50B/AD2716 27 48 80 160 120

BT50B/AD3216 32 58 80 160 120

BT50B/AD4016 40 70 80 160 120

Weldon/Whistle small

CYLINDER ARM WELDON/WHISTLE CHUCKS - small chucks

• Chuck for milling tools and drills

• 2° angle hole is for clamping drills and milling tools

• At bottom of the placing hole is a screw with hole that coolant goes through

• Always when using 2° hole you have to be sure that the milling tool or drill reach the bottom of hole.

Code D d L1 d1 d2 Top screw 2 Weldon screw 3

WPH200670 20 6 70 36 25 VRM6X16 M6X10

WPH200870 20 8 70 36 28 VRM6X16

WPH201070 20 10 70 36 31 VRM8X16

WPH201270 20 12 70 36 36 VRM8X16

WPH201470 20 14 70 40 40 VRM10X20

WPH201670 20 16 70 40 42 VRM10X20 WPH202070 20 20 70 40 48 VRM10X20

WPH250670 25 6 70 40 25 VRM6X16

WPH250870 25 8 70 40 28 VRM6X16

WPH251070 25 10 70 40 31 VRM8X16

WPH251270 25 12 70 40 36 VRM10X20

WPH251470 25 14 70 40 40 VRM12X20

WPH251670 25 16 70 40 42 VRM12X20

WPH251870 25 18 70 40 45 VRM12X20

WPH252070 25 20 70 45 48 VRM12X20

Weldon/Whistle big

SYLINDER ARM WELDON/WHISTLE CHUCKS - big chucks

• Used for drills and milling tools

• 2° screw holes for fixing drills

• At bottom of the placing hole is a screw with hole that coolant goes through

• Always when using 2° hole you have to be sure that the milling tool or drill reach the bottom of hole.

Code D d L1 d1 d2 Top screw 2 Weldon screw 3

WPH320690 32 6 90 48 25 VRM6X16 M6X10

WPH320890 32 8 90 48 28 VRM6X16 M8X10

WPH321090 32 10 90 48 31 VRM8X16

WPH321290 32 12 90 48 36 VRM10X20

WPH321490 32 14 90 48 40 VRM12X20

WPH321690 32 16 90 48 42 VRM12X20

WPH321890 32 18 90 48 45 VRM12X20

WPH322090 32 20 90 48 48 VRM16X25

WPH322590 32 25 90 56 61 VRM16X25

WPH323290 32 32 90 56 68 VRM16X25

WPH402090 40 20 90 61 48 VRM16X25

WPH402590 40 25 90 61 61 VRM16X25

WPH403290 40 32 90 68 68  VRM16X25

BT50B/ADW16A200 16 60 48 80  VRM12X20 M14X16

BT50B/ADW20A200 20 60 52 80  VRM16X25 M16X16

BT50B/ADW25A200 25 65 65 80  VRM16X25 M18X2X20

BT50B/ADW32A200 32 70 72 80  VRM16X25 M20X2X20

HTS-basic arm

Code d4 d3 L1 L2 Pulling wedge Screw OLD TE- nro. 534050070080 40 70 94 80 192424 191728 TE-6855 534050070160 40 70 174 160 192424 191728 TE-6854 535050080080 50 80 96 80 192425 191728 TE-8312 535050080160 50 80 176 160 192425 191728 TE-8311 535050080250 50 80 266 250 192425 191728 TE-9164 535050080382 50 80 535050080450 50 80

Tool tapers for HTS-drills

Model Kartio D d L Screw

KW15671

KW15523

KW20761

KW20762

BT50 50 110 85 191.678 M12*16

BT50 50 90 60 191.678 M12*16

DIN50 50 110 85 191.678 M12*16

DIN50 50 90 65 191.678 M12*16

Measuring Tool for Spindle

Code Chuck L+0.5 D-0.2

TTSK50 50 350 40

TTSK40 40 250 30

TTBT50 BT50 350 40

TTBT40 BT40 250 30

TTMK2 MK2 250 20

TTMK3 MK3 250 25

TTMK4 MK4 350 30

TTMK5 MK5 350 35

TTMK6 MK6 350

Extension type EB model A & B

Model A

Code

EB.1616.060 60 16 32 M8 VPM-8 K-8 0.3

EB.2222.060 60 22 40 M10 VPM-10 K-10 0.6

EB.2727.060 60 27 48 M12 VPM-12 K-12 0.8

EB.3232.070 70 32 58 M16 VPM-16 K-14 1.2 EB.4040.070 70 40 70 M20 VPM-20 K-16 2.0

EB.2222.100 100 22 40 M10 VPM-10 K-10 1.3

EB.2727.100 100 27 48 M10 VPM-10 K-12 1.7

EB.3232.120 120 32 58 M16 VPM-16 K-14 2.2

EB.4040.120 120 40 70 M20 VPM-20 K-16 3.3

Model B

Code

EB.88.100

Reducer type RB model A & B

Code Model L mm L1 d2h6 mm d1h6 mm D1 mm D2 mm Thread M Screw 3 2 Weight

RB.2216.070 A 70 17 16 22 40 32 M8 VPM-10 K-8 0.5

RB.2716.100 B 100 17 16 27 48 32 M8 VPM-12 K-8 0.9

RB.2722.070 A 70 19 22 27 48 40 M10 VPM-12 K-10 0.8

RB.3222.100 B 100 19 22 32 58 40 M10 VPM-16 K-10 1.2

RB.3227.070 A 70 21 27 32 58 48 M12 VPM-16 K-12 1.1

RB.4027.100 B VPM-20 K-12 1.8 RB.4032.070 A VPM-20 K-14 1.4 RB.4032.100 B VPM-20 K-14 2.0

Stamping tool

• Stamping tool for marking the work piece during the machining

• The length of the tool has to be noticed during programming

Adjustment tool for tool changer

Customized (Special) Tools

Many machine tools and work stages require special tools to attain the final results. We design and manufacture at short delivery times, individual and high quality tools according to the wishes of our clients. Our basic services include both small series works and more demanding works. We develop and intensify the quality of machining, lead time and we create impossible works to be possible. Cooperation with our strong network of metal industry companies enables the best results as possible.

We are focused to fast and high quality service in both designing and manufacturing of tools.

Machining services

We have specialized to manufacture small production series and challenging products.

We supply products with hardening and grinding when needed. Our own hardening and grinding unit won’t stretch delivery times which is normal when using subcontractor services for them.

The raw materials we use are all major engineering steels, special steels for tooling and aluminium and different kind of plastics.

We have high-quality programs for make use of 3D-models in programming.

• SolidWorks 3D – designing program

• GibbsCam 3D milling – for programming

Turning

• CNC multi-purpose lathe with milling tools D350 L1500

• CNC lathe D500 (800) L2000 + support bearing 25-160

• Deckel Maho DMU 5 axis X100 Y710 X710

• Mori Seiki 3+2 axis X1020 Y520 Z520

• Mitsui Seiki 3+2 axis X450 Y420 Z650

•

MILLING TOOLS

ADJUSTMENT ELEMENTS

FINISHING TOOLS

TOOL HOLDERS FOR ROUGH BORING 51

ROUGHING TOOLS
