ASSIGNMENT#5
from portfol
by Mariamkamel1

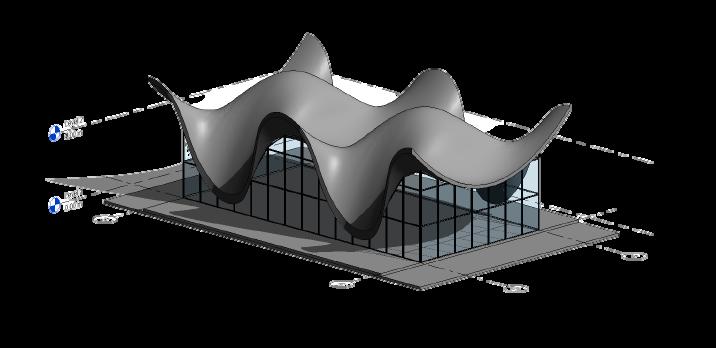

Bosjes Chapel
Task Description: Re-creating Bosjes Chapel by modeling the basic form on Rhino then exporting it to Revit to join the body and the roof
Advertisement
Goals Given: Merging between the three dimensional imagination and the two dimensional projections, operating a workflow between Rhino and Revit to implement the concept of interoperability
Learned Skills: Developing models with not just form but dimensions as well, interoperating between Rhino and Revit and new techniques on Revit such as adjusting Mullions, creating a curtain system
Commands: Walls, curtain system, roof by face, wall by face
Challenges: I didnt face any challenges in this assignment
How i overcame challenges: I tried adding some material to the building
Personal assignment feedback: This assignment was very enjoyable, i learned alot about interoperability which will help me during the final
