ASSIGNMENT#2
from portfol
by Mariamkamel1

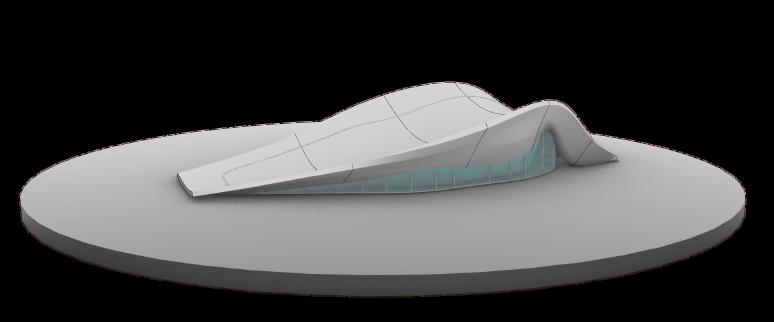

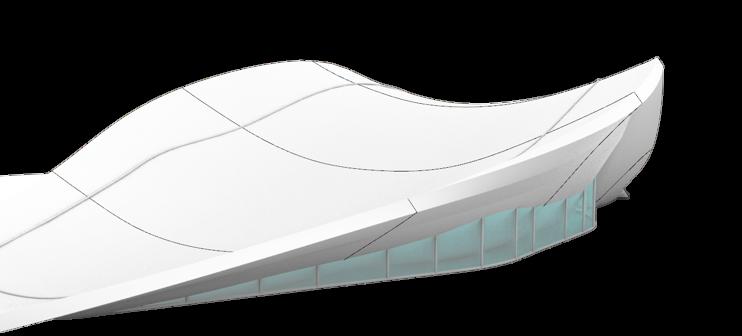

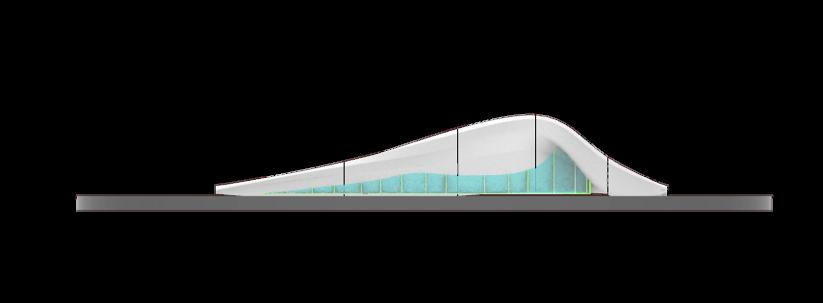

Task Description: Creating a 3D model of London's aquatic center which was designed by the Iraqi architect, Zaha Hadid
Goals Given: Learning how to create a curvilinear roof with 2D sheets, and practice on scaling
Advertisement
Learned Skills: How to trace curves and produce complex structures such as the center's roof and also how to produce a finished look by adding details such as a base.
Commands: Join, loft, offset, extract wireframe, pipe, patch, rotate, array
Challenges: This assignment was certainly difficult, tracing the curves had to be super precise or else piping wont work and i wont be able to continue my model
How i overcame challenges: I kept on trying as much as i can to make the base attach to the roof until it worked.
Personal assignment feedback: This assignment challenged me and taught me to be patient in order to get the work done
Top Perspective
