IN-LAB TASK#2

Guest Studio

Task Description: Drawing the three dimensional model for a one story guest cottage on revit Autodesk

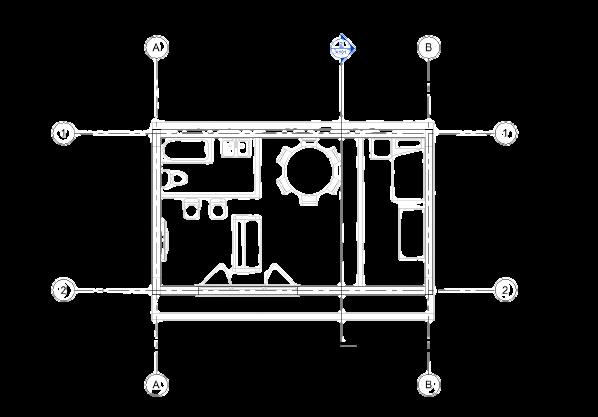

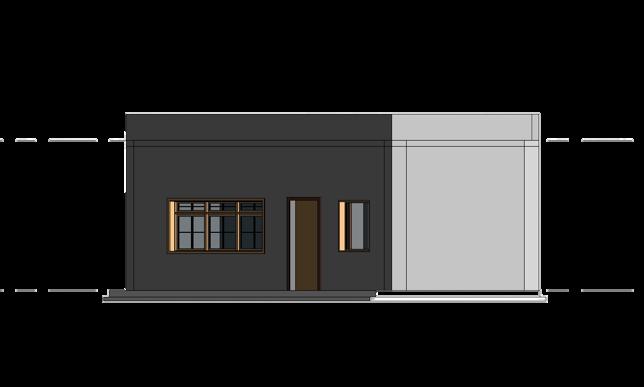

Goals Given: Getting introduced to the BIM process on Revit, though producing a one: fifty section, ground floor plan and elevation

Learned Skills: How to use Revit features to create functional architectural components such as walls, columns, and floor, as well more detailed ones such as sink and bathtub and how to change materials and thickness

Commands: Grid, wall, structural columns, floors, roof by face, furniture

Challenges: This task was fairly easy to both understand and execute, however, the dimensions were very tricky to perfect

How i overcame challenges: I made sure to ask the TA on how to fix my measurements perfectly

Personal assignment feedback: Very easy assignment and fairly understandable
