Green Corridor
St. Laurel Greenway 3 - 10 11 - 16 17 - 26
The
Weber
About the site
Site
01
Oakville, ON
Our vision is to improve the north of Oakville hospital district through a development that prioritizes commercial uses, integrating green spaces, enhancing transportation connectivity, and promoting sustainability. By creating vibrant pedestrian areas, improving walkability and transit connections, and incorporating stormwater management practices, we aim to build a connected and sustainable community that enhances the quality of life for residents while preserving the natural environment.
The Green Corridor 1

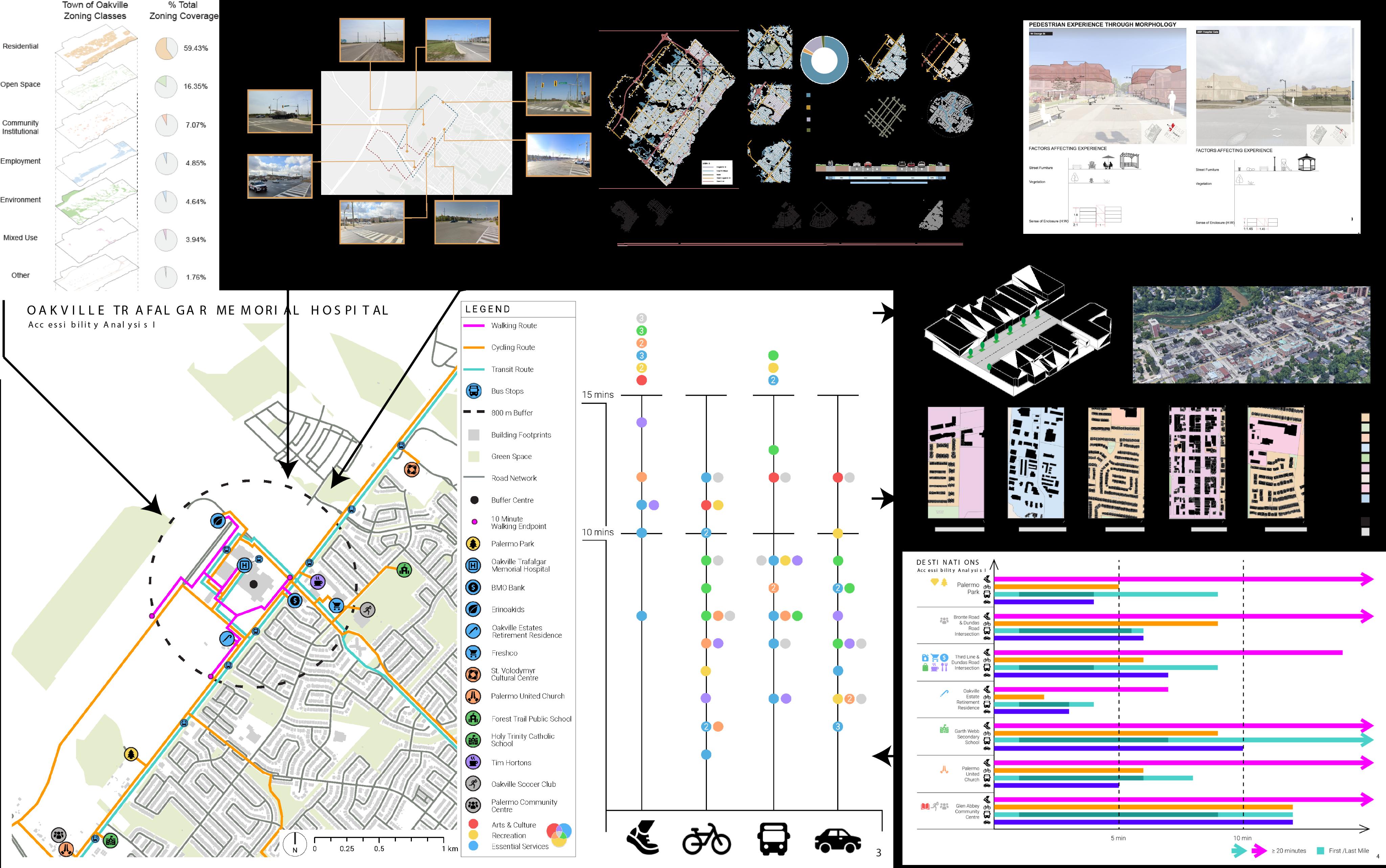

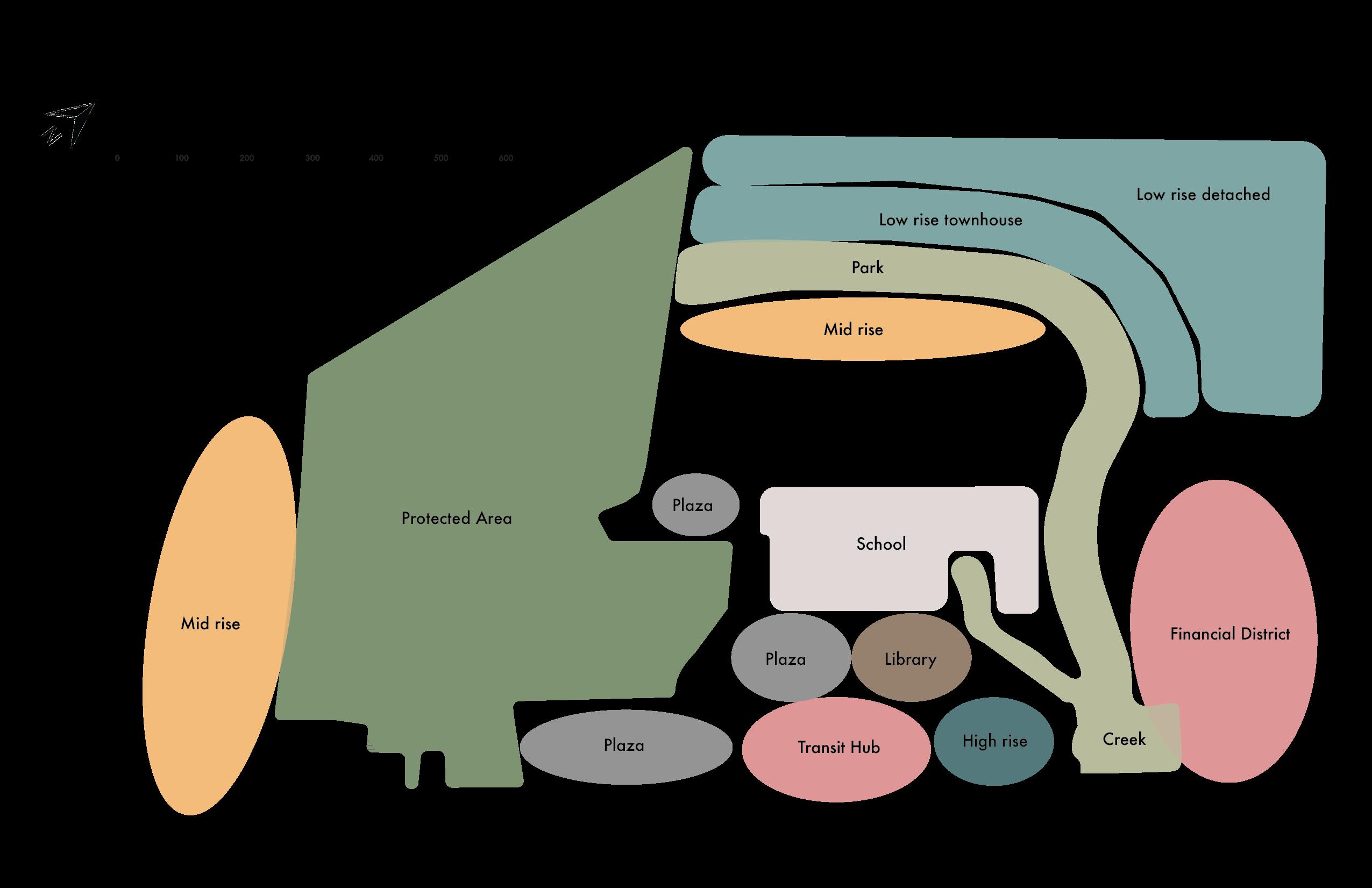

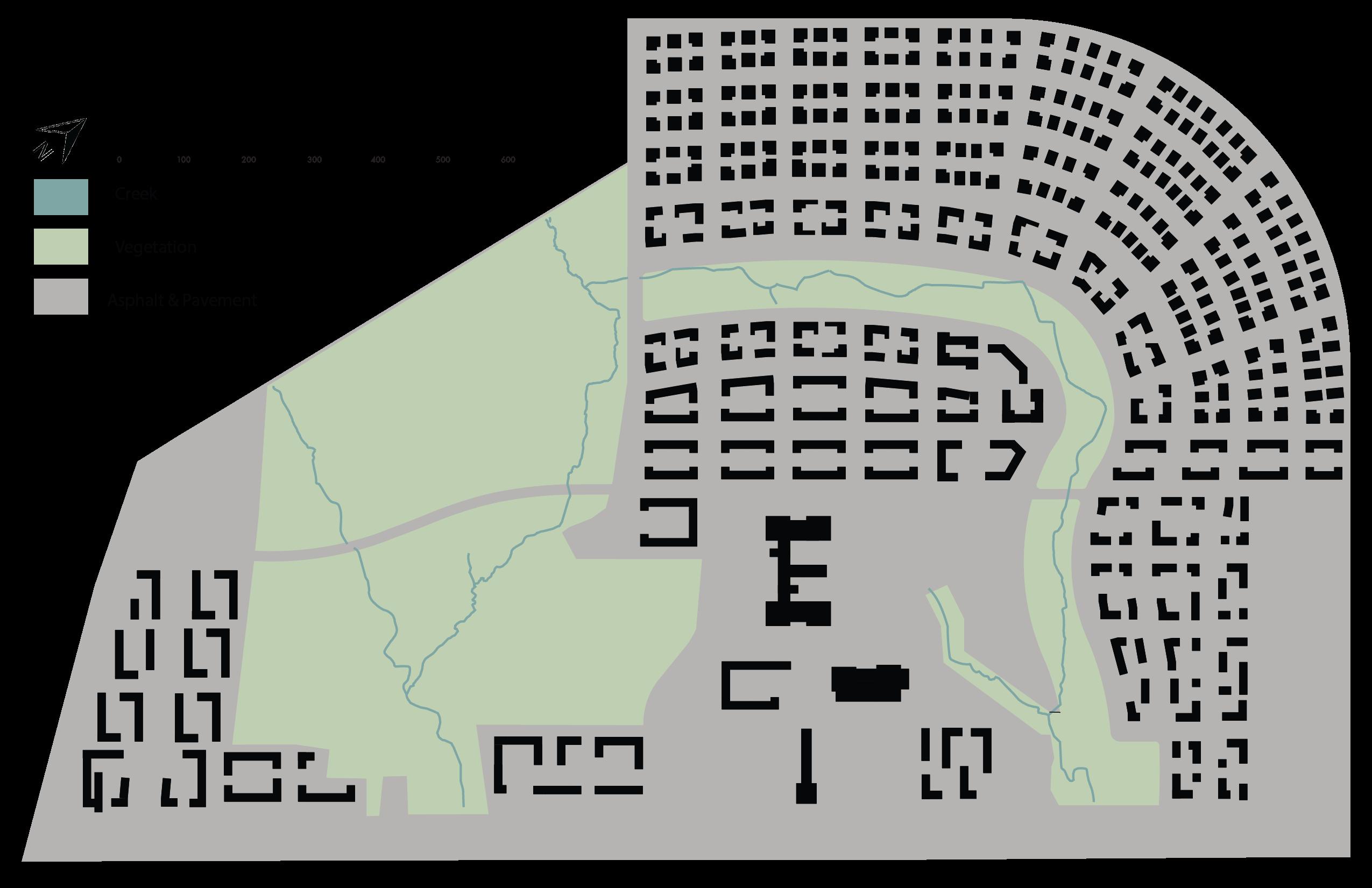

CONCEPT DIAGRAMS
2

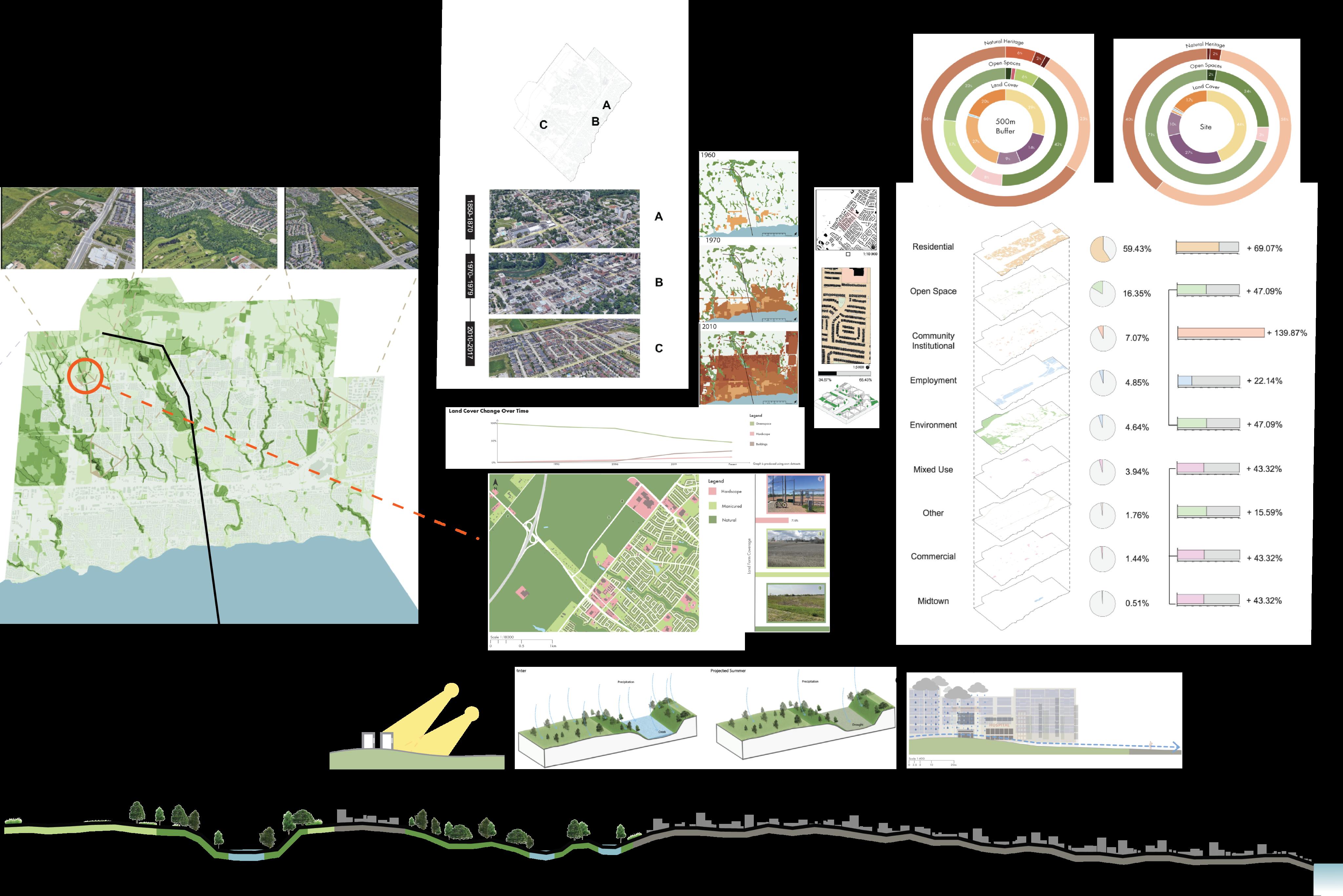

SYNTHESIS OF EXISTING CONDITIONS
3
4
5

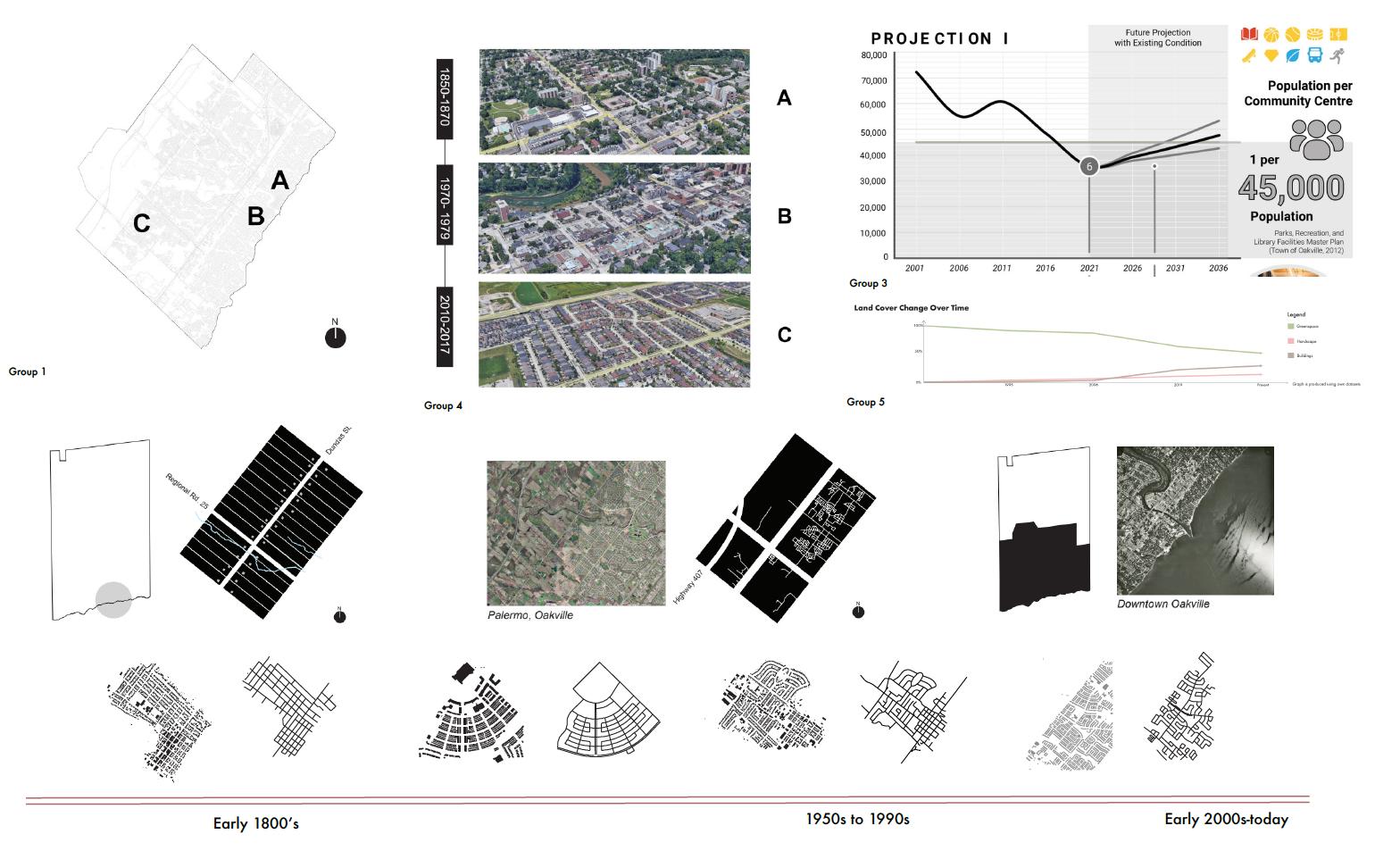

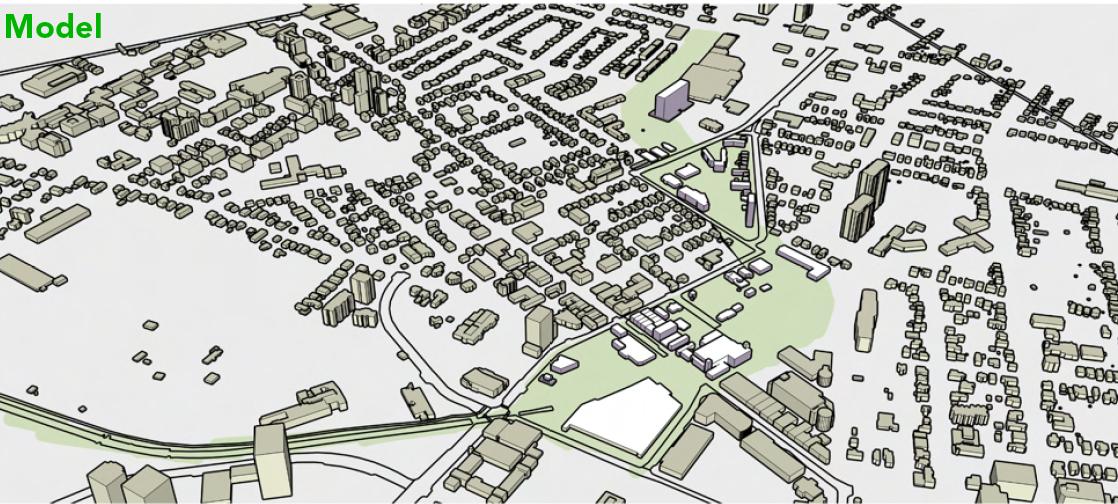

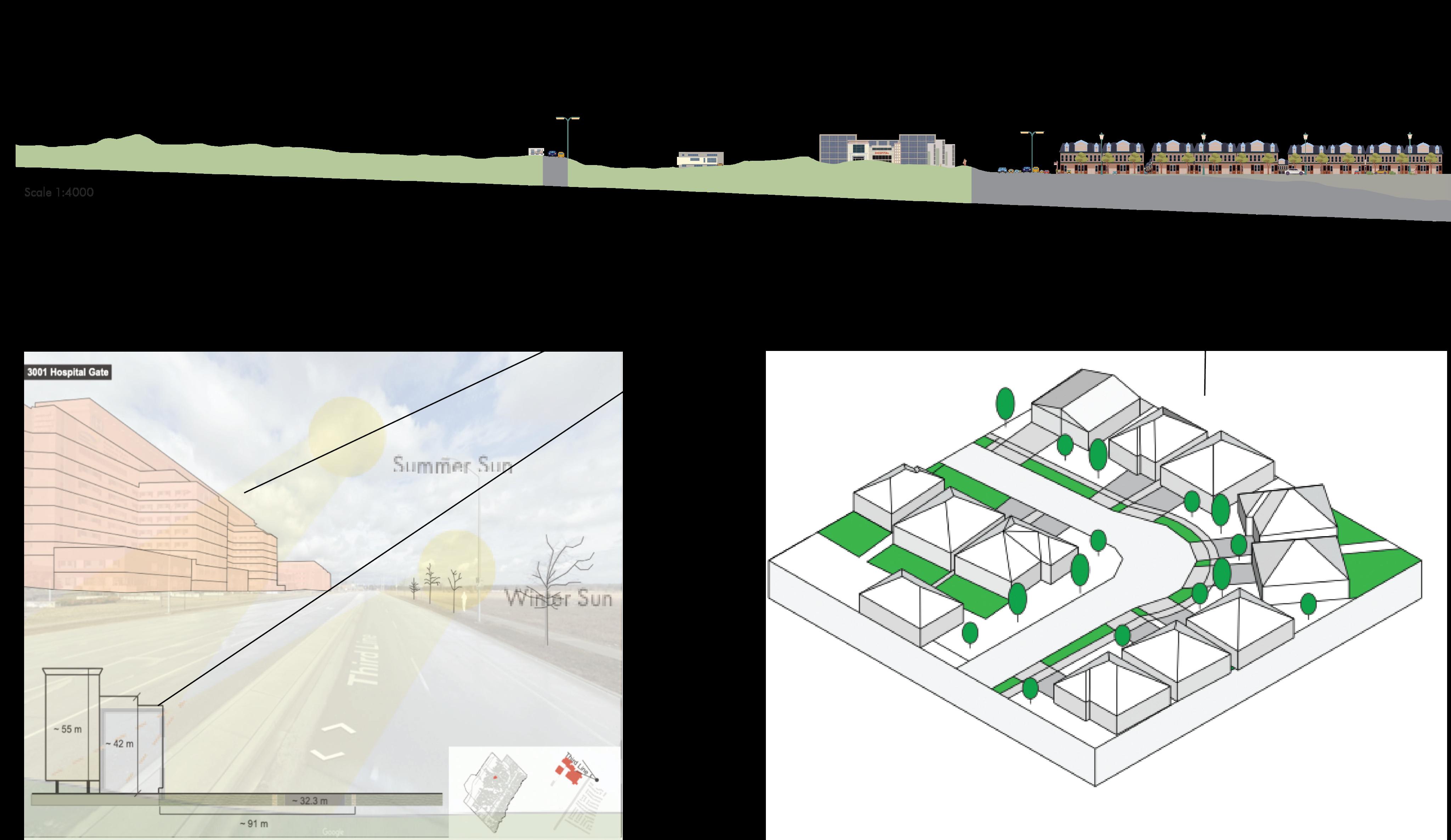

How Urban Morphology and open space impact street networks overtime
The integration of open spaces, neighborhood structure, and skyline contribute to the overall livability and visual identity of an urban areae
6

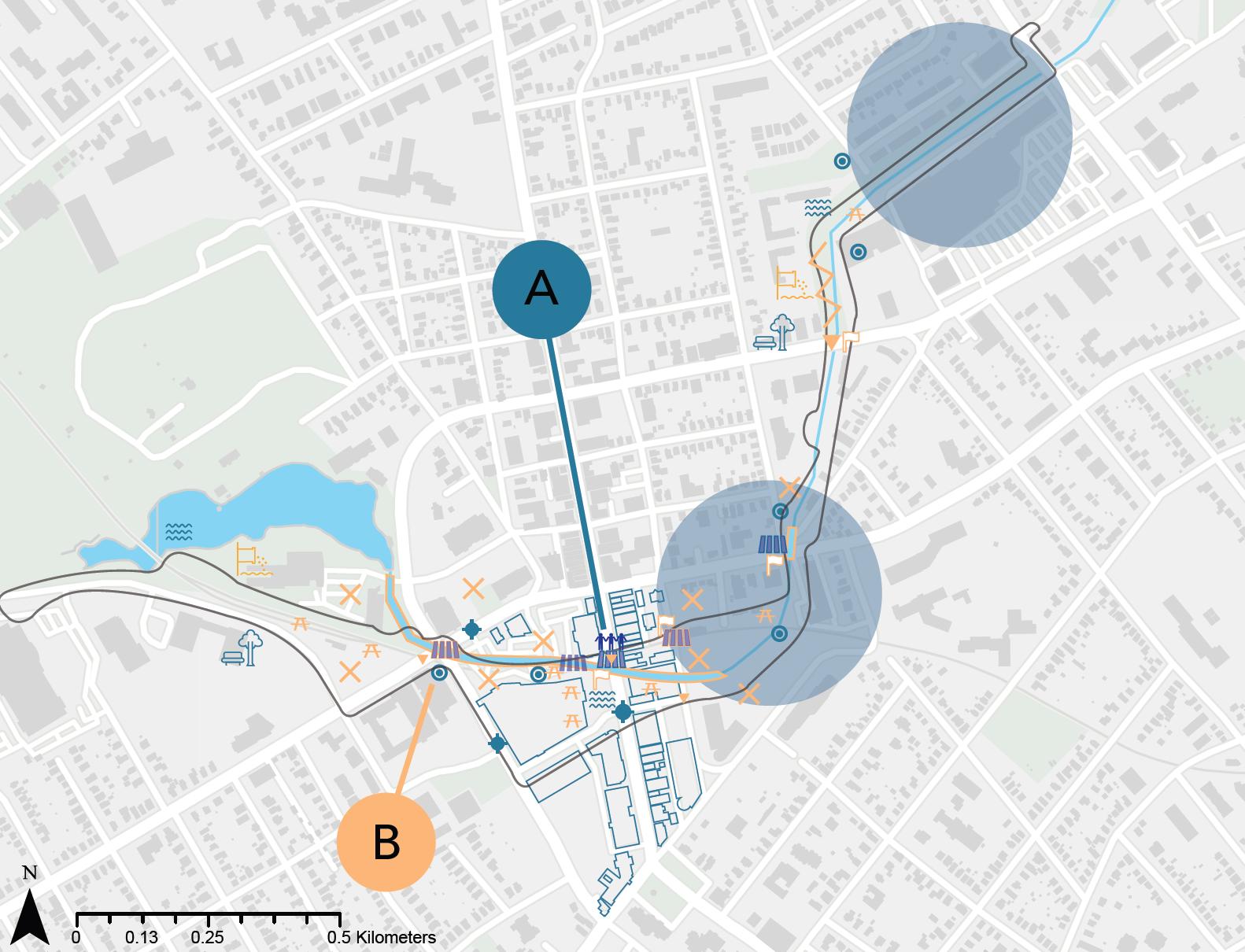

Ecology + Urban Spaces, Connecting to development history
7
8

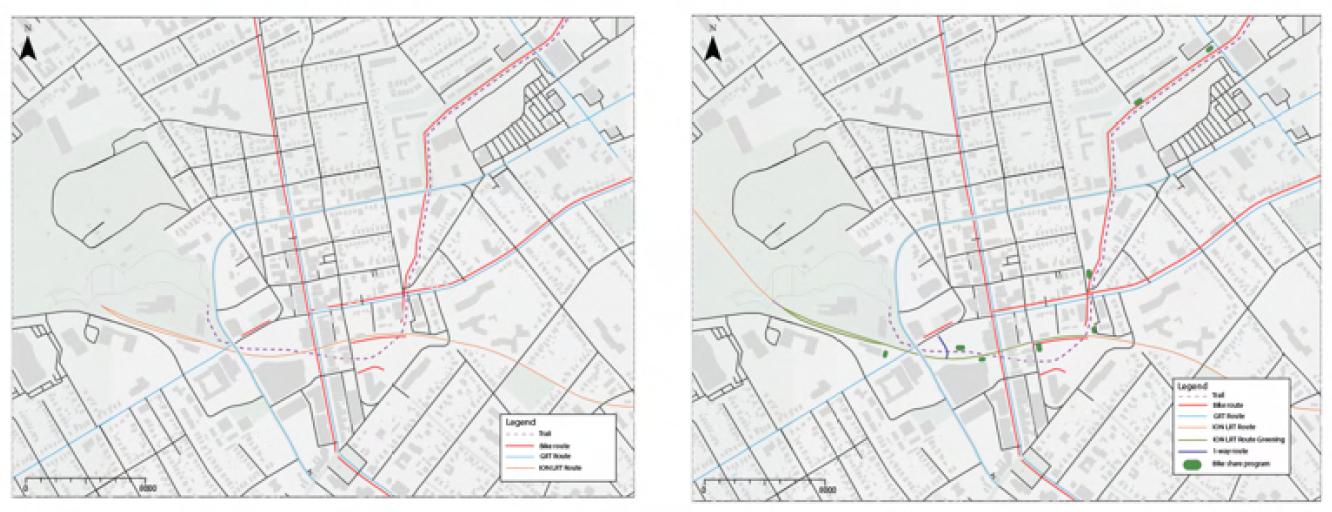

How Urban Morphology and Street Netwrok Impact networks overtime

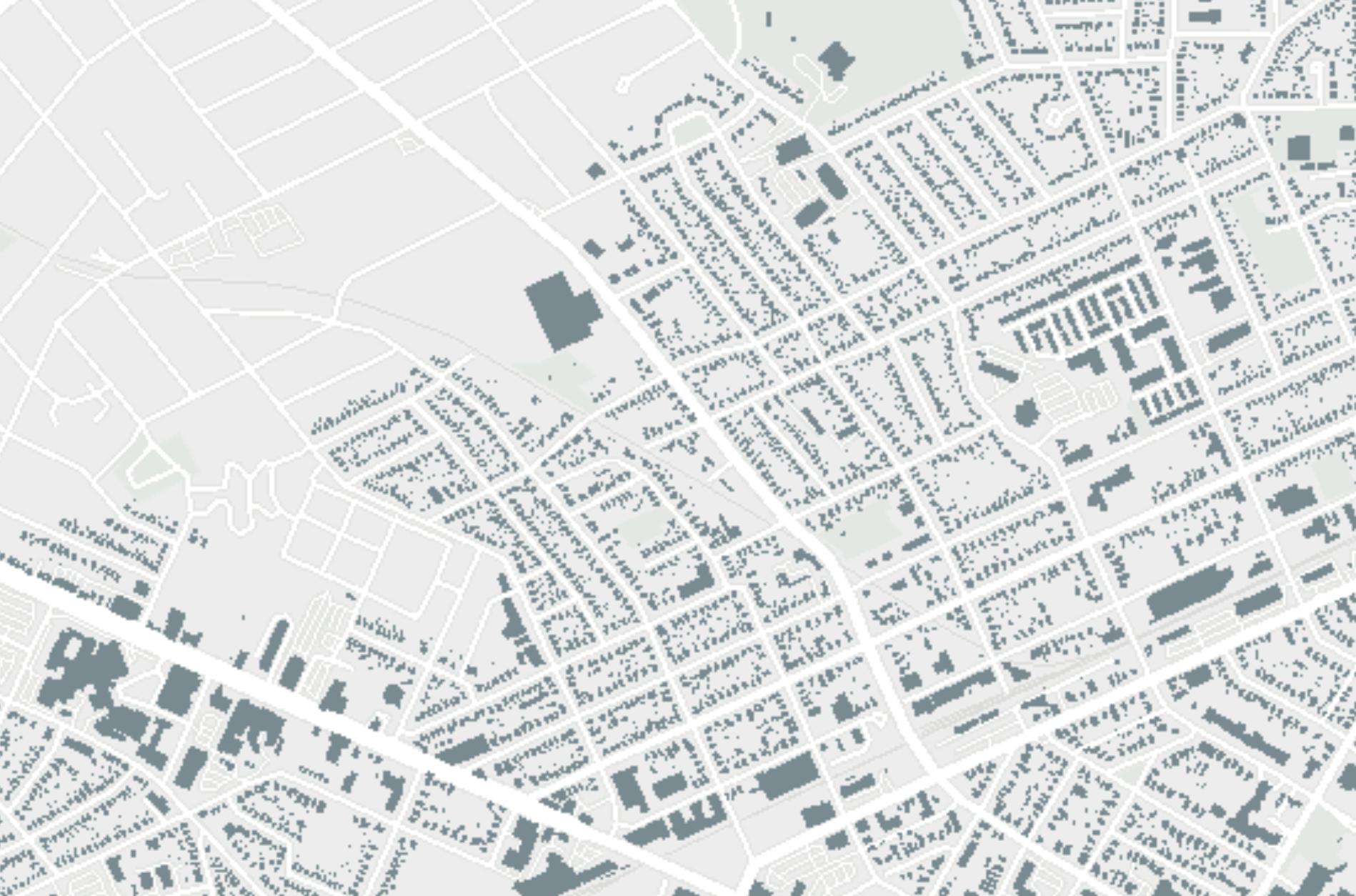

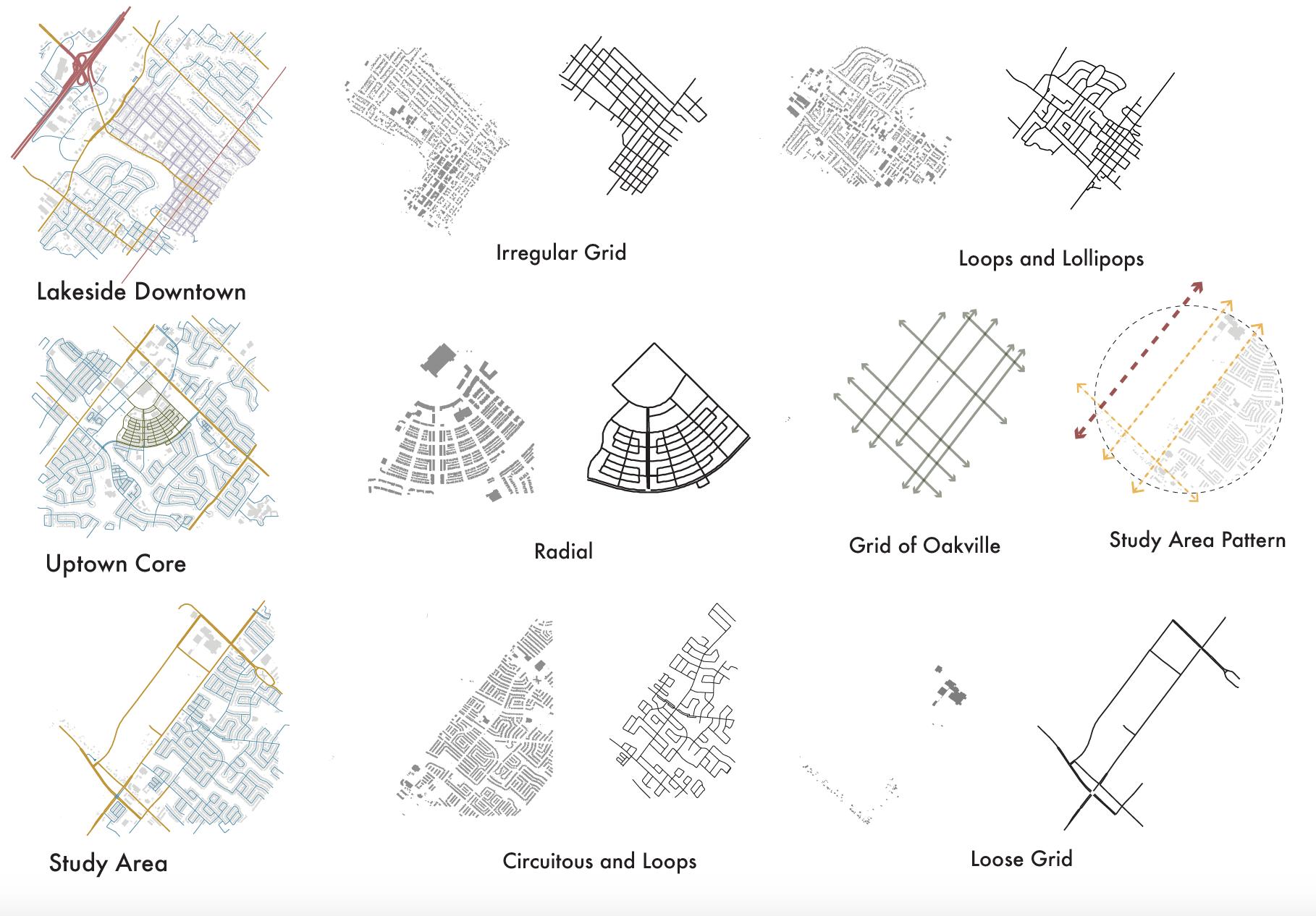

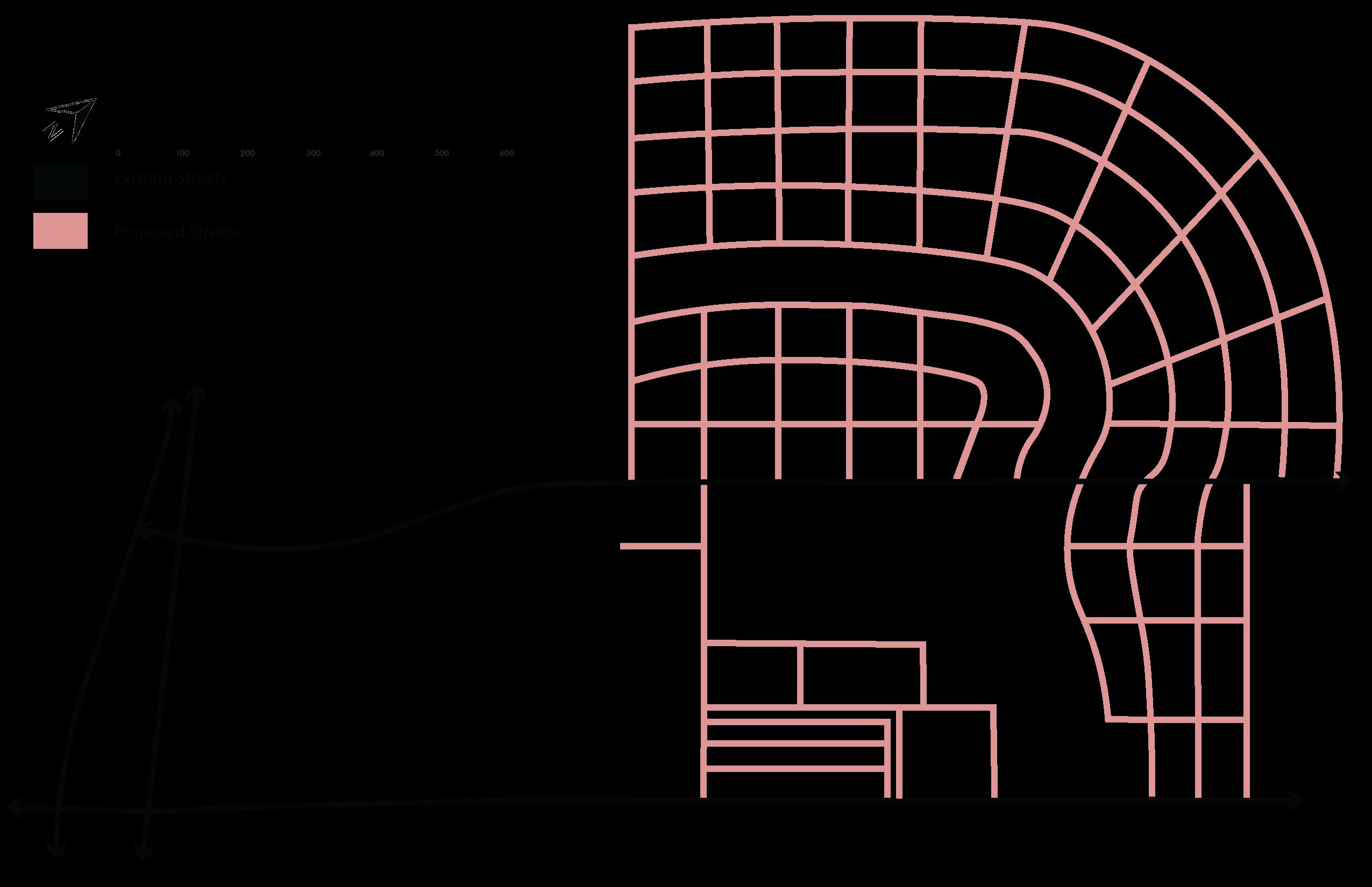

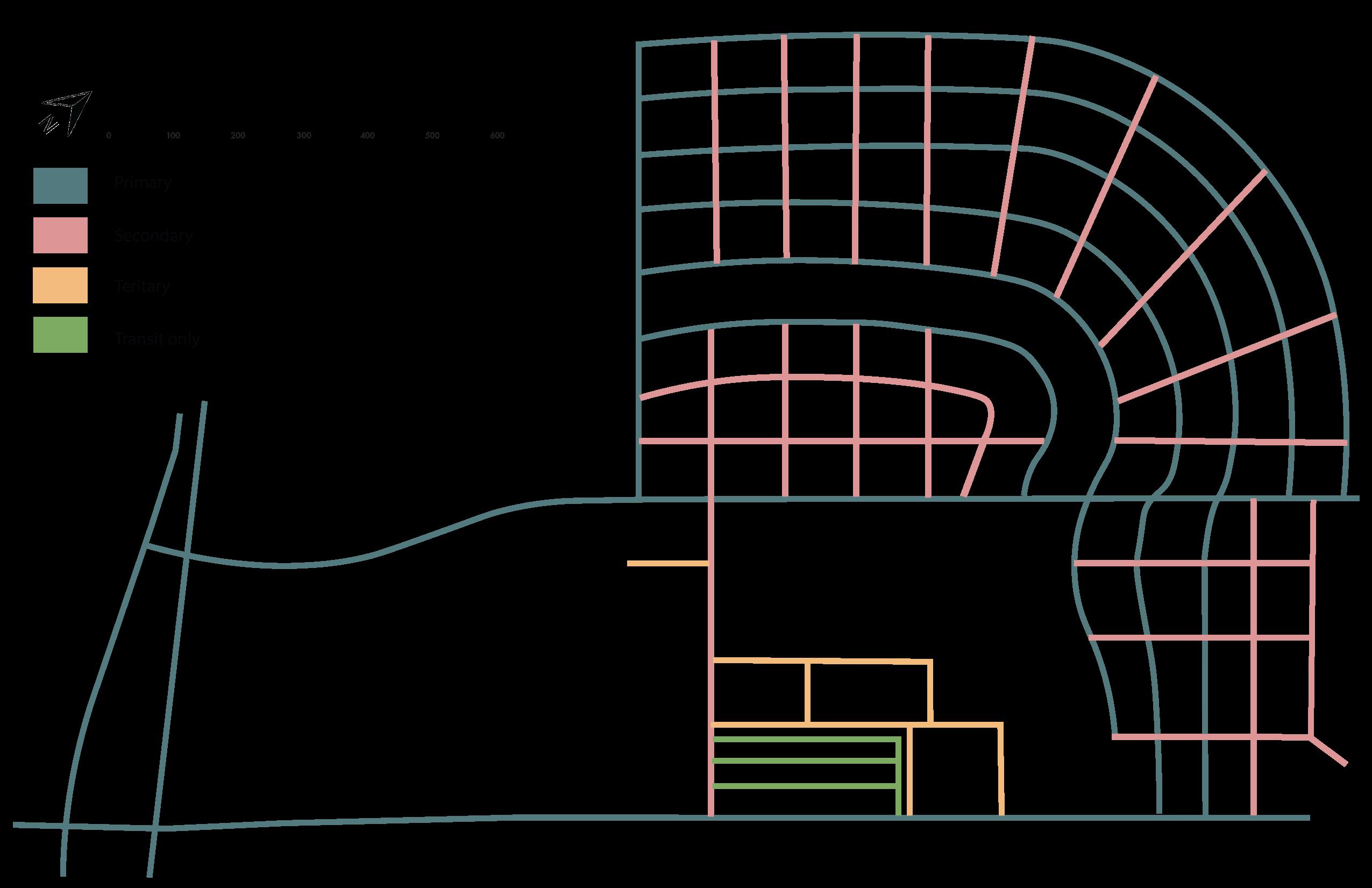

Street Network Analysis
9
SITE PLAN 10
About the site
Site
02
225-295 Weber Street
Kitchener, ON
The project site is located at 225-295 Weber Street West, Kitchener, in the Kitchener North-West neighbourhood. The site is bounded by Blucher Street,Weber Street Wilhelm Street and partitioned by Reinhardt Street. The site facesWeber Street, and the rear of the site is reinforced partly by the Spur line trail, trees, and other properties. The site is vacant with a series of contiguous lots, assessed as a single lot.The project challenge originates from the Building Better Futures commitment made by Council in 2021 to create 2500 new affordable homes in 5 years (Region of Waterloo, 2019). The aim is to provide at minimum 35 supportive housing units consisting of 20 bachelor units, and 15 1-bedroom units on this lot.
11
SITE ASSESSMENT
The site is well connected to the various transportation networks includingdriving, and transit in the surrounding area. It is along a transit corridor on amajor arterial route, Weber Street that carries four lanes of traffic on its path.The site is also in proximity to the Kitchener GO - VIA rail station. The Spur Linetrail offers a pedestrian and cyclist friendly activity on a trail that spans over2.5 kilometres.
12

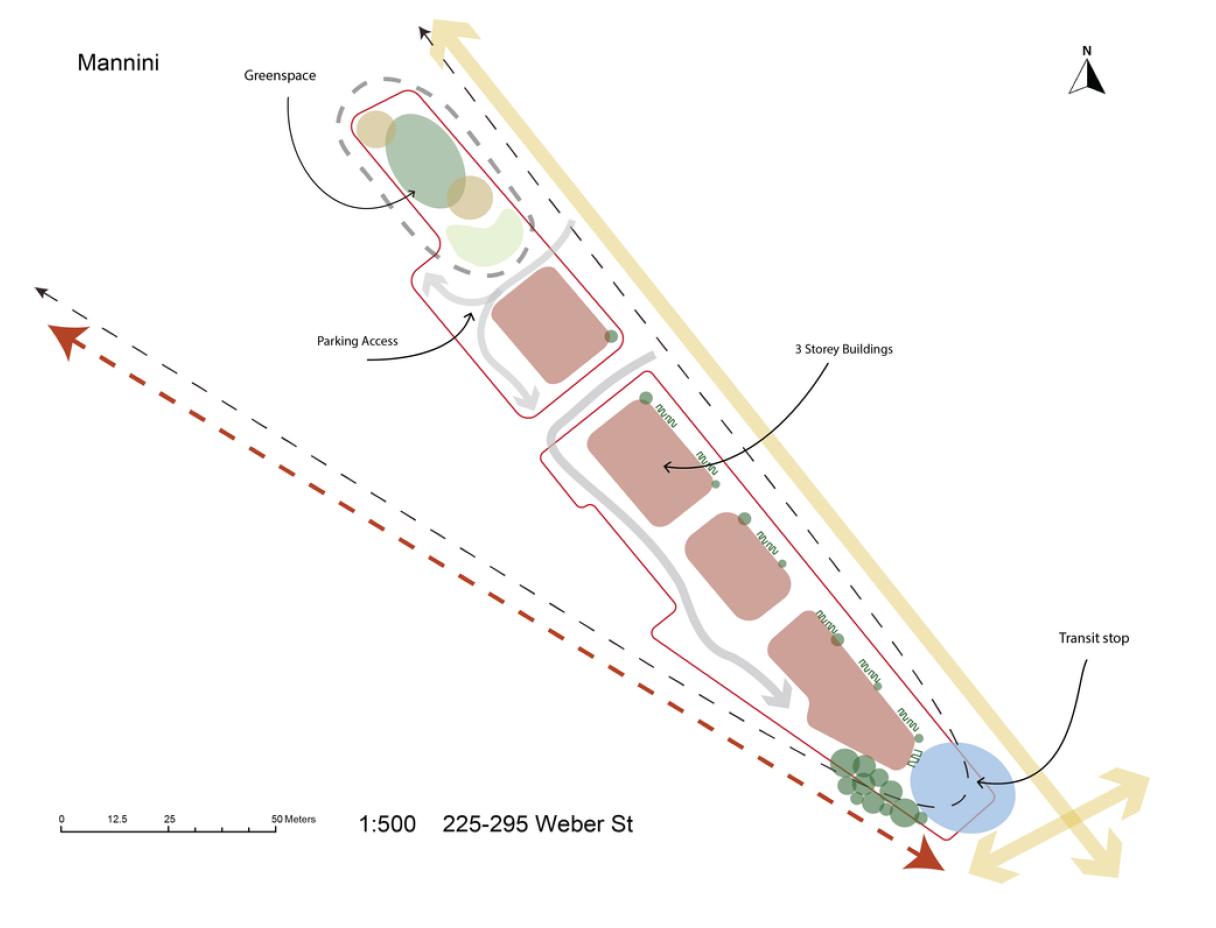

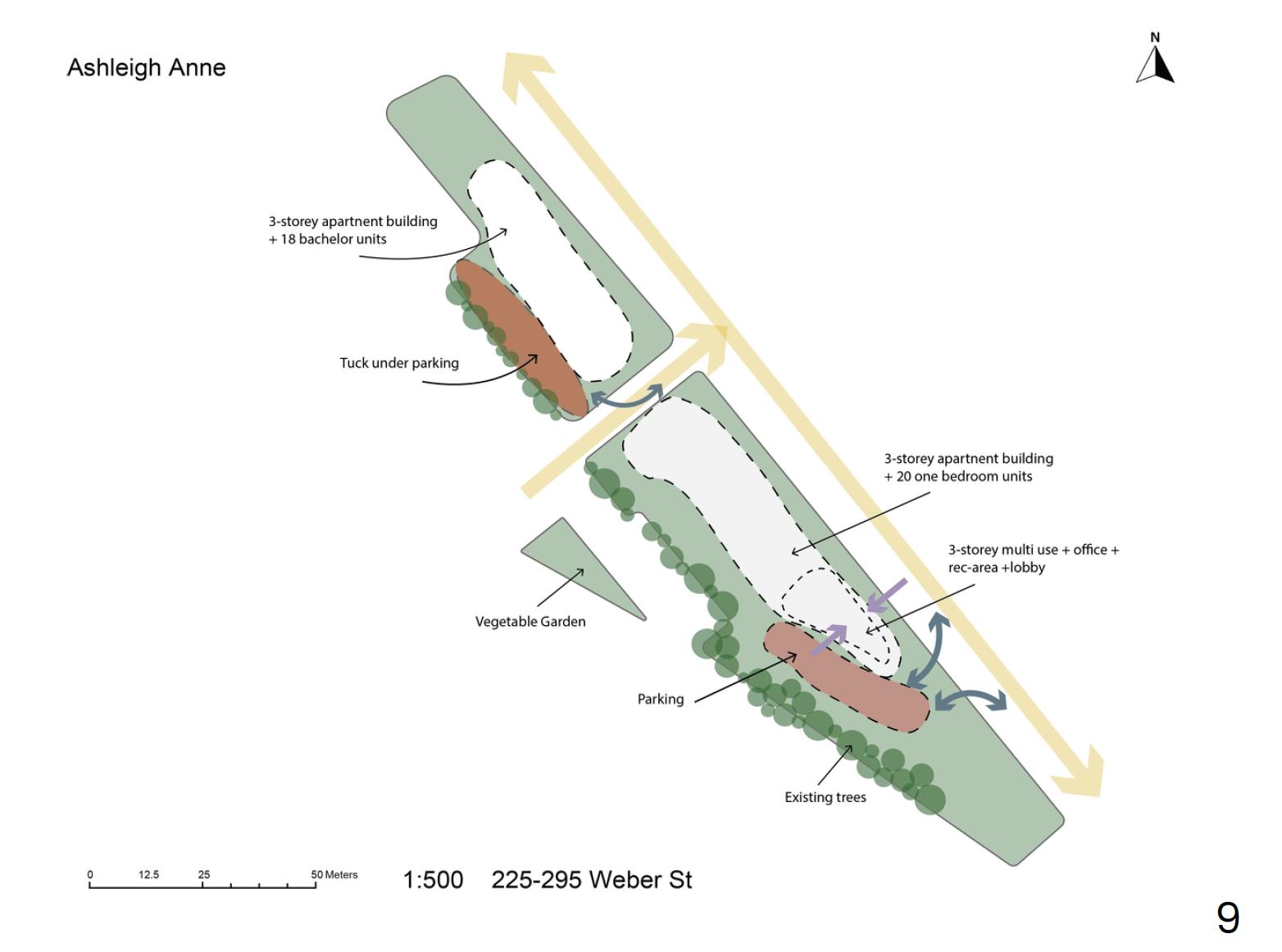

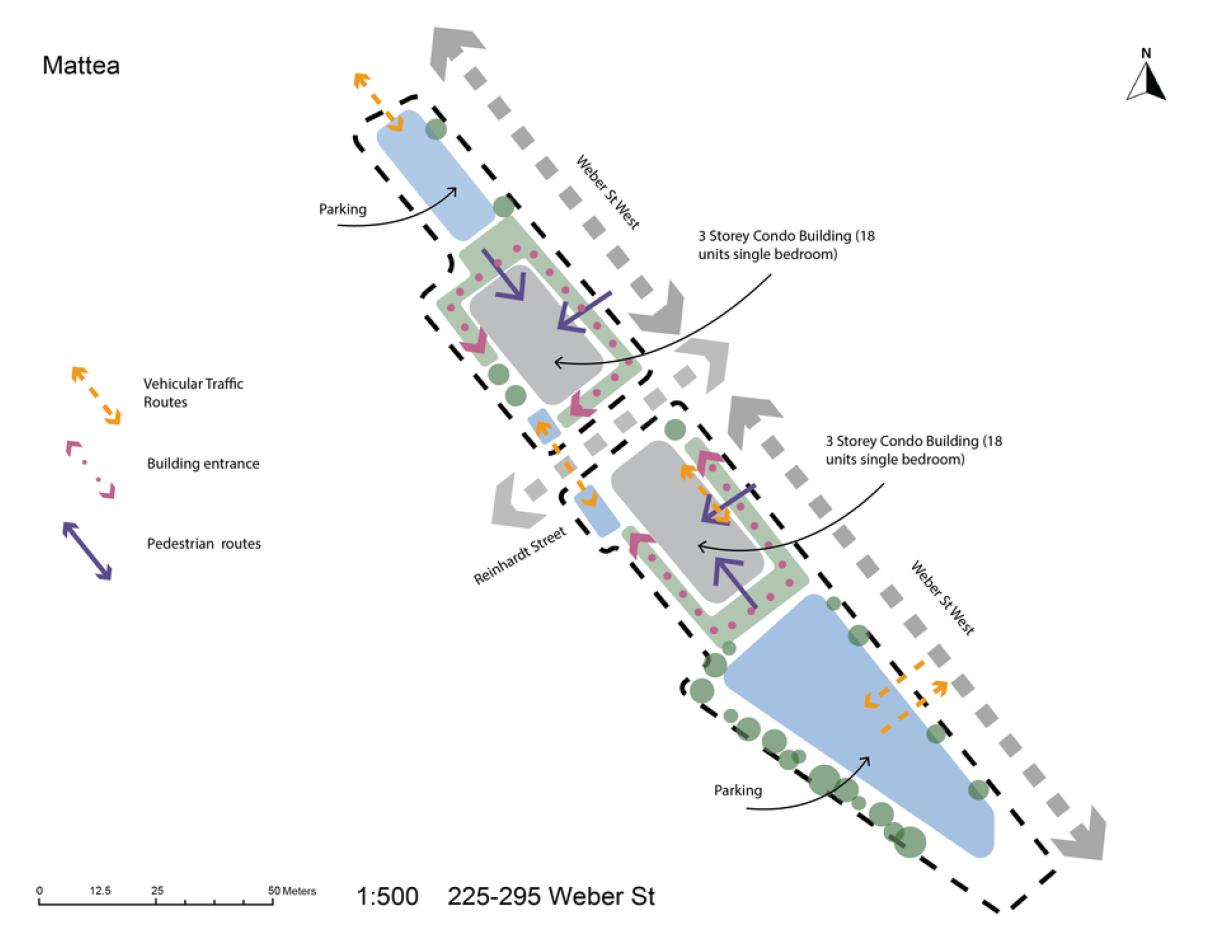

CONCEPT PLAN 1
13
CONCEPT PLAN 1
14
CONCEPT PLAN 3
15

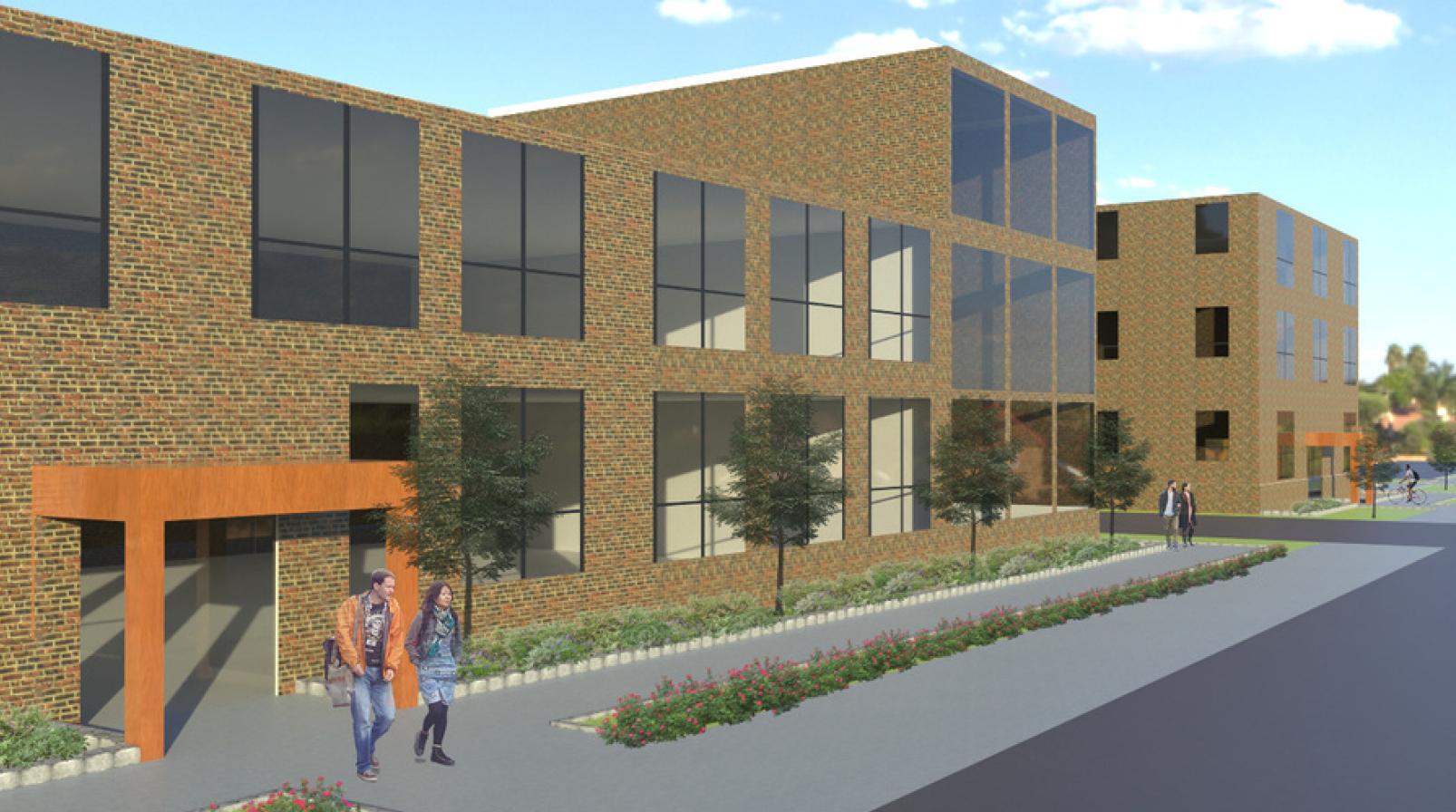

RENDERED PERSPECTIVE
16
Description
Site
17

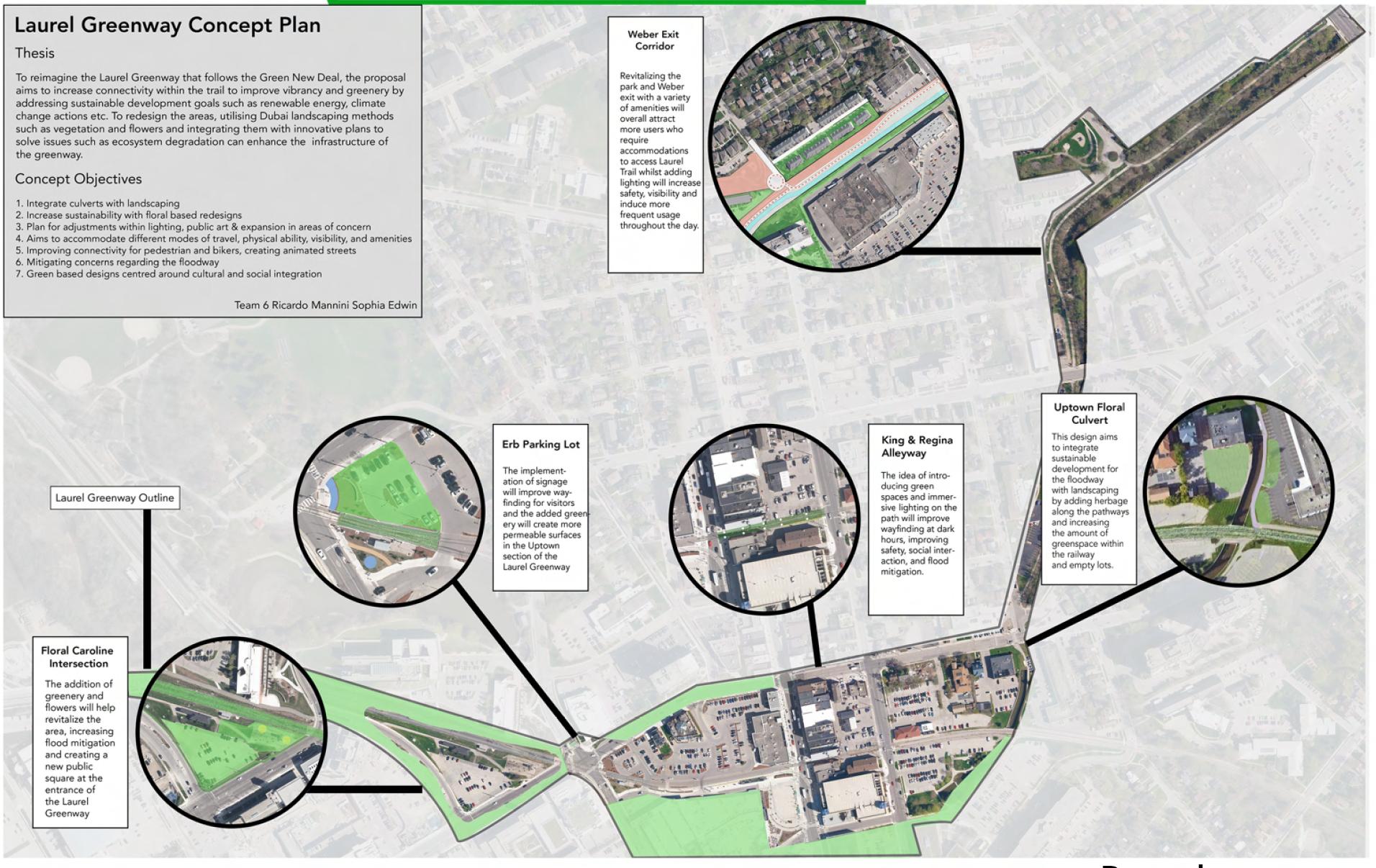

03 Waterloo, ON Laurel Greenway
Thesis
18

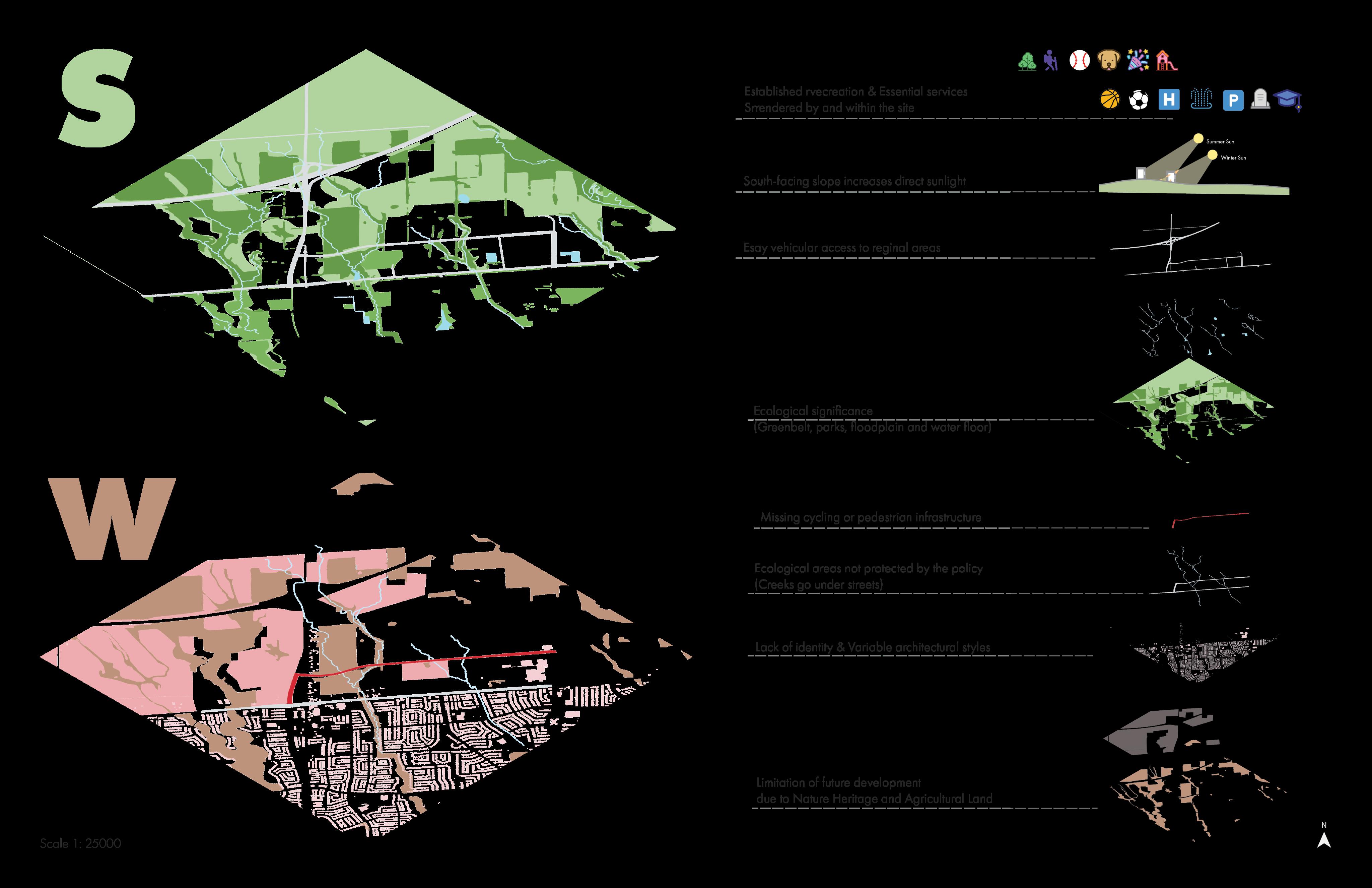

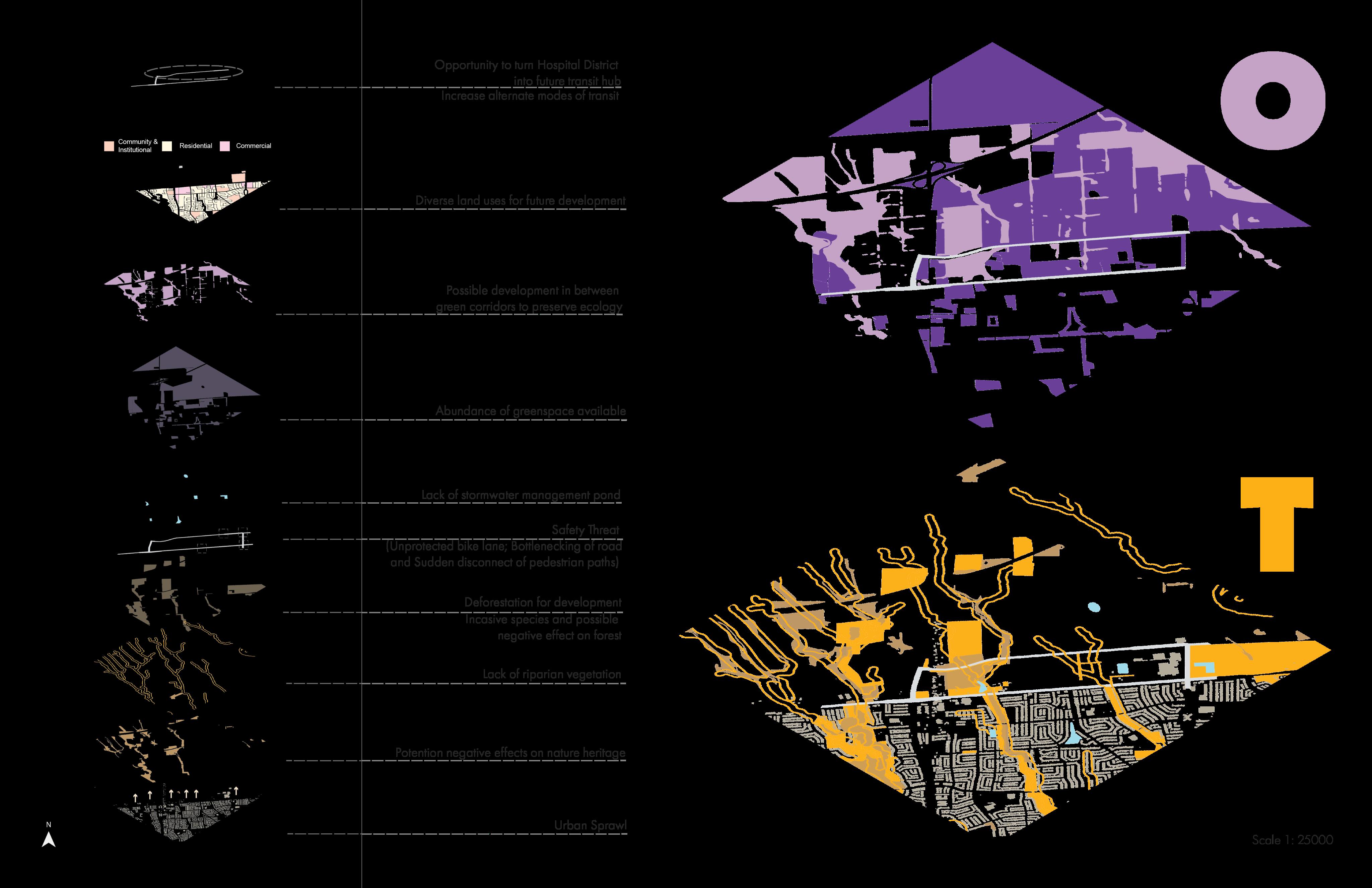

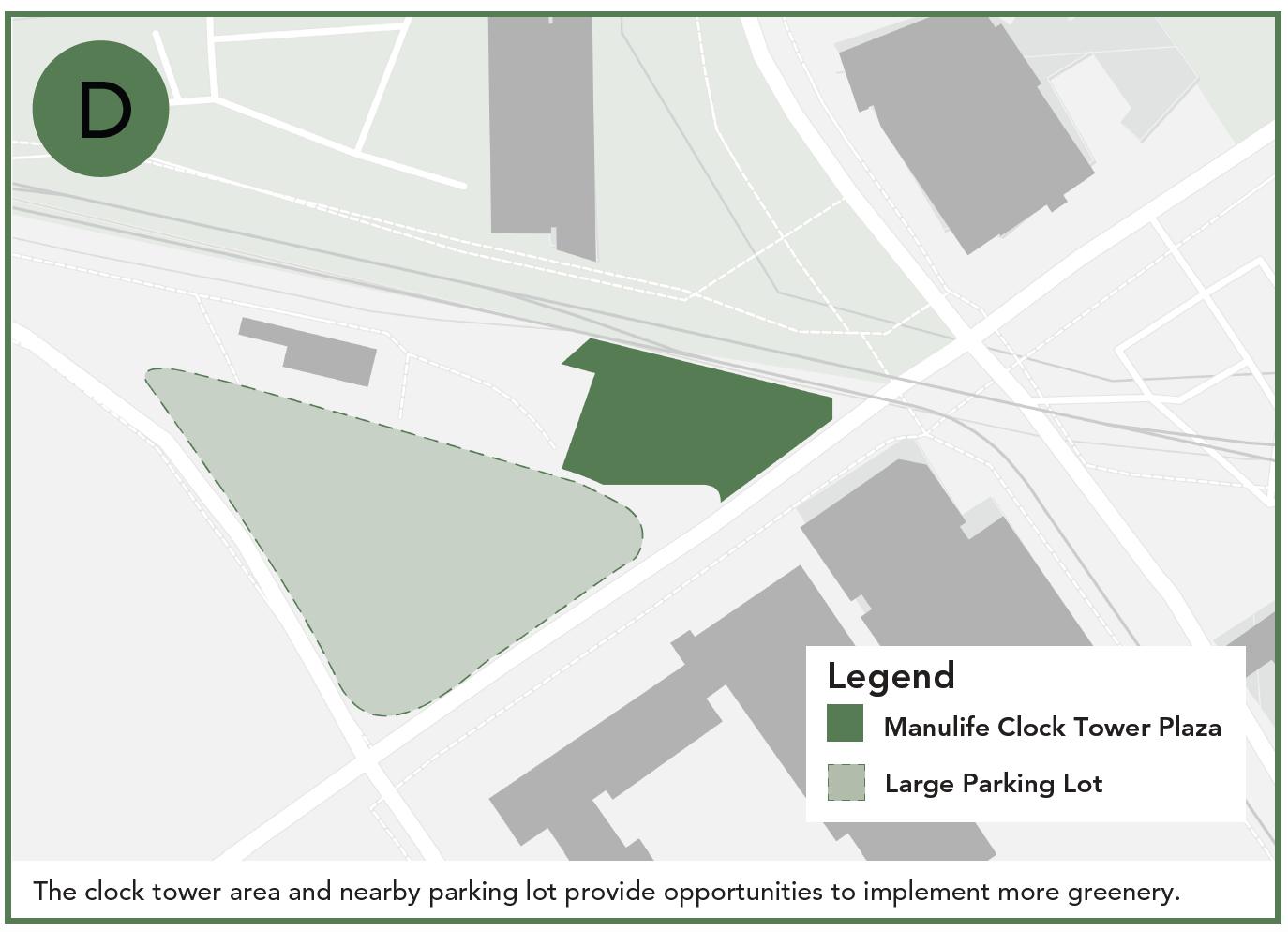

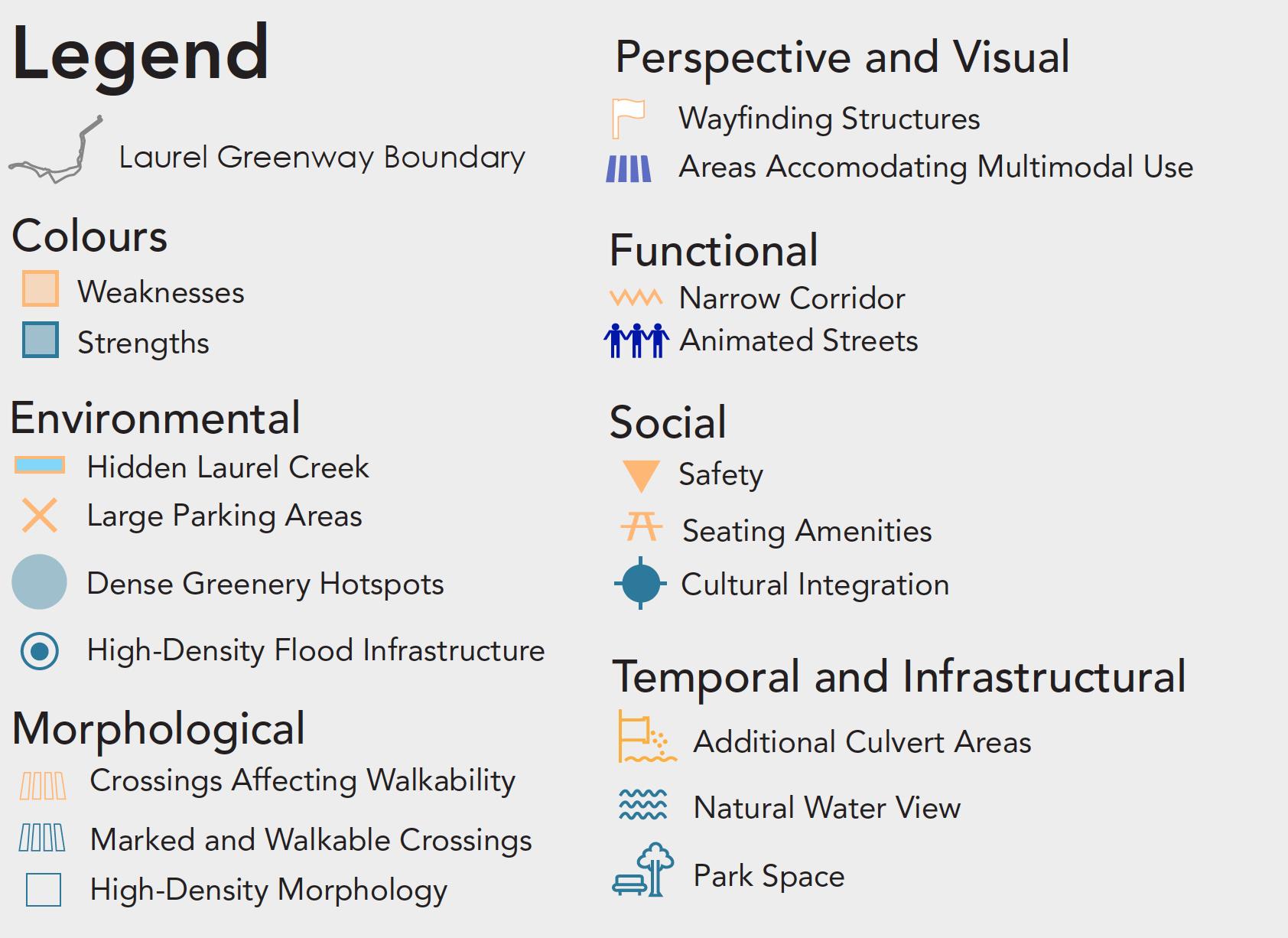

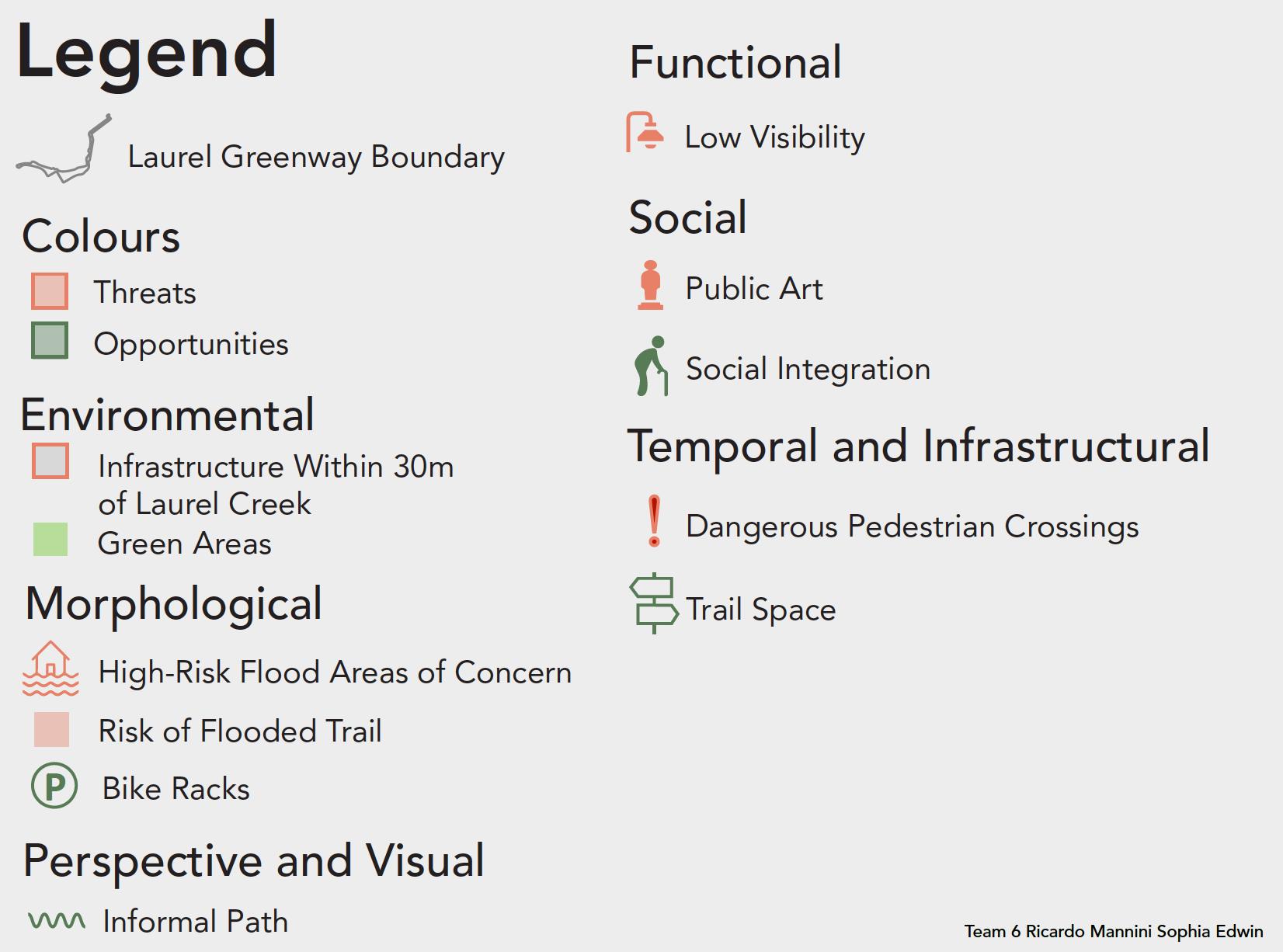

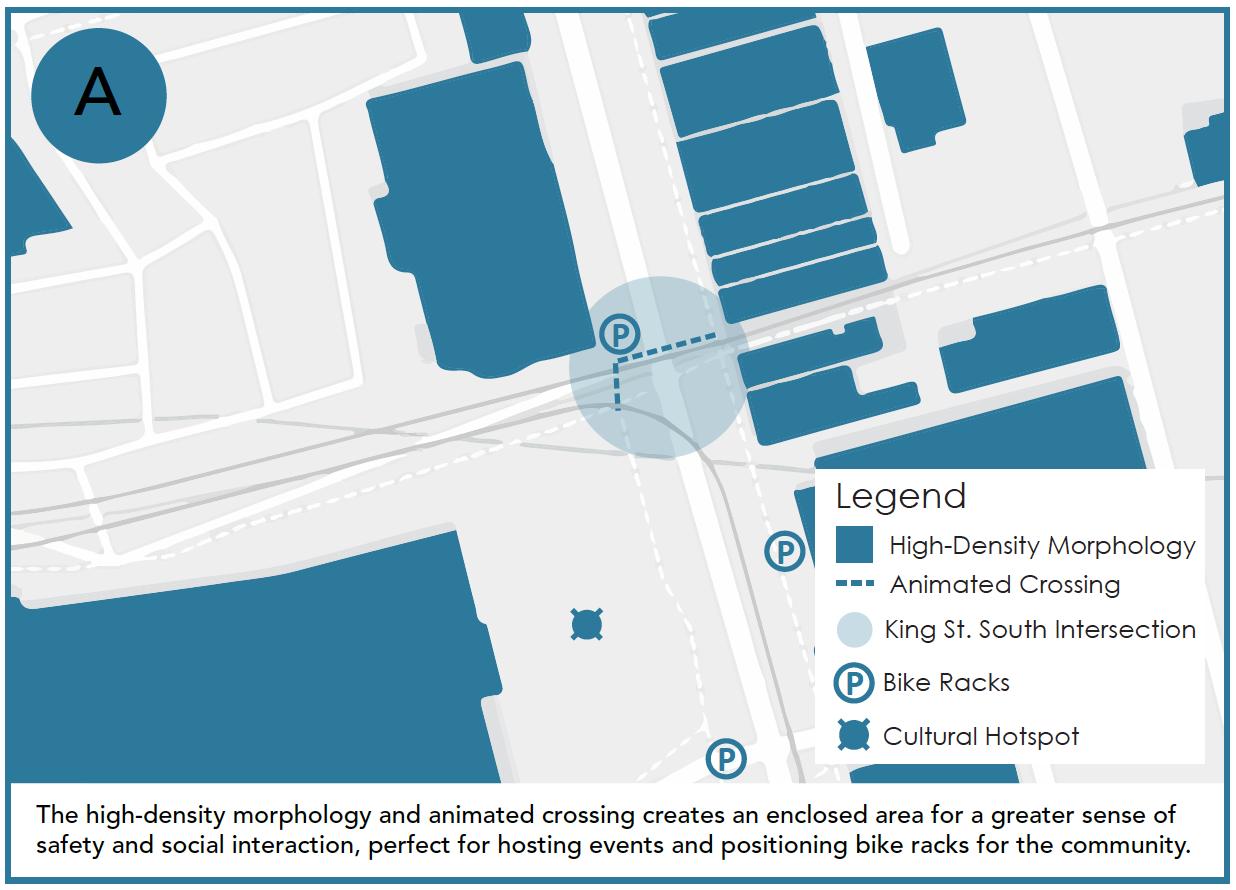

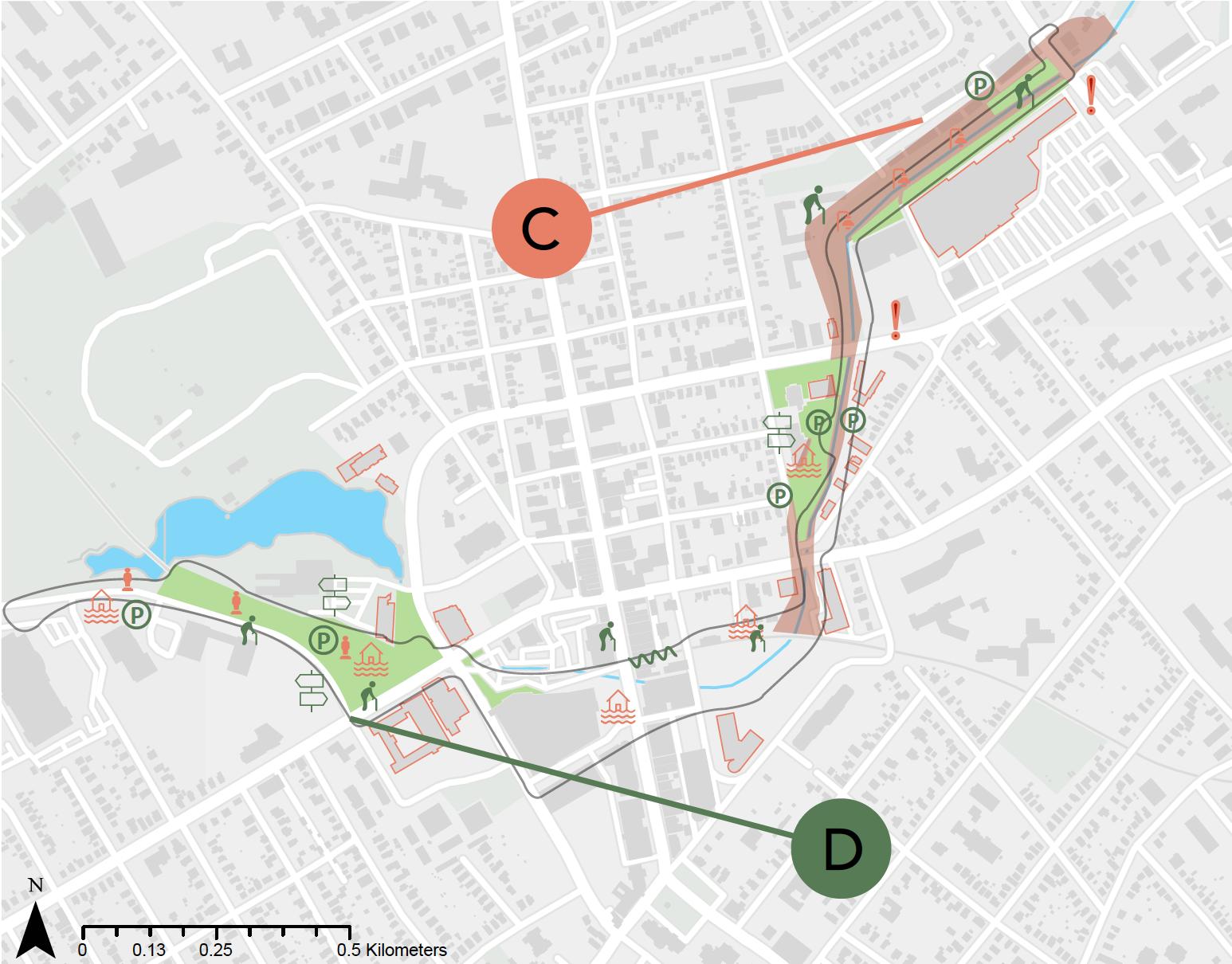

Strengths & Opportunities of Site
19

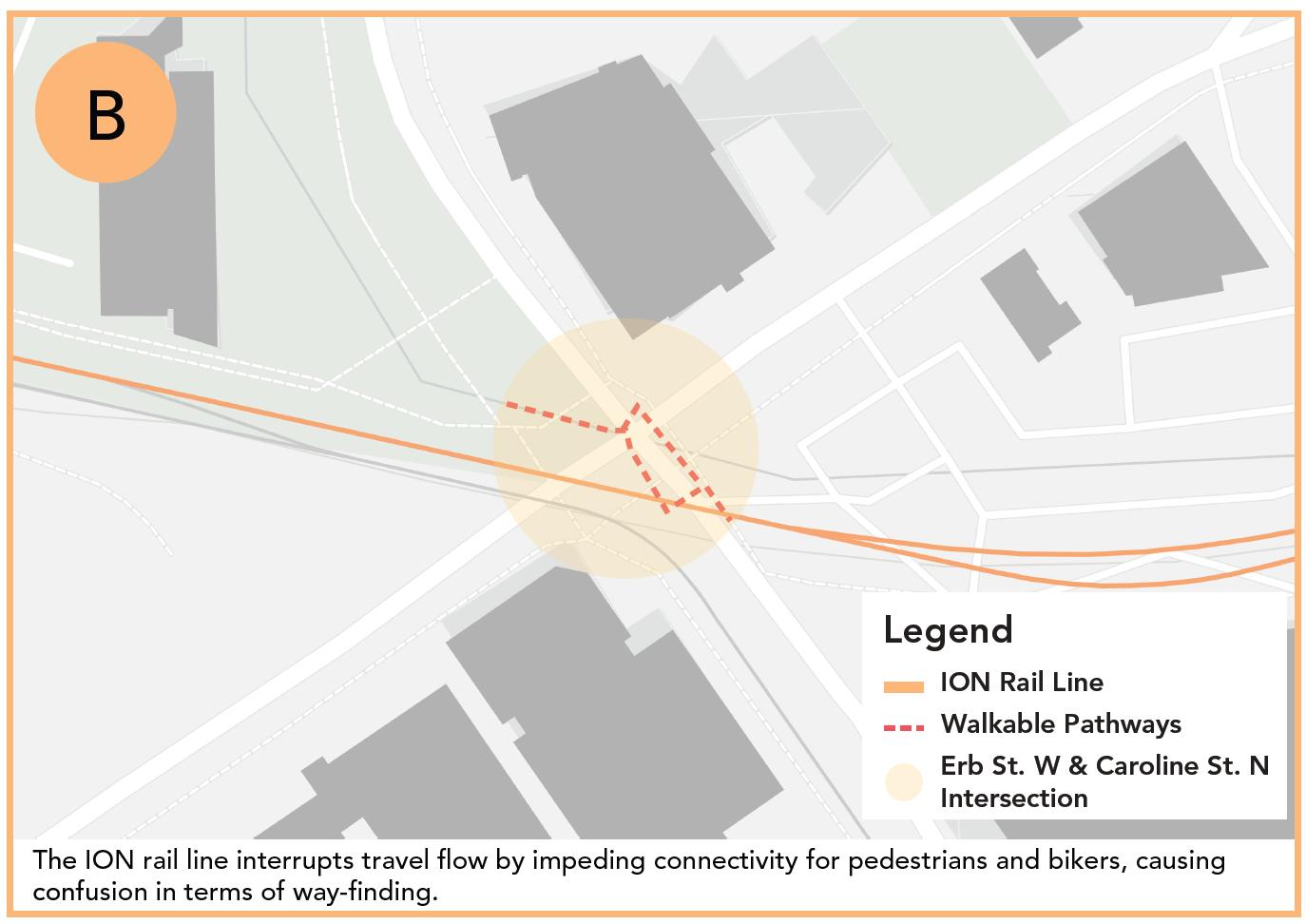

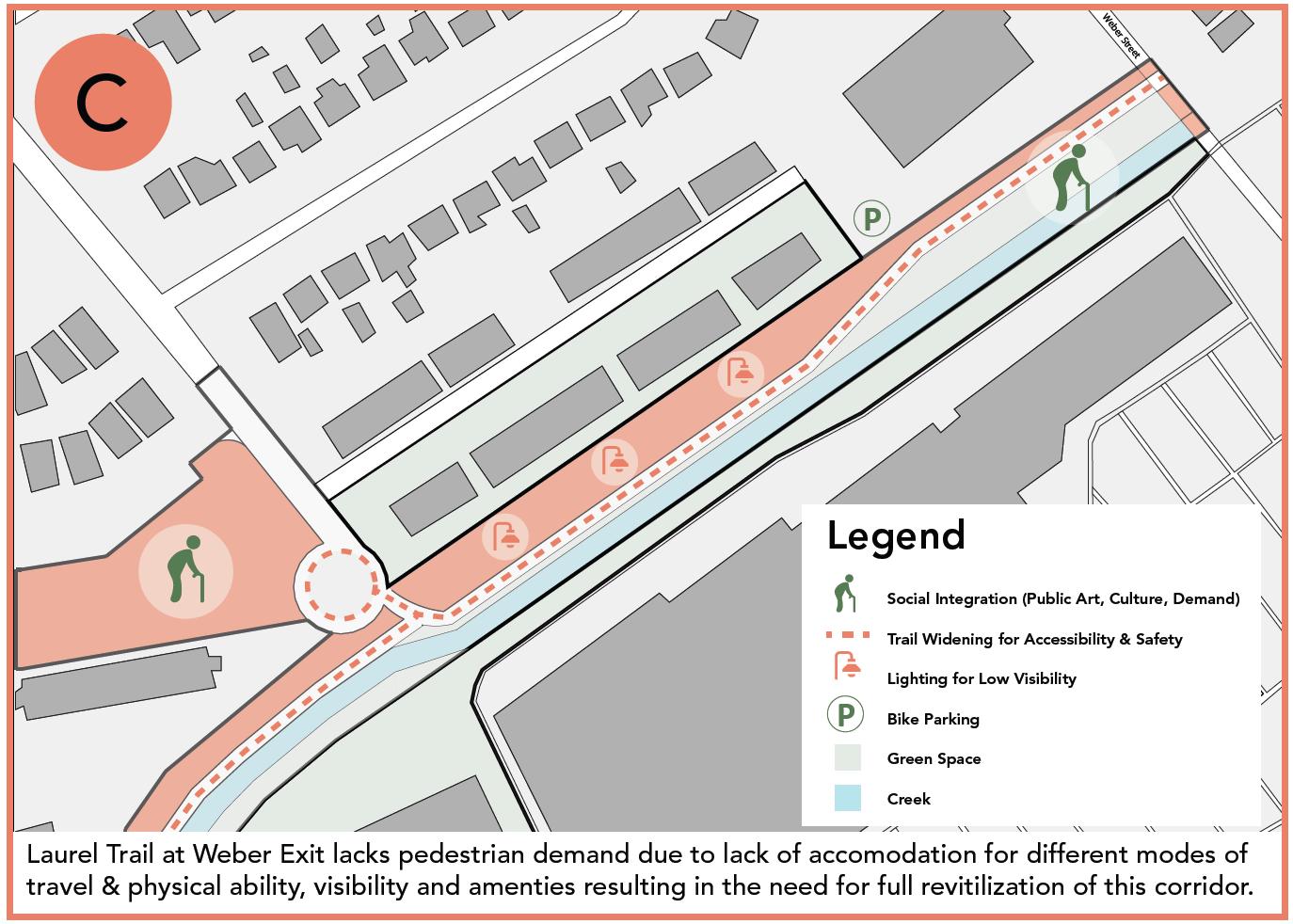

Weaknesses & Threats of Site
20

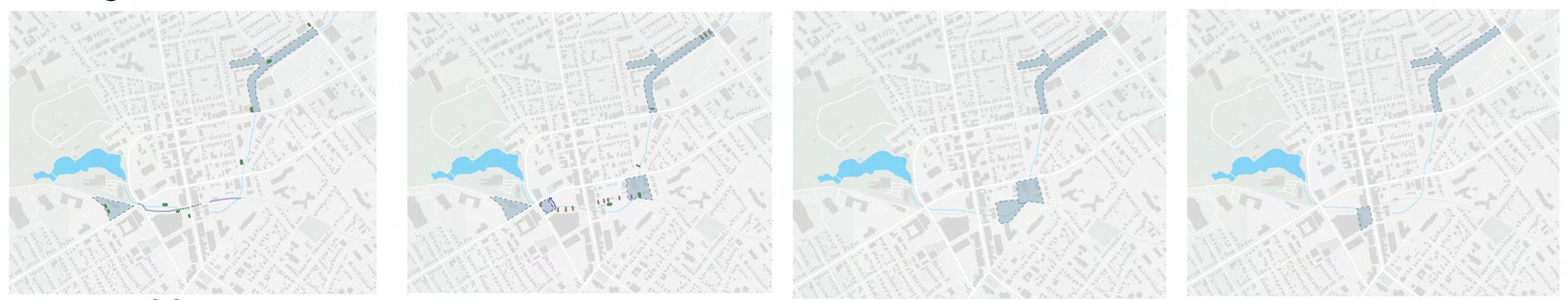

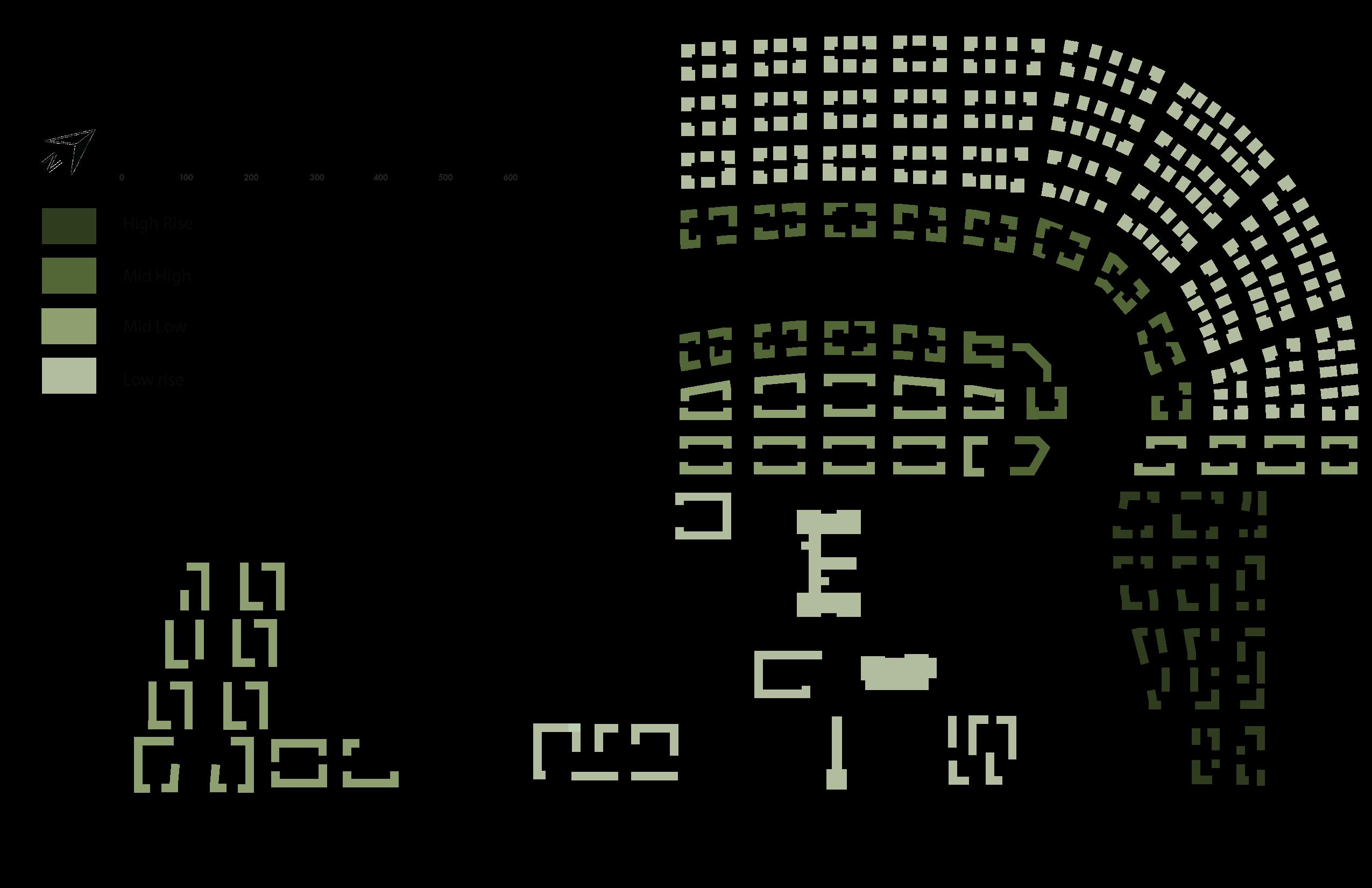

PHASING PERIODS
0 - 25 years
25 - 50 years
50 - 75 years
75 - 100 years
21

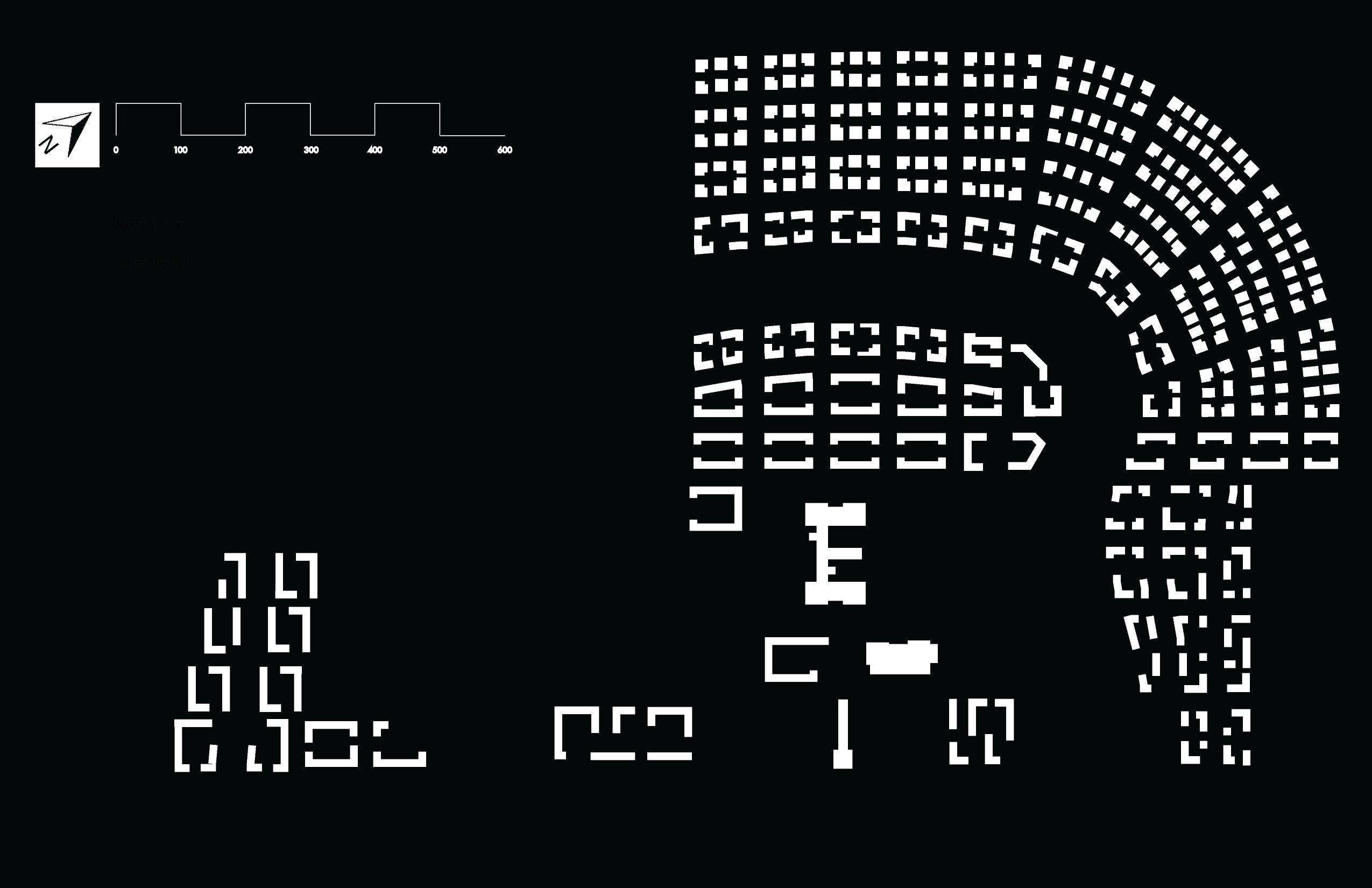

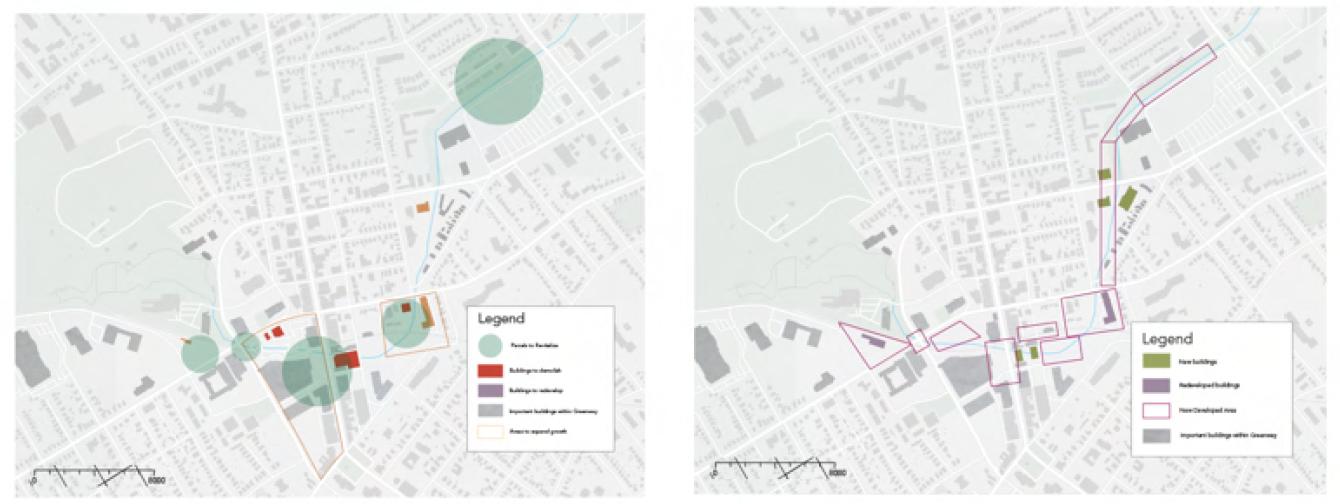

BUILDING PARCELS
After Before
22
After Before
STREET NETWORK
23

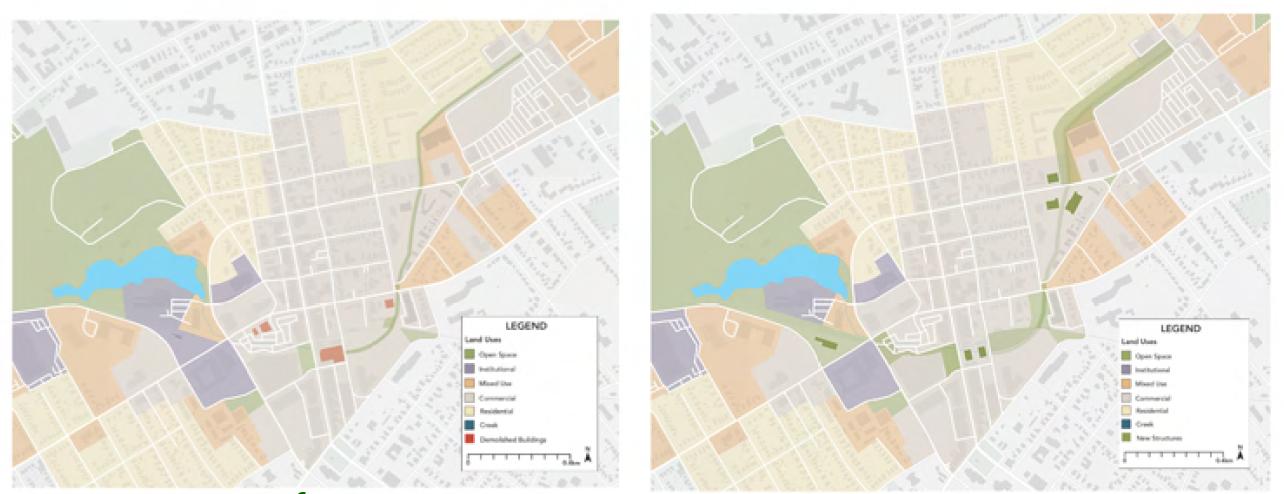

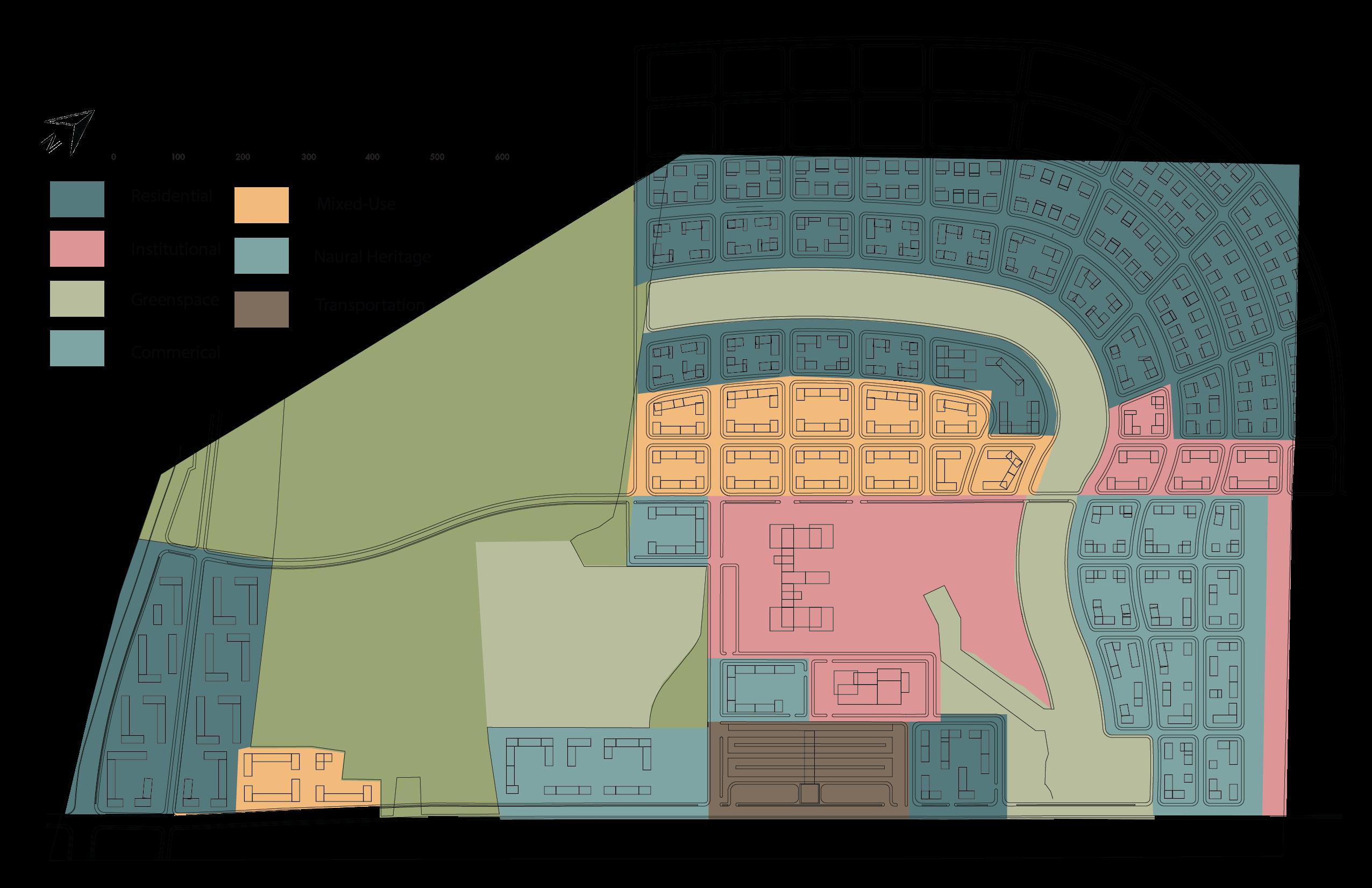

LAND USE
After Before
24

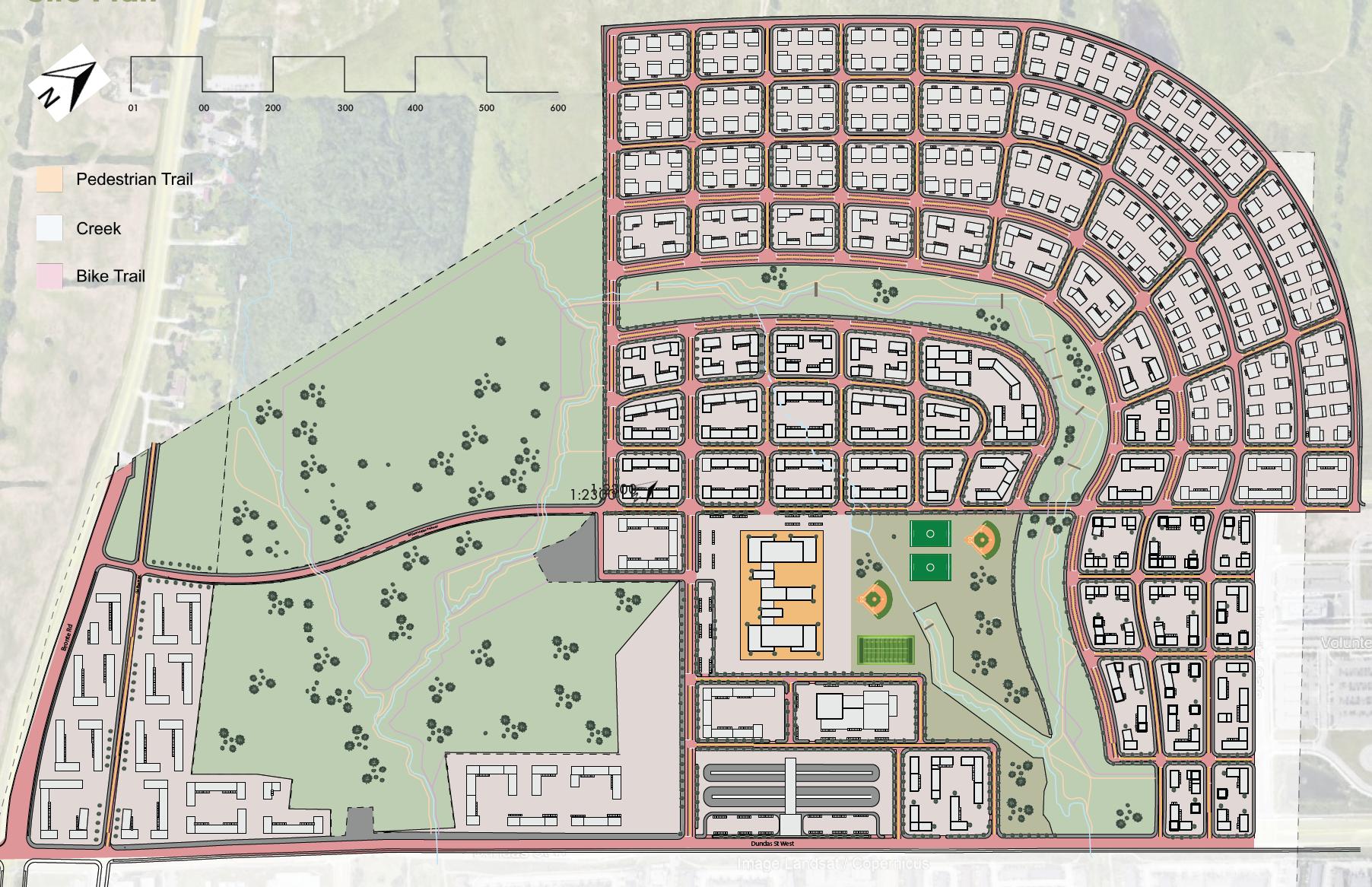

FINAL CONCEPT

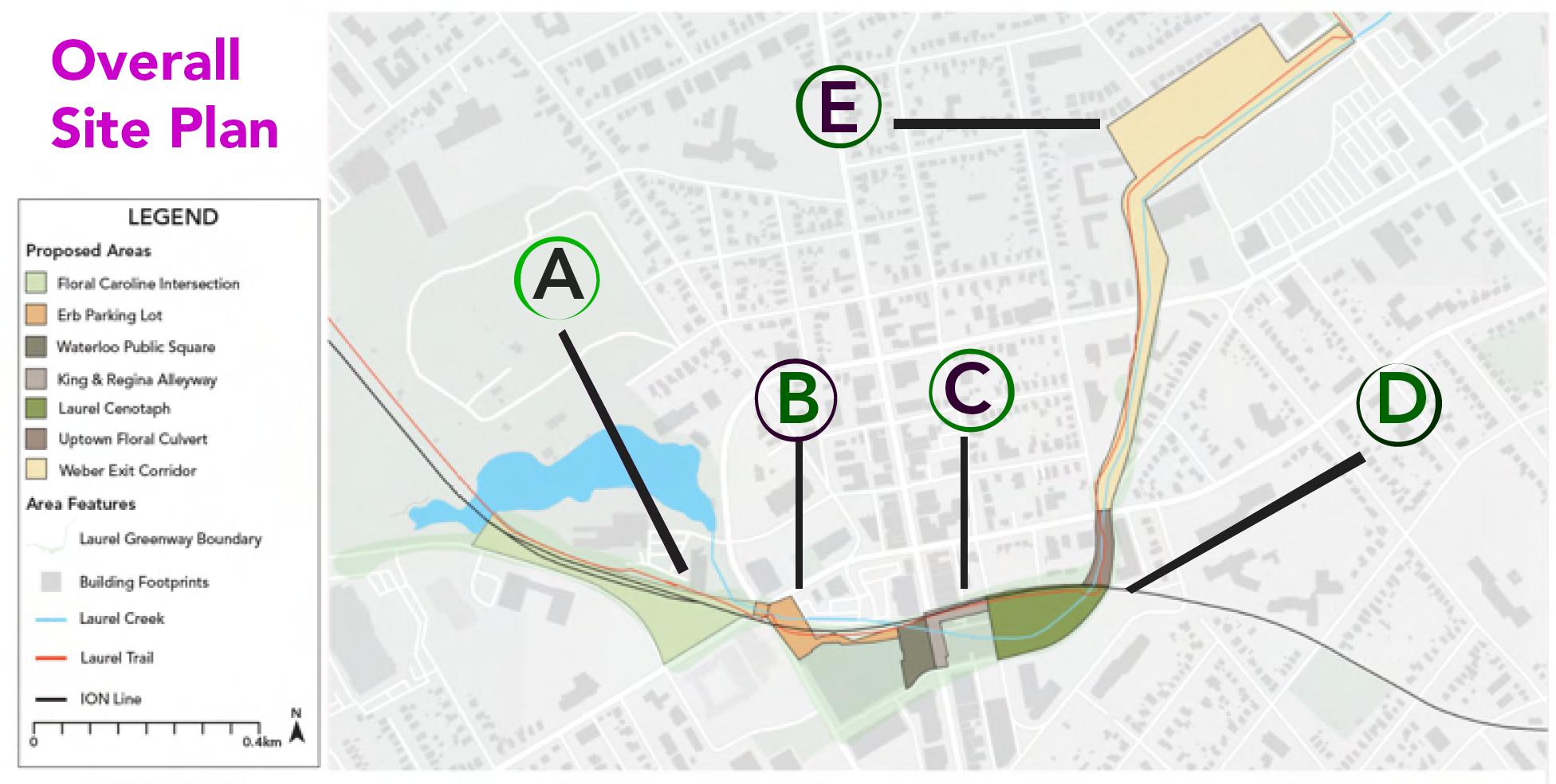

Overall Site Plan
25

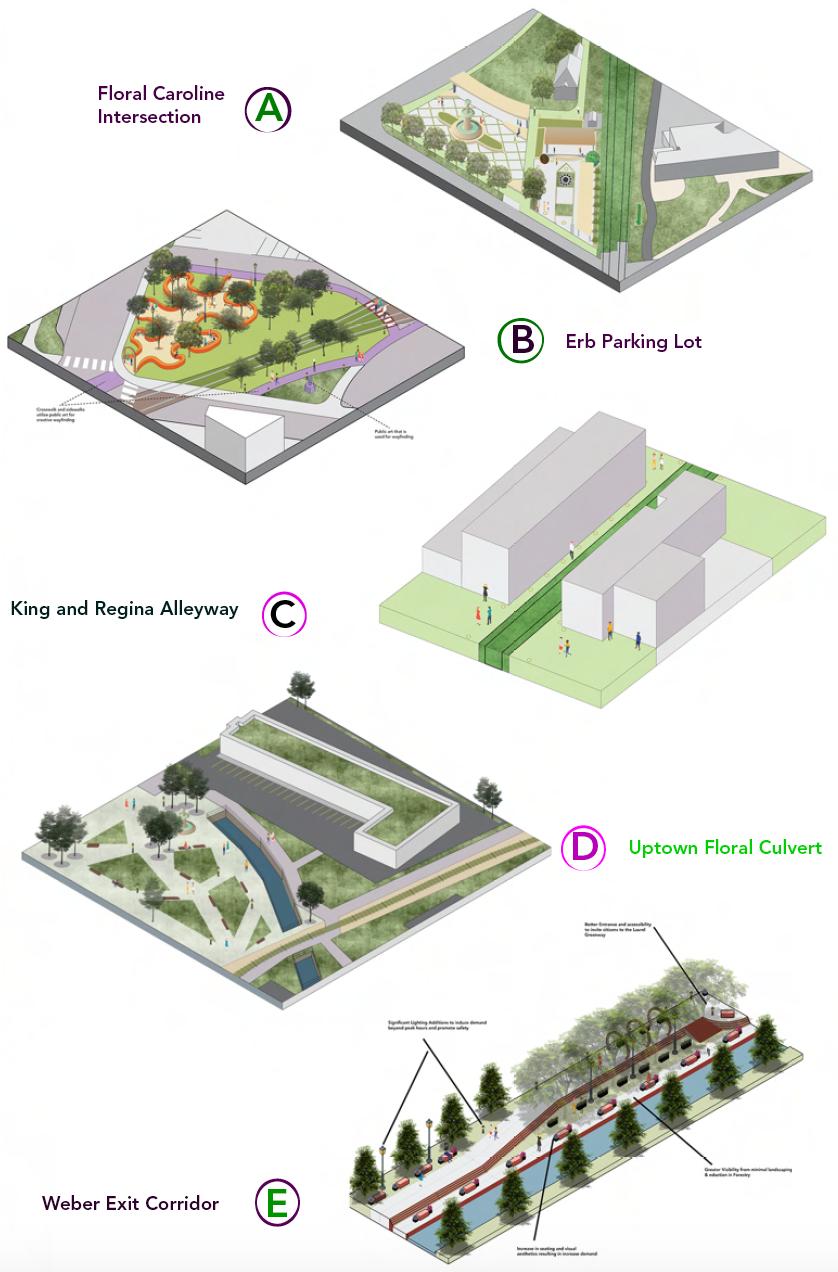

AXONOMETRICS
A C E B 26
