In a world where business operators are under pressure to achieve exceptional cleaning and hygiene standards in the face of rising utilities and consumables costs, high-performance chemical dosing and dilution systems aren’t just an asset –they’re a necessity.
That’s why SEKO’s expertise in the design of revolutionary laundry and warewash dosing products, chemical dispensers and spray systems is relied upon around the world. We’re the standard setter for chemical control, sustainable performance and remote management with a dedicated range of customisable, low-maintenance solutions integrating cutting-edge IoT technology.
Whether you’re fitting out a new installation or upgrading existing equipment, SEKO works alongside you at every stage of your project, from the initial application assessment through to world-class technical support that ensures you get the most from your systems.

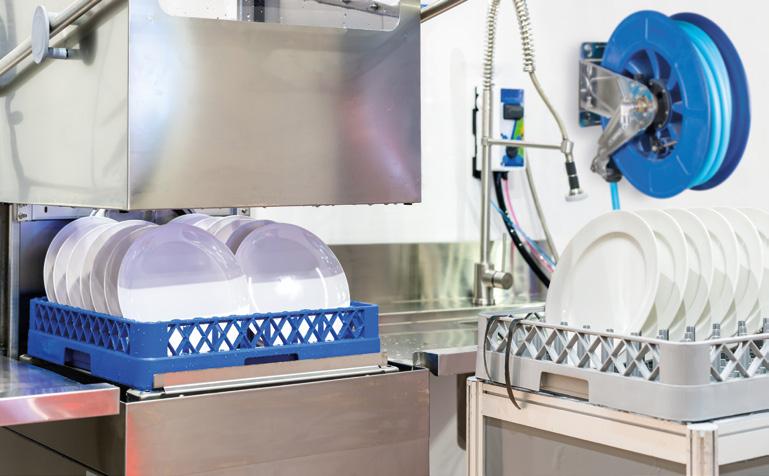

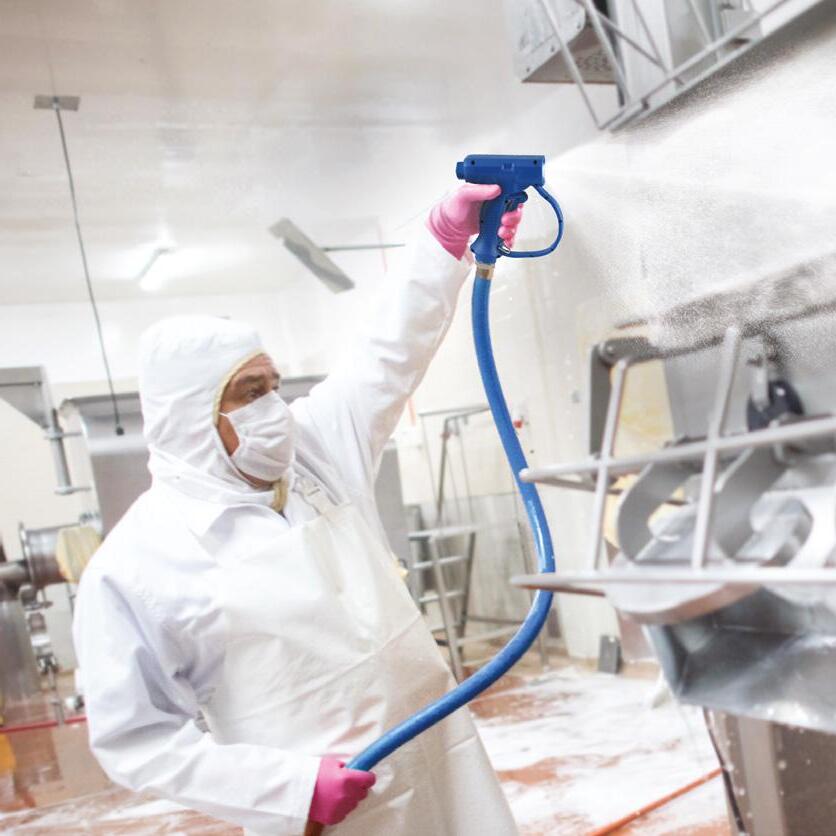

Cleaning & Hygiene Applications
SEKO Connectivity Solutions
Users expect remote management of their equipment
IoT enables access to operational information via smart devices
Users can view data in real time or analyse it historically
Remote connectivity helps optimise costs
Planned maintenance reduces downtime.

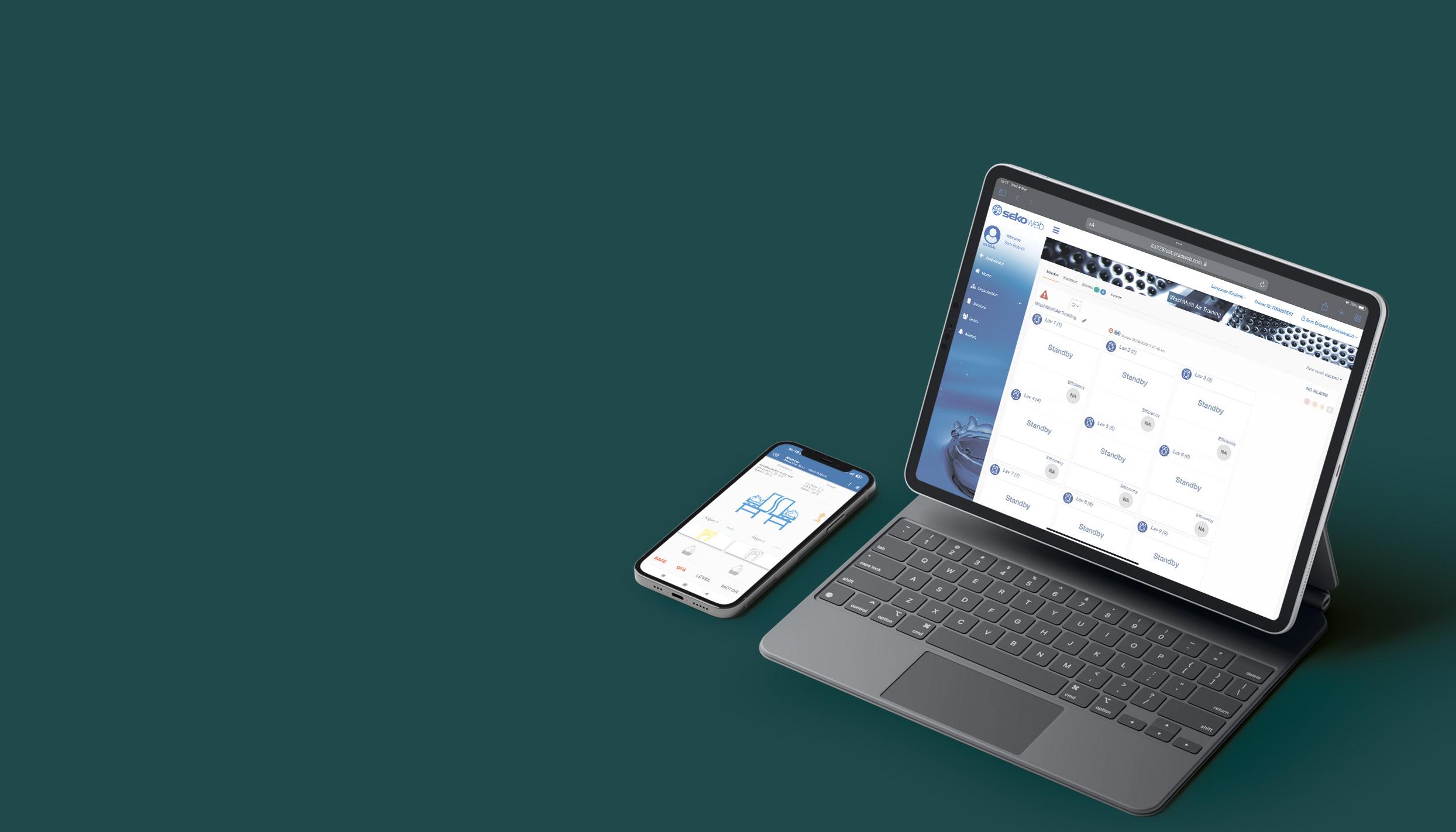

seko web
Professional dosing system management platform
Designed specifically for engineers, SekoWeb provides users with their own password-protected dashboard granting them unrestricted access to process data along with the ability to make programming changes across multiple installations.
SekoWeb is compatible with an ever-increasing number of SEKO systems and is ideal for busy technicians seeking the flexibility to manage dosing equipment at their convenience and reduce travel time and cost.
SekoWeb features
• Available on all iOS or Android-compatible smart devices
• Accessible via online login or by scanning a product’s QR code
• Full access to all settings and parameters from any location
• Connect instantly to multiple installations
• Unprecedented insight into operating costs
• Track chemical consumption and account for every drop
• Adjust programmes on the move
• Comprehensive access to alarm reporting
• Unrestricted data analysis
• Map geolocation
SekoWeb & SekoBlue
SEKO’s dedicated apps and online platforms for engineers and end users deliver unprecedented equipment access. Whether at work, at home or on the move, operators can connect to their global systems in an instant from a single intuitive platform.
Choose SEKO’s IoT-enabled systems for:
• Complete process insight
• Enhanced user experience
• Increased revenue
• Time and money savings
• Improved employee productivity
• Simplified business decisions
seko blue

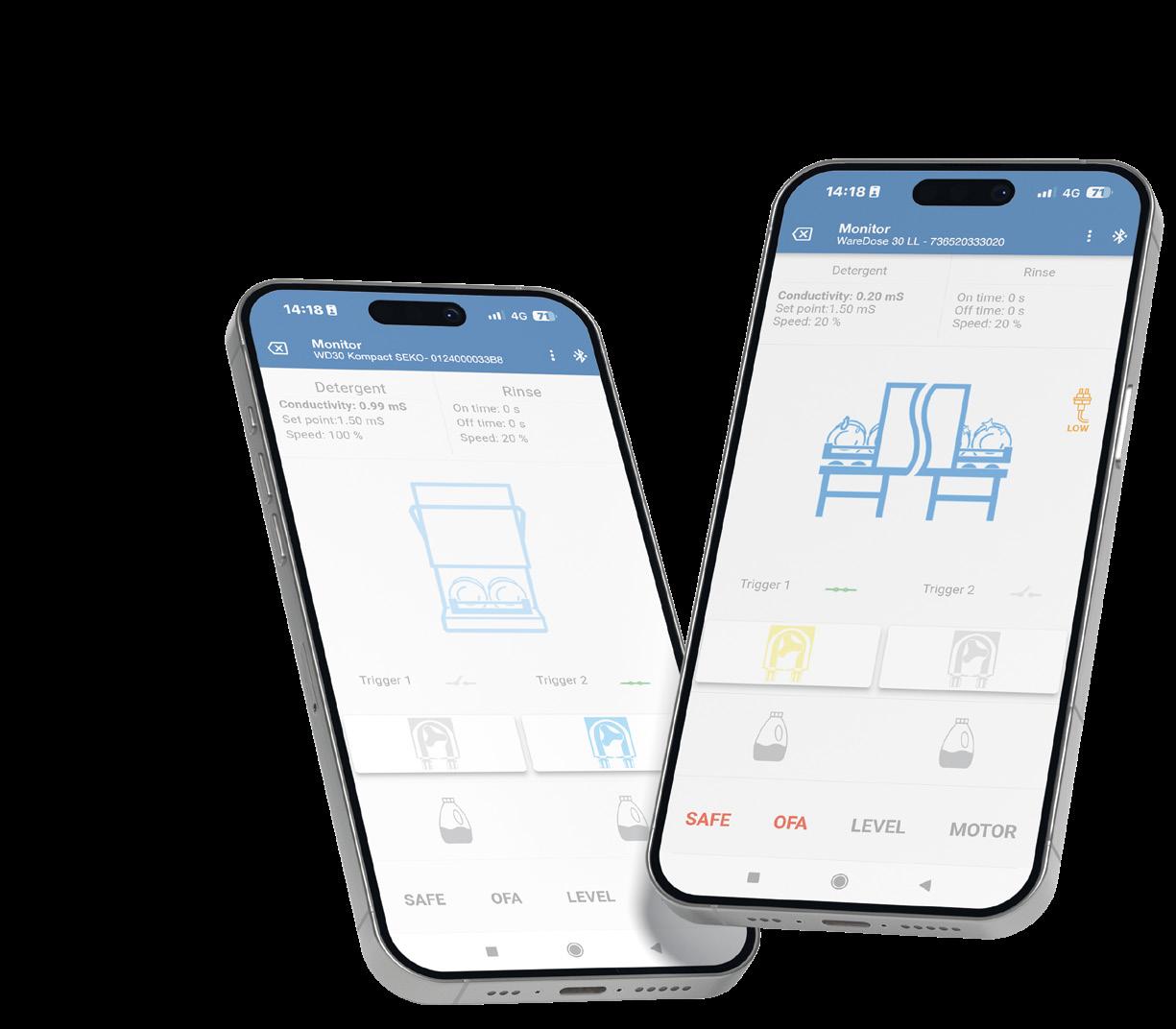

Manage your system with SEKO’s Bluetooth app for smart devices
SekoBlue is the unique app that brings Wi-Fi and Bluetooth connectivity to SEKO laundry and warewash system operators looking for complete insight into device status, performance and cost. From pump priming to programme setting, SekoBlue puts application control in the palm of your hand.
SekoBlue is the perfect fit for users of SEKO’s modular systems as it allows template programmes to be pre-set and then quickly uploaded to newly added devices, minimising setup time and ensuring consistency across the installation.
SekoBlue features
• Password protection to prevent interference
• Both device and washer status can be easily monitored on SekoBlue’s main dashboard to easily control washing operations, upcoming triggers and alarms
• Settings can be exported from one installation to another via Bluetooth connection to the device
• Template programmes can be pre-set and quickly uploaded to new devices on the installation to minimise setup time
• Counters registered by the device can be shared via SekoBlue on PDF files for basic consumption data analysis
• Firmware updates maintain high performance
• Pump priming can be executed both on the system’s front keypad or via SekoBlue’s main dashboard screen
• Available in many different languages supported by the available smartphones

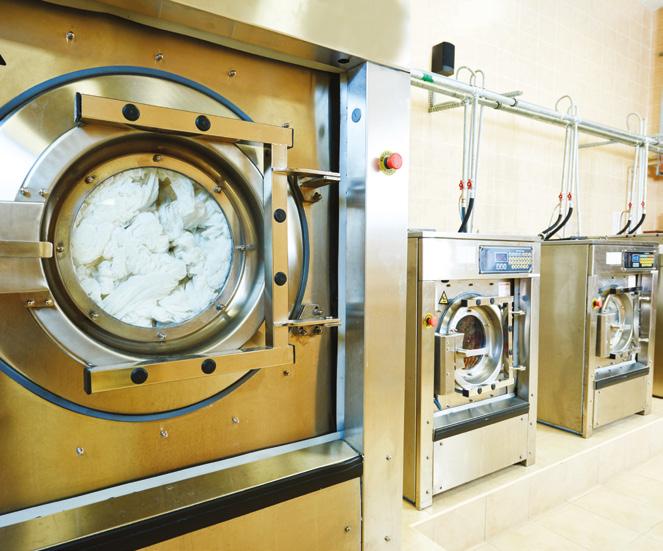

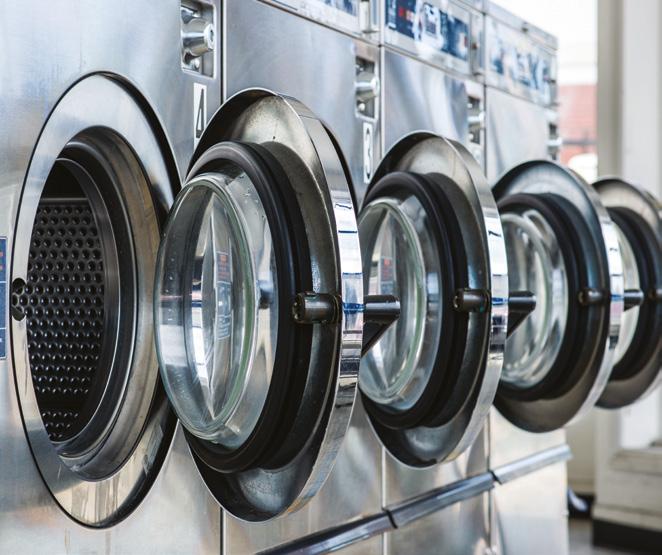

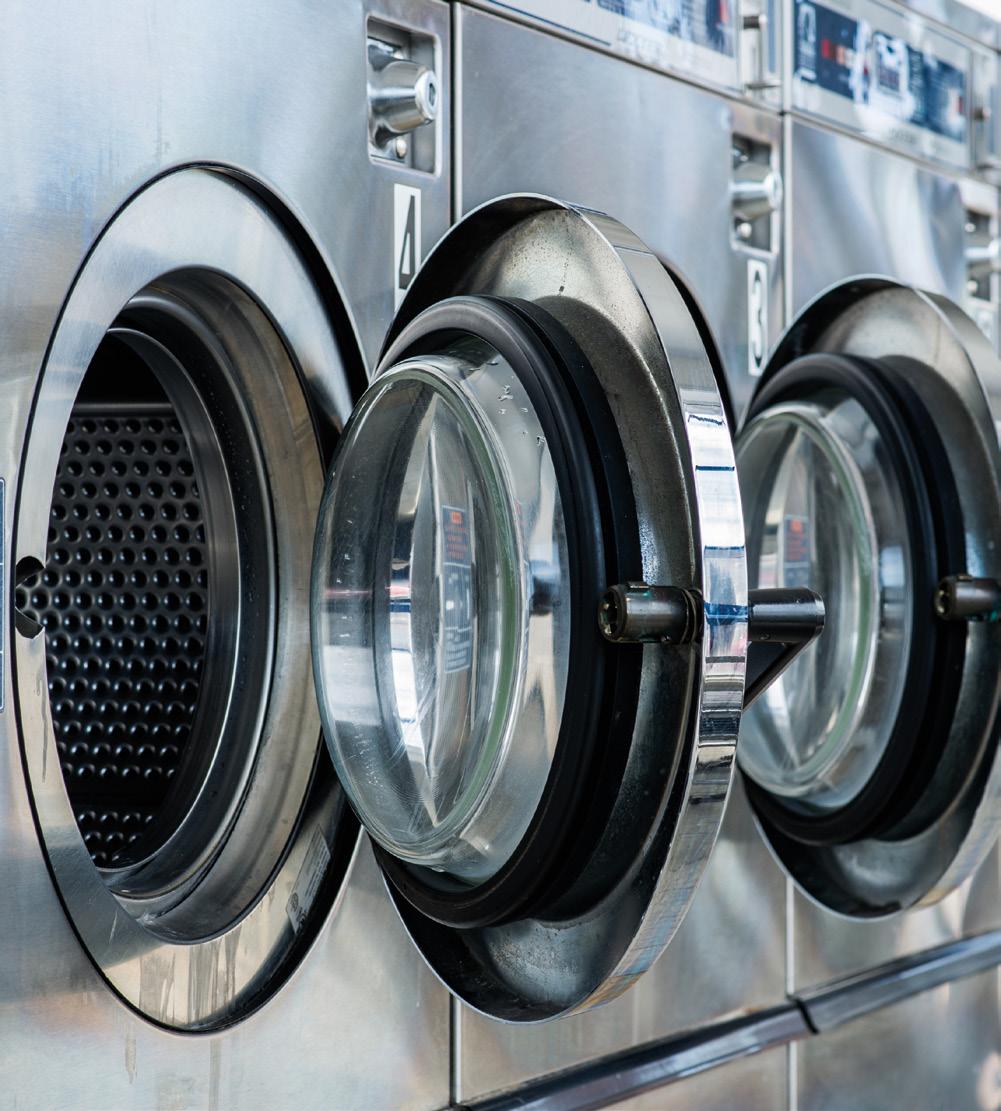

Laundry
Laundry Applications
OPL machines
For on-premise laundry machines sized from 7 kg up to 60 kg, SEKO’s intuitive chemical dosing systems deliver precision, consistency and reliability in equal measure.
Commercial machines
Operators in the competitive commercial laundry sector who demand chemical dosing pumps capable of continuous operation and repeatable dosing performance choose SEKO as their trusted systems provider.

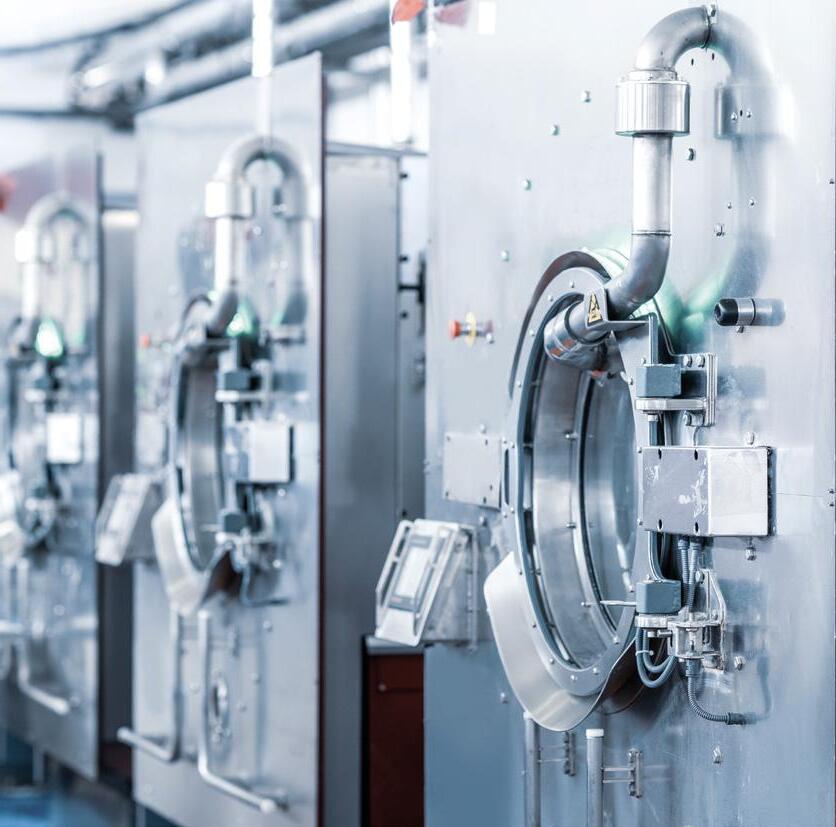

Industrial machines
With a constant heavy flow of items to clean, industrial laundries can’t afford to re-wash due to a dosing pump error, which is why SEKO’s ultra-reliable systems are the go-to choice for professionals worldwide.
Washer-extractors

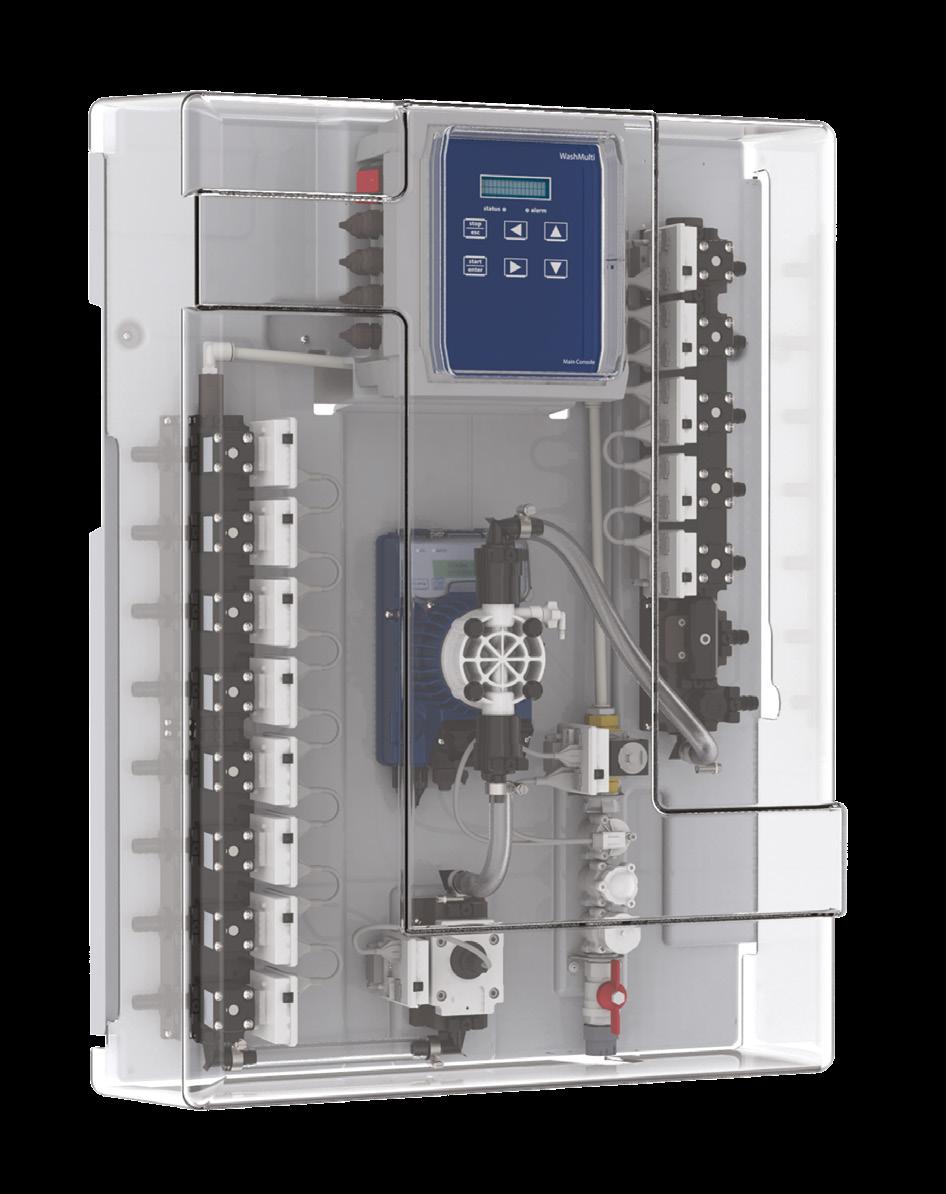

Designed specifically to serve washer-extractors, SEKO’s Wash Series laundry solutions include dedicated pump systems that help managers minimise chemical, water and energy consumption as part of sustainable operations.
Continuous batch washers

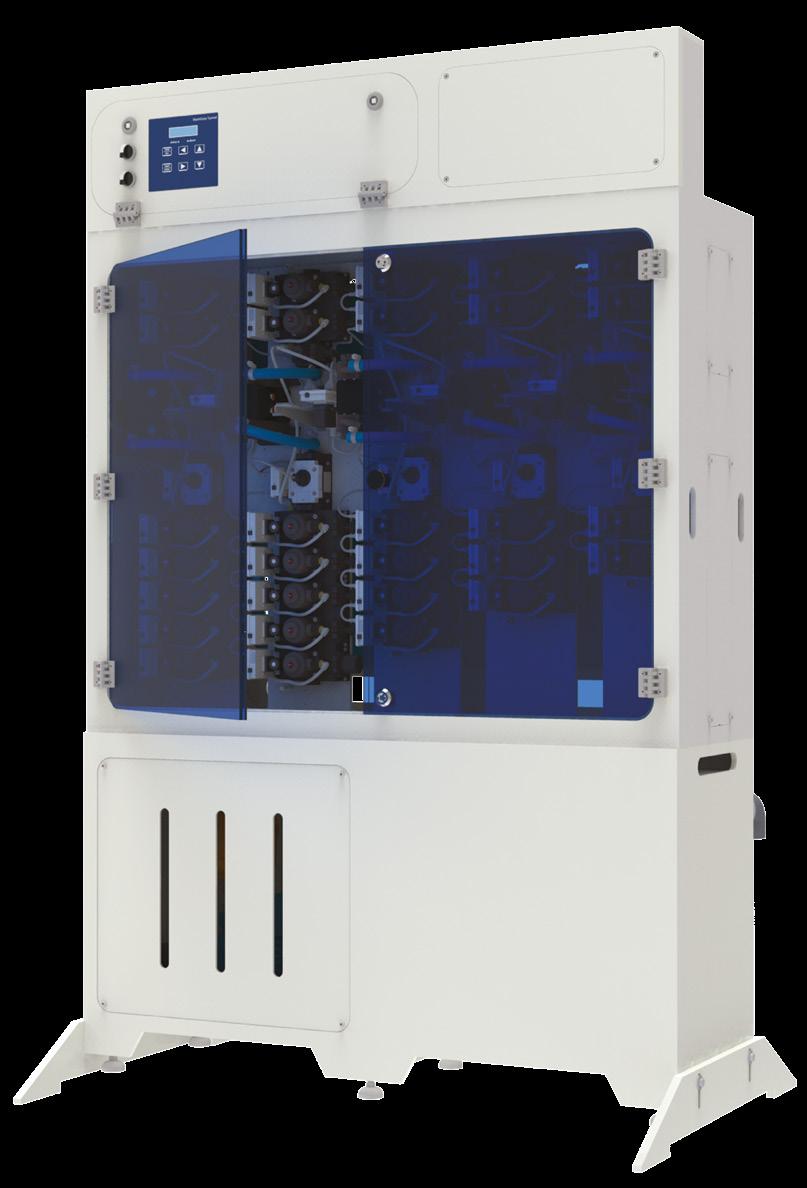

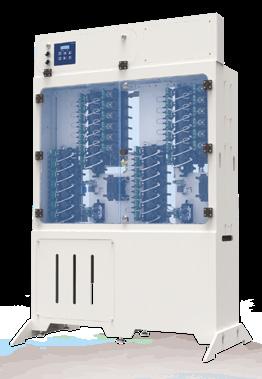

SEKO’s Wash Tunnel has been purpose-designed for use with continuous batch washers, featuring up to five dosing modules which each serve a specific point of the process from pre-wash to final rinse.
WashBasic Series
WashBasic is a series of single, double and triple-pump systems for onpremise laundry, combining precise dosing, extensive service life and userfriendliness for an effective, reliable solution.
Purpose built for OPLs
WashBasic pumps are made to meet the needs of on-premise laundries, featuring SEKO’s design expertise for easy installation, straightforward operation and low maintenance requirement.
Precision design
This range of systems brings the precision and consistency of peristaltic pump-driven dosing to OPLs of every size along with a refined design that ensures reliable performance and reduced chemical consumption.
Applications

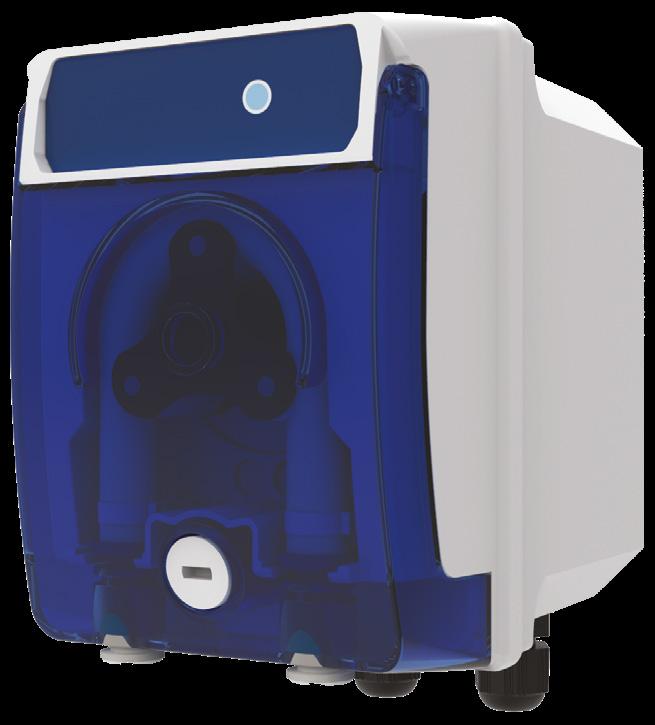

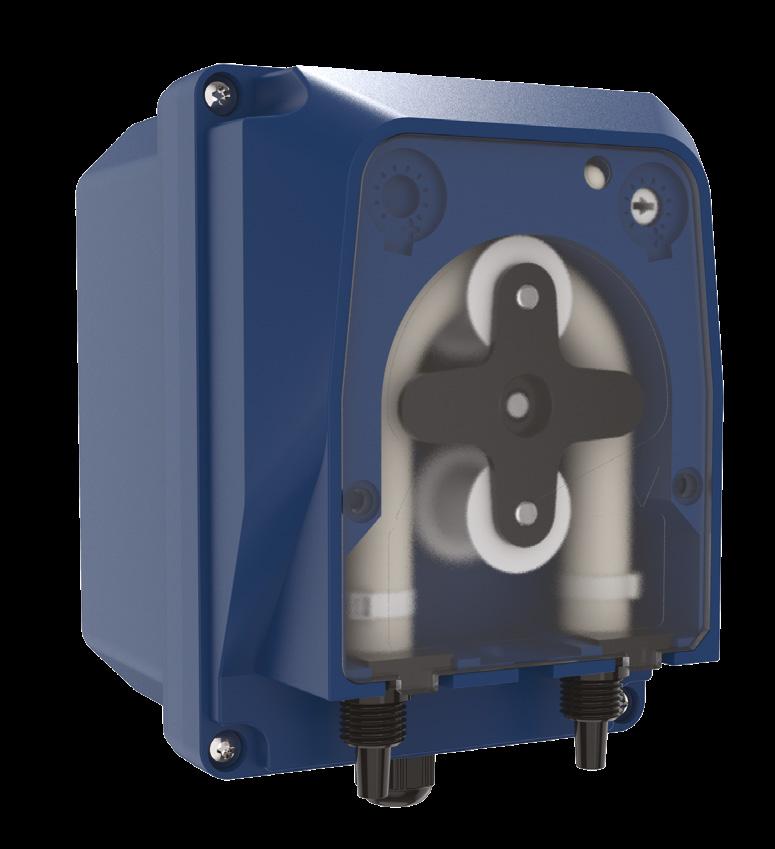

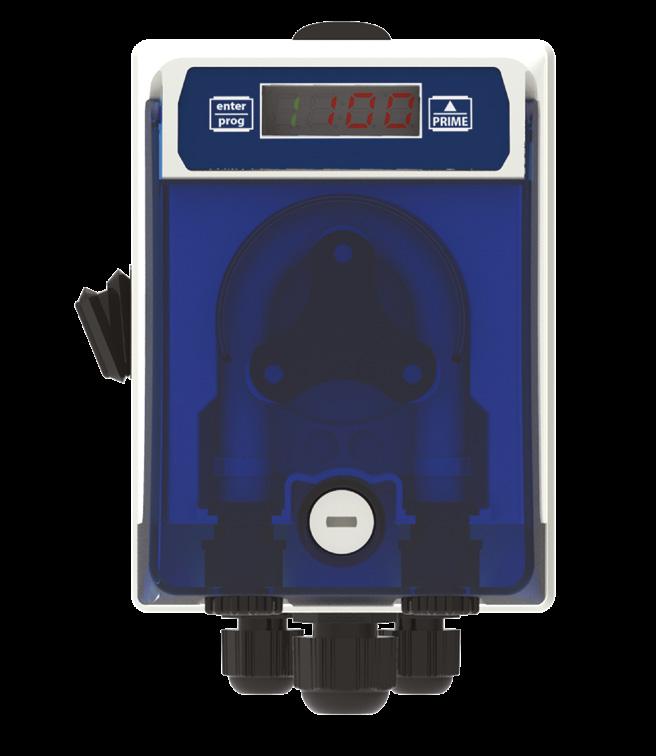

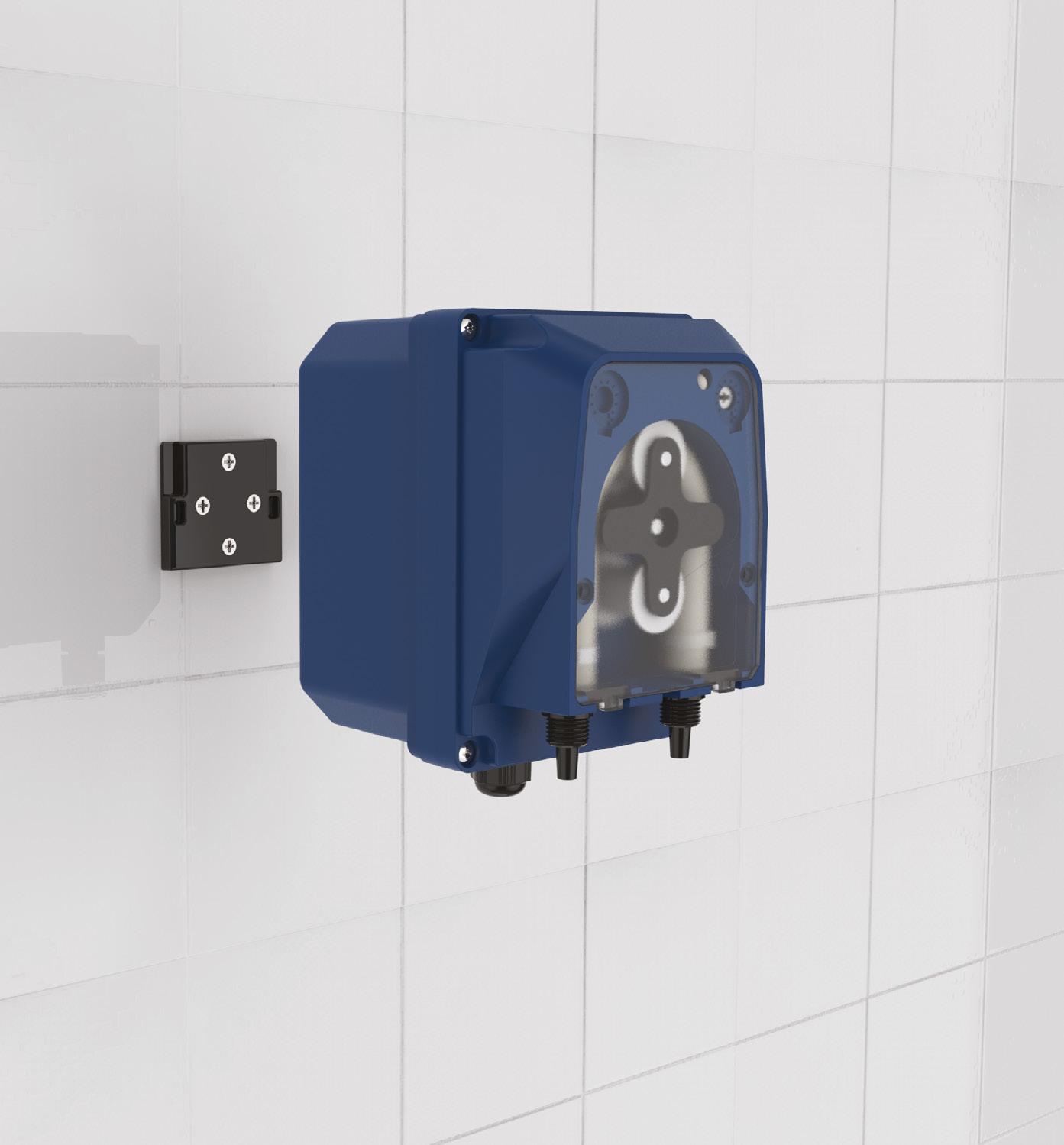

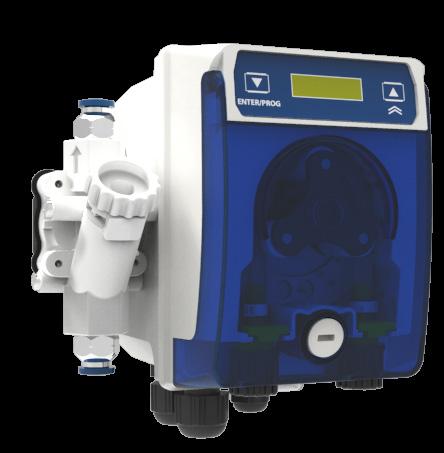

WashBasic L
Single peristaltic pump
WashBasic L is the new peristaltic pump that renews the look of SEKO bestsellers PR and Dynamik. It is designed to be used in small OPL applications where the dosage of one liquid chemical product for washer extractors up to 30 kg is required. The unit features a fixed-speed peristaltic pump with digital adjustment of delay, dosing and lock-out time. SEKO’s outstanding integrated ball bearing provides support and stability to the drive shaft, making roller pressure on the squeeze tubes more uniform and extending both motor and tube life.
Features
• Delay, dosing and lock-out times made possible using key display and microprocessor technology
• 4-digit display makes it easy to read and interpret information, aided by the use of green and red colours to differentiate between programming and parameter control
• An optional remote switch is available
• Easy to install thanks to convenient wall fixing modular brackets able to couple two or more pumps together as a unique device
• Squeeze tube and motor life extended thanks to integrated ball bearing and superior tubing
• A PP-reinforced fibreglass housing combined with a soft polyurethane gasket offers outstanding water and dust protection to IP65, helping guard the system against impacts, ingress and chemical agents
• Squeeze tube replacement does not require pump starting, special tools or qualified personnel and is made easy by the system’s edge-free rollers
Applications:
Specification
Power
Power consumption
Flow rate

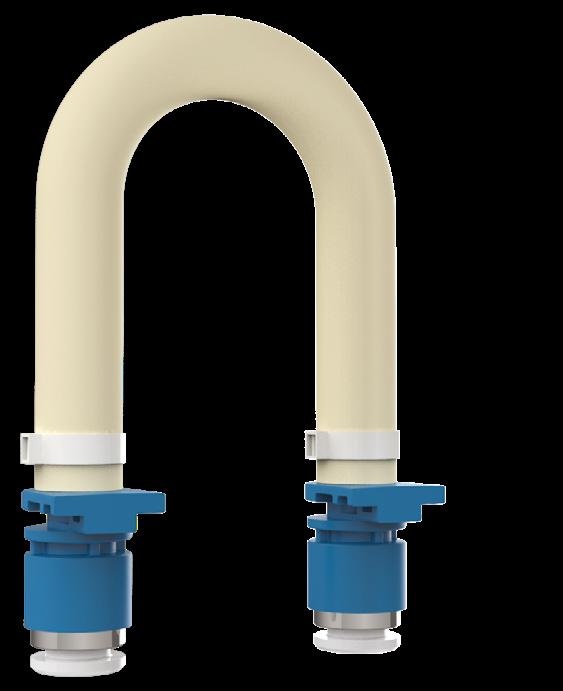

Squeeze tubing
100 - 240 Vac, 50 - 60 Hz (24Vac available)
Max 5 W
250 ml/m
SekoFlex

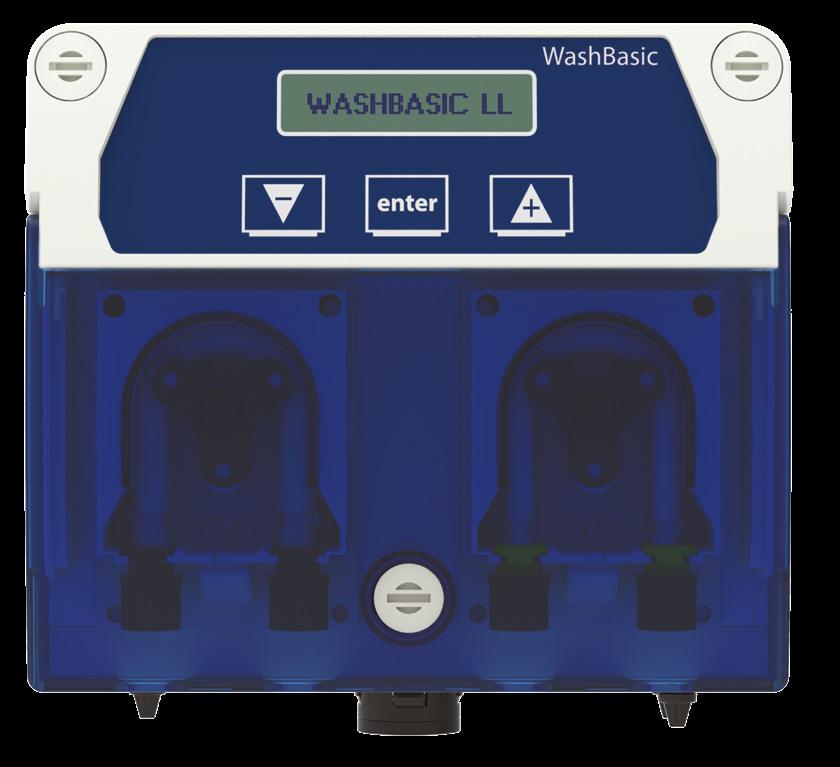

WashBasic LL
Peristaltic dual-pump system
WashBasic LL features SEKO’s design know-how for easy installation, straightforward operation, low maintenance requirement, user safety and equipment reliability. It is designed to be used in small OPL applications where the dosage of two liquid chemical products for washer extractors up to 30 kg is required. An intuitive calibration method allows the user to precisely define the desired dosing quantity. SEKO’s outstanding integrated ball bearing provides support and stability to the drive shaft, making the roller pressure on the squeeze tubes more uniform and extending both motor and tube life.
Features
• Fully programmable parameter dosing, delay and lockout time for 9 different programs
• Trigger signal compatibility from 12 Vdc to 240 Vac
• A smart motor torque sensor avoids unforeseen failure in the event of roller blockage
• Warning alarm for out-of-product sensors is available as standard
• Optional remote console can be used to manually control pumps
• Squeeze tube and motor life extended thanks to integrated ball bearing and superior tubing
Applications: Specification

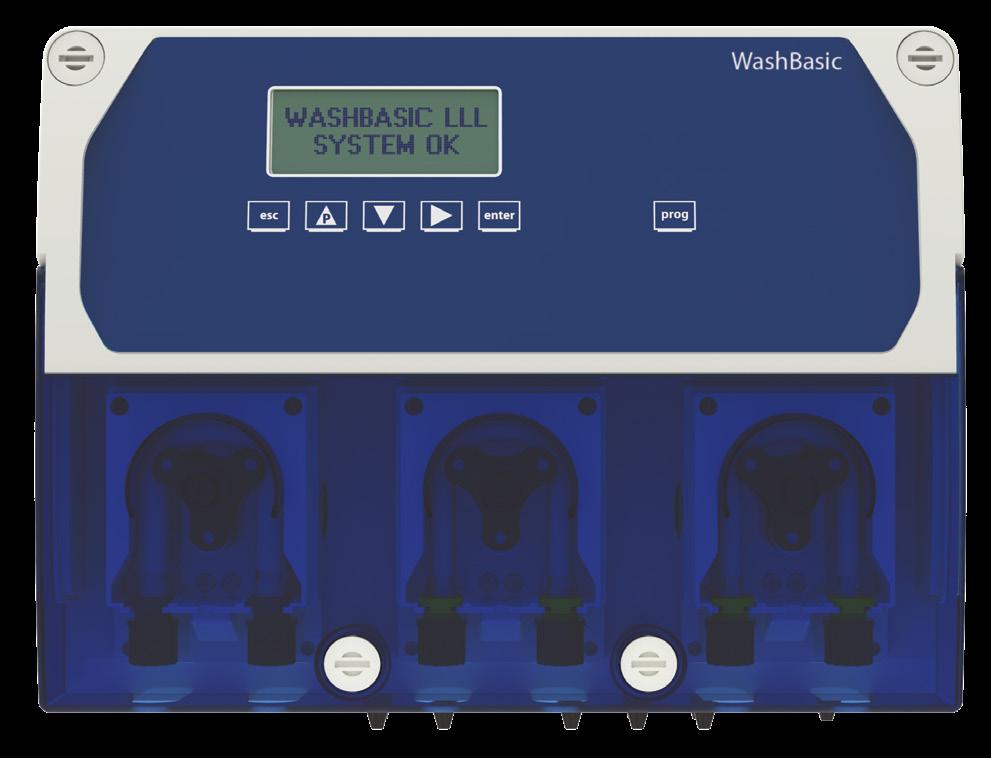

WashBasic LLL
Peristaltic triple-pump system
WashBasic LLL is an advanced automatic system for OPL applications that gives the operator multiple options for managing dosing of three liquid chemical products for washer-extractors up to 30 kg. SEKO’s outstanding integrated ball bearing provides support and stability to the drive shaft, making roller pressure on the squeeze tubes more uniform and extending both motor and tube life.
Features
• Cost effective with a small footprint - the ideal choice for OPL applications
• As with all SEKO systems, the programming mode is conceived to set parameters and washing programmes using a multi-language alphanumeric display with specifically-designed software and pre-charged data
• All three pumps are independently programmable for the 3-input trigger signals available
• Up to five selectable wash programmes
• Two working modes: signal/pumps or sequential
Applications:
Specification
Power
Power
Flow
Squeeze Tubing
100 - 240 Vac, 50 - 60 Hz
Max 20 W
210 ml/m
SekoMed
• Smart use of the third trigger: standard signal, discharges counter, or consider TR1+TR2 as an independent trigger
• Three inputs as warning alarm for out-ofproduct sensors
• Motor lock alarm prevents motor damage in case of high pressure at injection point or clogging of delivery tube
• Relay output available to activate an external device in case of alarm
• Optional flushing manifold available with integrated water valve

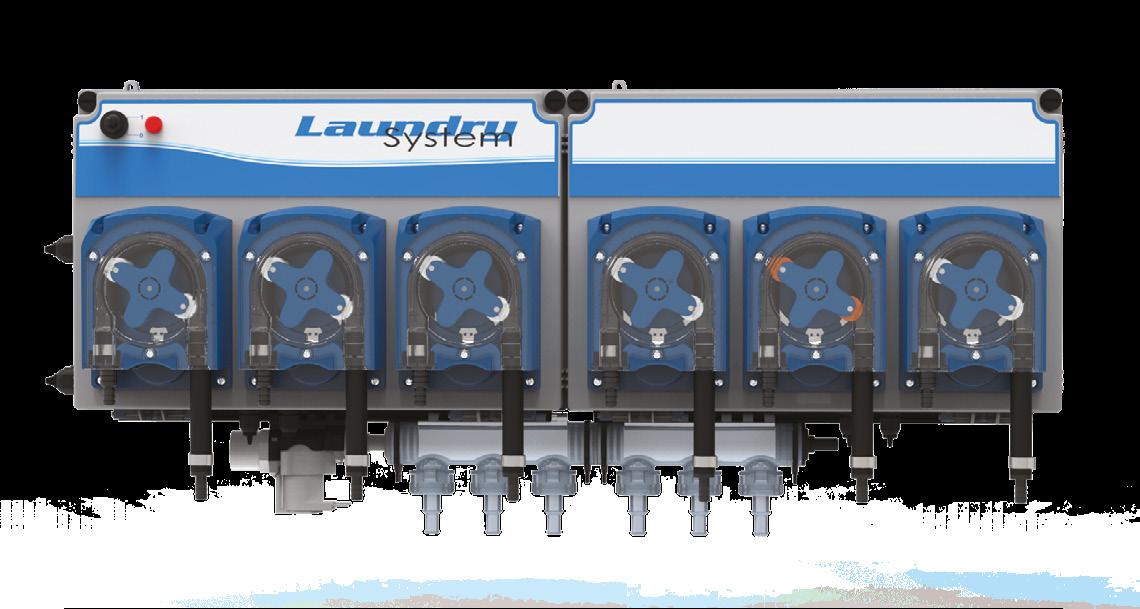

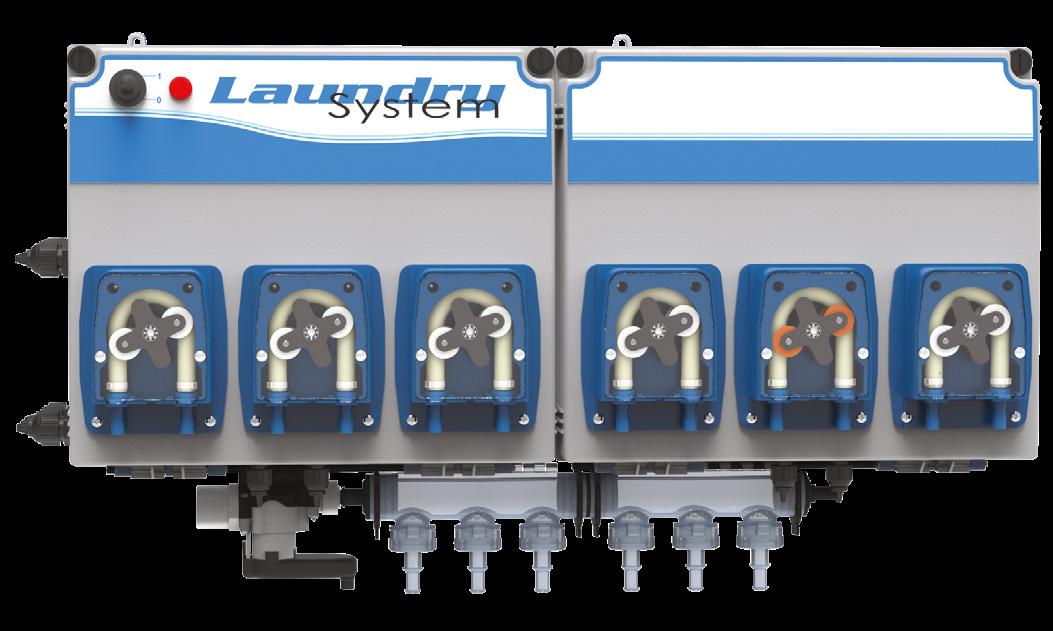

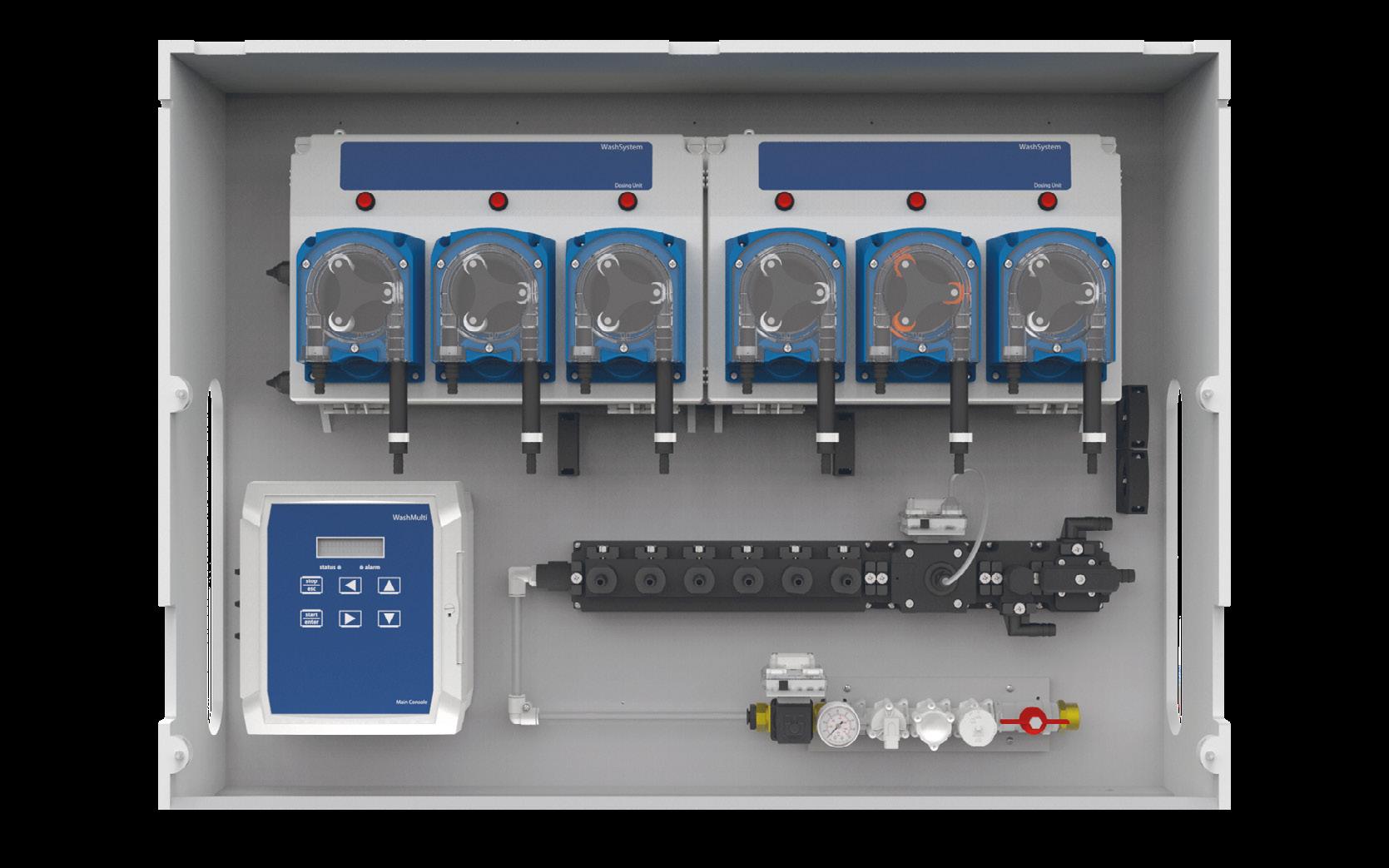

Smart Series
The Smart Series is a family of peristaltic-driven chemical dosing systems capable of serving a vast range of washer sizes from 25 kg to 300 kg.
Take control of dosing
These trusted systems can manage multiple pumps and wash formulas –each with a unique run and delay time – giving operators complete command over their laundry dosing.
Flush manifold
A flush manifold, included as standard, provides effective dilution of chemicals before they enter the machine and assists in moving the fluid over long distances without the need for multiple tubes.

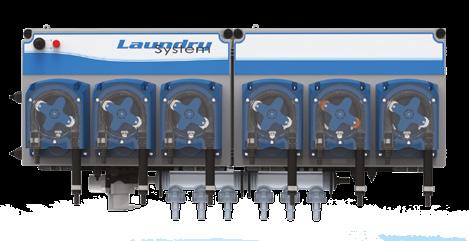

Smart Plus P
Smart systems for smart laundries
Smart Plus P combines technological development in peristaltic systems with guaranteed reliability for chemical dosing in commercial laundry machines.
Specific innovations and the accurate design of all mechanical parts allow it to manage each dosing formula and to ensure high-quality performance.
Smart Plus P is designed for commercial-sized washers up to 25 kg, configurable for two to seven peristaltic pumps. Ease of installation and connection are inbuilt, with the Series Plus P coming with a front cover that opens to 85° allow simplified electrical connections.
Smart Plus P doses up to three chemicals simultaneously, with the system’s tubing equipped with inlet/outlet fittings for fast, safe connection.
Smart Plus P features IP65 ingress protection and class 2 electrical insulation which requires no further ground connection.
Smart R Plus P
System for relay mode operation, without console
Smart R Plus P includes relay mode operation, meaning pumps operate as long as their respective signals are present, but run times, delay times and formulas are disabled.
Features
• Based on the Smart Plus P but with relay mode operation
Applications:
Specification
Features
• Manages 2 - 7 pumps
• Power consumption: 30 W max
• 6 trigger inputs 20 - 265 Vac
• Flushing manifold included
• Santoprene squeeze tubing
• Control/formula selector
Smart Plus H
Smart systems for smart laundries
Smart Plus H combines technological development in peristaltic systems with guaranteed reliability for chemical dosing in industrial laundry machines. Specific innovations and the accurate design of all mechanical parts mean it can manage each dosing formula and deliver consistently high-quality performance.
Smart Plus H is designed for industrial-size washers from 25 kg to 300 kg, manages up to seven pumps and handles as many as 20 wash formulas, each one with unique run and delay times for each pump. A flushing manifold is included as standard, ensuring repeatable chemical dosing performance.
Features
• Designed for industrial-size washers over 25 kg up to 300 kg
• Manages up to seven pumps and handles up to 20 wash formulas, each one with unique run times and delay times per pump
Smart R Plus H
System for relay mode operation, without console
Smart R Plus H comes with relay mode operation, meaning the pumps run as long as their respective signals are present, while run times, delay times and formulas are disabled.
• Power consumption: 100 W max
• 6 input signals
• IP65 enclosure and class 2 electrical insulation
Features
• Based on the Smart Plus H but with relay mode operation
Applications:
Specification
Power
100 - 240 Vac, 50 - 60 Hz Flow
500 - 2,000 ml/m
Smart Peripherals
Smart systems for smart laundries
Smart Console Smartware
This device is designed to be placed next to the washer extractor command panel in order to allow an appropriate dosing formula to be selected. Along with a priming function, users can enable destainer and softener pumps via the keypad.
Smartware is SEKO’s unique software for managing wash formulas and consumption statistics. Smartware allows:
• Multiple wash programmes to be created
• Data transfer to a Smart memory card
• Programmes to be saved by name within folders and modified at any time
• Statistics to be saved and managed for every Smart system

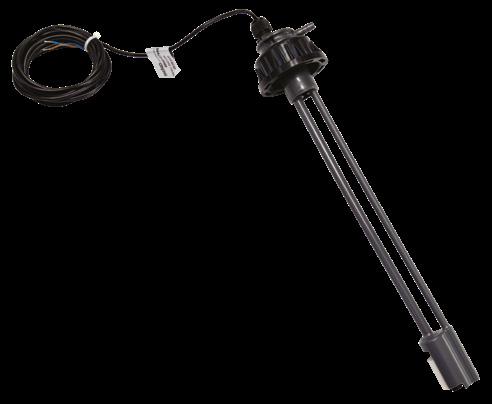

Level Control Unit (optional)
• 7 inputs with 5m cable

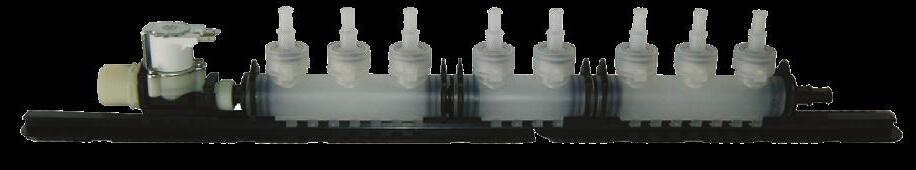

Flush Kit/Flush Manifold
• Flush manifold is included in all Smart systems
• Easy to install to the underside of the cabinet. Can also be wall-mounted

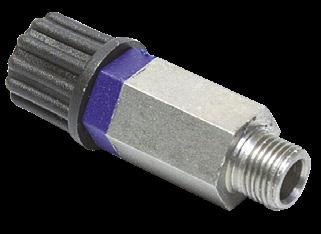

• Injection fittings are equipped with built-in check valves. Position is adjustable for ease of tubing installation
• Pressure switch available as an option
• Flow sensor (optional)

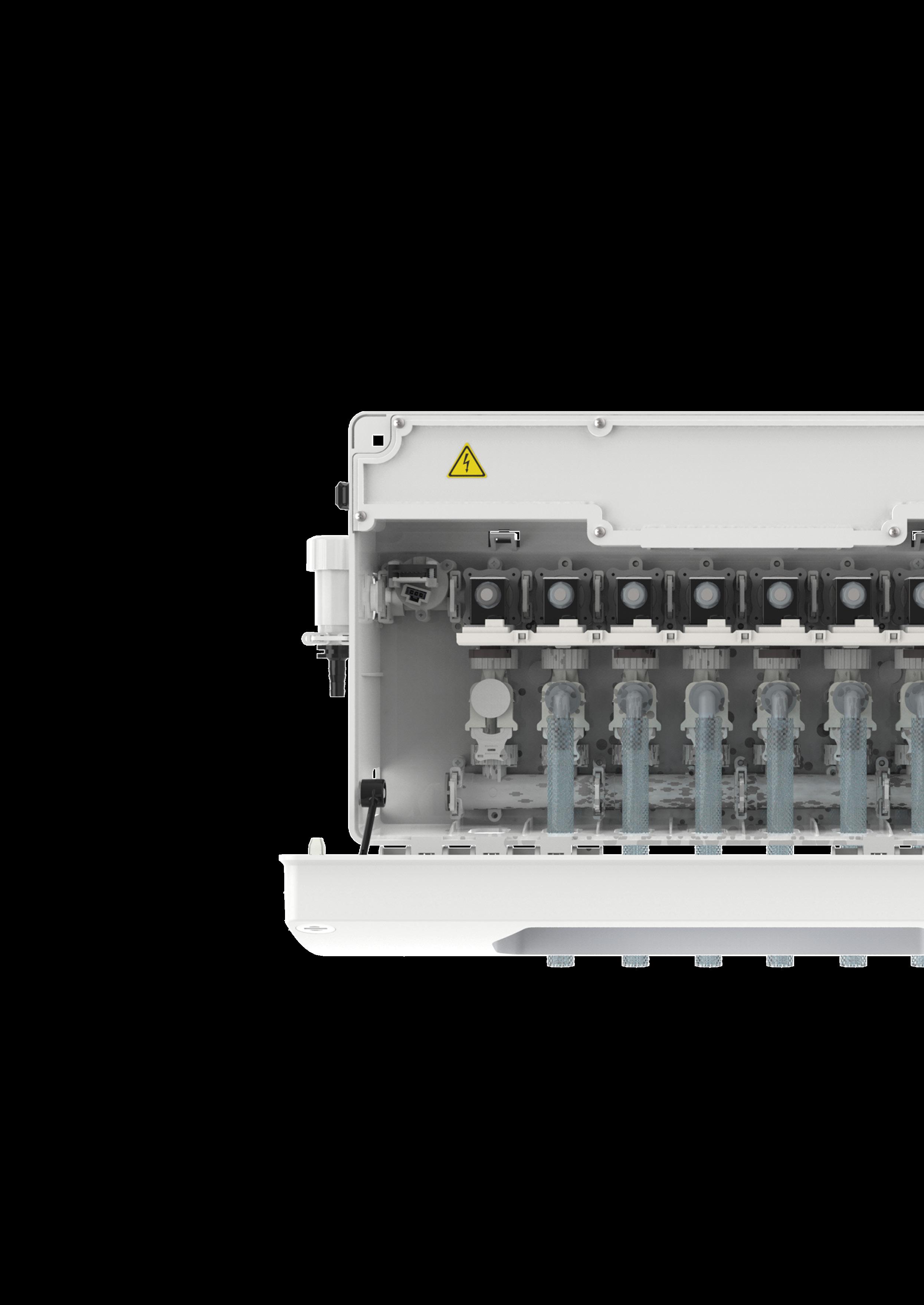

LS100 Series
LS100 Series
Bringing venturi power to on-premise laundry
Introducing LS100, our latest on-premise laundry system with a unique feature – the unit uses water pressure to control chemical dosing. That means no moving parts, less wear and hundreds of thousands of doses before users even need to think about cartridge replacement.
Multi-machine solution
LS100 doses up to 10 chemicals in as many as four washers, making it perfect for OPLs of every size.
User-friendly controls
As well as an intuitive touchscreen display, LS100 includes an ergonomic formula selector.
Remote connectivity

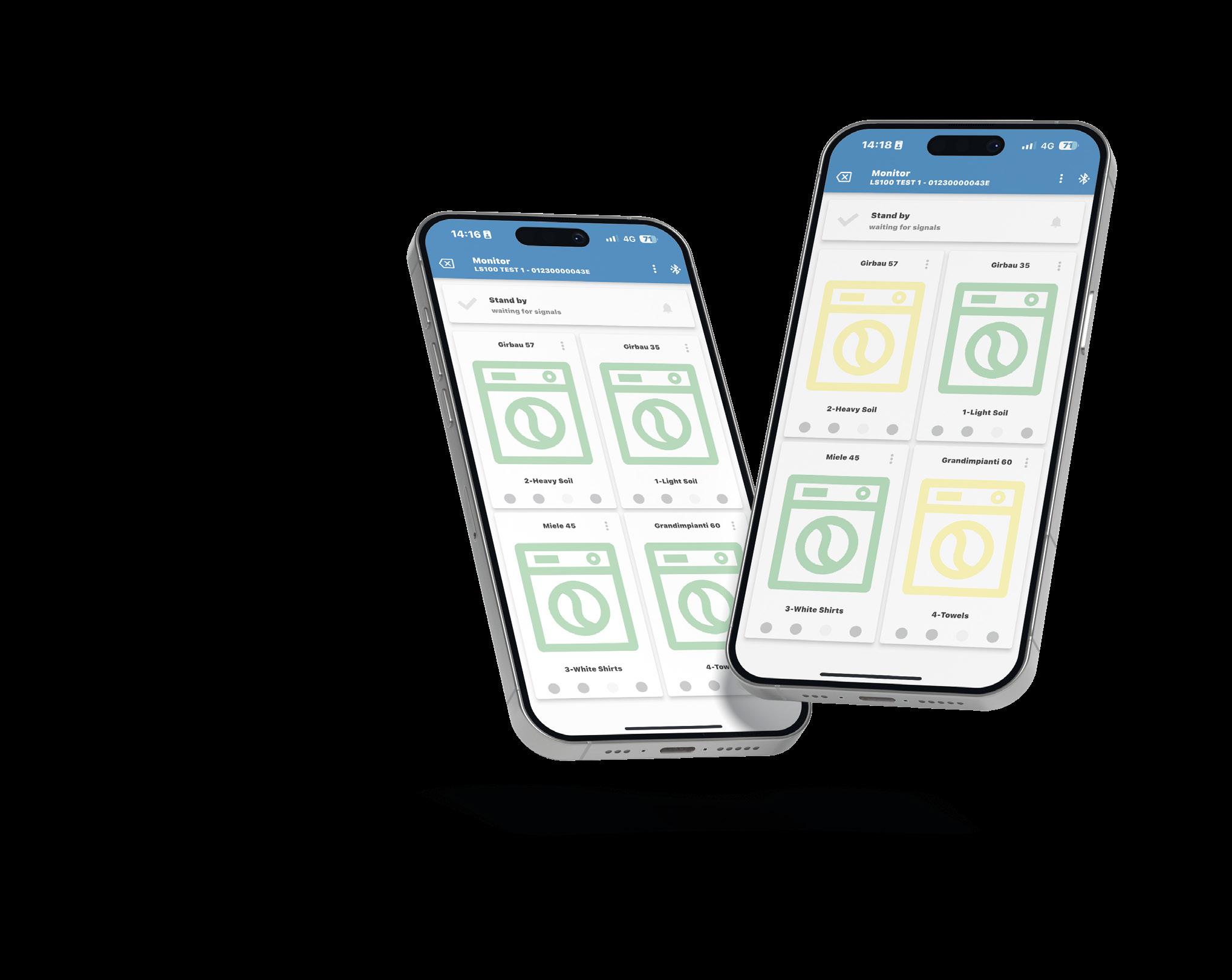

LS100 can be operated via the SekoBlue app, which uses Bluetooth and Wi-Fi for remote management and data on demand.
Applications
Connectivity
OPL
Small Laundry
SekoBlue App

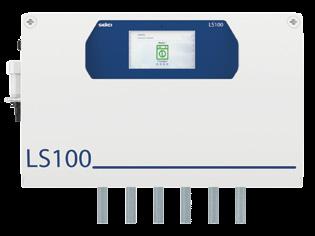

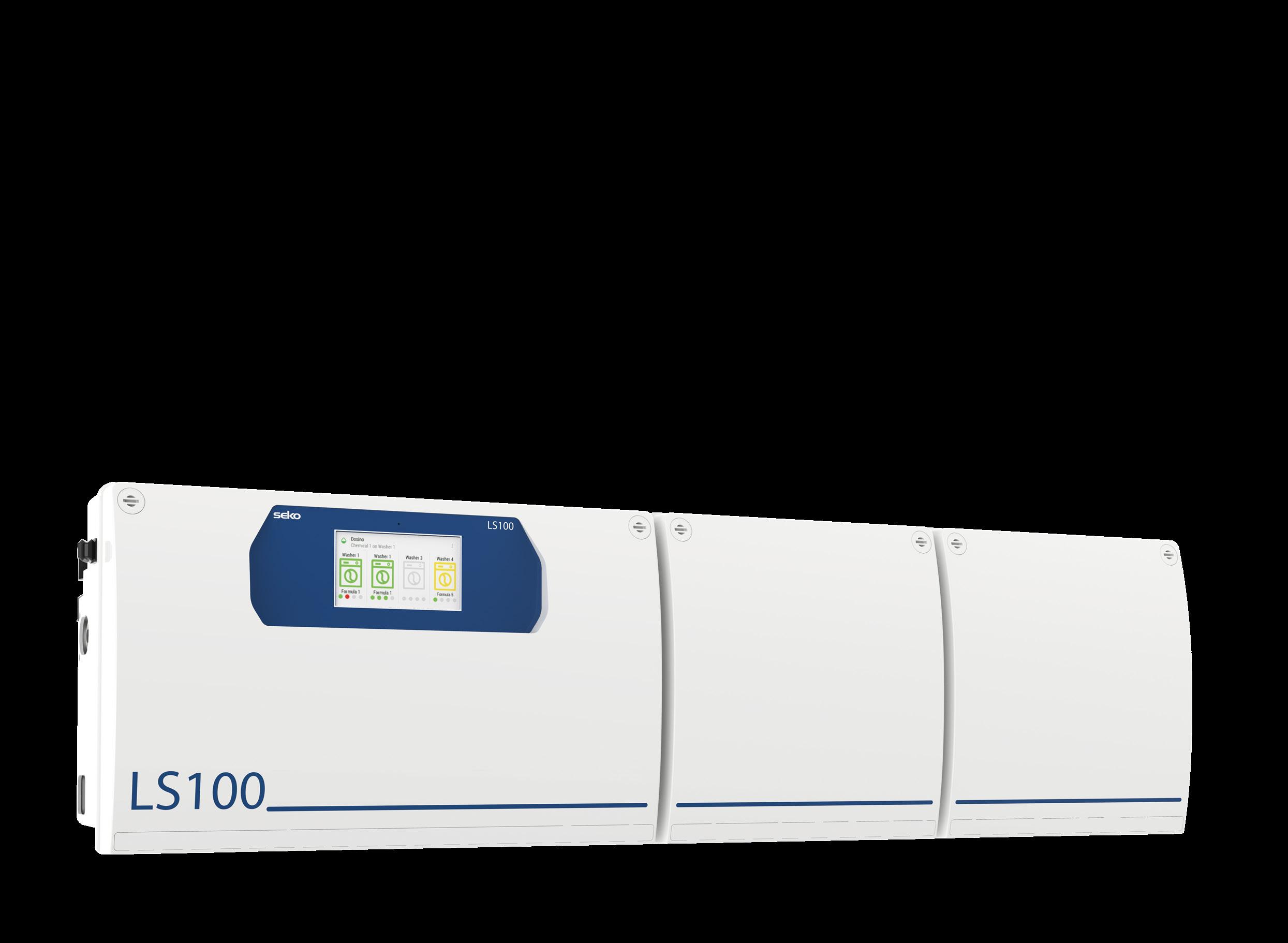

LS100
Bringing venturi power to on-premise laundry
Introducing LS100, our new venturi-based innovation that uses water pressure to control chemical dosing - a first for SEKO’s laundry range. That means no moving parts, less wear and hundreds of thousands of doses before you even need to think about cartridge replacement. So as well as being precise and reliable, LS100 offers minimal maintenance requirement in even the busiest sites. That’s the power of venturi.
Next-generation OPL dosing system
LS100 is the latest addition to SEKO’s award-nominated laundry range, bringing data on demand and unprecedented operational efficiency to OPL dosing courtesy of SekoWeb and SekoBlue compatibility.
Offering dosing of as many as six chemicals at up to 1,300 ml/m, the modular LS100 system can be extended to accommodate a further four chemicals, making it ideal for growing businesses that want to expand their service without replacing their entire dosing system.
LS100 is delivered with a dedicated backlit formula selector unit and five-signal trigger interface, giving the operator complete command of their application.
Features
• Venturi-based dosing system designed for on-premise laundry applications
• Simple installation and low maintenance
• Dedicated SekoBlue Bluetooth app for programming and end-user interface
• Remote management via SekoWeb app and online platform
• 4.5’’ colour touchscreen display for real-time monitoring and programming
• Chemical tank monitoring
• Colour-coded chemical labels assist identification
• Four predefined dosing stages with four doses programmable per step
• Auto formula selection: binary and time based
• Relay mode functionality available
• Time-based statistics for chemical consumption, wash cycle and step activation and costs
Modularity, control and connectivity
LS100 doses up to 10 chemicals in as many as four washers, making it perfect for on-premise laundries of every size. It’s modular, too, so you can easily add additional units as your laundry grows. Plus, as well as an intuitive touchscreen display and ergonomic formula selector, LS100 can be operated via our new SekoBlue app, which uses Bluetooth connectivity for remote dosing management and data on demand even when there’s no Wi-Fi.
Specification
Power 100 - 240 Vac, 50 - 60 Hz
Flow rate (low) 650 ml/m
Flow rate (high) 1,300 ml/m
Pressure Min 0.5 bar
Applications
OPL Washers

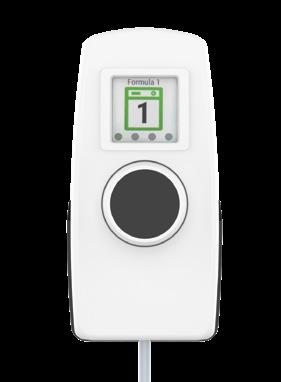

Formula Selector
• 1.3’’ colour display
• Backlit toggle knob displays system status
• Magnet for fixing on metallic washer surface

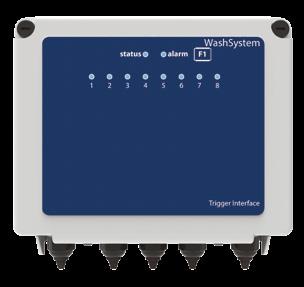

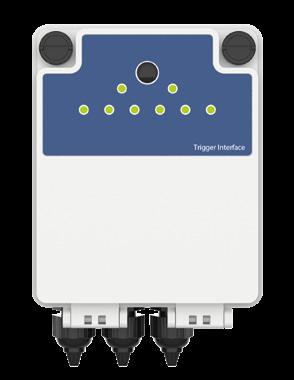

Trigger Interface
• Up to five-signal input from 12 Vdc to 240 Vac
• Easy wiring inputs: Pre-Wash, Main-Wash (hot and cold), Spare and Rinse
• AFS signal with reset function
Manage up to 10 chemicals
Connect up to 4 washers
Small Laundry
Double flowmeter option for auto-calibration function and proof of dosing

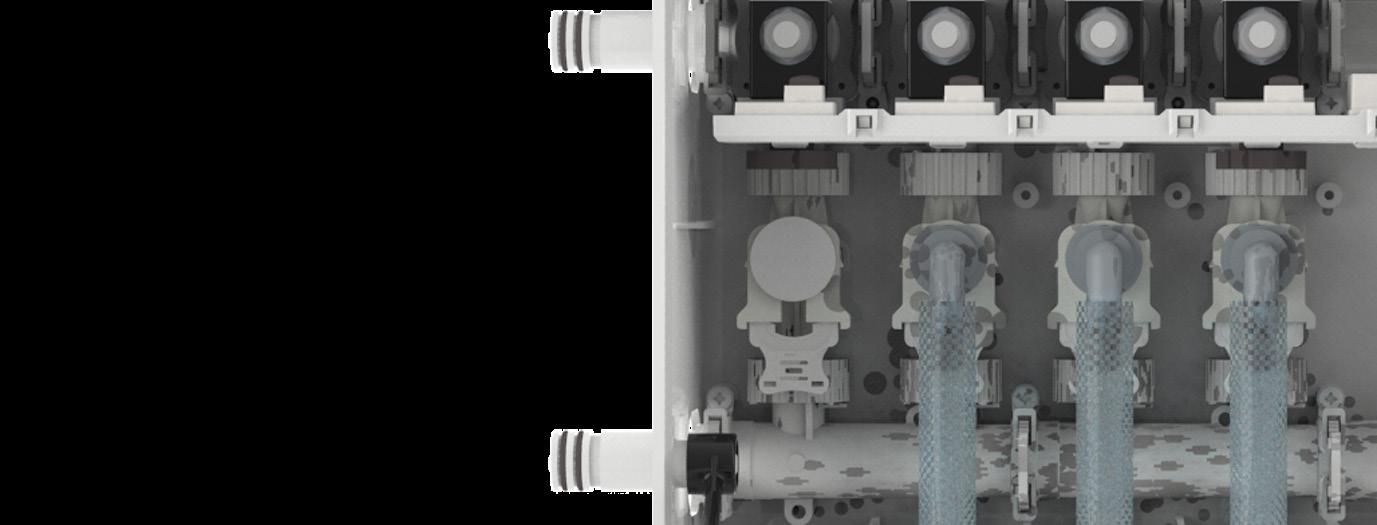

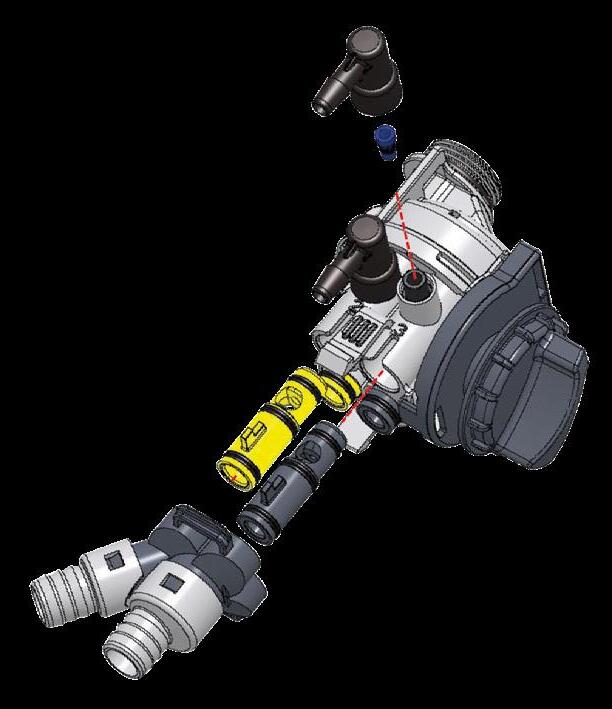

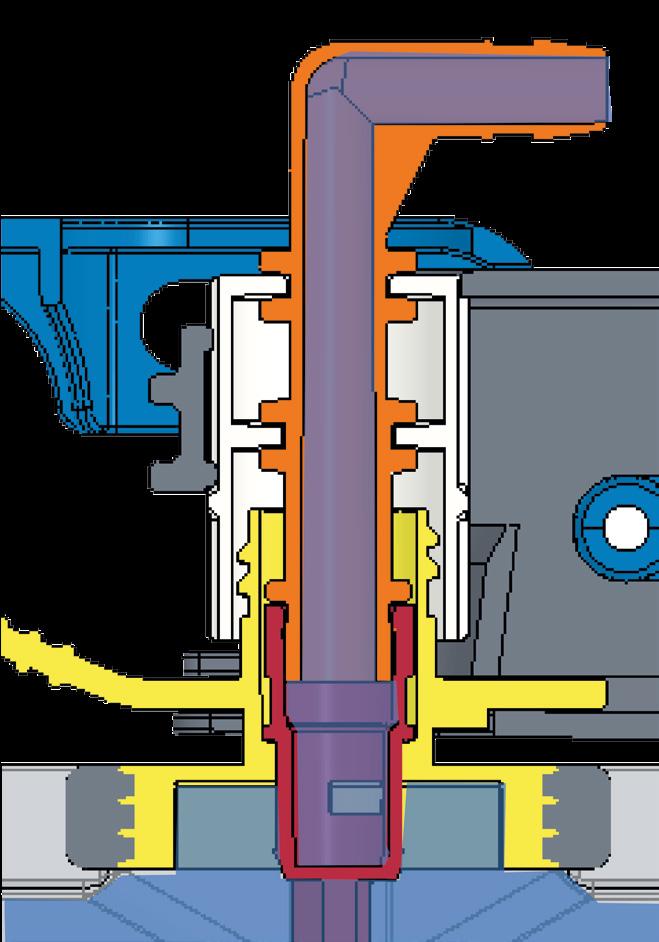

Quick removable venturi cartridge
se
Bluetooth-powered dosing control app
• Password protection to prevent device tampering
• Both device and washer status can be easily monitored on SekoBlue’s main dashboard to easily control washing operations, upcoming triggers and alarms
• Settings can be exported from one installation to another via Bluetooth connection to the device
• Template programmes can be pre-set and quickly uploaded to new devices on the installation to minimise setup time
• Counters registered by the device can be shared via SekoBlue on PDF files for basic consumption data analysis
• Firmware updates maintain high performance
• Pump priming can be executed both on the system’s front keypad or via SekoBlue’s main dashboard screen
Features & benefits

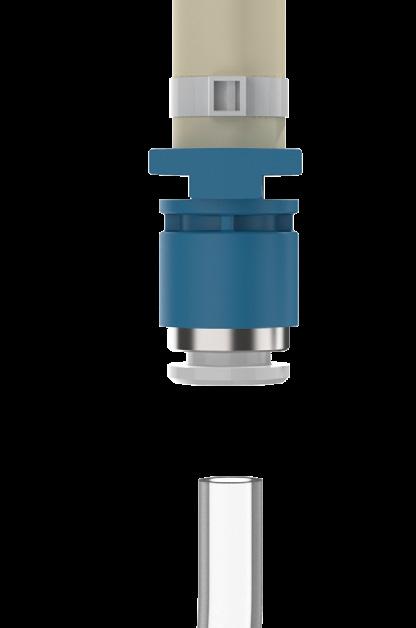

Modular design with quick and swivel connections
NRVs and connection seals with special o-rings for high chemical compatibility
Modular multi-washer module manages up to four washers
Venturi activation from 0.5 bar water inlet pressure
Advanced dosing function for water pressure constancy
Two main versions with four or six inlets
Optional four-inlet extension unit
All modules have CANbus communication
Hose connections for 8/10mm or 3/8” ID tubing
Pressure sensor for optional closed-loop suction application
Wash Series
Intelligent laundry dosing at your fingertips
SEKO’s Wash Series gives operators of commercial and on-premise laundries unprecedented access to chemical usage data, programmes and system status from anywhere in the world courtesy of IoT-enabled smartphone connectivity.
24/7 application control
With live and historical data at their fingertips, managers can optimise wash performance, reduce detergent consumption, save energy and minimise maintenance requirement at any time - setting a new standard in operational efficiency.
High performance for exceptional results
Meanwhile, the systems contain all the hallmarks that make SEKO the provider of choice for discerning operators - ultra-precise, consistent chemical dosing, superior reliability and ease of use.
WashDose Peri
Professional laundry dosing system
WashDose Peri is designed to allow on-premise laundry operators to accurately manage their operation,helping to reduce over consumption of chemical, water and energy within the overall wash process. The system also provides users with the power to control their equipment anywhere in the world 24/7 courtesy of SekoWeb compatibility.
WashDose Peri can be optionally equipped with a PoD (Proof of Dosing) system that ensures precise and consistent dosage quantity, regardless of any variability in the condition of the chemical product or feeder tube.
• Modular system configurable for up to 16 chemicals and 100 formulas
• As with all Wash Series products, the system is compatible with SekoWeb for 24/7 remote management access via smartphone
• 6 trigger inputs 20 - 265 Vac
• Quick uploading and downloading of parameters and formulas Features
• Manage up to 3 washer-extractors, adding more trigger interfaces and the distributor block up to 3 valves
• Parametric dosing of wash formula based on the washer extractor capacity
Applications:
Specification
Power
WashDose Peri P from 3 to 8 S type pumps
Flow rate
WashDose Peri S from 3 to 8 H type pumps
Flow rate
100 - 240 Vac, 50 - 60 Hz
• Reliable communication between modules via CANbus
• Wide range power supply 100 - 240 Vac
• Up to 8 inputs for trigger interface module (SIM) optically insulated 12 Vdc 24 - 240 Vac
• Turnkey system
Connectivity:
Single machine system with multi peristaltic pump, one for chemical
400 ml/m
Single machine system with multi peristaltic pump, one for chemical
1,600 ml/m
WashMulti Solenoid
On-premise laundry dosing system
WashMulti Solenoid gives operators of commercial and on-premise laundries unprecedented access to chemical usage data, programmes and system status from anywhere in the world courtesy of IoT-enabled smartphone connectivity.
With live and historical data at their fingertips, managers can optimise wash performance, reduce detergent consumption, save energy and minimise maintenance requirement at any time - setting a new standard in operational efficiency.
Meanwhile, the system contains all the hallmarks that make SEKO laundry systems the equipment of choice for discerning operators - ultra-precise consistent chemical dosing, superior reliability and ease of use.
Features
Unique benefits
• System configurable for five washer extractors up to a maximum total load of 250 kg
• Incorporated water-powered flush system and centralised machine distributor is used to transport product solution to each machineguaranteeing correct dosage and reducing wear on tubing from residual chemical
• Formula and Automatic Formula selection modes are available for programming the system
Applications:
Specification
Power
100 - 240 Vac, 50 - 60 Hz
Flow rate 1,000 ml/m
Multi-washer capacity
• The dosing unit can control three or five washers and up to eight solenoid valves for chemical products. For enhanced accuracy, WashMulti Solenoid has a built-in flow meter sensor.
Intelligent laundry dosing at your fingertips
• Thanks to SekoWeb compatibility, WashMulti Solenoid can be programmed via PC, tablet or smartphone and works independently from any operating system/hardware. It works in any web browser on all internet-enabled devices. No special software is required, and the system can be used with a PC or Mac computer or any smart communication device.
Connectivity:
WashMulti Peri
Professional laundry dosing system
WashMulti Peri has been designed for professional laundries requiring the highest levels of dosing accuracy for washerextractors up to 100kg. The peristaltic multi pump features a high capacity “H” pump head allowing a flow rate of up to 100 l/h. WashMulti Peri also features self-adjusting calibration, making installation and maintenance easy.
To further ensure dosing accuracy, WashMulti Peri comes with a “Proof of Dosing” (PoD) flowmeter as standard, which ensures correct dosing regardless of tube degradation or flow rate. Plus, with live and historical chemical consumption data at their fingertips via SEKO’s unique SekoWeb app, commercial and on-premise laundry operators enjoy total control of their process including unrestricted access to cost per kilo data 24/7.
Features
• Modular system configurable for up to 8 washer extractors, with 16 chemicals
• Includes a gear flowmeter to ensure dosing precision even for high-viscosity chemicals
• Outstanding chemical compatibility of all manifold parts, pump squeeze tubes and seals
Applications:
Specification
• WashMulti Peri allows remote management of the dosing system and provides critical management information through the SekoWeb portal
• Hygiene temperature monitoring for washed linen disinfection certification
Connectivity:

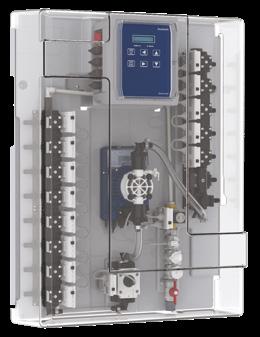

WashMulti Air
Professional laundry dosing system
WashMulti Air is a single-pump dosing unit with a pneumatic diaphragm pump offering two flow rates from 2 ml/m to 6 ml/m. The system comes as standard with our Proof of Dosing (PoD) flowmeter which guarantees dosing consistency regardless of feeder tube degradation.
WashMulti Air allows commercial laundry managers to control their overall operation wherever they are in the world, with the ability to minimise chemical, water and energy consumption within the overall wash process via our unique online SekoWeb portal. By accessing their WashMultiAir system via PC, laptop or smart device, operators can check live and historical parameter data and programme their equipment to maximise performance, while the intelligent, intuitive SekoWeb works in any internet browser on any web-enabled device with no special software required.
Features
• Modular system configurable for up to 12 washer extractors, with 12 chemicals
• Includes a gear flowmeter to ensure dosing precision even for high-viscosity chemicals
• Outstanding chemical compatibility of all manifold parts, pumps, valves, membranes and seals
Applications:
Specification
Power
Flow rate (Low)
Flow rate (High)
100 - 240 Vac, 50 - 60 Hz
2,000 - 3,000 ml/m
5,000 - 6,000 ml/m
• WashMulti Air allows remote management of the dosing system and provides critical management information through the SekoWeb portal
• Hygiene temperature monitoring for washed linen disinfection certification
• Post-flush option: water by-pass valve for each washer-extractor to decrease delivery time
Connectivity:

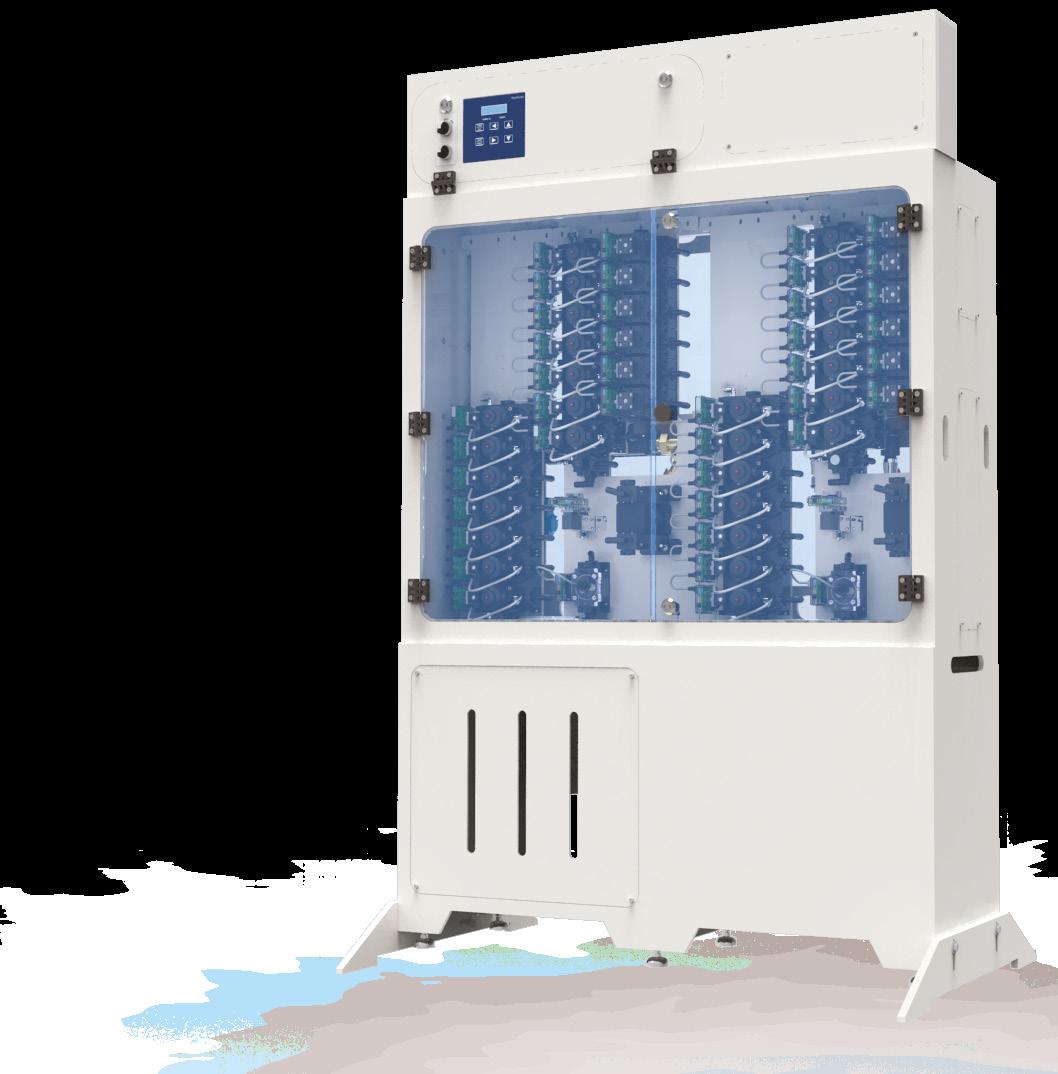

WashMulti Top
Dosing system for high-duty industrial laundry applications
The latest addition to SEKO’s award-nominated Wash Series laundry dosing system range is WashMulti Top, a dedicated unit for high-duty industrial laundry applications. This free-standing, modular system can supply up to 12 washer-extractors in two groups of six and manages up to 10 chemicals per channel.
The main WashMulti Top unit contains four dosing modules that can be configured for 4, 6, 8 or 10 chemical inlets and 4, 5 or 6 distributor valves in high or low pump flow rate configuration. WashMulti Top is fully compatible with SEKO’s unique SekoWeb app and online platform, which enables operators to view live and historical wash data on demand via smartphone, laptop or PC.
Features
• Modular system, floor-mounted design with minimum footprint approximately 120 x 40 cm
• Dosing modules are configurable for 4, 6, 8 or 10 chemical inlets and 4, 5 or 6 distributor outlets
• High-reliability membrane valves and a pneumatic membrane pump
• Each dosing module has a dedicated flowmeter to ensure dosing accuracy
Applications:
Specification
Power
Flow rate (Low)
Flow rate (High)
100 - 240 Vac, 50 - 60 Hz
2,000 - 3,000 ml/m
5,000 - 6,000 ml/m
• Outstanding chemical compatibility
• As with all Wash Series devices, the system has a web server interface accessible via Wi-Fi with smartphone, tablet or laptop
• Water booster pump and reservoir embedded on the lower part of the cabinet (optional)
• Compact packaging - the entire system is delivered on a Euro pallet 120 x 80 x 150 cm
Connectivity:
Wash Tunnel
Dosing system for continuous batch washer applications
SEKO has extended its award-nominated Wash Series laundry dosing pump systems with the introduction of Wash Tunnel, a free-standing unit designed specifically for continuous batch washer machines. Wash Tunnel contains up to five dosing modules – equipped with a pneumatic pump and four chemical suction valves – which each serve a specific point of the process from pre-wash to final rinse.
Each dosing module features an integrated flow meter for enhanced precision of detergent and softener dosing while a builtin flush system transports chemicals to the machine and ensures lines are emptied before the next dose. As with all Wash Series systems, Wash Tunnel is compatible with SekoWeb, SEKO’s unique smartphone app and online platform which enables operators to view live and historical wash data on demand.
With this information at their fingertips 24/7, users can optimise wash performance, discover the true cost of their operation and revolutionise the way they manage the laundry process.
Features
• Modular floor-mounted design with minimal footprint, approximately 120 x 40cm
• Connect up to five dosing modules, meaning injection points are on machine
• Dosing modules configurable for up to four chemical products, managed by membrane valves and pneumatic pump
• Each dosing module has a dedicated flowmeter to ensure high precision
Applications:
Specification
Power
Flow rate (Low)
Flow rate (High)
100 - 240 Vac, 50 - 60 Hz
• Parts and seals manufactured in premiumquality materials for outstanding chemical compatibility
• Water booster pump and reservoir embedded on the lower part of cabinet
• Air flush available
• Compact packaging - the entire system is delivered on a Euro pallet 120 x 80 x 150 cm
Connectivity:
2,000 - 3,000 ml/m per channel
5,000 - 6,000 ml/m per channel
A Versatile Solution
The only laundry dosing system you’ll ever need
SEKO’s Wash Series provides the ultimate flexibility regardless of laundry size, with operators able to specify its component-based design in order to meet the requirements of a specific application or site.
System configuration on initial setup makes the system completely modular. After each item is connected to the CANbus network and identified, they can all be replaced without the need for further setup, while the same individual items can be identified and replaced should a fault occur or additional units are installed to expand capacity.
Level Control Module
Monitors chemical levels in each container and accepts up to 8 inputs
Alarm Module
Signals system status using visual and audio alarm signals
Trigger Interface Module
Receives trigger signals from each washer and transmits them via a CANbus to the system
Distributor Module
Delivers the dosed chemical directly to each washerextractor using valves that are fully compatible with chemicals commonly found in professional laundry operations
Washer Kit
Enables the installation to be expanded to cope with additional needs, post original installation
Washer Formula Selector
Selects the formula for each washer (note this is not required where Autowash mode is present). This helps eradicate the risk of user/operator error as the programmes are preselected

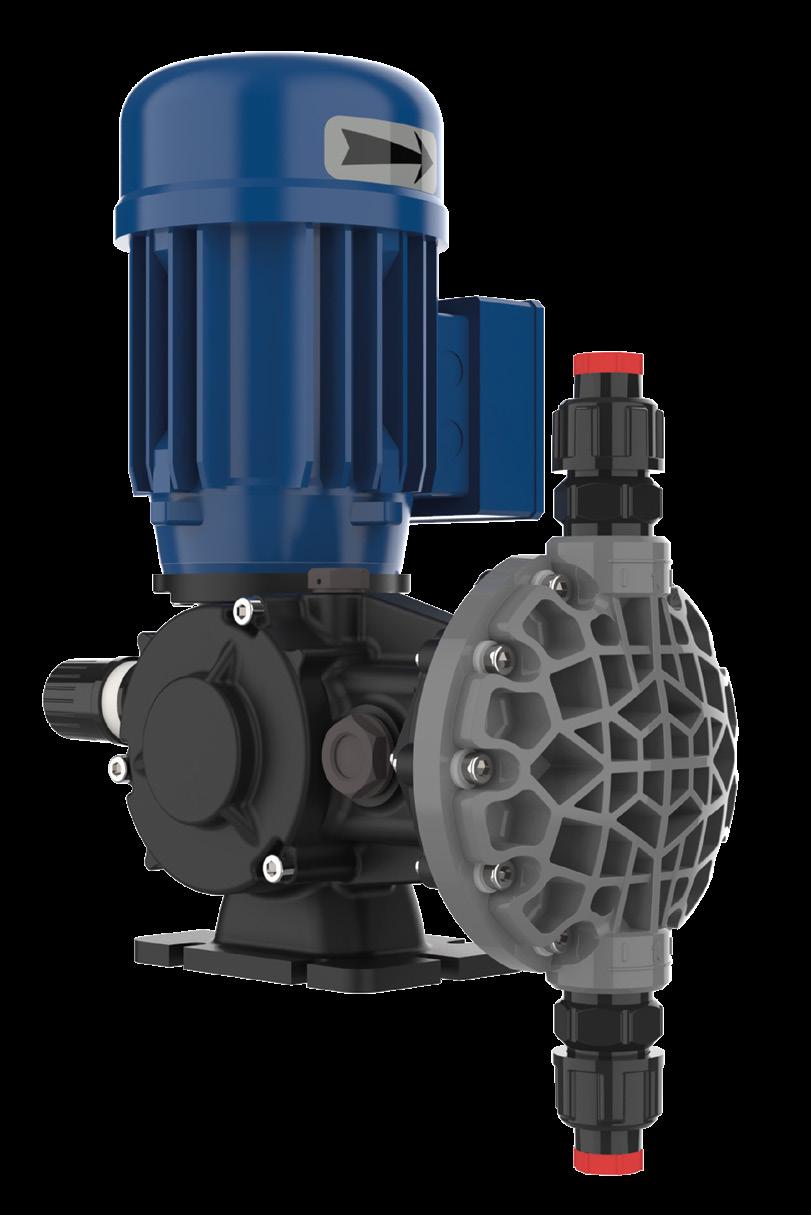

Spring MS1 Series
Affordable and effective motor-driven pumps
Spring MS1’s multiple combinations of pump head and motor power allow the selection of the optimal combination most suited to a specific application. The MS1 Series achieves flow rates between 5.5 - 550 l/h with a pressure of up to 10 bar, making it highly flexible.
MS1 pumps have a spring return mechanism in a single aluminium housing. Each model can be adjusted to between 0-100% of the total flow rate. This can be done manually or automatically by using the Aktua actuator which operates with a 4 - 20 mA signal. In addition, Spring MS1 pumps can be supplied with a single or three-phase electric motor with IP55 protection.
Features
• Max dosage temperature - SS316 pump head: 40°C - PP pump head: 40°C
• Stroke rate: 58 • 78 • 116 strokes/minute
• Diaphragm diameter: 108 - 165 mm
Applications:
Specification
Power
100 - 240 Vac, 50 - 60 Hz
60 - 500 l/h
Pressure up to 10 bar
• Motor: standard 0.37 Kw (IP55)
• Stroke length: 4 mm • 6 mm
• Zero-leakage solution
• Liquid end: SS316 or PP (standard)

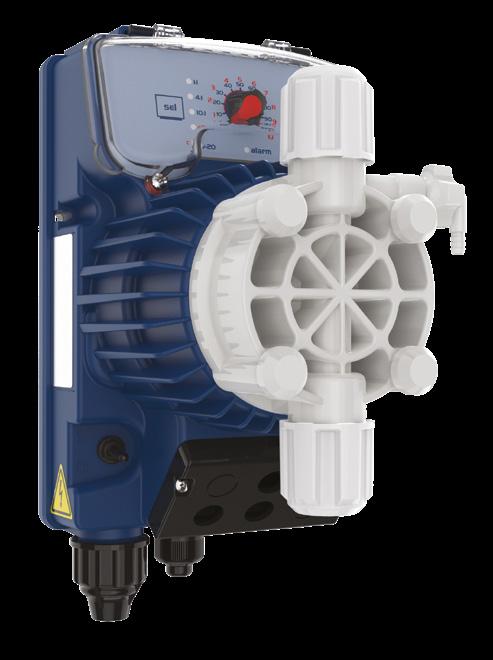

Tekna
Multifunctional solenoid-driven dosing pumps
It’s easy to take outstanding commercial for on-premise laundry wash performance for granted, so it’s important to remember that behind every immaculate load, there are high-performance chemical dosing pumps such as SEKO’s Tekna Series.
From detergent to fabric softener, solenoid-driven Tekna pumps ensure superior dosing precision and consistency, meaning laundry results are as repeatable as they are impressive, while not a drop of chemical is wasted.
That’s not to mention the system’s outstanding reliability, chemical compatibility and ease of use, which make it a perennial favourite among laundry operators worldwide.
Features
• Constant or proportional dosing
• PT100 probe input for thermal compensation
• Repetition alarm relay and flow sensor
• 4 – 20 mA output for measure transmission
• Timer function
Applications:
Specification
Power
Flow rate
100 - 240 Vac, 50 - 60 Hz
0.4 – 110 l/h
Pressure up to 20 bar
• Statistics menu and ppm dosing
• Level control inputs & alarm output relay
• Proportional dosing using both analogue (4 – 20 mA) and digital inputs
Laundry Accessories
Mixer
Tank Suction Lance Water out
Mixers
Tank Reinforcement Plate Water in
Tank Reinforcement Plate Tank

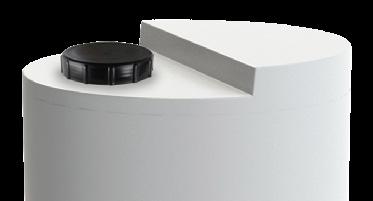

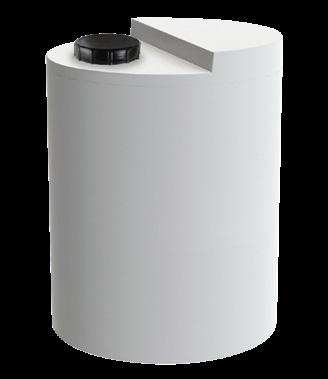

Tanks - SER Series
Tank Reinforcement Plates - SML Series Code Capacity (Litres)
SER 50 50 l - -
SER 100 100 l SML 100 Polypropylene
SER 250 250 l SML 250 Polypropylene
SER 300 300 l SML 300 Polypropylene
SER 500 500 l SML 500 Polypropylene
SER 1000 1,000 l SML 1000 Polypropylene

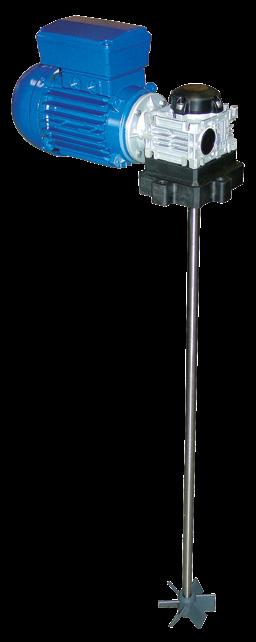

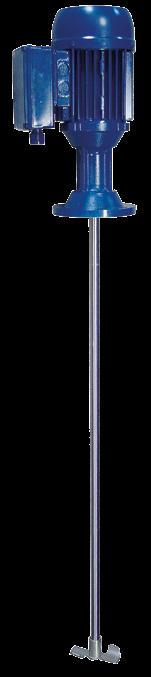

Mixers with 0.12 kW single phase electric motors, either slow (200 rpm) or fast (1,400 rpm), flange attachment, shaft and propeller in PVC.

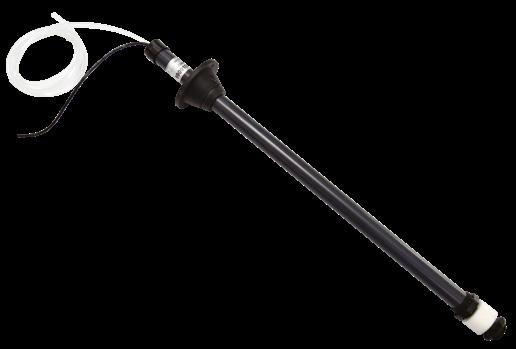

PVC suction lance with integrated double level probe
XXL Type multi suction - Length 1200 mm Ø 38 mm
PVC suction lance with 3 outlets and integrated level probe
Suction Lances
Warewashing
Product Range
Warewashing Applications
WareDose 10 Kompact

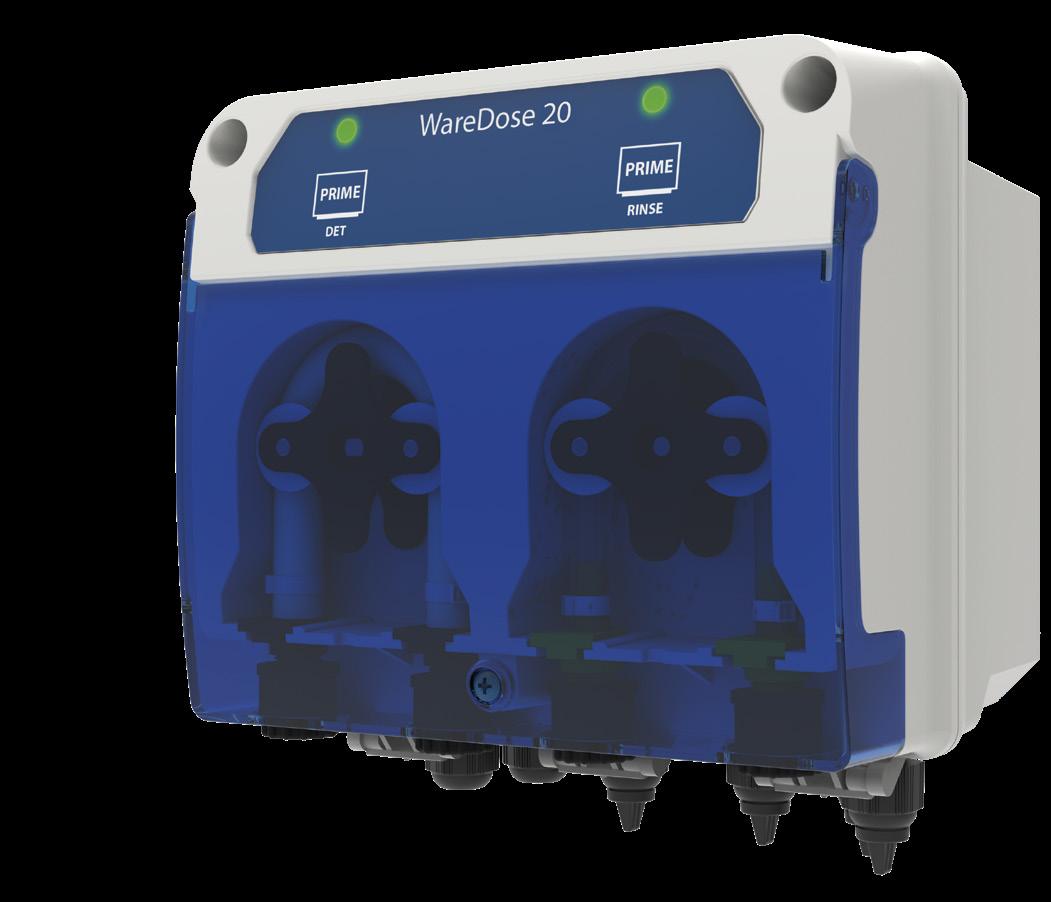

WareDose 20 Kompact

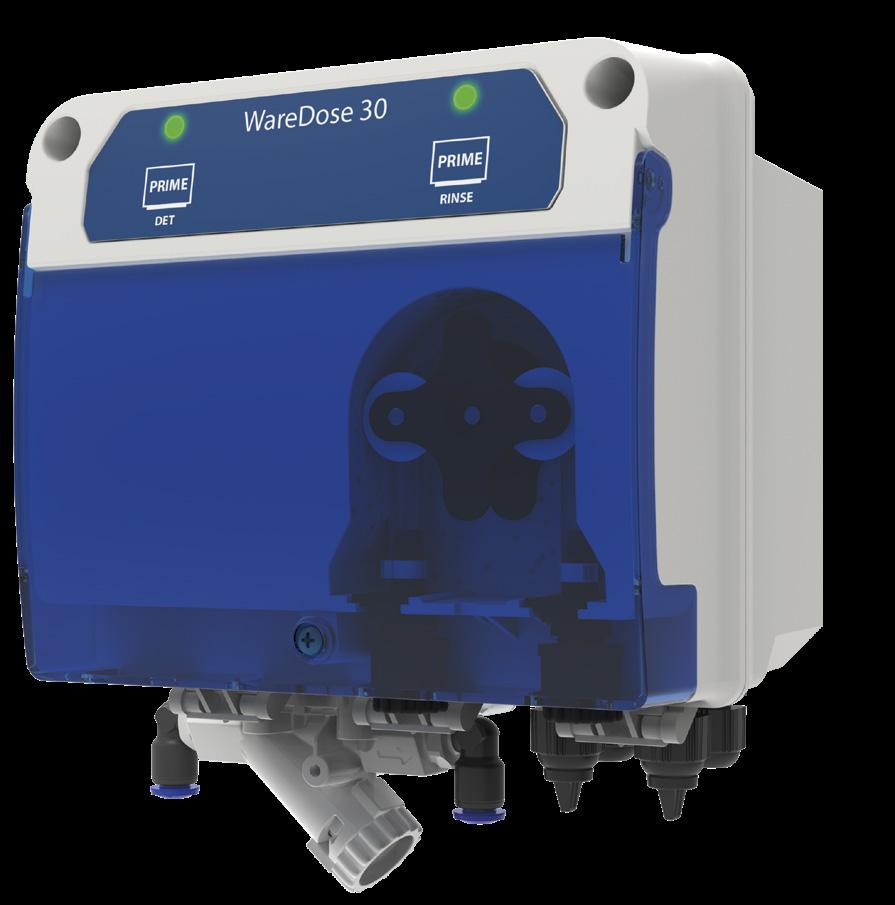

WareDose30 Kompact

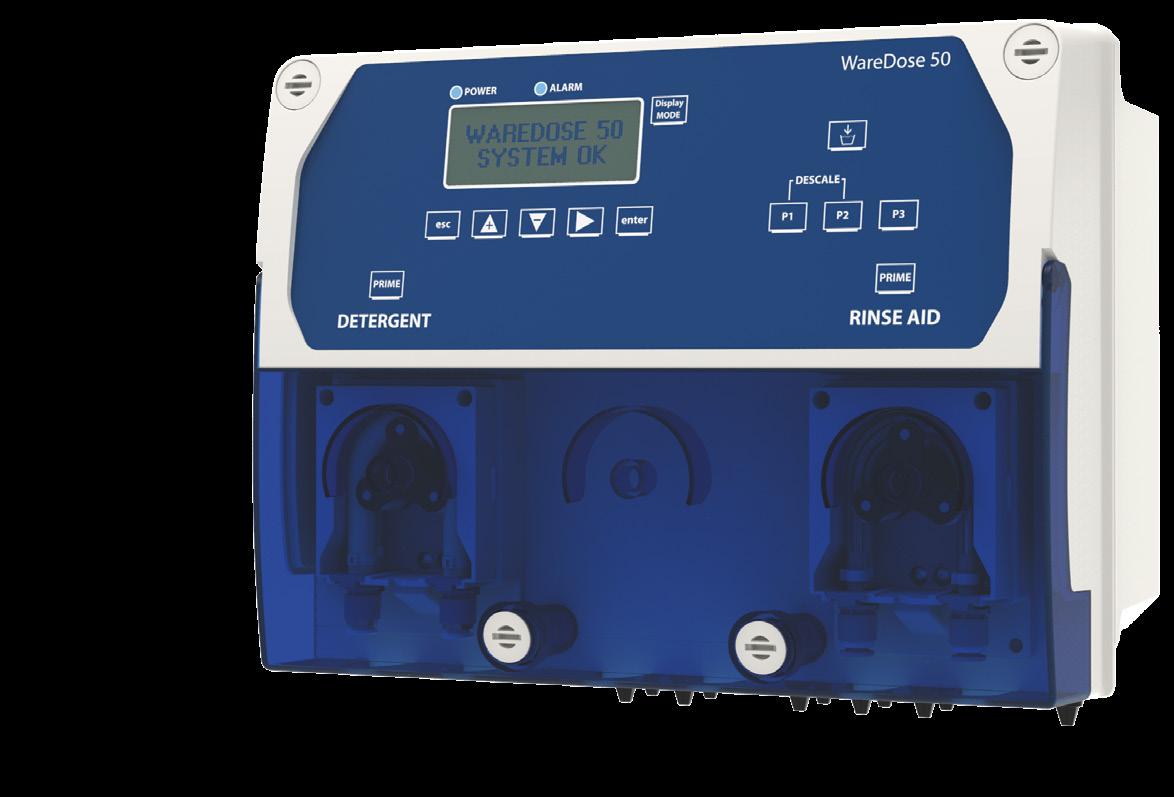

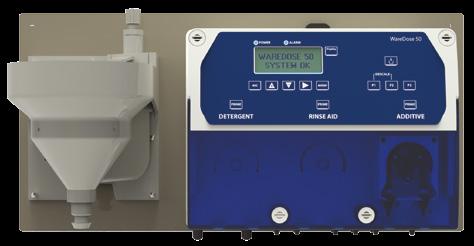

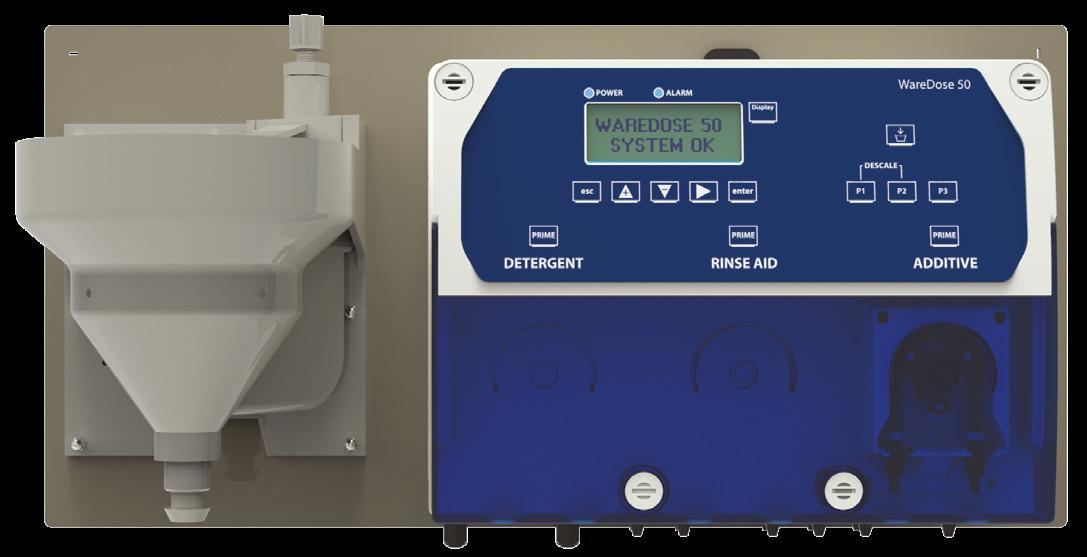

WareDose 35 WareDose 50
Warewashing Applications

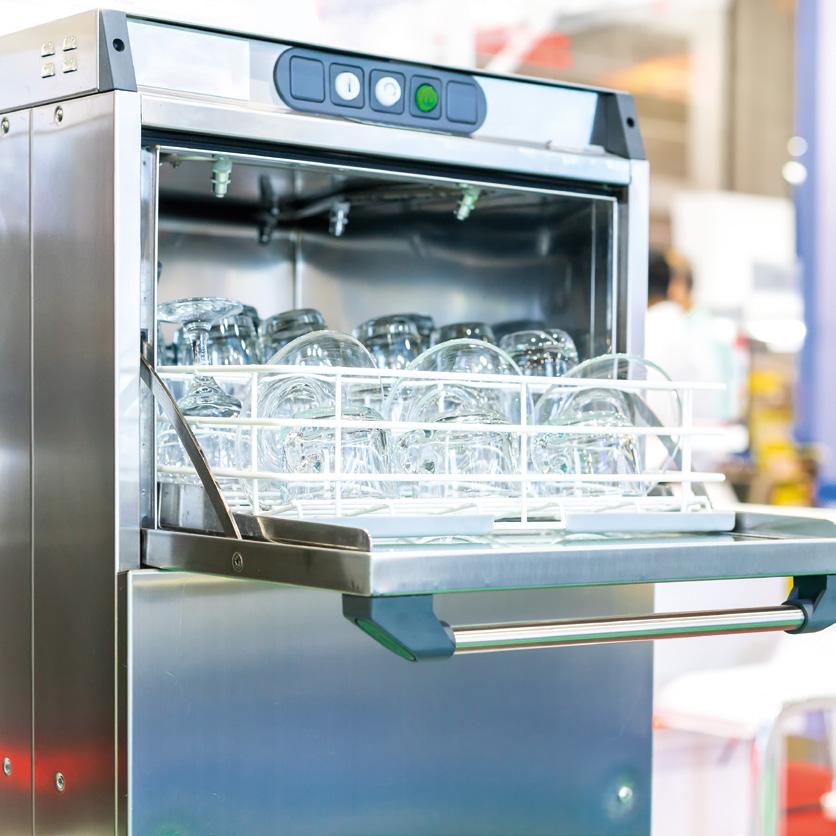

Glasswashers
In hospitality applications where glassware must be sparkling and safe, SEKO provides perfectly sized peristaltic dosing pump systems that ensure not a drop of chemical is wasted.
Hood-type warewashers
In smaller commercial kitchens fitted with hoodtype or pass-through warewash machines, SEKO’s WareDose 35 and 50 models bring the power of IoT to detergent dosing for 24/7 access to live and historical wash data and unrivalled process control.
Conveyor warewashers
For large conveyor warewash machines processing 350 – 1,000 racks each day, SEKO has heavy-duty dosing systems capable of handling high demand without compromising on energy efficiency.

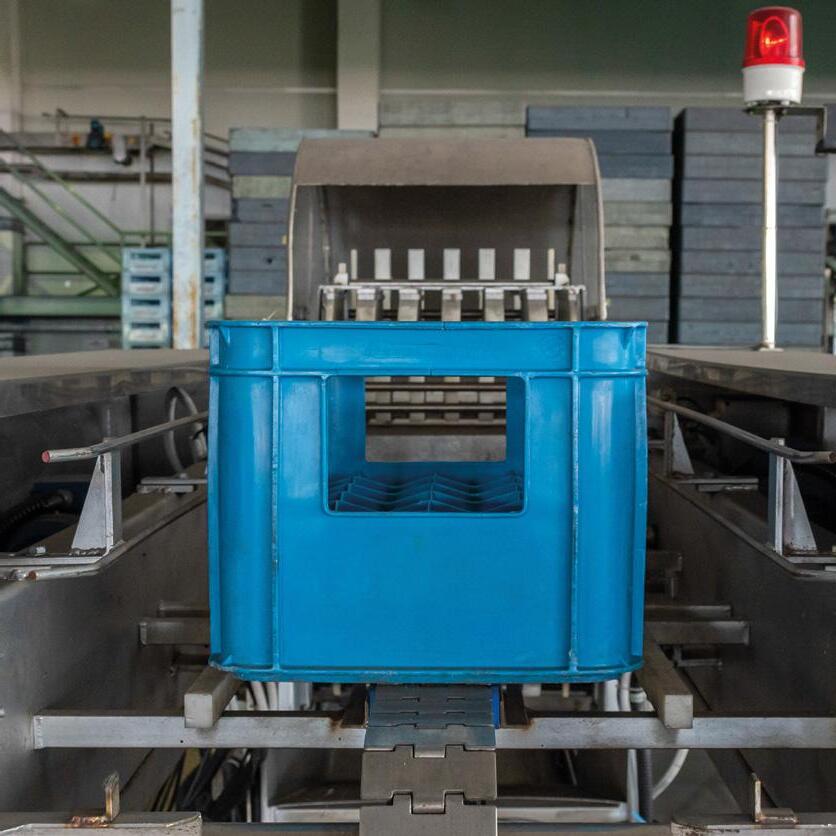

Cratewash machines
Dedicated dosing solutions to ensure crates used for the storage and transportation of meat and other products are effectively washed in order to protect consumers and meet stringent industry standards

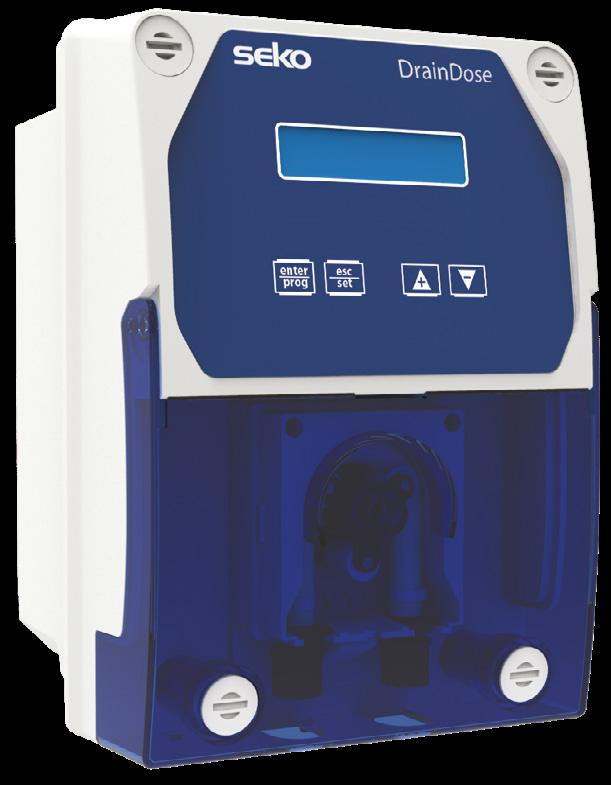

Enzyme dosing
SEKO’s drain-control solutions include automatic lowmaintenance systems that periodically dispense an enzyme solution directly into the drain which breaks down fats before they can build up and cause a blockage or unpleasant odour.
P Series Peristaltic Pumps
SEKO’s essential single-pump peristaltic range
SEKO’s peristaltic range offers reliable, robust and affordable dosing solutions for glasswash machines and hood-type machines with simple installation and connection courtesy of a wall-mounting bracket and circuit board-mounted plugs.
Safety and reliability is achieved thanks to class 2 electrical insulation and polypropylene fibreglass reinforced enclosures that meet IP65 classification.
Meanwhile, ease of use and low operating costs are guaranteed courtesy of intuitive trimmer settings, allowing fast and simple configuration and minimal maintenance requirement.
Safe
and reliable
• Polypropylene enclosure - extremely shockproof and resistant to chemical aggression
• IP65 protection degree and class 2 electrical insulation (no ground connection required)
• Extra-strong long-life Santoprene and SekoBril squeeze tubing, always equipped with inlet-outlet fittings for fast and safe connections
User friendly
• Trimmer settings allow for simple and fast parameter configuration
• Covers for protecting settings to avoid undesired tampering
Easy to install and maintain
• Quick wall mounting and removal courtesy of the fixing brackets
• Simplified tube replacement, with no need to start the pump
• Supplied with plugged cables for quick electrical connection (no need to open the pump)
Applications:
PA Peristaltic Pump
Fixed speed peristaltic pump with analogue dosing adjustment by conductivity probe
Power
100 - 240 Vac, 50 - 60 Hz
24 Vac, 50 - 60 Hz
Power consumption Max 5 W
Flow rate 6 - 9 l/h
PR Peristaltic Pump
Peristaltic pump with analogue speed adjustment
Power
230 Vac, 50 - 60 Hz
24 Vac, 50 - 60 Hz
Power consumption Max 10 W
Flow rate 4 l/h - 7 l/h - 18 l/h
Rinse aid flow rate 1 l/h
Rinse aid back pressure up to 3 bar
PRT Peristaltic Pump
Fixed speed peristaltic pump with analogue adjustment of dosing time with two different timers
Power
100 - 240 Vac, 50 - 60 Hz
Power consumption 5 W
Flow rate 6 - 9 l/h
PM Peristaltic Pump
Fixed speed peristaltic pump with analogue adjustment of dosing time used mainly for rinse aid dosing
Power
230 Vac, 50 - 60 Hz or 100 - 240 Vac, 50 - 60 Hz
Power consumption 8 W
Flow rate 0.4 - 10 l/h
Rinse aid back pressure up to 3 bar
PTS Peristaltic Pump
A unique model with analogue adjustment of both time and speed, can be used for both detergent or rinse aid dosing by simply changing the tube
Power 100 - 240 Vac, 50 - 60 Hz
Power consumption 5 W
Rinse aid flow rate 1 l/h
Detergent flow rate 4 l/h
Rinse aid back pressure up to 3 bar
Features
• Fixed speed peristaltic pump with analogue adjustment of conductivity set point
• Equipped with a conductivity probe to enable dosing
• Doses detergent liquids via Santoprene squeeze tube
Features
• Versatile peristaltic pump with analogue dosing speed adjustment
• For use with a detergent, with Santoprene tubing
• For dosing with rinse aid, using SekoBril tubing for high chemical compatibility
Features
• Fixed speed peristaltic pump with an analogue dosing time adjustment conceived to dose detergent
• Powered via single or double solenoid valves
• Two setting trimmers enable detergent initial charge (18 - 180 secs) and re-charge (2 - 15 secs)
Features
• Fixed speed peristaltic pump with analogue adjustment of dosing time
• Trimmer-enabled dosing time (0 - 30 secs)
• Available as a low-flow variant
Features
• Analogue adjustment of speed via right trimmer
• Time adjustment 1 - 30 sec via left trimmer (if set at 0 the pump runs continuously)
WareOne
Analogue & digital multifunction peristaltic dosing pump
WareOne brings a fresh, modern look to the SEKO range and is intended to be installed mainly on under-counter dishwashers or glasswashers. The clean, professional WareOne design features a polished white casing and easy-toopen front cover that allows tool-free tube replacement.
Three rollers and a large ball bearing on the motor shaft interface guarantee improved axial effort and enhance tube and motor lifespan by 15 - 20%. Meanwhile, edge-free squeeze rollers halve tube replacement time and make the process safer and easier.

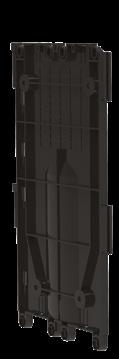

A new modular bracket matches the pump’s footprint and a release lever makes installations easier and more stable over time, providing perfect modular alignment and eliminating the risk of the pump falling off the wall. The connection element is moulded in the bracket itself and can be easily removed by hand if a two-pump connection is needed.
Precise programming
• Delay, dosing times and speed control made possible using key display and microprocessor technology
Improved lifetime
• Squeeze tube and motor life extended thanks to integrated ball bearing and advanced tubing
IP65 enclosure
• A PP-reinforced fibreglass housing combined with a soft polyurethane gasket offers outstanding water and dust protection to IP65, helping protect the system from impacts, ingress and chemical agents
Class II electrical insulation
• A ground cable connection is not required, while the operator is not exposed to external metal parts
Materials
• The entire range is made using fire-retardant materials and RoHS technology, eliminating operator exposure to lead and other heavy materials
Wide range of options
• Specific models can be supplied with the option of connecting a level probe, acoustic alarm and priming by means of a switch
Robust, precise and durable
• Easy to install thanks to convenient wall fixing modular brackets able to couple two or more pumps together as a unique device
• Squeeze tube replacement does not require pump starting, special tools or qualified personnel and is made easy by the edge-free rollers
WareOne Digital
Clear, intuitive display
Luminous display for visualising parameters consists of four digits, the first green and the others red. The green digit indicates the menu page and the three red digits indicate the value of the parameter being programmed.
Features
Integrated ball bearing
Provides support and stability to the driveshaft, making the roller pressure on the squeeze tube more uniform. This results in extended motor and squeeze tube lifetime.
• Analogue or digital multifunction peristaltic dosing pump that is simple to install, robust and easy to use
• Versatile system allows probe connection, audible alarm and switch-operated prime
• Flow rate up to 13 l/h
• Model for detergent dosing accepts two input triggers (100 - 240 Vac) for the first charge and rinse
• Suitable for warewashers with one or two valves
Applications:
Digital model specifications
WareOne DR
Power
100 - 240 Vac, 50 - 60 Hz
Power consumption 5 W
Flow rate 0.7 - 9 l/h
WareOne CR
100 - 240 Vac, 50 - 60 Hz Power
5 W
7 - 10 l/h
WareOne SR
100 - 240 Vac, 50 - 60 Hz Power consumption 5 W Flow rate 0.1 - 2 l/h
Pressure 3 bar
WareOne SV
Power 24 - 240 Vac, 50 - 60 Hz
Power consumption 5 W
WareOne SV
WareOne SV is a dosing system specifically designed for the dosing of powder detergents into a warewasher without the use of a conductivity probe. It can be used for a single tank machine with either one or two solenoid valves.
• Dosing speed automatically adjustable by software in the range 10 - 100%
• Dosing time adjustable by software in the range 0 - 999s
• Double speed/time dosage on detergent version, time and speed regulation on rinse aid version
• Quick connectors for transport tubes with O.D. 6mm provide a reduced installation time with a safer connection
• New POE transport tube (included) ensures greater resistance to highly aggressive chemicals
Applications:
Analogue model specifications
WareOne PR
Power
230 Vac, 50 - 60 Hz or 100 -240 Vac, 50 -60 Hz or 12 - 32 Vdc
Power consumption 5 W
Flow rate 0.15 - 13 l/h
WareOne RT
- 240 Vac, 50 - 60 Hz
6 l/h
WareOne PM Power
100 - 240 Vac, 50 - 60 Hz
Power consumption 8 W
Flow rate 0.4 - 2 l/h
Pressure 3 bar
WareOne PA Power
100 - 240 Vac, 50 - 60 Hz
Power consumption 5 W
Flow rate 6 - 9 l/h
WareOne Dry Liquid
Installer-friendly, compact solution for warewash
WareOne Dry Liquid is an automatic detergent dosing system that combines a solenoid valve for dissolving dry detergent with a peristaltic pump to dispense liquid rinse aid. This compact system is designed to be installed mainly on door-type dishwashers where there is a need to dissolve a solid or powder detergent product.
Features
• Compact design (122 x 119 x 137mm)
• Easily installed on door-type warewash machines
• Power supply 100 - 240 Vac directly from dishwasher triggers (accepts two triggers that drive detergent solenoid valve and rinse aid pump respectively)
• IP65 ingress protection and class II electrical insulation
• Bright OLED display provides clear view of pump operation status and settings
• Conductivity probe-driven detergent dosing with probe scale compensation to minimise probe deterioration effects on conductivity reading
Applications:
Specification
Power
Power
Rinse
Pressure
• Rinse aid pump adjustable in speed and/or timed mode
• Quick 6mm OD tube connections for easy, fast and secure connection of water hoses
• Pre-cabled wires for DET, RINSE and PROBE allow quick and easy installation
• OFA alarm alerts user to dry chemical being over or probe anomaly
• SAFE MODE (to be enabled on settings) allows operation to continue in timed mode if probe is dirty or malfunctioning
WareDose 10 is an automatic detergent and rinse-aid dosing system that brings analogue control and speed adjustment to hood-type warewash applications. This professional system includes premium-grade Santoprene and SekoBril squeeze tubing, ensuring dosing remains precise and consistent for longer to help operators achieve wash results they can rely on.
Features
• 100-240 Vac power supply (system is powered by triggers)
• Analogue speed control (15-100%) of detergent and rinse-aid pump on rinse signal via potentiometer
• ON/OFF switch
Applications:
Specification
Power
Power consumption
• Separate level control inputs
• Manual pump priming via front panel
• Detergent pump flow rate: 4l/h with Santoprene squeeze tube
• Rinse-aid pump flow rate: 1 l/h at 3 bar with SekoBril (silicone) squeeze tube
WareDose 20 is an automatic compact detergent and rinse-aid dispenser, designed for hood and conveyor-type warewash machines and is suitable for professional single and double solenoid valve warewash machines. It comes within a compact design and LED display, using potentiometers and jumpers to select operating modes.
Features
• Designed for hood and conveyor-type warewash machines
• Suitable for professional single and double solenoid valve warewash machines
• Compact design and LED display
• IP65 protection degree and Class II electrical insulation
• Separate level control inputs for detergent and rinse aid pump
• Manual pump priming via external buttons
• Analogue speed control (15 - 100%) of detergent and rinse pump via potentiometer on the board. Analogue time control (0 - 200 sec) of detergent dosing on first charge signal via potentiometer
• Suitable for machines with one or two solenoid valves
• Vacuum Switch option enables user to check chemical level, including for bag-in-box products
WareDose 30 is a digital dosing system with a new SEKO CPU able to be managed via a Bluetooth connection. It is pre-wired for quick installation and offers the possibility of speed/time or quantity adjustment for detergent and rinse aid or conductivity mode dosing for the detergent pump. WareDose 30 also offers Bluetooth connection courtesy of the dedicated SekoBlue app for user-friendly installation and setup.
Features
• Compact device (150 x 140 x 110 mm) easily installed on any warewash machine, from door-type to tunnel dishwashers
• 100 - 240 Vac power supply directly from dishwasher triggers (accepts two triggers that can be chosen to drive detergent and/or rinse aid pump)
• Available with two peristaltic pumps or with a solenoid valve for dry detergent dosing plus a peristaltic pump for liquid rinse aid
• Conductivity probe-driven detergent dosing with probe scale compensation to minimise probe degradation effects on conductivity reading
Rinse aid pump flow rate 1.2 l/h (SekoBril tubing)
Pressure 3 bar
• Rinse aid pump adjustable in speed and/or timed mode
• Safe mode feature allows a conductivity driven system to automatically switch to probeless mode in case of probe failure
• Over-feed alarm time can be set to advise in case conductivity is not reached within the set time
• Pump calibration via SekoBlue app to confirm precise dosing volume
Connectivity:
k blue
Application control at your fingertips
Monitor and manage your system with SEKO’s dedicated Bluetooth app for smart devices
SekoBlue is SEKO’s exclusive app that brings Bluetooth connectivity to an ever-growing range of chemical dosing solutions. From device status monitoring to pump priming and programme setting, SekoBlue puts application control in the palm of your hand for unprecedented insight into cost and performance.
SekoBlue is ideal for SEKO’s modular systems as it allows template programmes to be pre-set and then quickly uploaded to newly added devices, minimising setup time and ensuring consistency across the installation.
SekoBlue Features
• Password protection to prevent interference
• Both device and washer status can be easily monitored on SekoBlue’s main dashboard to facilitate control of washing operations, upcoming triggers and alarms
• Settings can be exported from one installation to another via Bluetooth connection to the device
• Template programmes can be pre-set and quickly uploaded to new devices on the installation to minimise setup time
• Counters registered by the device can be shared via SekoBlue on PDF files for basic consumption data analysis
• Firmware updates maintain high performance
• Pump priming can be executed both on the system’s front keypad or via SekoBlue’s main dashboard screen
• Available in multiple languages, supported by compatible smartphones
WareDose 35
IoT-enabled warewash dosing system
In heavy-duty commercial dishwashing and glasswashing applications operating for over 50 hours per week, choose the dual-pump WareDose 35 compact chemical dosing system for an intuitive, precise and reliable solution.
WareDose 35 is managed by a micro-controller and is equipped with a conductivity probe (also inductive on request) to detect and keep the detergent concentration stable in the dishwasher tank.
WareDose 35 is now also available with connection to the SekoWeb online platform and smartphone app, which allows managers to view live wash statistics and chemical consumption data 24/7 from any location for a new standard of operational efficiency.
Features
• Designed for heavy-duty applications, where dosing time exceeds 50 hours per week
• Solution concentration detected and kept constant via conductivity sensor
• IP65 protection degree and Class II electrical insulation
• Level control inputs separate for the two pumps
• Conductive probe for accurate conductivity reading (200 μS - 5 mS)
• Accepts up to three input signals (1st charge SV, rinse SV, wash pump) from warewasher with voltage 12 - 230 Vac
• Over-feed alarm time can be set to advise in case conductivity is not reached within the set time, deciding whether to stop the pump or not
• Dosing can be set in probe, probeless or simplified (patented) mode, to ensure maximum flexibility for any kind of installation
• The availability of dosing counters allows check of washing performances and statistics
• Quick connectors for transport tubes with OD 6 mm provide a reduced installation time with a safer connection
• New POE transport tube (included) ensures greater resistance to aggressive chemicals
• Vacuum Switch option enables user to control chemical levels, including for bag in box products
• Available with embedded Wi-Fi module for remote control
• Available with inductive probe (0.1 mS - 50 mS) to reduce service intervals in harsh environments
Complete and advanced solution for heavy-duty warewash applications
WareDose 50 is microprocessor-controlled dosing system that represents the ultimate solution in heavy-duty installations. It can house up to three pumps, one of which may even be electromagnetic.
WareDose 50 manages up to three different dosing programmes that can be started automatically at certain times of day, and can also be equipped with an inductive probe.
Features
• LCD digital display 2 x 16 characters with backlight
• IP65 protection degree and Class II electrical insulation
• Password protection for programming
• Conductive probe for accurate conductivity reading (200 μS - 10 mS)
• Available with inductive probe (1 mS - 50 mS) to reduce service intervals in harsh environments
• Proportional achievement of the conductivity set point (speed reduces when approaching set point) with programmable band
• Accepts up to three input signals (1st charge SV, rinse SV, wash pump) from warewash machine
• Wide set of statistical data (including operating times and activations for each pump and conductivity value)
• Up to three stored programmes
Applications:
Specification
Power
Power consumption
Detergent pump flow rate
• Speed-adjustable sanitising pump can be set to work with detergent or rinse-aid pump
• Motor breakdown diagnosis to signal motor failures
• Level control input with the possibility to stop the pump or not when alarm occurs
• Programmable OFA time to eventually stop the pump if the detergent concentration set point has not been reached within the set value
• Quick connectors for transport tubes with OD 6 mm provide a reduced installation time with a safer connection
• New POE transport tube (included) ensures greater resistance to highly aggressive chemicals
• Vacuum Switch option enables user to check chemical level, including for bag in box products
• Available with embedded Wi-Fi module for remote control

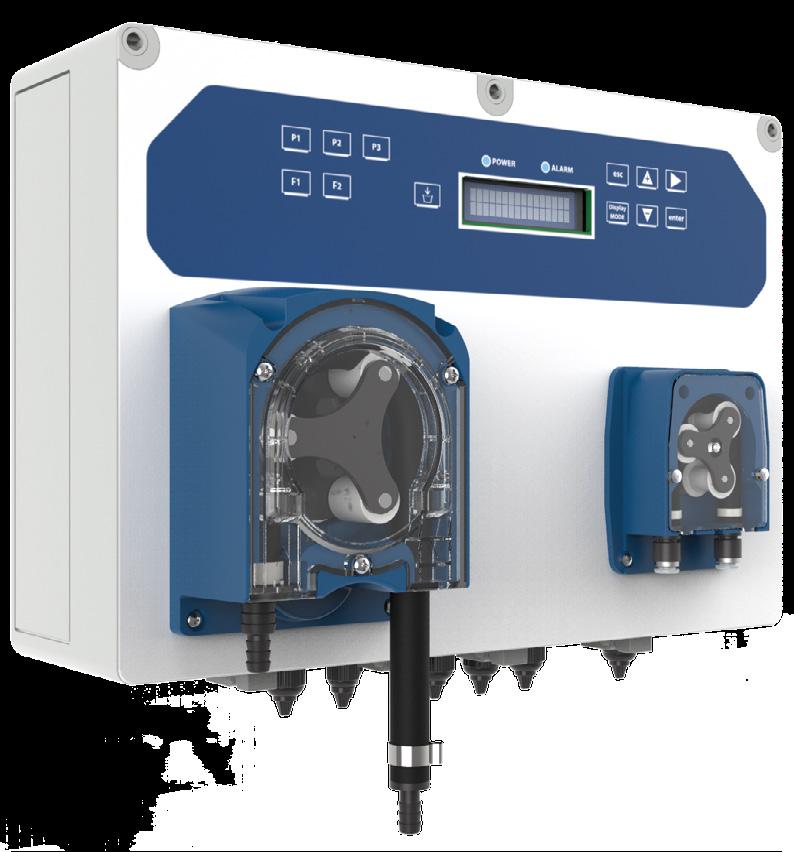

Digital cratewash dosing system for high flow rates
CrateDose is a dual-pump microprocessor dosing unit with LCD display, designed for use with large crate washers in the fish, dairy, meat and beverage industries or for general CIP applications where flow rates are higher than standard warewash systems can achieve.
Operating modes and functions
• Three separate dispensing programmes selectable manually or automatically by time of day
• Primary peristaltic pump with selectable dosing speed (20 - 40 - 60 - 80 l/h), activated from conductivity reading in timed or cyclic mode
• Secondary peristaltic pump with adjustable speed; can be set to work with detergent pump or controlled by separate input signal
Features
• LCD digital display 2 x 16 characters with backlight
• IP55 ingress protection and Class II electrical insulation
• Password protection for programming functions
• Inductive probe for accurate conductivity reading (reading range 1 mS - 100 mS) with temperature compensation
• Programmable OFA time to signal alarm and eventually stop the pump if the detergent concentration set point has not been reached within the set value
• Motor breakdown diagnosis to signal failures
• Two level control inputs compatible with SEKO suction devices for flagging up depleted containers
• Accepts 24 - 240 Vac input signal to start dosing
• 2A relay for external pump available in parallel with pump functions
WarePanel 50 is a complete dosing system designed to dispense a powder detergent and a liquid rinse aid into any kind of warewashing machine.
The unit features an integrated microprocessor dosing device, the WareDose 50 DL, and a solid hopper to dissolve the dry detergent to be injected in solution with water into the warewashing machine.
Operating modes and functions
• Password protection for programming
• Operating mode programmable for single tank or tunnel dishwashers
• Detergent solenoid valve opens depending on conductivity value
• Separate management of first charge
Integrated powder and liquid warewash dosing system Features
• Peristaltic rinse pump with adjustable speed or dosing time and programmable dosing time limit
• Three stored programmes that can be activated manually or at a pre-set time
• LCD digital display 2 x 16 characters with backlight
• IP65 ingress protection and Class II electrical insulation
• Level control input for rinse pump, with the option to stop the pump or not when alarm occurs
• Separate input triggers for 1st charge SV, wash pump and rinse SV
• Conductive/inductive probe for accurate conductivity reading (200 µS - 10 mS or 1 mS - 50 mS)
• Manual priming of the SV/pumps by buttons on the front label keypad
• Programmable OFA time to signal alarm and eventually close the valve if the detergent concentration set point has not been reached within the set time interval
• Wide set of statistical data (such as operating times and activations for each pump and conductivity value)
• Motor breakdown diagnosis to signal failure
• Features new PC front cover with easy opening and stop in open position
• New ABS polished enclosure with easy opening by frontal keys
• 3 rollers and ball bearing on motor shaft ensure 20% high tube and motor lifetime
• Corrosion-resistant plastic hinge not affected by corrosion
• Integrated PP hopper for dry chemical dissolving in water
• Solid PP panel ready for wall mounting
Applications:
Specification
Power
Power consumption
Detergent pump flow rate
Rinse aid pump flow rate
Pressure
100 - 240 Vac, 50 - 60 Hz
20 W
N.A. (solenoid valve)
0.15 - 1.2 l/h (SekoBril tubing)
3 bar
WarePanel Mono
WarePanel Mono is designed to control the amount of chemicals in a circulating water system in a professional warewash machine or similar. It controls a solenoid valve to dissolve dry chemicals.
Operating modes and functions
• Password protection for programming
Automatic powder detergent feeder for warewash Features
• Detergent solenoid valve opens depending on conductivity value or alternatively in ON-OFF mode with programmable intervals
• Programmable OFA time for detergent solenoid valve to signal alarm and eventually close the valve if the detergent concentration set point has not been reached within the set time interval. The alarm can be configured for single tank or tunnel machines
• Features basic set of counters (trigger hours for tunnel machines, number of wash cycles for single tank machines)
• LCD digital display 2 x 16 characters with backlight
• Separated switching power supply (24 Vac, 50 - 60 Hz) pre-wired for quick and safe electrical connection; the unit is provided with an additional water proof transformer to get power supply from any kind of dish machine
• Integrated control unit with IP65 ingress protection and Class II electrical insulation
• Separate input trigger 24 - 230 Vac for enabling conductivity probe reading to start the dosage
• Conductivity probe for accurate conductivity reading (100 μS - 15 mS) with temperature compensation
• Integrated PP hopper for dry detergent dissolving in water
• Stylish frontal ABS thermoformed cover to protect the components, leaving access to the programming keypad
• 24 Vdc solenoid valves integrated into the device to open water flow
• LEDs and display provide information on dosing phases and alarms
• Overflow alarm on the hopper to signal if water is flooding due to abnormal obstruction in the delivery line
Applications:
Specification
Certifications CE, EAC
Interface LCD 2x16
Ingress Protection IP65
Electrical class Class II
Power 24 Vac, 50 - 60 Hz
Conductivity
100 μS - 15 mS
Consumption 15 W
Operating temperature 5 - 50°C
Storage temperature -20 - 60°C
Front cover material ABS
Enzyme dosing
Even with the best procedures in place, in fast-paced restaurant, café or takeaway kitchen environments it’s inevitable that oils and fats will find their way into drains and cause expensive, inconvenient blockages. So what’s the solution? Introducing SEKO’s enzyme dosing systems, a range of low-maintenance devices that are installed discreetly beneath sinks in commercial kitchens, periodically injecting enzymes into drain lines and breaking down grease, oil and fat before they can solidify and create a blockage. These fit-and-forget solutions are quick and easy to programme, making them invaluable assets to any commercial kitchen.
Drain dosing pump
Grease-dissolving enzyme
Collected grease
Clean water exit
Cleaned water
Residual food waste
Keeps drains clear
Automated drain dosing keeps your drainage channels clear of fats, oils, grease and reduces unpleasant odours and blockages.
Higher productivity
Timed dosing systems are programmable, allowing the dosing cycles to run automatically. This eliminates the manual process of pouring chemicals into drains.
Improves health & safety
When using grease traps, staff have to physically clear the build-up of grease. The waste must then be properly disposed of, and great care needs to be taken to avoid spillage and contamination. Automated drain dosing releases an enzyme, which helps break down the grease so that it washes away easily without the need for manual cleaning.
Timed dosing is adaptable
Automated drain dosing is precise and safe while offering multiple efficiency benefits to operators seeking to make their sites more sustainable. These versatile systems can be adapted to a number of different applications across the catering and hospitality sectors.
DrainOne
Easy and smart drain dosing dispenser
DrainOne is a simple, easy and intuitive dosing device to be installed in kitchens for the removal of fats in drain pipes, grease traps or other places where dosing at certain intervals of the day is required.
Features
• Delivery of a single chemical at predetermined timed intervals
• Programmable initial delay time, interval between dosages and dosing time
• Quick and easy installation
• Low-maintenance, robust design
• IP65 ingress protection
• Programming password protection
Applications:
Specification

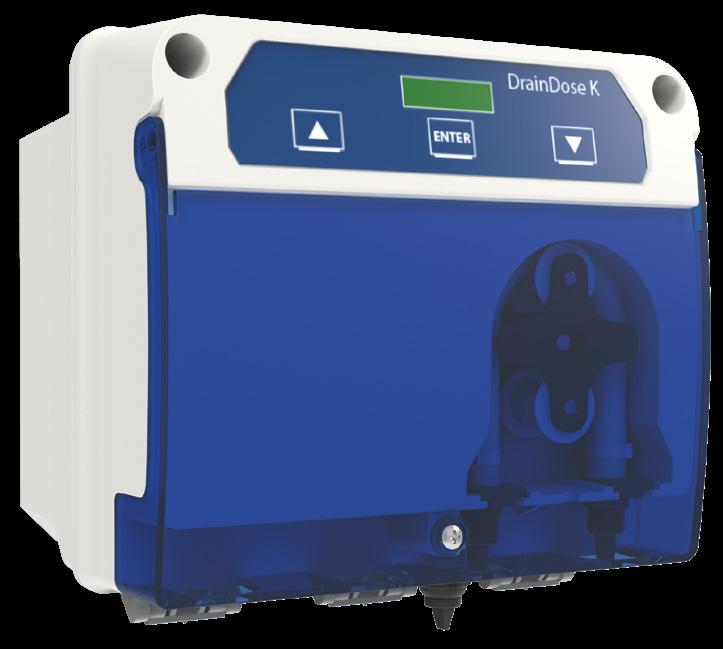

DrainDose Kompact
A compact solution for keeping drains clear and odour free
DrainDose Kompact is the latest addition to SEKO’s range of costeffective drain dosing systems, packing a powerful solution into a compact product that’s easily installed where space is at a premium.
This invaluable device doses enzyme-based chemicals into the drain line at regular, pre-specified intervals, breaking down fats, oils and grease before they can accumulate. This prevents costly, inconvenient blockages and associated unpleasant odours, saving operators time and money with the minimum of effort.
Quick and easy to programme via its OLED display and keypad, DrainDose Kompact stores up to 12 cyclic dosing events – making it suitable for sites of all sizes from large commercial kitchens to smallscale fast-food outlets.
DrainDose Kompact’s minimal footprint and battery pack mean operators aren’t restricted by existing mains power sources and can fit the system exactly where they need it, making it a cost-effective answer to one of the most common challenges in the food-service sector.
Features
• Powered by 4 x D-cell battery pack
• Single-pump system suitable for dosing enzymes at pre-defined periods
• Level control input
• Manual pump priming via button on front panel
• IP65-rated enclosure
• Easy to install and simple to maintain
• Suitable for installation in restricted spaces
• Cost-effective solution
• Quick and easy programming via clear OLED display and keypad
Applications:
Specification Power
• Optimised battery consumption (with sleep mode) for extensive lifetime
• Password protection to control access to programming
• Up to 12 cyclic programmable dosing events
• Accurate programmable dosing quantity
• Cyclic dosing interval can be set in minutes, hours or days
• Registers activation time and estimated dosed quantity
6 l/h (Santoprene tubing and others upon request)
DrainDose
A low-maintenance solution for clean, clear drains
Blocked drains caused by a build-up of grease are a common occurrence within commercial kitchens, causing inconvenience and expense to operators of cafes, restaurants and other food-service outlets.
DrainDose from SEKO offers a low-maintenance solution to this common problem, a compact unit fitted discreetly beneath the sink that periodically doses enzymes into the drain line, breaking down fat before it can solidify and form a blockage.
This fit-and-forget solution is available in both mains and batterypowered versions, is quick and easy to programme and represents an invaluable asset to any commercial kitchen.
Features
• Available in both battery power or mains power versions
• IP65 ingress protection and Class II electrical insulation
• Easy programming through 2x16 display and 4 keys
• Password protection to unlock settings
• On-screen battery level indicator
• Up to 48 programmable dosing events per day
• Dosing can be eventually enabled only by external “flow” input
• Uses standard D-Cell batteries that can be easily found on the market
• Robust bracket with lock feature to secure the unit to the wall
• Relay function to drive an external pump or solenoid valve in parallel with the motor or to activate an external alarm in parallel with the internal buzzer
100 - 240 Vac, 50 - 60 Hz or by 8 D-cell batteries
20 W
Flow rate (mains powered) 12 l/h (Santoprene tubing and others upon request)
Flow rate (battery powered) 5 l/h (Santoprene tubing and others upon request)
Pressure 1 bar
Warewashing Accessories
SEKO has developed a full range of accessories to ensure engineers have every element they need to deliver the most professional installation

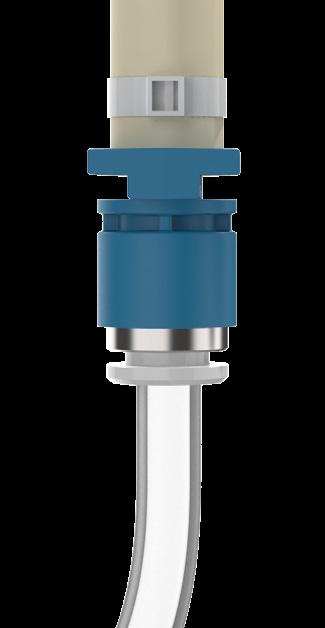

Quick Connectors For Peristaltic Pumps
• Quickly connect suction and delivery tubes to peristaltic tubes
• Avoid tube cracking when connecting to spigots
• Prevent leakages due to poor connections or loose tie wraps
• Safer connection between fitting, squeeze tube and modified barbed spigot

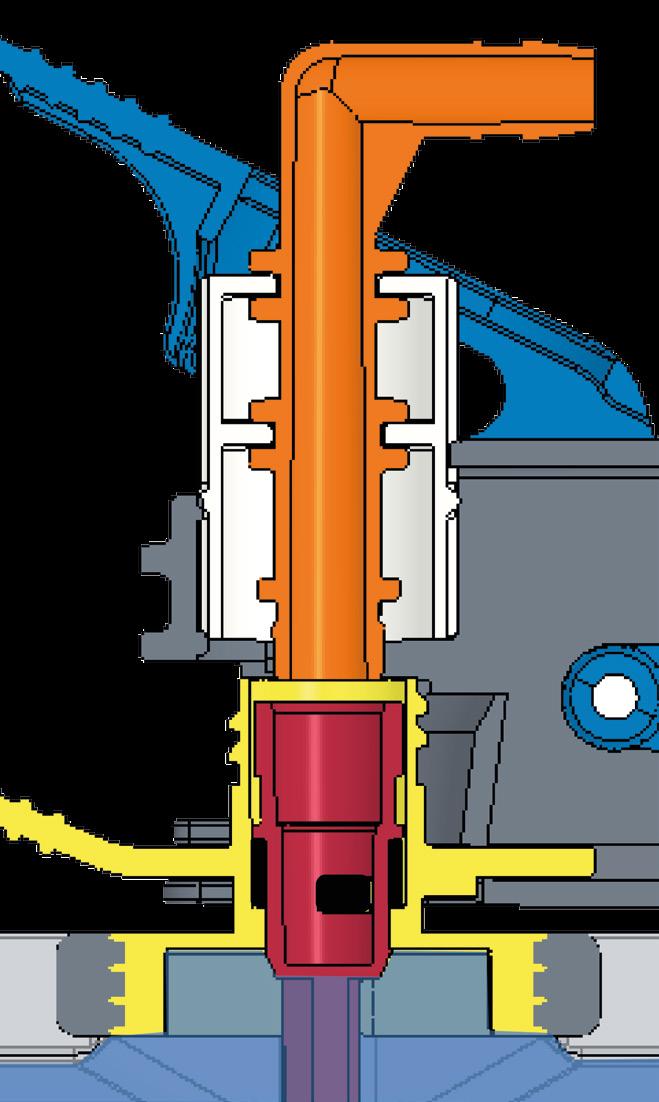

SEKO has developed quick fittings for connecting suction and delivery tubes to squeeze tubes
Connection Operation
Connection
Insert the tube into the fitting and push
Disconnection
Press the plastic ring on two sides and pull the tube out
Foot filters

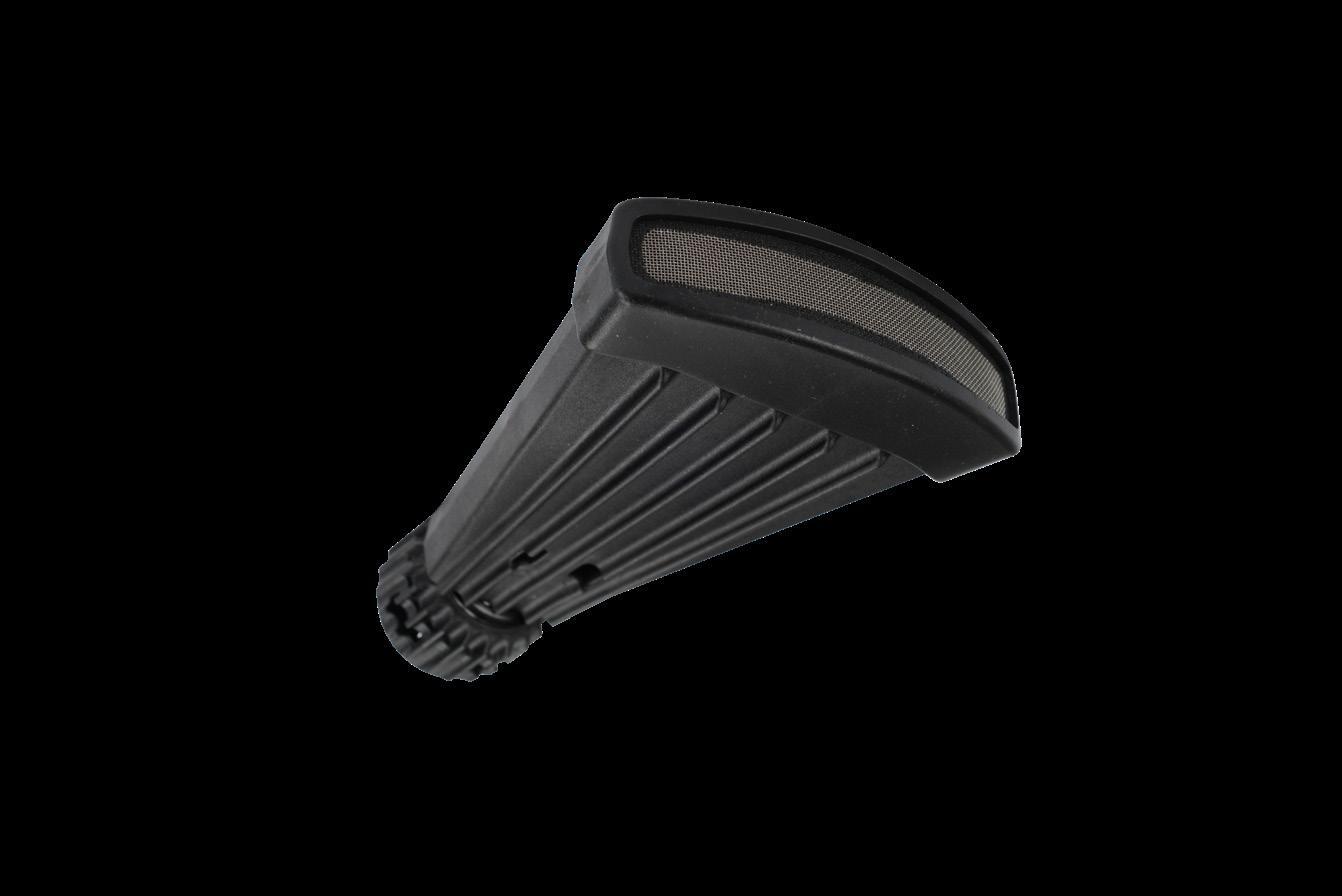

• Foot filter for ID 4 / OD 6 mm tubing to be used in the inlet pipeline of peristaltic pumps. Available with ceramic or stainless-steel weight.

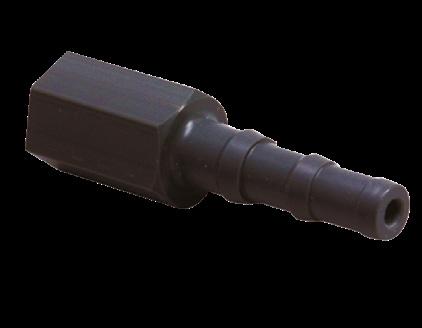

Tank injection kits for detergent
• PVDF connector to hold a peristaltic pump delivery line to a tank. Made with nut fixing for ID 4 / OD 6 mm tubing. Process connection with 10 mm hole.
• Aisi 304 connector to hold a peristaltic pump delivery line to a tank. Available for ID 4 / OD 6 mm tubing. Process connection with 10 mm hole.
• PP flat connector to hold a peristaltic pump delivery line to a tank in narrow space. Suitable for ID 4 mm tubing. Process connection with 12 mm hole.
Non-return valves for rinse aid
• AISI 316 non-return valve with silicone seals to connect a peristaltic pump into pressurised tanks or when injection is made under liquid level. Made with nut fixing for ID 4 / OD 6 mm tubing or with tube holder for ID 6 mm tubing. Gm 1/8 process connection. Available for tube sizes 4 x 6 mm or 2 x 4 mm.
• PP non-return valve with FPM seals to connect a peristaltic pump into pressurised tanks or when injection is made under liquid level. Made with nut fixing for ID 4 / OD 6 mm tubing. Gm 1/8 process connection.
Transport hoses
Generic plastic fittings
• PP connection to hold non-return valve to a process’s existing tubing with ID 6, 7 or 8 mm
• T connection to hold non-return valve to a process’s existing tubing with ID 12 mm.
• ID 4 / OD 6 mm flexible PVC crystal tube suitable for suction lines or delivery lines with low backpressure. Available in rolls of different lengths (2 m, 4 m, 6 m) or in 100 m coils. Available also in blue or red colour.
• ID 4 / OD 6 mm semirigid PE tube suitable for pressurised delivery lines available in rolls of different lengths (2 m, 4 m, 6 m) or in 100 m coils.
• ID 4 / OD 6 mm flexible POE tube suitable for suction or pressurised delivery lines. Available in rolls of different lengths (2 m, 4 m, 6 m) or in 100 m coil. Available also in blue colour.

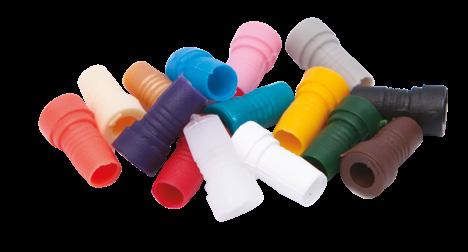

Suction lance variants
Surface Cleaning Applications Surface Cleaning

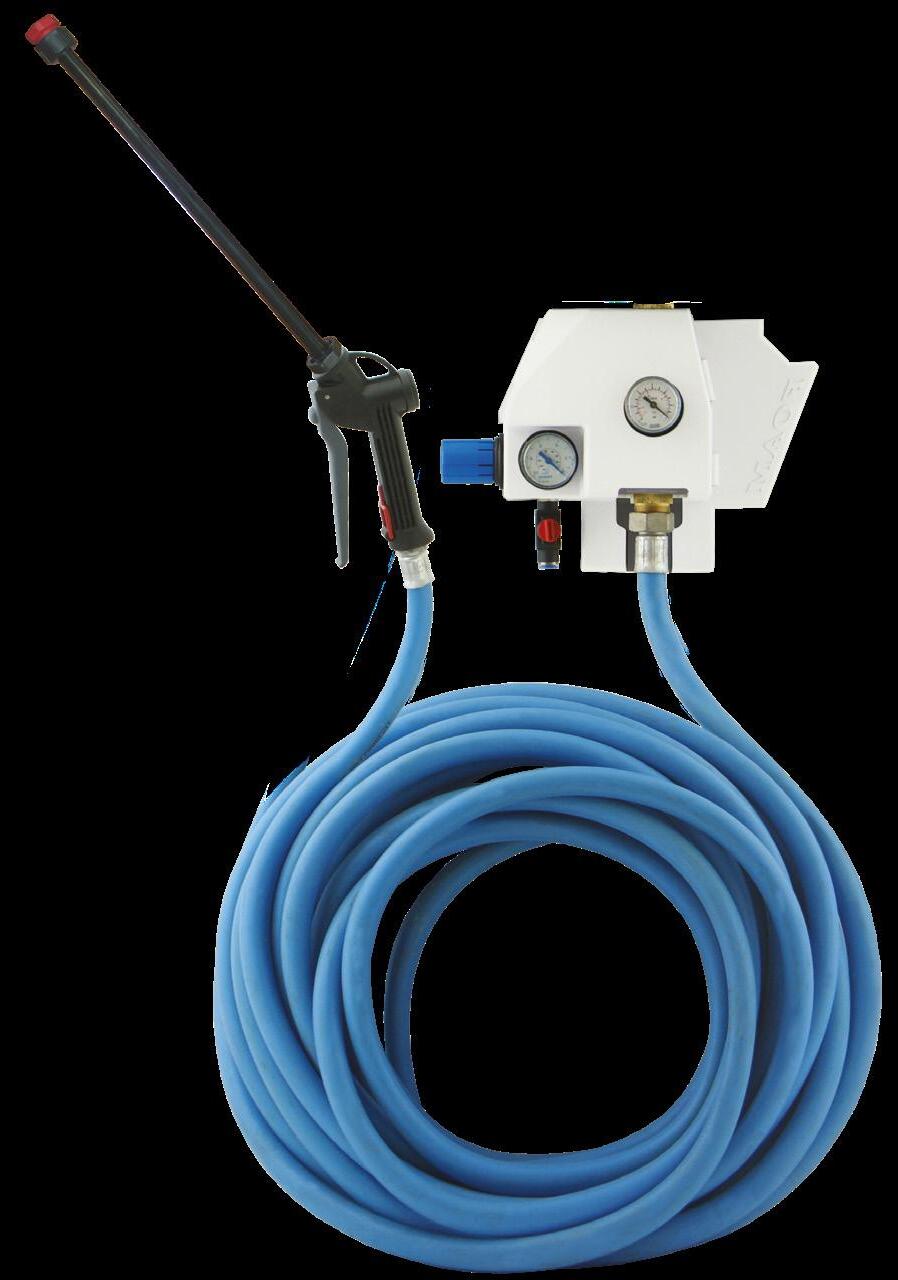

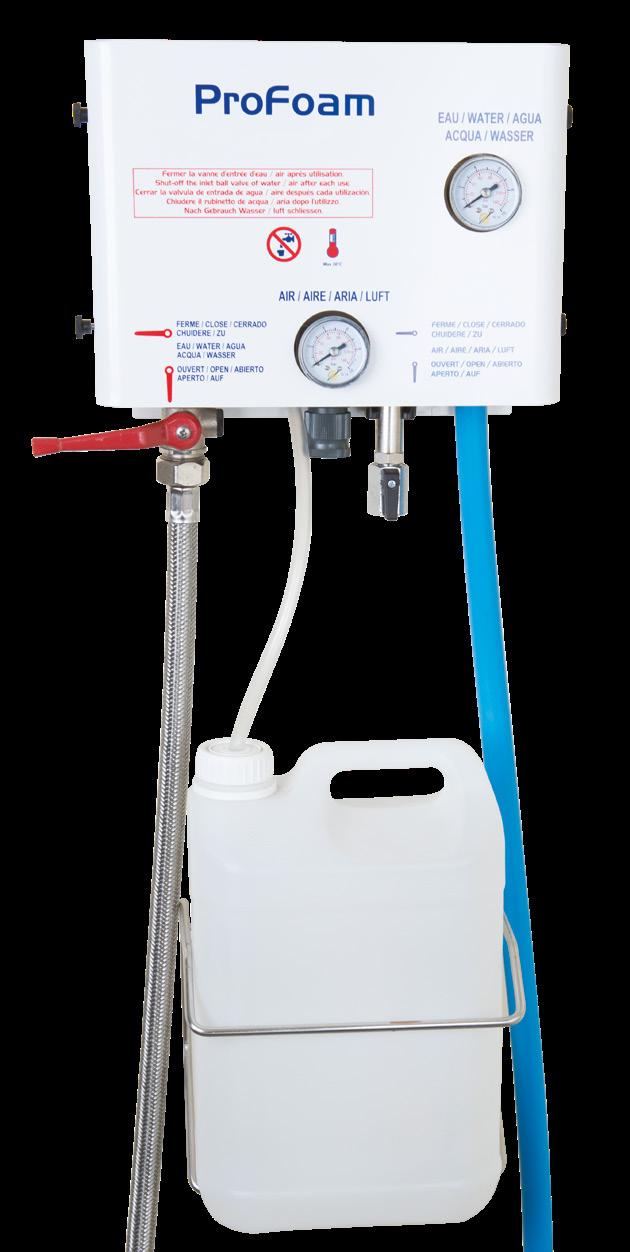

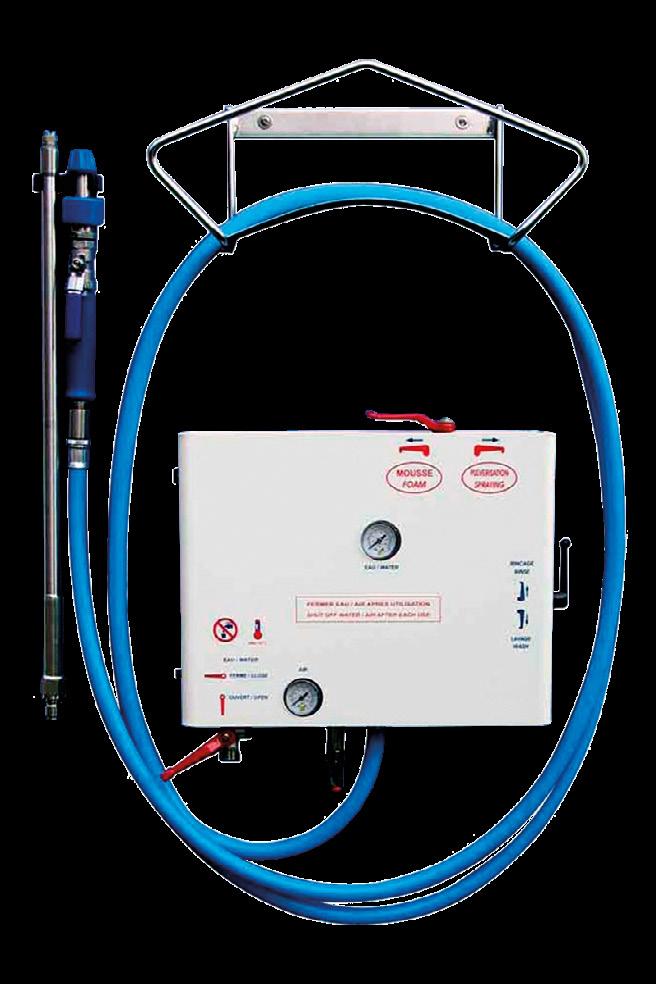

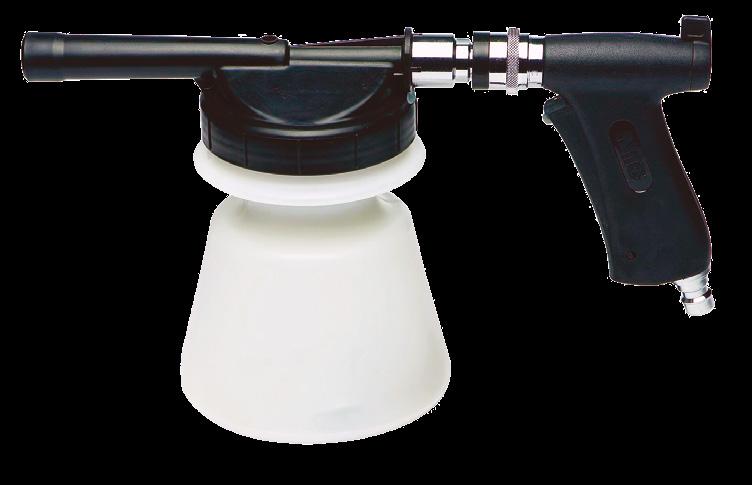

ProFoam-R
Surface Cleaning Applications
Refilling Range
SEKO’s chemical refilling solutions deliver precision, robustness, reliability, safety and user-friendliness in the refilling of sinks and spray bottles.
Floor Cleaning & Disinfection
SEKO offers a broad range of chemical dilution and dispensing stations, surface-cleaning foaming systems and automated dosing management solutions suited to a multitude of applications.

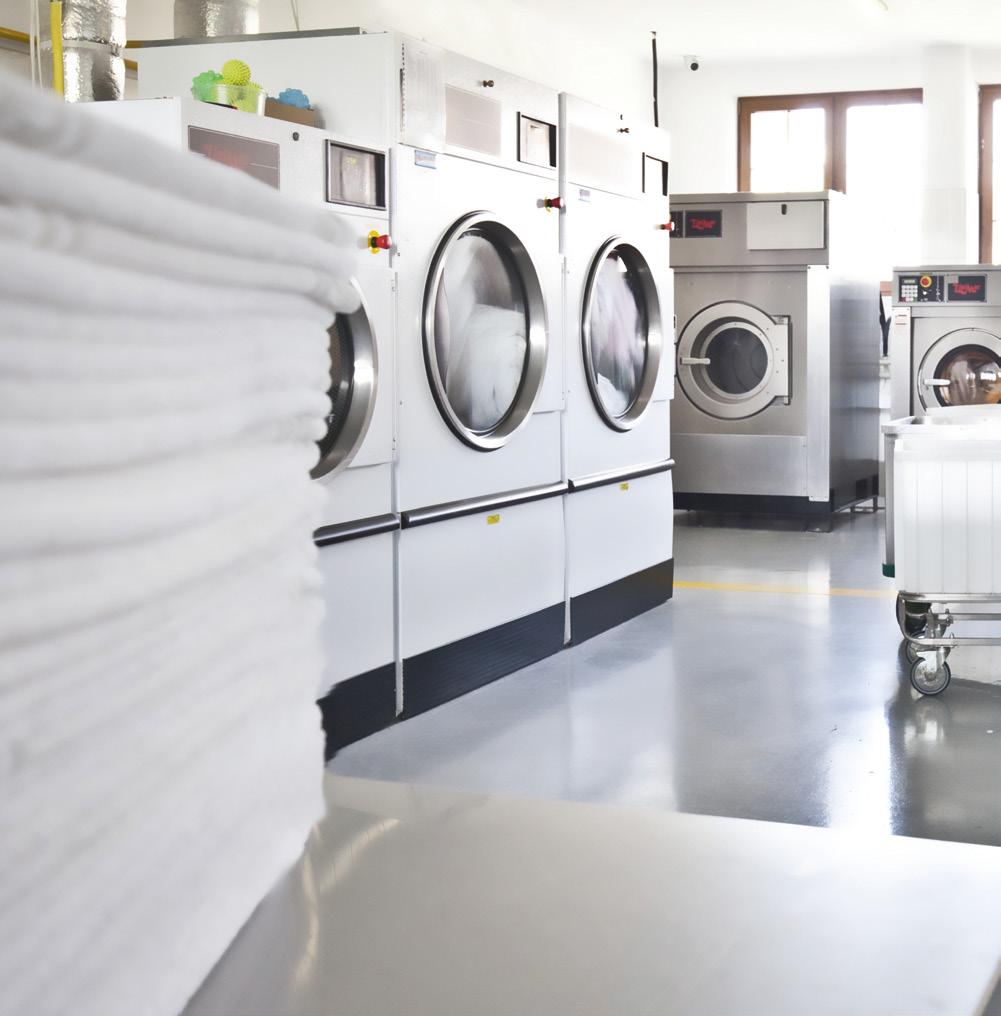

Machinery Cleaning & Disinfection Systems
With a constant heavy flow of items to clean, industrial laundries can’t afford to re-wash due to a dosing pump error, which is why SEKO’s ultra-reliable systems are the go-to choice for professionals worldwide.

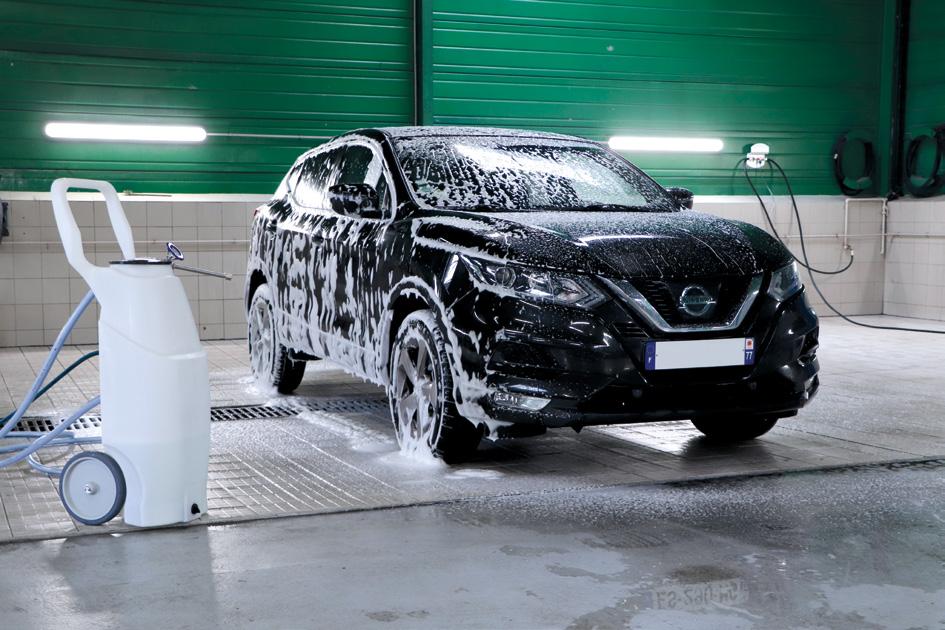

Car Washing
The attention to detail, focus on quality and importance of consistency in the automotive care sector makes SEKO your perfect partner for interior and exterior cleaning solutions which include high-performance detergent dosing units, foam sprayers and side channel blowers.
Scrubber-Dryer Refilling
For large-scale floor cleaning in supermarkets, shopping malls, airports and other commercial sites, discerning professionals choose SEKO’s leading range of chemical refill systems.

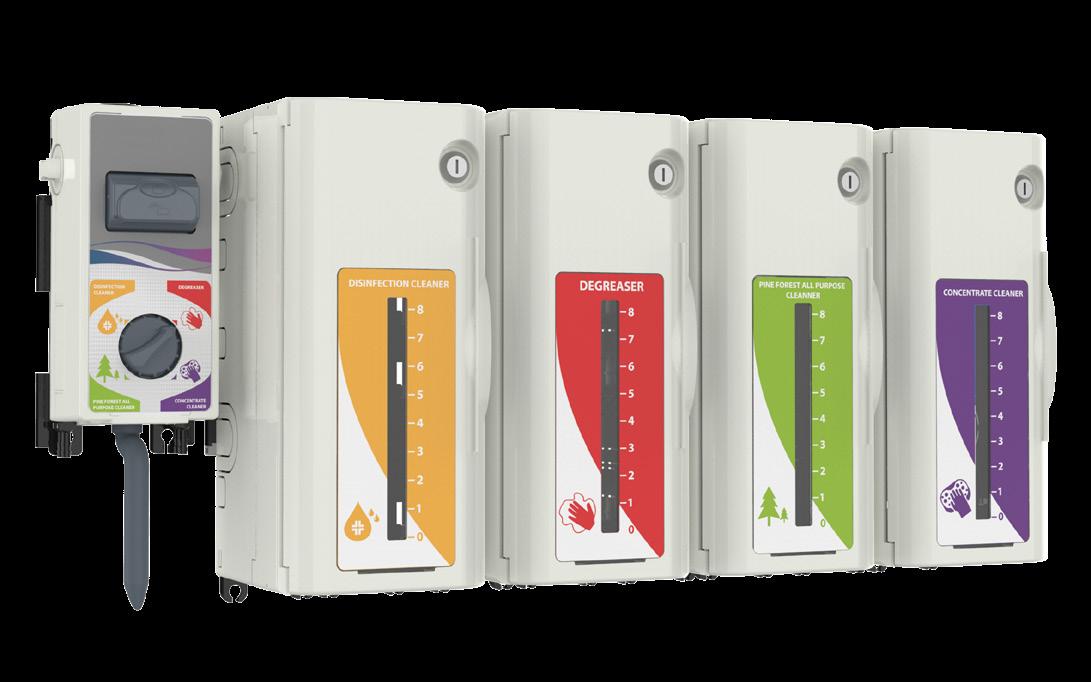

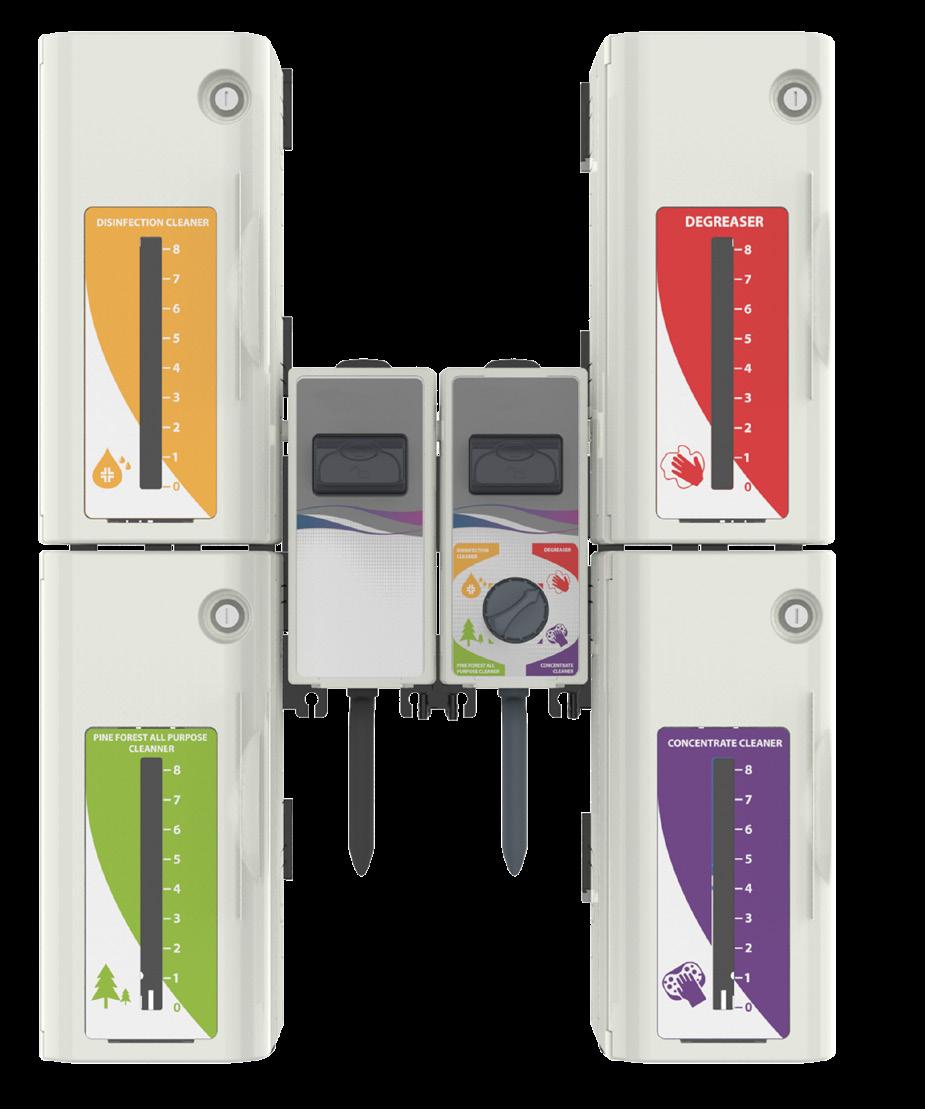

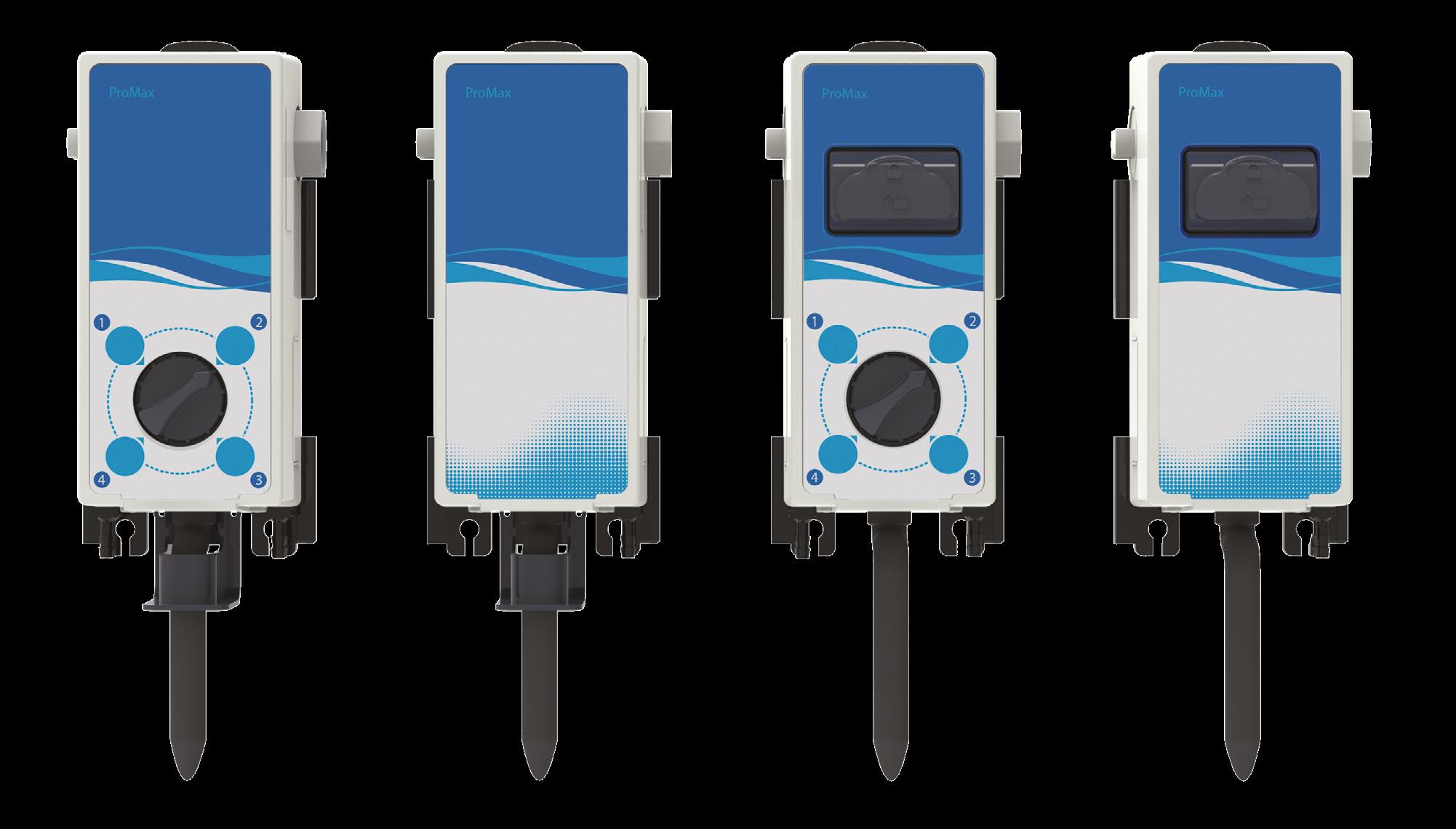

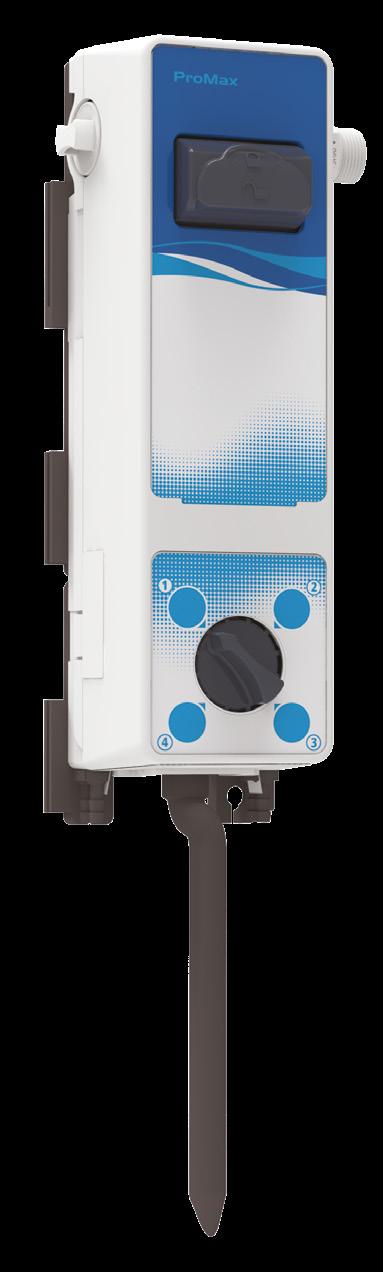

ProMax & ProMax C
Accurate dilution at the push of a button
Whether filling spray bottles, mop buckets or floor scrubbers, operators in the hospitality, food service and facilities management sectors achieve perfect proportioning at the push of a button with the ProMax and ProMax C chemical mixing dispensers.
These robust, reliable units – available as one or four-product systems – connect directly to a water supply and provides precisely-diluted chemical solutions at up to 30 litres per minute.
ProMax and ProMax C provide:
• Reliability
• Low maintenance
• Ease of operation
• Bespoke branding

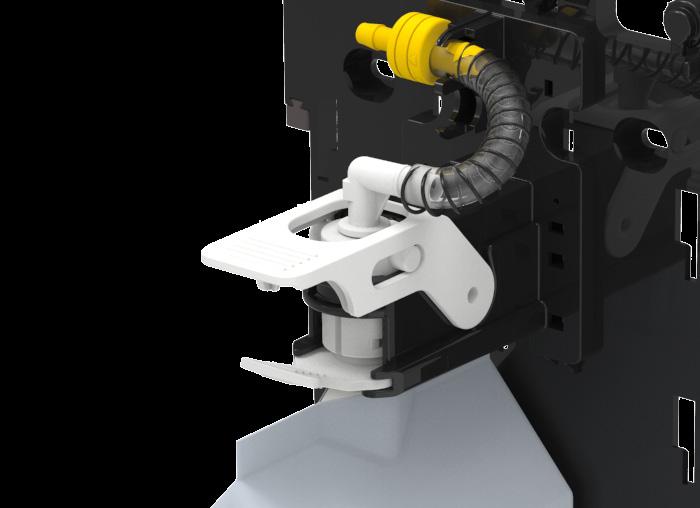

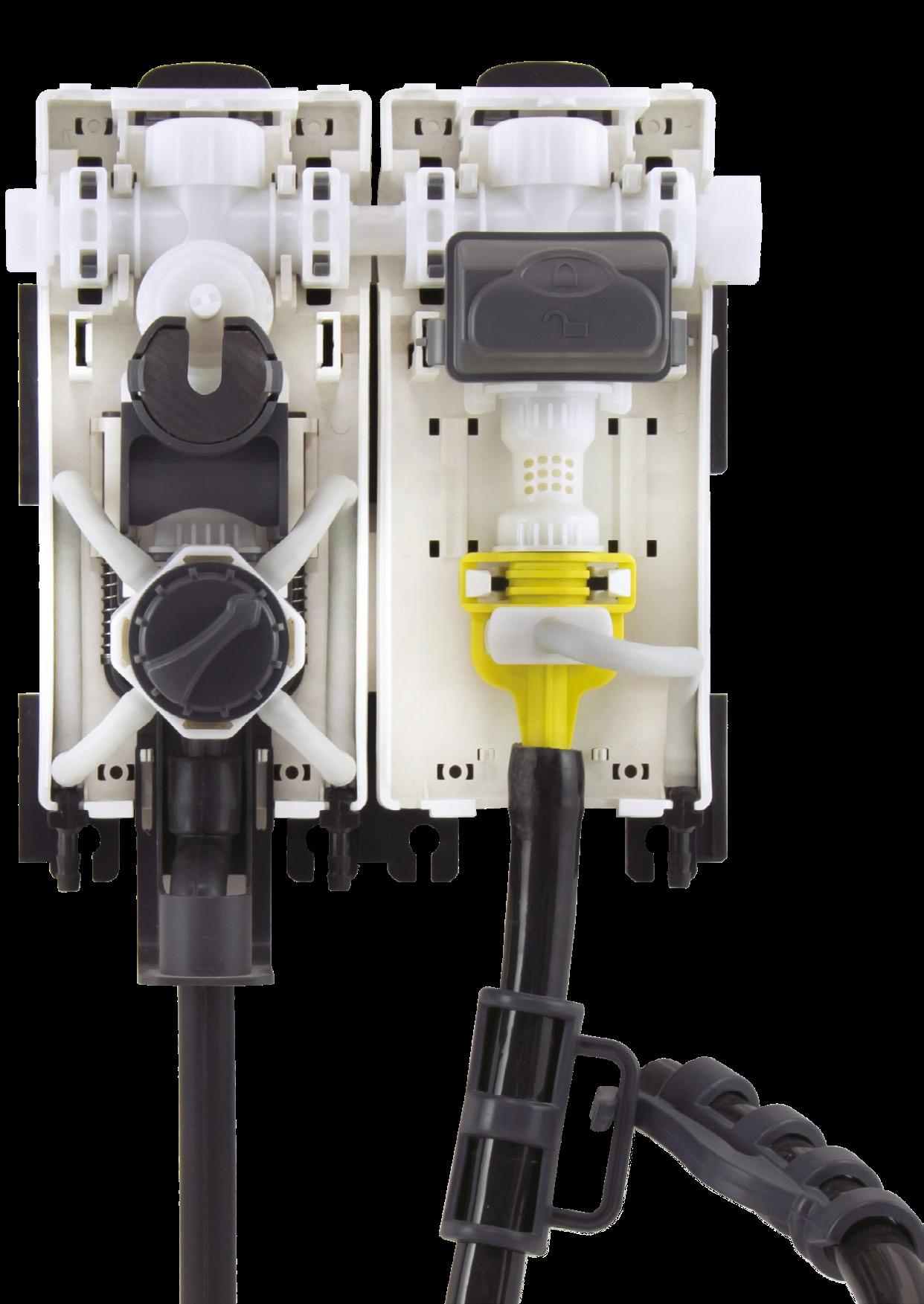

Robust housing and valveactivating mechanism
Auto-locking connection, safe and reliable
Optional cartridge filter for poor water conditions
Magnetic activating valve up to 9 bar tolerance
Four-product selector with elastomer-free technology for full chemical compatibility
95% of front panel customisable with company branding or product identification
External tip seat allows dilution to be set without disassembling the system
Tamper-proof housing and activation mechanism
Built-in backflow preventer design in compliance with EN1717
Auto-activating venturi
Wall bracket for ease of installation
Fully modular for multi-product dispensing and combinable with SekureMax for safe chemical storage
ProMax & ProMax C
Accurate dilution at the push of a button
Features
• Efficiently fills small, medium and large containers with accurately diluted ready-to-use solutions from chemical concentrates
• Spray bottle 4 l/m
• Mop bucket 14 l/m
• Floor scrubber 30 l/m
• Available in either 1 or 4-product versions with button or slide activation
Applications:
• Revolutionary patented hydrodynamic technology sets a new industry standard of performance and reliability
• Modular and flexible for maximum versatility in kitchens, laundry, janitorial services and commercial cleaning
Yellow

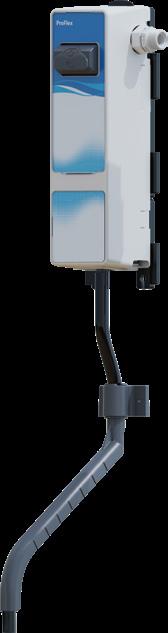

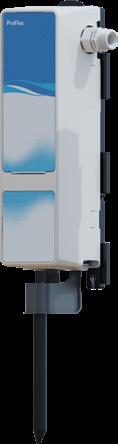

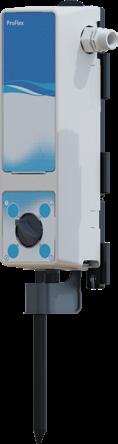

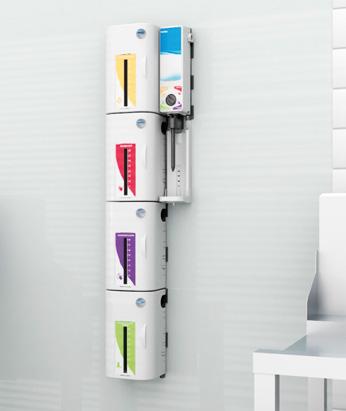

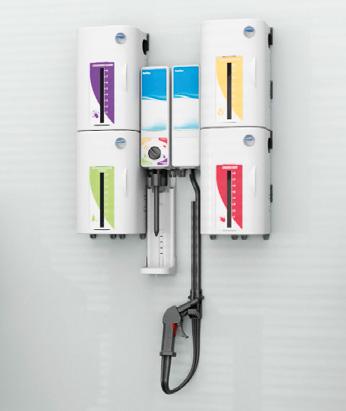

ProFlex
SEKO’s refill range just got even better
ProFlex is a wall-mounted chemical dispenser that provides precise, consistent dilution without cross contamination thanks to its advanced venturi mechanism. With a built-in backflow preventer to protect the water supply, ProFlex is available in one or four-product systems for optimal cleaning performance.
ProFlex’s venturi and backflow preventer systems
Simple and reliable venturi
1 New venturi design, reliable and stable at every pressure condition. Colour coded for flowrate identification
2 Easily removable 90° elbow, easy tip set and tip maintenance, without suction tube disconnection
3 Removable venturi for easy cleaning or replacing
4 Disassembly and reassembly operations without tools, has never been that easy
Tool-free maintenance and installation
Backflow preventer avoids water supply contamination
Four venturi selector mechanism ensures chemicals do not mix
Consistently perfect dilution for effective cleaning
Fully customisable and modular design

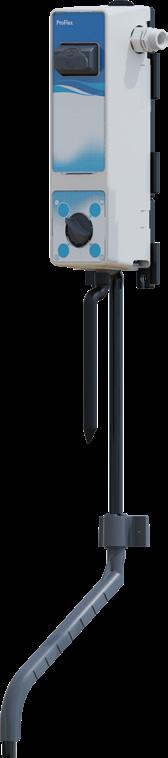

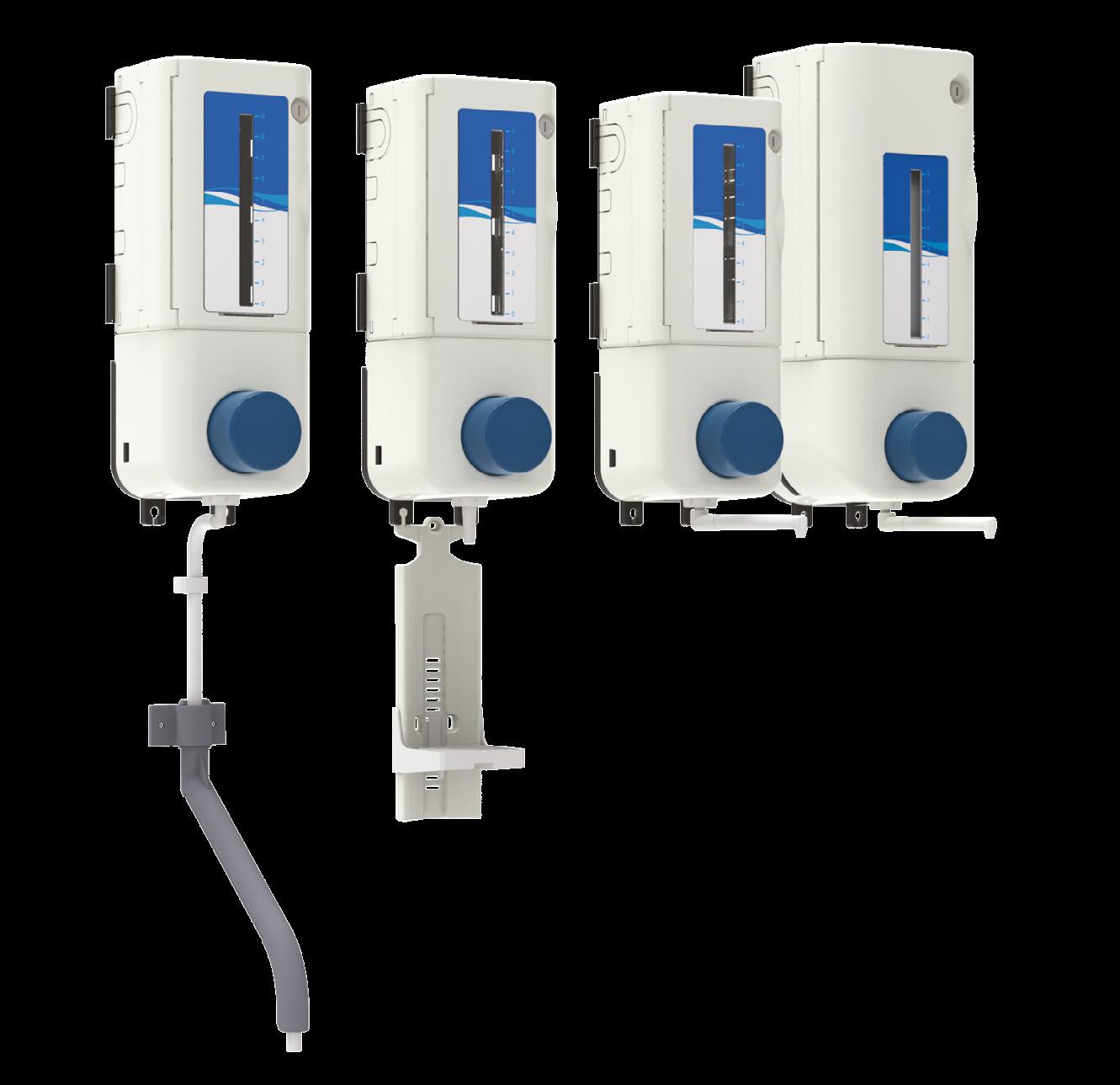

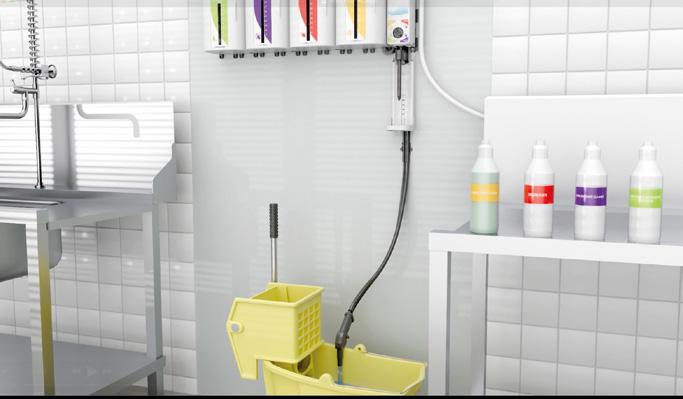

ProFlex is available with versatile installation options to suit operators’ needs and can be customised with branding, product labels, or safety information for a personalised chemical storage solution.
ProFlex
Features
• No risk of chemical cross contamination thanks to multiple venturi feature
• Enhanced customisation courtesy of faceplate
• Tool-free maintenance and installation maximises ease of use
10 Multiple refilling options
1 Product Filling
Applications:
• Strong and durable ABS case
• Improved venturi for stable dilution from 1 to 6 bar, guaranteeing consistency and compatibility
• EN1717-compliant integrated backflow preventer meets most relevant legislation

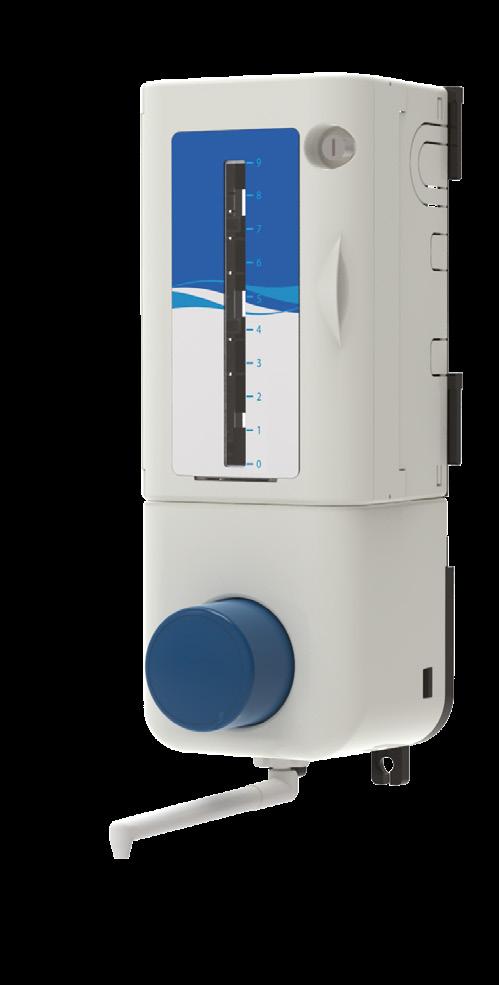

ProMini is a cost-effective dispenser that combines the latest proportioning technology with a compact design for installations where space is at a premium.
With its durable casing and four-product selection dial, this solution is ideal for multiple chemical-dilution applications.
Features
• Diluted ready-to-use solutions from chemical concentrates
• Spray bottle 4 l/m
• Mop bucket 14 l/m
• Available in either 1 or 4-product versions
Hydraulic locking clips for multiple product modularity
Reliable magnetic activating valve
Flex-gap equipped
Four-product selector with elastomer-free technology
Applications: Specification
Tiny footprint, suitable for almost all spaces
Auto-activating venturi
Robust housing and valveactivating mechanism

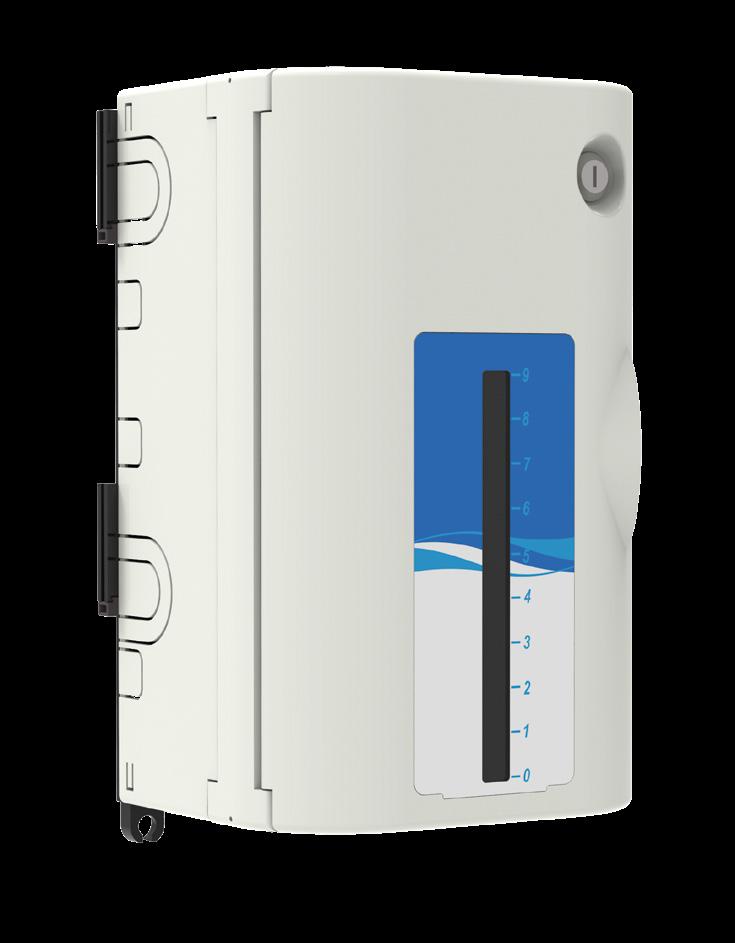

ProDose
Easy and affordable control and dosing accuracy
Where accurate, consistent and user-friendly dosing are essential, SEKO’s ProDose chemical dispensing system is the professionals’ choice. This robust, resilient unit delivers a precise measurement of chemical every time via a large, spring-loaded dispensing button which may be colour coded to assist users with product identification.
ProDose features a choice of six dosing settings – adjustable in a matter of seconds – along with larger-diameter fittings and 3/8” tubing to offer improved performance with high-viscosity products. Courtesy of its smart bracket, ProDose is compatible with standard fittings and may be installed without the need for a drill.
Features
• Larger diameter fittings and tubing improves performance with high-viscosity products (>1500 Cps)
• Made from durable polypropylene for excellent chemical compatibility
• Easy maintenance: unscrew the locknut, remove the fitting and replace the valve
Improved fast stroke regulation
An enhanced cap provides ready access to the red adjusting pins while remaining secured during use.
6 different dosage settings
• Ranging from 5 - 30 cc per stroke
• No need to open the pump to set dosage
• Double o-ring seals. Available in EPDM, FPM or silicone models to suit various chemical applications
• Valves are the same for left and right
• Modular tube stiffeners ensure chemical drums are fully drained
Applications:
Specification
Overall dimensions
229 x 184 x 140 mm (H x W x D)
Hose ID 10 mm - OD 14 mm
Dosage range 5 - 30 cc per stroke
SekureMax
Simple and safe chemical storage
Safe storage is a crucial element of any chemical dispensing system, which is why SekureMax from SEKO is one of the most trusted solutions on the market today. This secure, lockable cabinet stores a range of container sizes up to 5 litres, protecting staff from exposure to concentrated chemicals while maintaining an organised, professional appearance in any chemical dispensing station.
Combining accessibility with a low total footprint due to its superior modular design, SekureMax’s mounting bracket system means it’s quick and easy to install while providing compatibility with SEKO’s ProMax and SekureDose ranges. Meanwhile, SekureMax’s customisable front panel allows for product identification, safety information or company branding to be displayed for a bespoke chemical storage solution.
Features
• New pouch system offers effortless chemical management with a convenient sliding lever and user-friendly pouch design—making it easier than ever to handle and store chemicals safely.
• Semi flat-pack, folding design helps drive cost savings during shipment and reduces space required for stock holding
• Robust ABS lockable cabinet provides space for variable sizes of chemical container
Applications:
• Customisable front panel allows contents to be displayed or can be used for branding
• The mounting bracket system provides superior modularity and compatibility with the ProMax and SekureDose ranges as well as ease of installation
• Smart design that remains easy to clean
• Lockable with revolving plug or universal plastic key
SekureMax Bottle Cabinet
SekureMax Pouch Cabinet
SekureMax
Foldable unit for compact shipping and reduced delivery costs
SekureMax comes folded for compact shipping and is packed in order of installation
Begin the simple installation process by unfolding the left and right side panels Position SekureMax in line with the mounted bracket and slide into place
Next, unfold the top and bottom panels into position
SekureMax has now been installed and can be filled with cleaning solutions
Modularity and customisation
Install SekureMax straight out of the box by fixing the mounting bracket to the wall
Once the panels have been aligned, click them into the secure fixtures
Combine the SekureMax and ProMax mounting brackets and create different configurations to meet your needs
Modularity
The versatile SekureMax can be installed in multiple configurations to build a system that suits the operator’s needs.
Customisation
SekureMax’s customisability allows operators to display bespoke branding, product identification or safety information for a truly personalised solution to chemical storage.
SekureMax Pouch
Simple and safe chemical storage
Introducing the SEKO SekureMax pouch system a cutting-edge solution designed for streamlined chemical handling and storage. Featuring an innovative sliding lever mechanism and a specially engineered pouch design, it ensures effortless operation and precise chemical management. This user-friendly system simplifies usage but also enhances safety and efficiency, making it the ideal choice for professionals seeking reliable and hassle-free chemical solutions.
Designed for ease of use, the system features a sliding lever for a chemical pouch that ensures effortless management and operation.
SekureMax Pouch 1.5 litre
SekureMax Pouch 2 x 1.5 litres
SekureMax Pouch Cabinet 1
Push up the lever and insert the pouch Push down the lever Connection secured
SekureMax Pouch
Safeness, thanks to the bag valve that avoid chemical spillage
1.5 litre pouch
CONNECTIONVALVE
Sliding down the lever, the connector links with suction insert
Pouch
and support components:
1. Suction insert and valve
2. Boat support
3. Arm support
4. Pouch
5. Connector
6. Activation lever
At the same time, the suction insert slides down opening the chemical passage
Pulling up the lever the suction insert is driven back before disconnecting, closing the passage.
SekureDose
Simple and safe chemical dosing
SekureDose combines the best of SEKO’s wall-mounted chemical storage and dosing systems and is the ideal all-in-one janitorial chemical dispenser for filling sinks, spray bottles and mop buckets reliably and efficiently. Comprising a robust, spring-loaded dosing button built into a lockable cabinet, SekureDose allows chemicals to be conveniently and securely stored and delivered via the flexible impact-resistant dispensing spout.
With six dosing settings to choose from (5 – 30 cc), SekureDose users don’t waste a drop of chemical, while colour-coded caps and custom labels allow operators to clearly indicate product type or display branding or safety information. Installation is practically tool-free and requires no electrical connection, while SekureDose’s flexible, modular design allows for the system to be extended with additional units for multiple product dispensing.
Three model types provide solutions for bucket, trigger bottle and sink filling.
• Easy calibration
• No electrical connection or water supply required
• Modular flexibility
• Capacity 5 l, 2 x 2 l, 3 x 1 l and 2.5 l
Features
• Lock-out mechanism to avoid over consumption
• Robust ABS lockable cabinet includes the dispenser and variable sizes of chemical packaging
• System can be extended using additional units for multiple product dosing
• Flexible shockproof spout
• Variable stroke rates available through pin selection
• No contact between charging spring and chemical product
• Comes with Aflas® gasket as standard (optionally in EPDM and FPM)
• Three versions available: sink, bucket and bottle filling – with adjustable-height bottle tray
Mop bucket filling
Sink filling
Trigger bottle filling with adjustable-height bottle stand
SekureDose
Secure solutions
Locks available in plastic or metal
Custom solutions
Wide customisation capacity: coloured caps and custom labels help make SekureDose even easier and more intuitive for the end user
6 different dosage settings
Ranging from 5 - 30 cc per stroke
Easy installation
Simply fix to the wall, insert the chemical container and start to use
Improved check valves
• Easy maintenance: unscrew the locknut, remove the fitting and replace the valve
• Double o-ring seals
• Valves are the same for the top and bottom side
Fast stroke regulation
The large cap provides easy access to the stroke regulating pins whilst remaining secure during use
Applications:
SekureDose 5 l specification
Dimensions 540 x 226 x 175 mm (H x W x D)
Trigger bottle
SekureDose 2.5 l specification
Dimensions 456 x 172 x 139 mm (H x W x D)
mm (H) Trigger bottle
mm (H) Mop bucket
x 257 mm (H x D)
Dosage range 5 - 30 cc per stroke
x 257 mm (H x D)
Dosage range 5 - 30 cc per stroke
ProSink
Accurate dilution straight to your sink
ProSink is a chemical dispensing system that automatically and consistently mixes the precise amount of detergent and sanitiser with water at the turn of a knob, conveniently filling large sinks with accurately-diluted solution.
ProSink boasts a robust, smooth and easy-to-clean stainless-steel enclosure and features a customisable front cover. With a direct connection to the water source and no electric power or compressed air needed, it produces accurately-diluted chemical simply and quickly via a fill tube.
With single or double chemical product options and with a variable flow rate, operators can choose from 15 mixing ratios for accurate, effective dosing. ProSink comes equipped with an ASSE 1055 - certified backflow prevention device to UPC and CSA standards.
Easy access
Removing the valve knobs, the system can be opened for access to the hydraulic circuit where maintenance can be performed and water inlet direction changed.
Features
• Ball valve operation
• No need to hold or lock a button
• Smooth, ergonomic surface and customisable front cover
• Robust stainless-steel enclosure
• Strong, long lasting and easy to clean
Applications:
ProSink Flex Gap specification
- 6 bar
• Installs easily with two or three screws
• Quick-connect manifold ensures quick and easy maintenance
• Direct connection to water supply
• Integrated backflow prevention
ProSink Air Gap specification
ProFaucet
Ready-to-use solution straight from the faucet
ProFaucet is an inexpensive and highly reliable proportioning device. With minimal investment, ProFaucet provides excellent chemical consumption and cost control.
ProFaucet ensures that no more manual mixing is required, eliminating unnecessary direct contact with concentrated chemicals. By preventing manual dosing, the ProFaucet reduces the possibility of excessive chemical consumption.
The modern design provides an enhanced image while consistent performance makes it suitable for almost any pot and pan application.
Simple to use
With the water on, the user simply pushes a button and releases it to allow the system to mix the chemical into the flow in the desired ratio.
When the water is turned off, the button automatically releases to provide fresh water when the faucet is reactivated.
Compact and easy to install:
• Remove the faucet aerator
• Screw ProFaucet onto the threaded outlet
• Connect the chemical
Features
• With minimal investment, ProFaucet helps reduce chemical consumption and improve cost control
• No more manual mixing, eliminating unnecessary direct contact with concentrated chemicals
• Updated, modern design
Applications:
Specification
Flow
l/m
6.5:1 - 1125:1
0.5 - 6 bar
• Via elementary manual dosing, ProFaucet reduces the risk of excessive chemical consumption and associated cost
• Easy to install and use
• Accurate and reliable
• Durable and convenient
ProTwin
Simple and intuitive spray and rinse cleaning station
Characterised by dosing precision and long-lasting performance, the HACCP-compliant ProTwin spray and foam station allows you to reach the highest standards of cleaning and sanitising of surfaces, such as: professional kitchens, food preparation plants and the food industry.
ProTwin automatically dilutes concentrated products with water, dispensing finished solutions such as detergents and sanitisers via an ergonomic spray gun. Hoses are available in various lengths, allowing users to clean and rinse large areas.
Features
• Dosage of 1 or 2 spray / foam products and rinsing up to a tolerance of 60°C
• Dedicated venturis per product eliminates risk of chemical crossover
• Venturis are designed to ensure accurate proportionate dosing and are easy to clean and replace
Applications:
Specification
Max temperature
Pressure
Up to 50°C
1.5 - 6 bar
Flow rate chemical channel 10 l/m
rinse channel 13 l/m
• Intuitive ergonomic design for userfriendly operation
• Multi-layer hose improves flexibility and chemical resistance (see page 82 for further information)
Dilution ratio
5.3:1 up to 551:1
Hose length 10 - 25 m
Chemical tank holder
5 - 20 l
Models 1 and 2 product standard model
ProWash
Professional spray and rinse cleaning station
ProWash is a chemical spraying system that continuously and automatically mixes the correct quantity of chemicals to clean and/or sanitise large areas in commercial kitchens, supermarket preparation areas and food industry plants.
ProWash’s simple and robust and design is fully compliant with HACCP regulations and helps reduce water and chemical waste, preserving the environment and reducing operational costs. Using materials known for their durability and chemical compatibility, ProWash features high-performance suction for optimal operation in all working conditions with an operating temperature of up to 50°C.
ProWash is available in one or two products with optional BA (backflow protection system) and stainless-steel or plastic hose reel:
• ProWash “1 product” for clean/rinse operations
• ProWash “2 products” for clean/rinse/sanitise operations
Features
• Dosage of one or two chemicals and rinse
• Nickel-plated brass body for greater chemical resistance and robustness
• Internal venturi extractable and interchangeable, made of PP for high chemical compatibility
• High-performance suction for optimal operation in all working conditions
• Two-product switch designed to be compatible with most chemicals
• Food-grade discharge hose
• Gun with adjustable spray, anti-shock and antithermal shock
• Installation kit included and complete with mounting and suction accessories, inlet hose, discharge hose, gun and tank holder
Applications:
Specification
Max temperature 50°C
Pressure 2 - 6 bar
Flow rate
Dilution ratio
Dimensions and weight
Hose length
Chemical tank holder
7 l/m
211:1 up to 11:1 (from 0.5% to 10.90%)
380 x 260 x 90 mm (H x W x D)
10 - 25 m
5 - 20 l
Models 1 and 2 product standard model
ProKlyn
Essential spray and rinse cleaning station
The cleaning of floors, walls and other hard surfaces is easier than ever with ProKlyn, the wall-mounted professional spray system that benefits from SEKO’s trademark precision to reduce water and chemical consumption.
Available as a single or two-product system, ProKlyn is easy to install and cleans, disinfects and rinses surfaces via an ergonomic spray gun and food-grade hose.
The system’s simple, clean and robust design includes a venturi constructed of brass (external) and polypropylene (internal) for durability and excellent chemical compatibility. And because the entire unit is HACCP compliant, it’s perfectly suited to the demands of food and beverage applications.
• ProKlyn “1 product” (on request) for clean/rinse operations
• ProKlyn ”2 products” (standard) for clean/rinse/sanitise operations
Features
• Dosage of one or two chemicals and rinse
• Nickel-plated brass body for excellent resistance and robustness
• Internal venturi is extractable and interchangeable and made of polypropylene for superior chemical compatibility
• High-performance suction for optimal operation in all working conditions
• Two-product switch designed to be compatible with most chemicals
• Food-grade discharge hose
• Gun with adjustable spray, anti-shock and anti-thermal shock
• Installation kit included and complete with mounting and suction accessories, inlet hose, discharge hose, gun and tank holder
Applications:
Specification
Max temperature 50°C
Pressure 2 - 6 bar
Flow rate
Dilution ratio
Dimensions and weight
Hose length
Chemical tank holder
7 l/m
211:1 up to 11:1 (from 0.5% to 10.90%)
380 x 260 x 90 mm (H x W x D)
10 - 25 m
5 - 20 l
Models 1 and 2 product standard model
Spray Gun and Foam Wand
Shockproof, lightweight accessory for heavy-duty applications
Lightweight ergonomic gun
Designed for extended use and operator comfort
Auto-disengage trigger lock
Trigger lockout automatically disengages when reactivated
Adjustable spray angle for rinsing and sanitising
Fast outlet connector
Allows optional connection of a foam wand to generate foam while maintaining an adjustable spray pattern function
Foam wand with unsurpassed performance
Capable of producing a high volume of foam along with the ability to wash horizontal and vertical surfaces
Robust casing
Protects operator from thermal shock and impacts
Foam wand can be rotated and positioned for optimal surface cleaning
Automatic hose reel
A quick and simple solution for hose storage
Recommended for applications in contact with water and in demanding environments, the automatic winder helps create a clean and ordered work space. Automatic hose reeling is quick and safe, and the hose is protected against wear.
Multi-layered hose
Fixed support
The solid and compact fixed mount built into the reel comes with eyelet attachment holes for easy and secure installation. Using the template provided means fixing holes can be easily pre-marked for neat installations.
Practical solutions
Reels are a practical solution to overcome space constraints as the winding mechanism ensures the hose is always pulled back out of the way. The reels also prevent undue wear and breakage of the hose. Several options are available depending on the model: hose length, spray guns, drum holder, pivoting support and backplate.
Swivel stand
An option that allows a quick and easy installation of the reel as well as a right and left rotation.
Resistant hose up to 70°C at 20 bar
1 Non-marking, grease-resistant, light blue exterior coating
2 Intermediate layer of adhesion in soft PVC
3 Polyester textile reinforcement
4 Intermediate layer of adhesion in soft PVC
5 White interior in soft PVC for contact with food 1 2 3 4 5
Thermoclean Al 20 Advantage
Evolution is provided by the dual-layer design and overlap compared to the old single-layer design:
• Improved flexibility thanks to an adjusted internal wall thickness (white layer which provides temperature resistance) and the introduction of a more flexible crystal layer
• Optimised chemical resistance due to the concentration of protective agents in the blue layer instead of being dispersed throughout the entire hose
Pro Reel Premium
Stainless-steel winder
Features
• Vertical or horizontal installation
• Optional stainless-steel swivel bracket for easy hose use
• Blue food-grade hose available in 10 or 15-metre lengths
Pro Reel Premium Evo
Stainless-steel reel with ABS drum
Pro Reel Industry
Stainless-steel heavy-duty reel
Features
• Meets HACCP requirements
• Light and hygienic
• Blue food-grade or black industry-grade hose in 10, 15 or 20-metre length
Features
• Suitable for vertical or horizontal installation
• Optional stainless-steel swivel bracket for easy hose use
• Supplied with or without 15 or 20-metre hose
JetNeat
Fast, easy, convenient surface cleaning and disinfection
The JetNeat system is the fastest, most intuitive and convenient solution for washing, sanitising and rinsing surfaces. JetNeat comprises a spray gun with quick connector, venturi and in-built chemical tank.
Connected to the water tap by a flexible hose, the trigger gun is able to rinse courtesy of a powerful fresh-water jet. Once the venturi is quick applied at the outlet of the gun, JetNeat produces a mixing solution that can be sprayed or foamed based on the model and chemical used.
Simple to use
JetNeat is a suitable solution for a variety of applications, and by combining the various elements an ideal solution can always be found.
• Kitchens
• Butcher shops
• Restaurants
• Supermarkets
• Educational facilities
• Remote food-preparation plants
Features
• PE chemical tank for resistance to physical and chemical damage
• Ergonomic lightweight gun with nickel-plated brass connector
Applications: Specification
JetNeat 2.5 litre JetNeat 1.4 litre
• Strong PP body with built-in venturi
Pulv Electric
Portable electric spray system with wheels
Fully mobile and ready for immediate use, the battery-powered Pulv Electric requires no air, water or electrical connections, making it an essential tool for remote cleaning.
Pulv Electric’s outstanding versatility means it offers a variety of disinfecting solutions to operators working in multiple applications, and is the ideal system for sites where mains connections may be limited.
Features
• Chemical is premixed with water
• No electrical, water or air connections required
• Lithium-ion battery (2,600 mAh)
• Mobile system
• Adjustable flow
• Quick and easy storage
Applications:
Specification
Spray range up to 6 m
Tank capacity
35 l
Pulv Electric-S
Portable electric spray system
The pressure-adjustable Pulv Electric-S is the ultimate portable solution for spraying detergent and/or disinfectant solutions in locations including hospitals, supermarkets, ambulances and trains.
With a 15-litre tank and rechargeable lithium-ion battery, Pulv Electric-S does not require a connection to water, air or electricity and can be used continuously for up to two hours – making it ideal for everything from small-area disinfection to deep cleaning.
Features
• Lithium-ion battery (2,600 mAh)
• Electronic regulation of pump voltage facilitates three different pressures and optimises battery life
Specification
Applications:
Atomiser
Portable misting systems for highly effective surface disinfection
Traditional cleaning is increasingly being replaced by infection control cleaning which removes, kills and prevents the contaminants we can’t see.
For fast, efficient and comprehensive surface disinfection, choose an electronic portable misting system from SEKO. Designed for use after through cleaning of an area contaminated by, or at risk from, infection, these systems deliver a fine mist of sanitiser at precise droplet sizes from 10 to 50 microns to kill up to 99.999% of harmful pathogens.
How they work
After thoroughly cleaning all surfaces, the user pre-selects the desired particle size before activating the atomiser. Tiny droplets of specialist disinfectant are dispersed, settling on every surface, including hard and soft furnishings, furniture and hard-to-reach areas.
Since the unit produces a disinfectant mist, all surfaces are reached even if covered or facing down, for maximum disinfection. This efficient process significantly reduces pathogens compared to manual cleaning of surfaces, making for a cleaner and safer environment.
Features
• 230 Vac-powered portable system
• Compatible with oil and water-based solutions
• Small footprint
Applications:
• Adjustable head
• Impact-resistant tank
• Also suitable for deodorisers, insecticides, pesticides, poultry vaccines and humidification
Foam Kit for ProTwin
Additional kit for ProTwin for dry foam, rinse and spray
Combined with ProTwin features
• Selector dial to control each cleaning phase
• Improves the properties of foaming chemicals with the use of compressed air
• Dispenses and applies dry foam to uneven surfaces to provide maximum contact time
• Venturi keeps mixing and consumption of water and product constant
• Excellent for vertical cleaning of surfaces
• Multi-layer pipe improves flexibility and chemical resistance (see page 82 for more information)
Applications:
Specification
- 6 bar
l/m
- 64:1
- 93:1
With ProTwin Foam Kit
ProMulticlean
Dry foaming system with rinse and spray
Like the rest of the SEKO foam range, ProMulticlean is a system that, by mixing water, air and concentrated chemical product, produces a dense and creamy dry foam that maximises contact time for the deep disinfection of vertical or hard-to-reach surfaces. Designed to meet HACCP requirements, it features a smooth, ergonomic and robust body and is supplied with a high-quality food-grade hose and a foam lance. The tube is made of industrial-quality materials and is certified for use in the food sector. Made up of five layers, it includes a polyester layer for long life and a scratch-resistant blue PVC outer coating.
Features
• PVC cover: HACCP compliant, smooth, ergonomic and robust
• Food-grade high-quality hose, foam lance and rinse nozzle
• Hose rack incorporated
• Installation kit included and complete with mounting and suction accessories, inlet hose, discharge hose, lance, hose rack and tank holder
• Multi-layer hose improves flexibility and chemical resistance (see page 82 for further information)
Applications:
Specification
Max temperature 50°C
Pressure Of air and water from 2 - 6 bar Dilution
1% - 22%
ProFoam-R
Dry
foaming system with rinse
Building on the success of ProFoam, SEKO’s ProFoam-R has all the same design features and critical application uses but enhances the system with the addition of a rinse functionality.
Like its counterpart, this equipment is supplied ready to install, built with a smooth, ergonomically-designed wall-mounted system which offers easy installation without the need for special tools.
ProFoam-R generates a rich creamy foam to maximise chemical contact time for a deeper clean while minimising water and chemical consumption for enhanced sustainability and reduced operational costs.
The hose uses industrial-grade materials and is certified for use in food industries, included the cleaning of foodstuffs transportation. The five layers include a polyester coating for extensive service life and a blue PVC anti-scuff exterior.
Features
• PVC cover: HACCP compliant, smooth, ergonomic and robust
• Food-grade high-quality hose, foam lance and rinse-nozzle
• Hose rack incorporated
Applications:
Specification
• Installation kit included and complete with mounting and suction accessories, inlet hose, discharge hose, lance, hose rack and tank holder
• Multi-layer hose improves flexibility and chemical resistance (see page 82 for further information)
ProFoam
Dry foam system
ProFoam is a system which, by mixing water, air and a concentrated chemical product, produces a dense and creamy dry foam which maximises contact time for deep disinfection of vertical or hard-toreach surfaces. Designed to meet HACCP requirements, it features a smooth, ergonomic and robust body and is supplied with a high-quality food-grade hose and foam lance.
The hose is made of industrial-quality materials and is certified for use in the food sector. Composed of five layers, it includes a polyester layer for long life and a scratch-resistant blue PVC outer coating.
Features
• PVC cover: HACCP compliant, smooth, ergonomic and robust
• Food-grade high-quality hose and foam lance
• Hose rack incorporated
Applications:
Specification Max
2.8% - 32.8%
• Installation kit included and complete with mounting and suction accessories, inlet hose, discharge hose, lance and tank holder
• Multi-layer hose improves flexibility and chemical resistance (see page 82 for further information)
Foam Cannon
Pressurised mobile foam system
The Foam Cannon is a pressurised mobile system that produces a rich, dense foam for cleaning uneven surfaces. Designed to be simple and convenient to use, the Foam Cannon is filled with water and product solution which are then mixed with air to produce foaming cleaners or disinfectants. The Foam Cannon just needs a constant connection to compressed air to work.
Equipped with lance and measuring tube, the Foam Cannon is available in 24 or 50-litre models in the stainless-steel version.
Features
• The chemical is premixed with water, meaning the system needs only a compressed air supply to operate
• Equipped with lance and dosing tube
• 24 or 50-litre models available
Applications:
Specification
Working air pressure
8 bar
• Stainless steel available
• Working air pressure: 8 bar
• Not connected to a water supply and no special certifications required
ProKart
Mobile foaming system
Designed to provide high performance in the cleaning of vertical and non-flat surfaces, ProKart is perfect for use in food and beverage production areas where portability is essential. Thanks to the air-driven pump, users can generate a rich, thick foam from a premixed non-pressurised solution that provides comprehensive coverage of surfaces along with extended contact time for superior cleaning and disinfection performance.
ProKart requires only a compressed air supply for operation and is very simple to maintain, making it one of the most convenient surface-cleaning solutions of its kind.
Features
• Dry foam
• Equipped with a lance and delivery tube
• No electrical connection required
Applications:
Specification
Working air pressure
2.7 - 5.5 bar
Pump flow rate 19 l/m (FPM or Santoprene)
Delivery hose
Solution temperature
9 m
5 - 37°C
• Portable
• 38 or 95-litre models available
Reliable, safe and user friendly
Stainless-steel foam lance
Robust and durable to handle heavy use and aggressive chemicals
Large refilling cap
Make refilling operation simple and easy
Heavy-duty blue hose
Compatible with the majority of chemicals
PE tank
Broad chemical compatibility and rounded-edge design to withstand impacts and facilitate mobility
Large rubber wheels
Easy to manoeuvre with lockable front wheels
ProKart Hydraulic
• Tank is filled with premixed solution
• Thanks to the compressed air supply, the pump draws and pushes the solution through the mixer
• The compressed air is also injected into the mixer to create foam
• The foam runs along the hose and through the lance, ejecting from the nozzle
• As the ball valve closes, the pump stops running automatically
• The needle valve adjusts the air/solution mix
ProPulv
Automotive spray system
ProPulv is a single-product spray system designed to apply pre-wash shampoos or detergents to cars, trucks and other such vehicles. Designed for operation in the automotive industry, ProPulv includes a backflow preventer and fulfils basic requirements for potential use in food vehicle-contact applications.
Features
• PVC backplate: smooth, ergonomic and robust
• Stainless-steel lance and high-quality hose
• Hose rack incorporated
• Installation kit included and complete with mounting and suction accessories, inlet hose, discharge hose, lance and tank holder
Applications:
Specification
Max
ProNet
Automotive rinse-aid system
ProNet is a single-product system designed to apply rinse aid on cars, trucks and other vehicles. The system optimises water and product consumption, helping to reduce operating costs.
ProNet is connected directly to the water supply and offers reduced maintenance costs courtesy of quick and tool-free replacement of consumable parts such as injectors or valves.
Features
• PVC cover
• PVC lance and high-quality hose
• Hose rack incorporated
• Installation kit included and complete with mounting and suction accessories, inlet hose, discharge hose, lance and tank holder
Applications:
Specification
ProDual
Combined spray and rinse aid system for the automotive sector
ProDual is a two-product spray system designed to apply pre-wash and rinse aid shampoo or detergents on cars, trucks and other vehicles. The system optimises water and product consumption, helping to reduce operating costs.
ProDual is connected directly to the water supply and offers reduced maintenance costs thanks to the quick and tool-free replacement of consumable parts such as venturi or valves.
Features
• PVC cover
• Stainless-steel and PVC lance and highquality hose
• Hose rack incorporated
• Installation kit included and complete with mounting and suction accessories, inlet hose, discharge hose, lance and tank holder
Applications:
Specification
ProAcid
Automotive spraying system for strong acid and alkaline chemicals
ProAcid has been specifically designed to spray aggressive detergents or acid chemicals in several sectors including transportation cleaning, with the system ideal for cleaning wheel rims or engine bays where applicable. As such, ProAcid has been engineered with a PVDF venturi and PVC lance for exceptional resistance to highly concentrated aggressive chemicals.
The hose is made from high-quality industrial-grade materials, featuring a triple layer for added protection. An internal layer is reinforced with polyester for extended lifespan while the outer coating is made of supple PVC for additional flexibility. The system is connected directly to the water supply and helps reduce maintenance costs courtesy of quick and tool-free replacement of consumable parts such as injectors or valves.
Features
• PVC cover: HACCP compliant
• PVC lance and high-quality hose
• Hose rack incorporated
Applications:
Specification
• Installation kit included and complete with mounting and suction accessories, inlet hose, discharge hose, lance and tank holder
ProFill Premium
Essential scrubber-dryer refilling system
ProFill Premium is a chemical dispensing system that constantly and automatically mixes the desired quantity of chemical for refilling scrubber dryer machines via a delivery gun.
Designed with the busy cleaning operator in mind, ProFill Premium is focused on simplicity in use. It’s quick to connect and easy to install, while helping to reduce operational costs.
Features
• Refill and rinse function
• PVC cover: smooth, ergonomic and robust
• Installation kit included and complete with mounting and suction accessories, inlet hose, discharge hose, lance and tank holder
• Quick couplers for greater versatility
• Reduced maintenance thanks to the blue venturi insert: no need to disassemble the whole system
• Smart solution for refilling scrubber dryer machines courtesy of the white plastic chemically-compatible dispensing gun
• Available with rinse position (clean water supply only)
Applications:
Specification Max
ProFill
Scrubber-dryer refilling system
ProFill is a chemical product dispensing system that constantly and automatically mixes the desired quantity of solution for the filling of scrubbing machines using a petrol pump-type gun.
Designed with the end user in mind, ProFill focuses on ease of use. It is quick to connect and easy to install, helping to reduce costs.
Features
• Refill and rinse function
• PVC cover: smooth, ergonomic and robust
• Installation kit included and complete with mounting and suction accessories, inlet hose, discharge hose, lance and tank holder
• Quick couplers for greater versatility
• Reduced maintenance thanks to the blue venturi insert: no need to disassemble the whole system
• Smart solution for refilling scrubber dryer machines courtesy of the white plastic chemically-compatible dispensing gun
• Available with rinse position (clean water supply only)
Applications:
Specification
Max
Globally Present, Locally Active
Twenty-three national SEKO companies across six continents means that, wherever you are, you enjoy the same exceptional level of service as every SEKO customer around the world.
And an accredited partner distributor network allows us to provide local customer support in over 120 countries, so you benefit from region-specific knowledge and rapid delivery of goods as well as worldclass after-sales service and technical assistance.
SEKO Hub
A world of SEKO in one
For everyone from buyers and engineers to end users, SEKO Hub is the ultimate all-encompassing platform that brings you to the heart of SEKO and gives you what you need when you need it.
Bringing together essential documents such as manuals, case studies, data sheets and brochures as well as tutorial videos, favourite products, an appointment booking system and so much more, SEKO Hub is a central personalised platform to revolutionise the way you work.
SEKO Hub is available online or via app, so you’re never without it whether you’re at work, at home or on the move. It’s your home for the complete SEKO experience, so join SEKO Hub and make our world a part of yours.
