Kong Wen Hau Studio 5 e-portfolio

PROJECT 01

SITE ANALYSIS & SITE REACTION

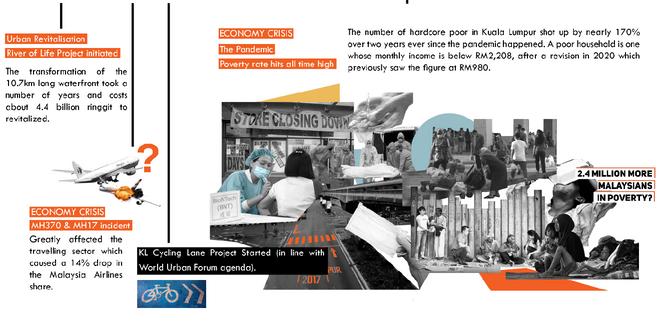

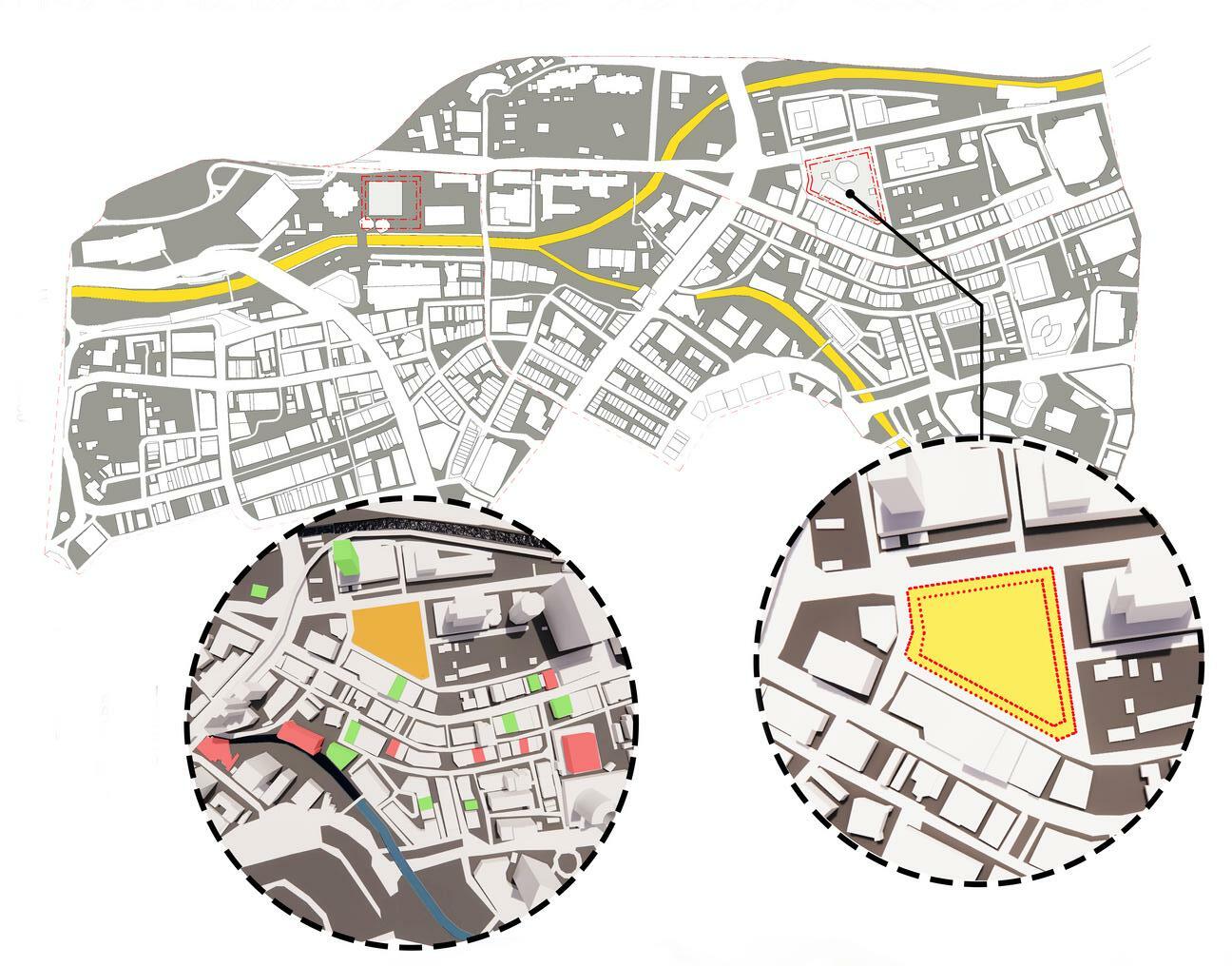

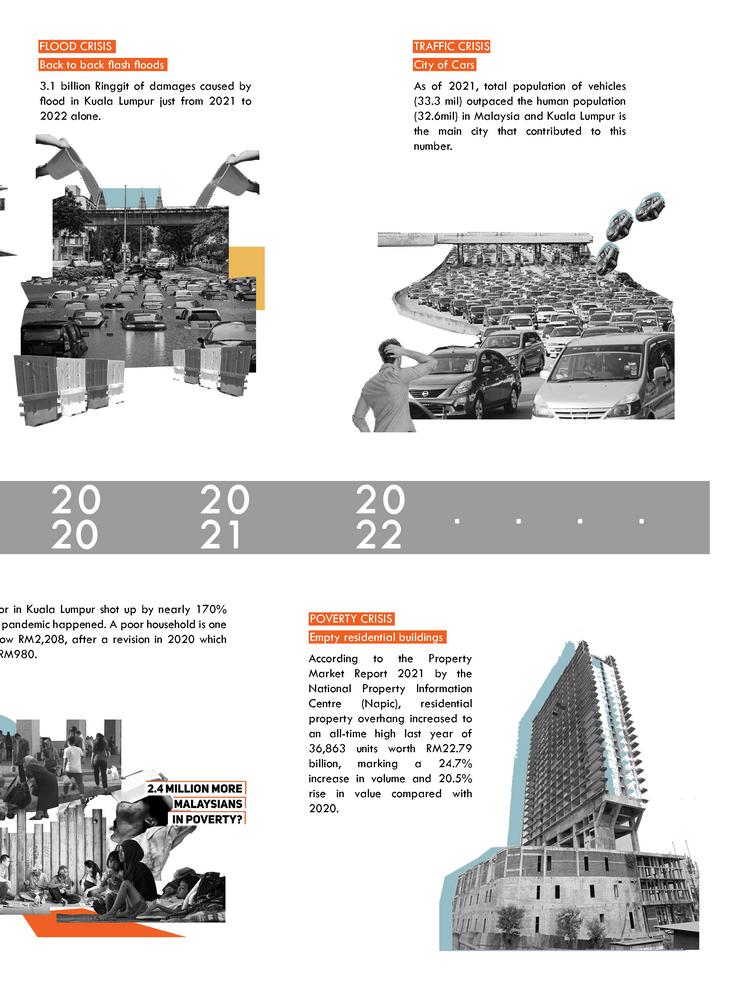

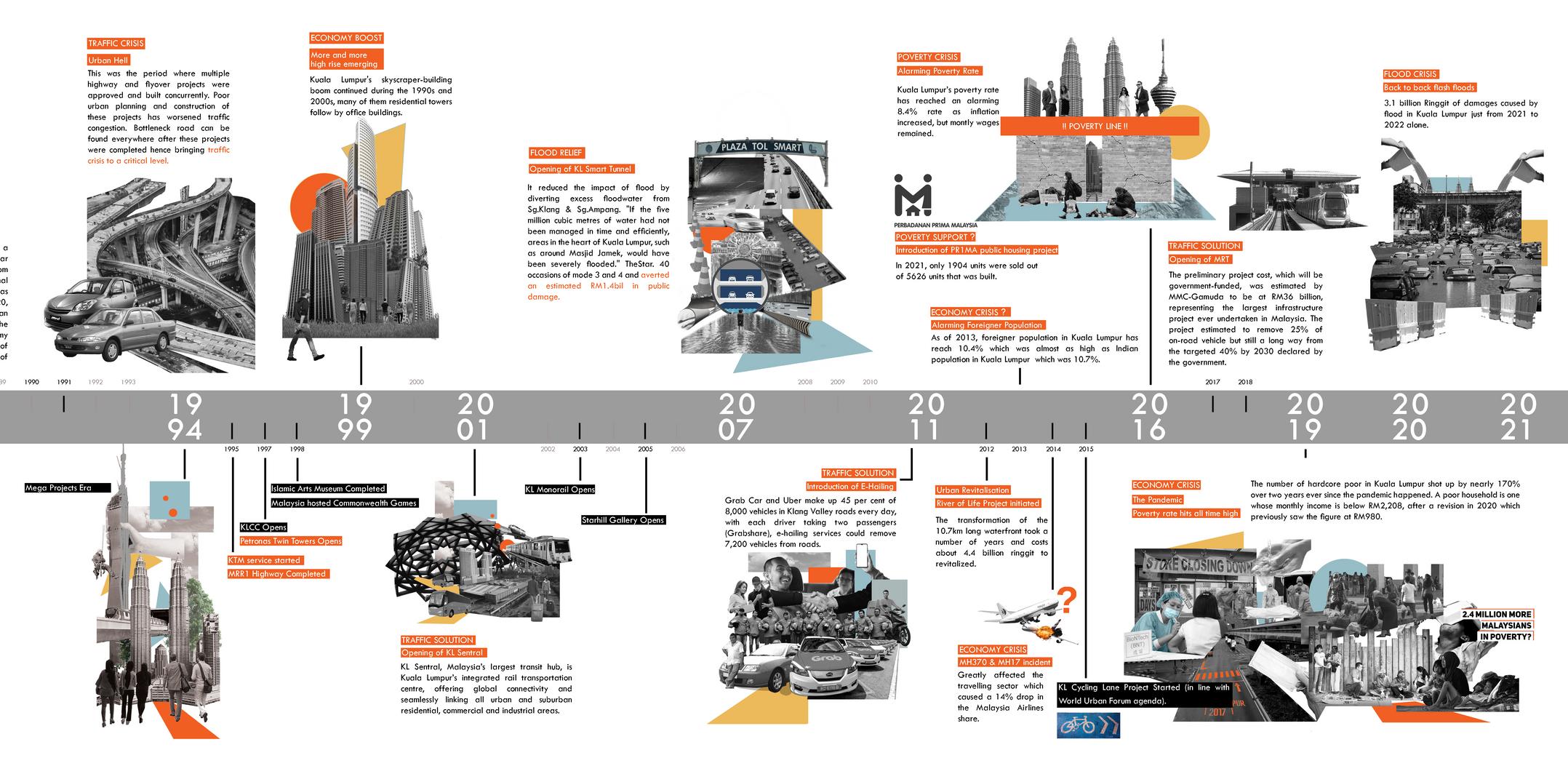

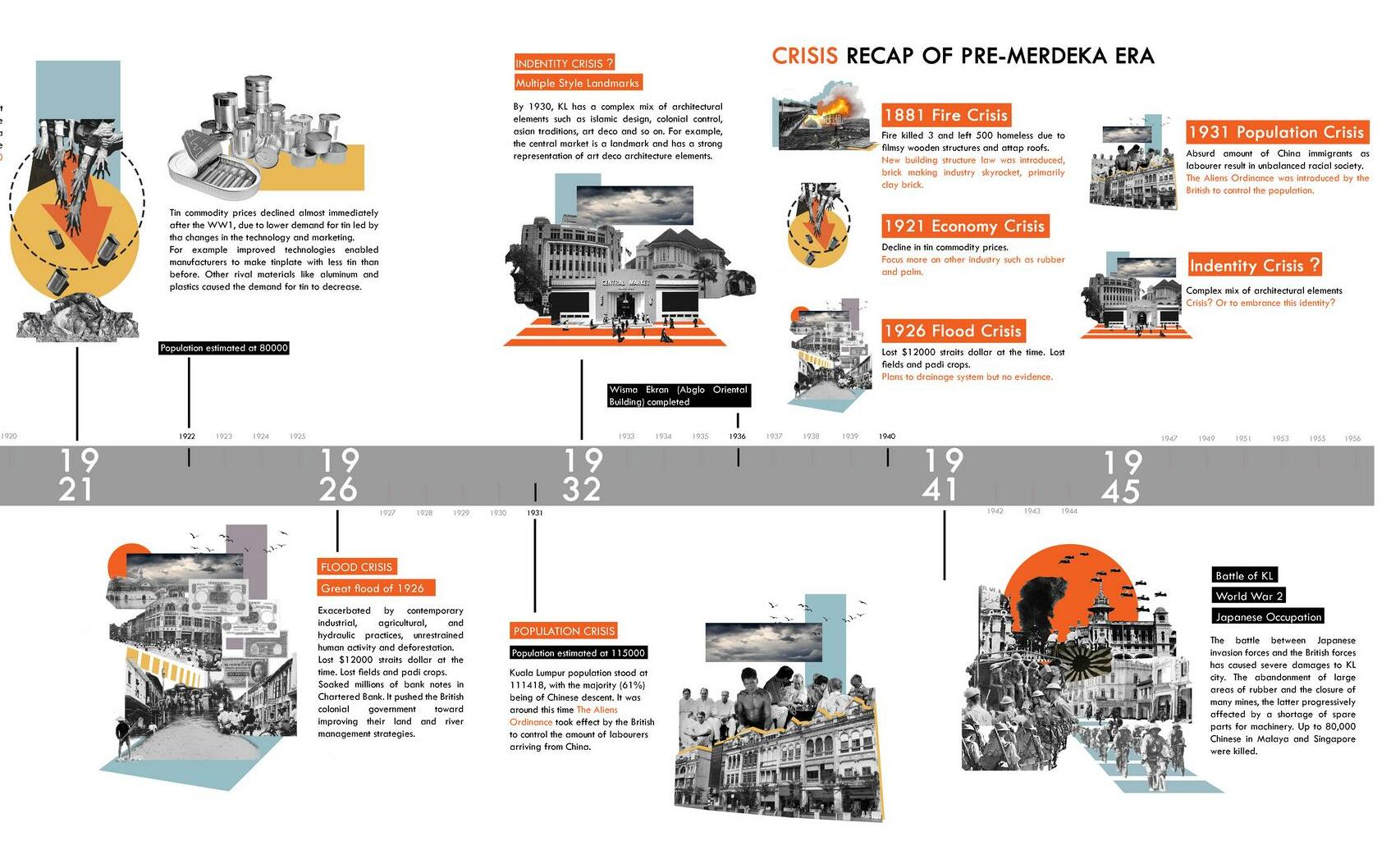

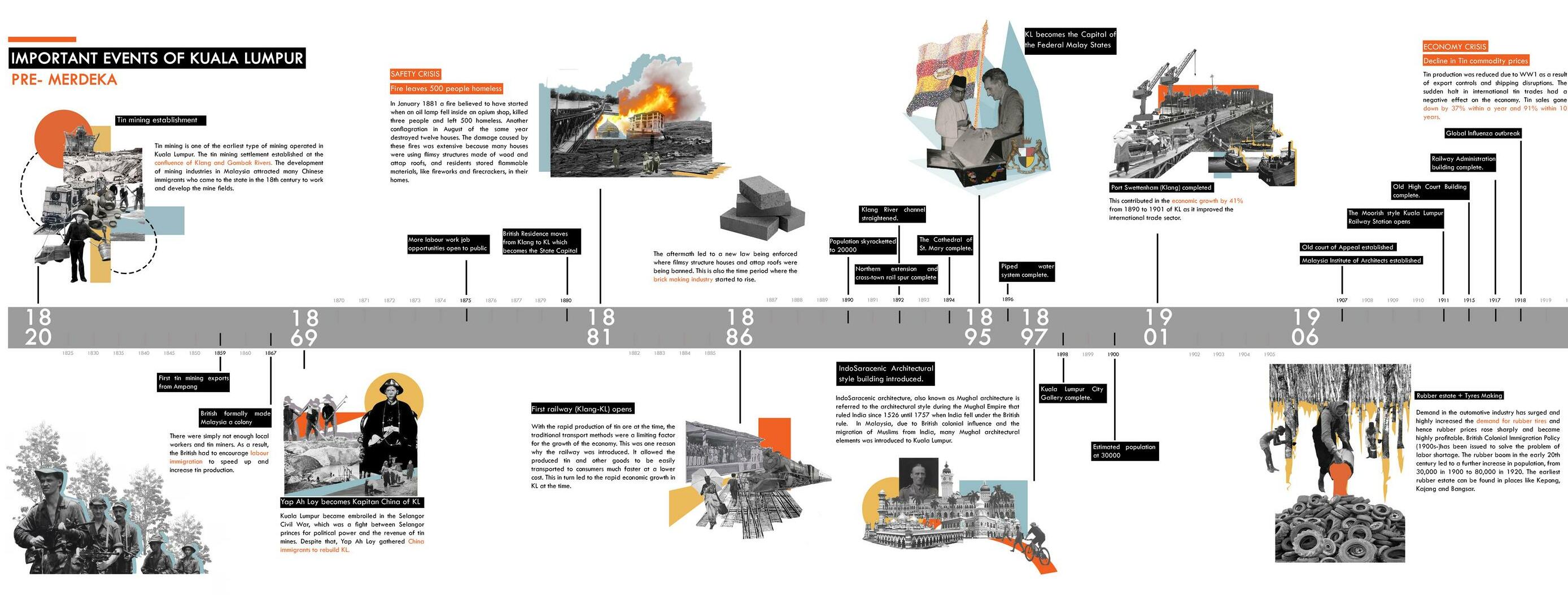

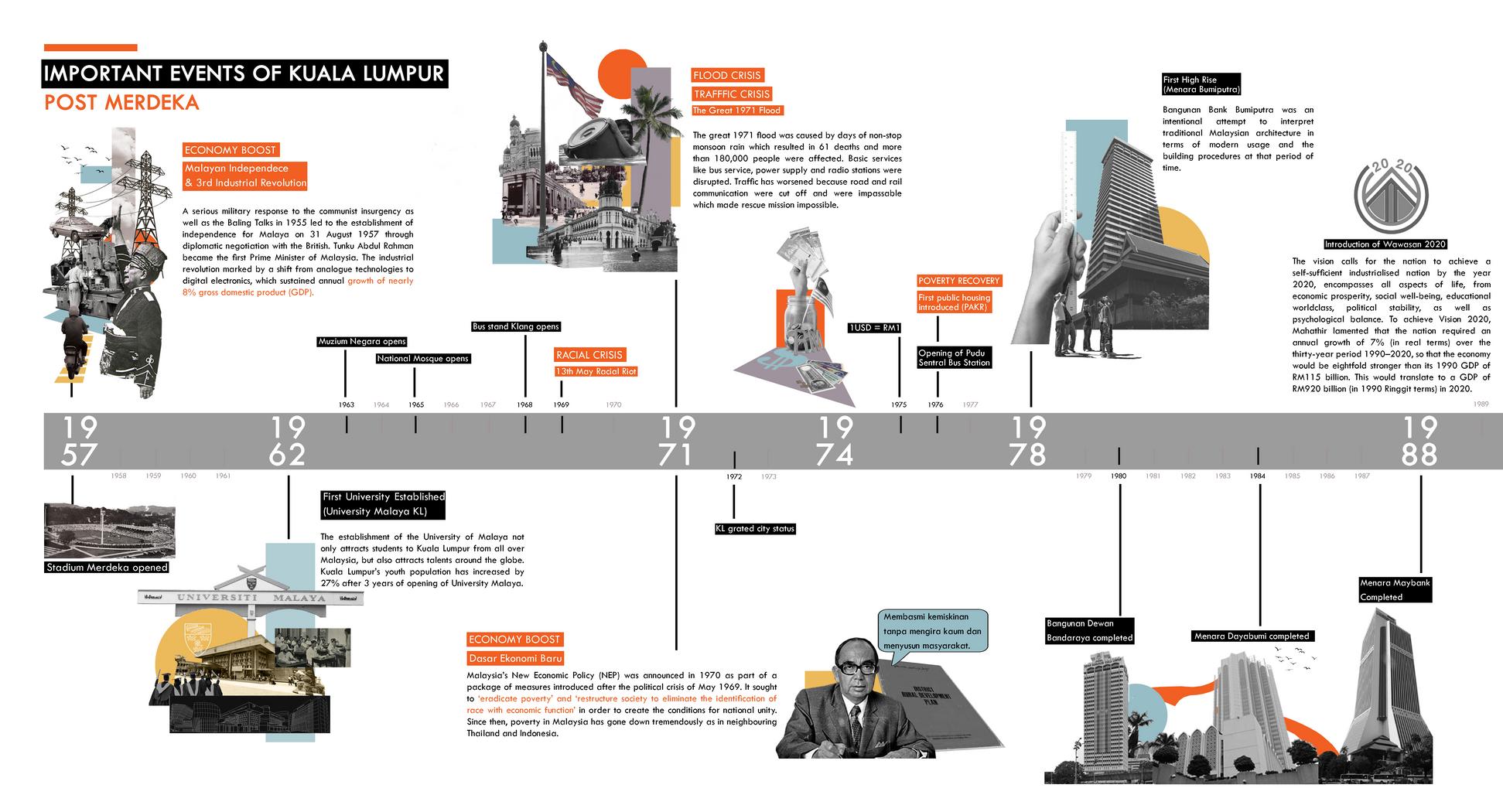

P1A - Site analysis of the confluence area history & crises (catalogue)

P1B - Warm up design - thinking proposal

within the Confluence of Kuala Lumpur

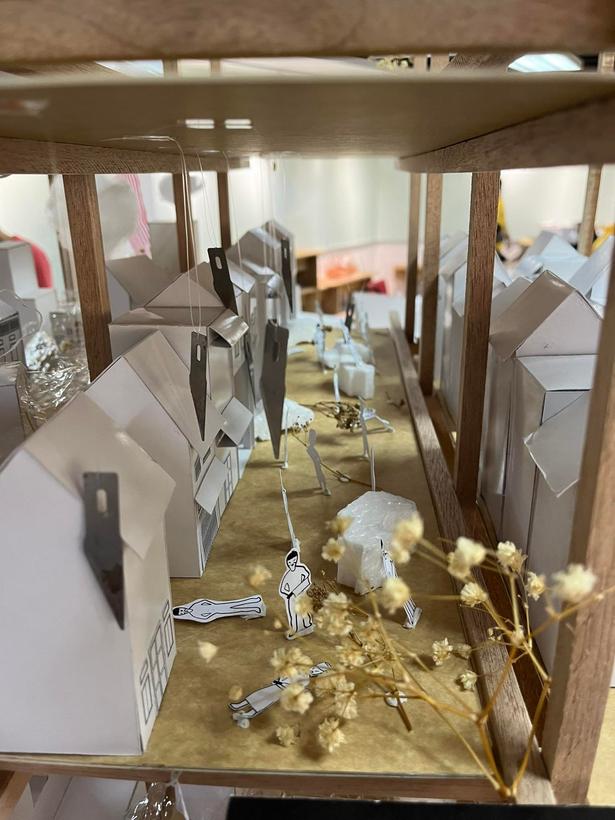

Abstract model of reaction to site

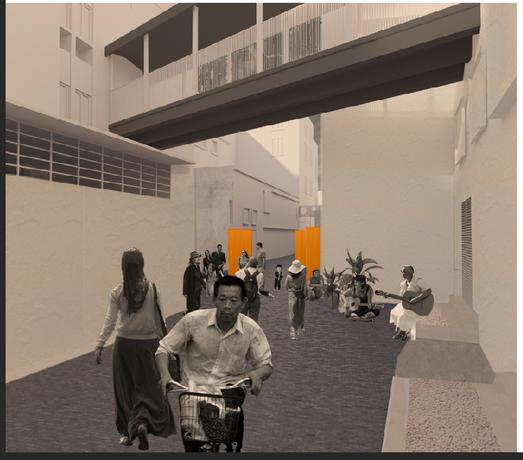

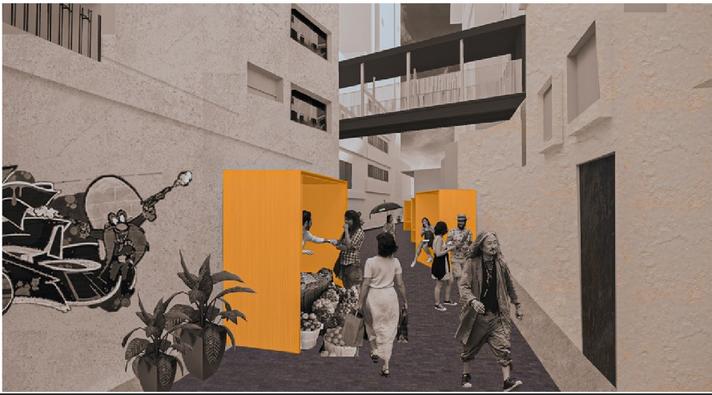

SAMA- SAMA KONGSI

By utilising the same alleyway in balance, seek to connect with the public community and street friends, create a pleasant feeling for the public, and create a better relationship with the public who share their cultural ideas.

Street friends Community Balance Attraction Events

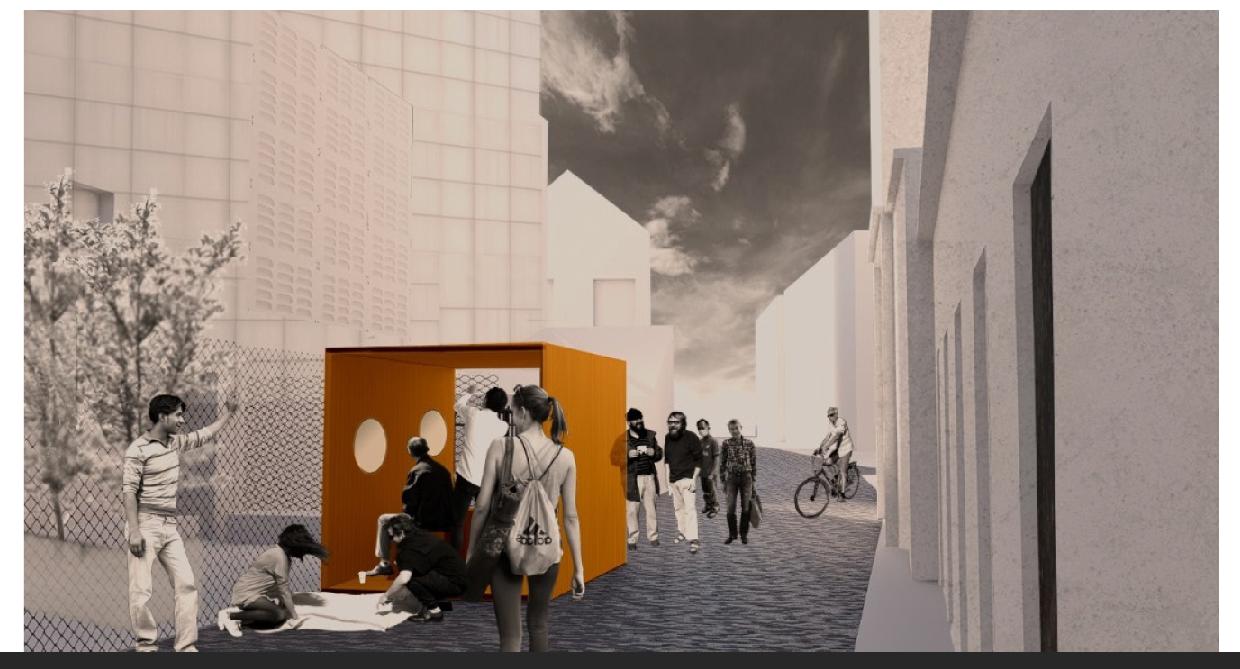

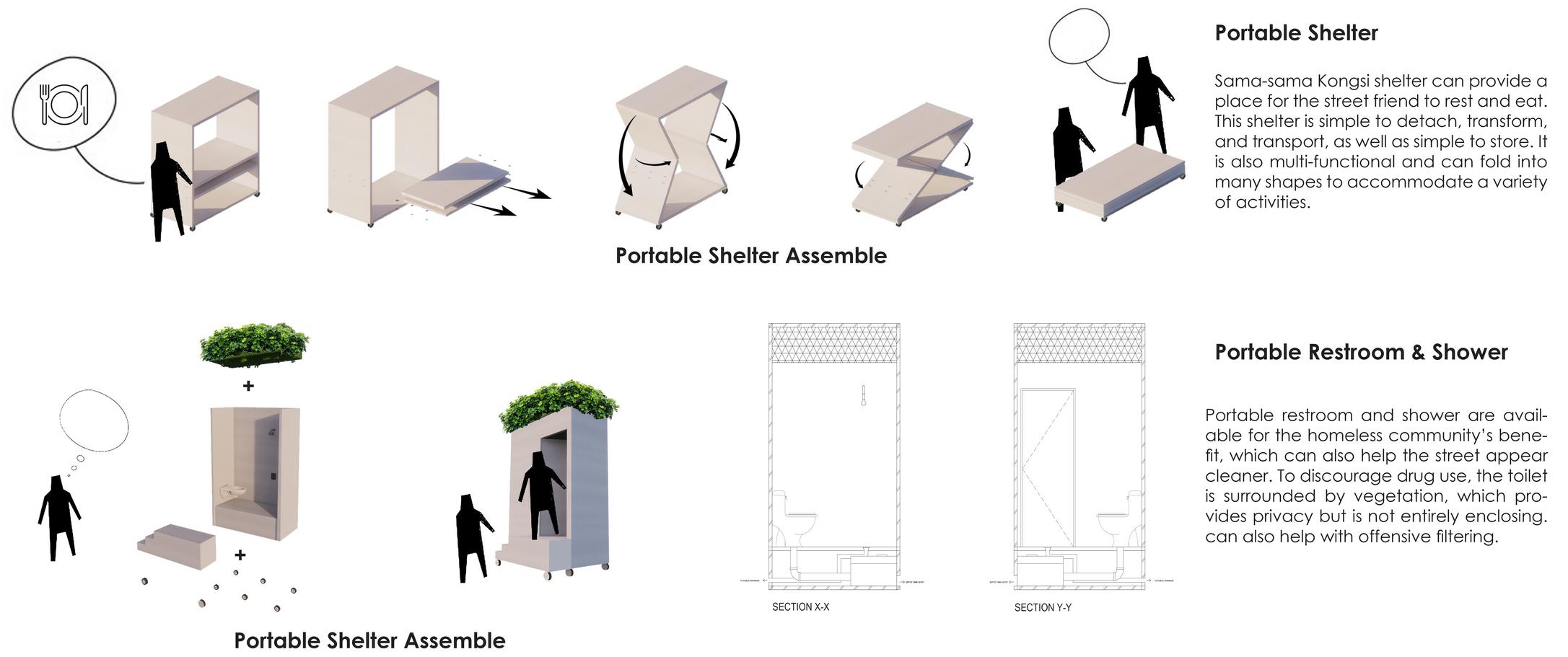

Portable shelter assemble

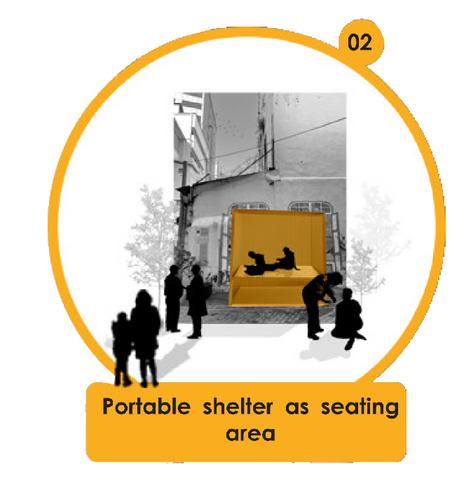

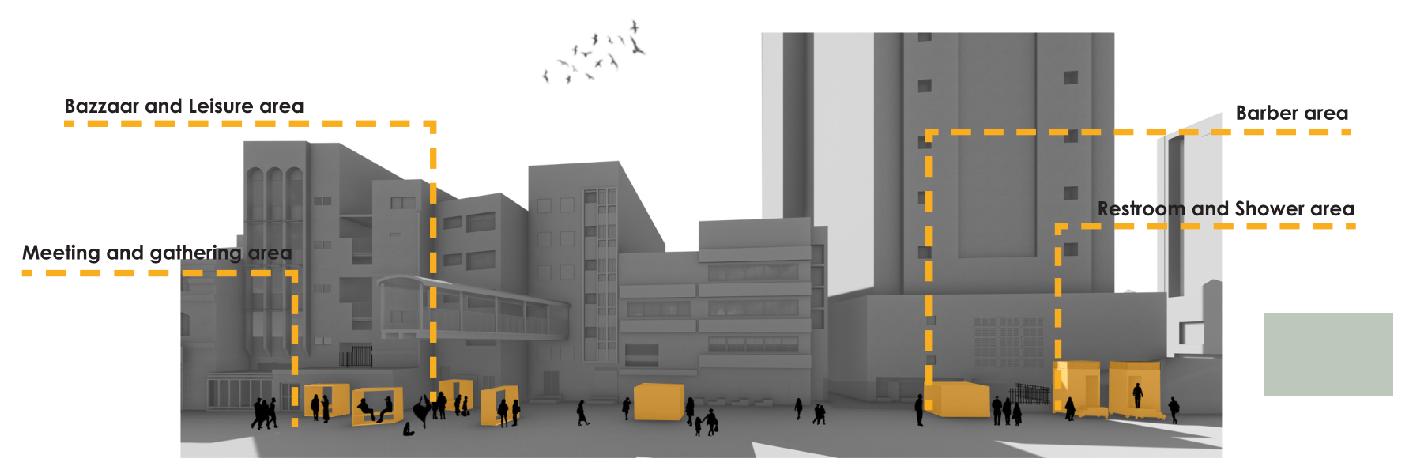

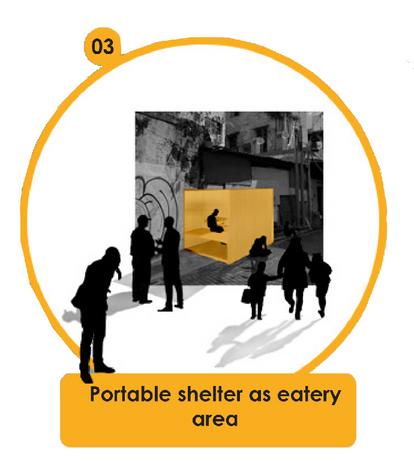

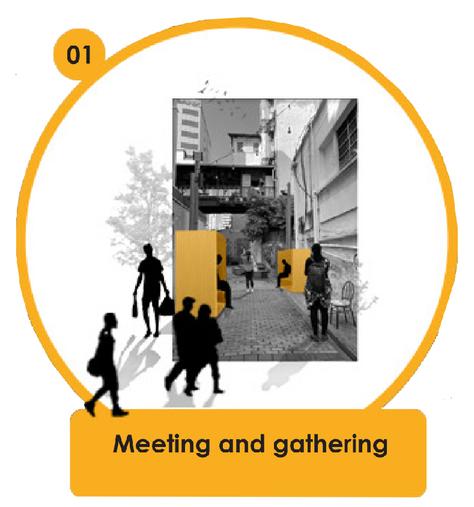

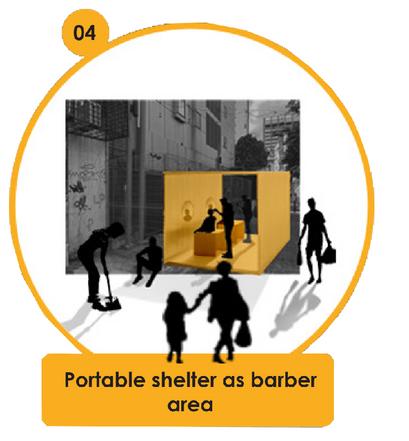

Sama-sama kongsi shelter able provide the street friend a place to relax and eat This shelter is easy to disassemble, convert, and carry, as well as store. It is also multifunctional and folds into a number of forms to facilitate a wide range of activities.

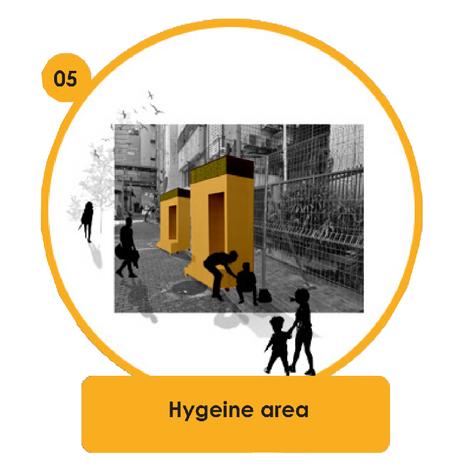

Portable restrooms and showers are available for the homeless people, which may also assist keep the roadway clean. To prevent drug use, the toilet is surrounded by greenery that gives seclusion but is not completely enclosing. can also assist in offensive screening

programme

Hygiene

Portable shelter spaces quality

PROJECT 02

LITERATURE REVIEW TOWARDS

ARCHITECTURAL SPATIAL CONCEPTS

P2A - Speculative: Literature Reviews towards Architectural Spatial concepts in conceptual model & conceptual drawing

P2B - Micro site analysis - individual site strategies

Literature review

Focus issues : Flash flooding

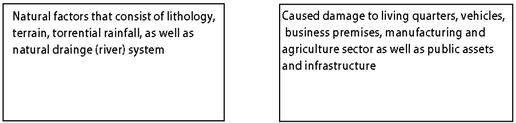

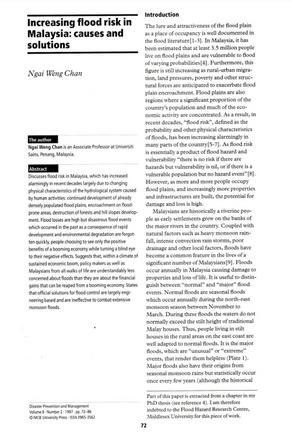

Journal study

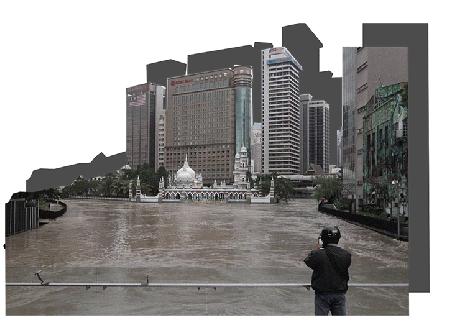

Jamek flooded December 18, 2021

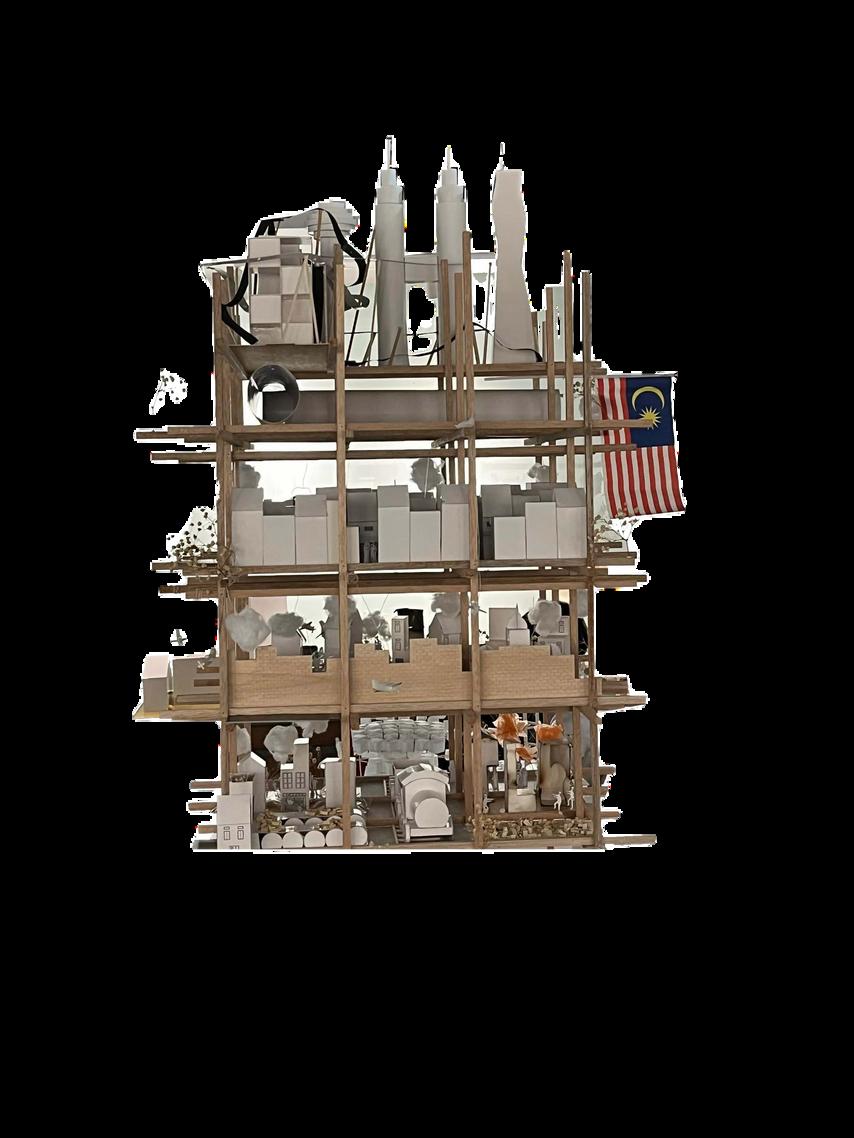

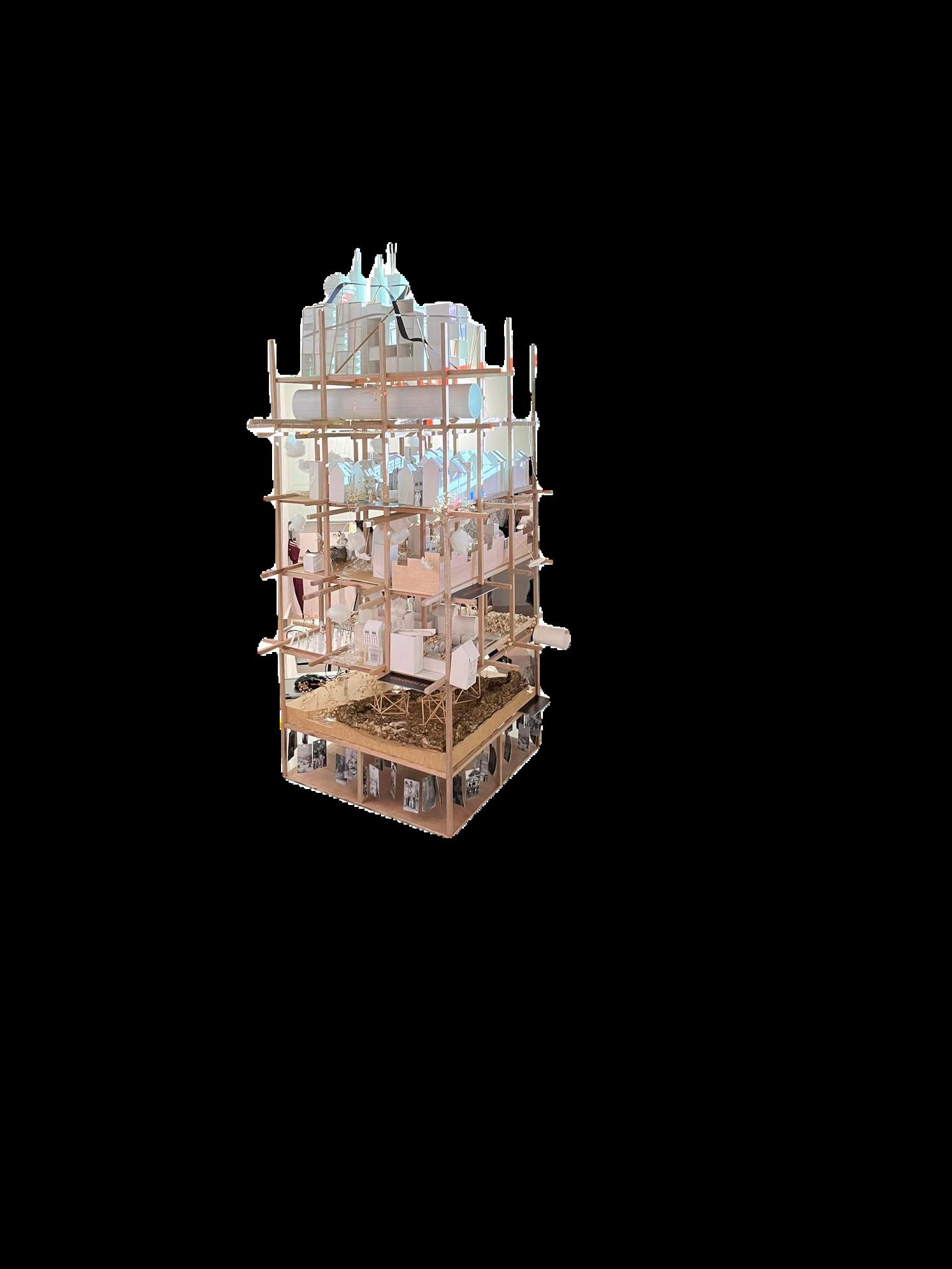

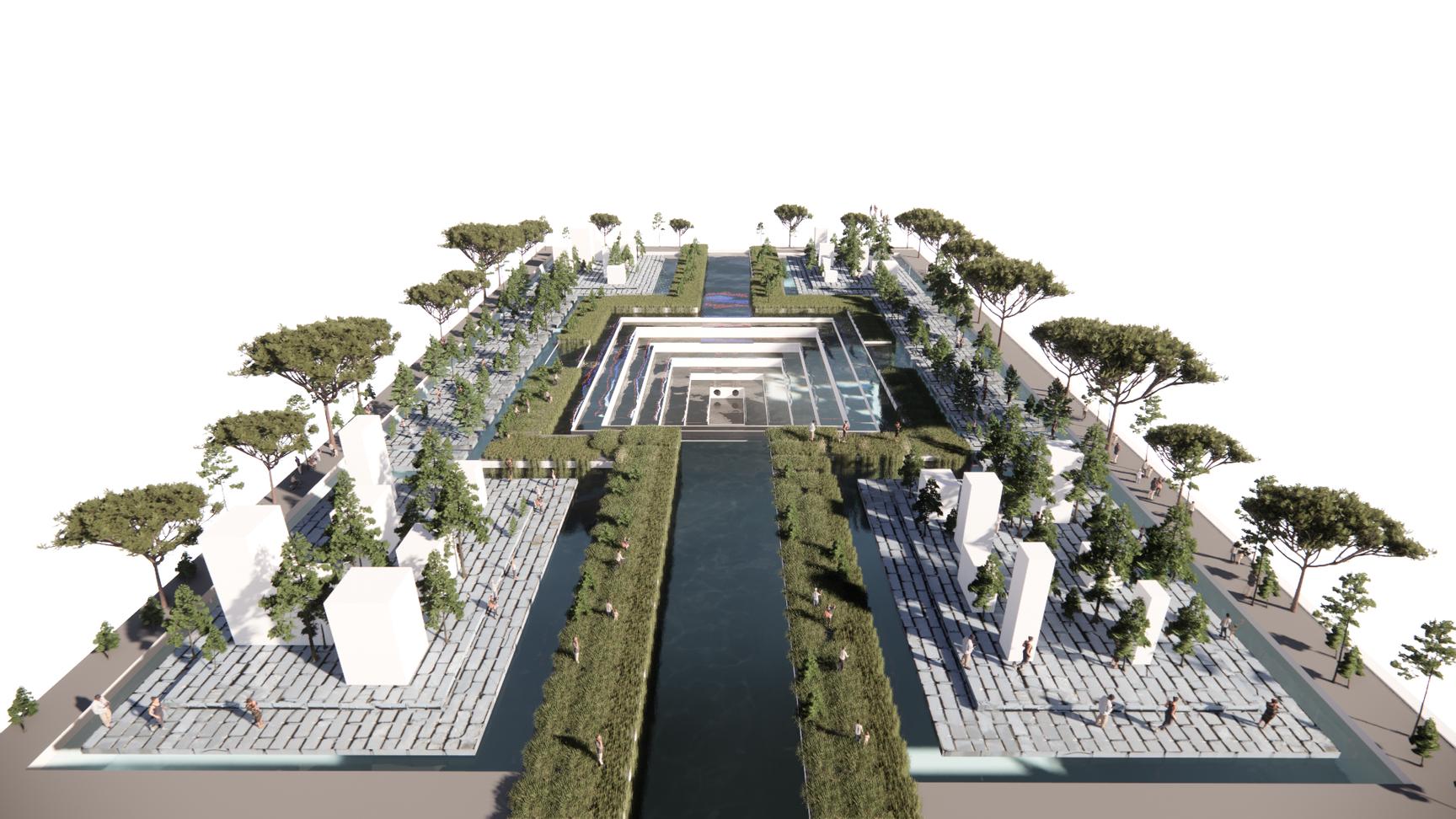

Ideation : ' Cotton Shrub cities'

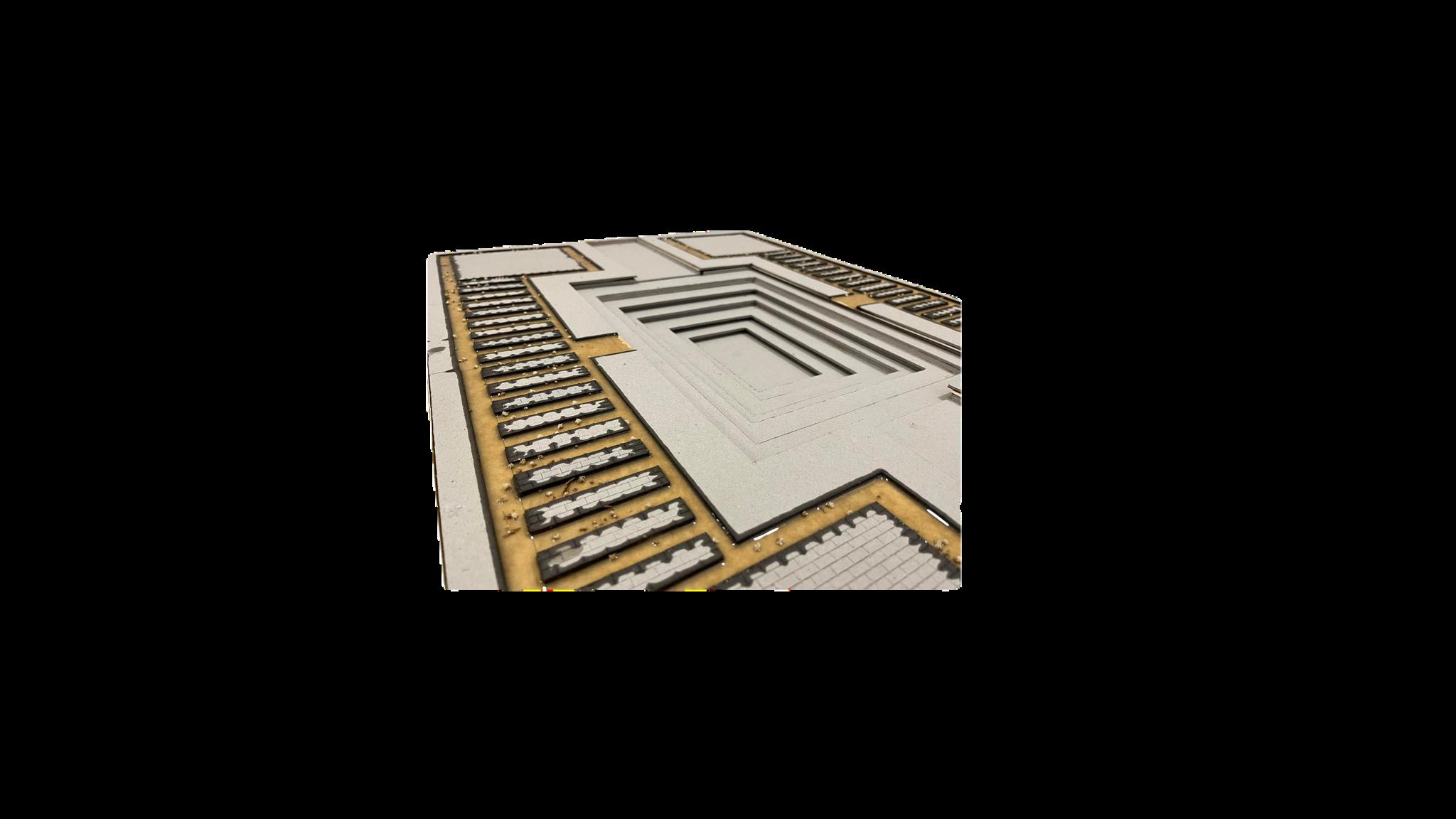

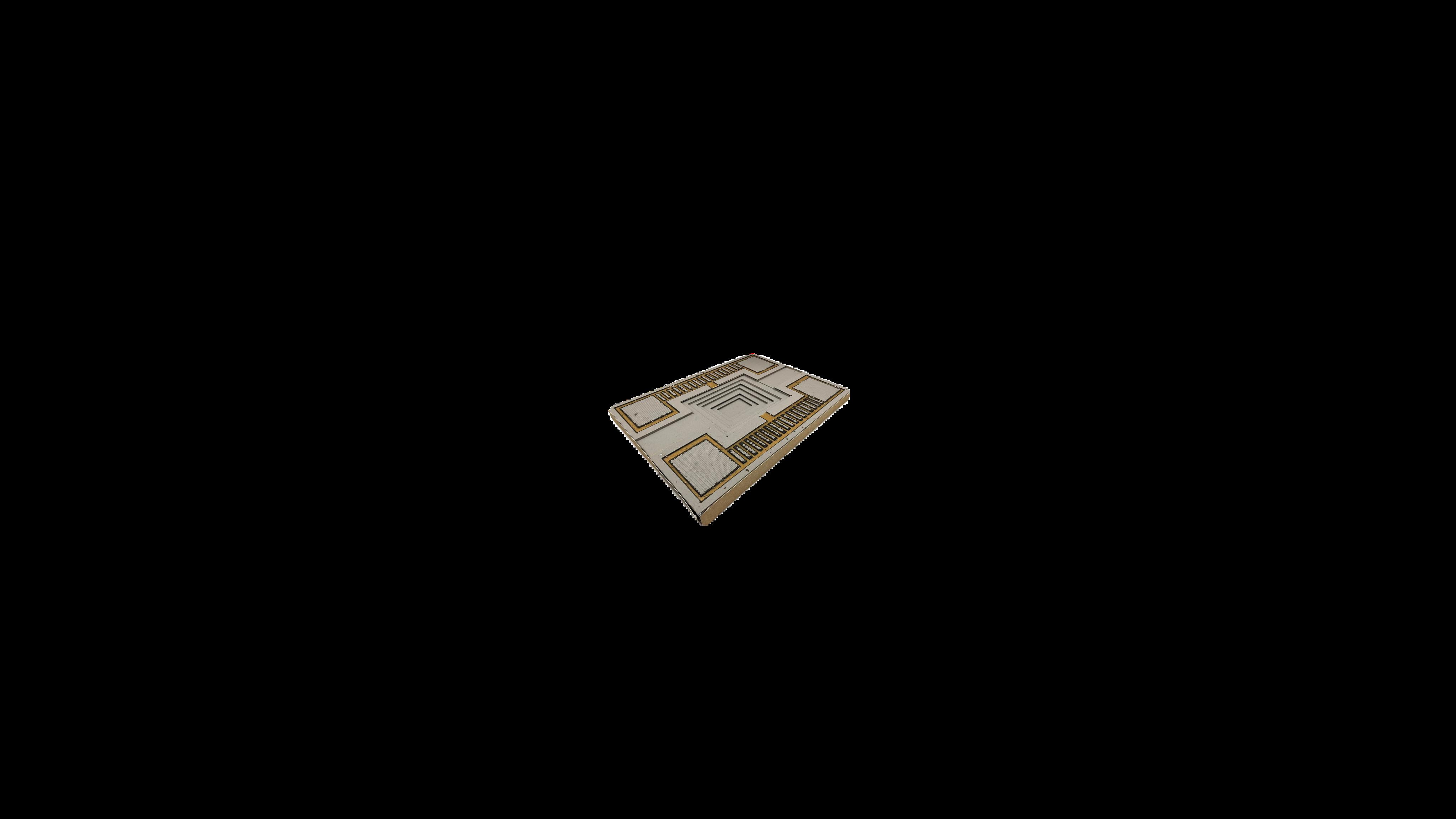

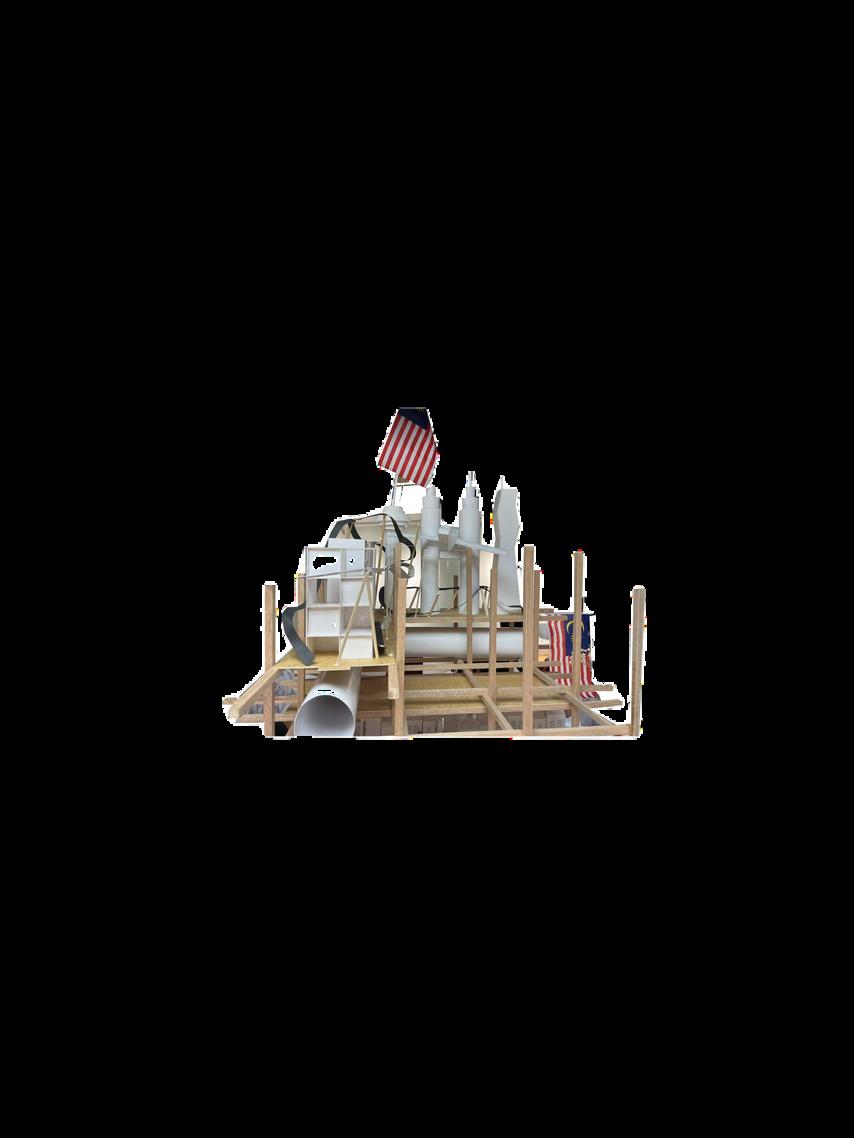

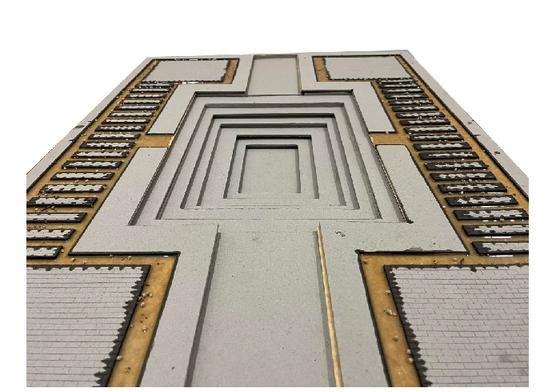

Cotton Shrub cities model

Micro site analysis

The main site of our proposed area was located in Masjid Jamek KL. It has a river runs alongside of the location. Meanwhile it will cause flash floods occur when there s a heavy rain due to poor maintenance of sewerage system

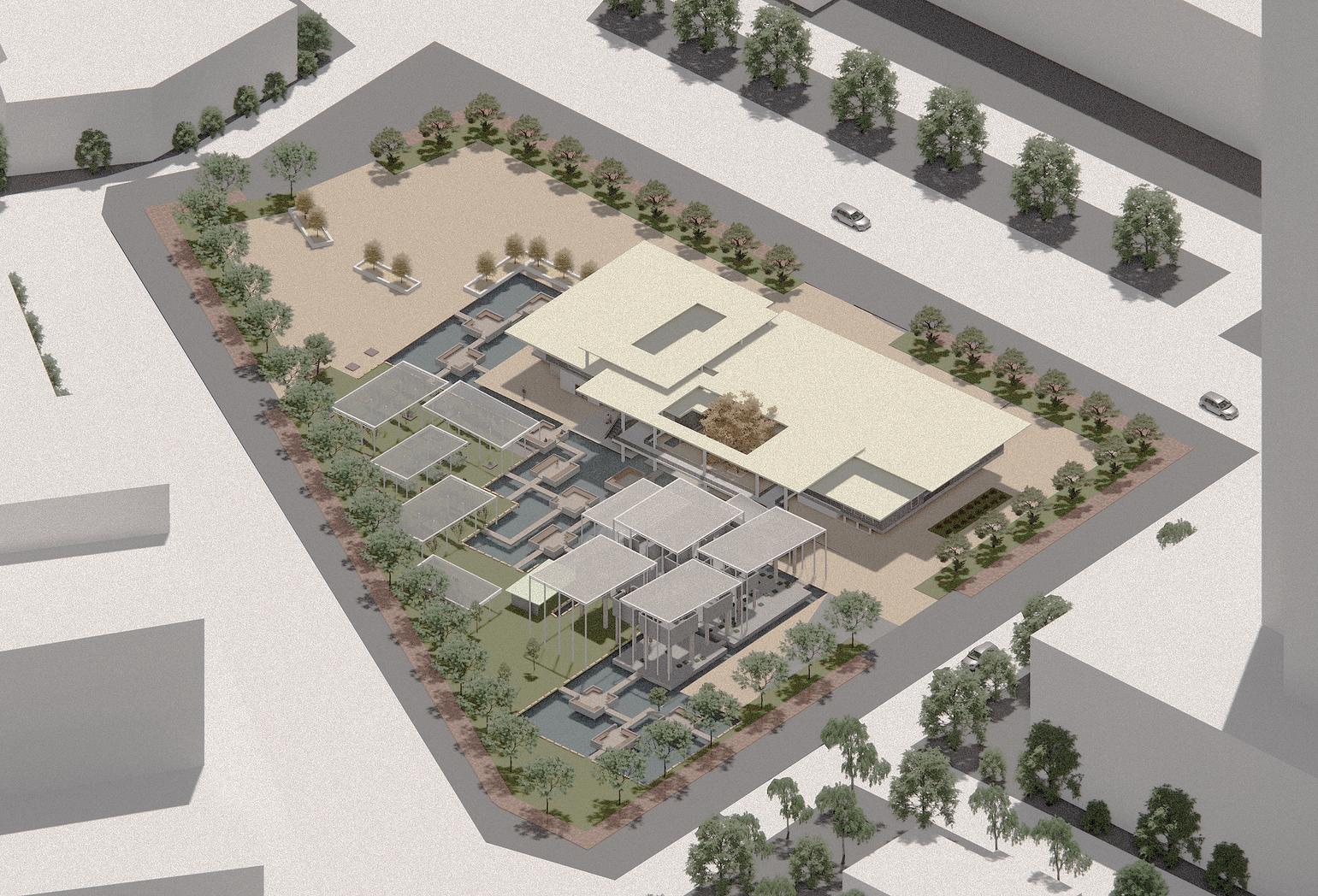

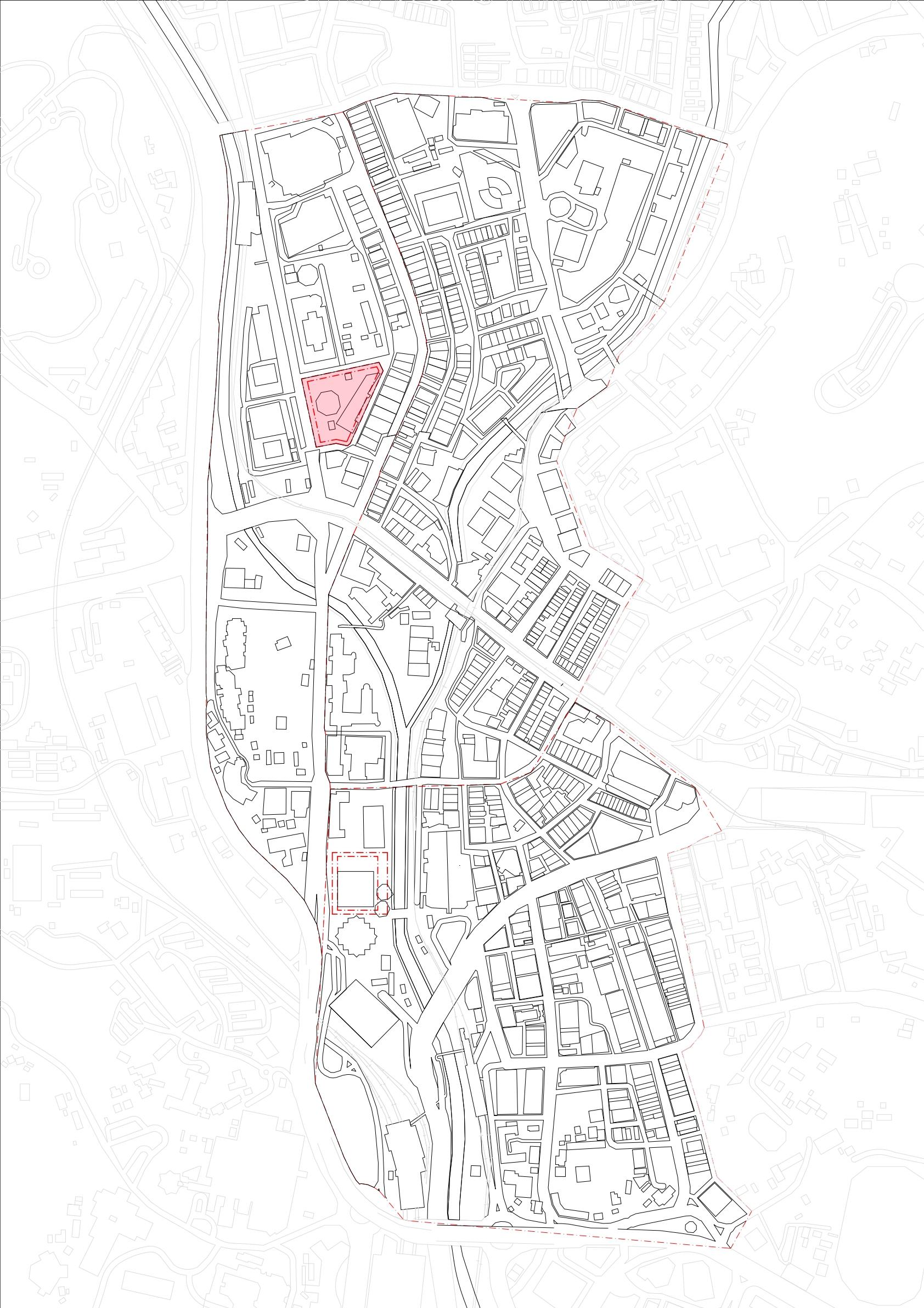

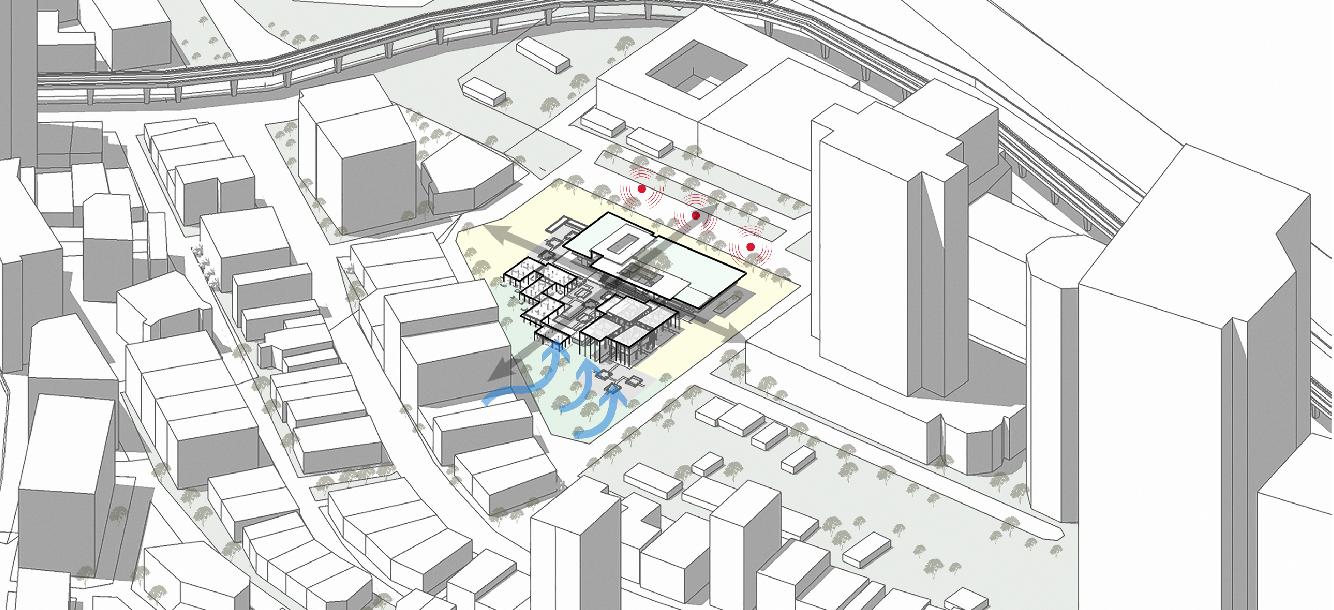

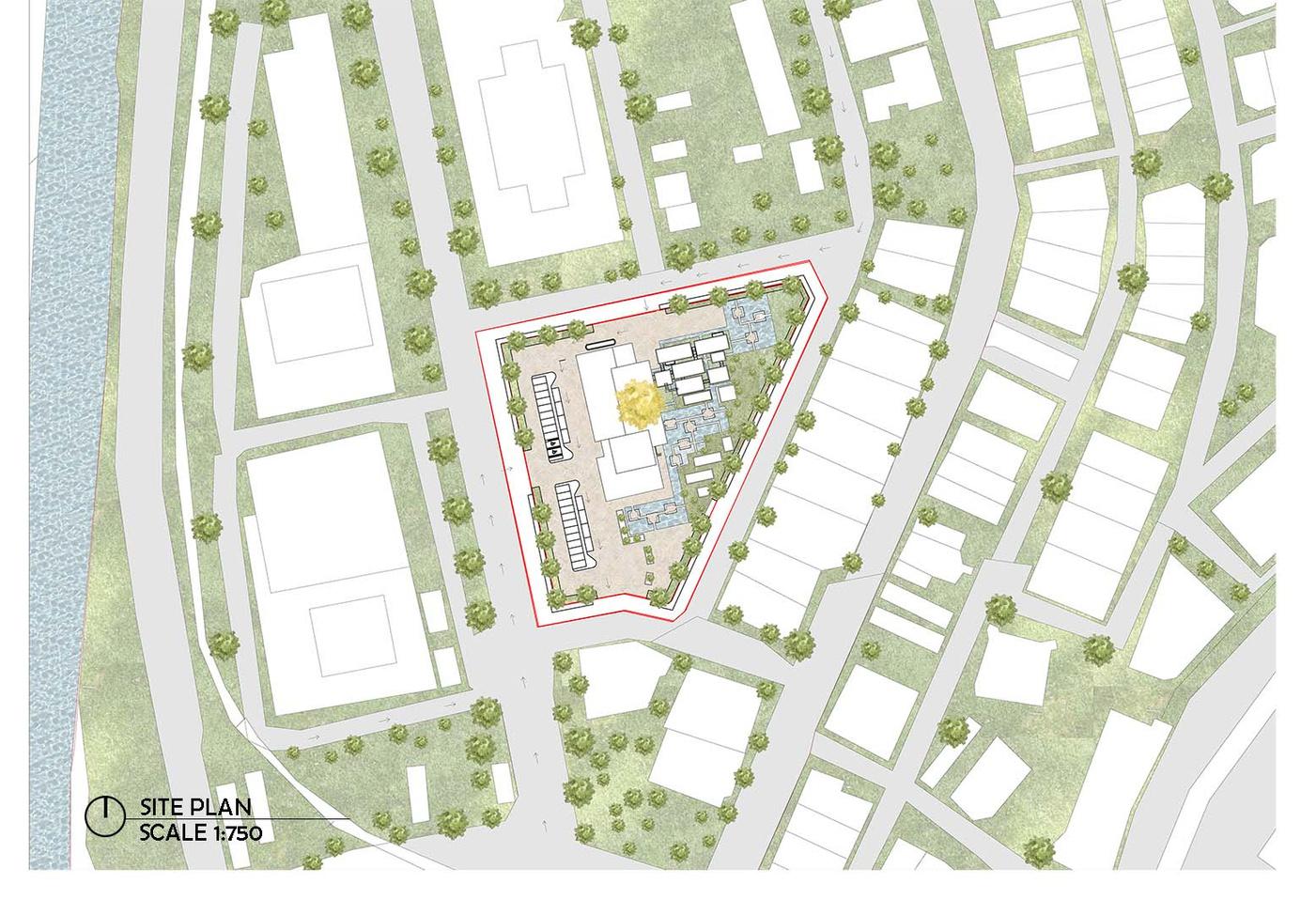

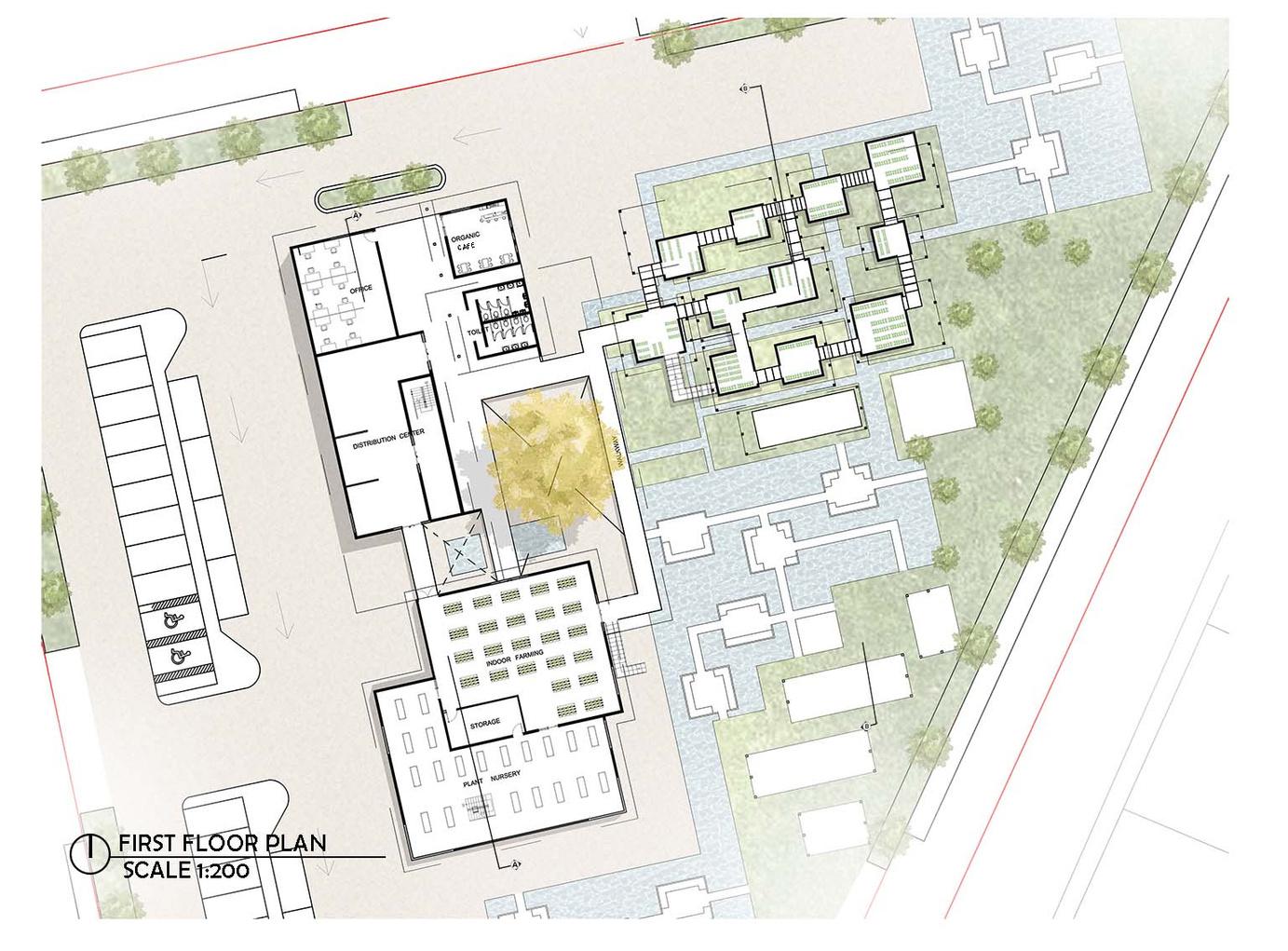

Site plan 1:500

site

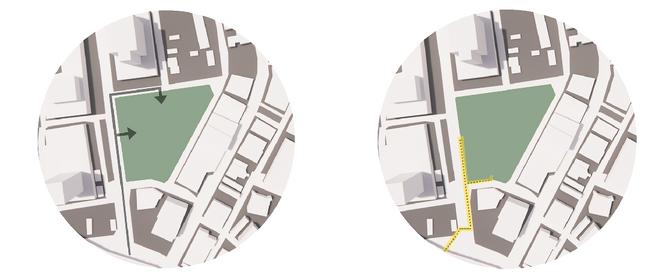

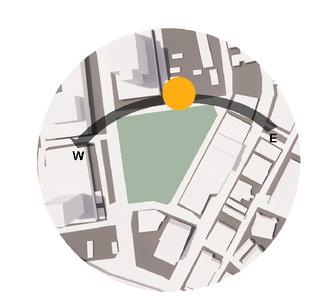

Site respond & Urban strategies

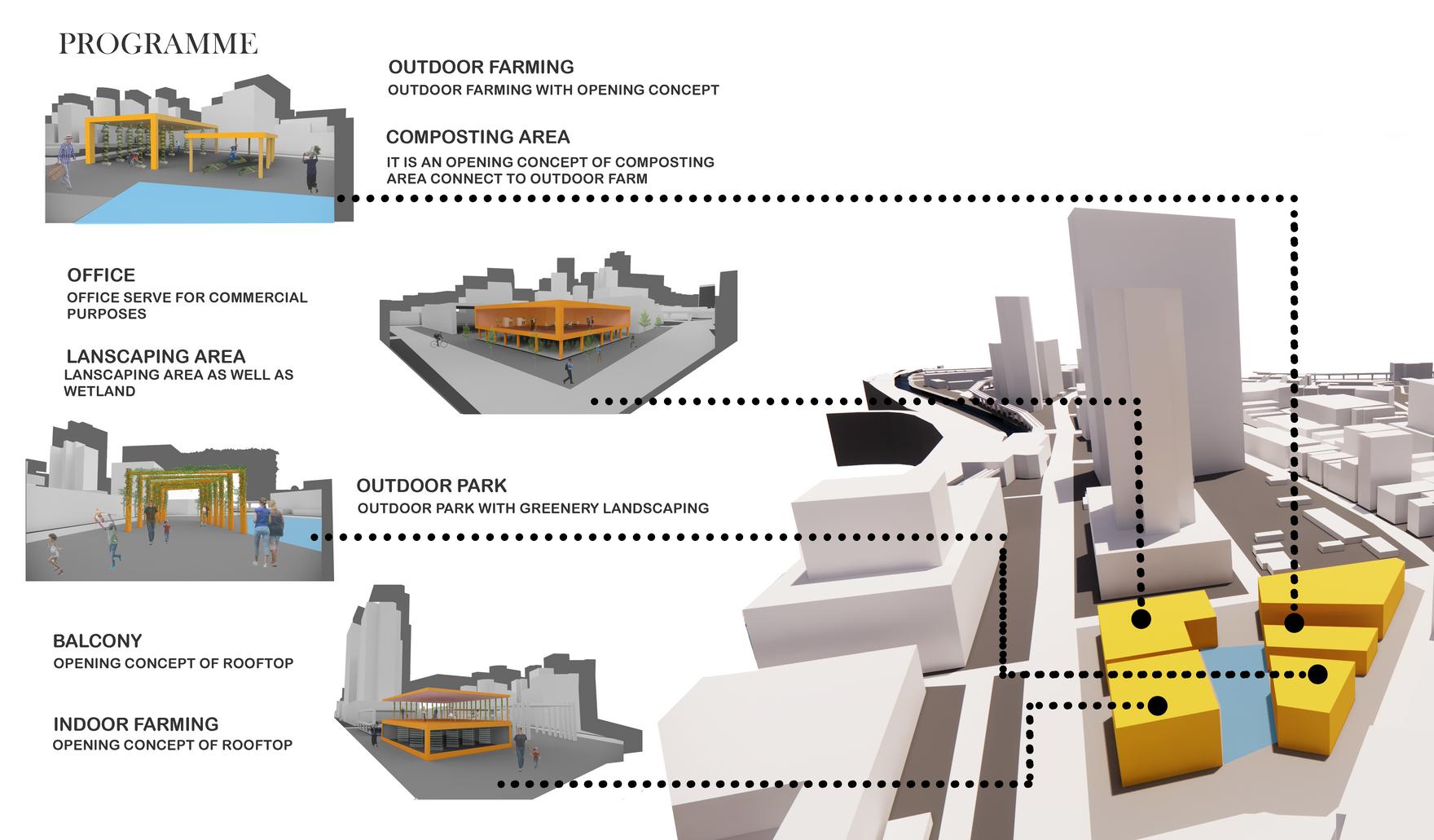

Programme

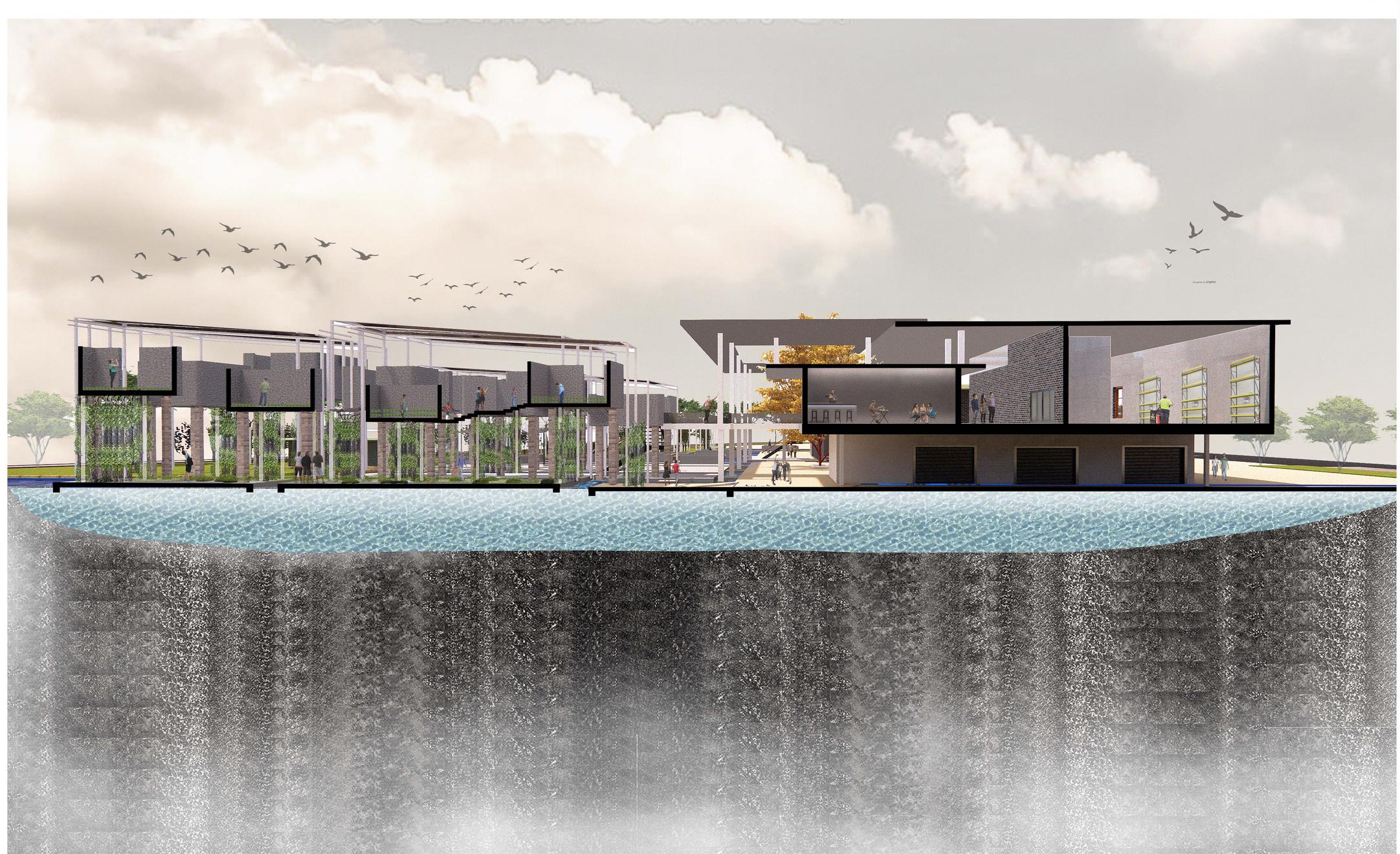

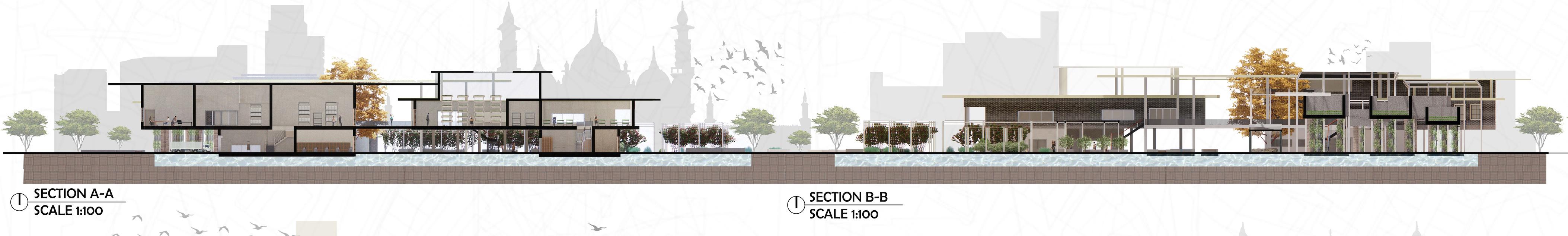

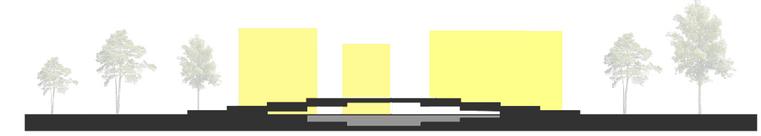

Site section

Outdoor farming

Composting area

It is an opening concept of composting area connect to outdoor farm

Office

office serve for commercial purposes

Landscaping area

Landscaping area as well as wetland

Outdoor park

Outdoor park with greenery landscaping

Balcony

Opening concept of rooftop

Indoor farming

Opening concept of rooftop

PROJECT 03 DESIGN DEVELOPMENT

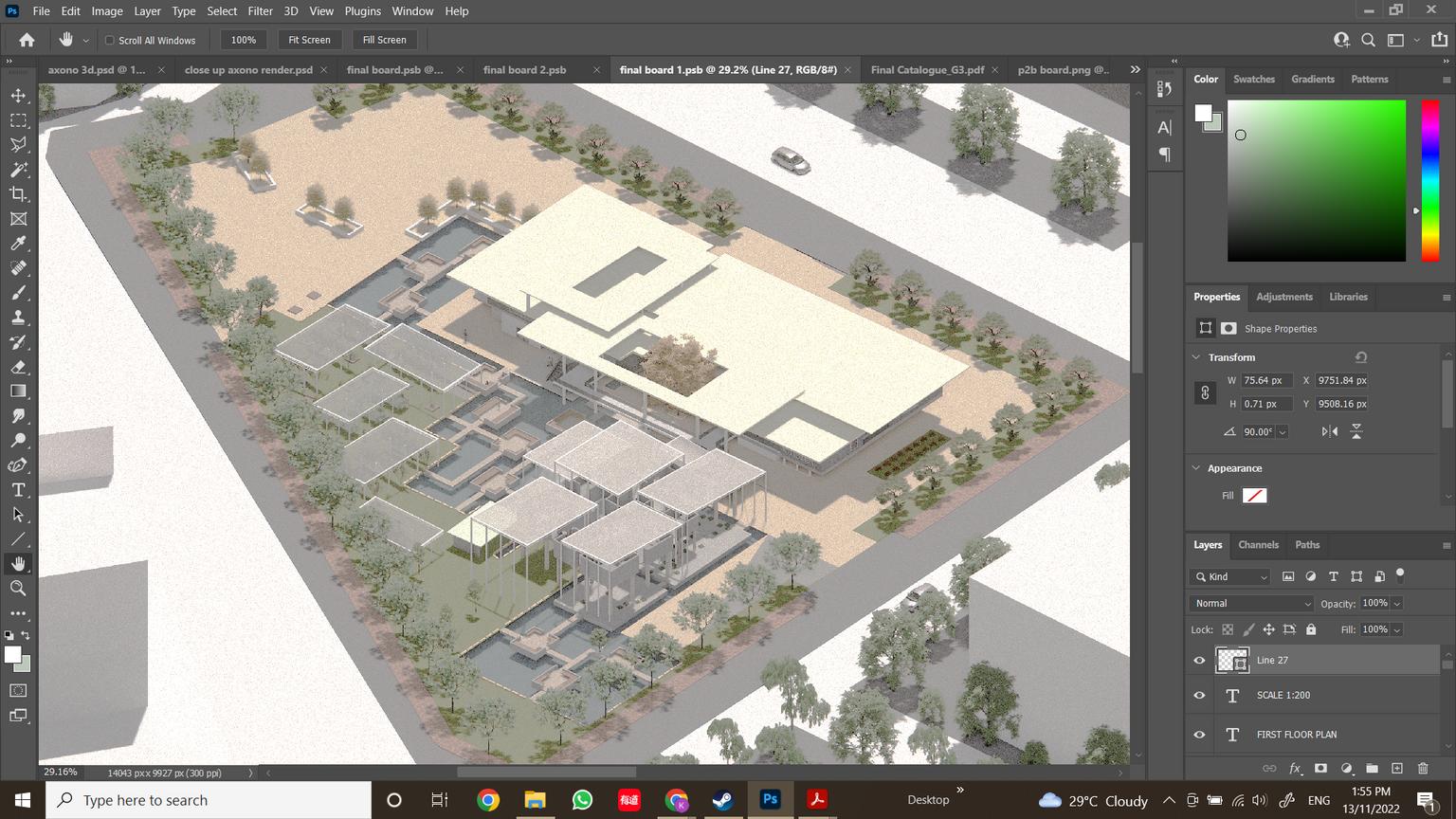

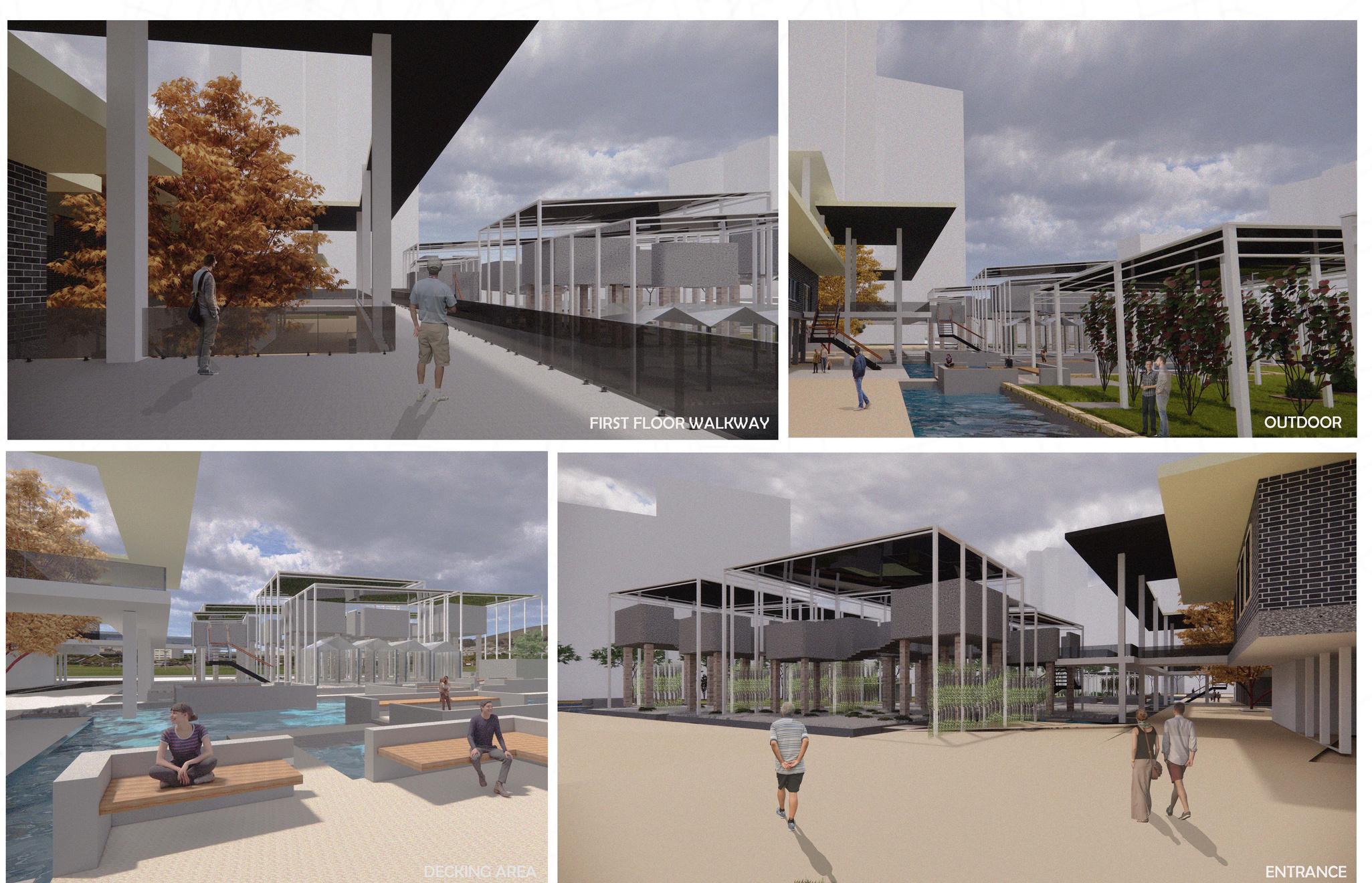

BIOPHILIC HUB

Biophilic hub is a sponge city kind of urban farm that may benefit local communities in both economic and social ways. Most importantly, it resolved the site's existing issues such as flash floods as well as provide food for the homeless

Ideation

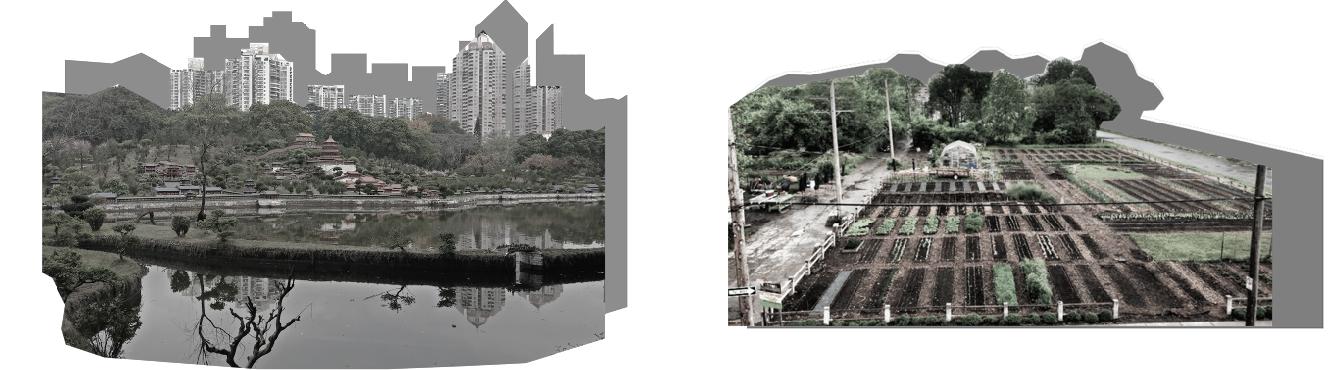

Sponge city

To resolve current issues about Masjid Jamek, it can be implement sponge city & urban farming into the site. The combination of sponge city and urban farming can tackled existing issues around the site

Urban farming

Main programme

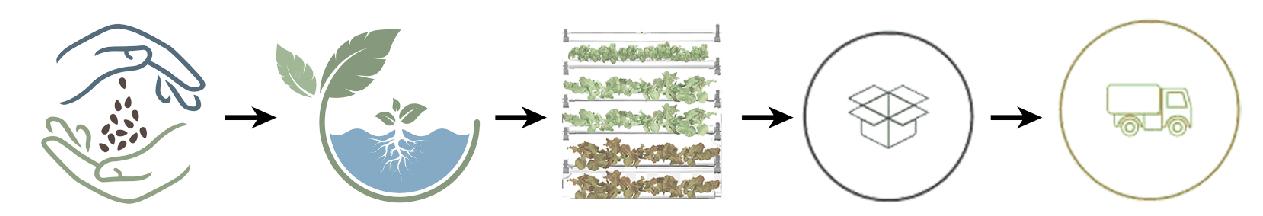

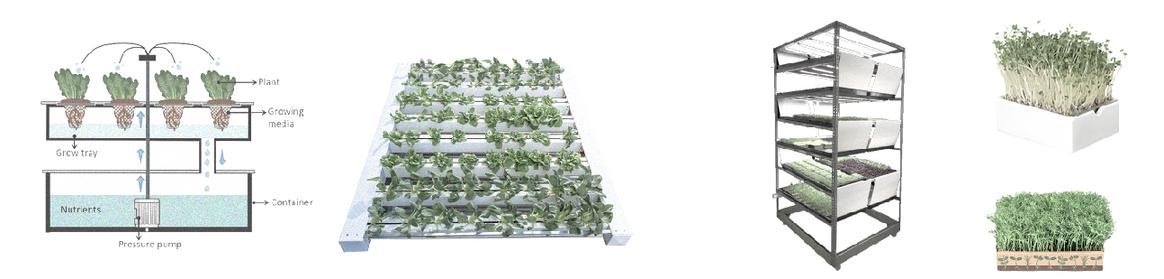

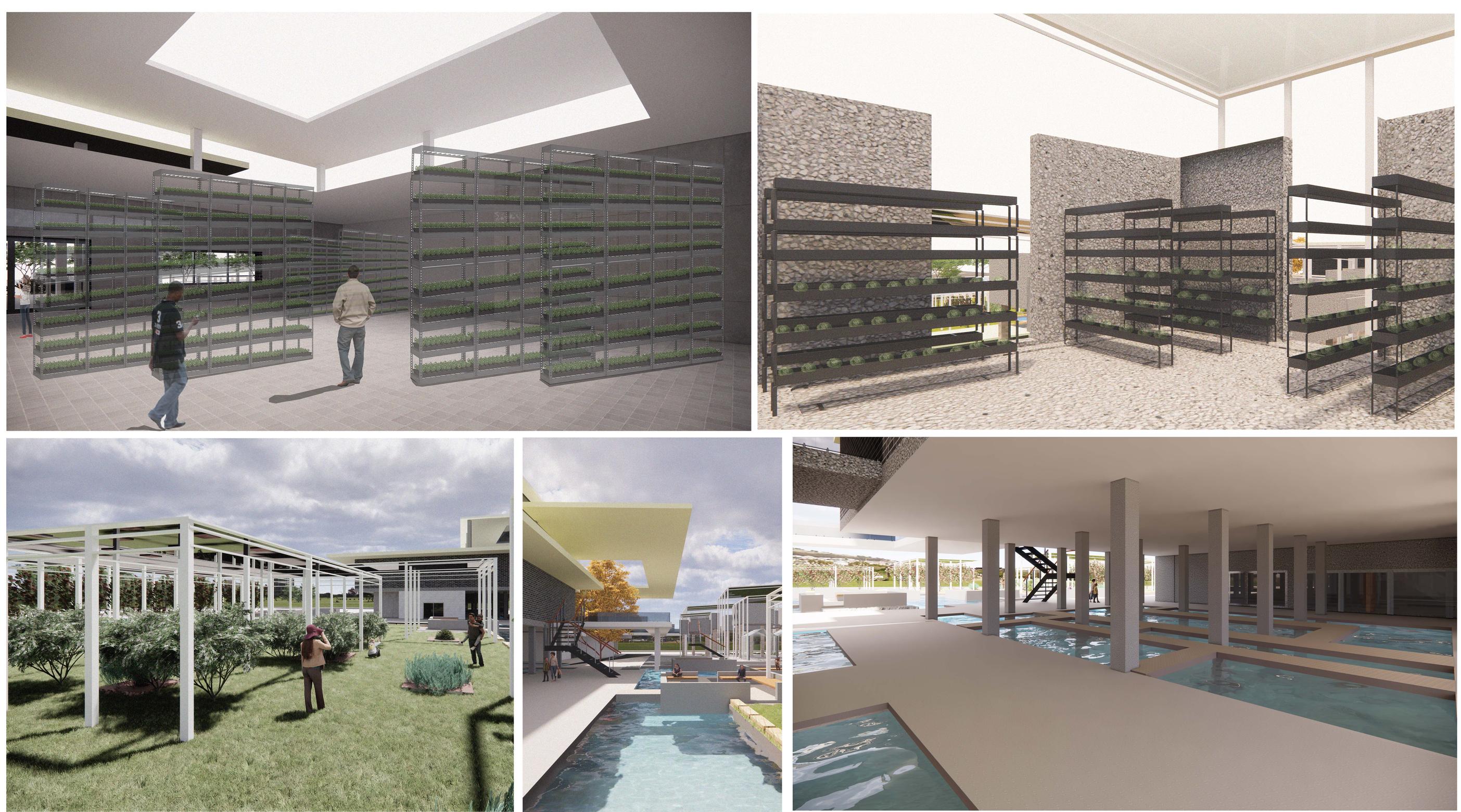

Types of farming

Indoor farm mainly grow about microgreens as microgreens do not require much sunlight from outdoor.

Outdoor farming will mainly grow about vertical hydroponic farming, hence all the plants will farm vertically

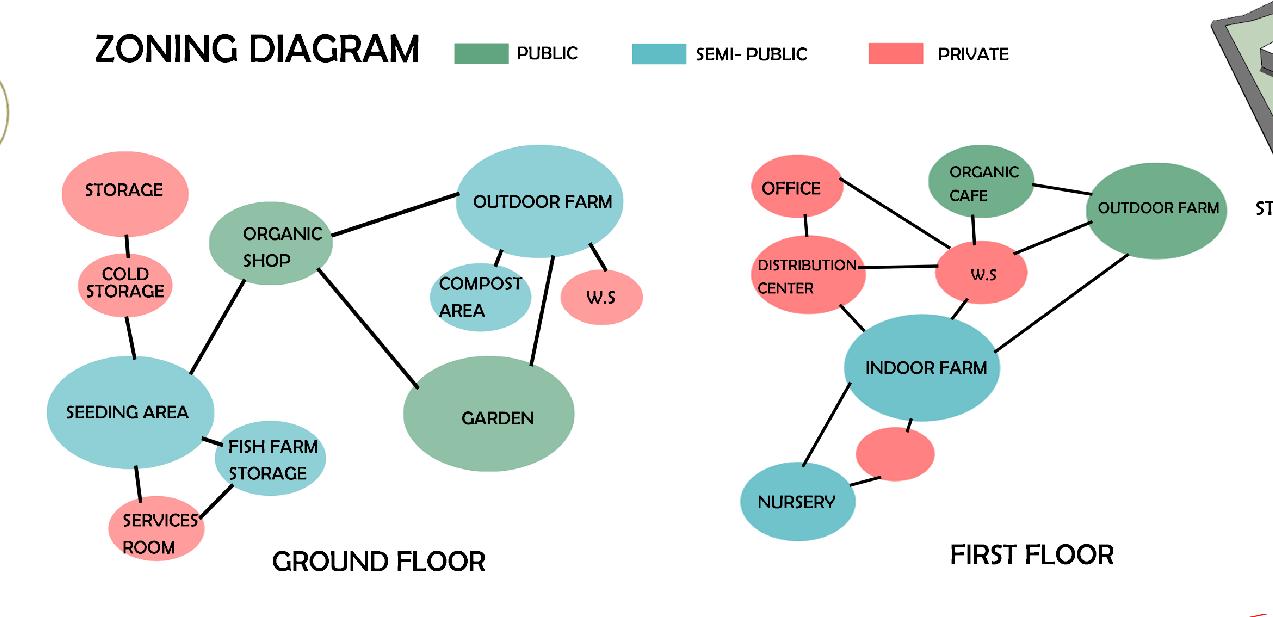

Zoning diagram

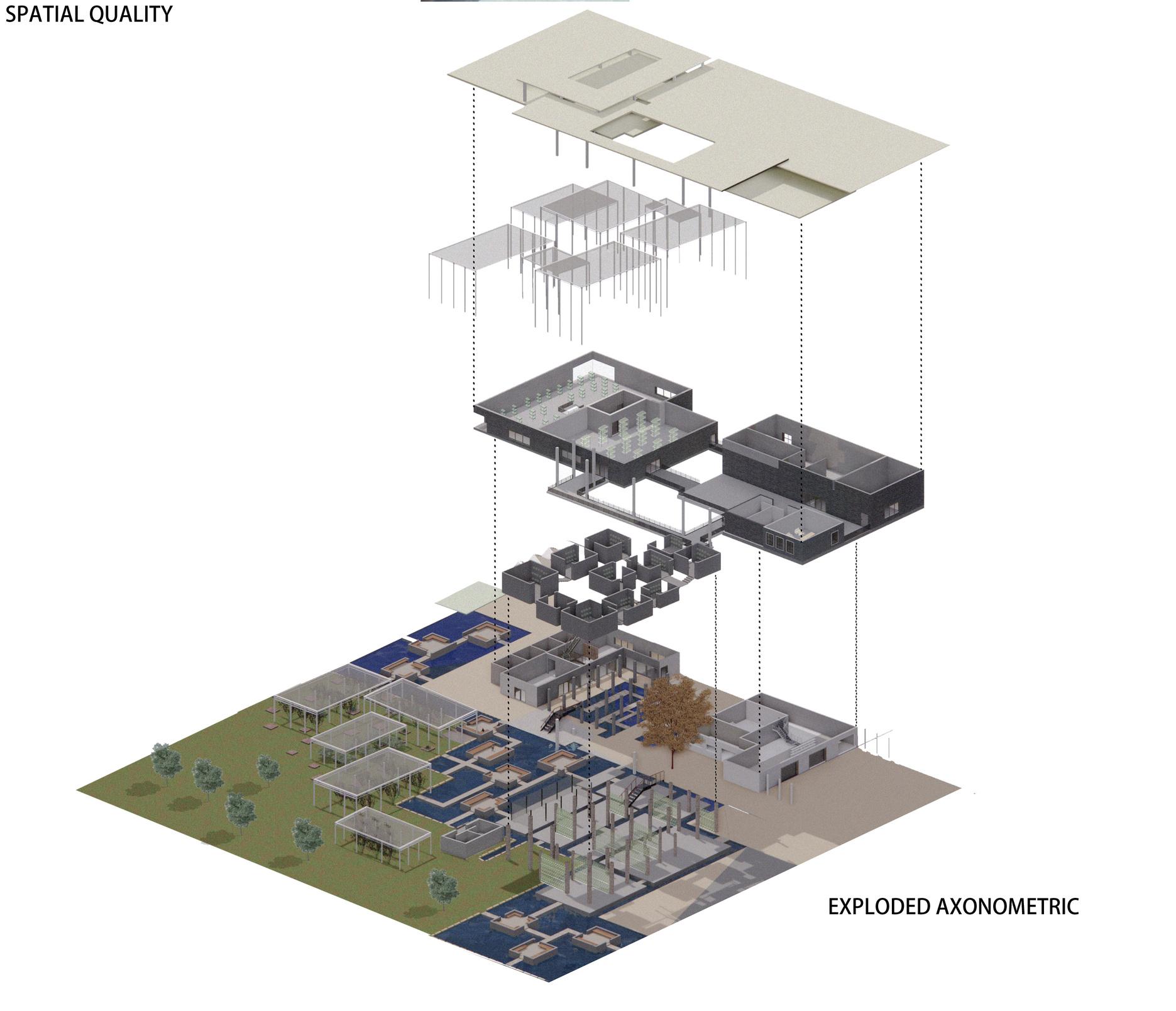

Design development

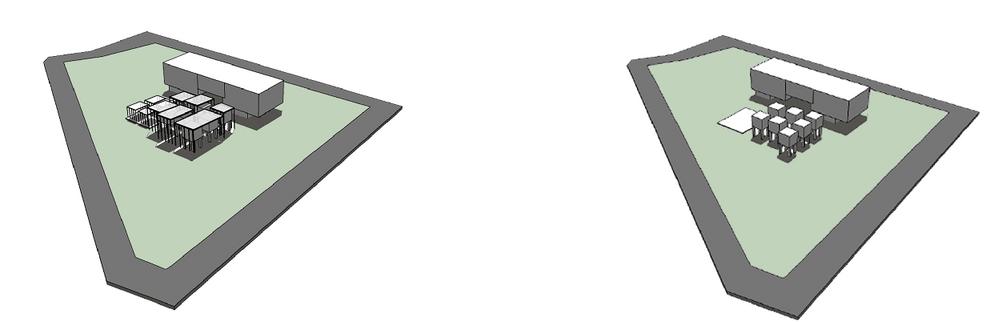

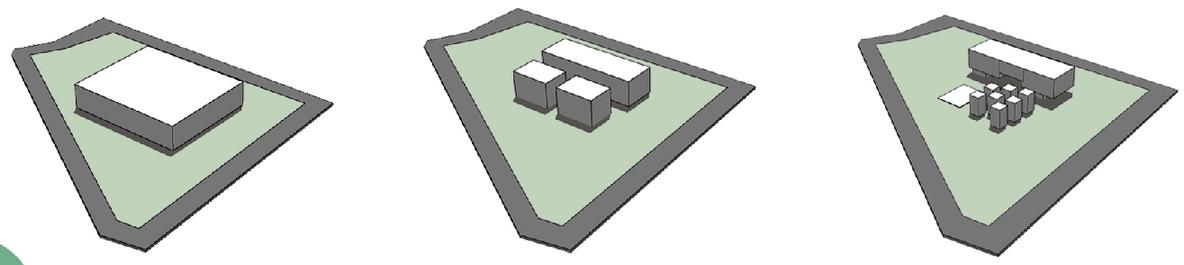

Start with a cube

Divide in terms of pathway circulation

Create more outdoor spaces

Adding cover for outdoor spaces

Create floating column to allow ventilation

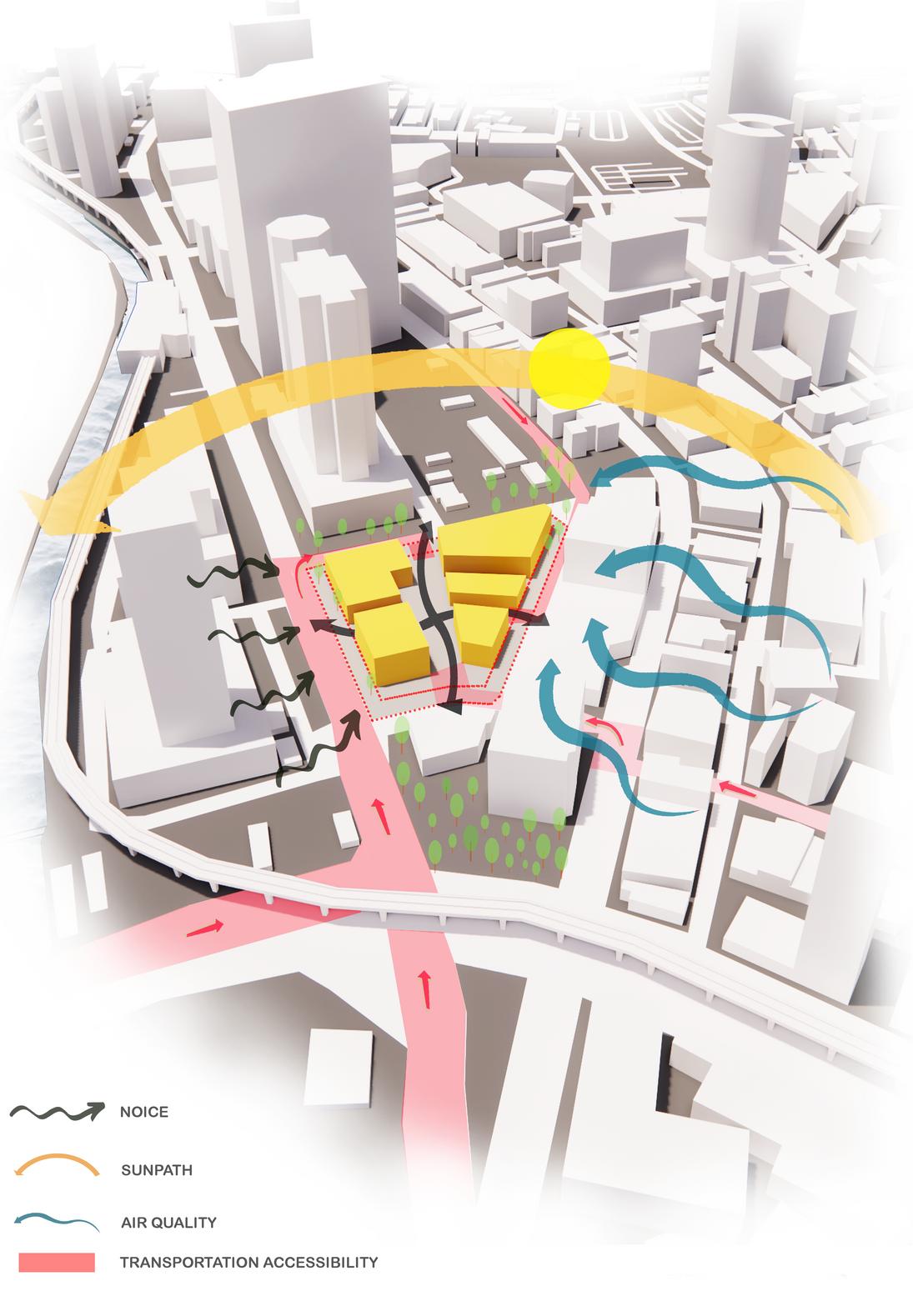

Building strategies

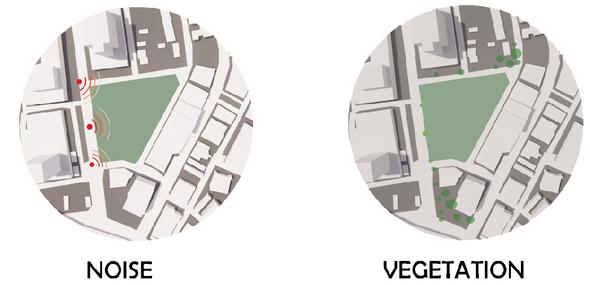

Noise
