KONG WEN HAU 1001953921 AR315
DESIGN STUDIO III
CONTENT PROJECT 1 START UP PROJECT 2 MAPPING RESPONDING PROJECT 3 BUSINESS INCUBATOR
PROJECT 1 START UP
GENERALBUILDINGANALYSIS
This board contains of overall analysis of the Shamim Polymer Factory, which includes the architect's general approach and philosophy, the architectural idea of the chosen building for precedent study, how he has demonstrated his design approach in this building, as well as design issues, intentions, and considerations.

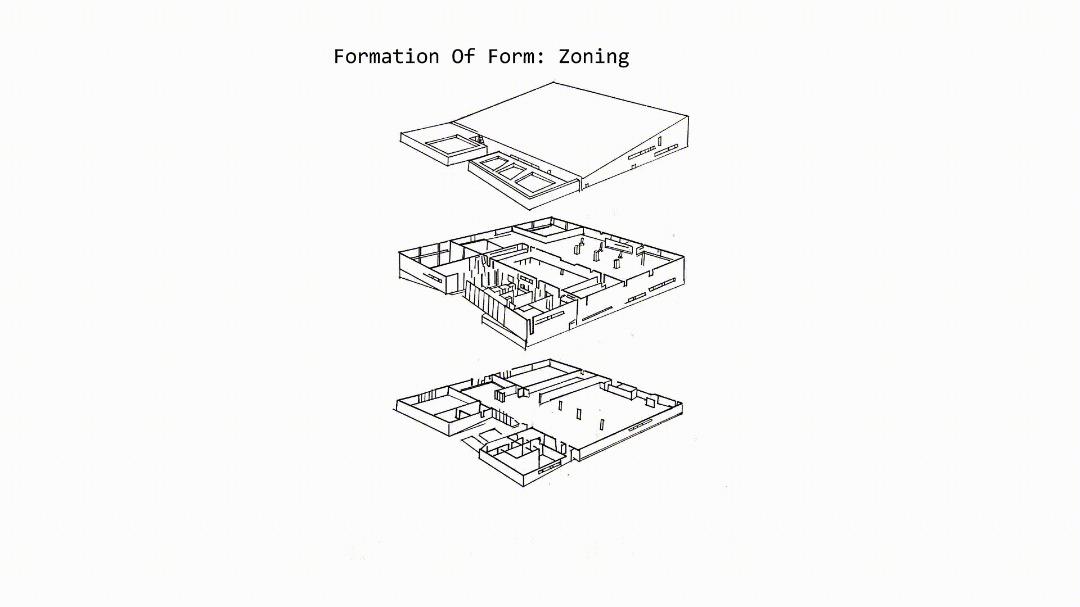

FORMATIONOFFORM:ZONING
MODELEXPLORATION

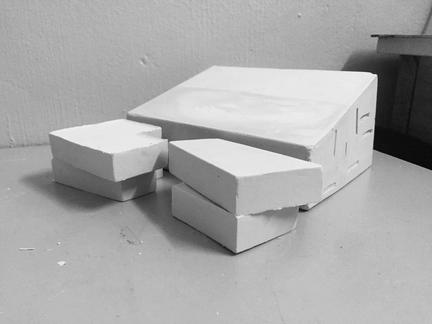

This model using plaster of paris to built the form of Shamim Polymer Factory

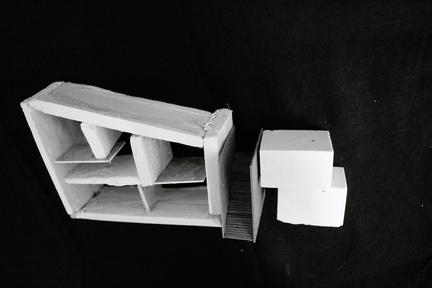

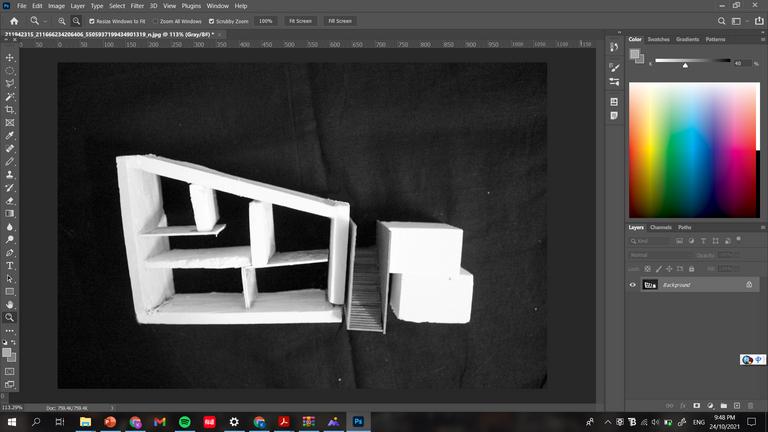

This model, built of plaster of Paris, displays the characteristics of the Shamim Polymer Factory, such as the spaces, the shape and division of the structure, and the uniqueness of the stairway.

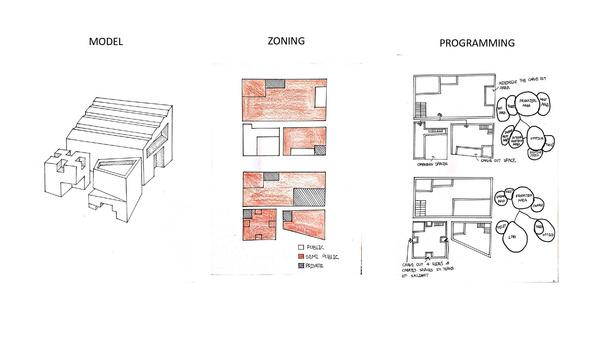

EXPLORATIVE DRAWINGS BASED ONMODEL

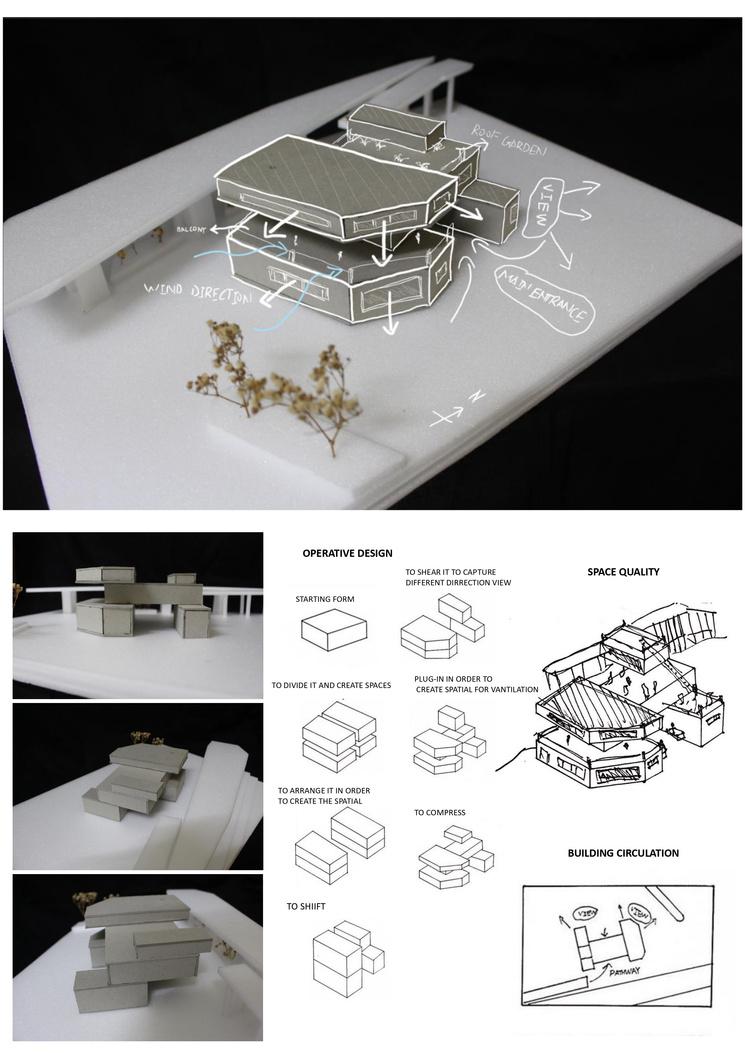

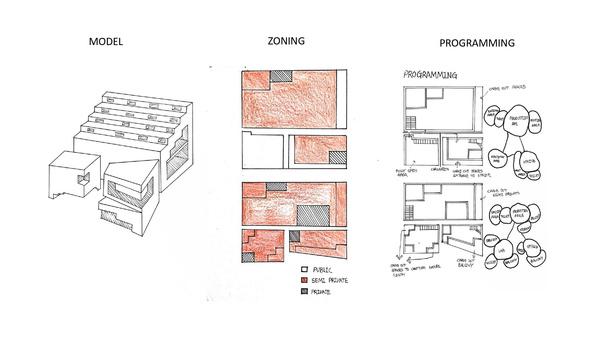

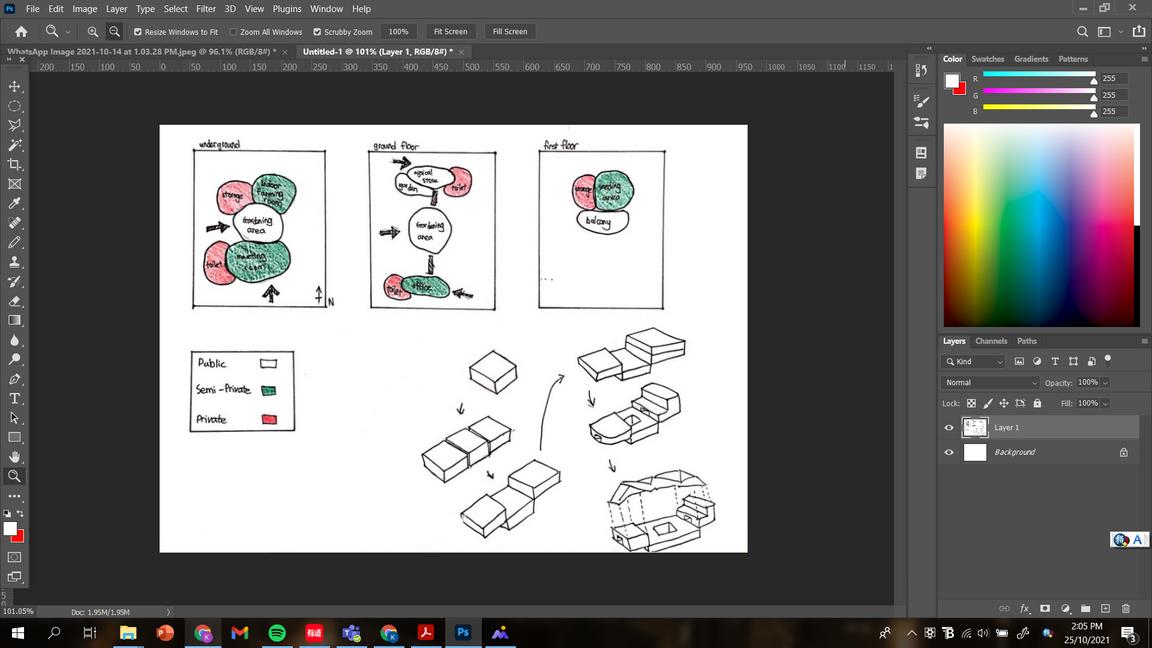

The verb carve-out has been used in the exploration of form. In addition, the form has been considering zoning and bubble diagram investigation.
PROJECT 2
MAPPING & RESPONDING

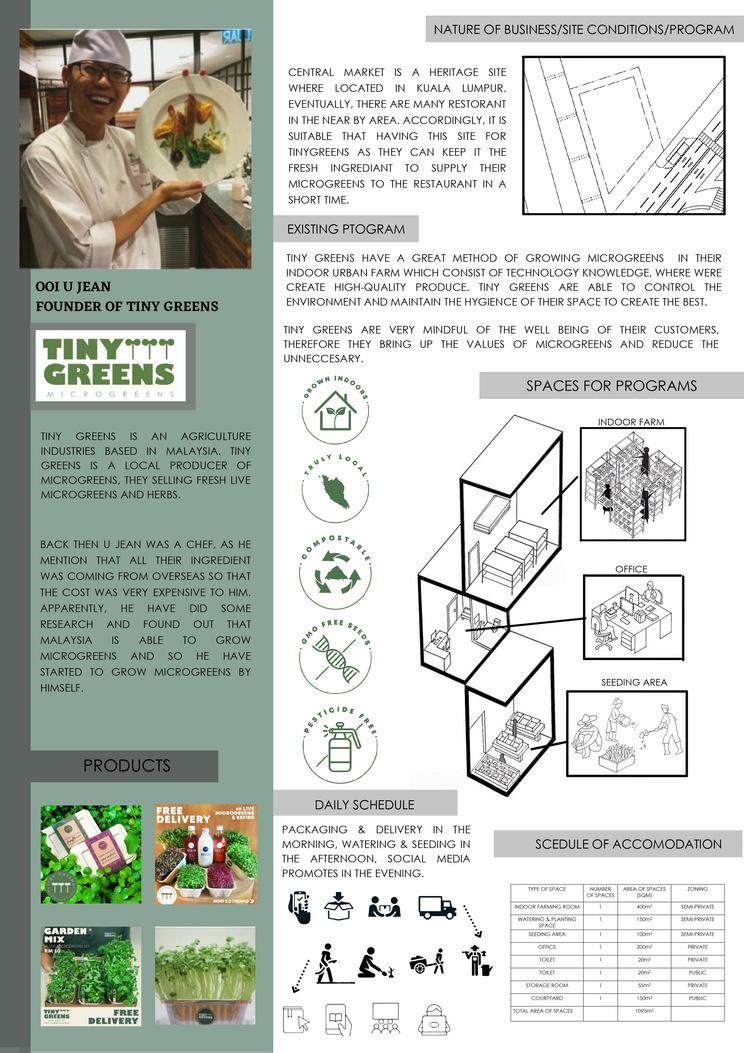

The board has reviewed my client and his programme, which is microgreens planting.
CLIENTBOARD
SITEANALYSISOVERALLCOMPOSITION
SITEANALYSIS

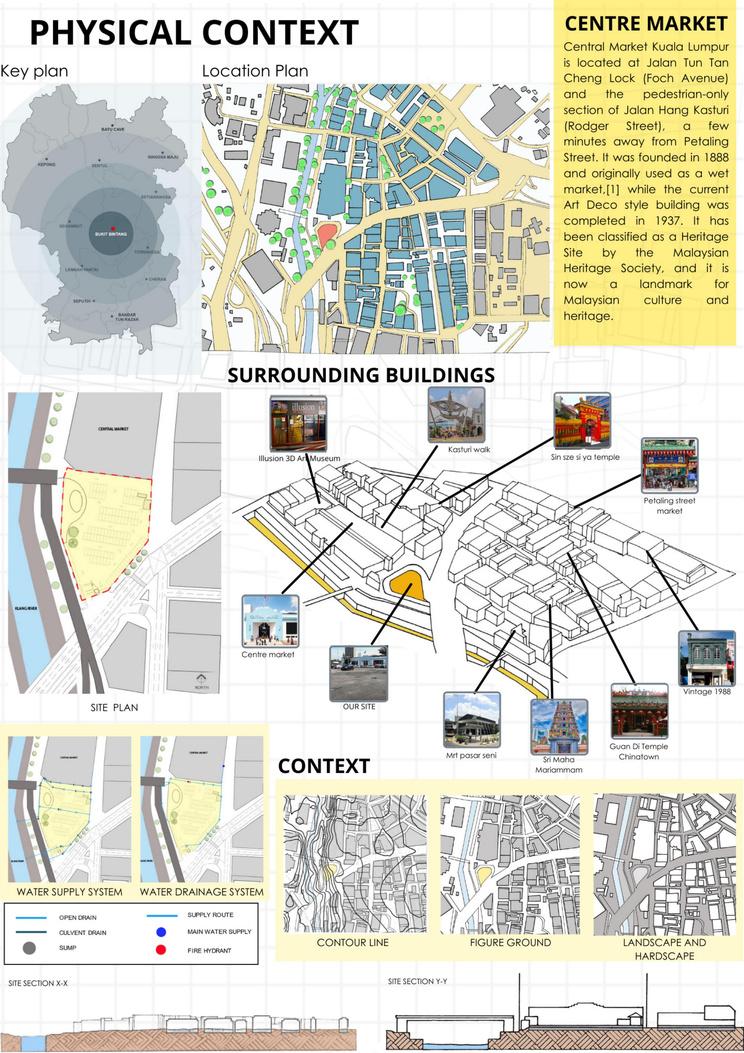

The physical context has thoroughly explained the property and its location. More significantly, it discussed the surrounding region as well as the site characteristics, including contour line, figure ground landscaping, and hardscape.
CLIMATE

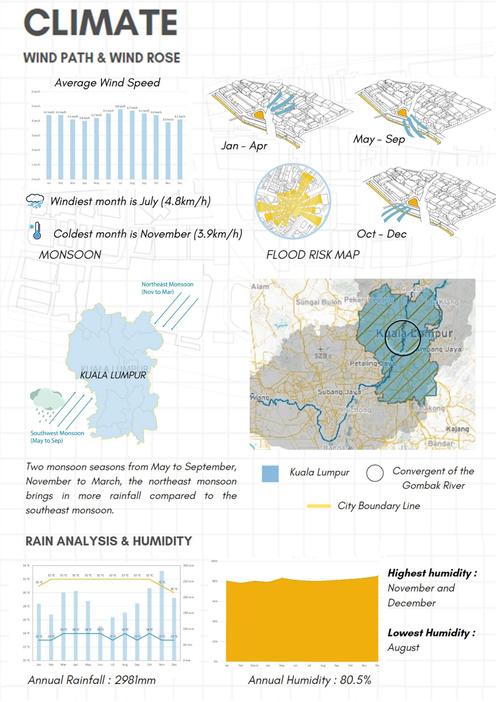

The climate board has shown an overall shadow study, with a focus on the central market site. More crucially, the board also displays the wind route and wind rise.
CIRCULATION

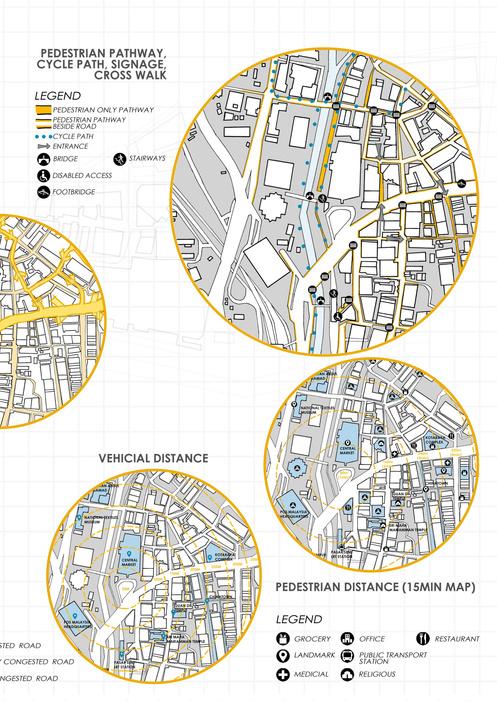

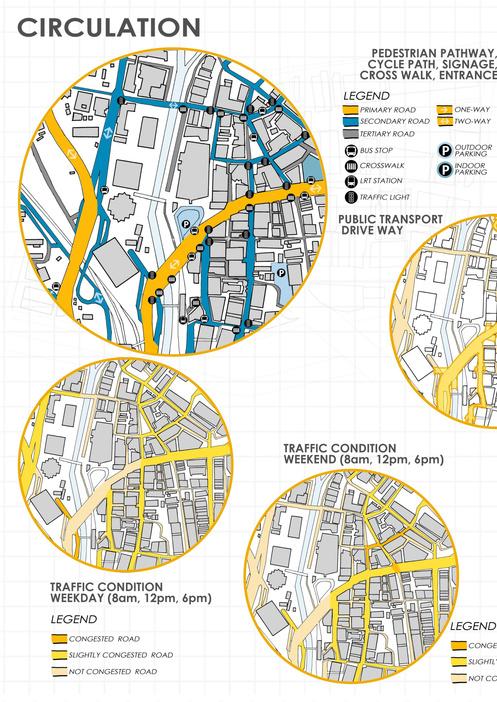

The site circulation route, which includes a pedestrian walkway, a cycling path, signs, a crosswalk, and an entrance, is clearly shown in the circulation study.
SENSORYCONTEXT

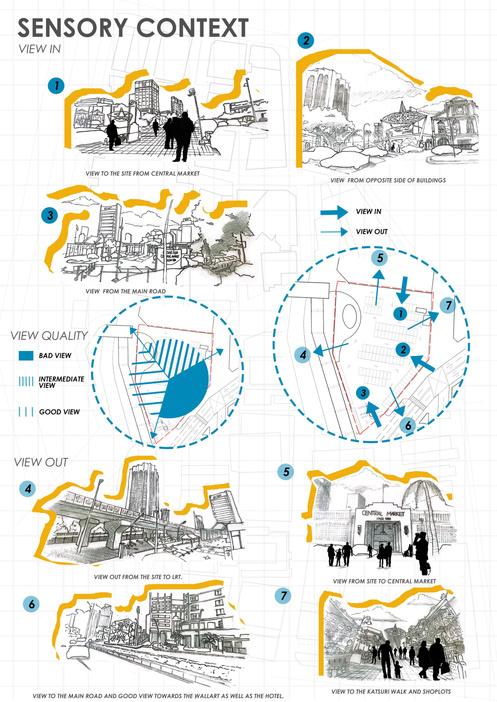

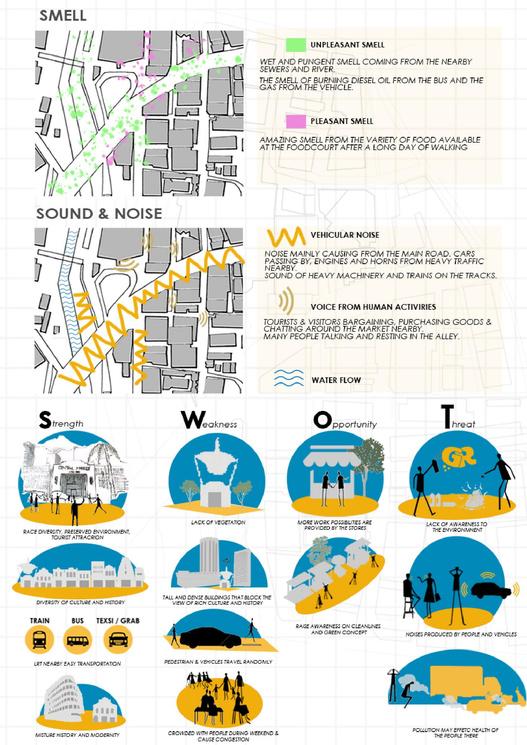

The sensory environment depicts the awful, middle, and pleasant views. It also evaluates the scent, sound, and noise.
PROGRAM

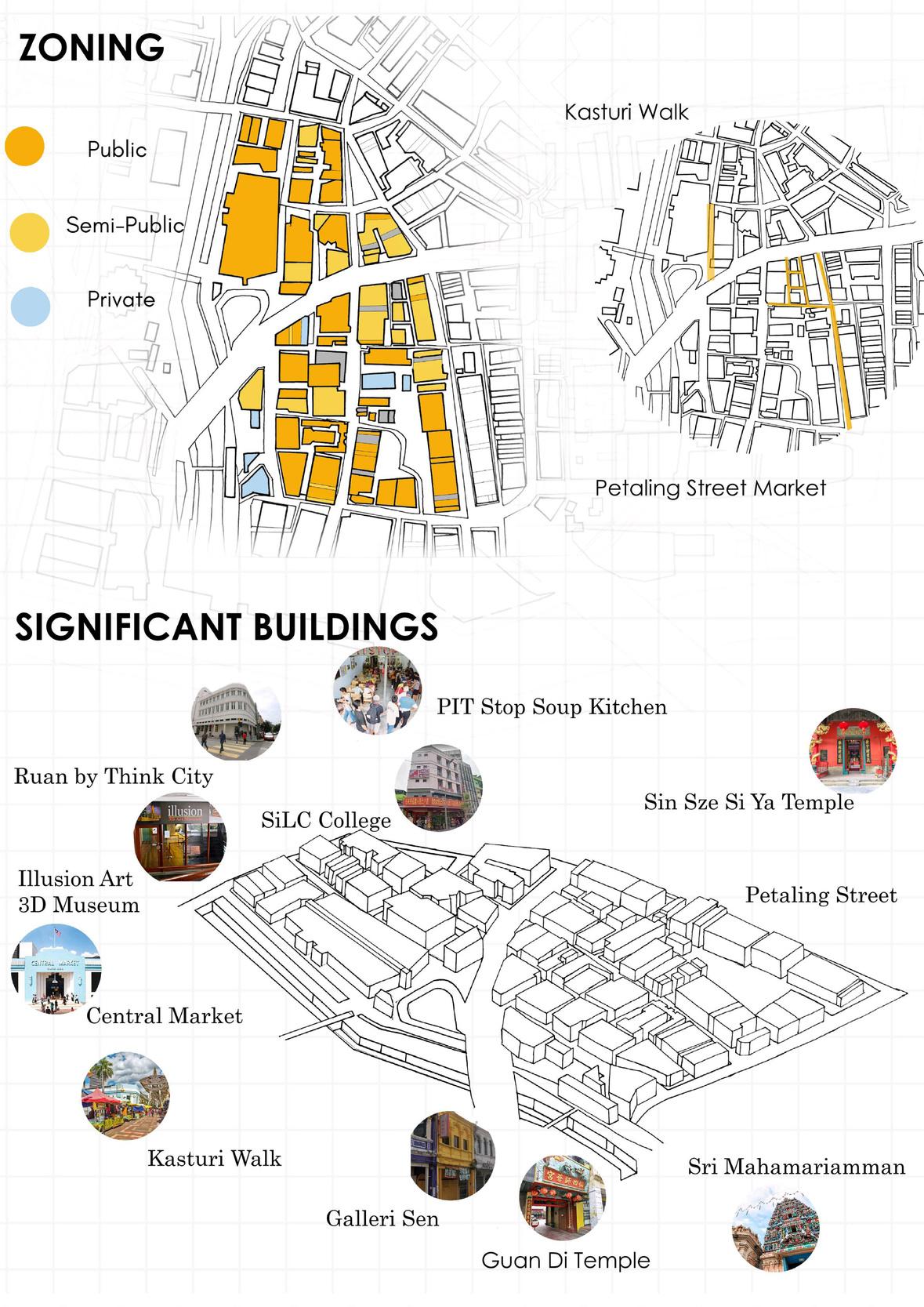

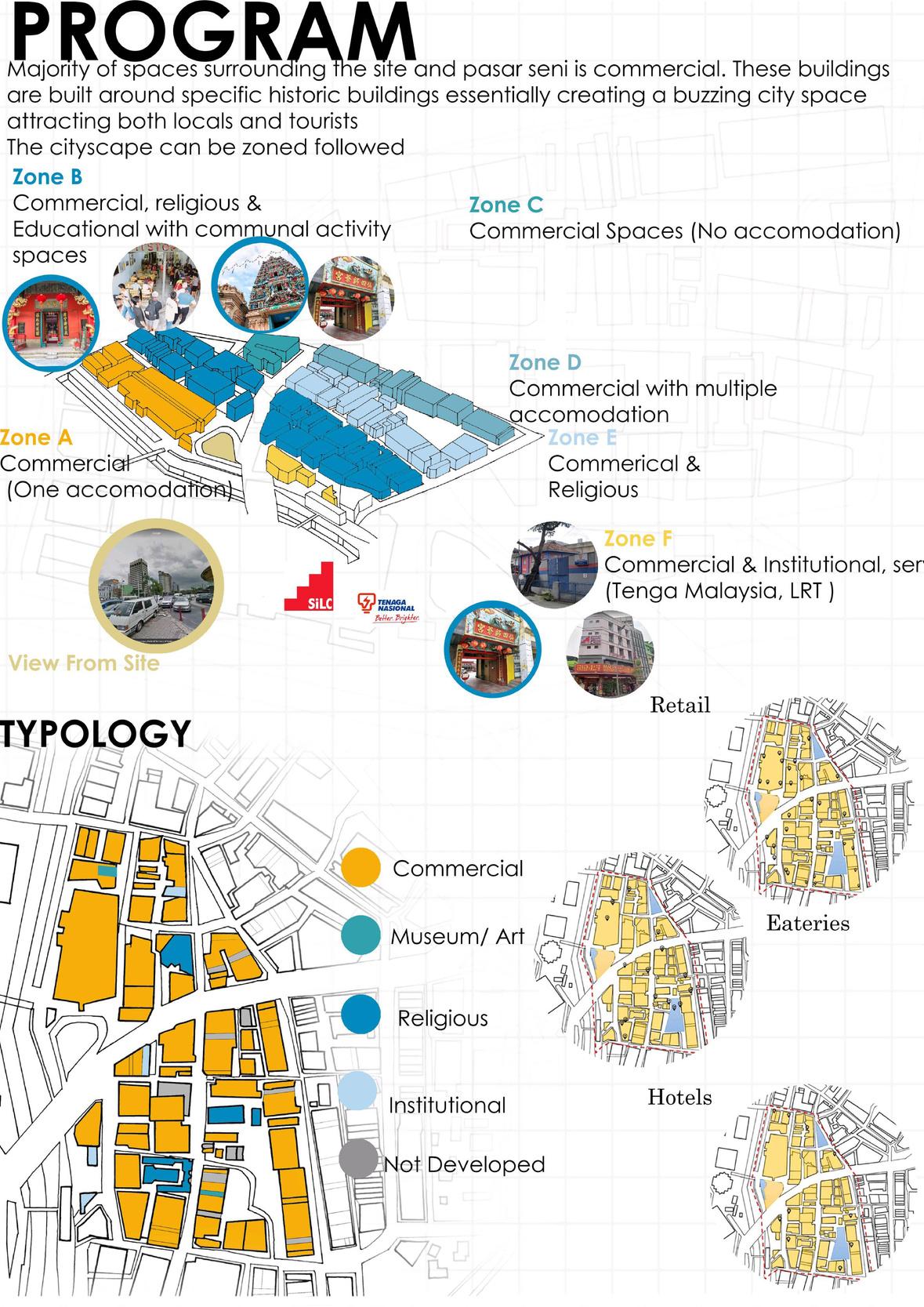

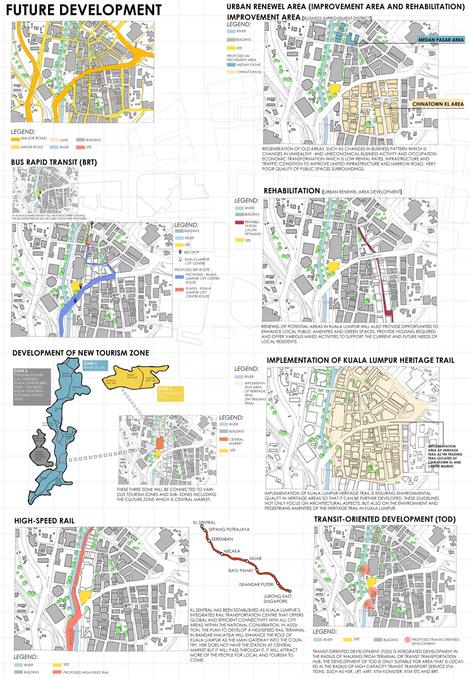

The programs displays the surrounding area's type, zoning, and notable structures.
HUMAN &CULTURE

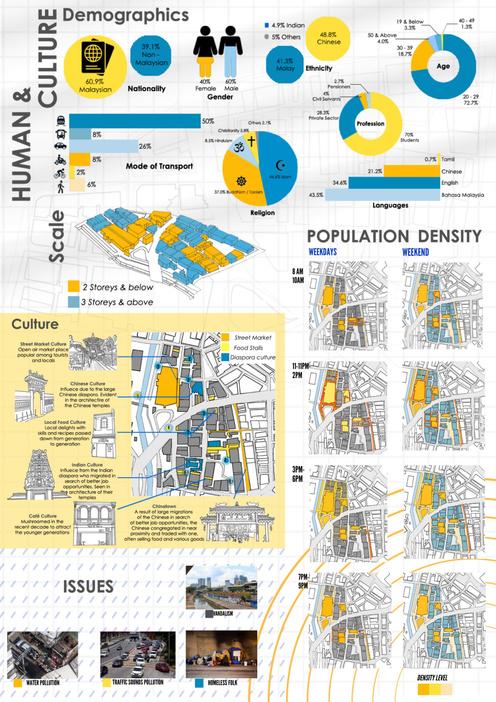

human and culture depicts the human culture of the surrounding environment.

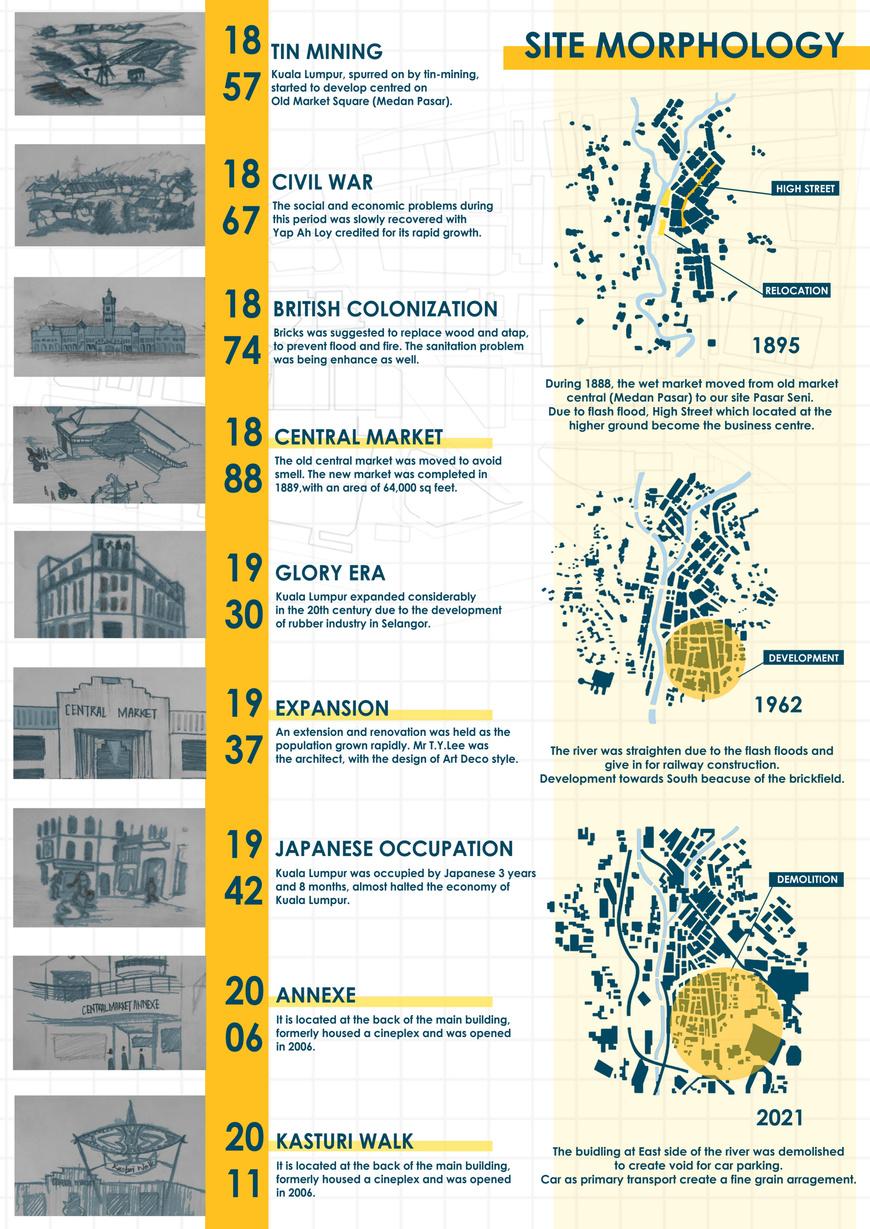

SITEMORPHOLOGY

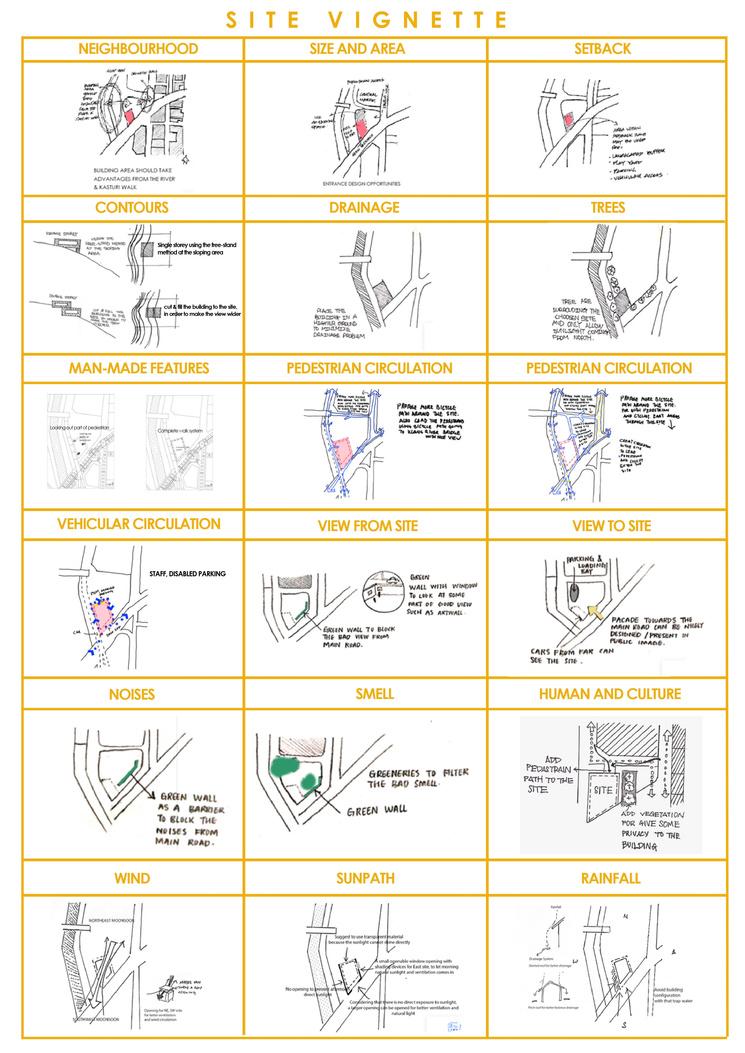

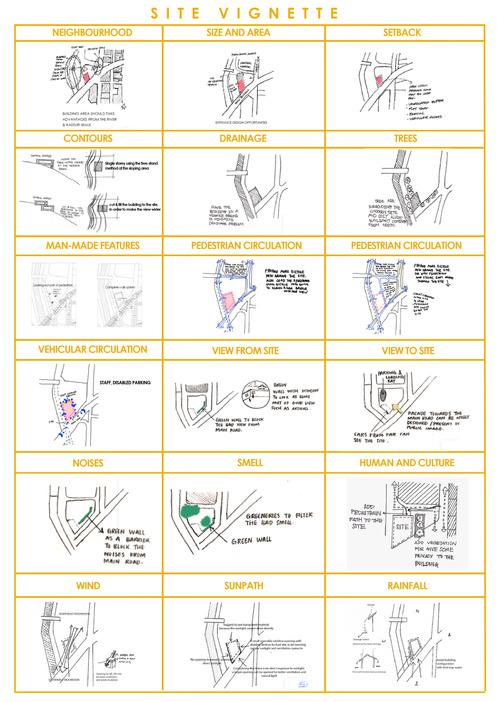

SITEVIGNETTE
The poster depicts a very strong central market culture.

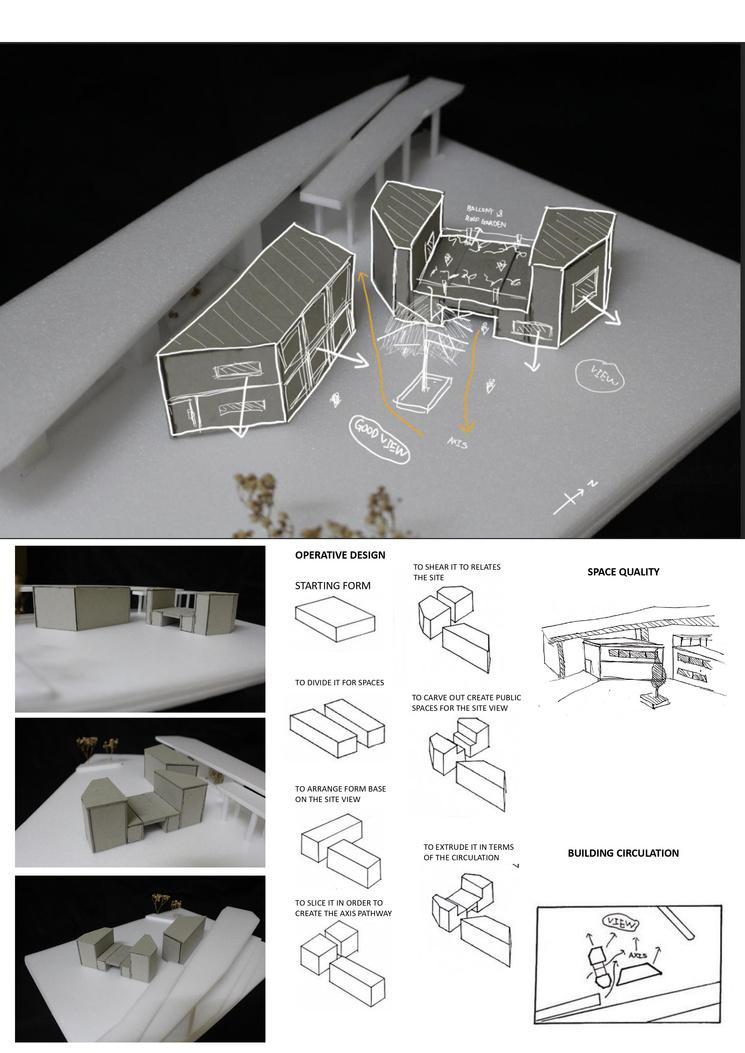

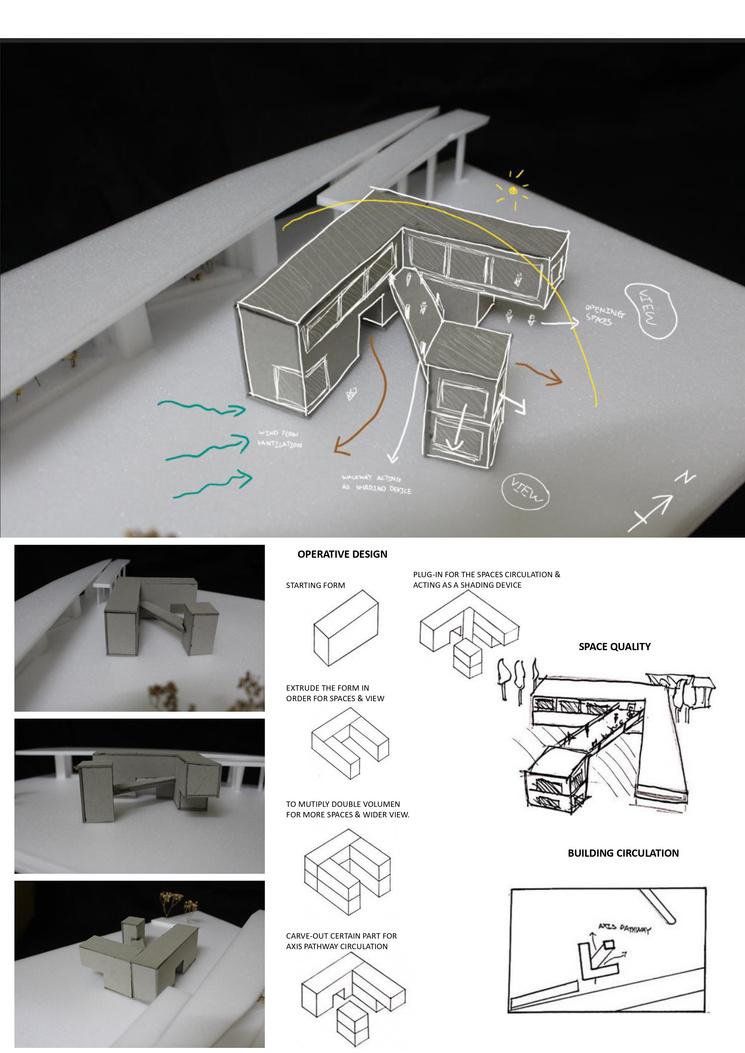

EXPLORATION2
EXPLORATION1
EXPLORATION4
EXPLORATION3
FINALEXPLORATION

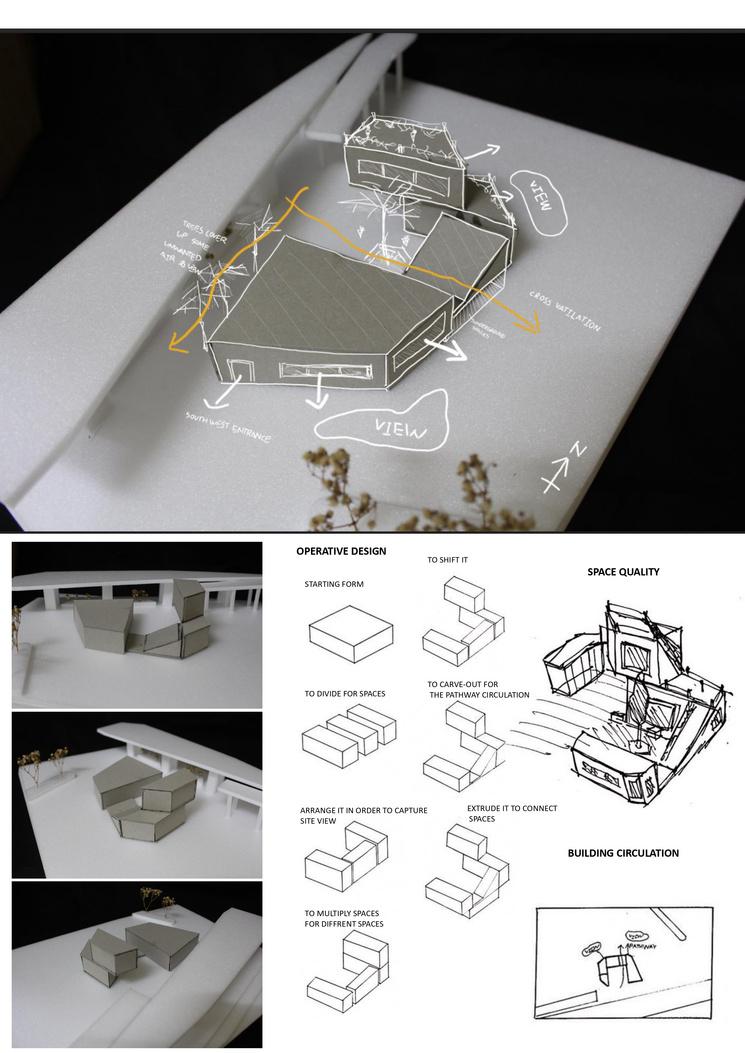

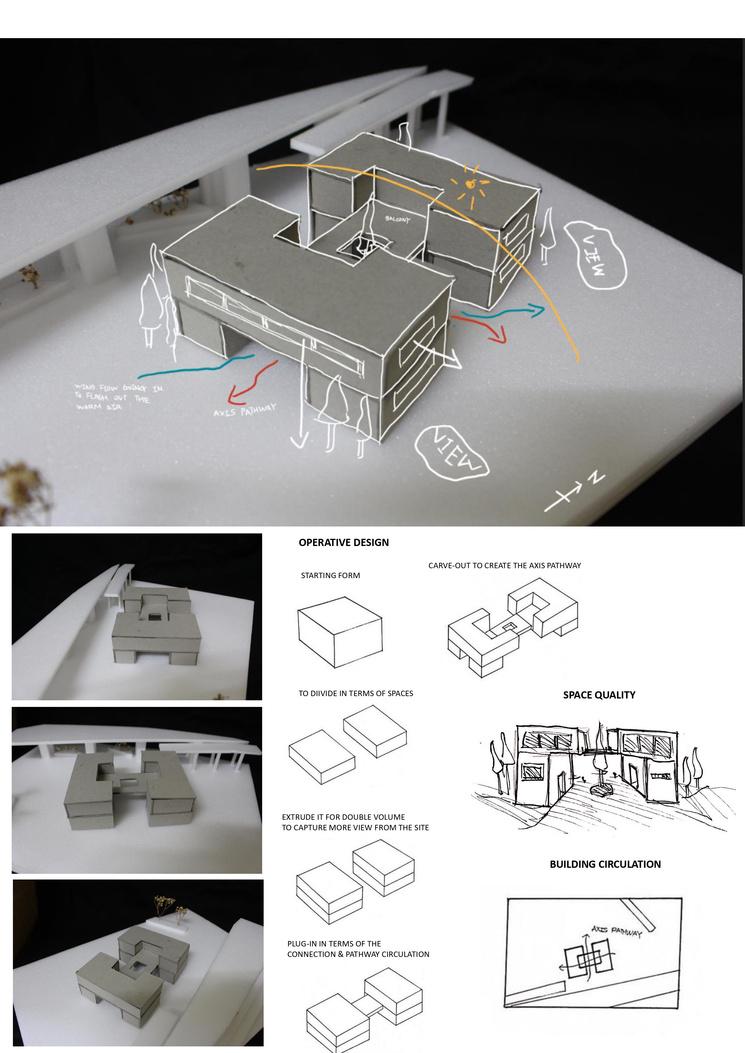

the last investigation, which has been applied to design project 3 in order to further investigate the form and interior programme.
PROJECT 3 BUSINESS INCUBATOR

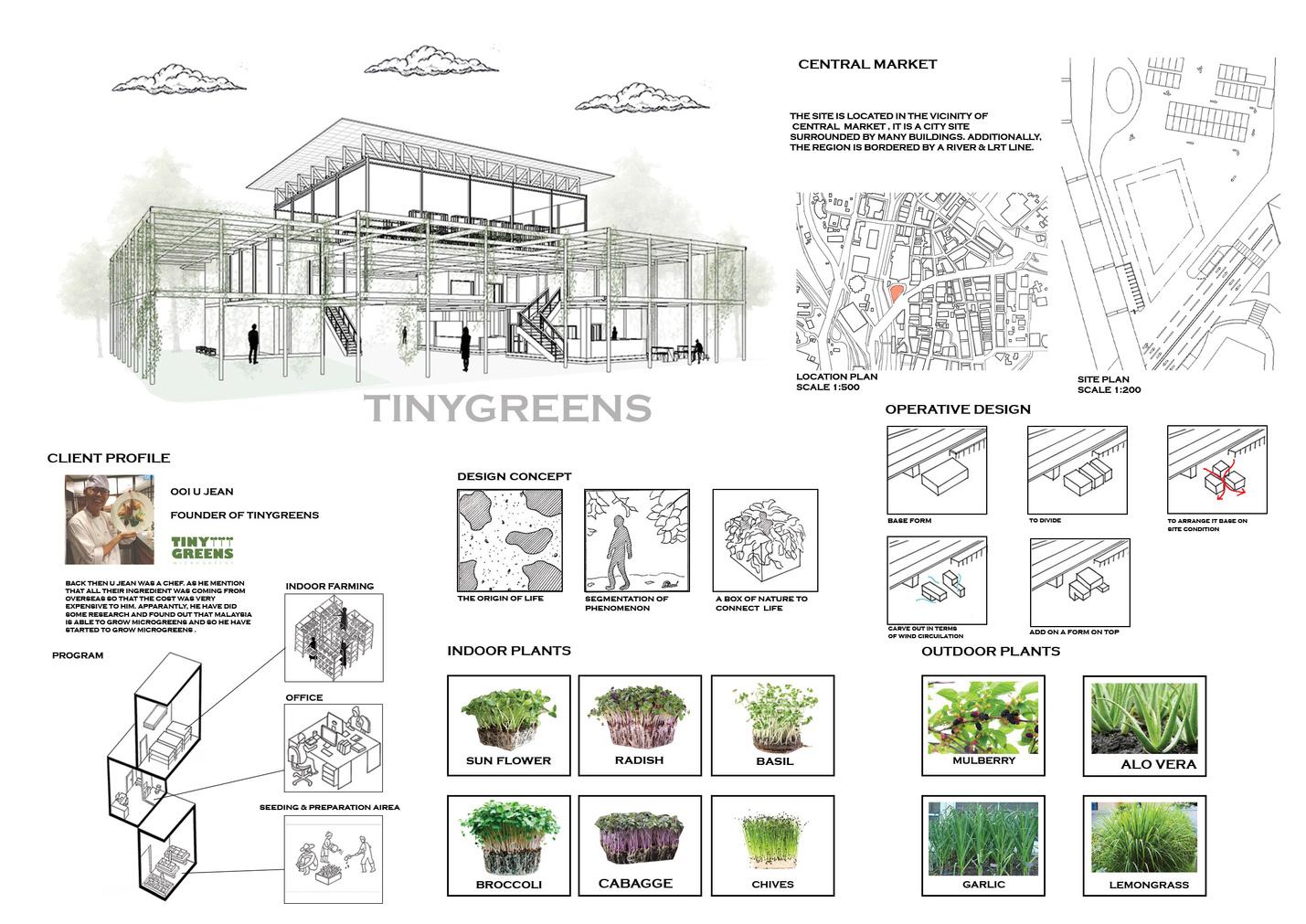

PROJECT3BOARDCOMPOSITION

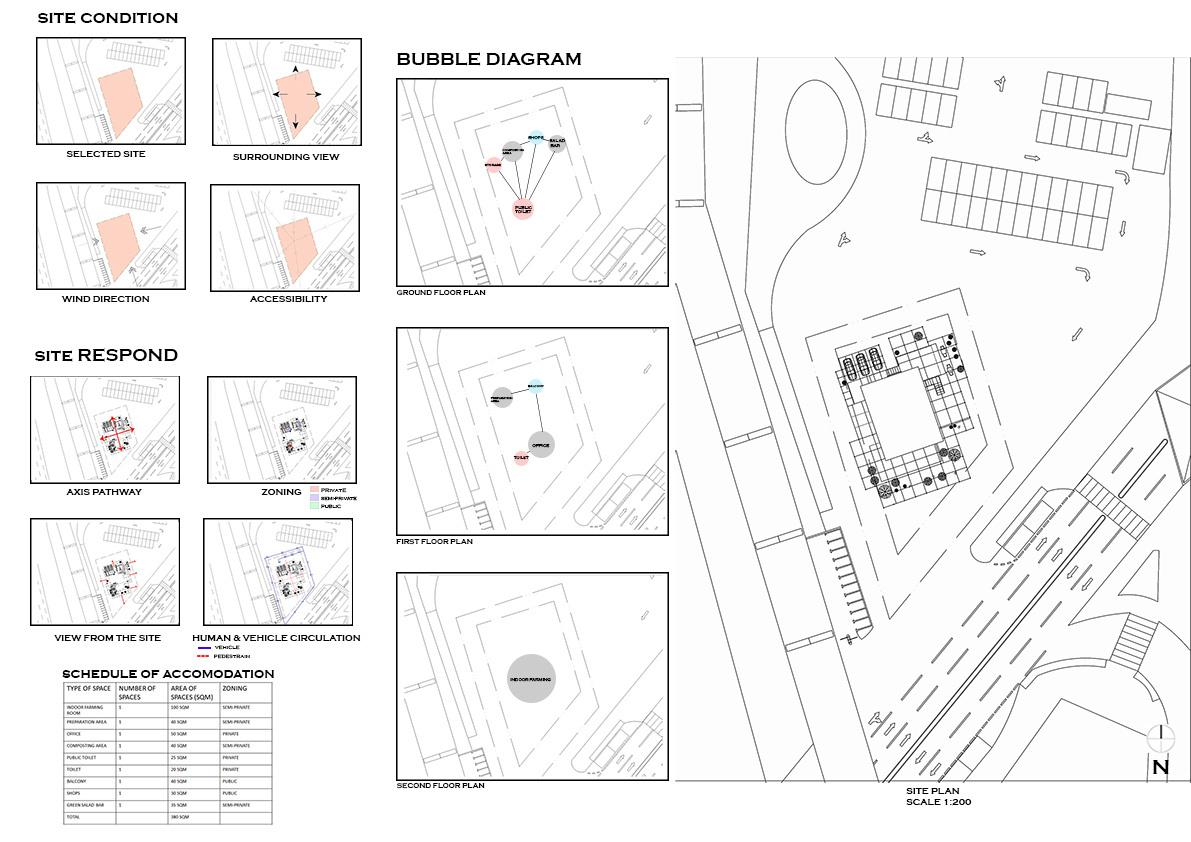

INTRODUCTIONTOSITE&DESIGNCONCEPT
ANALYSISOFSITECONDITIONS
PLANCOMPOSITION

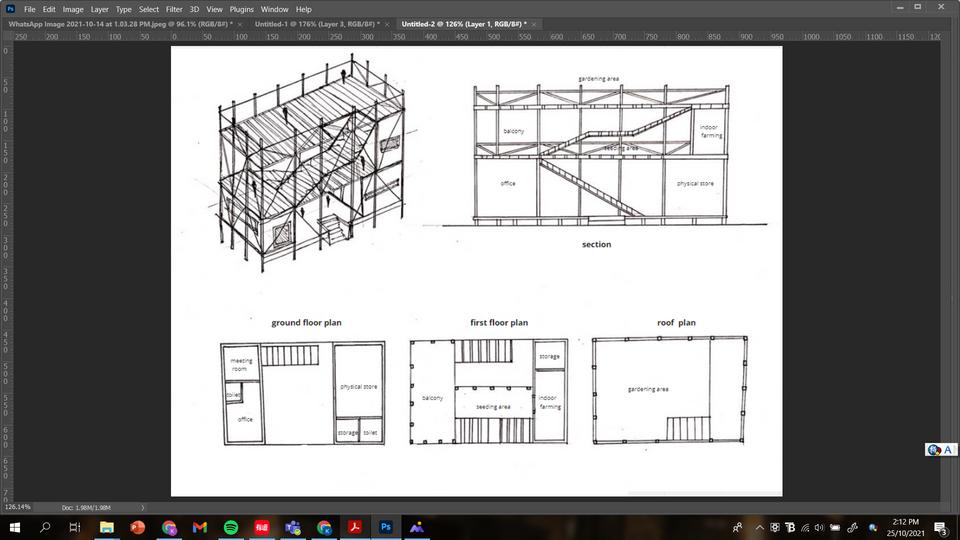

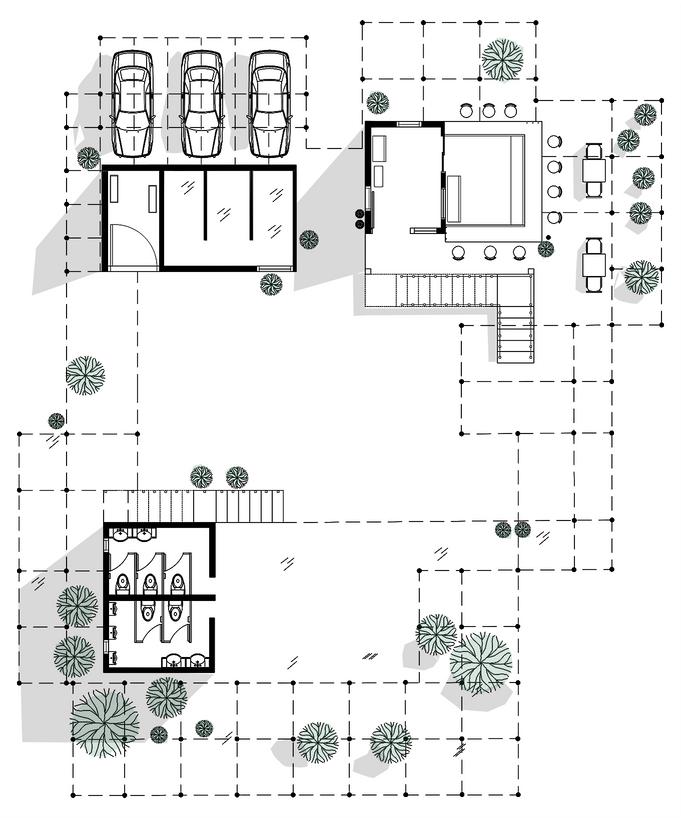

PLAN

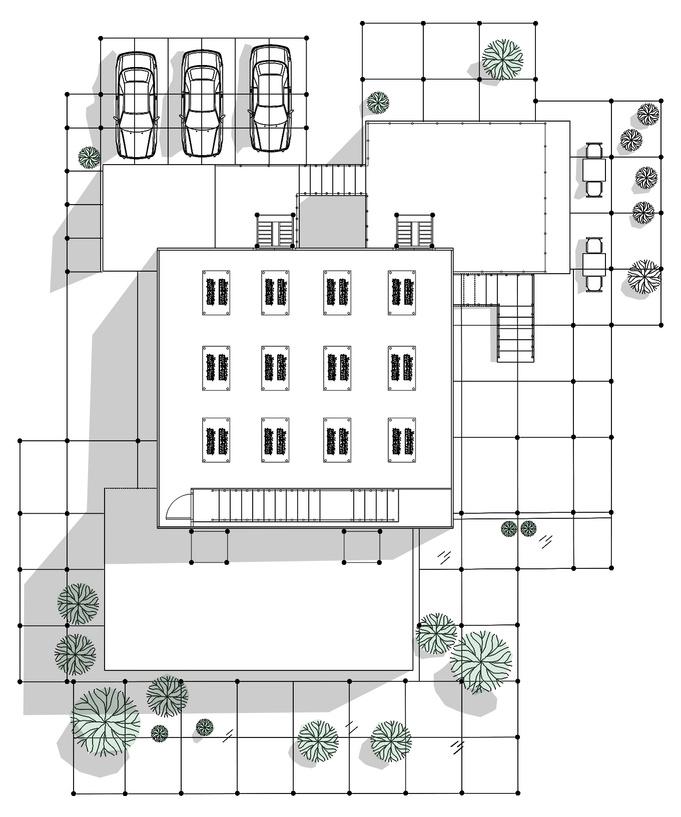

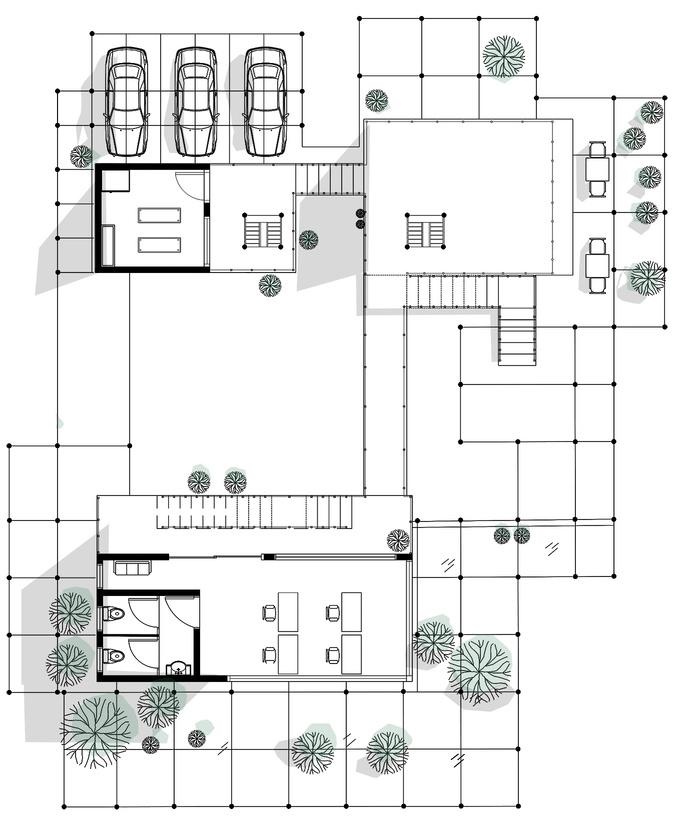

GROUNDFLOORPLAN SCALE1:100

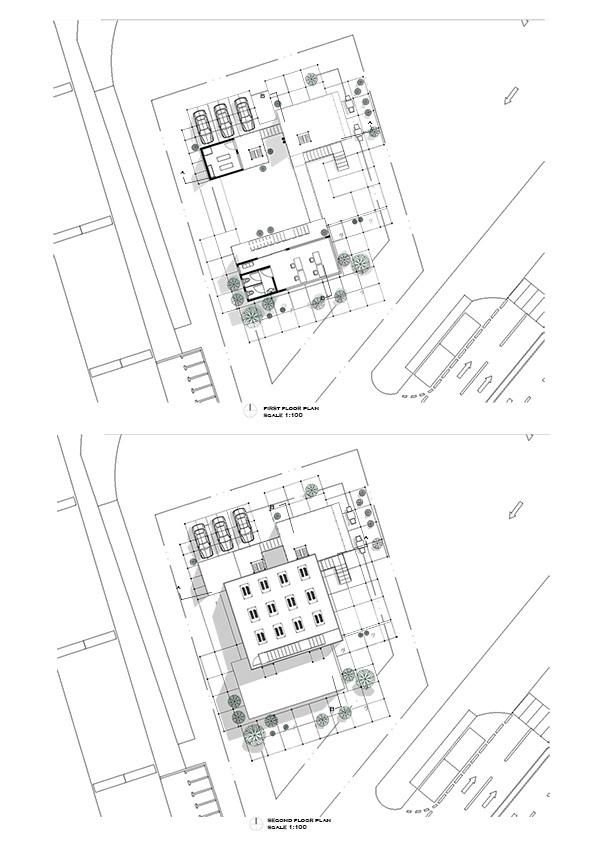

FIRSTFLOORPLAN SCALE1:100
SECONDFLOORPLAN SCALE1:100

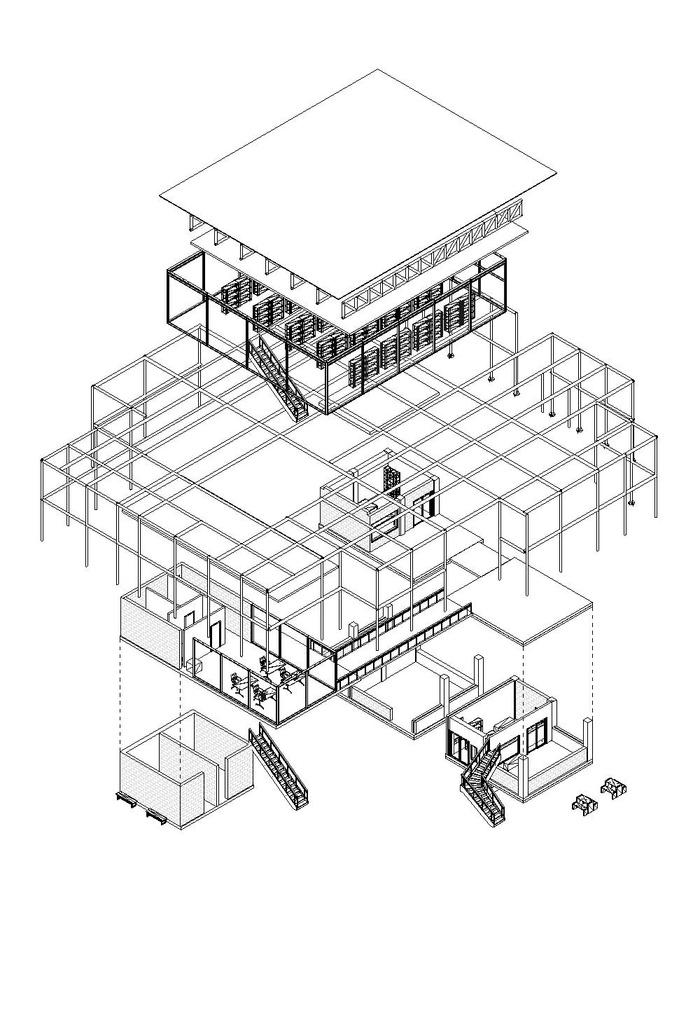

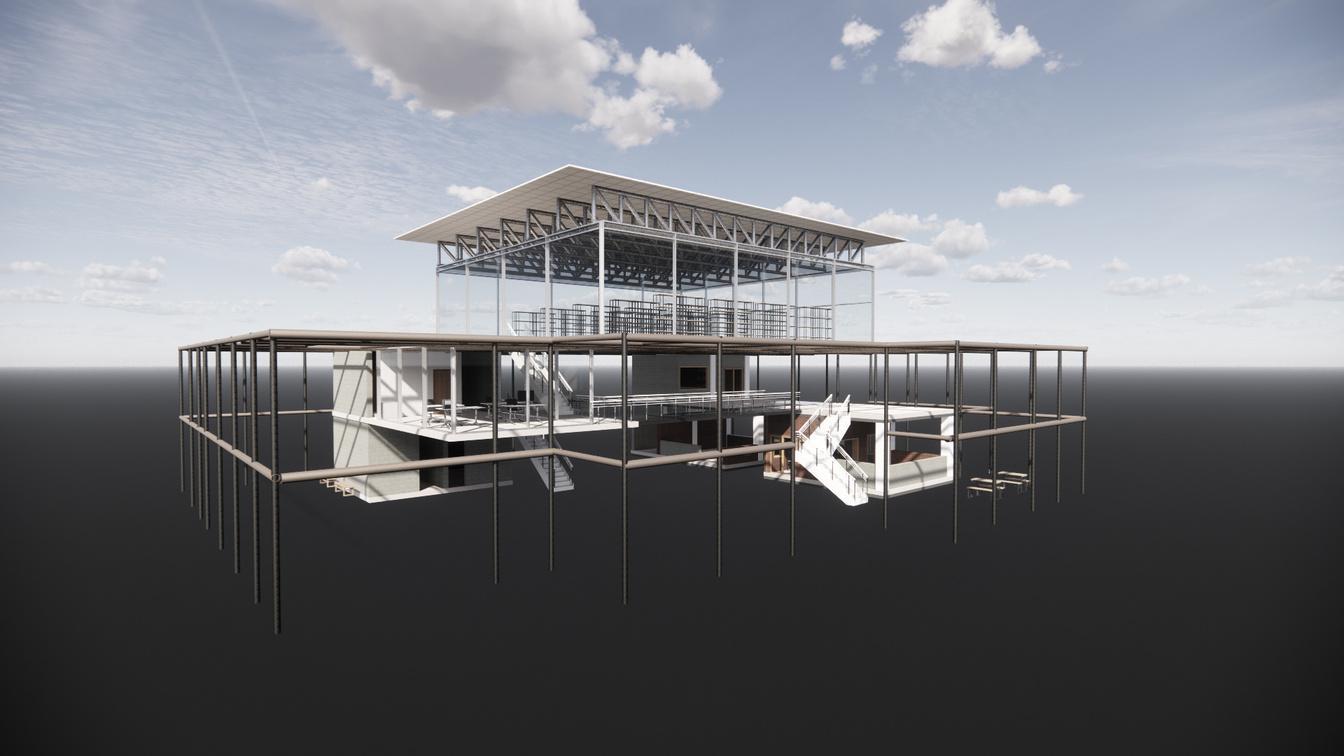

EXPLODEDAXONOMETRIC SCALE1:100

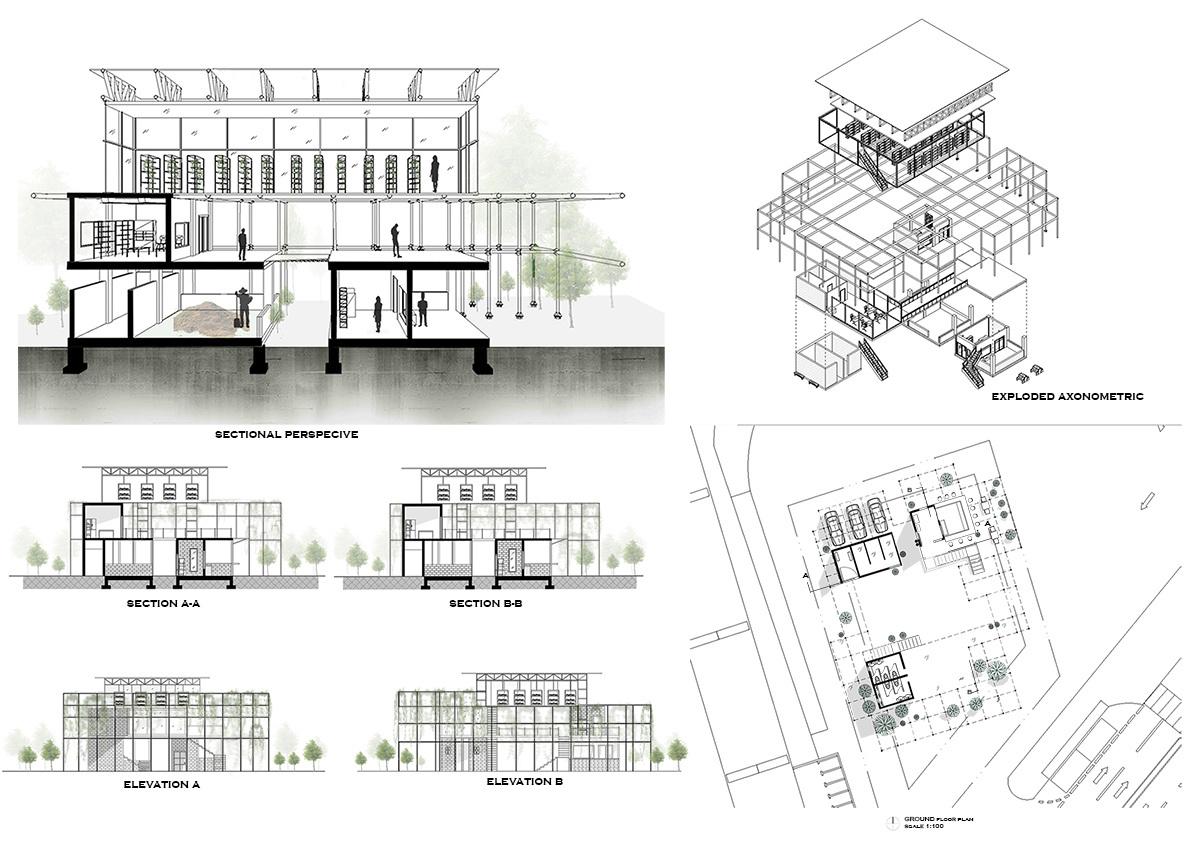

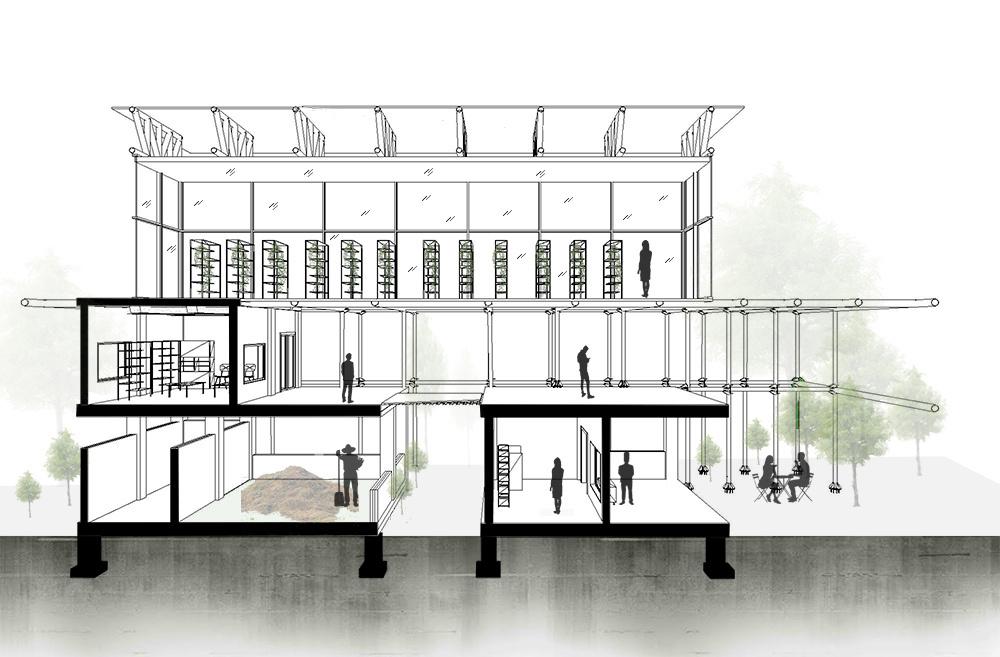

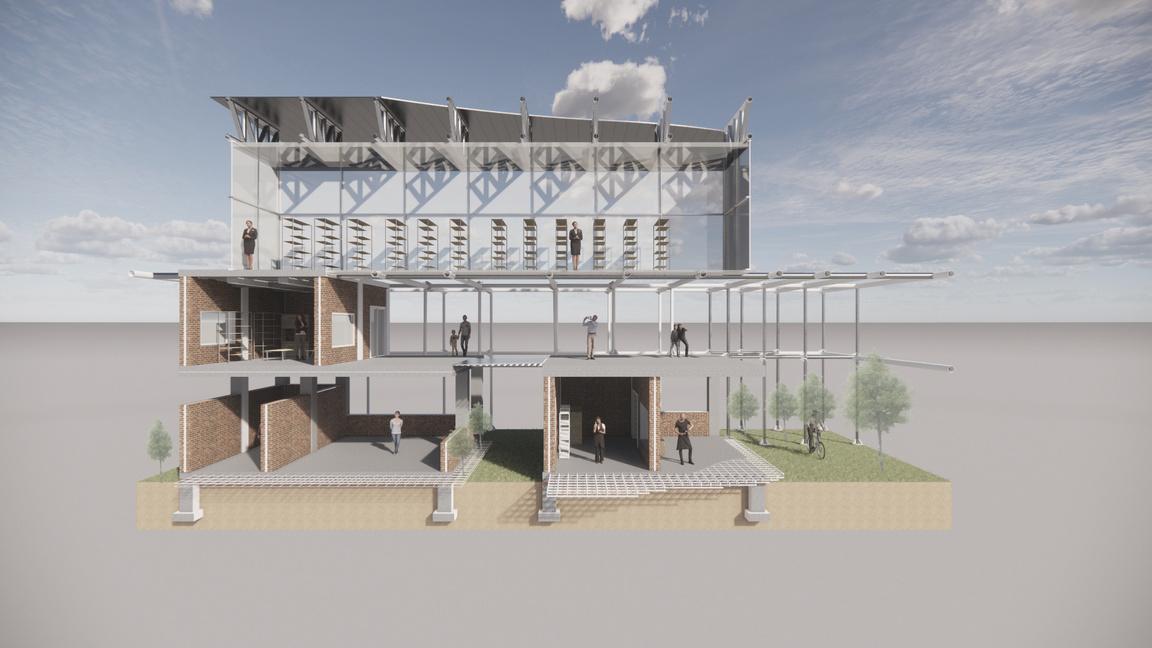

SECTIONALPERSPECTIVE

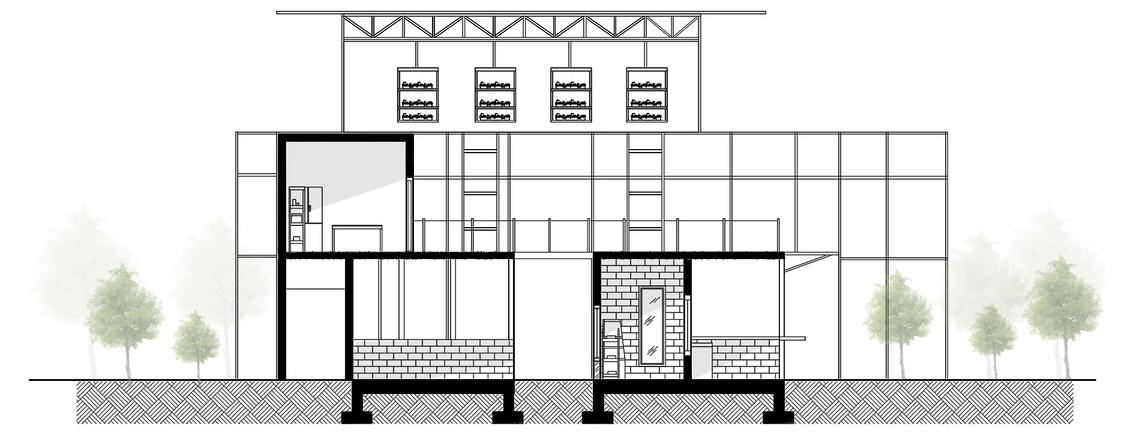

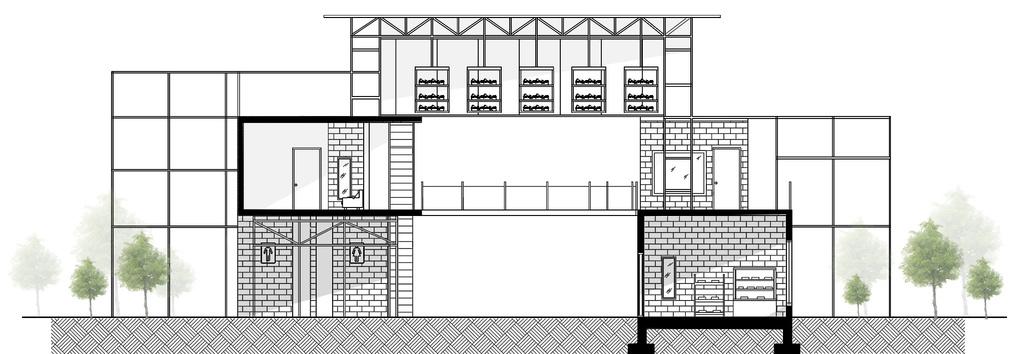

SECTIONB-B
SECTIONA-A

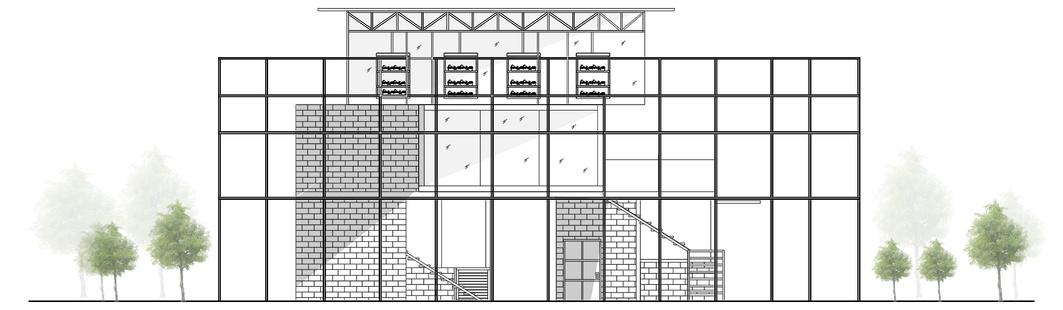

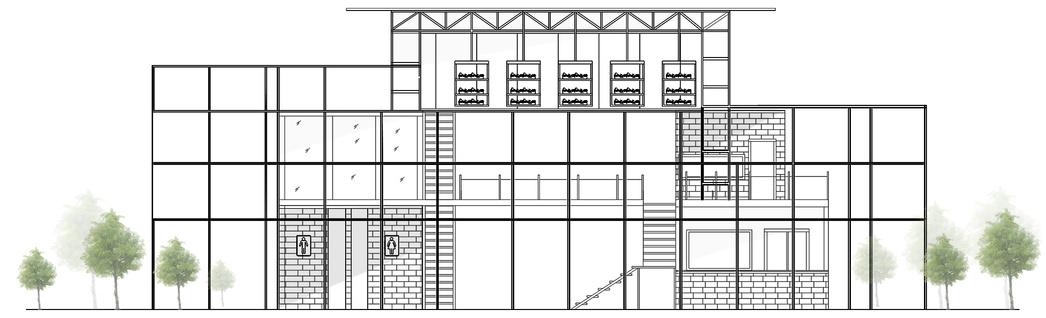

ELEVATIONA
ELEVATIONB

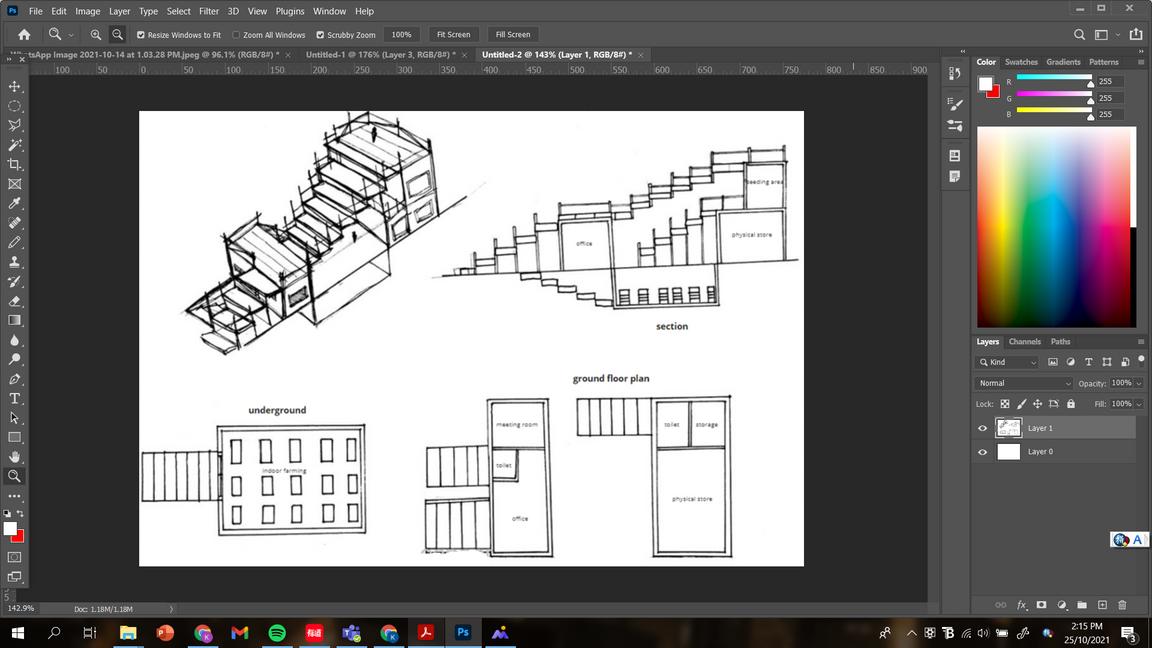

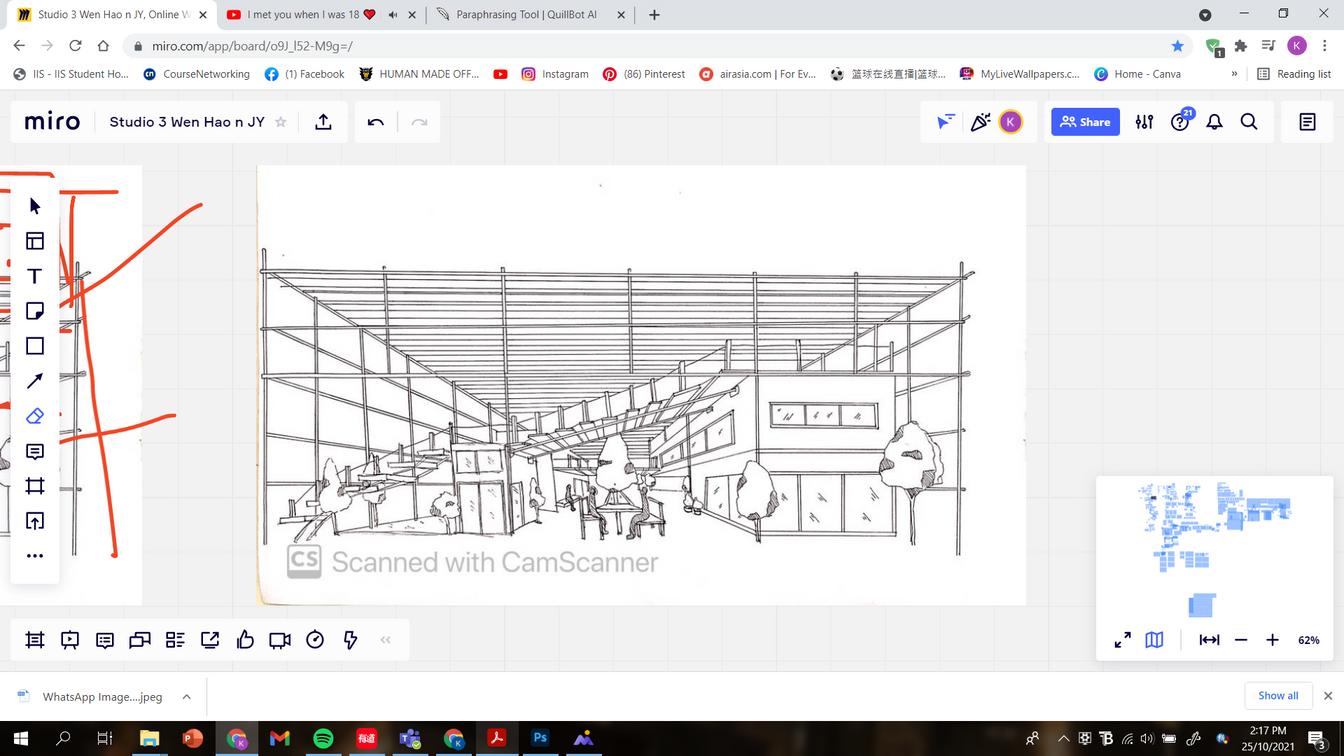

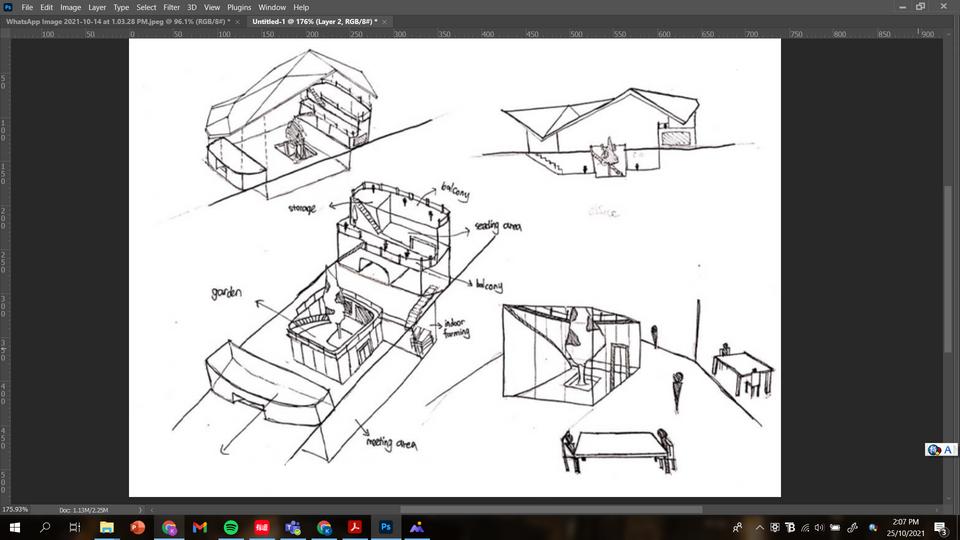

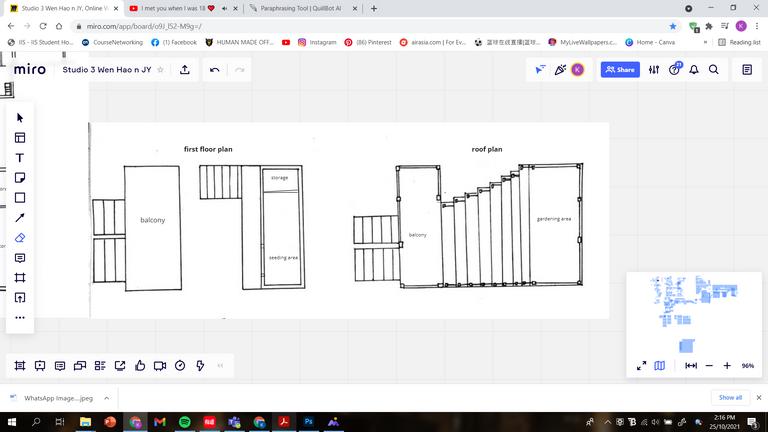

EXPLORATION&SKETCHES

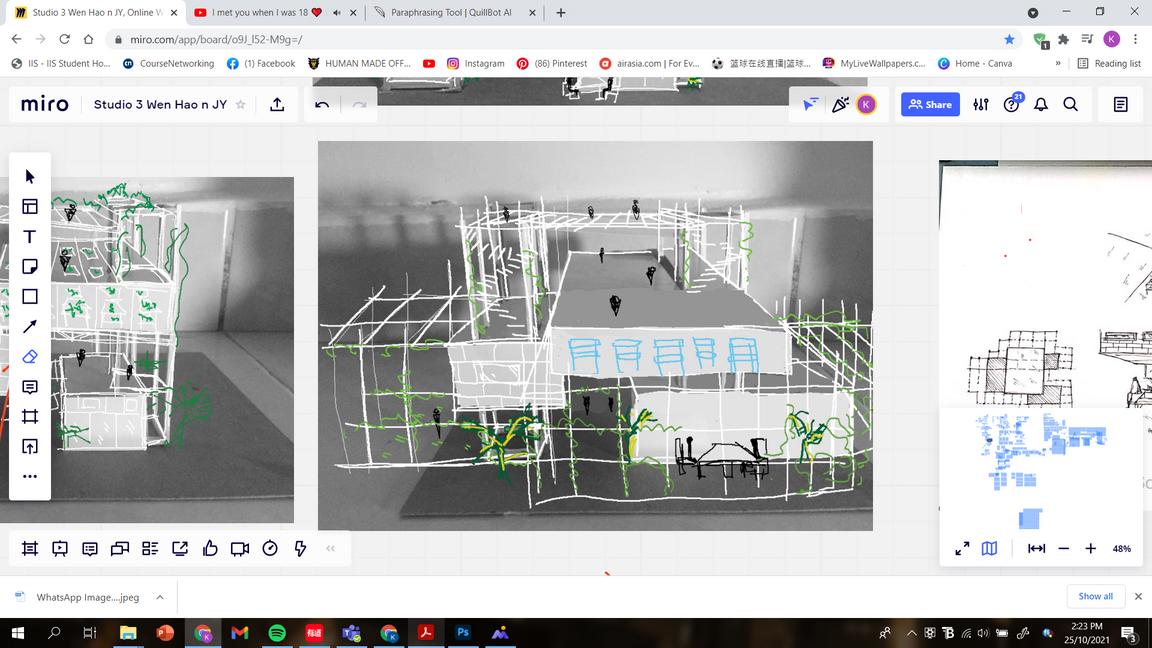

EXPLORATION&SKETCHES

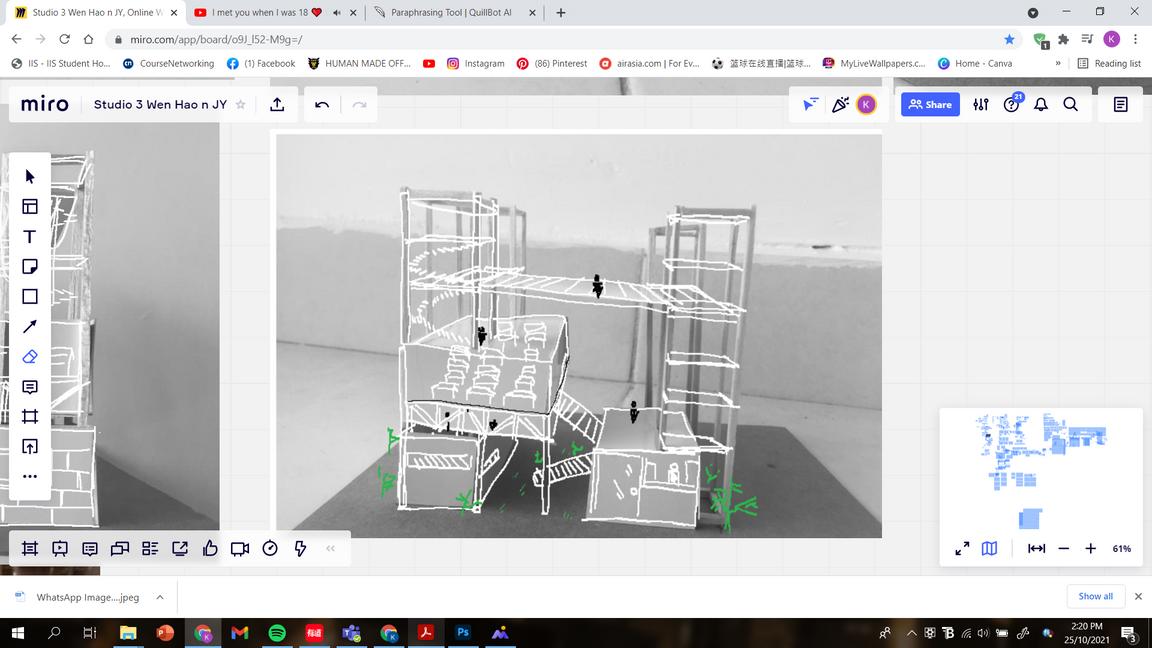

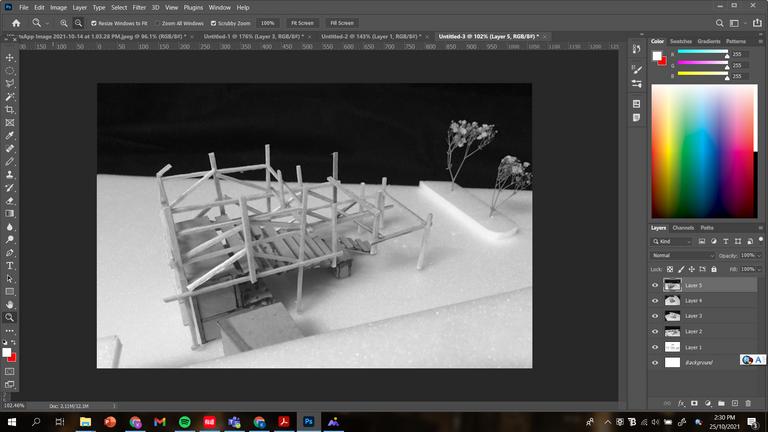

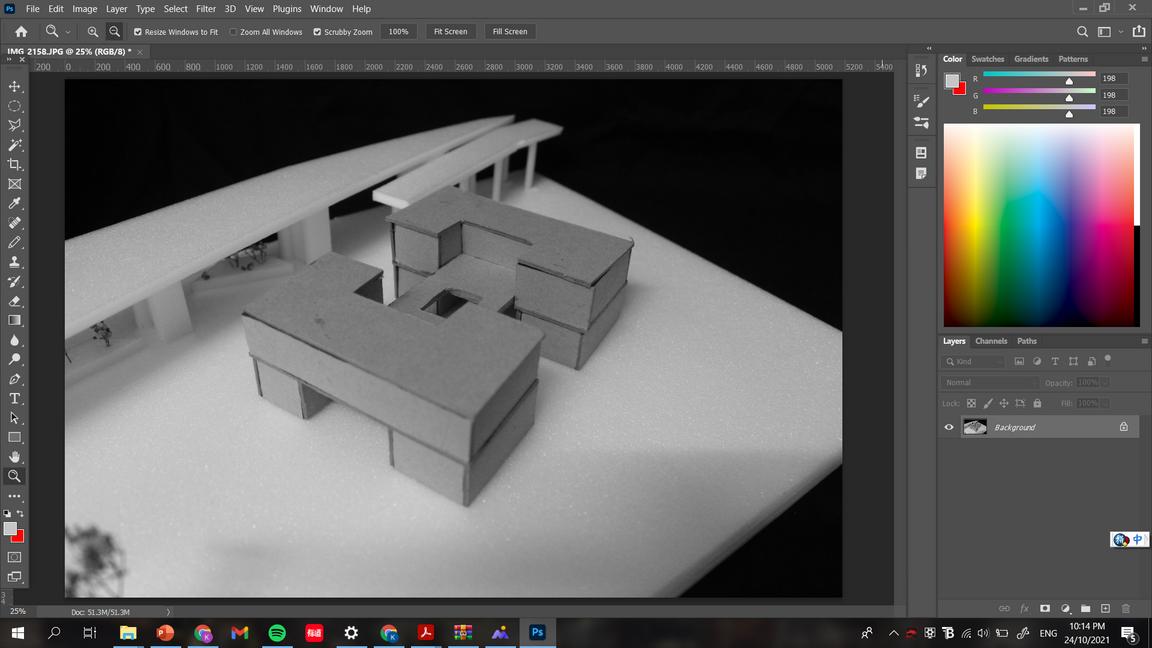

MODELEXPLORATION&SKETCHES

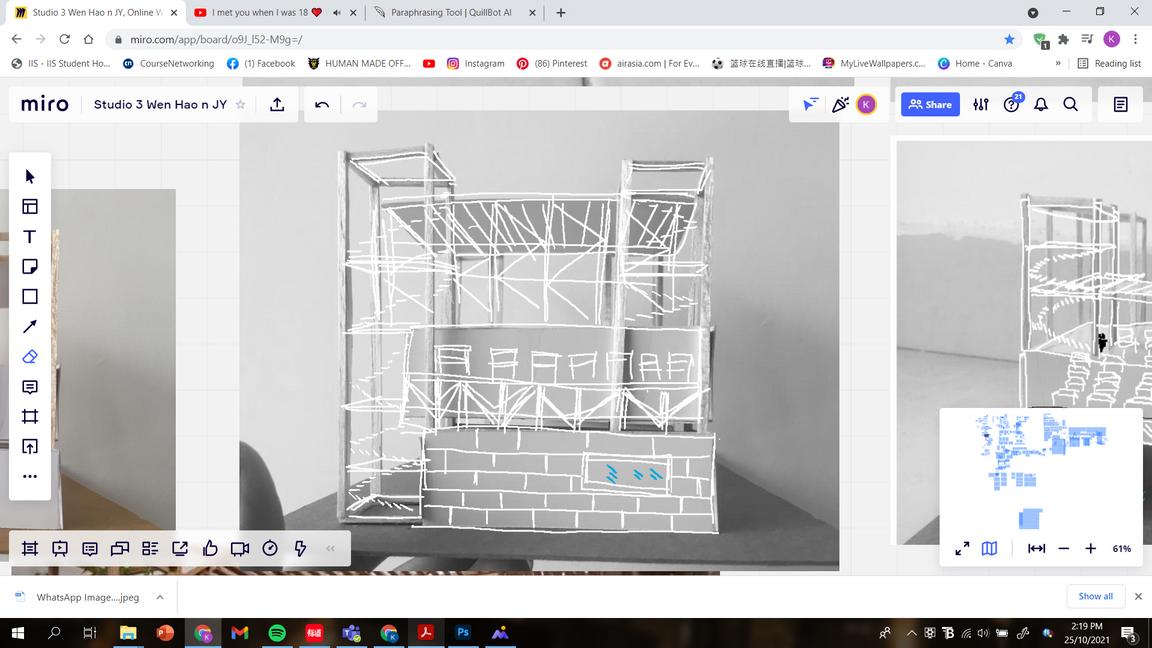

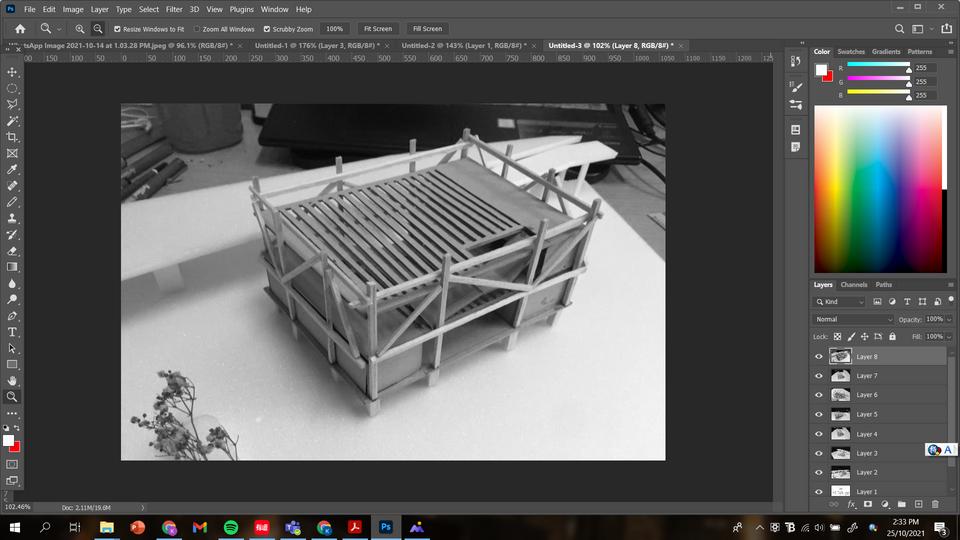

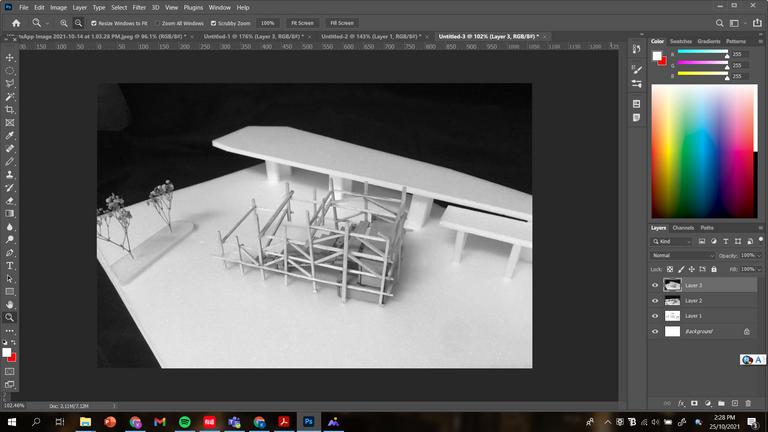

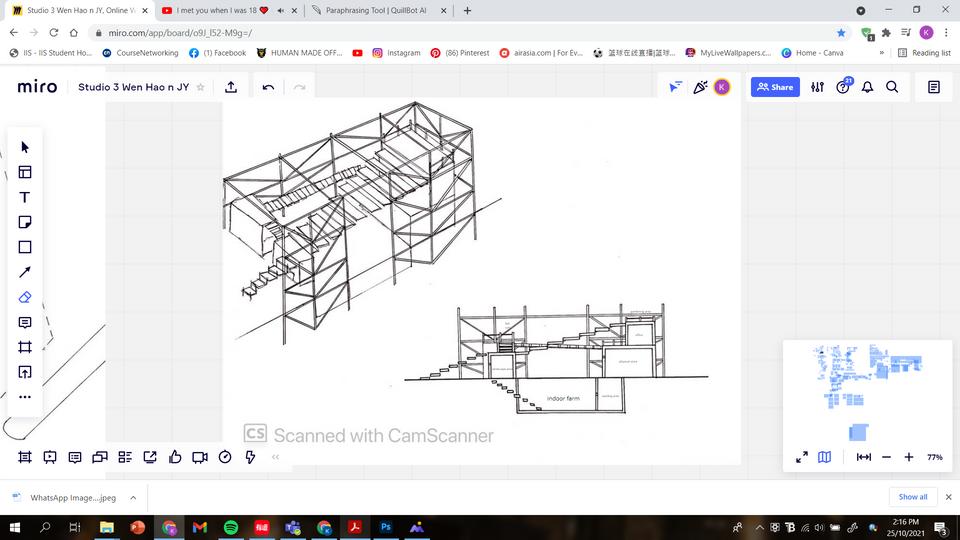

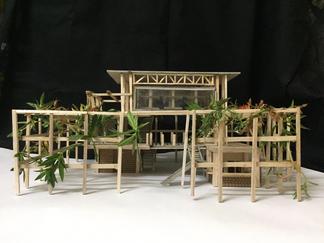

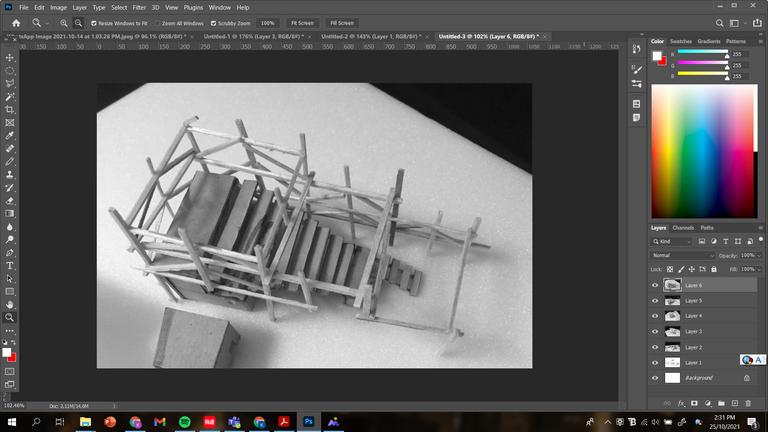

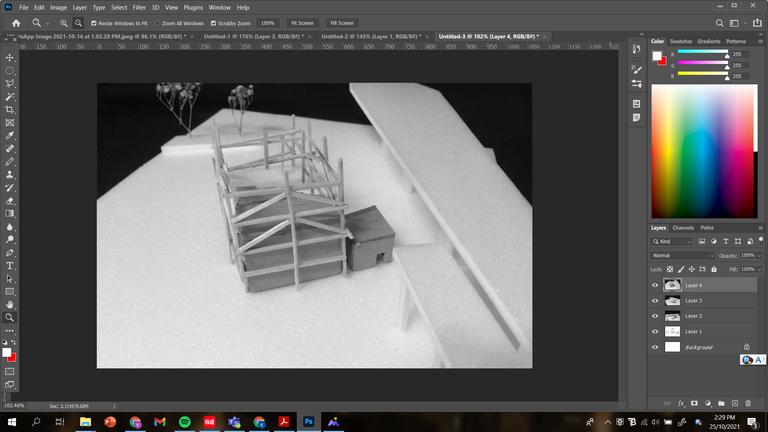

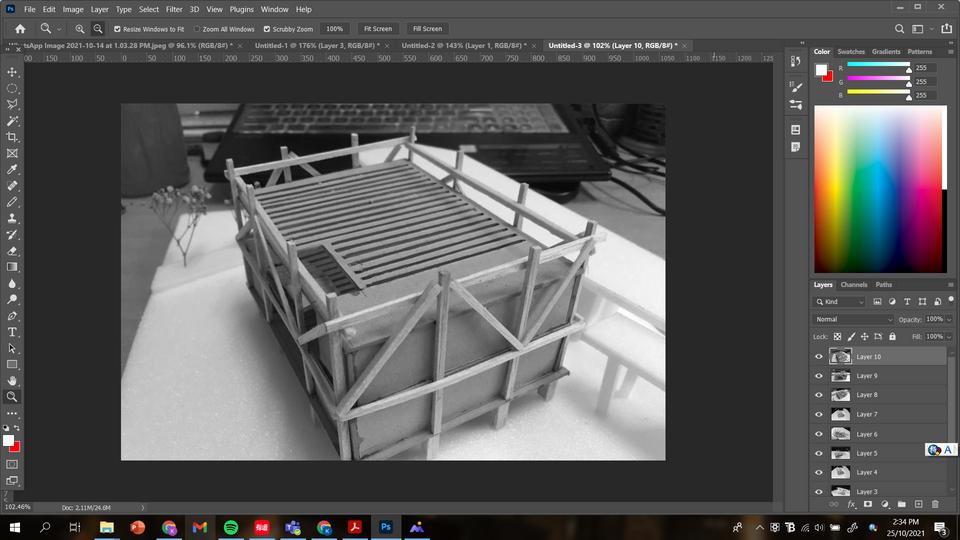

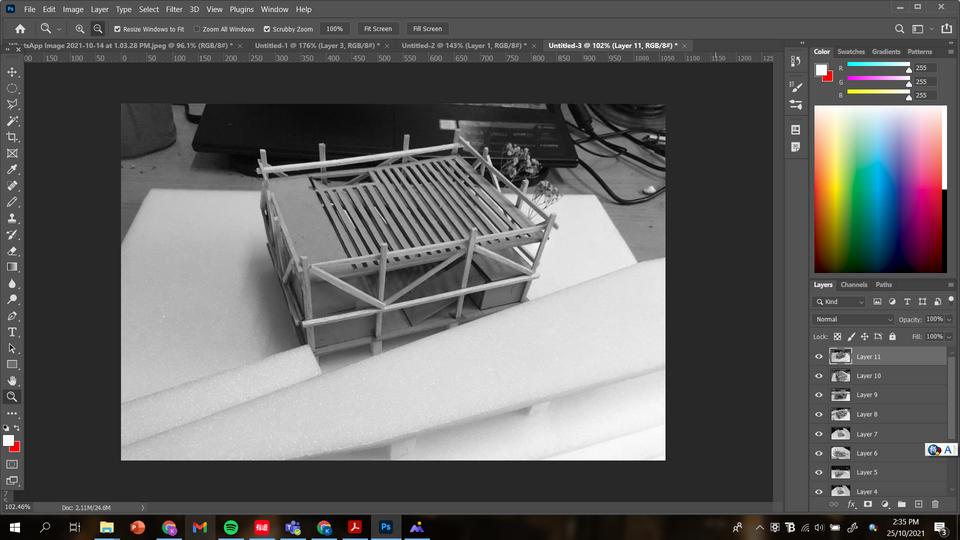

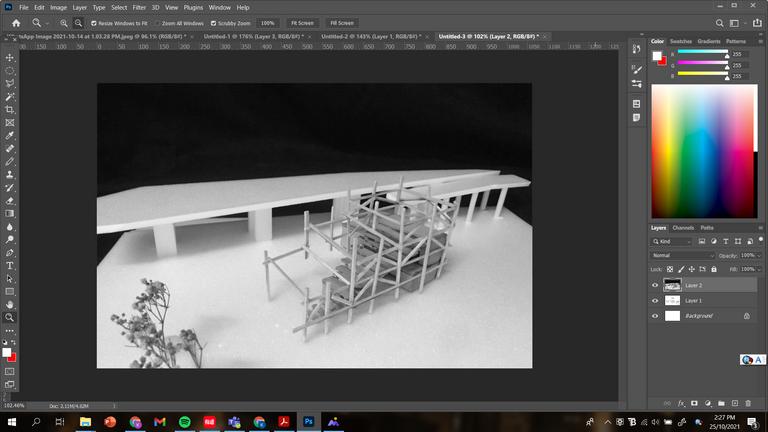

MODELEXPLORATIONWITHSCAFFOLD

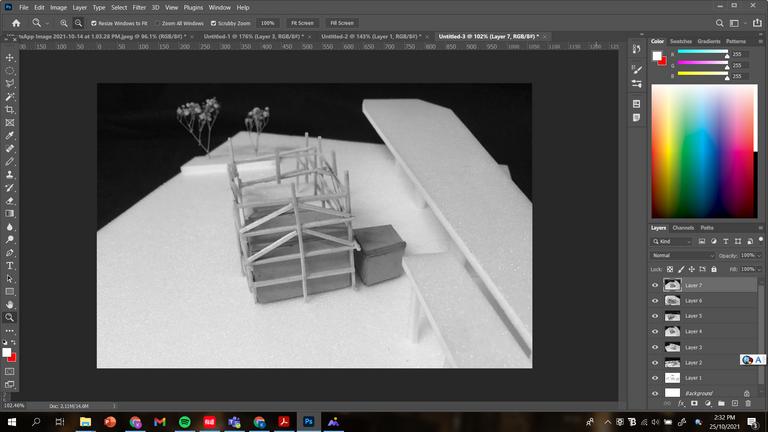

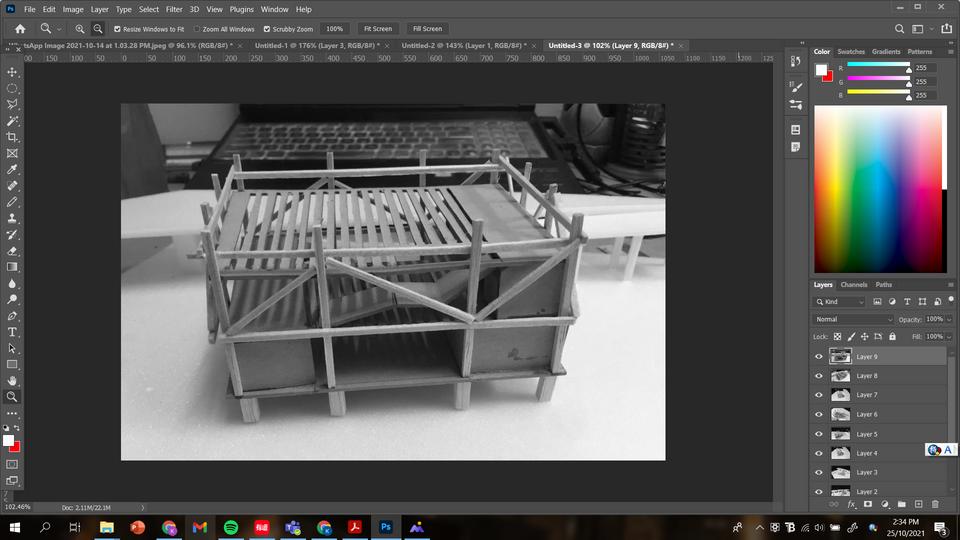

MODELEXPLORATIONWITHSCAFFOLD

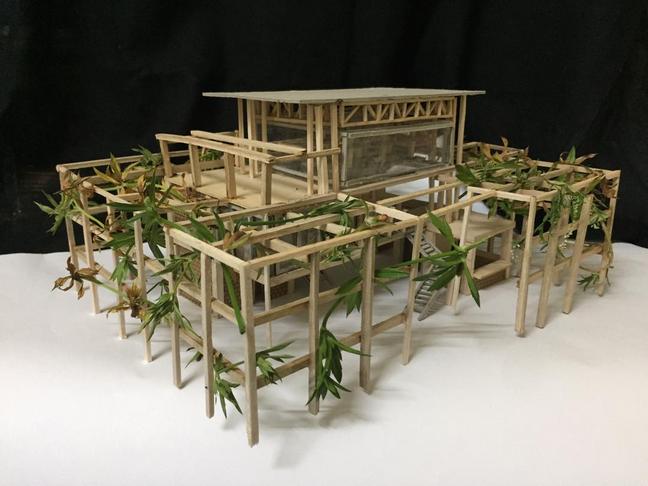

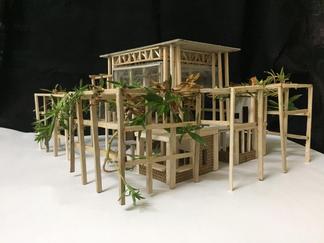

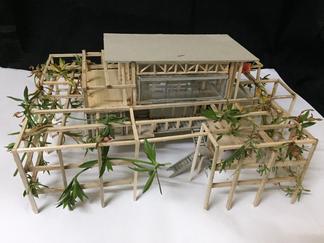

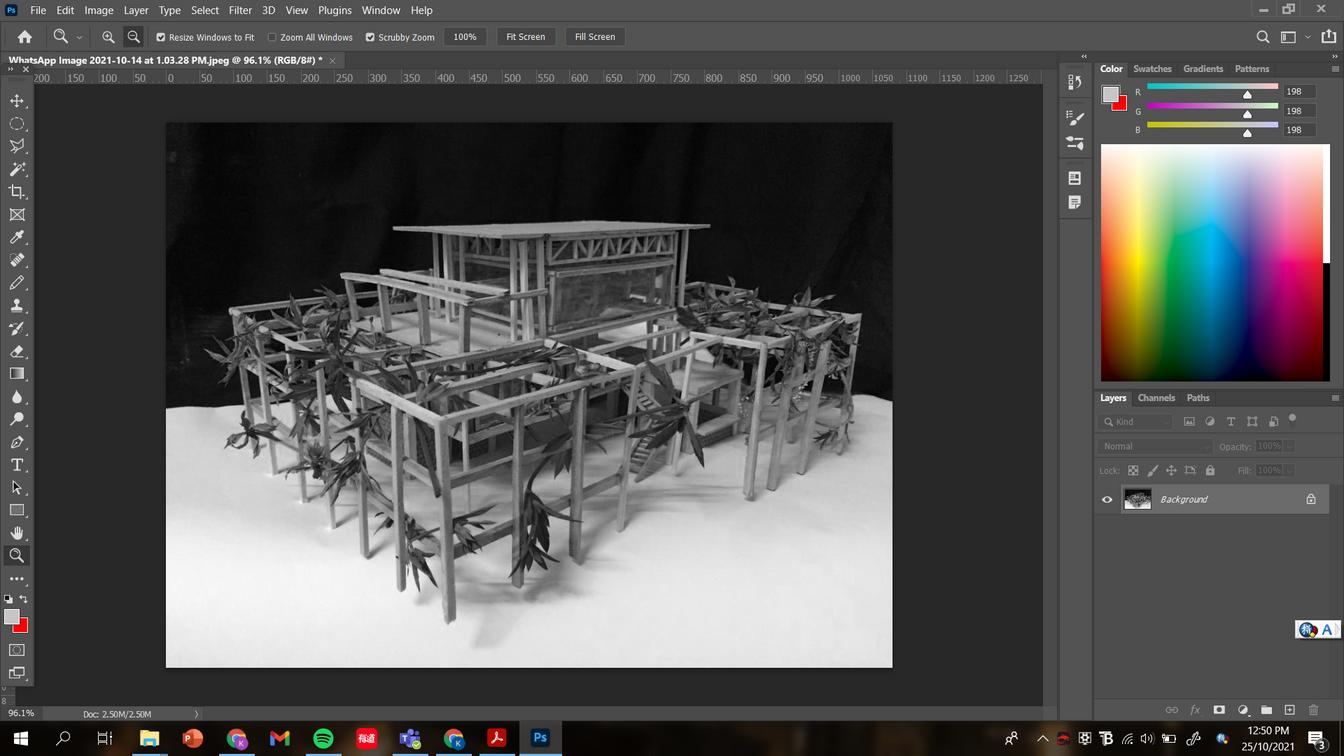

FINALMODEL
PORTFOLIO KONG WEN HAU 1001953921 AR315 DESIGN STUDIO III
