KNX IoT Flyer 2024 - English

KNX IoT SOLUTIONS

Why KNX IoT IPv6

While KNX has been capable of using IP networks to communicate (between devices or between servers and clients) thanks to the KNXnet/IP protocol, KNX IoT qualitatively increases the interoperability at the IP level thanks to IPv6. It also becomes software development-friendly and adds new physical/network layers demanded by the market (e.g. THREAD) to the existing ones (Wi-Fi, Ethernet). Thanks to KNX IoT, all the stakeholders involved in the product lifecycle (manufacturers, developers, system integrators) enjoy an enhanced approach to manufacturing, development, and integration.

One tool: ETS

All of these capabilities are made possible through the use of ETS. With ETS, KNX devices from over 500 manufacturers can be configured independently of their physical layer, and project information can be exported to any KNX IoT API Server using a vendorindependent tool. More than 100,000 installers have been trained to use ETS. While other technologies lack application-level interoperability and require numerous software tools to configure an entire installation, ETS provides core interoperability in an attractive tool with a modern user interface.

KNX IoT: interoperable & secure landscape

KNX has been the reference when talking about interoperability. Just grab any two certified devices from any vendor, and they will simply work together at the application level in a secure way. Following this philosophy, KNX IoT has been designed to maintain the highest level of security. KNX IoT Point API devices come with security embedded by design. With this robust and comprehensive development landscape, manufacturers and developers can build the best devices, solutions, and services in the home and building automation market.

ETS

KNX IoT TECHNOLOGY HIGHLIGHTS

What makes KNX IoT so interesting for your business?

CoAP

Open Source stack

For the first time in its more than 30-year of history, the KNX Association has made an open-source stack available to develop KNX IoT devices. This is a giant step towards democratizing the adoption of the best interoperability in the industry, based on IPv6

THREAD modules

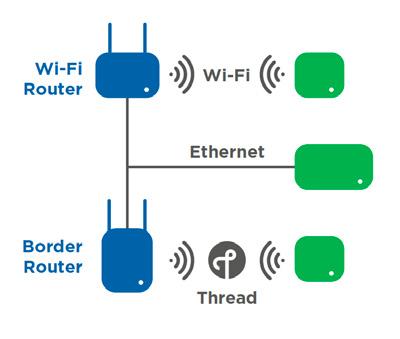

TP and RF have already laid the foundation for successful business cases, but our past achievements do not leave us complacent. A new IPv6 communication network is now added to the vast KNX development landscape. There are modules available, based on THREAD, to develop KNX IoT devices.

Strong protocols

A new communication/message protocol using CoAP and CBOR has been optimized for resource constrained communications. OSCORE is utilized to encrypt all types of messages end-to-end between endpoints. Leveraging these protocols and solutions, KNX grows on the shoulder of giants while maintaining its unique identity and added value.

KNX, the largest development landscape of its kind

A groundbreaking development platform that serves as the foundation for remarkable solutions has been presented to the world in 2023, enabling all business cases in the smart home and building verticals. From single products to services, any manufacturer or developer can find the necessary resources to create unique solutions.

KNX IoT DEVICES

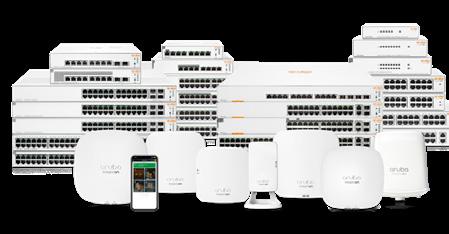

Aruba Instant On networking solution purpose-built for intelligent set-up for smart network automation. The Instant On Solution is easy to set up in minutes and managed from your smartphone, with little or no IT support offering high bandwidth, high performance, secured and reliable data handling using smart rate switching and Wi-Fi 6 certified products with easy Smart Mesh coverage, and connectivity for up to 50 devices per site. The solution offered comes packed with 90 days post-purchase support, no hidden fees, secured Cloud, 2FA security, and energy-saving features to prevent energy outages and expensive bill shock. Aruba Instant On is built with technology that works seamlessly within smart homes and smart buildings allowing for IP communication across IoT and providing a reliable secure network. The network can discover all wired and wireless IP devices using standard-based protocols namely IP Camera, IP Gateway, Aircon unit, and Lighting systems in client view, making it easier for you to quickly locate and troubleshoot your connected devices. Whether users are running video conference calls or streaming videos for their kids — they all need a reliable network. The Instant On solution prioritizes business-critical applications, so work apps come first. The solution also comes with an integrated firewall to keep specific user personal information, devices, and network protected from online threats.

IT Gesellschaft für Informationstechnik mbH

IT GmbH is a software company that has specialized in the market of intelligent home and building systems technology since 1992. Their portfolio includes products ranging from KNX tools and ETS apps to comprehensive building automation. The latest offering, the KNX 3rd party server, exemplifies this legacy, designed for seamless integration into existing systems, including visualization servers. This software solution enhances the connectivity and interoperability of KNX installations with third-party devices through a standardized approach. To complement this, IT GmbH is also introducing compatible hardware to support the 3rd party API, ensuring the server’s functionality across various architectures. This development underscores IT GmbH’s commitment to providing versatile and efficient solutions for smart system integration.

Aruba Instant On

https://proknx.com

ProKNX SAS

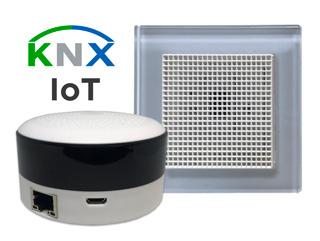

ARAGON is the first AI based voice control system for Home Automation that works without the need for an Internet connection. Voice recognition runs entirely on the device – nothing is transmitted or recorded. Your Privacy is guaranteed. To widen the capabilities of Aragon, there is an option to initiate “online mode” to allow to access trusted AI assistant services, like OpenAI/ChatGPT. This online mode is exited after use, thus ensuring that the device does not transmit any data when operating the KNX installation. ARAGON keeps the residents privacy. The spoken words are kept private and are not transmitted. The IoT functionalities of ARAGON offer unprecedented compatibility with IP network devices. These can be integrated into the KNX installation and thus evaluated, operated or queried. From the LED lamp to the motion detector to the TV, ARAGON is the link between KNX and the intranet. The support of the new KNX IoT 3rd party standard now additionally enables the voice control of the KNX installation via many KNX servers without any configuration.

PASSIVE ENERGIE

https://passiv-energie.at/

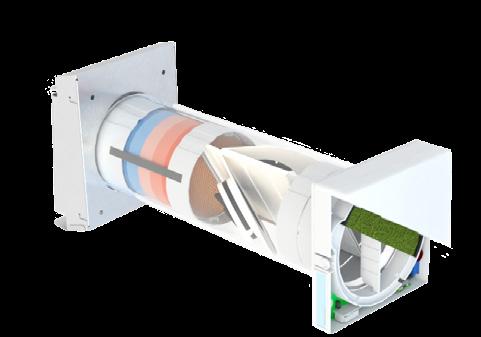

The Heating Recovery Ventilation system is a state-ofthe-art device designed to deliver the highest level of comfort and air quality for homes and buildings. With the HRV-unit on/off feature, users can easily control the system and customize the ventilation level according to their needs. The fan speed can be set from step 1 to 4, while the co2 measurement, temperature measurement, and humidity measurement provide accurate readings for maintaining indoor air quality. The system also includes a Dumper on/off feature and a standard supply air device/exhaust air device to define the original operation direction of the fan unit. With the Heat Recovery/Night Purge Mode operation mode, the system ensures efficient heat recovery and air purification during night-time. Other notable features of the Heating Recovery Ventilation system include the Filter Exchange/Cleaning reminder, CO2Control On/Off, Humidity Control On/Off, alternating period time, direction of operation (Supply Air/ Exhaust Air), attached room name, Bath Room Mode On/Off, and Open Jiminy Operation to increase indoor pressure and prevent smoke backflow. The Sleep Mode On/Off feature also reduces noise pollution in bedrooms by turning off the fans for one hour before turning them back on again. The Heating Recovery Ventilation system provides a safe and efficient solution for homes and buildings to maintain healthy indoor air quality.

Siemens

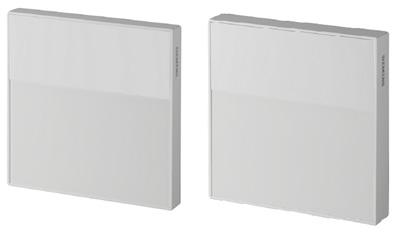

Introducing the latest product from Siemens, the Room Sensor, designed for ventilation and air conditioning plants. This battery-powered sensor, available in QAA2890/WI, QFA2890/WI, and QPA2892/ WI models, provides accurate readings of temperature, relative humidity, and CO2 concentrations. With temperature accuracy at ±0.3 K@21…25°C, ±0.7 K@15…21 °C/25…35 °C, and ±1 K@0…15 °C/35…50 °C, and relative humidity accuracy at ±2 % r.h.@30...70 % r.h. and ±5 % r.h.@0...30 % r.h./70...100 % r.h., you can rely on its precise measurements. The CO2 accuracy is ±50 ppm / ±2 % m.v. @0...2000 ppm, and the sensor also features automatic baseline calibration (ABC) for CO2 measurement. Using wireless communication KNX IoT over Thread, the sensor seamlessly exchanges sensor data with controllers and tools over a wireless Thread network, making it an efficient and reliable addition to any ventilation and air conditioning plant.

SIMLAB Sp. z o.o.

https://simlab.pl/

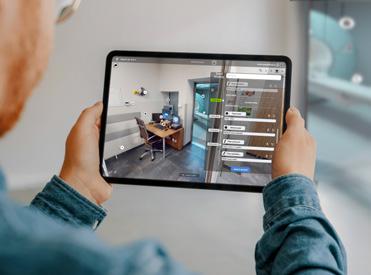

SIM-ON multi-platform is an innovative home and facility management system. It leverages Matterport models to provide a visual 3D interface for IoT, building automation control, and facility management. With instant web access, SIM-ON allows users to control their living and working spaces via any device. It combines 3D models, real-time sensor data, and userdefined asset information to create interactive digital twins. As an official KNX IoTech solution, SIM-ON supports control of any KNX standard device, bringing all systems and facility equipment information into a single interface. The SIM-ON solution creates a digital twin of an existing property, previously scanned using Matterport capture technology, adding a layer of management and information related to the KNX installation. The setup process is quick and easy, thanks among other things to the KNX IoT 3 Party API server, offered by Wiser for KNX. This combination results in an outstanding solution unparalleled in the smart home and building industry: a visualization with full control over the KNX installation can be set up in a matter of minutes, with the highest quality and superb aesthetics.

https://solaregy.de

Solaregy GmbH

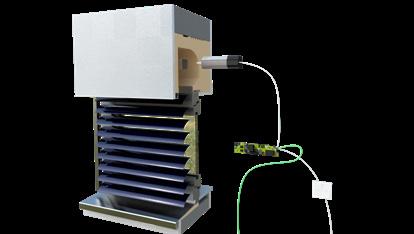

Harness the power of the sun directly from your windows with RaffSun, a pioneering photovoltaic blind system designed to transform ordinary windows into efficient green energy power plants. This innovative system incorporates photovoltaic slats, an intelligent control unit compatible with KNX, and a robust electricity transport system. RaffSun enables you to produce your own 100% green electricity, significantly cutting down on air-conditioning costs through its automatic optimization of slat angles for maximum efficiency. Thanks to its seamless integration with KNX IoT, RaffSun not only offers exceptional interconnectivity but also empowers users to monitor and fully comprehend their system’s performance. Whether you’re at home, work, or on the move, our smart PV-window shading provides a comprehensive interface to both KNX TP and KNX IoT, allowing access to live and historical data via a web dashboard. Embrace this innovative approach for a sustainable future, enjoying the dual benefits of energy generation and smart home integration with RaffSun.

KUMUX

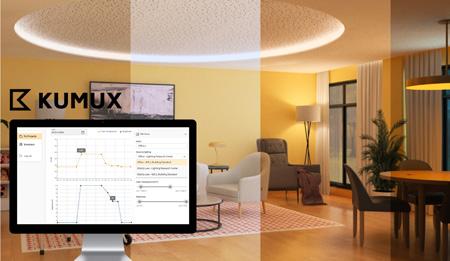

KUMUX software optimises dynamic lighting by adapting light throughout the day for the users’ health and well-being. KUMUX uses AI algorithms to adjust artificial lighting brightness and colour temperature to mimic natural light, based on geolocation, date, time of day, activity, luminaire characteristics and science.

KUMUX cloud service provides the most suitable settings of colour temperature and brightness for a science-based human-centric lighting in major control systems. KNX IoT API allows KUMUX service to be seamlessly incorporated into any KNX project. This ensures compatibility and interoperability with any LED controller or DALI Gateway in the KNX system. Additionally, system integrators can take full advantage of KUMUX algorithms, by using the typical configuration tools and procedures in KNX, to deliver advanced, user-centric lighting experiences that comply with international standards.

https://kumux.io

KNX IoT MODULES

https://www.cascoda.com/

CASCODA

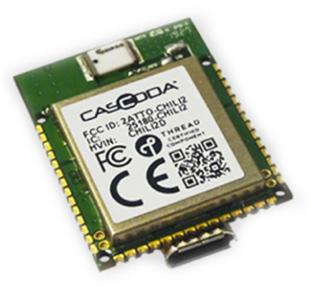

The Chili2 SMARTRange™ module family is a fullyfeatured Thread-based wireless solution for IEEE 802.15.4 communications in the 2.4GHz band. The Chili2 pairs the Cascoda CA-8211 transceiver modem with an ARM® Cortex®-M23 TrustZone® microcontroller. The Chili2 module provides developers with system design advantages:

Best-in-class RF performance with -105dBm receive sensitivity, +9 dBm transmit power and a +114 dB link budget: Allowing whole-house coverage in any market on the planet, with no need for a power amplifier. World-class energy consumption, in all modes

Highly secure PSA Certified™ ARM Cortex-M23 TrustZone architecture, running up to 64MHz

Highly reliable and scalable IP-based mesh network using Thread.
