PROJECT THESIS:
The physical proximities of natural vestiges and edges of urban development often reveal conditions of conflict and underscore the gap between ecological and urban sensibilities. In Miami, this is especially true in the Little River neighborhood.

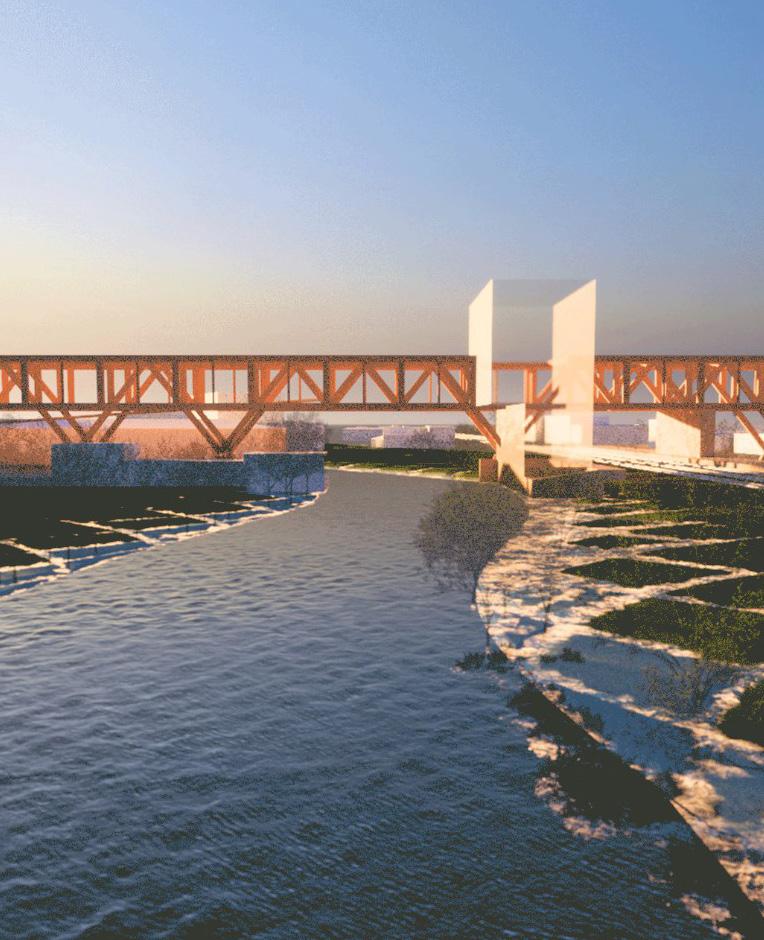

Thus, we aim to deploy the Little River rail station as an Eco-Urban Viaduct: a means to bridge that difficult divide and establish an urban center that models ecological responsibility and projects a character for Little River that embraces wellbeing for both its environment and inhabitants.
1.0_ Research and Site Analysis
1.1 Miami Dade-North Miami Beach
1.2 Miami Dade-South Miami Beach
2.0_ Interrogating Boundaries//Lines of Endurance
2.1 Lines of Endurance-Strategies
3.0_ Project Introduction
3.1 Project Thesis
4.0_ Architectural Intervention
4.1 Eco-Urban Viaduct
5.0_ Systems
5.1 Life Safety
5.2 Fire Suppression
5.3 Mechanical
5.4 Lighting
5.5 Water Management
5.6 Passive Design Strategies
Shulman
Studio Faculty
Jose Gelabert-Navia
Shawna Meyer
Allan

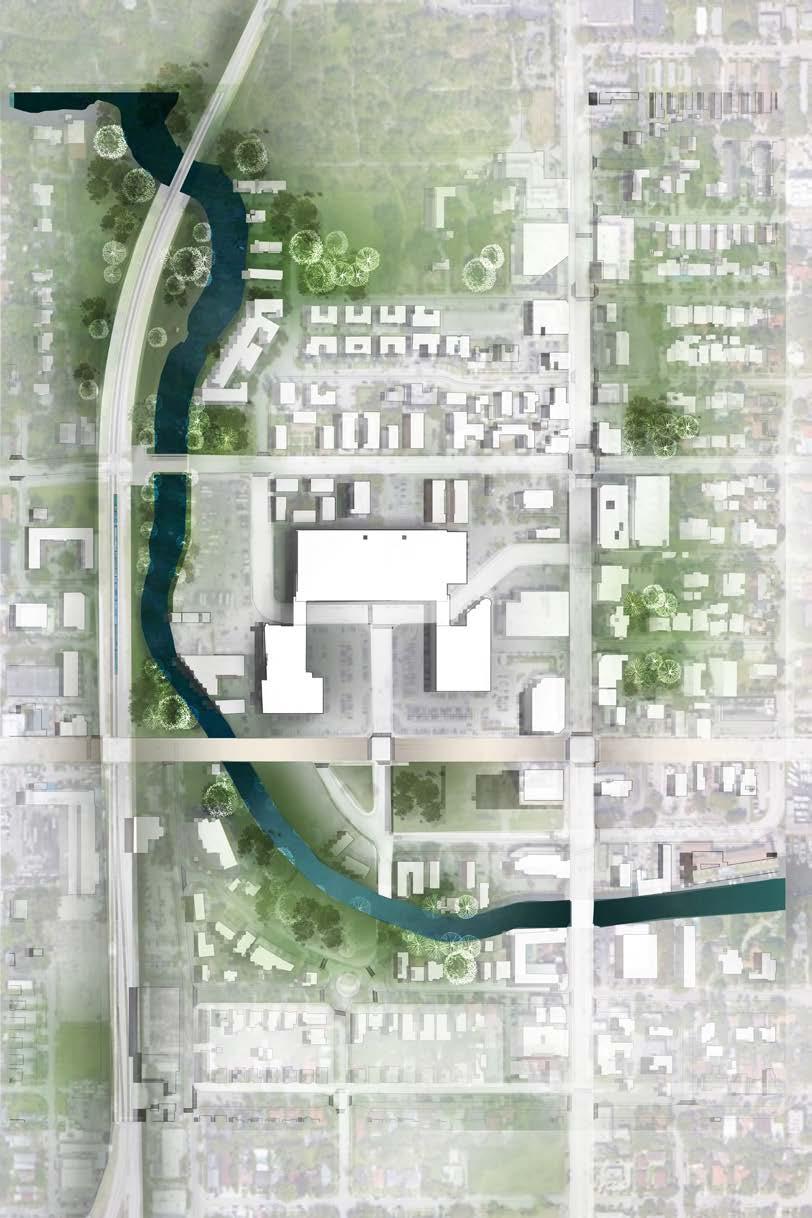

LITTLE RIVER
NORTH BISCAYNE BAY
LITTLE RIVER
NORTH BISCAYNE BAY
ATLANTIC COASTAL RIDGE
ATLANTIC COASTAL RIDGE
BISCAYNE BLVD
NORTH BISCAYNE BAY
J Zuckerbrod
2.
3. PRATT +
4.
TO 2ND AVENUE

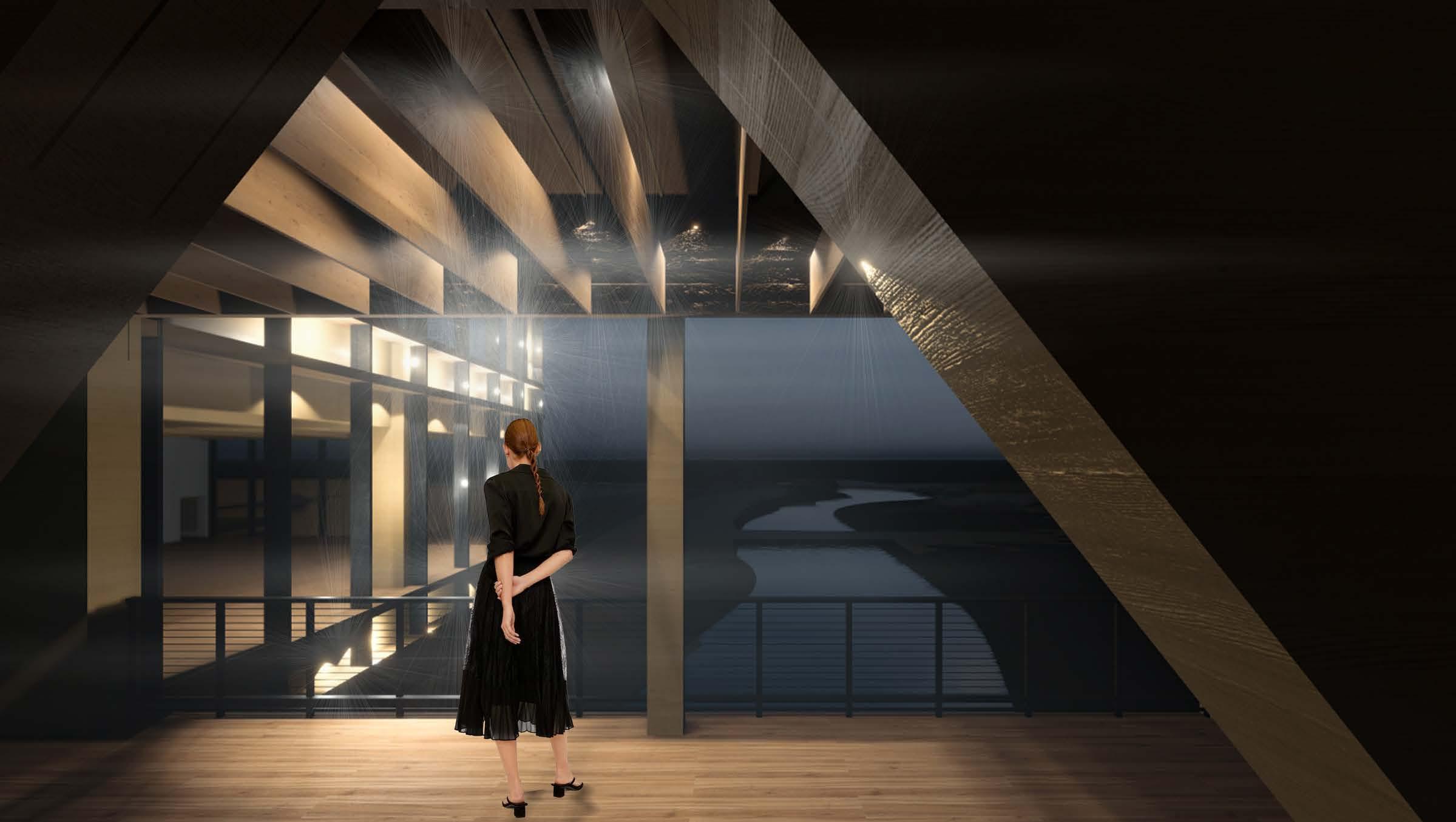

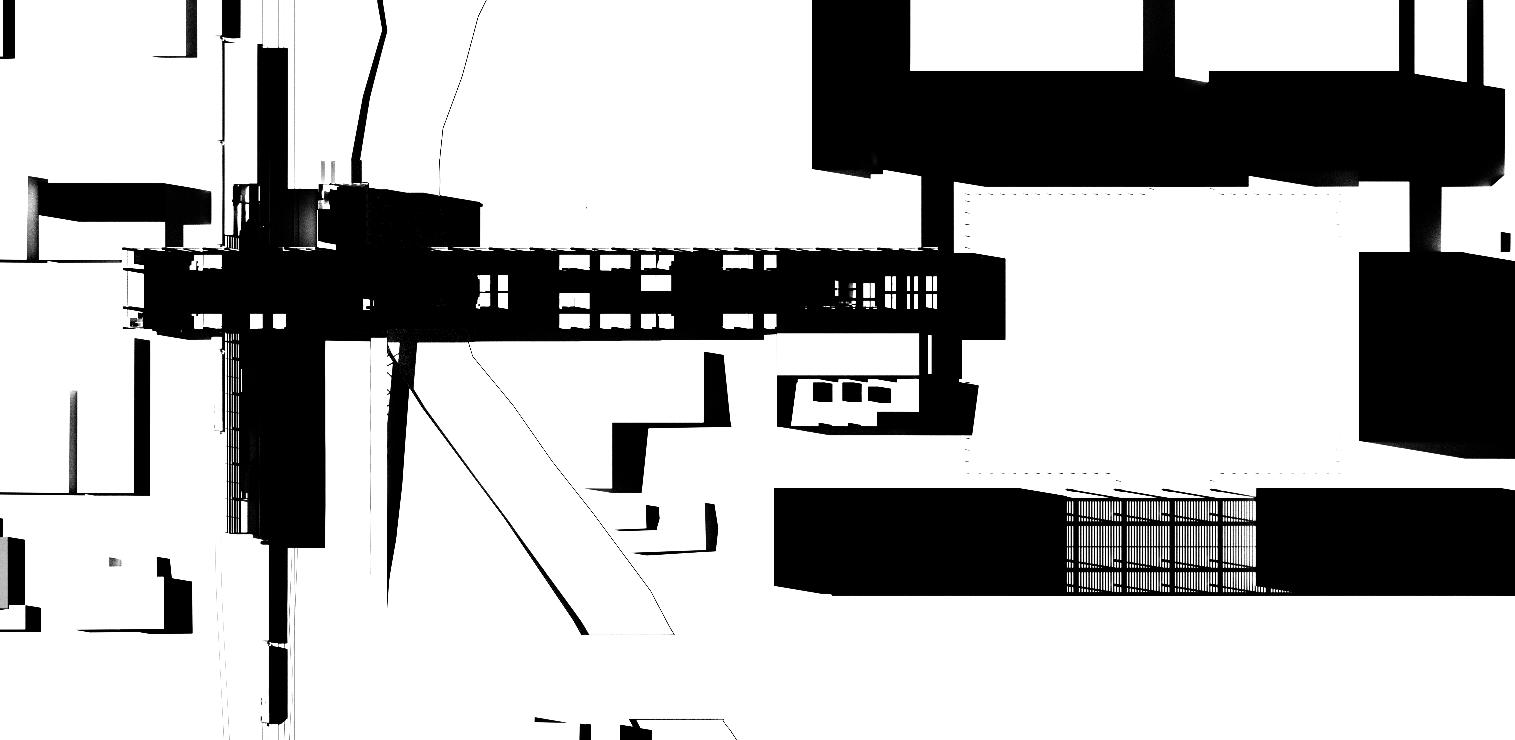

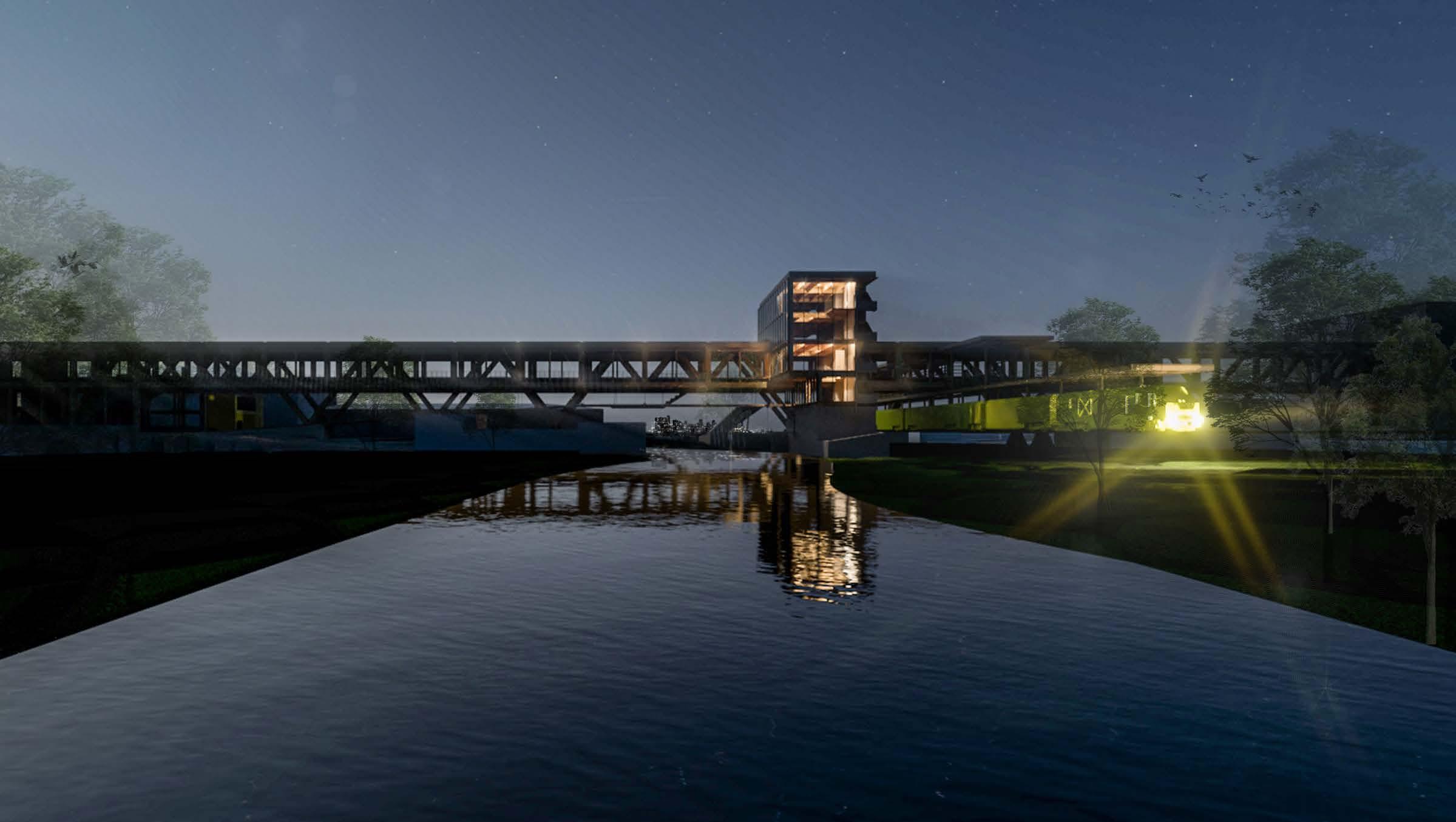

ECO-URBAN VIADUCT
PEDESTRIAN PATH
TRAIN PLATFORM

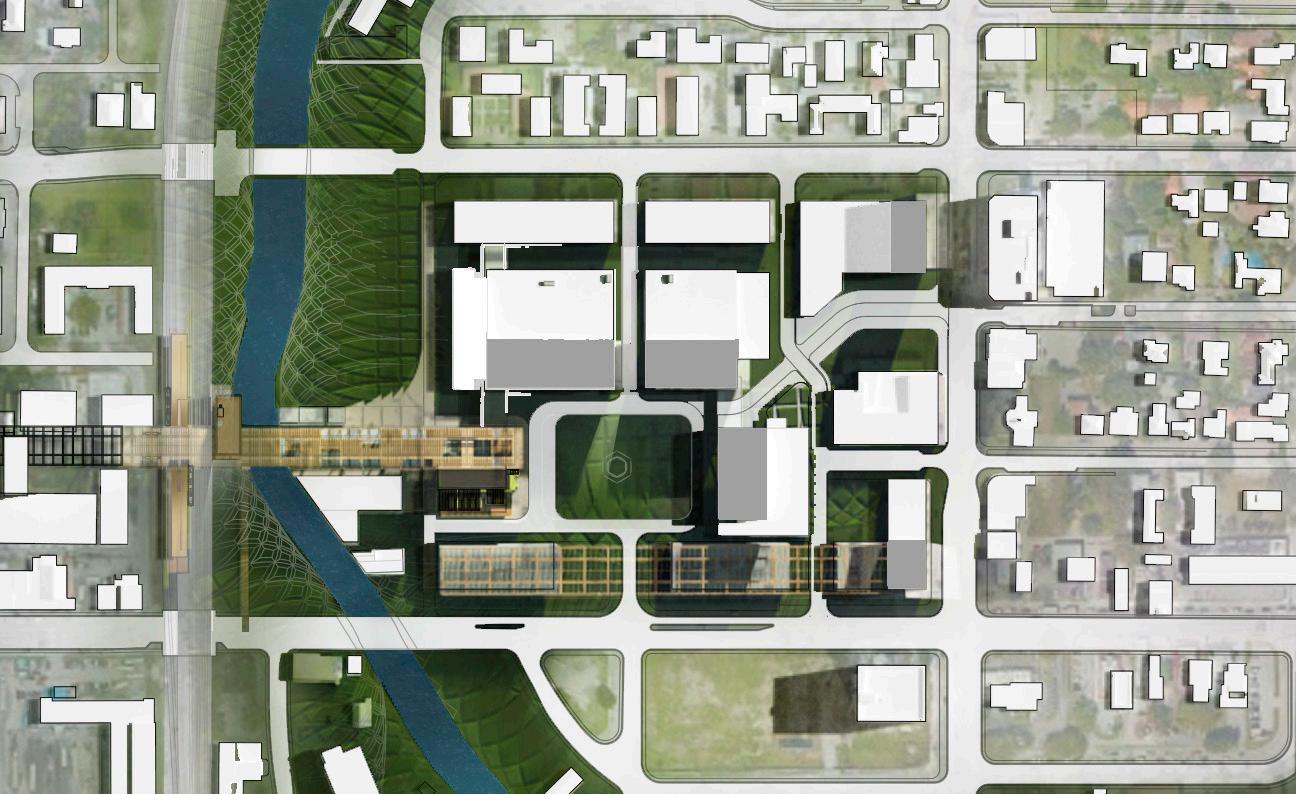

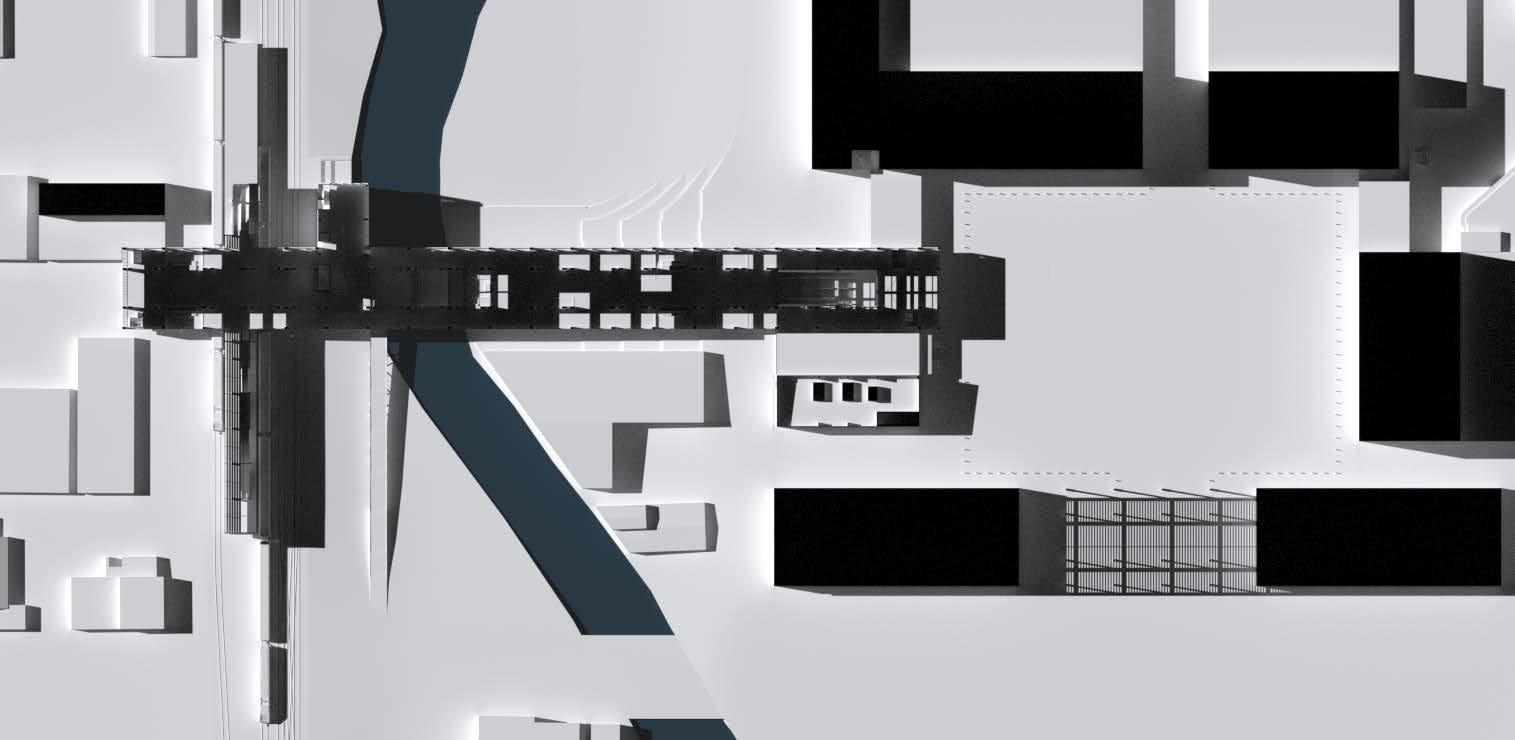

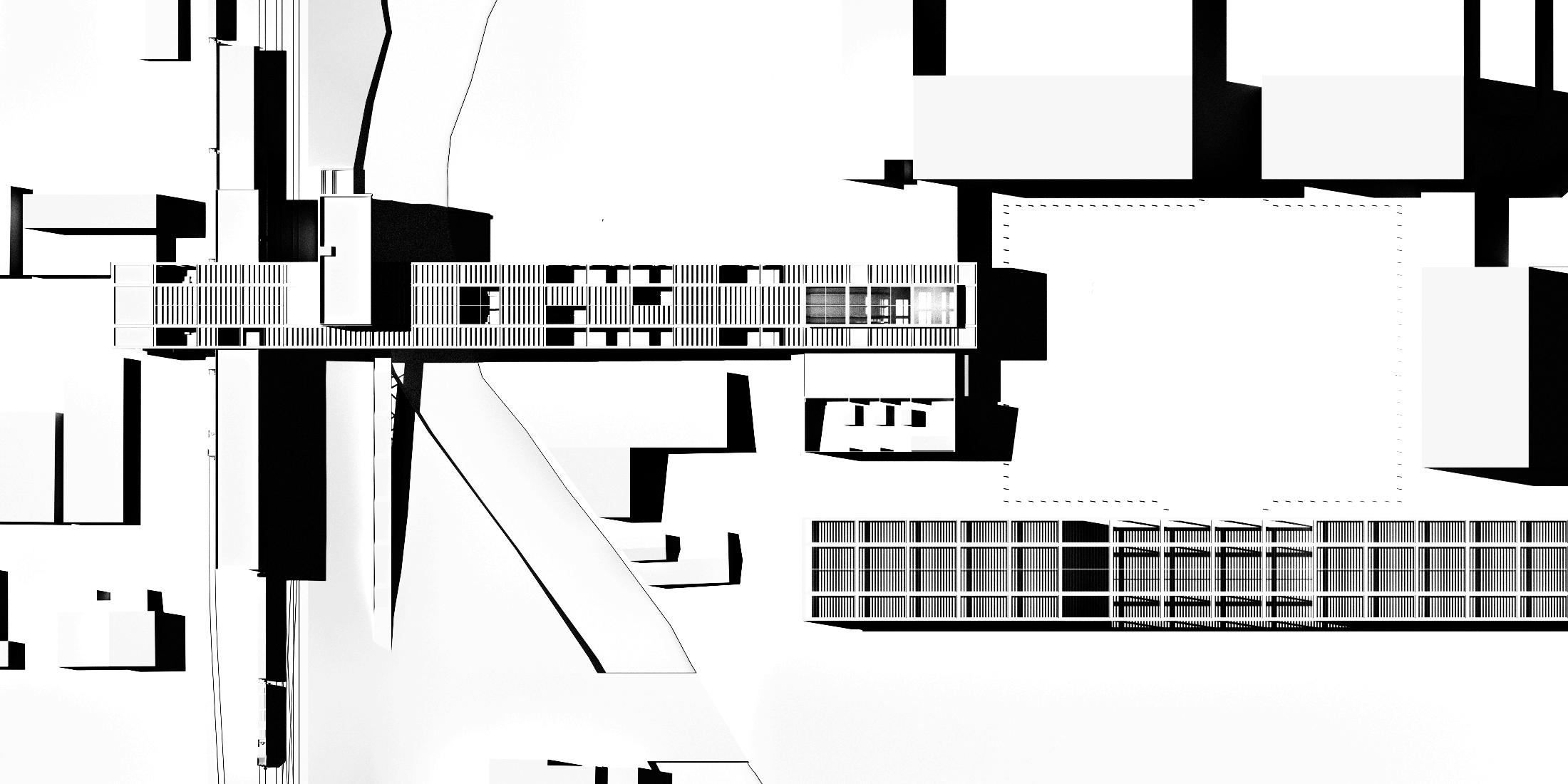

PROGRAM: LITTLE RIVER RAIL STATION
J Zuckerbrod &
LITTLE RIVER
LITTLE RIVER RESEARCH STATION
PUMP STATION
PROGRAM: LITTLE RIVER RESEARCH STATION
EMERGENCY CENTER
PEDESTRIAN PLAZA
PROGRAM: CENTRAL CITY EMERGENCY / DISASTER OUT-POST
J Zuckerbrod
J Zuckerbrod

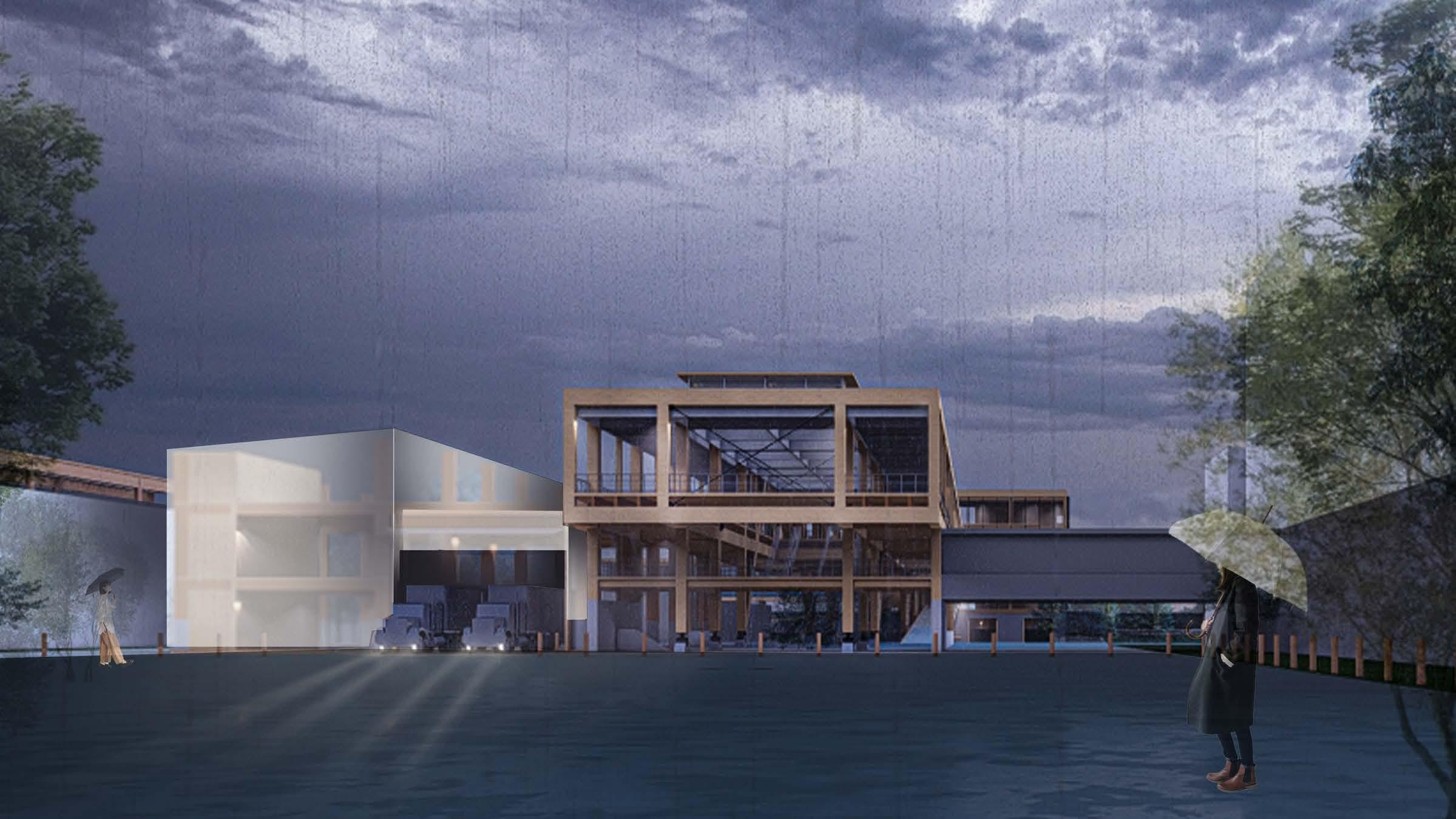

EMERGENCY OPERATIONS CENTER
EMERGENCY OPERATIONS CENTER
EMERGENCY OPERATIONS CENTER MASSING STUDY
III. CANTILEVERED RESEARCH TOWER
I. EXTRUDED RESEARCH TOWER
II. ANGLED RESEARCH TOWER

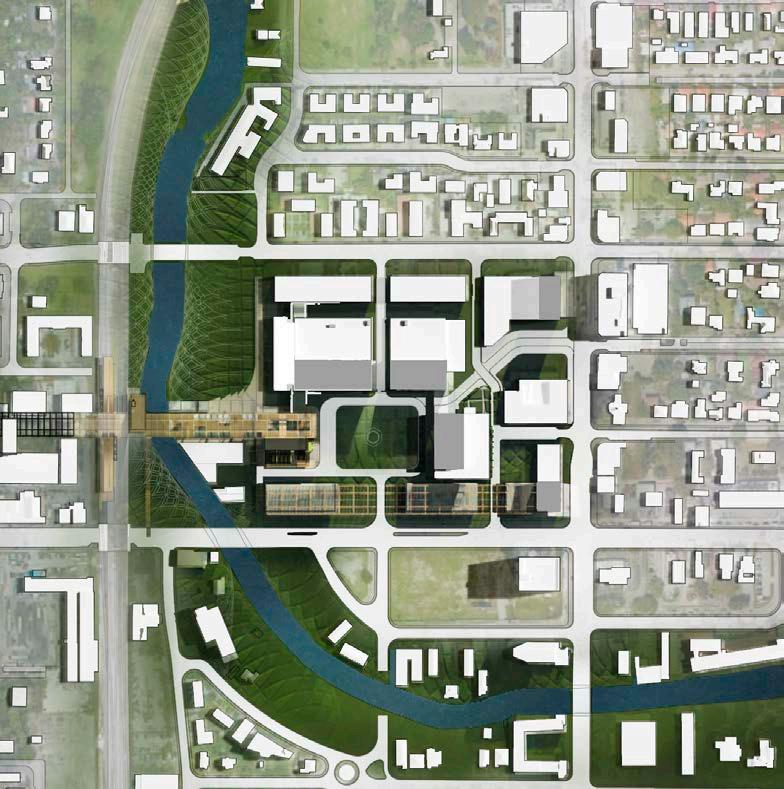

FEC RAILWAY LITTLE RIVER CYCLE PATH

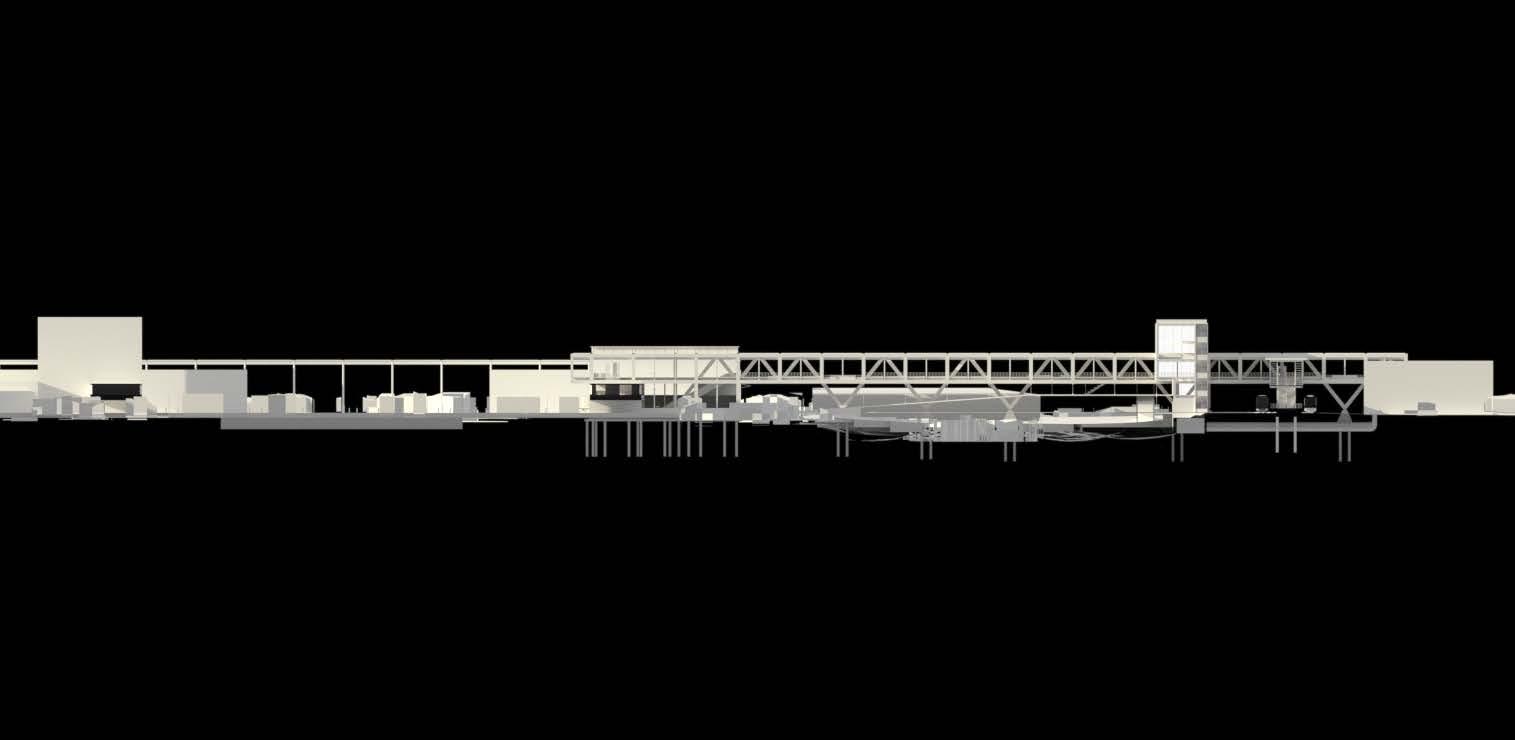

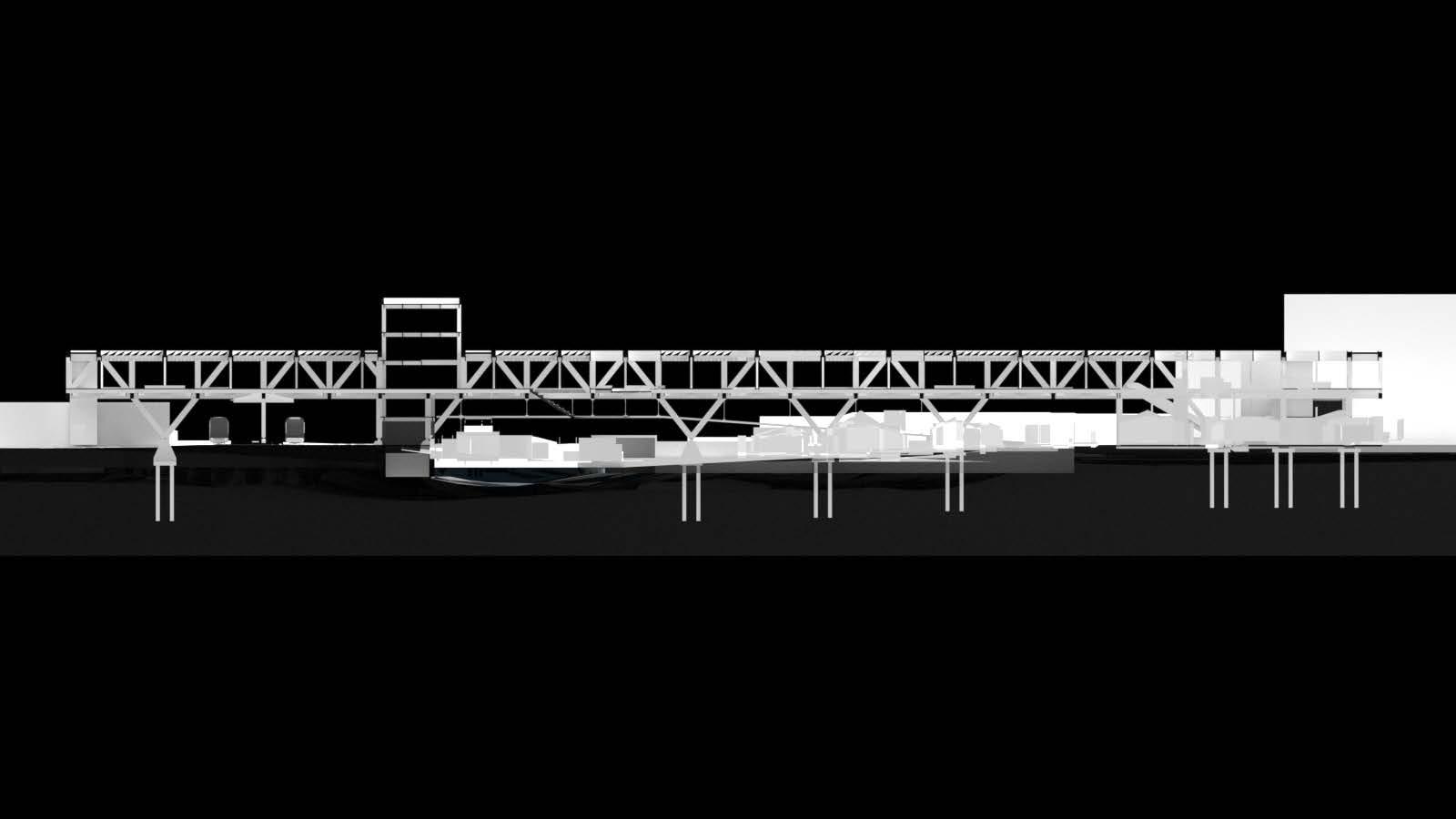

EAST ELEVATION
EMERGENCY: GROUND FLOOR PLAN
LOBBY
AHU EMERG GEN
EMERGENCY: ROOF PLAN
Anod-Alum Louvers
GLULAM BEAMS
STEEL JOINTS
CONCRETE FOOTING
CONCRETE BASE

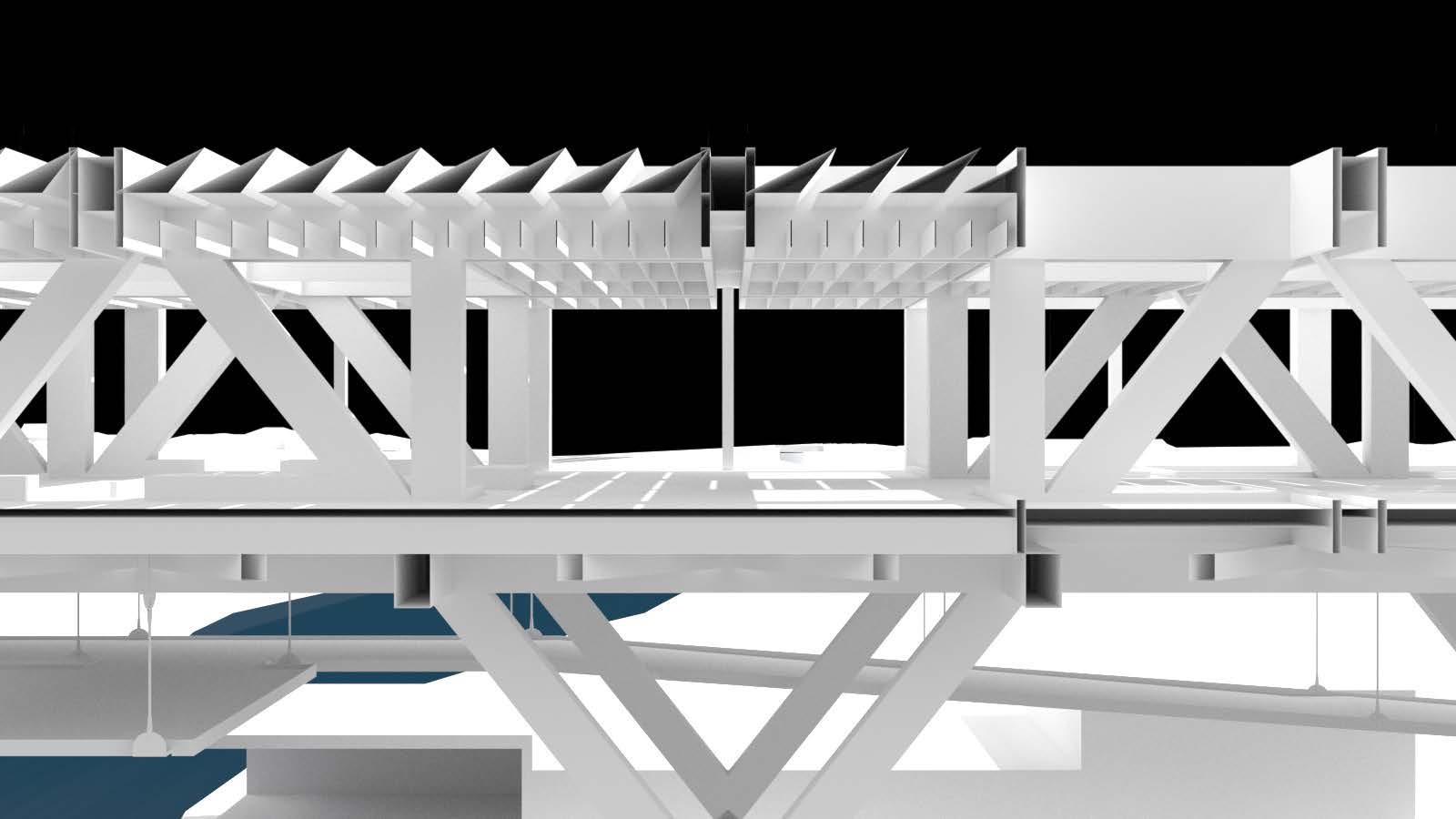

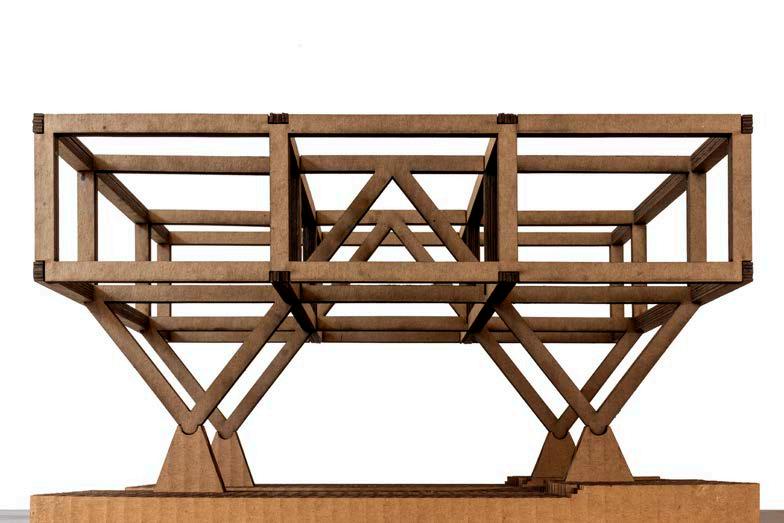

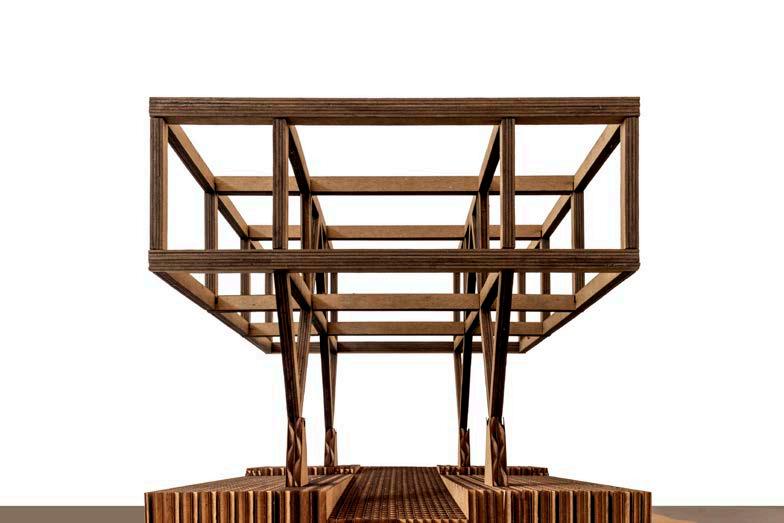

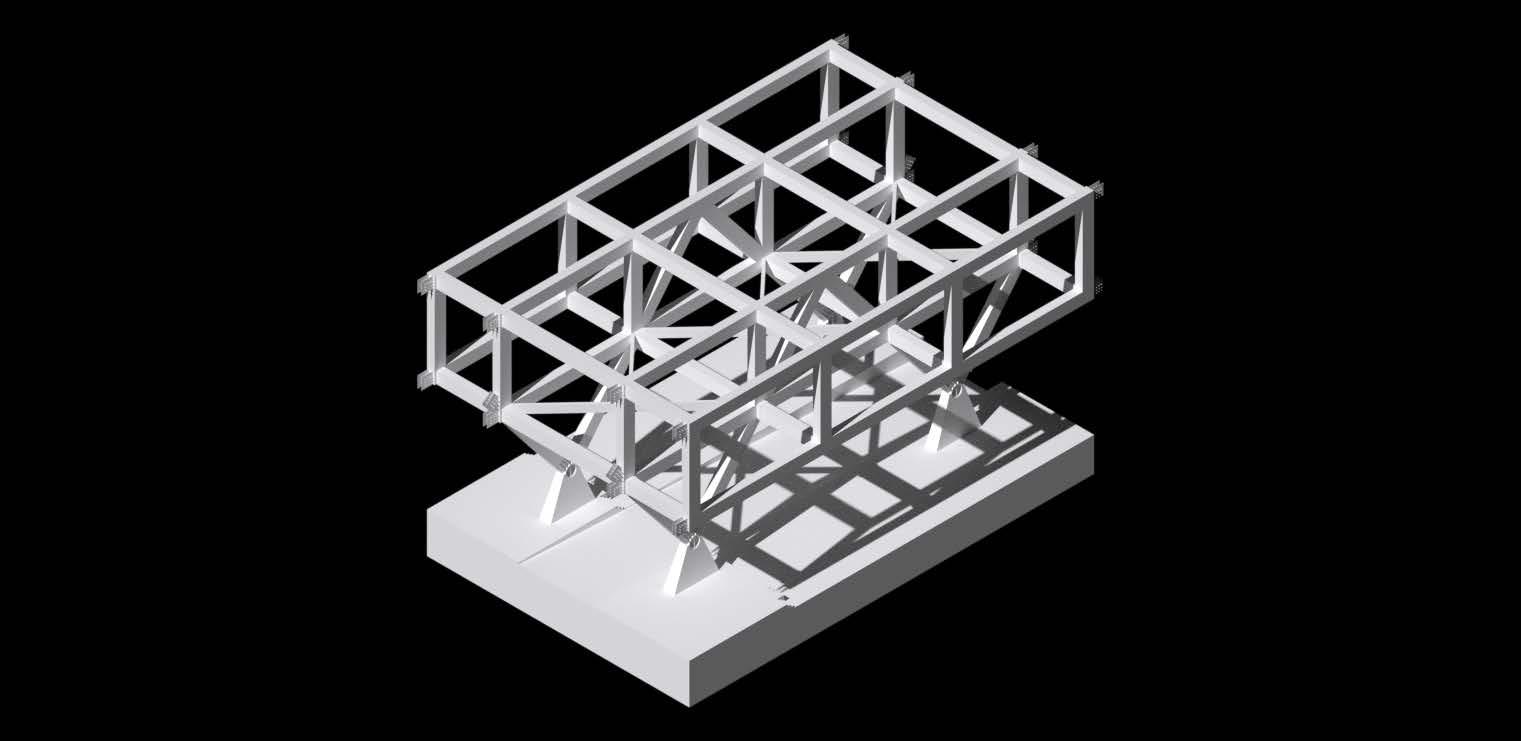

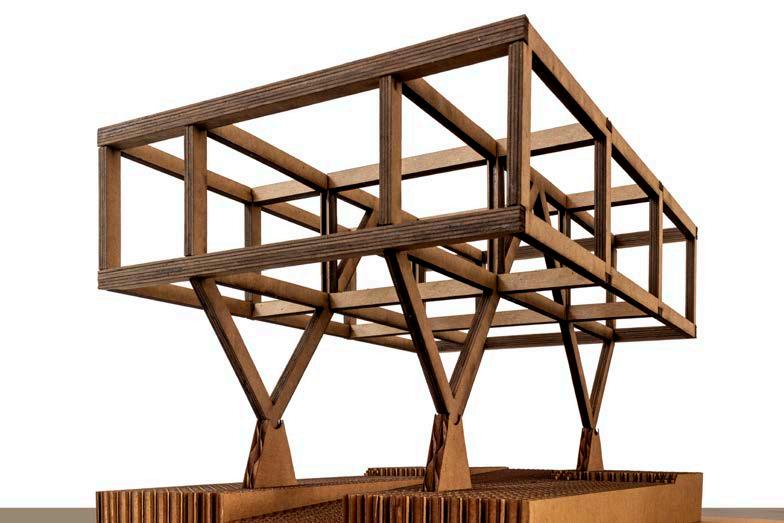

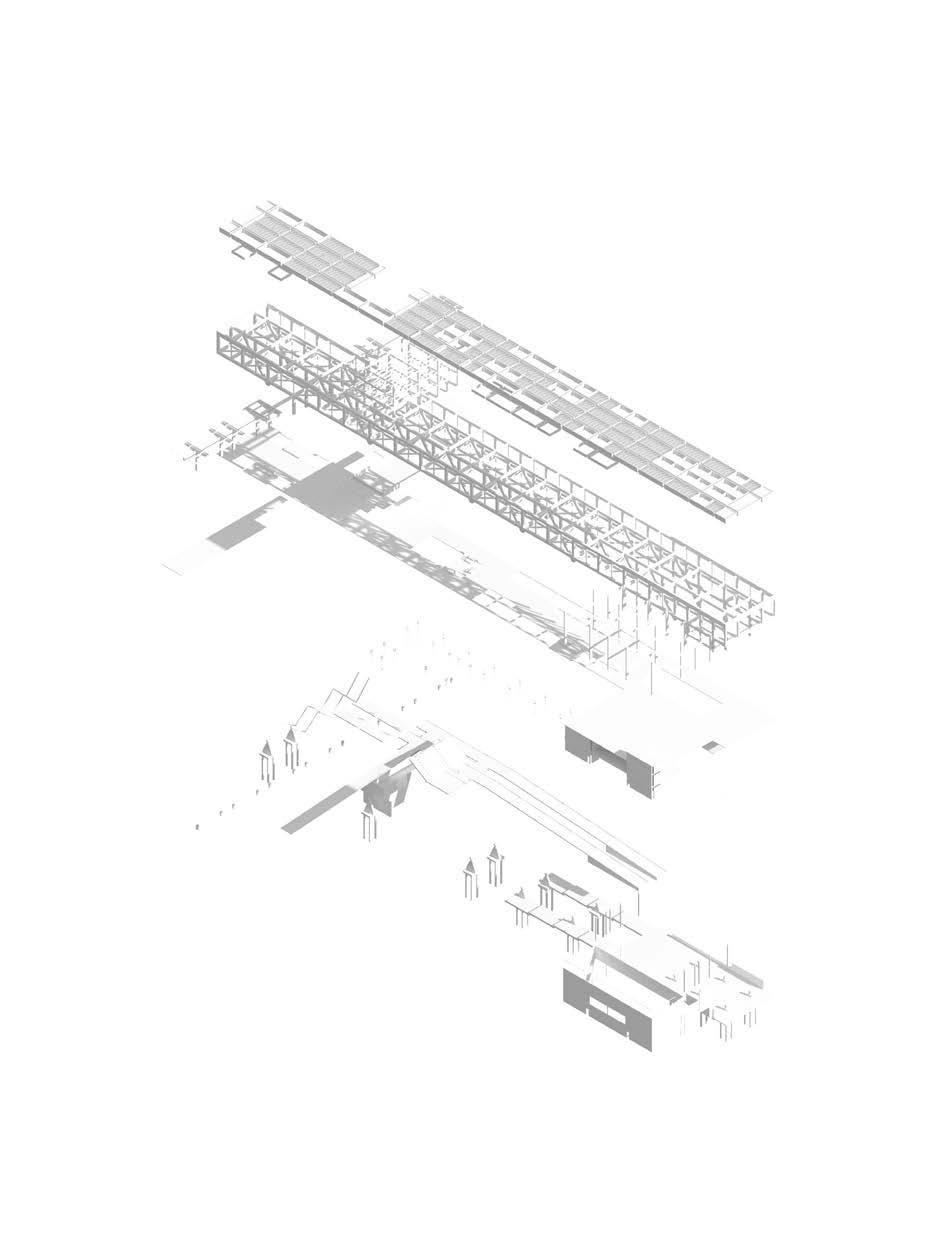

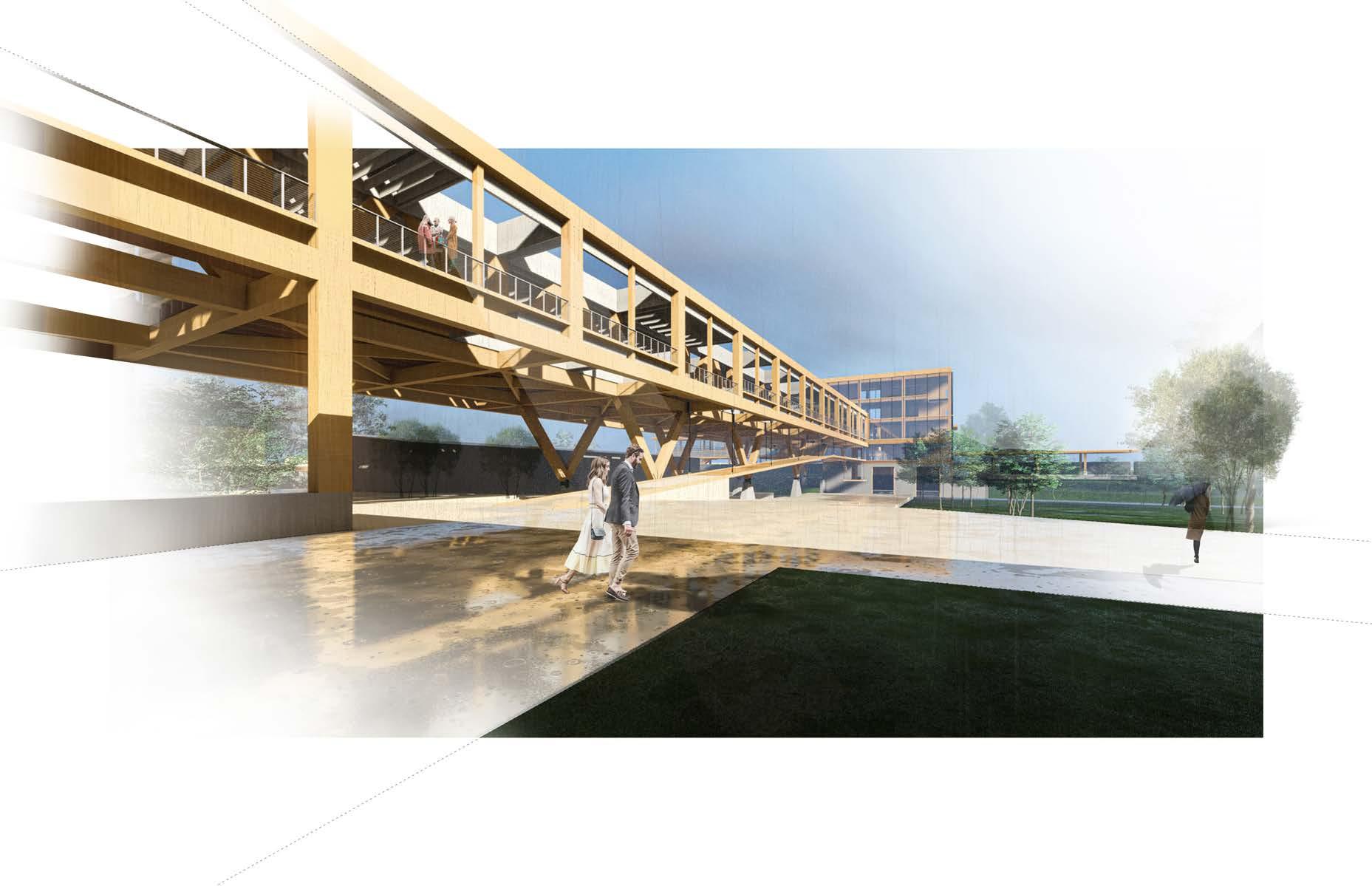

STRUCTURAL SYSTEMS
J Zuckerbrod & J Carlisle

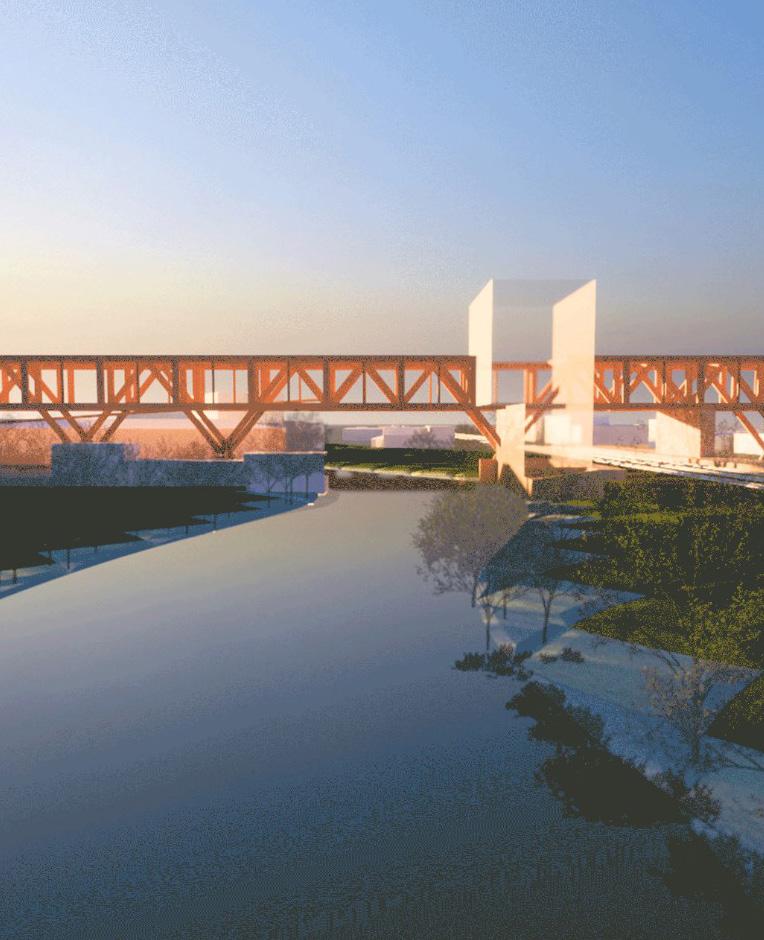

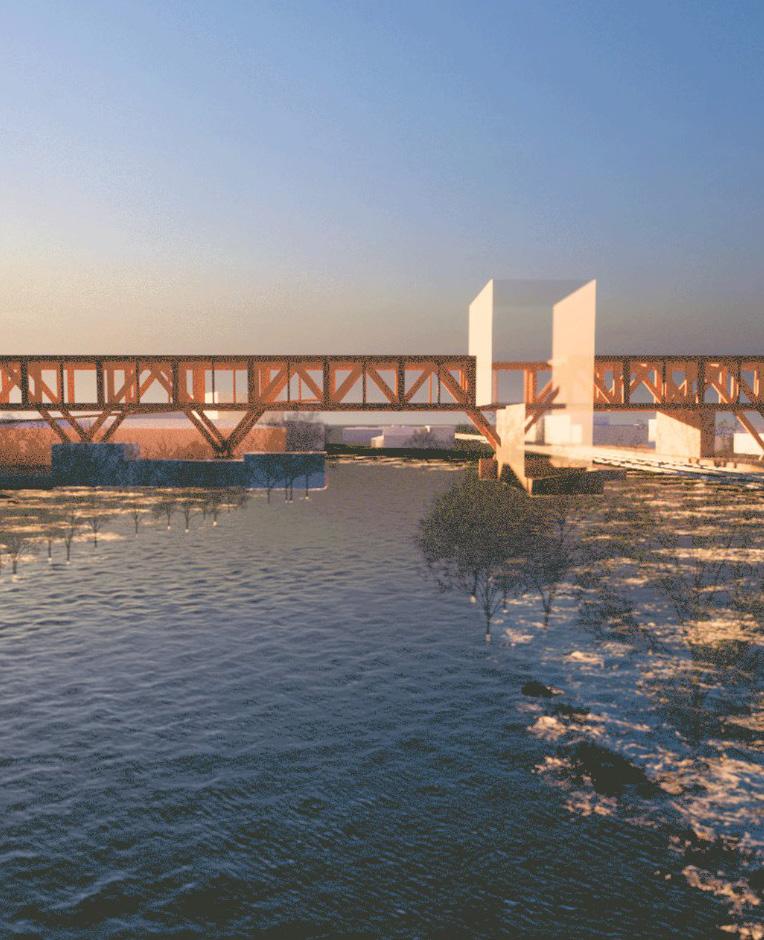

Viaduct
J Zuckerbrod & J Carlisle
MATERIAL + LOGISTICS SUMMARY LOCALLY SOURCED IN MIAMI, FL
MATERIAL:
MATERIAL:
BUILDING PROGRAM SUMMARY ECO-URBAN VIA DUCT
CODE OUTLINE:
FLORIDA BUIDLING CODE, 7TH EDITION 2020
FLORIDA EXISITING BUILDING CODE, 7TH EDITION 2020
NATIONAL ELECTRIC CODE, 2020
FLORIDA FIRE PREVENTION CODE, 7TH EDITION 2020
AMERICANS WITH DISABILITIES ACT ADA, 2010
ZONING:
6100 COMMERCIAL
USE: PUBLIC USE BUILDING
-TRAIN STATION
-ENVIRONMENTAL RESEARCH CENTER
-EMERGENCY OUTPOST CENTER
CODE INFORMATION:
USE AND OCCUPANCY CLASS: A3, B, M
A3
TRAIN STATION
RESEARCH LABS
EDUCATION/LEARNING AREAS
B OFFICE SPACE
COFFEE SHOP
PUBLIC EXHIBIT
EMERGENCY CENTER
M FREE MARKET SPACE
TYPE OF CONSTRUCTION: TYPE 4HT MASS TIMBER
PROTECTED SPRINKLERS
FLORIDA
J Zuckerbrod & J Carlisle
