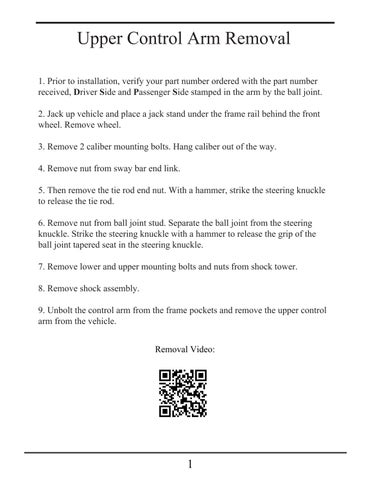

Upper Control Arm Removal 1. Prior to installation, verify your part number ordered with the part number received, Driver Side and Passenger Side stamped in the arm by the ball joint. 2. Jack up vehicle and place a jack stand under the frame rail behind the front wheel. Remove wheel. 3. Remove 2 caliber mounting bolts. Hang caliber out of the way. 4. Remove nut from sway bar end link. 5. Then remove the tie rod end nut. With a hammer, strike the steering knuckle to release the tie rod. 6. Remove nut from ball joint stud. Separate the ball joint from the steering knuckle. Strike the steering knuckle with a hammer to release the grip of the ball joint tapered seat in the steering knuckle. 7. Remove lower and upper mounting bolts and nuts from shock tower. 8. Remove shock assembly. 9. Unbolt the control arm from the frame pockets and remove the upper control arm from the vehicle. Removal Video:
1
