CONCRETE FORMING

ISSUE 3.0 - OCTOBER 2020 1.0 - SEPTEMBER 2022 SPECIFICATION GUIDE ITI FORM SPEC R LVL E11.7

Growth through premier brands and innovation

Since establishment in 1987 in Five Dock, NSW, Independent Timber Importers has been on a mission to redefine the timber industry wholesale/distribution landscape. ITI has worked closely with industry suppliers, customers and associations to promote the strength, beauty and environmental benefits of using timber. At the same time ITI redefined the role of the wholesaler with its distribution and service models. With its large investments in distribution centres, product development, people and service standards; in early 2002 ITI dropped the name Independent Timber Importers and replaced this with ITI and introducing the new logo with the “Innovative Timber Ideas” phrase which more accurately describes the attitude of the company.

Today ITI consists of 9 distribution sites across Australia with over 130,000m2 of undercover storage, a state of the art re-manufacturing, treating and priming plant in Chile, an office in Indonesia, 3 distribution locations in New Zealand and growing sales in the USA.

True to its name, the success of ITI lies in its commitment to innovation in both service and product development. This commitment has led to premier brands such as Design Pine, EziTrim Plus, Spec LVL products along with the distribution of market leading products such as Pacific Woodtech, Metsa Wood, Weathertex and Modwood. ITI has also led the way with service standards winning countless industry awards for its service.

A product you can trust to be compliant

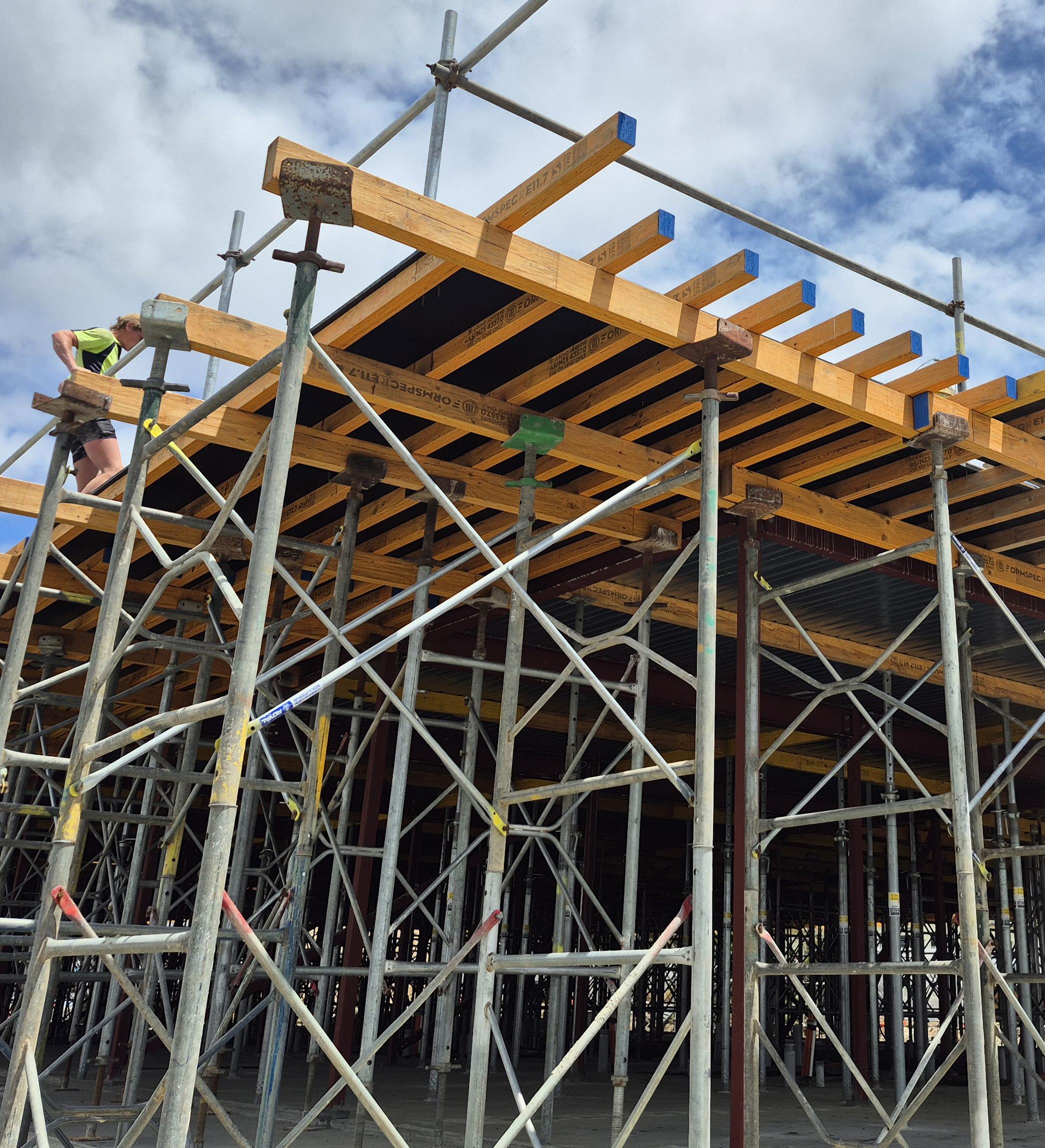

ITI Form Spec® R is a versatile laminated veneer lumber product which is ideal for creating concrete formwork assemblies - Bearers, Joists, Walers and Soldiers.

General Specifcation

Veneer New Zealand Radiata Pine

Adhesive

Phenolic per AS/NZS 2754.1

Appearance / Finish Arrised edges

Tolerances

Depth: -0mm to +2mm

3.2mm veneer scarf joint

Type A Bond tested per AS/NZS 2098.2

Wax free clear sealant

Width: -2mm to +2mm

Over 70 unique types of quality control data points are recorded throughout the production process along with an independent 3rd party quality assurance program undertaken by NATA accredited testing laboratories. All ITI Spec LVL products are supported by the JAS-ANZ recognized Bureau Veritas S-Mark product certification program.

The logs come from FSC-certified forests ensuring that the origin of the raw material is sustainably managed and traceable to its origins.

A wax free clear sealant is applied to the boards to provide additional protection from the weather. ITI Form Spec® R is a timber product and therefore care should be taken to protect it from prolonged direct exposure to the weather or moisture.

One end of each LVL board has been painted in a unique colour for quick identification of the length.

ITI Form Spec® R can be identified by the following branding printed continuously along all boards:

Width (mm) Depth (mm) Standard Lengths (m) Pieces / Pack 45 95- 6.0 77 63 95 3.6 4.8 6.0 55 75 130 3.6 4.8 6.0 40 75 150 3.6 4.8 6.0 35

This specification should be used to

The following publications, either completely or in part, were considers during the adaptation of this specification guide.

Design Considerations:

• AS 3610-1995 Formwork for Concrete (Superseded Document)

• AS/NZS 1720 Timber Structures - Part 1

Manufacturing and Characterization Requirements:

• AS/NZS 4357 Structural Laminated Veneer Lumber - Series of Standards

• AS/NZS 4063 Characterization of Structural Timber - Series of Standards

Specification Guide Notes:

• Capacity factor ɸ 0.90 Category 2 Primary Structural Member for LVL per AS 1720.1 Table 2.1

• Load Duration k1 0.94 for 5 days per AS1720.1 Table 2.3

• All members to be laterally restrained

• Inclusion of Global Load for Primary Members per AS 3610-1995 Table 4.5.1

• Maximum deflection criteria for this guide is per AS 3610-1995 Table 3.4.2, Item 2 for Class 3 & 4 Quality Requirements: Greater of 3mm and Span/270mm

• Density of concrete, including reinforcement, is assumed as 25 kN/m3

• This specification guide is based on the assumption that the supporting systems, restraints and footings have been appropriately considered

• This guide assumes the worst case of 2 or 3 equal spans all loaded equally. Further review of the assembly is required where the structure consists of an abnormal nature, additional imposed loads or further safety provisions are required

• Consult the ITI technical office if alternative stack loads or span configurations are required.

• The concrete forming contractor should always inspect the formed assembly prior to pouring to identify any damage or heightened moisture present in the members. ITI Form Spec® R must have an equilibrium moisture content of ≤15% or have design considerations made for Partial Seasoning Factor k4 in accordance with AS 1720.1 Section 2.4.2.3

3

ITI Form Spec® R Characteristic Properties (MPa) Weight kg/m3 Joint Group E G F’b F’ c F’ t F’ s F’ p 11,700 585 40.0 45.0 25.0 6.5 10.7 550 JD4 ITI Form Spec® R Section Properties Width (mm) Depth (mm) Mass (kg/m) Rigidity EI (x109Nmm2) Design Capacity Bending (ɸM kN-m) Shear (ɸV kN) 45 95 2.4 37.6 2.4 16.1 63 95 3.3 52.7 3.5 22.6 75 130 5.4 160.7 8.1 36.8 75 150 6.2 246.8 10.9 42.5

Soffit Workwork Definitions

Bearer Joist

Support Structure

JoistCentres BearerSpan

Form Plywood JoistSpan

4 Soffit Formwork - Joists Slab Thickness (mm) Section Size (mm) Maximum Single Span (m) Maximum Continuous Span (m) Joist Centres (mm) 225 300 400 450 480 600 225 300 400 450 480 600 100 95x45 1.9 1.7 1.5 1.5 1.4 1.3 2.3 2.1 1.9 1.8 1.8 1.6 95x63 2.1 1.9 1.7 1.7 1.6 1.5 2.6 2.4 2.1 2.1 2.0 1.9 130x75 3.0 2.8 2.5 2.4 2.4 2.2 3.8 3.4 3.1 3.0 2.9 2.7 150x75 3.5 3.2 2.9 2.8 2.7 2.5 4.3 4.0 3.6 3.5 3.4 3.2 150 95x45 1.8 1.6 1.4 1.4 1.4 1.3 2.2 2.0 1.8 1.7 1.795x63 2.0 1.8 1.6 1.6 1.5 1.4 2.5 2.2 2.0 1.9 1.9 1.8 130x75 2.9 2.6 2.4 2.3 2.2 2.1 3.6 3.2 3.0 2.8 2.8 2.6 150x75 3.3 3.0 2.7 2.6 2.6 2.4 4.1 3.7 3.4 3.3 3.2 3.0 200 95x45 1.7 1.5 1.4 1.3 1.3 1.2 2.1 1.9 1.7 1.6 1.695x63 1.9 1.7 1.5 1.5 1.5 1.3 2.3 2.1 1.9 1.8 1.8 1.7 130x75 2.7 2.5 2.3 2.2 2.1 2.0 3.4 3.1 2.8 2.7 2.6 2.5 150x75 3.2 2.9 2.6 2.5 2.5 2.3 3.9 3.6 3.2 3.1 3.1 2.8 300 95x45 1.5 1.4 1.3 1.2 1.2 1.1 1.9 1.7 1.6 1.5 1.595x63 1.9 1.7 1.5 1.5 1.5 1.3 2.2 2.0 1.8 1.7 1.7 1.5 130x75 2.5 2.3 2.1 2.0 2.0 1.8 3.1 2.8 2.6 2.5 2.4 2.3 150x75 2.9 2.7 2.4 2.3 2.3 2.1 3.6 3.3 3.0 2.9 2.8 2.6 400 95x45 1.4 1.3 1.2 1.1 1.1 - 1.8 1.6 1.5 1.4 -95x63 1.7 1.6 1.4 1.4 1.3 1.2 2.0 1.8 1.7 1.6 1.6 1.4 130x75 2.4 2.2 2.0 1.9 1.8 1.7 2.9 2.7 2.4 2.3 2.3 2.1 150x75 2.7 2.5 2.3 2.2 2.1 2.0 3.4 3.1 2.8 2.7 2.6 2.4 600 95x45 1.3 1.2 1.1 1.0 1.0 - 1.6 1.5 1.3 - -95x63 1.5 1.3 1.2 1.2 1.1 - 1.8 1.6 1.5 1.4 1.4130x75 2.1 1.9 1.8 1.7 1.7 1.5 2.7 2.4 2.2 2.1 2.1 1.9 150x75 2.5 2.2 2.0 2.0 1.9 1.8 3.1 2.8 2.5 2.4 2.4 2.2 1000 95x63 1.3 1.0 1.0 - - - 1.6 1.4 1.3 1.2 -130x75 1.9 1.7 1.5 1.5 1.4 1.3 2.3 2.1 1.9 1.8 -150x75 2.1 1.9 1.8 1.7 1.7 1.5 2.7 2.4 2.2 2.1 2.0Soffit Formwork - Bearers Slab Thickness (mm) Section Size (mm) Maximum Single Span (m) Maximum Continuous Span (m) Bearer Spacing (m) 0.9 1.2 1.5 1.8 2.1 2.4 0.9 1.2 1.5 1.8 2.1 2.4 100 95x63 1.3 1.2 1.0 0.8 0.7 0.6 1.5 1.3 1.2 1.1 0.9 0.8 130x75 1.9 1.7 1.6 1.5 1.3 1.3 2.3 2.0 1.8 1.6 1.5 1.4 150x75 2.2 2.0 1.8 1.7 1.6 1.5 2.7 2.3 2.1 1.9 1.7 1.6 150 95x63 1.2 1.1 0.9 0.8 0.7 0.6 1.4 1.2 1.1 1.0 0.9 0.8 130x75 1.8 1.6 1.5 1.4 1.3 1.1 2.2 1.9 1.7 1.5 1.4 1.3 150x75 2.1 1.9 1.7 1.6 1.5 1.4 2.5 2.2 1.9 1.8 1.6 1.5 200 130x75 1.7 1.6 1.4 1.3 1.2 1.0 2.0 1.8 1.6 1.4 1.3 1.2 150x75 2.0 1.8 1.6 1.5 1.4 1.3 2.4 2.0 1.8 1.7 1.5 1.4 300 130x75 1.6 1.4 1.3 1.1 1.0 0.9 1.8 1.6 1.4 1.3 1.2 1.1 150x75 1.8 1.6 1.5 1.3 1.2 1.1 2.1 1.8 1.6 1.5 1.4 1.3 400 130x75 1.5 1.3 1.1 1.0 0.9 0.8 1.7 1.5 1.3 1.2 1.1 1.0 150x75 1.7 1.5 1.3 1.2 1.1 1.0 2.0 1.7 1.5 1.4 1.3 1.2 600 130x75 1.3 1.1 1.0 0.9 0.8 0.7 1.5 1.3 1.1 1.0 0.9 0.9 150x75 1.5 1.3 1.2 1.0 0.9 0.9 1.7 1.5 1.3 1.2 1.1 1.0 1000 130x75 1.1 0.9 0.8 0.7 0.6 0.6 1.2 1.0 0.9 0.8 0.8 0.7 150x75 1.2 1.1 0.9 0.8 0.8 0.7 1.4 1.2 1.1 1.0 0.9 0.8

Standard Vertical Form - 3.3 to 3.9m High Walers to extend over a minimum of 3 spans

Form Plywood

Max.300mm Cantilever

WalerJoistSpan

95x45 ITI Form Spec R

Waler Joists

2/95x45 ITI Form Spec R

Soldier Bearers

Tie rods

to page 7 for Vertical Form Notes

Refer

150mm 400mm 500mm 550mm 750mm 900mm 650mm Maximum 150mm 450mm 550mm 600mm 900mm 650mm Maximum Specifcations Form Height Up to 3.3m Up to 3.9m Soldier Bearer Centres 800mm 700mm Waler Joist Centres First 5 @ 240mm ctrs Remainder @ 300mm ctrs Tie Rod ɸ Nt 55kN 62kN

3.3m High Maximum 3.9m High Maximum

Standard Vertical Form - Up to 3.0m High Walers to extend over a minimum of 3 spans

2/95x45 ITI orm Spec R Waler Bearers >150mm&

600mm

1100mm

1000mm

300mm

250mmMax.

<250mm

Tie-RodsSpacedat600mmMax. (WalerBearerSpan) Form Plywood 95x45 ITI Form Spec R Soldier Joists

Tie Rod ɸ Nt ≥ 52kN Refer to page 7 for Vertical Form Notes

Standard Vertical Form - Up to 1.8m High Walers to extend over a minimum of 3 spans

95x45 ITI Form Spec R

Soldier Joists

300mmMax.

Form Plywood

Vertical Form Notes:

• Specification Guide notes on Page 3 are applicable to vertical forms

• Waler joists must span over a minimum of 3 spans for 3.3 & 3.9 wall configurations

• Waler bearers must span over a minimum of 3 spans for 3.0 & 1.8 wall configurations

2/95x45

ITI Form Spec R

Walers Bearers

600mm

900mm

300mm

• No holes to be drilled through any soldiers or walers. Space double walers and soldiers to accommodate the tie bolts between the members

• Vertical form designs based on a hydrostatic pressure distribution

• Form plywood specifications by others

Tie-RodsSpacedat900mmMax. (WalerBearerSpan) >100mm& <200mm

Tie Rod ɸ Nt ≥ 25kN
