International Research Journal of Engineering and Technology (IRJET) e-ISSN: 2395-0056 Volume: 09 Issue: 01 | Jan 2022 www.irjet.net p-ISSN: 2395-0072 © 2021, IRJET | Impact Factor value: 7.529 | ISO 9001:2008 Certified Journal | Page895 “ANALYSIS AND UTILIZATION OF WASTE PLASTIC IN BUILDING BLOCKS THROUGH MOULDING PROCESS’’ Manish Kumar1 & Dr. Neeraj Kumar2 1,2Affiliation Suresh Gyan Vihar University, Jaipur, Rajasthan, India *** ABSTRACT: Industry by considering several parameters for developing infrastructure in the field of commercial & residential sectors rapid urbanization leads lots of development. In this paper, study shows the reuse of waste plastics bricks & paver blocks as concrete for the wall construction and pavers for the pavement area development & their utilization. Different tests were conducted for the mechanical properties of bricks and strength of the paver product to determine their life in physical environment. The result shows that the plastics bricks & paver blocks product which can be used for long term applications and their durability & strength is also so high in absorbed test results. Ultimately, it will increase the raw materials for the construction’s purposes and, it will solve the solid waste management problem.
Plasticisoneofthedailyincreasingusefulaswellasahazardousmaterial.plasticisfoundtobeveryuseful at time of need, but after its use is over it is simply thrown away, creating all kinds of hazards. As we all know plastic is a non biodegradable that remains as a hazardous material for more than centuries. Municipal Solid Waste (MSW)is expandingrapidlyintermof quantityof plasticwastes. Researchershavealso found that the plasticmaterialscanremainonearthfor4500yearswithoutdegradation,astheyarenon degradable.InIndia approximately40milliontonsofthemunicipalsolidwasteisgeneratedannually,withevaluatedincreasingata rateof1.5to2%everyyear.Asaresult,thesewasteplasticsaretobeeffectivelyutilized.Wasteisincreasingin landfillsindifferentforms.

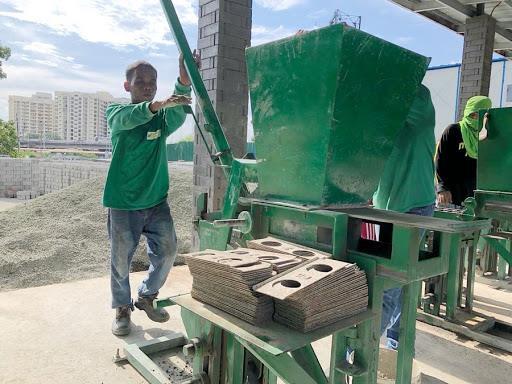

Fig 1: Pattern formation & casting of Building Blocks
Theprocessofidentifyingbuildingblocksinvolveslookingforcollectionsofdifferentfunctionswhichrequire integrationtodrawthemtogetherormakethemdifferent.Considerthedifferentclassesofbuildingblocks:

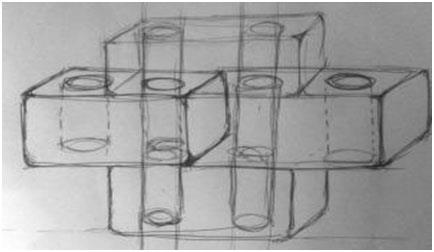

Block Designs
International Research Journal of Engineering and Technology (IRJET) e-ISSN: 2395-0056 Volume: 09 Issue: 01 | Jan 2022 www.irjet.net p-ISSN: 2395-0072 © 2021, IRJET | Impact Factor value: 7.529 | ISO 9001:2008 Certified Journal | Page896
i. Re usablebuildingblockssuchaslegacyitems
Conventional block, brickor wood walls canalso be replaced by PW. These plastic walls are made byplacing recycled plastics in heat moulds and pressing the moulds together to form blocks. Although these types of walls cannot be used for load bearing applications but are suitable for wall construction applications such as partitionwalls.Incomparisonwithconventionalbricks,wasteplasticbottlescanbearrangedinasameformat asbricksandusedforwalls.Thewastebottlesareconnectedtoeachotherbyinsertingthebottleneckofeach bottle in the base of another bottle. Their study showed that sand blocks that are strong and durable can be madewithnoneedforwaterforthemanufacturingprocess.
ii. Buildingblockstobethesubjectofdevelopment,forexampleinnewapplications.
iv. Usingthedesiredlevelofintegrationtobindorcombinefunctionsintobuildingblocks.
v. Forexample,legacyelementscouldbetreatedaslargebuildingblockstoavoidbreakingthemapart. Thebuildingblocksareoftenkeptatabroadintegrationdefinition,intheearlystagesandduringviewsofthe highest level enterprises. The services definitions can often be best viewed during these exercises. For implementation considerations are addressed, more detailed views of building blocks can often be used to address implementation decisions, focus on the critical strategic decisions, or aid in assessing the value and futureimpactofcommonalityandre usability.
B. Depending upon the basic usage of plastics, several types of PW composing of polyethylene terephthalate (PET), High density polyethylene (HDPE), low density polyethylene (LDPE), polypropylene(PP),polystyrene(PS),etc.arebeinggenerated
C. Waste plastic bags, which are non biodegradable, have been recycled to produce floor and wall tiles withlesserflammabilityandenhancedtensilestrength.
A. Although,theoptimumamountwasconcludedtobe5%ofplasticwastethatcanbeincorporatedinto asphaltmixtureswithoutanydetrimentaleffectonitsviscosity.
iii. Buildingblockstobethesubjectofpurchase.
Environment Influencing Recycling Plastic Wastes
International Research Journal of Engineering and Technology (IRJET) e-ISSN: 2395-0056 Volume: 09 Issue: 01 | Jan 2022 www.irjet.net p-ISSN: 2395-0072 © 2021, IRJET | Impact Factor value: 7.529 | ISO 9001:2008 Certified Journal | Page897
Building Blocks
Gap Analysis Buildingblockformationfortheirstrengthandweaknessintheproduct.existingsystemsornewsystemsare beingmetand,ifnot,whatstepsshouldbetakentoensuretheyaremetsuccessfully. So,gapanalysisformed, andthereviewofpaperstakenfortheexistingsystemsandtheirgap,whichareasbellows.
CrucialroleindeterminingPlastic&Sandratiosandtheirsuperiorstrengthisthepointofdiscussion.
Plastic bricks are economically cheap and are light too. Many forms of plastics are present in the market, if we talk about the design then bricks, pavers and tiles are available. Plastic is more durable andhavebetterstrengthascomparedtoconventionalbricksandsomeotherproductsofplastics. Thereisenoughplasticpresentinthemarketthatcanbeusedformakingourhomes.Topresstheissue ofplasticsitwillberesolvedbyutilizingit.Recycledplastictoaddress80%ofthepopulationresidesin urbanareasandtheiremployment. Pavershavefastcuringandlowwaterabsorptionproperties.Therefore,byusingitinbricksitreduces thedampinginsidethehomes. Ifwetalkabouttheordinaryconcreteandcompareitwithplasticsbricksthenwehavelotsofplastics bricksanditismorebeneficialtous.
Newapproachessetandanalysismethodwillbetakenintoconsiderationtoshowthatitwillbebetter asperenergypointofviewtouseinthebuilding.
Concrete blocks are mass manufactured to standard sizes. These blocks have excellent interlocking characteristics,durabilityandhavegreataesthetics.
Both ordinaryandplastic paver blocks are designfor same grade andcomparedbyits durabilityand compressivestrength.
Sizeofthesandgrainsandtheirbindingisthepointofdiscussion. The discussionoverthe tensile strength &compressive strength inthe paver &Buildingblocks to the range of 1.26 3.15 N/mm2, which ultimately worked in the strength of the sand concentration and increaseofsand.
2. Experimental Methods
The study looked at a lot of material for purposive and simple sampling plastic waste. In this regard, various collectionofmaterialsandrecyclingitforproducts. Construction and Prototype Design of PW Brick
Paving Blocks
Brickpavers,concretepaver,granitepaver,rubberpaverandstonepaversarepresentinvarioustypes andarewidelyused.Cement,quarrydust,crushedaggregates,coarseaggregates,andplasticwasteare essential,forthemanufacturingplasticpaverblocks.
1. PWfromtheprototypedesignandtheblockmadethroughthat.
Traditional Building materials and the developed Building Blocks and Paver blocks will be more effectiveintheircomparisontothetraditionalclaypaverblocksandbrick.
2. Ideaofhowtheblockcanbeusedinreallife.
3. asakindoffundamentforthehouses,designblockwillbeused,tomaintainthelookasfromclay.
International Research Journal of Engineering and Technology (IRJET) e-ISSN: 2395-0056 Volume: 09 Issue: 01 | Jan 2022 www.irjet.net p-ISSN: 2395-0072 © 2021, IRJET | Impact Factor value: 7.529 | ISO 9001:2008 Certified Journal | Page898 4. Astheyneedtodoittodaythehousewillstillbeexisting.Itwillbetherooftobuildupthehouseagain fromthescars,evenaftercompletionofthemonsoonseasons. Figure 2: Design sketch of model brick. Composition of the PW materials i. AspertherequirementPW(i.e.,polythenebagsandcrispbogs) ii. Preparationofthebrickforthedimension(230*100*75)cmsforthestandardbrickmould. iii. Usedtheelectricovenofheatingwhichissolargrillovenwithcapacity175to200ºC. iv. Acompressing/tampingrodwithametalcoverplateandwatersprinkler. Table 2: Sand Mixing Proportions and their composition fixed for Sand ratios Sand Mixing Proportions 1:2 1:3 1:4 For 1 brick (in gram) 1100:2200 850:2550 650:2600 For 2 bricks (in grams) 2200:4400 1700:5100 1300:5200 3. Results & Discussion Analysis of brick from plastic scrap 3.1 Compression Strength Test Thepurposeoftheexperimenttofindtheproperties,andthebrickspecimenisplacedonacrushingmachine andpressureisapplieduntilitbreaksin thistest.Andthereadingisconsidered.Itisconsideredtheultimate pressureatwhichbricksarecrushed.Eachofthefourbrickexamplesweretestedindividually,andtheloadat crushingwasrecorded. Figure 3: Specimen testing for the brick under compression
International Research Journal of Engineering and Technology (IRJET) e-ISSN: 2395-0056 Volume: 09 Issue: 01 | Jan 2022 www.irjet.net p-ISSN: 2395-0072 © 2021, IRJET | Impact Factor value: 7.529 | ISO 9001:2008 Certified Journal | Page899 The compressive strength was calculated as follows: Compressive strength (MPa) = Failure load / cross sectional area. Table 3: Below Table for Test (1:2) Ratio, plastic sand ratio vs Compressive strength Test (1:2 Ratio) for the Plastic Sand Brick Strength(kg/cm2)Compressive Maximum Load (KN) Test S1 Specimen 1 193.87 500 Test S2 Specimen 2 203.56 525 Test S3-Specimen 3 189.99 490 Table 4: Below Table for Test (1:3) Ratio, plastic sand ratio vs Compressive strength Test (1:3 Ratio) for the Plastic Sand Brick Strength(kg/cm2)Compressive Maximum Load (KN) Test S1 Specimen 1 135.71 350 Test S2 Specimen 2 124.07 320 Test S3 Specimen 3 129.89 335

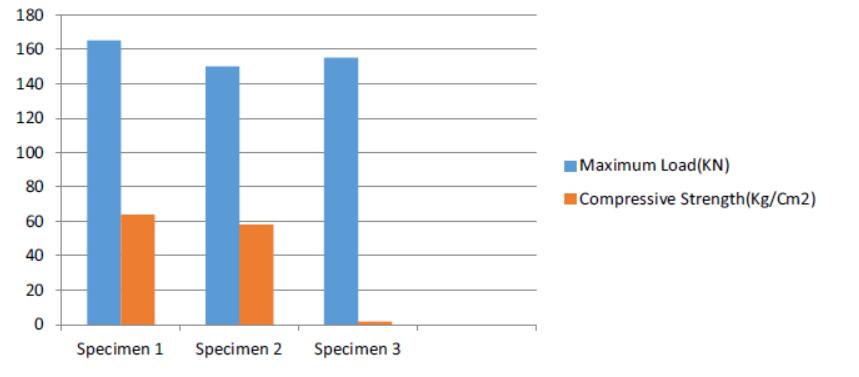

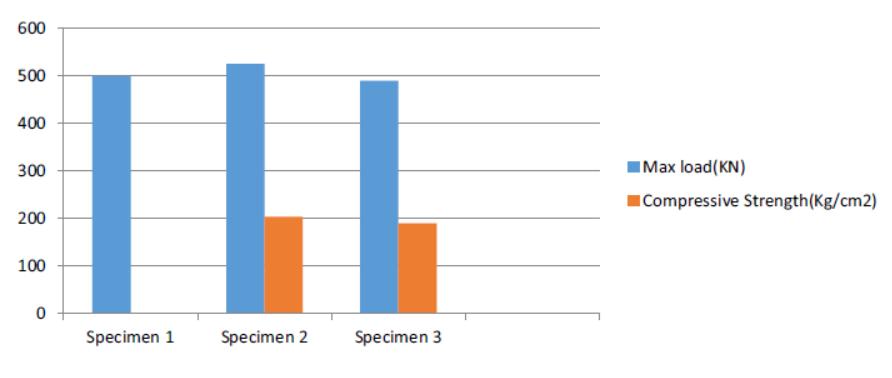

International Research Journal of Engineering and Technology (IRJET) e-ISSN: 2395-0056 Volume: 09 Issue: 01 | Jan 2022 www.irjet.net p-ISSN: 2395-0072 © 2021, IRJET | Impact Factor value: 7.529 | ISO 9001:2008 Certified Journal | Page900 Table 5: Below Table for Test (1:4) Ratio, plastic sand ratio vs Compressive strength Test (1:4 Ratio) for the Plastic Sand Brick Strength(kg/cm2)Compressive Maximum Load (KN) Test S1 Specimen 1 63.97 165 Test S2-Specimen 2 58.16 150 Test S3-Specimen 3 60.10 155

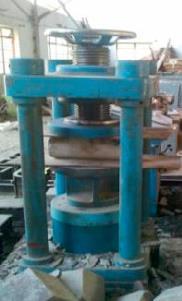

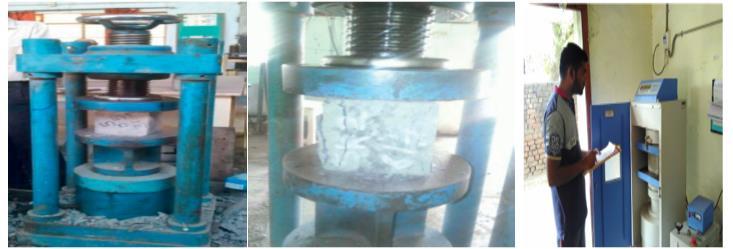

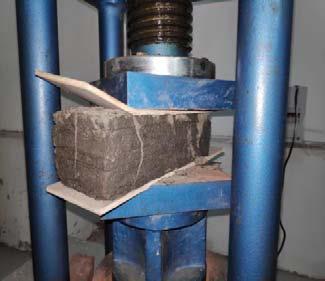

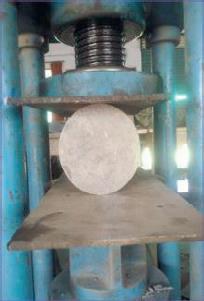

International Research Journal of Engineering and Technology (IRJET) e-ISSN: 2395-0056 Volume: 09 Issue: 01 | Jan 2022 www.irjet.net p-ISSN: 2395-0072 © 2021, IRJET | Impact Factor value: 7.529 | ISO 9001:2008 Certified Journal | Page901 Fig 4: load carrying capacity of Brick under compression test 3.2 Tensile strength Test Inthistest,weweighbricksindryconditionbeforeimmersingtheminfreshwaterfor24hours.Agoodquality brickwillformbyusingtheless%ofwater.Initially,brickswt.willbehigherthegradeof brickandthewater will be out wipedout and clean, water absorptionis computed. Thus, the less water it absorbs the better the qualityofbricks.Tensilestrengthwascalculatedasfollowsassplittensilestrength: PWhere,=failure load, D = diameter of cylinder, L = length of cylinder. Fig 5: Specimen graph for testing of building blocks for under split tension Brick Water absorption = {[Weight of wet brick= Weight of dry brick]/Weight of dry brick} *100

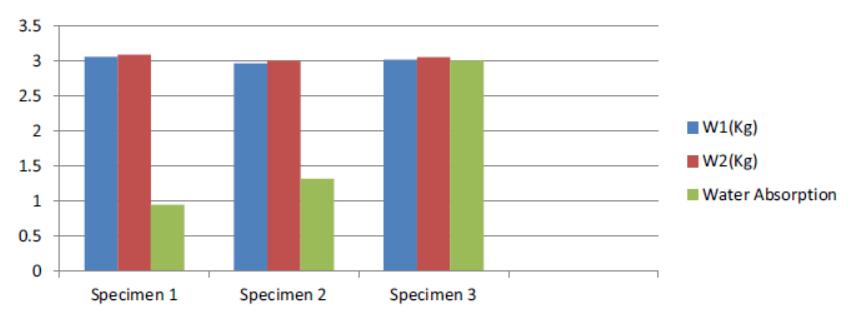

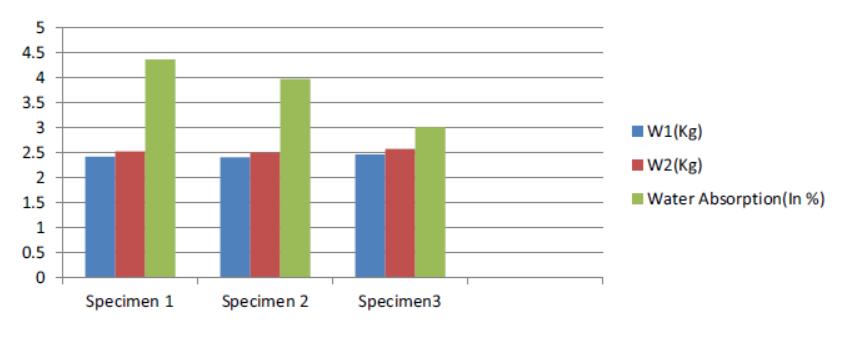

International Research Journal of Engineering and Technology (IRJET) e-ISSN: 2395-0056 Volume: 09 Issue: 01 | Jan 2022 www.irjet.net p-ISSN: 2395-0072 © 2021, IRJET | Impact Factor value: 7.529 | ISO 9001:2008 Certified Journal | Page902 Table 6: Graph for testing of building blocks and Results of Specimen for Water Absorption Test (1:2 Ratio) for the Plastic Sand Brick Test (1:2 Ratio) for the Plastic Sand Brick Water Absorption (in %) W1 (kg) W1 (kg) Test S1 Specimen 1 0.949 3.058 3.053 Test S2 Specimen 2 1.318 2.997 2.958 Test S3-Specimen 3 1.227 3.051 3.014 Table 7: Graph for testing of building blocks and Results of Specimen for Water Absorption Test (1:3 Ratio) for the Plastic Sand Brick (Source: Surveyor engineering) Test (1:3 Ratio) for the Plastic Sand Brick Water Absorption (in %) W1 (kg) W1 (kg) Test S1 Specimen 1 2.723 2.601 2.532 Test S2 Specimen 2 2.642 2.564 2.498 Test S3 Specimen 3 3.238 2.678 2.594
International Research Journal of Engineering and Technology (IRJET) e-ISSN: 2395-0056 Volume: 09 Issue: 01 | Jan 2022 www.irjet.net p-ISSN: 2395-0072 © 2021, IRJET | Impact Factor value: 7.529 | ISO 9001:2008 Certified Journal | Page903 Table 8: Graph for testing of building blocks and Results of Specimen for Water Absorption Test (1:4 Ratio) for the Plastic Sand Brick Test (1:4 Ratio) for the Plastic Sand Brick Water Absorption (in %) W1 (kg) W1 (kg) Test S1 Specimen 1 4.351 2.516 2.411 Test S2 Specimen 2 3.963 2.492 2.397 Test S3-Specimen 3 4.560 2.568 2.456 3.3 Efflorescence test The test was conducted in accordance with ISS 1077 1970 requirements. This test is used to determine the presenceofhazardousalkalisinPETbricks. Table 8: Testing of building blocks for Alkali presence in the bricks as appeared on the surface Nil 0% Slight Upto10% Moderate 10%to50% Heavy Morethan50%withoutpowderedFlakes Serious Morethan50%withpowderedFlakes Onthesurfaceofthebrick,excessiveevaporation,intowhichdistilledwaterispouredinsuitableamounts.The immersion depth is 25mm. The blockis soaked indistilled water for 24 hours before being used. To prevent, open container without the brick or sheet the container is covered with a glass sheet and taken from the container.Todryforthesameperiodthatthewaterinthemusthaveevaporated.Theefflorescenceinthebrick canbecategorizedintotheabovecategoriesbasedonareacoveredbysalt/alkalis.

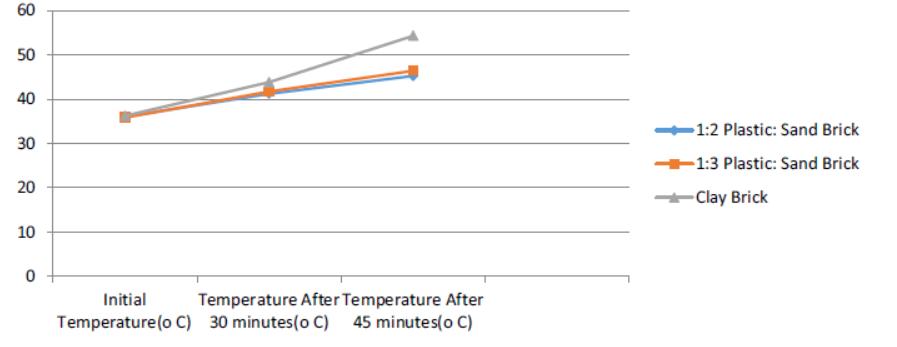

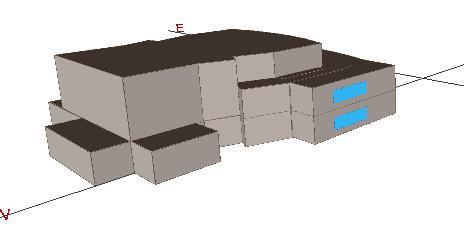

International Research Journal of Engineering and Technology (IRJET) e-ISSN: 2395-0056 Volume: 09 Issue: 01 | Jan 2022 www.irjet.net p-ISSN: 2395-0072 © 2021, IRJET | Impact Factor value: 7.529 | ISO 9001:2008 Certified Journal | Page904 3.4 Fire Resistance Test The test was conducted in accordance with BIS 3809 1979. The plastic alone is easily vulnerable to high temperatures, if not flammable, and in the event of a fire, the sand and plastic mixture may be able to resist temperaturesthatplasticsalonecannot.Toretainthebrickattheusualtestingtemperaturestructuralintegrity ofthebricksinthefurnacequalities,itwillbefoundthatitwillbegoodupto180oC. Table 9: Building blocks testing under temperature rise with Plastics Brick and Clay Bricks Plastics Brick and Clay Bricks Clay Brick 1:3 Plastic: Sand Brick 1:2 Plastic: Sand Brick Initial Temperature (o C) 36.2 35.8 36.0 Temperature After 30 minutes (o C) 43.8 41.7 41.2 Temperature After 45 minutes (o C) 54.3 46.4 45.2 3.5 eQuest Output Summary Heat transfer inside the building (Test Results Conducted over Model)
International Research Journal of Engineering and Technology (IRJET) e-ISSN: 2395-0056 Volume: 09 Issue: 01 | Jan 2022 www.irjet.net p-ISSN: 2395-0072 © 2021, IRJET | Impact Factor value: 7.529 | ISO 9001:2008 Certified Journal | Page905 BUILDING NAME & TYPE ASSEMBLY BUILDING LOCATION Bihar CLIMATIC ZONE Warm&Humid FAR AREA (m2) 150 ECBC compliance achieved ECBC2019 EPI (Baseline Case), kWh/m2/year 14.51 EPI (Proposed Case), kWh/m2/year 17.82 ENERGY SAVING ACHIEVED, kWh/ YEAR 15 EPI Ratio Achieved 0.81 Opaque envelope specification OPAQUE ASSEMBLY Construction Layers Specification Ext. WALL assembly Assemblylayers: a. 100mmPlasticBlock b. 50mmXPSInsulation c. 100mmPlasticBlock U value 0.0634W/m2K: Assemblythickness 250mm Roof Assembly Assemblylayers: a. (Innermost)20mmCementPlaster b. 150mmRCCSlab c. 50mmXPSInsulation d. 100mmScreed U value 0.0564W/m2K: Assemblythickness 320mm: Wall insulation Type:XPS R value 1.429Km2/W: Thickness 50mm: Roof insulation Type:XPS R value1.429Km2/W: Thickness 50mm: 4. Conclusion Plastics is playing vital role in the day to day life of our living. Society and their uses increase their consumptionandwastesgeneratedisinevitable. Applicationfor the usesofplastics todayis viableoptionfor managethesustainabilityofthepresentenvironmentconditions.Theseplasticwastesgeneratedattheend of theusagewillberecycledtoreducethedamageoccurringtoenvironment.Here,currentresearchthathasbeen donetodiscussovertheproductbehaviorandthecastingdonetorecycletheplasticsLDPEtodesiredproduct andtheirbestapplications.Overviewhasexploredextensivelyforthefollowingconclusionscanbedrawn. 1. Using the PW as a recycle materials, it will increase the rawmaterials for the construction’s purposes and,itwillsolvethesolidwastemanagementproblem.
