Cooling System for a Residential Unit Trisham Bharat Patil1 1University of Cincinnati, Cincinnati, Ohio. - Athermoelectric basedsystemiscomprised of both p and n type materials (semiconductors) which are arrangedinparallellayersandbroughtincontacttoforma junction.Thermoelectriccoolers(TEC)willpumpheatata rateproportionaltothepowerappliedandThermoelectric generators (TEG) will generate power, provided a temperature gradient is applied across it. During summertimeinTexas,theaveragetemperatureformostof thedayisgreaterthan35,thetemperatureofair20ftbelow the ground is at 15 , this temperature difference across TEG can be used to supply the required power to operate TEC. The Thermoelectric Coolers (TEC) will be in a box, which has fans on both sides and a TEC panel to provide cooling, the TEG will be attached outside in panels, connected to a fan/ pump which draws cool air from a pipeline/ground20ftbelow,thetopwillincontactwithhot ambient air. Work has been done on the advancement of materialstobeusedforthermoelectricmaterials,increasing thesizeofpanels,butthispaperfocusesontheapplication of previous material knowledge, in particular, Bismuth Telluride and its alloys to develop a self working cooling systemwiththeuseofTECandTEG.Workhasbeendoneon whetherthesize,current,cost,andpowerrequirementscan be kept within a reasonable limit while optimizing performanceandefficiency.
*** Abstract
Thermoelectric
Since demand for electricity for cooling is expected to increasebecauseoftemperatureincreaseandextremeheat events,thebalanceinenergydeliveryislikelytoshiftfrom naturalgasandfueloilusedforheatingtoelectricityused forairconditioning,whichwilllikelyaffectgreenhousegas emissions. The current air conditioning (AC) system producescoolingeffectbyrefrigerantslikeFreon,Ammonia, etcbasedonVaporCompressionCycle Theserefrigerants canprovidemaximumoutput,butitgeneratesharmfulgas emissionandresultsinglobalwarming.TheU.S.powergrid is divided into three sections: West, East and one for the stateofTexas,powergeneratedbyTexans,forTexans.The ElectricReliabilityCouncilofTexassaidpowersupplyhas been low in recent years due to many forced power generationoutagesandrecordJunedemand.Itappealedto userstoreducepowerconsumptionasmuchaspossibleby setting thermostats to 78 degrees or higher, unplugging unuseddevicesandavoidingusinglargeelectricappliances. Refrigerationistheprocessofheat removalfromaspaceto bring it to a lower temperature than surrounding temperature.Inthiscontext,“Peltiercoolingmodule”which works on thermoelectric refrigeration, aims to provide coolingbyusingthermoelectriceffectsratherthanthemore prevalent conventional methods like ‘vapors compression cycle’ or the ‘vapor absorption cycle’. The three types of thermoelectriceffect areSeebeck effect,Peltiereffect,and Thomson effect. From these three effects, Thermoelectric cooler works on the Peltier effect, which states that when voltageisapplied a semiconductor,heatis absorbedfrom one junction and heat is rejected at another junction.
ThermoelectricgeneratorworksonSeebeckeffectwhichis theoppositeofPeltiereffect. DuringsummertimeinTexas,theaveragehightemperatures are30°Cto36.7°C,whiletheaveragelowtemperaturesare between19.4°Cto24.4°Candthetypicaldaylastforabout6 hours at maximum temperature difference. The ground temperature at depths greater than 15 feet remains relatively constant through the year. At a depth of 20 feet (6.04m),theaveragegroundtemperatureis15°Cinsummer and18.37°Cinwinter.TheTEGprovidesanelectriccurrent ifatemperaturedifferenceisappliedacrossit,thedifference intemperatureofambientairandgroundairtemperatureat depth greater than 10 feet is used as input to TEG, the currentisthenusedtooperateTECforcooling.Asduring summer,inTexasaveragetemperatureisbetween32 36°C onanaverage6 7hoursadayforapproximately3months, thisfactcanbeusedtoprovideself sufficientcoolingsaving moneyandreducinggreenhousegasemissions.
International Research Journal of Engineering and Technology (IRJET) e ISSN: 2395 0056 Volume: 08 Issue: 12 | Dec 2021 www.irjet.net p ISSN: 2395 0072 © 2021, IRJET | Impact Factor value: 7.529 | ISO 9001:2008 Certified Journal | Page854
Key Words: Thermoelectric, Thermoelectric Generator, Thermoelectric Cooler, Bismuth Telluride, 1.Semiconductors.INTRODUCTION
1.1 Assumptions Roomsizeandcoolingpowerrequired:Forpurposeofthis paper, I am going to consider cooling required for a suburban residential home, first floor which includes kitchen,livingroom,foyer,andaguestroom,figureshown below.Theaveragedimensions(accordingtodataprovided online) of the entire room (which includes kitchen, living room,foyer,andaguestroom)is1500sqft,withanaverage ceilingheightof10ft.Forafamilyof5,themaximumcooling requiredfortheroomis15000Btu/hror3KW.
International Research Journal of Engineering and Technology (IRJET) e ISSN: 2395 0056 Volume: 08 Issue: 12 | Dec 2021 www.irjet.net p ISSN: 2395 0072 © 2021, IRJET | Impact Factor value: 7.529 | ISO 9001:2008 Certified Journal | Page855

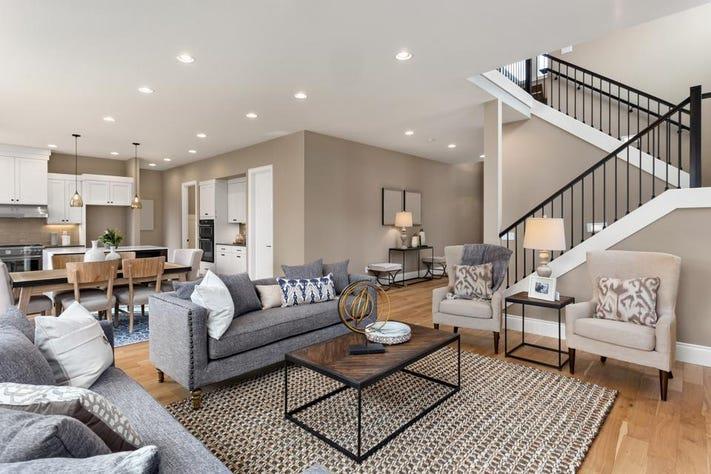

Fig.1Exampleoffirstfloor residentialhome. Fig.2Referenceresidentialunit. 2. 2.1DesignDesign of TEC panel.

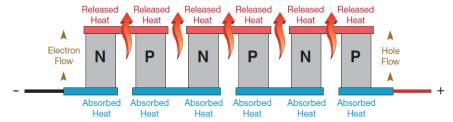

ThePeltiereffectoccurswheneverelectricalcurrentflows through two different semiconductors, which states that when voltage is applied across a semiconductor, heat is absorbedfromonejunctionandheatisrejectedatanother junction. Within the world of thermoelectric technology, semiconductorsmadeupof BismuthTellurideandblends are the fabric of choice for producing the Peltier effect becausethey'llbemorefluentlyoptimizedforpumpingheat. Usingthiskindoffabric,aPeltierdevice(i.e.,thermoelectric module) are frequently constructed in its simplest form around one semiconductor “bullet” which is soldered to electrically conductive material on each end (generally plated bobby). During this configuration, the alternate different material needed for the Peltier effect, is that the bobby connection paths to the installation force. It's important to notice that the warmth/heat is going to be moved within the direction of charge carrier movement throughoutthecircuit(actually,it'sthechargecarriersthat transfer the heat). For producing the Peltier effect, semiconductor amalgamation accoutrements, like Bi2Te3 and PbTe, are better than metals. A typical TE module generallyconsistsofthenumerousn typeandp typebulk semiconductor thermoelements that are connected electrically periodical and thermally in resemblant and squeezedbetweentwoceramicplates.ByarrangingNandP typebulletsinaveritably“couple”andformingajunction between them with a plated bobby tab, it's possible to configureacircuitwhichmaykeepallthewarmthresidency theidenticaldirection.Asshownwithintheillustration,with thefree(bottom)endoftheP typebulletconnectedtothe positivevoltageeventualityandthusthefree(bottom)end oftheN typebulletalsoconnectedtothenegativesideof the voltage. As we have got seen in former section, for N typeofsemiconductor,heatisabsorbedfromthejunction aroundthenegativeterminalandwarmthisreleasesatthe junction close to the positive outstation. For P type of semiconductor,heatisabsorbedfromthejunctionjustabout positiveterminalandreleasedatthejunctionwithrespects tonegativeterminal.Byarrangingthecircuitaslikeinfigure below,it'spossibletoreleaseheattotheonesideandabsorb fromanotherside. Fig.3Principleofthermoelectriccoolersutilizing semiconductorPeltiereffects.

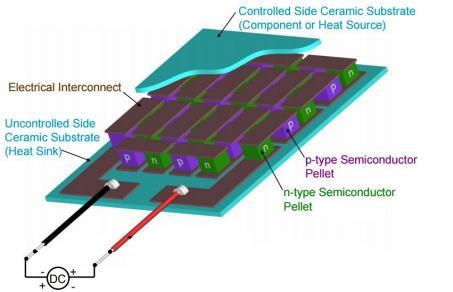

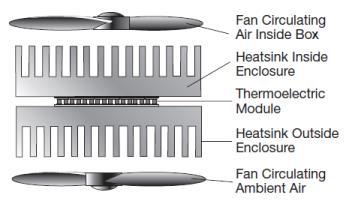

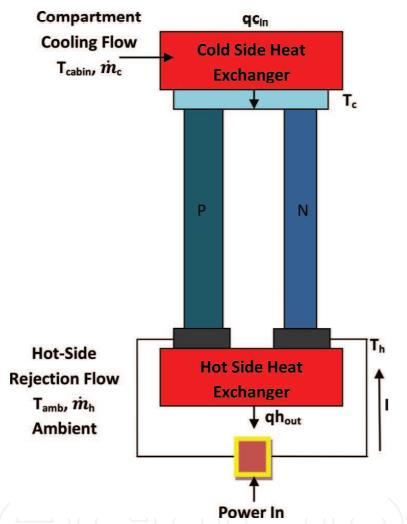

Fig.5TECCoolingenclosure. Fig.6TECCoolermodule. Consideringatypicalthermoelectricsystemdesignedtocool airinaquadrangle(e.g.,easystreetbox,outfitquadrangle.) ispresumablythemostcommontypeofTEoperation.Then thechallengeisto“gather”heatfromtheinsideofthebox, pumpittoaheatexchangerontheoutsideofthebox,and releasethecollectedheatintotheambientair.Generally,this isdonebyemployingtwoheatsink/addictcombinationsin confluencewithoneorfurtherPeltierbias.Oneoftheheat sinks is used on the inside of the quadrangle; cooled to a temperaturebelowthatoftheairinthebox,thesinkpicks upheatastheaircirculatesbetweenthefins.Inthesimplest case,thePeltierdeviceismountedbetweenthis“coldside” sinkanda“hotside”sink.Asdirectcurrentpassesthrough the thermoelectric device, it laboriously pumps heat from thecoldsidesinktotheoneonthehotside.Theaddicton thehotsidealsocirculatesambientairbetweenthesink’s finstoabsorbsomeofthecollectedheat.Notethattheheat dissipatedonthehotsidenotonlyincludeswhat'spumped fromthebox,butalsotheheatproducedwithinthePeltier deviceitself(VxI).

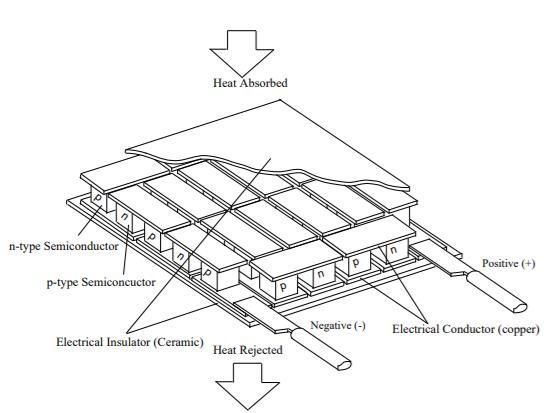

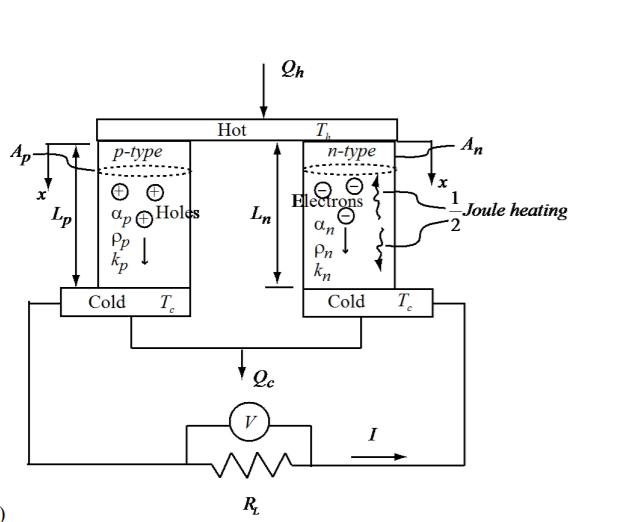

2.1.1 Fabrication of Peltier cooler. As we've seen in former section, for producing thermoelectric effect couples of P and N type semiconductorsareconnectedinseriesbyessenceofplates. Bydoingthisitabsorbstheheatfromonesideandreleases the heat to another side. So, when solid state P N accoutrements are connected electrically in series and thermallyinresemblantitmakesonethermoelectricunitas showninFigure6.Atypical TECmodulecomprisesoftwo largelythermallyconductivesubstrates(A12O3,AlN,BeO) thatserveasHot/Coldplates.Anarrayofp typeandn type semiconductor(Bi2Te3,Sb2Te3,Bi2Se3,PbTe,Si Ge)bullets are connected electrically in series squeezed between the substrates.Thedeviceistypicallyattachedtothecoldsideof the TEC module, and a heat sink which is needed for enhancedheatdispersionisattachedtothehotside.Solder is typically used to connect the TEC rudiments onto the conducting pads of the substrates. The construction of a singlestagethermoelectricmoduleisshowninFigurebelow.
International Research Journal of Engineering and Technology (IRJET) e ISSN: 2395 0056 Volume: 08 Issue: 12 | Dec 2021 www.irjet.net p ISSN: 2395 0072 © 2021, IRJET | Impact Factor value: 7.529 | ISO 9001:2008 Certified Journal | Page856 Fig.4
2.1.2 Semiconductor Materials. Bismuth telluride is a narrow gap concentrated semiconductor with a trigonal unit cell. The valence and conductionbandstructurecanbedescribedasanumerous ellipsoidalmodelwith6constant energyellipsoidsthatare centered on the reflection planes. Bi2Te3 cleaves fluently along the trigonal axis due to Van der Waals relating between bordering tellurium tittles. Due to this, bismuth telluride grounded accoutrements are used for power generation or cooling operations must be polycrystalline. Likewise, the Seebeck measure of bulk Bi2Te3 becomes compensated around room temperature, forcing the accoutrements used in power generation bias to be an amalgamation of bismuth, antimony, tellurium, and selenium.FormydesignI'mgoingtouseBi2Te3(Bismuth Telluride)blendsasmysemiconductor.Thepropertiesare listedbelow:
Thermoelectricmodules.

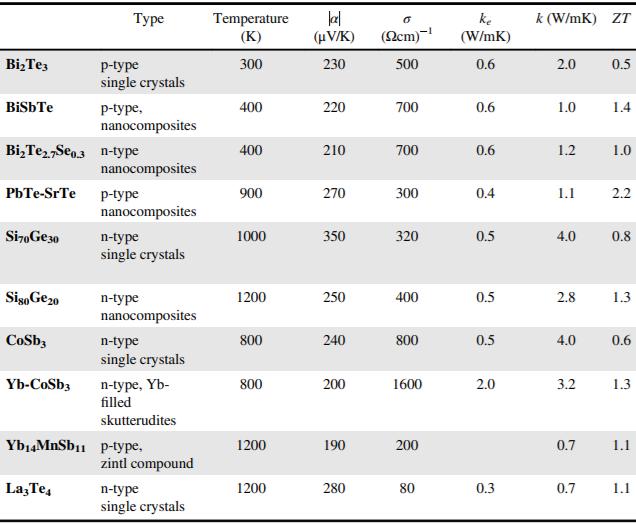

Fig.7Thermoelectricpropertiesofmaterial. p type:Bi2Te3 n type:Bi2Te2.7Se0.3.
Thenextpartofsimulationasksformodeselectionandthe inputparameters.Selectthemode5thermoelectriccooling where top temperature is known and electric current as independent variable from 5A to 5A. T1 is temperature insidetheroom,assumingtheroommustbekeptat300K, T1is300KandforTambientwehavetemperaturesfrom 32 36°C or 305K 309K. Next page asks for material propertiesanddimensionswhichcanbeinputtedfromthe tables and values provided in previous sections. After enteringappropriatevaluesthenwehitsimulate. Fig.9Thermoelectriccoolermodule Modeselection.
International Research Journal of Engineering and Technology (IRJET) e ISSN: 2395 0056 Volume: 08 Issue: 12 | Dec 2021 www.irjet.net p ISSN: 2395 0072 © 2021, IRJET | Impact Factor value: 7.529 | ISO 9001:2008 Certified Journal | Page857
2.1.3 Semiconductor Dimensions. According to data obtained from Sager Electronics, on averagethedimensionsofTECModulearegivenbelow: AreaofTECModule=60mm*60mm=3600 Areaofptypeandn type(total)=1800 Numberofp typeandn typeelements=10. Areaofptypeandn type(single)=180 ElementThickness=10mm Averageprice=2.5$/module.
2.1.4 Simulation. SimulationwasperformedusingNanoHubsimulationtool, developedbyJe HyeongBahk,MeganYoungs,ZachSchaffter, KazuakiYazawaandAliShakouriatPurdueUniversity.We havecoolingloadas3KW,usingNanoHub,Ifoundoutthe currentthatgivesthemaximumperformanceforrequired coolingatambienttemperaturesfrom32 36°C.Thesubtool used is thin film and multi element thermoelectric device simulator.

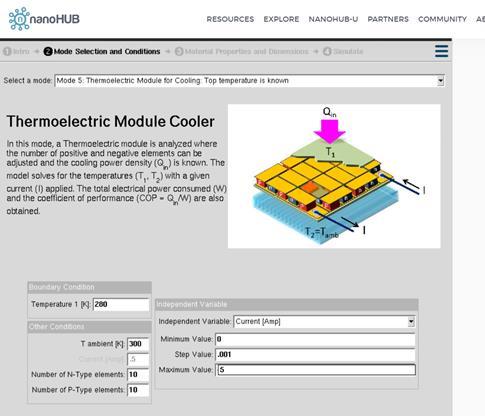

Fig.8ThermoelectricNanoHubsimulator.

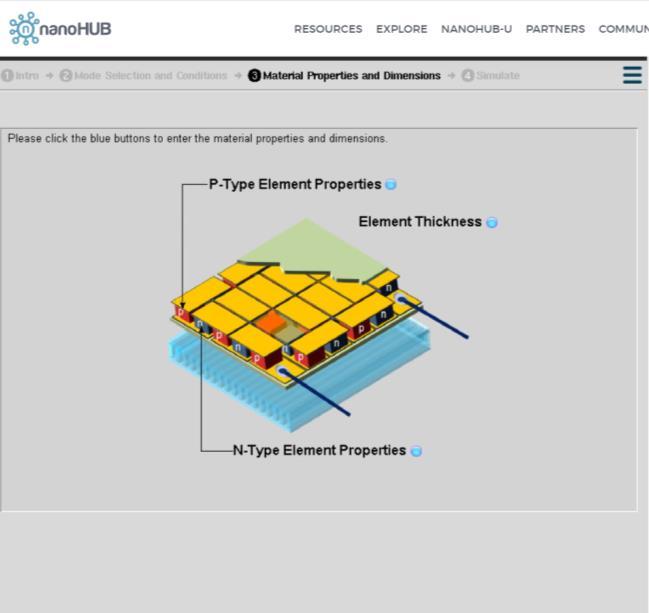

International Research Journal of Engineering and Technology (IRJET) e ISSN: 2395 0056 Volume: 08 Issue: 12 | Dec 2021 www.irjet.net p ISSN: 2395 0072 © 2021, IRJET | Impact Factor value: 7.529 | ISO 9001:2008 Certified Journal | Page858 Fig.10MaterialpropertiesandDimensions. 2.1.5 TEC Module simulation results. T Maximumambient=T2=305KCOPatCurrent=1.15[Amp] (Substitutingfromvaluesabove) So, one module can provide 0.696W of cooling, a single module cost 2.5$ on average for mass production, so to provide the required cooling of 3KW we require 4310 modulescostingus10000$. Fig.11CoolingpowervsCurrent. Fig.12CoolingpowerdensityvsCurrent. T Maximumambient=T2=306KCOPatCurrent=1.38[Amp] (Substitutingfromvaluesabove) So, one module can provide 0.887W of cooling, a single module cost 2.5$ on average for mass production, so to provide the required cooling of 3KW we require 3382 modulescostingus8455$. Fig.13CoolingpowervsCurrent.

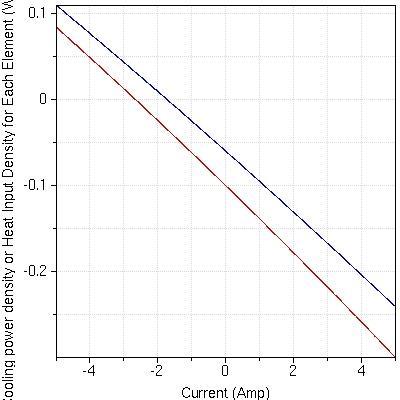

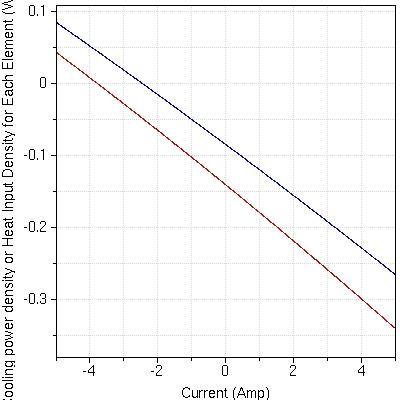

International Research Journal of Engineering and Technology (IRJET) e ISSN: 2395 0056 Volume: 08 Issue: 12 | Dec 2021 www.irjet.net p ISSN: 2395 0072 © 2021, IRJET | Impact Factor value: 7.529 | ISO 9001:2008 Certified Journal | Page859 Fig.14CoolingpowerdensityvsCurrent. T Maximumambient=T2=307KCOP=28797.609atCurrent=1.61[Amp] (Substitutingfromvaluesabove) So, one module can provide 0.887W of cooling, a single module cost 2.5$ on average for mass production, so to provide the required cooling of 3KW we require 2700 modulescostingus6800$. Fig.15CoolingpowervsCurrent. Fig.16CoolingpowerdensityvsCurrent. T Maximumambient=T2=308KCOP=25212.283atCurrent=1.84[Amp] (Substitutingfromvaluesabove) So, one module can provide 1.32W of cooling, a single module cost 2.5$ on average for mass production, so to provide the required cooling of 3KW we require 2270 modulescostingus5500$. Fig.17CoolingpowervsCurrent.
Thermoelectricbiasaresolid statedevicethatconvertheat intoelectricity.WhenoneendofapanelofTEGisconnected totheairinflowatanaveragetemperatureof15degCfrom thegroundbeneathat10 15bases,andtheotherendtothe ambient air temperature, the heat flows through the TEG, creatingatemperaturegradeacrossthedevice.Depending ontheSeebeckeffectoftheelementaccoutrements(p andn typethermoelectricaccoutrements)ofthedevice,poweris generated commensurable to the temperature grade. The performance and effectiveness of a thermoelectric device substantially depends on two aspects videlicet, the thermoelectric material effectiveness and the design optimization of the device. The effectiveness of thermoelectricaccoutrementsisdeterminedbythefigureof merit,ZT=α2σT/κ,whereαistheSeebeckmeasure,σis theelectricalconductivity,Tistheabsolutetemperatureand κisthethermalconductivityofthematerial.Foramaterial to have a better ZT, it's needed to have high electrical conductivity along with a high Seebeck measure and low

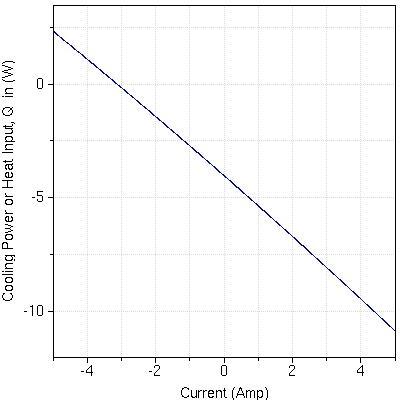

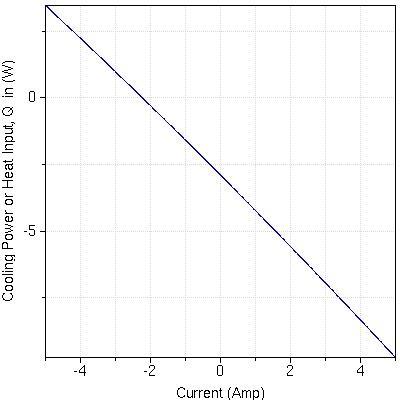

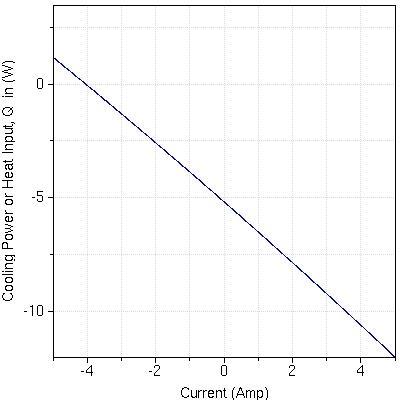

Fig.19CoolingpowervsCurrent. Fig.20CoolingpowerdensityvsCurrent.

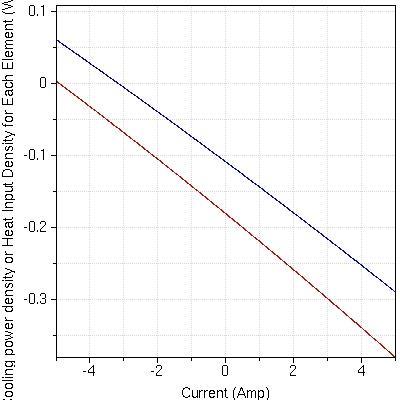

Fig.18CoolingpowerdensityvsCurrent. Current=2.07[Amp] above) massproduction,sotoprovidethe
(Substitutingfromvalues
T Maximumambient=T2=309KCOP=22423.696at
International Research Journal of Engineering and Technology (IRJET) e ISSN: 2395 0056 Volume: 08 Issue: 12 | Dec 2021 www.irjet.net p ISSN: 2395 0072 © 2021, IRJET | Impact Factor value: 7.529 | ISO 9001:2008 Certified Journal | Page860
requiredcoolingof3KWwerequire1900modulescostingus 4500$.
So,onemodulecanprovide1.56Wofcooling,asinglemodule cost2.5$onaveragefor
TheaveragepricefortheTECsetupforT=305Kto309Kis 7051$whichisreasonablecomparedtopriceofanACunit setup.ThecostofACunitwhichincludesthecostofsetup (1000$),components(6000$)andelectricityfor3months (3000$)forasamesizedroom,isapproximately10,000$.In summers,temperaturesstayfrom305Kto309K(itcanalso exceed309K)7hoursaday,whichusuallyincludesthetime whenmostcoolingisrequired.Thecurrentrequiredtobe generated, for maximum COP for temperature range of T=305K to 309K is I=1.15A to 2.07A. The current that we foundoutisthecurrenttobegeneratedbyTEGandprovide thecoolingpower. 2.2 Design of TEG Panel.
International Research Journal of Engineering and Technology (IRJET) e ISSN: 2395 0056 Volume: 08 Issue: 12 | Dec 2021 www.irjet.net p ISSN: 2395 0072 © 2021, IRJET | Impact Factor value: 7.529 | ISO 9001:2008 Certified Journal | Page861 thermal conductivity. The other aspect of the device performance is the device design, which also plays a significantpartinrootingthemaximumpossiblepowerfora givenscript.Thisdesignisassociated withcolorfuldesign parametersofthedevicetoenhancethepoweraffairaswell astheeffectivenessoftheenergyconversion. Fig.21CouplelegTEGmodulewithheattransfer Fig.22TEGModule. Given Ts=TemperatureConditions:athotside=305K 309K. Td=Temperatureatcoldside=288K. Areaofptypeandn type(total)=1800 . Numberofp typeandn typeelements=50 Areaofptypeandn type(single)=180 ElementThickness=10mm. p type:Bi2Te3 n type:Bi2Te2.7Se0.3. DesignEquations: p side n S=SpQh=Qhn+Qhp=sideSn=230µV/K ( 210)µV/K=440µV/K T1=Temperatureofhotairoutside=305K 309K Tambient=Temperatureofairinsidetheground=288K =Th Tc=5Kand9K. 2.3 Simulation: Using Nano Hub simulation tool Thin film multielement thermoelectricdevicesimulator: Model selections and conditions Mode 6 Thermoelectric moduleforpowergeneration Toptemperatureisknown. T1=305K 309K,Tambient=Temperatureofairinsidethe ground=288K,Independentvariable=Currentfrom 5Ato 5Awithanintervalof0.01A. In the material properties and dimensions, from the table putinforppropertiesofBi2Te3andBi2Te2.7Se0.3forn. T1=305K

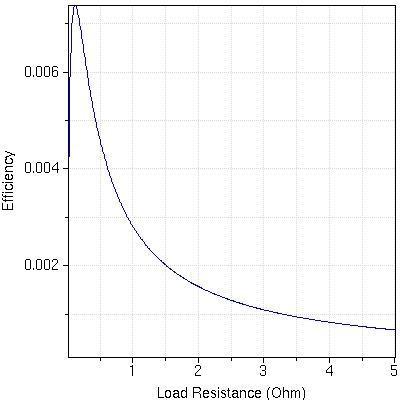

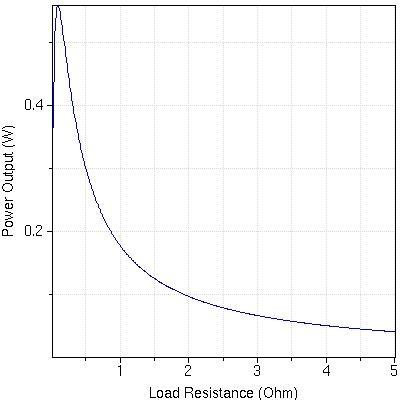

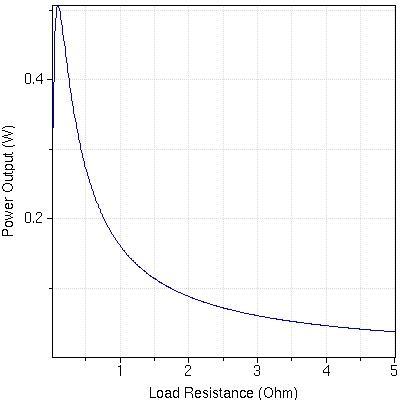

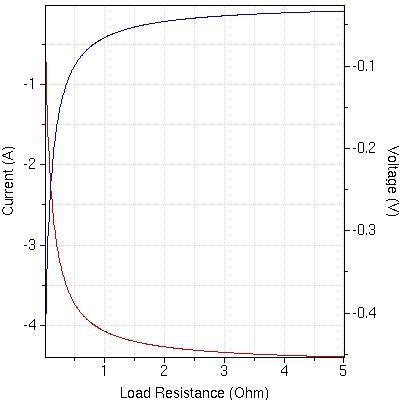

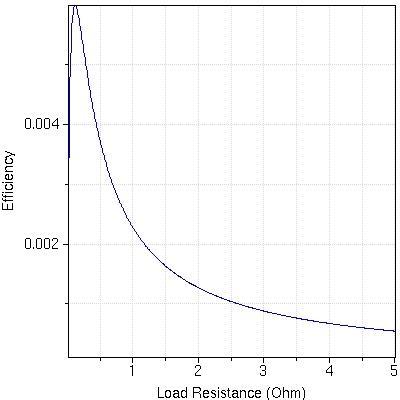

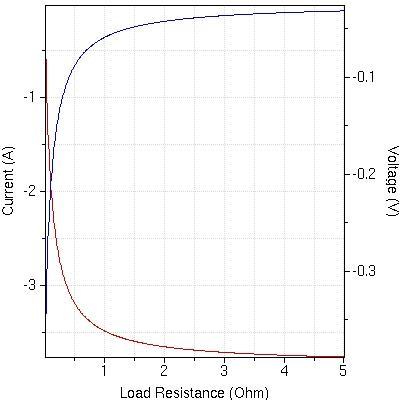

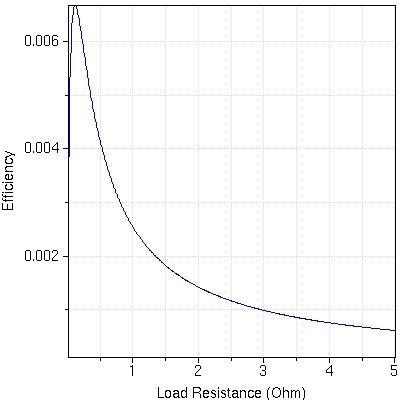

International Research Journal of Engineering and Technology (IRJET) e ISSN: 2395 0056 Volume: 08 Issue: 12 | Dec 2021 www.irjet.net p ISSN: 2395 0072 © 2021, IRJET | Impact Factor value: 7.529 | ISO 9001:2008 Certified Journal | Page862 Fig.23LoadResistancevsCurrent Fig.24LoadresistancevsEfficiency Fig.25LoadResistancevsPowerOutput MaximumPowerOutput=3.670e 01[W]atLoadResistance =0.100000[Ohm] Maximum efficiency = 5.991e 03 at Load Resistance = 0.120000[Ohm] Totalinternalresistance=9.524e 02[Ohm] I=1.9 WhenAT2=AmbientTemperature=305K,MaximumCOPat Current = 1.15 [Amp] for TEC. As wecan see that current generated by TEG (1.9A) is greater than and sufficient to provideacurrentof1.15AtotheTECpanel. P=3KW,numberofTEGmodulesrequiredare8170,costing around T1=306K20425$.

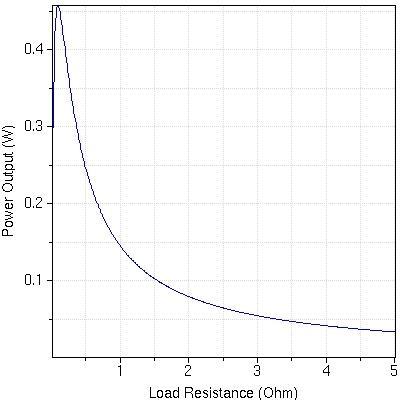

International Research Journal of Engineering and Technology (IRJET) e ISSN: 2395 0056 Volume: 08 Issue: 12 | Dec 2021 www.irjet.net p ISSN: 2395 0072 © 2021, IRJET | Impact Factor value: 7.529 | ISO 9001:2008 Certified Journal | Page863 Fig.26LoadResistancevsCurrent Fig.27LoadresistancevsEfficiency Fig.28LoadResistancevsPowerOutput MaximumPowerOutput=4.114e 01[W]atLoadResistance =0.100000[Ohm] Maximum efficiency = 6.340e 03 at Load Resistance = 0.120000[Ohm] Totalinternalresistance=9.524e 02[Ohm] I=2.02A WhenT2=AmbientTemperature=306K,MaximumCOP= 33578.043 at Current = 1.38 [Amp]. As we can see that current generated by TEG (2.02 A) is greater than and sufficienttoprovideacurrentof1.38AtotheTECpanel. P=3KW,numberofTEGmodulesrequiredare7290,costing around18000$.

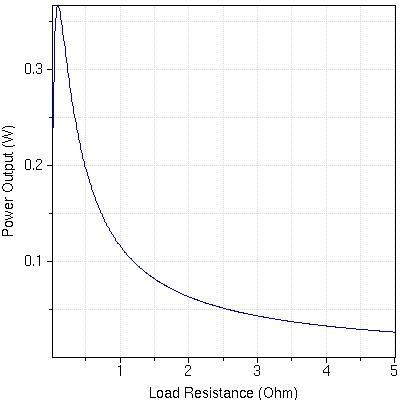

International Research Journal of Engineering and Technology (IRJET) e ISSN: 2395 0056 Volume: 08 Issue: 12 | Dec 2021 www.irjet.net p ISSN: 2395 0072 © 2021, IRJET | Impact Factor value: 7.529 | ISO 9001:2008 Certified Journal | Page864 T1=307K Fig.29LoadResistancevsCurrent Fig.30LoadresistancevsEfficiency. Fig.31LoadResistancevsPowerOutput MaximumPowerOutput=4.584e 01[W]atLoadResistance =0.100000[Ohm] Maximum efficiency = 6.689e 03 at Load Resistance = 0.120000[Ohm] Totalinternalresistance=9.524e 02[Ohm] I=2.141A WhenT2=AmbientTemperature=307K,MaximumCOP= 28797.609atCurrent=1.61[Amp]forTEC.Aswecansee thatcurrentgeneratedbyTEG(2.141A)isgreaterthanand sufficienttoprovideacurrentof1.61AtotheTECpanel. P=3KW,numberofTEGmodulesrequiredare6200,costing around T1=308K15495$.
International Research Journal of Engineering and Technology (IRJET) e ISSN: 2395 0056 Volume: 08 Issue: 12 | Dec 2021 www.irjet.net p ISSN: 2395 0072 © 2021, IRJET | Impact Factor value: 7.529 | ISO 9001:2008 Certified Journal | Page865 Fig.32LoadResistancevsCurrent Fig.34LoadResistancevsPowerOutput MaximumPowerOutput=5.079e 01[W]atLoadResistance =0.100000[Ohm] Maximum efficiency = 7.038e 03 at Load Resistance = 0.120000[Ohm] Totalinternalresistance=9.524e 02[Ohm] WhenI=2.25AT2=AmbientTemperature=308K,MaximumCOP= 25212.283atCurrent=1.84[Amp]forTEC.Aswecansee thatcurrentgeneratedbyTEG(2.25A)isgreaterthanand sufficienttoprovideacurrentof1.84AtotheTECpanel. P=3KW,numberofTEGmodulesrequiredare5900,costing around T1=309K14766$.Fig.35LoadResistancevsCurrent Fig.36LoadresistancevsPowerOutput.
