Evolution of the Physico-Mechanical Properties of Calcined Clay Cement from Different Sources of Kaolin Clay
Aya R. Abdelfattah1 , Abdelrahman Ragab2 , Shaimaa Younis2 , Magdy Elymany11MSc. Student, Civil Engineering Department, Faculty of Engineering, Fayoum University, Fayoum 63514, Egypt
2Assistant Professor of Chemistry, Structural and Civil Engineering Department, Future Institute for Engineering, Fayoum, Egypt
3Assistant Professor, Structural and Civil Engineering Department, Future Institute for Engineering, Fayoum, Egypt
4Professor, Civil Engineering Department, Faculty of Engineering, Fayoum University, Fayoum 63514, Egypt ***
Abstract - The development of binders based on limestone and calcined clays appears to be a promising way to increase the substitution of clinker. Their production is likelytoremain limited if highly kaolinitic clays are required, but calcined clays with low metakaolin contentarelessreactiveinabinder, as shown in many previous studies. This study focused on the differences, regarding hydration degree and products, between several binders containing two types of calcined clay and limestone filler. Two calcined clays were studied, coming from two very different raw clays. The first calcined clay contained more metakaolin than the second one. In this article, we produced the LC3 from two clays.Theproductionof LC3 used 10, 15, 22.5, and 30% of calcined clay, 10 % of limestone filler, and 5% gypsum. This was also studied by using one type of each calcined clay individually. Binary binders showed strong differences between the two calcined clays. However, this work showed significant pozzolanic activity and synergy between calcinedclayandlimestonefiller in the binder. This observation was made even for the composite calcined clay with minor metakaolinite content. From this comprehensive study on hydration, it can be concluded that calcined clay with low metakaolin content is likely to result in the same degree of hydration and products over the long term as high metakaolin calcined clay in a binary system, The LC3 formed from CC Zafarana and CC of Sinai was better than OPC, especially in the durability. cement pastes were investigated by the determination of water of consistency (W/C, %), setting times (STs), and compressive strength (CS). Some selected cement pastes were identified using XRD, TG and DTA techniques to show the hydration products with curing time.
Key Words: Limestonecalcinedclaycement(LC3),CC=MK, Clinker partial replacement, Environmental Impact, Compressivestrength,Microstructure.
1.INTRODUCTION
Inrecentyears,theworld’sattitudeinallfieldshaschanged to go green. Due to the recent high records of the carbon footprint, many industries have turned to green manufacturing or processing. One of the most affecting industries on air pollution is cement production. This industryparticipateswithlargescaleintheCO2emissionsas
recordedaround6%oftheglobalwarmingcauses[1
5].The cement production waste not only emits many harmful substancesthatcanharmthehuman’srespiratorysystem, suchasslag,ashes,cementdust,marbledust,etc.…,butalso, theyhaveaveryhighdisposalcost[6].Moreover,nomatter how important cement is in our world, this production consumesanextremeamountofenergy[7].Asaresult,the cementindustrystakeholdersinitiatednewapproachesto eliminate the waste from the beginning like replacing the cement with some sustainable alternatives with green impact on the environment; however, these replacement alternatives showed undesired results of the mechanical strengthsofthecement[4].Anotheropinionstatesthatthe cement industry wastes themselves can be recycled and result in higher superior mechanical properties and structurelife,inthiswork[2],cementkilndustandflyash are reused to optimize the Portland cement. Many researchesaddressthefullorpartialreplacementofcement because of the previously mentioned reasons [8–17]. Therefore, Researchers introduced new ternary cementitioussystemcalledlimestonecalcinedclaycement (LC3) that is a combination of ordinary Portland cement (OPC),limestoneandcalcinedclayextractedfromvarious regions around the world such as China [18,19], Brazil [17,20], North America, South Asia [21], Cuba [22] and Argentina [23] This attracted the researchers’ interest to studythephysico-mechanicalpropertiesofthenew(LC3) concrete mixtures in order to present a sufficient final product that competes with the OPC mixtures. It is found thatwhentheclayiscalcined,metakaolinisformedthatin turn react with calcium hydroxide producing C-A-S-H and aluminatehydrates.Then,thereactionbetweenthealumina and the limestone produces carbo-aluminate hydrates. Eventually,allthesereactionsfilltheporousspacesinthe structure that lead to the improvement of the physicomechanicalpropertiesofthecement[24–26].
Huangetal.[18]studiedthedevelopmentofLC3pastethat includes a calcined clay from Maoming, China. The study showedthatearlystrengthsofLC3(before7days)tendsto be lower than the OPC concrete, however, late strengths show remarkable strength increase compared to OPC, especiallytheflexuralandsplittingtensilestrengths,dueto thesecondaryreactionoftheamorphassilicaandalumina
In addition, the LC3 bond-slip behavior with steel bars is identical to the OPC behavior and failure modes. The fast reaction of calcined clay resulted a well refined and less porous microstructure of the LC3 mixture, though, this affectedthestrengthofthematerialastherewasnostrength increaseafter28days[27].Inaddition,astudyprovidedthat 30%to45%ofLC3contentachievescomparablemechanical properties to the OPC cement from curing age of 7 days onwards,especiallyinthe30%LC3mixture[28]. Nairetal.[29]uncoveredthatthepartialreplacementofthe cement with the limestone calcined clay (LC2) system achievesdesiredworkabilityaslongastheLC2percentage remainslessthan30%.Also,longtraveltimesareunlikely wanted on the construction site which is confirmed by Sánchez et al. [22] that more than 100km travel between claydepositandsiteisundesirable.Furthermore,astudyon LC2usingD-optimalmixturedesign(DMD)showedthatthe limestoneandcalcinedclaycontentcanreach56.8%ofthe cementitioussystemmixture,althoughachievingdesirable flowability and mechanical properties compared to OPC paste[30].Moreover,fivecalcinedclaysfromdifferentareas wereinvestigatedandexamined.Thisstudyconcludedthat thecompressivestrengthoftheLC3systemcanoutperform theOPCcementby40%increasebecauseoftheinvolvement ofcalcineclay(upto40%)intherefinementoftheporosity ofthestructure[21].Despiteincreasingthelimestoneand calcined clay contents in the cementitious mixture, the expansionrateofthemortardecreasesalongsidewiththe dynamicmoduluslossundersulfateattackupto270days due to the reactive alumina in the calcined clay that react withthelimestonetoproducelessporousstructure[31] HigherdosageofblendedLC3cement(50-80%)contributed tolowercompressivestrengths,particularly>60%,however, 50% participation of LC3 attained sufficient compressive strength compared to OPC 52.5N as per BS EN197-1, in additiontobetterenvironmentalimpactandlowercost[32] Inthisresearch,thepartialreplacementofcementapproach is followed. In order to reduce the cement content in the concrete,twonovelcalcinedclaysfromEgyptareblended withtheOPCpastetoproduceanewLC3paste.ThetwoLC3 pastes with different weight contents (wt% of OPC) alongsidewiththeOPCpasteareexperimentedandtested The preparation of the cement mixtures is illustrated in detail.Themechanicaltestsincludecompressivestrength, flexuralstrengthandsplittingtensilestrength.Also,the Xraydiffractionanalysis(XRD)iscarriedoutinadditiontothe
GravimetricAnalysis(TGA).
2. EXPERIMENTAL WORK
In this section, the materials used in this research are presented.Inaddition,theequipmentusedforthematerial preparationandtestingareprovided.
2.1 Materials

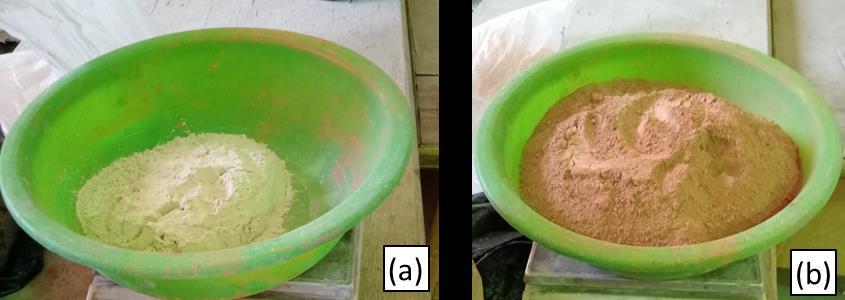

A limestone calcined clay cement (LC3) consisting of limestone,calcinedclay,seeFigure1,andPortlandcement clinkerwasused.Cementcontainslimestoneof10%,calcined clayupto30%,andtheremainingarePortlandclinkerwith fixed5%ofgypsum.Theusedlimestoneisahigh-gradefrom quarryofLafargeCementCompanyasshowninFigure1a. Properties of the raw materials are given in Table 1. LimestoneandZaafaranawaspreparedinanindustrialkiln of clinker in Lafarge Cement Company. High-efficient grinding wascarriedouttoobtainMK.TheBlainesurface areaofMetakaolinwas4500cm2/g.TheXRDphasesof K and MK are given in Table 1. Also, see Figure 2, the XRD patternsKandMK showthattheMKSmorereactivethan MKZ The chemical oxide composition of Portland cement and MK is given in Table 2, and the Mineralogical compositionofOPCisgiveninTable3
In this study, the composition of the cement mixture is illustratedinTable4.Generally,themixdesignofthecement istheOPCcementwithaddedfineaggregatesandcoarsein additiontothewatercontentwt.(%)tocement.
calcinedclaysextractedfromtwodifferentdesertregionsin Egypt; Zaafarana and Sinai, are investigated. The experimented mixtures are normal OPC, Zaafarana LC3of 7.5,15,22.5and30wt.%ofcementandSinaiLC3of7.5,15, 22.5and30wt.%ofcementasshowninTable5.Hence,the experimentincludes9mixturesgiventhenamesOPC,LC3S1 toLC3S4 forSinaiLC3andLC3Z1 toLC3Z4 forZaafaranaLC3.
TheaimofthisresearchistopartiallyreplaceOPCcement with limestone calcined clay (LC3). In this work, two
The experiment is carried out on two different types of calcinedclays,inadditiontotheOPCcement.Thesamples foreachmixtureare15cubesof15x15x15cm(3foreach curingage),2standardcubes10x10x10cm,4cylindersof diameter15cmand30cmheight(2for28daysand2for90 days),and4beamsofsquarecross-sectionof10cmand50 cmlength(2for28daysand2for90days),seeFigure3.The ninemixturesaretestedafterfivecuringages2,7,28,56and 90daysforcubesamplesandtwocuringages28and90for cylindersamplesandbeamsamples.Thetestscarriedoutin thisresearcharemechanicaltesting,DifferentialScanning Calorimetry(DSC)andThermalGravimetricAnalysis(TGA), ScanningElectronMicroscope(SEM)andX-RayDiffraction (XRD).
2.2 Mechanical Testing
ThecompressivestrengthsareobtainedbyADRTouchSOLO 2000compressionmachine(ELEInternational,England)as shown in Figure 4. The ADR machine implies the compressivestrengthsasfollows,
ThecubesamplescompressivestrengthiscalculatedbyEq. (1),
Where Pfailureisthepeak(failure)compressiveforce,and A is
thecubecontactsurfacearea. Also, the in-direct tensile stress of the cylinder samples is calculatedbyEq.(2).
Where D is the cylinder diameter and H is the cylinder height.
Finally,theflexuralstrengthofbeamsamplesisobtainedby Eq.(3).
3. RESULTS AND DISCUSSION
3.1 Water Consistency and Setting times

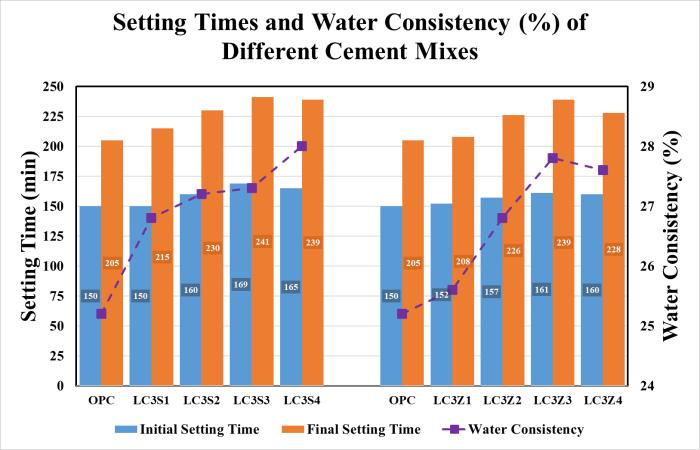

Theresultsofthewaterconsistencyandsettingtimesofthe investigatedcementpasteswithdifferentLC3areshownin Figure 5 and Table 7. The results show that the water consistencyofLC3increasesslightlywithincreasedcalcined clay(CC)contentupto30wt.%,whichismainlyattributed totheincreaseofsurfaceareaanddecreaseofcrystallattice incementclinkerphases.Theinitialandfinalsettingtimes areslightlyelongatedbyanincreaseinCCofupto30wt.%. Thisisduetotwofactors:thefirstistheincreaseinmixing water,andthesecondisthedilutionofthecementclinkerby theCCportionandlowpercentageofCa(OH)2 [17,18]
2.3 Differential Scanning Calorimetry (DSC) and Thermal Gravimetric Analysis (TGA)
The DSC and TGA tests are carried out by Simultaneous Thermal Analyzer (STA) 6000 in N2 atmosphere (PerkinElmer,USA).TheDSCtestidentifiessomeusefulproperties such as temperature of phase changes in the material. Meanwhile,theTGAtestmeasuresthechangeinweight(%) versus the temperature or time and determines various phasesintheconcrete.Bothtestsareperformedatarateof 10°C/minupto1000°Consamplesof10mg.
2.4 X-Ray Diffraction (XRD)
The powder method of XRD of some selected hardened cementpasteswasadoptedinthepresentstudytoidentify the different crystalline phases. The x-ray diffraction evaluationisconductedonEmpyrean(MalvernPanalytical, Malvern, United Kingdom). The X-ray tube voltage and currentwerefixedat40.0KVand30.0mArespectively.The measurementconditionsareshowninTable6
3.2 Mechanical Properties
3.2.1 Compressive Strength

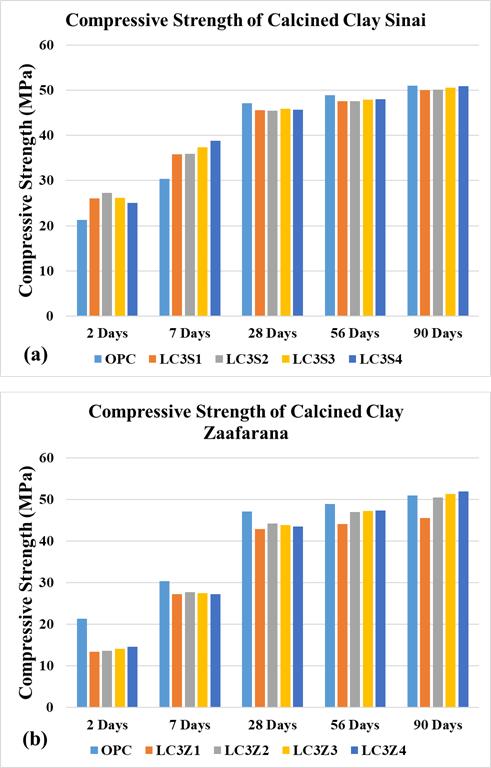

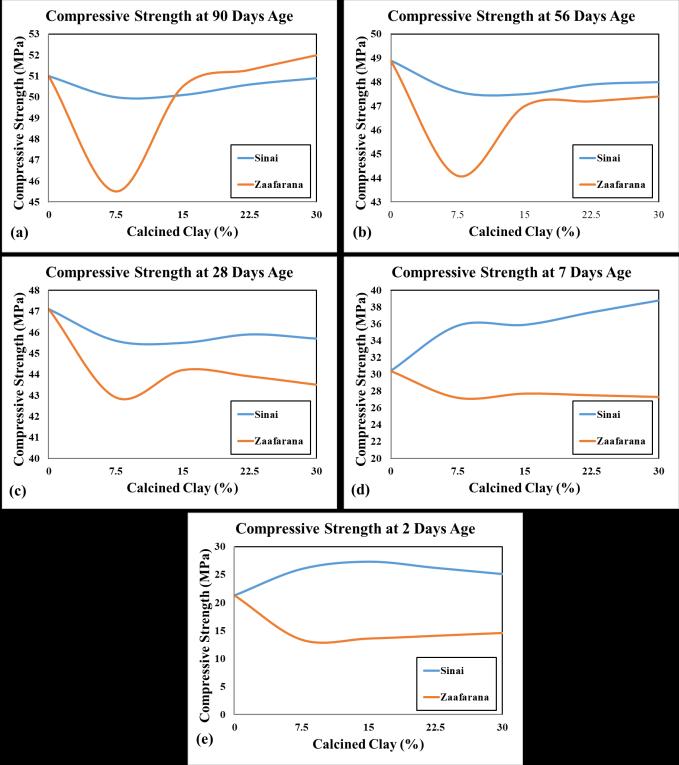

Thecompressivestrengthsofcubesamples(15x15x15 cm)atallcuringagesforallmixturesareobtainedin Table 8 andFigure6.Theresultsarecalculatedastheaverageof the3cubesamplesateachcuringage.Theseresultsshowa promisingpartialreplicaofOPC,asthecompressivestrength ofLC3Z4ishigherthanthatofOPCby2%.Itisobservedthat thecompressivestrengthincreasesproportionallywiththe increaseintheLC3formedfromtheSinaiCCpercentagein allcuringages.Ontheotherhand,thecompressivestrength of LC3 of Zaafarana CC tends to decrease at 7.5%, then increase until 30% at all curing ages. The fluctuations in compressive strengths for both Sinai and Zaafarana LC3 mixtures at all curing ages are presented in Figure 7. The results show that the compressive strength of LC3Z4 at 90 daysisthebestat52MPa.Also,increasingthecalcinedclay percentage from 7.5% to 30% (ignoring the base value of OPC)isproportionaltothecompressivestrength[35],[36]
Theresultsshowthatatanearlycuringage,thecompressive strengthofLC3formedfromCCofZishigherthanthatof LC3formedfromCCofS,whichisoppositeatalatercuring age. These results are due to the CC of Sinai containing a higherpercentageofaluminosilicateamorphousphasethan theCCofZafferana,butwithlongercuringtimesduetomore hydrationproducts,heatofhydration,andotherminerals, they produce Portland Ca(OH)2, which is reacted with the reaming of the aluminosilicate phase by a complexed reactiontogiveCSH.Also,nucleationsitestoreactivityand improvepackingaswellastheirpozzolanicreactivity[37] Therefore,theLC3formedfromCCZafferanaisbetterthan CCSinaiintermsofdurability.
days,(d)7days,(e)2days.
3.2.2 In-Direct Tensile Strength (Splitting Strength)

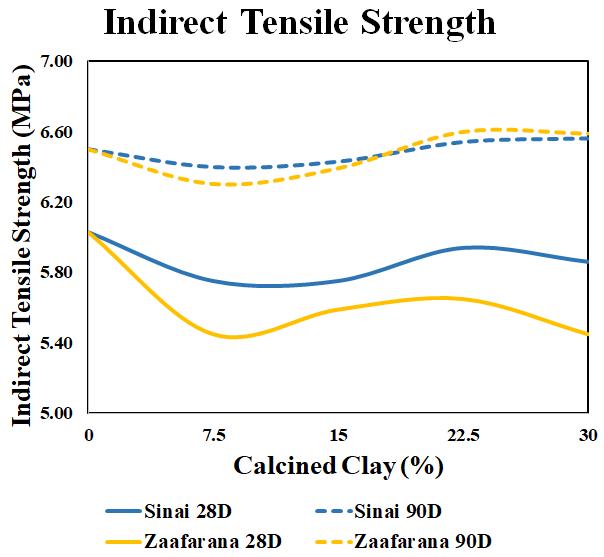

Theindirecttensilestrengthsofcylindersamples(ϕ15and height30cm)areobtainedatcuringagesof28and90days, as shown in Table 9. In order to visualise the proportion betweentheCCpercentageandtheindirecttensilestrength ofbothSinaiandZaafaranaclays,thestrengthsareplottedin Figure 8. Apparently, the LC3Z1 mixture weakens the strengthofthecement,aspresentedpreviouslyinFigure7. However,therecordedresultsentailthatthebestindirect tensilestrengthis6.6MPaatLC3Z3 at90days,followedby LC3Z4 at90daysby6.59MPaandLC3S3 at90daysby6.54 MPa. In this work, the splitting strength is 12.74% of the compressive strength of the material. Therefore, the LC3 formedfromCCZaafaranaandCCofSinaiwasbetterthan OPCindurability.
3.2.3 Flexural Strength

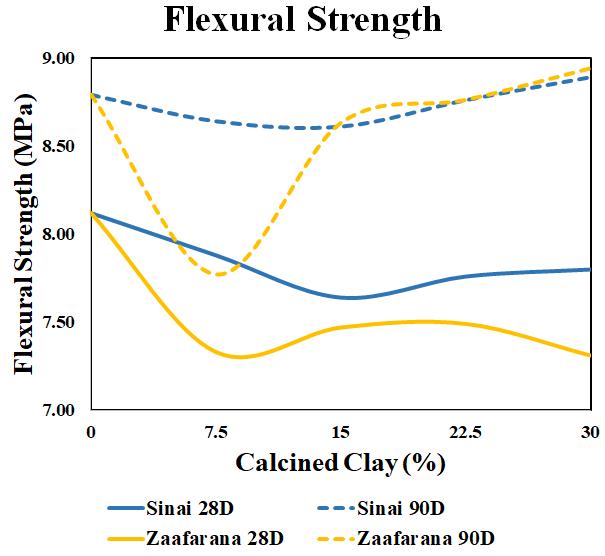

Table 10 showstheresultsoftheflexuralstrengthtestat curingagesof28and90daysforbothSinaiandZaafarana LC3beamsamplesof thesamedimensions(squarecrosssectionof10cmandalengthof50cm).Thebestrecorded flexuralstrengthafterthebasemixture(OPC)isLC3Z4atthe age of 90 days, at 8.94 MPa (1.7% better than OPC). Inevitably, the LC3Z1 mixture affects the strength of the materialnegatively,asshownin Figure 9.Itisobservedthat the flexural strength of the material is around 17% of the compressive strength. However, the differences in the flexuralstrengthsbetweenOPCandthesamplesofLC3Z4and LC3S4arenegligible,astheyarewithin1.4%ofthemaximum oftheOPCflexuralstrength.
To wrap up, the results of the mechanical tests show promisingalternativestoPortlandcement(OPC),regardless of the slight differences in the mechanical properties. Fruitfully, the production of clinker will be reduced by 22.5%to30%,which,inturn,willreduceairpollutionfrom thecarbonemissionsofcementindustriesandincreasethe sustainability and durability of concrete. The reaction of alumino-silicate elements in CC with CH and hydroxide in cement leads to the addition of bond strength and solid volume.IncreaseofthecontentofCCleadstoanincreasein strength,thisisduetothecontinuoushydrationaswellas the formation of additional C–S–H (the main source of compressivestrength)andC–A–S–Hhydrates
3.3 XRD Analysis
FromtheX-raydiffractograms,itisclearlyevidentthatthe limestone and calcined systems lead to the formation of carboaluminatephases.Thesephasestendtobepresentat anearlyage(28days),asshowninthediffractogram,and arestableinthesystemevenat28days.Inthatrespect,the carboaluminatephasebecomesoneofthemajorphasesin thecementhydratesystem.Additionally,thedensityofthese phases is on the lower side within the cement hydrate system Furthermore,stabilizationofettringite(againin a low-density phase) occurs with the formation of the carboaluminates, as shown in the semi-quantitative evaluation. These additional phases could alter the microstructure, which is clearly evident from the pore structure results. Early refinement of pore structure suggests that the LC3 cementitious system has a highly refined microstructure and the existence of a new phase assemblage,whichstillneedsabetterunderstanding.

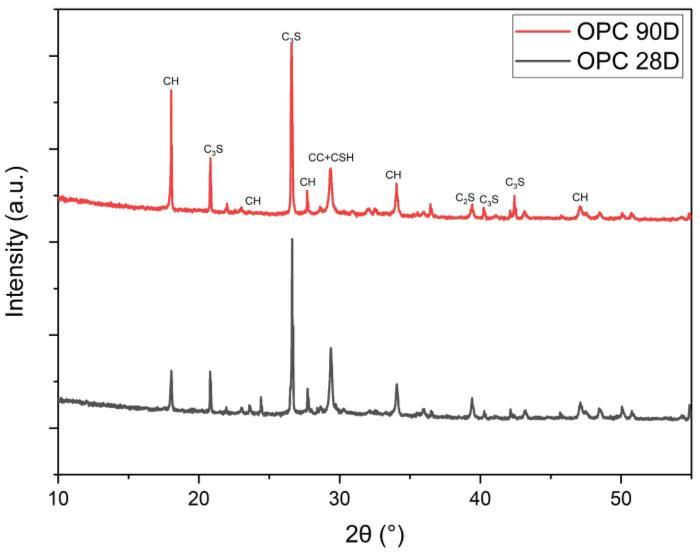

Figure10illustratestheXRD-patternsofhydratedOPCpaste after curing for 28 and 90 days. The patterns show the remainingpartsofclinkerminerals,namelyβ-C2SandC3S, upto28and90daysofhydration,respectively.Itisobvious that the relative intensities of their peaks decrease with curingtime,upto90daysmorethan28days,asaresultof theirhydration.Also,thepeaksoftheportlandite(CH)phase increasewithcuringtimeduetothehydrationofthesilicate phasesofOPCclinkerwiththeformationofC-S-Handthe liberation of CH. The CSH is overlapped by the peaks of CaCO3. The calcite can be formed by the reaction of atmosphericCO2 withtheCH[38]

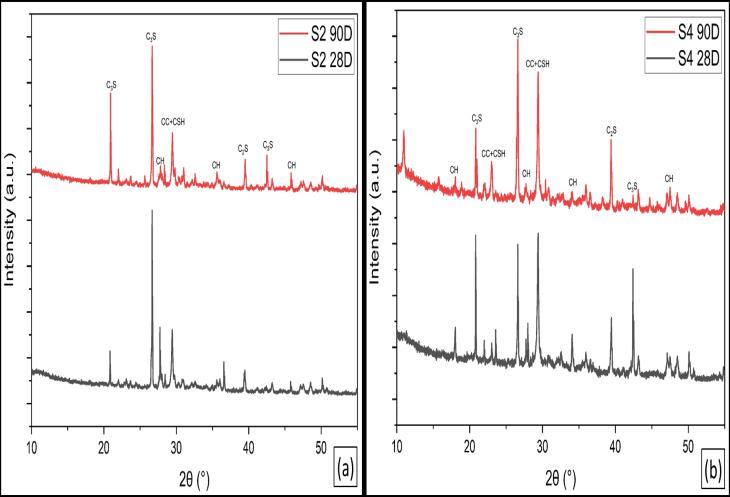

Figure 11 illustrates the XRD-patterns of hydrated LC3S2, LC3Z2andOPCpasteaftercuringagesof28and90days.The patterns show the remaining parts of clinker minerals, namely β-C2S and C3S, up to 28 and 90 days of hydration, respectively.Itisobviousthattherelativeintensitiesoftheir peaksdecreasewithcuringtimeupto28daysasaresultof theirhydration.Also,thepeaksoftheportlandite(CH)phase increasewithcuringtimeduetothehydrationofthesilicate phasesofOPCclinkerwiththeformationofC-S-Handthe liberation of CH. The CSH is overlapped by the peaks of CaCO3. The calcite can be formed by the reaction of atmosphericCO2 withtheCH.ItisclearthatinOPCbutin LC3at28days,thepeaksoftheportlandite(CH)phaseare disappearinginLC3S2 duetothepozzolanicreactionofCC Sinaiwith(CH).Thepeaksoftheportlandite(CH)phaseare alsolowerinLC3Z2 thaninOPC.At90days,allportlandite (CH) phases are consumed in both types of LC3 due to pozzolanicreactions[39].
Figure 12 illustrates the XRD-patterns of hydrated LC3S4, LC3Z4 and OPC paste after curing ages of 28 and 90 days, respectively.Thepatternsillustratethatanhydrousphases of clinker minerals C2S and C3S still exist up to 28 and 90 days;theirpeakintensitiesdecreasewithcuringtime.Also, the intensities of the peaks of portlandite decrease with curing time due to the pozzolanic reaction of CC with the liberation of Portlandite. The patterns show that the intensitiesofportlanditepeaksofLC3fromZaafaranaclay pastearehigherthanthoseofLC3-PortlandfromSinaiclay cementpastesduetothepozzolanicreactionofCCwithCH.
The intensity of calcite (CaCO3) peaks decreases with CC contents;thisisanindicationoftheconsumptionofCHby CC,whichisthesourceofcarbonation.Itisalsoobviousthat theincreaseinCCcontentleadstomoreconsumptionofCH [40]

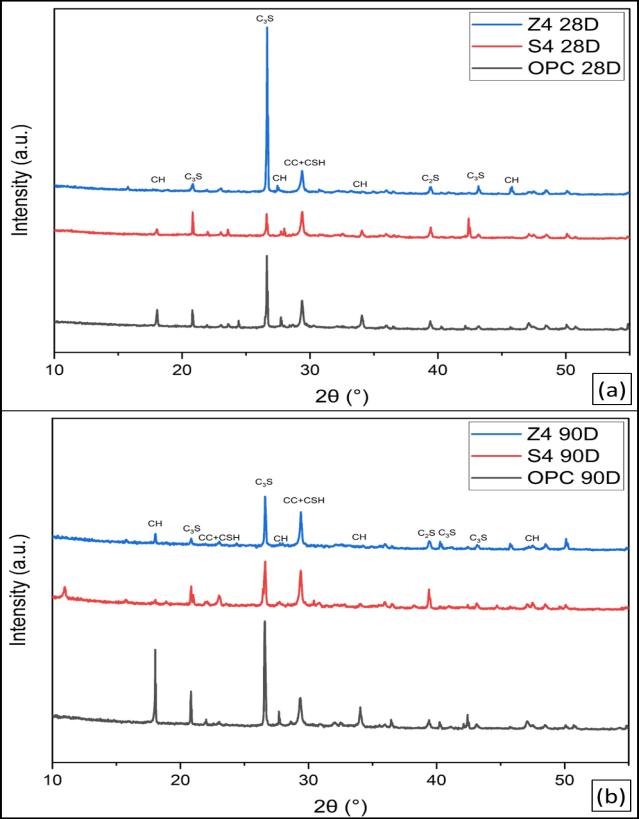

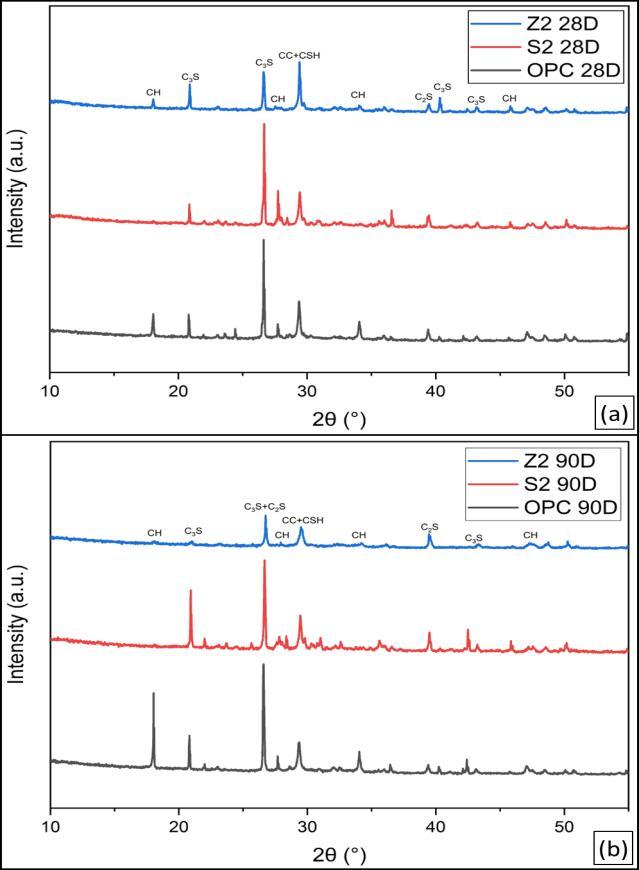

Figures(13-14)illustratestheXRDpatternsofhydratedLC3 from Sinai clay and hydrated LC3 from Zaafarana clay, respectively, at curing ages 28 and 90 days. The patterns showthattheintensitiesofportlanditepeaksinLC3from ZaafaranaclaypastearehigherthanthoseofLC3fromSinai claypasteduetothepozzolanicreactionofCCwithCH.The intensity of calcite (CaCO3) peaks decreases with CC contents;thisisanindicationoftheconsumptionofCHby CC,whichisthesourceofcarbonation.Itisalsoobviousthat theincreaseinCCcontentleadstomoreconsumptionofCH [41].The resultsofthistest showthatLC3 ofSinaiclayis morereactivethanLC3ofZaafaranaclay,especiallyatearly ages.
3.4 DSC and TGA Analysis

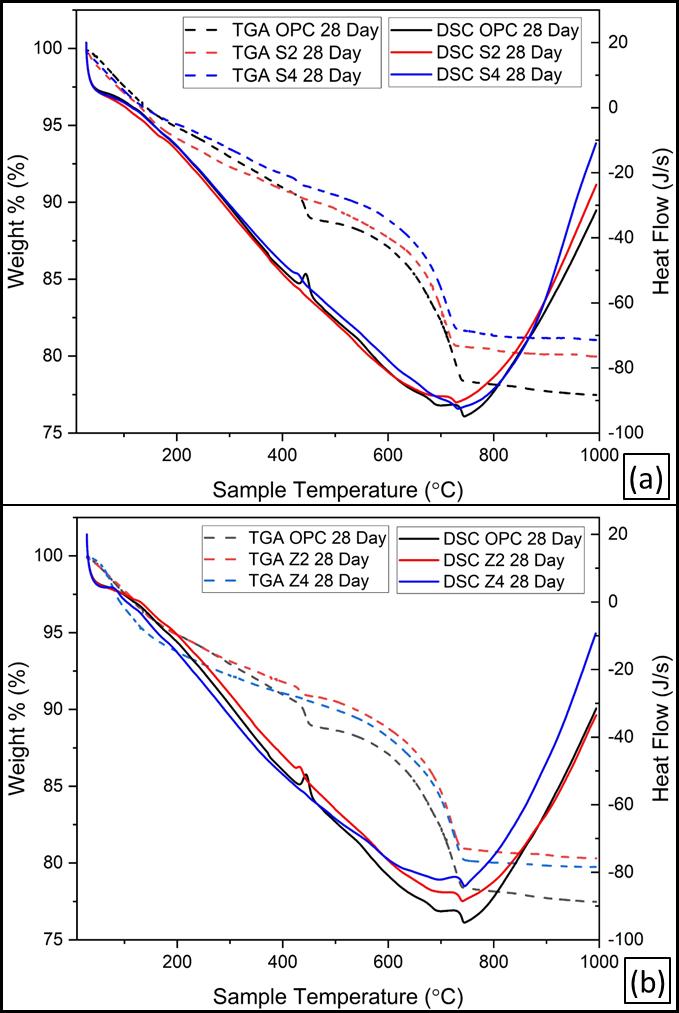

Figure 15 illustrates the DSC/TGA thermograms of the hydratedOPCandbothSinaiandZaafaranaLC3pastescured for up to 90 days. The DTA thermograms show the occurrenceofthreeendothermicpeaksat120,420–450,and 700–750 °C for both clays in Figs. 15a and 15b. The endothermicpeaklocatedbelow200°Cismainlyduetothe dehydration of interlayer water of CSH, whereas the endothermic peak at 420–450 °C is due to the dehydroxylation of Ca(OH)2. The last endothermic peak locatedat700–750°CisduetothedecompositionofCaCO3 It is clear that the intensities of the endothermic peaks characteristicforCa(OH)2increasewithcuringtimeupto90 daysinOPCduetotheprogressofhydrationofOPCpastes. Also, the endothermic peaks of CSH increase with curing time due to the progress of hydration. The hydration progresscan bestudiedusingthermogravimetricanalysis (TGA). The weight loss of the hydrated phases without Ca(OH)2 andCaCO3 increaseswithcuringtime.
The TG losses characteristic for the hydration products at lowtemperatures(upto200°C)areat90days,morethan 28days,andmorethan2days.Thismeansthatthedegreeof hydrationincreaseswithcuringtime.Ontheotherhand,the TGlossescharacteristicforportlandite(CH)areat90days, whichislessthan28daysandlessthan2days.Theincrease in TG loss of portlandite with curing time is due to the continuousliberationofCHasaresultofhydrationofOPC. TheTGlossesduetothedecompositionofCaCO3 areat90 days,lessthan 28 days,and lessthan 2 days.Also,the TG lossesduetoCaCO3decreasewithcuringtime;duetothe reactionofCO2andmoisturewithCaCO3formingCa(HCO3)2
upto28daysareshowninFigure16.Evidently,thereare fourendothermicpeaks.Thefirstweakendothermicpeak locatedbelow100 °C ismainlydue to the removal of free waterandthedecompositionoftheamorphouspartofCSH gel.Thesecondendothermicpeakobservedatabout120–140°Crepresentsthedehydrationofthecrystallinepartof C-S-H,CAH,andCASHaswellasthepresenceofgehlenite hydrates. The third endotherm, located at about 450 °C is duetothedehydroxylationofcalciumhydroxide(CH).The lastendothermicpeaklocatedat700–710°Cisduetothe decomposition of CaCO3. It is clear that the second endothermic peak, located at about 130 °C increases with curing time due to the formation of excessive amounts of CAHandCASHaswellascrystallineCSH.Thesephasesare formedasaresultofthehydrationofOPCphasesaswellas thepozzolanicreactionofCCwithCH.
The losses were decreased with LC3 content due to the formation of a low C/S ratio of C-S-H, which has a lower watercontent.Generally,thecombinedwatercontentofOPC is lower than that of pozzolanic LC3 cement paste. The weight losses of LC3 cement paste at about 450 °C are 90 days,lessthan28days,andlessthan2days;thesearedueto thedecompositionofportlanditeCH.Thedecreaseinweight losswithtimeismainlyduetothepozzolanicreactionofCC withCH[42].
4. CONCLUSIONS AND FUTURE WORK
The studied binary and ternary binders are based on Portland cement, calcined clays, and limestone filler. Low metakaolinitic calcined clay obtained from illite-kaolinite compositerawclayiscomparedwithhighkaoliniterawclay, whichismainlycomposedofmetakaolinaftercalcination. Thestudyaimsatinvestigatingtheinfluenceofcomposite calcinedclayonthehydrationofcementinbinary.Advanced experimental techniques were combined to identify and quantify the hydration products at different ages. The findingsareasfollows;
1. The compressive strengths of Zaafarana calcined clay mixturesshowpromisingmechanicalbehaviorcompared totheOPCcementasLC3Z4 recordedbestcompressive strengthof52MPaandflexuralstrengthof8.94MPaat curing age of 90 days, meanwhile the LC3Z3 entails the bestindirecttensilestrengthof6.60MPaatcuringageof 90days.
2. Intheshortterm,thefirstcalcinedclaycontainingmainly CC (Sinai) showed a higher reactivity than the second compositecalcinedclayobtainedfromilliteandkaolinite (Zaafarana).Eventhoughthefirstcalcinedclayreacted fasterinacementitiousmatrix,itwasdemonstratedthat the composite calcined clay did not slow down the hydrationreactionsoftheclinker.
3. The composite calcined clay combined with limestone hadaverypositiveimpactonhydration.Thepozzolanic reactionwasactuallyimprovedwhencomparedwiththe highly metakaolinite clay. The composite clay (illite/kaolinite) finally ages, and it has a higher pozzolanicactivitythanthehighestmetakaolincontent. Thisshowsthatpurekaoliniterawclayisnotnecessarily required as the synergy between limestone filler and illite-kaolinitecalcinedclaycanclearlybeobserved. The hydrationofclinkerphasesandthephaseassemblageof the cementitious matrix are influenced by the substitution of cement by calcined clay and limestone filler.
4. Thereactivityofbeliteislowered,butotherphasesare generated, such as aluminum-modified calcium silicate hydrate(C-A-S-H),strätlingite,andcarboaluminationin thepresenceoflimestoneandcompositecalcinedclay. Thesephasescanbeexpectedtoenhancetheengineering propertiesofthematerialsforagivencementcontent.
5. Atlongerterm,itwasshownthat behaviorstendtobe similar even though pozzolanic activity was slightly higherforCCthancompositecalcinedclay.Thetwotypes ofcalcinedclaytendedtohavesimilarpozzolanicactivity, especiallyinlaterages.
ACKNOWLEDGEMENT
The authors can acknowledge Lafarge Egypt cement company for providingtherawmaterials ofthis research. Also,theauthorsacknowledgeFayoumUniversityMaterials laboratory for their help in conducting the mechanical testing
