Yamaha Fun ATV

Page 1

YAMAHA FUN ATV

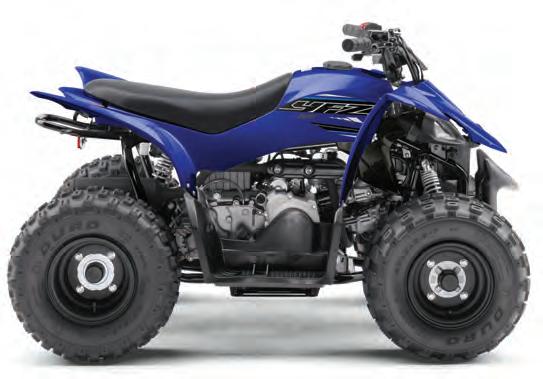

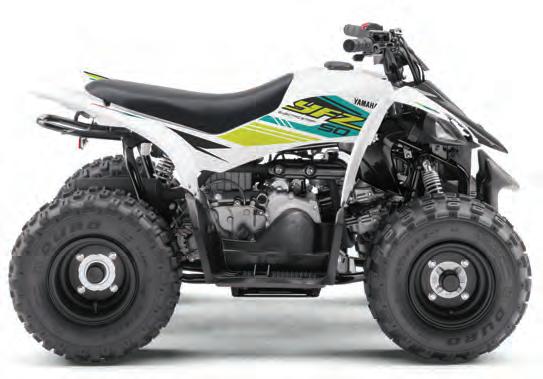

YFZ50

With its compact body, simple controls and automatic 49cc engine, the YFZ50 is the perfect way to start out. Built for children aged between six and nine years old, this mini ATV is ready to provide hours of family fun.

Safety comes first, and the YFZ50 has a range of features that give parents a high degree of control. Speed can be limited by the throttle screw and rev limiter switch – and a lanyard attached to a tether switch can cut the engine instantly.

Easy to use, fun to ride and simple to maintain, the Yamaha YFZ50 is the clear choice for responsible adults – and with its YFZ450R racer-inspired styling, this mini ATV looks set to be at the top of your kid’s wish list.

Key Features:

• Beginner-friendly four-stroke performance

• Low maintenance 49cc engine tuned for responsive, controllable performance

• Engine limiter and tether switch allows young riders to adapt as their skills grow

• Push button electric starting

• Kick starter for additional peace of mind

• Robust steel frame

• Plush seat

• Roomy, integrated floorboards

• 5.7 litre fuel tank

• $3,949

1 Miles Road, Berrimah NT 0828 | Tel: 8984 4388
Holeshot Yamaha | www.holeshotyamaha.com.au

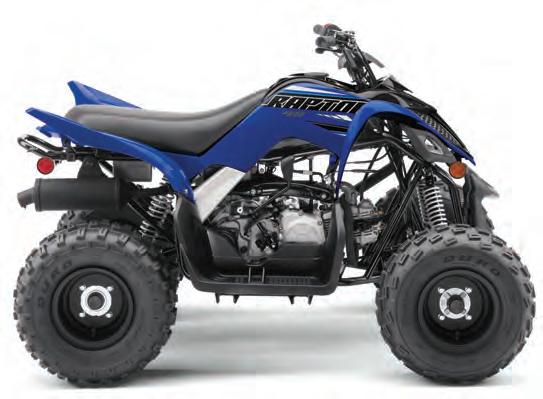

RAPTOR 90 (YFM90R)

The YFM90R may be small in size, but it’s equipped with several features found on larger Yamaha models –including double A-arm independent front suspension, drum brakes, CVT transmission and electric start.

The YFM90R balances power with a range of features to give you total peace of mind. A simple CDI plug-in adjusts engine power output to suit different riding abilities while a parking brake on the handlebar ensures that the YFM90R stays exactly where you left it. The fully automated gearbox allows the rider to concentrate on the track to build confidence.

Key Features:

• Sporty 90cc engine

• Suitable for riders aged 10 and up

• Low maintenance engine tuned for excellent low-tomid range performance

• Fully automatic CVT transmission with reverse, gated shifter (F/N/R)

• Electric push button start with a back-up kickstart for additional peace of mind

• Compact A-arm front suspension tuned for light, sporty steering and comfortable ride quality

• Sealed maintenance-free battery

• Handlebar-mounted reverse and neutral indicators

• Low profile Duro tyres

• Plush seat

• Roomy, integrated floorboards

• 6.6 litre fuel tank

• $4,649

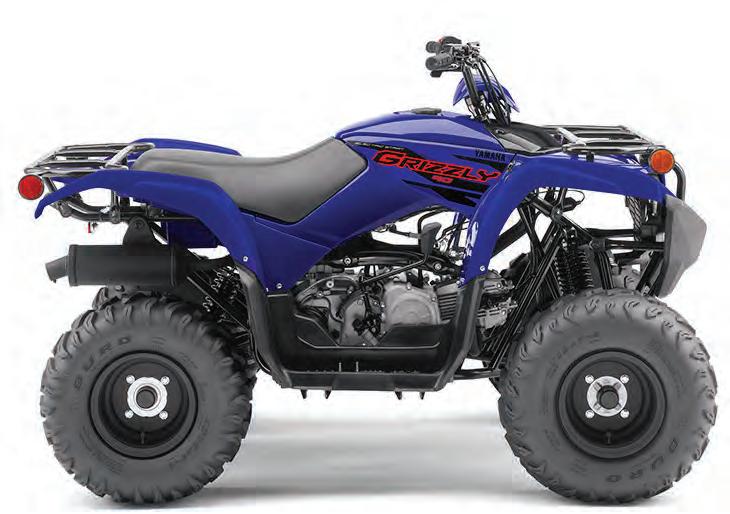

GRIZZLY 90

The ideal quad bike for smaller adventure-seekers. Scaled down but not scaled back, the Grizzly 90 takes cues from the top-performing big bore Grizzly 700. The result is accessible, confidence-inspiring performance with Grizzly-family style.

With convenient features like electric-start, a large comfortable seat, front/rear racks and aggressive styling, the Grizzly 90 is the perfect machine for riders 10 years and older.

Key Features:

• Robust 90cc engine

• Suitable for riders aged 10 and up

• Low maintenance engine tuned for excellent low-tomid range performance

• Fully automatic CVT transmission with reverse, gated shifter (F/N/R)

• Electric push button start with a back-up kickstart for additional peace of mind

• Compact A-arm front suspension tuned for light, sporty steering and comfortable ride quality

• Sealed maintenance-free battery

• Handlebar-mounted reverse and neutral indicators

• Low profile Duro tyres

• Plush seat

• Roomy, integrated floorboards

• 6.6 litre fuel tank

• $4,649

1 Miles Road, Berrimah NT 0828 | Tel: 8984 4388 Holeshot Yamaha | www.holeshotyamaha.com.au

YFZ50

Engine Air-cooled, 4-stroke, SOHC, 2-valve, single cylinder

Air-cooled, 4-stroke, SOHC, 2-valve, single cylinder

Air-cooled, 4-stroke, SOHC, 2-valve, single cylinder

1 Miles Road, Berrimah NT 0828 | Tel: 8984 4388
Holeshot Yamaha | www.holeshotyamaha.com.au
RAPTOR 90 (YFM90R)GRIZZLY 90
Displacement 49.4cc 89.9cc 89.9cc Bore x stroke 39.0 x 41.4mm 47.0 x 51.8mm 47.0 x 51.8mm Compression ratio 8.5 : 1 9.2 : 1 9.2 : 1 Fuel management V12 x 1 H66D x 1 H66D x 1 Starter system Electric and Kick Electric and Kick Electric and Kick Transmission V-belt automatic V-belt automatic, F, N, RV-belt automatic, F, N, R Frame type Steel tube Steel tube Steel tube Front suspension Single A-arm, 60mm travelSingle A-arm, 126mm travelSingle A-arm, 126mm travel Rear suspension Swingarm, 51mm travelSwingarm, 145mm travelSwingarm, 145mm travel L x W x H 1250 x 820 x 770mm 1485 x 1020 x 955mm1562 x 1031 x 1105mm Seat height 585mm 750mm 730mm Min. ground clearance 88mm 100mm 210mm Wet weight (with full fuel and fluids) 100kg 126.5kg 139.6kg Fuel capacity 5.8 litres 6.6 litres 6.6 litres Colours Team Yamaha Blue / Yamaha White Team Yamaha Blue / Yamaha White Steel Blue / Armour Grey Ride Away Price $3,949 $4,649 $4,649 Specifications may change without notice. The specifications mentioned here apply to and have been achieved by production models under standard operating conditions. We intend only to give a fair description of the vehicle and its performance capabilities but these specifications may not apply to every machine supplied for sale. Yamaha Motor Australia reserves the right to alter specifications without prior notice. Equipment illustrated and specifications may vary to meet individual markets. National ride away pricing quoted here is correct at time of printing. Prices subject to change without notice.
SPECIFICATIONS
