YFM700R SE (Raptor 700R)

Page 1

YFM700R SE

Once you’ve ridden the Raptor 700 there is no turning back. Its mind bending power and handling offer the ultimate buzz on all sorts of terrain. And once you’re hooked, this mighty ATV will transform your leisure time forever. The gutsy 686cc 4-stroke engine comes with a series of new features that boost power for even faster acceleration. And with its reduced fuel consumption, the latest model takes you further between refills – handy when you are dominating the Dakar Rally. Riding comfort is enhanced with a new rear shock – and larger 22-inch front tyres give you precise steering and added control. Because when you take your fun seriously, you need the ultimate performer.

Aggressive Style

Aggressive styling makes the Raptor 700R look as menacing as it really is. The mighty Raptor 700R is ready to go whether the destination is the dunes, the trails or the track.

Advanced Chassis

Big power and lightweight, a combination that makes any ATV rider take notice, is standard on the Raptor 700R, with a hybrid steel aluminium frame and Controlled-Fill aluminium sub-frame and cast aluminium swingarm combining to produce a super-strong structure and the lightest ATV in its class.

Ergonomic Controls

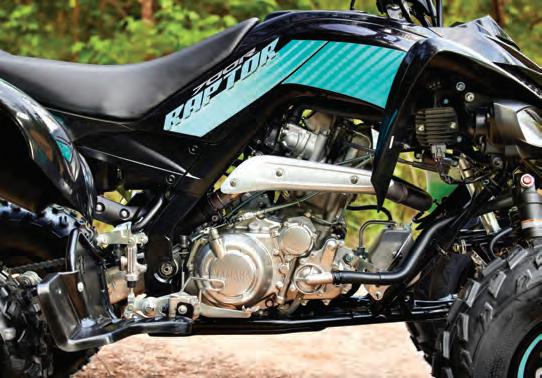

High-Tech Race-Bred 686cc Fuel-Injected Engine

Powered by our most potent big-bore Raptor engine ever – 686cc of liquid-cooled, fuel-injected power.

The engine produces big torque right off idle, transitioning into a fat mid-range and monstrous top-end.

Advanced Suspension

The YFZ inspired handling of the Raptor 700R is incredible to experience blasting through the woods. Thanks to the 231mm of front travel and 256mm out back, the trail bumps smooth out while the rider keeps things under control.

With the combination of power, solid handling, and a great suspension this machine has to be experienced to be fully appreciated.

Thumb throttle lever has a smooth shape for a feel riders will appreciate, with less fatigue at the end of the day. Handlebar-mounted flip-type parking brake lever is simple to use.

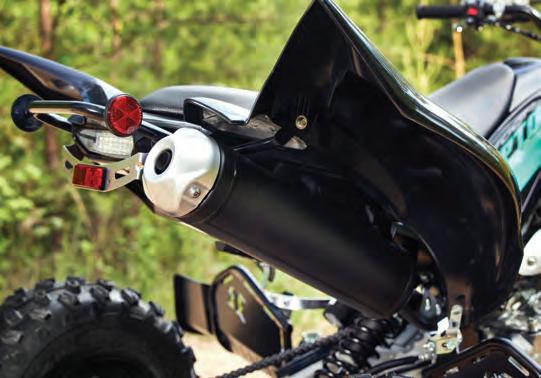

High Visibility Lighting

Multireflector 30-watt Krypton headlights set back in the front cowl add the perfect no-compromises sporting accent, and an LED taillight provides great visibility.

Large Fuel Tank

Large-capacity, 11 litre fuel tank and Yamaha Fuel Injection (YFI) mean more time on the trail between fill-ups.

Rider Friendly Features

A thick comfortable seat provides excellent comfort while the dual counterbalancers, electric starting, and reverse keep things nice and civilized when needed, but when it comes time to pull the trigger the big-bore Raptor 700R stands tall.

1 Miles Road, Berrimah NT 0828 | Tel: 8984 4388 Holeshot
| www.holeshotyamaha.com.au
Yamaha

SPECIFICATIONS – YFM700R SE

Engine

Type: Liquid-cooled, 4-stroke, SOHC, 4-valve, single cylinder

Displacement:686 cc

Bore x stroke: 102.0 mm x 84 mm

Compression ratio:10.0 : 1

Lubrication system:Dry sump

Fuel system:Fuel Injection

Ignition system: Transistor Controlled Ignition (TCI)

Starter system:Electric

Fuel tank capacity:11 litres

Final transmission:Chain

Transmission: Constant mesh 5-speed w reverse

Chassis

Frame type:Steel tube

Front suspension: Independent double wishbone, 230mm wheel travel

Rear suspension: Swingarm (link suspension), 256mm wheel travel

Front brakes: Hydraulic dual discs

Rear brakes: Hydraulic single disc

Front tyres: AT22 x 7-10

Rear tyres: AT20 x 10-9

Dimensions

Length: 1,845mm

Width: 1,155mm

Height: 1,115mm

Wheelbase:1,280mm

Seat height: 830mm

Ground clearance: 113mm

Wet weight: 192kg (including full oil and fuel tank)

Other Information

Colour: Yamaha Black

Price: $17,749.00

1 Miles Road, Berrimah NT 0828 | Tel: 8984 4388
Holeshot Yamaha | www.holeshotyamaha.com.au
The specifications mentioned here apply to and have been achieved by production models under standard operating conditions. We intend only to give a fair description of the vehicle and its performance capabilities but these specifications may not apply to every machine supplied for sale. Yamaha Motor Australia reserves the right to alter specifications without prior notice. Equipment illustrated and specifications may vary to meet individual markets. Price quoted is the manufacturer’s recommended retail price, which is correct at time of printing only. Price subject to change without notice.
