Viking EPS Special Edition

Page 1

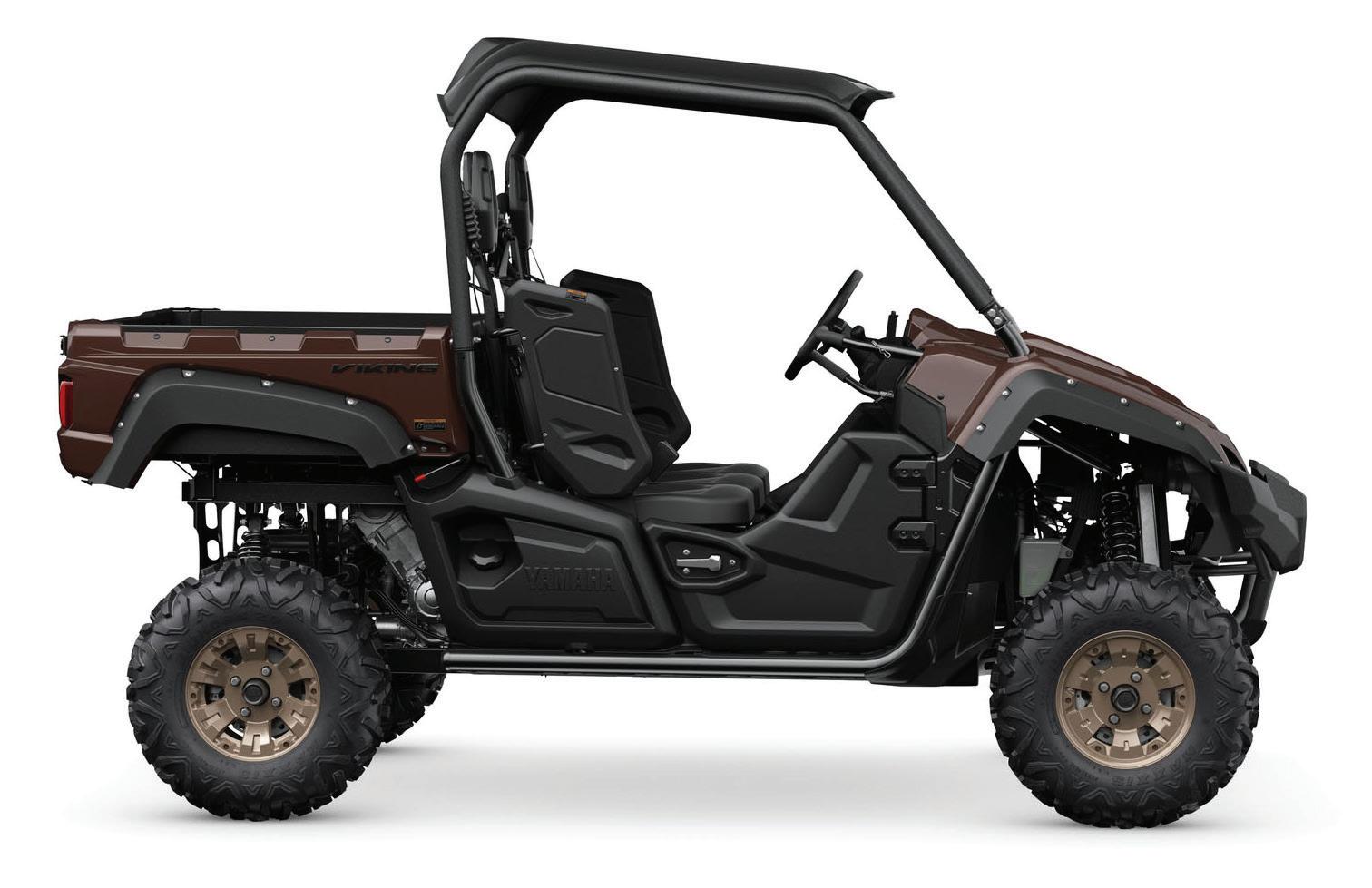

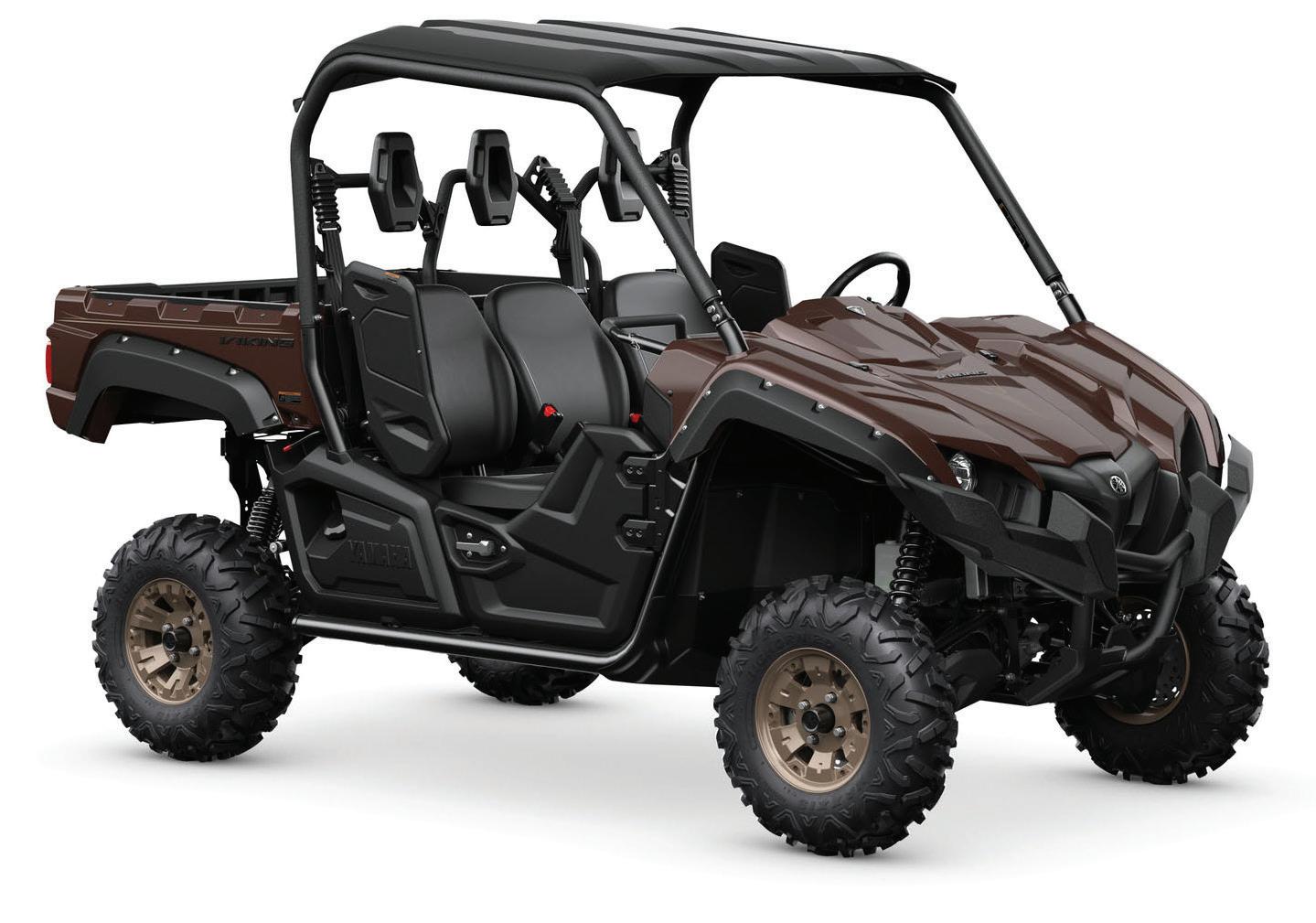

VIKING EPS SPECIAL EDITION

Multi-purpose 3-seater

The Yamaha Viking EPS SE is ready to conquer whatever comes its way with a powerful 686cc, liquid-cooled, fuel injected, SOHC power plant. This engine produces strong low-end acceleration and pulls hard through the rpm range to deliver excellent power for getting the job done or when hitting the trails. This true 3-passenger machine achieves driver and passenger comfort with a handhold, padded head rests, and 3-point seat belts for all riders. Extensive noise and vibration reduction measures provide a smooth and quiet ride. The superior seating position, adjustable driver’s seat, and an offset middle seat all provide unmatched comfort that riders will appreciate. The full list of additional accessories on the new Viking EPS SE include high-quality painted bodywork, aluminium wheels, overfenders, and under-seat storage.

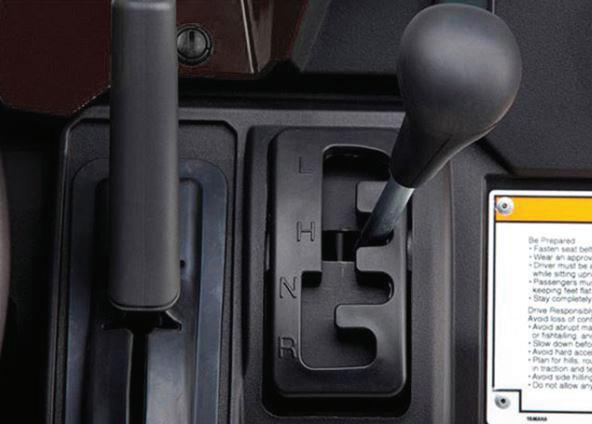

Ultramatic Transmission

Ultramatic transmission with dual-range (Hi/Lo) drive and reverse is the most advanced drive system available. An automatic centrifugal clutch maintains constant belt tension for reduced belt wear and the system features a sprag clutch for all-wheel downhill engine braking in 4WD mode and reverse.

Digital Instrumentation

A digital instrument panel boasts multifunction LCD display with speedometer, odometer, dual trip meters, hour meter, 4WD status, transmission position, clock and a fuel gauge.

Service Accessibility

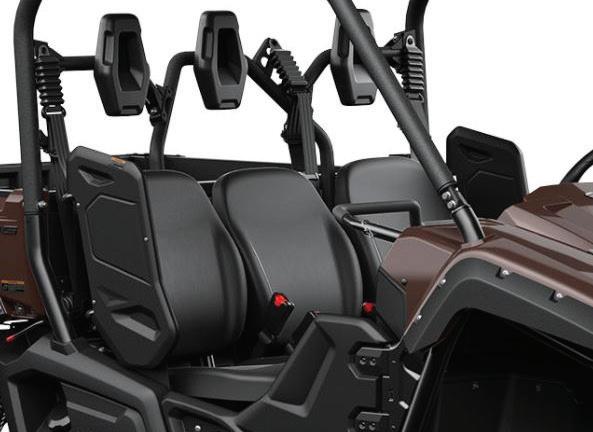

Spacious 3-Seat Layout

This true 3-passenger machine achieves driver and passenger comfort with a handhold, padded head rests, and 3-point seat belts for all riders. Extensive noise and vibration reduction measures provide a smooth and quiet ride. The superior seating position, adjustable driver’s seat, a standard sun top and an offset middle seat all provide unmatched comfort that riders will appreciate.

Pallet-sized Rear Cargo Bed

To underline its serious commercial, industrial and farming applications, the new Viking is equipped with a full-sized cargo bed which can accommodate a pallet. The tough steel-lined bed measures 1,380mm wide x 925mm long x 315mm deep, and has a useful carrying capacity of 272kg. To secure the load, the cargo bed is equipped with four-tie-down hooks.

The engine is located under the cargo bed and can be easily accessed when the bed is lifted. Centre hood access for battery and other electrical components eases maintenance. Under-seat, tool-free air filter is a snap to service.

1 Miles Road, Berrimah NT 0828 | Tel: 8984 4388
Holeshot Yamaha | www.holeshotyamaha.com.au

SPECIFICATIONS

Engine

Type: Liquid cooled, 4-stroke, SOHC, 4 valve, single cylinder

Displacement: 686cm3

Bore & stroke: 102.0 × 84.0mm

Compression ratio: 10.0 : 1

Starting system: Electric

Fuel tank capacity: 36.7 litres

Fuel management: Fuel injection

Transmission: Ultramatic® V-belt with all-wheel engine braking; H, L, N, R, P

Final transmission: Shaft

Ignition: TCI

Lubrication system: Wet sump

Chassis

Frame type: Steel tube

Suspension: Independent double wishbone, 205mm travel

Brakes: Hydraulic dual discs (front & rear)

Tyres (front / rear): 25 x 8-12NHS / 25 x 10-12NHS

Dimensions

Length: 3,100mm

Width: 1,625mm

Height: 1,925mm

Seat height: 793mm

Wheelbase: 2,135mm

Ground clearance: 300mm

Wet weight (oil and full fuel tank) 656kg

Warranty

3-years unlimited kms manufacturer’s warranty

Colour

Copperhead Metallic

Price $26,699.00

1 Miles Road, Berrimah NT 0828 | Tel: 8984 4388
Holeshot Yamaha | www.holeshotyamaha.com.au
– VIKING SPECIAL EDITION
Price quoted is the manufacturers recommended retail price. Prices current as at February 2023. Prices subject to change without notice. The specifications mentioned here apply to and have been achieved by production models under standard operating conditions. We intend only to give a fair description of the vehicle and its performance capabilities but these specifications may not apply to every machine supplied for sale. Yamaha Motor Australia reserves the right to alter specifications without prior notice. Equipment illustrated and specifications may vary to meet individual markets.
