SEM VII IESCOAWANJARI HIMANSHU RN:53SHEET TITLE: 1COVER PAGE SEAT NO. 201852

SEM VII IESCOAWANJARI HIMANSHU RN:53SHEET TITLE: SCENARIO 2

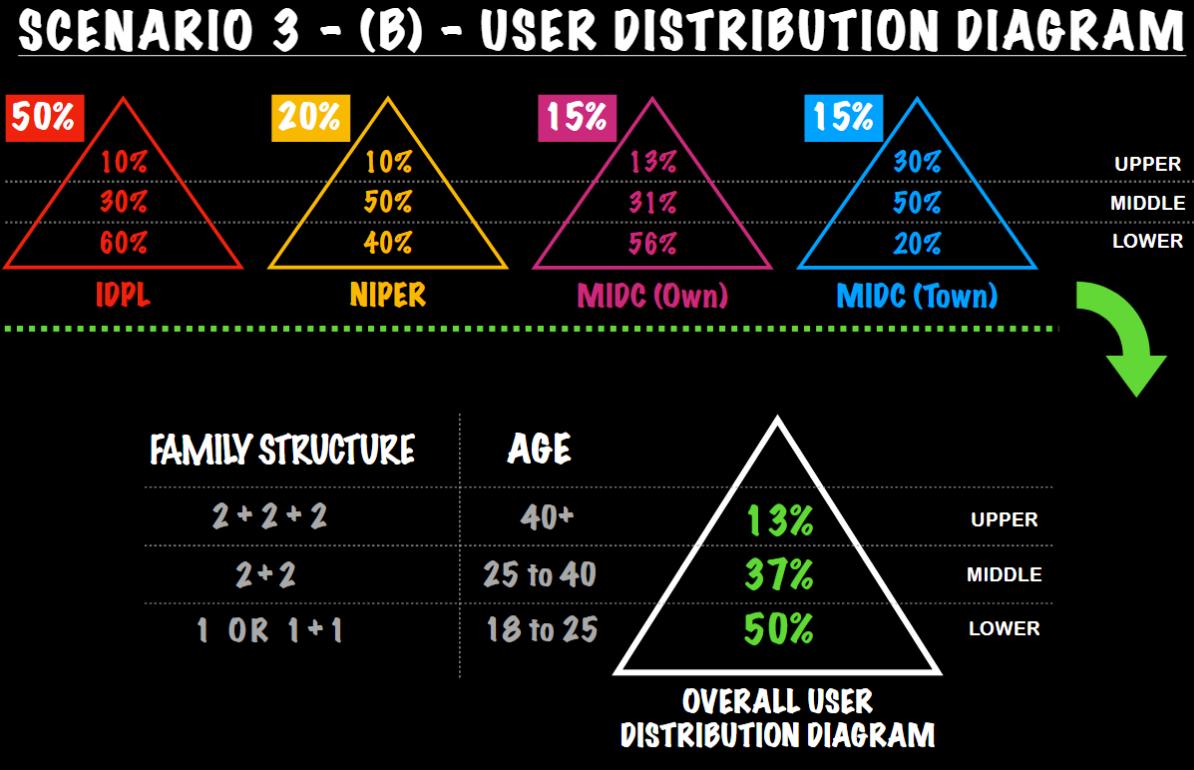

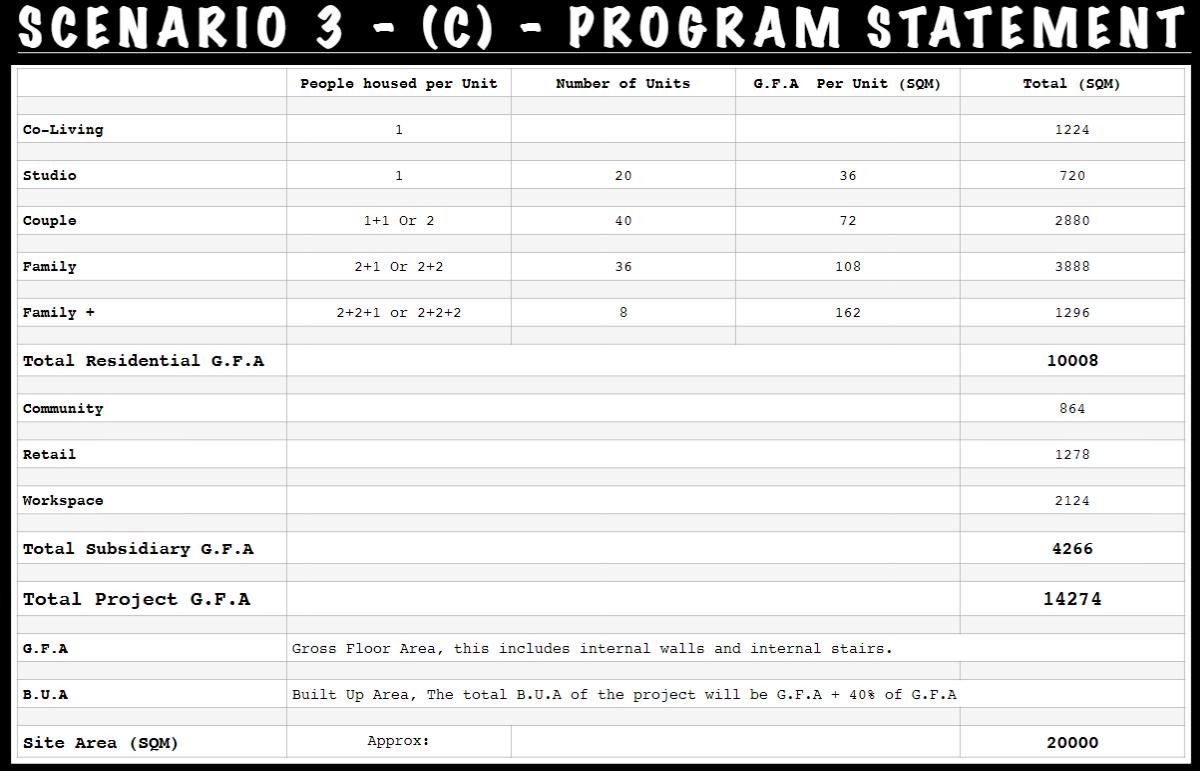

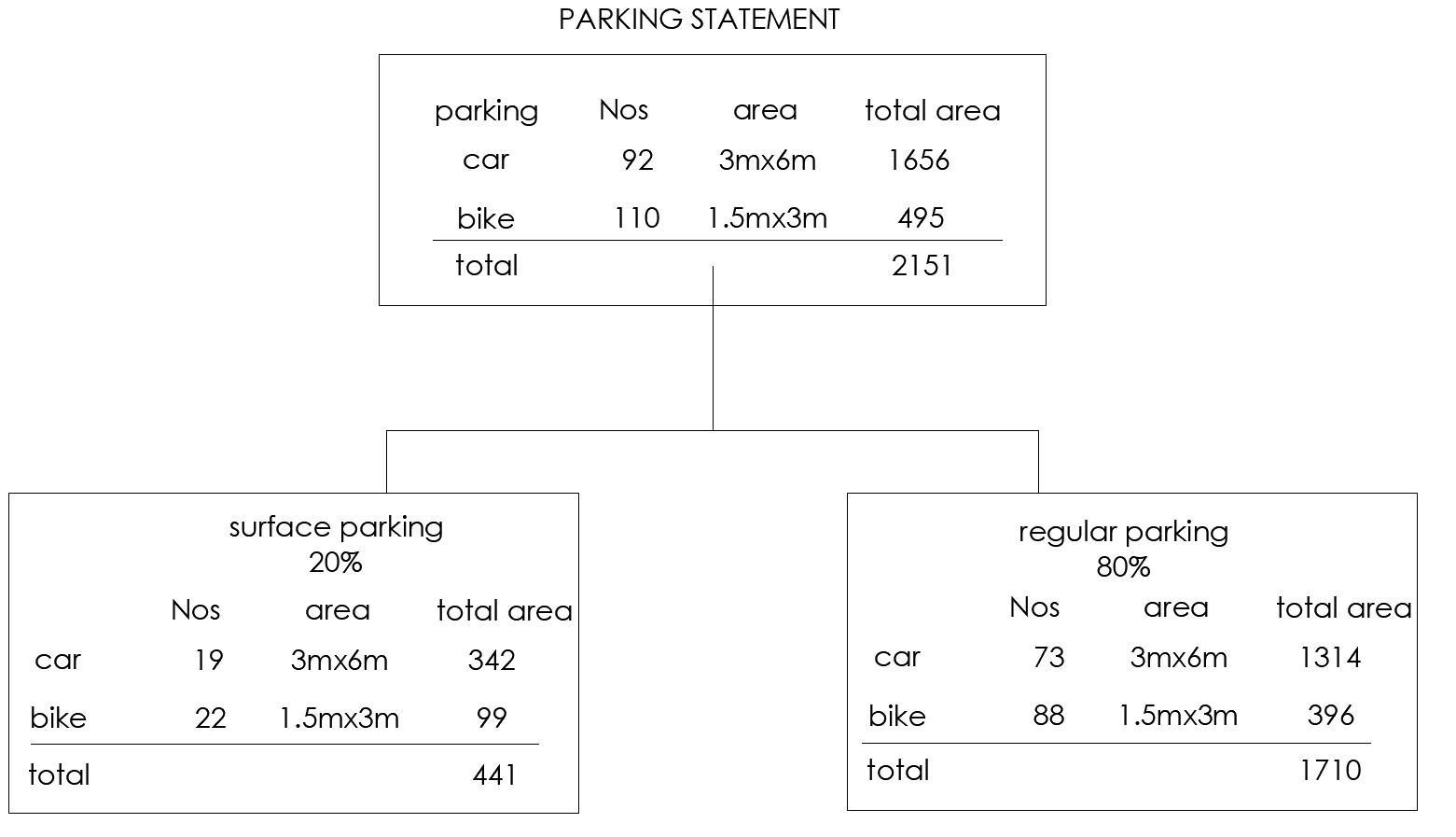

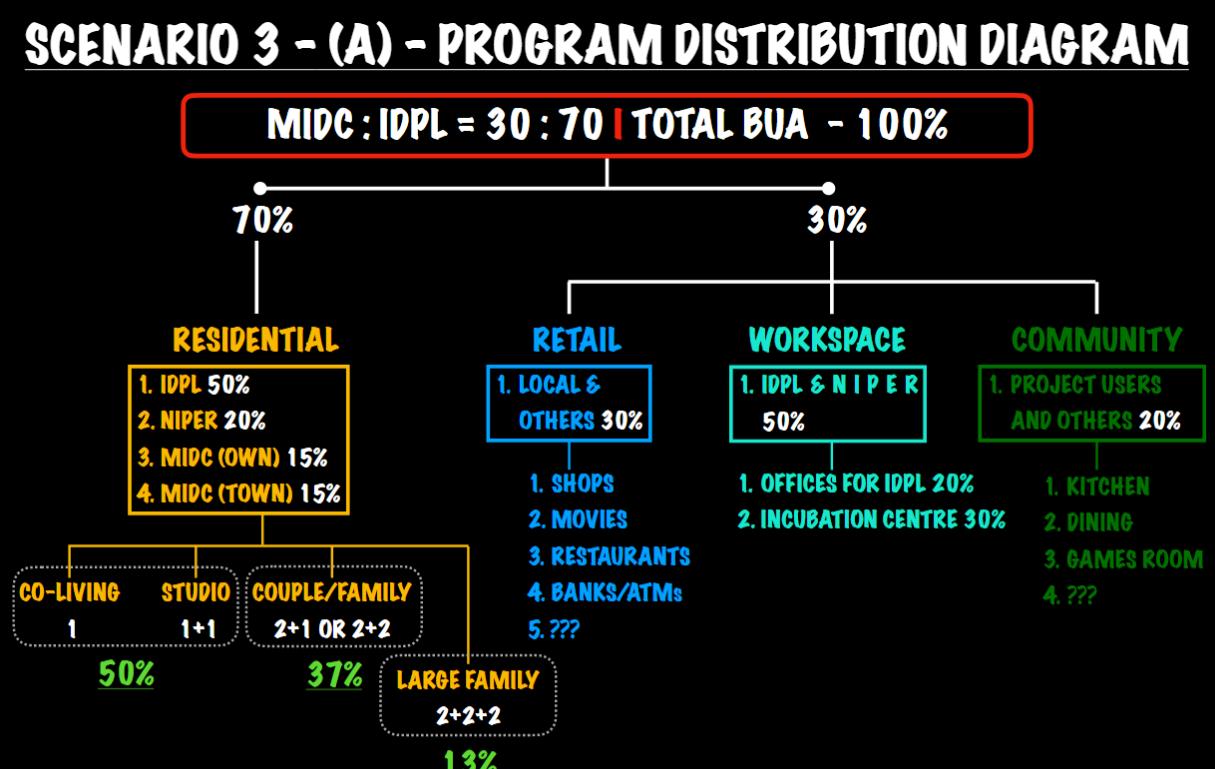

SEM VII IESCOAWANJARI HIMANSHU RN:53SHEET TITLE: SCENARIO 3

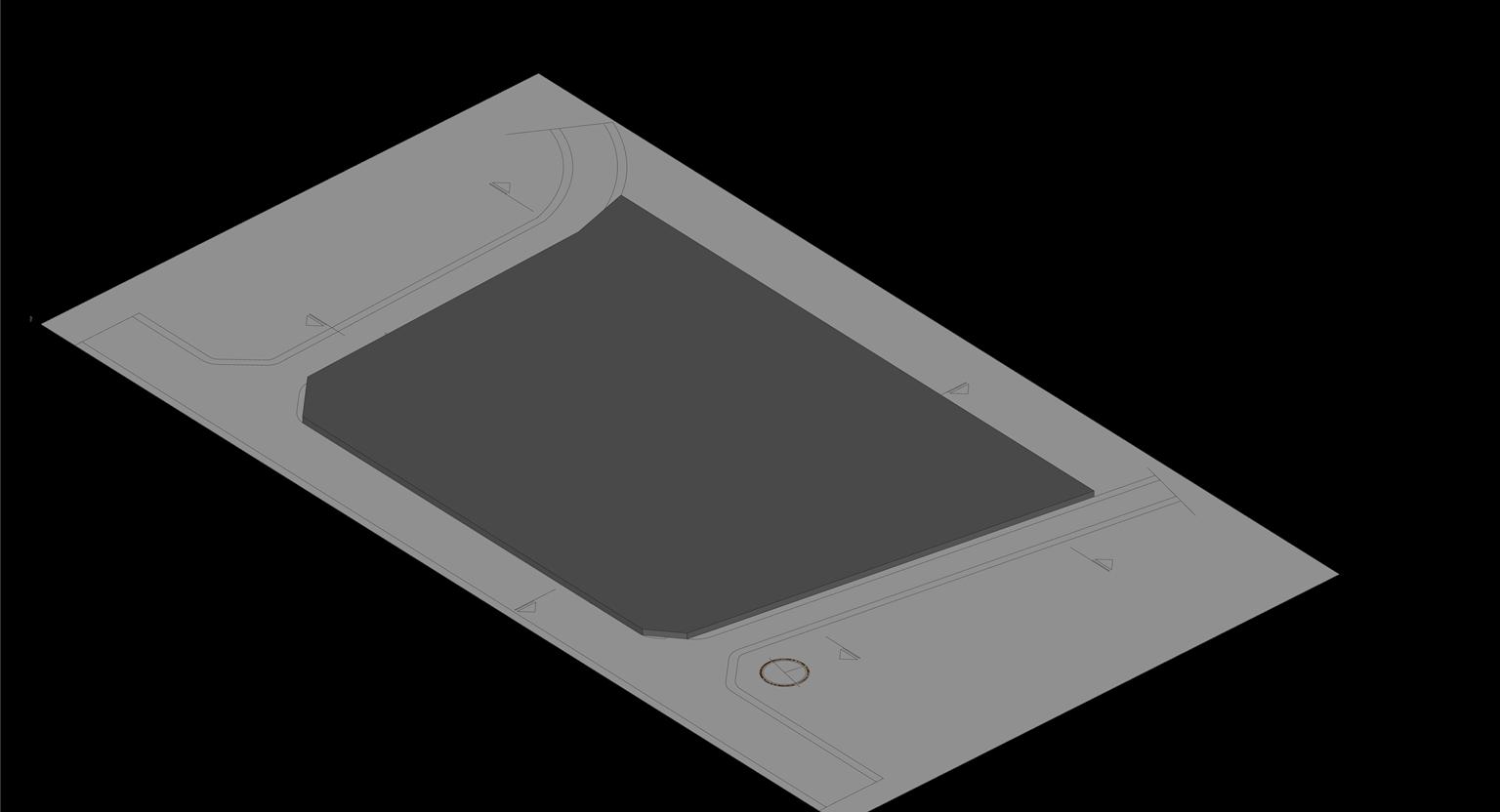

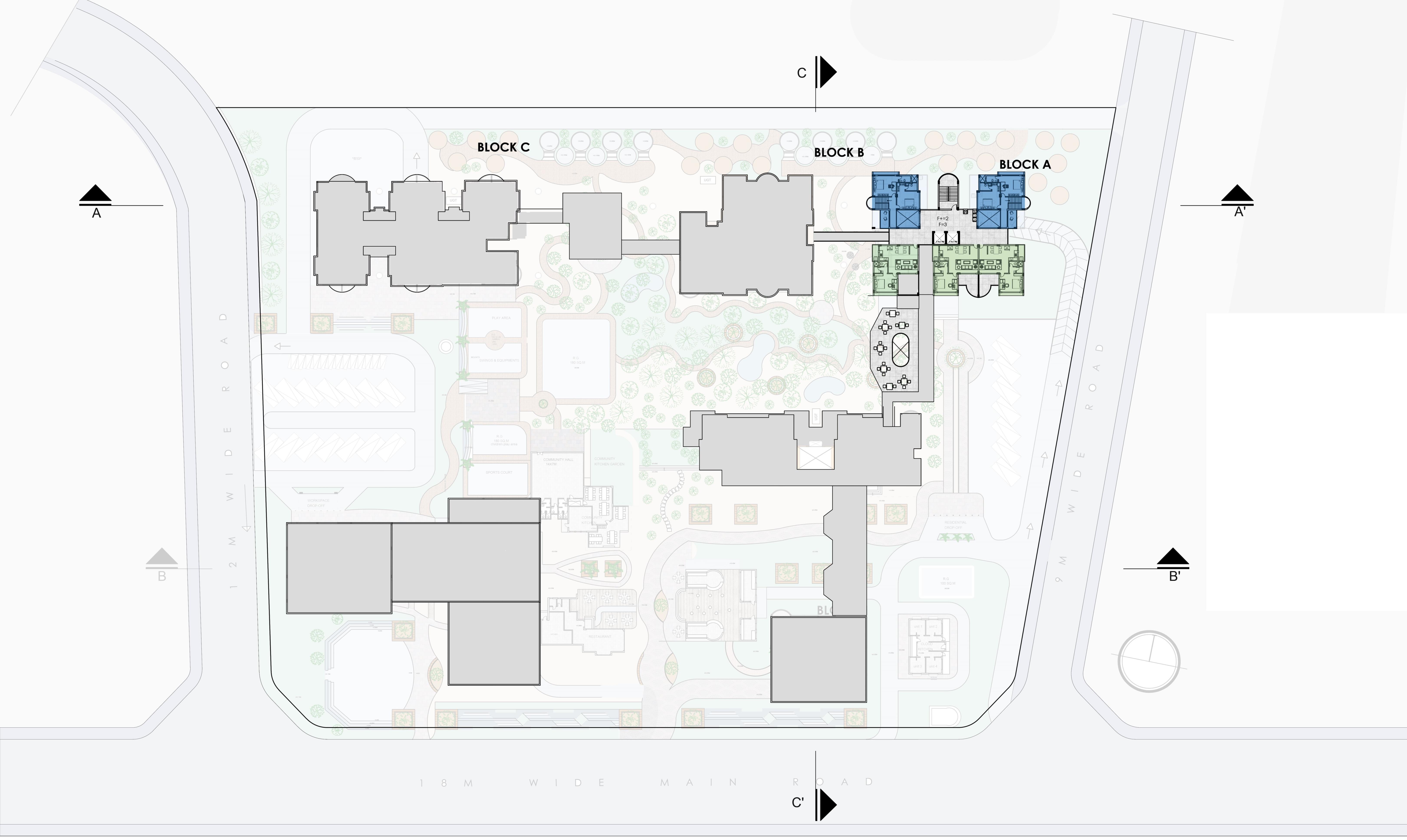

SEM VII IESCOAWANJARI HIMANSHU RN:53SHEET TITLE: 4SITE ANALYSIS AND SYNOPSIS

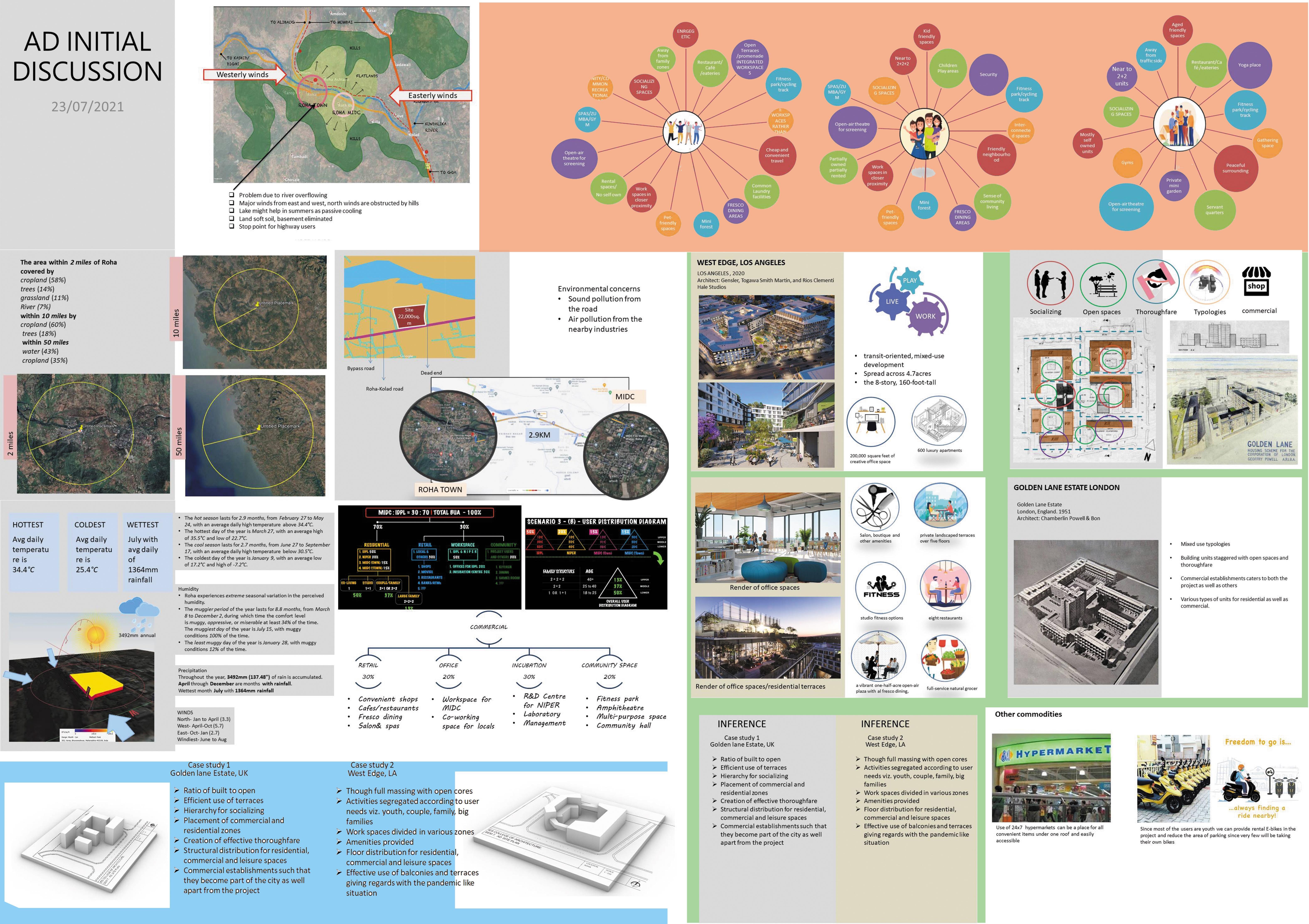

SEM VII IESCOAWANJARI HIMANSHU RN:53SHEET TITLE: 5INITIAL IDEAS

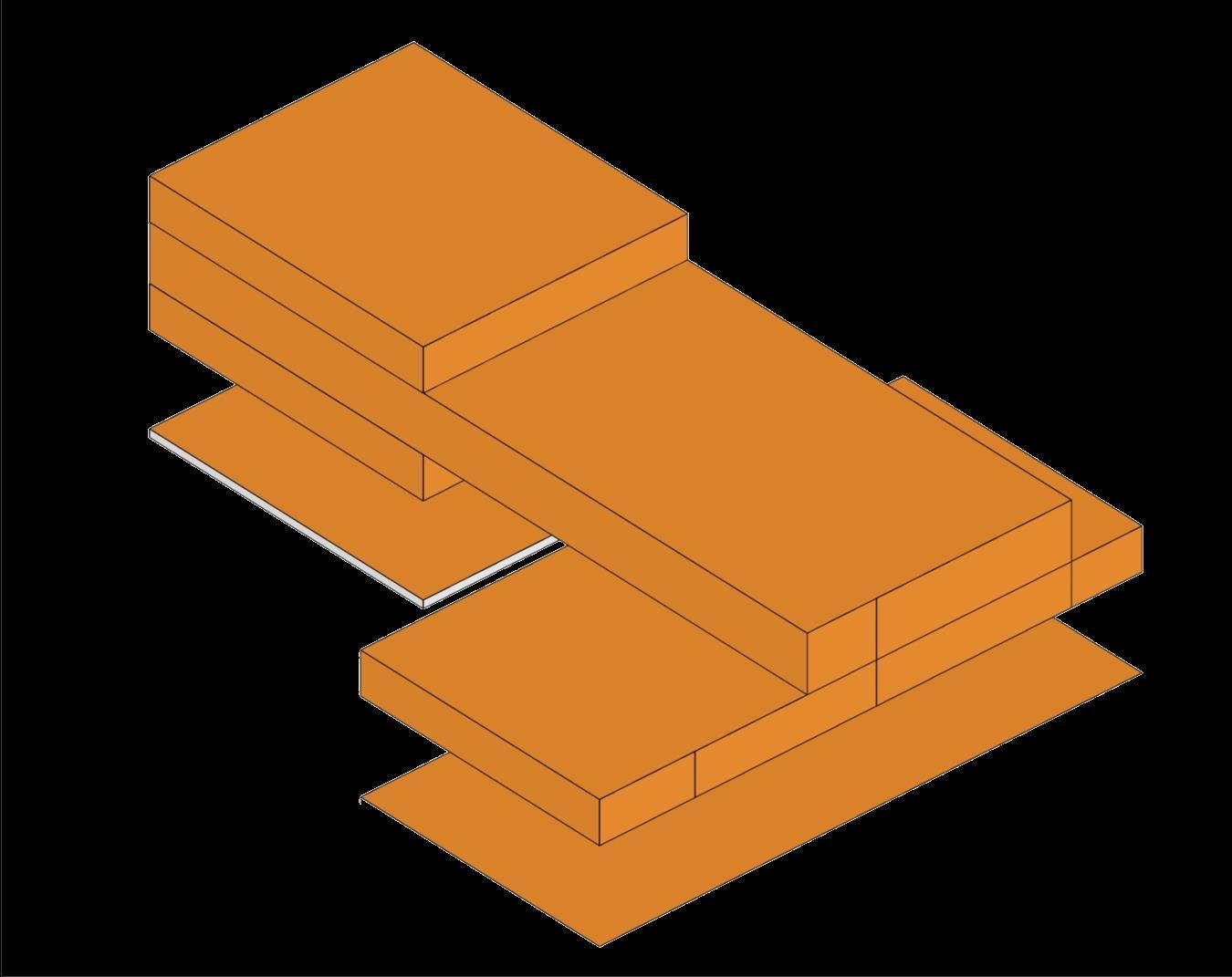

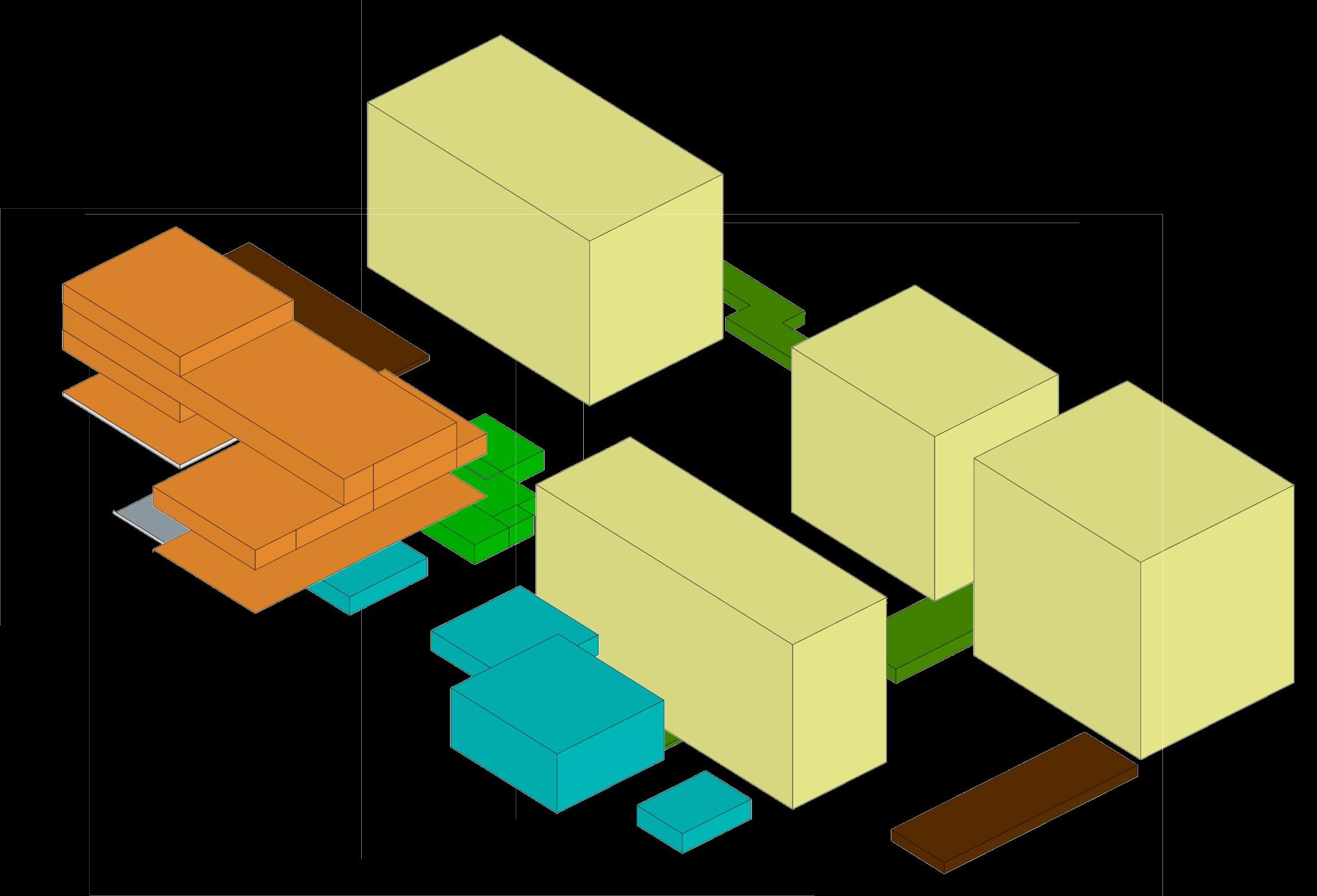

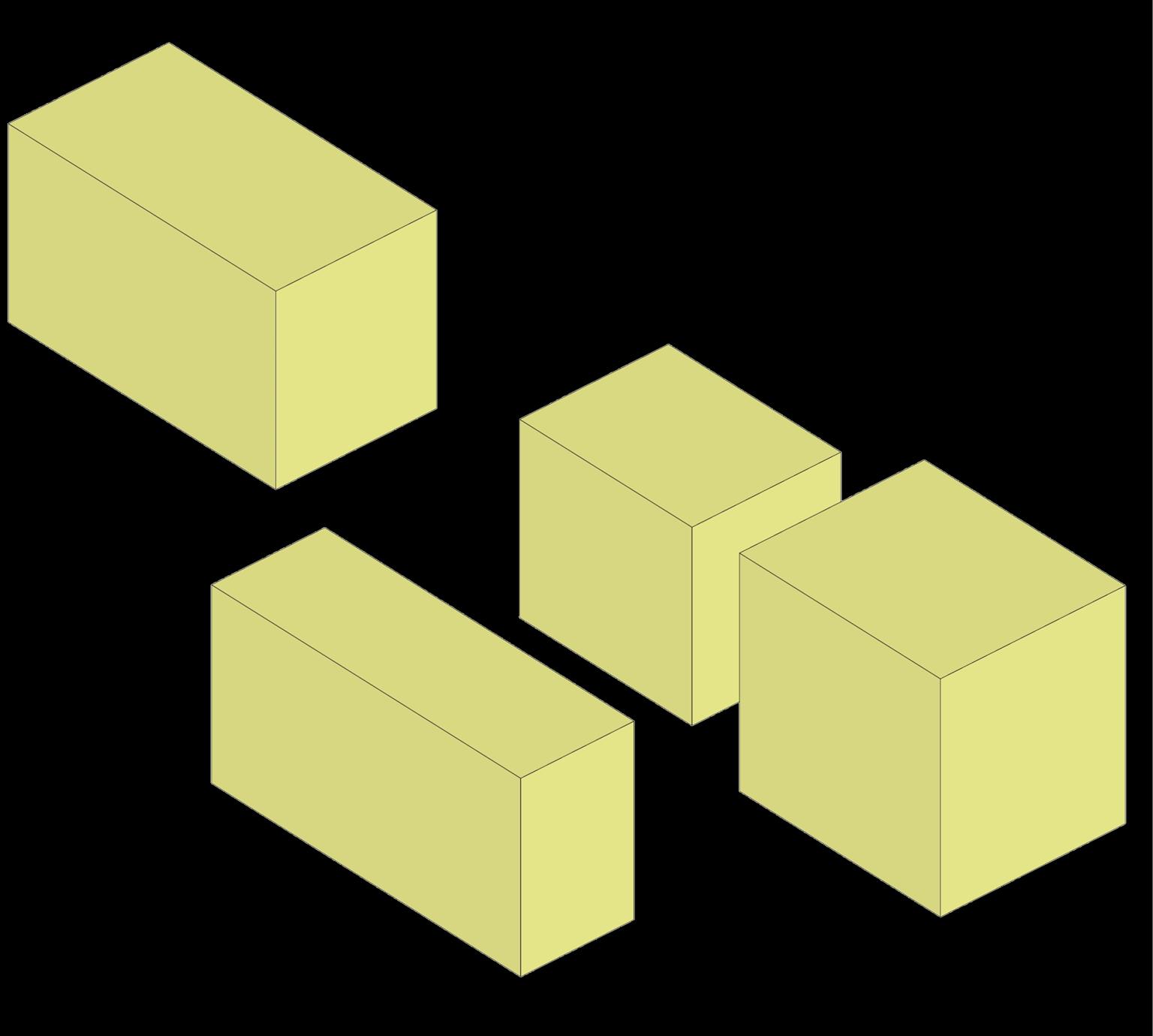

SEM VII IESCOAWANJARI HIMANSHU RN:53SHEET TITLE: 6MASSING CONCEPT

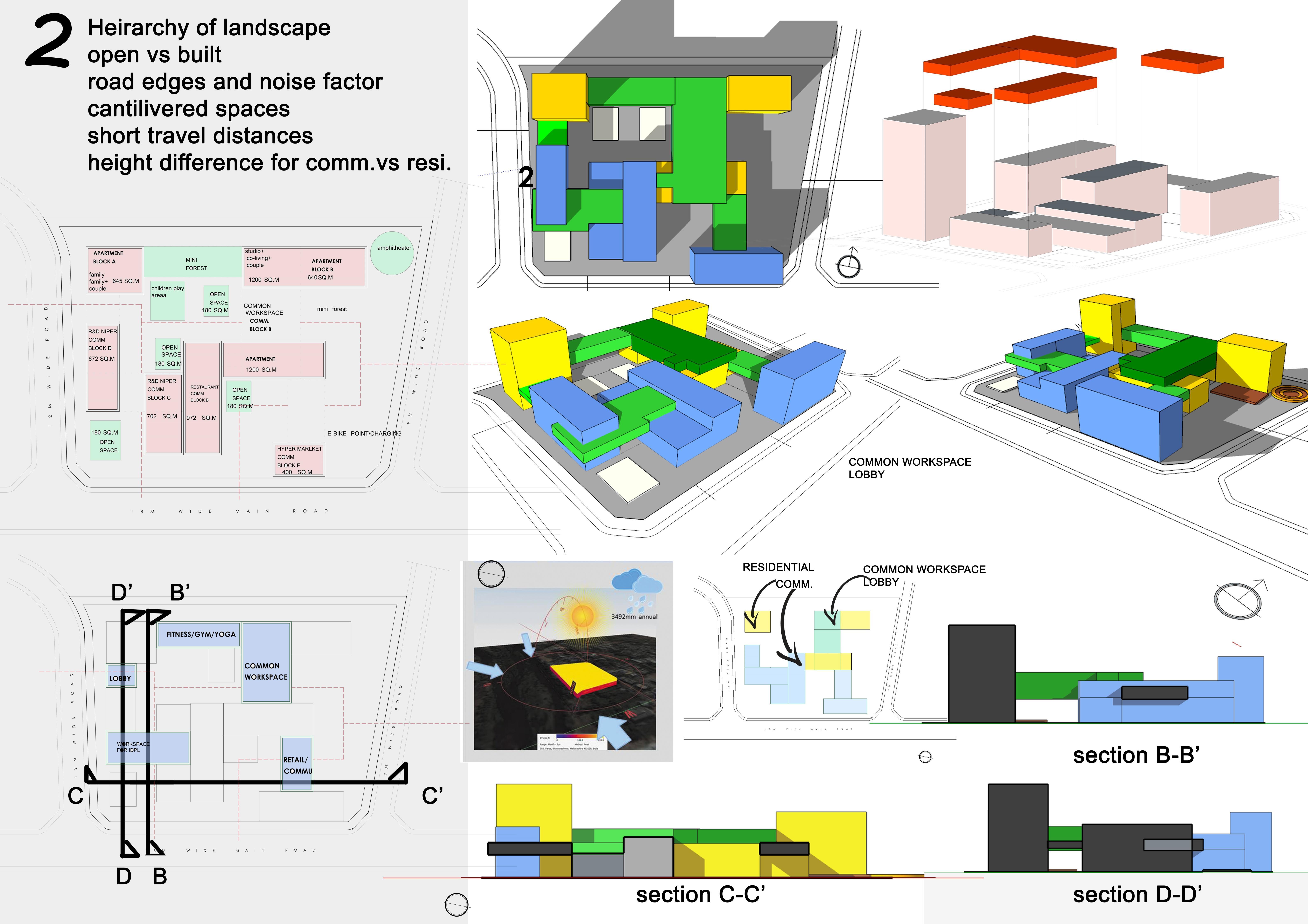

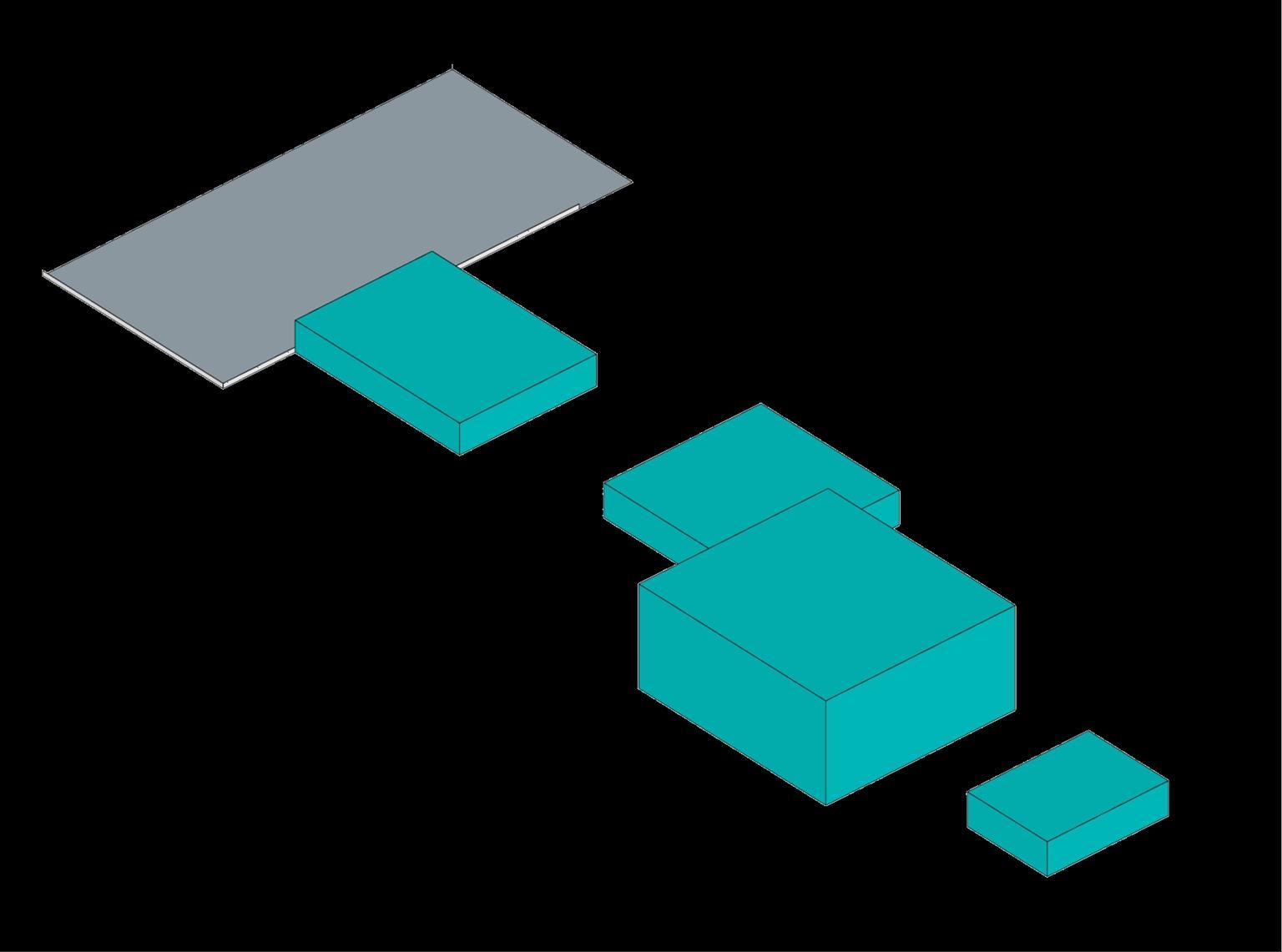

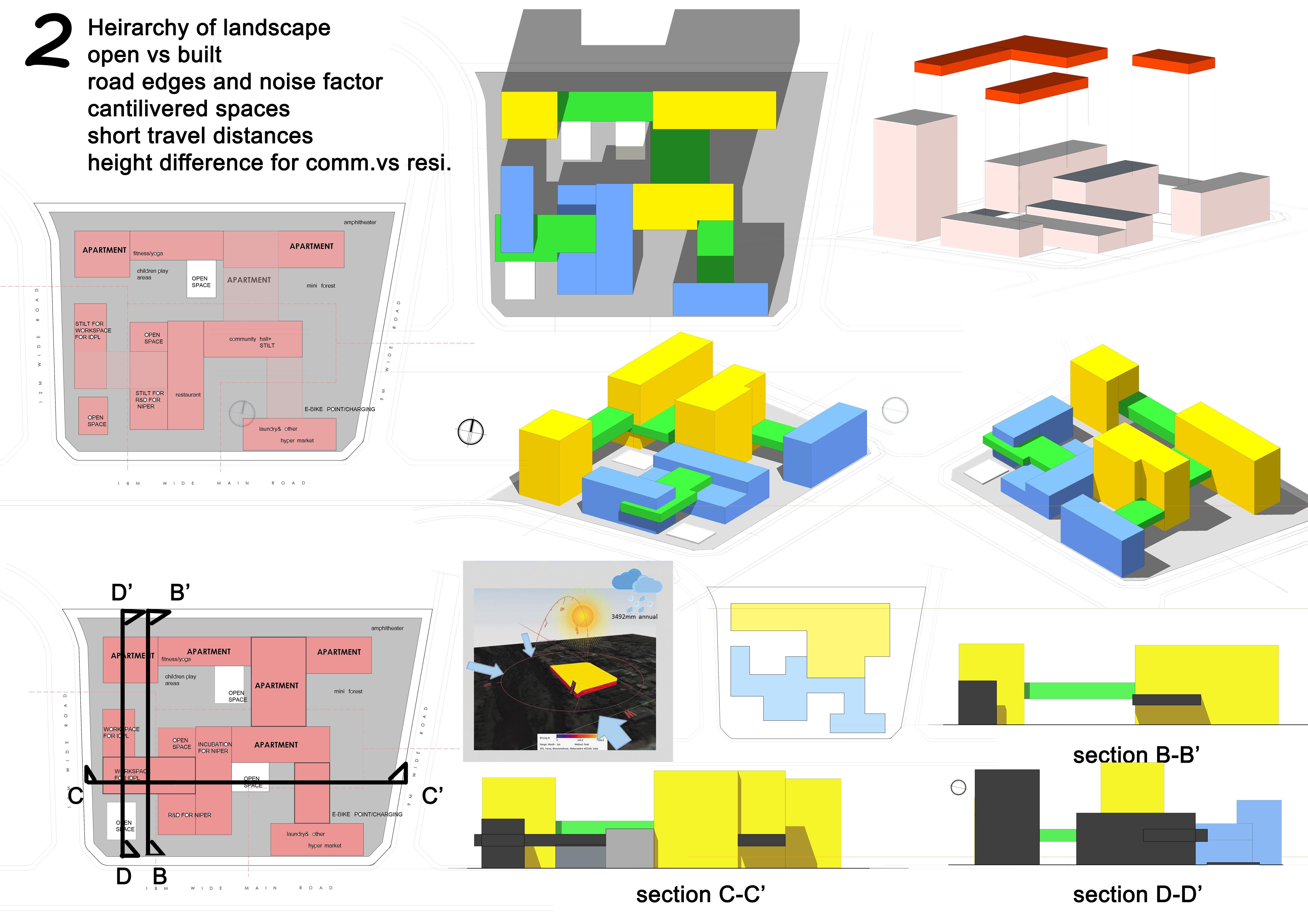

SEM VII IESCOAWANJARI HIMANSHU RN:53SHEET TITLE: 7MASSING CONCEPT 2

SEM VII IESCOAWANJARI HIMANSHU RN:53SHEET TITLE: 8MASSING CONCEPT MASSING DEVELOPEMNET

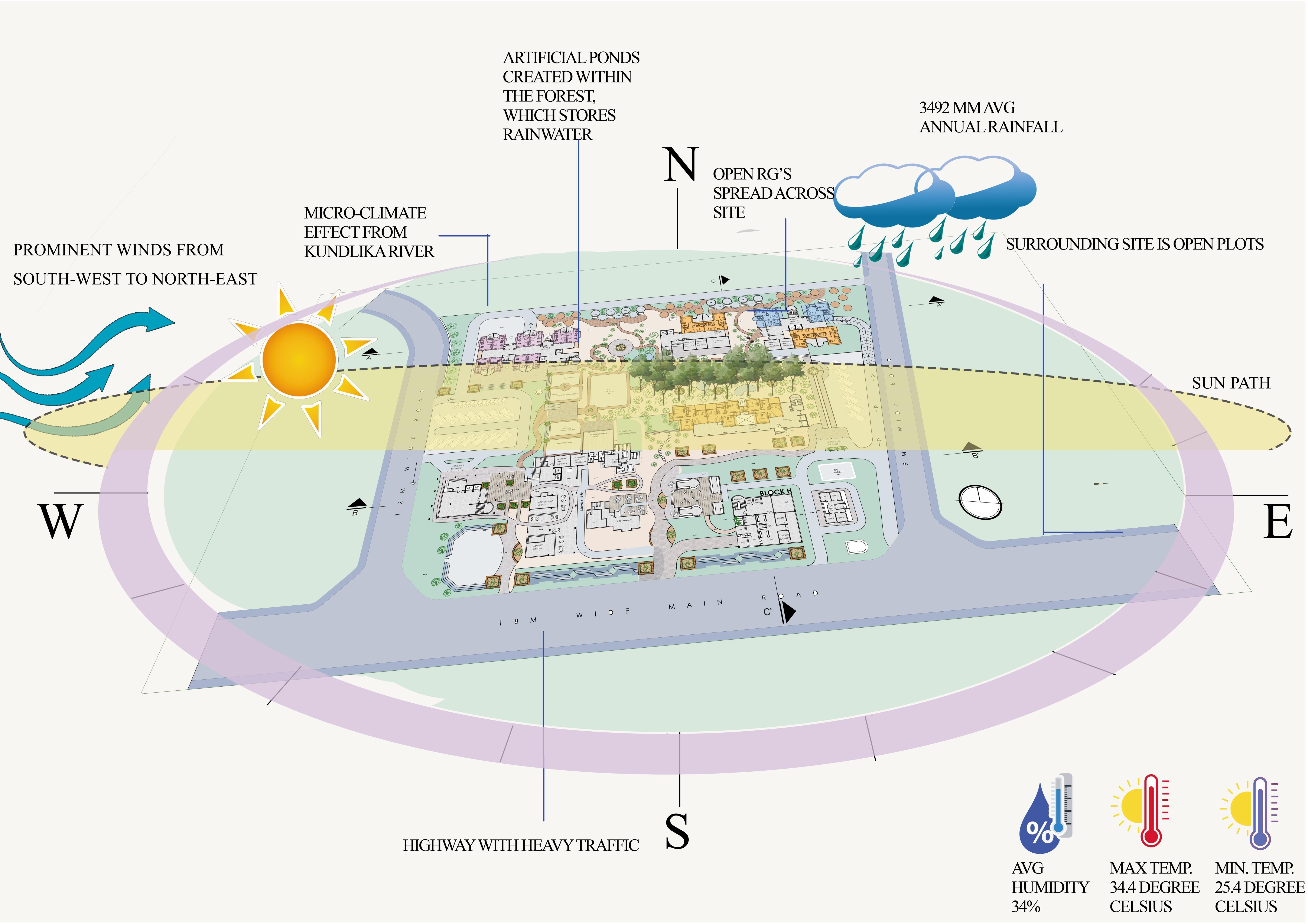

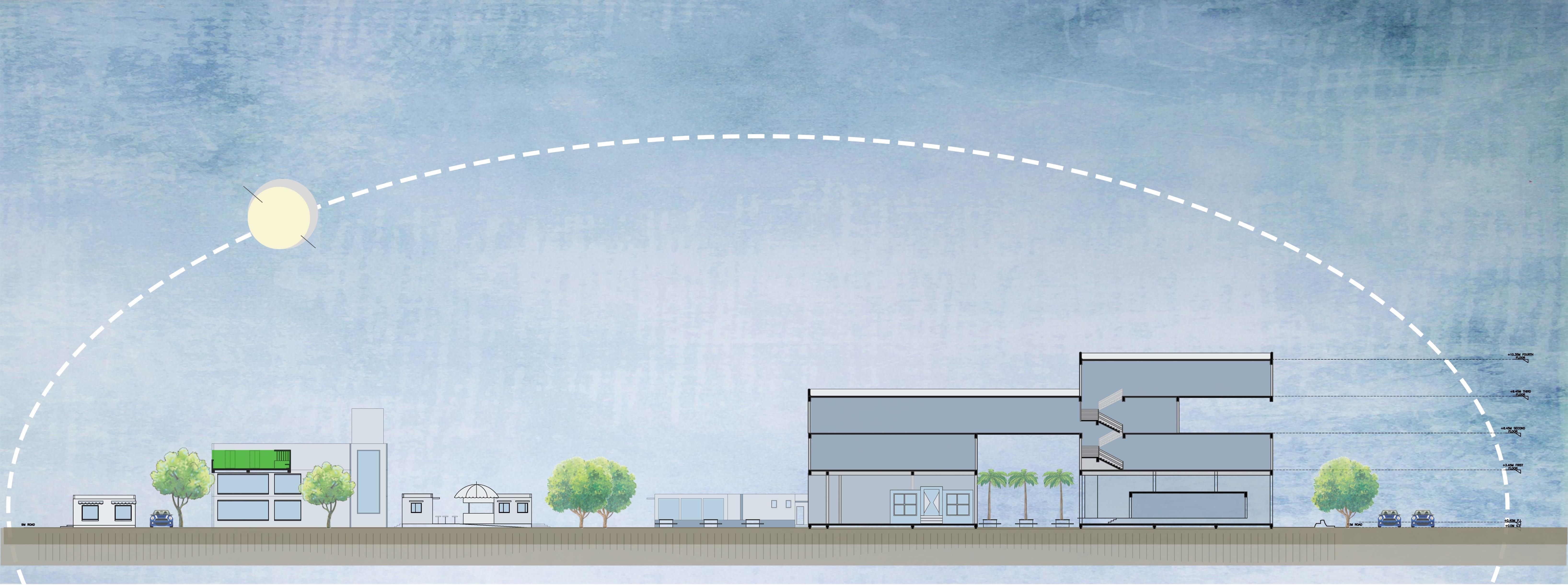

SEM VII IESCOAWANJARI HIMANSHU RN:53SHEET TITLE: 9CLIMATE ANALYSIS

SPACES ARE NATURALLY VENTILATED

CONCEPT

WINDS

SEM VII IESCOAWANJARI HIMANSHU RN:53SHEET TITLE: 10MASSING

ALL

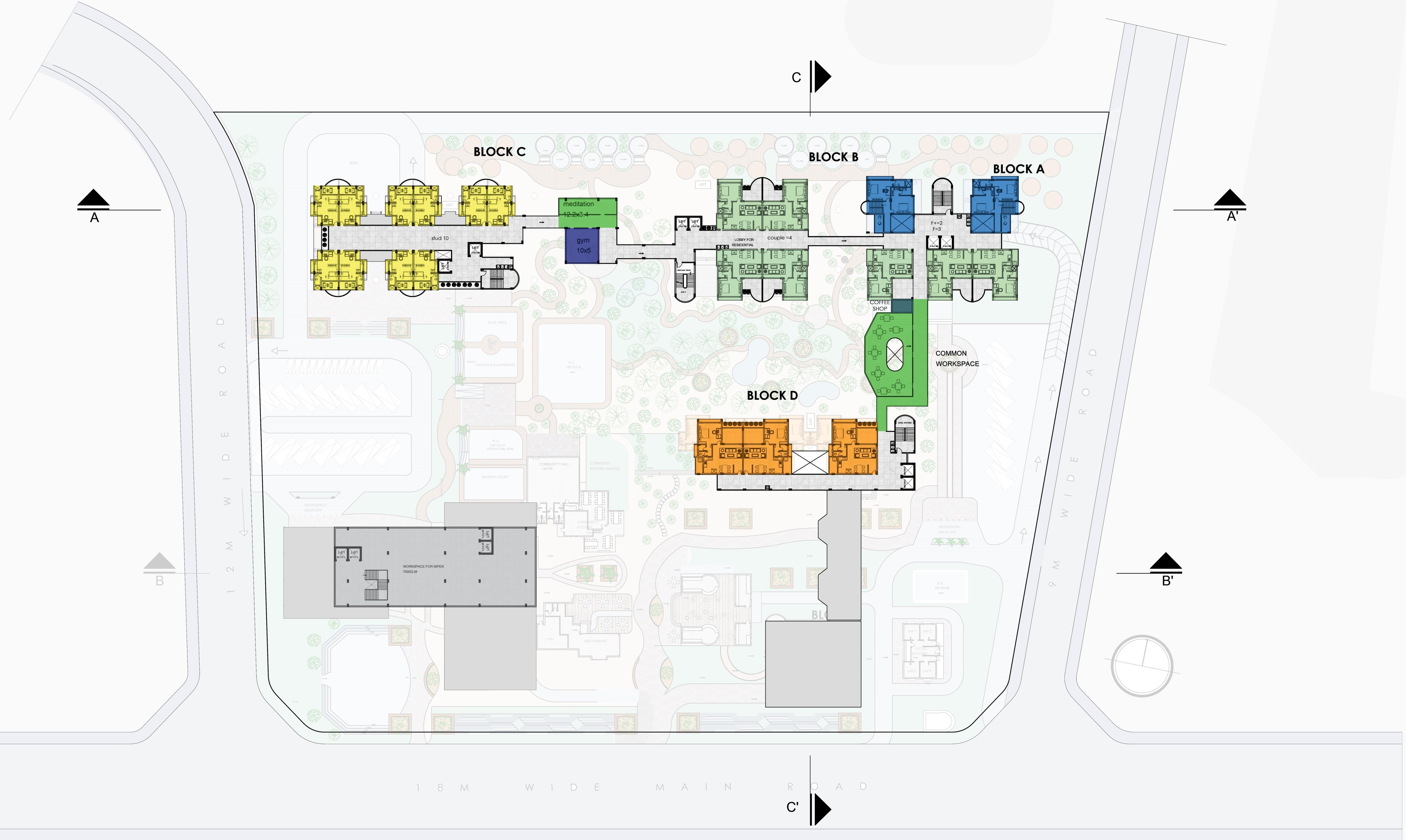

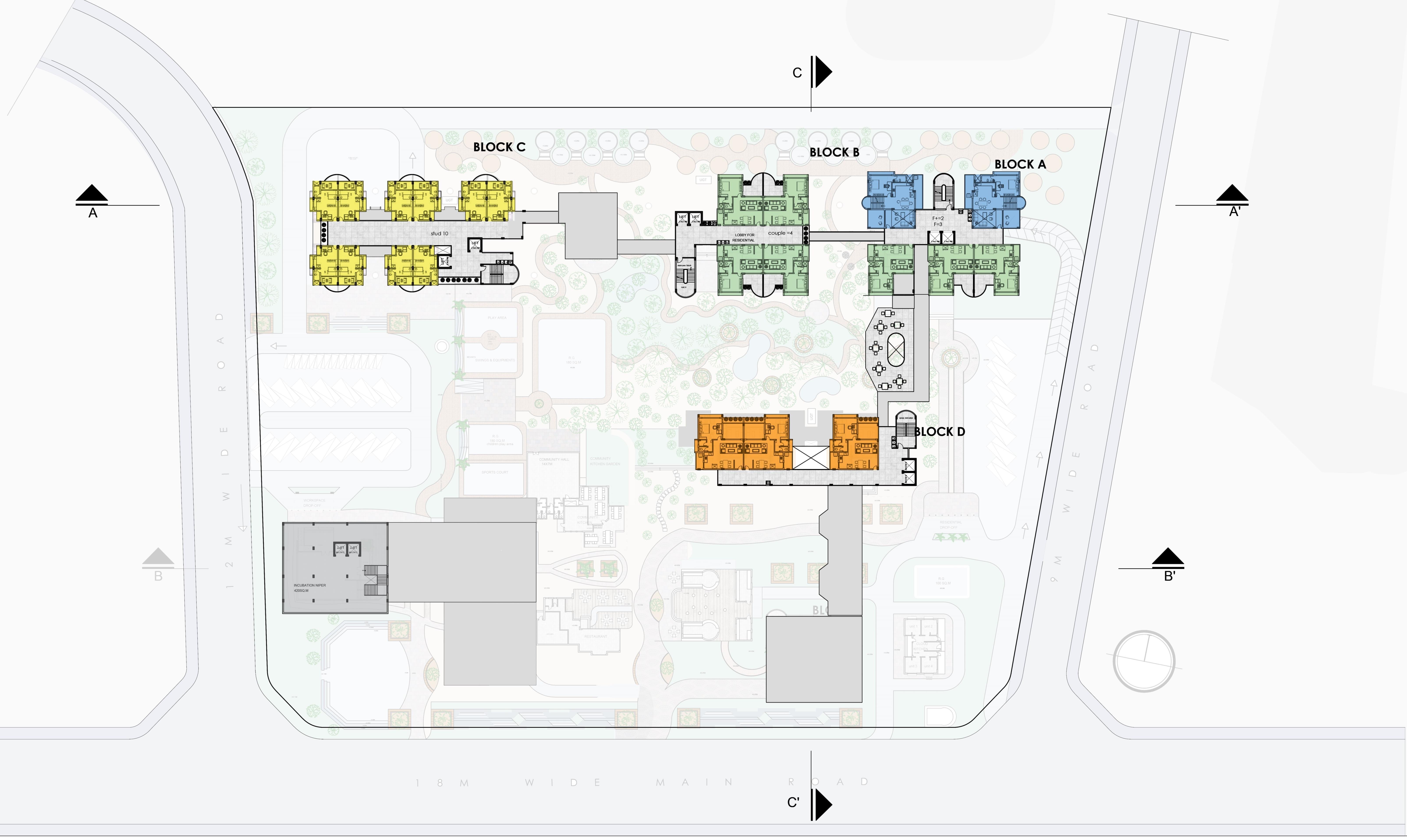

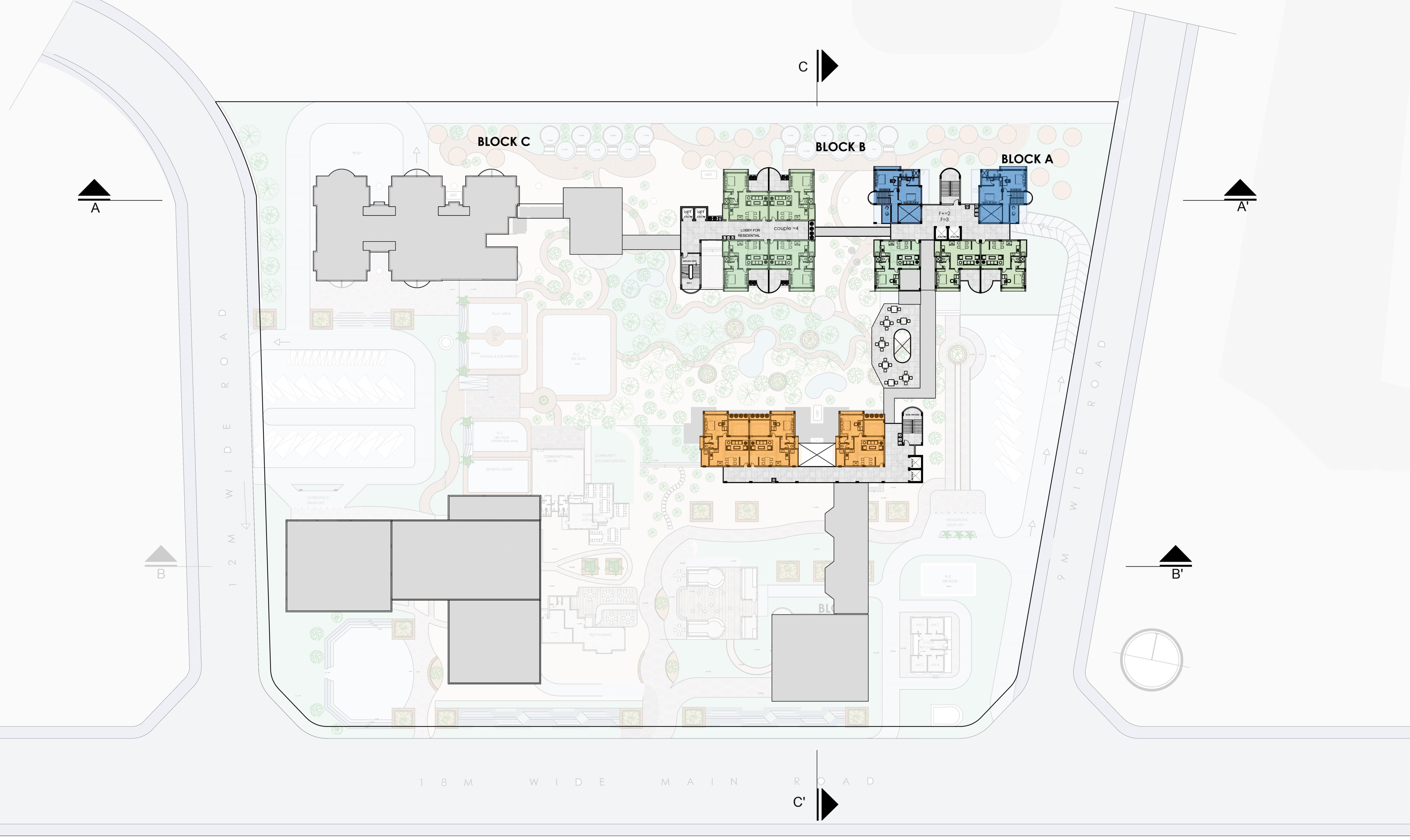

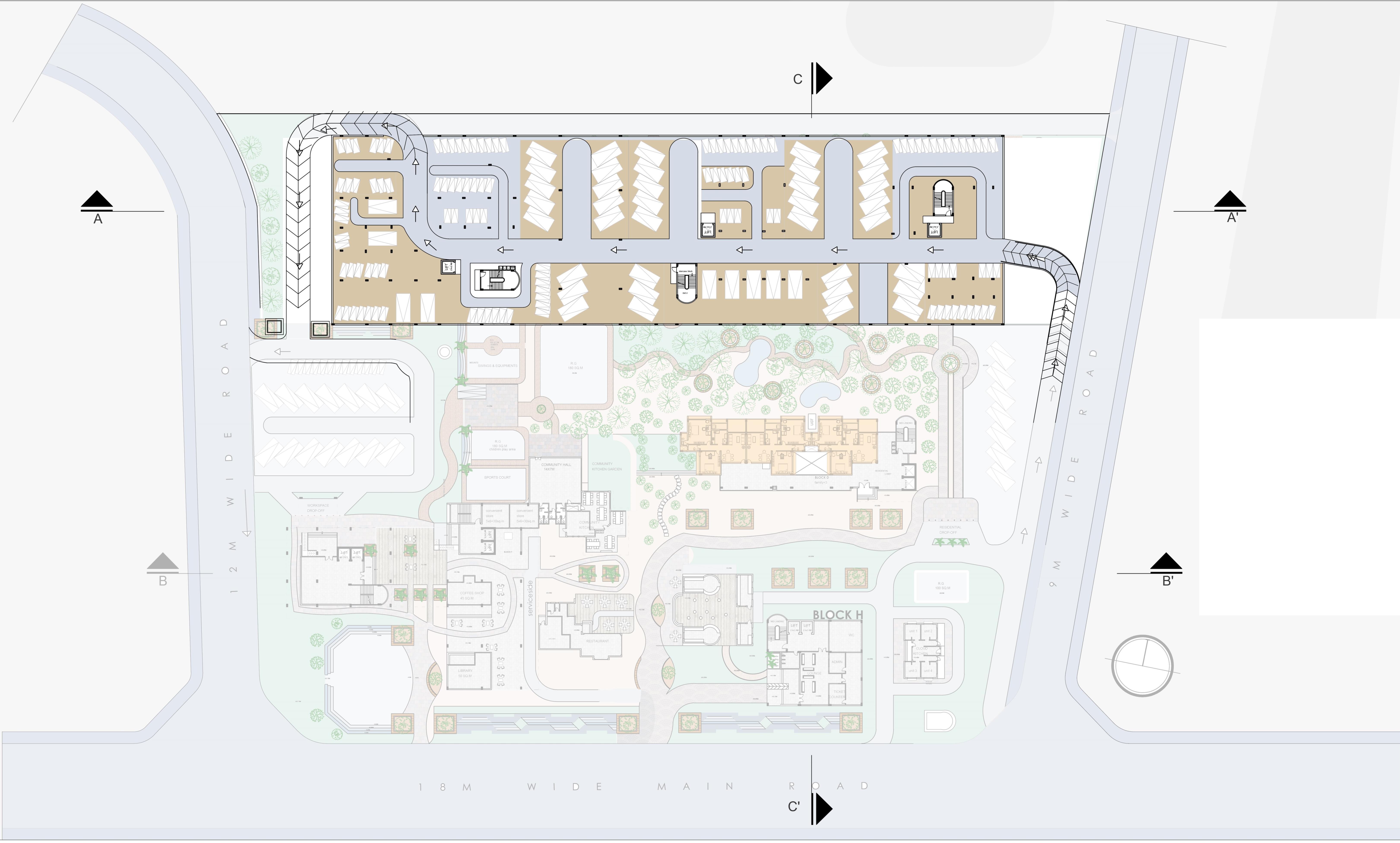

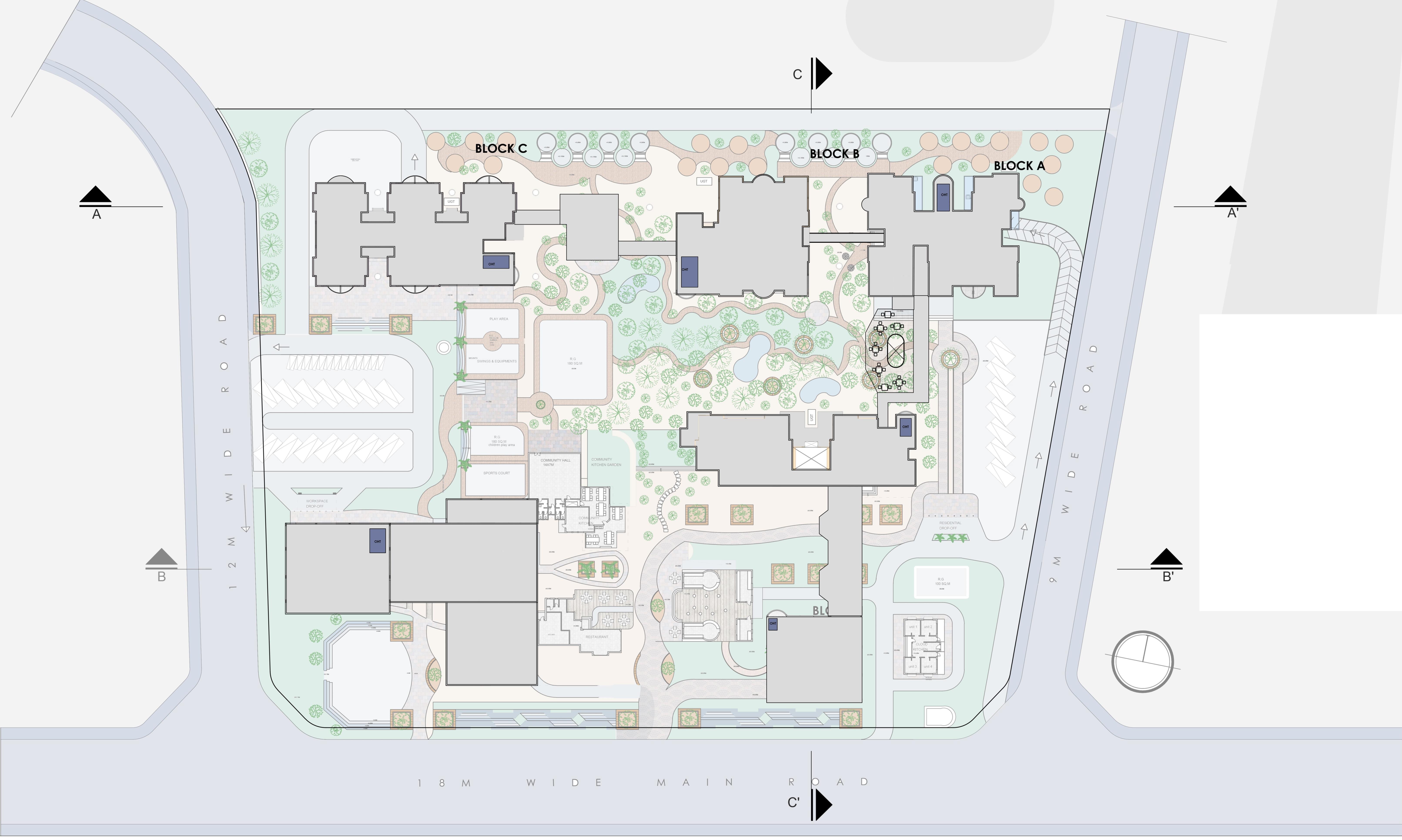

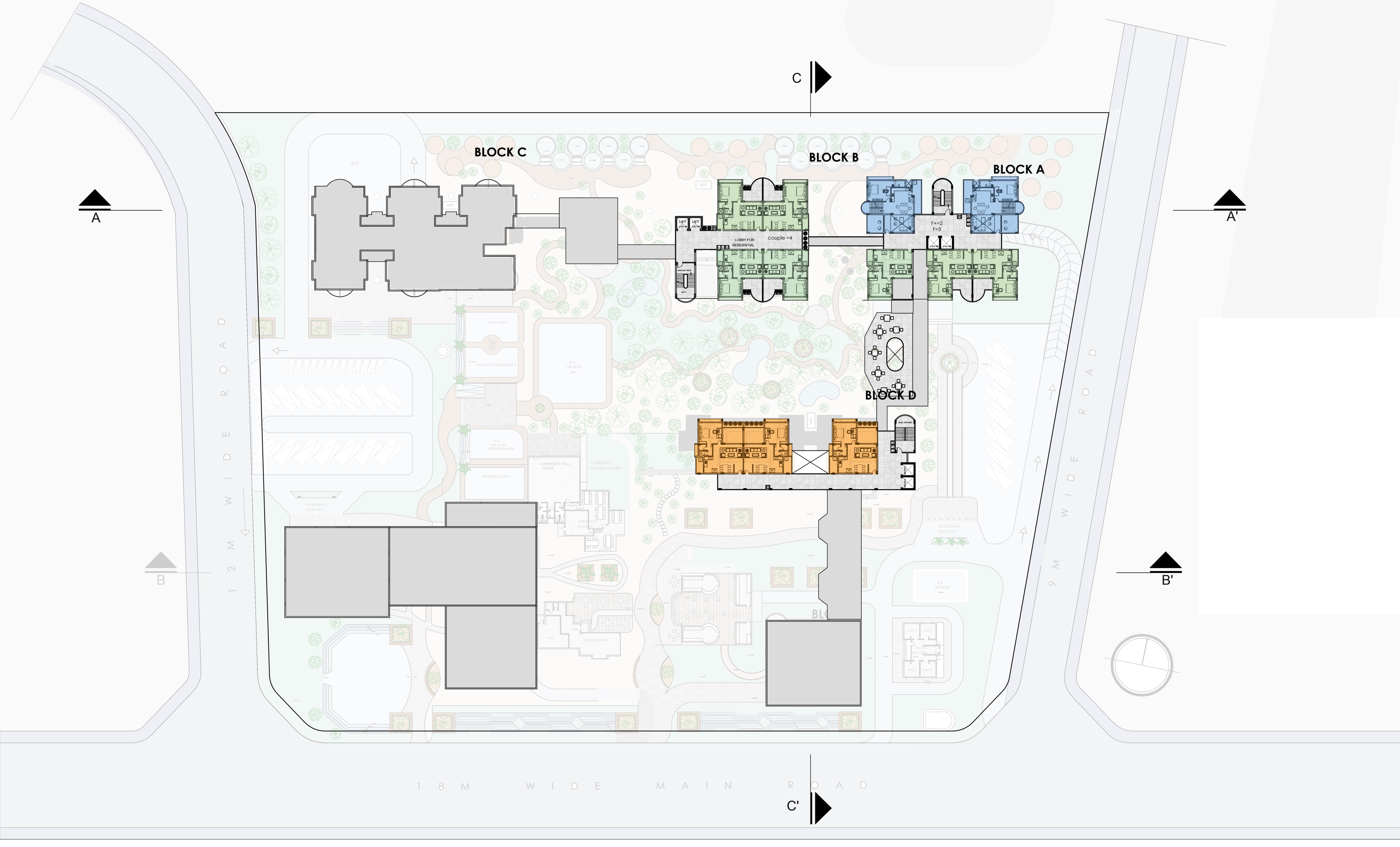

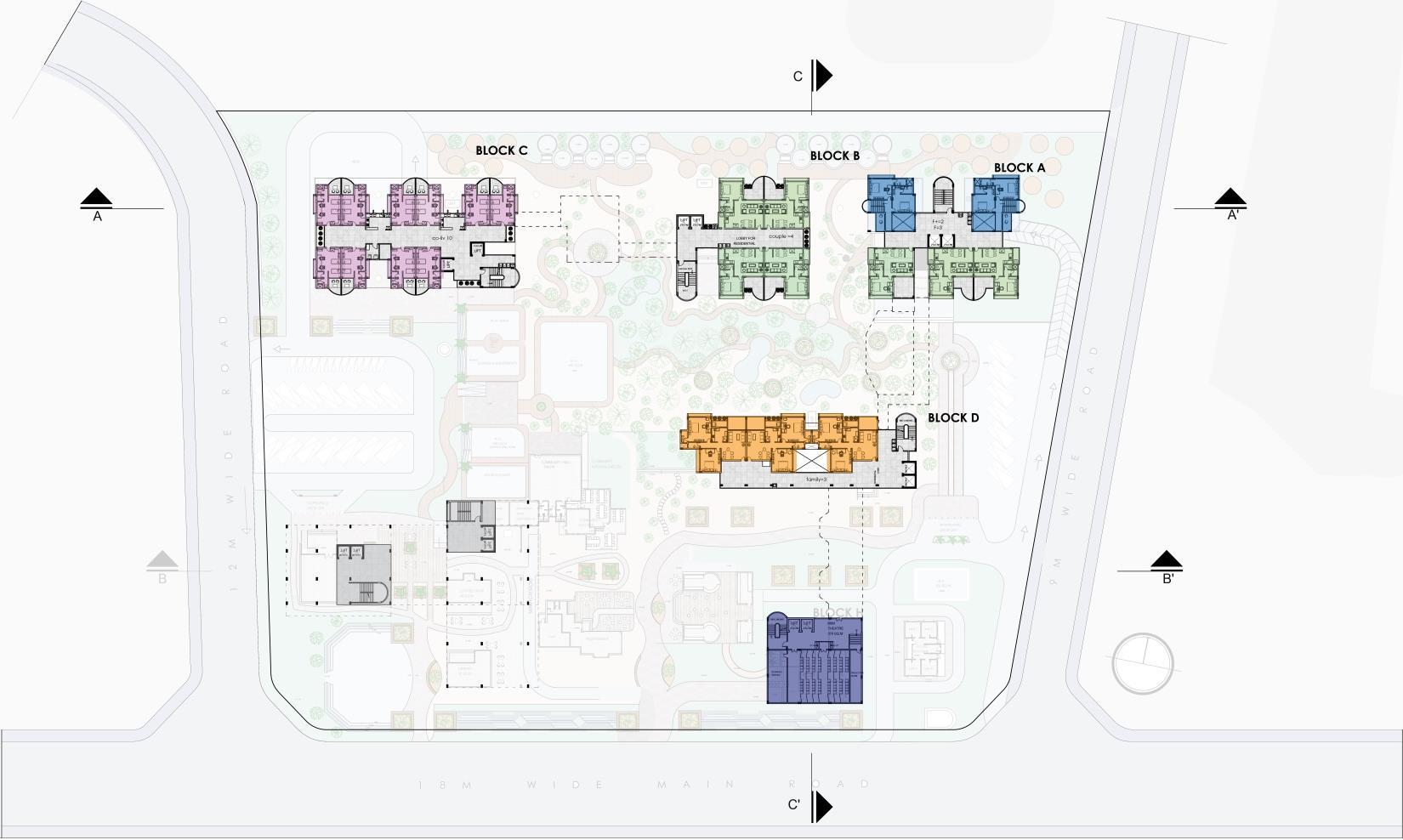

SEM VII IESCOAWANJARI HIMANSHU RN:53SHEET TITLE: 11GROUND FLOOR PLAN

SEM VII IESCOAWANJARI HIMANSHU RN:53SHEET TITLE: 12FIRST FLOOR PLAN

SEM VII IESCOAWANJARI HIMANSHU RN:53SHEET TITLE: 13SECOND FLOOR PLAN

SEM VII IESCOAWANJARI HIMANSHU RN:53SHEET TITLE: 14THIRD FLOOR PLAN

SEM VII IESCOAWANJARI HIMANSHU RN:53SHEET TITLE: 15FOURTH FLOOR PLAN

SEM VII IESCOAWANJARI HIMANSHU RN:53SHEET TITLE: 16FIFTH FLOOR PLAN

SEM VII IESCOAWANJARI HIMANSHU RN:53SHEET TITLE: 17SIXTH FLOOR PLAN

SEM VII IESCOAWANJARI HIMANSHU RN:53SHEET TITLE: 18SEVENTH FLOOR PLAN

SEM VII IESCOAWANJARI HIMANSHU RN:53SHEET TITLE: 19TERRACE PLAN

SEM VII IESCOAWANJARI HIMANSHU RN:53SHEET TITLE: 20BASEMENT PLAN

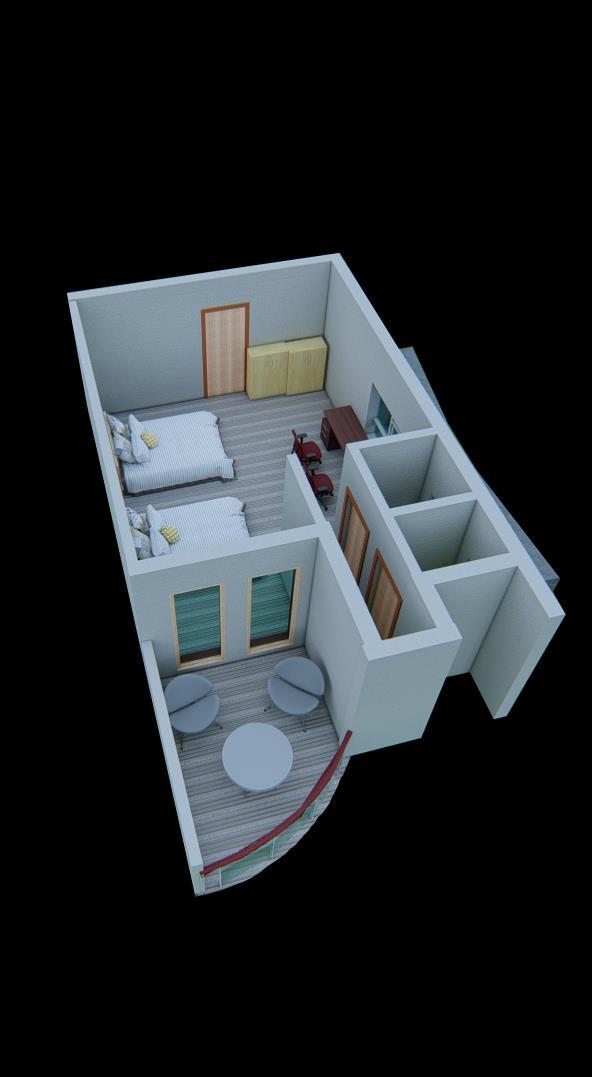

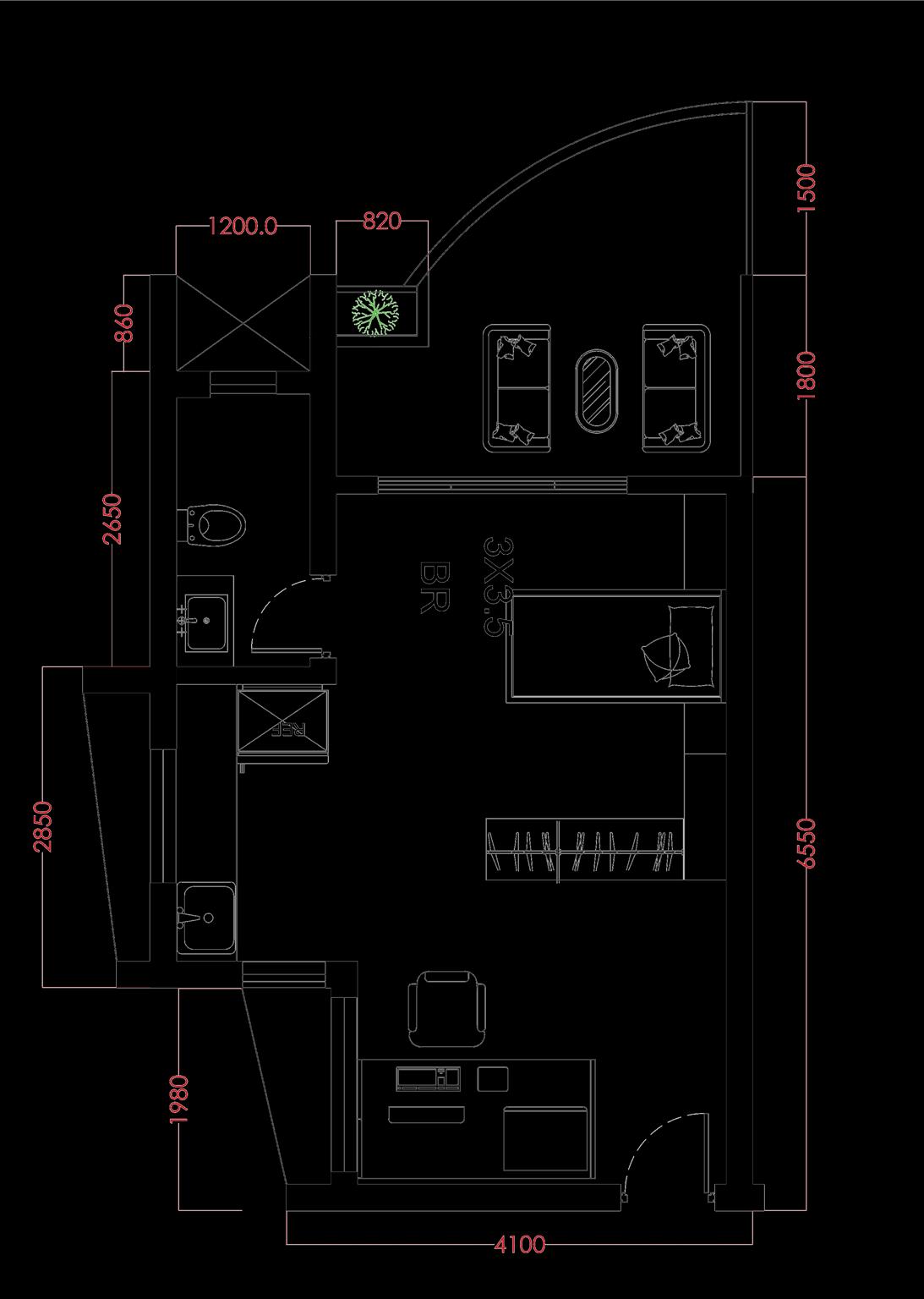

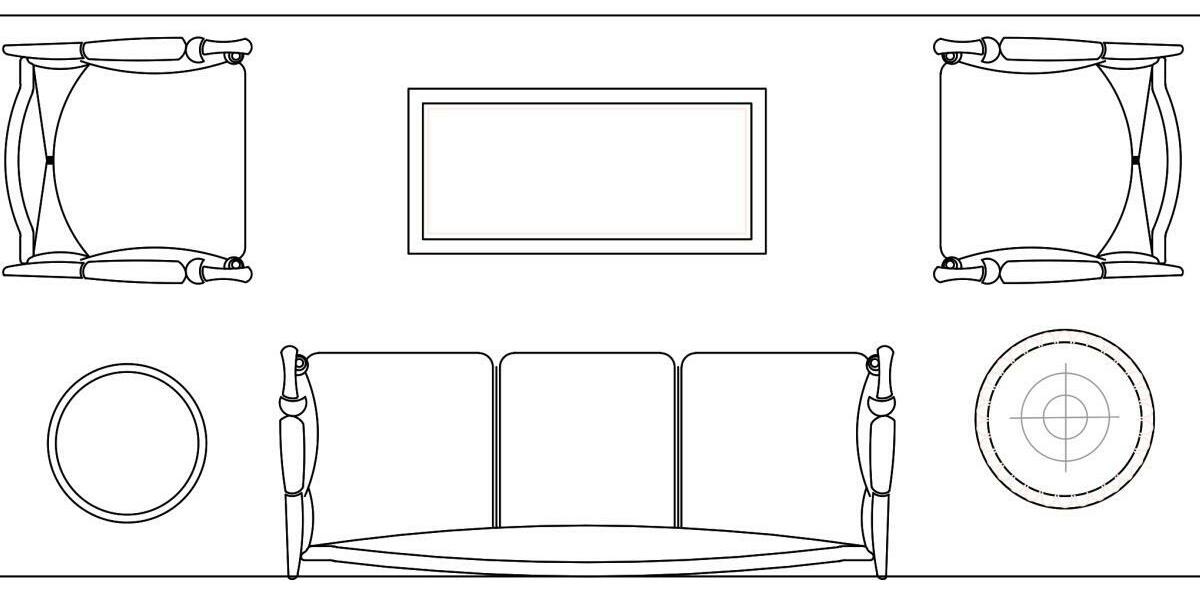

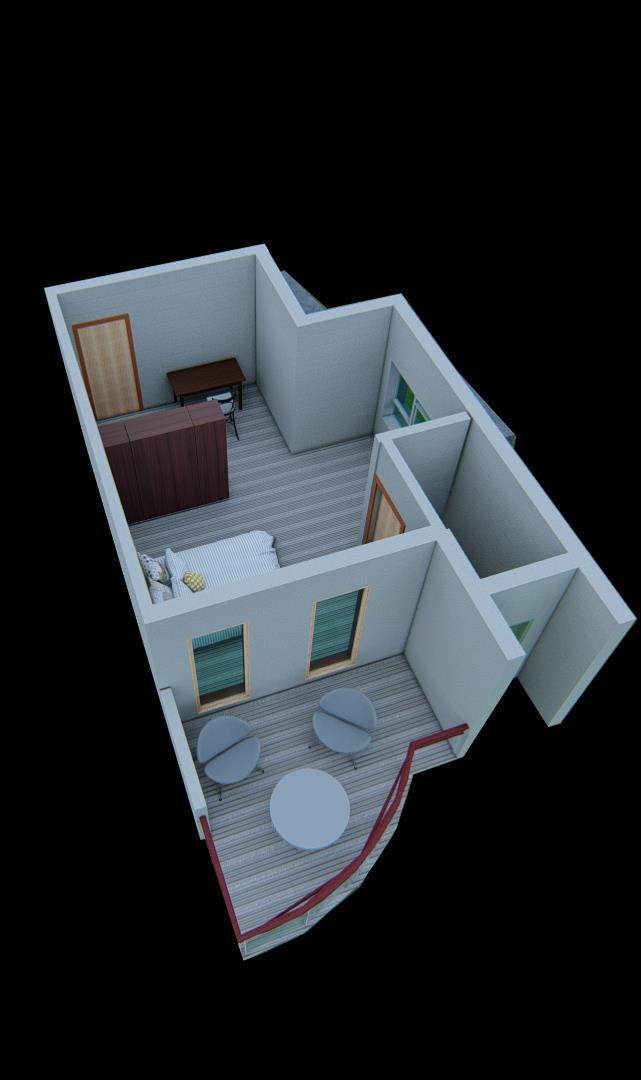

SEM VII IESCOAWANJARI HIMANSHU RN:53SHEET TITLE: 21UNIT TYPOLOGY STUDIO UNIT STUDIO GFA REQUIRED 36 GFA PROVIDED 35.5 NO. OF UNITS 36 TOTAL GFA 1278 FEATURES: 1. Balcony with seating spaces 2. Dedicated Study area 3. Kitchen 4. Bedroom visually disconnect from entrance

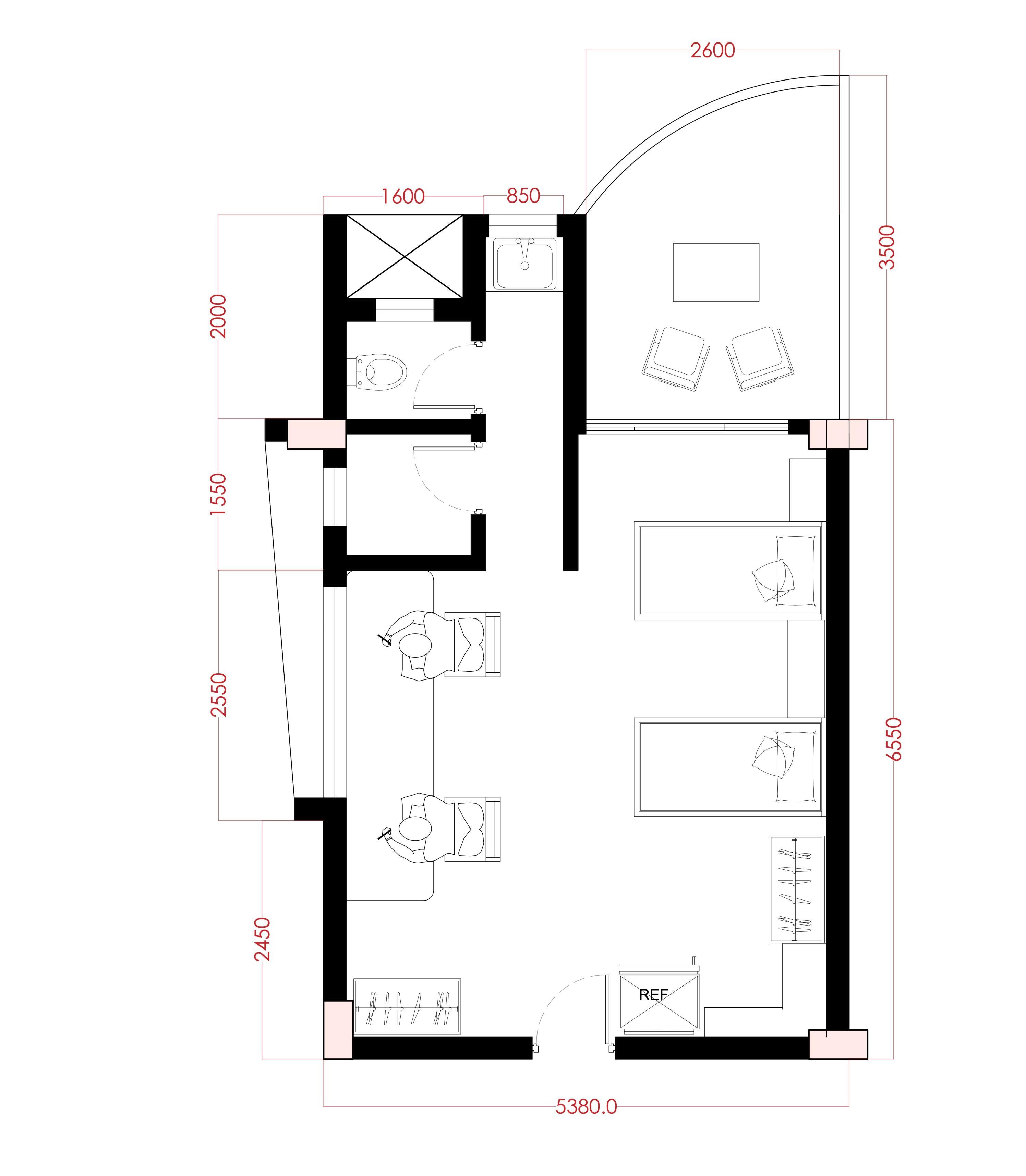

SEM VII IESCOAWANJARI HIMANSHU RN:53SHEET TITLE: 22 CO-LIVING UNIT FEATURES: 1. Common laundry area provided on co-living floors with drying areas 2. Common kitchen provided on floors Separate wc and bath areas Mini counter for heating up food CO-LIVING GFA REQUIRED 45 GFA PROVIDED 42 NO. OF UNITS 25 TOTAL GFA 1050

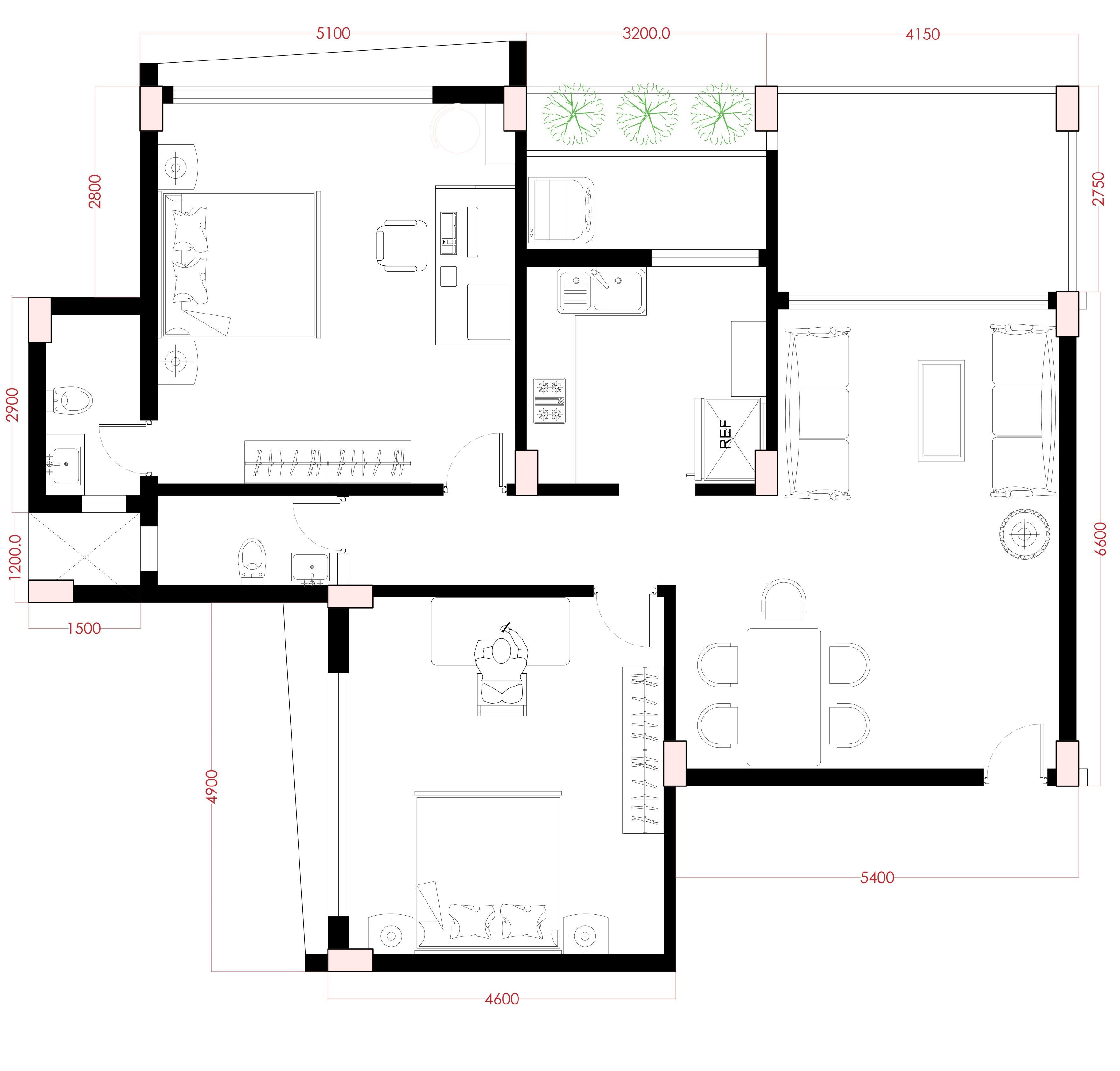

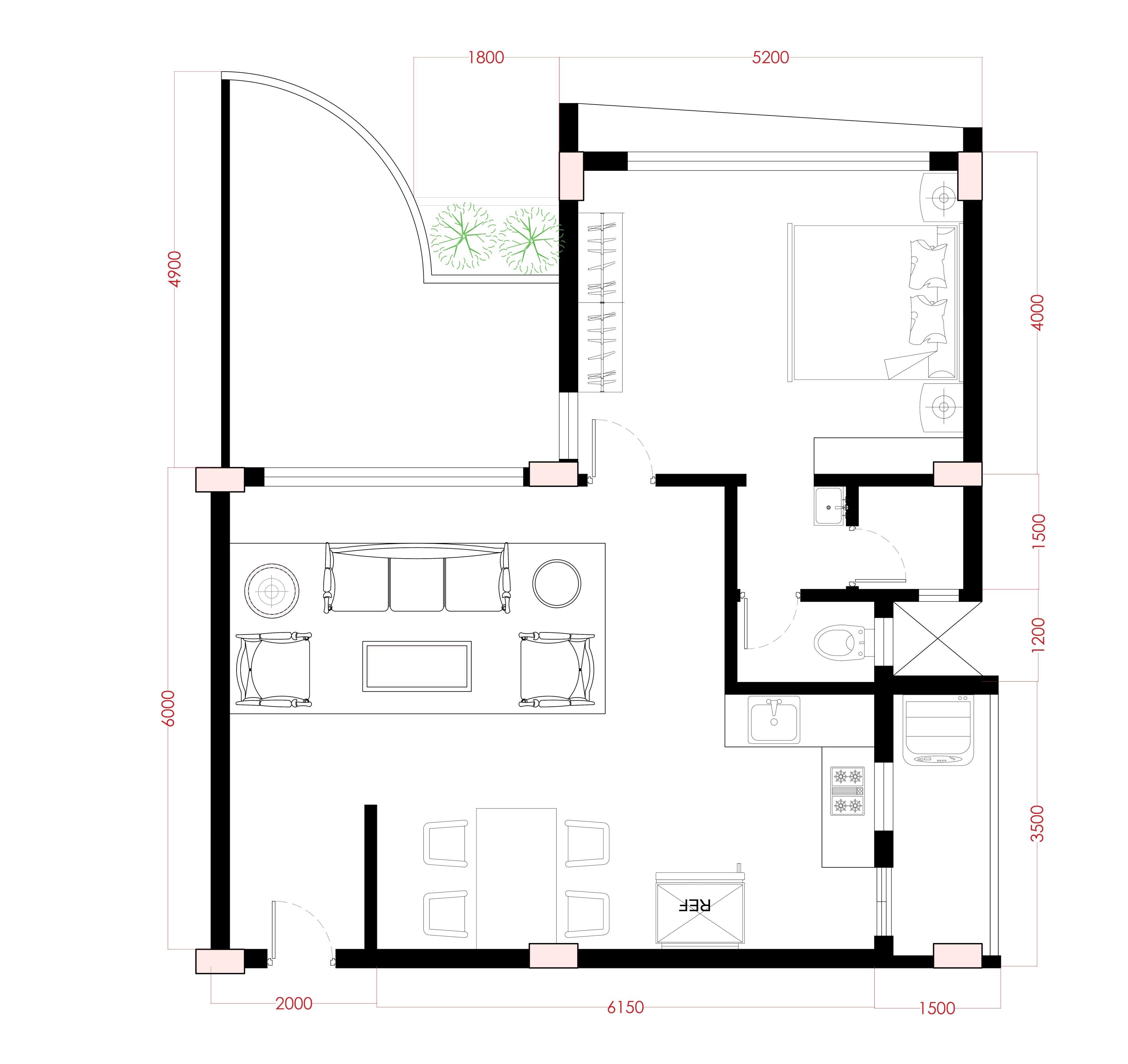

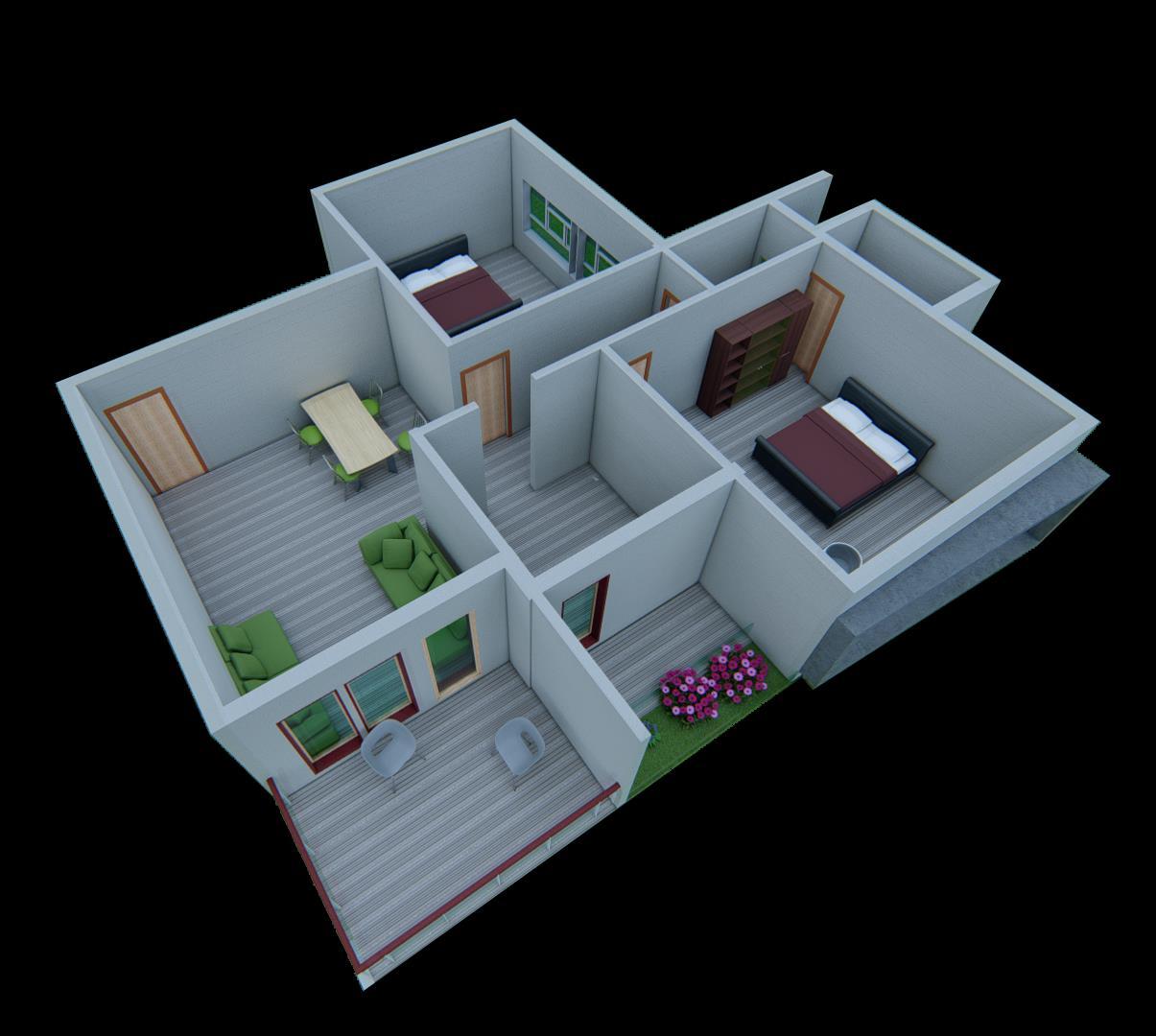

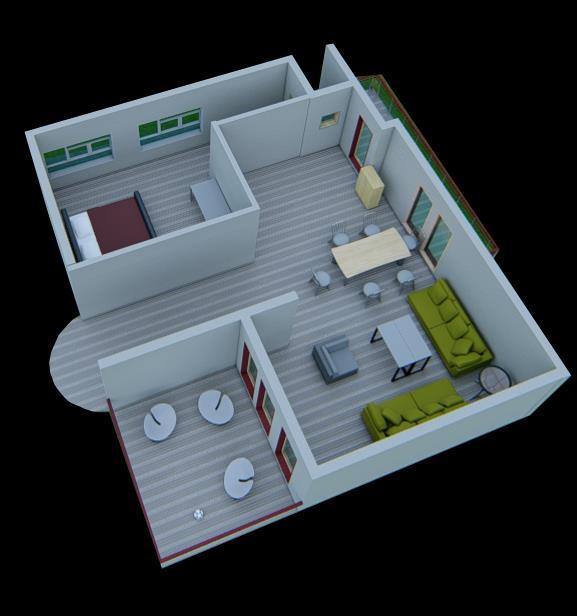

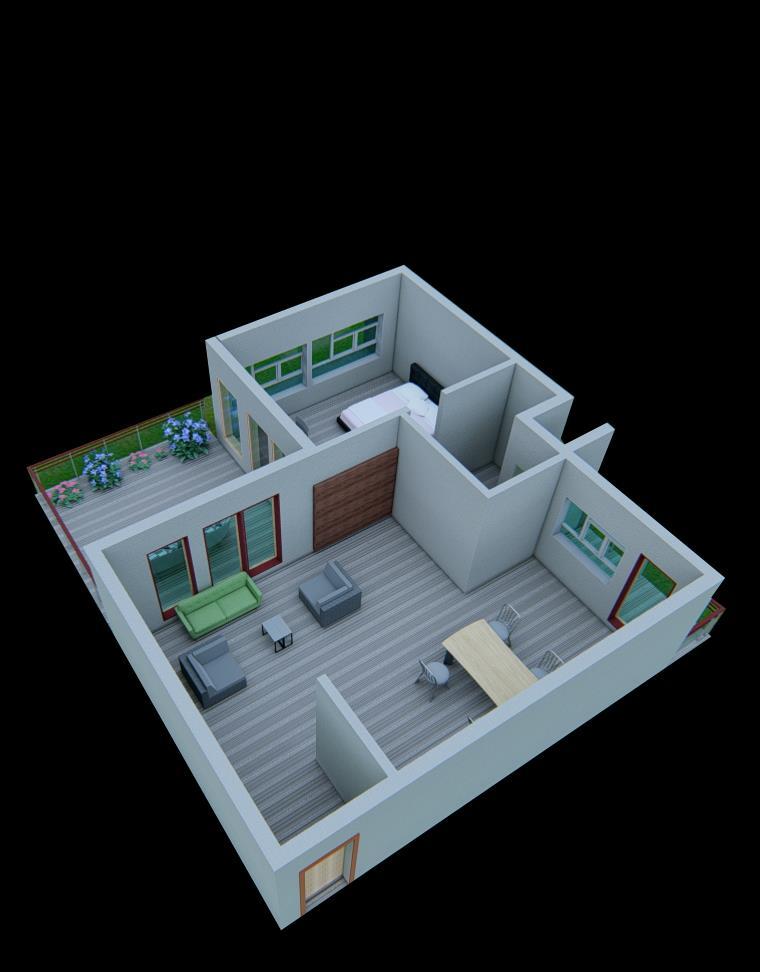

SEM VII IESCOAWANJARI HIMANSHU RN:53SHEET TITLE: 23 COUPLE UNIT COUPLE GFA REQUIRED 72 GFA PROVIDED 73 NO. OF UNITS 40 TOTAL GFA 2920 FEATURES: 1. balconies overlooking to central forest 2. Connect living and bedroom via balcony 3. Utility balcony

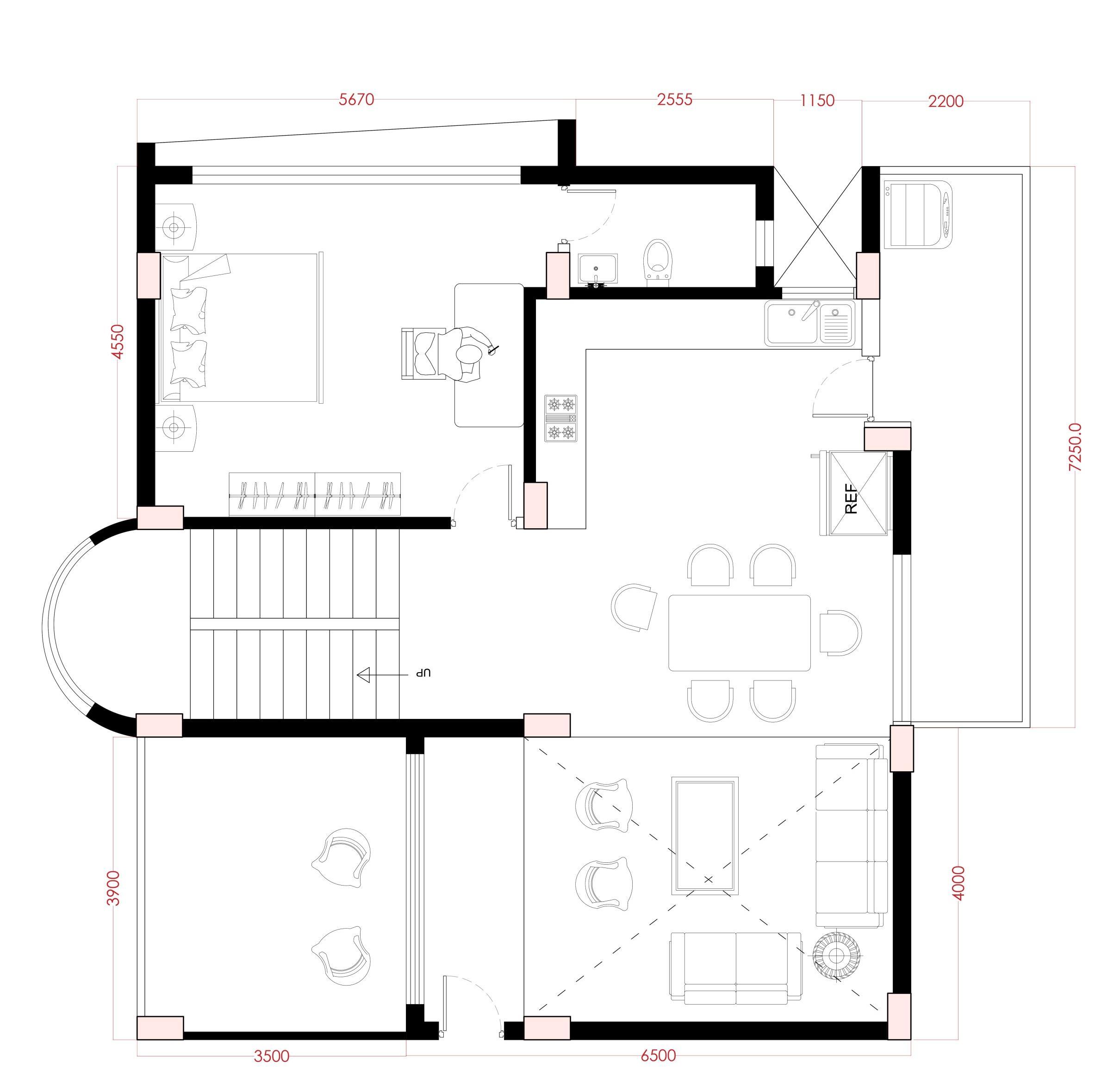

SEM VII IESCOAWANJARI HIMANSHU RN:53SHEET TITLE: 24UNIT TYPOLOGY FAMILY UNIT FAMILY GFA REQUIRED 108 GFA PROVIDED 106 NO. OF UNITS 36 TOTAL GFA 3816 FEATURES: 1. balconies overlooking to central forest

FEATURES

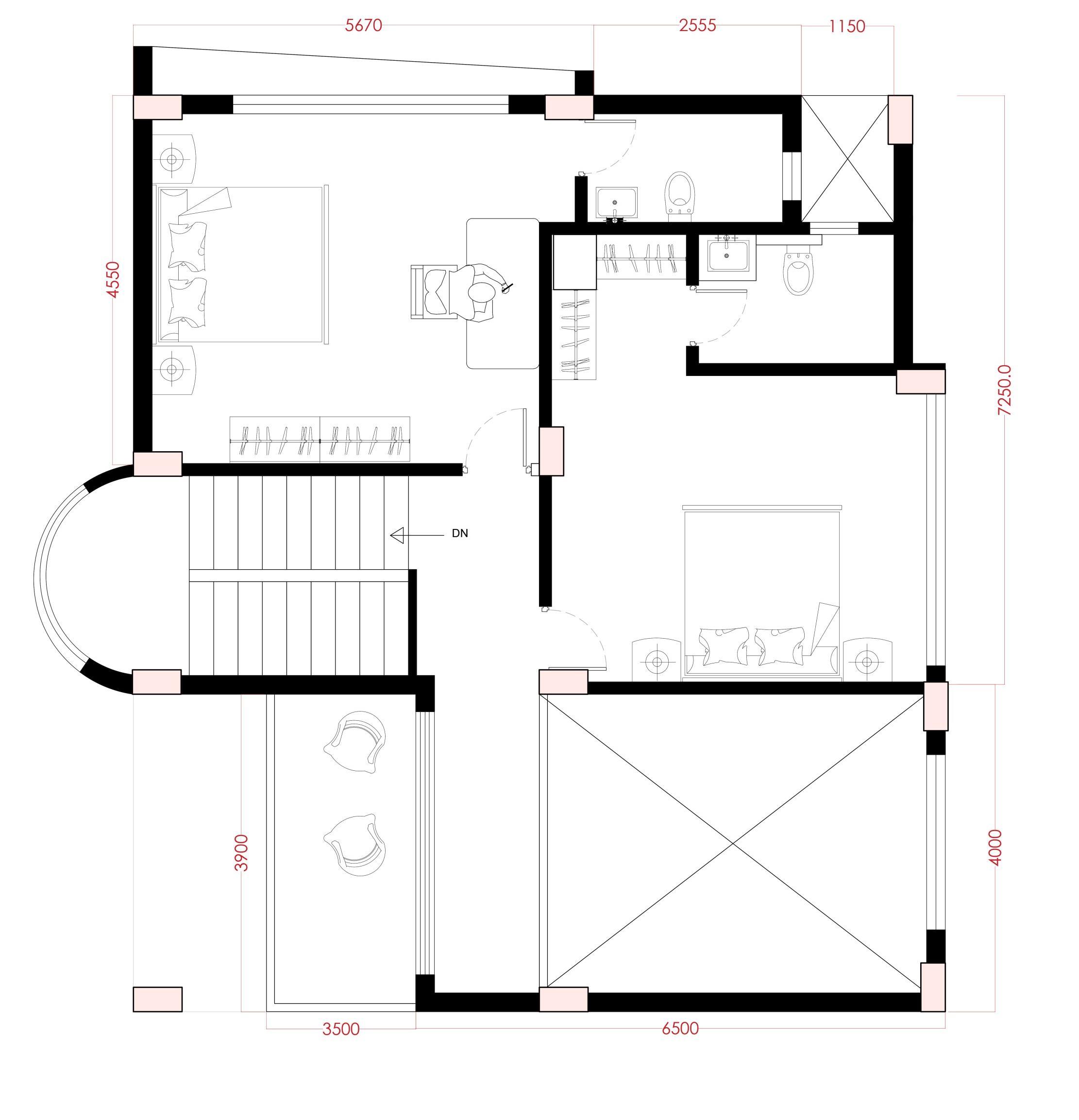

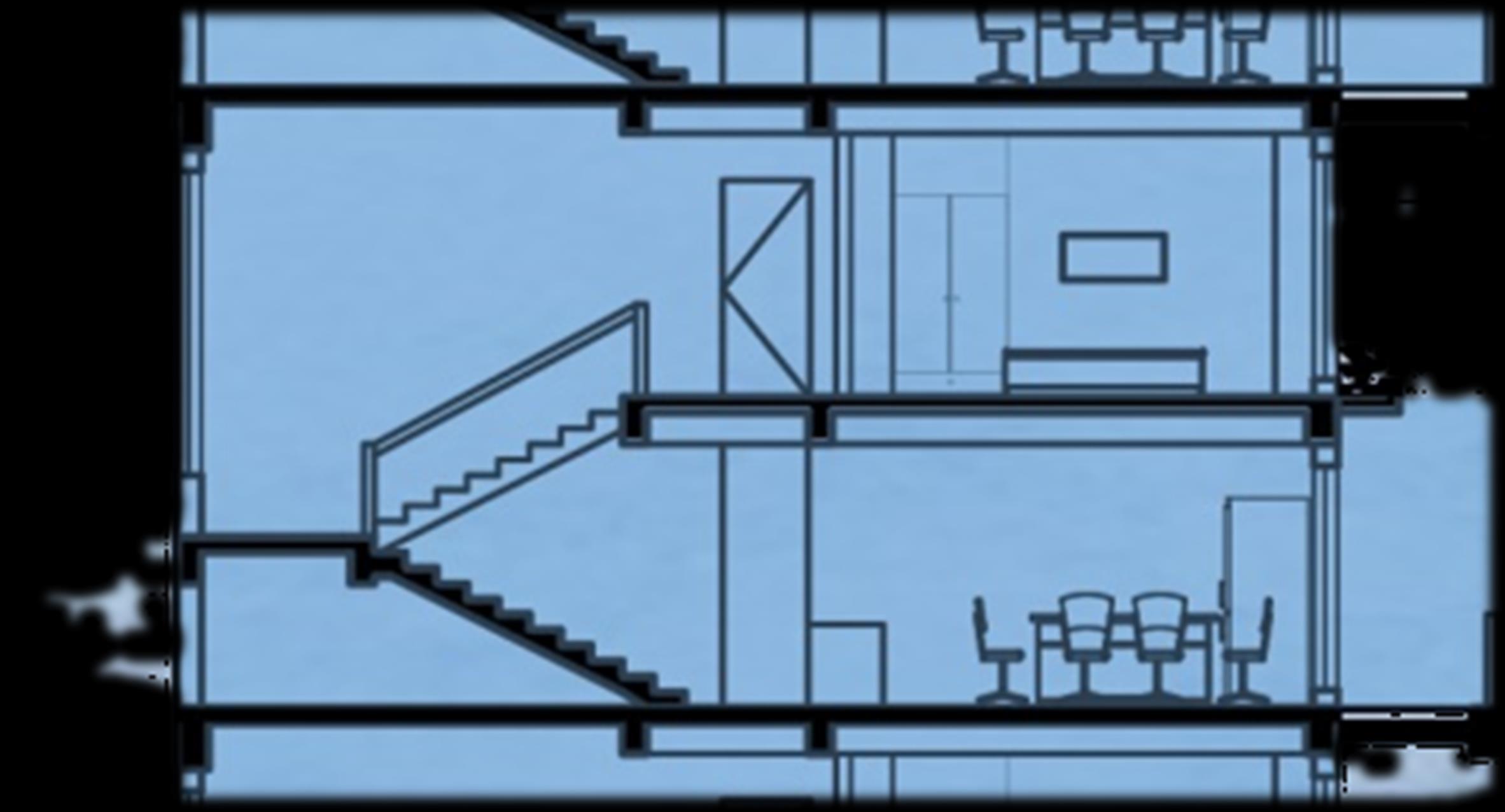

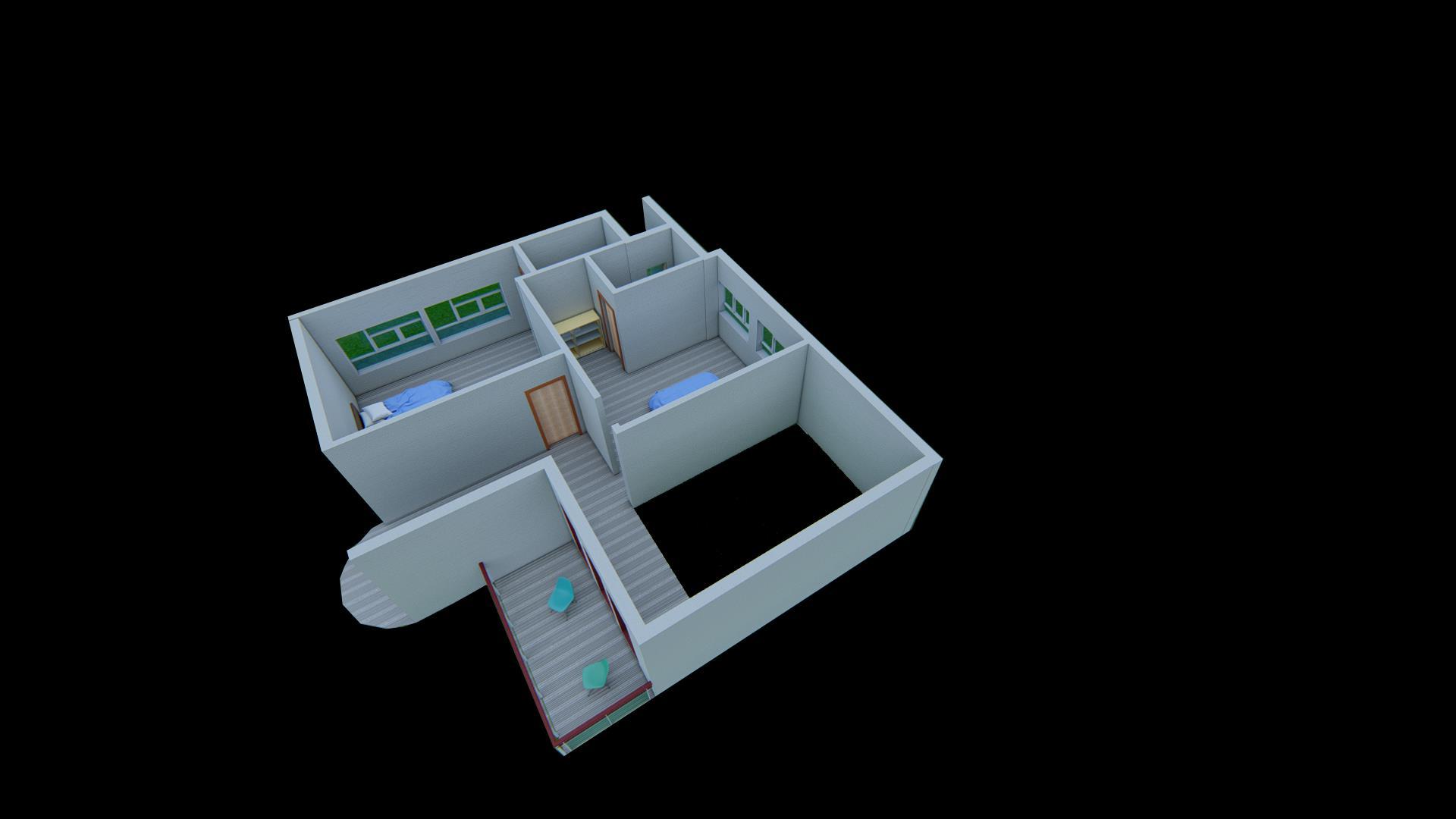

1. divided on upper n lower levels,

Double heighted living room, taking in light and enhancing the look of space

a bedroom on lower level for senior citizens

Large balcony on lower level

A small balcony on upper lever overlooking the other

Upper level

SEM VII IESCOAWANJARI HIMANSHU RN:53SHEET TITLE: 25UNIT TYPOLOGY FAMILY+ UNIT Lower level

FAMILY+ GFA REQUIRED 167 GFA PROVIDED 168.5 NO. OF UNITS 8 TOTAL GFA 1348

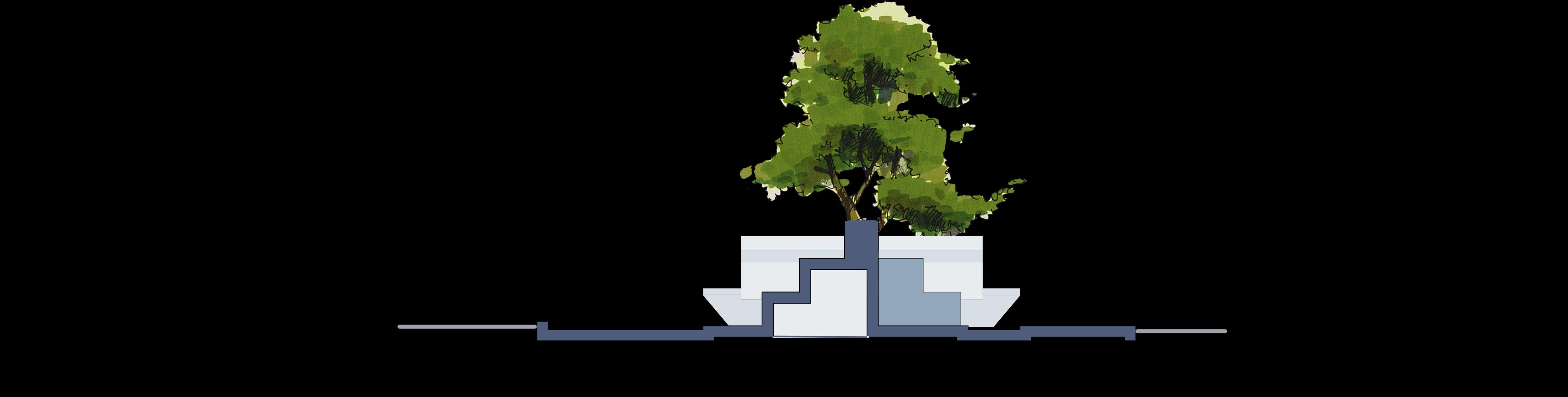

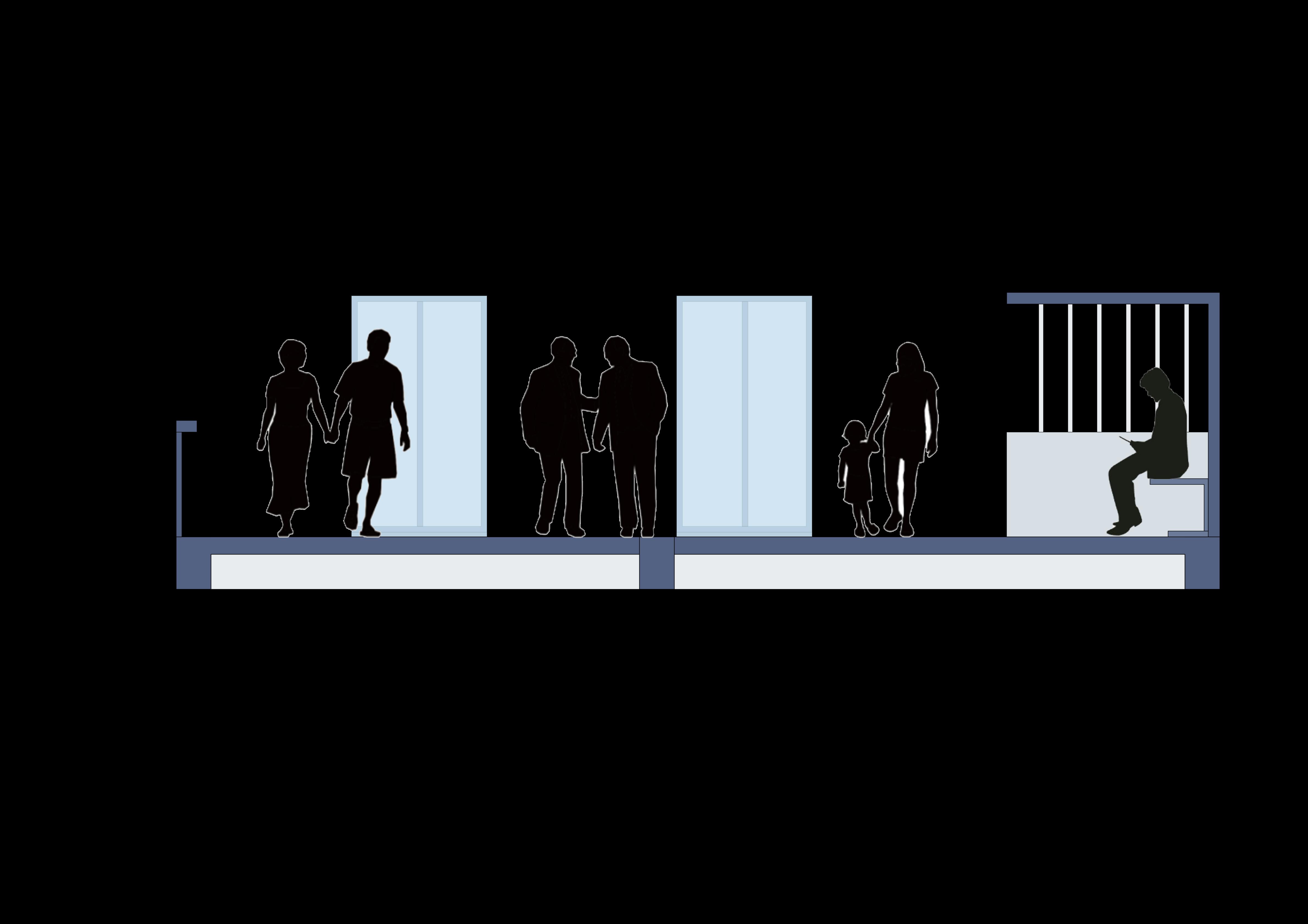

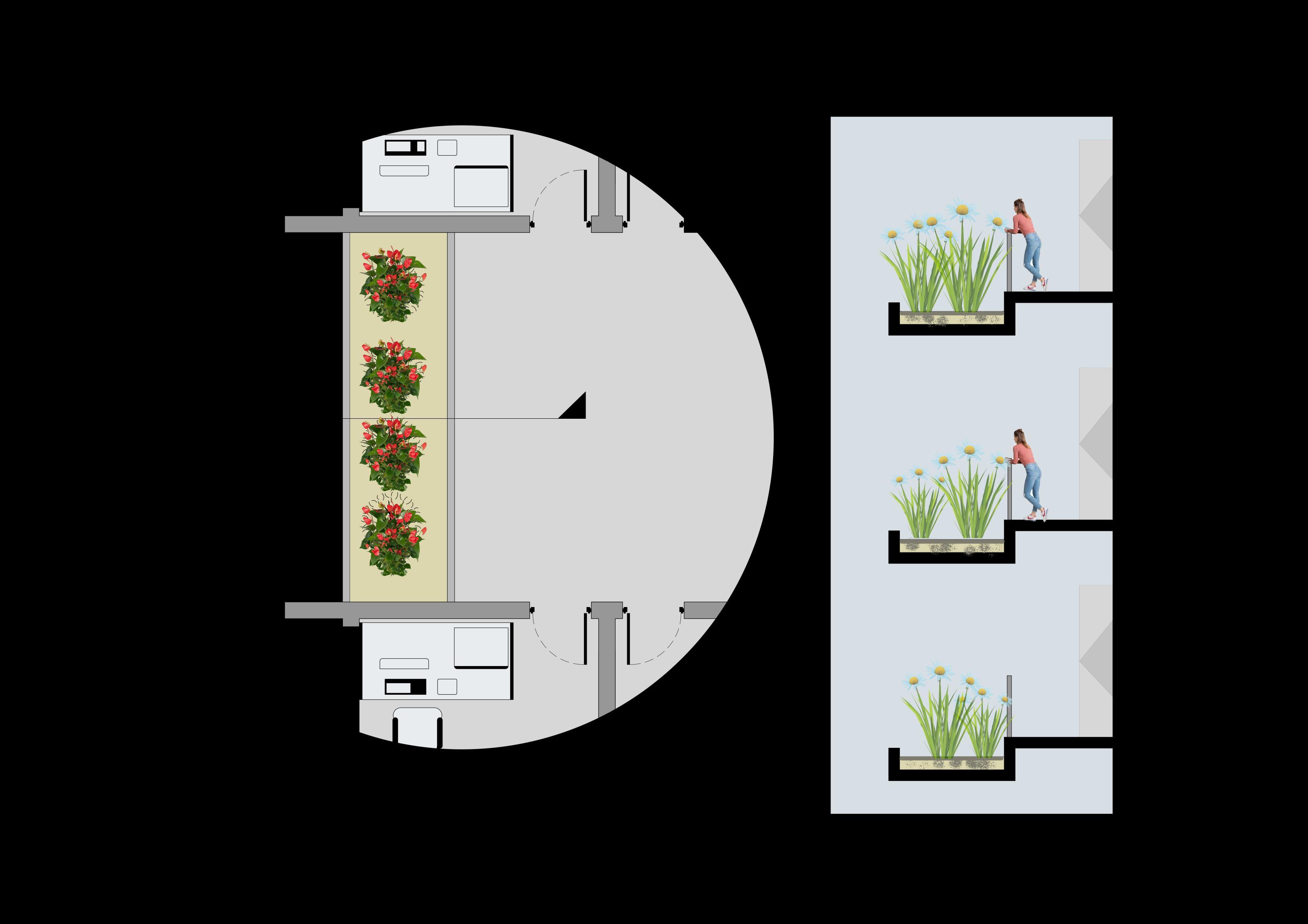

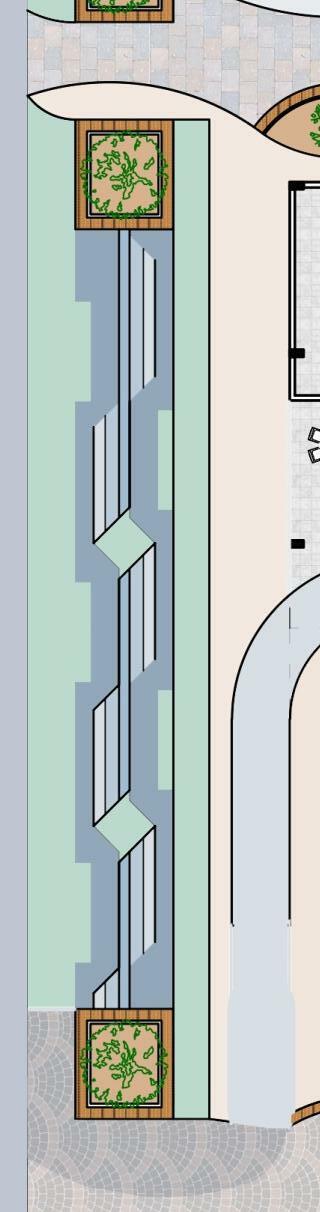

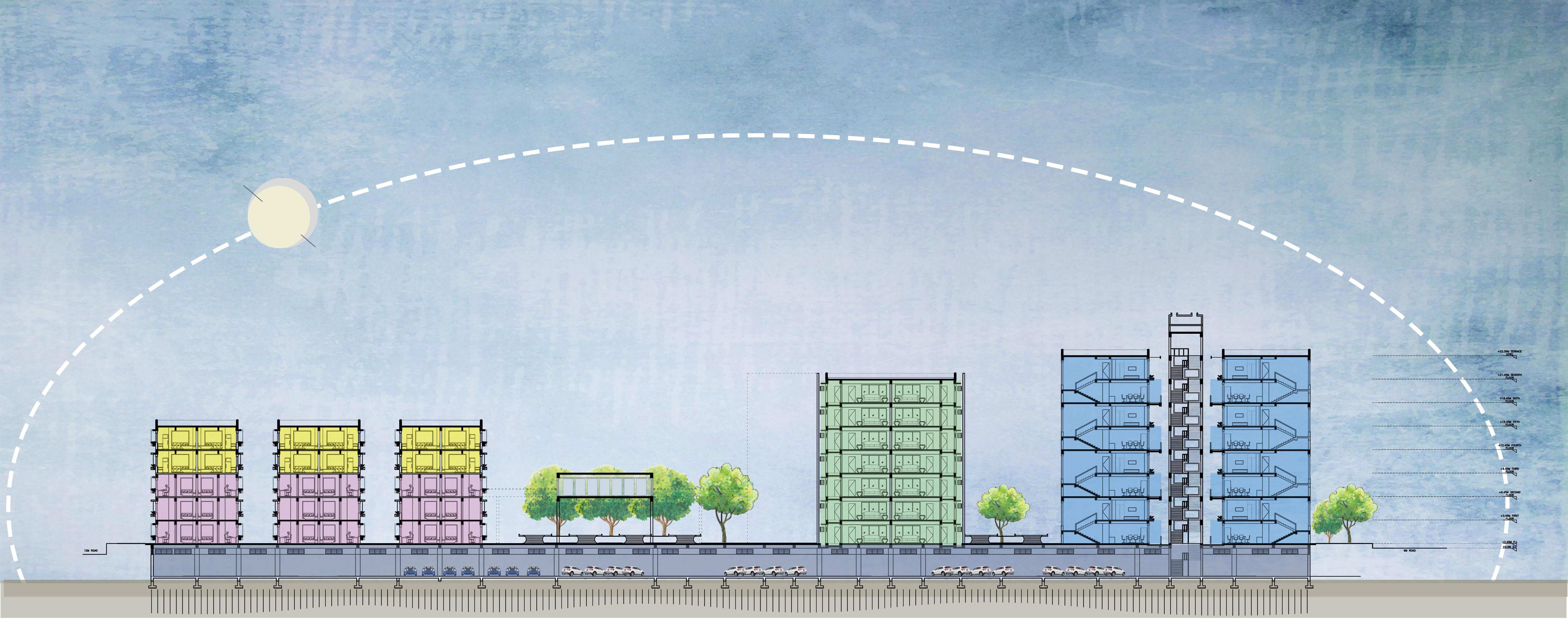

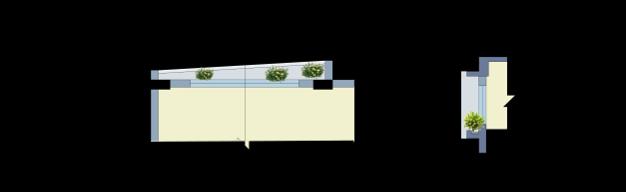

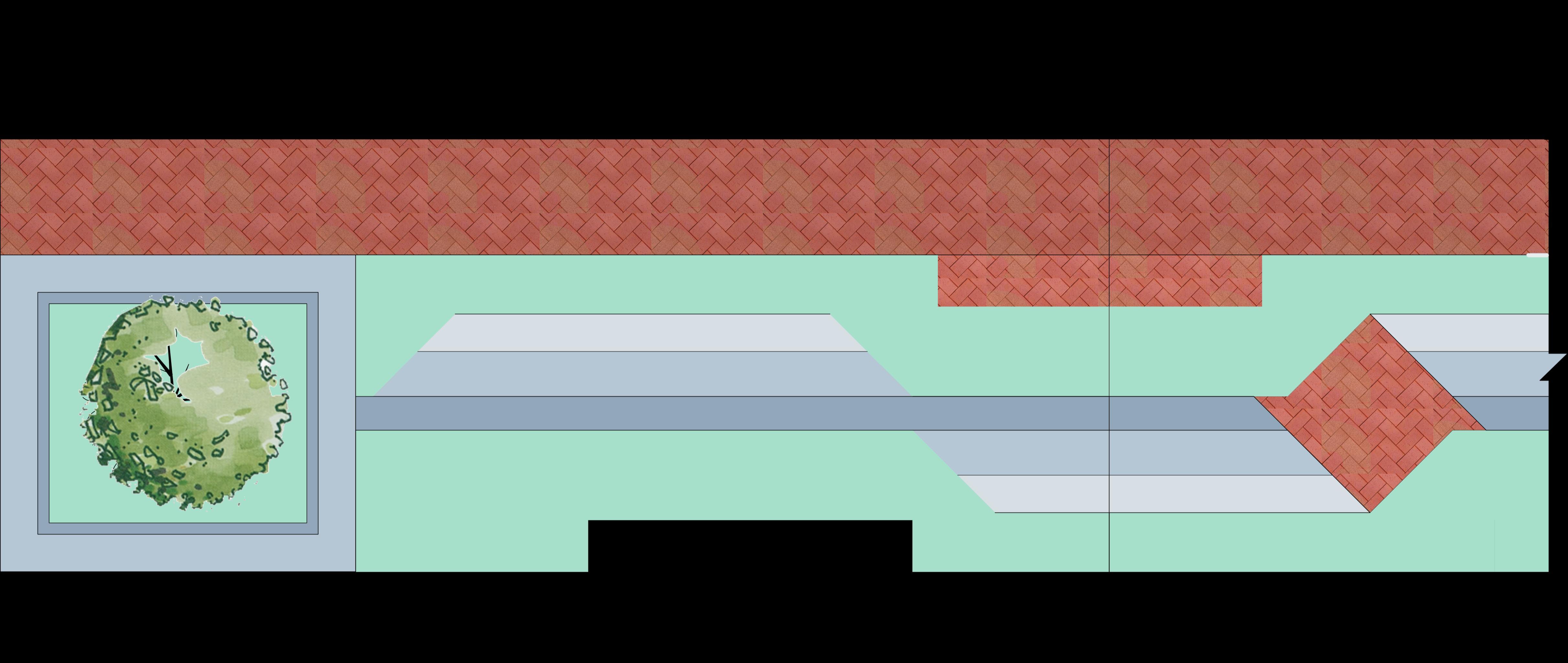

SEM VII IESCOAWANJARI HIMANSHU RN:53SHEET TITLE: 26SECTIONS Planters in the lobby at floor levels Plan section

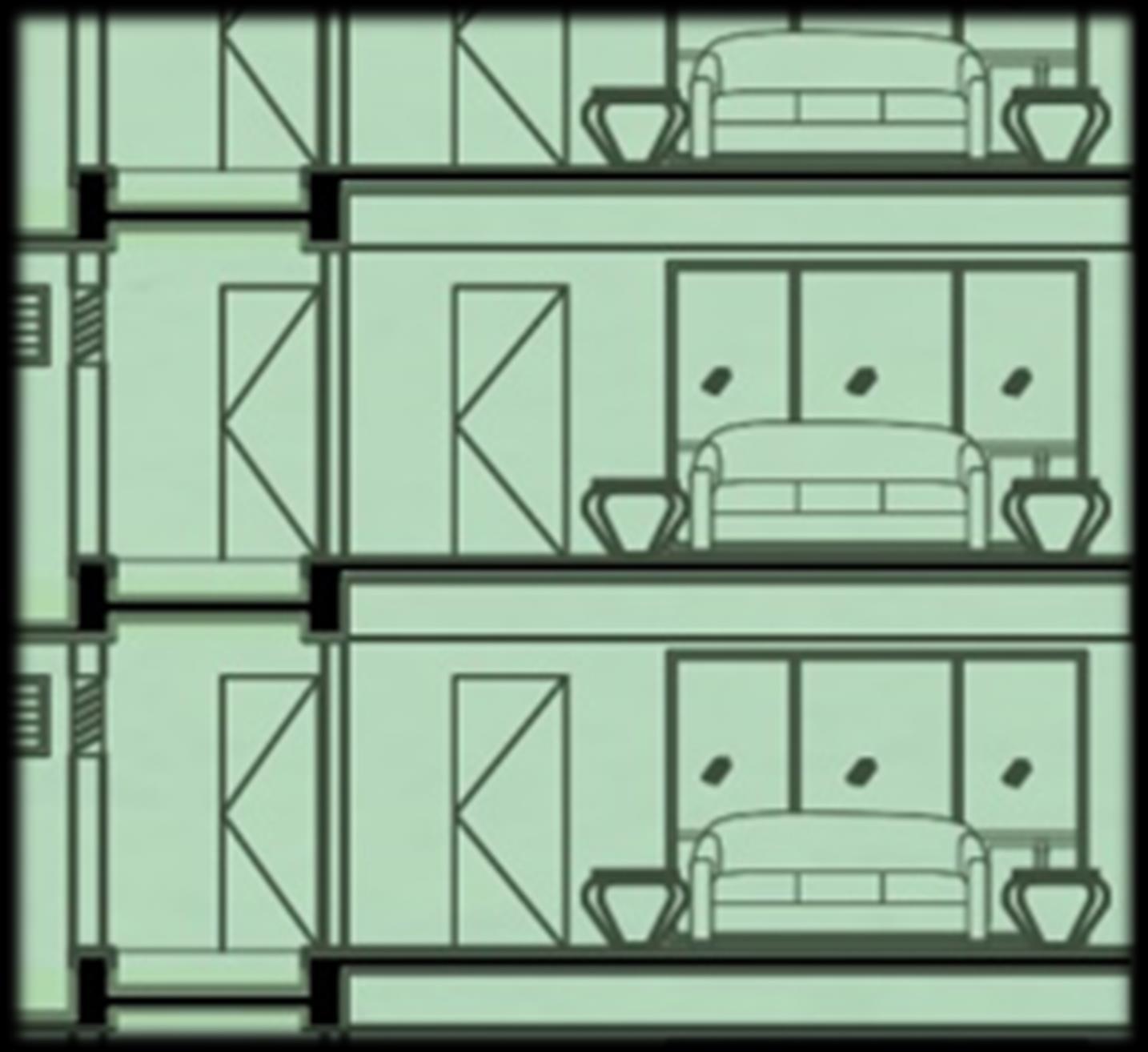

STUDIO UNIT CO-LIVING UNIT

SEM VII IESCOAWANJARI HIMANSHU RN:53SHEET TITLE: 27

FAMILY+ UNIT COUPLE UNIT

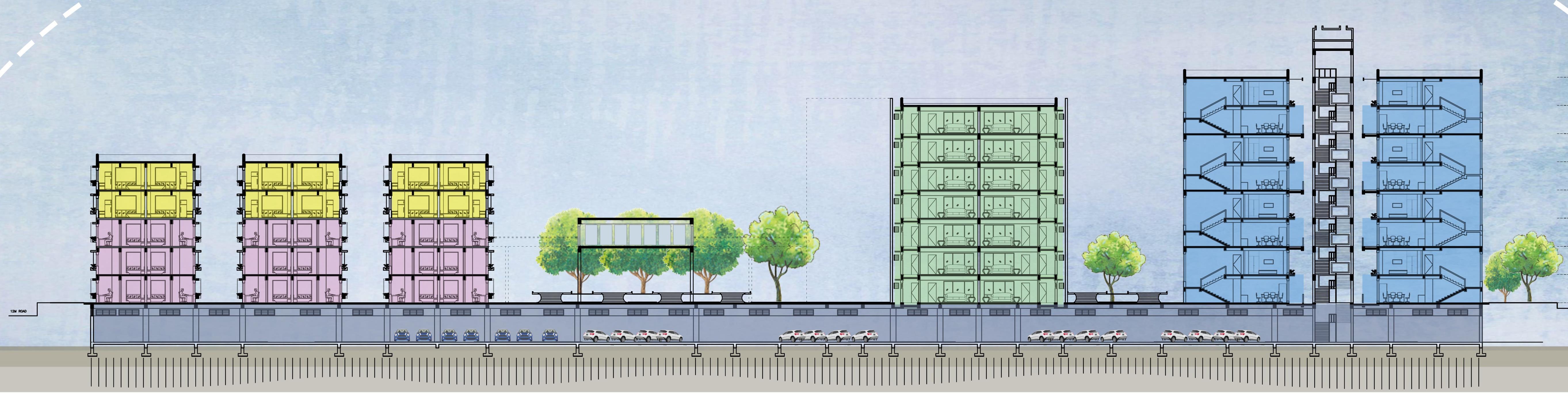

SECTIONS

Connecting lobby between block D and theatre building

SEM VII IESCOAWANJARI HIMANSHU RN:53 28

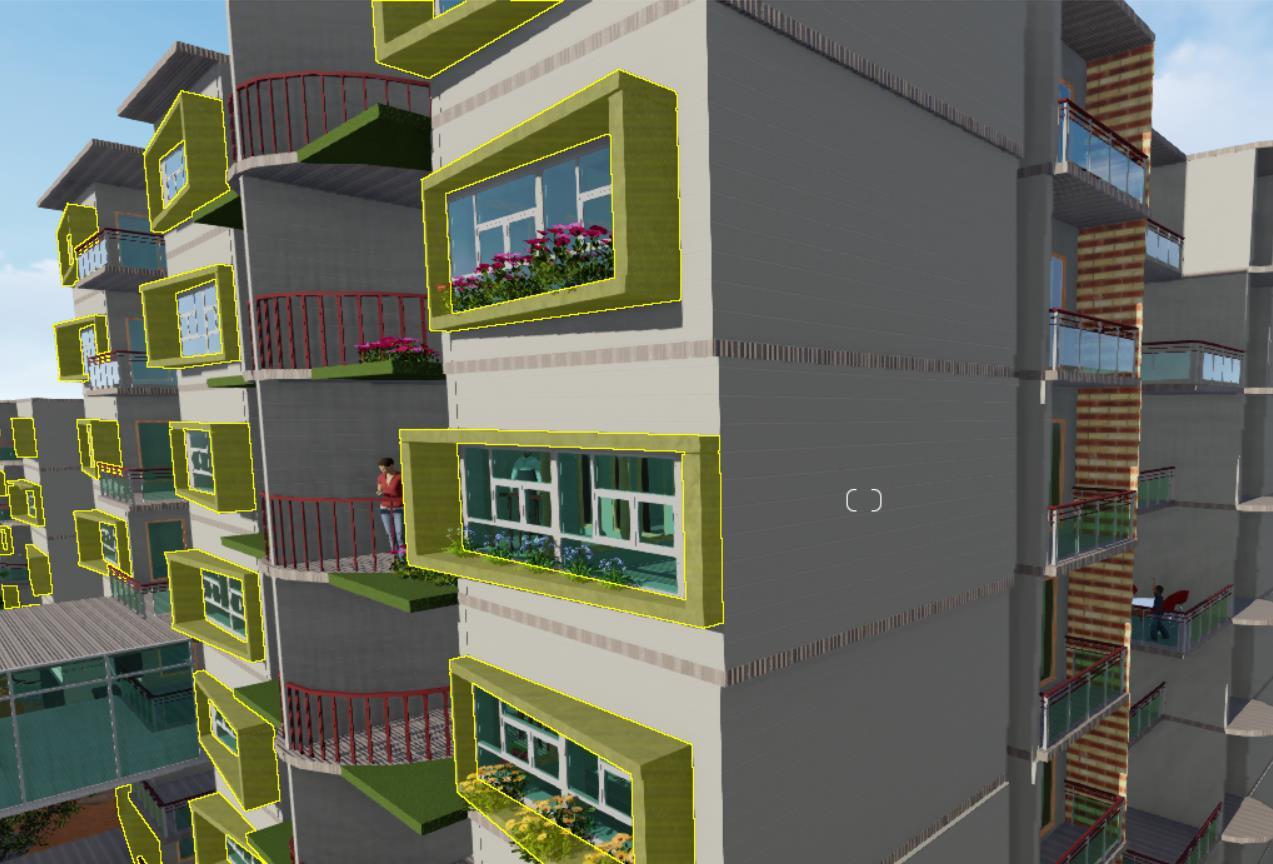

Window with alternate pattern, shading from the sun at the same time creating interesting elevations

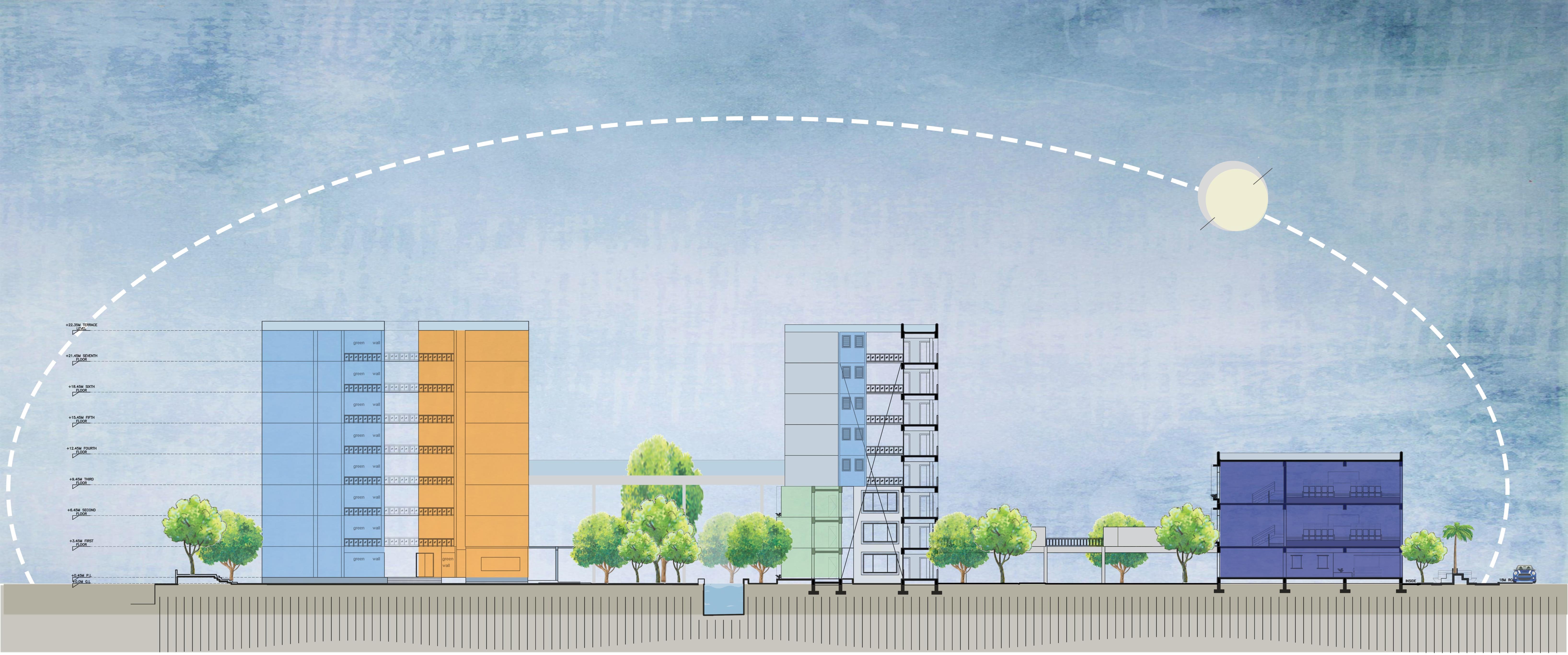

SEM VII IESCOAWANJARI HIMANSHU RN:53SHEET TITLE: 29SECTIONS

SEM VII IESCOAWANJARI HIMANSHU RN:53SHEET TITLE: 30

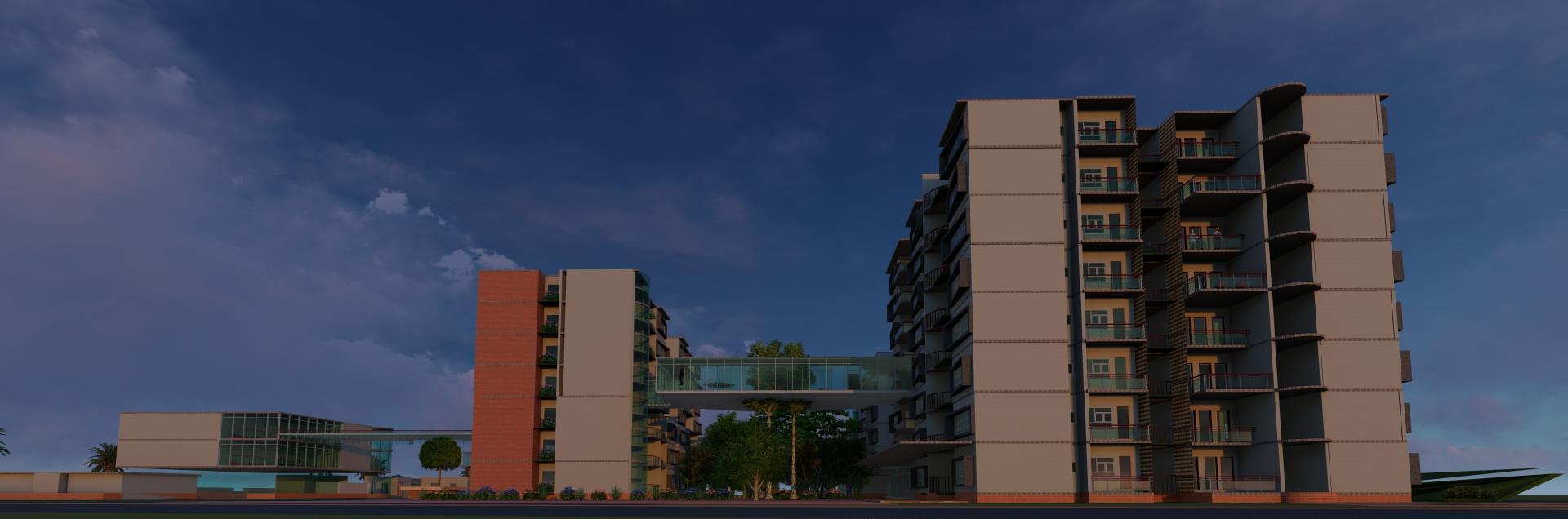

SEM VII IESCOAWANJARI HIMANSHU RN:53SHEET TITLE: 31ELEVATIONS

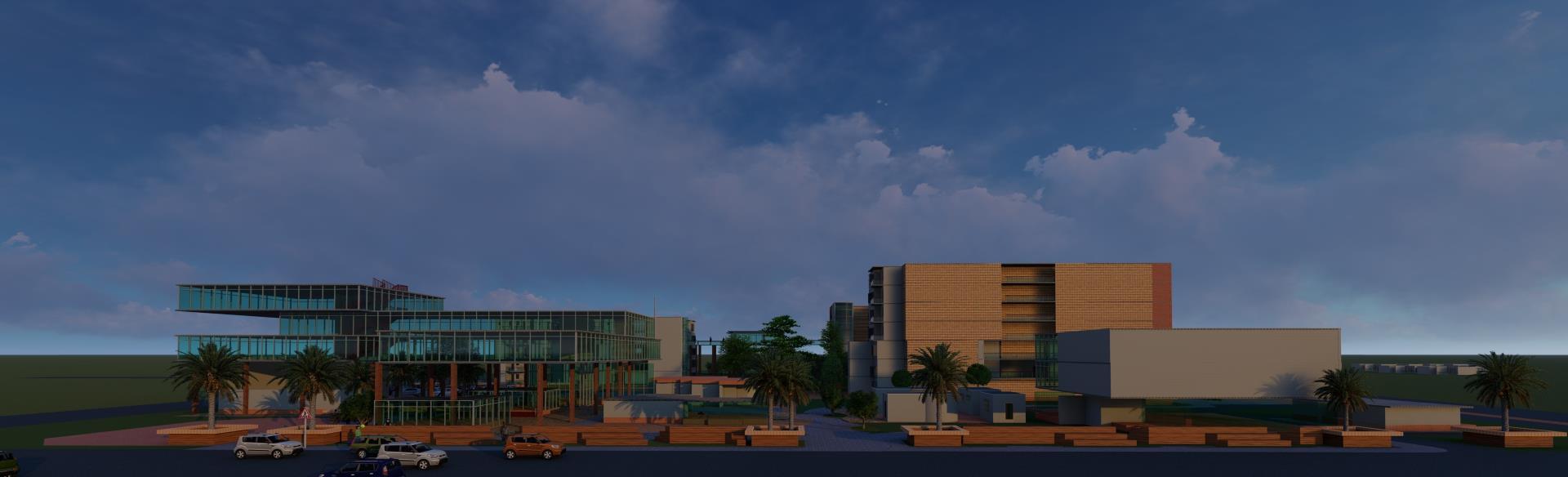

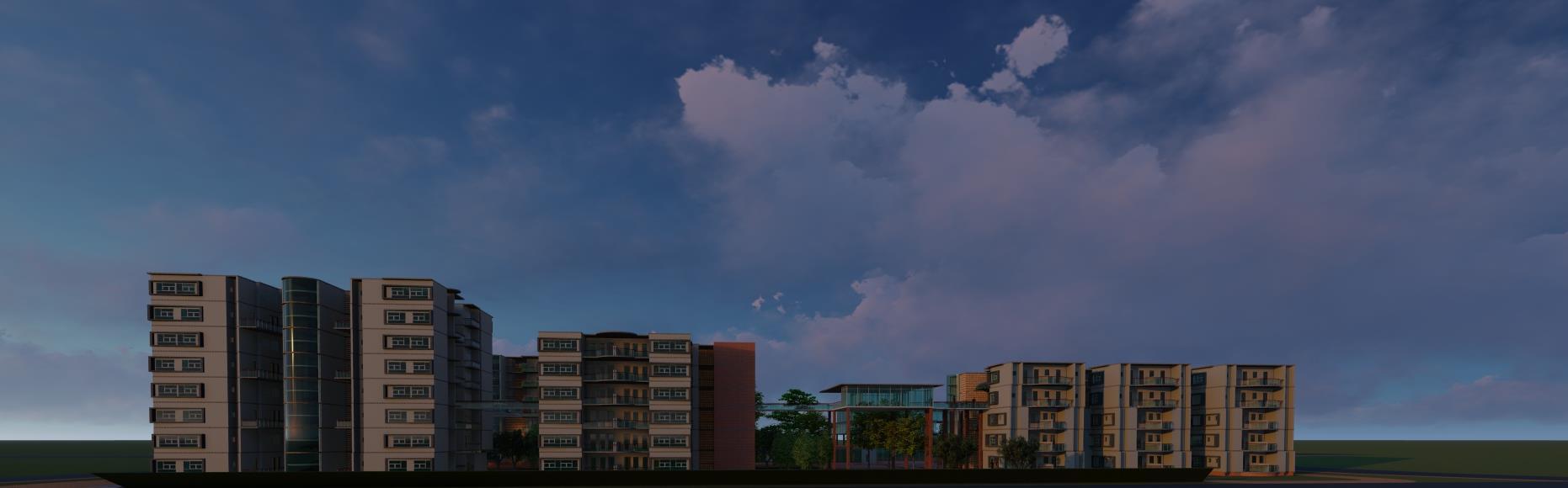

SEM VII IESCOAWANJARI HIMANSHU RN:53SHEET TITLE: 32ELEVATIONS

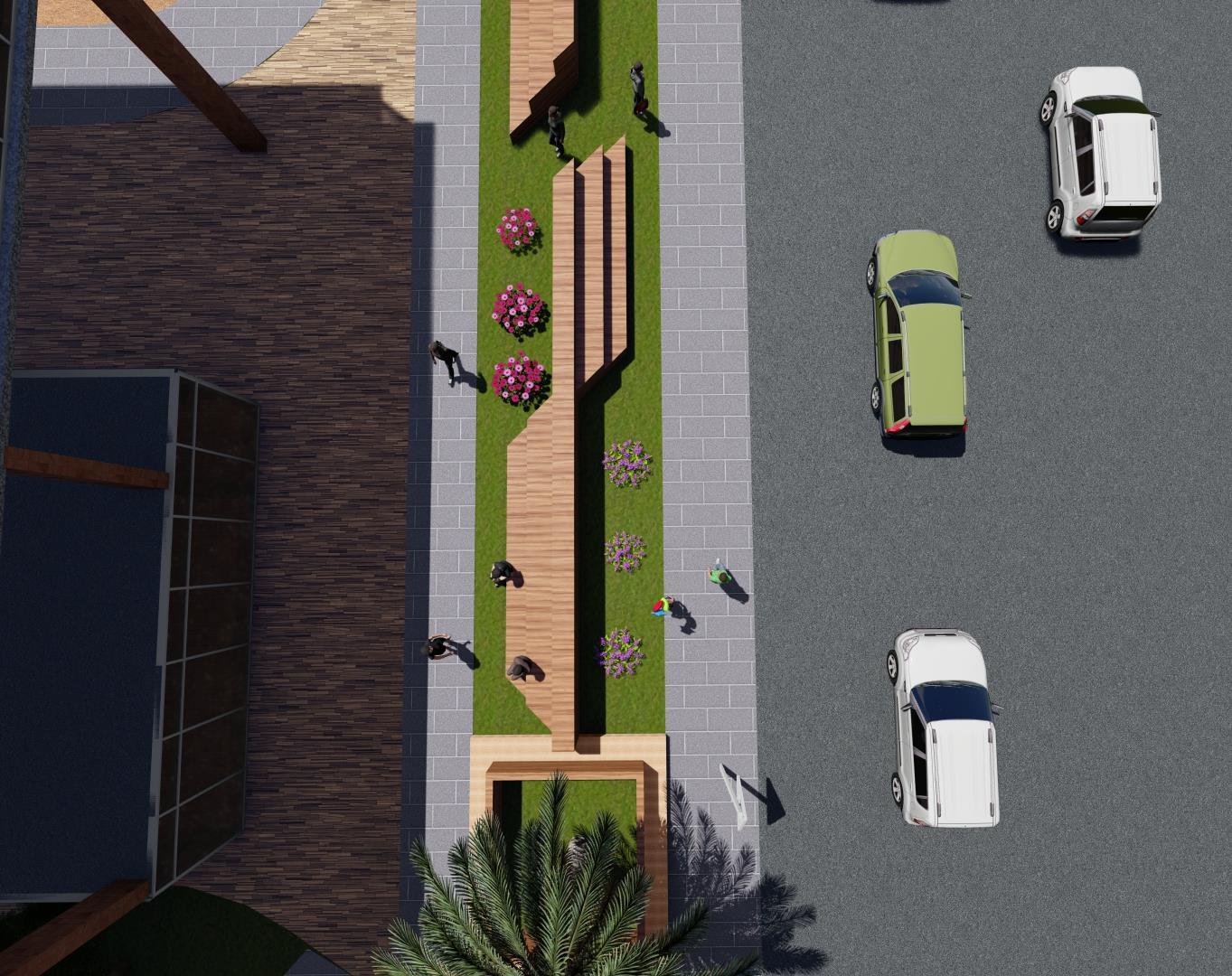

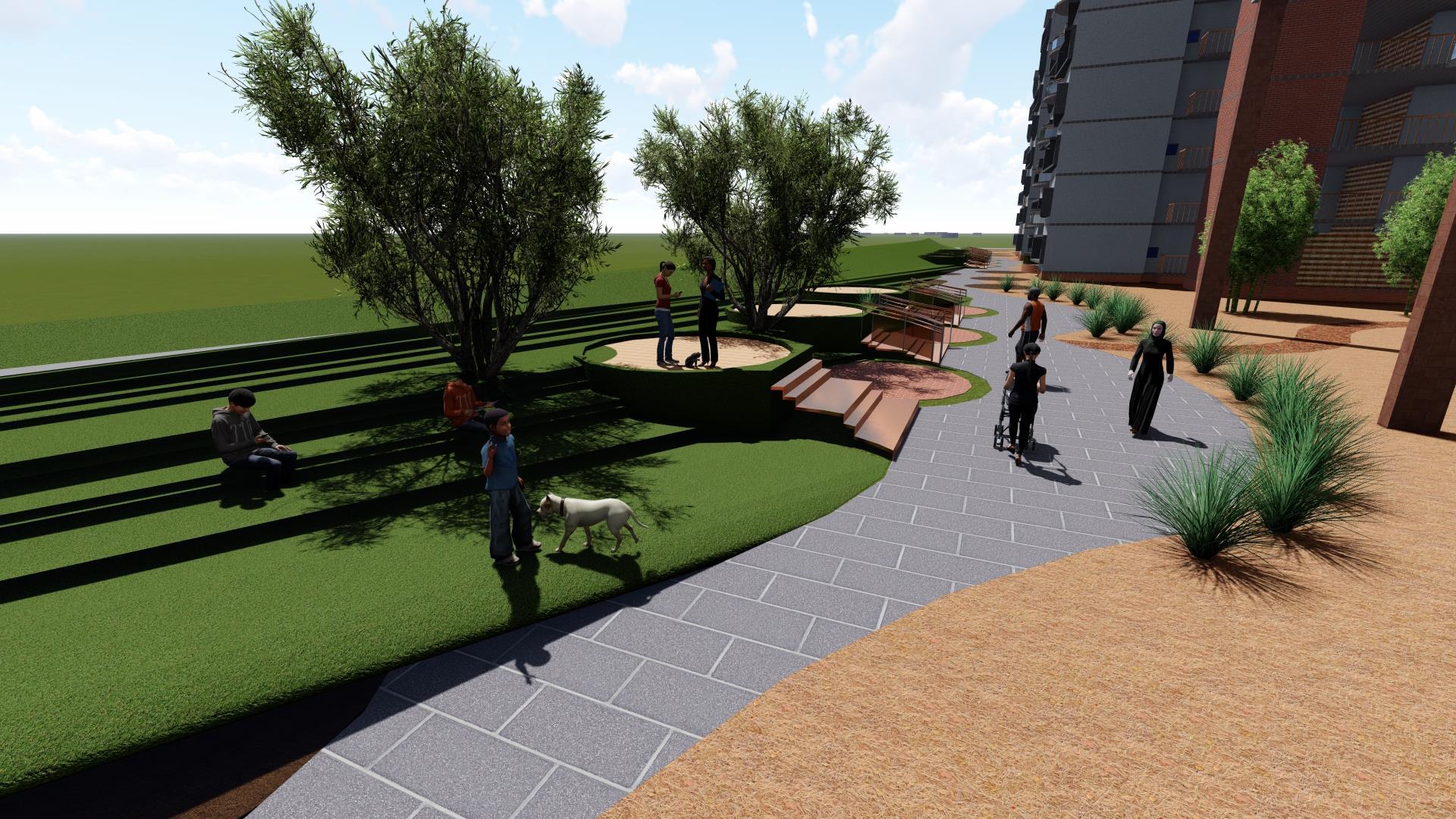

The interactive mounts solving the pedestrian and vehicular conflict and at the same time creating seating spaces from outside for the Roha people and also from inside for project residential.

SEM VII IESCOAWANJARI HIMANSHU RN:53SHEET TITLE: 33DETAILS

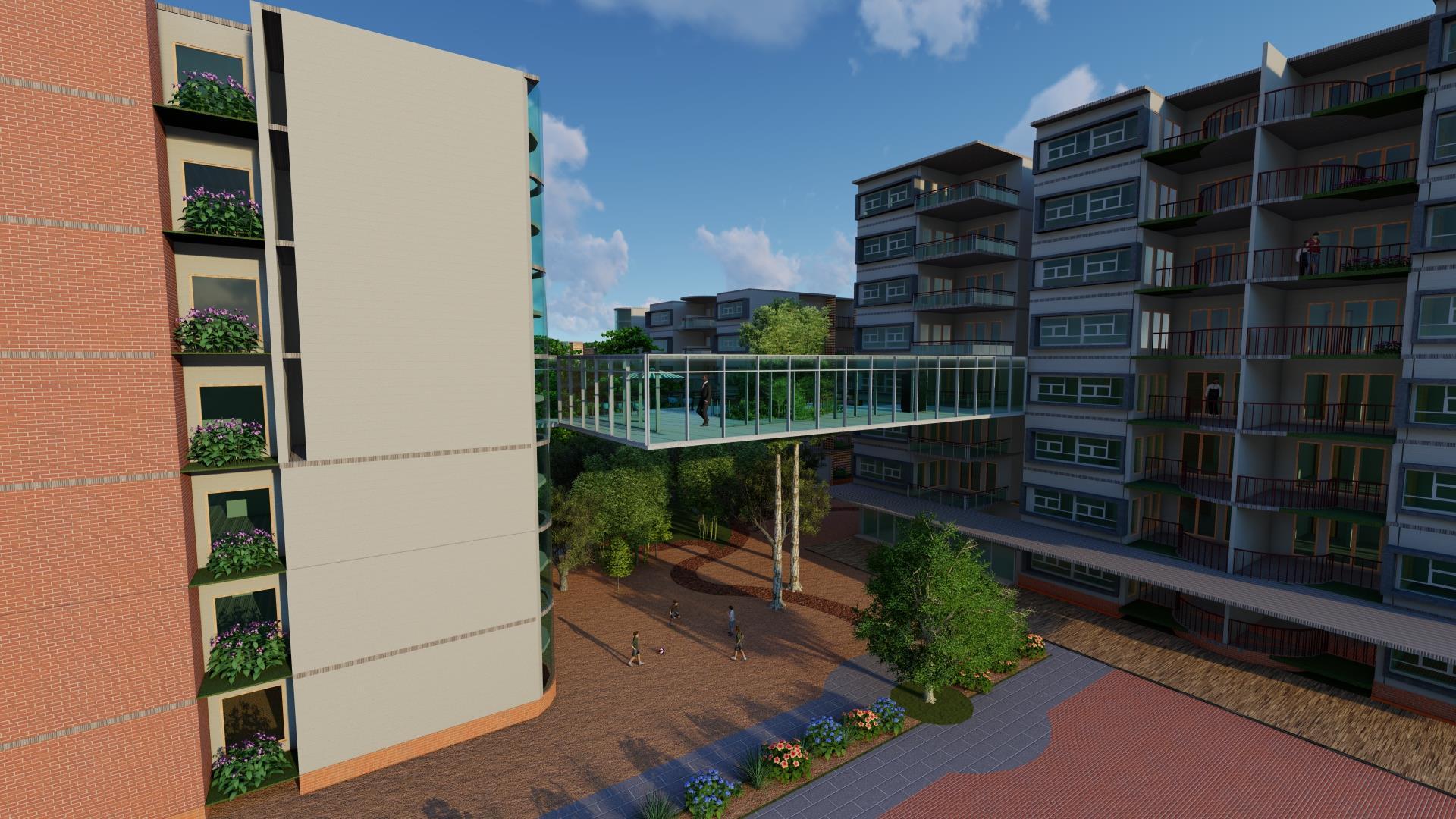

CONNECTING FLOATING LOBBIES/ WALKWAYS

The lobby connecting block B and Block C has a floating connecting lobby which also houses the gym and meditation centre, so to elevate your mind and focus it more on the natural side

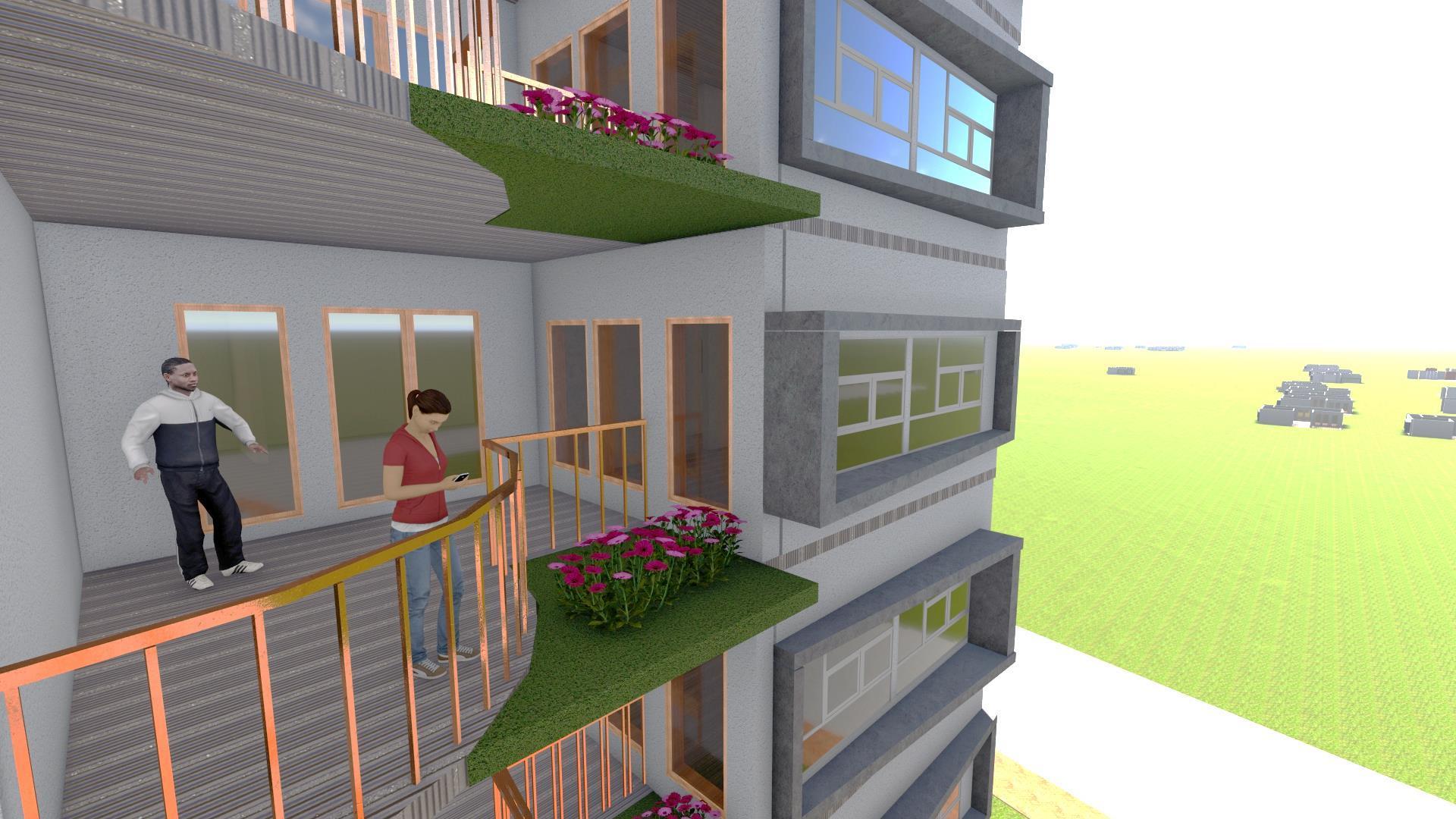

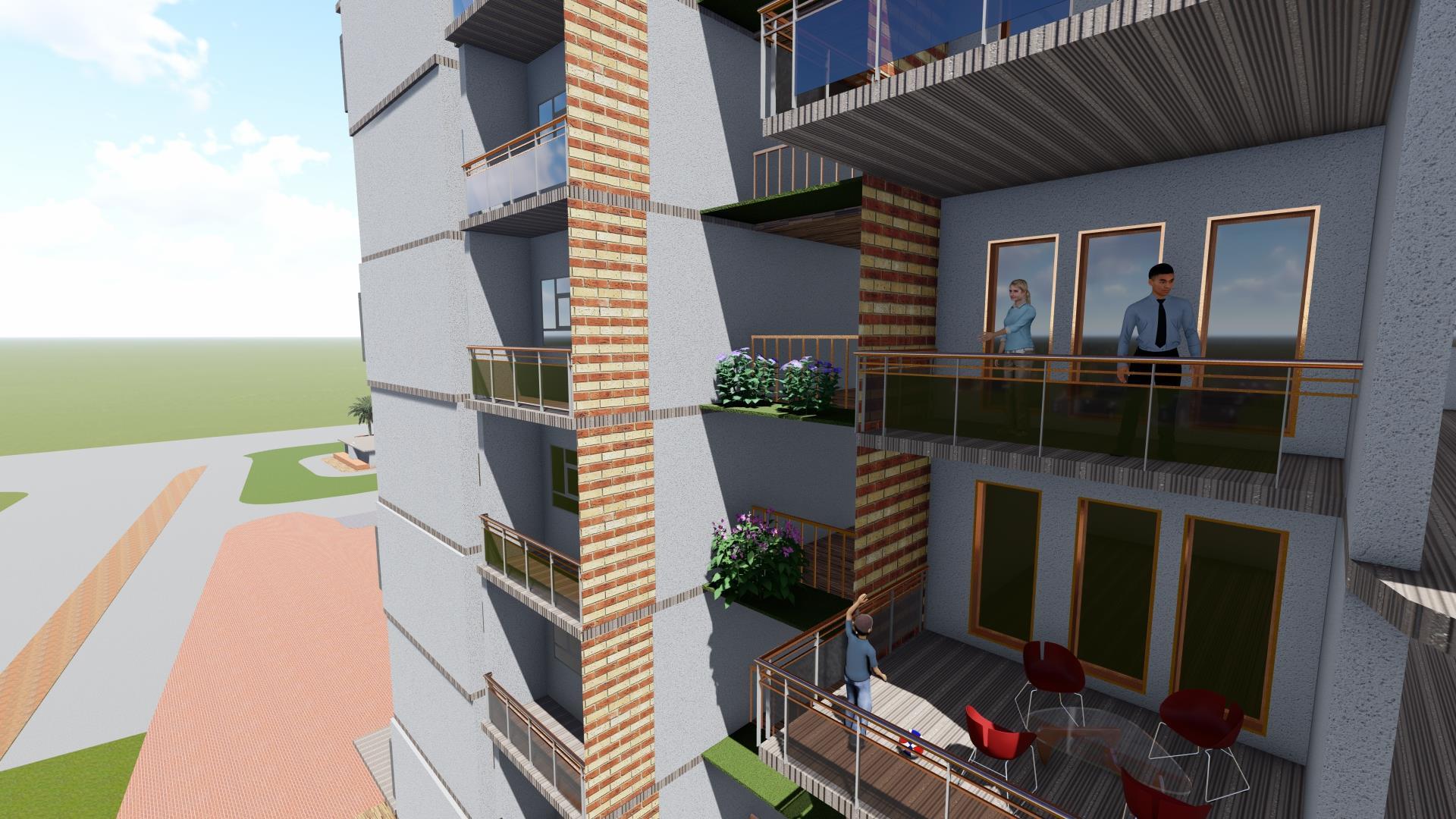

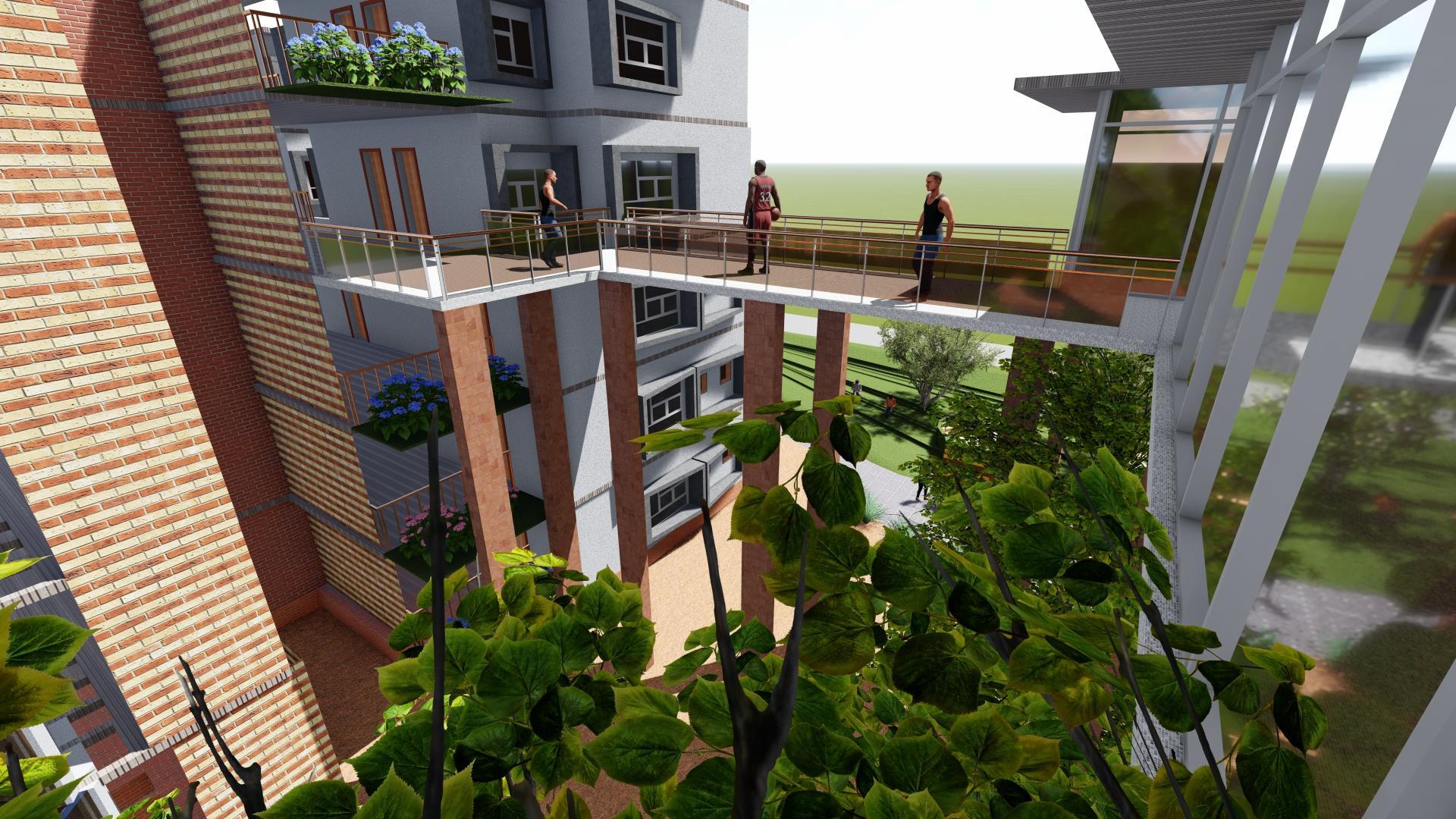

BALCONIES AND TERRECES

Each and every unit gets an individual balcony to overlook the beautiful natural landscapes and have a pleasant time away from all the work stress

SEM VII IESCOAWANJARI HIMANSHU RN:53SHEET TITLE: 34VIEWS

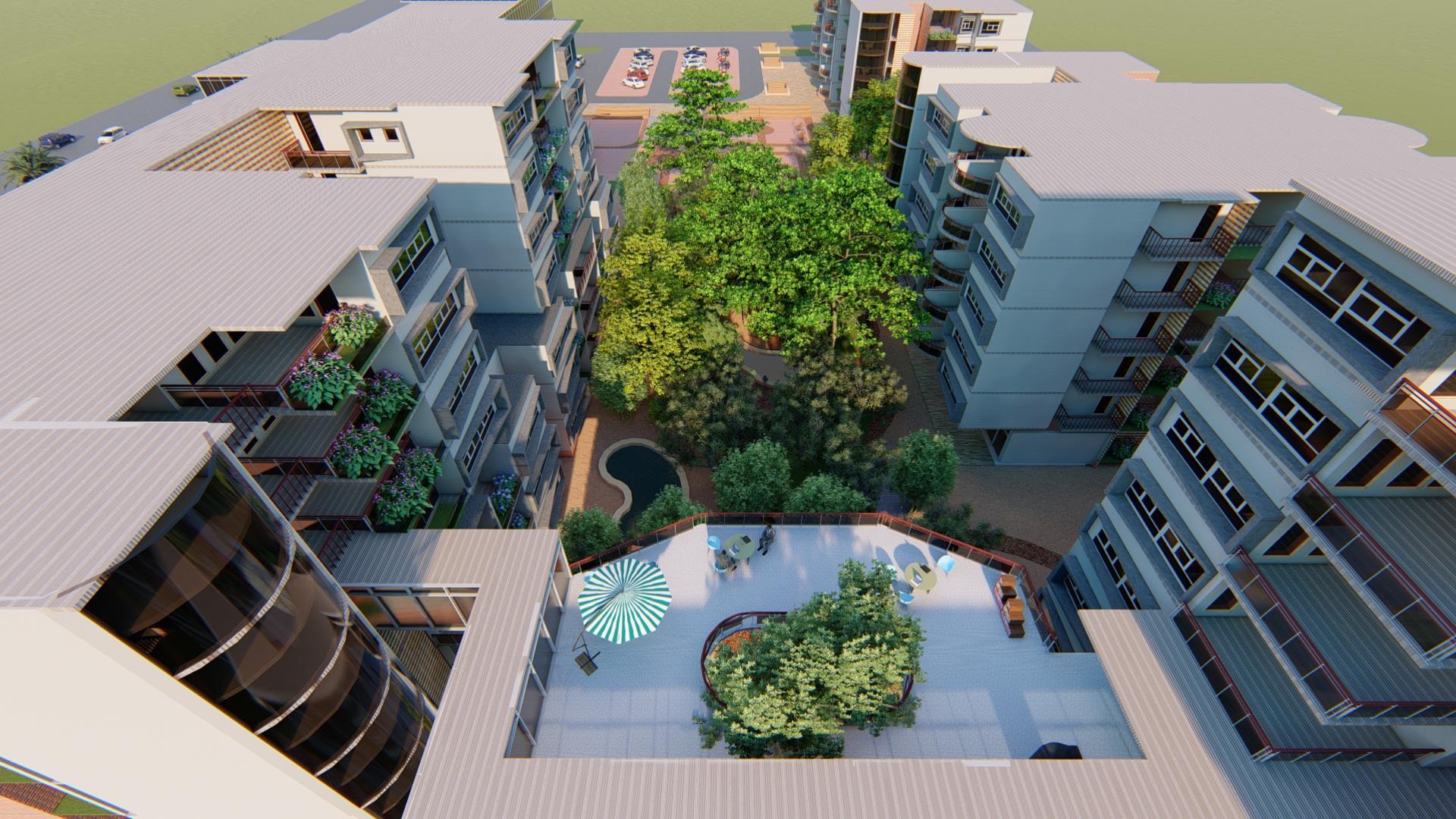

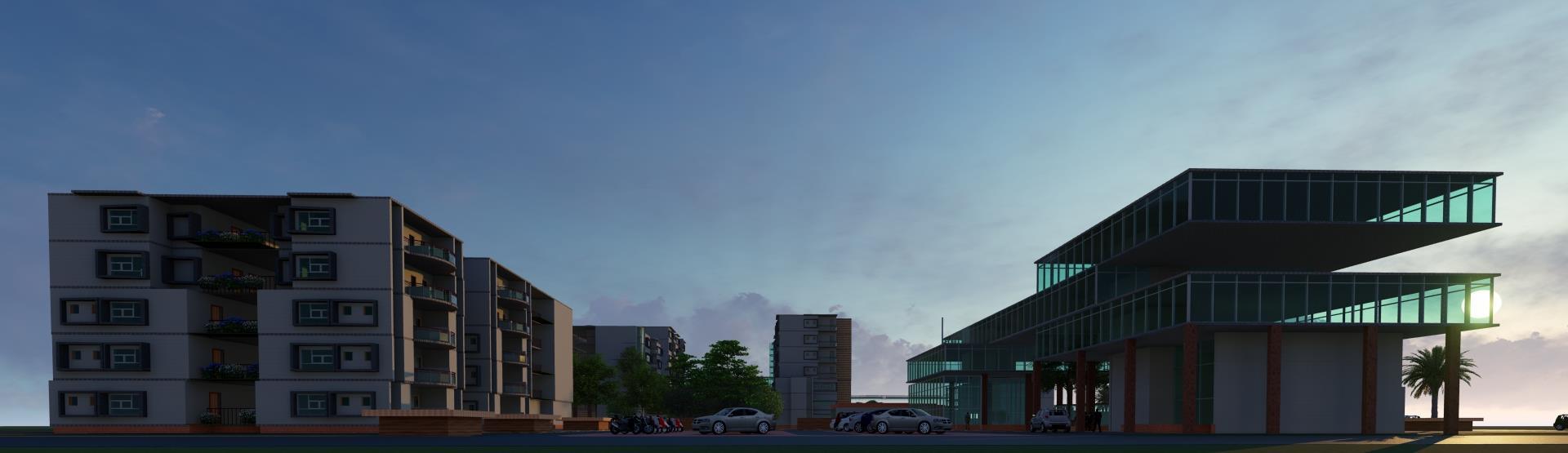

OVERALL MASSING

The overall massing is such that though the blocks are segregated according to their requirements they are connected via common lobbies which also acts as multipurpose spaces.

These lobbies can be relaxing point from the tiresome journey from office to home after the office hours

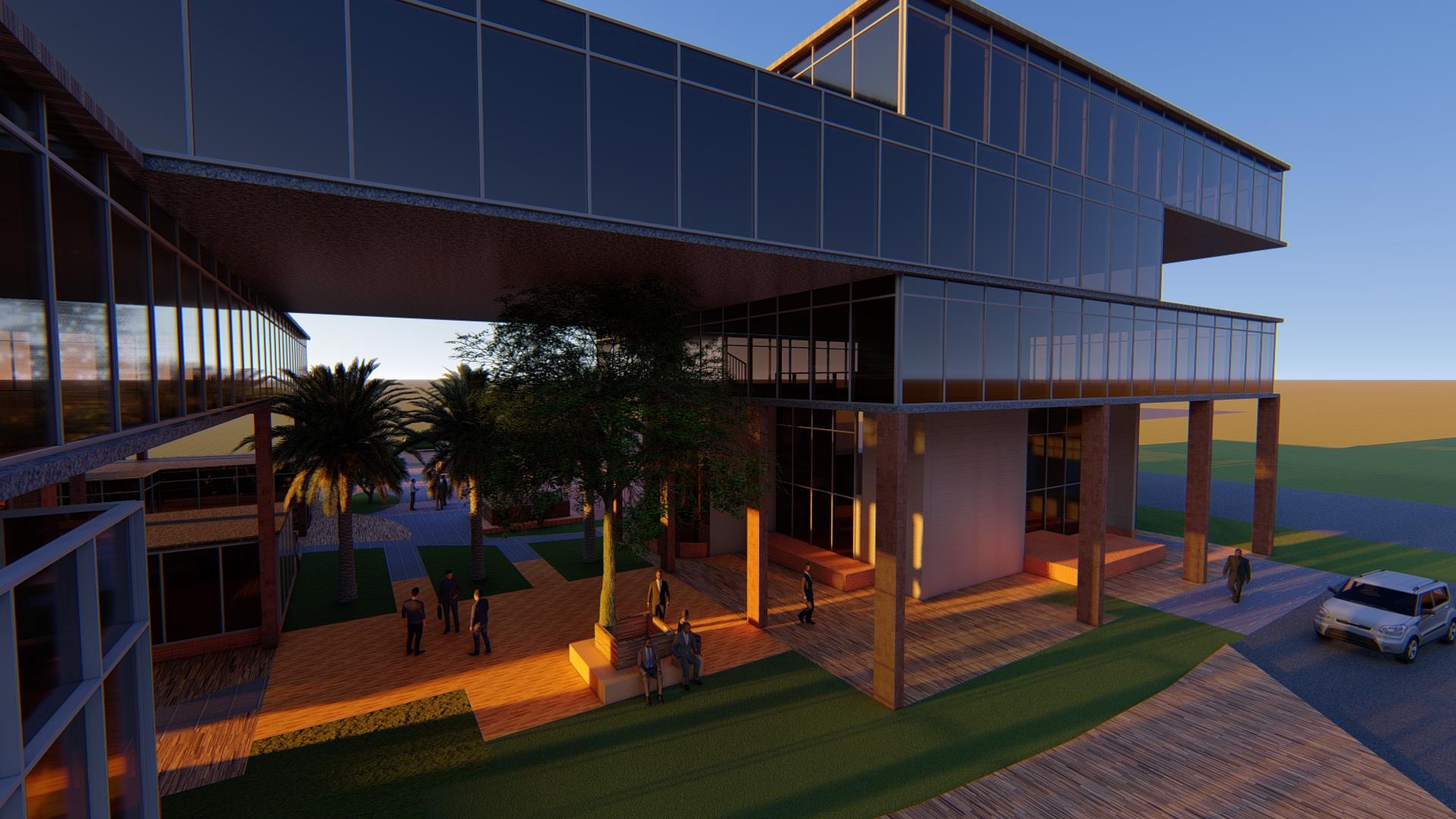

WORKSPACE

The workspace zone on the lowermost level has a double heighted common socializing zone with coffee shops and library along with common seating areas.

This lobby connects all the workspaces and is common to everyone coming to work

SEM VII IESCOAWANJARI HIMANSHU RN:53SHEET TITLE: 35VIEWS

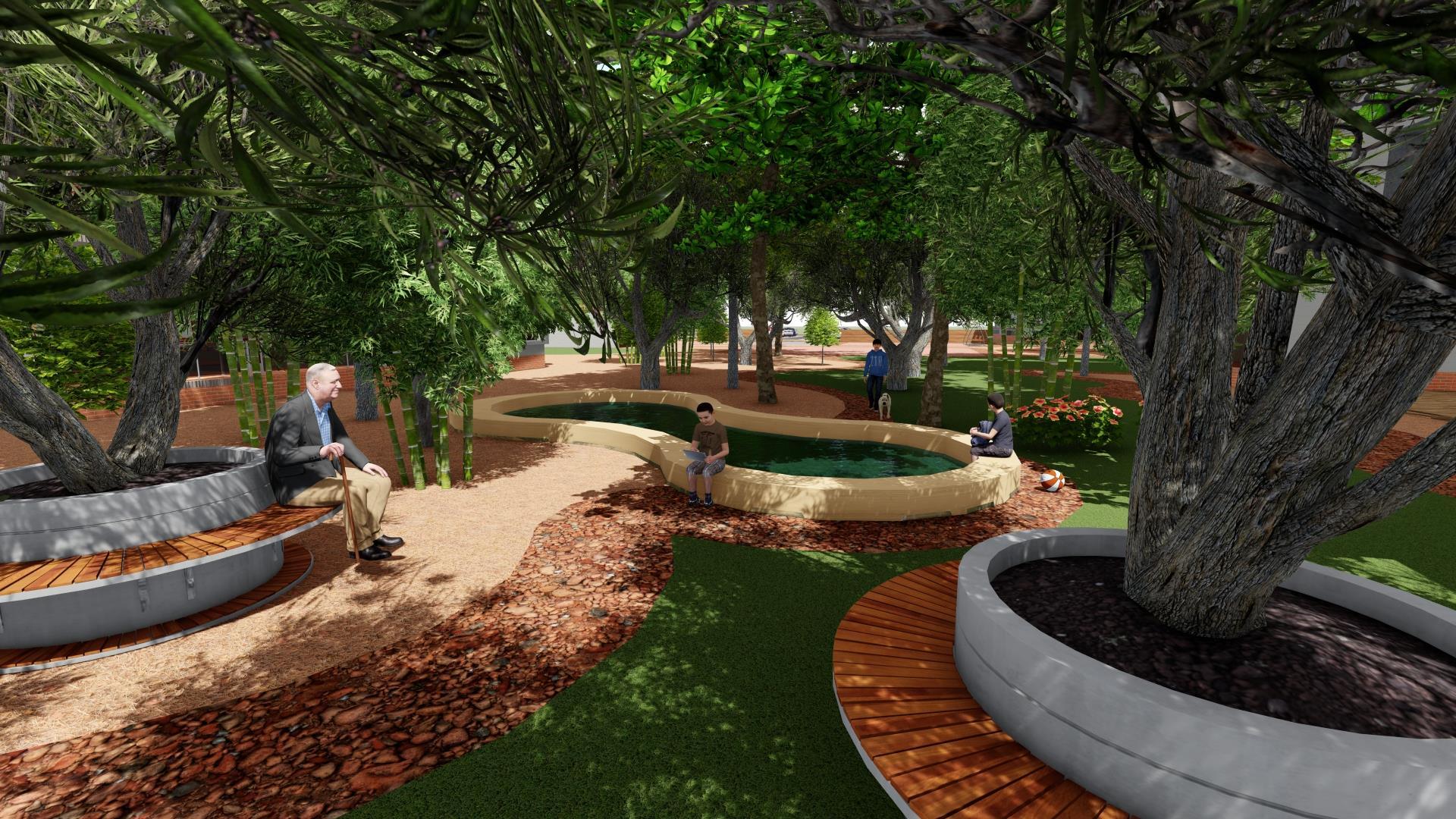

MINI FOREST

The forest binds all the spaces together, it is wilder in the core and as the forest spreads towards the buildings the landscape gets manicured slowly from the wilder side.

MOUNTS

The mounts created at the northmost side, away from the common work/ commercial areas thus giving a sense of privacy for the people residing there, also these mounts act as multi purpose spaces, maybe to Interact/socialize

Community farming pods

Relaxing and recreation

For playing Etc.

SEM VII IESCOAWANJARI HIMANSHU RN:53SHEET TITLE: 36VIEWS

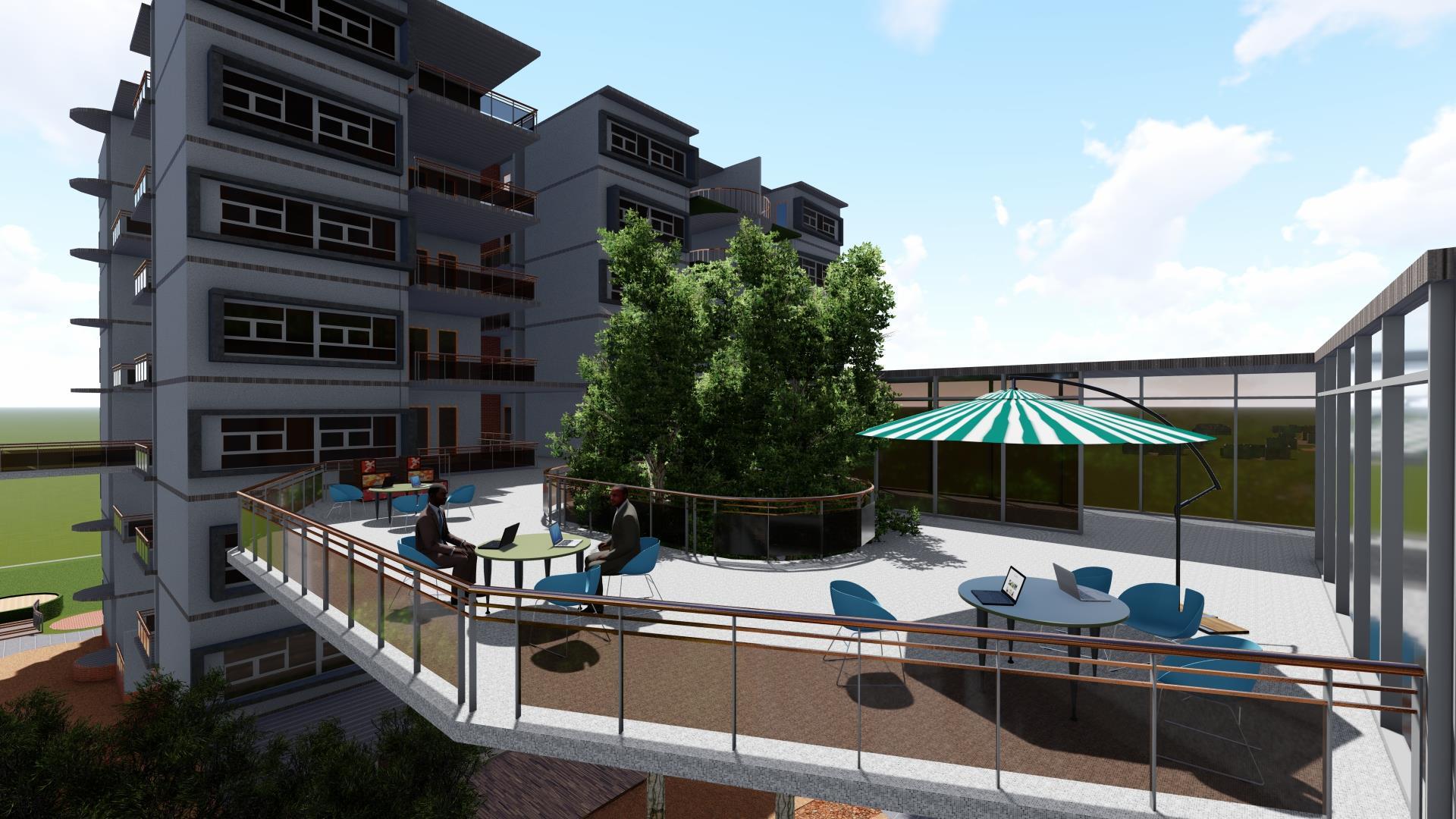

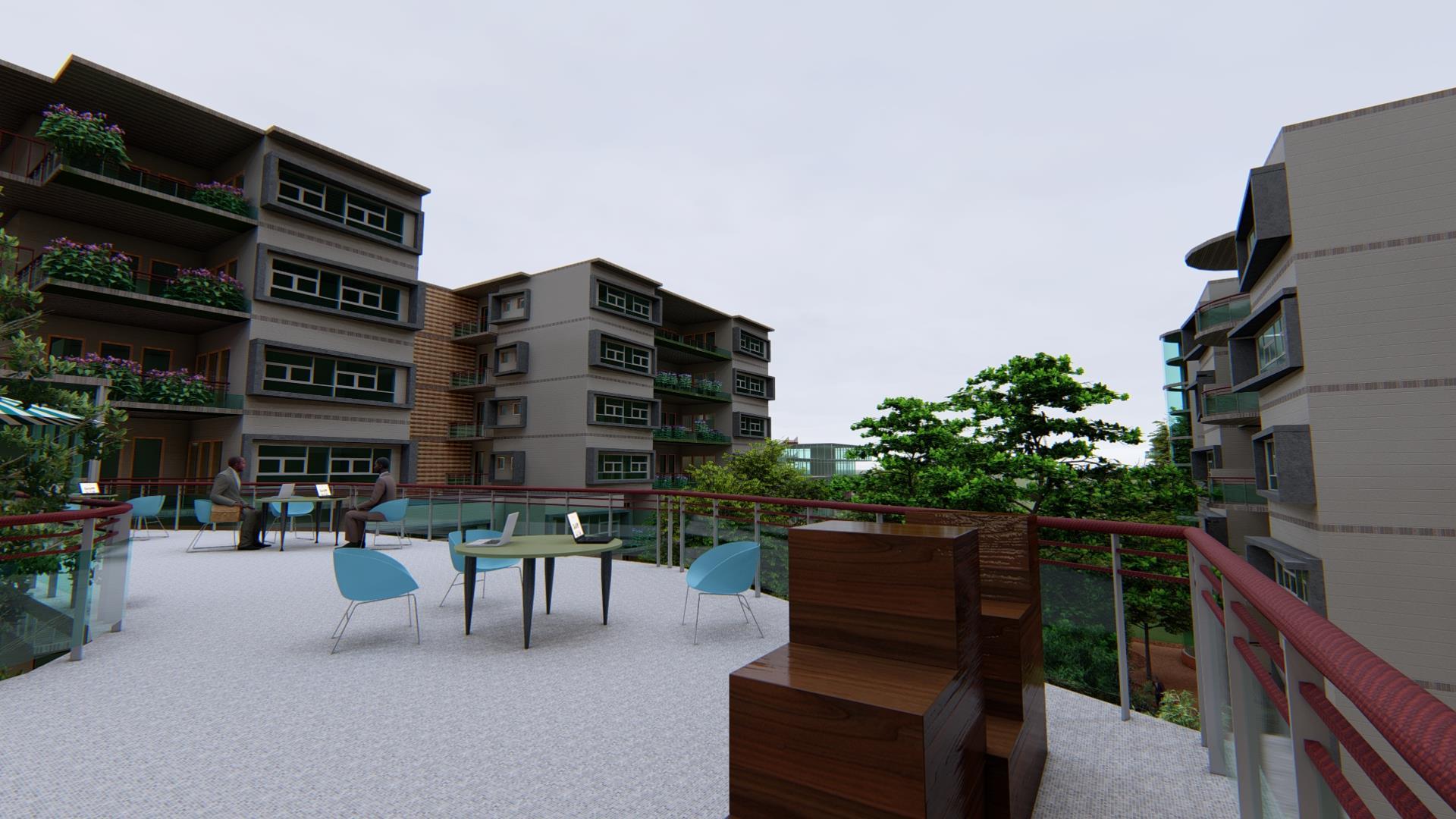

COMMON WORKSPACE

The workspace lobby has seating spaces, open to sky and with shaders, along with it is a small coffee is proposed for those little breaks.

COMMON WORKSPACE

The common workspace lobby is an interactive space for the community to come and work there along with it socialize with other, Due to the covid times work from has become very crucial part of life and thus keeping that in mind this community workspace area has been proposed

SEM VII IESCOAWANJARI HIMANSHU RN:53SHEET TITLE: 37VIEWS

VIEW FROM DROP-OFF POINT

The view from the vehicular drop-off point for residential

MASSING

The overall massing when viewed from above the workspace lobby

SEM VII IESCOAWANJARI HIMANSHU RN:53SHEET TITLE: 38VIEWS

KHAU GULLY

The informal Khau Gully for quick snacks before going to office or to the passer-by's from the highway.

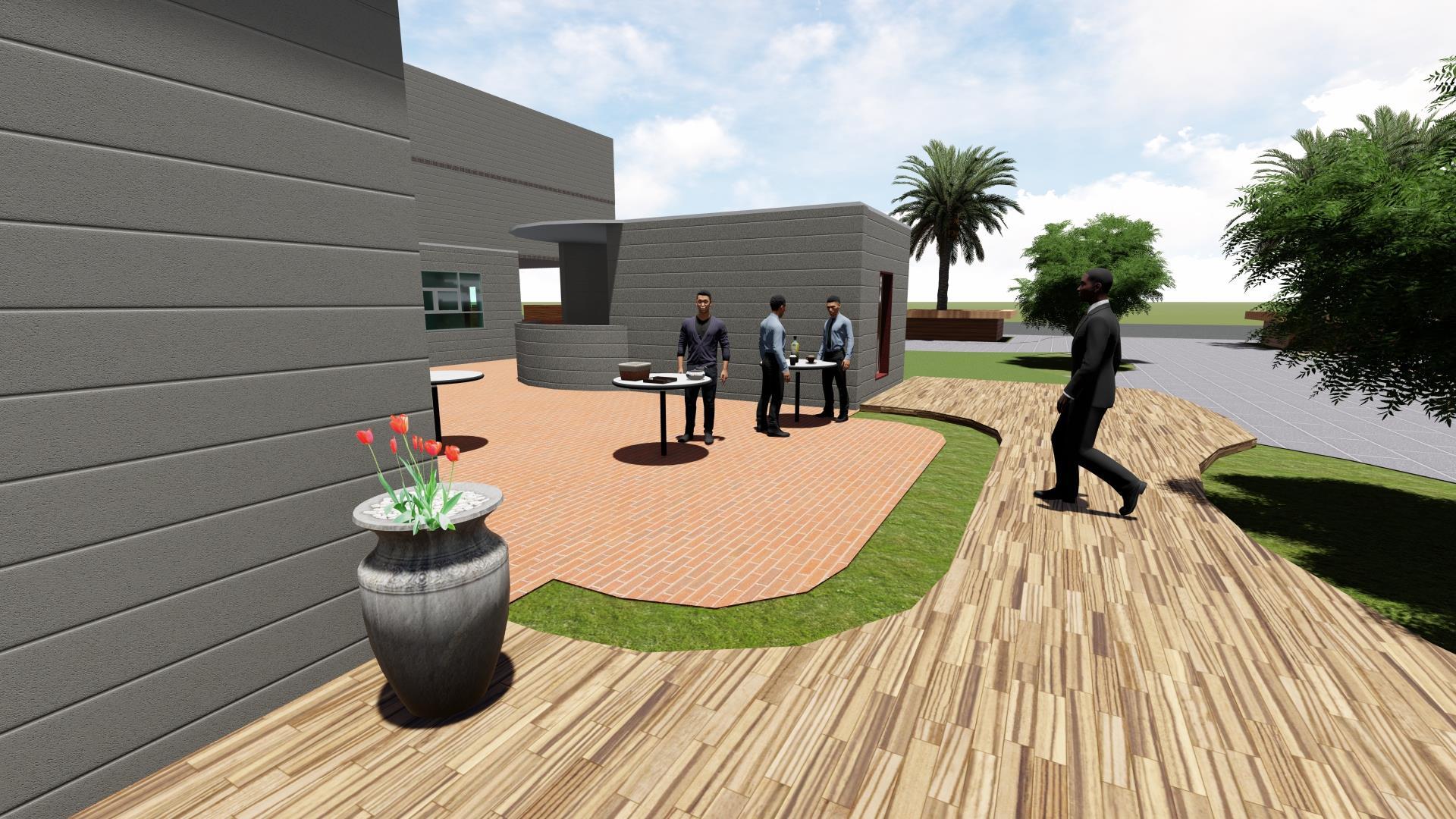

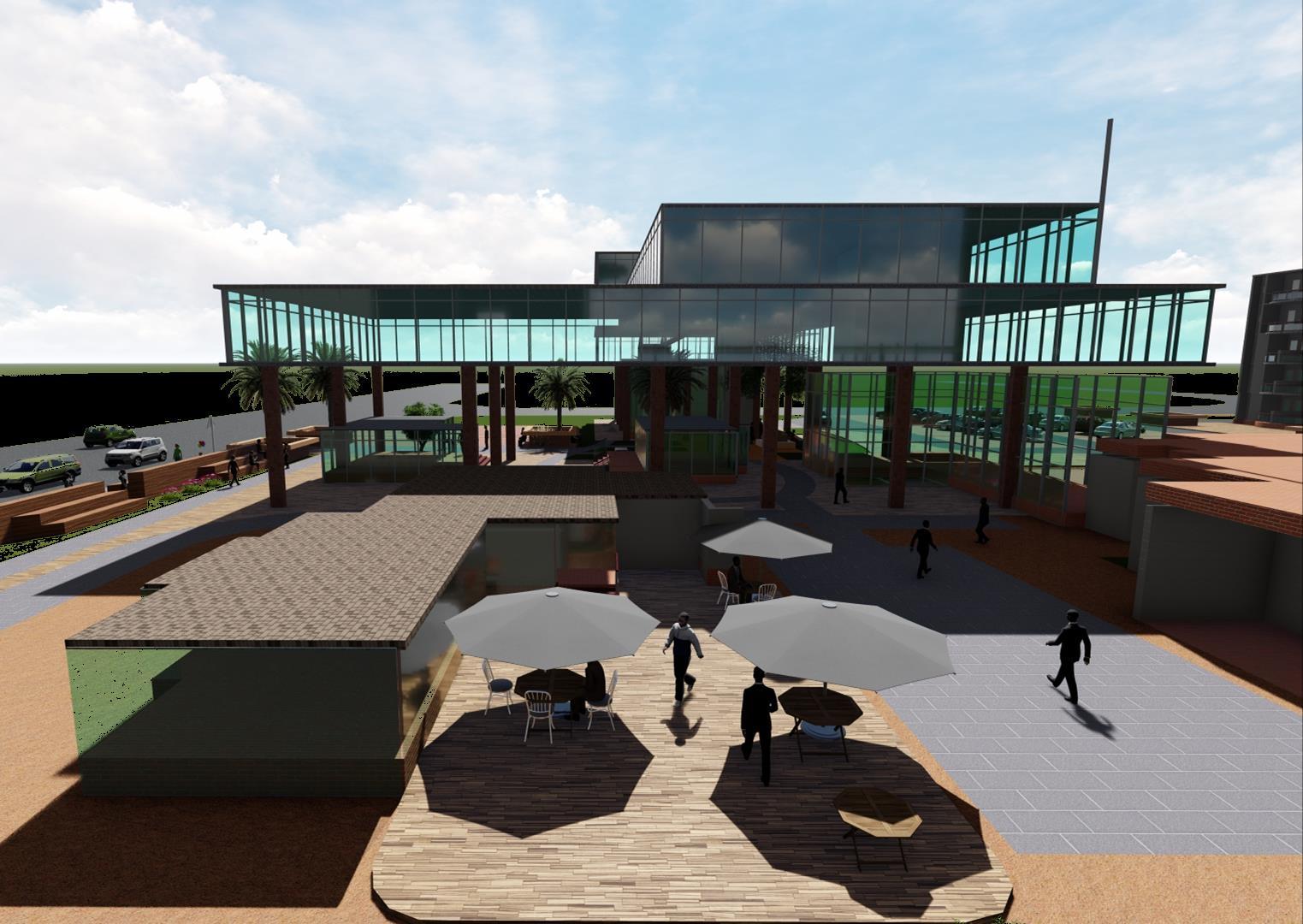

RESTAURANT

The restaurant with outdoor as well as indoor spaces.

SEM VII IESCOAWANJARI HIMANSHU RN:53SHEET TITLE: 39VIEWS

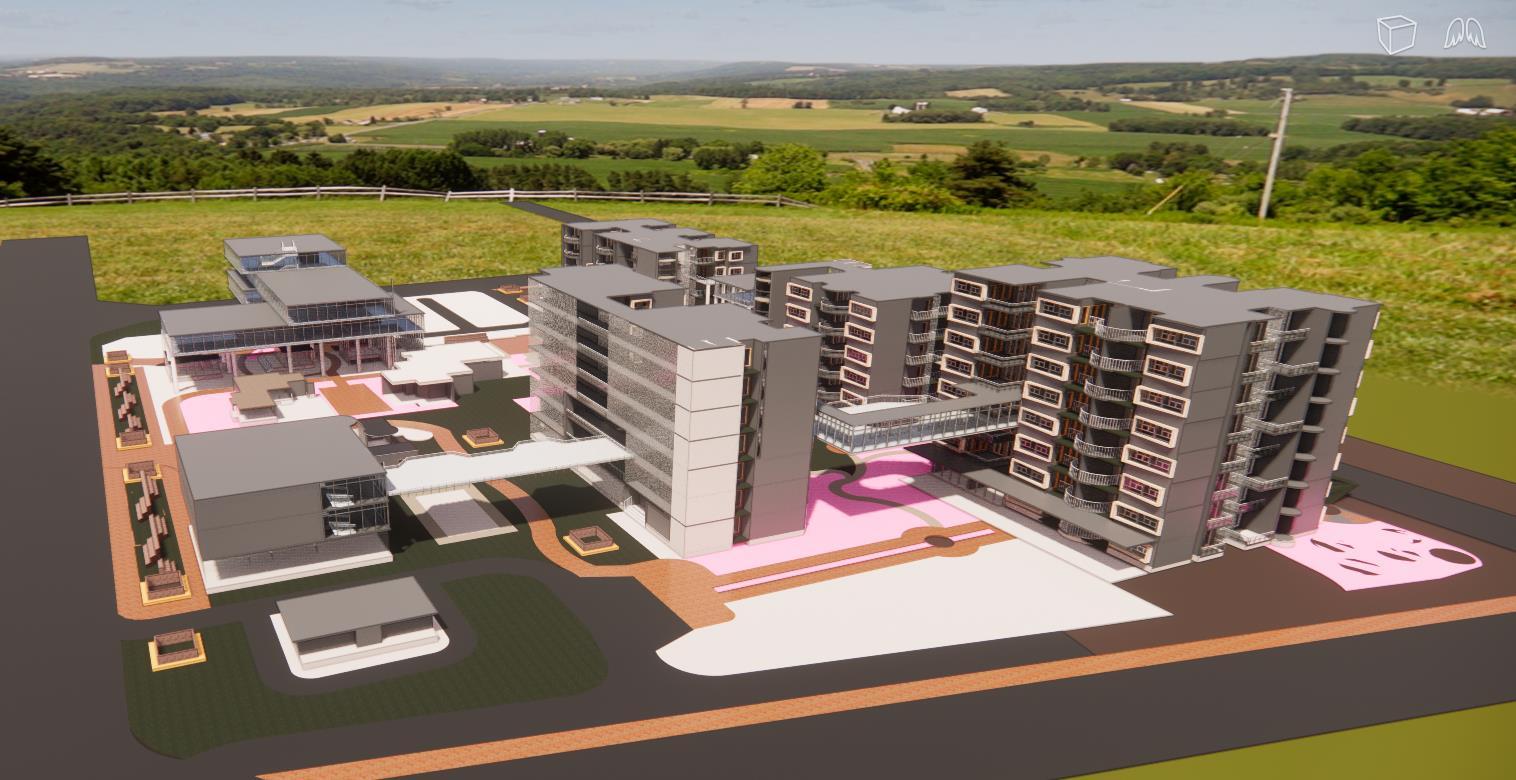

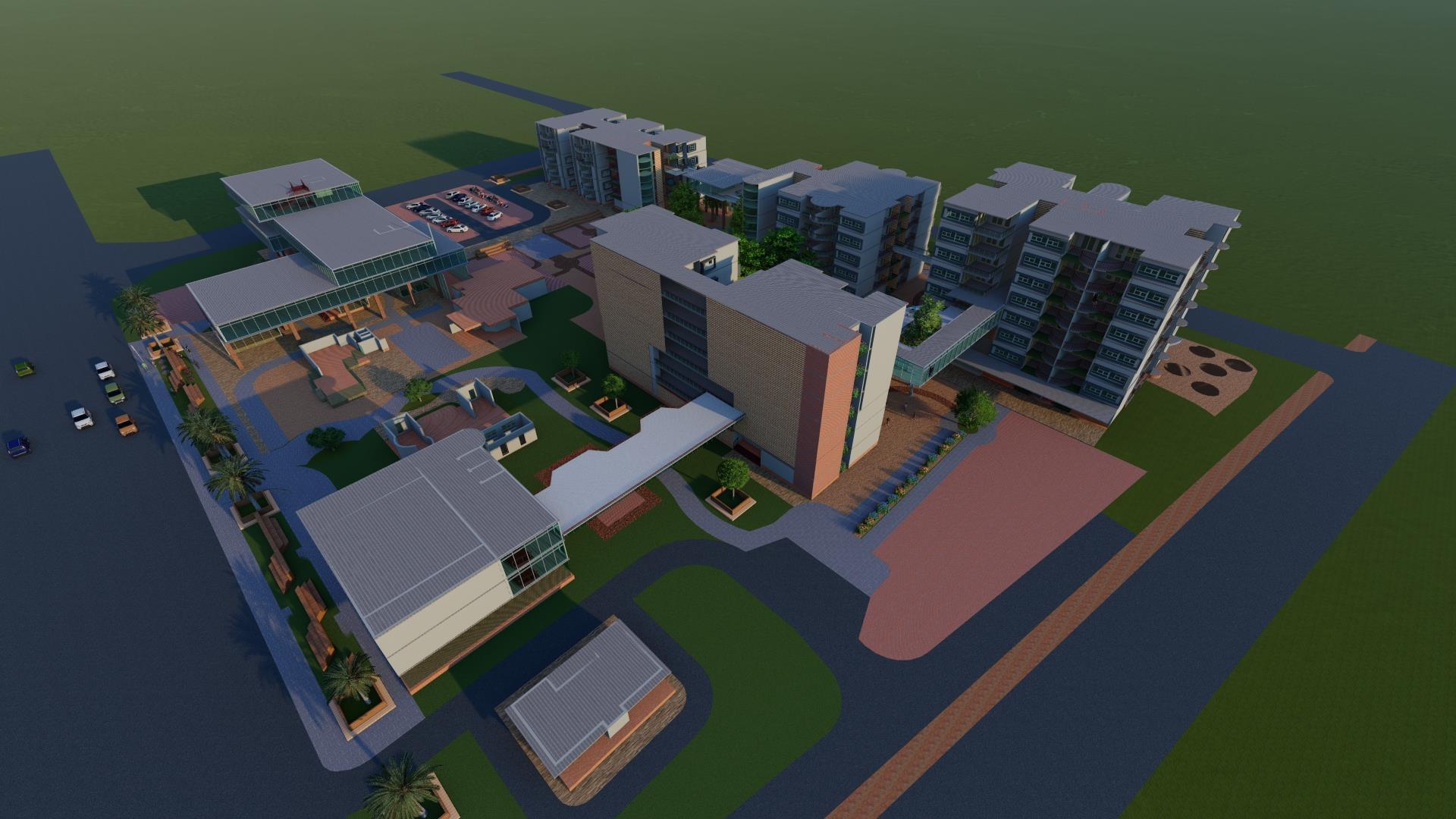

OVERALL MASSING

The overall massing with trees removed for complete and easy visibility VIEWS

SEM VII IESCOAWANJARI HIMANSHU RN:53SHEET TITLE: 40
