THE SQUARE ANNEXE SCIENCE GALLERY,
MUMBAI SEAT NO. 3633 SEM6 1
KEVIN LYNCH- IMAGE OF THE CITY
THE IMAGE OF THE CITY- Kevin Lynch; What does the city's form actually mean to the people who live there? What can the city planner do to make the city's image more vivid and memorable to the city dweller?
PATHS (car movement, pedestrian movement, connections)
NODES (junction, two main roads meet, important place)
IMAGE OF THE CITY.
LANDMARK (famous buildings around the place of neighborhood)
DISTRICTS (neighborhood depicting a similar feature or style)
WANJARI HIMANSHU
RN. 055 SEM VISHEET TITLE SITE STUDY
2

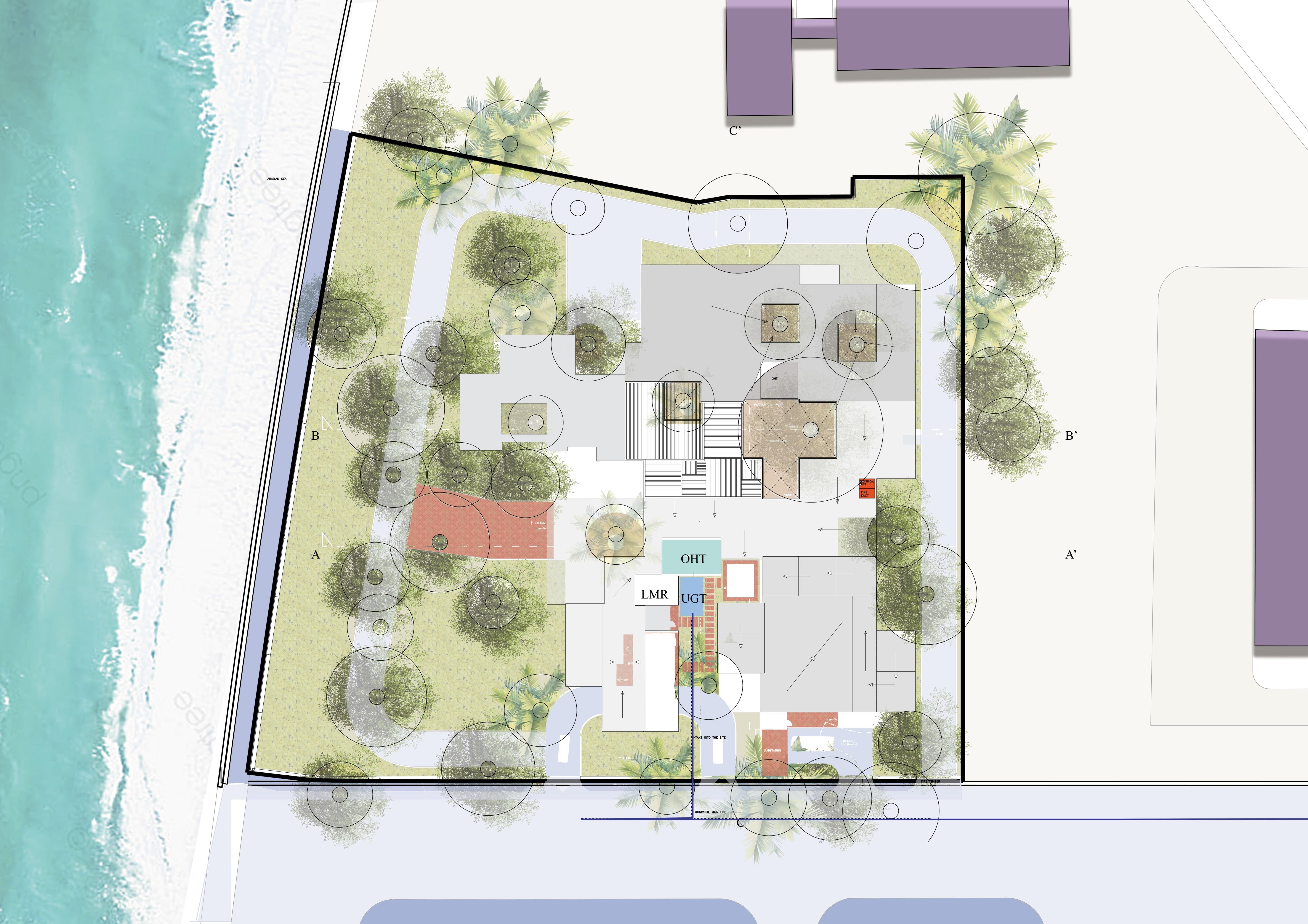

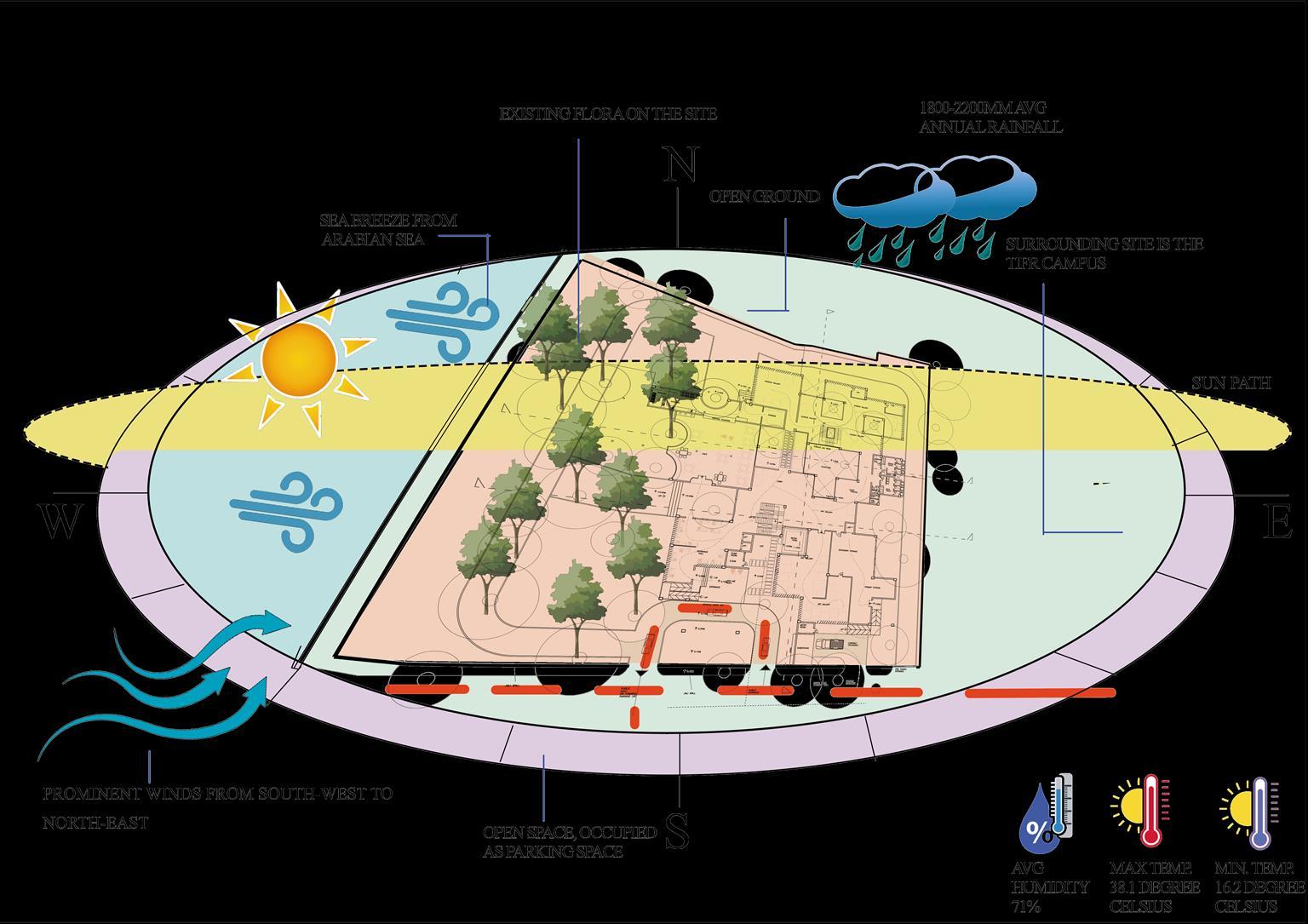

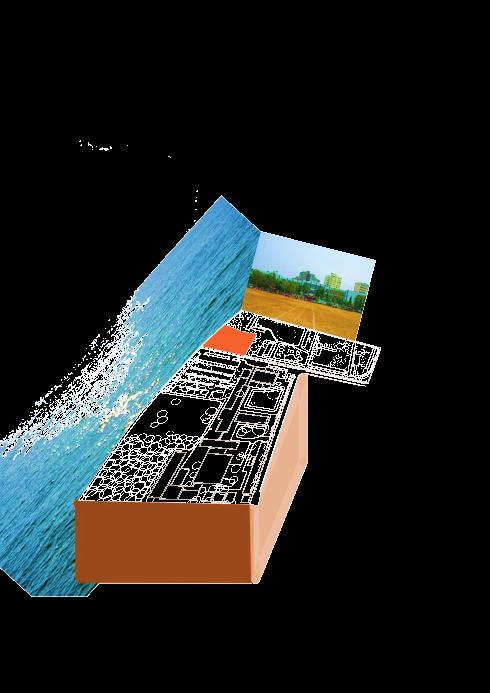

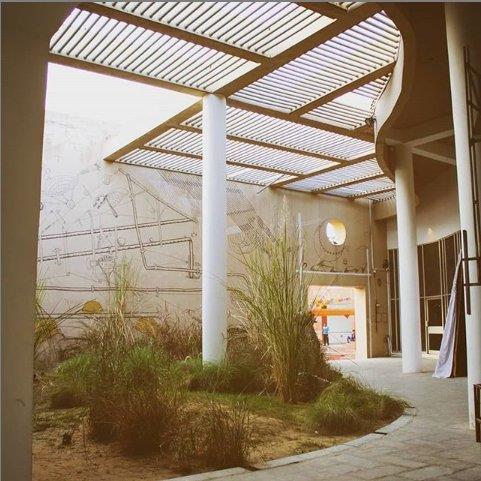

Site
1. What’s below the site :It is a reclaimed land, so the soil is up to 300metres deep only, below it is marshy soil and the water. Digging of wells and bore wells is prohibited due to polluted water in the ground table.
2. What’s on the site: educational, recreation and administrative blocks, vegetation and locomotive pathways.
3. What’s around the site: mostly has schools and playground around the site. Western side is bordered by Arabian sea.
4. What’s above the site: Endless sky without any hindrance by surrounding building or electric wires.
WANJARI HIMANSHU
RN. 055 SEM VI

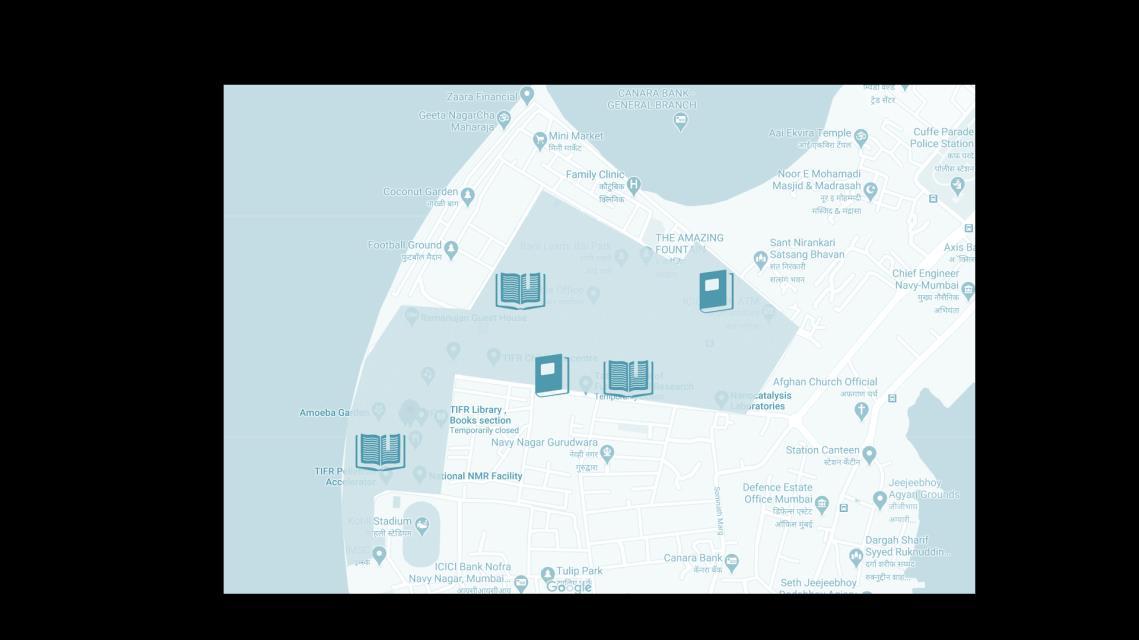

300m 360° AROUND THE SITE SHEET TITLE SITE STUDY 3
KEVIN LYNCH- IMAGE OF THE CITY
WANJARI HIMANSHU
RN. 055 SEM VI
SHEET TITLE SITE STUDY 4
IDENTIFYING DISTRICT
The District is considered by looking for similar aspect near the site. for instance, here the district can be the area having educational institutes. Here the Kendria Vidhyalays and other primary schools with tuition classes can be one district
Considering a said district one can classify the users. In this case the schools having students define a user group who can use the proposed Science Centre for their study and research related work.
WANJARI HIMANSHU
RN. 055 SEM VI
SHEET TITLE SITE STUDY 5
LANG
to section

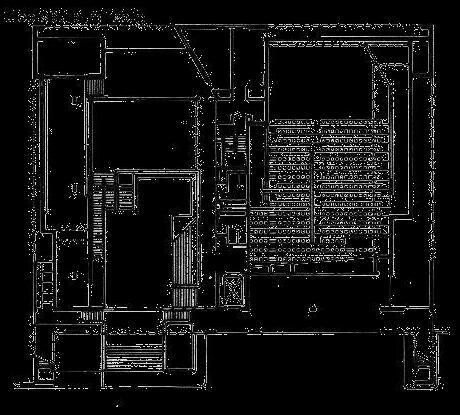

Ground floor plan
floor plan
WANJARI HIMANSHU
RN. 055 SEM VI

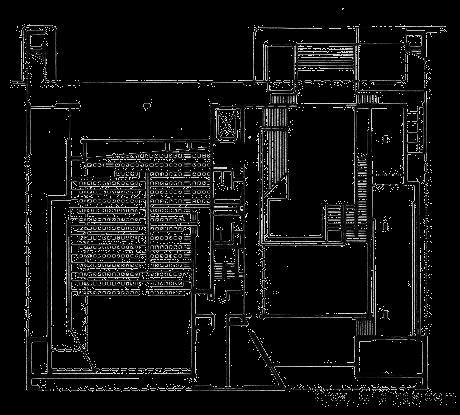

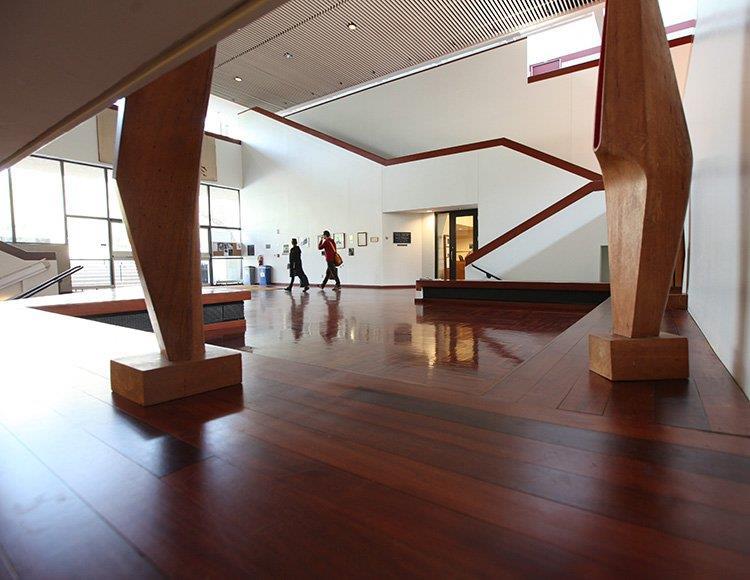

MUSIC BUILDING– Louis I Kahn OBSERVTIONS: 1. Central open space 2. Spaces flanking on 3 sides of the building 3. South façade kept entirely for services 4. Square units designed for various functions and activities
First

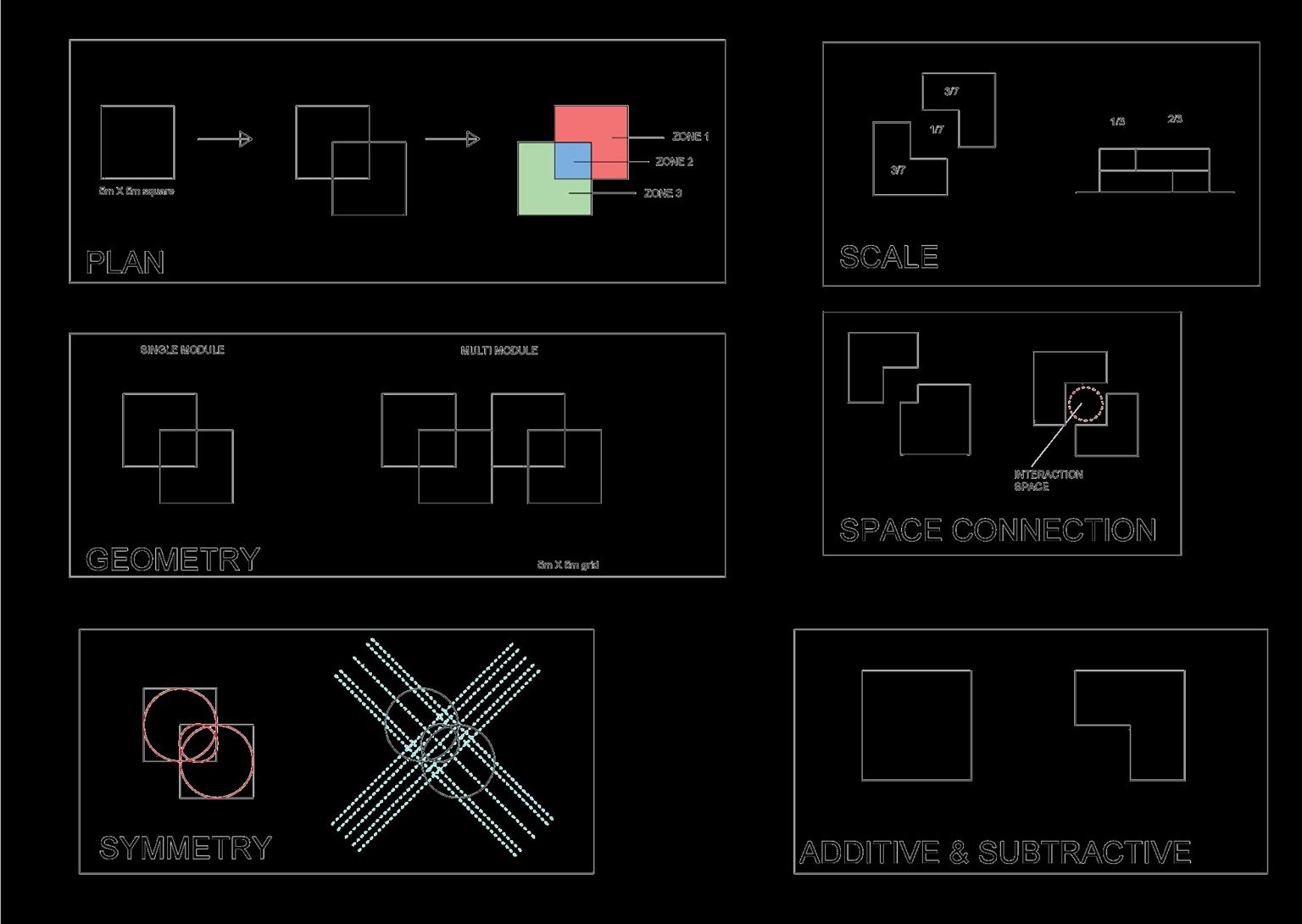

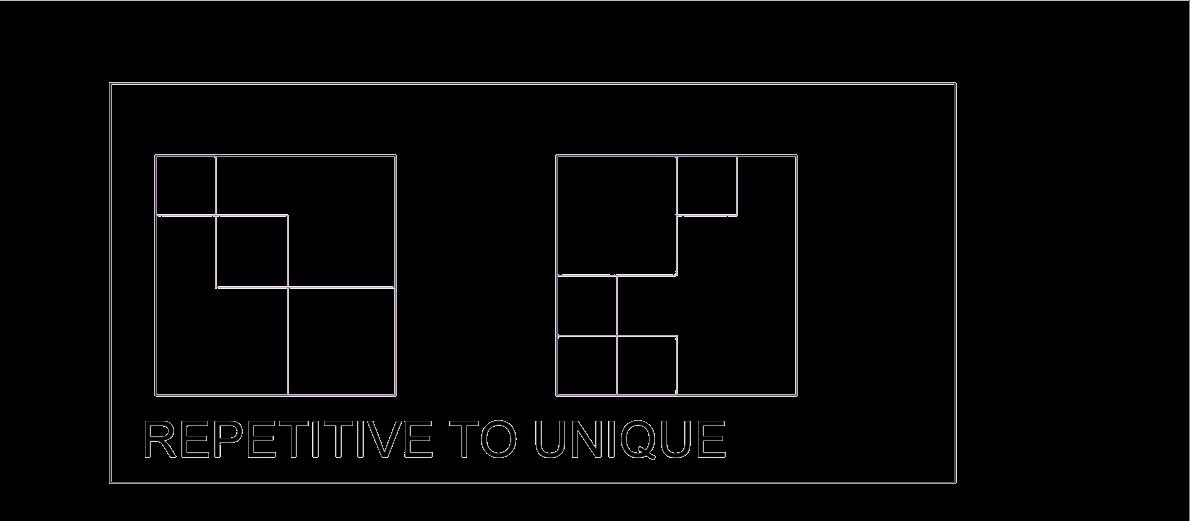

Co Co Co Repetitive and unique Symmetry and balance Plan
Unit to whole Addition and subtraction SHEET TITLE CASE STUDY 1 6

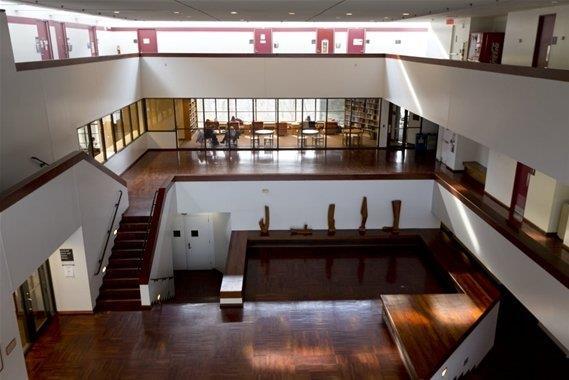

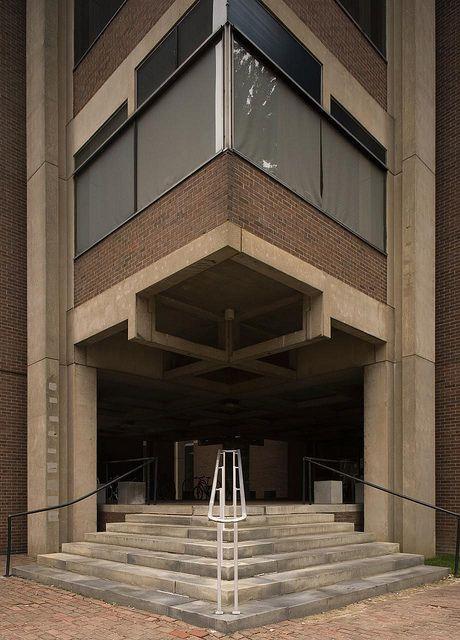

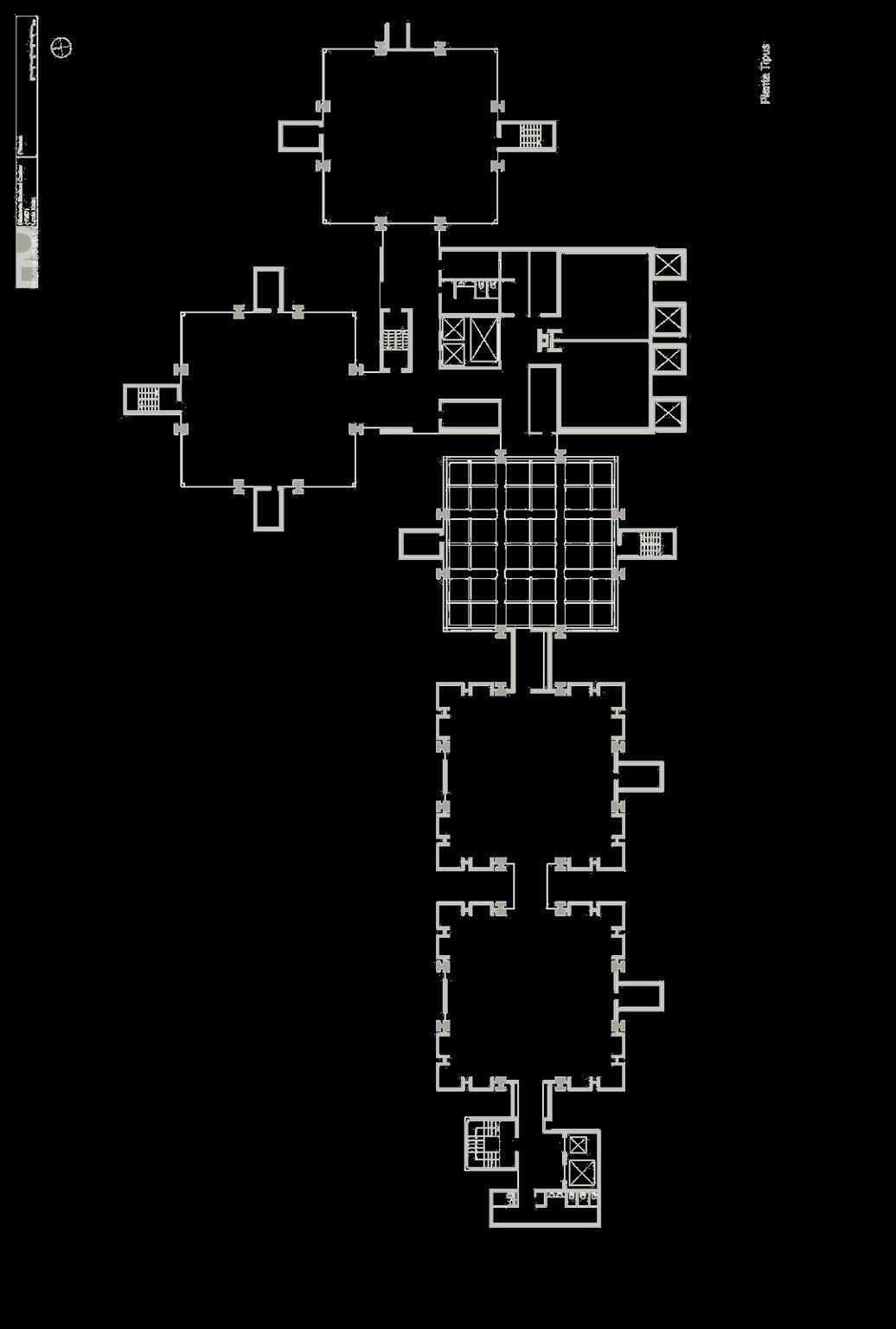

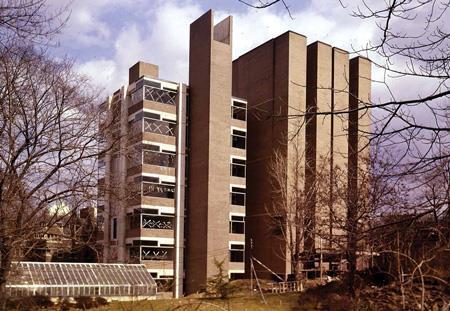

University of Pennsylvania – Louis I Kahn
OBSERVTIONS:
created
these
on
outdoor spaces in consideration
MAIN SPACES
Grid to module
SERVICES
WANJARI HIMANSHU
RN. 055 SEM VI
1. Unit
2. Arrangement of
units

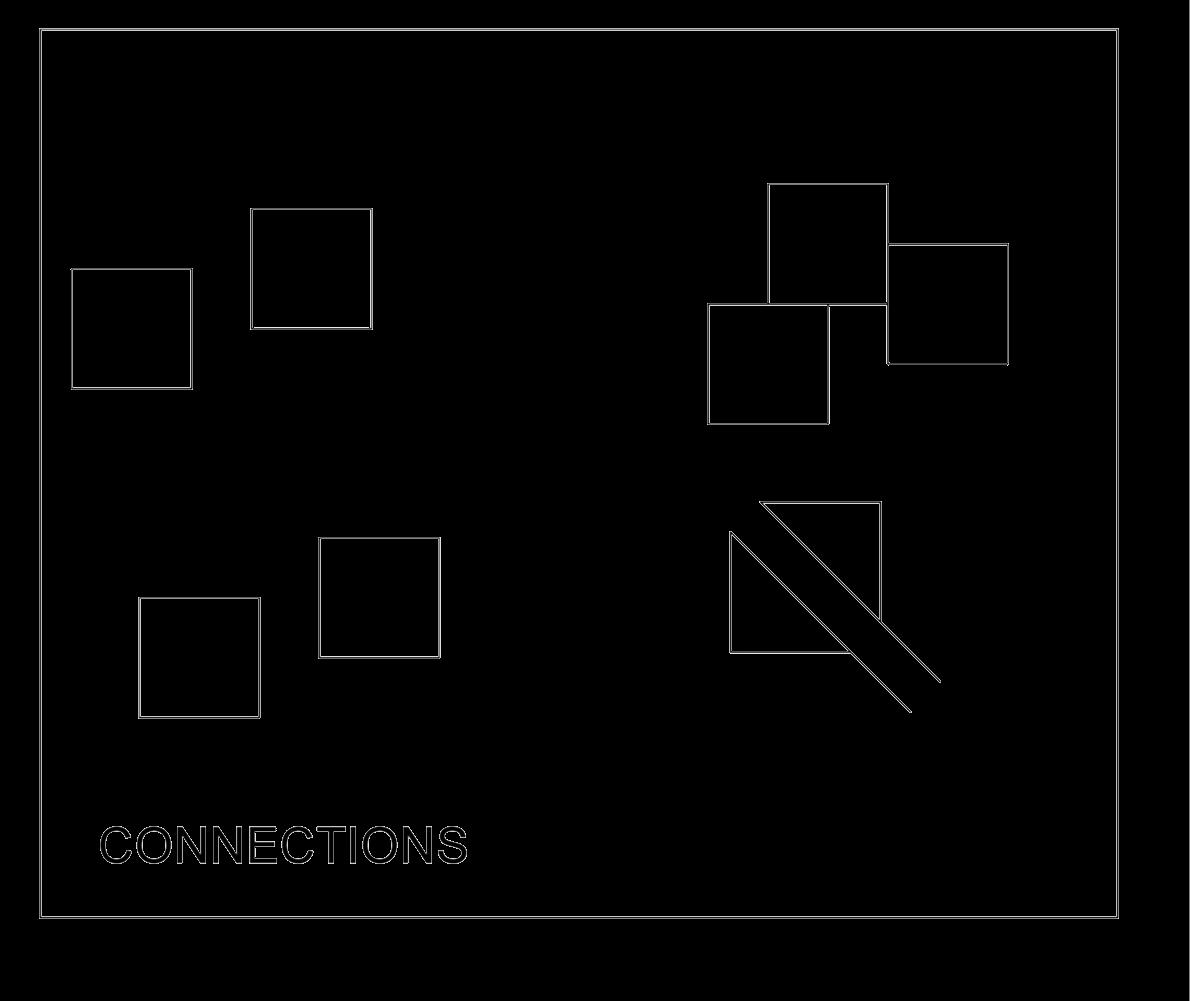

grid 3. Connecting 4. natural
SHEET TITLE CASE STUDY 2 7

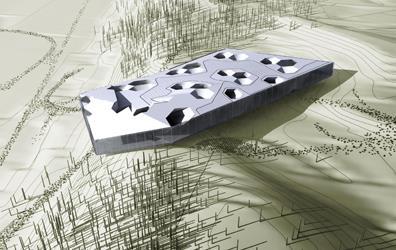

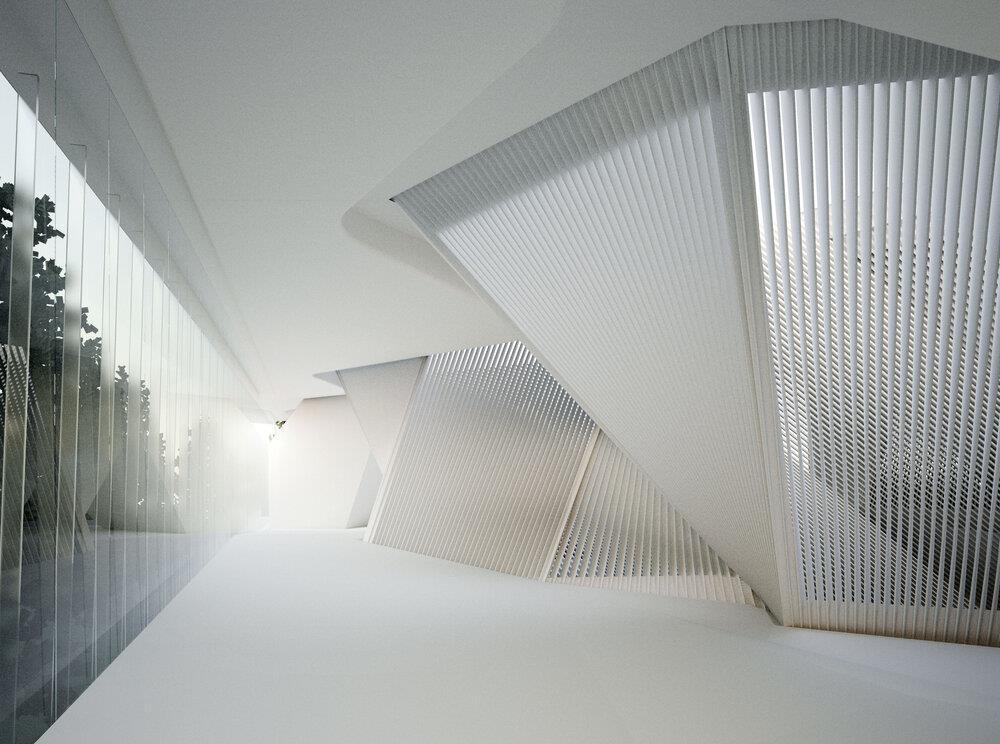

Gyeonggi-Do
The
Light
prehistory Museum
OBSERVTIONS
Light
WANJARI HIMANSHU
RN. 055 SEM VI
Jeongok
, Easton+Combs

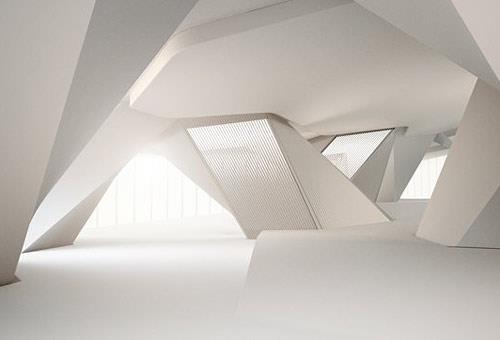

: 1. Intimate viewing chambers 2. Galleries are interspersed with series of porous light wells 3. Connecting space of interior to a sense of natural environment as background
well introduced within the spaces Relationship of outside to inside
light quality of space because of light feature from top and side
well at top taken from around the column Isometric view showing the structure in it’s context SHEET TITLE CASE STUDY 3 8
WANJARI HIMANSHU
RN. 055 SEM VI BASIC SKETCHES SHEET TITLE INITIAL IDEAS 9
WANJARI HIMANSHU
RN. 055 SEM VISHEET TITLE CONCEPT 10

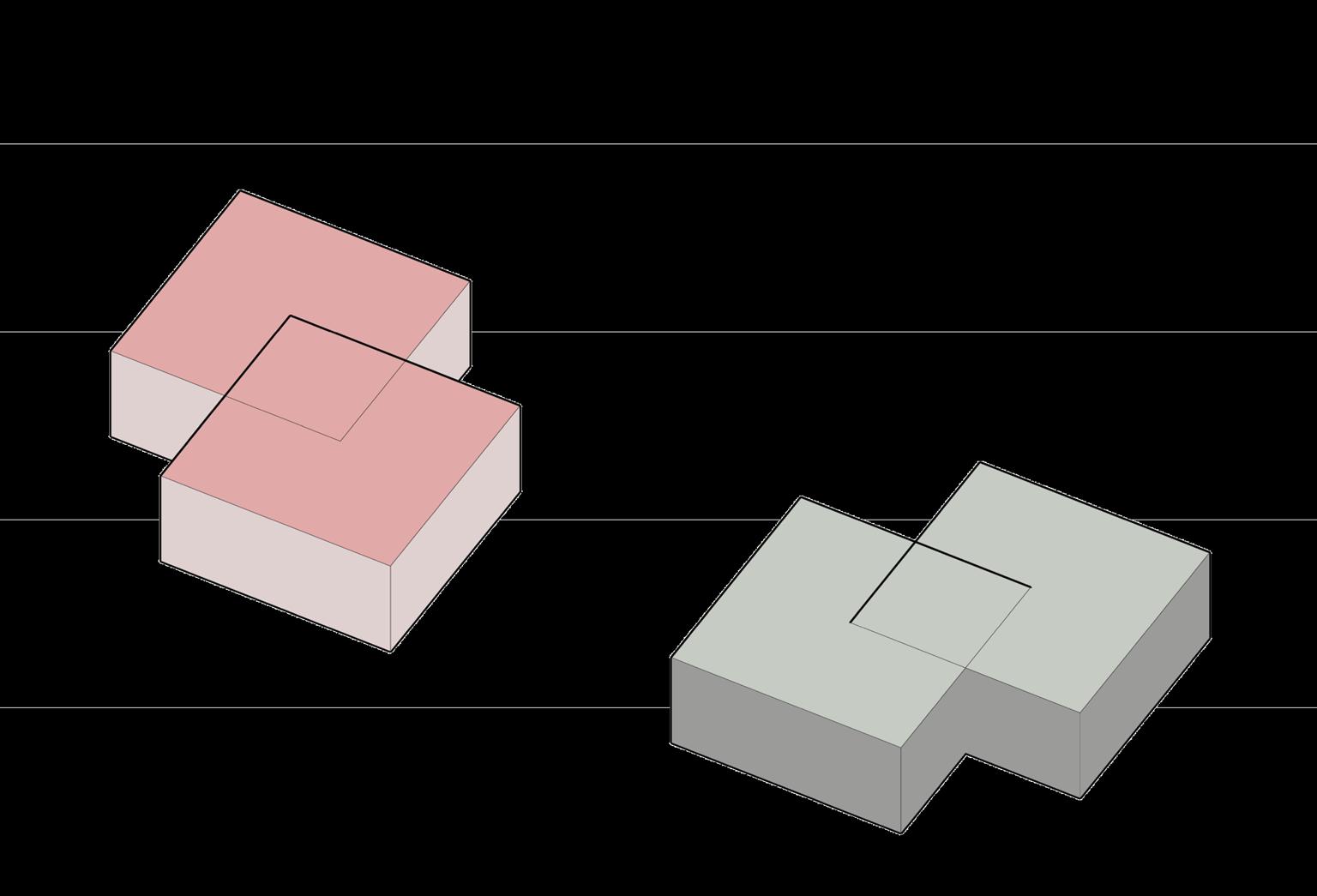

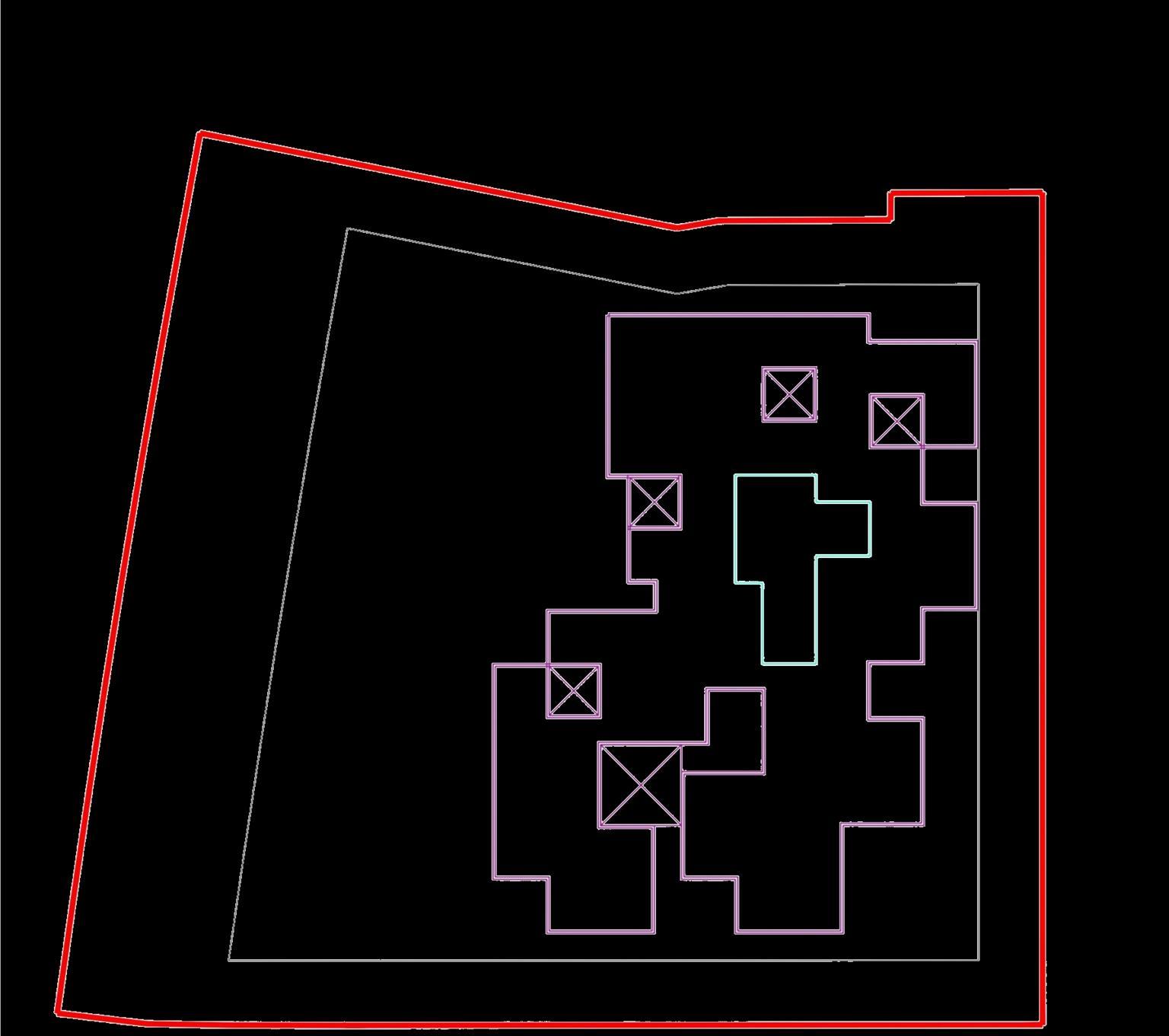

FLOOR PLATE TYPE 1
THE MODULE IS ROTATED BY 90°
FLOOR PLATE TYPE 2

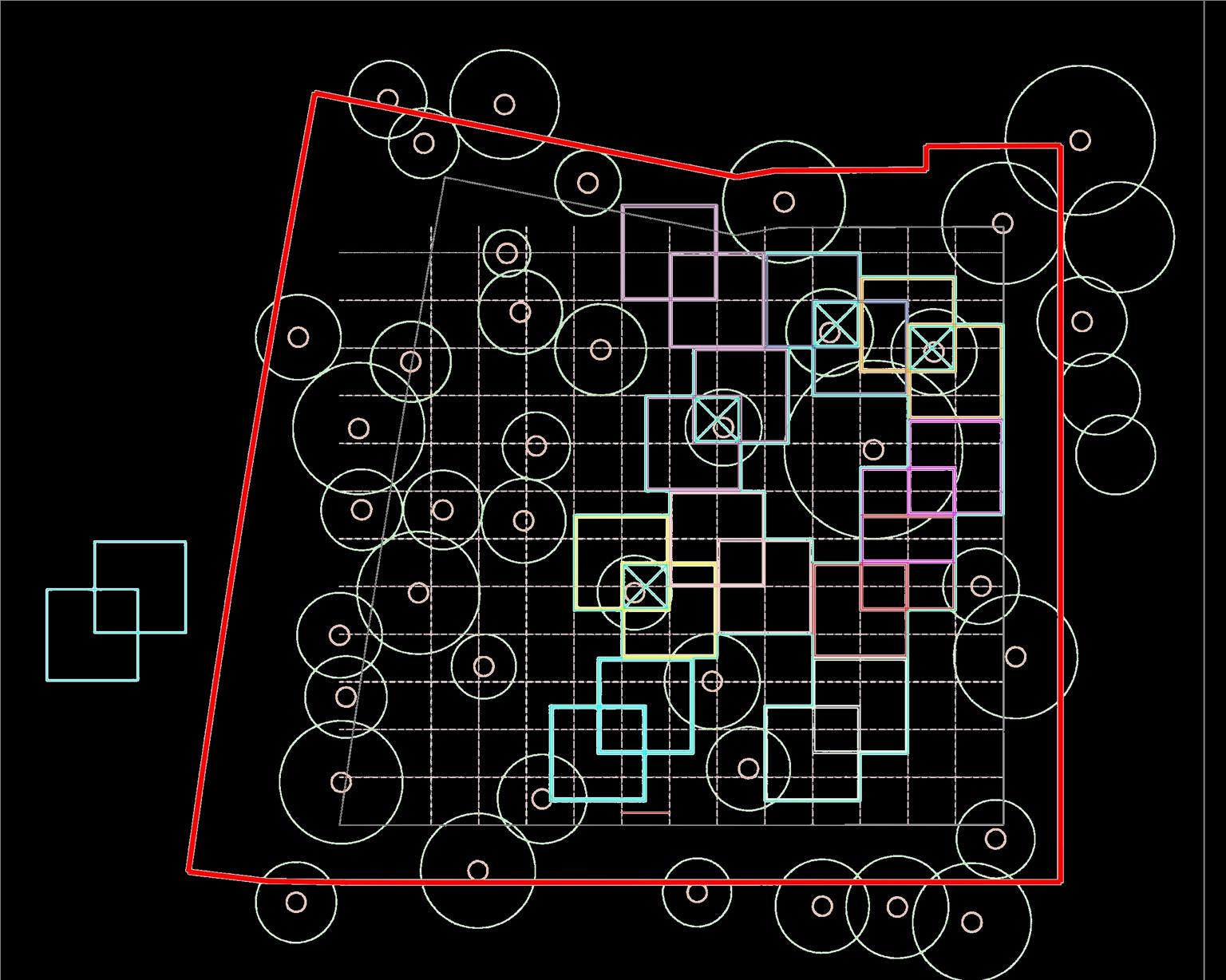

THE INITIAL LAYOUT(FLLOR PLATE TYPE 1) IS FORMED USING THE SQUARE MODULES ARRANGED IN A PATTERN
AND THE SECOND LAYOUT (FLOOR PLATE TYPE 2) IS FORMED BY ARRANGING THOSE MODULES BY ROTATING EACH MODULE FROM A CORNER TO RIGHT ANGLE
WANJARI HIMANSHU
RN. 055 SEM VI
SPACE FORMATION 2D SHEET TITLE CONCEPT 11

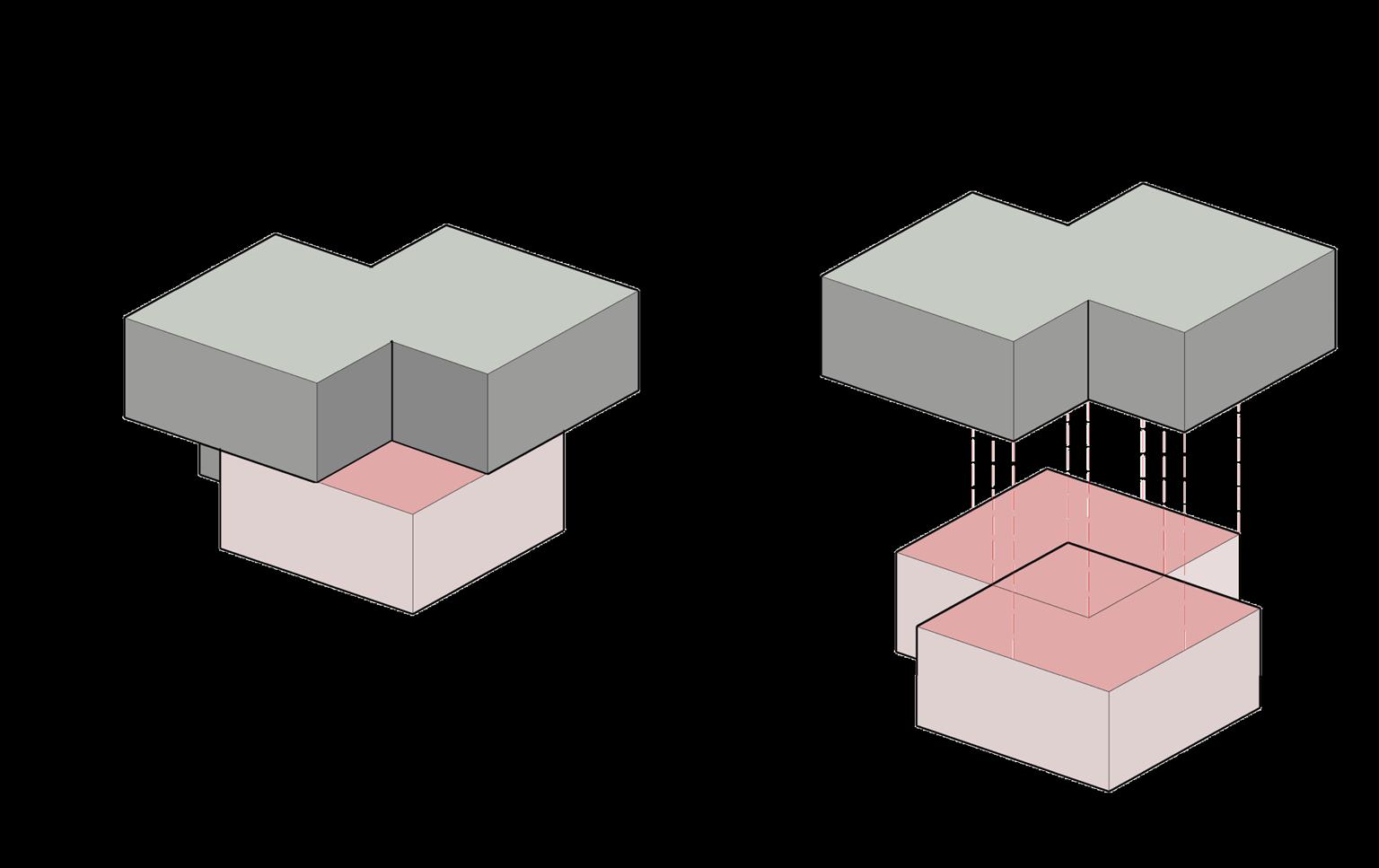

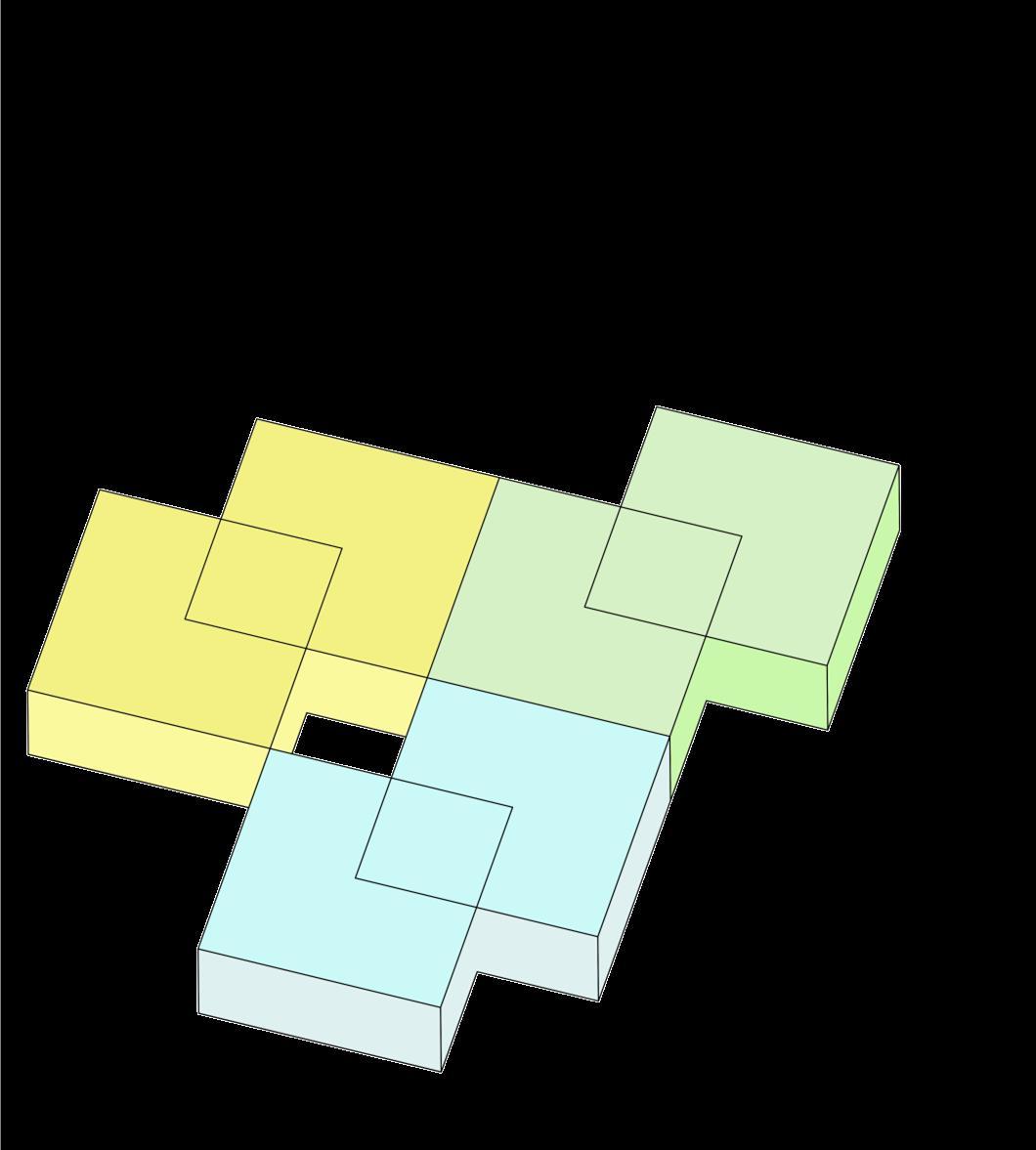

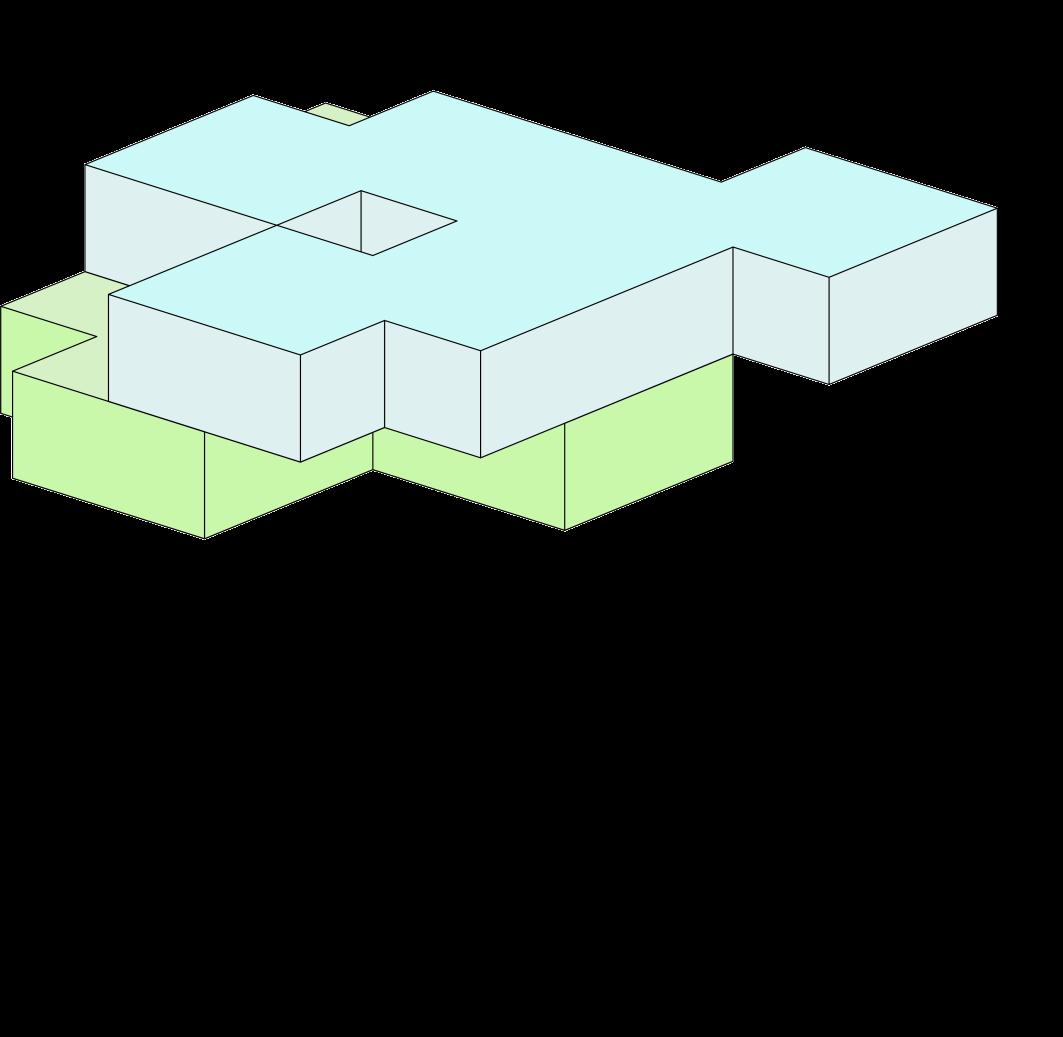

SPACE FORMATION 3D

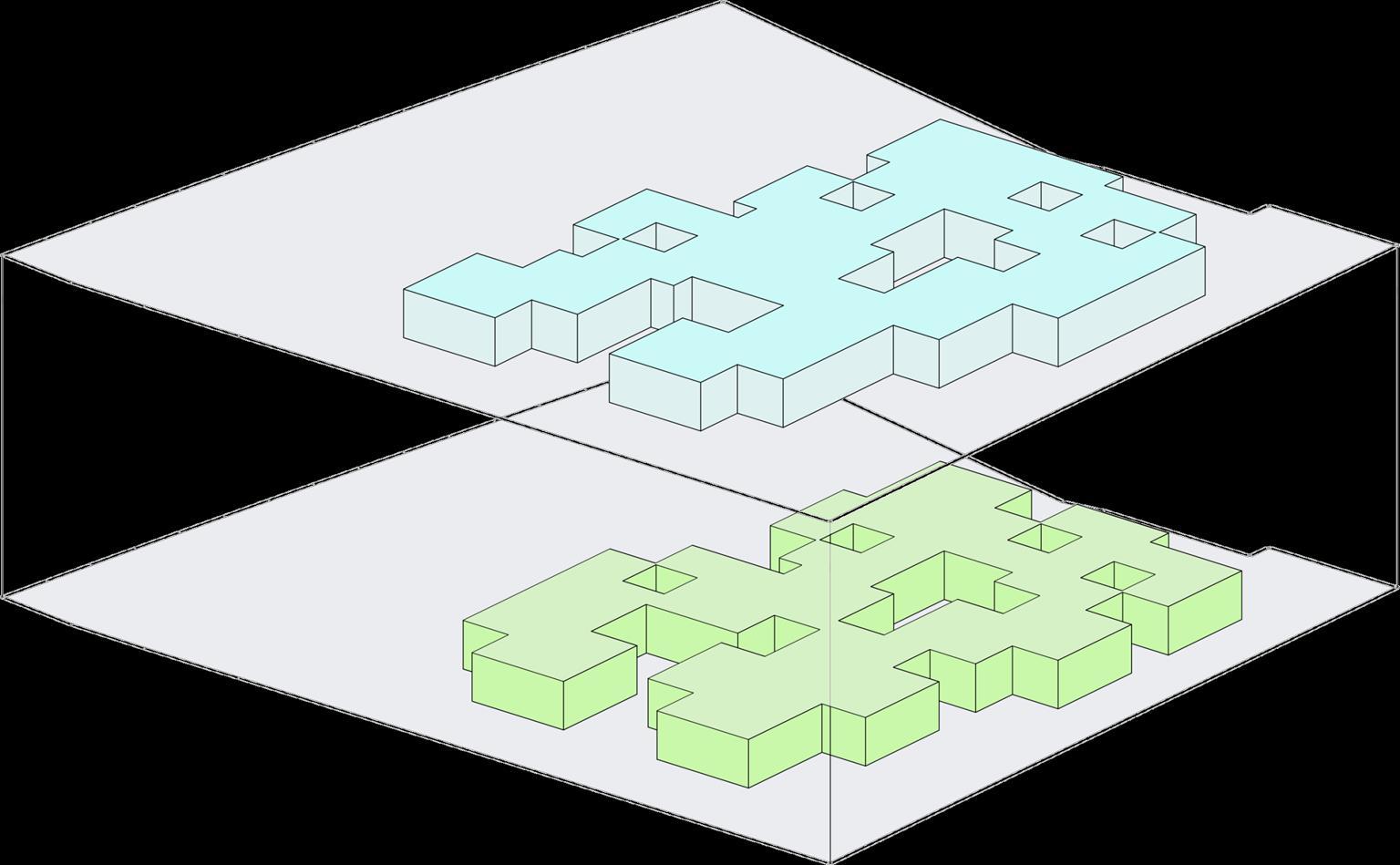

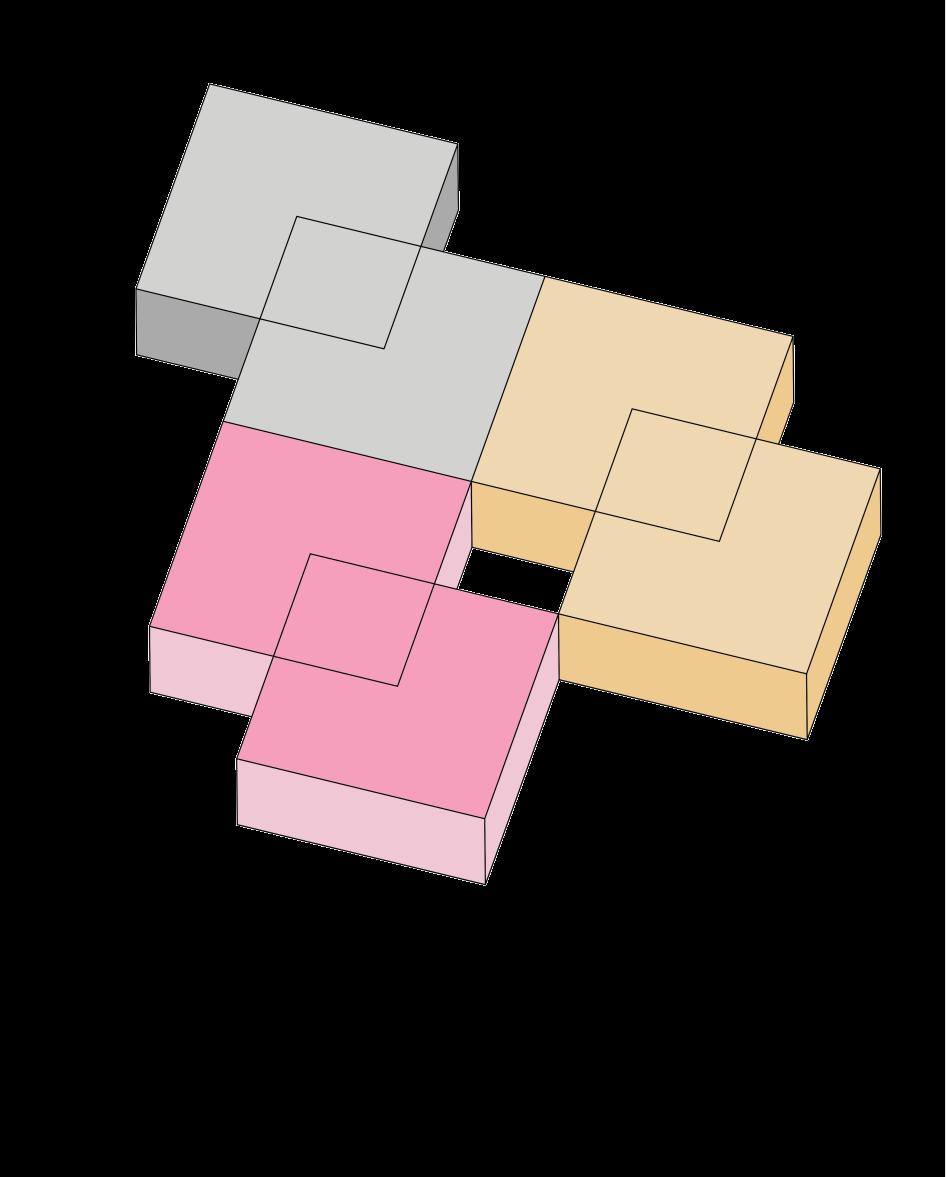

THE TWO MODULES EARLIER OBTAINED, WHICH ARE RIGHT ANGLED TO EACH OTHER

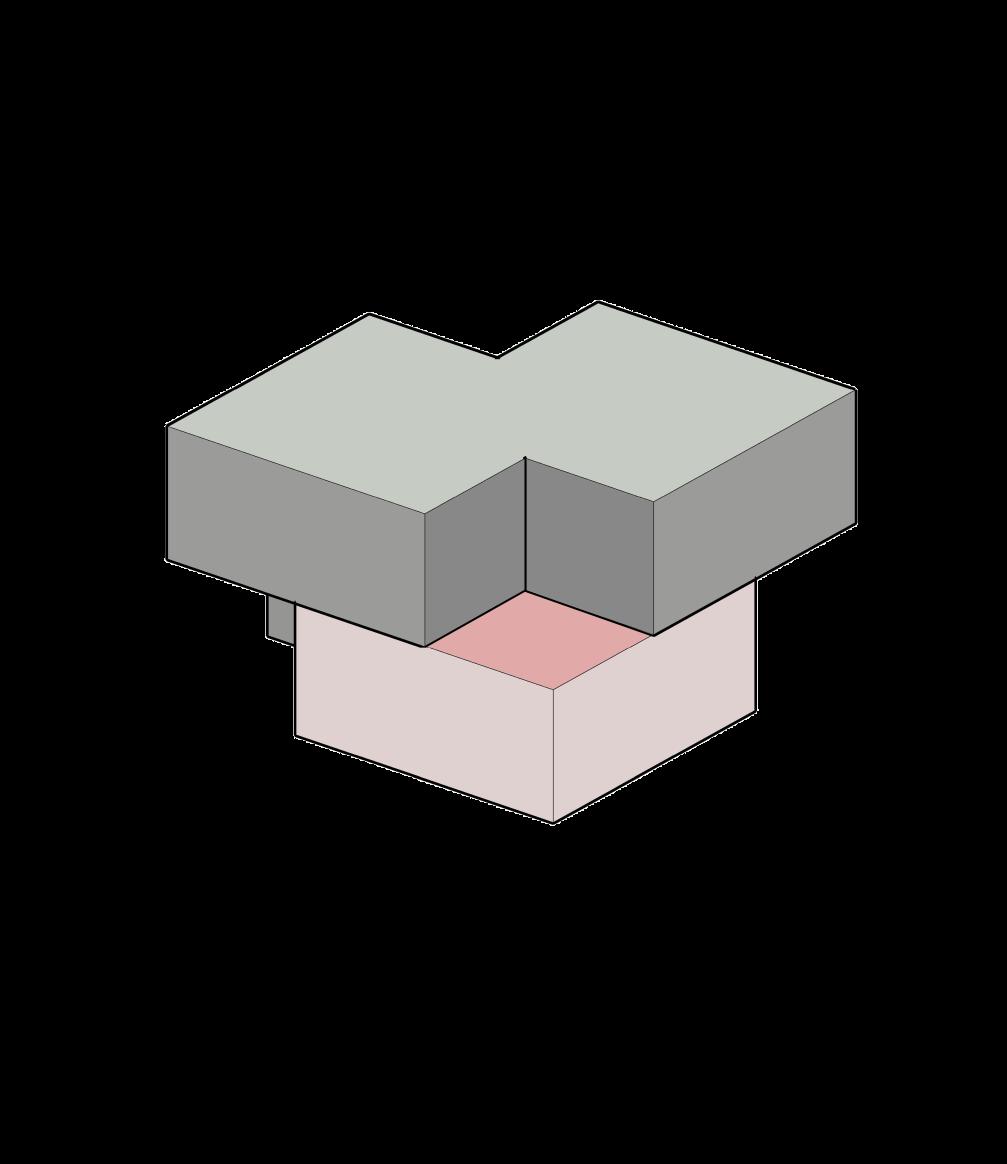

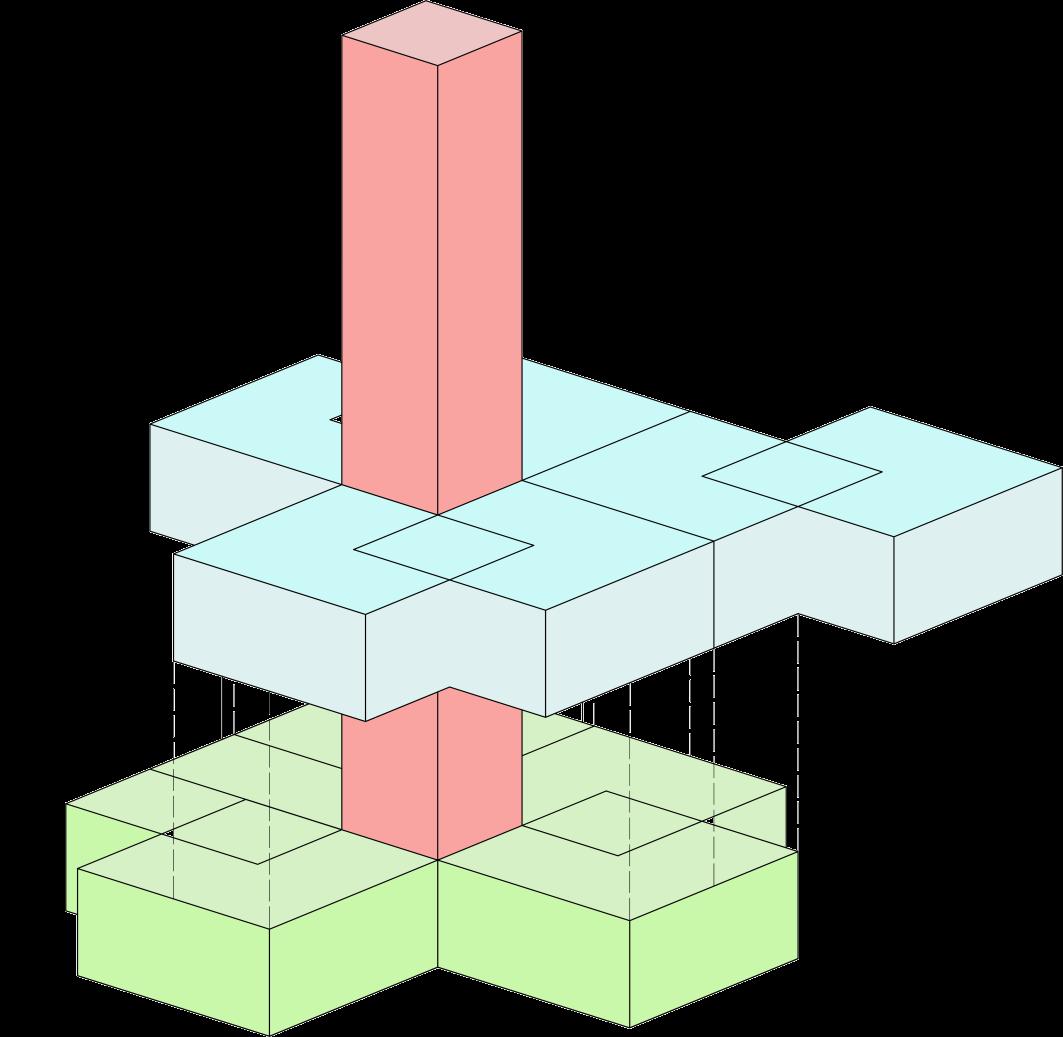

STAACKING THE UNIT MODULES ABOVE EACH OTHER, CONSIDERING THEM TO BE TWO DIFFERENT FLOORS
THE TWO MODULES FURTHER MADE A LITTLE COMPLEX
STACKING THE COMPLEX MODULES ABPVE EACH OTHER, AND EXTRUDING THE VOID
THE MASSLESS BECOMES THE ONE WITH HEAVY MASS
STACKING OF FINAL TWO TYPES OF FLOOR PLATES ON ALTERNATE LEVELS
WANJARI HIMANSHU
RN. 055 SEM VI
SHEET TITLE CONCEPT 12
WANJARI HIMANSHU

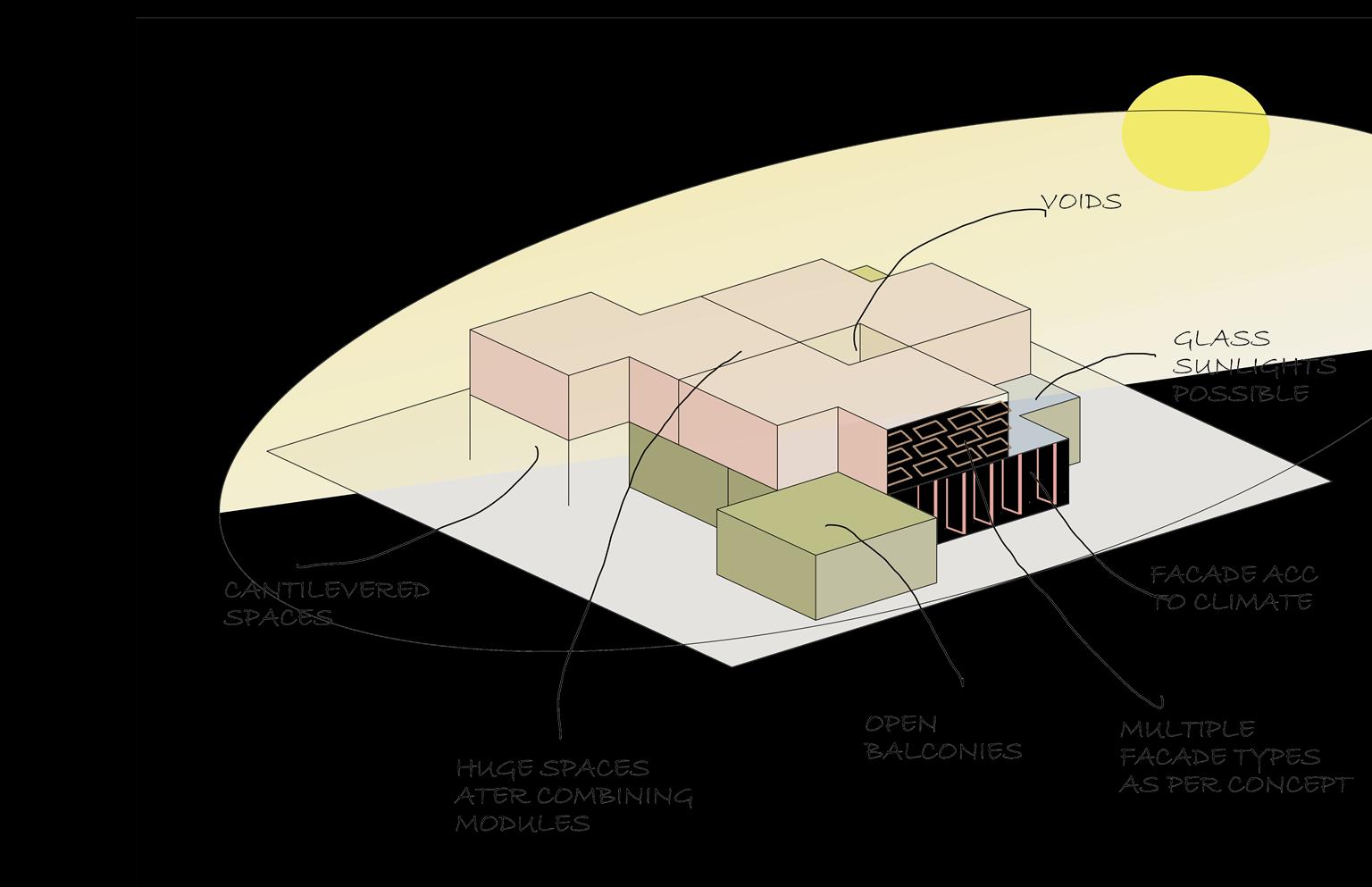

RN. 055 SEM VI SPACE IN CONTEXT SHEET TITLE CONCEPT 13
WANJARI HIMANSHU

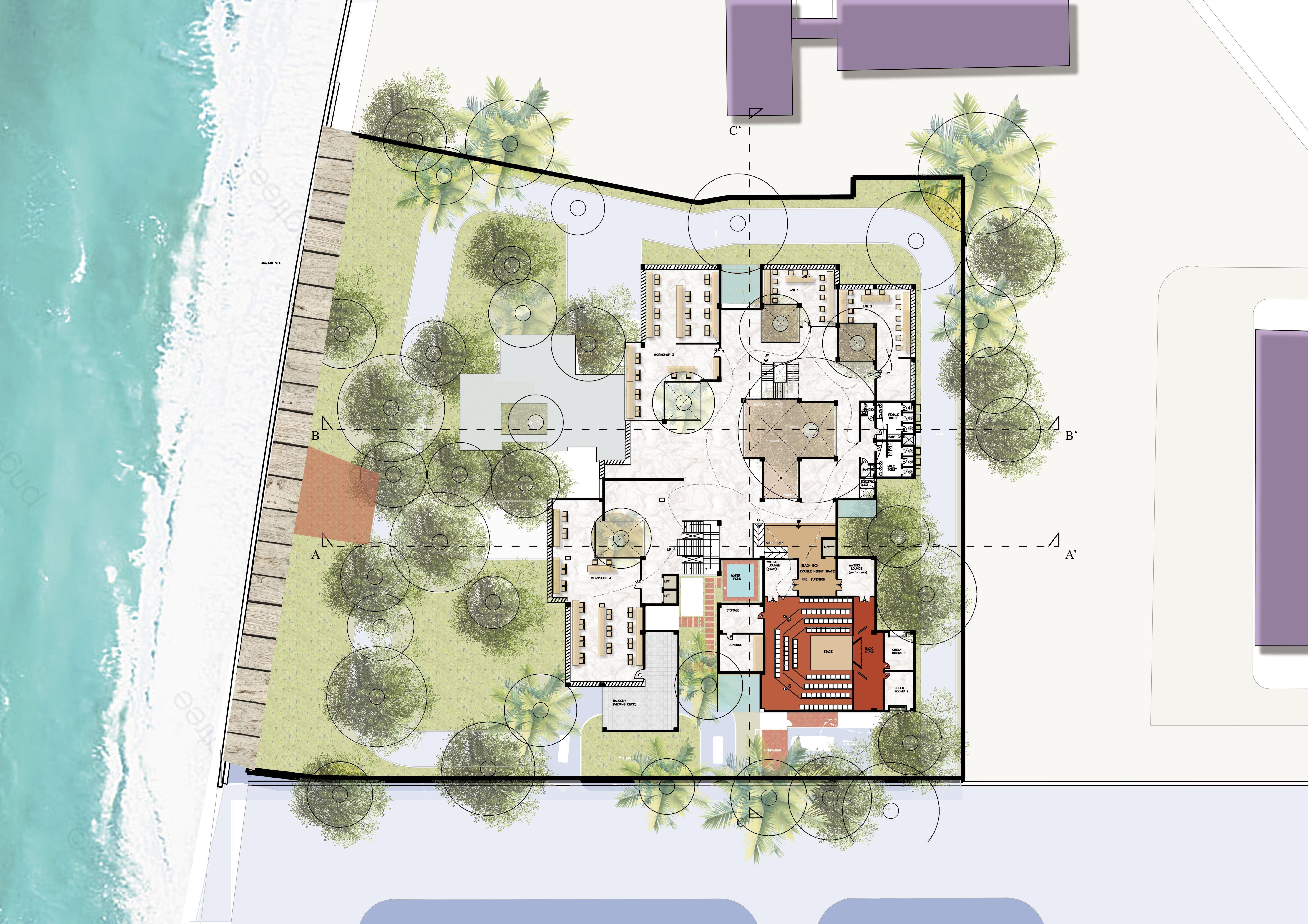

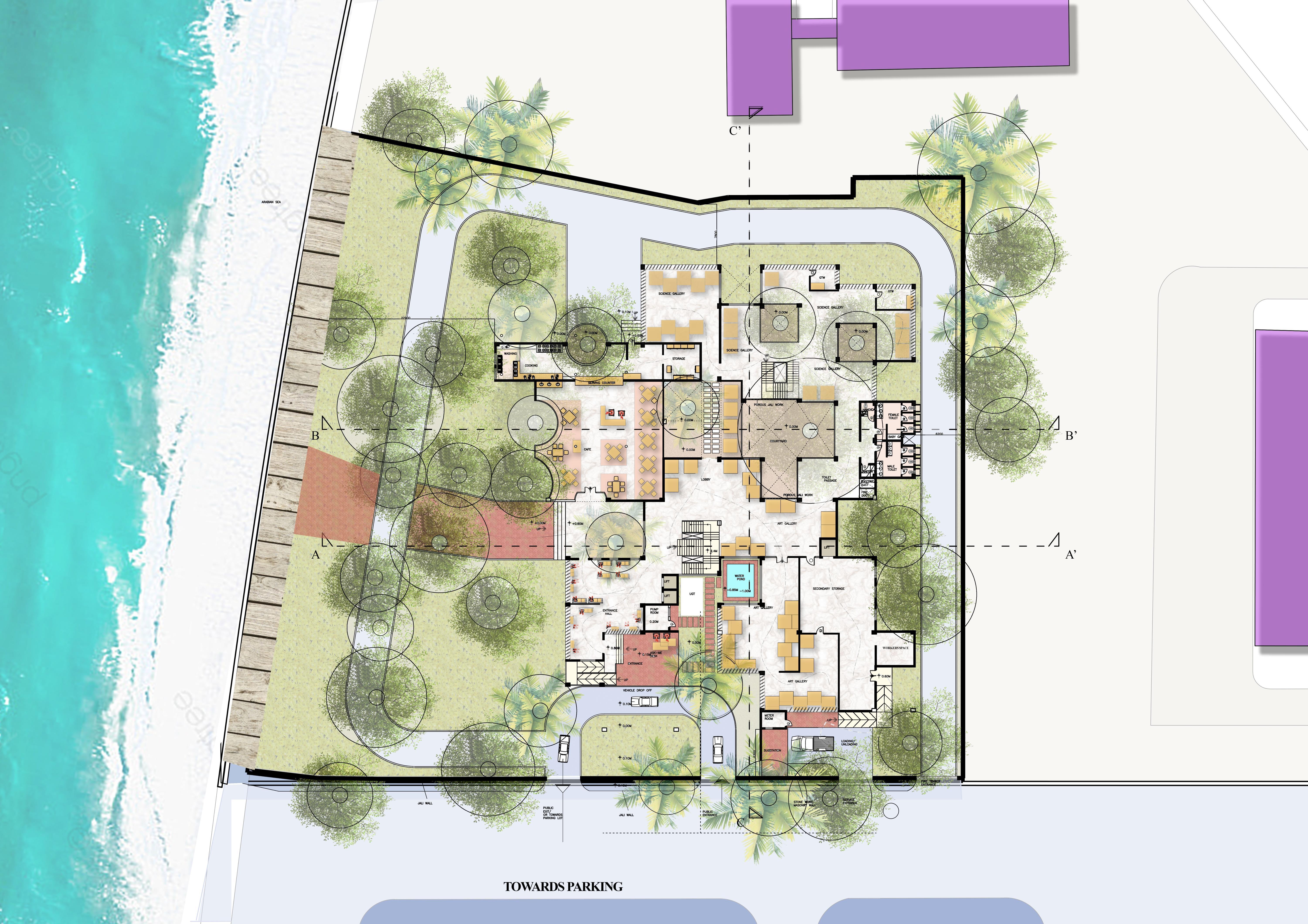

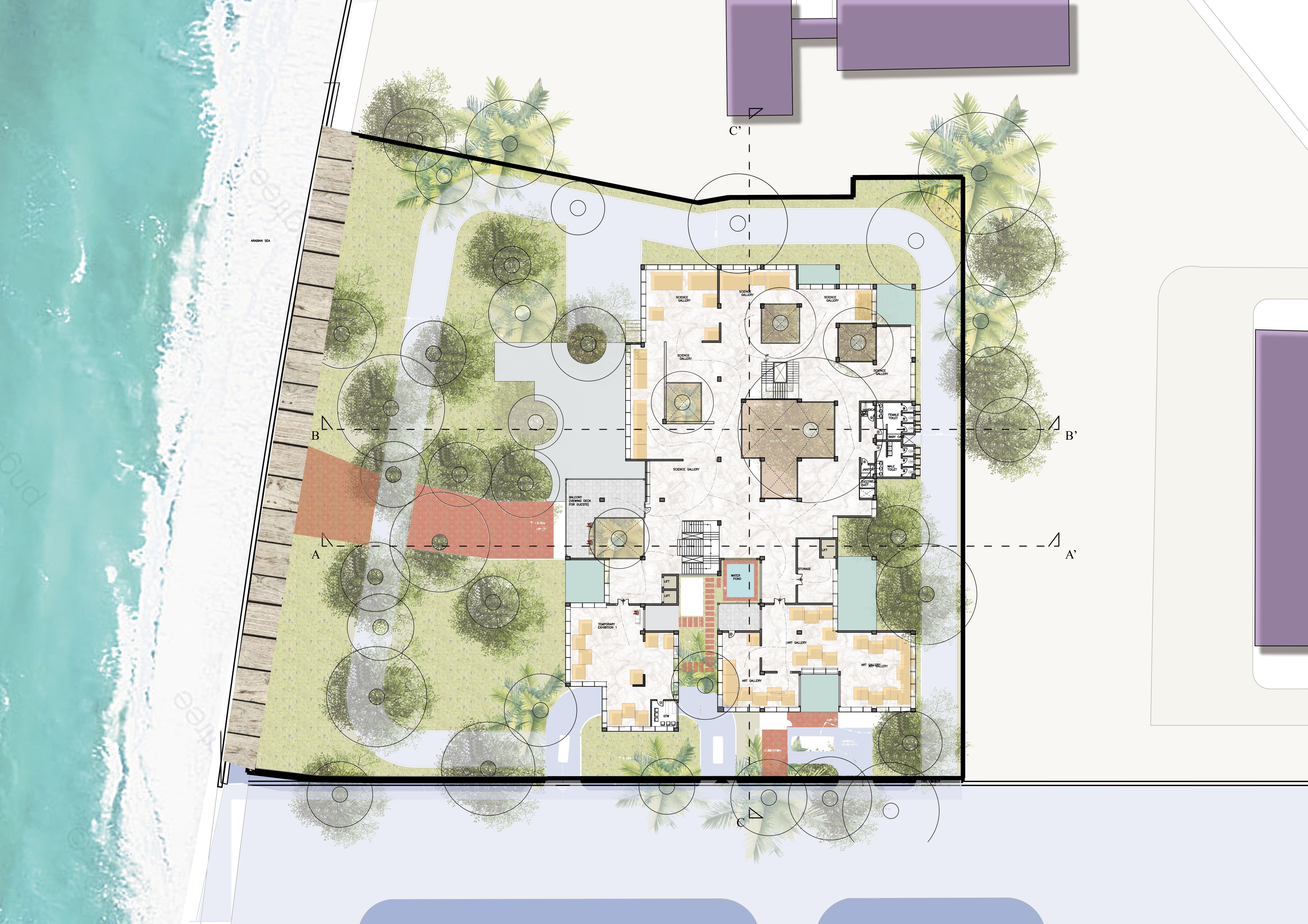

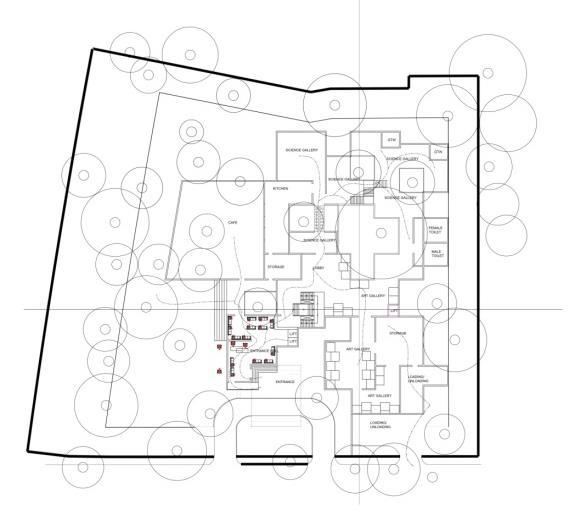

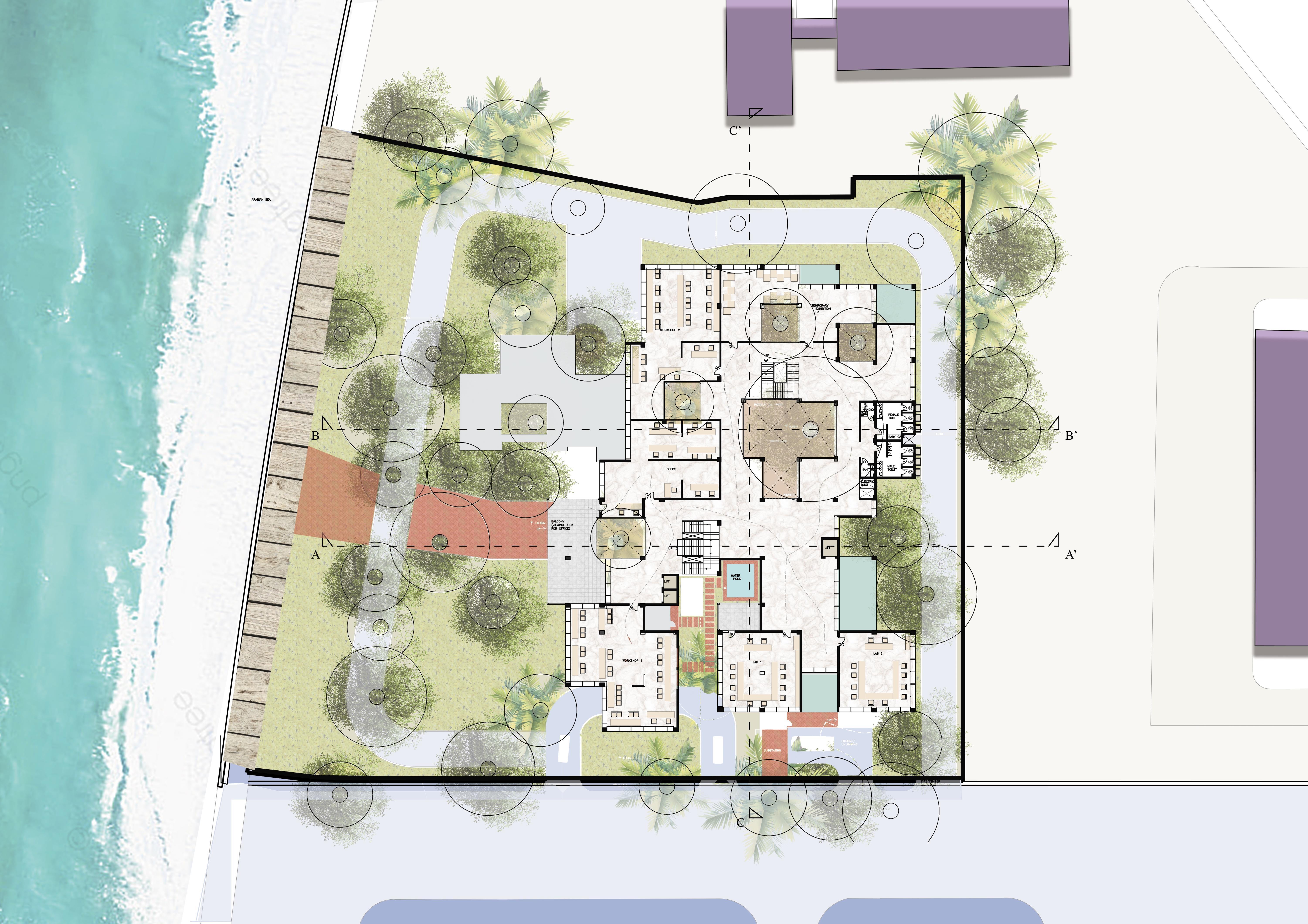

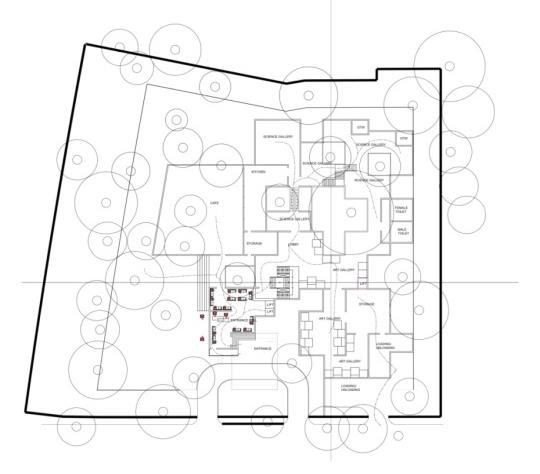

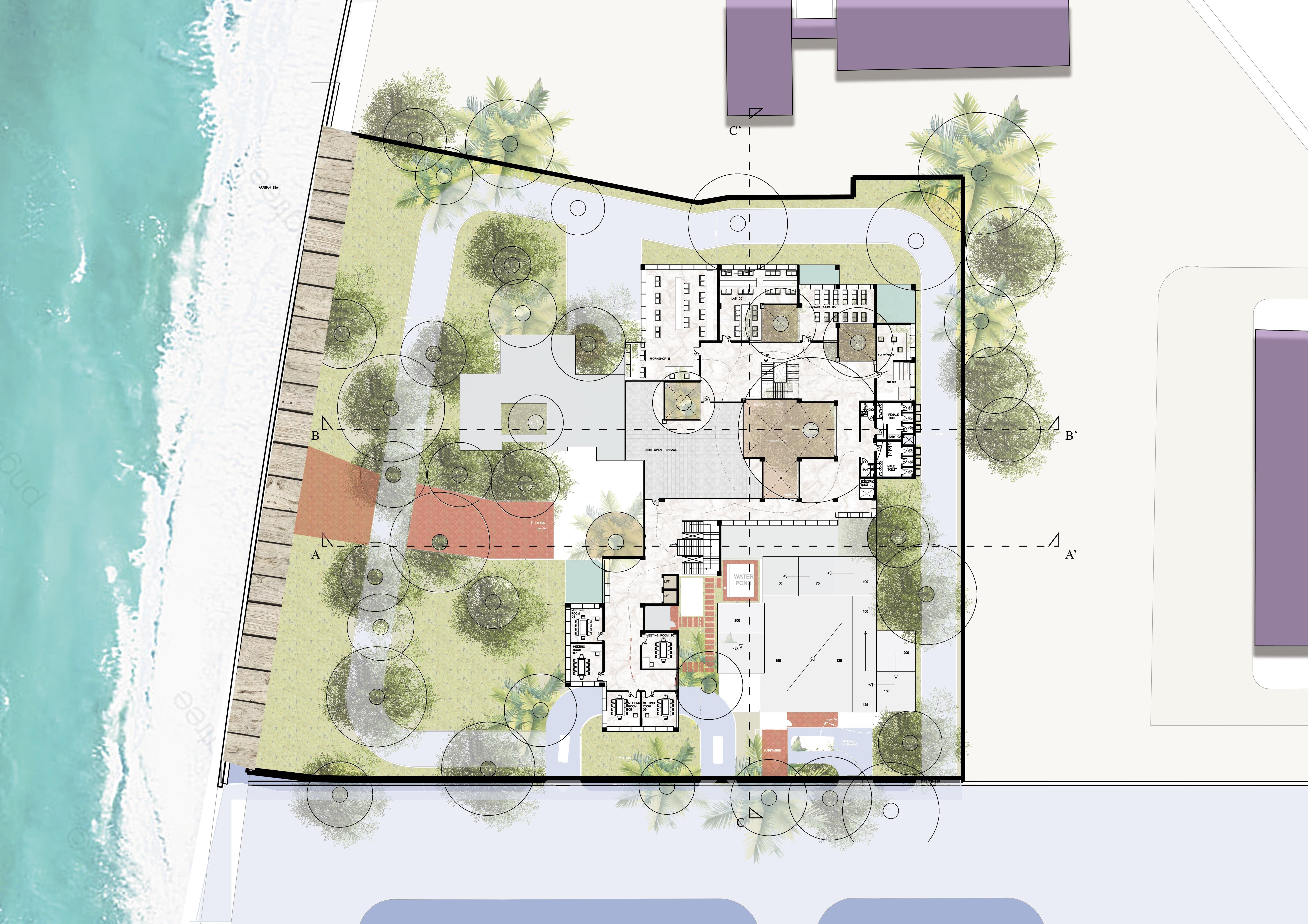

RN. 055 SEM VISHEET TITLE GROUND FLOOR PLAN 14
WANJARI HIMANSHU

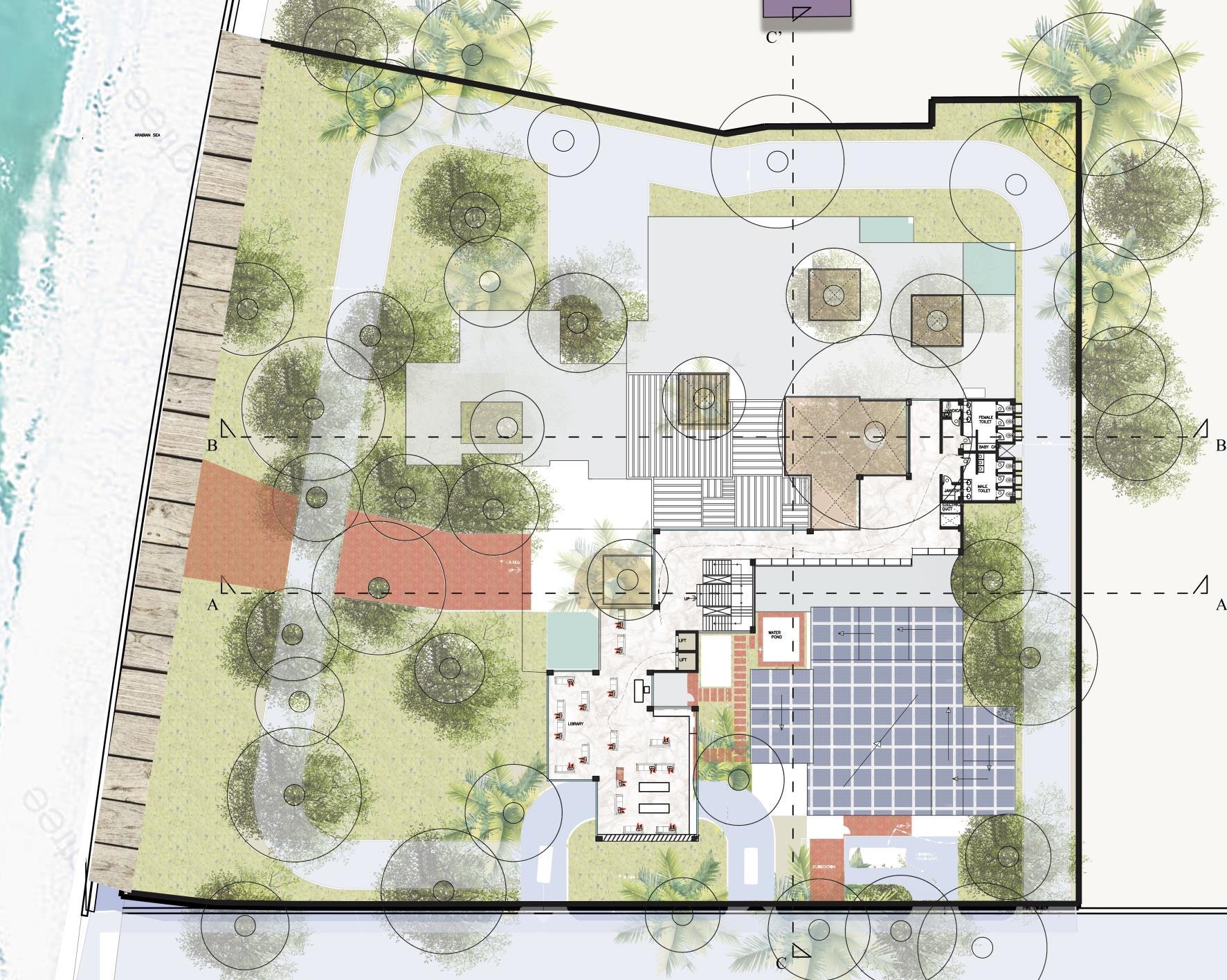

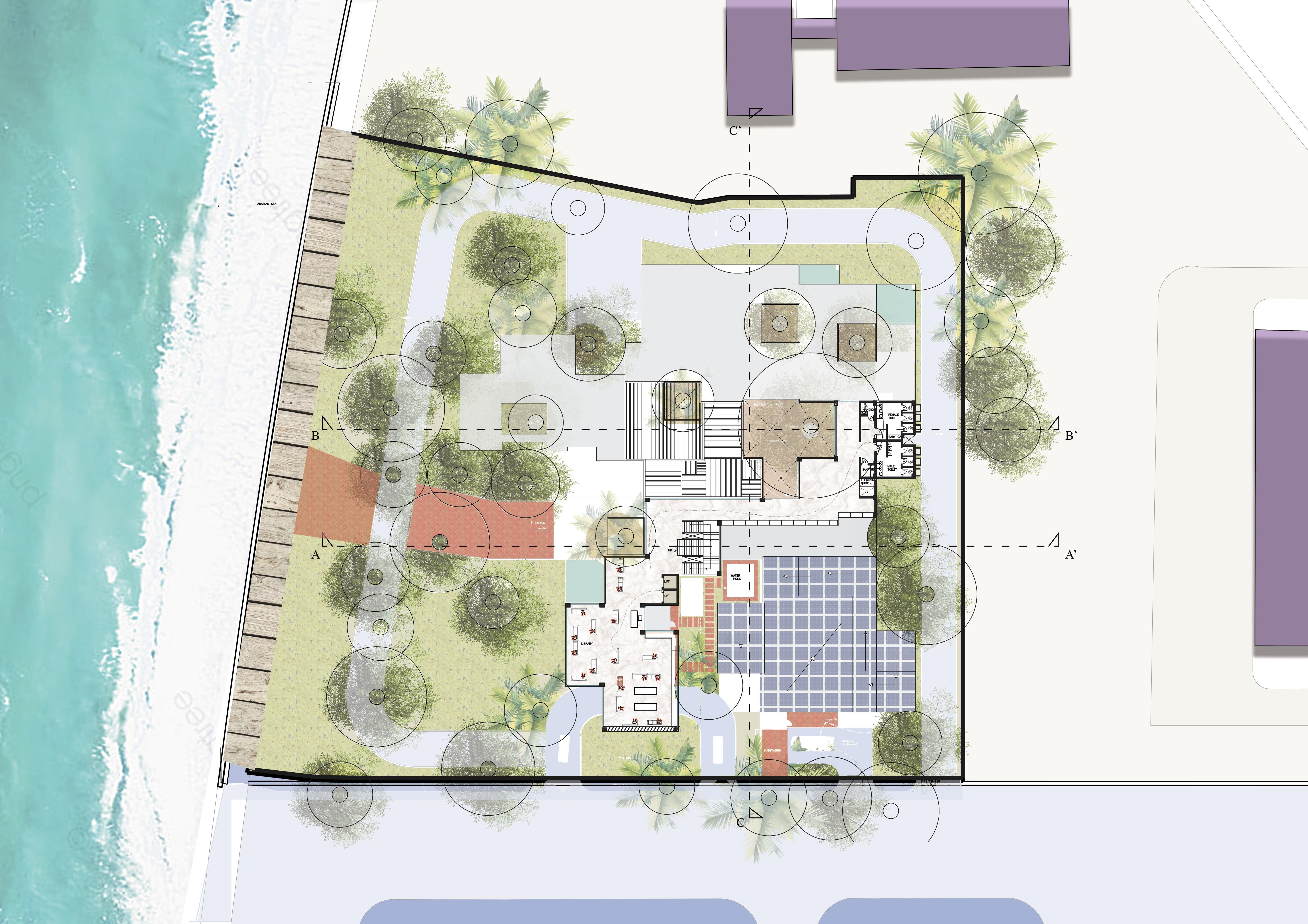

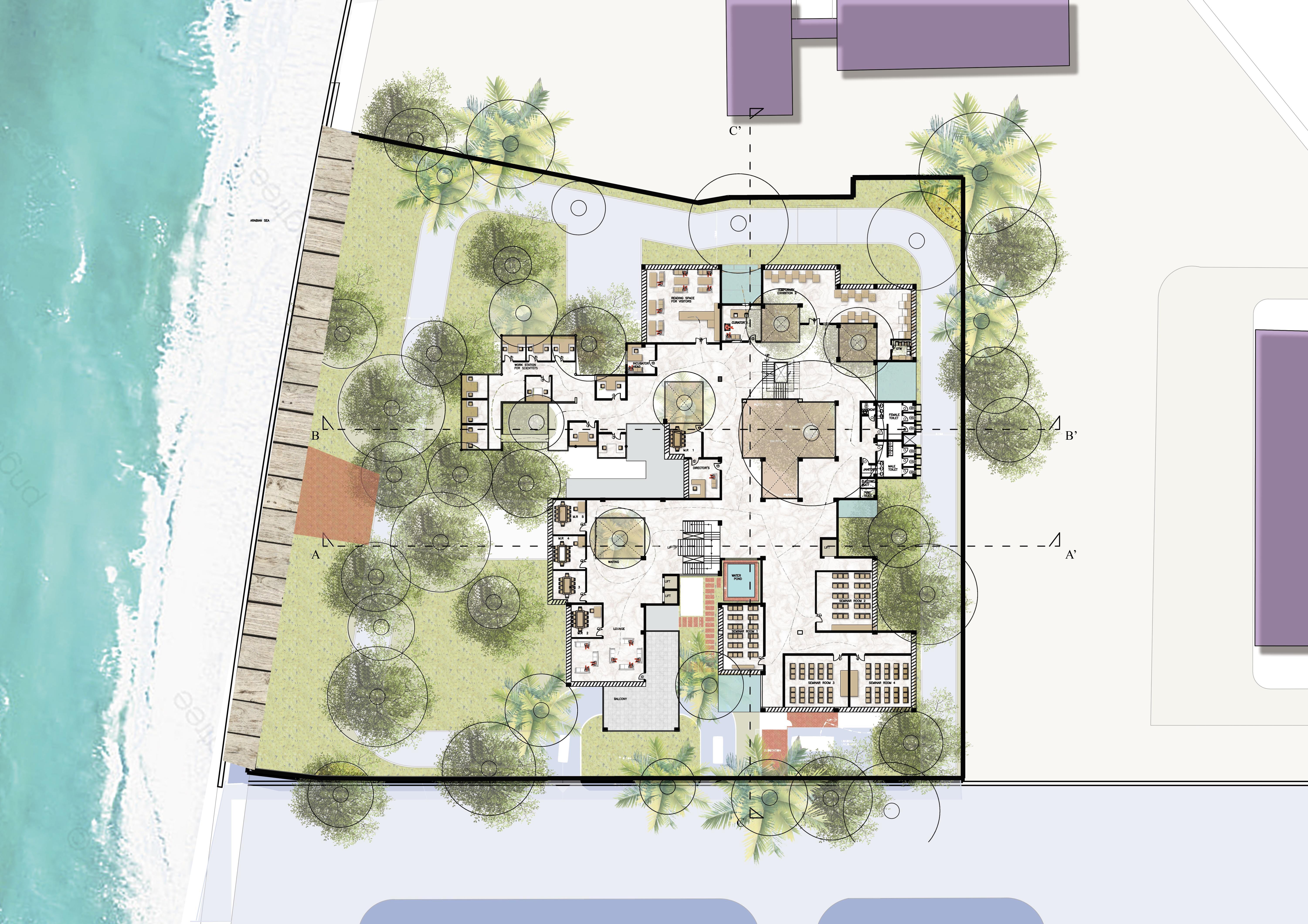

RN. 055 SEM VISHEET TITLE FIRST FLOOR PLAN 15
WANJARI HIMANSHU
RN. 055 SEM VISHEET TITLE SECOND FLOOR PLAN 16
WANJARI HIMANSHU
RN. 055 SEM VISHEET TITLE THIRD FLOOR PLAN 17
WANJARI HIMANSHU
RN. 055 SEM VISHEET TITLE FOURTH FLOOR PLAN 18
WANJARI HIMANSHU
RN. 055 SEM VISHEET TITLE FIFTH FLOOR PLAN 19
WANJARI HIMANSHU
RN. 055 SEM VISHEET TITLE SIXTH FLOOR PLAN 20
WANJARI HIMANSHU

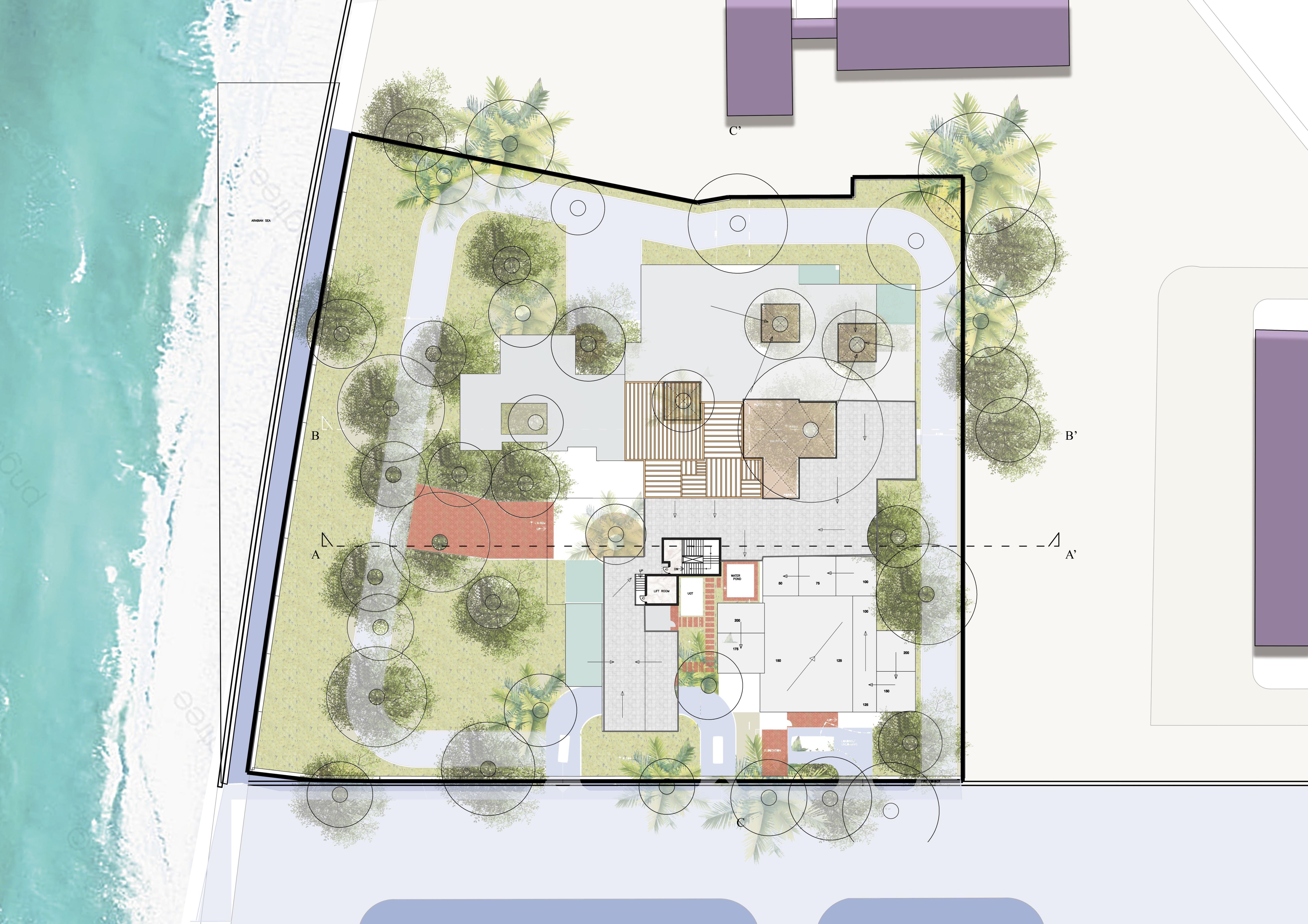

RN. 055 SEM VISHEET TITLE TERRACE PLAN 21
WANJARI HIMANSHU
RN. 055 SEM VISHEET TITLE ROOF PLAN WITH SERVICES 22

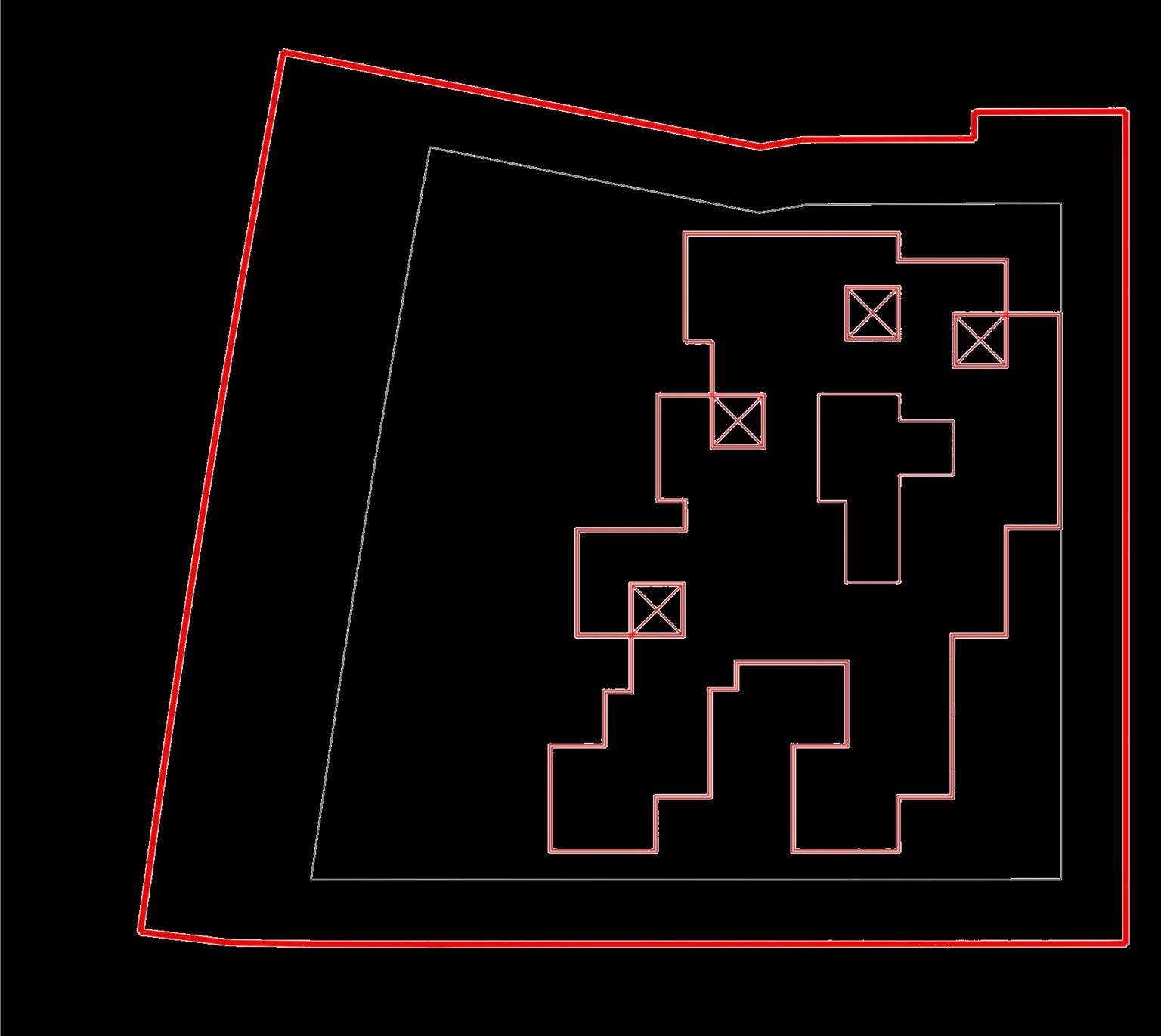

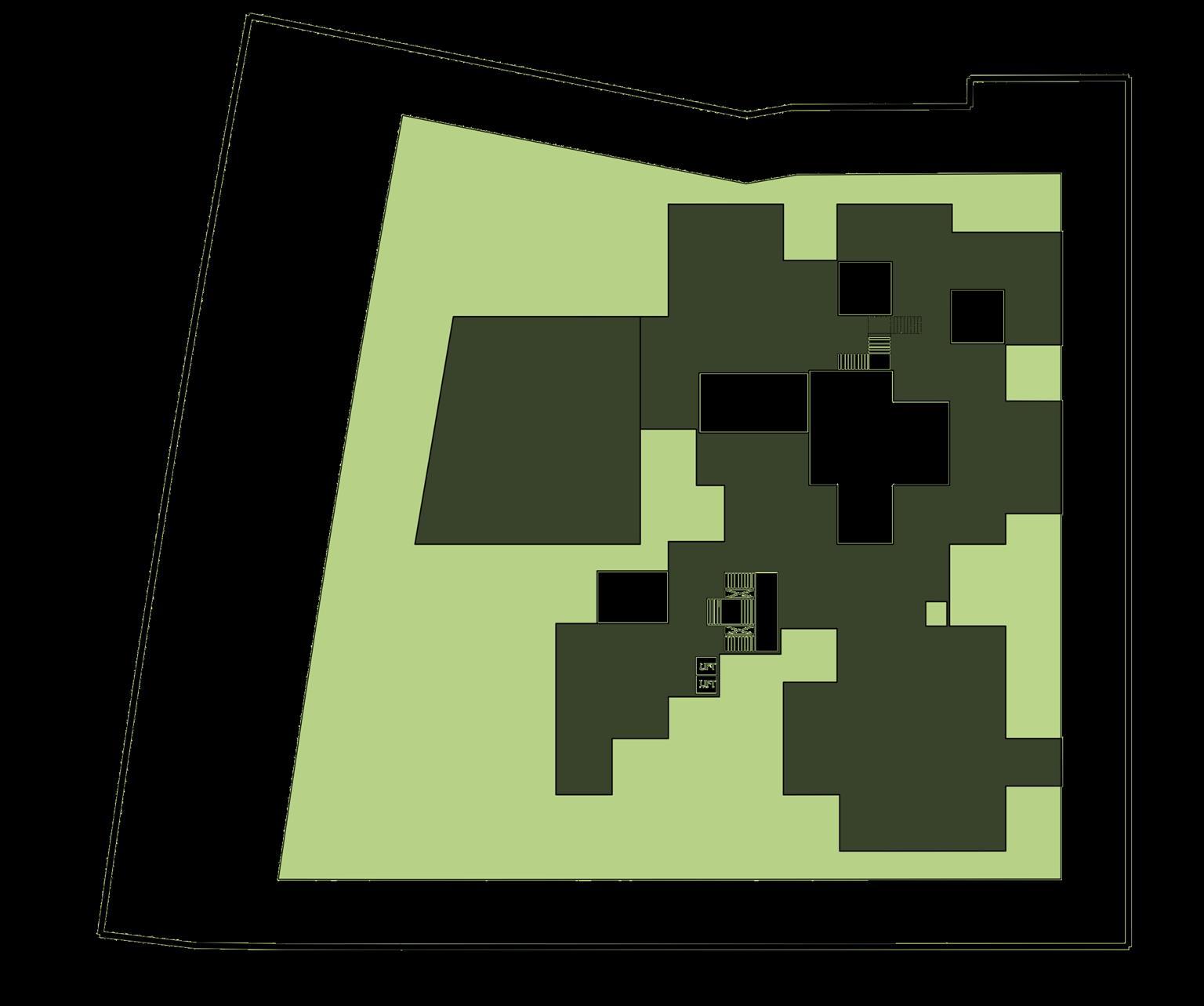

FIGURE VS GROUND
Coarse gravel Open spaces Build spaces
WANJARI HIMANSHU
RN. 055 SEM VI
SHEET TITLE FIGURE GROUND 23

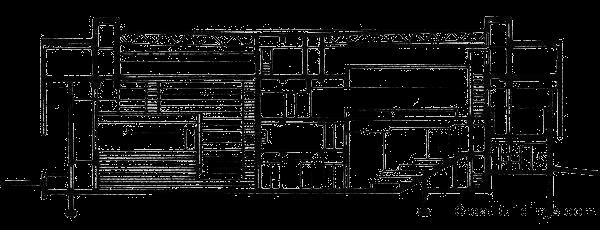

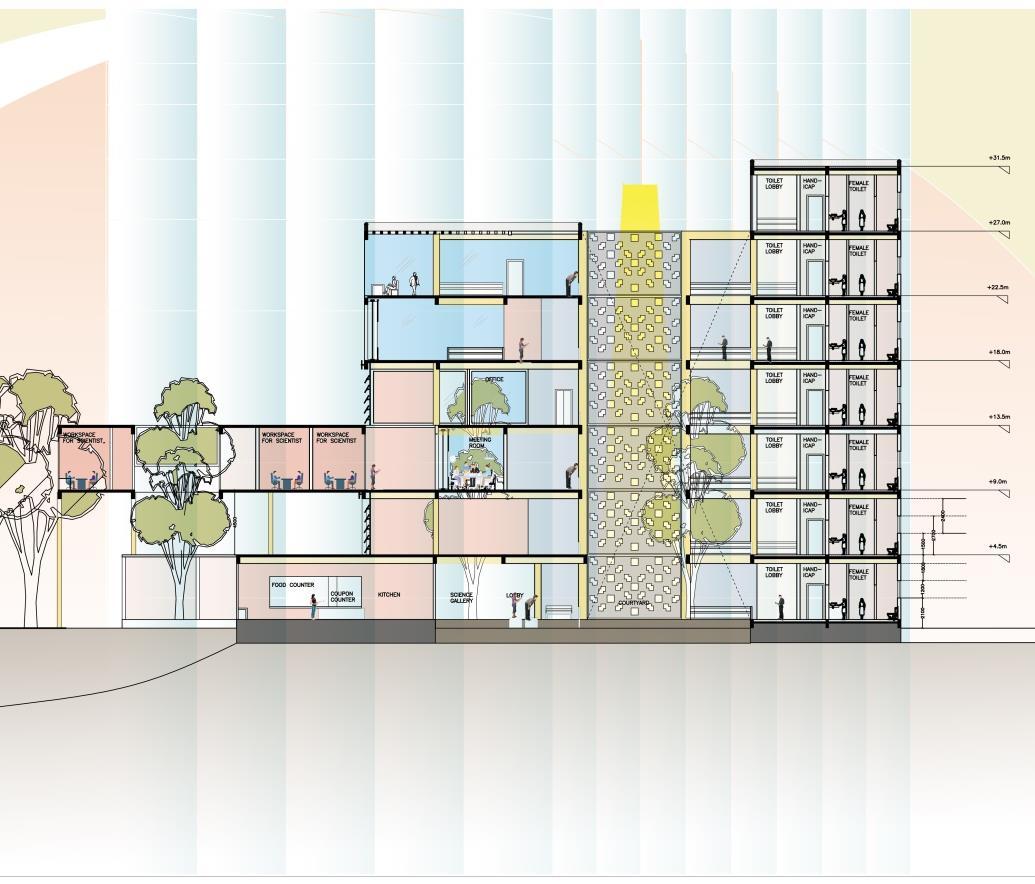

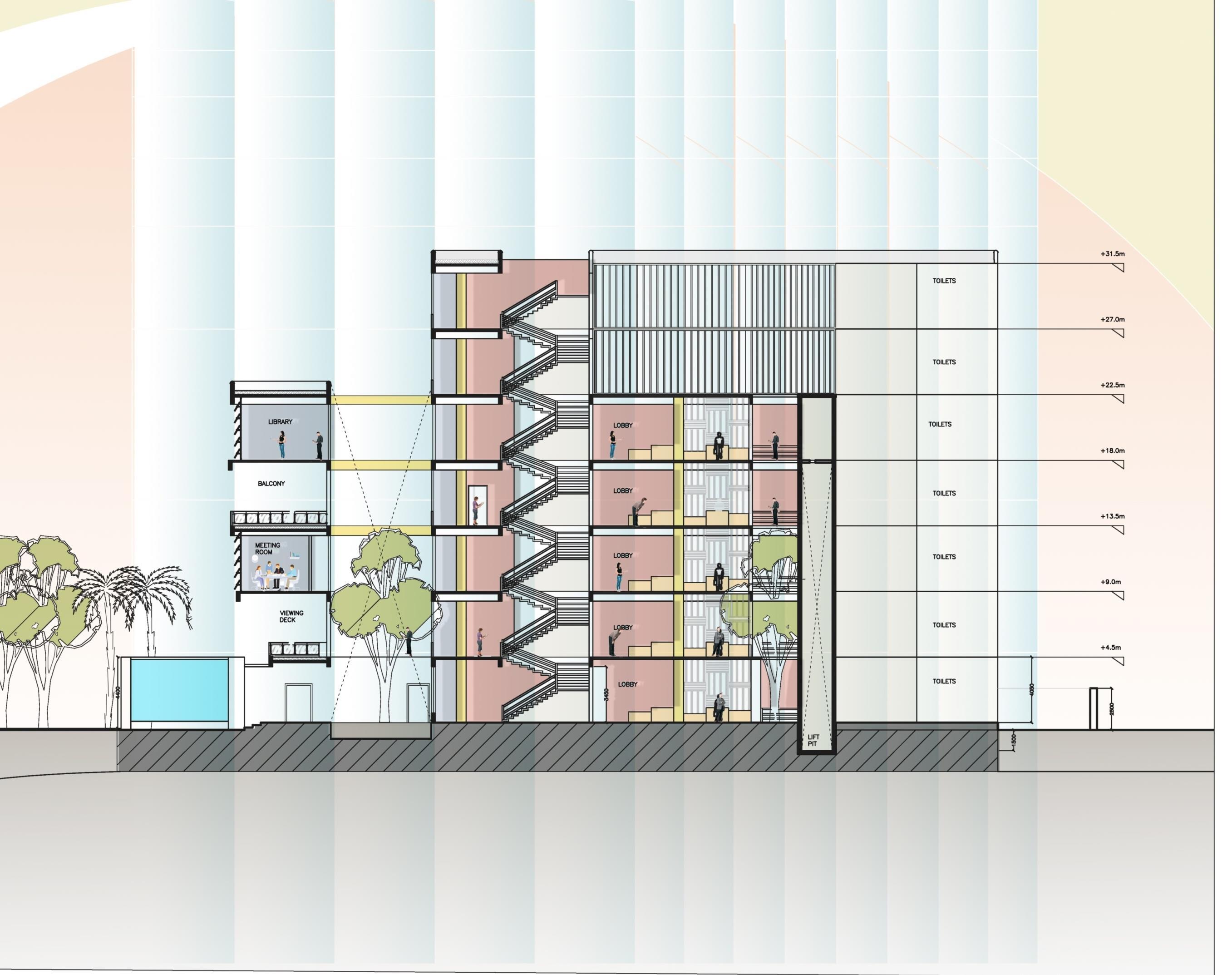

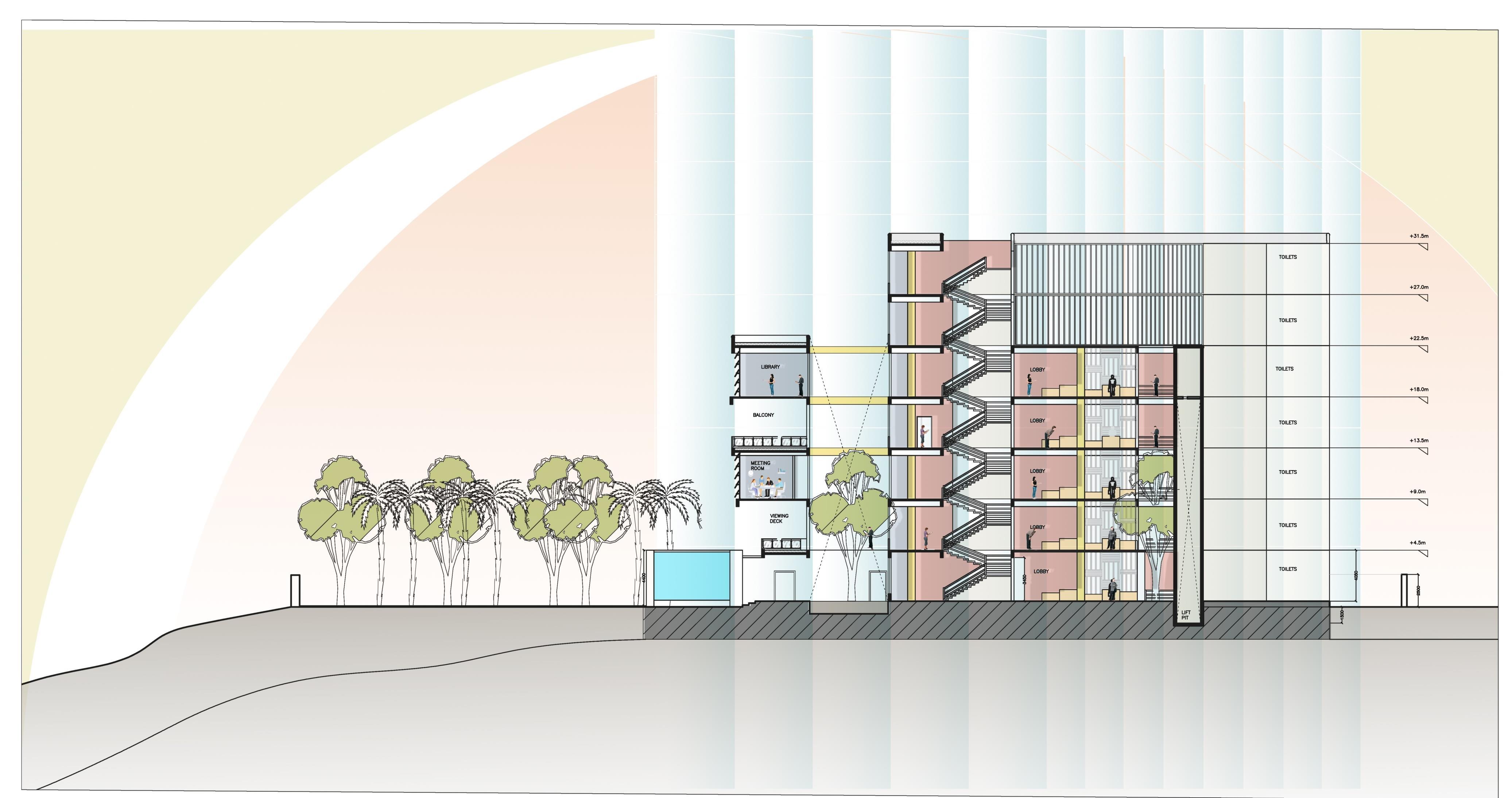

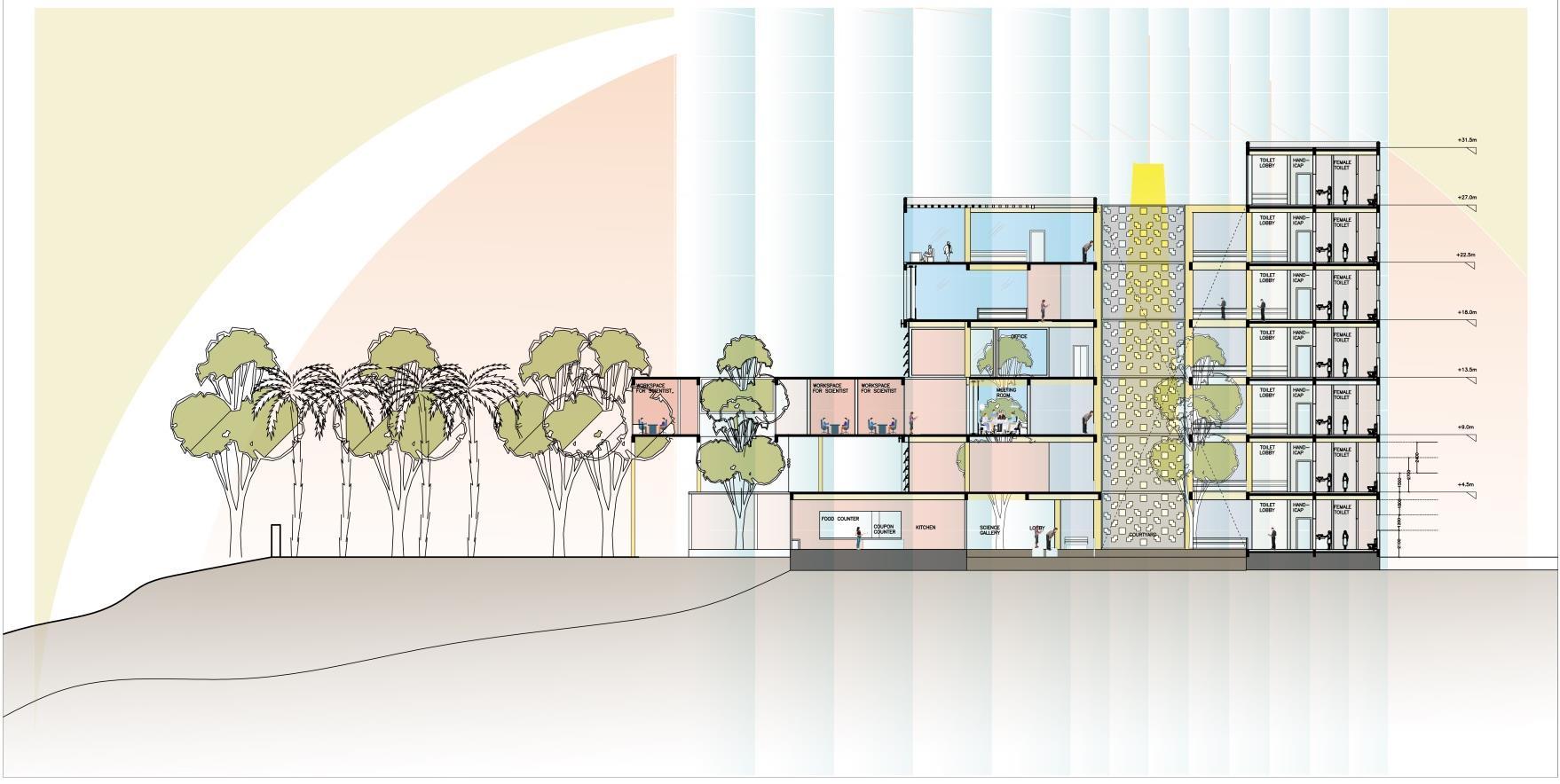

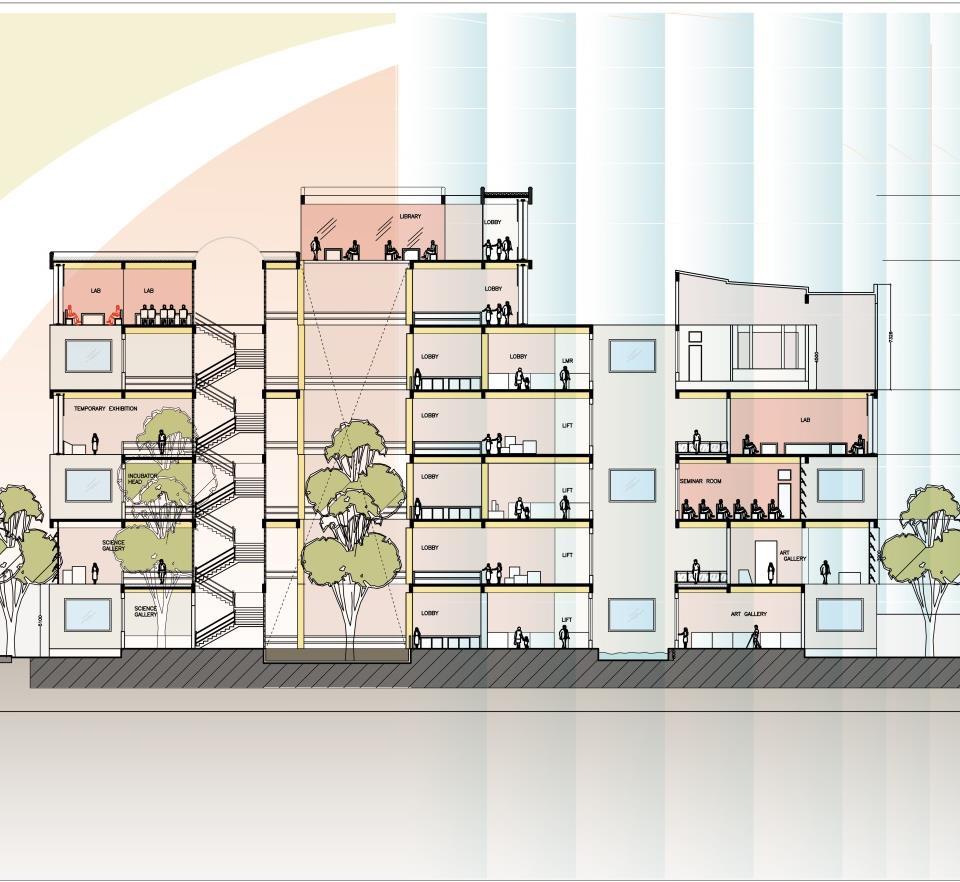

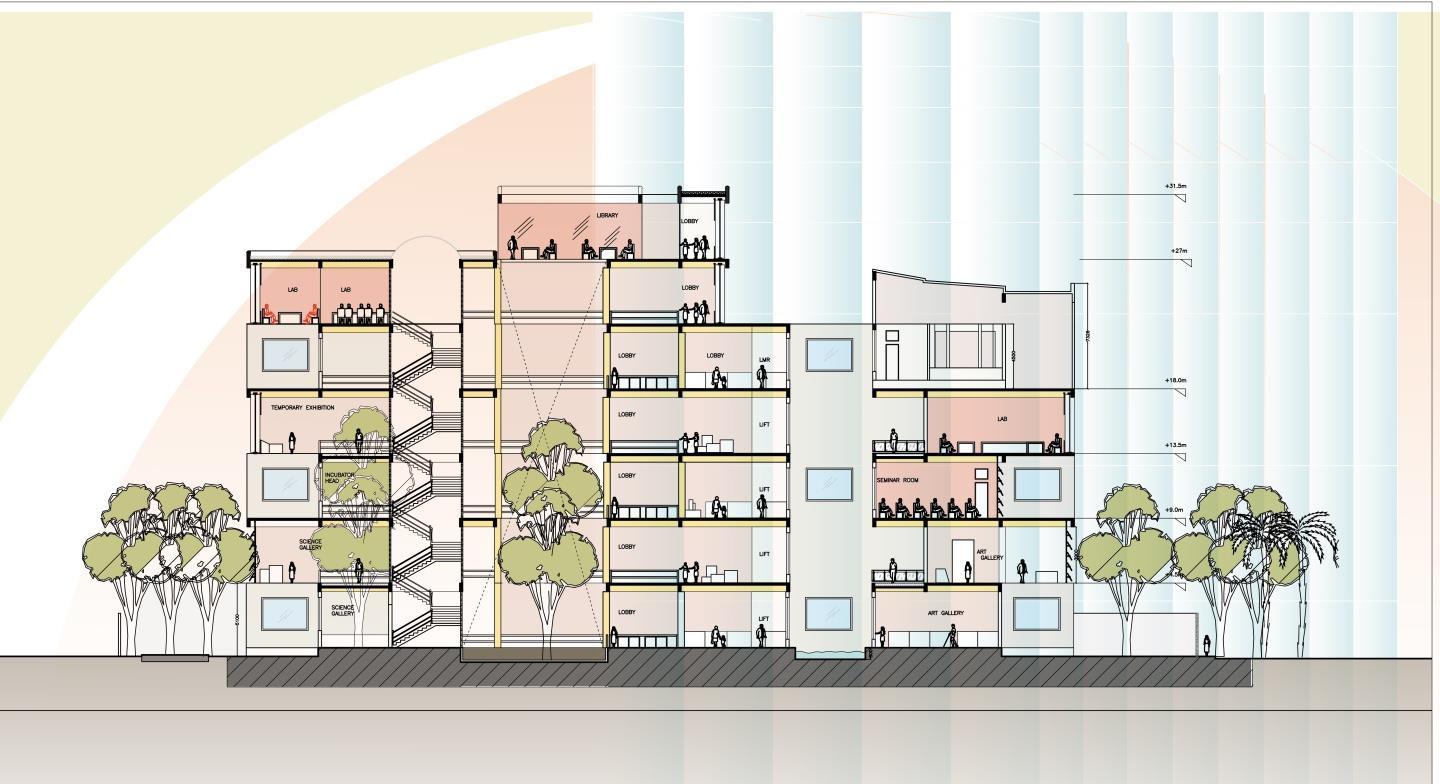

SECTION A-A’

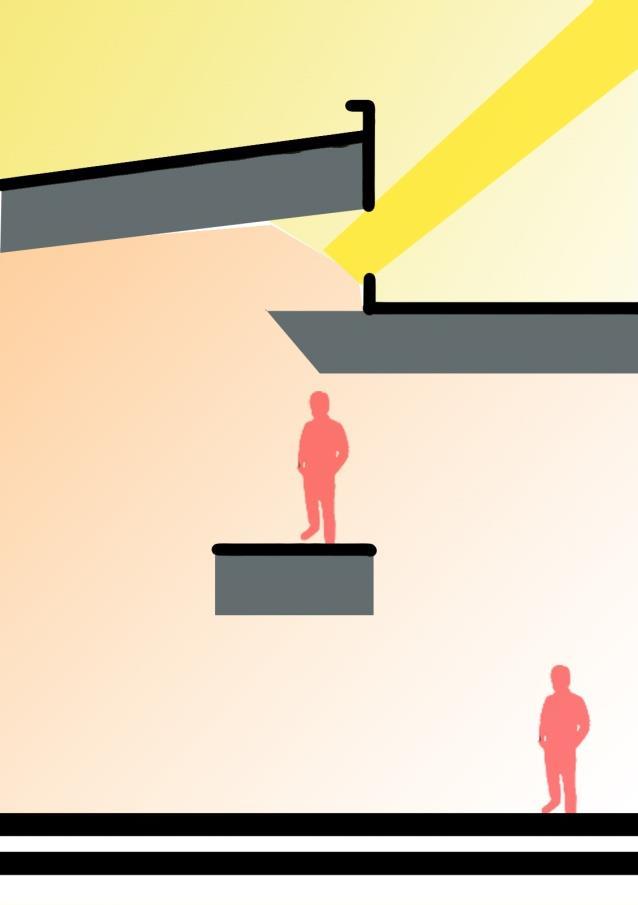

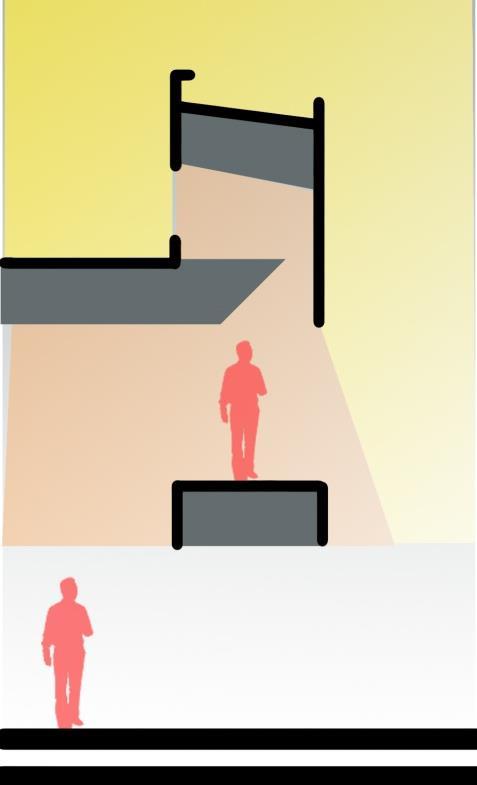

LIGHT AND SHADOWS
BRITISH COUNCIL, CHARLES CORREA
SECTION B B’
WANJARI HIMANSHU
RN. 055 SEM VI
SHEET TITLE SECTIONS 24
SECTION C C’
WANJARI HIMANSHU
RN. 055 SEM VI
SHEET TITLE SECTIONS 25

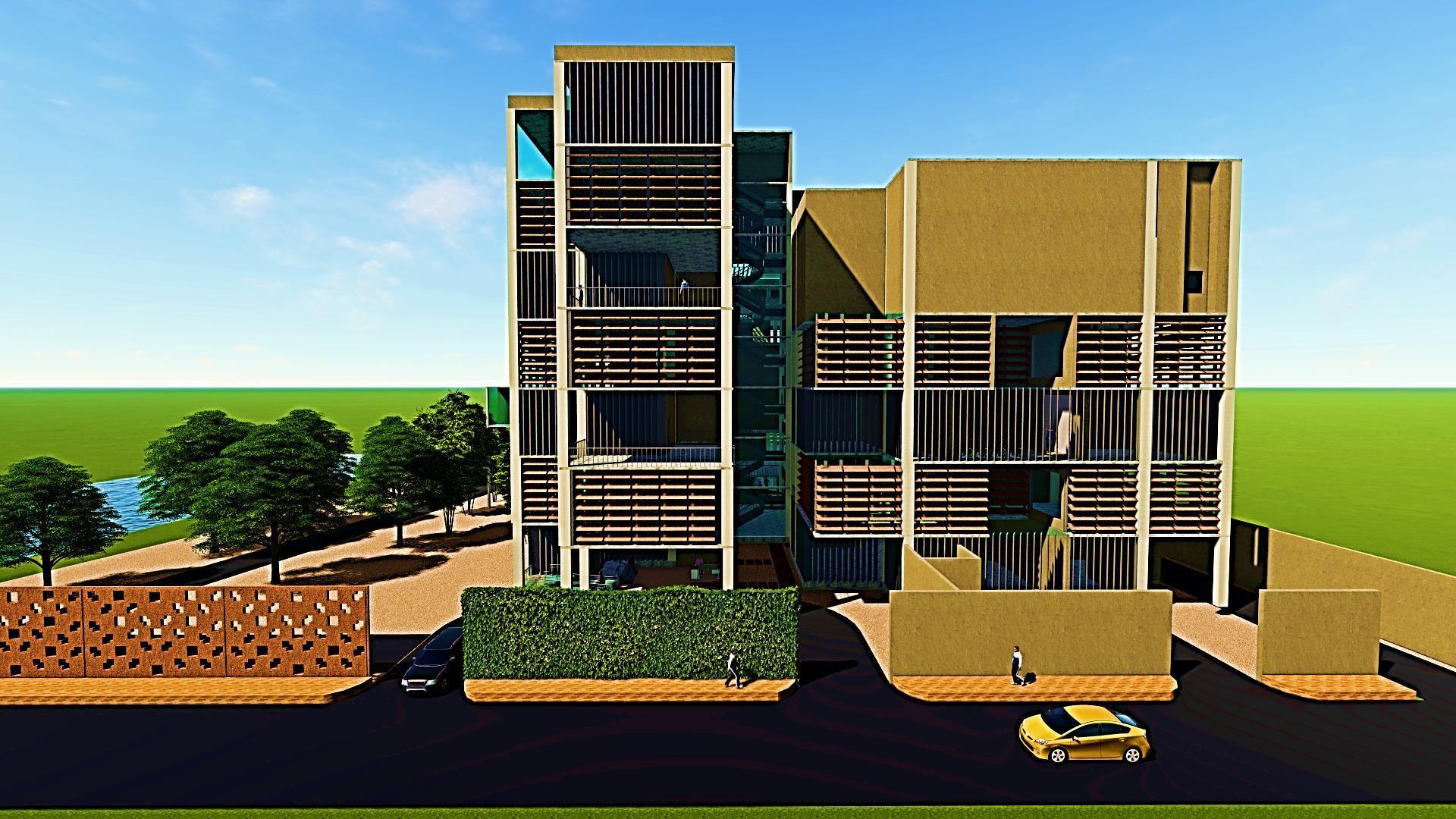

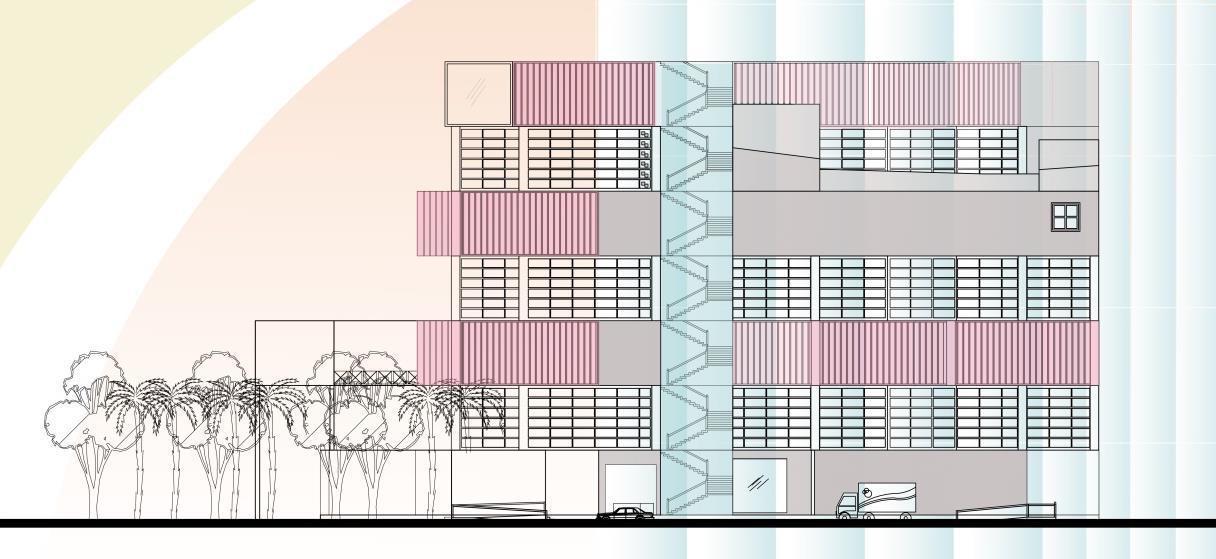

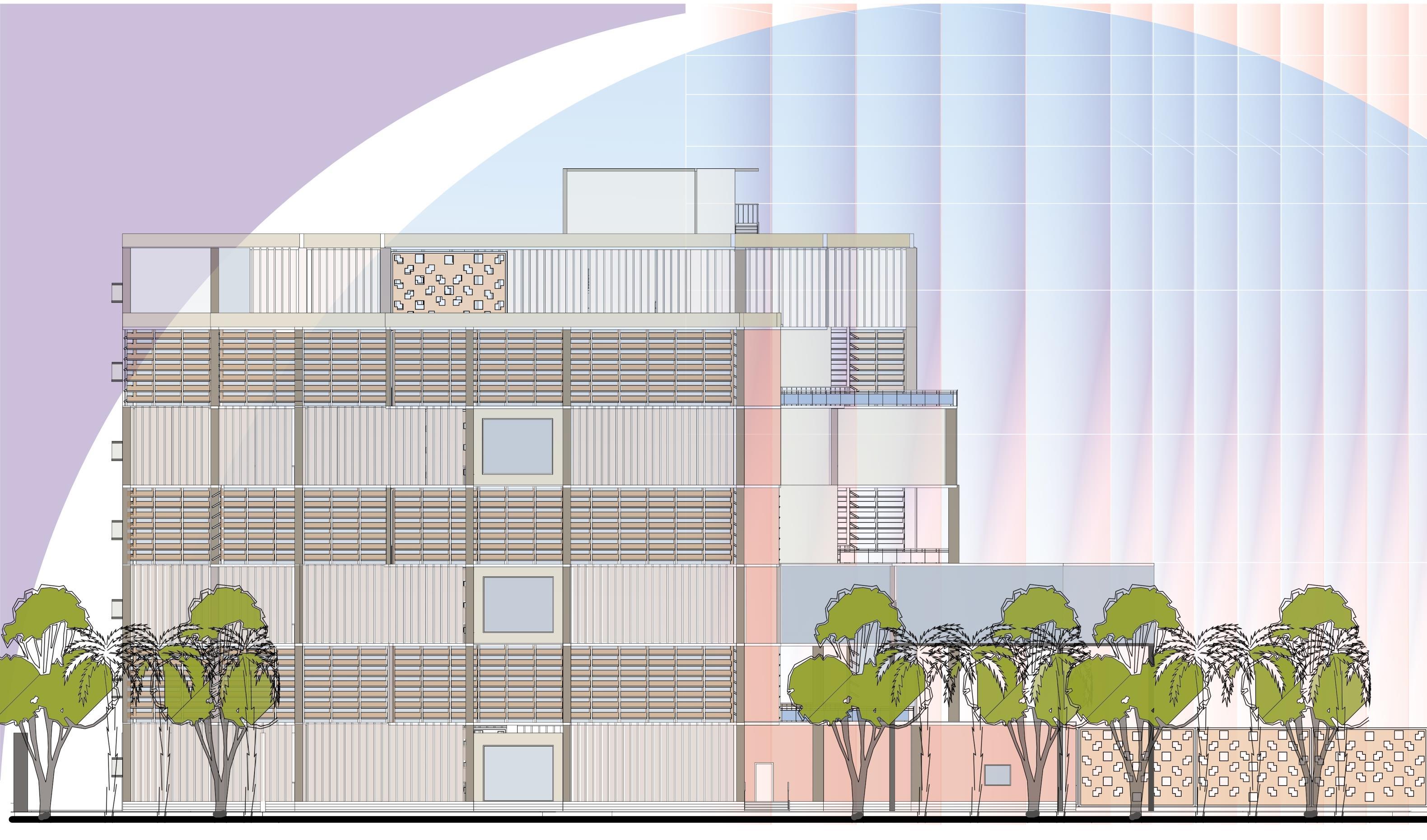

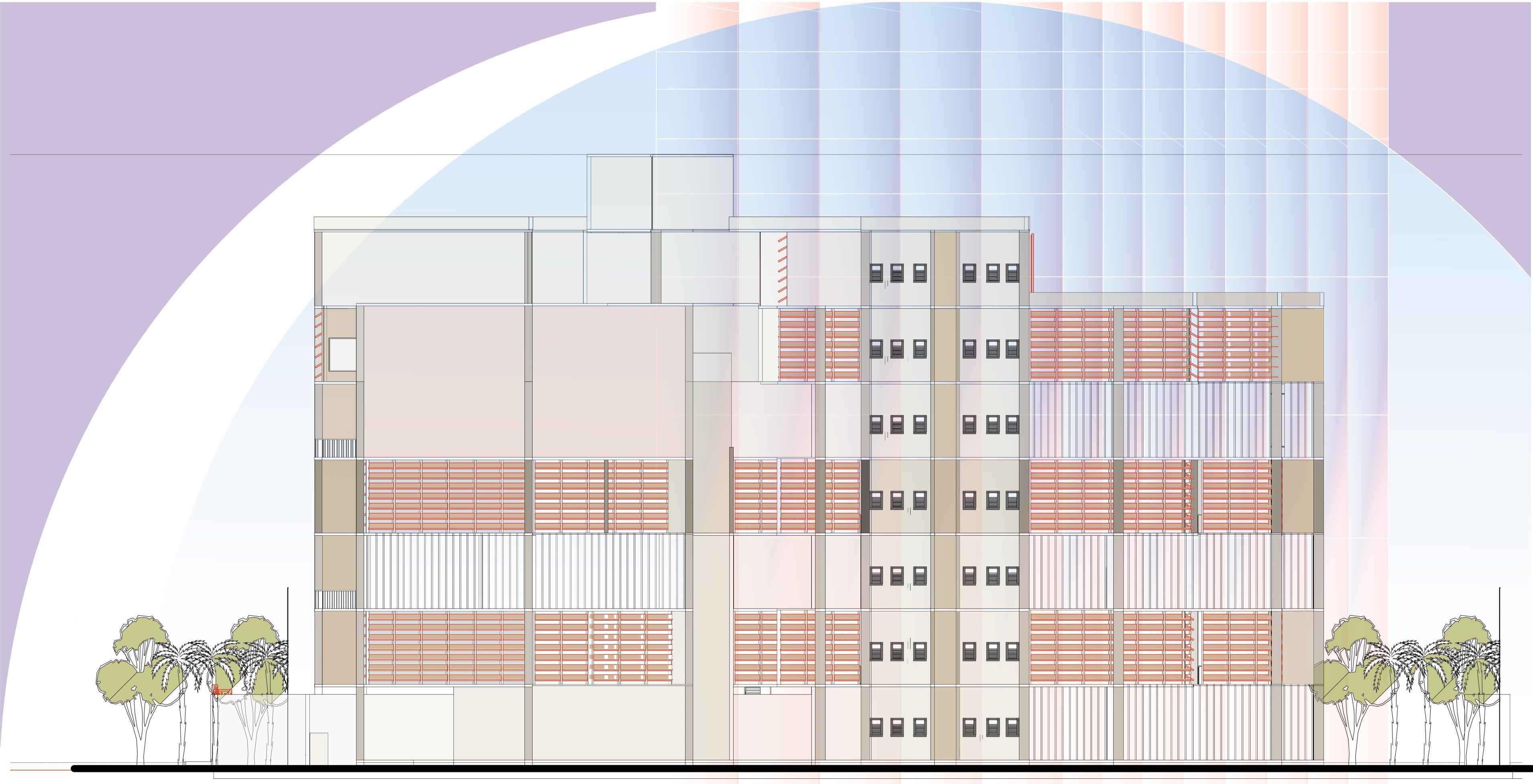

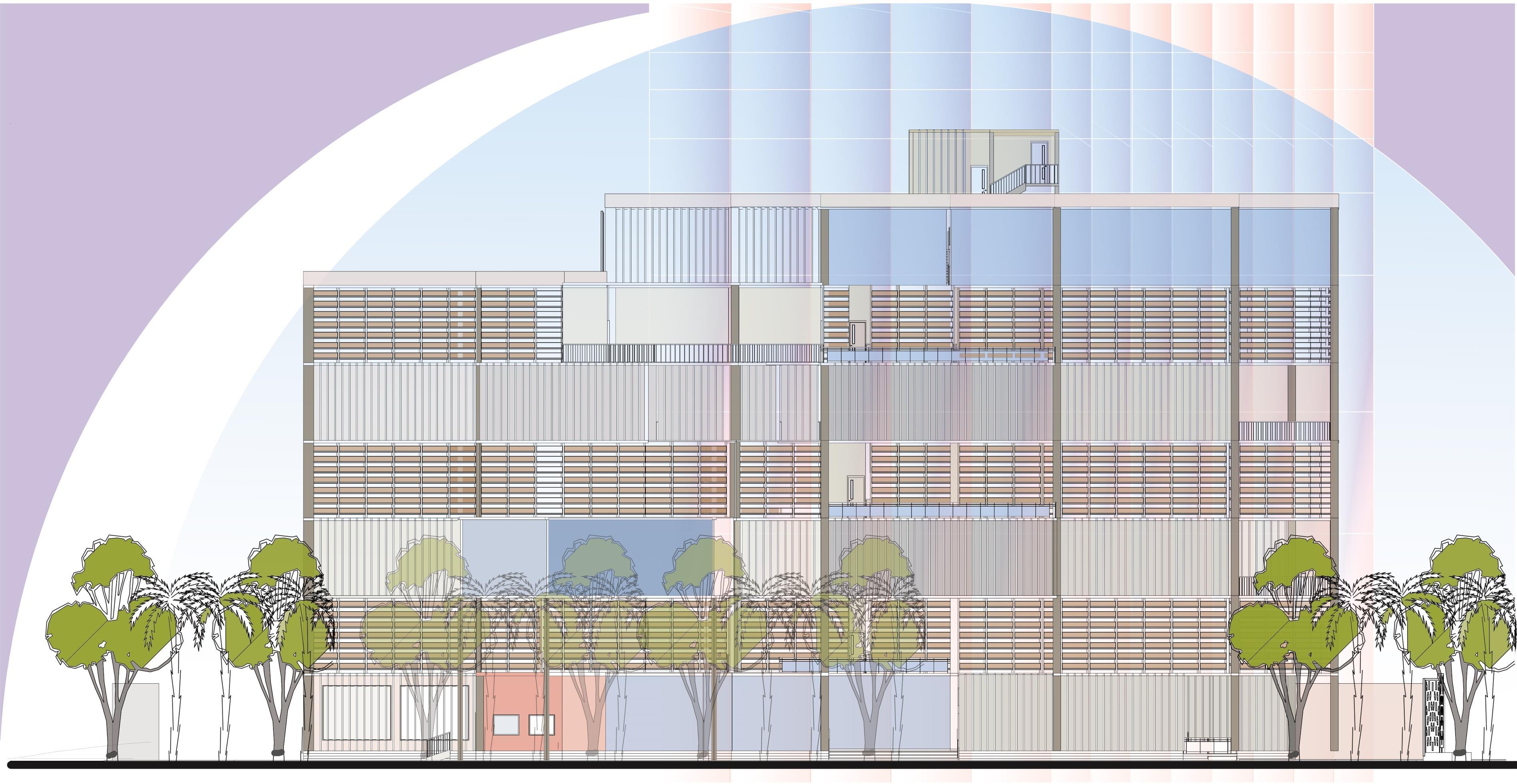

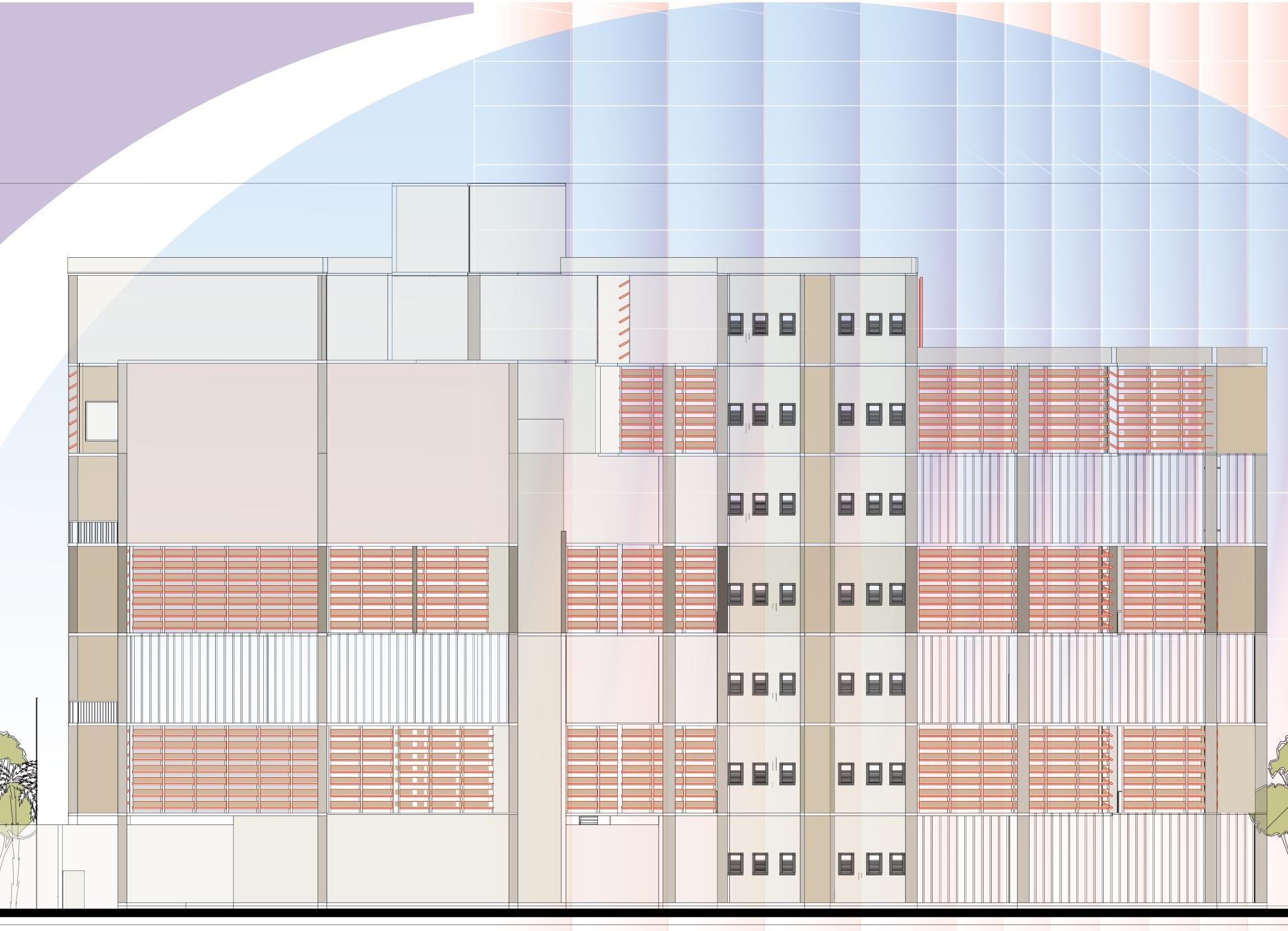

NORTH ELEVATION

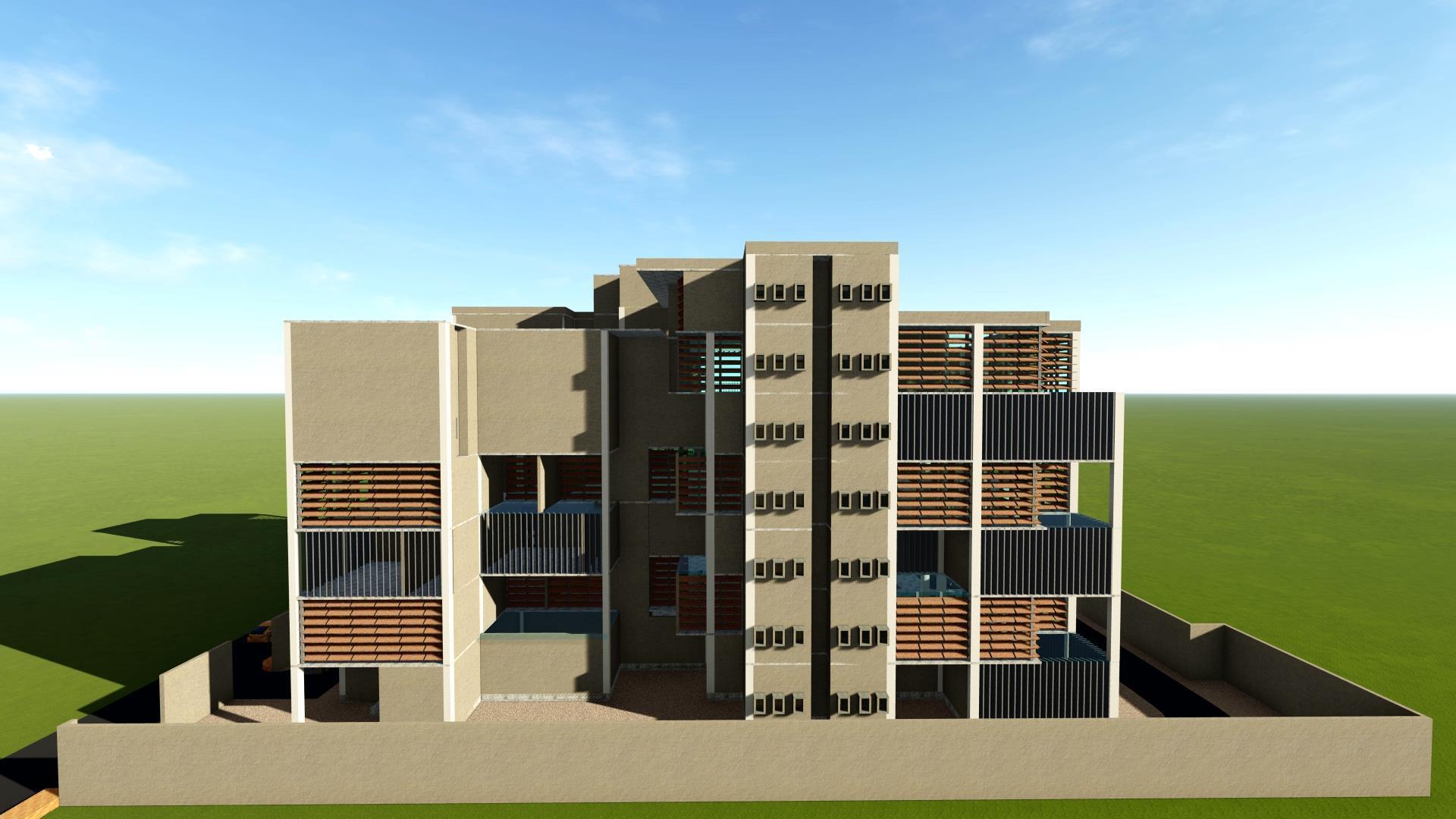

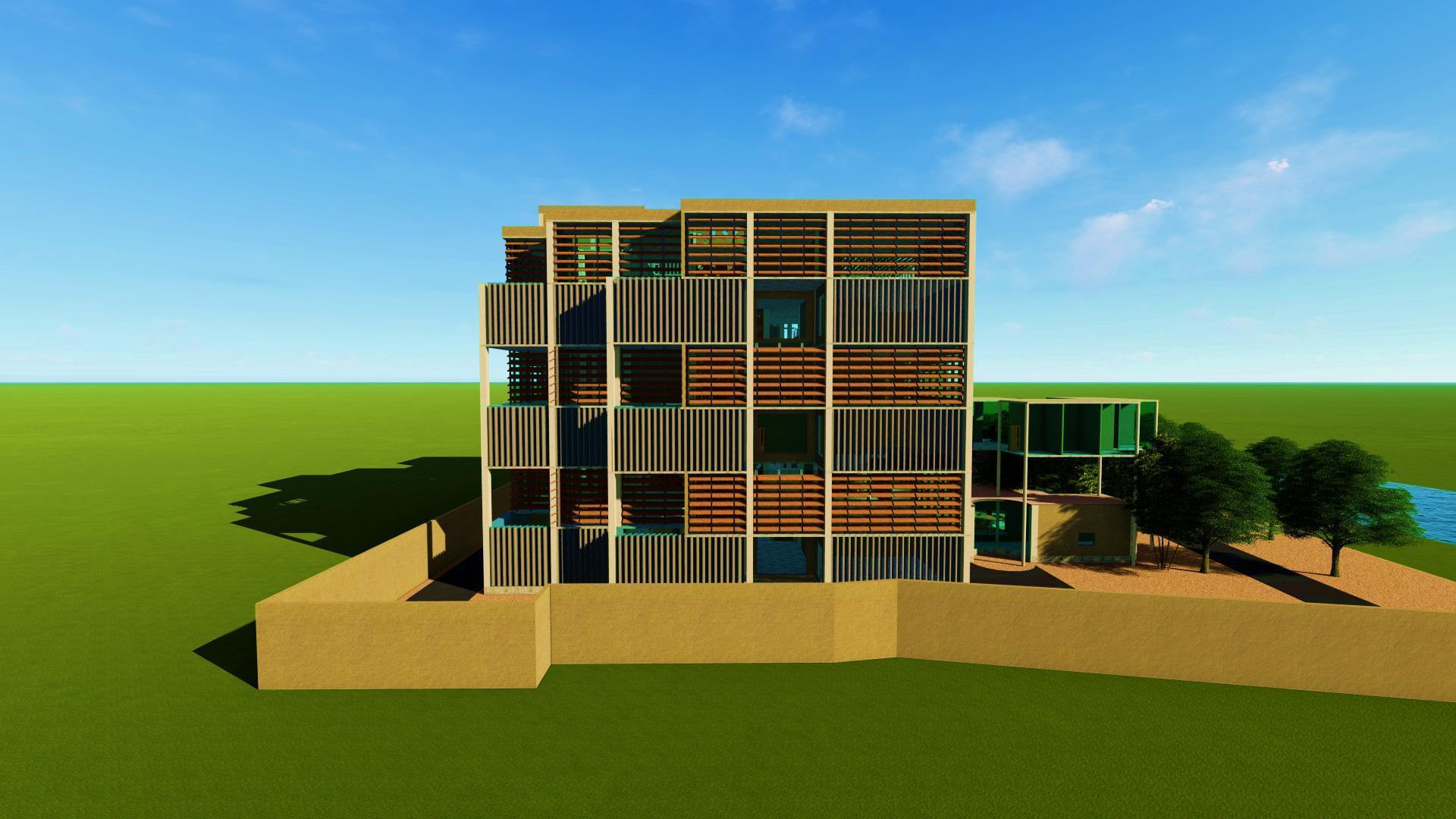

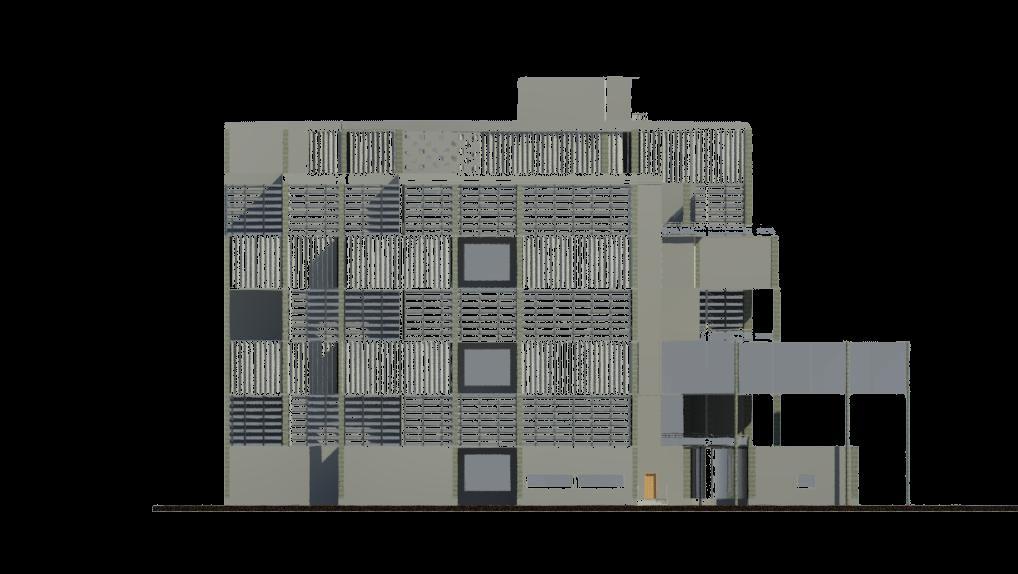

RENDERED SOUTH ELEVATION FROM MODEL
RENDERED NORTH ELEVATION FROM MODEL
SOUTH ELEVATION
WANJARI HIMANSHU
RN. 055 SEM VI
SHEET TITLE ELEVATIONS 26

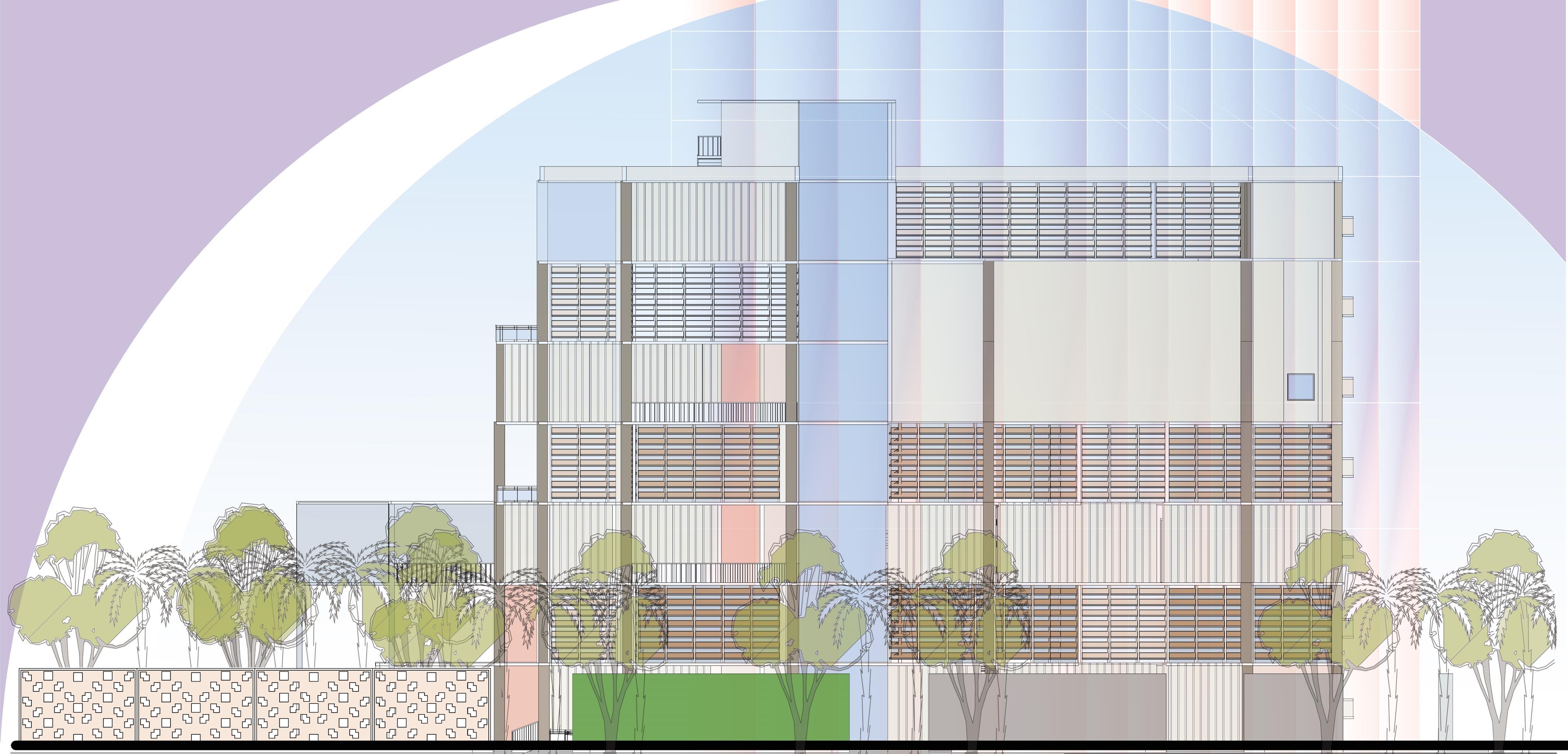

RENDERED EAST ELEVATION FROM MODEL
EAST ELEVATION
RENDERED WEST ELEVATION FROM MODEL WEST ELEVATION
ELEVATIONS
WANJARI HIMANSHU
RN. 055 SEM VI
SHEET TITLE
27

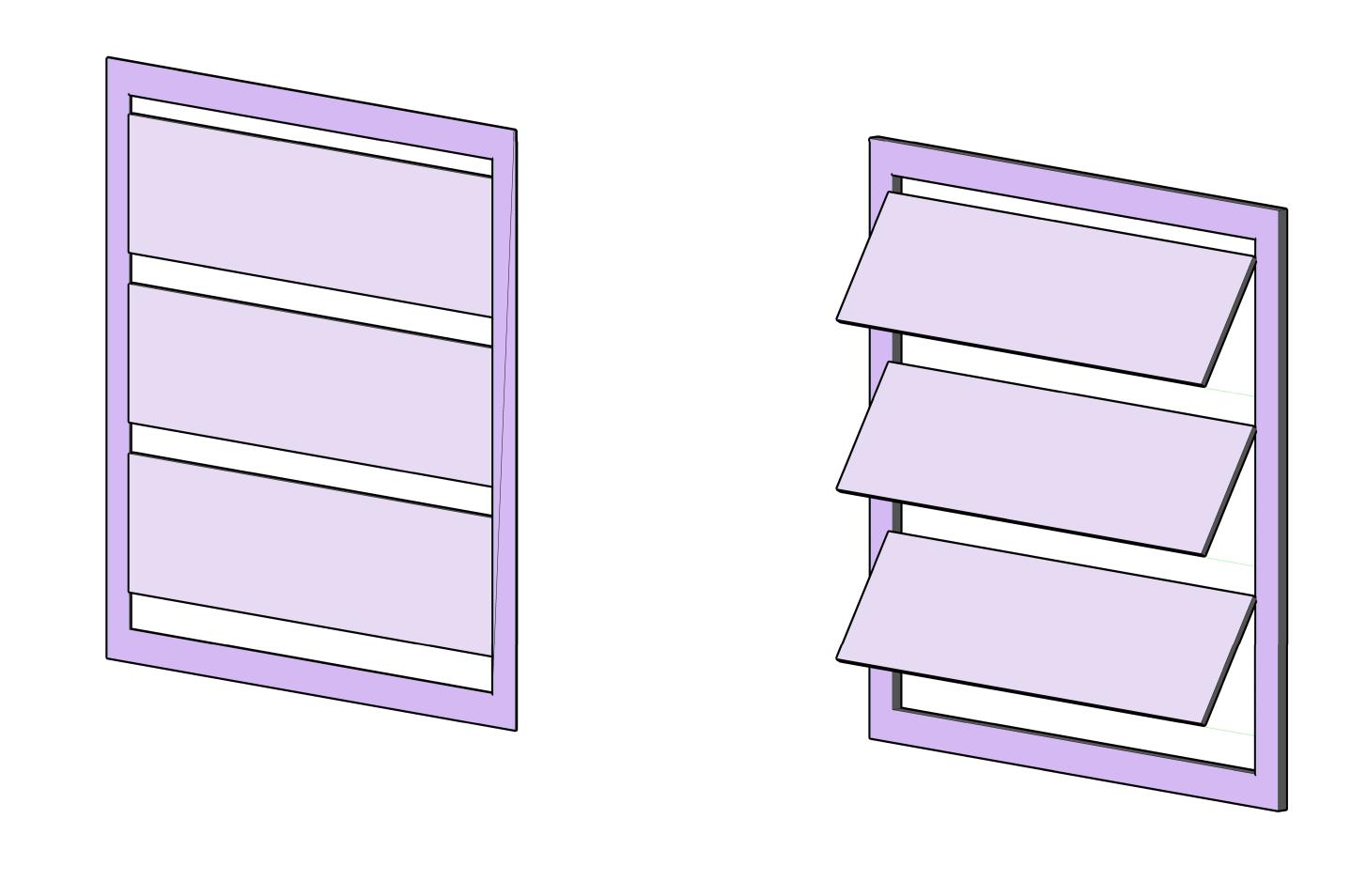

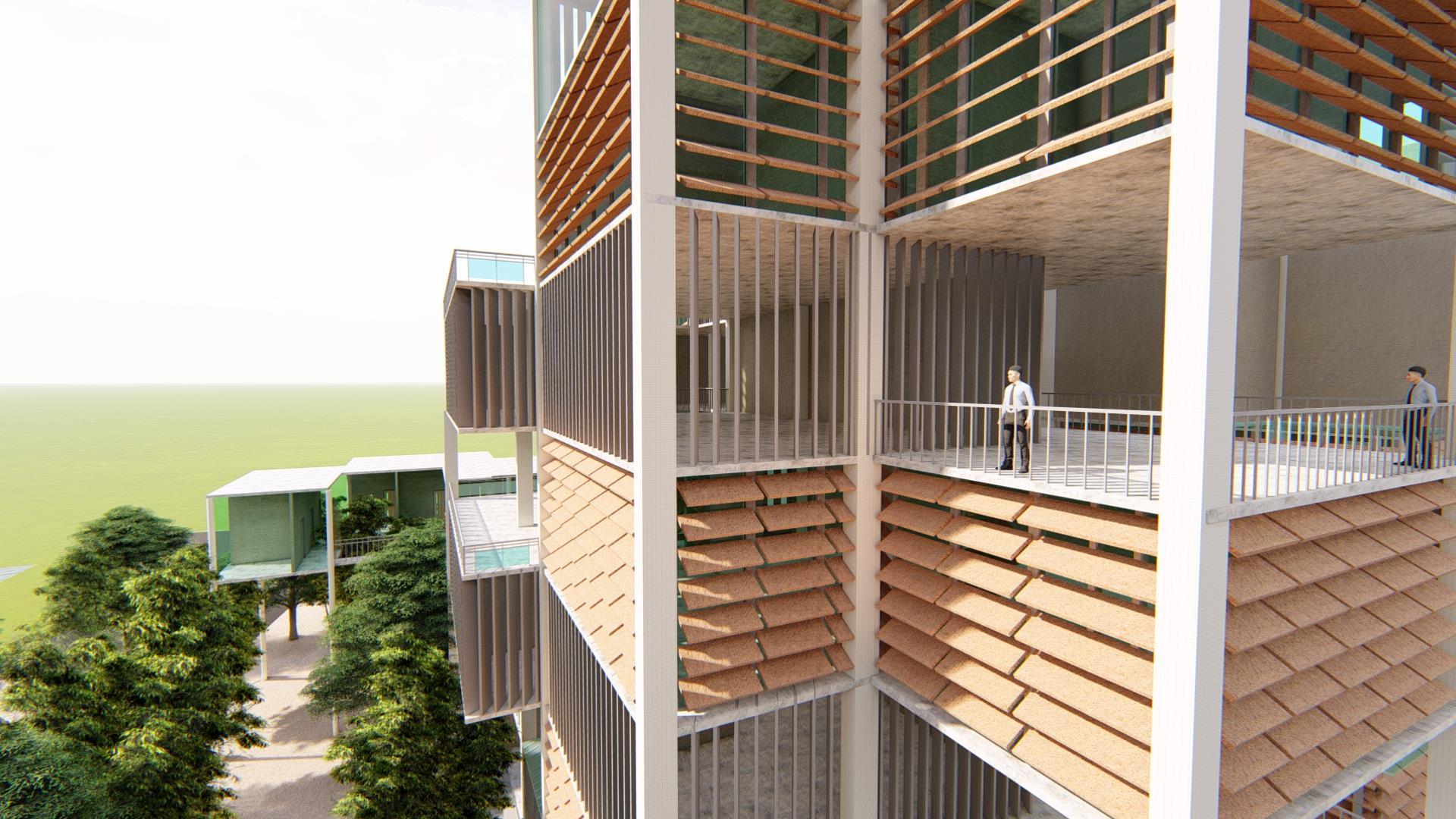

1. TERRACOTA tiles keep the façade cool and cools air entering through louvers
2. Avoid direct sunlight into the space and are adjusted towards the wind direction
3. Also creates a beautiful light and shadow pattern in the interiors

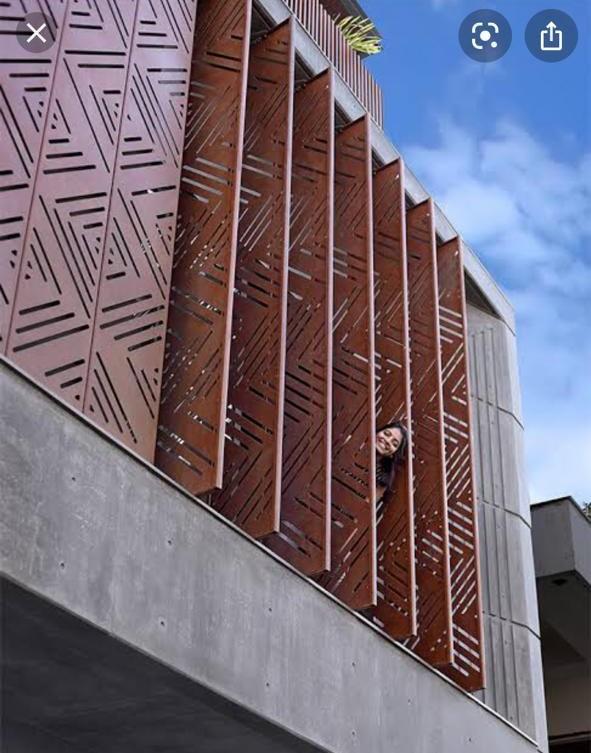

Case study Louvered house by A+T Associates.

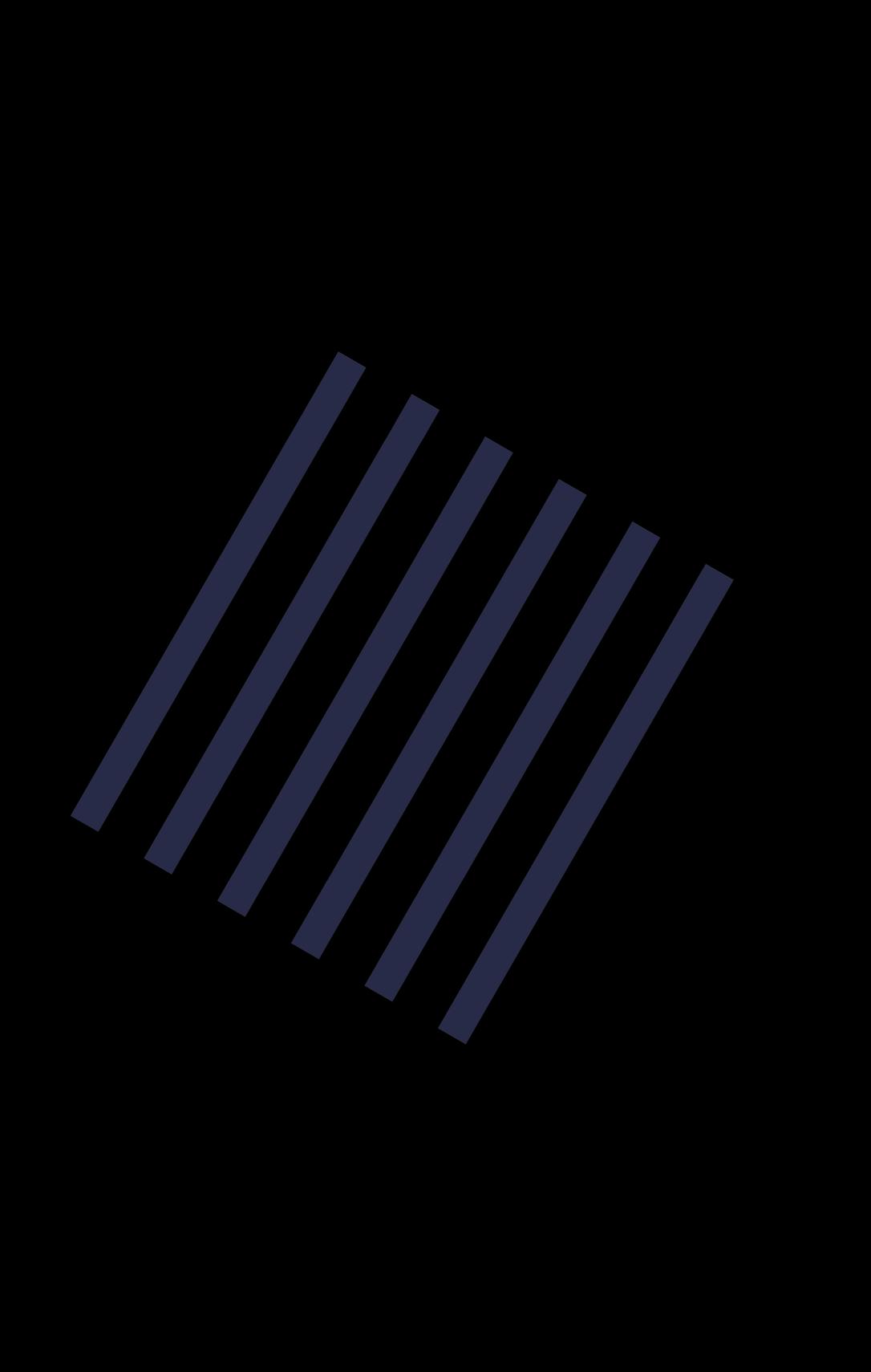

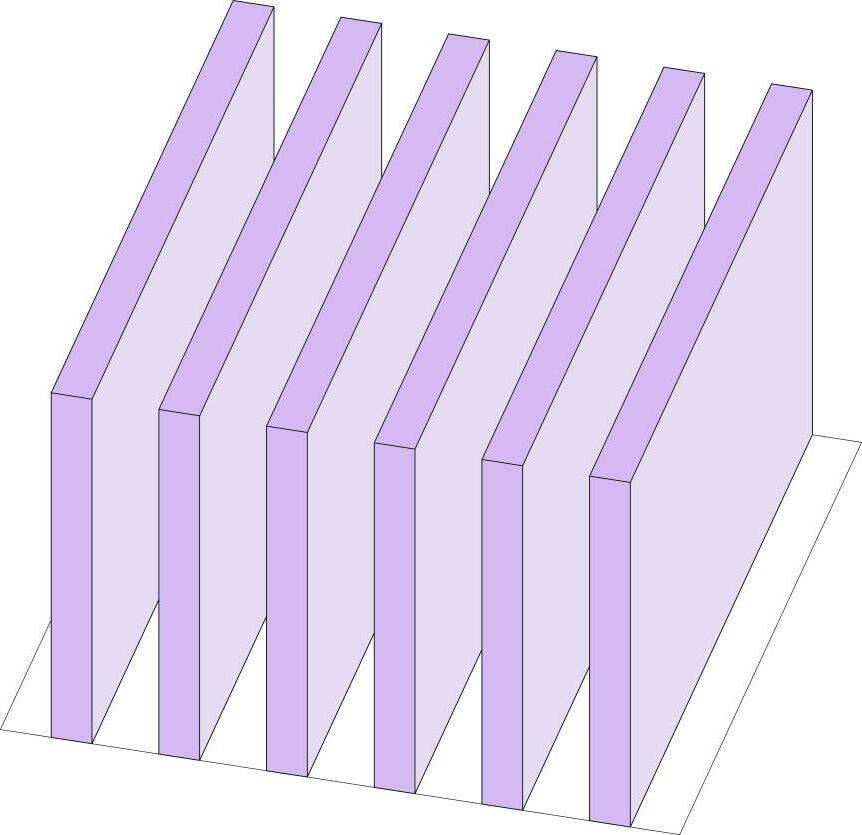

The panels are tilted to 30° to the vertical plane to avoid direct sunlight and for water runoff during rains
Also available in various colours
WANJARI HIMANSHU
RN. 055 SEM VI
FAÇADE TYPE 1 SHEET TITLE CONCEPT 28

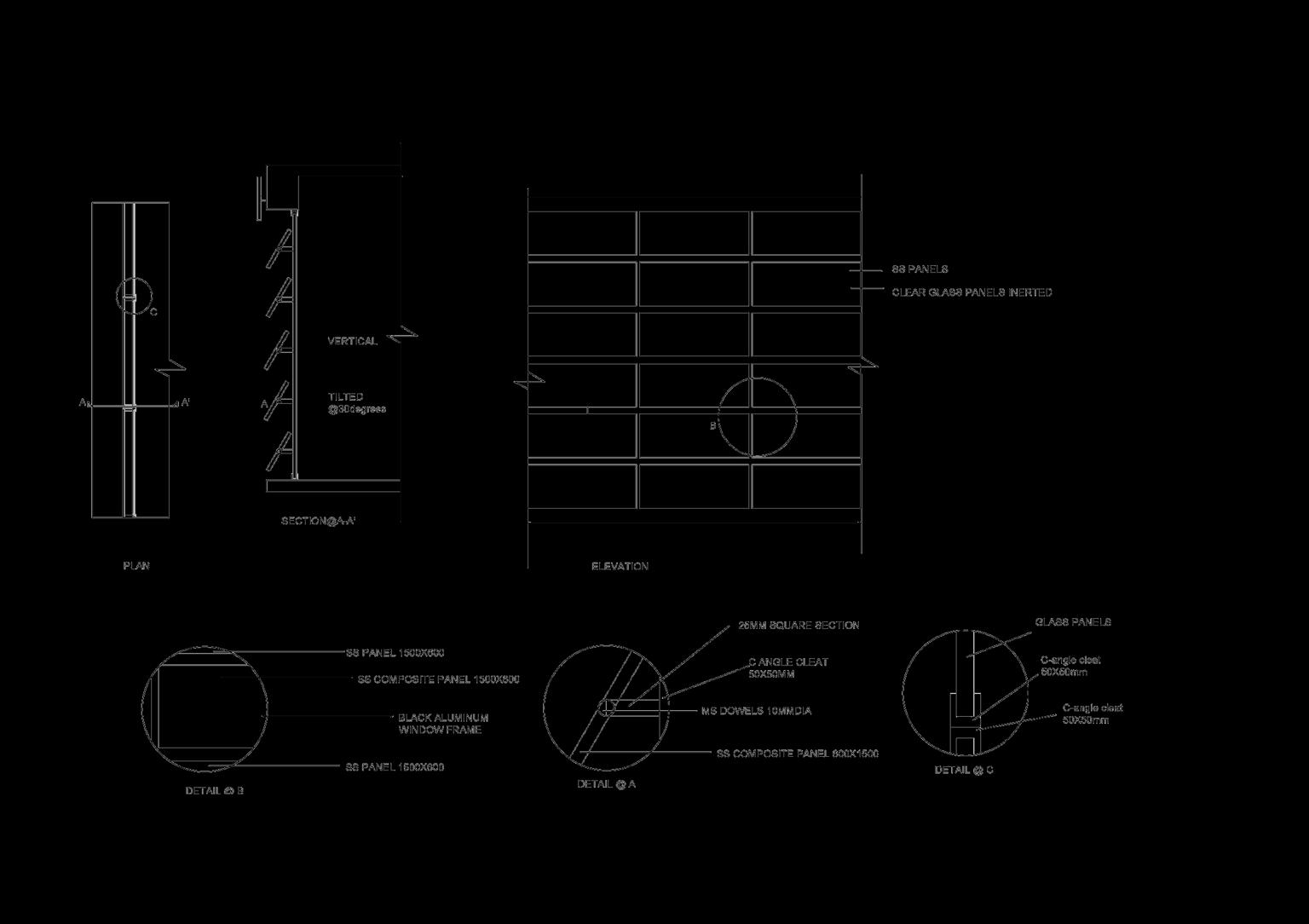

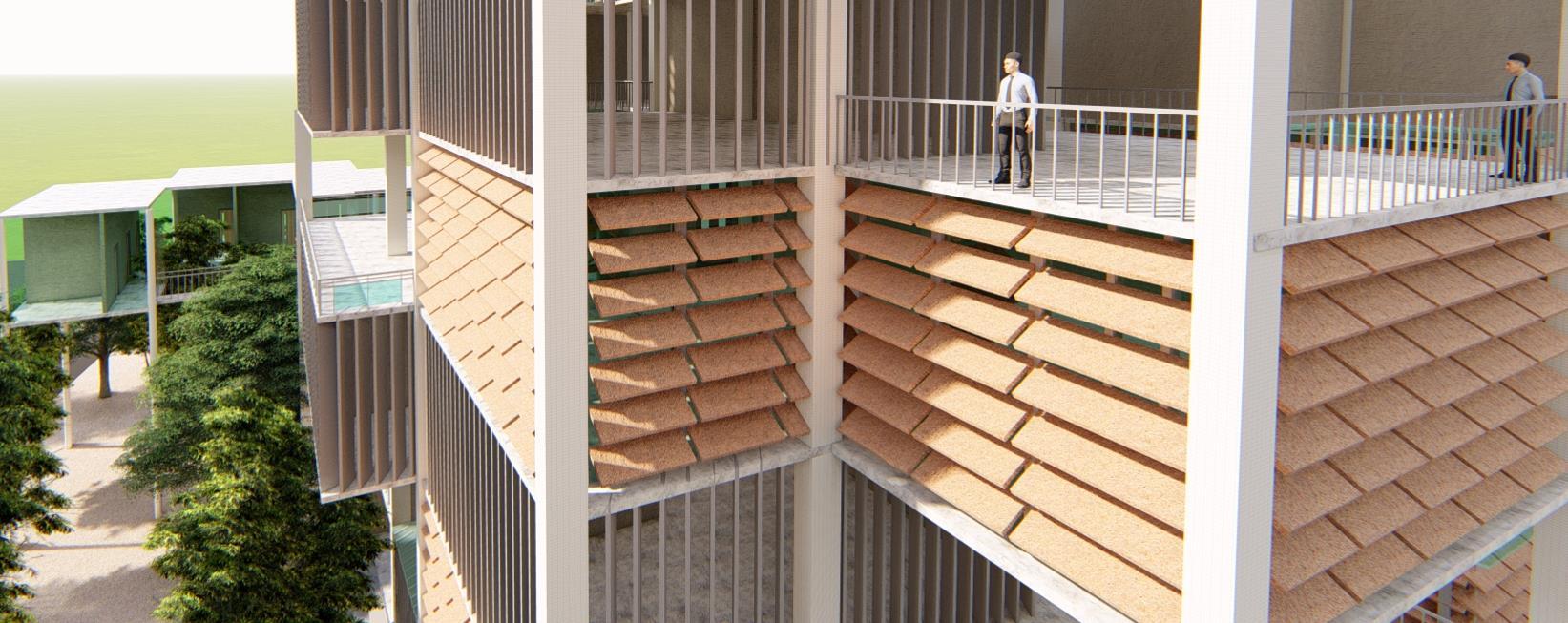

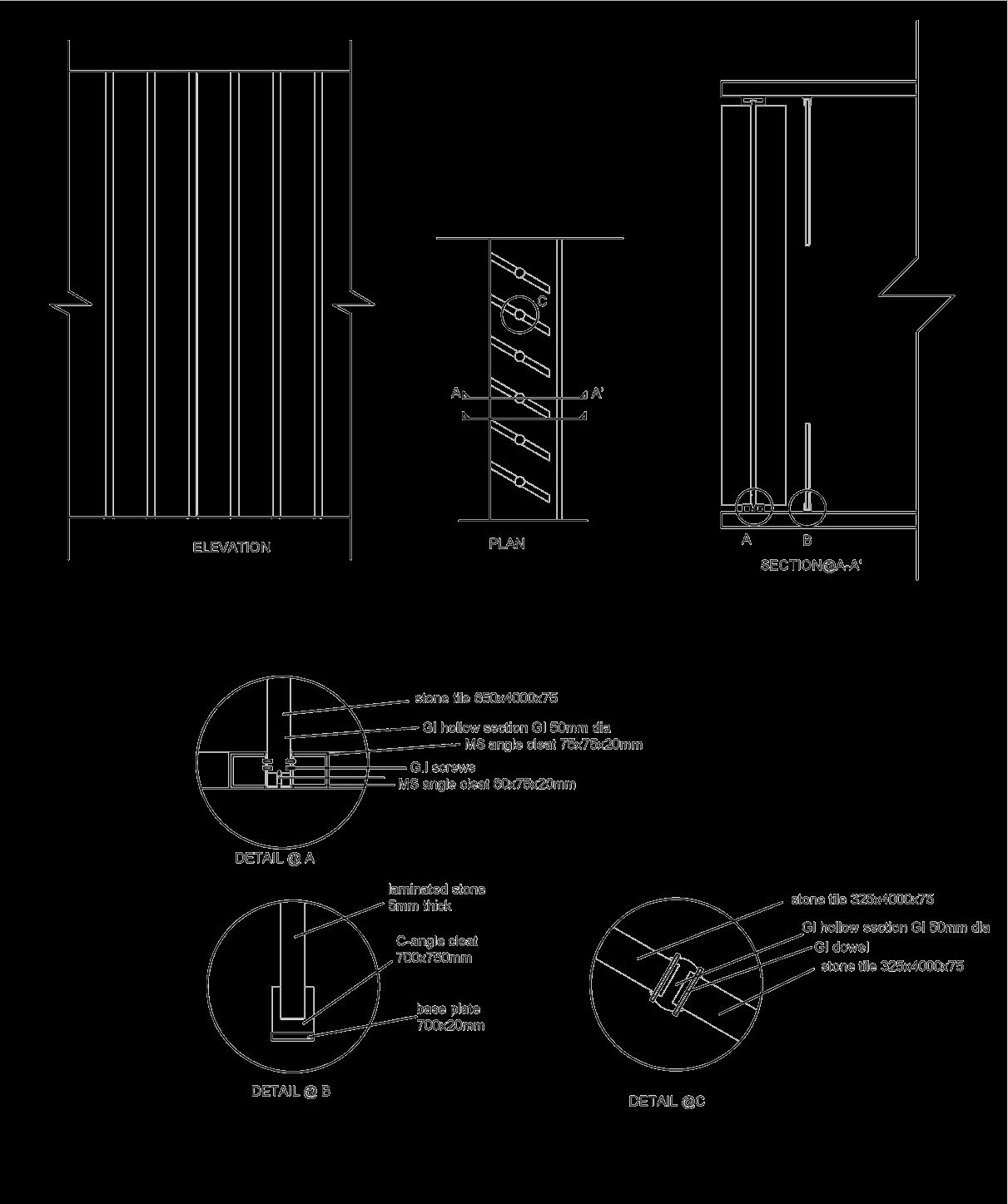

Terracotta panels:
1. Thermal insulation
2. Energy conservation
Noise reduction
Acid/alkali resistant
Sustainable and recyclable

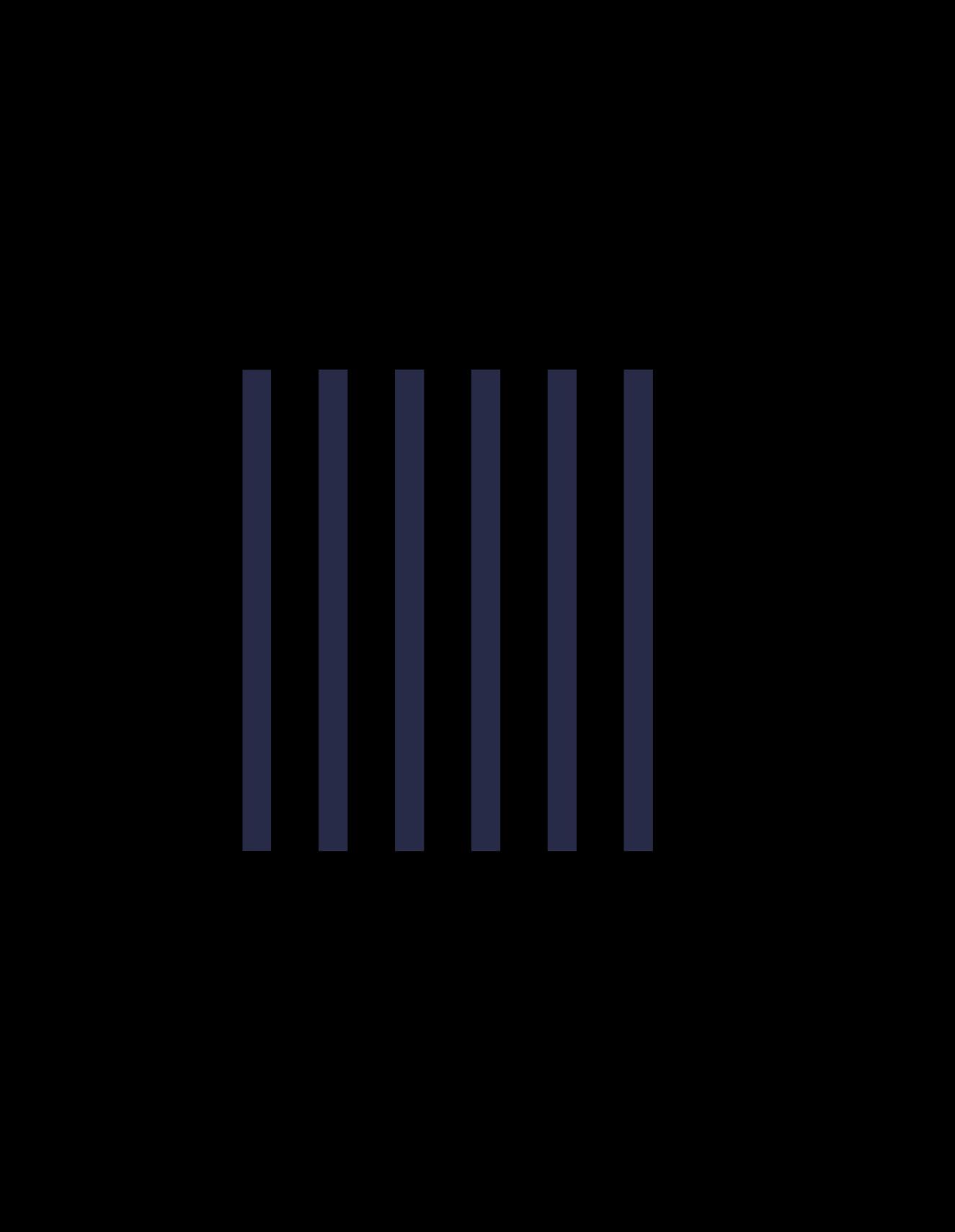

The panels are tilted to 30° to the vertical plane to avoid direct sunlight and for water runoff during rains
WANJARI HIMANSHU
RN. 055 SEM VI
FAÇADE TYPE 2 SHEET TITLE CONCEPT 29
3.
4.
5.

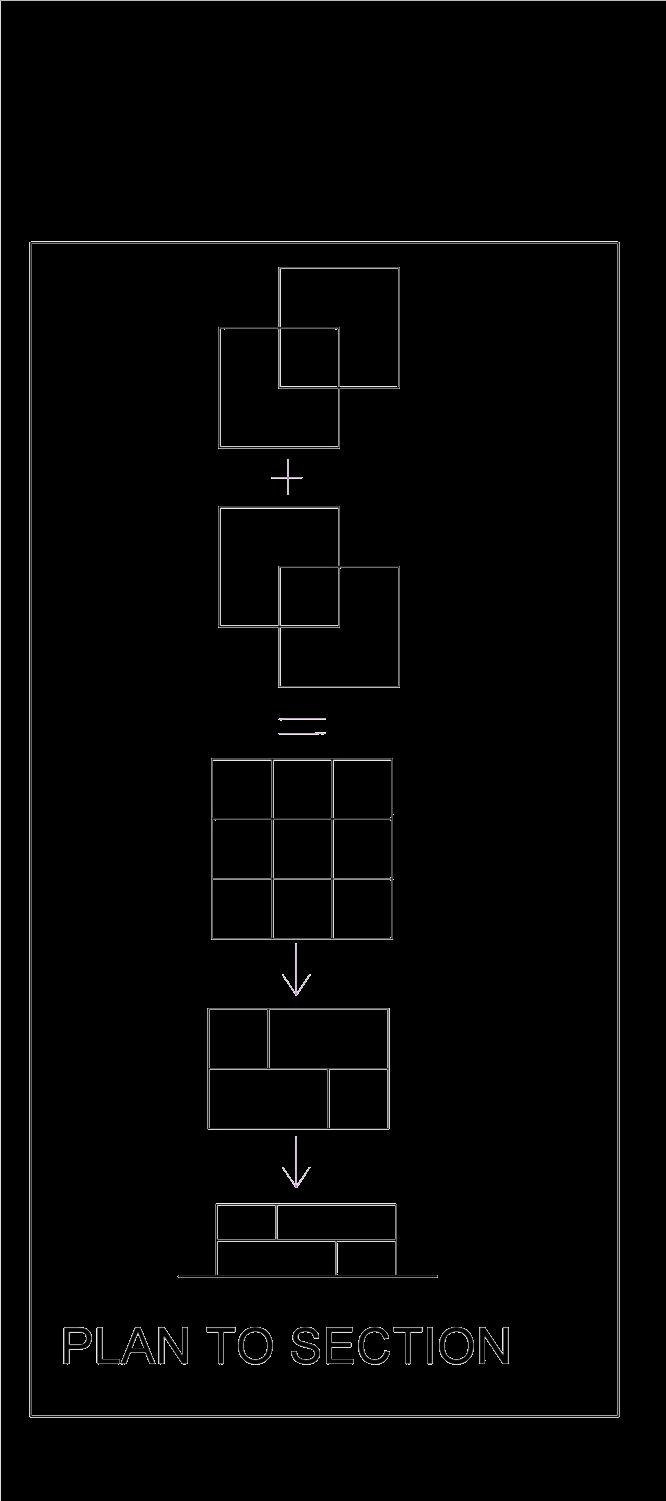

PLAN TO SECTION & PLAN TO ELEVATION
WANJARI HIMANSHU
RN. 055 SEM VI
SHEET TITLE CONCEPT 30

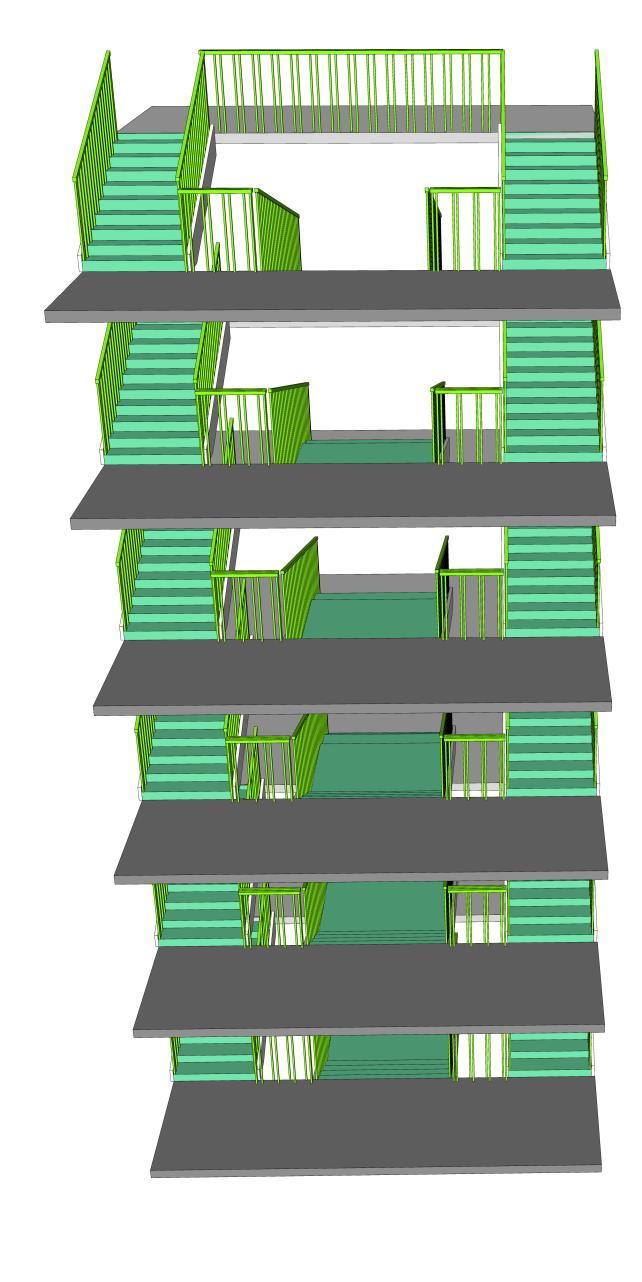

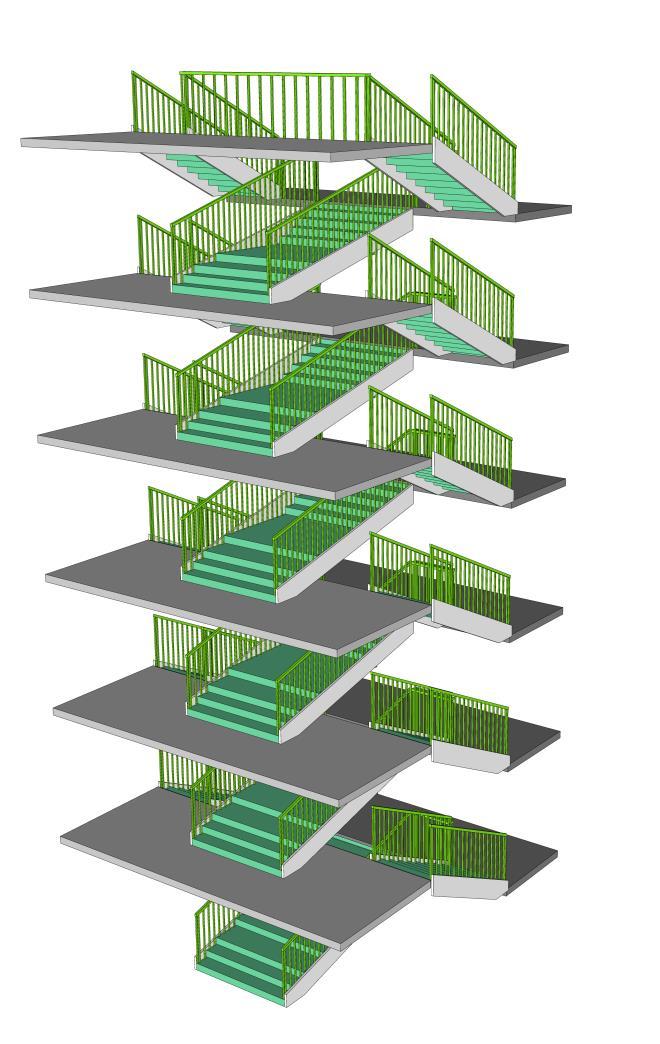

Verticality
GUEST MOVEMENT SERVICE MOVEMENT
WANJARI HIMANSHU
RN. 055 SEM VI
SHEET TITLE SPACE VERTICALITY 31

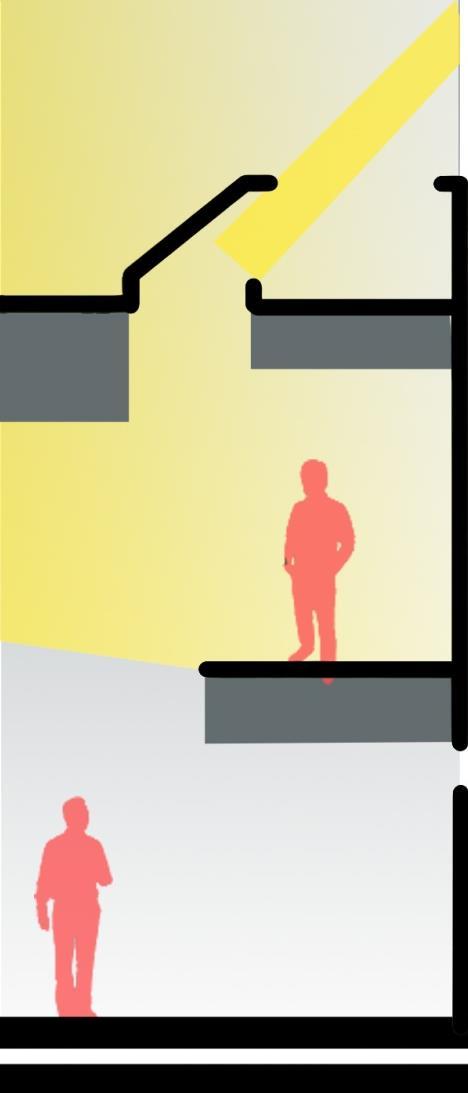

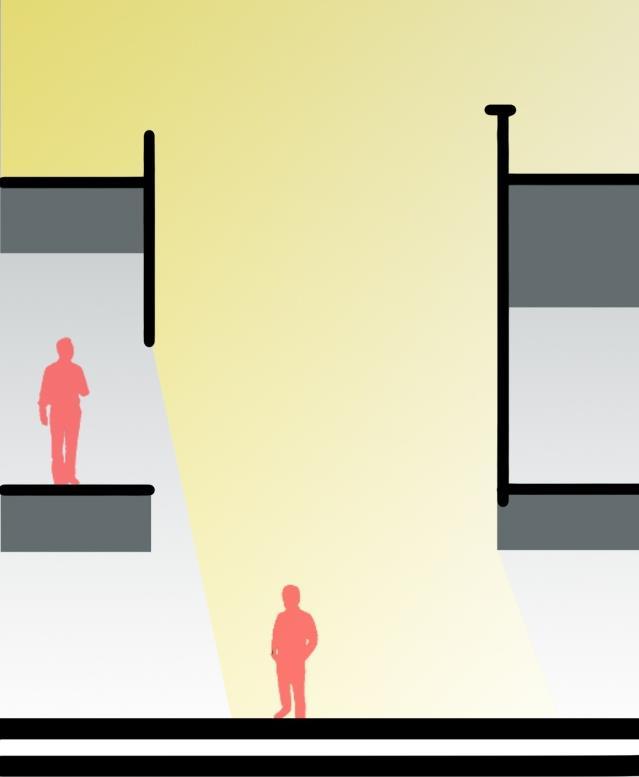

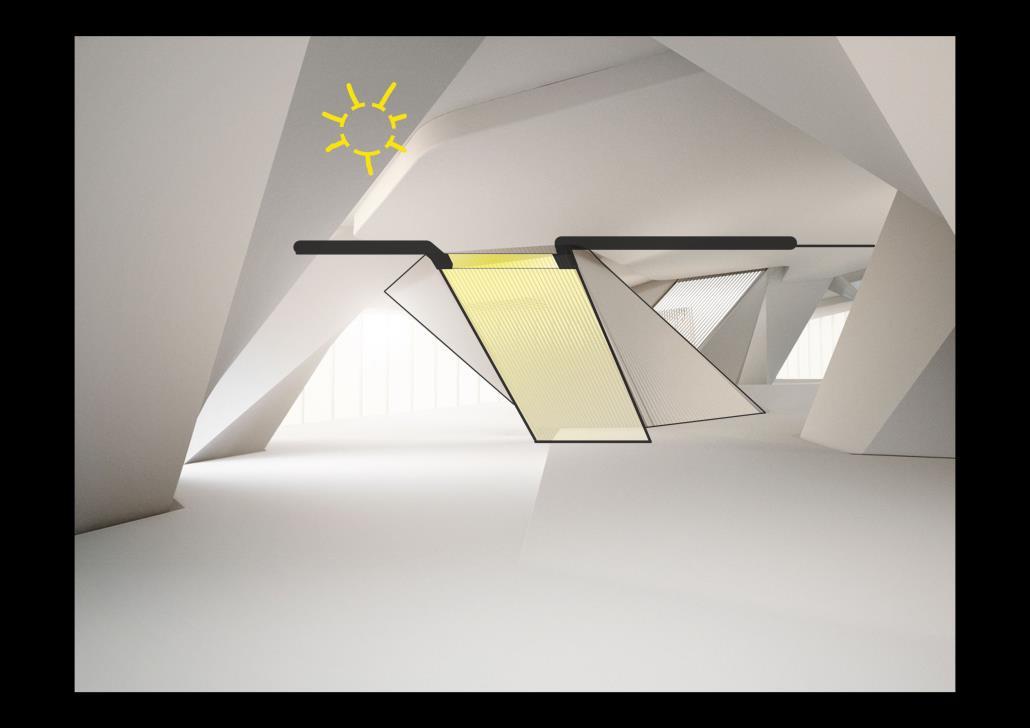

Seminar room, naturally ventilated by the south-western winds and indirect sunlight is introduced from top as well as
This is possible due to the alternate stacking of floor plates
WANJARI HIMANSHU
RN. 055 SEM VI
SHEET TITLE SKYLIGHTS STUDY 32

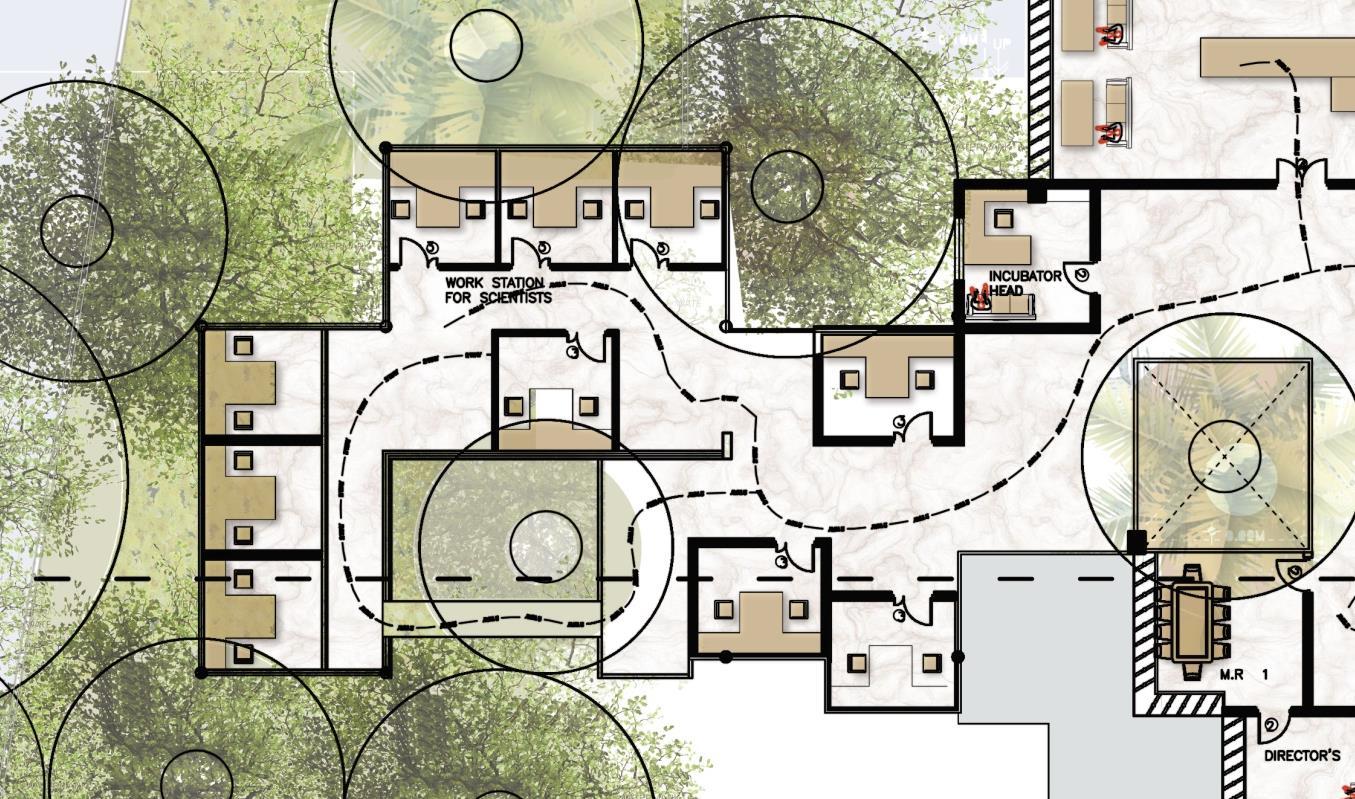

INCUBATOR SPACE

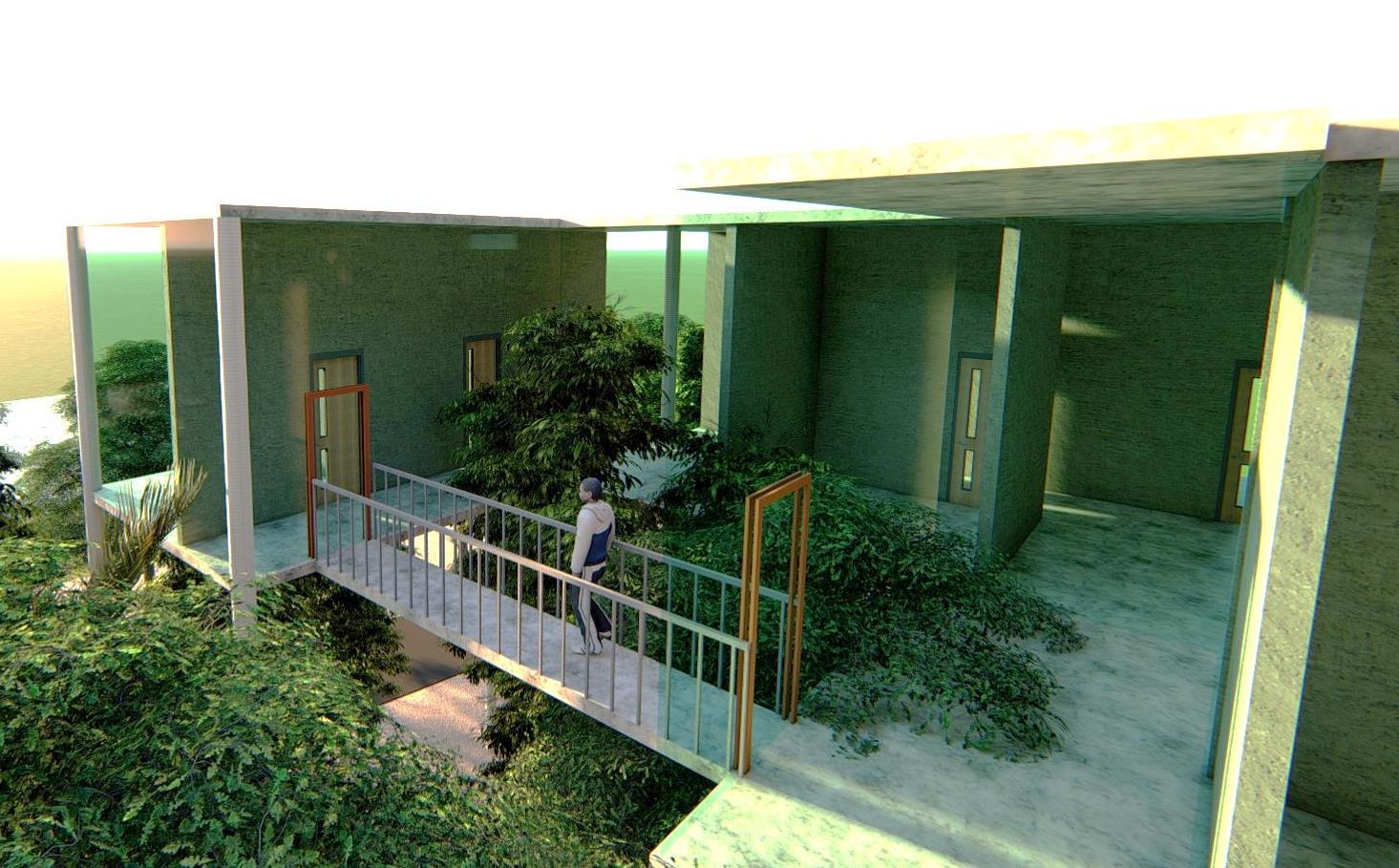

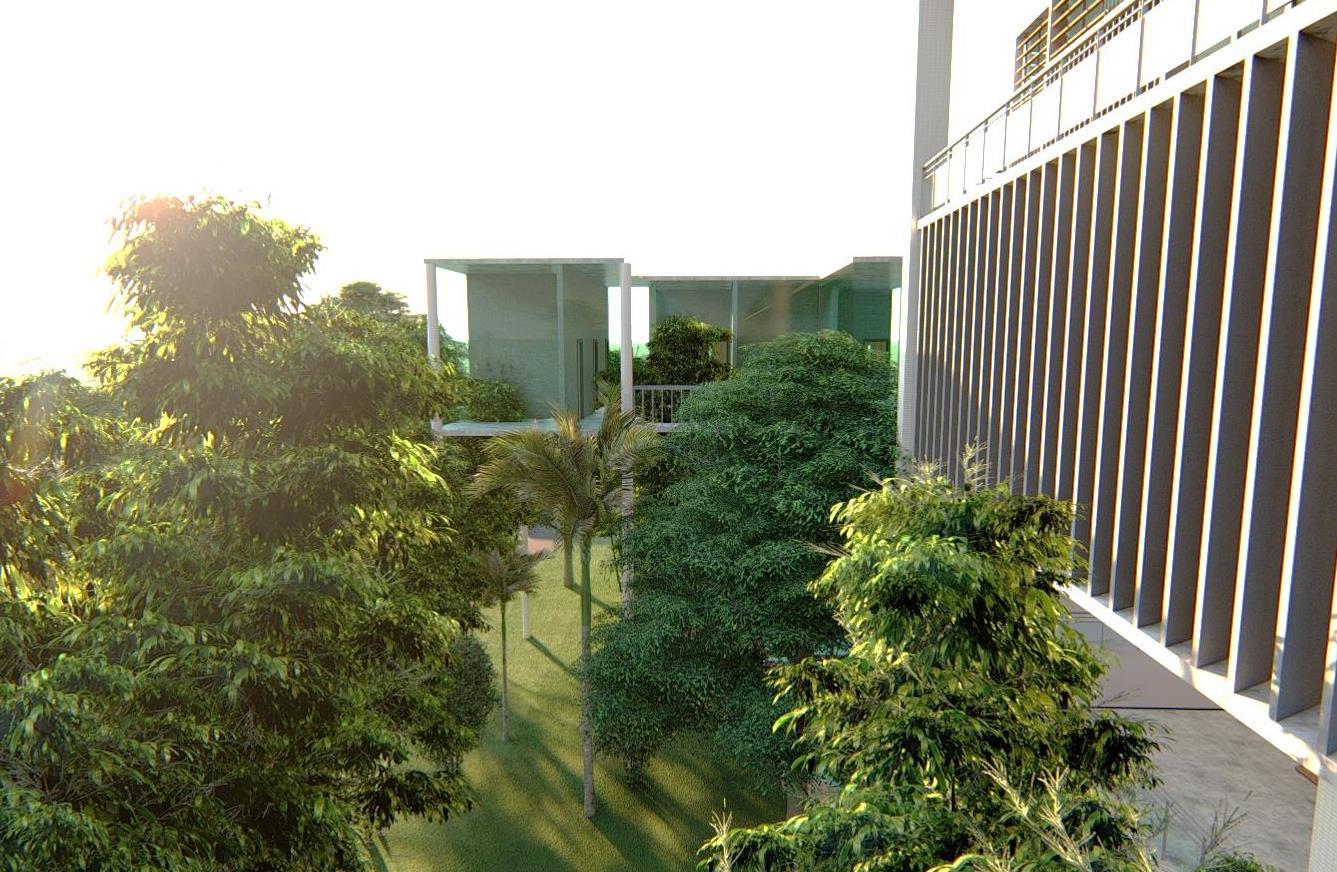

A bridge connects the two extremes of incubator space, going through between the trees, and giving a view of the sea

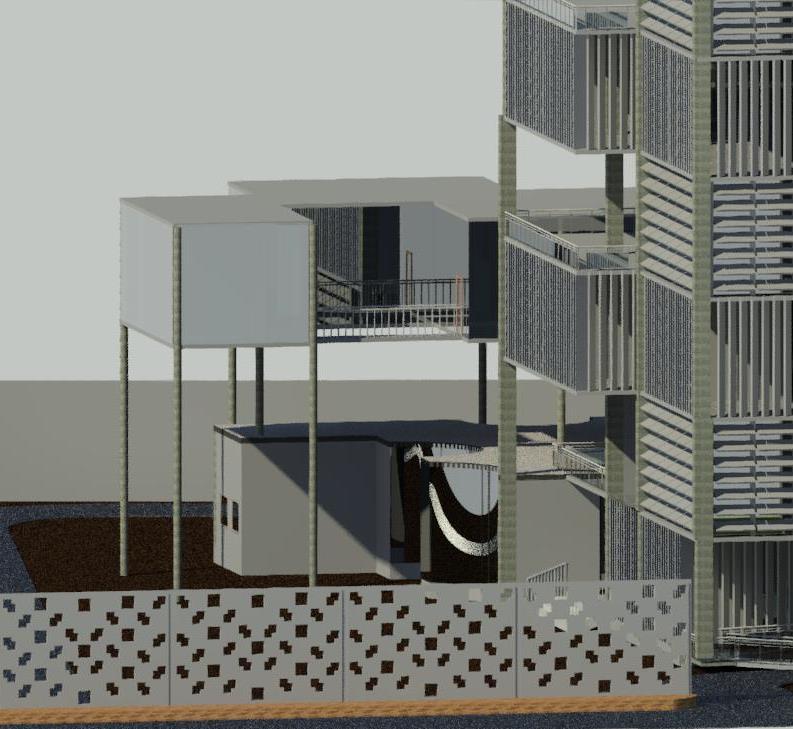

The incubator space is lifted off the ground and adjoins the second floor level, thus leaving an air gap in the entire one floor, and when the existing trees camouflage the columns, the incubator blocks appears to be floating between the trees.
WANJARI HIMANSHU
RN. 055 SEM VI
SHEET TITLE INCUBATOR SPACE STUDY 33
The entrance space for the gallery from the adjoining road, the jali wall gives a jist of the space making one curious what’s happening inside

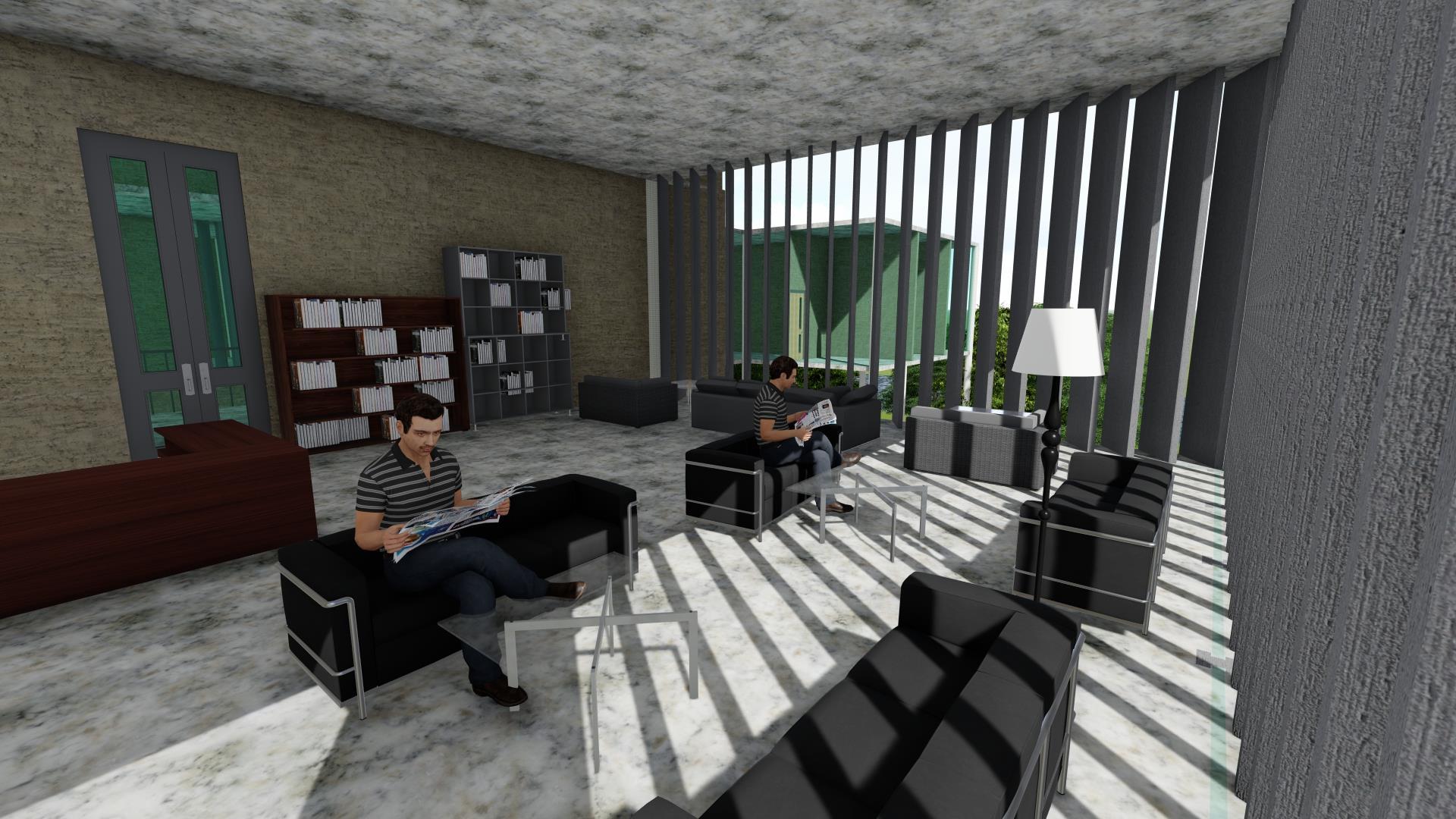

Reading space for visitors is decorated by the indirect sunlight making the space lively

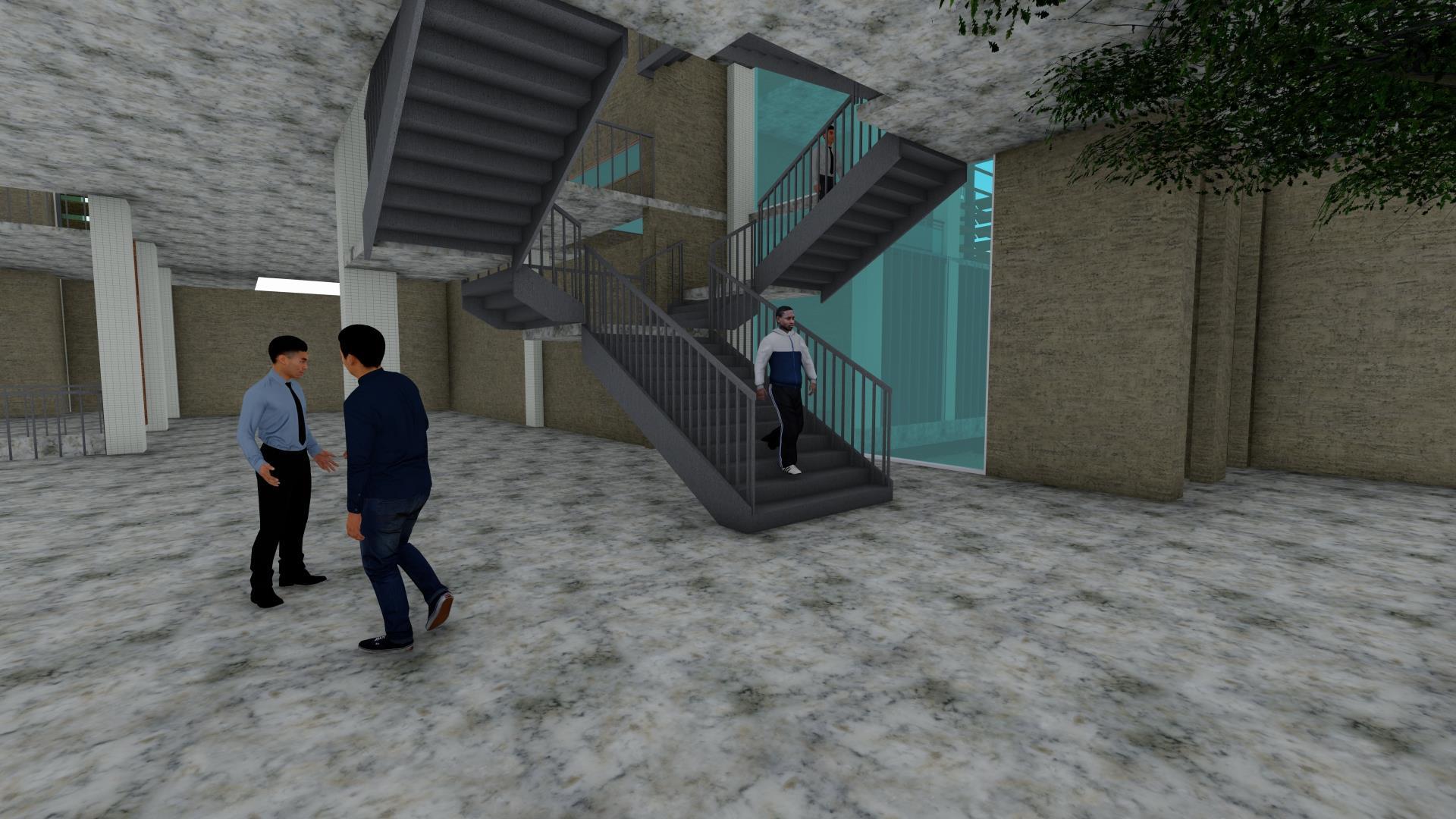

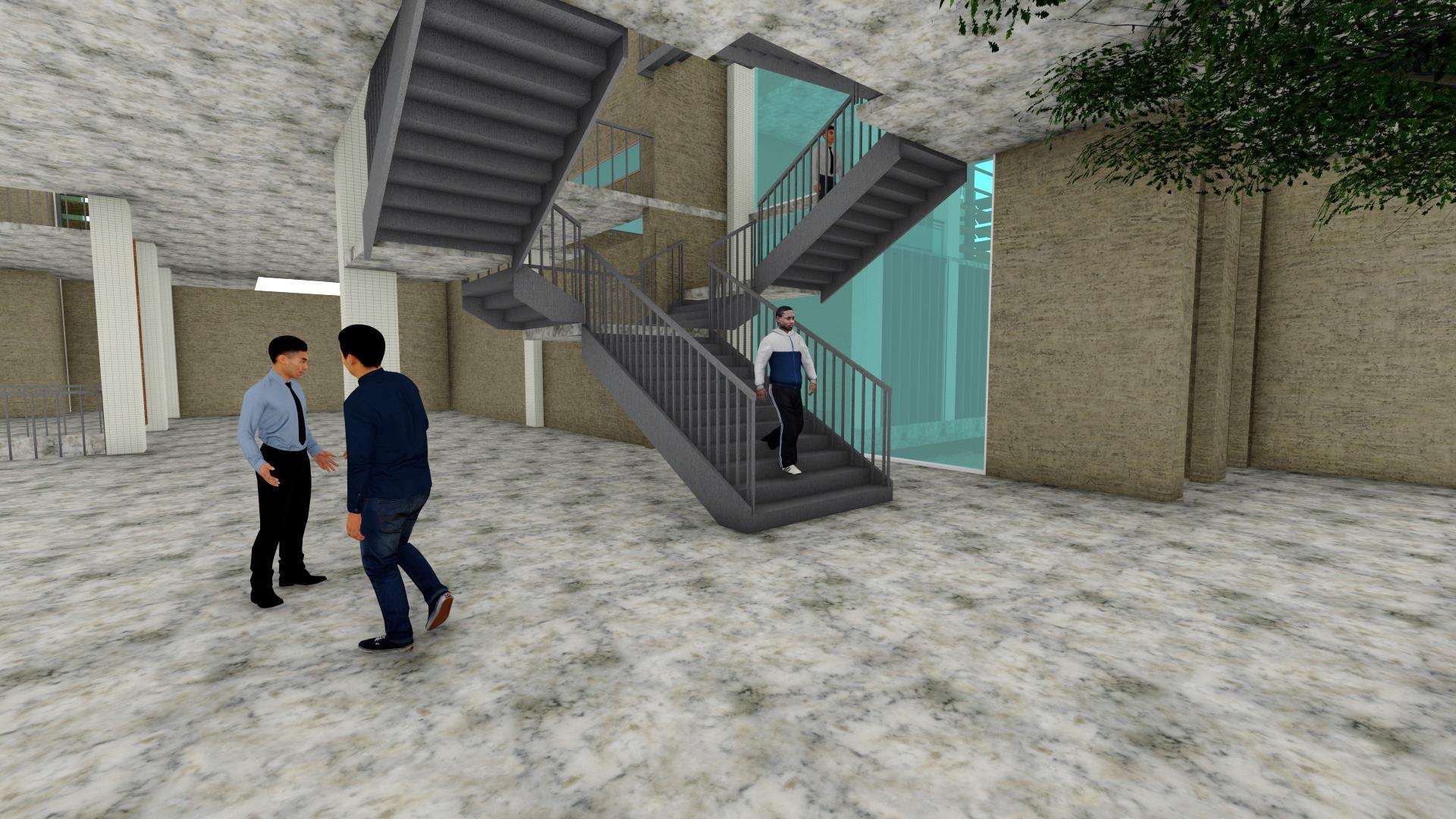

The placement of staircase is such that it is always well ventilated due to the northern light, also it reduces the crossing of crowd climbing in opposite direction
WANJARI HIMANSHU
RN. 055 SEM VI

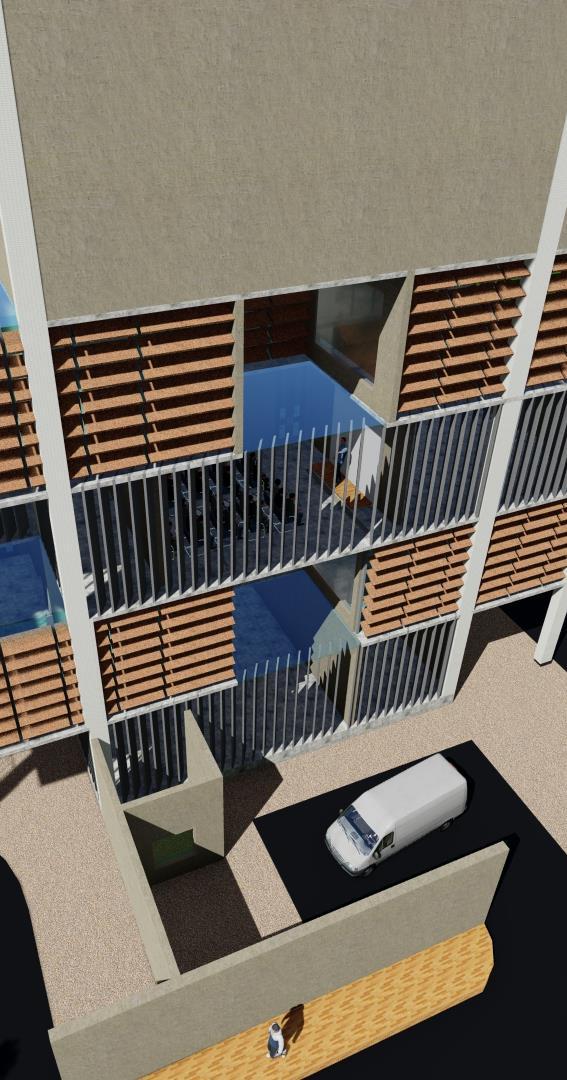

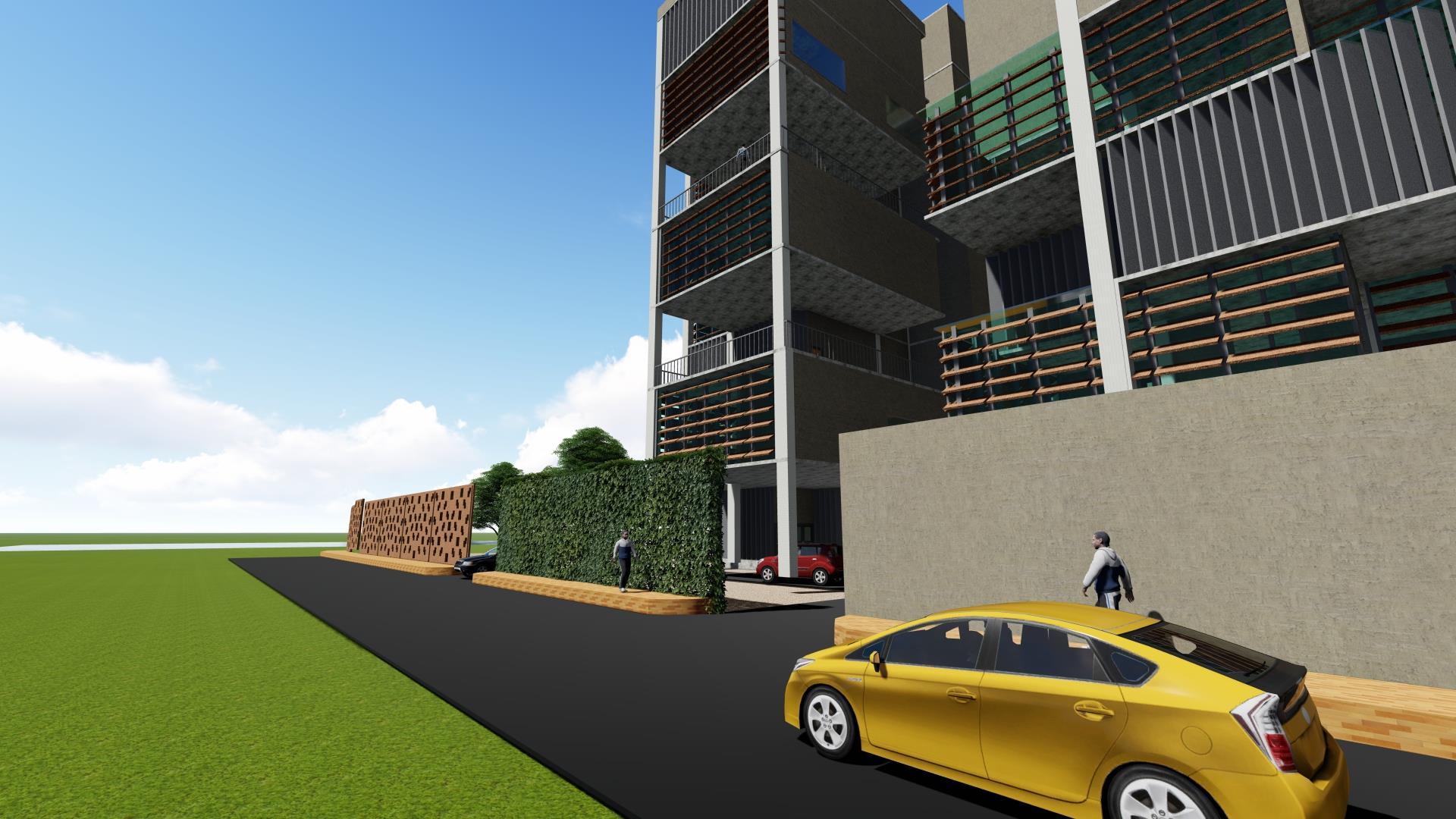

Vehicle drop off point with reception desk
SHEET TITLE PHOTOS SHEET 1 34

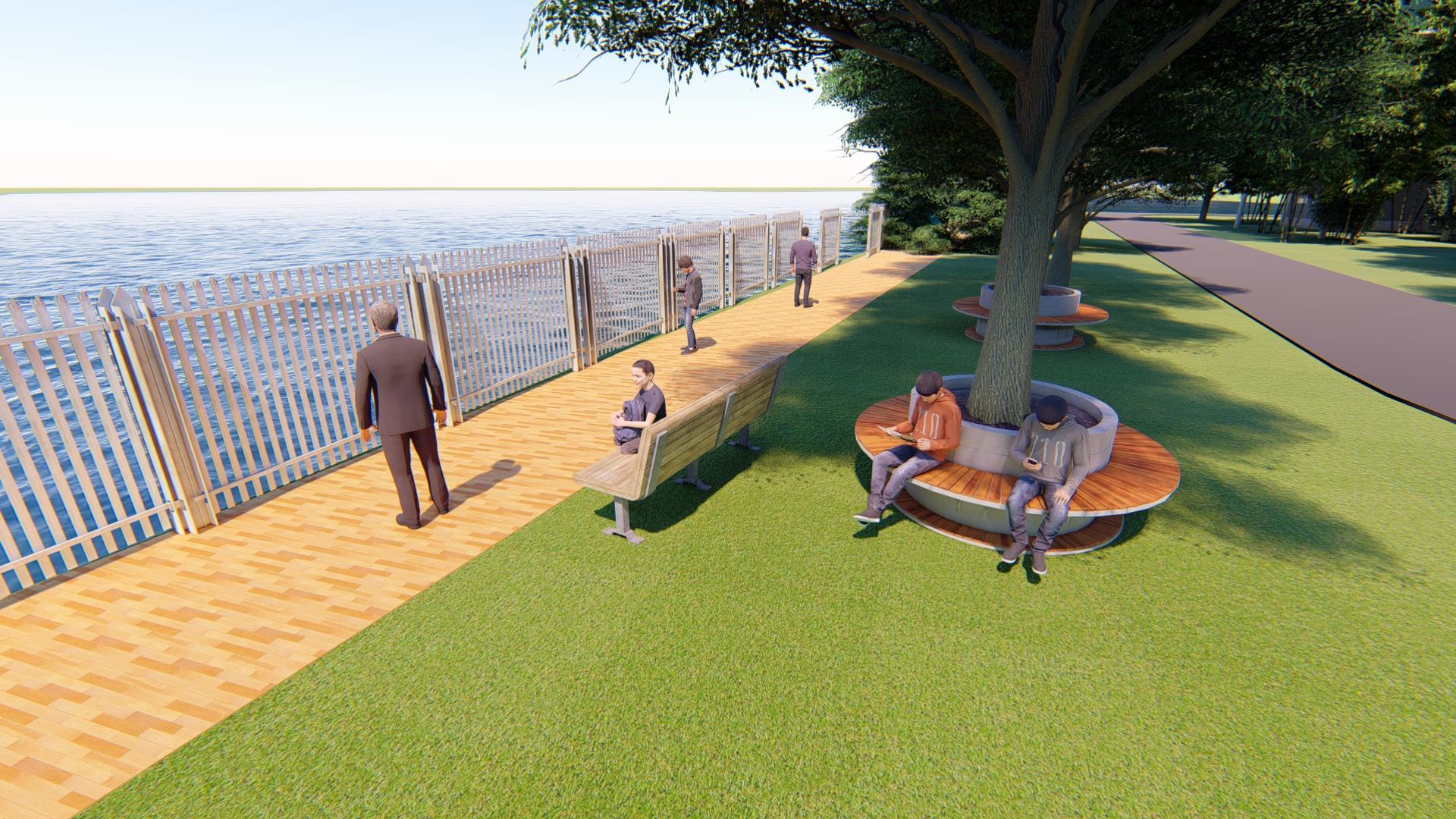

Wooden deck promenade on the western edge bordering he Arabian sea

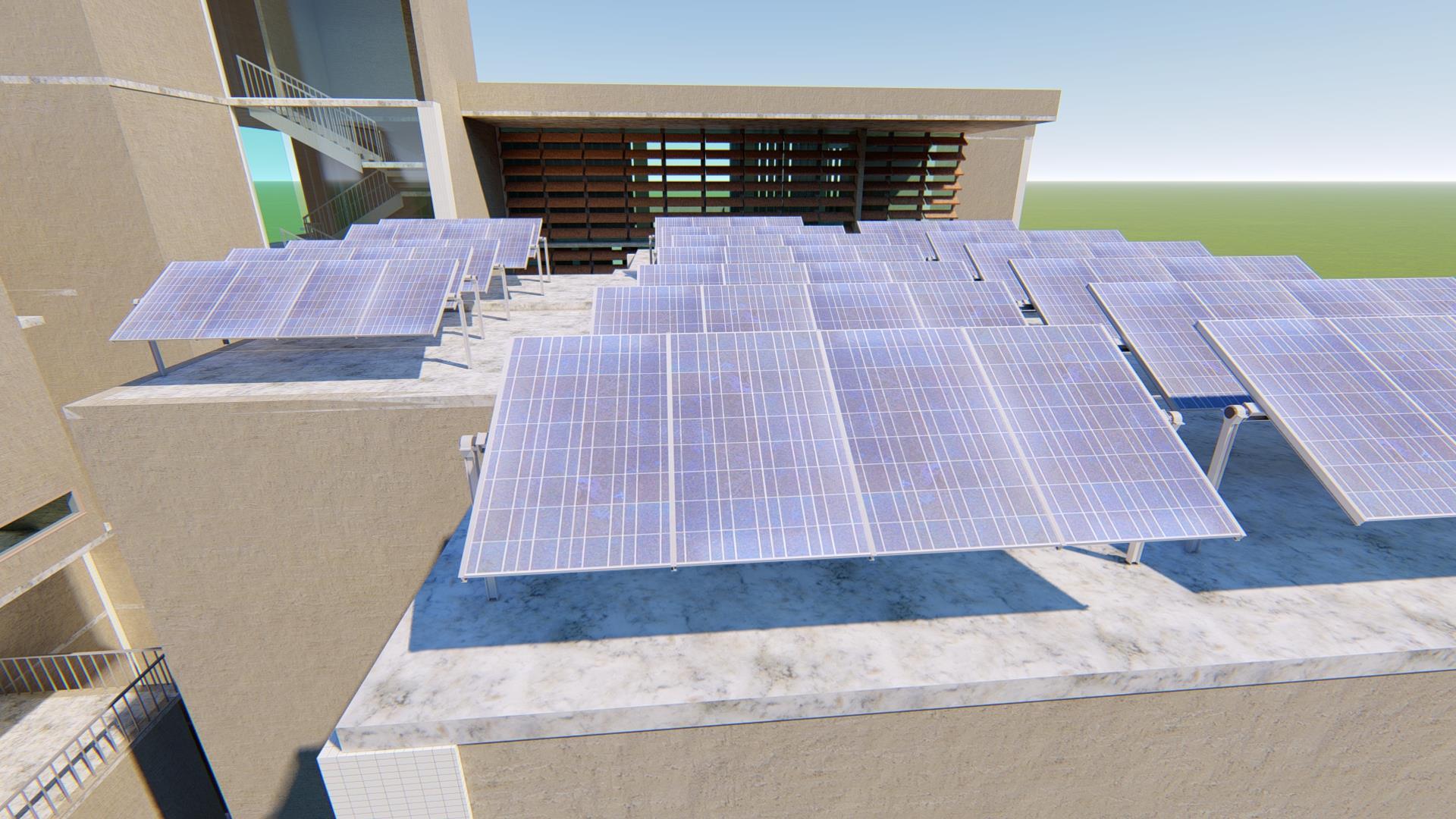

On southern side, the roof over the black box have the solar panels to get sunlight
Trees along the promenade, seating can be introduced for the students and can be made as a recreational space.
AND SOLAR ROOF
Key plan
WANJARI HIMANSHU
RN. 055 SEM VI 35
SHEET TITLE PROMANADE

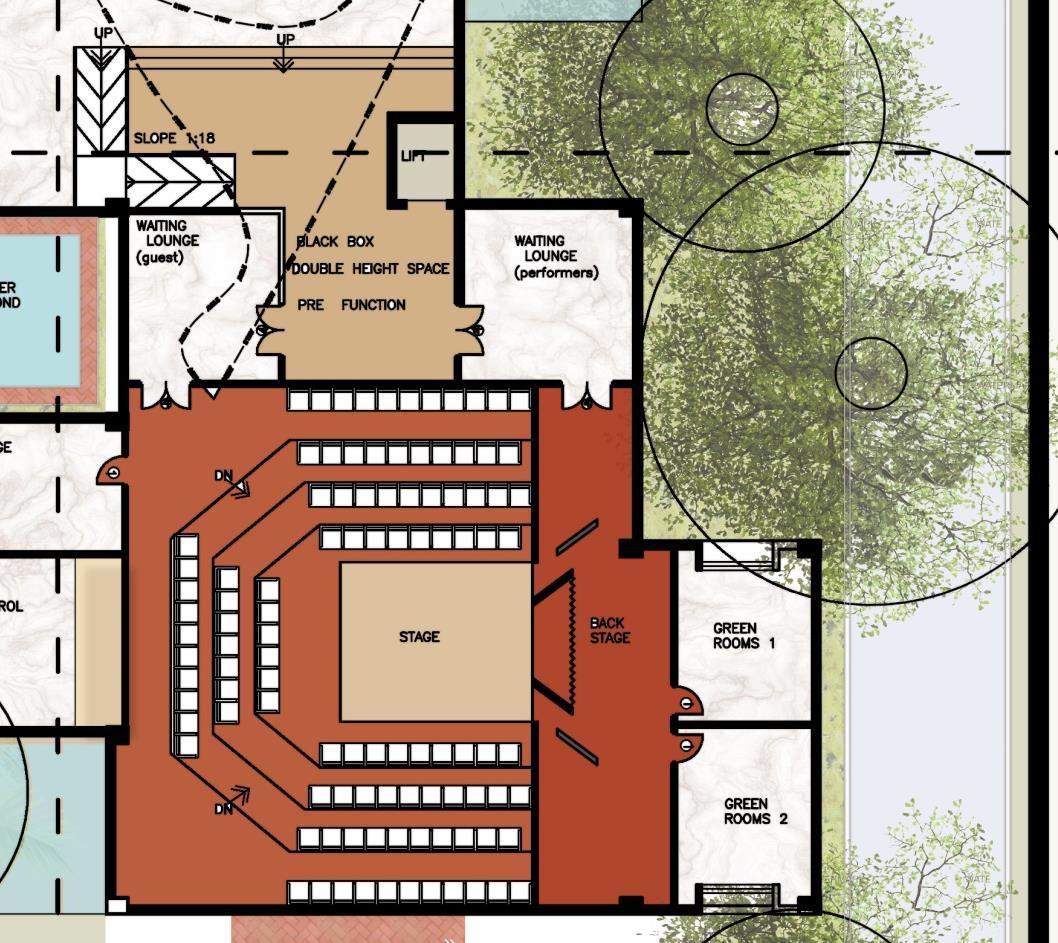

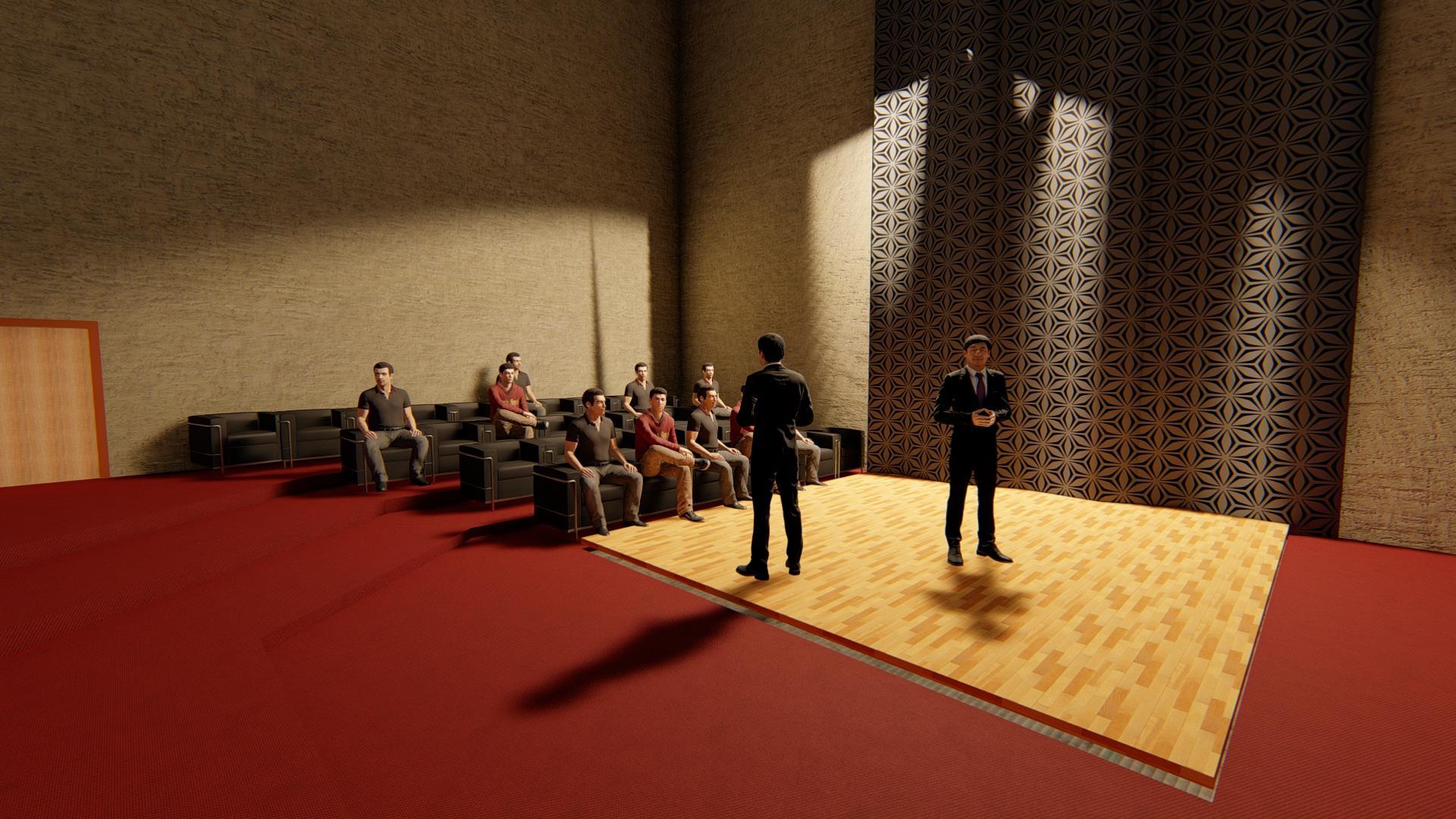

The black box space, suitable for viewing presentations, giving lectures and also accommodates for debates due to the placement of furniture.
Key plan for black box
Key plan for pathway and cafeteria

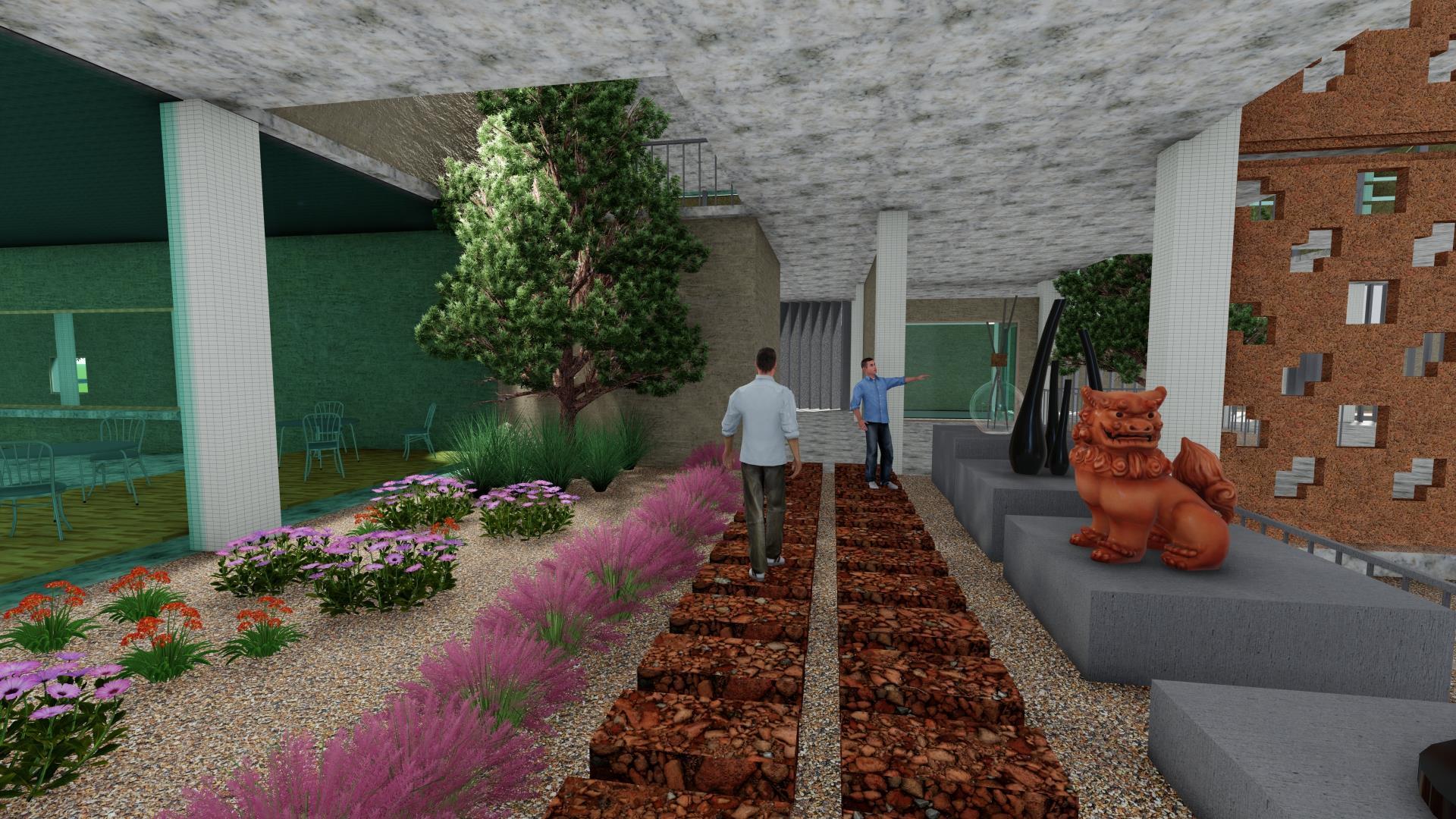

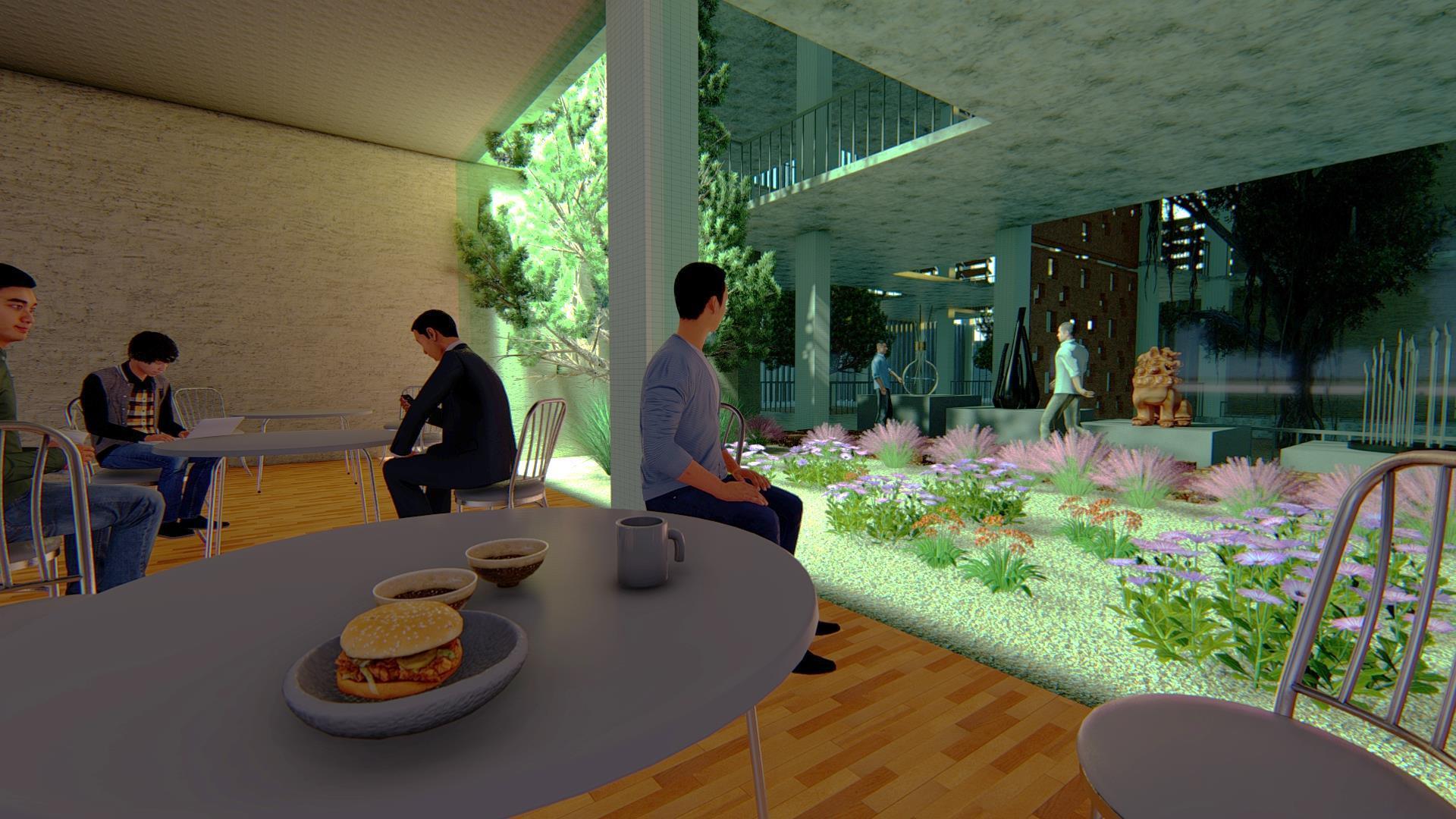

The pathway leading to the science gallery from the lobby area, giving a feel of nature within the structure
WANJARI HIMANSHU
RN. 055 SEM VI
SHEET TITLE PHOTOS SHEET 2 36

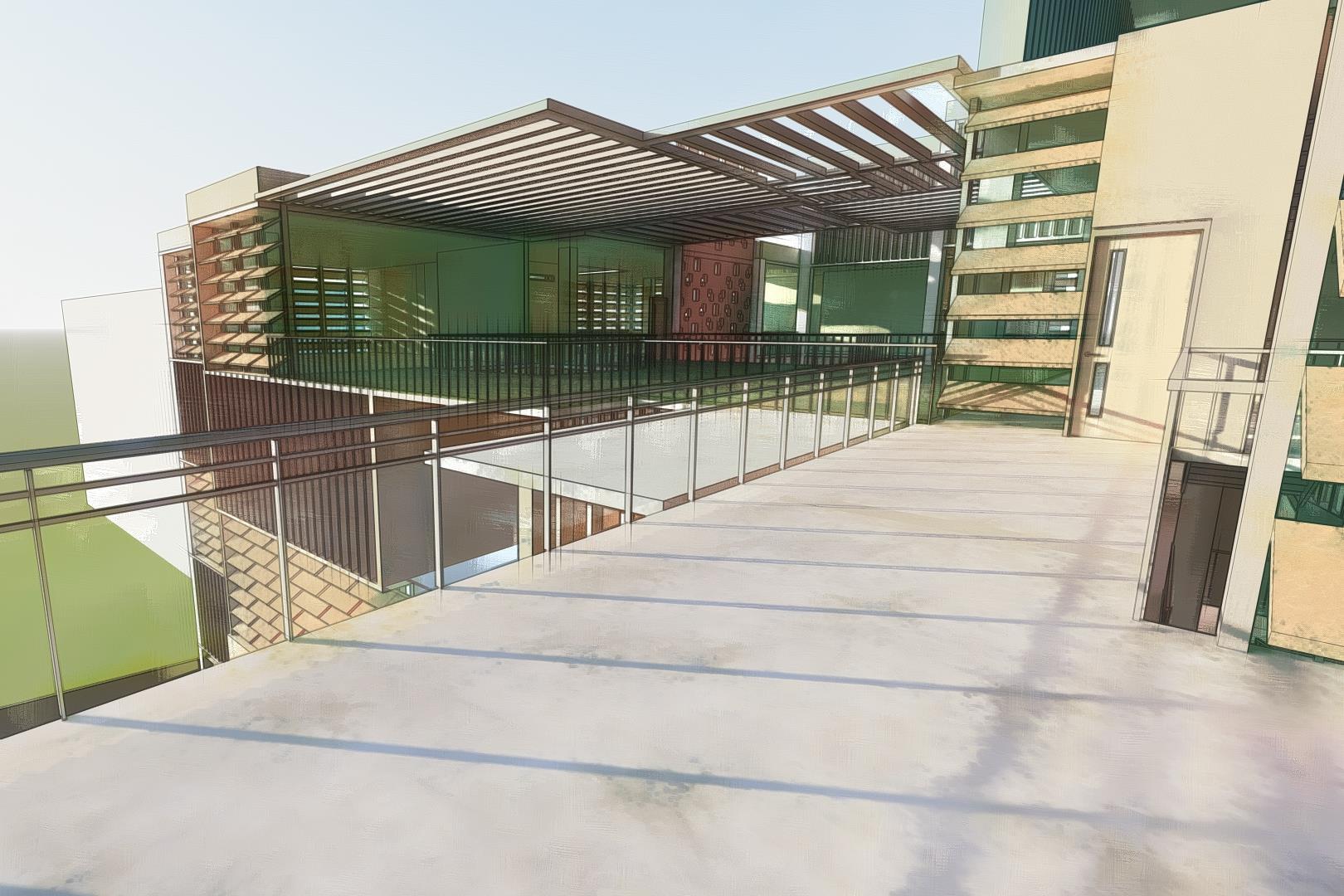

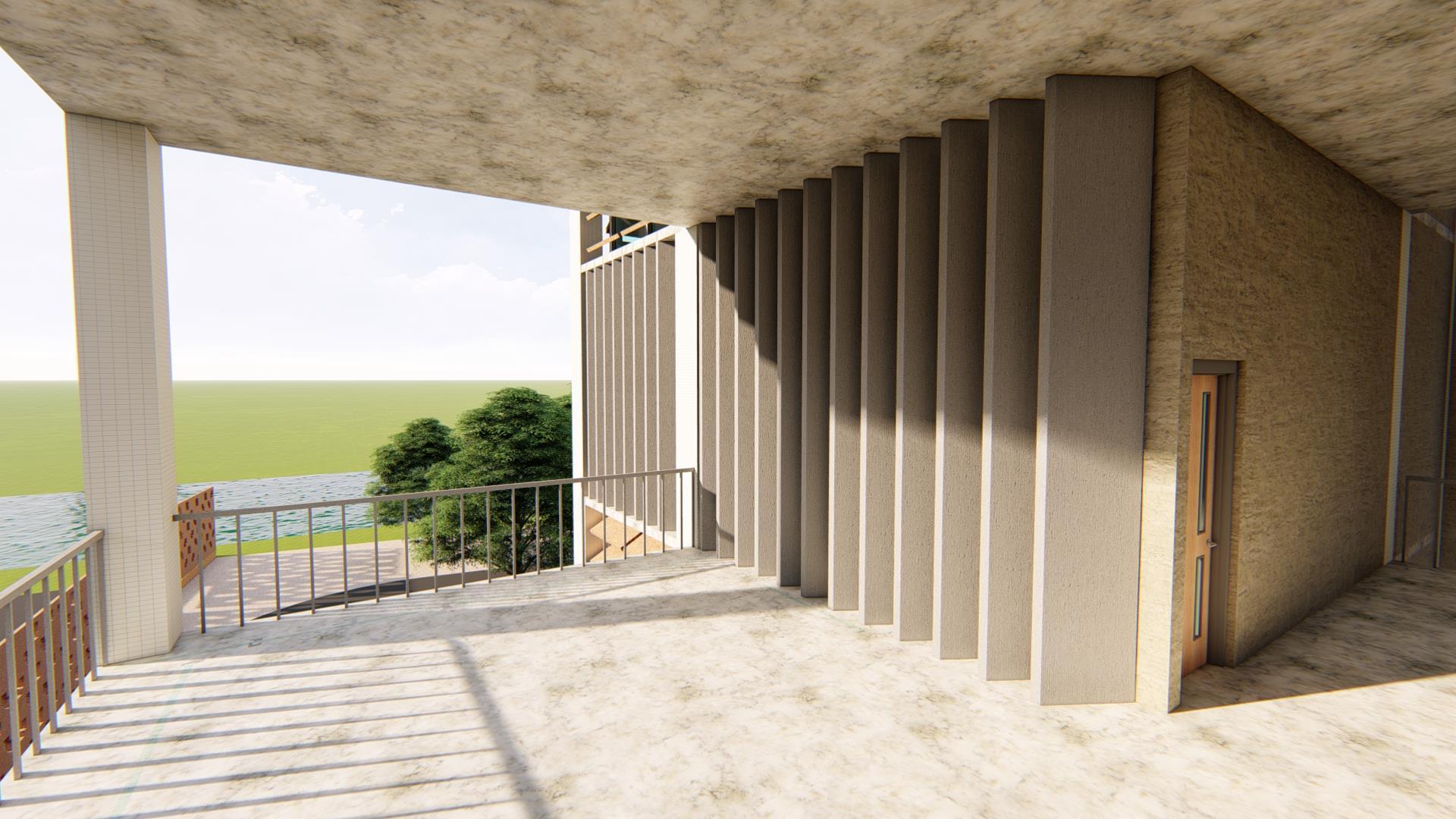

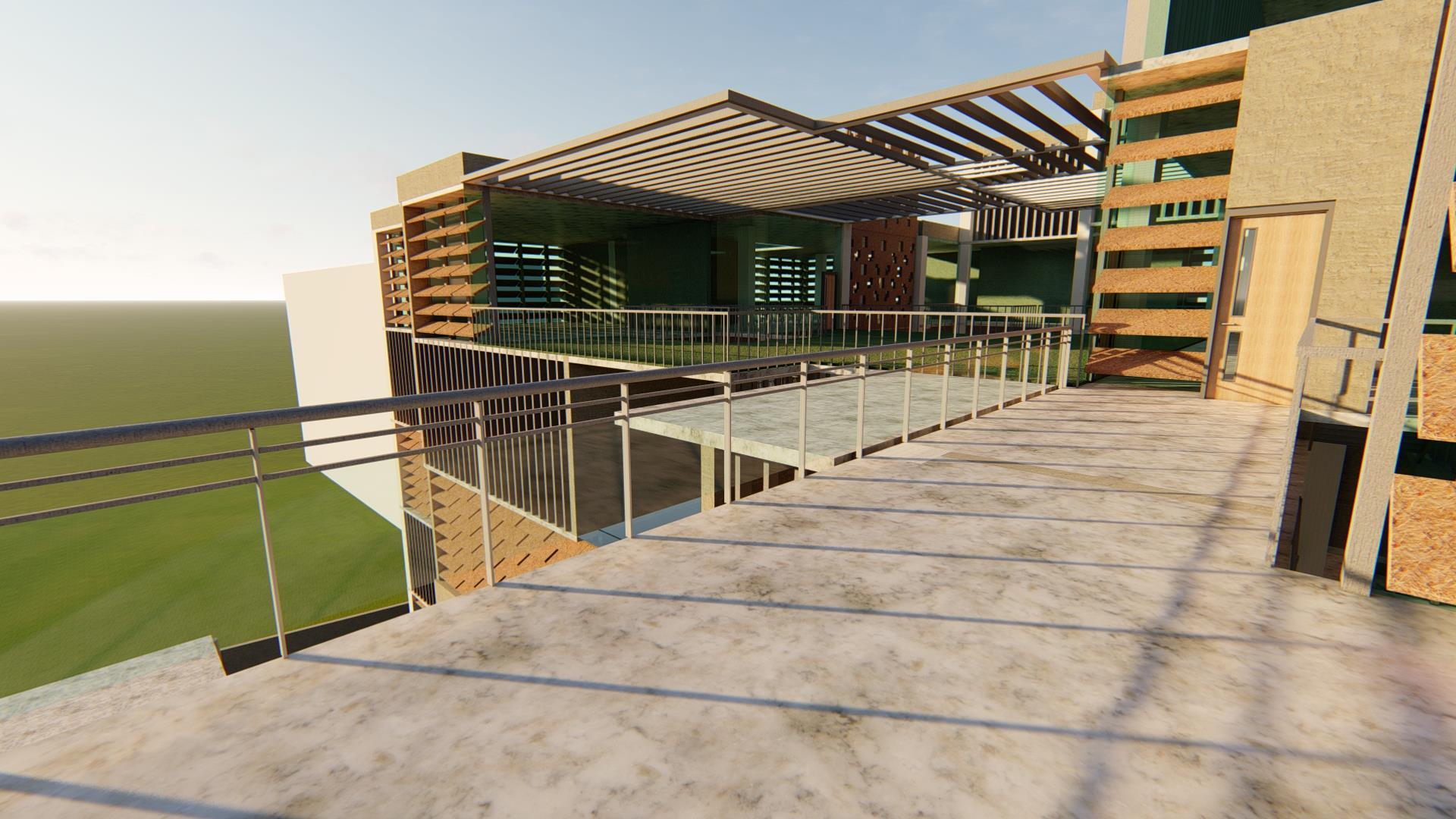

The open balconies/terraces serves to the recreation and breaks from workshops and seminars for the visitors and provide fresh air along with splendid view of the sea and TIFR campus

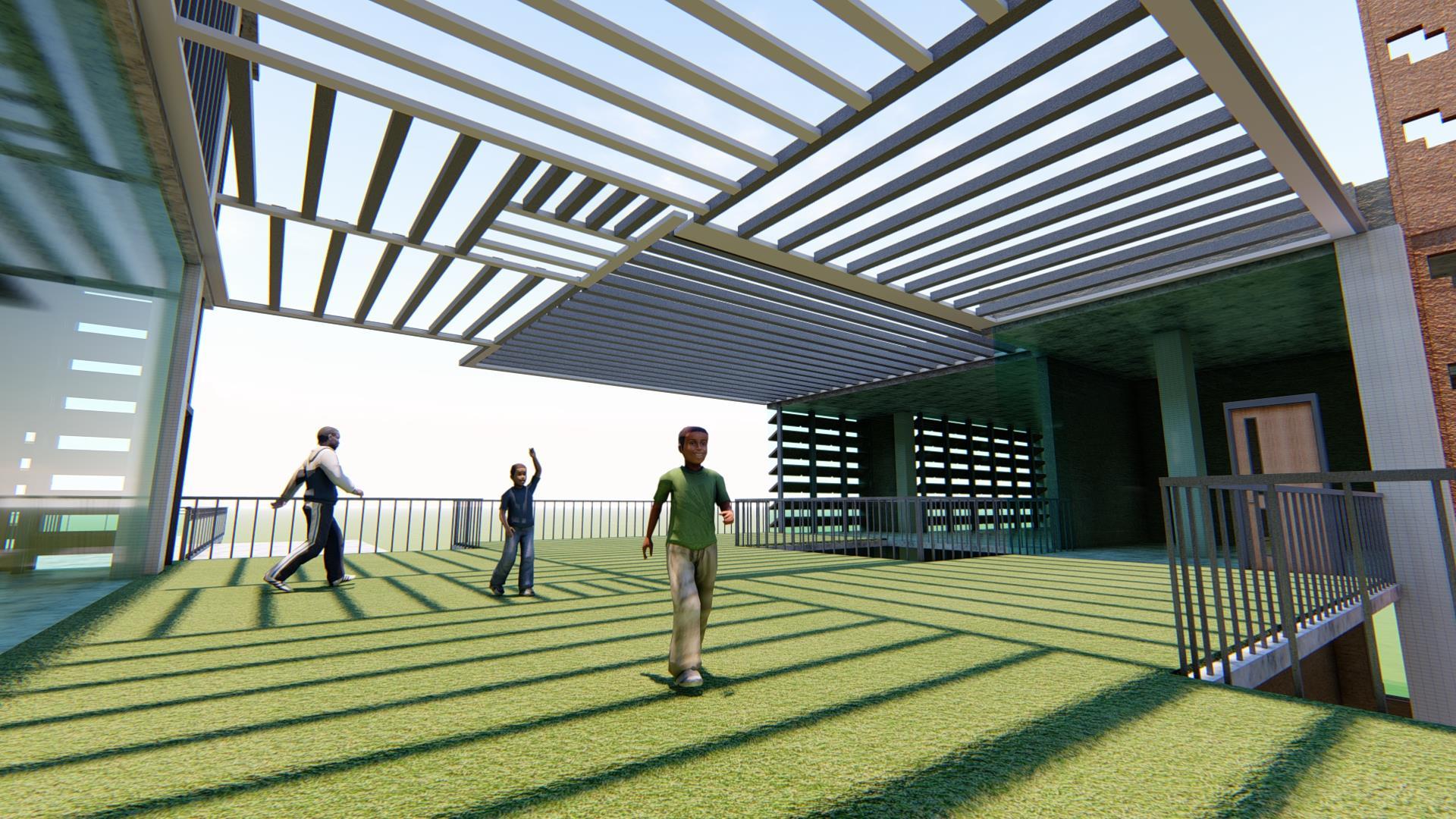

The semi open terrace space is a multipurpose space, can be utilized for outdoor seminars or workshops or simple a connect with the nature with the grassed surface opening to the sea.
WANJARI HIMANSHU
RN. 055 SEM VISHEET TITLE PHOTOS SHEET 4
37

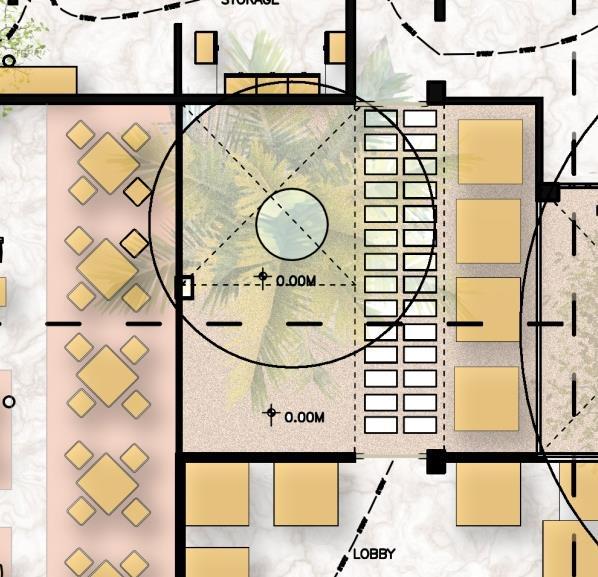

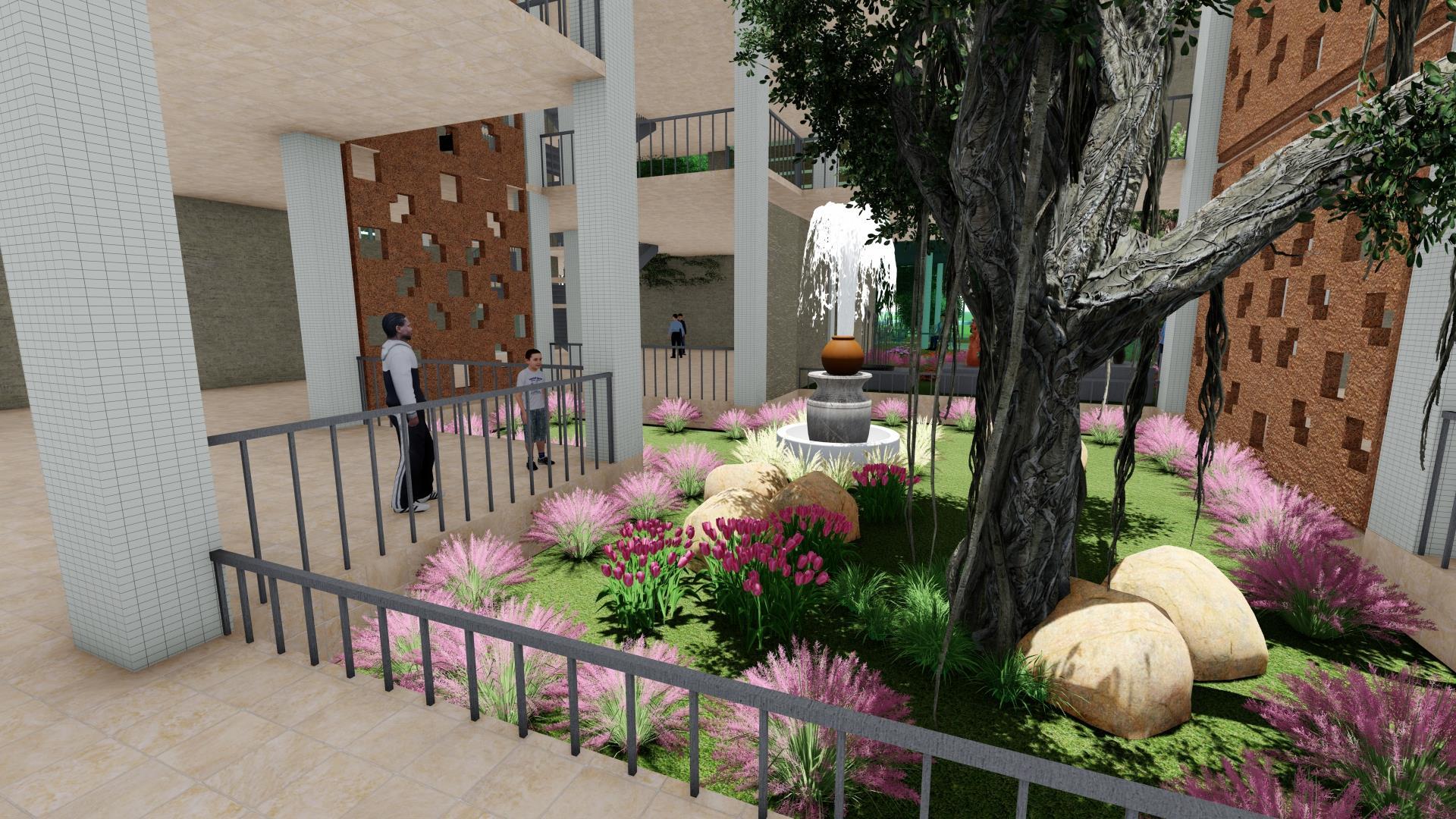

The indoor courtyard accepts the tree in it’s natural state and brightens up the area in it’s surrounding creating a nice natural buffer inside an enclosed structure
The fountain present in this courtyard creates a lively atmosphere with it’s appearance as well as the sound of falling water
WANJARI HIMANSHU
RN. 055 SEM VI 38
SHEET TITLE PHOTOS SHEET 5

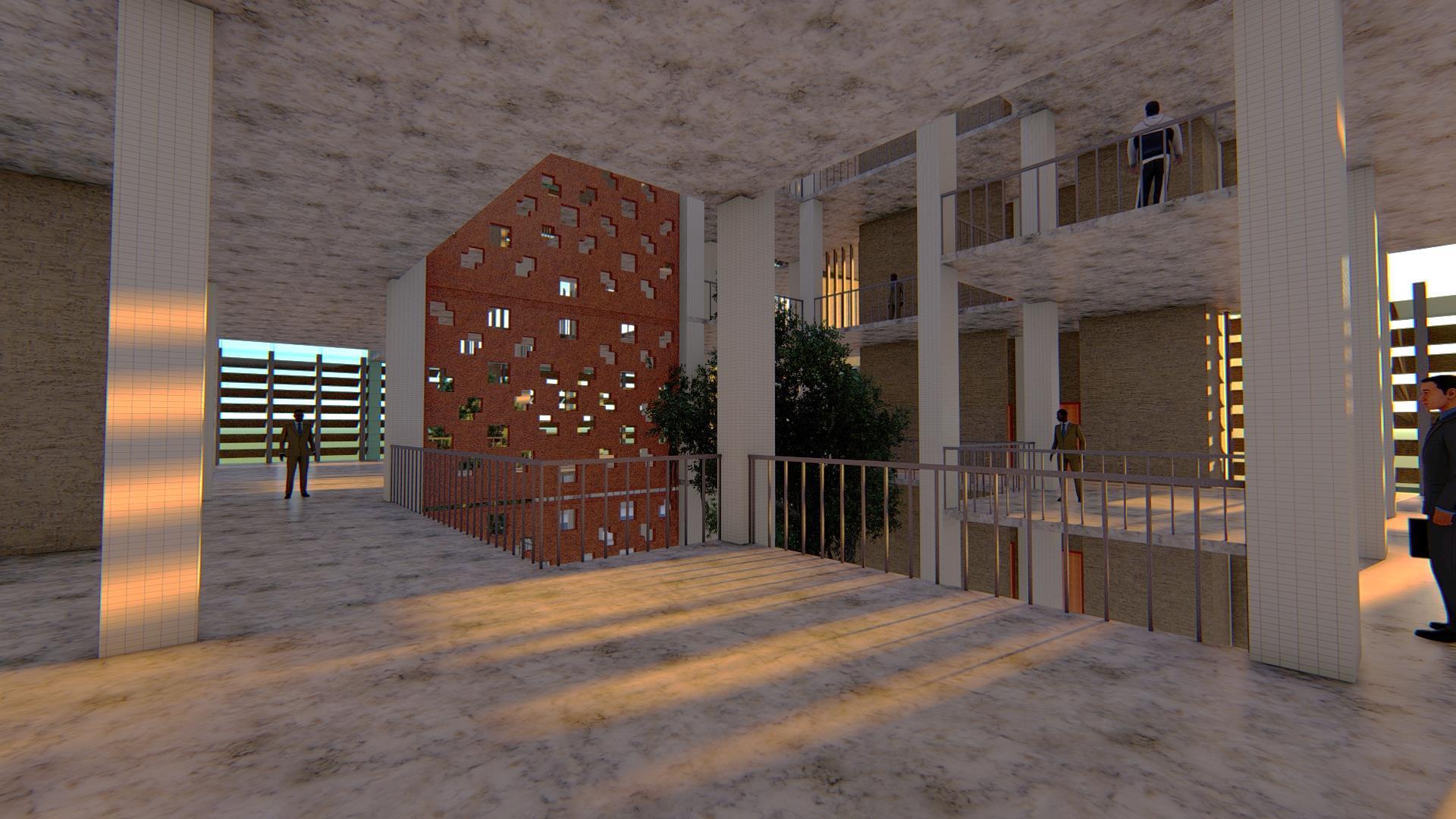

Lobby space, facing the courtyard and showing the wall located at the mid-landing of northern staircase.

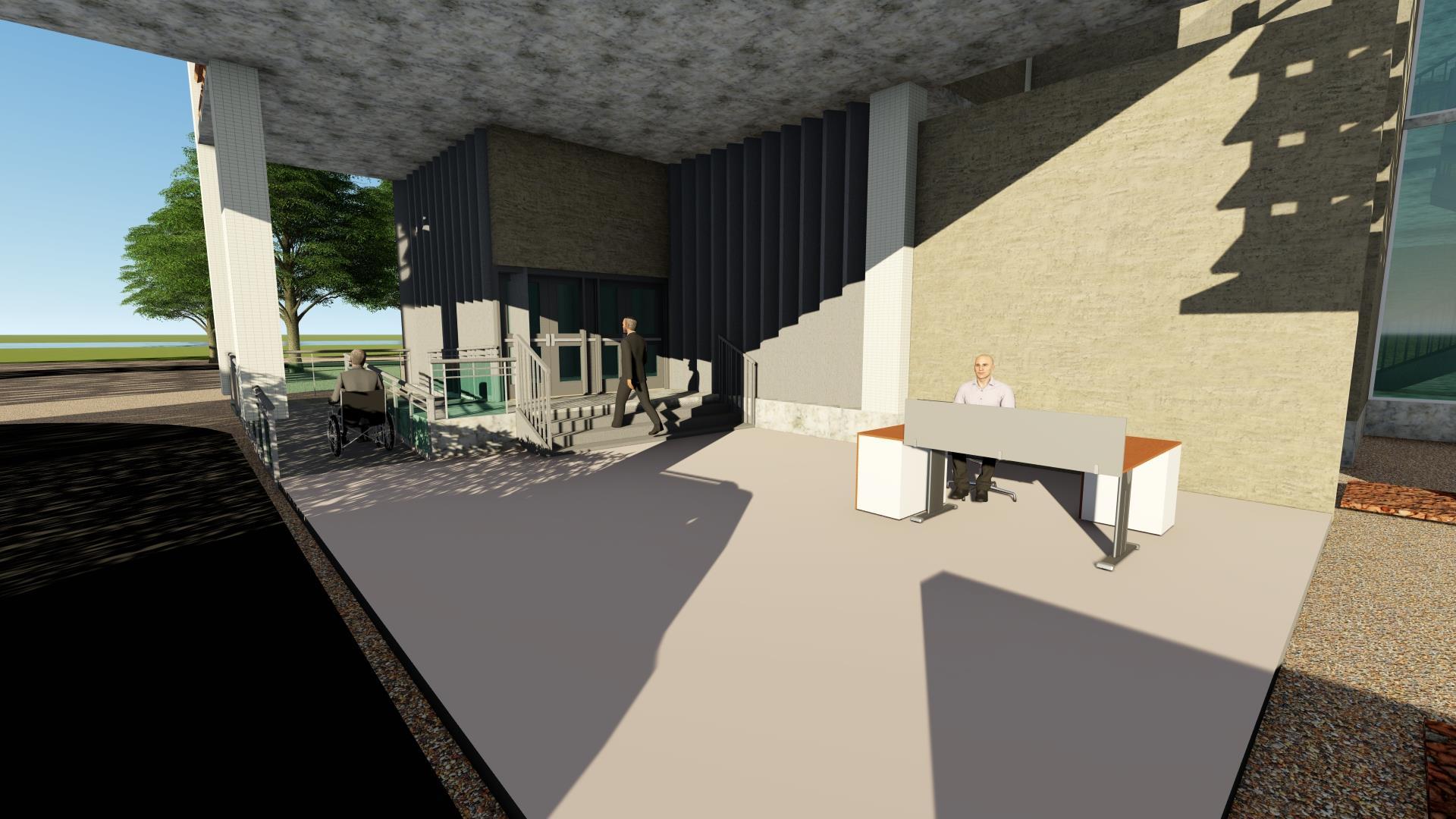

Vehicle drop off point and reception

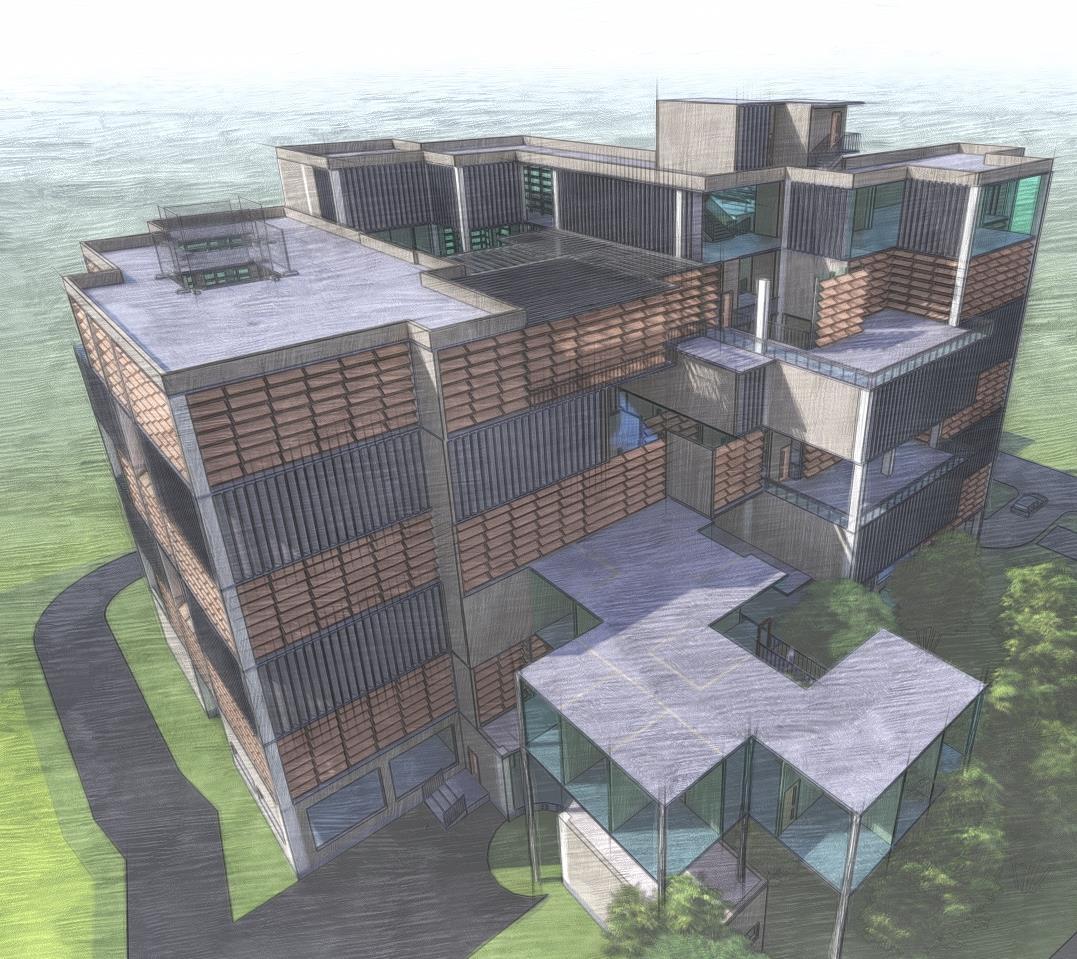

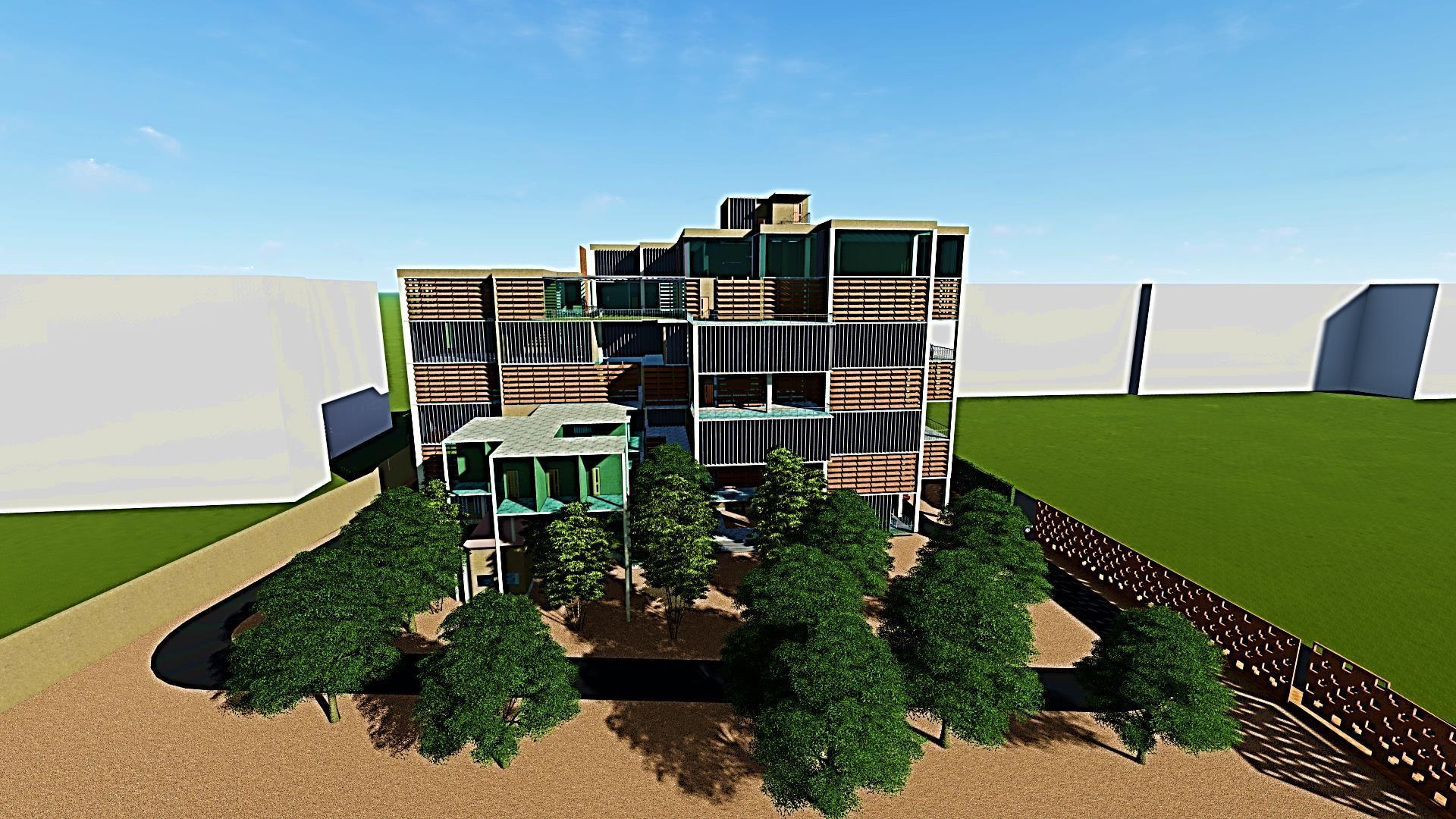

Sketch of structure from North western side
WANJARI HIMANSHU
RN. 055 SEM VISHEET TITLE PHOTOS SHEET 6 39
