Hik Insight Issue 18-Jul-Aug 2023

Issued by HIKVISION SOUTH AFRICA

All rights reserved.

Technical Support: support.sa@hikvision.com

Call Center

+27 (0)10 085 8300

WhatsApp Group: +27 (0)60 441 3111

Social Media

Hikvision South Africa

CONTENT

01 Products

 Smart Hybrid Light Cameras with ColorVu

 Turbo HD Smart Hybrid Light Cameras with ColorVu

 Turbo HD Lamp Camera 18D0T-LFS

 NEW Solar-powered Security Camera Setup

 3xx6G2H Series Cameras

 DS-K1T6240 Series Portable Face Recognition Terminal

 DS-K1T805 Vandal-proof Access Control Terminal

 DS-KP6000 Series IP Phone

 Call center & Whatsapp Support Update

 Introducing Hikvision's New Complaints Email

 FREE--Hikvision Instructor-led Onsite Training

03 Hik News

 NEW video released

 2023 Hikvision TECH EXPOsure Event Invitation

 Hikvision technology makes a difference in saving Sumatran endangered species

 How Hikvision eDVRs maximize storage efficiency and predictability

 Greener packaging: Hikvision increases sustainability by using eco-friendly materials

01 PRODUCTS

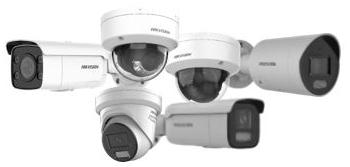

Smart Hybrid Light Cameras with ColorVu

Smart Hybrid Light Cameras with ColorVu are the newly released cameras that equipped with some powerful technologies. The first is ColorVu technology, which can realize 24/7 colorful imaging and provide rich color information. The second is Smart Hybrid Light technology Combined with Motion Detection 2.0 or AcuSense technology, the camera can flexibly switch between 3 modes — IR mode, white light mode and smart mode to provide more choices for users. In addition, the camera can be used in a variety of scenes, the users who use IR light before, now can enjoy excellent low light effect, because most of the time the camera without any supplemental light can render colorful images. In short, whether the demand is 24/7 colorful imaging, or excellent low-light performance, or colorful human/vehicle targets at night, this cameras can be satisfied.

BACKGROUND

Even in the ultra-low light environment, the cameras with ColorVu can still bring us excellent image experience, when working with intelligent DVR, we can get color human/vehicle targets through video search and playback. In addition to the traditional application scenes of ColorVu, there are some other scenes that also apply to ColorVu technology, but maybe some concerns:

1.Indoor scenes: unwilling to turn on lights indoors for a long time

2.The scenes that people worried about light pollution: camera with ColorVu will light on for a long time at night that may interfere the neighbors

3.The scenes that people worried about exposure of monitoring: camera with ColorVu will light on at night, it is easy to expose the camera’s position. For these scenes, Smart Hybrid Light Cameras with ColorVu can effectively reduce customer’s concerns, and provide better video coverage and user experience.

SELLING POINTS

1. ColorVu technology: F1.0 super large aperture, 7*24 colorful imaging;

2. Smart Hybrid Light technology: supports 3 supplemental lighting modes: IR mode, white light mode (by default), and smart mode; and the 3 light modes can be remotely configured by mobile App.

3. W hite light ON when person/vehicle occurs, and IR ON when person/vehicle appears: when there is no person/vehicle target, IR on to provide covert monitoring; when person/vehicle event is triggered, the camera automatically switches from IR to white light, and providing informative and clear color images, and warning intruders at the same time.

4.Super Confocal Technology: whether white light or IR light, the camera can always give clear and high-quality images.

PRODUCT SHOWCASE

Network Smart Hybrid Light Cameras with ColorVu

DS-2CD20X7G2H-LI(U)

DS-2CD21X7G2H-LI(U)

DS-2CD23X7G2H-LI(U)

DS-2CD2TX7G2H-LI(U)

DS-2CD26X7G2HT-LIZS

DS-2CD27X7G2HT-LIZS

1. High definition: 4/6/8 MP

2. ColorVu: 0.0005 lux @ F1.0, 1/1.8” sensor

3. Fixed lens: 2.8/4 mm; vari-focal lens: 2.8-12 mm, F1.2

4. IR distance: up to 40 m, white light: up to 30 m

5. AcuSense: person/vehicle classification

6. Live Guard: strobe light and audio alarm (to be released in June)

7. Eco-friendly: eco-friendly package, recyclable or degradable

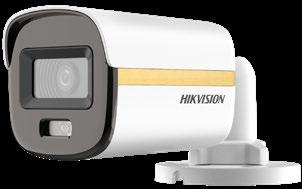

DS-2CE10DF0T-LPFS

DS-2CE10DF0T-LFS

DS-2CE12DF0T-LFS

DS-2CE70DF0T-LPFS

DS-2CE70DF0T-LMFS

DS-2CE72DF0T-LFS

1. 1080p, 2.8/3.6 mm fixed lens

2. F1.0 super large aperture, 0.001 lux

3. IR distance: 20/40 m; white light: 20/40 m

4. Built-in mic, audio over coaxial

5. IP67 (Indoor turret is excluded)

DS-2CE10KF3T-L

DS-2CE10KF3T-LE

DS-2CE12KF3T-L

DS-2CE12KF3T-LE

DS-2CE72KF3T-L

DS-2CE72KF3T-LE

1. 3K (2960*1665), 2.8/3.6 mm fixed lens

2. F1.0 super large aperture, 0.0005 lux

3. IR distance: 20/40 m; white light: 20/40 m

4. Power over Coaxial (-E）

5. IP67

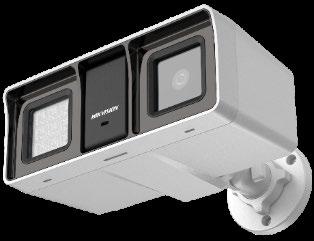

Turbo HD Lamp Camera 18D0T-LFS

Turbo HD Lamp Camera is designed for dual use. The left is the white light, and the right is the camera, it can be worked as security and lighting at the same time. The camera supports Smart Hybrid Light technology when worked with DVRs with Motion Detection 2.0 or DVRs with AcuSense, the camera can flexibly switch between 3 modes — IR mode, white light mode and smart mode to provide more choices for users.

With high brightness and strong directivity, the product is mainly used in application scenarios with strong demand for supplemental light:

1.Perimeter scenes, such as villas/residential areas etc., the camera can provide strong light warnings, and provide colorful key information;

2.Poor infrastructure scenes: one device for dual use, it’s cost efficiency and easy installation.

BACKGROUND

Why develop Turbo HD Lamp camera?

DS-2CE18D0T-LFS

1. With the popularity of ColorVu, white light cameras are gradually accepted by end users: They prefers colorful imaging They are getting used to white light on at night

2. Some areas have poor infrastructure which without street light and security product, so that the demand of dual use product is strong.

3. Some scenarios require security products with strong deterrence, they prefer large bullet or bright light.

For these reasons, the world's first lamp product was developed.

Turbo HD Lamp Cameras

SELLING POINTS

1. Unique lamp-looking design: 9 lamps with 40 m distance in the left, 2 MP camera in the right, and built-in mic and IR lights in the middle;

2. Smart Hybrid Light technology: 3 lighting modes can be switched flexibly as requirement: IR mode, white light mode (by default), and smart mode;

3. Low power consumption: Max. 9 W, a power adapter of 12 V / 1 A is enough.

TECHNICAL SPECIFICATIONS

1. 2 MP HD resolution, 2.8/3.6/6 mm lens

2. IR : up to 60 m; white light : up to 60 m

3. Built-in mic, audio over coaxial

4. IP67

NEW Solar-powered Security Camera Setup

Powered by sunlight, Hikvision’s Solar-powered Security Camera Setups help establish critical awareness in locations where power cords are difficult to deploy. Hikvision’s solarpowered product family continues to grow, adding multiple functions and formats – even kits you can design yourself for your unique application. The new-generation solar-powered products provide flexible viewing angles, simple deployment, and reliable performance for virtually limitless scenarios.

BACKGROUND

In scenarios like farms, forests, industrial lines and temporary events, people want to keep an eye on the key areas, but conventional monitoring system is not a good choice. The reasons are as follows:

1. There are no power supplies and Ethernet cables, and wiring may cost a lot of money and time. Especially for some temporary events, it is not very cost-effective to invest a lot for wiring. Besides, in some developed countries, the wiring cost per kilometer may far exceed the cost of electrical equipments.

2. Even if the conventional monitoring system is able to be installed, there are actually few valuable monitoring targets in these scenarios, and the long-term working of cameras will consume a lot of power, which is not environmentally friendly and also cost a lot.

The recent energy crisis has brought European electricity bills close to 400 euros per megawatt. In this case, even if the camera is deployed on a small-scale farm, the annual electricity bill may be close to a thousand euros. Not to mention wiring maintenance and other matters.

In response to these pain points, Hikvision released the Solar-Powered Security Camera Setup, which contains a solar panel, a battery, a 4G camera and a bracket. It is made to perform in areas where power supplies and ethernet cables can't reach. It also supply backup power in conventional power supply scenarios to resolve monitoring interruptions caused by power failures.

SELLING POINTS

1. Solar-powered security gets flexible:

Flexible viewing angles – Varifocal, PT, PTZs, and more, view from any angle and get expanded video coverage

Flexible deployment – Integrated design with 4G/Wi-Fi helps reduce installation time and costs, and built-in eMMC/SSD storage makes the whole system more lightweight

2. Designed for a variety of scenarios

Various scenarios – ANPR, AcuSense, radar and PIR detection, and more, multiple intelligent functions fit into various settings

All-day protection – 24/7 color imaging gives you protection all day and night

3. Stay strong, stay reliable

Reliable power storage – With long battery life and low power consumption, power is no longer a problem

Reliable performance – Anti-corrosion and IP67 means sturdy performance despite rain, dust and corrosion

PRODUCT FAMILY AND TECHNICAL SPECIFICATION

3xx6G2H Series Cameras

Ultra Series introduces the flagship new product 3xx6G2H series. Supporting DarkFighterS technology, smart hybrid-light mode, and environmentallyfriendly low-power mode, this product will bring customers a brand-new and high-quality security experience. Equipped with edgebased AI analytics, HEOP 2.0 open ecological system and other features, 3xx6G2H cameras can provide operators with a wealth of intelligence services while increasing operational efficiencies.

4/6/8 MP

DS-2CD30x6G2H-LIU

DS-2CD31x6G2H-LIS(U)

DS-2CD33x6G2H-LIS(U)

DS-2CD3Tx6G2H-LIS(Y)

BACKGROUND

4/8 MP

DS-2CD36x6G2HT-LIZS(Y)

DS-2CD37x6G2HT-LIZSU(Y)

High definition, low-light illumination and edge intelligence are main tendencies of IP cameras; 3xx6G2H is the top tier of 3 series and has competitive hardware and software performance that gives it an edge in project competition. On the one hand, AI analytics, as well as integrated open ecology can broaden business scope. On the other hand, 3xx6G2H series has a large aperture, high-efficiency sensor and IR-white dual light, providing a high-quality night vision monitoring experience, but also a good replacement of 3xx6G2, 3xx7G2 series.

SELLING POINTS

4. DarkFighterS technology：Surprising Low-Light Imaging, Smart Hybrid Light

5. Edge-based AI analytics: Built-in face capture, intelligent perimeter, regional people counting and cross-line people counting a total of 4 AI algorithms and can be switched to use

6. HEOP2.0: Providing algorithmic services for operators to achieve more specific services

7. 4K HD, ultra-low illumination technology, 4 streams and other outstanding performance to ensure quality security experience

8. Up to 40% energy savings in low power mode

9. Specific models support environmentally friendly packaging

TECHNICAL SPECIFICATIONS

1. 4/6/8 MP HD resolution, fixed lens and vari-focal lens

2. F1.0~F1.2, up to 0.0005 Lux @ F1.0

3. Built-in dual light, support smart hybrid light technology

4. Built-in 4 intelligent applications

5.Support HEOP2.0, 1.5 TOPS computing power, 60 MB Memory, 400 MB Smart RAM, 2 GB eMMC

DS-K1T6240 Series Portable Face Recognition Terminal

Hikvision DS-K1T6240 Series MinMoe is a portable face recognition terminal. With built-in battery, you can take it to any area for access control & time attendance function.

Background

In underground work of mining industry, to avoid illegal miner. Every team leader need to have a mobile T&A devices to verify the underground workers. Besides, the load shedding is also a series trouble for the devices, with battery built-in, this facial can help to overcome the black period.

Selling Points

 Built-in Lithium Battery last for 3.5-5 hours

 4G & WiFi Option for Mobile TA

 Powered by deep learning algorithm

 4.3-inch touch screen

Technical Specifications

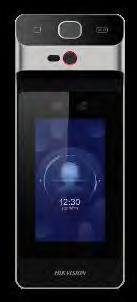

DS-K1T805 Vandal-proof Access Control Terminal

Hikvision DS-K1T805 Series is latest Vandal Proof Access Control Terminal for distribution. We can see its appearance. Its slim design makes it more suitable for installation in space limited area.

Background

As an entry-level product, it also supports Multiple Authentication Methods , such as card, fingerprint, PIN code and Bluetooth. Its higher protection level IP65 & IK08 ensures that it can be used in the harsh environment. Besides, AP mode and Remote Control functions make the usage experience a lot better. As for AP mode, devices can be used as a hotspot, which means they offer a wireless connection to the internet, and we can attach our smart phones to hotspots. Users only need to activate the device with their mobile phones. At the same time, like 502 series, it supports Remote Control Via Hik-Connect Mobile App or mobile web. So we can recommend 805 to customers who want to choose Vandal Proof Access Control Terminal and are very sensitive to prices. Or they want to choose Vandal Proof Access Control Terminal but their installation spaces are limited. With robust aluminum alloy design, it is hard to be damaged.

Selling Points

 Slim design for installation in space limited

 Robust IP65&IK08 protection

 Simple web configuration, using AP mode on mobile or PC client.

 Remote control via Hik-connect mobile app or mobile web

Technical Specifications

Module DS-K1T805MBFWX

Capacity 3,000 fingerprints, 10,000 cards, 100,000 events

Bluetooth Support

Network Wired network & Wi-Fi

DS-K1T805 Series

Communication 1*RS 485, 1* Lock Control, 1* Exit Button, 1* Door Contact

Hik-connect Support

Protocol OSDP, Weiegand 26/34,

Protection Level IP65 & IK08

Material Aluminum alloy

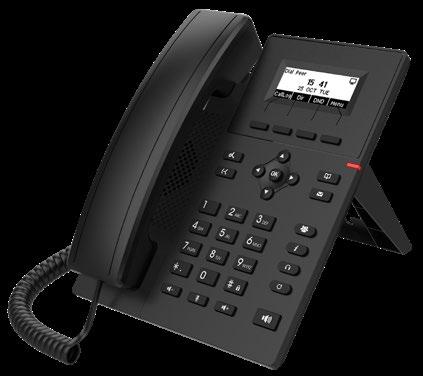

Hikvision DS-KP6000 Series SIP Phone is the latest IP Phone product The previous SIP Phone family are more focus on the video decoding function to build up a whole solution with Hikvision Video Door Station. The new IP Phone are more focus on the main steam SIP Phone market. We provide an entry-level IP Phone. With all the necessary VoIP features and other extended features like EHS headset, it provides the high-quality and convenient experience for users at an affordable price.

Selling Points

 2.3-inch 128x48 pixel dot-matrix display

 4 SIP Lines；33 physical keys

 Support audio codec G.722 and Opus, HD audio on speakerphone and handset

 Support 6-party local conference

 Support EHS wireless headset

 Dual 10/100 Mbps network ports, integrated PoE

 Two installation methods of desktop stand and wall mountable

Technical Specifications

Model

Display Screen

DS-KP6000-HE1

2.3-inch Dot-matrix display screen

Resolution 128x48

Communication Lines

Contact capacity

Call log capacity

4 SIP Lines

Local phonebook (1000 entries)

Remote phonebook (XML/LDAP, 1000 entries)

In/Out/Missed, 600 entries

DS-KP6000-HE1

02 Technical

Call Center & Whatsapp Support Update

We have updated our support channel this year, so in the future you can connect us by callcenter number & whatspp.

1, If you meet simple issues, such as password reset, hikconnect issue , firmware update or product configuration issue, you can call or email our callcenter team directly. Our callcenter support staff is always prepared to assist you with any technical issues you may be experiencing or if you wish to learn more about Hikvision products.

2, Big news, everyone! You can now reach us on WhatsApp to get technical assistance for troubleshooting issues, such as you can’t live view or playback on our VMS software, facial recognition issue, ANPR issue, etc. Save our WhatsApp number and drop us a message

New Videos Released

Meet the Hikvision's Smart Hybrid Light Camera with ColorVu

The DeepinView Series 7 Line Camera in a Retail Store

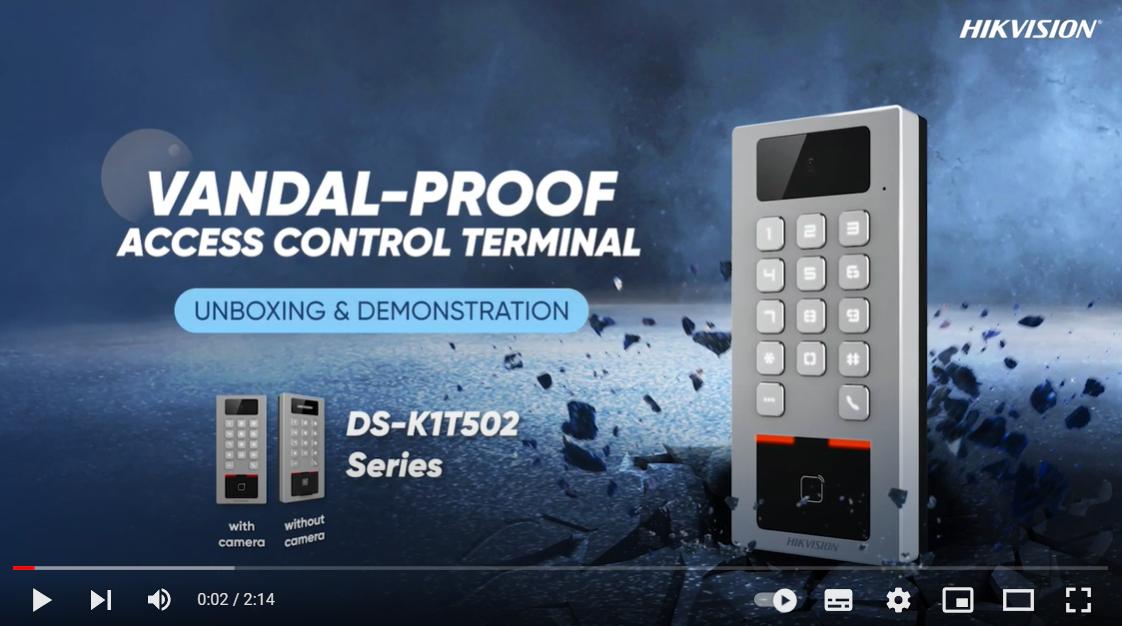

Vandal-proof Access Control Terminal DS K1T502 Series

Watch Video Watch Video Watch Video

Watch Video

Hikvision South Africa Partner Conference 2023

2023 Hikvision TECH EXPOsure

Hikvision technology makes a difference in saving Sumatran endangered species

Save our "furry friends"

Being a tropical lowland forest, the ABT area has very challenging conditions and high-level maintenance requirements. To play a positive role in this conservation project, Hikvision cameras help monitor the area 24/7. In addition, the cameras can also monitor the movement of animals using intelligent technology, especially the endangered species that may come across the area.

As long as animals come into the area under the coverage of Hikvision cameras, images can be captured. The wide home range of the Sumatran tiger and the Sumatran elephant makes it difficult to monitor them all. Therefore, the captured images of animals within the range are particularly significant. Hikvision cameras incorporate the latest technology that provides highquality images to assist observation of animals. In this way, the animals' activity patterns can be learned and further studied.

Fortunately, in February 2023, a Sumatran elephant was captured on camera within the ABT area. This rare sighting serves as a testament to the outcomes of diligent forest restoration and protection efforts. It also underscores the crucial role played by technology in ensuring the survival of one of Sumatra’s treasured endemic species.

To ensure the best possible images of the animals and accurately detect their activities, Hikvision has utilized advanced video technologies, including ColorVu. These cameras feature advanced lenses and high-performance sensors, enabling clear day and night images, so the activities of Tapirs, Sumatran tigers, and Sumatran elephants can be observed in detail with vivid color, even in low-light conditions.

Due to the challenges of deploying power supplies and network cables in the forest, Solar-Powered Standalone Security Cameras have become a more practical solution for off-grid monitoring. These self-sufficient units are waterproof and windproof.

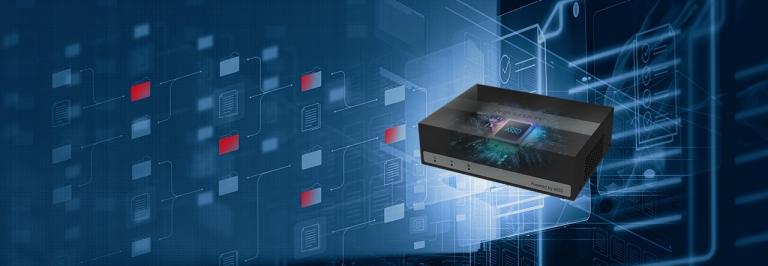

How Hikvision eDVRs maximize storage efficiency and predictability

Two attempts at making video storage more effective

The security industry has come up with various technologies and approaches to try to make video storage as efficient as possible. These include:

Variable bitrate technology

This looks at the scene and changes the bitrate according to the complexity – and the activity level. The plus point here is that the bitrate increases, and the image quality improves, when there’s actually something happening. The bad news is that storage requirements are totally unpredictable, giving operators no indication of how long footage will be stored before it is eliminated and ‘overwritten’.

Smart coding with a constant bitrate

This uses low, but constant, image compression to increase predictability of storage and to maximise storage efficiency. However, the bitrate is always the same, and the quality may not be good enough to take effective action in the event of an incident.

Overcoming the challenges with Hikvision

Instead of these legacy storage approaches, Hikvision is using an innovative technology called Scene Adaptive Bitrate Control to boost storage efficiency. This technology is embedded in all of Hikvision’s new eDVRs, which use eSDD storage instead of HDD drives.

To make storage as efficient as possible, the Hikvision eDVRs use variable bitrates – with more storage allocated temporarily for complex scenes. When there is nothing going on in the camera view, the bitrate is reduced dramatically, saving storage resources and extending the continuous recording time of the device.

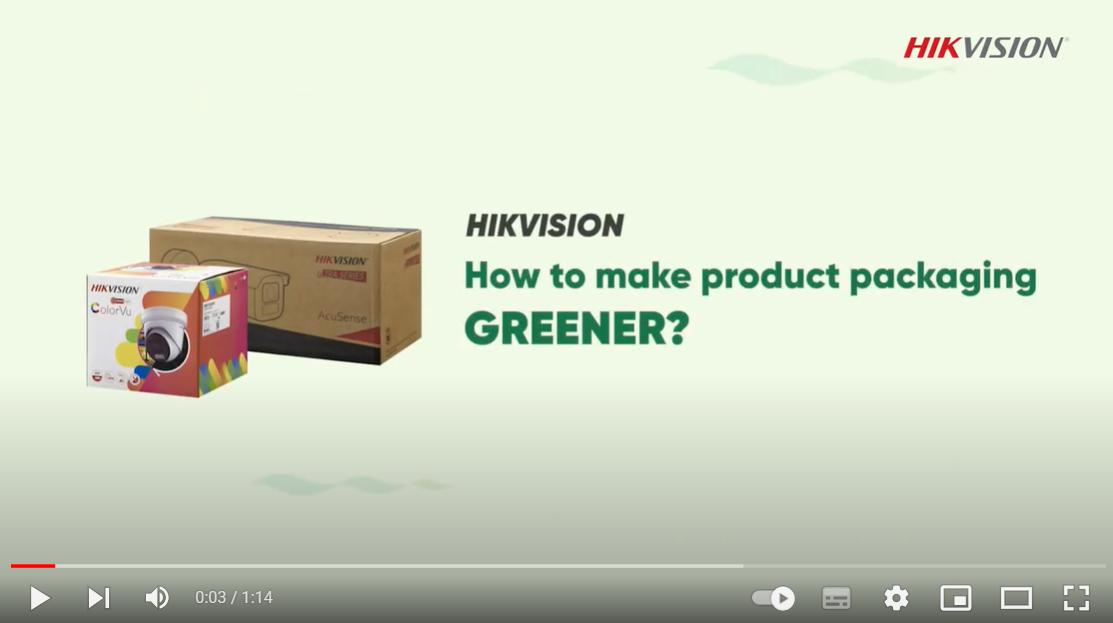

Greener packaging: Hikvision increases sustainability by using eco-friendly materials

Hikvision is constantly striving to increase the sustainability of our operations. One key way we are doing this is by using biodegradable and recyclable materials for our packaging, ensuring that we can minimize waste and protect the environment for future generations.

At Hikvision, we strive to reduce our own carbon footprint as an organization at every stage with green product development and manufacturing processes, careful waste management and recycling, and energy efficient office park operations.

One of the ways that Hikvision is increasing the sustainability of our operations is by ensuring that all packaging for our products is as eco-friendly as possible. In practice, this means continually refining packaging to maximize the use of green, biodegradable materials, and to eliminate polyvinyl chloride (PVC) and other non-biodegradable materials that have a negative environmental impact.
