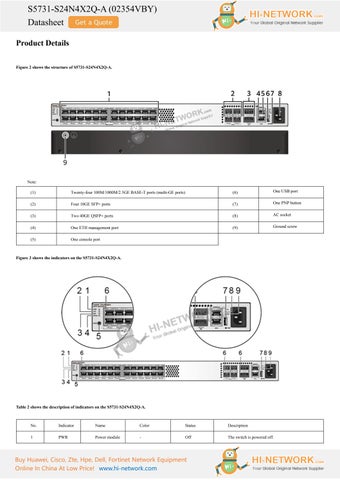

S5731-S24N4X2Q-A (02354VBY) Datasheet Product Details Figure 2 shows the structure of S5731-S24N4X2Q-A.
Note: (1)
Twenty-four 100M/1000M/2.5GE BASE-T ports (multi-GE ports)
(6)
One USB port
(2)
Four 10GE SFP+ ports
(7)
One PNP button
(3)
Two 40GE QSFP+ ports
(8)
AC socket
(4)
One ETH management port
(9)
Ground screw
(5)
One console port
Figure 3 shows the indicators on the S5731-S24N4X2Q-A.
Table 2 shows the description of indicators on the S5731-S24N4X2Q-A.
No.
Indicator
Name
Color
Status
Description
1
PWR
Power module
-
Off
The switch is powered off.
