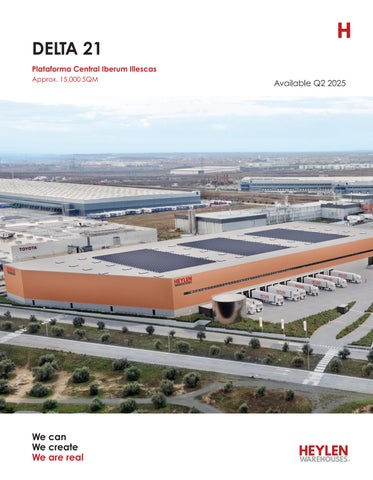

DELTA 21
Plataforma Central Iberum Illescas
Approx. 15,000 SQM
Available Q2 2025
Strategically located logistics hub
GENERAL INFORMATION
Plataforma Central Iberum stands as a trusted and proven hub for logistics and warehouse occupiers, highlighting exceptional connectivity to Madrid. It’s a prime location within the heart of the Iberian Peninsula. This park has emerged as a premier distribution and e-commerce center in Madrid, attracting key players like Amazon, GXO, Carreras, Groupe CAT, Toyota, Airbus, Michelin, FM Logistic, Correos Express, Seur, CBL, DHL and Zalando. Additionally, it has attracted other notable occupants in its vicinity, including Alcampo, DIA, Inditex, Action, Tendam and Movianto.
Delta 21 logistics and supply chain efficiencies are all about location and Delta 21 is strategically located for that reason.
STRATEGIC LOCATION
PORTUGAL
SPAIN
DELTA 21
ACCESSIBILITY
Delta 21 ideally located for local, regional and national logistics. Situated only 35 km from Madrid at exit Illescas on the A-42 highway and the new junction on the CM-41 highway, the development has excellent transport communications via the national highway network. It is within easy reach of Madrid, the south of Spain and Portugal.
CM-41 to A-5 Extremadura and Portugal
A-42 to Madrid and Circunvalanciones
CM-42 to Toledo and Andalucia
PLATAFORMA CENTRAL IBERUM
CM43 to A-4 Andalucia-Valencia
A-42
CM-42
CM-43
Delta 21
LAYOUT PLAN
WAREHOUSE
APPROX. 14,340 SQM
OFFICE
APPROX. 640 SQM
TECHNICAL ROOMS
APPROX. 146 SQM
TOTAL BUILDING
APPROX. 15,126 SQM
A GATEHOUSE
B SPRINKLER TANK C PCI
PARKING
56 CAR PARKING SPACES
2 CAR PARKING SPACES FOR DISABLED PEOPLE
2 CHARGING STATIONS FOR CARS BICYCLE PARKING
BUILDING SPECIFICATIONS
WAREHOUSE
• Storage height: 11.60 m
• 1 dock door per 900 sqm
• 1 ground level access door (4.00 m x 4.70 m) per unit
• Floor load: 60 kN/sqm
• Maximum point load pallet racking: 80 kN/leg
• Flatness tolerance with tripple certificate:
- FM2 according to TR34
- VERY FLAT according to ASTM E1155M
- Table 3, Zeile 4 according to DIN 18202
• Fire risk high level 8
- Certified automatic sprinkler installation (according to UNE and NFPA)
- Fire hose and hydrants conform to local regulations and building code
- Fire alarm and evacuation system conform the rules and code
• Lighting: energy efficient LED, 250 lux
OFFICES
• Offices with an open floor plan
• High-end VRF-system for cooling and heating
• LED lighting, 500 lux at worktable level
• High-end finishing
• External social area
SITE
• Perimeter fencing with automated entrance gate
• Reinforced concrete truck-court, designed for heavy loads
• Exterior lighting for loading area, circulation road and park yards
We usually deliver our commercial buildings in accordance with the standard specifications of Heylen Warehouses. However, a built-to-suit that deviates from Heylen Standard is also possible.
Our buildings are outstandingly multifunctional and meet the future standards
LABOUR
Illescas is considered one of the major logistics hubs in Spain and is the location of choice for many important multinational companies. The Autonomous Community of Castilla - La Mancha offers major incentives for hiring and training workers, as well as regional economic incentives to promote investment in the area.
The site benefits from an excellent labour pool drawn from a large catchment area between Madrid and Toledo. The Southern area of the Autonomous Community of Madrid is one of the most densely populated areas of Spain and has a long tradition of industrial and logistics activities. The municipalities of Parla, Pinto and Valdemoro, between Madrid and Illescas, have a joint population of more than a quarter million people, at less than 25 km from the asset.
SUSTAINABILITY AS STANDARD
The facilities will incorporate the BREAAM Excellent certificate, at no additional cost, and are equipped with numerous features related to sustainability.
Delta 21 is located in the state-of-the-art industrial estate called Plataforma Central Iberum (PCI). This is the most sustainable logistics park in Spain, recognised with a BREEAM Communities qualification of Very Good, recognising its low-impact, design and reduced carbon emissions, its durability, as well as its adaptation to climate change, the ecological value and the protection of biodiversity.
OUR SUSTAINABLE STRATEGY
SMART BUILDING
Our online energy dashboard will help customers proactively to manage the consumption of their utilities.
COST-EFFECTIVE
Reduced maintenance costs thanks to the use of high quality and performing materials.
SOLAR ENERGY
Sustainable and cost-efficient energy resulting in bottom-line savings.
REDUCING WATER USAGE
Latest technical solutions to reduce water usage.
OPTIMIZING THE USE OF NATURAL LIGHT
Assembled natural light solution that can save up to 10% a year on running costs.
EXCEEDING REGULATIONS
By exceeding the basic principles, we make our buildings future-proof for further growth.
RECYCLED & RECYCLABLE MATERIALS
Our initiatives contribute to a greener world and offer distinct advantages to our customers and communities.
CHARGING STATIONS EXCELLENT
REFERENCES
Like the ancient builders of cathedrals, our aim is to build for future generations.
