1.15 Raising/lowering the cab

A

B Danger!

Careful when raising/lowering the cab –

Danger of accidents!

☞Always tighten screws A, B and C when driving and working with the machine. ☞Always close the door ☞Stay clear from underneath the cab as you raise or lower it • Stop the engine • Remove the ignition key • Raise the control lever base (left)

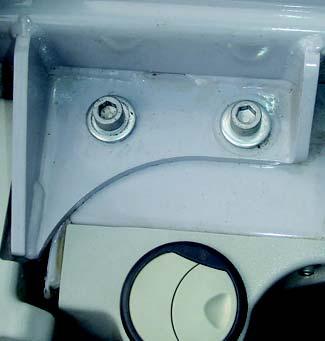

Removing the screw

Slacken the screws as follows: ☞Stop the engine ☞Remove the ignition key ☞Raise the control lever base (left) ☞Unscrew screw A with a suitable tool ➥ Screw A is located at the front right in the cab underneath the floor mat ☞Slacken screw B with a suitable tool ➥ Screw B is located at the right in the cab behind the seat

Danger!

Always close the door. Even if the door is secured in the open position with the door arrester –

Danger of accidents!

☞Always close the door before raising the cab ☞Should the door be open as you raise the cab, do not actuate the door opener unintentionally
