1.4 Tilting the cab

A E

D

A

D

E

B

Fig. 8: Tilting the cab

C F Danger!

Careful when tilting the cab –

Danger of accidents!

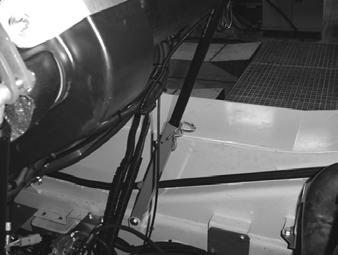

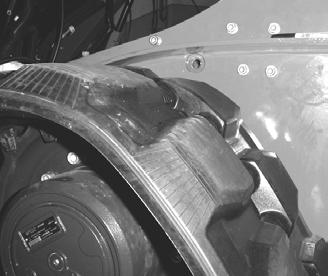

☞Always tighten lock screws B when driving and working with the machine! ☞Place the machine on level ground! ☞Close the door (option)! ☞Loader unit strut A may only be installed by a second person! ☞When tilting the cab make sure no-one is underneath the cab! ☞Loader unit strut A and cab strut C must always be secured with split pin D!

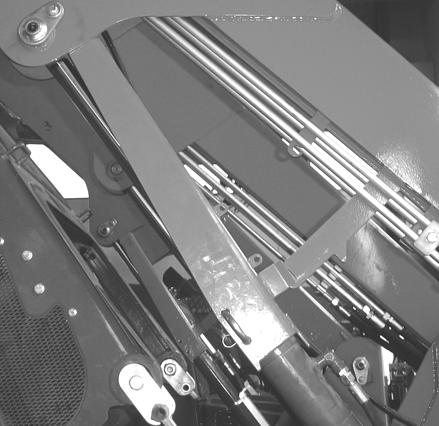

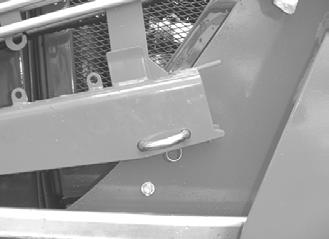

Tilting the cab: ☞Remove the attachment ☞Raise the loader unit and have a second person secure it ☞Remove split pin D from pin E ☞Remove pin E ☞Raise the loader unit until strut A makes contact with the piston rod ☞Put pin E back into place ☞Secure pin E with split pin D ☞Switch off the engine ☞Lower the loader unit down to loader unit strut A ☞Remove the ignition key ☞Fold up the safety bars ☞Remove securing screws B on either side with a suitable tool ☞Tilt the cab forwards with the handles ☞Secure the cab with split pin F
