Water separator (fuel filter) indicator light (red

3.10 Washer system tank

Refilling washer fluid

MAX

MIN 1

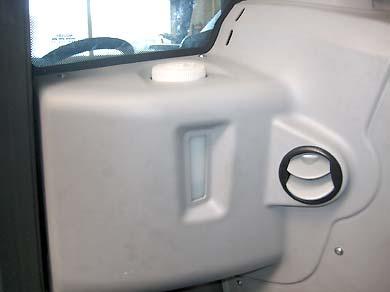

Fig. 25: Tank for washer system ☞ Start the engine and let it run briefly at low speed ☞ Stop the engine •Wait a moment until all the oil has run into the oil sump ☞ Check the oil level again •Fill up if necessary and check again ☞ Completely remove all oil spills from the engine

Environment!

Use a suitable container to collect the engine oil as it drains and dispose of it in an environmentally friendly manner!

Tank filler inlet 1 is located in the cab to the left of the seat.

Notice!

Fill with clean tap water only! Add a suitable cleaning agent if required. In winter: add antifreeze for washer systems to the water. Refer to the antifreeze instructions for further information on concentrations.
