Switch (grey) – front working light (option

Setting the lubrication and break times

Break time

Lubrication time

S P L

A B

Break times and lubrication times are set with the notched switches (S and P) in the window of the controls.

Adjust as follows: •Remove the red frame on the protective motor housing of the pump with a flat screwdriver to set the time •Slacken the four cross-slotted screws and remove the transparent cover •Set the break time P and the lubrication time S with a flat screwdriver

Lubrication times (S): 1 to 16 minutes (16 notches, 1 minute each) 2 to 32 minutes (16 notches, 2 minutes each)

Break time (P): 0.5 to 8 h (16 notches, 0.5 h each)

LED (L) (B) lubrication system in operation (A) lubrication under progress: 0.5 seconds LED ON/0.5 seconds LED OFF •Install the transparent cover (window) once the settings are carried out

Fig. 60: Setting the lubrication times

Caution!

Water can penetrate into the controls and damage them if the cover is not fitted and closed correctly!

Filling the central lubrication system

1

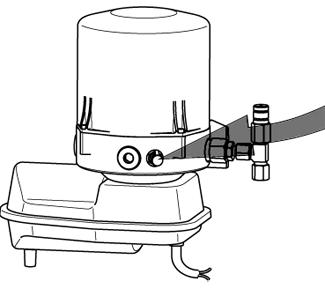

The lubrication system is filled via conical grease nipple 1 or a fill coupling with a manual or pneumatic grease gun.

Caution!

Use only commercially available greases up to NLGI-Kl. 2 to avoid damage to the lubrication system and the lubrication points! –see Fluids and lubricants on page3-4

Fig. 61: Filling the central lubrication system
