Front and rear axle differentials

Environment!

Use a suitable container to collect the gearbox oil as it drains and dispose of it in an environmentally friendly manner!

Notice!

Only use new sealing rings for oil filler and drain plugs. Drain oil only after running the machine for a longer period of time! See “Engine/machine fluids” for the authorised oil types and capacities.

Checking the oil level

Proceed as follows: •Park the machine on level ground •Clean and unscrew plug B If the oil level is below the opening or if the oil level cannot be seen at all: •Fill up the oil If the oil level is correct: •Tighten plug B with a new sealing ring to make an oil-tight seal

Filling up the oil

Proceed as follows: •Park the machine on level ground •Clean and unscrew plug B •Fill in oil until it runs out of the filler opening •Tighten plug B with a new sealing ring to make an oil-tight seal

Changing the oil

Proceed as follows: •Park the machine on level ground when it is at operating temperature •Place a container under plug C to collect the oil •Clean and unscrew plug B •Clean and unscrew plug C •Completely drain the old oil •Tighten plug C with a new sealing ring to make an oil-tight seal •Fill in oil until it runs out of the filler opening •Tighten plug B with a new sealing ring to make an oil-tight seal

B

C

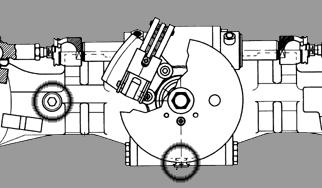

Fig. 52: Checking the oil level on the rear axle

B

C

Fig. 53: Checking the oil level on the front axle
