Handle

Variable displacement motor number

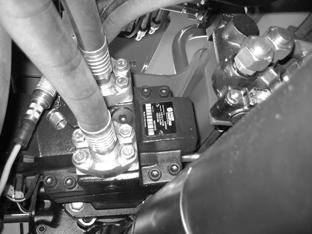

Fig. 7: Variable displacement motor type label Seen on lower side of machine. The type label (arrow) is located on the housing of the variable displacement motor (rear axle).

Number of transfer gearbox

Seen on lower side of machine. The type label (arrow) is located on the housing of the transfer gearbox (rear axle).

Fig. 8: Gearbox type label

Front or rear axle number

Seen on lower side of machine. The type label is located on the axle support (arrow). ➥ Rear axle (on the left in driving direction)

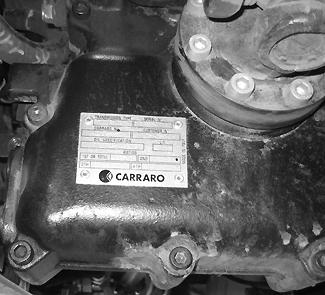

Fig. 9: Rear axle and gearbox type label
